REFERENCE:

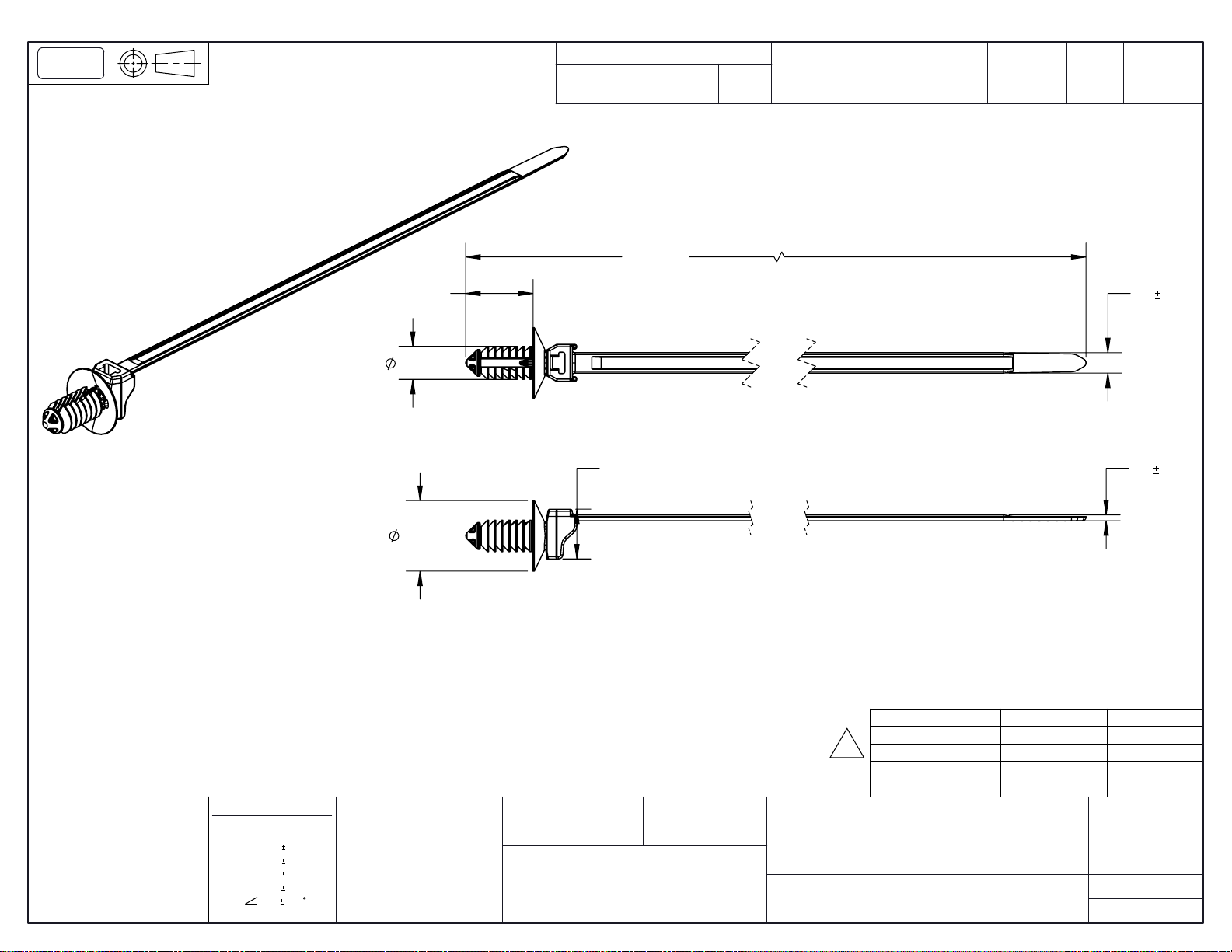

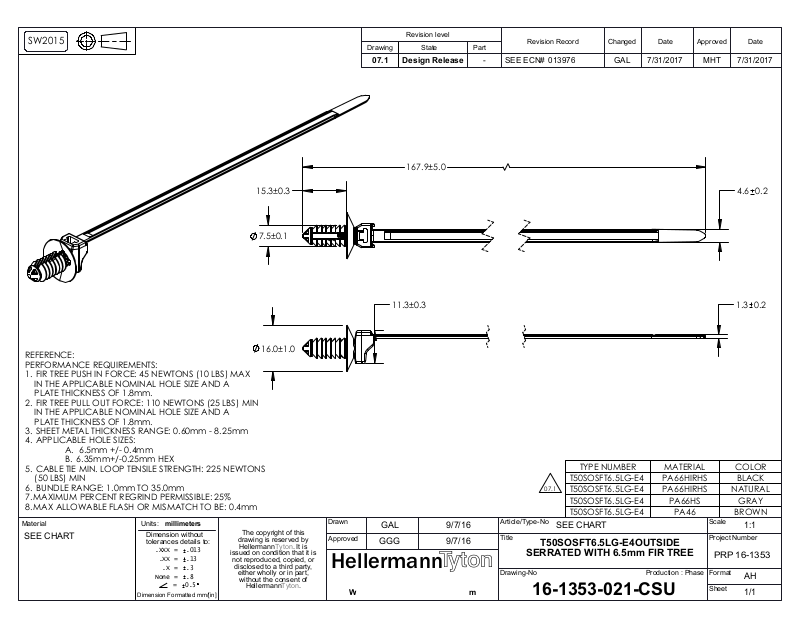

PERFORMANCE REQUIREMENTS:
FIR TREE PUSH IN FORCE: 45 NEWTONS (10 LBS) MAX
1.
IN THE APPLICABLE NOMINAL HOLE SIZE AND A
PLATE THICKNESS OF 1.8mm.
FIR TREE PULL OUT FORCE: 110 NEWTONS (25 LBS) MIN
2.
IN THE APPLICABLE NOMINAL HOLE SIZE AND A
PLATE THICKNESS OF 1.8mm.
SHEET METAL THICKNESS RANGE: 0.60mm - 8.25mm
3.
APPLICABLE HOLE SIZES:
4.
CABLE TIE MIN. LOOP TENSILE STRENGTH: 225 NEWTONS
5.
6.5mm +/- 0.4mm
A.
6.35mm+/-0.25mm HEX
B.
(50 LBS) MIN
BUNDLE RANGE: 1.0mm TO 35.0mm
6.
MAXIMUM PERCENT REGRIND PERMISSIBLE: 25%
7.
MAX ALLOWABLE FLASH OR MISMATCH TO BE: 0.4mm
8.
Material
SEE CHART
millimeters
Units:
Dimension without
tolerances details to:
.XXX =
.XX =
.X =
None =
Dimension Formatted mm/[in]
L.
=
.013
.13
.3
.8
± •
0.5
The copyright of this
drawing is reserved by
Hellermann
issued on condition that it is
not reproduced, copied, or
disclosed to a third party,
either wholly or in part,
without the consent of
15.3±0.3
7.5±0.1
t
16.0±1.0
Hellermann
Tyton
Tyton
. It is
.
167.9±5.0
11.3±0.3
Drawn
Approved
GAL
GGG
Hellermann
W m
--/A~-------
9/7/16
9/7/16
ton
T
y
TYPE NUMBER
T50SOSFT6.5LG-E4
07.1
T50SOSFT6.5LG-E4
T50SOSFT6.5LG-E4
T50SOSFT6.5LG-E4
Article/Type-No
Title
SEE CHART
T50SOSFT6.5LG-E4OUTSIDE
SERRATED WITH 6.5mm FIR TREE
Drawing-No
16-1353-021-CSU
MATERIAL
PA66HIRHS
PA66HIRHS
Production
PA66HS
PA46
: Phase
4.6 0.2
1.3
COLOR
BLACK
NATURAL
GRAY
BROWN
Scale
Project Number
Format
Sheet
PRP
1:1
16-1353
AH
1/1
0.2
