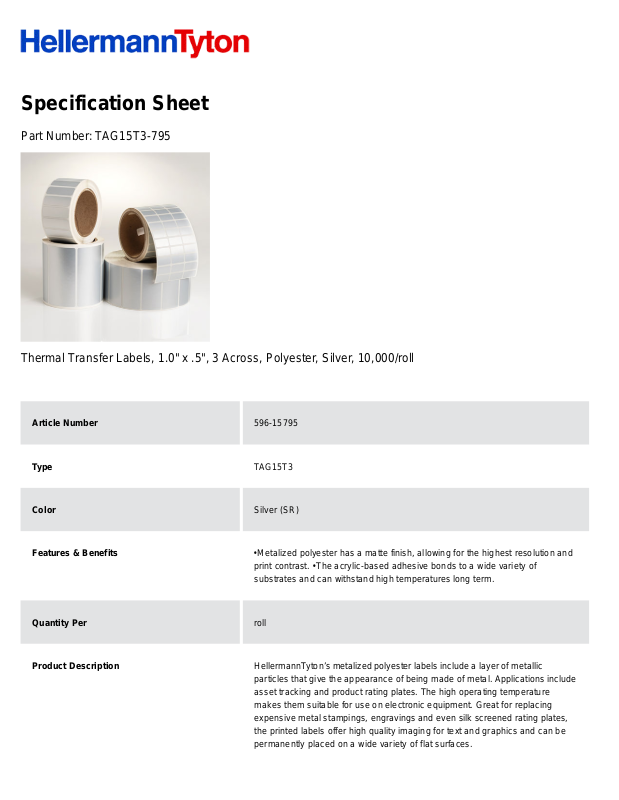

Specification Sheet
Part Number:
TAG15T3-795
Thermal Transfer Labels, 1.0" x .5", 3 Across, Polyester, Silver, 10,000/roll
Article Number
596-15795
Type
TAG15T3
Color
Silver (SR)
Features & Benefits
•
Metalized polyester has a matte finish, allowing for the highest resolution and
print contrast. •
The acrylic-based adhesive bonds to a wide variety of
substrates and can withstand high temperatures long term.
Quantity Per
roll
Product Description
HellermannTyton’s metalized polyester labels include a layer of metallic
particles that give the appearance of being made of metal. Applications include
asset tracking and product rating plates. The high operating temperature
makes them suitable for use on electronic equipment. Great for replacing
expensive metal stampings, engravings and even silk screened rating plates,
the printed labels offer high quality imaging for text and graphics and can be
permanently placed on a wide variety of flat surfaces.
Short Description
Thermal Transfer Labels, 1.0" x .5", 3 Across, Polyester, Silver, 10,000/roll
Global Part Name
TAG15T3-795-ML
Width W (Imperial)
1.0
Width W (Metric)
25.4
Thickness T (Metric)
64.0
Height H (Imperial)
0.5
Height H (Metric)
12.7
Width of Liner (Metric)
85.09
Width of Liner (imperial)
3.35
Material
Type 795, Polyester (PET)
Material Shortcut
795
Adhesive
Acrylic
Halogen free
No
Adhesive Operating Temperature
-40°F to +302°F (-40°C to +150°C)
Operating Temperature (Metric)
-40°F to +300°F (-40°C to +149°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
Certification/Specification WEB
UL-Recognized
UL Recognized (US)
Yes
UL Recognized (US and Canada)
Yes
Package Quantity(Imperial)
10000
Package Quantity (Metric)
10000
Customs Number
3919102055
Labels per Column
1
Labels per Row
3
Weight (Metric)
0.521
Weight (Imperial)
1.14
