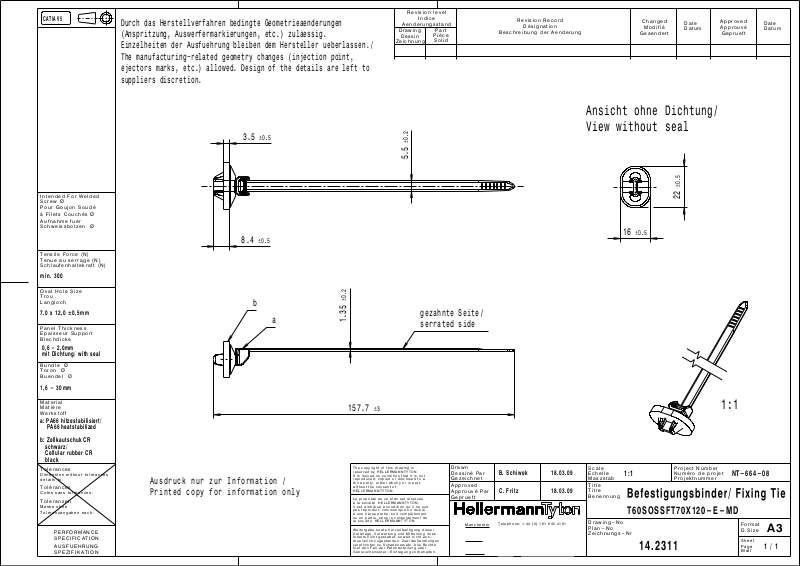

HellermannTyton T60SOSSFT70X120−E−MD Reference Drawing

CATIA V5
[
'
Intended For Welded Screw Ø
Pour Goujon Soudé à Filets Couchés Ø
Aufnahme fuer Schweissbolzen Ø
Tensile Force (N) Tenue au serrage (N) Schlaufenhaltekraft (N)
min. 300
-
Oval Hole Size Trou Langloch
7,0 x 12,0 ±0,5mm
Panel Thickness Epaisseur Support
Blechdicke
0,6 − 2,0mm mit Dichtung/ with seal
Bundle Ø Toron Ø Buendel Ø
1,6 − 30mm
10
0
I
Revision level
Durch das Herstellverfahren bedingte Geometrieaenderungen (Anspritzung, Auswerfermarkierungen, etc.) zulaessig.
Aenderungsstand
Drawing
Dessin
Zeichnung
Indice
I
Part
Pièce
Solid
Einzelheiten der Ausfuehrung bleiben dem Hersteller ueberlassen./ The manufacturing−related geometry changes (injection point, ejectors marks, etc.) allowed. Design of the details are left to suppliers discretion.
3.5 ±0.5
5.5 ±0.2
----
\
~
-
1/,.,=
~
,_
-IHH
8.4 ±0.5
-'
-fft-1-Ht-j} -
I
~
--
>--
-
~
-
b
gezahnte Seite/
-
~
/
a
1.35 ±0.2 serrated side
I
ctlJ
'--
Revision Record
Désignation
Beschreibung der Aenderung
Modifié
Geaendert
Date Datum
ApprovedChanged Approuvé
Geprueft
Date Datum
Ansicht ohne Dichtung/ View without seal
I/'
C)
~
....
-
~.--
-------~I.,._
-
22 ±0.5
~
I
16 ±0.5
~
~
-
Material Matière Werkstoff
a: PA66 hitzestabilisiert/ PA66 heatstabilized
b: Zellkautschuk CR schwarz/ Cellular rubber CR black
Tolerances
Dimension without tolerances details to:
Tolérances
Cotes sans tolérances:
Toleranzen
Masse ohne Toleranzangaben nach:
PERFORMANCE SPECIFICATION
AUSFUEHRUNG SPEZIFIKATION
~
,_
Ausdruck nur zur Information / Printed copy for information only
157.7 ±3
The copyright of this drawing is reserved by HELLERMANNTYTON. It is issued on condition that it is not reproduced, copied or disclosed to a third party, either wholly or in part, without the consent of HELLERMANNTYTON.
La propriété de ce plan est réservée à la société HELLERMANNTYTON. Il est distribué à condition qu’il ne soit pas reproduit, communiqué ou révélé à une tièrse partie, soit complètement ou en partie, sans le consentement de la société HELLERMANNTYTON.
Weitergabe sowie Vervielfaeltigung dieser Unterlage, Verwertung und Mitteilung ihres Inhalts nicht gestattet, soweit nicht aus− druecklich zugestanden. Zuwiderhandlungen verpflichten zu Schadenersatz. Alle Rechte fuer den Fall der Patenterteilung oder Gebrauchsmuster−Eintragung vorbehalten.
Drawn Dessiné Par Gezeichnet
Approved Approuvé Par Geprueft
Hel
I
~
B. Schiwek
C. Fritz 18.03.09
lermannlf
Manchester
Telephone: +44 (0) 161 945 4181
18.03.09
~©[ru
Scale Echelle Maszstab
Title Titre Benennung
1:1
Befestigungsbinder/
T60SOSSFT70X120−E−MD
Drawing−No Plan−No Zeichnungs−Nr
Project Number Numéro de projet Projektnummer
I
14.2311
1:1
NT−664−08
Fixing
Format D.Size
Sheet Page Blatt
Tie
A3
-
1 / 1
