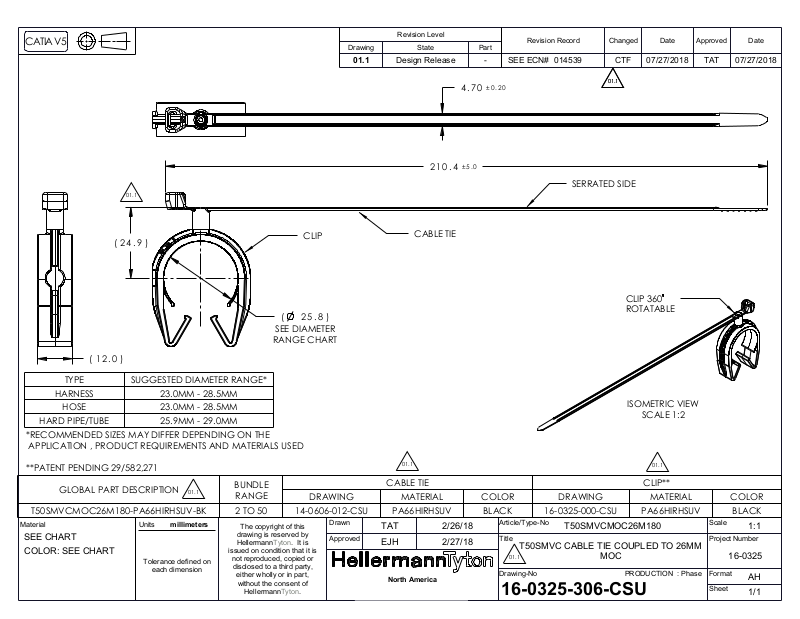

CATIA V5
Revision Level
Drawing Part
01.1 Design Release
State
-
Revision Record Changed Date Approved Date
SEE ECN#
014539
CTF 07/27/2018 TAT 07/27/2018
12.0( )
01.1
24.9( )
CLIP
25.8( )
SEE DIAMETER
RANGE CHART
210.4
CABLE TIE
4.70
±5.0
±0.20
01.101.1
SERRATED SIDE
CLIP 360
ROTATABLE
TYPE SUGGESTED DIAMETER RANGE*
HARNESS 23.0MM - 28.5MM
HOSE 23.0MM - 28.5MM
HARD PIPE/TUBE 25.9MM - 29.0MM
====-=±-I
*RECOMMENDED SIZES MAY DIFFER DEPENDING ON THE
APPLICATION , PRODUCT REQUIREMENTS AND MATERIALS USED
**PATENT PENDING 29/582,271
GLOBAL PART DESCRIPTION
T50SMVCMOC26M180-PA66HIRHSUV-BK 2 TO 50 14-0606-012-CSU PA66HIRHSUV BLACK 16-0325-000-CSU PA66HIRHSUV BLACK
Material Units millimeters
SEE CHART
COLOR:
SEE CHART
====-====I
01.1
Tolerance defined on
each dimension
BUNDLE
RANGE
The copyright of this
drawing is reserved by
HellermannTyton. It is
issued on condition that it is
not reproduced, copied or
disclosed to a third party,
either wholly or in part,
without the consent of
HellermannTyton.
DRAWING MATERIAL COLOR DRAWING MATERIAL COLOR
Drawn
Approved Title
TAT 2/26/18
EJH 2/27/18
ellermanniijfili
01.1
CABLE TIE CLIP**
North America
Article/Type-No Scale
T50SMVC CABLE TIE COUPLED TO 26MM
01.1
Drawing-No
T50SMVCMOC26M180
16-0325-306-CSU
ISOMETRIC VIEW
MOC
PRODUCTION
SCALE 1:2
01.1
: Phase
Project Number
16-0325
Format
Sheet
1:1
AH
1
/
1
