CATIA V5
Revision Level
Drawing Part
01.1 Design Release
State
-
4.70
Revision Record Changed Date Approved Date
SEE ECN#
±0.20
014539
CTF 07/27/2018 TAT 07/27/2018
01.1
22.9( )
CLIP
22.1( )
SEE DIAMETER
RANGE CHART
I-
-I
12.0( )
TYPE SUGGESTED DIAMETER RANGE*
HARNESS 20.0MM - 24.0MM
HOSE 20.0MM - 24.0MM
HARD PIPE/TUBE 22.0MM - 25.0MM
I I I
*RECOMMENDED SIZES MAY DIFFER DEPENDING ON THE
APPLICATION , PRODUCT REQUIREMENTS AND MATERIALS USED
210.4
±5.0
SERRATED SIDE
CABLE TIE
CLIP 360
ROTATABLE

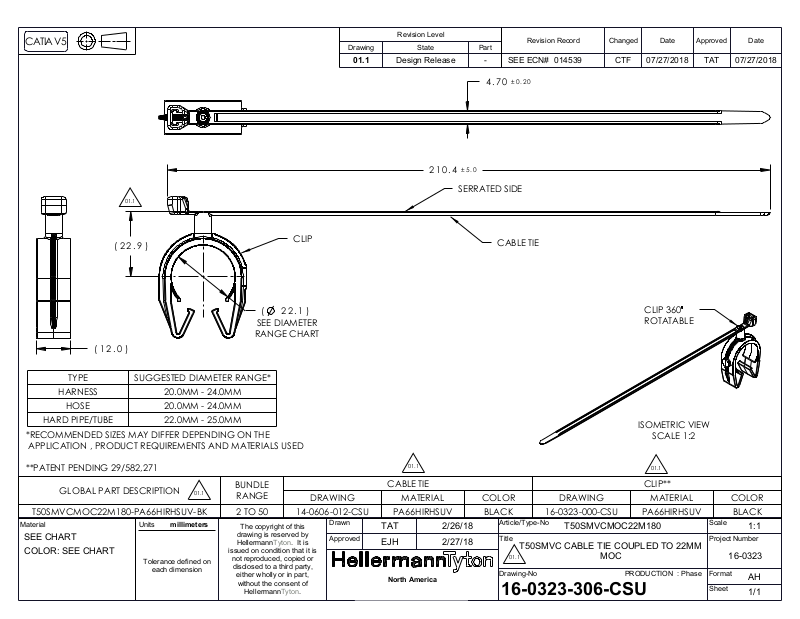

ISOMETRIC VIEW
SCALE 1:2
**PATENT PENDING 29/582,271
GLOBAL PART DESCRIPTION
01.1
BUNDLE
RANGE
01.1
CABLE TIE CLIP**
DRAWING MATERIAL COLOR DRAWING MATERIAL COLOR
01.1
T50SMVCMOC22M180-PA66HIRHSUV-BK 2 TO 50 14-0606-012-CSU PA66HIRHSUV BLACK 16-0323-000-CSU PA66HIRHSUV BLACK
Material Units millimeters
SEE CHART
COLOR:
SEE CHART
Tolerance defined on
each dimension
The copyright of this
drawing is reserved by
HellermannTyton. It is
issued on condition that it is
not reproduced, copied or
disclosed to a third party,
either wholly or in part,
without the consent of
HellermannTyton.
Drawn
Approved Title
TAT 2/26/18
EJH 2/27/18
Hellermanniijf[too
North America
Article/Type-No Scale
T50SMVCMOC22M180
Project Number
T50SMVC CABLE TIE COUPLED TO 22MM
01.1
6
,---------4-_J
Drawing-No
16-0323-306-CSU
MOC
PRODUCTION
: Phase
Format
Sheet
16-0323
1:1
AH
1
/
1
