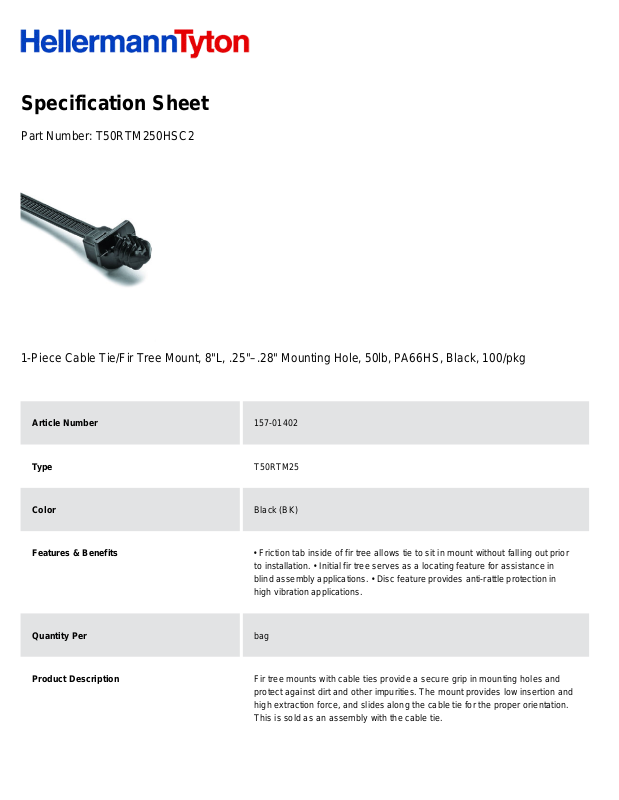

Specification Sheet
Part Number:
T50RTM250HSC2
1-Piece Cable Tie/Fir Tree Mount, 8"L, .25"–.28" Mounting Hole, 50lb, PA66HS, Black, 100/pkg
Article Number
157-01402
Type
T50RTM25
Color
Black (BK)
Features & Benefits
• Friction tab inside of fir tree allows tie to sit in mount without falling out prior
to installation. • Initial fir tree serves as a locating feature for assistance in
blind assembly applications. • Disc feature provides anti-rattle protection in
high vibration applications.
Quantity Per
bag
Product Description
Fir tree mounts with cable ties provide a secure grip in mounting holes and
protect against dirt and other impurities. The mount provides low insertion and
high extraction force, and slides along the cable tie for the proper orientation.
This is sold as an assembly with the cable tie.
Short Description
1-Piece Cable Tie/Fir Tree Mount, 8"L, .25"–.28" Mounting Hole, 50lb,
PA66HS, Black, 100/pkg
Global Part Name
T50RTM25-PA66HS-BK
Minimum Tensile Strength (Imperial)
50.0
Minimum Tensile Strength (Metric)
222
Length L (Imperial)
8.0
Length L (Metric)
203.2
Fixation Method
Fir Tree
Identification Plate Position
none
Releasable Closure
Yes
Tie Closure
plastic pawl
Variant
Inside Serrated
Width W (Imperial)
0.18
Width W (Metric)
4.6
Bundle Diameter Min (Imperial)
0.06
Bundle Diameter Min (Metric)
2.0
Bundle Diameter Max (Imperial)
2.0
Bundle Diameter Max (Metric)
50.8
Thickness T (Imperial)
0.05
Thickness T (Metric)
1.3
Height H (Imperial)
0.05
Height H (Metric)
1.3
Panel Thickness Min(Imperial)
0.05
Panel Thickness Max(Imperial)
0.28
Panel Thickness Min (Metric)
1.32
Panel Thickness Max (Metric)
6.35
Mounting Hole Diameter D (Imperial)
0.25 - 0.28
Mounting Hole Diameter D (Metric)
6.2 - 7.0 mm
Mounting Hole Diameter D Min (Imperial)
0.25
Mounting Hole Diameter D Max (Imperial)
0.28
Mounting Hole Diameter D Max (Metric)
7.0
Disc Diameter(Metric)
12.6
Disc Diameter (Imperial)
0.5
Material
Polyamide 6.6 heat stabilized (PA66HS)
Material Shortcut
PA66HS
Flammability
UL 94 V2
Operating Temperature (Metric)
-40°F to +257°F (-40°C to +125°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
Package Quantity(Imperial)
100
Package Quantity (Metric)
100
Customs Number
3926909988
Content Unit(BMEcat)
pcs.
Weight (Metric)
3.4
