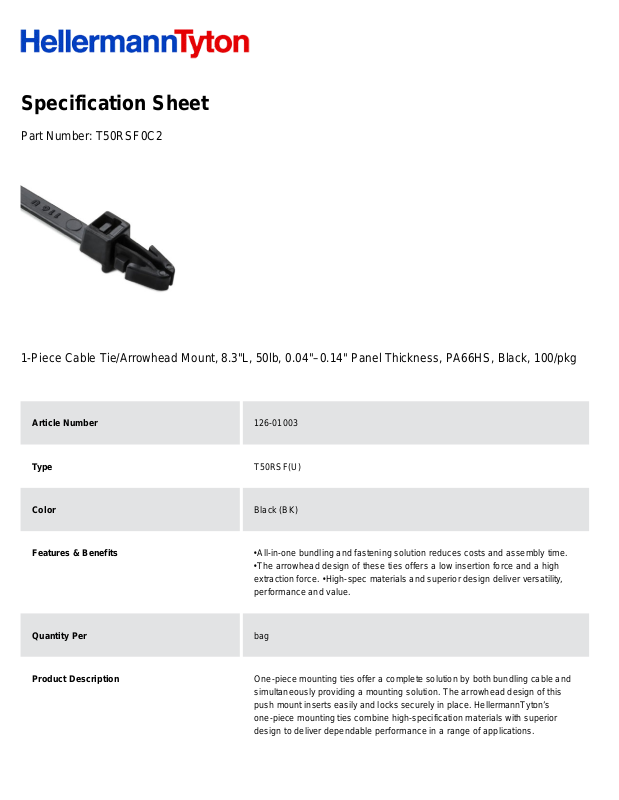

Specification Sheet
Part Number:
T50RSF0C2
1-Piece Cable Tie/Arrowhead Mount, 8.3"L, 50lb, 0.04"–0.14" Panel Thickness, PA66HS, Black, 100/pkg
Article Number
126-01003
Type
T50RSF(U)
Color
Black (BK)
Features & Benefits
•
All-in-one bundling and fastening solution reduces costs and assembly time.
•
The arrowhead design of these ties offers a low insertion force and a high
extraction force. •
High-spec materials and superior design deliver versatility,
performance and value.
Quantity Per
bag
Product Description
One-piece mounting ties offer a complete solution by both bundling cable and
simultaneously providing a mounting solution. The arrowhead design of this
push mount inserts easily and locks securely in place. HellermannTyton’s
one-piece mounting ties combine high-specification materials with superior
design to deliver dependable performance in a range of applications.
Short Description
1-Piece Cable Tie/Arrowhead Mount, 8.3"L, 50lb, 0.04"–0.14" Panel Thickness,
PA66HS, Black, 100/pkg
Global Part Name
T50RSF(U)-PA66HS-BK
Minimum Tensile Strength (Imperial)
50.0
Minimum Tensile Strength (Metric)
225
Length L (Imperial)
8.3
Length L (Metric)
210.82
Fixation Method
Arrowhead
Identification Plate Position
none
Releasable Closure
No
Tie Closure
plastic pawl
Variant
Inside Serrated
Width W (Imperial)
0.19
Width W (Metric)
4.7
Bundle Diameter Min (Imperial)
0.06
Bundle Diameter Min (Metric)
1.6
Bundle Diameter Max (Imperial)
1.7
Bundle Diameter Max (Metric)
44.0
Thickness T (Imperial)
0.05
Thickness T (Metric)
1.2
Height H (Imperial)
.30
Height H (Metric)
7.50
Panel Thickness Min(Imperial)
0.039
Panel Thickness Max(Imperial)
0.14
Panel Thickness Min (Metric)
1.0
Panel Thickness Max (Metric)
3.56
Mounting Hole Diameter D (Imperial)
0.25 - 0.28
Mounting Hole Diameter D (Metric)
6.4 - 7.1 mm
Mounting Hole Diameter D Min (Imperial)
0.25
Mounting Hole Diameter D Max (Imperial)
0.28
Mounting Hole Diameter D Max (Metric)
7.1
Material
Polyamide 6.6 (PA66)
Material Shortcut
PA66HS
Flammability
UL 94 V2
Operating Temperature (Metric)
-40°F to +221°F (-40°C to +105°C)
ROHS Complaint
Yes
Certification/Specification WEB
UL-ZODZ2.E64139
UL Recognized (US)
Yes
UL Recognized (US and Canada)
Yes
Package Quantity(Imperial)
100
Package Quantity (Metric)
100
Customs Number
3926909988
