Health O Meter 7654 User Manual

HeaM@atHomea

bmm

. . . . . . .

..C.........d..............................................

Digital Blood Pressure Monitor

Model 7654 Instruction Manual

Important Notes

Please read this manual carefully before using this device.

This Blood Pressure Monitor is intended for use by adults only.

Children should not use this monitor unless it is under the supervision
of an adult.

Only a physician is qualified to interpret changes in your blood pressure.
This device is not intended to replace regular medical examinations. It is
recommended that your physician review your procedure for using this

monitor. Never make adjustments to your medicaiton unless it is the advice

of a physician.

Please read these instructions carefully for accurate measurements

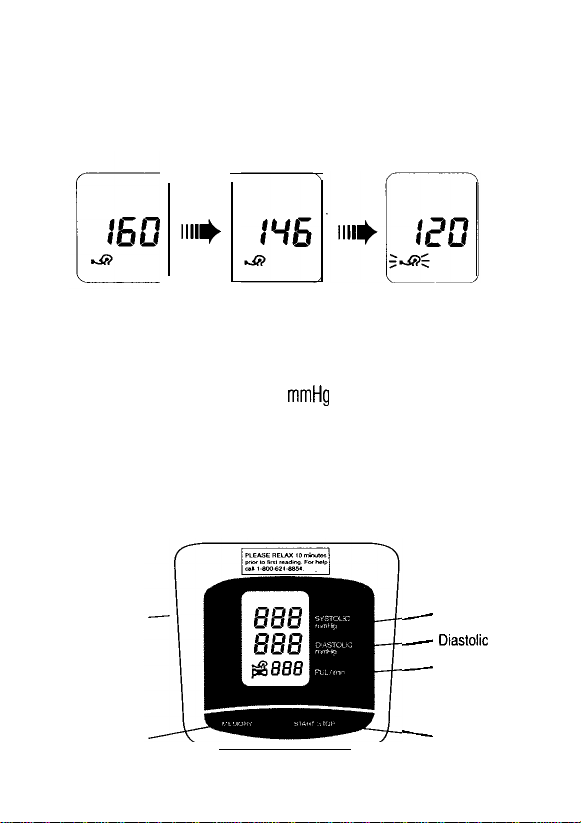

PARTS IDEWTIFICATION

Air Connector

Memory Switch

Straight Plug

Air Hose

Systolic Display

Diastolic Display
Pulse Display

Start/Stop Switch

Arm Cuff

PLEASEREADTHESE

INSTRUCTIONS CAREFULLY

Installing Batteries

Pane

3

1. Remove the battery cover from bottom of unit. Insert four
as shown, taking care to observe the proper direction for each battery. Use of
alkaline batteries is recommended.

2. Replace battery cover.

Important Notes

l

Replace all four batteries if the low battery symbol appears on the display.

l Remove batteries if storing the unit more than six months without use. Never

leave dead batteries in an unit since they may leak and cause damage.
Memory data will be cleared when batteries are changed or become exhausted.

VA”

size batteries

Proper Use of the Arm Cuff

1. Please relax and remain seated or reclined in a quiet location for 5 to 10
minutes prior to taking a measurement.

2. Remove any clothing on the upper arm so that the cuff can be placed directly on
the skin. Constriction of the upper arm caused by rolling up a shirt sleeve may
cause an inaccurate reading. Avoid this condition by completely removing the
garment causing the constriction.

3. Wrap the cuff around the upper arm as shown in the diagram on page 3. The

lower

edge

of the cuff (edge with air hose attached) should be about 1 inch
above the elbow. Position the cuff so that the hose runs along the inside of
the left arm.

4. Insert the straight plug on the end of the arm cuff air hose into the air connector
on the unit.

5. Relax for a few more minutes after the cuff is applied before beginning the
measurement.

1

inch (2-3 cm)

Measuring Your Blood Pressure

1.

Place the cuff on the arm that will be used for the measurement (preferably the

left arm). See previous section on proper cuff placement.

2. Press the START/STOP switch.

l When the START/STOP switch is pressed, all of the display symbols will

appear for about one second.

l When the

If there was still some air in the arm cuff, it will be exhausted at this time.

l The micropump will pressurize the cuff. Note: The cuff will become

very tight. Don’t be alarmed, as this is normal.

“0”

is displayed, the meter is calibrating it’s zero point.

Page 3
