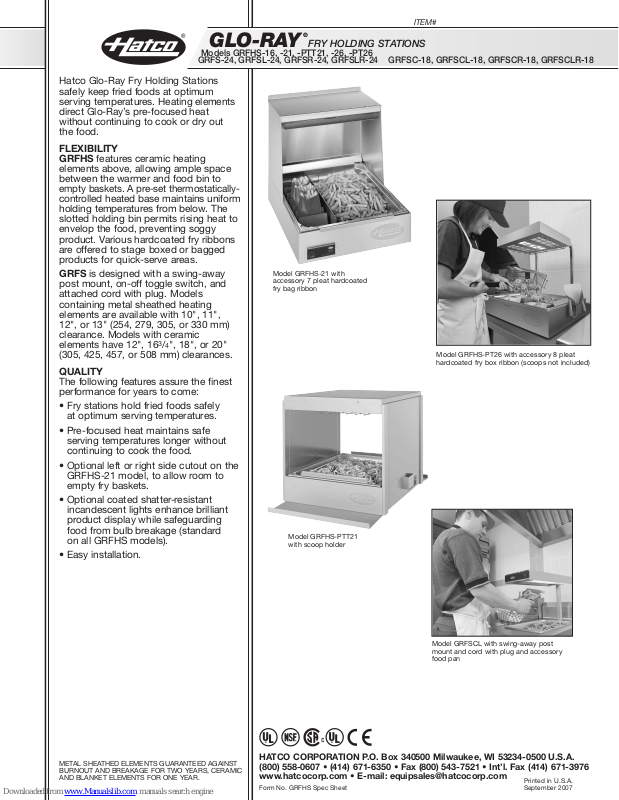

Hatco GRFSLR-24 Specifications

GLO-RAY

Models GRFHS-16, -21, -PTT21, -26, -PT26

GRFS-24, GRFSL-24, GRFSR-24, GRFSLR-24 GRFSC-18, GRFSCL-18, GRFSCR-18, GRFSCLR-18

Hatco Glo-Ray Fry Holding Stations
safely keep fried foods at optimum
serving temperatures. Heating elements
direct Glo-Ray’s pre-focused heat
without continuing to cook or dry out
the food.

LEXIBILITY

F
GRFHS features ceramic heating

elements above, allowing ample space
between the warmer and food bin to
empty baskets. A pre-set thermostatically­controlled heated base maintains uniform
holding temperatures from below. The
slotted holding bin permits rising heat to
envelop the food, preventing soggy
product. Various hardcoated fry ribbons
are offered to stage boxed or bagged
products for quick-serve areas.

GRFS is designed with a swing-away
post mount, on-off toggle switch, and
attached cord with plug. Models
containing metal sheathed heating
elements are available with 10", 11",
12", or 13" (254, 279, 305, or 330 mm)
clearance. Models with ceramic
elements have 12", 163/4", 18", or 20"
(305, 425, 457, or 508 mm) clearances.

QUALITY

The following features assure the finest
performance for years to come:

• Fry stations hold fried foods safely
at optimum serving temperatures.

• Pre-focused heat maintains safe
serving temperatures longer without
continuing to cook the food.

• Optional left or right side cutout on the
GRFHS-21 model, to allow room to
empty fry baskets.

• Optional coated shatter-resistant
incandescent lights enhance brilliant
product display while safeguarding
food from bulb breakage (standard
on all GRFHS models).

• Easy installation.

®

FRY HOLDING STATIONS

Model GRFHS-21 with
accessory 7 pleat hardcoated

ry bag ribbon

f

Model GRFHS-PTT21
with scoop holder

ITEM#

Model GRFHS-PT26 with accessory 8 pleat
hardcoated fry box ribbon (scoops not included)

METAL SHEATHED ELEMENTS GUARANTEED AGAINST
BURNOUT AND BREAKAGE FOR TWO YEARS, CERAMIC
AND BLANKET ELEMENTS FOR ONE YEAR.

Model GRFSCL with swing-away post
mount and cord with plug and accessory
food pan

HATCO CORPORATION P.O. Box 340500 Milwaukee, WI 53234-0500 U.S.A.
[phone] • [phone] • Fax [phone] • Int’l. Fax [phone]
www.hatcocorp.com • E-mail: [e-mail]

Form No. GRFHS Spec Sheet

Printed in U.S.A.
September 2007

1

0" to 13"

(254 to 330 mm)

121⁄2

" to 151⁄2

"

(318 to 394 mm)

6" or 9"

(152 or 229 mm)

24"

(610 mm)

FRONT VIEW

SIDE VIEW

12" to 20"

(305 to 508 mm)

191⁄4

" to 221⁄2

"

(489 to 572 mm)

18"

(457 mm)

FRONT VIEW

SIDE VIEW

6" or 9"

(152 or 229 mm)

61⁄4

"

(159 mm)

213⁄4

"

(552 mm)

163⁄8 " or 213⁄8 " or 261⁄8 "
(416 or 543 or 664 mm)

231⁄4

" or 275⁄8

" or 227⁄8

"

(591 or 702 or 581 mm)

FRONT VIEW

S

IDE VIEW

61⁄4

"

(

159 mm)

243⁄4

"

(

629 mm)

291⁄2"(749 mm)

223⁄4"(578 mm)

FRONT VIEW SIDE VIEW

131⁄2

"

(

343 mm)

225⁄8

"

(575 mm)

211⁄2"(546 mm)

225⁄8"(575 mm)

2

6" (660 mm)

6"

(152 mm)

6"

(152 mm)

FRONT VIEW

SIDE VIEW

ITEM#

®

GLO-RAY

Models GRFHS-16, -21, -PTT21, -26, -PT26

GRFS-24, GRFSL-24, GRFSR-24, GRFSLR-24 GRFSC-18, GRFSCL-18, GRFSCR-18, GRFSCLR-18

FRY HOLDING STATIONS

odel GRFHS-16, -21, -26

M

SPECIFICATIONS

Portable Fry Stations

Model Volts Watts Amps Shipping Weight

GRFHS-16 120 1090 9.1 63 lbs. (29 kg)
GRFHS-21 120 1200 10.0 67 lbs. (30 kg)
GRFHS-PTT21■120 1740 14.5 80 lbs. (36 kg)
GRFHS-26 120 1200 10.0 68 lbs. (31 kg)
GRFHS-PT26 120 1440 12.0 64 lbs. (29 kg)

Fry Stations – Metal Sheathed Elements

^

Model

GRFS-24 500 4.2 12 lbs. (5 kg)
GRFSL-24
GRFSR-24
GRFSLR-24

★

•

★

Fry Stations – Ceramic Elements

‡

Model

GRFSC-18 750 6.3 18 lbs. (8 kg)
GRFSCL-18
GRFSCR-18

★

•

GRFSCLR-18

■

Add 11/4" (32 mm) to width for each scoop holder.

^

Specify clearance of 10", 11", 12", or 13" (254, 279, 305, or 330 mm) when ordering.

★

“L” added to model number indicates incandescent light.

•

Fry station warmer without cord and plug, UR. Supply wires through mounting post.

‡

Specify clearance of 12", 163/4", 18", or 20" (305, 425, 457, or 508 mm)
when ordering.

Watts Amps Shipping Weight

620 5.2 14 lbs. (6 kg)
500 4.2 12 lbs. (5 kg)

•

620 5.2 14 lbs. (6 kg)

Watts Amps Shipping Weight

870 7.3 20 lbs. (9 kg)
750 6.3 13 lbs. (6 kg)

•

★

870 7.3 15 lbs. (7 kg)

odel GRFHS-PTT21

M

Model GRFS Model GRFSCModel GRFHS-PT26

DIMENSIONS

GRFHS-16: 163/8"W x 231/4"D x 213/4"H (416 x 591 x 552 mm).
GRFHS-21: 21
GRFHS-PTT21: 22
GRFHS-26: 26
GRFHS-PT26: 29
GRFS-24 & GRFSR-24: 6"W x 24"D x 12

(152 x 610 x 318-394 mm).

GRFSL-24 & GRFSLR-24: 9"W x 24"D x 12

(229 x 610 x 318-394 mm).

GRFSC-18 & GRFSCR-18: 6"W x 18"D x 19

(152 x 457 x 489-572 mm).

GRFSCL-18 & GRFSCLR-18: 9"W x 18"D x 19

(229 x 457 x 489-572 mm).

3

/8"W x 275/8"D x 213/4"H (543 x 702 x 552 mm).

5

/8"W x 38"D x 225/8"H (575 x 965 x 575 mm).

1

/8"W x 227/8"D x 213/4"H (664 x 581 x 552 mm).

1

/2"W x 223/4"D x 243/4"H (749 x 578 x 629 mm).

1

/2"-151/2"H

1

/2"-151/2"H

1

/4"-221/2"H

1

/4"-221/2"H

VOLTAGE

120 volts, single phase (uses NEMA 5-15P) (GRFHS-PTT21 uses
NEMA 5-20P for Canada). Export voltages available.

CORD LOCATION

GRFHS-16, -21, -26, -PT26 Models: Back side, lower right corner.
GRFHS-PTT21 Model: Lower right-hand side.
GRFS Models: Back, upper middle.

PLUG CONFIGURATIONS

CEE 7/ 7 SchukoNEMA 5-20PNEMA 5-15P

BS-1363

OPTIONS (NOT FOR RETROFIT)

❑ Halogen Bulb in lieu of Standard Display Light
❑ Left or Right side Cutout (GRFHS-21) (Adds 1.7

width of unit)

❑ Infinite Control (GRFS and GRFSL models only)

ACCESSORIES

❑ 4 Pleat Hardcoated Fry Box Ribbon (GRFHS-16 & -26)
❑ 5 Pleat Hardcoated Fry Bag Ribbon (GRFHS-16 & -26)
❑ 5 Pleat Hardcoated Fry Box Ribbon (GRFHS-21)
❑ 6 Pleat Hardcoated Fry Box/Bag Combo Ribbon (GRFHS-21)

PRODUCT SPECS

Fry Holding Station

The Fry Holding Station shall be a Glo-Ray®Model ....as

manufactured by the Hatco Corporation, Milwaukee, WI 53234
U.S.A.

With 24/7 parts and service assistance (U.S. and Canada only),

the Fry Holding Station shall be rated at ....watts, ....volts, and be

HATCO CORPORATION P.O. Box 340500 Milwaukee, WI 53234-0500 U.S.A. • [phone] • [phone]
Fax [phone] • Int’l. Fax [phone] • www.hatcocorp.com • E-mail: [e-mail]

Form No. GRFHS Spec Sheet

" (43mm) to

❑ 7 Pleat Hardcoated Fry Bag Ribbon (GRFHS-21)
❑ 8 Pleat Hardcoated Fry Box Ribbon (GRFHS-PT26)
❑

9 Pleat Hardcoated Fry Box/Bag Combo Ribbon (GRFHS-PT26)

❑ 10 Pleat Hardcoated Fry Bag Ribbon (GRFHS-PT26)
❑ Sectional Divider (GRFHS only, one standard per unit)
❑ 5" (127 mm) side-by-side bag holder (GRFHS-21)
❑ 5" (127 mm) piggy back bag holder (GRFHS-21 & -PTT21)
❑ Scoop Holder
❑ Food Pans
❑ Wire Trivet

....inches (millimeters) in overall width. It shall consist of either a

stainless steel housing or an aluminum housing with ceramic or
metal sheathed heating elements. Portable warmer features wire
guards, shatter-resistant incandescent display lights, a lighted
on-off switch, and 6' (1829 mm) cord and plug.

Printed in U.S.A.
September 2007
