Checking the supplied items
• Camera (1)
• Rechargeable battery pack NP-BX1 (1)
• Micro USB cable (1)
• AC Adaptor (1)
• Plug adapters (for worldwide use) (7)
• Wrist strap (1)
• Strap adapter (2) (Strap adapters are used to attach the shoulder strap (supplied), as
illustrated.)
• Instruction Manual (this manual) (1)
• Warranty/Owners Club booklet (1)
• Stellar soware CD (1)
• Adobe® Photoshop® Lightroom® DVD
Owner’s Record
e model and serial numbers are located on the bottom. Record the serial number in the
space provided below. Refer to these numbers whenever you call your Hasselblad dealer
regarding this product.
Model No. ____________________________
Serial No. _____________________________
ENG
2
Page 3
WARNING
To reduce re or shock hazard, do not expose the unit to rain or moisture.
IMPORTANT SAFETY INSTRUCTIONS
-SAVE THESE INSTRUCTIONS
DANGER
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, CAREFULLY
FOLLOW THESE INSTRUCTIONS
If the shape of the plug does not t the power outlet, use an attachment plug adaptor of the
proper conguration for the power outlet.
CAUTION
Battery pack
If the battery pack is mishandled, the battery pack can burst, cause a re or even chemical
burns. Observe the following cautions.
• Do not disassemble.
• Do not crush and do not expose the battery pack to any shock or force such as hammering,
dropping or stepping on it.
• Do not short circuit and do not allow metal objects to come into contact with the battery
terminals.
• Do not expose to high temperature above 60°C (140°F) such as in direct sunlight or in a
car parked in the sun.
• Do not incinerate or dispose of in re.
• Do not handle damaged or leaking lithium ion batteries.
ENG
3
Page 4
• Be sure to charge the battery pack using a genuine Hasselblad battery charger or a device
that can charge the battery pack.
• Keep the battery pack out of the reach of small children.
• Keep the battery pack dry.
• Replace only with the same or equivalent type recommended by Sony.
• Dispose of used battery packs promptly as described in the instructions.
AC Adaptor
Connect the AC Adaptor to the nearest wall outlet (wall socket).
If some trouble occurs while using the AC Adaptor, immediately shut o the
power by disconnecting the plug from the wall outlet (wall socket).
e power cord (mains lead), if supplied, is designed specically for use with
this camera only, and should not be used with other electrical equipment.
For Customers in the U.S.A. and Canada
RECYCLING LITHIUM-ION BATTERIES
Lithium-Ion batteries are recyclable.
You can help preserve our environment by returning your used rechargeable batteries to the collection and recycling
location nearest you.
For more information regarding recycling of rechargeable batteries, call toll free 1-800-822-8837, or visit http://
www.rbrc.org/
Caution: Do not handle damaged or leaking Lithium-Ion batteries.
Battery pack
is device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) is device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
is Class B digital apparatus complies with Canadian ICES-003.
ENG
4
Page 5
For Customers in the U.S.A.
UL is an internationally recognized safety organization.
e UL Mark on the product means it has been UL Listed.
Regulatory Information
Declaration of Conformity
Trade Name: Hasselblad
Model No.: Stellar
Responsible Party: Victor Hasselblad AB
Address: Utvecklingsgatan 2,
41756 Göteborg
Sweden
is device complies with Part15 of the FCC Rules. Operation is subject to the following two
conditions: (1) is device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
CAUTION
You are cautioned that any changes or modications not expressly approved in this manual could void your authority to operate this equipment.
Note:
is equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules.
ese limits are designed to provide reasonable protection against harmful interference in a residential installation.
is equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
e supplied interface cable must be used with the equipment in order to comply with the limits for a digital device
pursuant to Subpart B of Part 15 of FCC Rules.
ENG
5
Page 6
For Customers in Europe
Notice for the customers in the countries applying EU Directives
e manufacturer of this product is Victor Hasselblad AB, Utvecklingsgatan 2, 41756
Göteborg, Sweden. For any service or guarantee matters please refer to the addresses given in
separate service or guarantee documents.
is product has been tested and found compliant with the limits set out in the EMC Directive for using connection cables shorter than 3 meters (9.8 feet).
Attention
e electromagnetic elds at the specic frequencies may inuence the picture and sound of
this unit.
Notice
If static electricity or electromagnetism causes data transfer to discontinue midway (fail),
restart the application or disconnect and connect the communication cable (USB, etc.) again.
Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union
and other European countries with separate collection systems.
is symbol on the product or on its packaging indicates that this product shall not be
treated as household waste. Instead it shall be handed over to equipment. By ensuring this
product is disposed of correctly, you will help prevent potential negative consequences for
the environment and human health, which could otherwise be caused by inappropriate
waste handling of this product.
e recycling of materials will help to conserve natural resources. For more
detailed information about recycling of this product, please contact your local Civic Oce, your household waste disposal service or the shop where you
purchased the product.
ENG
6
Page 7
Disposal of waste batteries (applicable in the European Union and other European
countries with separate collection systems)
is symbol on the battery or on the packaging indicates that the battery
provided with this product shall not be treated as household waste. On
certain batteries this symbol might be used in combination with a chemical
symbol. e chemical symbols for mercury (Hg) or lead (Pb) are added
if the battery contains more than 0.0005% mercury or 0.004% lead. By
ensuring these batteries are disposed of correctly, you will help prevent
potentially negative consequences for the environment and human health which could
otherwise be caused by inappropriate waste handling of the battery. e recycling of the
materials will help to conserve natural resources.
In case of products that for safety, performance or data integrity reasons require a
permanent connection with an incorporated battery, this battery should be replaced by
qualied service sta only. To ensure that the battery will be treated properly, hand over the
product at end-of-life to the applicable collection point for the recycling of electrical and
electronic equipment.
For all other batteries, please view the section on how to remove the battery from the
product safely.
Hand the battery over to the applicable collection point for the recycling of waste batteries.
For more detailed information about recycling of this product or battery, please contact your
local Civic Oce, your household waste disposal service or the shop where you purchased
the product.
Notice for customers in the United Kingdom
A moulded plug complying with BS 1363 is tted to this equipment for your safety and
convenience.
Should the fuse in the plug supplied need to be replaced, a fuse of the same rating as the
supplied one and approved by ASTA or BSI to BS 1362, (i.e., marked with an or mark)
must be used.
If the plug supplied with this equipment has a detachable fuse cover, be sure to attach the
fuse cover aer you change the fuse. Never use the plug without the fuse cover. If you should
lose the fuse cover, please contact your nearest Hasselblad service centre.
ENG
7
Page 8
Identifying parts
ENG
8
Shutter button
Mode dial
(Intelligent Auto)/
(Superior Auto)/
(Program Auto)/
(Aperture Priority)/
(Shutter Priority)/
(Manual Exposure)/
(Memory recall)/
(Movie) / (Sweep
Shooting) / (Scene Selection)
For shooting: W/T (zoom) lever
For viewing: Index/Playback zoom lever
Self-timer lamp/Smile Shutter lamp/AF illuminator
Power/Charge lamp
ON/OFF (Power) button
Flash
• Do not cover the ash with your ngers.
• When using the ash, the ash pops up
automatically. If not using the ash, press it down
manually.
Microphone
Hook for strap
Control Ring
Lens
Speaker
Light sensor
LCD screen
Fn (Function) button
MOVIE (Movie) button
Micro USB connector
MENU button
Control wheel
Page 9
(Playback) button
(In-Camera Guide/Delete) button
Battery insertion slot
Battery eject lever
Tripod socket hole
• Use a tripod with a screw less than 5.5 mm
(7/32 inches) long. Otherwise, you cannot
rmly secure the camera, and damage to
the camera may occur.
Access lamp
Memory card slot
HDMI micro jack
Battery/Memory card cover
Inserting the battery pack
Battery eject lever
Open the cover.
1
Insert the battery pack.
2
• While pressing the battery eject lever, insert the battery pack as illustrated. Make sure
that the battery eject lever locks aer insertion.
• Closing the cover with the battery inserted incorrectly may damage the camera.
ENG
9
Page 10
Charging the battery pack
Power/Charge lamp
Lit: Charging
O: Charging nished
Flashing:
Charging error or
charging paused
temporarily because
the camera is not
within the proper
temperature range
Use the correct
plug for your
region
Connect the camera to the AC Adaptor (supplied), using the micro
1
USB cable (supplied).
10
ENG
Page 11
Connect the AC Adaptor to the wall outlet (wall socket).
2
e Power/Charge lamp lights orange, and charging starts.
• Turn o the camera while charging the battery.
• You can charge the battery pack even when it is partially charged.
• When the Power/Charge lamp ashes and charging is not nished, remove and reinsert the battery pack.
Notes
• If the Power/Charge lamp on the camera ashes when the AC Adaptor is connected to the
wall outlet (wall socket), this indicates that charging is temporarily stopped because the
temperature is outside the recommended range. When the temperature gets back within
the appropriate range, the charging resumes. We recommend charging the battery pack in
an ambient temperature of between 10°C to 30°C (50ºF to 86ºF).
• e battery pack may not be eectively charged if the terminal section of the battery is
dirty. In this case, wipe any dust o lightly using a so cloth or a cotton swab to clean the
terminal section of the battery.
• Connect the AC Adaptor (supplied) to the nearest wall outlet (wall socket). If malfunctions
occur while using the AC Adaptor, disconnect the plug from the wall outlet (wall socket)
immediately to disconnect from the power source.
• When charging is nished, disconnect the AC Adaptor from the wall outlet (wall socket).
• Be sure to use only genuine Sony brand battery packs, micro USB cable (supplied) and AC
Adaptor (supplied).
Charging time (Full charge)
e charging time is approximately 155 min. using the AC Adaptor (supplied).
Notes
• e above charging time applies when charging a fully depleted battery pack at a temperature of 25°C (77°F). Charging may take longer depending on conditions of use and
circumstances.
ENG
11
Page 12

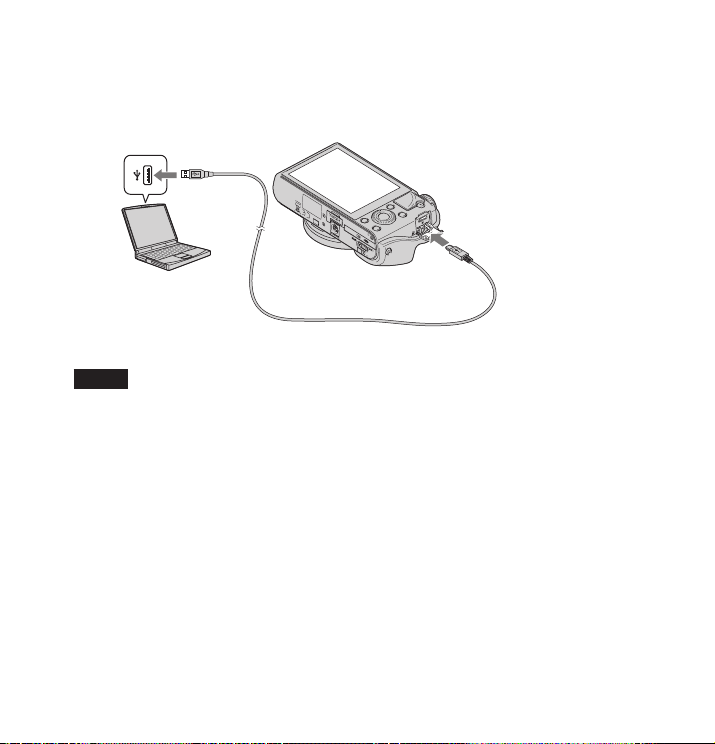

Charging by connecting to a computer
e battery pack can be charged by connecting the camera to a computer using a micro USB
cable.
Notes
• Note the following points when charging via a computer:
– If the camera is connected to a laptop computer that is not connected to a power source,
the laptop battery level decreases. Do not charge for an extended period of time.
– Do not turn on/o or restart the computer, or wake the computer to resume from sleep
mode when a USB connection has been established between the computer and the
camera. e camera may cause a malfunction. Before turning on/o, or restarting the
computer or waking the computer from sleep mode, disconnect the camera and the
computer.
– No guarantees are made for charging using a custom-built computer or a modied
computer.
12
ENG
Page 13
Battery life and number of images that can be recorded and played
back
Battery life Number of images
Shooting (still images) Approx 165 min. Approx 330 images
Viewing (still images) Approx 250 min. Approx 5000 images
Shooting (movies) Approx 80 min. –
Notes
• e above number of images applies when the battery pack is fully charged. e number of
images may decrease depending on the conditions of use.
• e number of images that can be recorded is for shooting under the following conditions:
– Using “Memory Stick PRO Duo” (Mark2) media (sold separately)
– e battery pack is used at an ambient temperature of 25°C (77°F).
• e number for “Shooting (still images)” is based on the CIPA standard, and is for shooting
under the following conditions:
(CIPA: Camera & Imaging Products Association)
– DISP is set to [Display All Info.].
– Shooting once every 30 seconds.
– e zoom is switched alternately between the W and T ends.
– e ash strobes once every two times.
– e power turns on and o once every ten times.
• e battery life for movies applies shooting under the following conditions:
– Record Setting: 60i 17M(FH)/50i 17M(FH)
–When continuous shooting ends because of set limits (29 minutes), press the MOVIE
(Movie) button again to continue shooting. Shooting functions such as zoom will not be
available.
13
ENG
Page 14
Supplying power
e camera can be supplied with power from the wall outlet (wall socket) by connecting
to the AC Adaptor (supplied), using the micro USB cable (supplied). is way, there is no
need to worry about draining the battery when shooting over extended periods or when the
camera is connected to a TV or computer.
Shooting and playback are possible without a battery pack in the camera.
Inserting a memory card (supplied)
Ensure the notched corner
faces correctly.
Open the cover.
1
Insert the memory card.
2
• With the notched corner facing as illustrated, insert the memory card until it clicks
into place.
Close the cover.
3
14
ENG
Page 15
Memory cards that can be used
A
Memory Stick PRO-HG Duo
Memory Stick Duo –
Memory Stick Micro (M2)
B
SD memory card
C
SDHC memory card
SDXC memory card
microSD memory card
D
microSDHC memory card
(Mark 2 only)
(Mark 2 only)
(Class 4 or faster)
(Class 4 or faster)
(Class 4 or faster)
(Class 4 or faster)
(Class 4 or faster)
Memory card For still images For movies
Memory Stick PRO Duo
• In this manual, the products in the table are collectively referred to as follows:
A: “Memory Stick Duo” media
B: “Memory Stick Micro” media
C: SD card
D: microSD memory card
Notes
• When using “Memory Stick Micro” media or microSD memory cards with this camera,
make sure to use with the appropriate adaptor.
To remove the memory card/battery pack
Memory card: Push the memory card in once to eject the memory card.
Battery pack: Slide the battery eject lever. Be sure not to drop the battery pack.
Notes
• Never remove the memory card/battery pack when the access lamp (page 8) is lit. is may
cause damage to data in the memory card.
15
ENG
Page 16
Setting the clock
ON/OFF (Power)
Power/Charge lamp (green)
Control wheel
Press the ON/OFF (Power) button.
1
Date & Time setting is displayed when you turn on the camera for the rst time.
• It may take time for the power to turn on and allow operation.
Check that [Enter] is selected on the screen, then press on the
2
control wheel.
Select a desired geographic location by following the on-screen
3
instructions, then press .
Set [Daylight Svg.:], date and [Date Format:], then press .
4
• Midnight is indicated as 12:00 AM, and noon as 12:00 PM.
Check that [Enter] is selected, then press .
5
ENG
Select items:
Set the numeric value of date
and time:
Set:
16
Page 17
Shooting still images/movie
Do not cover the ash.
Mode dial
: Intelligent Auto
: Movie
Shooting still images
Press the shutter button halfway down to focus.
1
When the image is in focus, a beep sounds and the or indicator lights.
Press the shutter button fully down to shoot an image.
2
Shutter button
W/T (zoom)
lever
W: zoom out
T: zoom in
MOVIE
Shooting movies
Press the MOVIE (Movie) button to start recording.
1
• Use the W/T (zoom) lever to change the zoom scale.
• Press the shutter button to shoot still images while continuing to record the movie.
Press the MOVIE button again to stop recording.
2
• Do not pull up the ash manually. is may cause a malfunction.
• When using the zoom function while shooting a movie, the sound of the camera operating
will be recorded. e sound of the MOVIE button operating may also be recorded when
movie recording is nished.
• Continuous shooting is possible for approximately 29 minutes at one time at the camera’s
default settings and when the temperature is approximately 25°C (77°F). When movie
recording is nished, you can restart recording by pressing the MOVIE button again.
Recording may stop to protect the camera depending on the ambient temperature.
ENG
17
Page 18
Viewing images
Fn (Function)
W: zoom out
T: zoom in
(Playback)
(Delete)
Press the (Playback) button.
1
• You can switch the display mode between still images and movies by
selecting MENU [Still/Movie Select].
Select images: (next)/ (previous)
Set:
or turn the control wheel
Selecting next/previous image
Select an image by pressing (next)/ (previous) on the control wheel or by turning the
control wheel. Press in the center of the control wheel to view movies.
Deleting an image
Press (Delete) button.
Select [Delete] with on the control wheel, then press .
Rotating an image
Press the Fn (Function) button.
Returning to shooting images
Press the shutter button halfway down.
ENG
18
Page 19
Viewing the Guide
is camera is equipped with a built-in instruction guide.
MENU
(In-Camera Guide)
In-Camera Guide
e camera displays explanations for MENU items and the setting values.
Press the MENU button.
1
Select the desired MENU item, then press / (In-Camera Guide)
2
button.
Shooting Tip
e camera displays shooting tips for the shooting mode selected.
Press (In-Camera Guide) button in shooting mode.
1
Select the desired shooting tip, then press on the control wheel.
2
e shooting tip is displayed.
• You can scroll the screen using and change shooting tips using .
19
ENG
Page 20
Introduction of other functions
Other functions can be operated using the control wheel, MENU button, etc.
Control Ring
MENU
Control wheel
Fn (Function)
Control wheel
DISP (Display Contents): Allows you to change the screen display.
(Flash Mode): Allows you to select a ash mode for still images.
(Exposure Comp./Photo Creativity): Allows you to adjust image brightness. Allows
you to change [Bkground Defocus], [Brightness], [Color], [Vividness] and [Picture Eect]
when shooting mode is set to [Intelligent Auto] or [Superior Auto].
(Drive Mode): Allows you to use the self-timer and burst shooting mode.
(Tracking focus): e camera tracks the subject and adjusts focus automatically even when
the subject is moving.
20
ENG
Page 21
Fn (Function) button
Allows you to register seven functions and recall those functions when shooting.
Press the Fn (Function) button.
Select the desired function using the Fn (Function) button or on the control wheel.
Select the setting value by turning the control wheel or Control Ring.
Control Ring
Your favorite functions can be assigned to the Control Ring; when shooting, established settings can be changed just by turning the Control Ring.
Menu Items
Still shooting menu
Image size
Aspect ratio
Quality
Panorama:Size
Panorama: Direction
Drive Mode
Flash Mode
Focus mode
Autofocus Area
Soft Skin Eect
Smile/Face Detect.
Auto Port. Framing
ISO
Metering Mode
Selects the size of still images.
Selects the aspect ratio for still images.
Sets the image quality for still images.
Selects the size of panoramic images.
Sets the shooting direction for panoramic images.
Sets the drive mode, such as for continuous shooting.
Sets the ash settings.
Selects the focus method.
Selects the area of focus.
Sets the So Skin Eect and the eect level.
Selects to detect faces and adjust various settings automatically. Sets to
automatically release the shutter when a smile is detected.
Analyzes the scene when capturing a face and saves another image with
a more impressive composition.
Adjusts the luminous sensitivity.
Selects the metering mode that sets which part of the subject to measure
to determine the exposure.
ENG
21
Page 22
Flash Comp.
White Balance
DRO/Auto HDR
Creative Style
Picture Eect
Clear Image Zoom
Digital Zoom
Long Exposure NR
High ISO NR
AF Illuminator
SteadyShot
Color Space
Shooting Tip
Write Date
Scene Selection
Memory recall
Memory
Adjusts the intensity of ash output.
Adjusts color tones of an image.
Compensates automatically for brightness and contrast.
Selects the desired image processing.
Shoots still images with a texture unique to the selected eect.
Provides a higher-quality zoomed image than with Digital Zoom.
Provides zoomed images at higher magnication than with Clear Image
Zoom.
Sets noise reduction processing for shots with a shutter speed of 1/3
second or longer.
Sets noise reduction processing for high-sensitivity shooting.
Sets the AF illuminator, which provides light for a dark
scene to aid focusing.
Sets SteadyShot.
Changes the range of reproducible colors.
List Accesses all shooting tips.
Sets whether to record a shooting date on the still image.
Selects pre-set settings to match various scene conditions.
Selects settings you want to recall when the mode dial is set to [Memory
recall].
Registers the desired modes or camera settings.
22
ENG
Page 23
Movie shooting menu
File Format
Record Setting
Image Size(Dual Rec)
SteadyShot
Audio Recording
Wind Noise Reduct.
Movie
Custom menu
Red Eye Reduction
Grid Line
Auto Review
DISP Button(Monitor)
Peaking Level
Peaking Color
Control Ring
Control Ring Display
Function Button (Fn)
Func. of Center Button
Func. of Left Button
Func. of Right Button
MF Assist
Focus Magnif. Time
Face Priority Tracking
Face Registration
Reduces the red-eye phenomenon when using ash.
Sets a grid line display to enable alignment to a structural outline.
Displays the captured image aer shooting. Sets auto review.
Sets the screen display modes that can be selected by pressing DISP on
the control wheel.
Enhances the outline of in-focus ranges with a specic color.
Sets the color used for the peaking function.
Assigns the desired functions to the Control Ring.
Sets whether to display animation when operating the Control Ring.
Customizes functions displayed when the Fn button is pressed.
Assigns the desired functions to the center button.
Assigns the desired functions to the le button.
Assigns the desired functions to the right button.
Displays an enlarged image when focusing manually.
Sets the length of time the image will be shown in an enlarged form.
Sets whether to track faces as a priority when tracking.
Registers or changes the person to be given priority in the focus.
Selects the movie le format.
Selects the size of the recorded movie frame.
Sets the still image size shot when recording a movie.
Sets SteadyShot.
Sets whether to record audio when shooting a movie.
Reduces wind noise during movie recording.
Selects the exposure mode to suit your subject or eect.
ENG
23
Page 24
Playback menu
Still/Movie
Delete
Slide Show
Image Index
Protect
Specify Printing
Picture Eect
Volume Settings
Playback Display
Select Selects the display format for images.
Deletes an image.
Shows a slide show.
Displays multiple images at the same time.
Protects the images.
Adds a print order mark to a still image.
Adds various textures to images.
Adjusts the volume.
Sets how to play back an image recorded in portrait.
Memory Card Tool menu
Format
File Number
Select REC Folder
New Folder
Recover Image DB
Display Card Space
Formats the memory card.
Sets the method used to assign le numbers to still images and movies.
Changes the selected folder for storing images.
Creates a new folder for storing still images and movies (MP4).
Recovers the image database le and enables recording and playback.
Displays the remaining recording time of movies and the recordable
number of still images on the memory card.
24
ENG
Page 25
Clock setup menu
Date/Time Setup
Area Setting
Sets date and time, and daylight savings.
Sets the location of use.
Setup menu
Menu start
Mode Dial Guide
LCD Brightness
Power Saving Start
Time
HDMI Resolution
CTRL FOR HDMI
Upload Settings*
USB Connection
USB LUN Setting
USB Power Supply
Audio signals
Version
Language
Drop Sensor
Demo Mode
Initialize
* Appears when an Eye-Fi card (sold separately) is inserted into the camera.
Sets the default position of the cursor on the menu to the top item or
the last-selected item.
Turns the mode dial guide (the explanation of each
shooting mode) on or o.
Sets the screen brightness.
Sets the length of time until the camera turns o automatically.
Sets the resolution when the camera is connected to an HDMI TV.
Operates the camera from a TV that supports “BRAVIA” Sync.
Sets the upload function of the camera when using an Eye-Fi card.
Sets the USB connection method.
Sets the mode when the camera is connected to a computer using a USB
connection.
Sets whether to supply power using a USB connection.
Sets the operating sound of the camera.
Displays the camera soware version.
Selects the language.
Sets the [Drop Sensor] function.
Sets demonstration playback of a movie to on or o.
Restores settings to their defaults
ENG
25
Page 26
Install “PlayMemories Home” (Windows)
e supplied soware “PlayMemories Home” allows you to import still images and movies
to your computer and use them.
You can shoot or play back images on this camera even if you do not install “PlayMemories
Home”, however, “PlayMemories Home” is required to import AVCHD movies to your
computer.
Insert the Stellar CD-Rom and run “start.exe”
1
Choose Your Language
2
Choose “Downloads”
3
Click on “PlayMemories Home”
4
e soware will now be downloaded to your preferred download folder.
Run “PMHOME_2003DL.exe” and follow the instructions on screen.
5
Notes
• “PlayMemories Home” is not compatible with Mac OS. If you play back images on a Mac,
use the applications that are installed on your Mac.
Features of “PlayMemories Home”
Below are examples of the functions available when you use “PlayMemories Home”. To take
advantage of the various “PlayMemories Home” functions, connect to the Internet and
install the “Expanded Feature”.
• You can import images shot with the camera to a computer and display them.
• You can display images stored on a computer by shooting date in a calendar display.
• You can correct (Red Eye Correction, etc.) still images, print the images, send images by
e-mail, and change the shooting date and time.
• You can save and print images with the date.
• You can create a disc from AVCHD movies imported to a computer. (Expanded Feature)
ENG
26
Page 27
Install “Image Data Converter” (Windows)
“Image Data Converter” allows you to develop RAW images.
Insert the Stellar CD-Rom and run “start.exe”
1
Choose Your Language
2
Choose “Image Data Converter”
3
Click on “Install IDC” and follow the instructions on screen.
4
Install “Image Data Converter” (Mac - English version)
Insert the Stellar CD-Rom
1
Choose Your Language
2
Open the “Image Data Converter” folder
3
Double click on the “IDC.dmg” le and follow the instructions on
4
screen.
Install “Image Data Converter” (Mac - All Non-English versions)
Insert the Stellar CD-Rom
1
Choose Your Language
2
Double click the “Image Data Converter” shortcut
3
Run the “IDC Install” package and follow the instructions on screen.
4
27
ENG
Page 28
Number of still images and recordable time of movies
e number of still images and recordable time may vary depending on the
shooting conditions and the memory card.
Still images
Image Size: L: 20M
When [Aspect Ratio] is set to [3:2]*
* When the [Aspect Ratio] is
set to other than [3:2], you
can record more pictures
than shown above. (Except
when [Quality] is set to
[RAW].)
Quality
Standard
Fine
RAW & JPEG
RAW
Capacity 2 GB
295 images
170 images
58 images
88 images
Movies
e table below shows the approximate maximum recording times. ese are the total times
for all movie les. Continuous shooting is possible for approximately 29 minutes.
e maximum size of an MP4-format movie le is up to approximately 2 GB.
Capacity 2 GB
Record Setting
60i 24M(FX)/50i 24M(FX)
60i 17M(FH)/50i 17M(FH)
60p 28M(PS)/50p 28M(PS)
1440×1080 12M
VGA 3M 1 h
ENG
10 m
10 m
9 m
15 m
1 h 10 m
(h (hour), m (minute))
28
Page 29
• e recordable time of movies varies because the camera is equipped with VBR (Variable
Bit Rate), which automatically adjusts image quality depending on the shooting scene.
When you record a fast-moving subject, the image is clearer but the recordable time is
shorter because more memory is required for recording.
e recordable time also varies depending on the shooting conditions, the subject or the
image quality/size settings.
Notes on using the camera
Functions built into this camera
• is manual describes 1080 60i-compatible devices and 1080 50i compatible devices. To
check whether your camera is a 1080 60i-compatible device or 1080 50i compatible device,
check for the following marks on the bottom of the camera.
1080 60i-compatible device: 60i
1080 50i-compatible device: 50i
• is camera is compatible with 1080 60p or 50p-format movies. Unlike standard recording
modes up to now, which record in an interlacing method, this camera records using a
progressive method. is increases the resolution, and provides a smoother, more realistic
image.
On use and care
Avoid rough handling, disassembling, modifying, physical shock, or impact such as
hammering, dropping, or stepping on the product. Be particularly careful of the lens.
29
ENG
Page 30
Notes on recording/playback
• Before you start recording, make a trial recording to make sure that the camera is working corre ctl y.
• e camera is neither dust-proof, nor splash-proof, nor water-proof.
• Avoid exposing the camera to water. If water enters inside the camera, a malfunction may occur.
In some cases, the camera cannot be repaired.
• Do not aim the camera at the sun or other bright light. It may cause the malfunction of the
camera.
• If moisture condensation occurs, remove it before using the camera.
• Do not shake or strike the camera. It may cause a malfunction and you may not be able to record
images. Furthermore, the recording media may become unusable or image data may be damaged.
Do not use/store the camera in the following places
• In an extremely hot, cold or humid place
In places such as in a car parked in the sun, the camera body may become deformed and this may
cause a malfunction.
• Storing under direct sunlight or near a heater
e camera body may become discolored or deformed, and this may cause a malfunction.
• In a location subject to rocking vibration
• Near a location that generates strong radio waves, emits radiation or is strongly magnetic place.
Otherwise, the camera may not properly record or play back images.
• In sandy or dusty places
Be careful not to let sand or dust get into the camera. is may cause the camera to malfunction,
and in some cases this malfunction cannot be repaired.
On carrying
Do not sit down in a chair or other place with the camera in the back pocket of your trousers or
skirt, as this may cause malfunction or damage the camera.
Carl Zeiss lens
e camera is equipped with a Carl Zeiss lens which is capable of reproducing sharp images with
exellent contrast. e lens for the camera has been produced under a quality assurance system
certied by Carl Zeiss in accordance with the quality standards of Carl Zeiss in Germany.
Notes on the screen
e screen is manufactured using extremely high-precision technology so over 99.99% of the pixels
are operational for eective use. However, some tiny black and/or bright dots (white, red, blue or
green) may appear on the screen. ese dots are a normal result of the manufacturing process, and
do not aect the recording.
ENG
30
Page 31
Notes on the ash
• Do not carry the camera by the ash unit, or use excessive strength on it.
• If water, dust or sand get into the open ash unit, it may cause a malfunction.
On camera’s temperature
Your camera and battery may get hot due to continuous use, but it is not a malfunction.
On the overheat protection
Depending on the camera and battery temperature, you may be unable to record movies or the
power may turn o automatically to protect the camera.
A message will be displayed on the screen before the power turns o or you can no longer record
movies. In this case, leave the power o and wait until the camera and battery temperature goes
down. If you turn on the power without letting the camera and battery cool enough, the power may
turn o again or you may be unable to record movies.
On charging the battery
If you charge a battery that has not been used for a long time, you may be unable to charge it to the
proper capacity.
is is due to the battery characteristics, and is not a malfunction. Charge the battery again.
Warning on copyright
Television programs, lms, videotapes, and other materials may be copyrighted.
Unauthorized recording of such materials may be contrary to the provisions of the copyright laws.
No compensation for damaged content or recording failure
Hasselblad cannot compensate for failure to record or loss or damage of recorded content due to a
malfunction of the camera or recording media, etc.
Cleaning the camera surface
Clean the camera surface with a so cloth slightly moistened with water, then wipe the surface with
a dry cloth. To prevent damage to the nish or casing:
– Do not expose the camera to chemical products such as thinner, benzine, alcohol, disposable
cloths, insect repellent, sunscreen or insecticide.
31
ENG
Page 32
Specications
Camera
[System]
Image device: 13.2 mm × 8.8 mm (1.0 type) Exmor
CMOS sensor
Total number of pixels:
Approx. 20.9 Megapixels
Eective number of pixels:
Approx. 20.2 Megapixels
Lens: Carl Zeiss Vario-Sonnar T* 3.6× zoom lens
f = 10.4 mm – 37.1 mm (28 mm –100 mm
(35 mm lm equivalent)) F1.8 (W) – F4.9 (T)
While shooting movies (16:9): 29 mm – 105 mm
While shooting movies (4:3): 36 mm – 128 mm*1
*1When [SteadyShot] is set to [Standard]
SteadyShot: Optical
Exposure control: Automatic exposure, Aperture
priority, Shutter priority, Manual exposure,
Scene Selection (13 modes)
White balance: Automatic, Daylight, Shade, Cloudy,
Incandescent, Fluorescent (Warm White/
Cool White/Day White/Daylight),
Flash, Color temperature/Color lter, Custom
Signal format:
For 1080 50i: PAL color, CCIR standards HDTV
1080/50i, 1080/50p specication
For 1080 60i:
NTSC color, EIA standards HDTV 1080/60i,
1080/60p specication
File format:
Still images: JPEG (DCF, Exif, MPF Baseline)
compliant, DPOF compatible
Movies (AVCHD format): AVCHD format Ver. 2.0
compatibl e
Video: MPEG-4 AVC/H.264
Audio: Dolby Digital 2ch, equipped with Dolby
Digital Stereo Creator
• Manufactured under license from Dolby
Laboratories.
ENG
32
Movies (MP4 format): Video: MPEG-4 AVC/H.264
Audio: MPEG-4 AAC-LC 2ch
Recording media: “Memory Stick Duo” media, “Memory
Stick Micro” media, SD cards, microSD
memory cards
Flash: Flash range (ISO sensitivity
(Recommended Exposure Index) set to Auto):
Approx. 0.3 m to 17.1 m (11 3/4 inches to 56 .
1 3/4 inches) (W) Approx. 0.55 m to 6.3 m (1 .
9 1/2 inches to 20 . 8 inches) (T)
[Input and Output connectors]
*1
HDMI connector: HDMI micro jack
Micro USB connector: USB communication
USB communication: Hi-Speed USB (USB 2.0)
[Screen]
LCD screen: 7.5 cm (3.0 type) TFT drive
Total number of dots: 1 228 800 dots
[Power, general]
Power: Rechargeable battery pack NP-BX1, 3.6 V
AC Adaptor, 5 V
Power consumption (during shooting): 1.5 W
Operating temperature: 0 °C to 40 °C (32 °F to 104 °F)
Storage temperature: –20 °C to +60 °C (–4 °F to +140 °F)
Dimensions (CIPA compliant):
109 mm × 59 mm × 36 (W/H/D)
Mass (CIPA compliant) (including NPBX1 battery pack,
“Memory Stick Duo” media): Approx. 252 g
Microphone: Stereo
Speaker: Monaural
Exif Print: Compatible
PRINT Image Matching III: Compatible
Page 33
AC Adaptor
Power requirements: AC 100 V to 240 V,
50 Hz/60 Hz, 0.2 A
Output voltage: DC 5 V, 1 500 mA
Operating temperature: 0 °C to 40 °C
Storage temperature: –40 °C to +85 °C
Dimensions:
Approx. 75 mm × 33 mm × 45 mm (W/H/D)
Mass: Approx. 75 g
Rechargeable battery pack NP-BX1
Used battery: Lithium-ion battery
Maximum voltage: DC 4.2 V
Nominal voltage: DC 3.6 V
Maximum charge voltage: DC 4.2 V
Maximum charge current: 1.89 A
Capacity: 4.5 Wh (1 240 mAh)
Design and specications are subject to
change without notice.
33
ENG
Page 34
Trademarks
• e following marks are trademarks of Sony
Corporation.
, “Cyber-shot,”
“Memory Stick PRO Duo,”
“Memory Stick PRO-HG Duo,”
“Memory Stick Duo,” “Memory
Stick Micro”
• “AVCHD Progressive” and “AVCHD Progressive” logotype are trademarks of Panasonic
Corporation and Sony Corporation.
• Windows is registered trademark of Microso
Corporation in the United States and/or
other countries.
• Mac and Mac OS are registered trademarks
of Apple Inc.
• SDXC logo is a trademark of SD-3C, LLC.
• “ ” and “PlayStation” are registered trademarks of Sony Computer Entertainment Inc.
• In addition, system and product names used
in this manual are, in general, trademarks
or registered trademarks of their respective
developers or manufacturers. However, the
or marks are not used in all cases in
this manual.
• Add further enjoyment with your PlayStation 3 by downloading the application for
PlayStation 3 from PlayStation Store (where
available.)
• e application for PlayStation 3 requires
PlayStation Network account and application
download. Accessible in areas where the
PlayStation Store is available.
Additional information on this
product and answers to frequently
asked questions can be found at
our Customer Support Website.
www.hasselblad.com
34
ENG
Page 35
v1.0
Victor Hasselblad AB
www.hasselblad.com
35
ENG
Loading...
