Harmar Mobility LiftAL030 User Manual

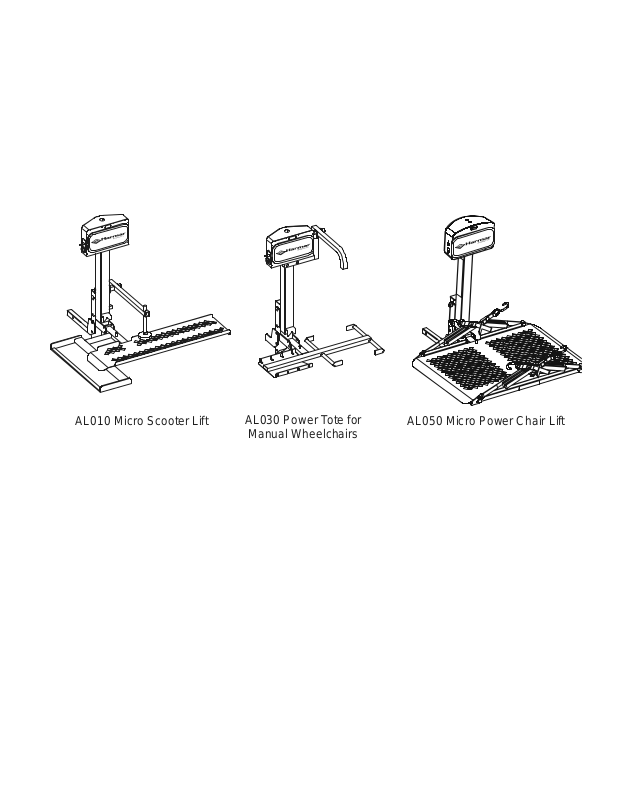

AL010 Micro Scooter Lift AL050 Micro Power Chair Lift
AL030 Power Tote for
Manual Wheelchairs
CLASS 2
Hitch Adapter
HITCH POST
AL010 - Micro Scooter Lift
LIFT BODY
HARDWARE
PACK
CLASS 2
Hitch Adapter
OR
CLASS 3
OPTIONAL
HITCH POST
AL030 - Manual Wheelchair Lift
AL050 - Micro Power Chair Lift
LIFT BODY
LIFT BODY
HITCH ADAPT ER
and Stabilizer
HARDWARE PACK
HARDWARE
PACK
U-Bolt
HARDWARE
PACK
OR
OR
CLASS 3
CLASS 3
OR
CLASS 2
OPTIONAL
OPTIONAL
OPTIONAL
HITCH POST
PLATFORM
KEEPER
NOTE: The Platform will not be
allowed to unfol d until the platform
has been lower ed at le ast 1 i nch.
&
Unpackaging the Lift
Check the contents of the box against the package check list to be sure that all parts are
included with the lift that are required for proper installation. If any parts are missing or if any damage is
noted, immediately contact your Harmar Dealer. DO NOT attempt to install or use the lift with any missing
or damaged parts.
Models AL010and AL050 are packaged with a standard Class 2 hitch adapter. Model AL030 is packaged with a standard Class 1 flat bar style hitch adapter and stabilizer. If a different model hitch adapter or a Swing Away option is
required, separate parts must be ordered.
Vehicle Wiring Instructions
B
L
A
C
K
W
I
R
E
B
L
A
C
K
W
I
R
E
OR
Side mount
Top mount
Unwind the harness and lay it flat on the ground. One end of
the harness has a black plug; this runs to the back of the
vehicle.
BEGIN ROUTING THE HARNESS AT THE VEHICLE BATTERY.
Connect the black wire to the negative terminal of the battery.
Do not connect the positive terminal yet.
Run wiring harness under, or if possible, through the vehicle,
using cable ties provided to secure the harness to the vehicle.
Position the harness away from the fuel tank, exhaust system, brake and fuel lines and any possible pinch points.
Harness should be positioned where it will not come in contact with any road debris.
The harness may be too long for the vehicle. DO NOT CUT
OR SHORTEN THE HARNESS. Use cable ties provided to coil
excess wire and secure it to the vehicle frame.Rear plug
should be secured even to the vehicle’s trailer hitch.
Connect the red wire to the positive battery
terminal.
Wire in a standard 4-contact female flat trailer
connector to the vehicle’s taililights. This will
provide power for the motor cover light.
TRAILER PL U G
ON LIFT HA RNESS
MOTO R COVER
LIGHT
Ground for light is
provided by main
2 prong power
connector
BROWN WIRE
Hitch Adapters
Bumper Mount
( Be sure to comply with
vehicle's bumper rating )
CLASS 1
( Flat Bar Style )
CLASS 2
( 1.25 x 1.25 Solid Bar )
Omit stabili zer
CLASS 3
( 2 x 2 TUBE )
Refer to Se ct io n 4 or 5
for proper or ientation
( right side up or upside down )
Determines lift's height from
the gr ound
PINCH BOLT
SLEEVE
FOR AL030 ONLY
( CLASS 1 )
Before installing an outside lift on your vehicle the vehicle must be equipped with the correct hitch. If
you are unsure whether your vehicle has, or can accept a hitch, contact your local hitch installer or
visit www.hitch-web.com for vehicle hitch compatibility information.
Please note, your lift comes equipped with a license plate hold light. To power this light vehicle must
have a standard 4-contact trailer light harness. Contact your local hitch installer for more information.
Trailer light wiring is designed to power license plate light ONLY. Attempting to run your lift
from ANY secondary power sorce may cause your lift to operate poorly and could potentially
cause damadge to the motor. All Harmar lifts must be wired directly to the vehicle battery.
Hitch recievers MUST be installed so that it sits parellel to the ground. An improperly
installed hitch can affect the operation of your lift. Some vehicles will require supension to be supplemented. Contact your local hitch installer or refer to your vehicle’s
owners manual for further guidance.
The following pages will help
you to determine correct
hitch adapter positioning.
Installing the Lift
Measur e from Hitc h Bar to ground
5-13"
13-15"
15-17"
17-19"
OMIT
STABILIZER
OMIT
STABILIZER
HITCH
POST
HITCH
ADAPTER
Installing the Lift With Swing Away Option
Measur e from Hitc h Bar to ground
4-12" 12-14"
14-16"
16-17"
