AL003 Tilt N Tote
Page 2
Unpacking the Lift
OR
CLASS 3CLASS 2
OR
CLASS 1
CARRIER
ASSEMBLY
STABILIZER
OPTIONAL
OPTIONAL
HOLD
DOWN
ARM
Each Tilt and Tote is packaged with a Class 1 Hitch Adapter and Stabilizer.
If a Class 2 or Class 3 hitch adapter is required, separate parts must be ordered.
Be sure and check the contents of the box against the package check list to be sure
that all parts are included with the carrier that are required for proper installation. If
any parts are missing or if any damage is noted, immediately contact the distributor
from which you purchased your lift. DO NOT attempt to install or use the lift with any
missing or damaged parts.
Page 3
Hitch Adapter Installation
REMOVE,
FLIP,
RE-ATTACH
REMOVE,
FLIP, MOVE UP,
RE-ATTACH
REMOVE,
MOVE UP,
RE-ATTACH
Bumper Mount
( Be sure to comply with
vehicle's bumper rating )
CLASS 1
( Flat Bar Style )
CLASS 2
( 1.25 x 1.25 Solid Bar )
Omit stabilizer
CLASS 3
( 2 x 2 TUBE )
Do not attempt to
mount up fr om under
Refer to diagram below
for proper or ie ntation
( right side up or upside down )
Determines carrier's height
from the grou nd
DETERMINE BEST MOUNTING HEIGHT
45 max
Harmar recommends maintaining 8-12" of ground
clearance from the bottom of the unfolded platform,
while not exceeding 45 degrees of tilt ( 12" off the ground )
To achieve this, a number of mounting options are avai lable.
8-12"
Measure from Hitch Bar to ground
AS SHIPPED
8-12"
10-14"
12-16"
14-18"
IF FLIPPING HITCH ADAPTER FOR BETTER HEIGHT,
BOTH PARTS M UST BE FLIPPED TOGETHER .
ORIENTATION OF THESE PARTS IS IMPORTANT
FOR THE TILT AWAY FEA TU RE LIMITS.
OR
NOTE:
ORIENT ATION OF CLASS 2 and CLASS 3 HITCH ADAPTERS IS IDENTICAL
Page 4

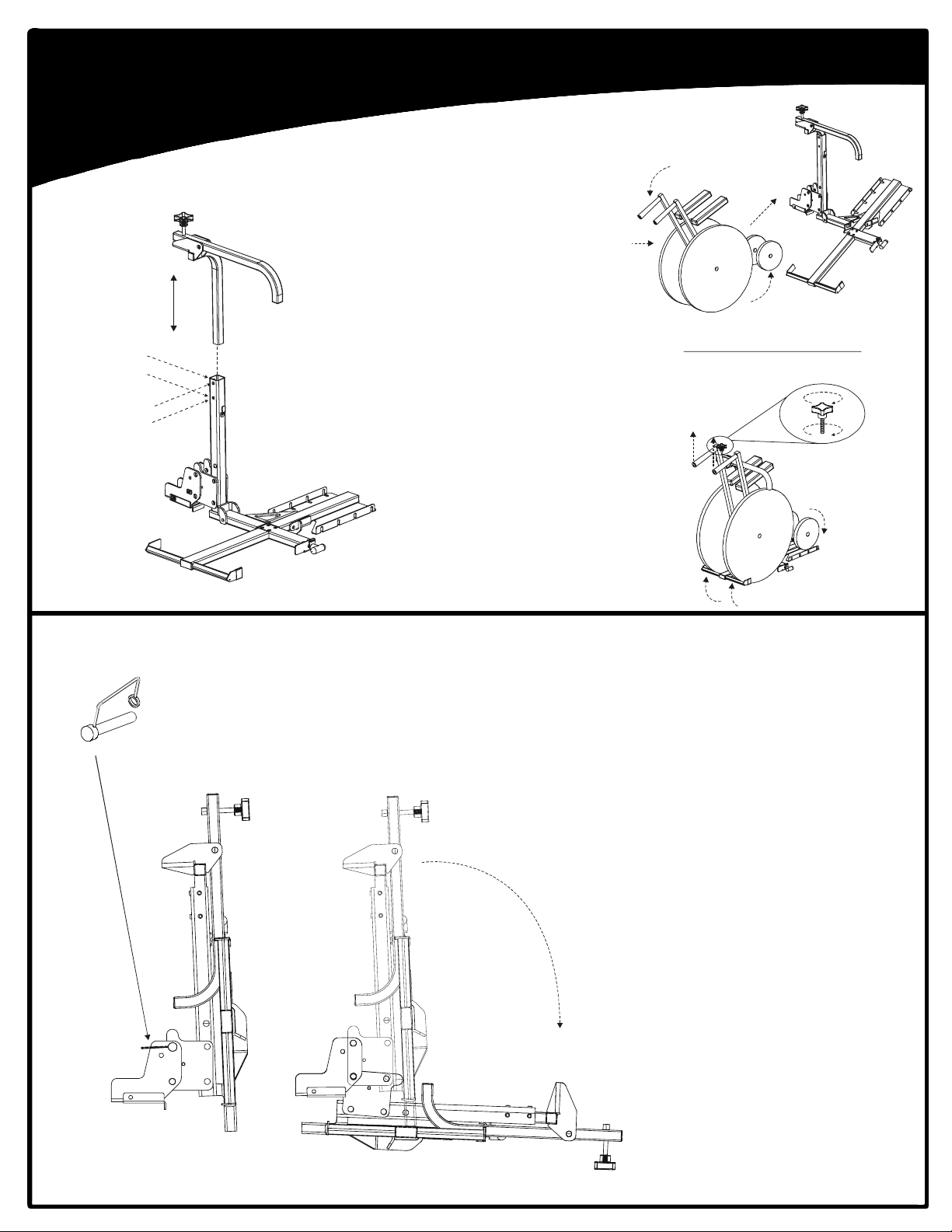

Hold-Down Arm Installation
TIGHTEN
SET
SCREWS
ADJUST TO
DESIRED HEIGHT
INSTALL
HOLD
DOWN
ARM
HOLD DOWN ARM HEIGHT CAN
BE ADJUSTED SO TH AT WHEELCHAIR's
ARMRESTS CLEAR ARM WHEN LOADING
ONTO A TILTED PLATFORM.
WHEN PLA T FOR M IS TILTED UPRIGHT,
THE ARMRESTS SHOULD BARELY CONTACT
THE BOTTOM OF THE ARM.
THE RED STAR HANDLE CAN THEN BE
TURNED TO CINCH THE WHEELCHAIR
DOWN TIGHT.
REMOVE HITCH PIN
WHILE BRACING
TILT AND TOTE
UPRIGHT
ONCE PIN IS REMOVED, THE
TILT AND TOTE CAN BE LOWERED
JUST BELOW PARALELL WITH THE
GROUND BEFORE RESTING ON
ITS MECHANICAL STOPS.
Tilt Away Feature
TO ERECT THE TILT AND TOTE BACK TO
ITS TRAVEL POSITION,SIMPLY ROTATE
UPRIGHT, AND REPLACE THE HITCH PIN.
NEVER ATTEMPT TO TRANSPORT
WITH THE TILT AND TOTE IN THE
FOLDED DOWN POSITION.
HOLD DOWN ARM HEIGHT CAN
BE ADJUSTED SO THAT WHEELCHAIR's
ARMRESTS CLEAR ARM WHEN LOADING ONTO A TILTED PLATFORM.
WHEN PLATFORM IS TILTED UPRIGHT,
THE ARMRESTS SHOULD BARELY CONTACT THE BOTTOM OF THE ARM.
THE RED KNOB CAN THEN BE
TURNED TO HOLD THE WHEELCHAIR
DOWN TIGHT.
Page 5

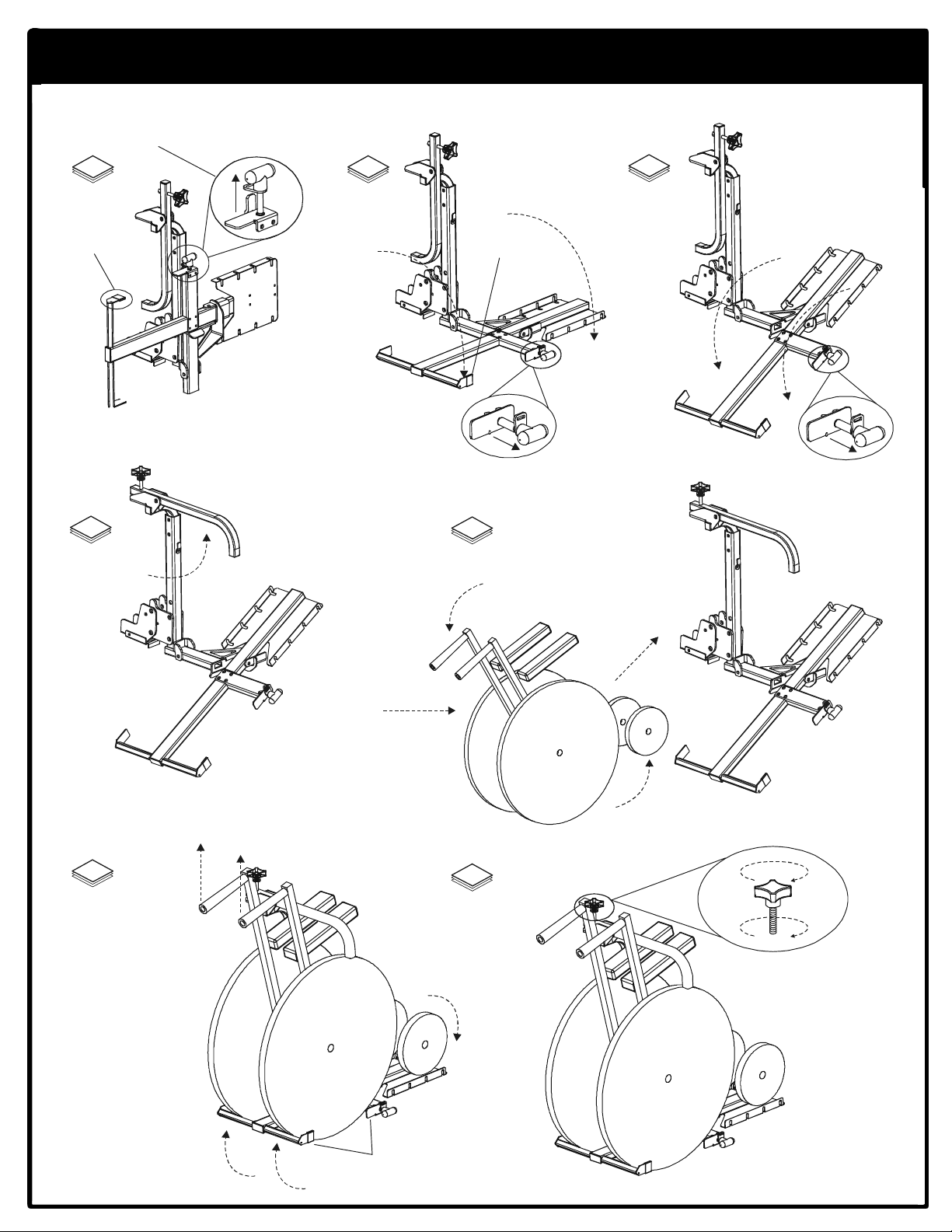

Loading Wheelchair
HOLD
YELLOW
HANDLE
PULL UP
ON RED
HANDLE
TILT PLATFORM
TO THE GROUND
FLIP THE HOLD
DOWN ARM
UPRIGHT
PUSH DOWN ON WHEELCHAIR
HANDLES, TILTING SMALLER
FRONT WHEELS OFF THE GROUND.
ROLL WHEELCHAIR ONTO PLATFORM.
ONCE LARGER WHEELS
ARE SEATED IN
THE PLATFORM CRADDLE,
PULL UP ONTO WHEELCHAIR
HANDLES. ONCE LEVEL ,
PLATFORM WILL AUTOMATICALLY
LATCH INTO PLACE.
PLATFORM
CRADDLE
ROTATE
PLATFORM
DOWN
WITH
YELLOW
HANDLE
CONTINUE TO
PULL ON RED
HANDLE
CINCH HOLD DOWN ARM
TIGHT AGAINST WHEELCHAIRS
ARMREST BY TURNING RED
HANDLE CLO CKWISE
YOUR WHEELCHAIR IS NOW READY FOR TRANSPORTYOUR WHEELCHAIR IS NOW READY FOR TRANSPORT
1 2
3
4
5
6
7
Page 6

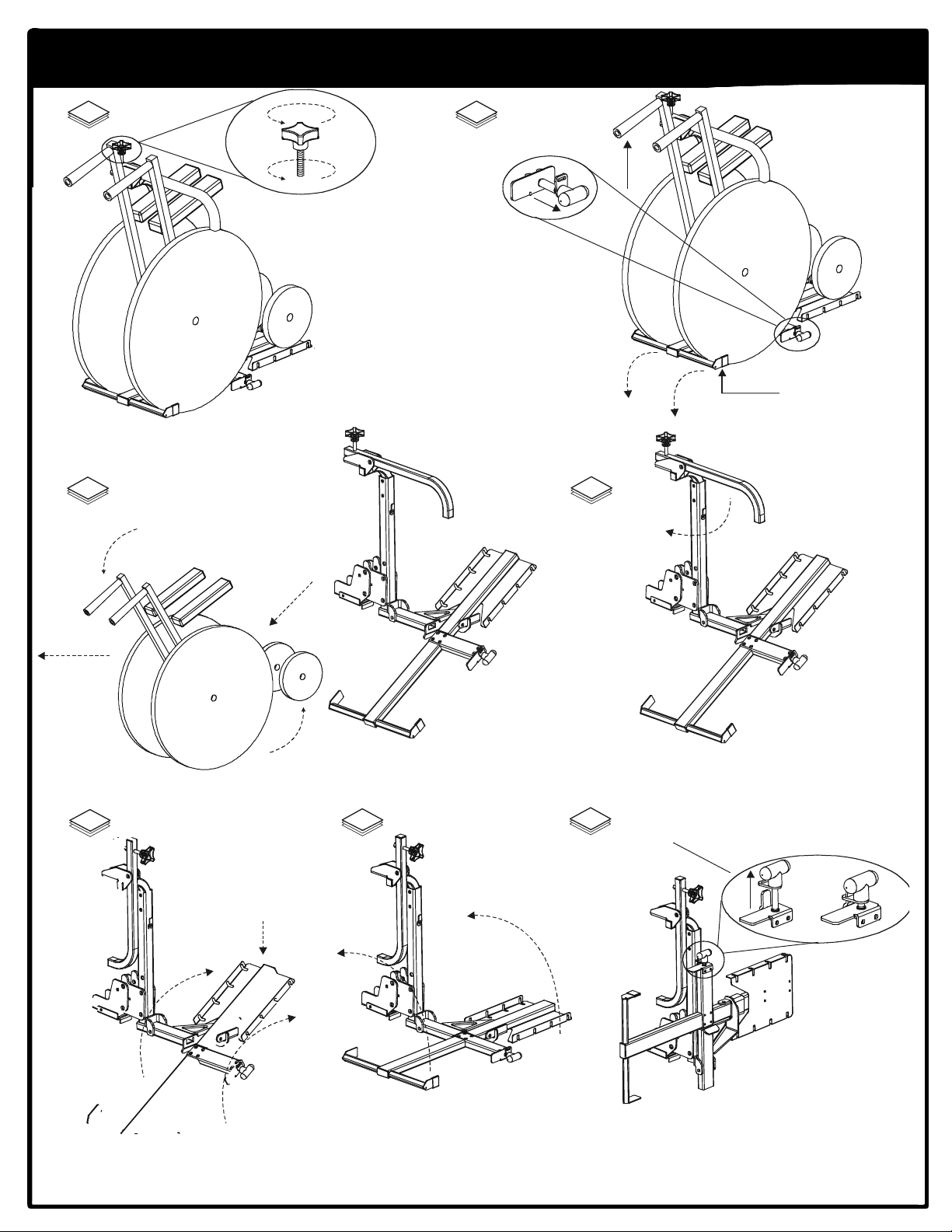

Unloading Wheelchair
GRAVITY WILL
TILT THE PLATFORM
TO THE GROUND
PUSH DOWN ON WHEELCHAIR
HANDLES, TILTING SMALLER
FRONT WHEELS OFF THE GROUND.
ROLL WHEELCHAIR OFF PLATFORM.
FOLD THE HOLD DOWN
ARM BACK DOWN
PUSH DOWN ON
FRONT OF PLATFORM
OR
PULL UP ON YELLOW
HANDLE TO ROTATE
PLATFORM LEVEL
PULL ON RED
HANDLE
HOLD / GUIDE
WHEELCHAIR
SHOULD KNOB STICK,
LIFT UP SLIGHTLY
TO RELEASE PRESSURE OFF
LATCHING MECHANISM
ROTATE
PLATFORM
UPRIGHT
AND PLACE KEEPER SLOT
ONTO LOCKING TAB
PLATFORM WILL
AUTOMATICALLY
LATCH IN PLACE
RELEASE PRESSURE OFF
HOLD DOWN ARM BY TURNING
RED HA ND LE CO U N TER-CLOCKWISE
PULL UP
ON RED
HANDLE
1 2
3
4
5
6
7
Page 7
Safety, Maintenance & Troubleshooting
Problem
Possible Cause
Suggestions
Hold-down will not stay upright or
is difficult to move.
Lift platform is difficult to move.
Improper adjustment at pivot
points
Tighten or loosen bolts until hold-down arm or
platform operates smoothly, with some resistance.
The Red T-Handle is hard to pull.
Lack of lubrication
A lubricating spray ( WD-40) will loosen the linkage
to the platform latch. Lift up slightly on the
platform
to release pressure on the release latch.
The lift does not reach the ground
when completely lowered.
Lift bottoms out while entering
driveways or going over bumps.
Hitch adapter positioning or
incorrect hitch adapter.
Check the connection of the hitch adapter to the
hitch post. Normal range of operation is 5-19
inches, measured from the bottom of the hitch to
the ground. Higher vehicles require special hitch
adapters, which can be obtained from a Harmar
Mobility Authorized Dealer. Lift should be installed
at the highest adjustment point possible.
SAFETY
Caution: Keep hands away from PINCH POINTS.
Inspect the condition of your Tilt and Tote often. If any parts are worn or damaged
DO NOT USE THE TILT and TOTE. Immediately contact your Harmar Mobility Authorized Dealer.
Caution: Keep hands, feet and any other objects away from the platform as it lowers.
Caution: Some chairs have pneumatic (air inflated) tires. If your chair has this type tire, be sure
the tires are properly inflated. Improper inflation of the tires will affect how the unit fits on the platform
and therefore change the amount of clamping force on the chair.
Caution: Before driving off with your chair or scooter on the Tilt and Tote, make sure that the chair is
firmly held down on the platform.
Caution: When driving with your chair on the Tilt and Tote, slow down for potholes, speed bumps,
railroad tracks, etc. Your Tilt and Tote could be damaged by abuse if subjected to excessive loads
imposed by rough driving.
Caution: Do not enter steep driveways straight on. Enter and leave at an angle to the street so that your
Tilt and Tote platform does not drag on the ground.
Caution: Do not attempt to move the vehicle with the Tilt and Tote platform in the down position. If
moved this way, the lifting mechanism will be damaged.
MAINTENANCE
Every 30 days oil the pivot points on all moving parts.
Check for paint chips and touch up any bare metal with a good gloss black enamel or lacquer to inhibit
rust. This may be necessary more frequently when subjected to salt air or road salt.
Troubleshooting Guide
Page 8

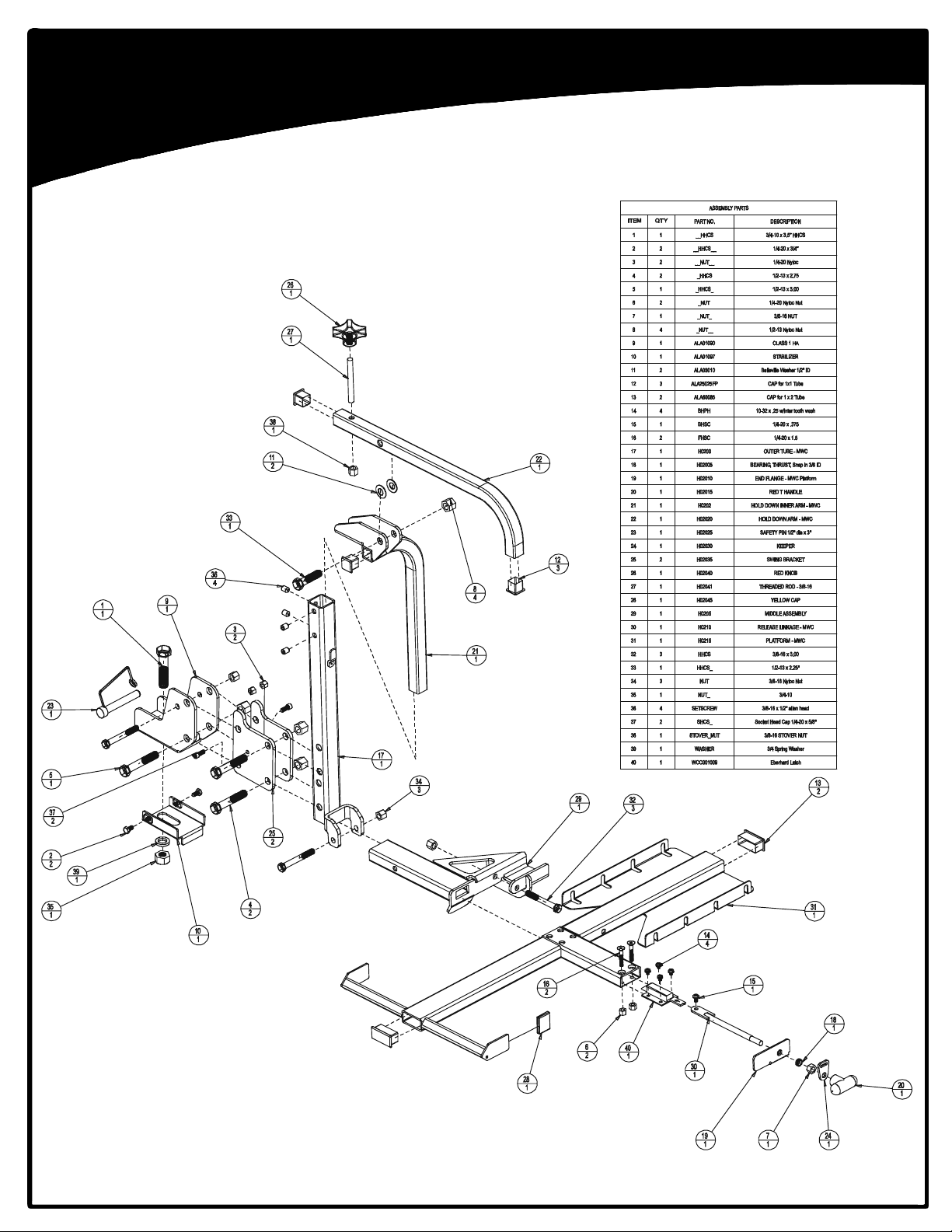

AL003 Tilt N Tote
