Harmar Mobility AL001 User Manual

your

AL001

AL001 Users Manual

Harmar Mobility

Rev.1 June 2008

Please read the manual before using.

WARNING!

A"warning"indicates"a"potentially"dangerous

situation,"which"if"not"avoided,"could"result"in"death

or"serious"injury.

1. Read all instructions and save them for future
reference.

2. Follow all warnings and instructions marked on the
product.

3. Do not ride any vehicle while loading onto the carrier.

4. Do not stand on the carrier.

5. Never exceed vehicle tongue weight ratings.

6. Always store the carrier in a safe place.

7. Only use the carrier with Class 2, 3 or larger hitch.

8. Improper use, storage or installation of carrier could
result in death or serious injury.

9. Do not put the product on any kinds of trailers.

10. Carrying capacity is limited to 500 lbs. max.
Assembly Instructions

Tools Need:

 5/8” wrench
 1/2” wrench
 3/4” wrench
 9/16” wrench
 Phillips screwdriver

Step.1

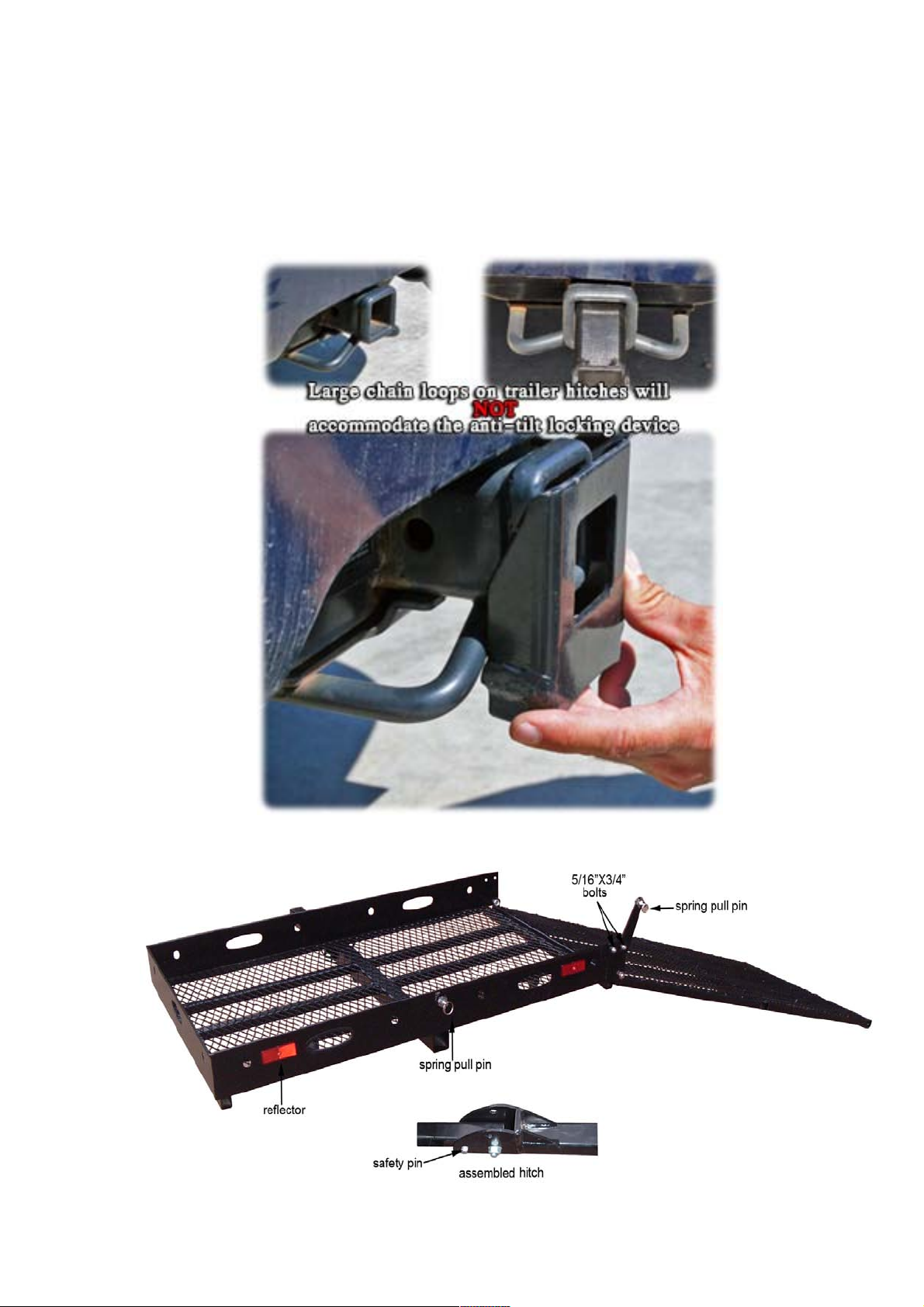

Insert the hitch into the carrier rack. See the figure

Step.2
Insert four 3/8”x7/8” bolts on the bottom of your carrier tube.
Tighten bolts firm with a wrench. See the figure.
