Harman Kardon HS-280-230, HS-210-230 Service Manual

harman/kardon

HS 2X0/230 Service Manual

Page 1 of 73

harman/kardon Service Manual

HS 2X0/230

(HS 210 system and HS 280 system) 2 x 65W 2.1 RECEIVER / HOME CINEMA SYSTEMS

FEATURES 2 ACESSORIES 3 FRONT AND REAR PANELS 4 REMOTE CONTROL 8 TROUBLESHOOTING GUIDE 9 BASIC SPECIFICATIONS 10 EXPLODED VIEW AND PARTS 11 PACKAGE LISTS AND PARTS 12

NOTE: The HS 210 and HS 280 systems DVD/amplifier units are identical, named “HS 2X0” on the rear panel, but featuring NO NAME-STICKER on the front panel.

The only difference is the loudspeakers included in the system box. HS 210 comes with a HKTS 30 system in 2.1 configuration HS 280 comes with a HKTS 60 system in 2.1 configuration. Please refer to the HKTS 20+30+60 service manual for information on the speakers.

Released EU2010 Harman Consumer Group, Inc. Rev 2, 01/2011 8500 Balboa Boulevard Northridge, California 91329

CONTENTS

ELECTRICAL PARTS LIST 13 SEMICONDUCTOR PINOUTS 19 PCB DRAWINGS 42 BLOCK DIAGRAM 52 WIRING DIAGRAM 53 REVISION HISTORY 54 SCHEMATIC DIAGRAMS 56-73

Introduction

harman/kardon

HS 2X0/230 Service Manual

Page 2 of 73

Please register your product on our Web site at www.harmankardon.com.

Note: You’ll need the product’s serial number. At the same time, you can choose to be notified about our new products and/or special promotions.

www.harmankardon.com

Thank you for choosing the Harman Kardon

HS 2X0SO/230!

In the years since Harman Kardon invented the high-fidelity receiver, we have taken to heart this philosophy: Bring the joy of home entertainment to as many people as possible, adding performance and ease-of-use features that enhance the experience. With the introduction of the HS series of home-entertainment systems, Harman Kardon offers a complete home-entertainment solution with a wealth of listening and viewing options in one sleek component. Each HS series system also includes a 5.1-channel or 2.1-channel loudspeaker system, a system remote control and all the cables and accessories you need to enjoy movies and music in your own home, when you use them with your television or video display.

Digital Audio Outputs

• One coaxial

Video Inputs

• DVD player (internal)

Video Outputs

• One HDMI™ (High-Definition Multimedia Interface

• One S-Video

• One composite video

• S-Video and composite video via SCART

Speaker Outputs

• Front left and front right

Control Inputs/Outputs

• Subwoofer trigger output

• Infrared (IR) remote control input

• Infrared (IR) remote control output

Ease of Use

• On-screen menu system

• Dot-matrix front-panel information display

• Learning remote control (also controls your TV and a video

component)

™

) version 1.2

To get the maximum enjoyment from your new HS system, we urge you to read this manual thoroughly and refer back to it as you become more familiar with your new system’s features and their operation.

If you have any questions about this product, its installation or its operation, please contact your retailer or custom installer, or visit our Web site at www.harmankardon.com.

NOTE: The built-in DVD player is designed and manufactured for compatibility with Region Management Information that is encoded on most DVDs. This player is designed only for playback of discs with Region Code 2 information or discs that do not contain Region Code information. If there is any other Region Code on a disc, it will not play in the HS 2X0SO/230.

HS 2X0SO/230 Two-Channel DVD Receiver

Audio Section

• 65 watts x 2 continuous power at 6 ohms (both channels driven),

20Hz – 20kHz, <0.5% THD (total harmonic distortion)

Audio Modes

• Dolby

• Dolby Virtual Speaker

• Stereo

Analog-Audio Inputs

• FM tuner (internal)

• DVD player (internal)

• Two left/right (L/R) line input connectors

• L/R input via SCART

Analog-Audio Outputs

• Headphone output

• Subwoofer output

• One L/R line output connector

Digital

DVD Player Features

• Region 2 coding

• Plays five-inch (12cm) and 3-inch (8cm) discs

• Video formats supported: DVD, DVD-R, DVD-RW, DVD+R/RW,

VCD, SVCD

• Audio formats supported: Dolby Digital, CD, CD-R/RW,

MP3, WMA (v7-v8)

• Still-image formats supported: JPEG

• Video upscaling to 720p and 1080p (HDMI output only)

• Progressive-scan video output (HDMI only)

• MP3 bit rates: 32kbps – 320kbps

• WMA bit rates: 16kbps – 192kbps

• JPEG resolution supported: Five megapixels, 5MB file size

• Still-image rotation in 90-degree increments

• Fast Play rates: 2x, 4x, 8x, 16x, 32x

• Slow Play rates: 1x, 2x, 4x, 8x

• Random Play

• Repeat Play: One group/title, one track/chapter, one folder, one disc

• Disc recognition for up to 100 discs

• Playback control for VCDs

• Aspect-ratio adjustment

SAT TS60 Satellite Speakers (for HS 280)

• One 1" (25mm) CMMD

• Two 3" (75mm) flat-diaphragm, video-shielded, midrange drivers

• 20 ~ 150 watts recommended power

SAT TS11 Satellite Speakers (for HS 210)

• One 1/2" (12mm) dome, video-shielded tweeter

• Dual 3" (75mm) drivers, video-shielded, midrange

• 10 ~ 120 watts recommended power

HKTS200SUB Subwoofer

• 8" (200mm) woofer in a sealed enclosure

• 200 watts RMS amplifier power

• Automatic turn-on and turn-off

Lite dome video-shielded tweeter

Digital Audio Inputs

• Two coaxial

• Two optical

• Two USB 2.0 ports

4 4

Supplied Accessories (for HS 280)

harman/kardon

HS 2X0/230 Service Manual

Page 3 of 73

Supplied Accessories (for HS 210)

The following accessory items are supplied with the HS 280 system. If any of these items are missing, please contact Harman Kardon Customer Service via www.harmankardon.com.

• System remote control • HDMI cable

• SCART cable • FM wire antenna

• Two speaker • Two five-meter (16.4-foot)

wall-mount brackets speaker cables

The following accessory items are supplied with the HS 210 system. If any of these items are missing, please contact Harman Kardon Customer Service via www.harmankardon.com.

• System remote control • HDMI cable

• SCART cable • FM wire antenna

• 2 TS-11 satellite speakers

• Two wall-mount brackets

• One combination LFE • 2 TS-60 Satellites

(low-frequency effects) and trigger cable for connection to the subwoofer

• Two five-meter (16.4-foot)

• One combination LFE

speaker cables

(low-frequency effects) and trigger cable for connection to the subwoofer

Receiver Front-Panel Controls

Phones

Volume

EjectStandby

PRO LOGIC II

VIRTUAL SPEAKER

DOLBY

DIGITAL

DOLBY

DIGITAL

Information

Display

Disc Slot Volume Control USB

Port

Headphone

Jack

Eject

Button

Standby

Button

Power

Indicator

TOP

FRONT SIDE

harman/kardon

HS 2X0/230 Service Manual

Page 4 of 73

Disc Slot: Insert a compatible disc into the slot. The HS 2X0SO/230’s disc player will accept five-inch (12cm) and three-inch (8cm) discs.

Information Display: Various messages appear on this display in response to commands. In addition, a variety of indicators will light at various times to show the current source, settings or other aspects of the HS 2X0SO/230’s status as described throughout this manual. See Receiver Information Display, on page 7, for details.

Volume Control: Rotate the disc clockwise to raise the volume; rotate counterclockwise to lower the volume. The volume level will appear on the Information Display and on the on-screen menu (if the menu is enabled, see Preferences – Volume Bar, on page 20).

Eject Button (on top of unit): Press this button to eject a disc from the HS 2X0SO/230’s built-in DVD player. Before pressing this button, make sure that no objects are blocking the disc slot. NOTE: If you do not remove the ejected disc within 20 seconds, it will automatically re-load back into the DVD player for protection.

Standby Button (on top of unit): This button turns the HS 2X0SO/230 on for playback or leaves it in the Standby mode for quick turn-on using this button or the remote control.

Power Indicator: This LED (light-emitting diode) surrounds the Standby switch. When the HS 2X0SO/230 is plugged into AC power, the LED turns red to indicate that the HS 2X0SO/230 is in Standby mode (ready to be turned on). When you turn the HS 2X0SO/230 on (by the Standby switch or the remote control), the LED turns white.

Phones (headphones) Jack (on side of unit): Insert the 3.5mm stereo mini-connector from a set of headphones into this jack. NOTE: When a plug is inserted into the Phones jack, the HS 2X0SO/230’s speaker outputs automatically mute; the HDMI audio output, coaxial output and line output remain active.

USB 2.0 Port (on side of unit): Gently insert a flash drive, card reader, digital camera or other USB device, or a USB Standard-A cable connected to a USB device, to this port.

IMPORTANT: DO NOT connect a PC or other USB host/controller to this port, or you may damage both the HS 2X0SO/230 and your other device.

Orient the other device’s plug so it fits all the way into the HS 2X0SO/230’s USB connector. You may insert or remove the device at any time — there is no installation or ejection procedure.

The HS 2X0SO/230 can play MP3 and Windows Media

Audio WMA

audio files that are stored on the device. The HS 2X0SO/230 can also

display JPEG-format still-image files.

Receiver Information Display

VCD

Playback Control

Indicator

Playback

Mode

Indicators

Disc Type Indicators

Random Play

Indicator

Title

Indicators

Chapter/Track Number

Indicators

Time

Indicators

Source

Indicators

Dolby Digital

Indicator

Repeat Play

Indicators

Progressive Scan

Indicator

Video Output

Indicators

Angle

Indicator

Video Format

Indicators

harman/kardon

HS 2X0/230 Service Manual

Page 5 of 73

Source Indicators: Indicate which source is currently playing.

Disc Type Indicators: Indicate the type of disc that is currently

playing.

Random Play Indicator: Indicates that the disc player is in the Random Play mode.

Dolby Digital Indicator: Indicates that the soundtrack of the currently-playing disc is Dolby Digital-encoded.

Progressive Scan Indicator: Indicates that the disc player is outputting a progressive-scan video signal.

Repeat Play Indicators: Indicate that the disc player is in one of the Repeat Play modes: Rep. = repeat all; Rep. 1 = repeat track; A–B = A/B repeat.

Video Output Indicators: Indicate which type of video output is currently active.

Angle Indicator: Indicates when alternative viewing angles are available on the currently-playing DVD.

Video Format Indicators: Indicate which video format is currently playing.

VCD Playback Control Indicator: Indicates that the playback-control function is turned on when the HS 2X0SO/230 is playing a VCD.

Playback Mode Indicators: Indicate the current disc playback mode:

Indicates normal playback.

Indicates that the disc is in the forward fast-search mode. The video display will indicate the selected speed.

Indicates that the disc is paused. The video display will also indicate that the disc is paused.

Indicates that the disc is in the reverse fast-search mode. The video display will indicate the selected speed.

Title Indicators: Show the title number of a DVD that is playing.

Chapter/Track Number Indicators: Show the current chapter when a

DVD is playing; show the current track number when a CD is playing.

Time Indicators: Show the running time when a DVD is playing; show elapsed time when a CD is playing.

NOTE: The Title, Chapter/Track Number and Time Indicators will also display the radio station name when Radio is the selected input. When a DVD or CD is playing, the indicators will display various text messages about the disc’s status.

MODEL: HS 2X0SO/230

Speaker

Outputs

Coaxial

Digital Inputs

Optical

Digital Inputs

Subwoofer

Output

Coaxial

Digital Output

AC Power

Input

Sub Tr igger Output

Line

Outputs

Line 2 Inputs

SCART

Connection

Antenna

Connection

Line 1 Inputs

Ethernet

Port

USB Port

HDMI

Output

Composite

Video

Output

S-video

Output

Remote Control

Input/Output

Receiver Rear-Panel Connections

harman/kardon

HS 2X0/230 Service Manual

Page 6 of 73

See the Connections section, on page 14, for detailed information about making connections.

AC Power Input: After you have made and confirmed all other connections, plug the supplied AC power cord into this input and into an unswitched AC outlet.

Speaker Outputs: Use the speaker wires supplied with the SAT TS60 speakers to connect the satellite speakers to the proper terminals.

Be sure to connect the positive (+, colored red) connector on the speaker to the positive (+, colored red and white) connector on the

HS 2X0SO/230, and the negative (– , colored black) connectors on the speakers to the negative (–, colored black) connectors on the HS 2X0SO/230. See Connecting the Satellite Speakers, on page 14, for more information about making connections.

Coaxial Digital Inputs: Connect the coaxial digital output of an audio-only source component here. The signal may be a Dolby Digital bitstream or a standard PCM digital audio bitstream.

NOTE: Use only one type of digital connection for each source component.

Optical Digital Inputs: Connect the optical digital output of an audio-only source component here. The signal may be a Dolby Digital bitstream or a standard PCM digital audio bitstream.

NOTE: Use only one type of digital connection for each source component.

Coaxial Digital Output: Connect this output to the coaxial digital input of a digital recording device such as a CD-R or MiniDisc recorder.

Sub Trigger Output: Use the black mini-cable connector of the supplied combination LFE and trigger cable to connect this jack to the HKTS200SUB subwoofer’s External Trigger Input. See Connecting the Subwoofer, on page15, for more details about making connections.

Whenever the HS 2X0SO/230 is turned on, it will send a trigger signal that will turn the subwoofer’s amplifier on. Turning the HS 2X0SO/230 off removes the trigger signal, and the subwoofer’s amplifier will turn off. (This change will occur even when the subwoofer’s Power On Mode switch – see page 9 – is in the Auto position.)

Subwoofer Output: Use the LFE (purple) connector of the supplied combination LFE and trigger cable to connect this jack to the HKTS200SUB subwoofer’s Line-Level In LFE jack. See Connecting the Subwoofer, on page 15, for more details about making connections.

Ethernet Port: Connect this port to your local area network (LAN) using

a CAT 5 RJ45 network cable. See Connecting to a Local Area Network (LAN), on page 17, for details.

Line Outputs: Use the Line Outputs to connect to an audio-only recorder, such as a CD-R recorder or tape deck.

USB 2.0 Port: Gently insert a flash drive, card reader, digital camera or other USB device, or a USB Standard-A cable connected to a USB device, to this port.

IMPORTANT: DO NOT connect a PC or other USB host/controller to this port, or you may damage both the HS 2X0SO/230 and the other device. Orient the device’s plug so it fits all the way into the HS 2X0SO/230’s USB connector. You may insert or remove the device at any time – there is no installation or ejection procedure.

The HS 2X0SO/230 can display JPEG-format still-image files stored on the device and can also play MP3 and Windows Media files and MPEG4 and AVI video files that are stored on the device.

Line 1 Input/Line 2 Inputs: Use these inputs to connect to an audio-only source component (such as a tape deck). Do not connect a turntable to these jacks without a phono preamp.

Audio (WMA)

HDMI Output (HDMI version 1.2): If your video display is HDMI-capable, connect it to the HS 2X0SO/230’s HDMI output for improved video performance. Since the HDMI cable transmits both video and audio to the video display, we recommend that you disable your display’s HDMI audio function to take full advantage of the HS 2X0SO/230's system’s superior audio performance.

IMPORTANT: The HS 2X0SO/230 is in compliance with HDCP (High-Definition Copy Protection). A video display must also be HDCP-compliant to be used with the HS 2X0SO/230’s HDMI output. For best results, we do not recommend HDMI connections in excess of ten feet without a repeater. If your video display has a DVI input, you may use an optional HDMI-to-DVI cable or adapter for the video connection to the display. (The DVI connection is video-only.)

Remote Control Input/Output: If the HS 2X0SO/230’s front-panel IR

PL0004-01001

Subwoofer

Level Control

Bass Boost

Switch

Phase Switch

Power On

Mode Switch

External Trigger Input Connector

Line-Level In

LFE Connector

Line-Level In

L/R Connectors

Power Switch

AC Power Cord

harman/kardon

HS 2X0/230 Service Manual

Page 7 of 73

sensor is blocked, such as when it is placed inside of a cabinet, connect an external IR receiver (such as the Harman Kardon HE 1000 – not included) to the Remote Control In connector. You can then place the external IR receiver in a location where it can receive the signals from the HS 2X0SO/230 remote control.

You can connect the HS 2X0SO/230’s Remote Control Out connector to the remote IR input of a compatible device, allowing it to be controlled through the HS 2X0SO/230 (and through an external IR receiver, if connected). You can even connect several such compatible devices together in “daisy-chain” fashion.

SCART Connection: Connect it to a compatible TV or set-top box using the included SCART cable. The SCART cable carries composite (CVBS) video or S-Video from the HS 2X0SO/230 to a TV or set-top box (as well as a control signal for automatically controlling picture aspect ratio and other parameters). It also carries stereo audio from the TV or set-top box back to the HS 2X0SO/230.

Composite-Video Output: Connect it to the composite-video input of a TV or video projector.

S-Video Output: Connect it to the S-Video input of a TV or video projector.

FM Antenna Connection: Connect the supplied FM antenna to this terminal.

Subwoofer Controls and Connections

Although in most cases the Phase Switch should be left in the Normal position, there is no absolutely correct setting for it. When the subwoofer is properly in phase with the satellite speakers, the sound will be clearer and have maximum impact. It will make percussive sounds like drums, piano and plucked strings sound more lifelike. The best way to set the Phase Switch is to listen to music that you know well and set the switch in the position that gives drums and other percussive sounds maximum impact.

Power On Mode Switch: When this switch is set in the Auto position and when the Power switch is set to On, the HKTS200SUB will automatically turn itself On whenever it receives an audio signal. It will enter the standby mode if it receives no audio signal for 20 minutes. When the Power On Mode switch is set in the On position, the subwoofer will remain on whether or not it is receiving an audio signal.

An LED on the subwoofer’s top panel indicates whether the subwoofer is in the on or standby mode:

• When the LED is illuminated blue, the subwoofer is turned on.

• When the LED is not illuminated, the subwoofer is in standby mode.

When the Power switch is set to Off, the LED will not be illuminated, no matter what setting the Power On Mode switch is in.

External Trigger Input Connector: Use the mini-plug of the supplied combination LFE and trigger cable to connect the External Trigger Input to the trigger output of another compatible component. Whenever the subwoofer detects a trigger signal between 3V and 30V (AC or DC), the subwoofer’s amplifier will turn on. The subwoofer’s amplifier will turn off after the trigger signal ceases. (This change will occur even when the Power On Mode switch is in the Auto position.)

Line-Level In LFE Connector: Use the LFE (purple) connector of the supplied combination LFE and trigger cable to connect the Line-Level In LFE connector to the dedicated subwoofer output of a receiver or preamp/processor. This input bypasses the subwoofer’s internal crossover circuitry, so use it only with a subwoofer output that is low-pass filtered. (Check the receiver or preamp/processor’s documentation to confirm that its subwoofer output is low-pass filtered.) If your receiver or preamp/processor does not have a dedicated subwoofer output that is low-pass filtered, use the subwoofer’s Line-Level In L/R connectors instead.

Subwoofer Level Control: Use this control to adjust the HKTS200SUB subwoofer’s volume. Turn clockwise to increase the volume; turn counterclockwise to decrease the volume.

Bass Boost Switch: Set this switch to On to enhance the subwoofer’s low-frequency performance. Set this switch to Off for normal low-frequency performance.

Phase Switch: This switch determines whether the subwoofer driver’s piston-like action moves in and out in phase with the satellite speakers. If the subwoofer were to play out of phase with the satellite speakers, the sound waves from the satellite speakers could cancel out the sound waves from the subwoofer, reducing bass performance and sonic impact. This phenomenon depends in part on the relative placement of all the speakers in the room.

Line-Level In L/R Connectors: Use these connectors if your receiver or preamp/processor does not have digital surround-sound decoding or a low-pass-filtered subwoofer output.

• If your receiver or preamp/processor has a separate subwoofer

output, use the LFE (purple) connector of the supplied combination LFE and trigger cable to connect the receiver or preamp/processor’s subwoofer output to either one of the subwoofer’s Line-Level In L/R connectors.

• If your receiver or preamp/processor does not have a separate

subwoofer output, use two Y-adapters (not supplied). Connect one adapter’s single end to the unit’s preamp output for that channel. Connect one of this adapter’s dual ends to the main amp input for that channel, and connect the adapter’s other dual end to one of the subwoofer’s Line-Level In L/R Connectors. Repeat this process with the other Y-adapter, the preamp channel, the main amp input and the subwoofer’s other Line-Level In L/R connector.

Power Switch: Set this switch in the On position to turn the subwoofer on. The subwoofer will then either be on or in Standby mode, depending on the setting of the subwoofer’s Power On Mode switch.

AC Power Cord: After you have made and verified all subwoofer and speaker connections described in this manual, plug the Power Cord into an active, unswitched electrical outlet (that is, an outlet not connected to a light switch) for proper operation of the subwoofer. DO NOT plug this cord into the accessory outlets found in some audio components.

Remote Control Functions

System Power

Button

Radio Button

Disc Button

Screen Power Button

USB Button Activity Button TV Button Video Button

Learn Button

Disc Menu Button

Mute Button

Network Button

Settings Button

Bookmark Button

Eject Button

Channel + / –

Buttons

Repeat Button

Random Button

Volume + / – Buttons

Options Button

Cursor Controls

Enter Button

Audio Button

Exit Button

Display Button

Disc Transport Buttons

Numeric Buttons

harman/kardon

HS 2X0/230 Service Manual

Page 8 of 73

System Power Button: Switches the HS 2X0SO/230 into the Standby mode.

Screen Power Button: Switches your video display on and off.

Disc Button: Selects the HS 2X0SO/230’s built-in DVD player as the

system’s active sound source and plays a disc that has been inserted into the player. Pressing this button also puts the remote control into the disc player control mode. See Using the DVD Player, on page 21, for details. NOTE: Pressing this button when the HS 2X0SO/230 is in the Standby mode will switch it on.

Radio Button: Selects the HS 2X0SO/230’s built-in FM radio as the system’s active sound source. Pressing this button also puts the remote control into the control mode for the radio. See Using the FM Tuner, on page 23, for details. NOTE: Pressing this button when the HS 2X0SO/230 is in the Standby mode will switch it on.

USB Button: Selects a device connected to the front- or rear-panel USB ports as the system’s active sound source. The HS 2X0SO/230’s on-screen menu system lets you navigate through the files stored on the device. See Playing Files from USB Devices, on page 24, for details. NOTE: Pressing this button when the HS 2X0SO/230 is in the Standby mode will switch it on.

Activity Button: Switches the on-screen menu to the Activity menu from any other active screen or menu. See Activity Button, on page 21, for details. NOTE: Pressing this button when the HS 2X0SO/230 is in the Standby mode will switch it on.

Learn Button: Places the remote control in the learning mode. See Programming the Remote Control, on page 17, for details.

Network Button: Switches to the local area network (LAN) that is connected to the HS 2X0SO/230’s rear-panel Network connector. See Playing Files from Networked Devices, on page 25, for details. NOTE: Pressing this button when the HS 2X0SO/230 is in the Standby mode will switch it on.

Video Button: Puts the remote control into the video-control mode, allowing it to control a video source component with codes that you have programmed into the remote. See Programming the Remote Control, on page 17, for details. If you have designated one of the HS 2X0SO/230’s analog-audio inputs as a video-component audio input, pressing the Video button will also make that input the system’s active sound source. See Connecting Audio Sources/Line 1, Line 2 In, on page 16, for details.

TV Button: Puts the remote control into the TV-control mode, allowing it to control your TV or video display with codes that you have programmed-into the remote. See Programming the Remote Control, on page 17, for details. If you have designated one of the HS 2X0SO/230’s analog-audio inputs as the TV-audio input, pressing the TV button will also make that input the system’s active sound source. See Connecting Audio Sources/Line 1, Line 2 In, on page 16, for details.

Settings Button: Displays the HS 2X0SO/230’s Settings menu. See Settings Menu, on page 19, for details.

Bookmark Button: Displays the list of your stored bookmarks for easy access. See Bookmarks, on page 21, for details.

Options Button: Displays any available options for a menu item that is selected in the on-screen menu.

Cursor Controls: Use these controls – the up cursor, down cursor, left cursor and right cursor – to navigate through items on the on-screen menu.

Enter Button: Press it to select items highlighted on the on-screen menu.

Audio Button: Lets you select from the different listening modes that are

available for the source that you have selected. Pressing the Audio button while you are playing a DVD will display the on-screen audio-mode menu.

If there are other MP3s in the folder with the one that you've selected,

harman/kardon

HS 2X0/230 Service Manual

Page 9 of 73

the HS 2X0SO/230 will play each one, in order as they appear on the OSD screen.

• To skip to the next or previous MP3 file, press the or

button. To pause play, press the button. To resume play, press the button again.

• To exit and return to file list screen, press the button.

Playing Videos

Selecting a video file plays the file. If there are other video files in the folder, the HS 2X0SO/230 will play each one, in order as they appear on the OSD screen.

Troubleshooting

If your HS 2X0SO/230 system isn’t performing the way you think it should, check to see if the problem is covered in this section before calling your dealer or contacting Harman Kardon.

The receiver won’t power up (the Power Indicator is not lit): There is noise or other interference in the picture while the HS 280

• Check that the receiver’s AC Power Cord is properly plugged into

the receiver’s AC Power Input connector.

• Check that the AC power cord is plugged into a working AC outlet

and that the AC outlet is not controlled by a switch.

Sound plays through the HS 2X0SO/230 speakers, but there is no TV picture:

• Check the connection between the receiver and the TV.

• Check that the T V is turned on and is set to the proper input source.

• Confirm that all of the choices made in the Settings: Video menu are

correct for your T V.

• If you’re using the HDMI connection, be sure that the TV or video

display is HDCP-compliant. If the TV is not HDCP-compliant, disconnect the HDMI cable and use the receiver’s S-Video or composite-video connection.

There is no sound coming from the subwoofer:

• Check that the subwoofer’s power cord is plugged into a

working AC outlet.

• Check that the subwoofer’s Power Switch is in the on position.

• Check that the Subwoofer Level Control is not turned all the way

down (fully counterclockwise).

• Check the audio connection between the receiver and the subwoofer.

• Check the receiver’s Settings: Audio: Subwoofer menu to make sure

that the subwoofer volume has not been set at -10dB.

There is a constant hum in the sound:

is playing a DVD:

• Check that the disc surface is clean and not scratched.

• If you have the receiver’s video output connected to your TV

through your VCR, the copy-protection program on some DVDs could affect picture quality. Connect the receiver’s video output directly to your TV’s video input.

The sound and picture are out of sync:

• Check the Audio: Settings : Delay menu and change the Delay

setting to put the sound back in sync with the picture.

The HS 2X0SO/230 cannot tune in radio stations:

• Check that the FM antenna is correctly connected.

• Adjust the antenna’s position. If necessary, use a powered

FM antenna or an outdoor FM antenna.

The receiver does not respond to remote control commands:

• Replace all three of the remote control’s batteries with fresh ones,

and make sure to install them correctly.

• Hold the remote control closer to the receiver.

• Check that the receiver’s remote sensor is in line of sight with

the remote control. If necessary, use an optional Harman Kardon HE 1000 external IR receiver.

The remote does not control programmed components (TV or Video):

• Check that all input cables are plugged all the way into their

connectors.

• Check that all cables are at least 3m (9.8 ft.) from fluorescent lights.

• Check that all cable connectors are clean. If necessary, wipe them

with a cloth slightly moistened with alcohol.

• Turn the subwoofer’s Power switch off. If the hum goes away,

there is a ground loop between the subwoofer and the receiver. Plugging the subwoofer’s Power Cord into the same AC outlet that the receiver is plugged into should eliminate the ground loop.

The disc does not play:

• Check that the disc is inserted correctly (label-side up) .

• Check that the disc is the correct type: DVD, DVD-R, DVD-RW, DVD+ R / R W, VCD, SVCD, CD, C D-R / RW, MP3, WMA (v7 and v8 ).

Other disc types will not play.

• Check that the disc surface is clean and not scratched.

• Check that you have pressed the remote’s T V or Video button

before trying to operate the component.

• Re-learn the component’s commands into the remote.

The Ø symbol appears on the screen when you press a remote control button:

• The selected function is not permit ted at the time the but ton

is pressed.

The receiver does not respond to commands, or behaves in an erratic way:

• Unplug the receiver’s power cord from the AC outlet,

wait 30 seconds, then plug it back in.

You can find additional troubleshooting information in the FAQs link on the Support page at www.harmankardon.com.

Speciﬁcations

harman/kardon

HS 2X0/230 Service Manual

Page 10 of 73

HS 2X0SO/230 Receiver

Audio Section

Continuous ave rage power, s tereo mode (FTC ): 65 watts per channel, 120Hz–20kHz, @ <0.3% THD, both channels driven into 6 ohms

Input sensitivity/impedance (line inputs): 240mV/47k ohms

Frequency response @ 1W (±3dB): 120Hz–20kHz

Transient intermodulation distortion (TIM): <0.2%

FM Tuner Sec tion

Frequency range: 87.5 – 108.0MHz

Usable sensitivity IHF: 3.0μV/14.7 dBf

Signal-to-noise ratio (mono/stereo): 65dB/60dB

Distor tion mono/stereo : 0.3%/0.5%

Stereo separation: 40dB @ 1kHz

Selectivity ± 400kHz: 65dB

Image rejection: 40dB

IF rejection: 70dB

DVD Player Section

Supported disc format s: 5-inch (12cm) or 3-inc h ( 8cm) DV D V ideo, DV D-Audio,

stand ard-con fo rmi ng DV D- R, DVD +R, DV D- RW, D VD +RW, VCD, C D, CD-R , C D- RW,

MP3 (up to 320kbps bitrate), or WMA (v7-v8) discs

Region code: 2

DVD layers: Single-side/single-layer, single-side/dual-layer, dual-side/dual-layer

Audio for mats : D olby Digital, lin ear P CM , M P3 ( up to 320kbps bit rate) , Windows Media 7 or 8

Still-image format : JPEG

Video signal system: NTSC or PAL

Composite-video output: IV p-p/ 75 ohms, sync negative polarity

S-Video output : Y/luminance: IV p-p/75 ohms, sync negative polarit y; C/chrominance: 0.3V p-p

Freque ncy resp onse: DVD (linear PCM ): 20 Hz –2 2k Hz, ±1.0dB, CD: 20Hz–22kHz ±1.0dB

Signal-to-noise ratio: 90dB ( A-weighted)

Dynamic range: DVD/CD : 92dB (16-bit)

THD/1kHz: DVD/CD : 0.01%

Wow & flutter: Below measurable limits

Video Section

Television format: Automatic or PAL (selectable)

Output level/impedance: 1.0Vp-p/75 ohms

Video frequency response : (composite and S-Video) 10Hz–8MHz ( –3dB)

HDMI™ version : 1.2

General

Power requirement: AC 100–240V ~ 50/ 60Hz

Power consumption : 300W maximum, 1W standby

Dimensions Unit Shipping

Height 98mm (3-7/8 inches) 197mm (7-3/4 inches )

Width 350mm (13-25/32 inches ) 484mm (19-1/16 inches)

Depth 280mm (11 inches) 355mm (14 inches)

Weight: 3.5kg (7.7 lb) 6.1kg (13.4 lb)

Depth mea surement in cludes termina l connec tions . H eight measuremen t includes feet and chassis.

Speaker System

Frequency response: 45Hz–20kHz ( -6dB)

SAT TS60 Satellites ( for HS 280)

Recommended power: 10 ~ 120 wat ts

Impedance: 8 ohms nominal

Sensitivity: 86dB @2.83V/1 meter

Tweeter: One 19mm ( 3/4") dome, video-shielded

Midrange: Dual 75mm (3" ) flat-panel drivers, video-shielded

Dimensions:

Height 299mm (11-25/32 inches)

Width 110mm (4-11/32 inches)

Depth 88mm (3-15/32 inches )

Weight : 1.5kg (3.3 lb )

Height measurement includes removable stands.

SAT-TS11 Satellites ( for HS 2 10)

Recommended power: 10 ~ 120 wat ts

Impedance: 8 ohms nominal

Sensitivity: 86dB @ 2.83V /1 meter

Tweeter: One 1/ 2" (12mm) dome, video-shielded

Midrange: Dual 3" ( 75mm) drivers, video-shielded

Dimensions:

Height 243mm (9-9/ 16 inches)

Width 100mm (3-15/16 inches)

Depth 92mm (3-5/8 inches )

Weight: 1kg (2.2 lb)

HKTS200SUB Subwoofer

Input rating: AC 220 –240V~, 50/ 60Hz, 200W

Amplifier power: 200 watts RMS

Woofer: 8" cone in a sealed enclosure

External trigger input voltage: 3 ~ 30 volts AC/DC

Dimensions (H x W x D ):

Height 353mm (13-29/32 inches )

Width 267mm (10-1/2 inches)

Depth 26 7mm (10 -1/2 inches )

Weight : 9kg (19.8 lb )

Height measurement includes the product’s feet.

Features, specifications and appearance are subject to change without notice.

harman/kardon

HS 2X0/230 Service Manual

Page 11 of 73

Please note: Item 18, SMPS Board Assembly has part number 0209HAV08P6144C2X0.

harman/kardon

HS 2X0/230 Service Manual

Page 12 of 73

Item P/N Description Specification QtyLocation.No. Note

)

pray

(

)

go)

AC p

)

ponge

)

pong

(

(1)

(3)

)

(1)

)

(4)

)

(

)

(

)

(

)

harman/kardon

HS 2X0/230 Service Manual

Page 13 of 73

1 01.00.WJ.TJ.E1304 metals part HS280-chassis 1 HS280-PT01

2 01.00.WJ.TJ.E1481 metals part HS280-top cover 1 HS280-PT07

3 617090000008 metals part HS2X0-rear panel 1 HS280-PT02

4 01.00.WJ.TJ.E1306 metals 5 01.00.WJ.TJ.HS200.E006 metals

6 01.00.WJ.TJ.HS200.E007 metals part

7 01.00.WJ.TJ.E1307 Heatsin 8 01.00.WJ.TJ.E1336 Heatsin 9 01.00.WJ.TJ.E892 Heatsin

10 01.00.WJ.TJ.E893 Heatsink

11 01.00.WJ.TJ.E268 Heatsin

12 01.00.WJ.TJ.E1379 Heatsink HS280 Heatsink-2, W24*H11*L23MM, 1 HS280-PT06, For U6,U17 on Mainboard

13 030200000000

14 0616201100038 plastic part HS2X0-front panel 1 HS200-RE01

15 01.00.SJ.HS200.E002 plastic part HS200-2 in 1 Button 1 HS200-RE02

16 01.00.SJ.HS200.E003 plastic part HS200-Open button collar 1 HS200-RE03

17 01.00.SJ.HS100.E006 plastic part HS100-Volume Button Collar 1 HS100-RE06

18 01.00.SJ.HS200.E00

19 01.00.SJ.HS200.E005 plastic part HS200-Power Indicator lampshade 1 HS200-RE05

20 01.00.SJ.HS200.E00 21 01.00.SJ.HS200.E00

22 01.00.SJ.HS200.E008 plastic part HS200-plastic scaleboard 1 HS200-RE08

23 0616170100034 plastic part HS2X0-Large Lens 1 HS200-RE10

24 01.00.SJ.HS100.E010 plastic part HS100-Volume Button 1 HS100-RE10

25 01.00.SJ.HS100.E008 plastic part HS100-volume button lampshade 1 HS100-RE08

26 01.00.SJ.1000A.E01 27 01.00.SJ.QT.E019 VFD filter 124.5*33.5*0.5mm 1 material is as DVD22 28 01.40.CON.DCZ.E17 29 01.00.SB.E036 Metal lo 30 01.00.DP.JY.E135 Dust

31 01.00.DP.XJ.E192 Silica gel gasket

32 0305010000003 Diathermanous Selenium Rubber

33 01.00.DP.HM.E359 sponge

34 01.00.FZ.QT.153 Astigmatism PVC Φ45.5*Φ9.5mm 1

35 01.00.FZ.QT.E253 Mask PVC 36 01.00.DP.HM.E364 s

37 01.00.DP.HM.E378 High Soft sponge 124*10*2MM (with Single side glued) 1

38 01.00.DD.PM.E271 electric s 39 01.00.FZ.QT.E122 Plastic fastener 12CM 1 For power cord fastnes 40 01.00.DP.QT.E113 Sil-pad sil-pad 400-302 41 031102000002 42 01.00.DP.JY.E249 Insulated PVC HS200-H0 43 01.00.DP.JY.E541 Insulated PVC 22.5*10*0.3mm

44 01.00.WJ.JG.E328 Screw M3*6KBTTO 5

45 01.00.WJ.JG.E543 Screw M3*6PWBTTNI 9 For pedestal underlay and chissis (9)

46 01.00.WJ.JG.E235 Screw M3*8PWBTTNI 5

47 01.00.WJ.JG.E011 Scre

48 01.00.WJ.JG.E100 Screw M3*8PAHNI 10

49 01.00.WJ.JG.E472 Scre

50 01.00.WJ.JG.E085 Screw M3*6KBTTNI 2 For front panel and volume button board(2)

51 01.00.WJ.JG.E1044 Screw 1SZZR-0098J(M3*6.5,LG Appointed) 8

52 01.00.WJ.JG.E795 Screw M3*6PWMHNI 13

53 01.00.WJ.JG.E909 Screw M3*6BBTTO 1 For U type connect piece and rear panel(1)

54 01.00.WJ.JG.E1073 Screw M3*4BBTTNI 6

55 01.00.WJ.JG.E321 Scre 56 01.00.WJ.JG.E675 Scre

57 01.00.WJ.JG.E403 Screw M3*6PWBTTO 5

58 01.00.WJ.JG.E865 Scre 59 01.00.WJ.JG.E1083 Scre 60 01.00.WJ.JG.E119 Nu 61 01.00.WJ.JG.E119 Nu 62 01.00.WJ.JG.E426 Flat Pad M3*0.5 W=8 2 For Heatsink and AV Board (2

63 01.00.SJ.QT.E104 plastic rivet MBL3-2.5 2

64 01.00.WJ.JG.E424 S

65 0504020000002 Speaker Terminal Connector

66 0504020000001 Speaker Terminal Connector

67 0504020000003 Speaker Terminal Connector

68 01.00.DP.QT.E558 Pol 69 01.00.BZ.X.B.E511 70 010802000000 71 01.00.YS.FY3.E1600 Safet 72 01.00.YS.FY3.E1953 Su 73 101100000002 74 01.00.YS.TZ.T.E068 Laser label Laser 75 01.00.YS.TZ.T.E057 Laser label Laser 76 043100000001 77 01.14.DX.B.E0007G 78 01.00.BZ.D.S.E109 Plastic ba 79 01.00.BZ.D.Z.E020 Plastic ba 80 01.00.BZ.D.Z.E034 Plastic ba 81 01.00.BZ.D.Z.E008 Plastic ba 82 01.00.BZ.D.H.E002 ROHS ba 83 01.47.CNT.LJX.5.E211 HDMI Cord CBADV-S05-2 1 Outsourcin

84 01.47.CNT.ACX.E052 Power Cord

85 01.47.CNT.LJX.5.E05

art HS280-PCB bracket(Left art HS200-PCB bracket(Right

Magnetism annulu

lastic part HS200-Button Cover Board 1 HS200-RE0

lastic part HS200-pedestal underla lastic part HS200-Power Jack Jacke

lastic part 1000A-IR receiver support 5.5mm 1

ower Jac

o 100mm "Harman/Kardon" Thin Logo 1 For top cover

roof for Disc tray door of Loder LTD-1510 1 Black

e 20*20*10MM 1 Between front panel PCB and plastic par

Insulated PVC HS280-H01 (transparenc

ring Pad M3 2 For Heatsink and AV Board (2

foam HS200 1

ccessories bo

Carton bo

and Warning instruction manual Harman/Kardon EU Version 1

lement page of Batteries treatmentA4 paper Size 1 12 Kinds of languages, Harman/Kardo

Owner manual HS2X0(HS280&HS210) EU Versio

Remote control RC-HS28

lkalescent batter

for unit 47*50cm 1 For unit Packin

Connect cable scart 1.5m 1 EU Vision

HS200-Connected Piece for Speaker Jack HS280-Amplifier Heatsink 1 HS280-PT0 HS280-Power Heatsin 35*30*49mm 1 HS200-PT10 For SMPS Board

16*12*51MM (The Hole's depth is 18MM）

28*28*10mm 1 For U21 on Mainboard

F5BRH12*27*5.6-P.

WS-044-0 1 EU Version

50.6*4.2*1.5mm (with #500 glue be single sides

lued

Gap Pad VO UItra Soft,L15*W8*T0.3,sin 20*10*7MM (with #9448 glue be double sides

lued

38.5 (Underside Glued

10*10*7MM (with double sides glued

M1.7*4CBHNI 1 For Button cover Board and button Board

M3*8PBTTNI 7 For ICs and Heatsinks on SMPS Board (7

M3*8PAHO 7 For output jacks (7 M3*10PAHO 2 For plastic scaleboard and rear panel (2

M3*12PMHO 2 For AC power socket (2 M3*10PMHO 2 For SCART Jack (2 M3 2 For SCART Jack (2 M3 2 For power jack2

H-HS2 copper Terminal Connector-Red

Surface gilded

H-HS2 copper Terminal Connector-Black

Surface gilded

H-HS2 copper Terminal Connector-White

Surface gilded

HS200 340*170*45mm 1 For accessorie HS2X

recausion mar recausion guid

GP7# 3

25*35cm 1 For Owner manual Packin 9*27.5CM 1 For Remote Control Packin 6*9cm 1 For battery Packin 11*28cm 1 For power cord packin

WS-002E+WS-019 HO5VV-F 0.75×2C BK 2M

le sides glued

with Single side glued)6 For hamulus of front panel

1 HS280-PT03 1.0mm galvanized sheet 1 HS200-PT0

4 HS200-PT06

1 HS280-PT04 For SMPS Board

For S503/S504/S505/S506 on SMPS

Board

2 For Amplifier Output Cord

2 HS200-RE0 1 HS200-RE0

4 For pedestal underlay HS100-H01

Between U407 and Amplifier Heatsink on

V board

2 For VFD(2)

Between volume button and Front Panel

Board 1 Inside the volume button Black PVC 1 For IR receiver

paste in front of Disc tray door in the front

anel

1 For Q509 on SMPS Board 1 For SMPS Board 1 Be buckled above volume button board

For front Panel and Left/Right sides of

chassis (4), Between two Heatsinks on

SMPS Board

For front panel and pedestal underlay and

chissis

; For AV Board and Heatsink (2

For front panel and front panel board(9)

For plastic scaleboard and Speaker

Connected Board

For Loader and chassis(4), For PCB

Brackets and chassis

For SMPS Board and chassis (5), For AV

Board and chassis (4), For Main Board and

PCB brackets

For rear panel and the bottom side of

chassis (2), For top cover and bottom side

of chassis

For top cover and chassis, top cover and

rear

anel (5

For Insulated gasket and volume button

Board

1 1 1 1 Outsourcing, Blac

1 EU Vision

0.8mm galvanized sheet, natural color

0.55mm galvanized and precoated sheet, black color EU Version, 0.6mm

alvanized sheet

Upon the U407 on AV Boar

luminium alloy, Oxidation,

Black

ntiflaming, ABS,94V0;

Black Color and S

BS, Appointed Color and

technique

BS, Appointed Color and

technique

BS, Spray argent color

Same as HS100

BS, Black transparent ABS+dispersion material transparent PV

ntiflaming ABS,94V0, Black

BS, Black, For Speaker Connected Board Mitsubishi 3mm Black Lens (Include 47mm “harman/kardon” Lo Rubber Lacquer Appointed by client Transparent ABS + dis

ersion material

Black

EU Vision EU Vision

White

Match for DVD21

HS2X0 Component List

Item P/N Description Specification Qty Location.No. Note

harman/kardon

HS 2X0/230 Service Manual

Page 14 of 73

86 01.47.CNT.CTX.E016 Antenna

87 01.15.JX.EDL05MHEA Loader DL-05MH-H40P(EA) 1 Foryou,Mabuchi EA motor

88 01.47.CNT.LJX.7.E603 Connect cable

89 01.47.CNT.LJX.7.E706 Connect cable

90 0804020100006 Connect cable

01.48.BPX.1.E147 Flat cable 1.0*14P*100mmA 2

92 01.48.BPX.1.E148 Flat cable 1.0*8P*100mmA 1

93 01.48.BPX.1.E149 Flat cable 1.25*12P*80mmA(T=0.1mm) 1

94 01.48.BPX.1.E151 Flat cable 1.0*24P*80mmA 1

95 01.48.BPX.1.E167 Flat cable 1.0*20P*80mmA 1

96 01.48.BPX.1.E153 Flat cable 1.25*14P*70mmA(T=0.1mm) 1

97 01.48.BPX.1.E154 Flat cable 1.0*6P*40mmA 1

98 01.48.BPX.1.E155 Flat cable 1.25*9P*60mmA(T=0.1mm) 1

99 01.48.BPX.1.E156 Flat cable 1.0*12P*220mm 100 01.48.BPX.1.E028 Flat cable 0.5*24P*200mmA 1 For Loader and CN2 on Main Boar 101 01.37.PCB.2.E6314C Speaker Connected Boar

02.11HAV09M5982C01 Mainboard (semi-manufactured goods)

102

103 02.14HAV09I5983C01 AV Board (semi-manufactured goods HAV09I-5983C01 (EU Vision 1 104 0219HAV08P6144C2X0 SMPS Board (semi-manufactured

105 7001200100001

106 7001200100002

Front Panel Board (semi-manufactured goods) Volume Button Board (semimanufactured goods)

d 6314C 1 2-layers

FM-TV-22 (Lead content less than 300PPM)

VH-3Y Connector-2Y-120mm(Be same side) VH-3Y Connector-2Y-2Y-60mm(Be same side) NSCL-20090908-01,VH-4Y Connector-4P 80mm(Be same side with color is White, Black, Red and Black)

A 1 For Loader and CN9 on Main Board

HAV09M-5982C01 (EU Vision+Hitachi Loader)

goods) HAV08P-6144 1 2-layers. Power supply board.

6742C 1 2-layers

6743C 1 2-layers

1 EU Vision

CN501 on SMPS Board to Power Jack with

solder one end CN506 on SMPS Board to CN400(L) on AV

Board

CN406 on AV Board to JP1.JP2 on

Speaker Connected Board with solder one end CN4(A) on Mainboard to CN601(A) on Front Panel Board*1, CN5(D) on Mainboard to CN403(D) on AV board*1 CN2(B) on Mainboard to CN603(B) on Front Panel Board CN3(C) on Mainboard to CN504(C) on SMPS Board CN1(E) on Mainboard to CN401(E) on AV Board CN6(F) on Mainboard to CN404(F) on AV Board CN503(H) on SMPS Board to CN602(H) on Front Panel Board CN604(J)on Front Panel Board to CN605

(J) on Volume Button Board CN505(K) on SMPS Board to CN405(K) on AV Board

1 4-layers

2-layers

HS2X0 Component List for Mainboard (5982C)

HS2X0 Component List

Item P/N Description Specification Qty Location.No. Note

1 01.57.R.2.E000J Resistor, chip 0603-0Ω ±5% 19

2 01.57.R.2.E020J Resistor, chi 3 01.57.R.2.E100J Resistor, chip 0603-10Ω±5% 2 (R22) (R92) 4 01.57.R.2.E220F Resistor, chip 0603-22Ω±1% 1 R286

01.57.R.2.E220J Resistor, chip 0603-22Ω±5% 42

6 01.57.R.2.E330J Resistor, chi 7 01.57.R.2.E430J Resistor, chip 0603-43Ω±5

8 01.57.R.2.E49R9F Resistor, chip 0603-49.9Ω±1% 10

9 01.57.R.2.E680F Resistor, chip 0603-68Ω±1% 3 R229 R250 R254

01.57.R.2.E750F Resistor, chip 0603-75Ω±1% 10

11 01.57.R.2.E820F Resistor, chip 0603-82Ω±1% 2 R20 R252

12 01.57.R.2.E101J Resistor, chip 0603-100Ω±5% 14

13 01.57.R.2.E271J Resistor, chi 14 01.57.R.2.E301J Resistor, chip 0603-300Ω±5% 1 R178

01.57.R.2.E331J Resistor, chip 0603-330Ω±5% 3 R45 R103 R10

15 16 01.57.R.2.E391J Resistor, chip 0603-390Ω±5% 1 R134

01.57.R.2.E471J Resistor, chip 0603-470Ω±5% 3 R156 R157

17 18 01.57.R.2.E511F Resistor, chip 0603-510Ω±1% 1 R285

01.57.R.2.E102F Resistor, chip 0603-1KΩ±1

19 20 01.57.R.2.E102J Resistor, chip 0603-1KΩ±5% 6 (R51) (R52) R61 R62 (R275) R194 21 01.57.R.2.E152J Resistor, chip 0603-1.5KΩ±5% 2 22 01.57.R.2.E162J Resistor, chi

01.57.R.2.E182J Resistor, chip 0603-1.8KΩ±5% 2 (R267) (R269)

23 24 01.57.R.2.E222J Resistor, chip 0603-2.2KΩ±5% 1 (R276) 25 01.57.R.2.E332J Resistor, chip 0603-3.3KΩ±5% 2 (R271) (R272)

26 01.57.R.2.E472J Resistor, chip 0603-4.7KΩ±5%

27 01.57.R.2.E103J Resistor, chip 0603-10KΩ±5%

28 01.57.R.2.E123F Resistor, chip 0603-12KΩ±1% 3 (R2) R37 R155 29 01.57.R.2.E1212F Resistor, chi 30 01.57.R.2.E153J Resistor, chip 0603-15KΩ±5% 3 R163 R210 R209 31 01.57.R.2.E203J Resistor, chip 0603-20KΩ±5% 1 R152 32 01.57.R.2.E223F Resistor, chip 0603-22KΩ±1% 1 (R1) 33 01.57.R.2.E393J Resistor, chip 0603-39KΩ±5% 1 R167

01.57.R.2.E473J Resistor, chip 0603-47KΩ±5% 5 R144 R147 R175 R176 R26

35 01.57.R.2.E104J Resistor, chip 0603-100KΩ±5% 15

36 01.57.R.2.E105J Resistor, chip 0603-1MΩ±5% 2 (R168 37 01.57.R.3.E000J Resistor, chip 0805-0Ω ±5 38 01.57.R.3.E4R7J Resistor, chip 0805-4.7Ω±5% 2 (R154) (R153)

39 01.57.R.8.EP2204 Resistor, thick film chip network

40 01.57.R.8.EP3304 Resistor, thick film chip network 0603-33Ω*4 ±5% 8

41 01.57.R.Y.E270 Voltage Dependent Resistor, TDK AVR-M1608C270MTABB SMD 2 ESD3 ESD2 42 01.57.R.R.E050 Thermal Dependent Resistor, JinKe JK-MSMD050 SMD 1 PTC1 43 01.54.CS.2.E150N50V Capacitor, multilayer ceramic, chip 0603-15P NPO±5%/50 44 01.54.CS.2.E200N50 45 01.54.CS.2.E151N50V Capacitor, multilayer ceramic, chip 0603-150P NPO±5%/50V 2 C128 C129 46 01.54.CS.2.E681N50 47 01.54.CS.2.E122X50V Capacitor, multilayer ceramic, chip 0603-122 X7R±10%/50V 1 C108

01.54.CS.2.E152X50V Capacitor, multilayer ceramic, chip 0603-152 X7R±10%/50V 1 C123

48 49 01.54.CS.2.E332X50V Capacitor, multilayer ceramic, chip 0603-332 X7R±10%/50V 1 C109 50 01.54.CS.2.E392X50V Capacitor, multilayer ceramic, chip 51 01.54.CS.2.E103Y50V Capacitor, multila 52 01.54.CS.2.E103XT50V Capacitor, multilayer ceramic, chip 0603-103 X7R±5%/50V 1 (C15) 53 01.54.CS.2.E223X50V Capacitor, multilayer ceramic, chip 0603-223 X7R±10%/50V 1 (C76)

V Capacitor, multilayer ceramic, chip 0603-20P NPO±5%/50V 6 (C70) (C68) (C119) (C127) (C20) (C21

V Capacitor, multilayer ceramic, chip 0603-680P NPO±5%/50V 2 C97 C120

p 0603-2Ω±5% 1 R21

p 0603-33Ω±5% 6

p 0603-270Ω±5% 1 (R139)

p 0603-1.6KΩ±5% 1 R177

p 0603-12.1KΩ±1% 1 (R131)

yer ceramic, chip 0603-103 Y5V-20+80%/50V 6 C3 (C6) (C8) C74 C75 (C111)

% 1 (R24)

% 1 R19

% 1 R132

0603-22Ω*4 ±5% 22

V 1 (C241)

0603-392 X7R±10%/50V 1 (C239)

R146 R158 R159 R160 R162 R164 R165 (R198) R227 R233 R235 R266 R268 R281 R59 R278 R279 R280 (R291)

R29 R30 R35 (R39) R42 R56 R63 R64 R65 R68 R73 R74 R75 R82 R83 R84 R105 R106 R107 R108 R109 R112 R113 R114 R115 R116 R123 R124 R125 R183 R184 R185 (R224) R195 R246 R40 R78 R79 R141 R186 R190 R196

R55 R57 R60 R143 R208 R259

(R93) (R94) (R95) (R96) (R212) (R213) (R214) (R215) R216 R21

R228 R231 R234 R240 R241 R244 R245 R253 R206 R211

R46 R230 R236 R237 (R238) R264 R265 (R282) (R283) R58 (R151) (R150) R179 R180

(R101) (R102)

(R3) (R6) (R7) (R10) (R11) (R13) (R15) R18 R25 R26 R27 R28 R43 (R44) R47 R5

R69 (R71) R72 R85 R86 R87 R88 R89 (R126) (R133) R135 R138 (R182) (R242) R261 R14

(R91) (R97) (R98) (R99) (R110) (R117) R136 R137 R148 R149 R161 R166 R169

R170 R171 R172 (R197) R218 R219 R220 (R222) R270

R9 R31 R32 (R33) R34 R38 R49 R66 R67 R90 R192 R203 R205 R207 (R41)

) (R36)

RN2 RN3 RN4 RN5 RN6 RN8 RN10 RN12 RN14 RN24 RN27 RN29 RN30 RN31 RN33 RN34 RN35 RN36 RN37 RN38 RN39 RN40 RN19 RN21 RN22 RN23 RN25 RN26 RN28 RN32

(R239)

)

Item P/N Description Specification QtyLocation.No. Note

)

Ω

)

Ω

)

(

)

_NL(

)

(

)

(

)

harman/kardon

HS 2X0/230 Service Manual

Page 15 of 73

54 01.54.CS.2.E104Y50V Capacitor, multilayer ceramic, chip 0603-104 Y5V-20+80%/50V 133

55 01.54.CS.2.E474X10 56 01.54.CS.2.E105X16

57 01.54.CS.2.E104Y50V Capacitor, multilayer ceramic, chip 0603-104 Y5V-20+80%/50V 54

58 01.54.CS.2.E475X16 59 01.54.CS.3.E106X16 60 01.54.CS.3.E335Y16 61 01.54.CS.3.E475X16 62 01.54.CS.B.E1023K 63 01.35.CC.E120622U10 64 01.34.CL.D.E10U16V 65 01.34.CL.D.E22U16V 66 01.34.CL.D.E47U10V 67 01.34.CL.D.E47U16V 68 01.34.CL.D.E100U10V

69 01.34.CL.D.E100U16VC Capacitor, AL.electrolytic CD110-100UF/16V 5*11 17

70 01.34.CL.D.E220U16VD Capacitor, AL.electrolytic CD110-220UF/16V 6.3*12 7 CE7 CE8 CE31 CE33 CE35 CE36 CE38

71 01.34.CL.D.E470U10V 72 01.34.CL.D.E1000U10V 73 01.38.FUSE.S.EJK110 Pol

74 01.13.L.Z.ESA50 Bead, chip 0603-50Ω 10

75 01.13.L.Z.ESA120 Bead, chi

76 01.13.L.Z.ESB50 Bead, chip 0805-50Ω 11

77 01.13.L.Z.ESB220 Bead, chi 78 01.13.L.Z.ESC50 Bead, chi

79 01.13.L.Z.ED50A Bead, leaded fixed

80 01.13.L.L.S.E007 Inductor, multilayer ceramic, chip 0805-10UH SMD 12

81 01.13.L.L.S.E320 Inductor, SMD SPI1048QR-150 82 01.13.L.L.S.E242 Inductor, multila 83 01.41.D.PS.EB340L 84 01.41.D.PD.E539 85 01.41.D.PS.ELL414

86 01.41.D.PS.EBAV99 Diode

87 01.42.Q.S.E1132 Transisto 88 01.42.Q.S.ET3904 Transisto 89 01.42.Q.S.E2N390 90 01.42.Q.S.EC8550 Transisto 91 01.42.Q.S.E8050 Transisto

92 0218020000007 Crystal Oscillator

93 01.00.JZ.E27000 Quart 94 01.00.JZ.E24000 95 01.44.IC.D.EL780

96 01.46.IC.EK4S561632JUC60 IC, Samsung , SDRAM K4S561632J-UC60(TSOP54,256M,SMD) 1 U7

97 01.46.IC.EK4S643232HUC6 98 01.44.IC.S.EA11173V

99 01.44.IC.S.EA11171V 100 01.44.IC.S.E1117 IC, AAC, LDO 101 01.44.IC.S.EMP1411DH IC,MPS,Ste 102 01.46.IC.EAML821 103 01.46.IC.EFLI2310 IC, ST, Di 104 01.46.IC.ETMD8809X0

105 01.46.IC.EK9F1G08UOB IC, Samsung, Flash

106 01.46.IC.EW25X16VSSIG IC, Winbond, Flash W25X16VSSIG(SOIC-8,SMD 107 01.46.IC.EW9812G6GH IC, Winbond, SDRAM W9812G6GH-6 SMD,54L-TSOP2-400mil 1 U19 108 01.44.IC.S.EAM5888 IC, AMtek, Motor Driver 109 01.44.IC.S.EFMS6143 IC, Fairchild, Video Filter Driver FMS6143CSX 110 01.46.IC.ESII9034CTU IC, Silicon Ima 111 01.44.IC.D.EPC817 IC, Shar 112 01.46.IC.EUSB2514AEZG IC, SMSC, USB HUB Controller USB2514-AEZG 113 01.46.IC.ESN74ALVC244P 114 01.46.IC.ESN74AUP1G80DC 115 01.46.IC.ELAN8700CAEZG IC, SMSC, Ethernet Transceiver LAN8700C-AEZG 116 01.44.IC.S.E3522 IC, Analo

117 01.44.IC.S.E0514

118 01.46.IC.EMK900 IC, Multek, Lisence Chi

119 01.44.IC.S.EFST3257MTC

120 01.40.CON.DCZ.E316 HDMI Jac 121 01.13.L.R.E13 122 01.40.CON.DDZ.EDSW-30 S-Vidio Connecto 123 01.40.CON.DCZ.E04 124 01.40.CON.DCZ.E857 RJ45 Jac 125 01.40.CON.DCZ.E217 USB Jac 126 01.40.CON.DCZ.E203 IR in/out 127 01.40.CON.S10.FPC1.E01 128 01.40.CON.S13.FPC2.E00 129 01.40.CON.S10.FPC2.E00 130 01.40.CON.S10.FPC2.E03 131 01.40.CON.S10.FPC2.E031 FPC Connecto 132 01.40.CON.S10.FPC2.E00 133 01.40.CON.S05.E00 134 01.00.WJ.TJ.HS650.E002 Metal Part HS650DL-U t

135 01.37.PCB.4.E5982C

Capacitor, multilayer ceramic, chi Capacitor, multilayer ceramic, chi

Capacitor, multilayer ceramic, chi Capacitor, multilayer ceramic, chi Capacitor, multilayer ceramic, chi Capacitor, multilayer ceramic, chi Capacitor, multilayer ceramic, chi Capacitor, multilayer ceramic, chi Capacitor, AL.electrolytic CD110-10UF/16V 5*11 2 CE12 CE41 Capacitor, AL.electrolytic CD110-22UF/16V 5*11 6 CE51 CE52 CE56 CE48 CE49 CE5 Capacitor, AL.electrolytic CD110-47UF/10V 5*11 5 CE3 CE6 CE29 CE46 CE5 Capacitor, AL.electrolytic CD110-47UF/16V 5*11 3 CE14 CE16 CE1 Capacitor, AL.electrolytic CD110-100UF/10V 5*1

Capacitor, AL.electrolytic CD110-470UF/10V 6.3*1 Capacitor, AL.electrolytic CD110-1000UF/10V 8*1

er Positive Temperature Coefficent JK-110(1.1A) SMD 1 PTC3

Diode B340LA SMD 1 D1 Diode IN5393 DIP 3 D5 D10 D11 Diode LL4148 SMD 1 D4

Transisto

Quartyz Crystal Unit 24.000MHZ-49S-20 IC, ST, Voltage Regulator L7805,TO-220 1 U22

IC, Samsung , SDRAM K4S643232H-UC60(TSOP86,64M,SMD)1 U31 IC, AAC, LDO IC, AAC, LDO

IC, Amlogic, A/V Processor

IC, TAMUL, MPEG Processo

IC, TI, Octal Buffer with 3-State outputs SN74ALVC244PW(TSSOP-20,SMD IC, TI, D-Type FLIP-FLOP SN74AUP1G80DCK(SC-70,SMD

IC, Semtech, Lo Diode Arra

IC, Fairchild, Multiplexer/Demultiplexer Bus Switch

Ethernet Transforame

Jac

FPC Connector, SMD FPC-1.0-12P with upward touc FPC Connecto FPC Connecto FPC Connecto

FPC Connecto FPC connector, SMD FPC-0.5-24P with upward touc

PCB Board-Mainboard without com

er ceramic, chip, TDKACM2012-900-2P SM

z Crystal Unit 27.000MHZ-49S-20

-Down Converte

ital Video Format Converter FLI2310-LF-CF,PQFP-208,SMD 1 U21

e, HDMI Transmitter SII9034CTU(TQFP-100,SMD

, Photoelectric Coupler PC817 DIP 1 U14

Tech., Reset Circuit

Capacitance TVS

ack CKX-3.5-2

onent

0603-474 X7R±10%/10 0603-105 X7R±10%/16

0603-475 X7R ±10%/16 0805-106 X7R±10%/16 0805-335 Y5V-20+80%/16 0805-475 X7R±10%/16 1812-102/3K ECJMFF1A226Z 1 C64

0603-120

0805-220 1206-50

50Ω（3.5*6.0*0.8）

15uH/3A) SM

BAV99LT1,SOT23 (or LBAV99L1G,SOT23 2SB1132,SOT89 2 Q5 Q6 MMBT3904,SOT23 1 Q3 2N3906,SOT23 1 Q2 KTC8550,SOT23 3 Q1 Q4 Q7 KTC8050,SOT23 1 Q10 7050 OSC-50.000MHz,50.000MHz, 25PPM~+25PPM,3.3V,SMD

Z1117H-3.3,SOT-223 3 U1 U4 U11 Z1117H-1.8,SOT-223 2 U2 U23 Z1117H-ADJ,SOT-223 1 U3

MP1411DH,MSOP-1

ML8218(PQFP-216,SMD

TMD8809X02(160-LQFP-2424,SMD K9F1G08UOB-PCBO SMD,48-TSOP11220F

M5888 SMD,HSOP2

AT3522 SMD,SOT-23 1 U5

RClamp0514M SMD,MSOP-10L 4 U25 U26 U27 U30

MK-900(SOP14,MCU,SMD

FST3257MTC SMD 1 U36 FAIRCHILD

1747981-1 SM 13F-38ANL SMD 1 U35 DSW-30 1 JP5

V1-8.4-8G 1 JP6 26LM90-37121-01 1 JP1 Yilian USB-A-05 (ROHS, Mother Set

1.25-12P Vertical Type and Dual Conact1 CN3 Black

1.0-8P Vertical Type and Dual Conac

1.0-14P Vertical Type and Dual Conact2 CN5 CN4 Black

1.0-20P Vertical Type and Dual Conact1 CN6 Black

1.0-24P Vertical Type and Dual Conact1 CN1 Black & Antiflamin

5982C 1

SOIC-8,SMD

QFN-36,SMD

e connect piec

C1 (C2) C4 (C5) C7 C9 (C10) C11 (C12) (C13) (C14) (C16) C17 C18 C19 (C22) C23 (C24) C25 C26 C27 (C28) (C29) (C30) (C31) (C32) (C33) (C34) (C35) (C36) (C38) (C40) (C41) (C42) (C43) (C44) C45 (C46) (C47) (C48) (C49) (C50) (C51) (C52) (C53) C54 (C55) (C56) (C57) (C58) C59 C61 (C65) (C66) (C71) (C72) (C73) C79 C82 C83 (C84) (C85) (C86) (C88) (C89) C90 C91 C92 C93 C94 (C96) (C98) C99 (C100) (C101) (C102) C103 (C105) C106 (C107) C110 C112 C113 C114 C115 (C116) (C117) (C118) (C121) (C124) (C125) (C126) C130 C131 C132 C133 (C134) C135 C136 (C138) (C139) (C140) C141 (C142) (C143) (C144) (C145) (C146) (C147) C148 (C149) (C150) (C151) (C152) (C153) (C154) (C155) C160 C163 C164 C165 C166 C167 C168 C169 C170 C171 C172 C173 (C174) C175 C176 C177

1 C122 5(C60) C62 C63 (C104) C23

C178 (C179) C180 (C181) (C182) (C183) (C184) (C185) (C186) (C187) (C188) (C189) (C190) (C191) (C192) (C193) (C194) C195 (C198) C199 (C200) (C201) (C202) (C203) C204 (C205) (C206) (C207) (C208) (C209) (C210) (C211) (C212) (C213) (C214) (C215) (C216) (C217) (C218) (C219) (C220) (C221) (C222) (C223) (C224) (C225) (C230) C231 C232 C233 (C234) C236 (C237) C240

1(C37 4 C87 C228 C229 C23 2 C244 C24 1 C243 2 C69 C9

6 CE1 CE2 CE9 CE47 CE57 CE6

CE4 CE10 CE11 CE15 CE18 CE19 CE20 CE21 CE32 CE34 CE37 CE39 CE40 CE42 CE60 CE61 CE6

1 CE13 1 CE30

FB6 FB23 FB24 FB25 FB16 FB17 FB18 FB20 FB41 FB44

1(FB22

FB8 (FB9) FB10 FB11 (FB12) (FB14)

FB39 FB19 FB26 FB42 FB43 1 FB21 4 FB7 FB37 FB38 (FB40

FB1 FB2 FB3 FB4 FB5 FB13 FB15 FB27

FB35 FB36

(L1) L2 (L3) L4 L5 L6 L8 L9 L10 L11 L13

L14 1 L19 4 L15 L16 L17 L1

3 D12 D13 D14

1Y3

2 Y2 Y4 1Y5

1 U28 1U6

1 U17

1 U9 firmware burn-in

1 U18 firmware burn-in

1 U15 1 U20 1 U24

1 U32 1 U29 1U8 1 U12

1 U34 Burn code: MK90

1 JP7 51UO19S-331N-A SM

ntiflaming, Yellow Color

1 JP4 2 JP2 JP3 1 CN9

1 CN2 Black & Antiflamin

1 CN10 1H1

HS2X0 Component List for Mainboard (5982C)

Item P/N Description Specification QtyLocation.No. Note

)

Ω

(

)

(

)

pins

harman/kardon

HS 2X0/230 Service Manual

Page 16 of 73

HS2X0 Component List for AV Board (5983C)

1 01.57.R.1.E000J Resistor, chi 2 01.57.R.1.E220J Resistor, chi 3 01.57.R.1.E101J Resistor, chi 4 01.57.R.1.E202J Resistor, chi 5 01.57.R.1.E472J Resistor, chi

6 01.57.R.2.E000J Resistor, chip 0603-0Ω ±5% 24

7 01.57.R.2.E100J Resistor, chi 8 01.57.R.2.E561J Resistor, chi

9 01.57.R.2.E750F Resistor, chi 10 01.57.R.2.E101J Resistor, chi 11 01.57.R.2.E111J Resistor, chi 12 01.57.R.2.E471J Resistor, chi 13 01.57.R.2.E751F Resistor, chi 14 01.57.R.3.E221F Resistor, chi 15 01.57.R.2.E102J Resistor, chi 16 01.57.R.2.E162F Resistor, chi 17 01.57.R.2.E222J Resistor, chi 18 01.57.R.2.E332J Resistor, chi 19 01.57.R.2.E472J Resistor, chi 20 01.57.R.2.E622F Resistor, chi 21 01.57.R.2.E103J Resistor, chi 22 01.57.R.2.E473J Resistor, chi

23 01.57.R.2.E104J Resistor, chip 0603-100KΩ±5% 7 4R19 4R24 R459 R460 R466 R468 R469

24 01.57.R.4.E102J Resistor, chi 25 01.57.R.4.E202J Resistor, chi

26 01.57.R.Y.E270 Voltage Dependent Resistor, TDK AVR-M1608C270MTABB SMD 8

27 01.57.R.C.E220 FIXED CARBON FILM

28 01.54.CS.1.E103X50 29 01.54.CS.1.E104X10 30 01.54.CS.1.E223X25 31 01.54.CS.2.E180N50 32 01.54.CS.2.E270N50 33 01.54.CS.2.E331N50

34 01.54.CS.2.E103X50V Capacitor, multilayer ceramic, chip 0603-103 X7R±10%/50V 9

35 01.54.CS.2.E104Y50V Capacitor, multilayer ceramic, chip 0603-104 Y5V-20+80%/50V 25

36 01.54.CS.2.E104X50 37 01.54.CS.2.E333X50 38 01.54.CS.2.E473X50 39 01.54.CS.3.E102N50 40 01.54.CS.3.E103X50 41 01.54.CS.3.E104X50 42 01.54.CS.3.E475X16 43 01.54.CS.3.E106X16 44 01.54.CS.3.E226X6V 45 01.54.CS.4.E104X50 46 01.54.CS.4.E105X50 47 01.34.CL.D.E10U10V 48 01.34.CL.D.E10U16V 49 01.34.CL.D.E470U6V 50 01.34.CL.D.E22U16V 51 01.34.CL.D.E47U10V 52 01.34.CL.D.E47U25VC1 Capacitor, AL.electrolytic CD110-47UF/25V 5*11 2 CE417 CE42 53 01.34.CL.D.E100U10V 54 01.34.CL.D.E100U16V 55 01.34.CL.D.E330U16V 56 01.34.CL.D.E1000U50V

57 01.33.CT.EA3U310V

58 01.00.CD.DL.E474100

59 01.13.L.L.S.E434 Inductor, SMD

60 01.13.L.Z.ESA50 Bead, chi

61 01.13.L.Z.ESB50 Bead, chip 0805-50Ω 6 FB408 FB411 FB413 FB414 FB415 FB416

62 01.13.L.Z.ED50

63 01.13.L.L.D.E127 Magnetic shielding Inductor 983BN-1003-15UH 4 L401 L402 L403 L404

64 01.00.JZ.E20250 Quart

65 01.00.JZ.E32768Y Crystal Oscillator 32.768KHZ 3.3V 5*3.2mm SMD 1 Y403

66 01.41.D.PS.ELL414

67 01.41.D.PS.EBAV99 Diode BAV99LT1 SMD 2 D403 D402

68 01.42.Q.S.E8050 Transisto 69 01.42.Q.S.EC8550 Transisto

70 01.42.Q.S.EDTC343 Transistor DTC343TKT146 SMD 7 Q401 Q402 Q406 Q407 Q408 Q410 Q411

71 01.44.IC.D.EL780 72 01.44.IC.S.EC5FP

73 01.46.IC.EMAP5601ME5900

74 01.46.IC.ETAS5352DD 75 01.46.IC.ESI4705B20GM 76 01.44.IC.S.EFST3257MTC 77 01.44.IC.S.E3522 IC, Analo

78 01.44.IC.S.EV330 IC, TI, Video Switch FSAV330 SMD 1 U409

79 01.46.IC.EW25X80SS IC, Winbon, Flash W25X80-SS SMD 1 U410

80 01.46.IC.E74H0 81 01.40.CON.S13.FPC2.E00 82 01.40.CON.S10.FPC2.E03 83 01.40.CON.S10.FPC2.E031 FPC Connecto 84 01.40.CON.S10.FPC2.E00

85 01.40.CON.DCZ.E244 Connector

86 01.40.CON.DCZ.E129 Connector

87 01.43.E011

88 01.40.CON.DCZ.E203 Jack, YuanChan

89 01.40.CON.DCZ.E865 Jack H-AV2-8.4-9PB-14 1 JP406

90 01.40.CON.DCZ.E864 Jack H-AV8-8.4-13PB-54 1 JP403

91 01.40.CON.DCZ.E181 Jack, YuanChan 92 01.57.R.R.E010 Thermal De 93 01.40.CON.DCZ.E863 Jack, Hon

94 01.37.PCB.2.E5983C

Capacitor, multilayer ceramic, chi Capacitor, multilayer ceramic, chi Capacitor, multilayer ceramic, chi Capacitor, multilayer ceramic, chi Capacitor, multilayer ceramic, chi Capacitor, multilayer ceramic, chi Capacitor, multilayer ceramic, chi Capacitor, multilayer ceramic, chi Capacitor, multilayer ceramic, chi Capacitor, multilayer ceramic, chi Capacitor, multilayer ceramic, chi Capacitor, AL.electrolytic CD110-10UF/10V 5*11 2 CE426 CE42 Capacitor, AL.electrolytic CD110-10UF/16V 5*11 1 CE421 Capacitor, AL.electrolytic Capacitor, AL.electrolytic CD110-22UF/16V 5*11 4 CE408 CE414 CE415 CE41 Capacitor, AL.electrolytic CD110-47UF/10V 5*11 2 CE425 CE40

Capacitor, AL.electrolytic CD110-100UF/10V 5*1 Capacitor, AL.electrolytic CD110-100UF/16V 5*11 4 CE418 CE420 CE422 CE42 Capacitor, AL.electrolytic CD110-330UF/16V 6.3*1 Capacitor, AL.electrolytic GF102M050I250 Solid Electrolyte Tantalum Chip Ca

acito

Capacitor, polyester film 474J/100V DIP 2 C472 C45

Bead, leaded fixed

z Crystal Unit 20.250MHz-49S 18P/±20PP

Diode LL4148 SMD 2 D400 D401

IC, ST, LDO IC, Rohm, LDO IC, Micronas, Audio Processor

IC, TI, Stereo Digital Amplifier IC, Silicon labs, FM Radio Receiver IC, Fairchild, Analo

IC, TI, Hex Inverter 74HCU04 SM FPC Connecto FPC Connecto

FPC Connecto

Jack, Sharp, Fiber optic iuput jack with shutte

PCB board-AV Board without com

onent

Switch

ic Tech, Reset monitor

, SUB Tirgger JackCKX-3.5-2

, SCART Jac

endent Resistor, JinKeJK-MSMD010 SMD 1 PTC400

Chang, FM Jac

0402-0Ω±5 0402-22Ω±5 0402-100Ω±5 0402-2KΩ±5 0402-4.7KΩ±5

0603-10Ω±5 0603-560Ω±5 0603-75Ω±1 0603-100Ω±5 0603-110Ω±5 0603-470Ω±5 0603-750Ω±1 0805-220Ω1 0603-1KΩ±5 0603-1.6KΩ±1 0603-2.2KΩ±5 0603-3.3KΩ±5 0603-4.7KΩ±5 0603-6.2KΩ±1 0603-10KΩ±5 0603-47KΩ±5

1206-1KΩ±5 1206-2KΩ±5

CR1/2WT/B22Ω±5%(RT,22Ω,±5%,1/2W,DI P 0402-103 X7R±10%/50 0402-104 X7R ±10%/10 0402-223 X7R±10%/25 0603-18P NPO±5%/50 0603-27P NPO±5%/50 0603-330P NPO±5%/50

0603-104 X7R±10%/50 0603-333 X7R±10%/50 0603-473 X7R±10%/50 0805-102 NPO±5%/50 0805-103 X7R±10%/50 0805-104 X7R±10%/50 0805-475 X7R±10%/16 0805-106 X7R±10%/16 0805-226 X7R±20%/6.3 1206-104 X7R±10%/50 1206-105 X7R±10%/50

470uF/6.3V 6.3*12 ±20% 10

A-3.3UF-10V 1 CA400

CS0603-R27J-S(0603,270NH,±2%,High frequency,SMD 0603-50

50Ω（3.5*6.0*0.

KTC8050 SMD 1 Q400 SOT23 KTC8550 SMD 3 Q404 Q405 Q409 SOT23

L7808C-V DIP, TO-220 1 U405 BA00HC5FP SMD, T0252-

MAP5601M-E5-900(PMQFP-128-2,SMD) 1 U403

TAS5352DDV SI4705-B20-GM FST3257MTC SMD 1 U411

1.25-9P Vertical Type and Dual Conact1 CN40

1.0-14P Vertical Type and Dual Conact1 CN403 Black

1.0-20P Vertical Type and Dual Conact1 CN404 Black

1.0-24P Vertical Type and Dual Conact1 CN401 Black & Antiflamin Vertical VH Connector with four holes and four Vertical VH Connector with three holes and two

GP1FAV51RK0F 2 JP405 JP404

CS-101 1 JP401 Fully Shield

IF-02P 1ANT401 nickel-plate

5983C 1 2-layers

HTSSOP-44,SMD

AT3522 SMD,SOT-23 1 U406

ins

℃

）

QFN-36,SMD

1 4R38 5 4R31 4R32 4R39 4R40 4R41 2 4R33 R42 2 4R29 4R3 1 4R53

4R06 4R08 4R09 4R11 4R12 R441 R442 R443 R445 4R45 R446 4R49 R453 R454 R455 R456 R457 R461 R462 R463 R464

4R52 4R51 R44 4 4R43 4R44 4R46 4R4 2 4R17 4R2 3 4R25 4R20 R42 1 R467 2 R428 R43 6 R472 R477 R479 R481 R483 R48 1 R431 2 R436 R401 4 R419 R405 R408 R41 1 R415 3 4R18 4R26 4R5 5 R407 R409 R412 R413 R42 2 4R28 4R21 1 R429 6 R414 R417 R418 R420 R421 R42 3 4R22 4R27 4R4

1 R406 2 R403 R40

ESD401 ESD402 ESD405 ESD406

ESD407 ESD408 ESD410 ESD40

2 R438 R437

1 C400 1 C490 1 C487 2 C415 C41 1 C410 6 C420 C422 C424 C426 C428 C43

C432 C440 C441 C442 C443 C479 C483

C484 C48

C401 C402 C407 C408 C411 C414 C417

C431 C433 C434 C435 C436 C437 C438

C439 C444 C445 C446 C447 C480 C481

C482 C485 4C02 C403

6 C453 C454 C463 C469 C473 C49 4(C493) (C494) (C495) (C496 3 C404 C405 C41 4(C450) (C459) (C466) (C476 4(C451) (C460) (C467) (C477 4 C458 C465 C474 C47 6 C419 C421 C423 C425 C427 C42 4 4C00 C406 C498 C49 1 4C05 4(C448) (C462) (C464) (C478 4 C461 C468 C470 C471

1 CE419

1 CE402

2 CE411 CE41 3 CE400 CE406 CE40

1 L405

2 FB405 FB406

1 FB409

1 Y400 SJK

1 U404

1 U407 1 U408

1 U401 TSSOP14

1 CN406 White & Antiflaming

1 CN400 White & Antiflaming

1 JP402

CAPXON Can Replaced by T491A335K016A FaLa, XiaMen

Can Replaced by THI1315 150

Can Replaced by 5032 OSC

0.032768MHZ,32.768KHZ,±2 5PPM,3.3V,SMD

Can Replaced by LBAV99L1G SMD

Can Replaced by SGM330A SMD

Can Replaced by A25L080MF/G, firmware burn-in

Black

ntiflaming; The color of two

terminals is Oran

ntiflaming; The color is Orange, White, White&White from left to right on top line and Purple, Red, Red&Red from left to right on bottom line.

Item P/N Description Specification QtyLocation.No. Note

)

(

)

(

)

(

)

pins

harman/kardon

HS 2X0/230 Service Manual

Page 17 of 73

HS2X0 Component List for SMPS Board (6144C)

1 01.57.R.3.E000J Resistor, chi 2 01.57.R.3.E100J Resistor, chi 3 01.57.R.3.E220J Resistor, chi 4 01.57.R.3.E330J Resistor, chi 5 01.57.R.3.E470J Resistor, chi 6 01.57.R.3.E101J Resistor, chi 7 01.57.R.3.E471J Resistor, chi

8 01.57.R.3.E102J Resistor, chip 0805-1KΩ±5% 9

9 01.57.R.3.E202J Resistor, chi 10 01.57.R.3.E302F Resistor, chi 11 01.57.R.3.E362F Resistor, chi 12 01.57.R.3.E472J Resistor, chi

13 01.57.R.3.E103J Resistor, chip 0805-10KΩ±5% 8

14 01.57.R.3.E203J Resistor, chi 15 01.57.R.3.E393F Resistor, chi 16 01.57.R.3.E513J Resistor, chi 17 01.57.R.3.E204J Resistor, chi 18 01.57.R.4.E330J Resistor, chi 19 01.57.R.4.E201J Resistor, chi 20 01.57.R.4.E331F Resistor, chi 21 01.57.R.4.E102J Resistor, chi 22 01.57.R.4.E103J Resistor, chi 23 01.57.R.4.E393J Resistor, chi 24 01.57.R.4.E564J Resistor, chi 25 01.57.R.4.E305J Resistor, chi 26 01.57.R.4.E335J Resistor, chi 27 01.57.R.C.ED102 FIXED CARBON FILM RT1/4W-1KΩ 1 R570 28 01.57.R.C.EF683 FIXED CARBON FILM RT1W-68KΩ±5% 1 R530 29 01.57.R.C.EF104 FIXED CARBON FILM RT1W-100KΩ ±5% 1 R521 30 01.57.R.C.EG390 FIXED CARBON FILM RT2W-39 Ω±5% 1 R548 31 01.57.R.C.EGR39 FIXED CARBON FILM RT2W-0.39Ω ±5% 2 R572,R57 32 01.57.R.C.EH471 FIXED CARBON FILM RT3W-470Ω 1 R595 33 01.57.R.Y.E10 34 01.57.R.R.E5D11 Thermmal De 35 01.57.R.C.E60F11 36 01.57.R.R.EJK1630 37 01.54.CS.3.E331N50 38 01.54.CS.3.E102X50 39 01.54.CS.3.E103X50 40 01.54.CS.3.E473X50 41 01.54.CS.3.E473X100

42 01.54.CS.3.E104Y50V Capacitor, multilayer ceramic, chip 0805-104 Y5V+80-20%/50V 19

43 01.54.CS.3.E224Y50 44 01.54.CS.3.E474Y50 45 01.54.CS.4.E105Y25 46 01.35.CC.E120610U16 47 01.00.CD.DL.E223100 48 01.00.CD.DS.E10450 49 01.00.CD.JZ.E472630V 50 01.00.CD.JZ.E103630V 51 01.00.CD.JZ.E105400 52 01.00.CD.GY.E8211K 53 01.00.CD.GY.E224275 54 01.00.CD.GY.E334275

55 01.00.CD.GY.E102400V250V High-voltage metallized polyester film 102/400V(X1) 250V(Y1) (lead pitch: 10mm) 2 CY503 CY504

56 01.00.CD.GY.E471400V250V High-voltage metallized polyester film

57 01.34.CL.D.EH47U50V 58 01.34.CL.D.EH470U16V

59 01.34.CL.D.E470U25V Capacitor, AL.electrolytic

60 01.34.CL.D.E1000U50V 61 01.34.CL.D.E1500U50

62 01.34.CL.D.E2882200U16VH Capacitor, AL.electrolytic CD288H-2200UF/16V 13*25 2 EC507 EC508 CAPXON GF222M016I250A

63 01.34.CL.D.E288220U10VH Capacitor, AL.electrolytic GF222M010G200A 3 EC522 EC506 EC520

64 01.34.CL.D.E28868U50 Capacitor, AL.electrolytic KM680M050E110A 1 EC528 CAPXON-KM680M050E110A

65 01.34.CL.D.E270U400VS Capacitor, AL.electrolytic

66 01.13.L.L.D.E192 Common Mode Inducto 67 01.13.L.L.D.E07 68 01.13.L.L.D.E141 Filter inductor L-200A DIP 1 L508 69 01.13.L.L.D.E01 70 01.13.L.R.E172 Transformer BCK-ER2893 71 01.13.L.R.E173 Switchin 72 01.13.L.L.D.E051 Inductor , leaded fixed LH0608-22U 73 01.13.L.Z.ED100 74 01.13.L.Z.ED100 Bead, leaded fixed 100Ω 75 01.41.D.PS.ELL414 76 01.41.D.PS.EB540 77 01.41.D.PD.EFR104 Diode FR104 DIP 4 D506 D505 D503 D51 78 01.41.D.PD.EHER208G Diode HER208G DIP 2 D508 D50 79 01.41.D.PD.EDQ06 Diode 21DQ06 DIP 1 D513 80 01.41.D.PD.E21DQ1

81 01.41.D.PD.EFCF16A40 Diode

82 01.41.D.PD.E2010DN Diode FYPF2010DN DIP 1 D510 83 01.41.D.PD.EGBU806 Diode brid 84 01.41.D.WS.E18V Zener Diode 18 85 01.41.D.WS.EDDZ9707 Zener Diode DDZ9707-F 86 01.42.Q.S.E8050 Transisto 87 01.42.Q.S.EC8550 Transisto 88 01.42.Q.S.ET3904 Transisto 89 01.42.Q.S.E2N390 90 01.42.Q.S.E1037 Transisto 91 01.42.Q.S.E5866 Transisto 92 01.44.IC.S.E4835 Mosfet 93 01.44.MOS.S.EDMN3033LSN Mosfet DMN3033LSN SM 94 01.44.MOS.D.EFQA13N80 Mosfet FQA13N80 95 01.44.IC.D.EFSDM0465REWDTU IC, Fairchild, Power Switch FSDM0465REWDTU, TO-220F 1 U503 96 01.44.IC.S.EA11173V 97 01.44.IC.D.E78R1

98 01.44.IC.D.E278R05

99 01.44.IC.D.E78R05CTU IC, Fairchild, Volta

100 01.44.IC.D.EKA7912 IC, Fairchild, Volta 101 01.44.IC.D.ELTV817 IC, LITEON, Photoelectric Cou 102 01.44.IC.D.EKA431 IC, AAC, Shunt Regulato 103 01.44.IC.S.EFAN7602M

104 01.40.CON.DCZ.E129 Connector

105 01.38.FUSE.D.E5AL250V3610 Fuse

106 01.40.CON.S13.FPC2.E00 107 01.40.CON.S13.FPC2.E00 108 01.40.CON.S13.FPC2.E00 109 01.00.WJ.QT.E041 3 110 01.00.DP.QT.E113 Sil-

111 01.37.PCB.2.E6144C

Voltage Dependent Resisto

High-Resistance Cermet Resistor RCR60-1W-11MΩ 2 R558 Resettable Fuse, JinK Capacitor, multilayer ceramic, chi Capacitor, multilayer ceramic, chi Capacitor, multilayer ceramic, chi Capacitor, multilayer ceramic, chi Capacitor, multilayer ceramic, chi

Capacitor, multilayer ceramic, chi Capacitor, multilayer ceramic, chi Capacitor, multilayer ceramic, chi Capacitor, multilayer ceramic, chi Terylene Capacitor 223/100 Radial Monolithic Capacitor 104/50V X7R±10% (lead pitch:5.08mm)1 C531 Metallized capacitor 472/630V (lead pitch: 10mm Metallized capacitor 103/630V (lead pitch: 10mm Metallized capacitor 105/400V (lead pitch: 15mm High-voltage metallized polyester film 821,1KV (lead pitch: 15mm High-voltage metallized polyester film 224/275V X2 (lead pitch: 15mm High-voltage metallized polyester film 334/275V X2 (lead pitch: 15mm

Capacitor, AL.electrolytic GF470M050E110 Capacitor, AL.electrolytic GF471M016F115

Capacitor, AL.electrolytic GF102M050I250 Capacitor, AL.electrolytic GF152M050J410

Pulse transforme

Common Mode Choke LCL-471 1 LF503

Bead, leaded fixed 100Ω(3.5*6.0*0.8

Diode LL4148 SMD 1 D520 0.5W Diode B540C SMD 1 D517

Diode 21DQ10 DIP 2 D514 D50

Transisto

IC, AAC, LDO IC, Fairchild, Voltage Regulator KA78R12, TO-220F-4 IC, Fairchild or ShiBao, Voltage Re

IC, Fairchild/ShiBao, PWM Controller FAN7602MX SM

FPC Connecto FPC Connecto FPC Connecto

PCB Board-SMPS Board without com

endent Resisto

Power Transforme

e GBU806 DIP 1 BD501

ulato

ins grounding piec

ad sil-pad 400-302

onent

e Regulator KA78R05TSTU, TO-220F-4 e Regulator KA7912,TO-220 1 U513

0805-0Ω ±5 0805-10Ω±5 0805-22Ω±5 0805-33Ω±5 0805-47Ω±5 0805-100Ω±5 0805-470Ω±5

0805-2KΩ±5 0805-3KΩ±1 0805-3.6KΩ±1 0805-4.7KΩ±5

0805-20KΩ±5 0805-39KΩ±1 0805-51KΩ±5 0805-200KΩ±5 1206-33Ω±5 1206-200Ω±5 1206-330Ω±1 1206-1KΩ±5 1206-10KΩ±5 1206-39KΩ±5 1206-560KΩ±5 1206-3MΩ±5 1206-3.3MΩ±5

10K.471 1 RZ503 NTC-5D-11 1 RZ501

JK16 300 1 RZ502 0805-330P NPO±5%/50 0805-102 X7R ±10%/50 0805-103 X7R±10%/50 0805-473 X7R±10%/50 0805-473 X7R±10%/100

0805-224 Y5V-20+80%/50 0805-474 Y5V+80-20%/50 1206-105 Y5V+80-20%/25 ECJMFF1C106

471/400V (X1) 250V (Y1) (lead pitch: 10mm

470UF/25V 8*20 ±20% 105℃ Low ESR

HP271M400N510AP(270UF,400V,Φ25*51 ±20%,105℃,DIP LCL-303A DIP 2 LF502 LF501 L0620-050 DI

BCK-ER4204(DIP

FCF16A40,400V,16A,TO220,1.25V,30uA,120A,45nS,DI

KTC8050 SMD 1 Q510 KTC8550 SMD 1 Q511 MMBT3904 SMD 2 Q504 Q507 SOT23 2N3906 SMD 1 Q505 SOT23 2SA1037AKR SMD 1 Q513 2SC5866 SMD 1 Q514 Rohm

KA278R05CTU, TO-220F-4L 1 U511 plastic encapsulation

ler LTV817 DIP 4 U505 U504 U502 U51

KA431LZTA 0.5% DIP 2 U507 U50

Vertical VH Connector with three holes and two T5AL/250V(φ3.6*10 dual pins) , In Line Packa

1.25-14P Vertical Type and Dual Conact1 CN503 Black

1.25-12P Vertical Type and Dual Conact1 CN504 Black

1.25-9P Vertical Type and Dual Conact1 CN50 M4 3 G501 G503 G502

6144C 1 2-layers

DIP

3.5*9*0.8-T

20V) SMD 2 Z503 Z504

F4835 SMD 2 Q503 Q508

TO-3PIN,DIP

Z1117H-3.3, SOT-223 1 U510

2 R504 R50 1 R591 1 R568 2 R519 R58 1 R569 1 R517 4 R525 R536 R553 R58

R535 R538 R542 R544 R546 R551 R554

R555 R59 2 R541 R53 2 R531 R54 2 R533 R53 6 R540 R547 R552 R556 R560 R57

R524 R549 R571 R577 R579 R587 R532

R590 3 R592 R593 R59 1 R545 1 R567 1 R566 1 R522 1 R526 4 R583 R584 R585 R58 1 R539 2 R596 R59 2 R520 R51 2 R501 R50 4 R562 R563 R564 R56 2 R573 R57

1 C533 1 C519 1 C534 1 C532 2 C508,C51

C517 C521 C522 C523 C524 C526 C527

C528 C529 C530 C537 C538 C539 C542

C543 C544 C545 C547 C548

1 C516 1 C535 1 C518 1 C536 1 C507

1 C509 2 C505 C51 1 C502 1 C520 2 CX502 CX50 1 CX501

2 CY501 CY502

3 EC501 EC503 EC50 2 EC513 EC51

EC524 EC511 EC525 EC516 EC526 8

EC521 EC515 EC51 3 EC517 EC519 EC52 1 EC518 CAPXON

1 EC502 HP271M400N510AP

2 L507 L50

1 T502 1 T503 3 L504 L505 L50 1 L511 2 L509 L51

2 D516 D515

3 Z501 Z502 Z506

1 Q506 1 Q509 Fairchild

1 U514

1 U508

1 U506

2 CN501 CN506 White & Antiflaming

1 F501

1 For Q509 on SMPS Board

CAPXON CAPXON

CAPXON

CAPXON GF222M010G200

F10 RHW3.5*9*0.8-T

lastic encapsulation

Black

Item P/N Description Specification QtyLocation.No. Note

)

(

)

(

)

Ω

)

(2)

harman/kardon

HS 2X0/230 Service Manual

Page 18 of 73

1 01.57.R.3.E000J Resistor, chi 2 01.57.R.3.E1R0J Resistor, chi 3 01.57.R.3.E101J Resistor, chi 4 01.57.R.3.E201J Resistor, chi 5 01.57.R.3.E471J Resistor, chi 6 01.57.R.3.E511J Resistor, chi 7 01.57.R.3.E202J Resistor, chi

8 01.57.R.3.E472J Resistor, chip 0805-4.7KΩ±5% 9

9 01.57.R.3.E103J Resistor, chi 10 01.57.R.3.E153J Resistor, chi 11 01.57.R.3.E203J Resistor, chi 12 01.57.R.3.E104J Resistor, chi 13 01.57.R.3.E154J Resistor, chi 14 01.57.R.4.ER15J Resistor, chi

15 01.57.R.Y.E270 Voltage Dependent Resistor, TDK AVR-M1608C270MTABB SMD 6

16 01.54.CS.3.E220N50 17 01.54.CS.3.E300N50 18 01.54.CS.3.E560N50 19 01.54.CS.3.E123X50 20 01.54.CS.3.E473X50

21 01.54.CS.3.E104Y50V Capacitor, multilayer ceramic, chip 0805-104 Y5V+80-20%/50V 10

22 01.54.CS.3.E225X25 23 01.54.CS.4.E105X50 24 01.34.CL.D.E10U16V 25 01.34.CL.D.E47U16V 26 01.34.CL.D.E47U50VC 27 01.34.CL.D.EH47U50V 28 01.34.CL.D.EX100U16V 29 01.34.CL.D.E220U6V3 30 01.34.CL.D.E288330U16V 31 01.38.FUSE.S.EJK110 Polyer Positive Temperature Coefficent JK-110(1.1A) SMD 1 PTC601 32 01.13.L.Z.ESB50 Bead, chi 33 01.00.JZ.E04000 Quartyz Crystal Unit 4.000MHZ-49S-22 34 020302000000 35 01.41.D.PS.ELL414 36 01.41.D.PD.EFR104 Diode FR104 DIP 2 D606 D60 37 01.41.D.FD.E1L0392 38 01.42.Q.S.EC8550 Transisto 39 01.42.Q.S.E8050 Transisto 40 01.41.D.WS.E6V2 Zener Diode 6.2 41 01.44.IC.S.E75711 IC, SANYO, VFD Driver LC75711NE,QFP64 42 01.46.IC.E78P156G IC, ELAN, MCU EM78P156ELM-G SMD 1 U601 firmware burn-in

43 01.44.IC.D.ENCP3063BPG

44 01.44.IC.D.E38B17 IC, IR receiver HL38B17 DIP 1 IR601 45 01.40.CON.S10.FPC2.E03 46 01.40.CON.S13.FPC2.E00 47 01.40.CON.S10.FPC2.E00 48 01.40.CON.S10.FPC2.E00 49 01.39.SW.QC.EDKFC Touch switch 50 01.40.CON.DCZ.E21 51 01.40.CON.DCZ.E217 USB Jac 52 01.16.E1303F VFD VFD22-1303F 1 VFD601

53 0226010000074

Capacitor, multilayer ceramic, chi Capacitor, multilayer ceramic, chi Capacitor, multilayer ceramic, chi Capacitor, multilayer ceramic, chi Capacitor, multilayer ceramic, chi

Capacitor, multilayer ceramic, chi Capacitor, multilayer ceramic, chi Capacitor, AL.electrolytic CD11X-10UF/16V 4* Capacitor, AL.electrolytic CD11X-47UF/16V 5* Capacitor, AL.electrolytic CD110-47UF/50V 6.3*1 Capacitor, AL.electrolytic GF470M050E110 Capacitor, AL.electrolytic CD11X-100UF/16V 6.3* Capacitor, AL.electrolytic CD11X-220UF/6.3V 6.3* Capacitor, AL.electrolytic CD288H-330UF/16V 8*1

Transformer SPT-EE1316V,EE13,DIP 1 TR3 Diode LL4148 SMD 4(D601)(D602) (D603) (D605

LED 1L0392A2W32CM001 DI

IC, ONSEMI, 1.5 A, StepU

/Down/Inverting Switching Regulator

FPC Connecto FPC Connecto FPC Connecto FPC Connecto

Earphone Jac

PCB Board-Front Panel Board without

onent

com

0805-0Ω ±5 0805-1Ω±5 0805-100Ω±5 0805-200Ω±5 0805-470Ω±5 0805-510Ω±5 0805-2KΩ±5

0805-10KΩ±5 0805-15KΩ±5 0805-20KΩ±5 0805-100KΩ±5 0805-150KΩ±5 1206-0.15Ω±5

0805-22P NPO±5%/50 0805-30P NPO±5%/50 0805-56P NPO±5%/50 0805-123 X7R±10%/50 0805-473 X7R±10%/50

0805-225 X7R±20%/25 1206-105 X7R±10%/50

0805-50

KTC8550 SMD 1(Q603 KTC8050 SMD 1(Q602

NCP3063BPG DIP 1 (U605)

1.0-14P, Vertical Type and Dual Conact1 CN601 Black

1.25-14P, Vertical Type and Dual Conact1 CN602 Black

1.0-8P, Vertical Type and Dual Conact1 CN603 Black & Antiflamin

1.0-6P, Vertical Type and Dual Conact1 CN604 Black & Antiflamin KFC-A06-05（Vertical T CKX-3.5-1 USB-A-05 (ROHS, Mother Set

6742C 1

e）DIP

2(R657) (R659 2(FB604) (FB605 5(R606) (R607) (R638) (R641) (R652 2(R614) (R647 1(R605 3(R615) (R648) (R642 1(R608

(R609) (R610) (R601) (R603) (R604)

R611) (R612) (R613) (R655 1(R637 2(R602)(R653 2(R636)(R644 1(R639 1(R643 1(R640

(ESD601) ESD602 ESD603 ESD605

ESD606 ESD60 2(C604) (C605 1(C620 2(C611) (C612 2(C624)(C636 2(C618) (C626

(C634) (C606) (C607) (C608) (C627)

C628) (C629) (C630) (C633) (C635 2(C603) (C619 2(C637) (C638 2 EC616 EC61 2 EC603 EC601 2 EC605 EC61 1 CE607 2 EC602 CE61 1 EC621 2 EC620 EC60

3(FB601) (FB602) (FB603 1 Y601

2 LED601 LED60

1 DZ601 DZ601 1(U604

2 K602 K601 1 J602 1 J601

YAGEO

High light, white and amber SOT23 SOT23

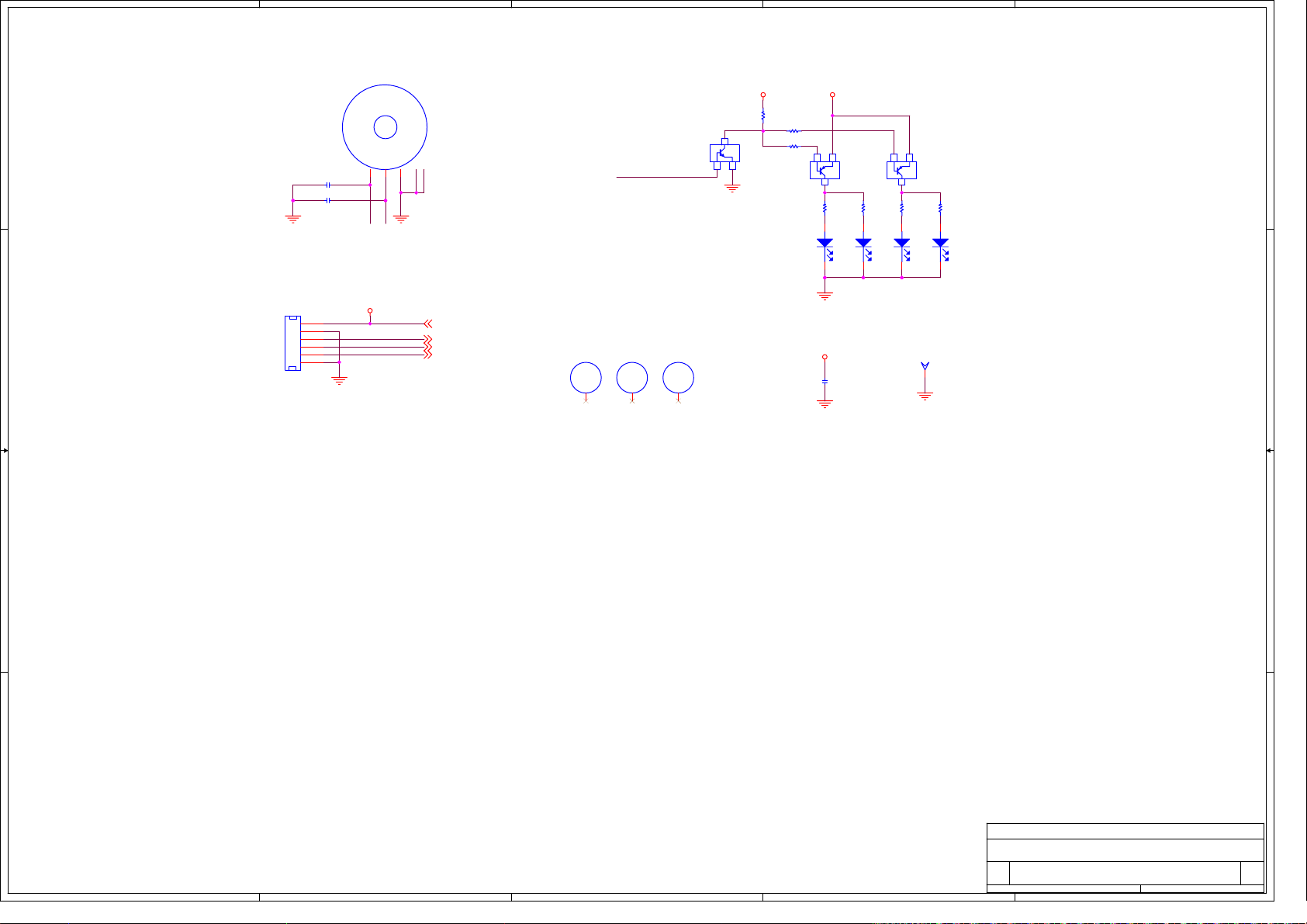

HS2X0 Component List for Volume Button board (6743C)

Item P/N Description Specification QtyLocation.No. Note

HS2X0 Component List for Front panel board (6742C)

1 01.57.R.3.E472J Resistor, chi 2 01.57.R.3.E181J Resistor, chi 3 01.54.CS.3.E821N50V Capacitor, multilayer ceramic, chi 4 01.54.CS.3.E104Y50V Capacitor, multilayer ceramic, chi 5 01.42.Q.S.ET3904 Transisto 6 01.42.Q.S.EC8550 Transisto

7 01.41.D.FD.E1L0545W31B0CC201 LED 1L0545W31B0CC201 Ф5(white) DIP 4 LED603 LED604 LED605 LED606

8 01.40.CON.S10.FPC2.E036 FPC Connector 1.0-6P Horizontal Type and Dual Conact 1 CN605 Positive Pointer 9 01.36.VR.E20K Volume encoder, Pulse ED1612-24-24-HC-F20

10 0226010000075

PCB board-Volume Button Board without com

onent

0805-4.7KΩ±5 0805-180Ω±5 0805-820P NPO±5%/50 0805-104 Y5V+80-20%/50 MMBT3904, SOT23 1(Q601 KTC8550, SOT23 2(Q604) (Q605

6743C 1 2-layers

3(R617) (R618) (R616 4(R622) (R623) (R624) (R625 2(C601) (C602 1(C614

1 W601

High light white and asti

matism

NAND_RDY_BSY

harman/kardon

HS 2X0/230 Service Manual

Page 19 of 73

M1_D_0 / SPI_C

M1_D_1 / SPI_D

M1_D_2 / SPI_Q

M1_D_3 / SPI_A

AML8218 A/V Processor User Guide Ver sion 0.7

7. Pin-Out Diagram

VDAC-DAC_B

JTAG_TDO

JTAG_TCK

JTAG_TDI

JTAG_TMS

GPIO_D1

GPIO_D0

LED_0

VDD33

M2_A_3

M2_A_2

DVSS

M2_A_1

M2_A_0

M2_A_10

M2_BA1

M2_BA0

M2_SCS0_n

M2_RAS_n

M2_CAS_n

VDD12

M2_WE_n

M2_A_4

M2_A_5

M2_A_6

M2_A_7

VDD33

M2_A_8

M2_A_9

VSS33

M2_A_11

M2_A_12

M2_CLK0

M2_DQM0

M2_DQM1

M2_D_8

M2_D_9

M2_D_10

M2_D_11

M2_D_12

M2_D_13

M2_D_14

M2_D_15

VDD33

M2_D_7

M2_D_6

M2_D_5

216

215

214

213

212

211

210

209

208

207

206

205

204

203

202

201

200

199

198

197

196

195

194

193

192

191

190

189

188

187

186

185

184

183

182

181

180

179

178

177

176

175

174

173

172

171

170

VDAC-AVD33B

VDAC-DAC_G

VDAC-AVD33

VDAC-AVS33B

VDAC-AVS33G

VDAC-AVS33R

VDAC-DAC_R

VDAC-AVD33R

VDAC-COMP

VDAC-REXT

VDAC-VREFIN

VDAC-AVDD

VDAC-AVSS

AFLR-AVSS

AFLR_L

AFLR_R

AFLR-AVDD

DVSS

GPIOA_0

GPIOA_1

GPIOA_2

GPIOA_3

GPIOA_4

VDD33

GPIOA_5

GPIOA_6

GPIOA_7

GPIOA_8

VDD12

DVSS

GPIOA_9

GPIOA_10

GPIOA_11

GPIOA_12

GPIOA_13

NAND_WE_n

NAND_CE_n

SPI_CS_n

SPI_HOLD_n

VDD33

DVSS

M1_D_4

M1_D_5

M1_D_6

M1_D_7

VDD33

M1_DQM0

M1_D_15

M1_D_14

DVSS

VDD12

M1_D_13

M1_D_12

M1_D_11

M1_D_10

VDD33

M1_D_9

M1_D_8

M1_DQM1

AML 8218

216 Pin LQFP

VDD12

VDD33

M1_A_9

M1_A_8

M1_A_7

M1_A_12

M1_A_11

M1_CLK0

M1_A_6

M1_A_5

M1_A_4

VDD33

M1_WE_n

M1_CAS_n

M1_RAS_n

M1_SCS0_n

DVSS

VDD33

M1_A_0

M1_A_1

M1_A_2

M1_BA0

M1_BA1

M1_A_10

M1_A_3

RMII_TX_DATA0

RMII_CLK50

RMII_TX_EN

RMII_RX_D0

RMII_RX_D1

RMII_RX_ERR

RMII_TX_DATA1

RMII_RX_CRS_DV

169

100

101

102

DVSS

VDD33

RMII_MDC

RMII_MDIO

DVSS

168

103

SDIO_CLK

M2_D_4

M2_D_3

M2_D_2

M2_D_1

M2_D_0

167

166

165

164

163

162

161

160

159

SD_D3

158

SD_D2

157

SD_D1

156

SD_D0

155

VDD33

154

SD_CLK

153

SD_CMD

152

GPIOC_14

151

DVSS

150

GPIOC_13

149

GPIOC_12

148

GPIOC_11

147

GPIOC_10

146

GPIOC_9

145

GPIOC_8

144

GPIOC_7

143

GPIOC_6

142

GPIOC_5

141

GPIOC_4

140

DVSS

139

VDD33

138

I2C_M_CLK

137

I2C_M_DATA

136

SPDIF_OUT

135

REMOTE

134

VDD12

133

RESET_N

132

OSCOUT

131

OSCIN

130

PLLA_AVSS33

129

PLLA_AVDD33

128

PLLB_AVSS33

127

PLLB_AVDD33

126

PLLC_AVSS33

125

PLLC_AVDD33

124

USBA_vdd33

123

USBA_test_xi

122

USBA_vss33c

121

USBA_test_xo

120

USBA_txrtune

119

USBA_vss33

118

USBA_dm

117

USBA_dp

116

USBA_vdd33

115

USBA_vbus

114

USBA_id

113

112

111

110

109

104

105

106

107

108

SDIO_D0

SDIO_D1

SDIO_D2

SDIO_CMD

SDIO_D3

1/4/09 35 /36 AMLOGIC Proprietary

harman/kardon

HS 2X0/230 Service Manual

Page 20 of 73

3 PIN INFORMATION

3.1 Pin Diagram

FIELD ID_PORT2

HSYNC_PORT2

VSYNC_PORT2

D1_IN_7

D1_IN_6

D1_IN_5

D1_IN_4

D1_IN_3

FLI2310 LF Digital Video Converter Data Sheet

Figure 3.1: Pinout Information

R_VDD

IN_CLK_PORT2

XTAL IN

XTAL OUT

VDD9

VSS

D1_IN_0

D1_IN_2

D1_IN_1

VDDcore8

VSScore

TEST0

TEST1

TEST2

R_VDD

R_VSS

R_VDD

R_VSS

R_VDD

R_VSS

Reserved

R_VSS

Reserved

R_VSS

AVDD_PLL_FE

R_VSS

R_VDD

Reserved

AVDD_PLL_SDI

R_VDD1.8

AVSS_PLL_BE2

AVSS_PLL_FE

AVSS_PLL_SDI

PLL_PVDD

AVDD_PLL_BE2

PLL_PVSS

AVSS_PLL_BE1

AVDD_PLL_BE1

HSYNC1_PORT1

VSYNC1_PORT1

FIELD ID1_PORT1

IN_CLK1_PORT1

HSYNC2_PORT1

VSYNC2_PORT1

FIELD ID2_PORT1

VDD1

VSS

IN_CLK2_PORT1

B/Cb/D1_0

B/Cb/D1_1

B/Cb/D1_2

B/Cb/D1_3

B/Cb/D1_4

VDDcore1

VSScore

B/Cb/D1_5

B/Cb/D1_6

B/Cb/D1_7 R/Cr/Cb Cr_0

R/Cr/Cb Cr_1

R/Cr/Cb Cr_2

R/Cr/Cb Cr_3

R/Cr/Cb Cr_4

R/Cr/Cb Cr_5 R/Cr/Cb Cr_6

R/Cr/Cb Cr_7

G/Y/Y_0

VDD2

VSS

G/Y/Y_1 G/Y/Y_2

G/Y/Y_3

G/Y/Y_4

VDDcore2

VSScore

G/Y/Y_5

G/Y/Y_6 G/Y/Y_7

IN_SEL

TEST DEV_ADDR1

DEV_ADDR0

SCLK

SDATA

RESET_N

VDD3

VSS

SDRAM DATA(0)

SDRAM DATA(1) SDRAM DATA(2)

1 0 0

1 6 0

1 5 5

1 5 0

1 4 5

1 4 0

1 3 5

1 3 0

1 2 5

1 2 0

1 1 5

1 1 0

1 0 5

G/Y/Y_OUT_7

G/Y/Y_OUT_6

G/Y/Y_OUT_5

G/Y/Y_OUT_4

G/Y/Y_OUT_3

G/Y/Y_OUT_2

G/Y/Y_OUT_1

G/Y/Y_OUT_0

VSS

VDD8

R/V/Pr_OUT_7

R/V/Pr_OUT_6

R/V/Pr_OUT_5

R/V/Pr_OUT_4

R/V/Pr_OUT_3

R/V/Pr_OUT_2

VSScore

VDDcore7 R/V/Pr_OUT_1

R/V/Pr_OUT_0

B/U/Pb_OUT_7

B/U/Pb_OUT_6

B/U/Pb_OUT_5

B/U/Pb_OUT_4

B/U/Pb_OUT_3

B/U/Pb_OUT_2

VSS VDD7

B/U/Pb_OUT_1

B/U/Pb_OUT_0

CLKOUT

VSScore

VDDcore6

CTLOUT4

CTLOUT3

CTLOUT2

CTLOUT1

CTLOUT0 TEST OUT1

TEST OUT0

TEST3 SDRAM CLKIN

VSS

VDD6

SDRAM CLKOUT

SDRAM DQM SDRAM CSN

SDRAM BA0 SDRAM BA1

SDRAM CASN SDRAM RASN

2 0 5

2 0 0

1 9 5

1 9 0

1 8 5

1 8 0

1 7 5

1 7 0

1 6 5

1 0

1 5

2 0

2 5

3 0

3 5

4 0

4 5

5 0

5 5

6 0

6 5

7 0

7 5

8 0

8 5

9 0

9 5

Package: 208-pin PQFP

C0702-DAT-15B - 9 - November 2004

VSS

VDD4

SDRAM DATA(5)

SDRAM DATA(4)

SDRAM DATA(3)

SDRAM DATA(8)

SDRAM DATA(7)

SDRAM DATA(6)

SDRAM DATA(9)

SDRAM DATA(12)

SDRAM DATA(10)

SDRAM DATA(11)

VSScore

VDDcore3

SDRAM DATA(17)

SDRAM DATA(16)

SDRAM DATA(14)

SDRAM DATA(13)

SDRAM DATA(15)

SDRAM DATA(18)

SDRAM DATA(21)

SDRAM DATA(20)

SDRAM DATA(19)

SDRAM DATA(22)

VSScore

VDDcore4

SDRAM DATA(24)

SDRAM DATA(26)

SDRAM DATA(25)

SDRAM DATA(23)

SDRAM DATA(31)

SDRAM DATA(28)

SDRAM DATA(27)

SDRAM DATA(30)

SDRAM DATA(29)

*** Genesis Microchip Confidential ***

PRELIMINARY INFORMATION -- SUBJECT TO CHANGE

VDD5

VSS

TEST IN

SDRAM ADDR(9)

SDRAM ADDR(10)

VSScore

VDDcore5

SDRAM ADDR(6)

SDRAM ADDR(5)

SDRAM ADDR(7)

SDRAM ADDR(8)

SDRAM ADDR(4)

SDRAM WEN

SDRAM ADDR(3)

SDRAM ADDR(0)

SDRAM ADDR(1)

SDRAM ADDR(2)

confidential

TMD8805/8809(Preliminary Spec) PRODUCT OVERVIEW

ABUFN/DSDR

PREF

AFEVSS33A2

DVDPD

CDPD/KEYS CAN

CDLD

FIN / SL DM

DIN

CIN

AIN

EFM I

harman/kardon

HS 2X0/230 Service Manual

Page 21 of 73

PIN ASSIGNMENT

160-PIN

160-PIN160-PIN

M DA4 M DA3 M DA5 M DA2 M DA6 M DA1 M DA7 M DA0 M DA8 M DA10 M DA9 M DA11/P7.3 BA1_NDC S1 BA0 NDCS0 NRAS DCLK

VDDP0 18 103 VSSP0 19 102

NCAS NDWE

DQM M DB8 M DB7 M DB9 M DB6 M DB10 M DB5 M DB11 M DB4 M DB12 M DB3 M DB13 M DB2 M DB14 M DB1 M DB15 M DB0 P3.0 P3.1

VDDP5

USB_DP/P7.2

USB_DN/P7. 1

VSSP5

MISO/P2. 6

MOSI/P2. 5

VSSC1

SPICL K/P2.4

VDDC1

SF_CLK /P2.3

SF_CS/P 2.2SF_D0/P2. 1

SF_D1/P2. 0

P1.5SF_D 2

P1.4/S F_D3

P1.3

P1.2

P1.1

P1.0

VDDP4

VSSP4

RTCK/P0. 5

TCK/P0. 4

TMS/P0. 3

TDO/P0.2

TDI/P0.1

NTRST/P0.0

RXD/P0.7

TXD/P0.6

IRIN/P7.0

NRESET

ADCAIN

ADCVREF

ADCVDD33A

ADCVSS 33A

REFO

SPO

SLO

TRO

160

1 120 2 119 3 118 4 117 5 116 6 115 7 114 8 113

9 112 10 111 11 110 12 109 13 108 14 107 15 106 16 105 17 104

159

158

157

155

154

153

152

151

150

149

148

147

146

145

144

143

142

141

140

139

138

137

136

135

134

133

132

131

130

129

128

127

126

125

FLO

124

123

122

121

TMD8809

20 101 21 100 22 99 23 98 24 97 25 96 26 95 27 94 28 93 29 92 30 91 31 90 32 89 33 88

4 87

3 35 86 36 85 37 84 38 83 39 82 40 81

414243444546474849505152535455565758596061626364656667686970717273747576777879

(160-LQFP-2424)

ABUFP/DSDF RBIAS

AFEVDD33A2

DVDLD

EIN / S LDP

BIN

RFSUM AFEVDD33A1 EQO

AFEVSS33A1 DPLLV DDA33 DPLLV SSA33 DPLLL PF1 DPLLL PF2 DPLLV DDA12

DPLLV SSA12 PLL 1VDD PLL 1VSS PLL 2VDD PLL 2VSS P6.6 P6.5 XO XI VSS P3 VDDP3 P6.4 P6.3 P6.2

VDDP1

VSSP1

P3.6

P3.7

VDDC0

SPDIFO/P 4.0

I2SDI/P4. 1

I2SMCKO/ P5.0

I2SBCKO/P5.1

I2SWSO/P 5.2

VSSC0

I2SDO4/P5. 3

I2SDO3/P5. 4

I2SDO2/P5. 5

I2SVDD

Boot1

I2SVSS

I2SDO1/P5. 6

I2SDO0/P5. 7

Boot0

DAC4

DACVSS 33A1

DAC3

DACVDD33A1

DAC2

DAC1

DACVSS 33D

DAC0

DACVDD33D

DACIREF

DACVREF

DACCOMP

I2CDAT/P4.2

I2CCL K/P4.3

V_Sync/P6.0

P3.2

P3.3

P3.4

H_Syn c/P6.1

Figure 1-5. TMD8809 Pin Assignments (160-LQFP-2424)

1-11

AM5888S

harman/kardon

HS 2X0/230 Service Manual

Page 22 of 73

 Pin configuration

VINFC

TRB_1

REGO 2

VINSL+

REGO 1

FWD

Motor Driver ICs

AM5888S

MUTE

BIAS

VINTK

TRB_2

VINLD

REV

Vcc1

VOTR-

VOTR+

VOSL+

VOSL-

VOFC-

GND

VCTL

Vcc2

VOLD-

VOLD+

VOTK-

AAMMtteek

SSEEMMIICCOONNDDUUCCTTOORRS

VOFC+

VOTK+

- 4 -

OOcctt 22000055 VV11..33

+ 51 hidden pages
