Harman kardon HS 280, HS 210 User Manual
User Guide
English
HS 280 / HS 210
2 x 65W 2.1-channel integrated
Home-Theater System
Designed to Entertain.
™
HS 280/HS 210 Integrated Home-Theater System Owner's Manual
Table of Contents
Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Verify Line Voltage Before Using . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Unpacking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation Location. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Moving the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Thank You for Choosing the Harman Kardon® HS 280/HS 210! . . . . . . . . . . . . .
HS 280/HS 210 Two-Channel DVD Receiver . . . . . . . . . . . . . . . . . . . . . . . .
SAT TS60/SAT TS11 Satellite Speakers . . . . . . . . . . . . . . . . . . . . . .
HKTS200SUB Subwoofer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Supplied Accessories (for HS 280) . . . . . . . . . . . . . . . . . . . . . . . .
Supplied Accessories (for HS 210) . . . . . . . . . . . . . . . . . . . . . . . .
Receiver Front-Panel Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Receiver Information Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Receiver Rear-Panel Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Subwoofer Controls and Connections . . . . . . . . . . . . . . . . . . . . . . . . . . .
Remote Control Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Placing the Speakers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Placing the Left and Right Satellite Speakers . . . . . . . . . . . . . . . . . .
Placing the Subwoofer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Satellite Speaker Mounting Options . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Shelf Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wall-Mounting the HS 280 Satellite Speakers . . . . . . . . . . . . . . . . .
Wall-Mounting the HS 210 Satellite Speakers . . . . . . . . . . . . . . . . .
Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connecting the Satellite Speakers . . . . . . . . . . . . . . . . . . . . . . . .
Connecting the Subwoofer . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connecting the FM Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connecting a TV or Video Display . . . . . . . . . . . . . . . . . . . . . . . . .
Connecting the SCART Cable . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connecting Audio Sources. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connecting an Audio Recorder . . . . . . . . . . . . . . . . . . . . . . . . . .
Connecting to a Local Area Network (LAN) . . . . . . . . . . . . . . . . . . .
Connecting the AC Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Preparing the Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing the Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using the Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Programming the Remote Control . . . . . . . . . . . . . . . . . . . . . . . .
Teaching Codes to the Remote Control. . . . . . . . . . . . . . . . . . . . . .
Using the Remote Control After it is Programmed . . . . . . . . . . . . . . .
Setting Up the Receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using the On-Screen Menu System. . . . . . . . . . . . . . . . . . . . . . . .
Settings Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Video Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Network Setings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Preferences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Activity Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bookmarks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using the DVD Player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using the FM Tuner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Listening to Audio Sources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Playing Files from USB Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Playing Files from Networked Devices. . . . . . . . . . . . . . . . . . . . . . . . . . .
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DVD Language Code List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3
3
3
3
3
3
4
4
4
4
4
5
5
6
7
8
9
10
12
12
12
12
12
12
13
14
14
15
16
16
16
16
17
17
17
17
17
17
17
18
18
18
18
19
19
19
20
20
21
21
21
23
24
24
25
27
28
31
2
Important Safety Instructions
1. Read these instruc tions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. D o not use this apparatus near water.
6. Clean only with a dr y cloth.
7. D o not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. D o not install near any heat sources such as radiators, heat registers, stoves or other apparatus
(including amplifiers) that produce heat.
9. D o not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding-type plug has two blades and a third grounding
prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit
into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience
receptacles and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket or table specified by the manufacturer
or sold with the apparatus. When a cart is used, use caution when moving the cart/
apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology
must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or
disassembly is prohibited.
14. Refer all servicing to qualified ser vice personnel. Servicing is required when the apparatus has
been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does
not operate normally, or has been dropped.
15. Do not expose this apparatus to dripping or splashing and ensure that no objects filled with liquids,
such as vases, are placed on the apparatus.
16. To completely disconnect this apparatus from the AC Mains, disconnect the power supply cord plug
from the AC receptacle.
17. The mains plug of the power supply cord shall remain readily operable.
18. Do not expose batteries to excessive heat such as sunshine, fire or the like.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
THE LIGHTNING FLASH WITH AN ARROWHEAD SYMBOL,
WITHIN AN EQUILATERAL TRIANGLE, IS INTENDED TO ALERT
THE USER TO THE PRESENCE OF UNINSULATED “DANGEROUS
VOLTAGE” WITHIN THE PRODUCT’S ENCLOSURE THAT MAYBE
OF SUFFICIENT MAGNITUDE TO CONSTITUTEA RISK OF ELECTRIC
SHOCK TO PERSONS.
WARNING: TO REDUCE THE RISK OF
FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPARATUS TO RAIN
OR MOISTURE.
SEE MARKING ON BACK OF PRODUCT.
THE EXCLAMATION POINT WITHIN AN EQUILA-TERAL
TRIANGLE IS INTENDED TO ALERT THE USERTO THE PRESENCE
OF IMPORTANT OPERATING AND MAINTENANCE (SERVICING)
INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE
PRODUCT.
ENGLISH
Verify Line Voltage Before Using
Your HS 280/HS 210 receiver has been designed for use with 100 – 240 volt ~
50/60Hz AC power. Your HKTS200SUB subwoofer has been designed for use with
220 – 240 volt ~50/60Hz AC current. Connection to a line voltage other than that
for which the unit is intended can create a safety and fire hazard, and may damage
the unit. If you have any questions about the voltage requirements for your specific
model, or about the line voltage in your area, contact your selling dealer before
plugging the unit into a wall outlet.
Unpacking
The carton and shipping materials used to protect your new receiver during shipment
were specially designed to cushion it from shock and vibration. We suggest that you
save the carton and packing materials for use in shipping if you move or if the unit
ever needs repair.
To minimize the size of the carton in storage, you may wish to flatten it. You can do
it by carefully slitting the tape seams on the carton’s bottom and collapsing it. You
can store cardboard inserts in the same manner. Packing materials that cannot be
collapsed should be saved along with the carton in a plastic bag.
If you do not wish to save the packaging materials, please note that the carton and
other sections of the shipping-protection materials are recyclable. Please respect the
environment and discard those materials at a local recycling center.
Remove the protective plastic film from the front-panel lens. Leaving the film in place
will affect the performance of your remote control.
Installation Location
To ensure proper operation and to avoid the potential for safety hazards, place the
•
unit on a firm and level surface. When placing the unit on a shelf, be certain that
the shelf and any mounting hardware can support the weight of the product.
Provide proper space both above and below the unit for ventilation. If this product
•
will be installed in a cabinet or other enclosed area, make certain that there is
sufficient air movement within the cabinet. Under some circumstances, a fan may
be required.
•
Do not place the unit directly on a carpeted surface.
Avoid installation in extremely hot or cold locations, or in an area that is exposed
•
to direct sunlight or heating equipment.
Avoid moist or humid locations.
•
Do not obstruct the ventilation slots on the top and sides of the unit or place
•
objects directly over or next to them.
Due to the weight of the
•
HS 280/HS 210 receiver and the heat that its amplifier
generates, there is the remote possibility that the rubber padding on the bottom
of the unit’s feet may leave marks on certain wood or wood veneer materials.
Use caution when placing the unit on soft woods or other materials that heat or
heavy objects may damage. Some surface finishes may be particularly sensitive
to absorbing such marks, due to a variety of factors beyond Harman Kardon's
control, including the nature of the finish, cleaning materials used, normal heat
and vibration caused by the use of the product, or other factors. Exercise caution
in choosing an installation location for the component and in performing normal
maintenance practices, as your warranty will not cover this type of damage to
furniture.
Cleaning
When the unit gets dirty, wipe it with a clean, soft, dry cloth. If necessary, and only
after unplugging the AC power cord, wipe it with a soft cloth dampened with mild
soapy water, then a fresh cloth with clean water. Wipe it dry immediately with a dry
cloth. NEVER use benzene, aerosol cleaners, thinner, alcohol or any other volatile
cleaning agent. Do not use abrasive cleaners, as they may damage the finish of metal
parts. Avoid spraying insecticide near the unit.
Moving the Unit
Before moving the unit, disconnect any interconnection cords with other components,
and disconnect the unit from the AC outlet.
Introduction
1
2
Please register your product on our Web site at
www.harmankardon.com.
Note: You’ll need the product’s serial number. At the same time, you can choose
to be notified about our new products and/or special promotions.
www.harmankardon.com
Thank you for choosing the Harman Kardon® HS 280/
HS 210!
In the years since Harman Kardon invented the high-fidelity receiver, we have taken
to heart this philosophy: Bring the joy of home entertainment to as many people as
possible, adding performance and ease-of-use features that enhance the experience.
With the introduction of the HS series of home-entertainment systems, Harman
Kardon offers a complete home-entertainment solution with a wealth of listening
and viewing options in one sleek component. Each HS series system also includes a
5.1-channel or 2.1-channel loudspeaker system, a system remote control and all the
cables and accessories you need to enjoy movies and music in your own home, when
you use them with your television or video display.
To get the maximum enjoyment from your new HS system, we urge you to read this
manual thoroughly and refer back to it as you become more familiar with your new
system’s features and their operation.
If you have any questions about this product, its installation or its operation, please
contact your retailer or custom installer, or visit our Web site at www.harmankardon.
com.
NOTE: The built-in DVD player is designed and manufactured for
compatibility with Region Management Information that is
encoded on most DVDs. This player is designed only for playback
of discs with Region Code 2 information or discs that do not
contain Region Code information. If there is any other Region Code on a disc, it
will not play in the HS 280/HS 210.
HS 280/HS 210 Two-Channel DVD Receiver
Audio Section
65 watts x 2 continuous power at 6 ohms (both channels driven), 20Hz – 20kHz,
•
<0.5% THD (total harmonic distortion)
Audio Modes
Dolby® Digital
•
Dolby Virtual Speaker
•
Stereo
•
Analog-Audio Inputs
FM tuner (internal)
•
DVD player (internal)
•
Two left/right (L/R) line input connectors
•
L/R input via SCART
•
Analog-Audio Outputs
Headphone output
•
Subwoofer output
•
One L/R line output connector
•
Digital Audio Inputs
Two coaxial
•
Two optical
•
Two USB 2.0 ports
•
Digital Audio Outputs
One coaxial
•
Video Inputs
DVD player (internal)
•
Video Outputs
One HDMI™ (High-Definition Multimedia Interface™) version 1.2
•
One S-Video
•
One composite video
•
S-Video and composite video via SCART
•
Speaker Outputs
Front left and front right
•
Control Inputs/Outputs
Subwoofer trigger output
•
Infrared (IR) remote control input
•
Infrared (IR) remote control output
•
Ease of Use
On-screen menu system
•
Dot-matrix front-panel information display
•
Learning remote control (also controls your TV and a video component)
•
DVD Player Features
Region 2 coding
•
Plays five-inch (12cm) and 3-inch (8cm) discs
•
Video formats supported: DVD, DVD-R, DVD-RW, DVD+R/RW, VCD, SVCD
•
Audio formats supported: Dolby Digital, CD, CD-R/RW, MP3, WMA (v7-v8)
•
Still-image formats supported: JPEG
•
Video upscaling to 720p and 1080p (HDMI output only)
•
Progressive-scan video output (HDMI only)
•
MP3 bit rates: 32kbps – 320kbps
•
WMA bit rates: 16kbps – 192kbps
•
JPEG resolution supported: Five megapixels, 5MB file size
•
Still-image rotation in 90-degree increments
•
Fast Play rates: 2x, 4x, 8x, 16x, 32x
•
Slow Play rates: 1x, 2x, 4x, 8x
•
Random Play
•
Repeat Play: One group/title, one track/chapter, one folder, one disc
•
Disc recognition for up to 100 discs
•
Playback control for VCDs
•
Aspect-ratio adjustment
•
SAT TS60 Satellite Speakers (for HS 280)
One 1" (25mm) CMMD® Lite dome video-shielded tweeter
•
Two 3" (75mm) flat-diaphragm, video-shielded, midrange drivers
•
20 ~ 150 watts recommended power
•
SAT TS11 Satellite Speakers (for HS 210)
One 1/2" (12mm) dome, video-shielded tweeter
•
Dual 3" (75mm) drivers, video-shielded, midrange
•
10 ~ 120 watts recommended power
•
HKTS200SUB Subwoofer
8" (200mm) woofer in a sealed enclosure
•
200 watts RMS amplifier power
•
Automatic turn-on and turn-off
•
4
Supplied Accessories (for HS 280)
The following accessory items are supplied with the HS 280 system. If any of these
items are missing, please contact Harman Kardon Customer Service via
www.harmankardon.com.
Supplied Accessories (for HS 210)
The following accessory items are supplied with the HS 210 system. If any of these
items are missing, please contact Harman Kardon Customer Service via
www.harmankardon.com.
ENGLISH
System remote control
•
SCART cable
•
Two speaker wall-mount brackets
•
HDMI cable
•
Power cable •
FM wire antenna
•
Two five-meter (16.4-foot) speaker
•
cables
System remote control
•
SCART cable
•
Two TS-11 satellite speakers
•
HDMI cable
•
Power cable •
FM wire antenna
•
Two wall-mount brackets
•
One combination LFE (low-
•
frequency effects) and trigger cable
for connection to the subwoofer
Two TS-60 satellite speakers
•
One combination LFE (low-
•
frequency effects) and trigger cable
for connection to the subwoofer
Two five-meter (16.4-foot) speaker
•
cables
Receiver Front-Panel Controls
Eject
Button
Standby
Button
TOP
FRONT
Disc Slot
Information
Display
Disc Slot: Insert a compatible disc into the slot. The HS 280/HS 210’s disc player will
accept five-inch (12cm) and three-inch (8cm) discs.
Information Display: Various messages appear on this display in response to
commands. In addition, a variety of indicators will light at various times to show the
current source, settings or other aspects of the HS 280/HS 210’s status as described
throughout this manual. See Receiver Information Display, on page 7, for details.
Volume Control: Rotate the disc clockwise to raise the volume; rotate
counterclockwise to lower the volume. The volume level will appear on the
Information Display and on the on-screen menu (if the menu is enabled, see

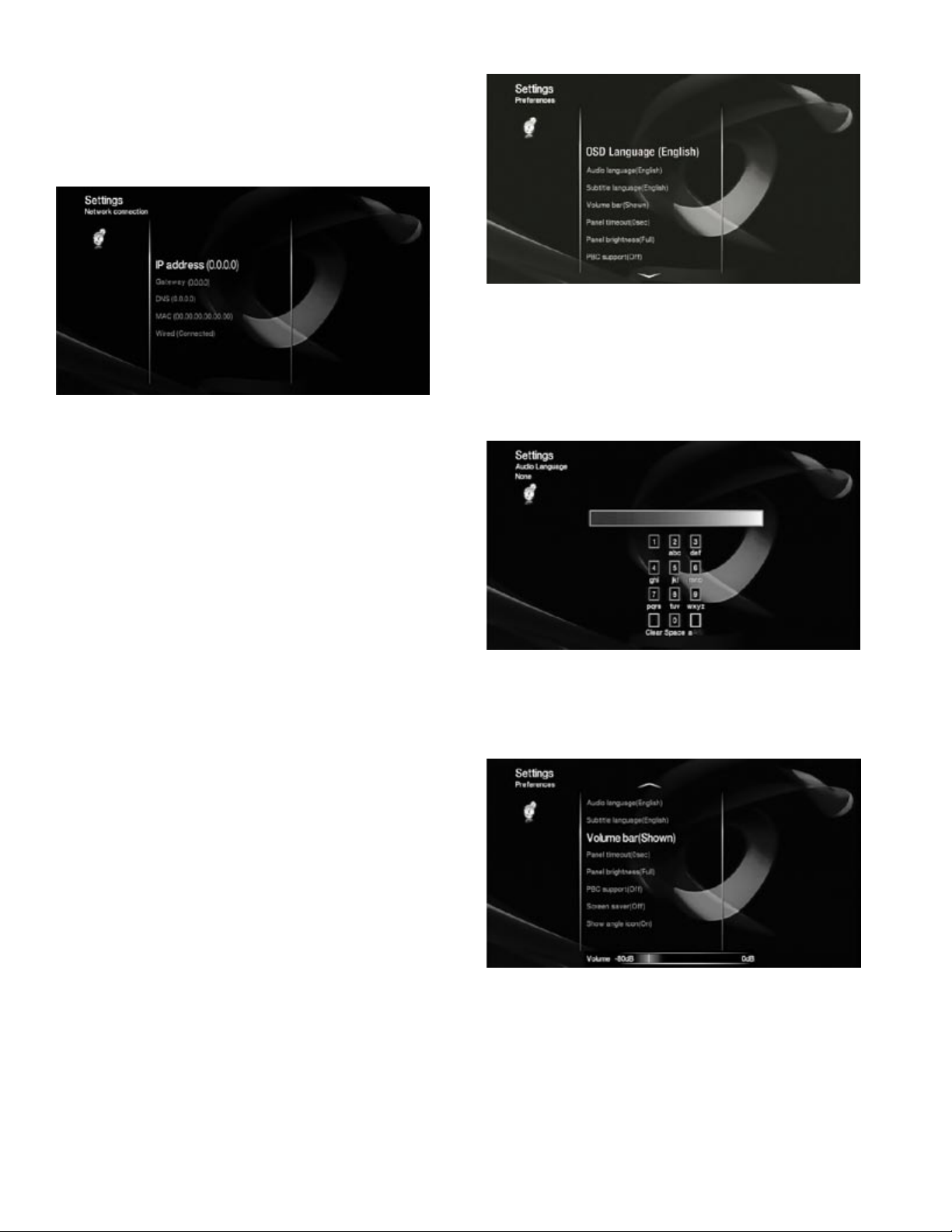

Preferences – Volume Bar, on page 20).
Eject Button (on top of unit): Press this button to eject a disc from the HS 280/
HS 210’s built-in DVD player. Before pressing this button, make sure that no objects
are blocking the disc slot. NOTE: If you do not remove the ejected disc within 20
seconds, it will automatically re-load back into the DVD player for protection.
Standby Button (on top of unit): This button turns the HS 280/HS 210 on for
playback or leaves it in the Standby mode for quick turn-on using this button or the
remote control.
Power Indicator: This LED (light-emitting diode) surrounds the Standby switch.
When the HS 280/HS 210 is plugged into AC power, the LED turns red to indicate that
the HS 280/HS 210 is in Standby mode (ready to be turned on). When you turn the
HS 280/HS 210 on (by the Standby switch or the remote control), the LED turns white.
Phones (headphones) Jack (on side of unit): Insert the 3.5mm stereo miniconnector from a set of headphones into this jack. NOTE: When a plug is inserted into
the Phones jack, the HS 280/HS 210’s speaker outputs automatically mute; the HDMI
audio output, coaxial output and line output remain active.
USB 2.0 Port (on side of unit):
Gently insert a flash drive, card reader, digital camera or other USB device, or a USB
Standard-A cable connected to a USB device, to this port.
Power
Indicator
SIDE
Volume Control Headphone
Jack
USB
Port
IMPORTANT: DO NOT connect a PC or other USB host/controller to this port, or you
may damage both the HS 280/HS 210 and your other device.
Orient the other device’s plug so it fits all the way into the HS 280/HS 210’s USB
connector. You may insert or remove the device at any time — there is no installation
or ejection procedure.
The HS 280/HS 210 can play MP3 and Windows Media® Audio WMA audio files that
are stored on the device. The HS 280/HS 210 can also display JPEG-format still-image
files.
6
VCD
Playback Control
Indicator
Playback
Mode
Indicators
Disc Type
Indicators
Random Play
Indicator
Title
Indicators
Chapter/Track Number
Indicators
Time
Indicators
Source
Indicators
Dolby Digital
Indicator
Repeat Play
Indicators
Progressive Scan
Indicator
Video Output
Indicators
Angle
Indicator
Video Format
Indicators
Receiver Information Display
ENGLISH
Source
Indicators
Dolby Digital
Indicator
Chapter/Track Number
Indicators
VCD
Playback Control
Indicator
Disc Type
Indicators
Playback
Mode
Indicators
Random Play
Indicator
Title
Indicators
Source Indicators: Indicate which source is currently playing.
Disc Type Indicators: Indicate the type of disc that is currently playing.
Random Play Indicator: Indicates that the disc player is in the Random Play mode.
Dolby Digital Indicator: Indicates that the soundtrack of the currently-playing disc
is Dolby Digital-encoded.
Progressive Scan Indicator: Indicates that the disc player is outputting a
progressive-scan video signal.
Repeat Play Indicators: Indicate that the disc player is in one of the Repeat Play
modes: Rep. = repeat all; Rep. 1 = repeat track; A–B = A/B repeat.
Video Output Indicators: Indicate which type of video output is currently active.
Angle Indicator: Indicates when alternative viewing angles are available on the
currently-playing DVD.
Video Format Indicators: Indicate which video format is currently playing.
VCD Playback Control Indicator: Indicates that the playback-control function is
turned on when the HS 280/HS 210 is playing a VCD.
Progressive Scan
Indicator
Repeat Play
Indicators
Time
Indicators
Video Output
Indicators
Angle
Indicator
Video Format
Indicators
Playback Mode Indicators: Indicate the current disc playback mode:
B
Indicates normal playback.
H
Indicates that the disc is in the forward fast-search mode. The video display
will indicate the selected speed.
1
Indicates that the disc is paused. The video display will also indicate that the
disc is paused.
G
Indicates that the disc is in the reverse fast-search mode. The video display
will indicate the selected speed.
Title Indicators: Show the title number of a DVD that is playing.
Chapter/Track Number Indicators: Show the current chapter when a DVD is
playing; show the current track number when a CD is playing.
Time Indicators: Show the running time when a DVD is playing; show elapsed time
when a CD is playing.
NOTE: The Title, Chapter/Track Number and Time Indicators will also display the radio
station name when Radio is the selected input. When a DVD or CD is playing, the
indicators will display various text messages about the disc’s status.
MODEL: HS 2X0SO/230
Speaker
Outputs
Coaxial
Digital
Inputs
Optical
Digital
Inputs
Subwoofer
Output
Coaxial
Digital
Output
AC Power
Input
Sub
Trigger
Output
Line
Outputs
Line 2
Inputs
SCART
Connection
FM
Antenna
Connection
Line 1
Inputs
Ethernet
Port
USB
Port
HDMI
Output
Composite
Video
Output
S-video
Output
Remote Control
Input/Output
Receiver Rear-Panel Connections
AC Power
Input
Speaker
Outputs
Coaxial
Digital
Inputs

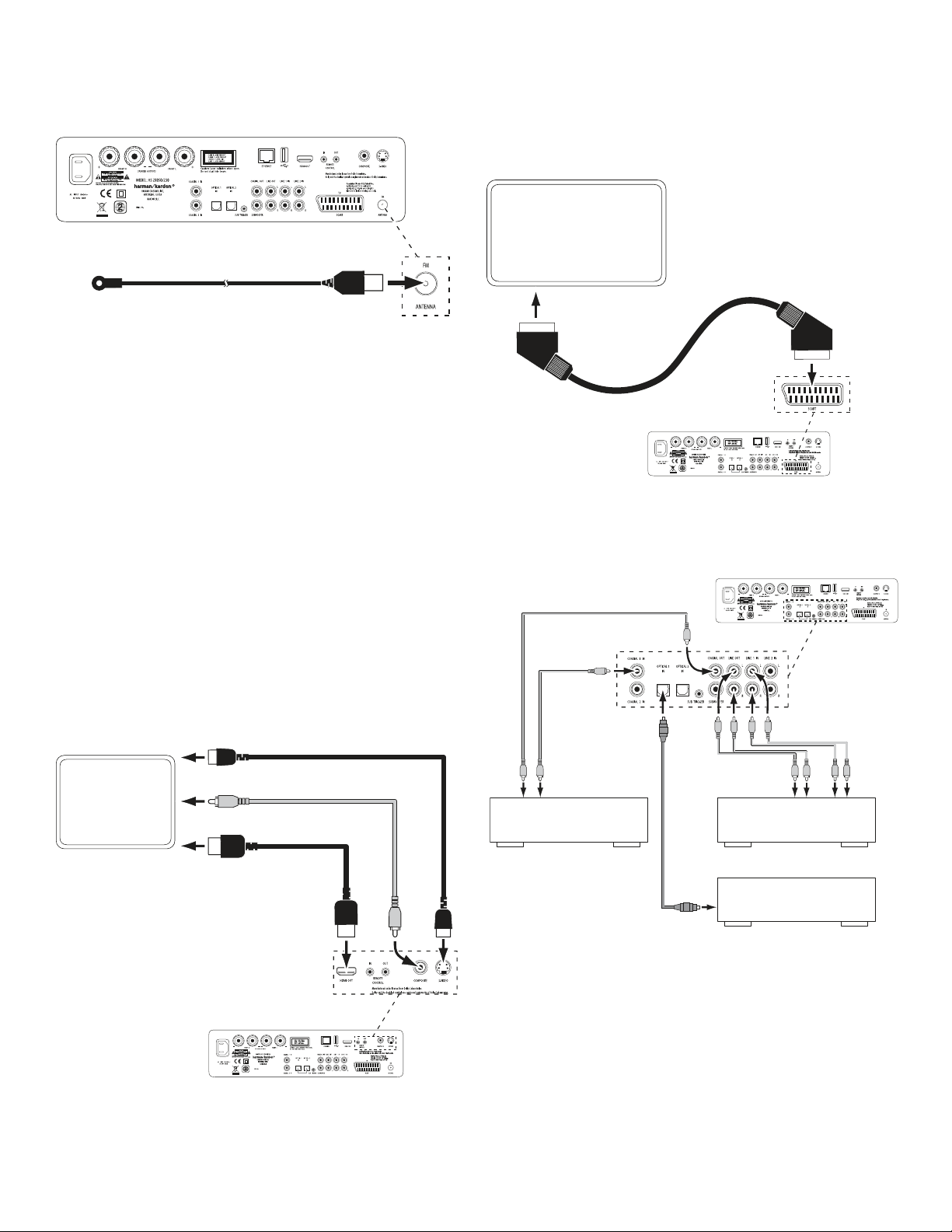

See the Connections section, on page 14, for detailed information about making
connections.
AC Power Input: After you have made and confirmed all other connections, plug the
supplied AC power cord into this input and into an unswitched AC outlet.

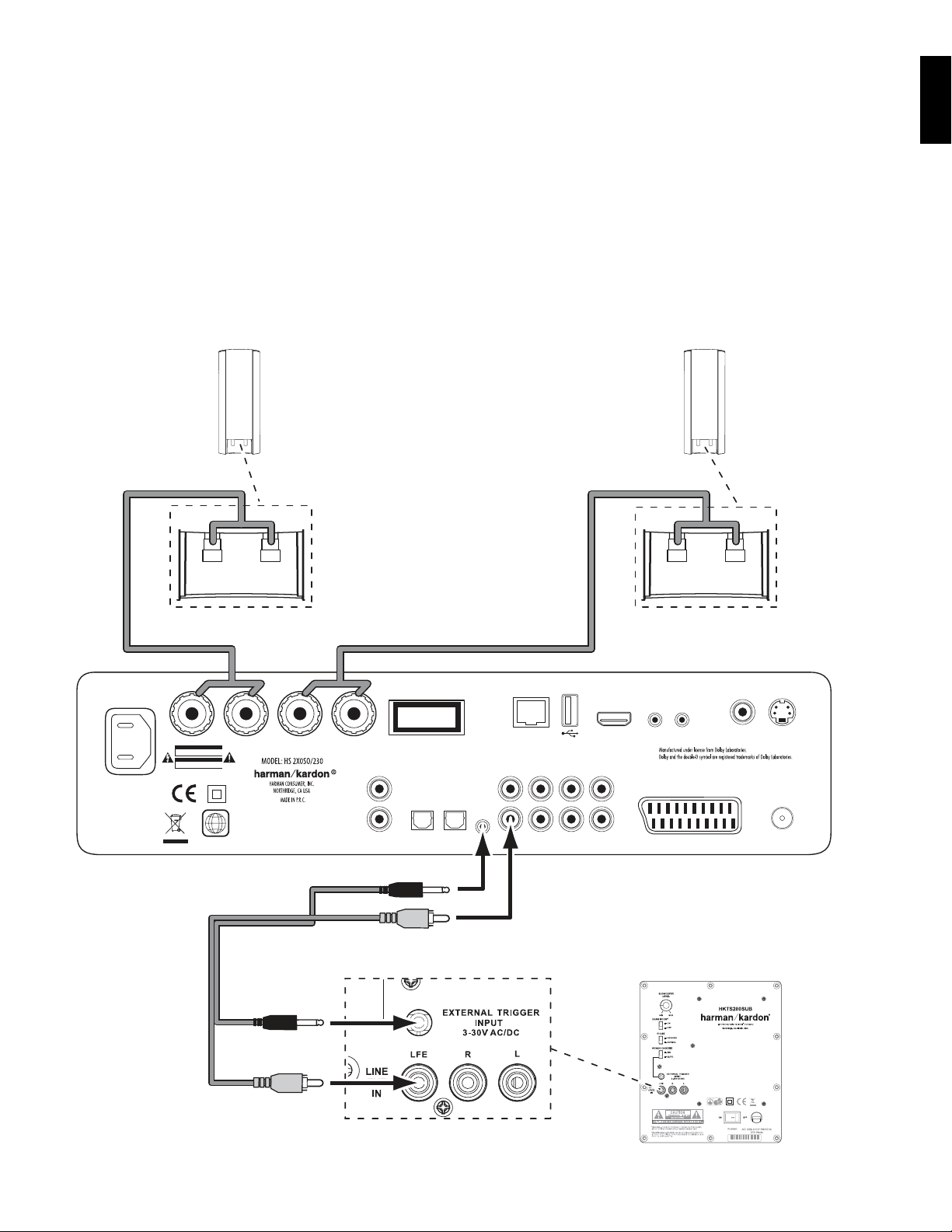

Speaker Outputs: Use the speaker wires supplied with the SAT TS60 speakers to
connect the satellite speakers to the proper terminals.
Be sure to connect the positive (+, colored red) connector on the speaker to the
positive (+, colored red and white) connector on the HS 280/HS 210, and the
negative (– , colored black) connectors on the speakers to the negative (–, colored
black) connectors on the HS 280/HS 210. See Connecting the Satellite Speakers, on
page 14, for more information about making connections.
Coaxial Digital Inputs: Connect the coaxial digital output of an audio-only source
component here. The signal may be a Dolby Digital bitstream or a standard PCM
digital audio bitstream.
NOTE: Use only one type of digital connection for each source component.
Optical Digital Inputs: Connect the optical digital output of an audio-only source
component here. The signal may be a Dolby Digital bitstream or a standard PCM
digital audio bitstream.
NOTE: Use only one type of digital connection for each source component.
Coaxial Digital Output: Connect this output to the coaxial digital input of a digital
recording device such as a CD-R or MiniDisc recorder.
Sub Trigger Output: Use the black mini-cable connector of the supplied
combination LFE and trigger cable to connect this jack to the HKTS200SUB
subwoofer’s External Trigger Input. See Connecting the Subwoofer, on page 15, for
more details about making connections.
Whenever the HS 280/HS 210 is turned on, it will send a trigger signal that will turn
the subwoofer’s amplifier on. Turning the HS 280/HS 210 off removes the trigger
signal, and the subwoofer’s amplifier will turn off. (This change will occur even when
the subwoofer’s Power On Mode switch – see page 9 – is in the Auto position.)
Optical
Digital
Inputs
Sub
Trigger
Output
Coaxial
Digital
Output
Subwoofer
Output
Ethernet
Port
Line
Outputs
USB
Port
Line 1
Inputs
HDMI
Output
Line 2
Inputs
Remote Control
Input/Output
SCART
Connection
Composite
Video
Output
S-Video
Output
FM
Antenna
Connection
Subwoofer Output: Use the LFE (purple) connector of the supplied combination LFE
and trigger cable to connect this jack to the HKTS200SUB subwoofer’s Line-Level In
LFE jack. See Connecting the Subwoofer, on page 15, for more details about making
connections.

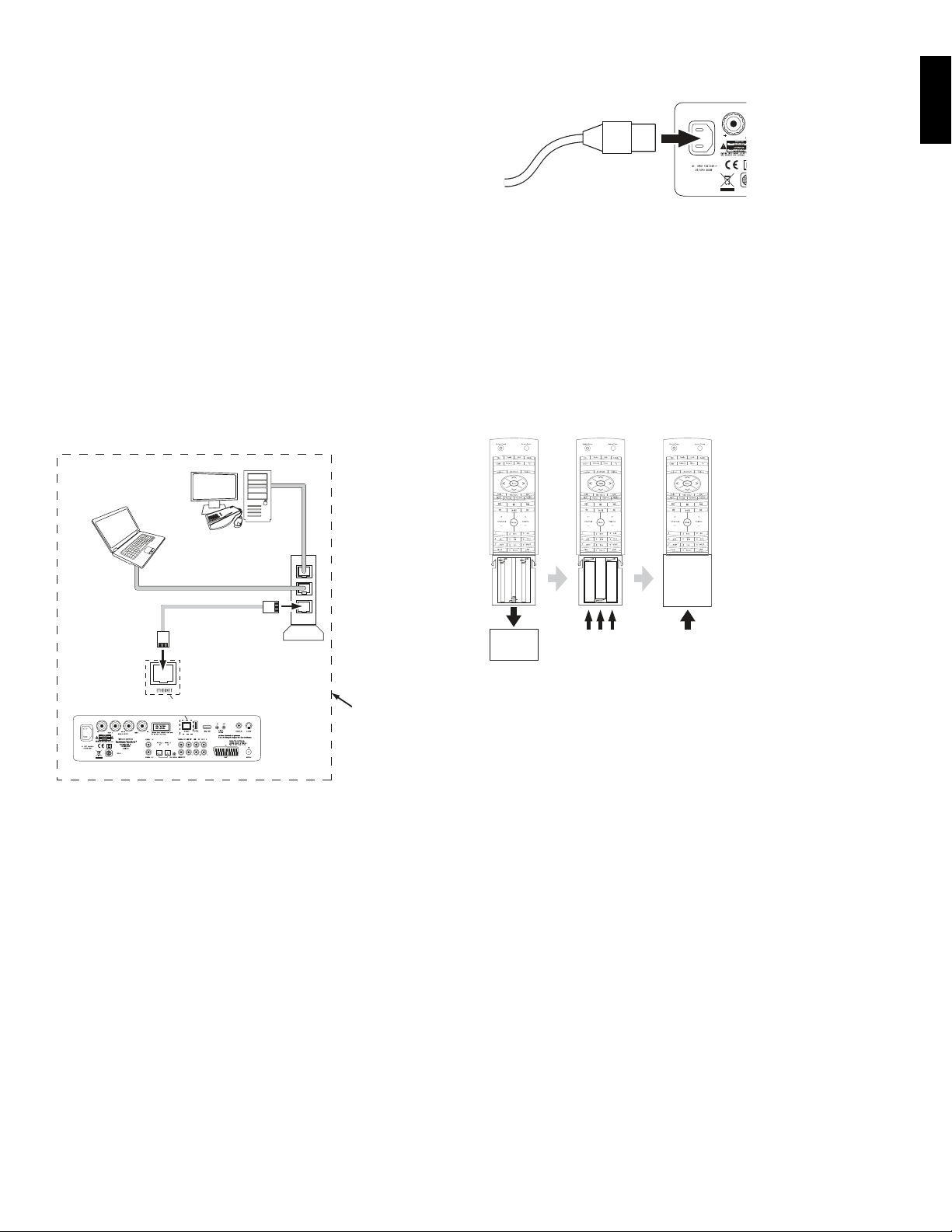

Ethernet Port: Connect this port to your local area network (LAN) using a CAT 5 RJ45
network cable. See Connecting to a Local Area Network (LAN), on page 17, for details.
Line Outputs: Use the Line Outputs to connect to an audio-only recorder, such as a
CD-R recorder or tape deck.
USB 2.0 Port: Gently insert a flash drive, card reader, digital camera or other USB
device, or a USB Standard-A cable connected to a USB device, to this port.
IMPORTANT: DO NOT connect a PC or other USB host/controller to this port, or you
may damage both the HS 280/HS 210 and the other device. Orient the device’s plug
so it fits all the way into the HS 280/HS 210’s USB connector. You may insert or remove
the device at any time – there is no installation or ejection procedure.
The HS 280/HS 210 can display JPEG-format still-image files stored on the device and
can also play MP3 and Windows Media® Audio (WMA) files and MPEG4 and AVI video
files that are stored on the device.
Line 1 Input/Line 2 Inputs: Use these inputs to connect to an audio-only source
component (such as a tape deck). Do not connect a turntable to these jacks without a
phono preamp.
HDMI Output (HDMI version 1.2): If your video display is HDMI-capable, connect
it to the HS 280/HS 210’s HDMI output for improved video performance. Since the
HDMI cable transmits both video and audio to the video display, we recommend that
you disable your display’s HDMI audio function to take full advantage of the HS 280/
HS 210 system’s superior audio performance (See page 19).
IMPORTANT: The HS 280/HS 210 is in compliance with HDCP (High-Definition Copy
Protection). A video display must also be HDCP-compliant to be used with the HS 280/
HS 210’s HDMI output. For best results, we do not recommend HDMI connections in
excess of ten feet without a repeater. If your video display has a DVI input, you may
use an optional HDMI-to-DVI cable or adapter for the video connection to the display.
(The DVI connection is video-only.)
8
3/
Subwoofer
Level Control
Bass Boost
Switch
Phase Switch
Power On
Mode Switch
External Trigger
Input Connector
Line-Level In
LFE Connector
Line-Level In
L/R Connectors
Power Switch
AC Power Cord
Remote Control Input/Output: If the HS 280/HS 210’s front-panel IR sensor is
blocked, such as when it is placed inside of a cabinet, connect an external IR receiver
(such as the Harman Kardon HE 1000 – not included) to the Remote Control In
connector. You can then place the external IR receiver in a location where it can
receive the signals from the HS 280/HS 210 remote control.
You can connect the HS 280/HS 210’s Remote Control Out connector to the remote IR
input of a compatible device, allowing it to be controlled through the HS 280/HS 210
(and through an external IR receiver, if connected). You can even connect several such
compatible devices together in “daisy-chain” fashion.
SCART Connection: Connect it to a compatible TV or set-top box using the included
SCART cable. The SCART cable carries composite (CVBS) video or S-Video from the
HS 280/HS 210 to a TV or set-top box (as well as a control signal for automatically
controlling picture aspect ratio and other parameters). It also carries stereo audio
from the TV or set-top box back to the HS 280/HS 210.
Composite-Video Output: Connect it to the composite-video input of a TV or video
projector.
S-Video Output: Connect it to the S-Video input of a TV or video projector.
FM Antenna Connection: Connect the supplied FM antenna to this terminal.
Subwoofer Controls and Connections
Subwoofer
Level Control
Bass Boost
Switch
Phase Switch
Power On
Mode Switch
External Trigger
Input Connector
Line-Level In
LFE Connector
Line-Level In
L/R Connectors
Power Switch
AC Power Cord
Subwoofer Level Control: Use this control to adjust the HKTS200SUB subwoofer’s
volume. Turn clockwise to increase the volume; turn counterclockwise to decrease the
volume.
Bass Boost Switch: Set this switch to On to enhance the subwoofer’s low-frequency
performance. Set this switch to Off for normal low-frequency performance.
Phase Switch: This switch determines whether the subwoofer driver’s piston-like
action moves in and out in phase with the satellite speakers. If the subwoofer were
to play out of phase with the satellite speakers, the sound waves from the satellite
speakers could cancel out the sound waves from the subwoofer, reducing bass
performance and sonic impact. This phenomenon depends in part on the relative
placement of all the speakers in the room.
Although in most cases the Phase Switch should be left in the Normal position, there
is no absolutely correct setting for it. When the subwoofer is properly in phase with
the satellite speakers, the sound will be clearer and have maximum impact. It will
make percussive sounds like drums, piano and plucked strings sound more lifelike.
The best way to set the Phase Switch is to listen to music that you know well and set
the switch in the position that gives drums and other percussive sounds maximum
impact.
Power On Mode Switch: When this switch is set in the Auto position and when the
Power switch is set to On, the HKTS200SUB will automatically turn itself On whenever
it receives an audio signal. It will enter the standby mode if it receives no audio
signal for 20 minutes. When the Power On Mode switch is set in the On position, the
subwoofer will remain on whether or not it is receiving an audio signal.
An LED on the subwoofer’s top panel indicates whether the subwoofer is in the on or
standby mode:
When the LED is illuminated white, the subwoofer is turned on.
•
When the LED is not illuminated, the subwoofer is in standby mode.
•
When the Power switch is set to Off, the LED will not be illuminated, no matter what
setting the Power On Mode switch is in.
External Trigger Input Connector: Use the mini-plug of the supplied combination
LFE and trigger cable to connect the External Trigger Input to the trigger output
of another compatible component. Whenever the subwoofer detects a trigger
signal between 3V and 30V (AC or DC), the subwoofer’s amplifier will turn on. The
subwoofer’s amplifier will turn off after the trigger signal ceases. (This change will
occur even when the Power On Mode switch is in the Auto position.)
Line-Level In LFE Connector: Use the LFE (purple) connector of the supplied
combination LFE and trigger cable to connect the Line-Level In LFE connector to the
dedicated subwoofer output of a receiver or preamp/processor. This input bypasses
the subwoofer’s internal crossover circuitry, so use it only with a subwoofer output
that is low-pass filtered. (Check the receiver or preamp/processor’s documentation
to confirm that its subwoofer output is low-pass filtered.) If your receiver or preamp/
processor does not have a dedicated subwoofer output that is low-pass filtered, use
the subwoofer’s Line-Level In L/R connectors instead.
Line-Level In L/R Connectors: Use these connectors if your receiver or preamp/
processor does not have digital surround-sound decoding or a low-pass-filtered
subwoofer output.
If your receiver or preamp/processor has a separate subwoofer output, use the
•
LFE (purple) connector of the supplied combination LFE and trigger cable to
connect the receiver or preamp/processor’s subwoofer output to either one of the
subwoofer’s Line-Level In L/R connectors.
If your receiver or preamp/processor does not have a separate subwoofer output,
•
use two Y-adapters (not supplied). Connect one adapter’s single end to the unit’s
preamp output for that channel. Connect one of this adapter’s dual ends to the
main amp input for that channel, and connect the adapter’s other dual end to
one of the subwoofer’s Line-Level In L/R Connectors. Repeat this process with the
other Y-adapter, the preamp channel, the main amp input and the subwoofer’s
other Line-Level In L/R connector.
Power Switch: Set this switch in the On position to turn the subwoofer on. The
subwoofer will then either be on or in Standby mode, depending on the setting of the
subwoofer’s Power On Mode switch.
AC Power Cord: After you have made and verified all subwoofer and speaker
connections described in this manual, plug the Power Cord into an active, unswitched
electrical outlet (that is, an outlet not connected to a light switch) for proper
operation of the subwoofer. DO NOT plug this cord into the accessory outlets found in
some audio components.
ENGLISH
