Digital Lounge HS 250/230 Service Manual

Page 1 of 56

DIGITAL LOUNGE

harman/kardon Service Manual

Digital Lounge HS 250/230

Integrated Home Theater System controller

TECHNICAL SPECIFICATIONS 2
TROUBLESHOOTING GUIDE 3
FRONT PANEL CONTROLS 5
FRONT PANEL DISPLAY 6
REAR PANEL CONNECTIONS 7
PACKAGE LIST AND PARTS 9

Released EU2008 harman/kardon, Inc. Rev 0, 10/2008
250 Crossways Park Dr.
Woodbury, New York, 11797

CONTENTS

EXPLODED VIEW AND PARTS 10
ELECTRICAL PARTS LIST 11

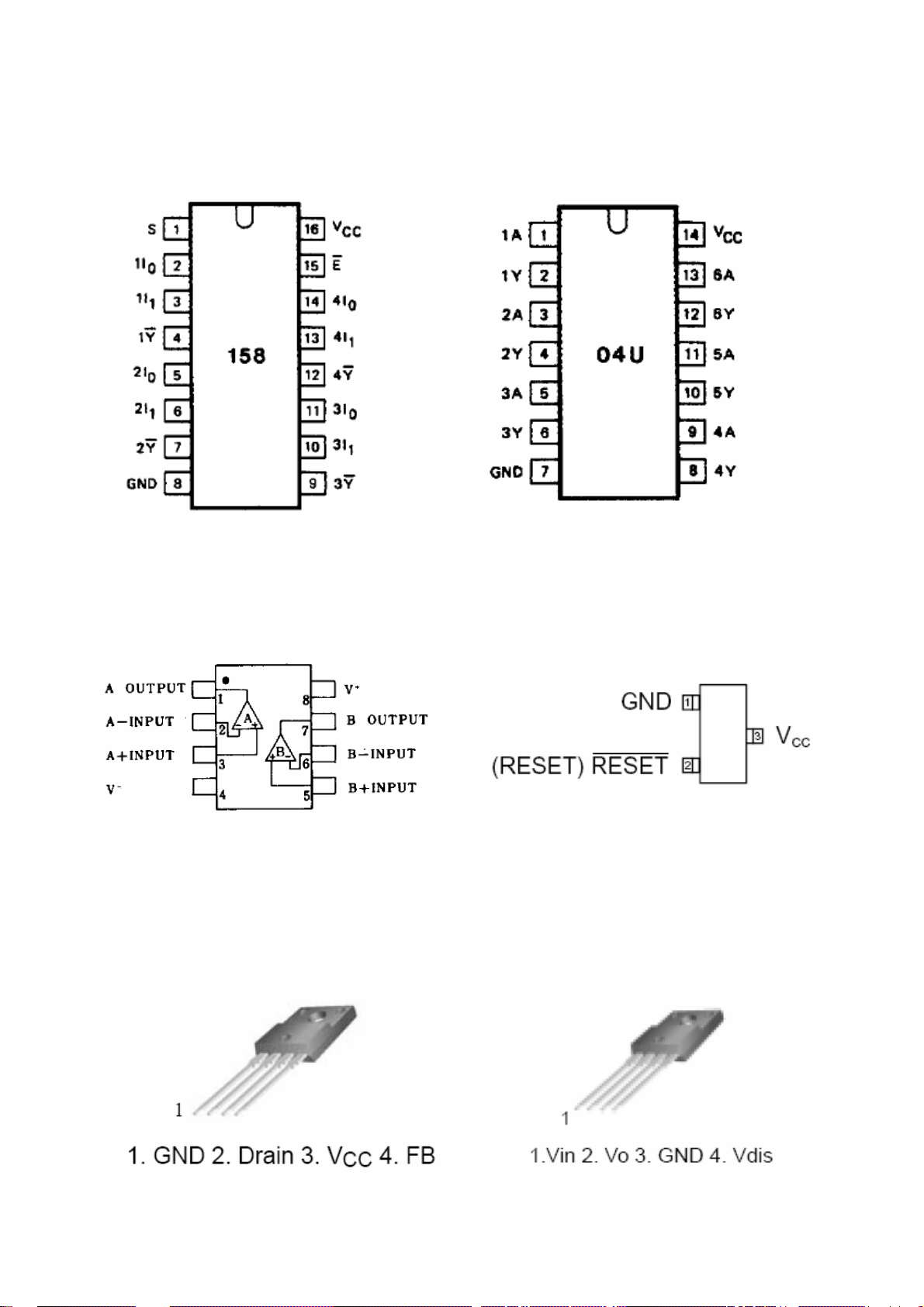

SEMICONDUCTOR PINOUTS 22
PCB DRAWINGS 36
BLOCK DIAGRAM 41
WIRING DIAGRAM 42
SCHEMATIC DIAGRAMS 43

Digital Lounge Controller Specifications

harman/kardon

Digital Lounge HS 250/230 Service Manual

Page 2 of 56

DVD player Pickup: Semiconductor laser, wavelength 650nm

Signal system: NTSC / PAL

Video signal horizontal resolution: More than 480 lines (DVD)

Video signal-to-noise ratio: More than 60 dB (DVD)

Audio frequency response: DVD (PCM): 20 Hz ~ 22 kHz (+/- 1.0 dB)
(Stereo) CD (PCM): 20 Hz ~ 20 kHz (+/- 1.0 dB)

Audio signal-to-noise ratio: More than 80 dB (PCM)

Total harmonic distortion:: Less than 0.01% (PCM)

Dynamic range: DVD (PCM): More than 85 dB (EIAJ, 2 kHz)

CD: More than 85 dB (EIAJ)

Amplifer output Power (per channel): 65 W (6ohms)

Signal-to-noise ratio: > 85 dB

Total Harmonic distortion: < 0.2%

FM Tuner System: PLL quartz-locked digital synthesizer system

Tuning range: 87.50 ~ 108.00 MHz

Antenna terminals: 75 ohms, unbalanced

Intermediate frequency: 10.7 MHz

ENGLISH

Video Outputs: HDMI™ Output: Video: 576p, 720p, 1080i

HDMI Version 1.0-compliant
HDCP Version 1.1-compliant

Audio line Outputs Audio L/R: 2 Vrms, 1 kilohms

General Power requirements: AC 230 V, 50 Hz

Max power consumption: 180 W

Idle power consumption: Less than 2 W

Dimensions (WxHxD): 350mm x 84mm x 250mm

Weight: 3,8 kg

* Designs and specifications are subject to change without notice.

Depth measurement includes knobs, buttons and terminal connections. Height measurement includes feet and chassis.

All features and specifications are subject to change without notice.

Harman Kardon The Bridge, is a registered trademark of Harman International Industries, Incorporated.

Dolby, Pro Logic and the double-D symbol are trademarks of Dolby Laboratories, registered in the United States and/or other countries.

All rights reserved.

DTS is a trademark of Digital Theater Systems, Inc.

Windows Media

DivX is a registered trademark of DivX, Inc.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

®

Audio (WMA) is a proprietary file format developed by Microsoft.

Troubleshooting

harman/kardon

Digital Lounge HS 250/230 Service Manual

Page 3 of 56

For the Controller

If you experience any of the following difficulties
while using the system, use this troubleshooting
guide to help you remedy the problem.
Should any problem persist, consult your author­ized Harman Kardon dealer.

No power.

• Is the power cord firmly plugged into the
power outlet?

• One of the safety mechanisms may be operat­ing. In this event, unplug the player from the
power outlet briefly and then plug it in again.

No picture.

• Check that the system is connected correctly
and securely.

• The video cable may be damaged. Replace it
with a new one.

• Make sure the system is connected to a video
input on the TV (see page 12).

• Make sure the TV is turned on.

• Make sure the correct video input on the TV is
selected for viewing with this system.

Noise (interference) appears in
the picture.

• Clean the disc.

• If video from this system has to go through
your VCR to get to your TV, the copy-protection
applied to some DVD programs could affect
picture quality. If you still experience pro blems
after checking your connecti ons, please try con­necting your DVD system directly to your TV’s
S-Video input.

The aspect ratio of the screen is wrong
(picture vertically expanded) when you
play a wide picture by the player or an
external source connected to the screen
even though you set “TV DISPLAY” in the
SETUP menu to "Auto".

• If you connect the system or the external
source with the SCART cable, connect directly
to the TV. Otherwise the autoswitch function of
the aspect ratio for the TV may not work.

• If the TV is not connected with a SCART cable
to the DL (as recommended) or the external
source, or if the autoswitch function does not
work you should turn the TV to "Fill All".

There is no sound or volume is very low

• Check that the speakers and components are
connected correctly and securely.

• Make sure that you have selected the correct
source on the system.

• Press MUTE on the remote control, if the
words MUTE ON are blinking on the front
panel display.

• The protective circuitry has been activated
because of a short circuit. Turn off the system,
eliminate the short circuit problem and turn on
the power again.

• The audio interconnect is damaged. Replace it
with a new one.

• The system is in pause mode or in slow-motion
play mode, or fast forward or fast reverse.

N

to return to normal play mode.

Press

• Check the speaker settings (see page 31).

The left and right channels are
unbalanced or reversed.

• Check that the speakers and components are
connected correctly and securely.

Severe hum or noise is heard.

• Check that the speakers and components are
connected securely.

• Check that the connecting cords are away from
a transformer or motor and at least 3 meters
away from fluorescent light.

• Move your TV away from the audio compo­nents.

• The plugs and jacks are dirty. Wipe them with a
cloth slightly moistened with alcohol.

• Clean the disc.

• Disconnect antenna cables from external
sources (also PC) connected to the screen or
system. If hum disappears use an antenna
transfomer between antenna and source.

• If PC is connected to the system disconnect the
Audio and Video cables. If hum disappears use
an audio transformer between PC audio out
and system input. If hum persists unplug PC
from your system and ask your local dealer for
a proper solution (ground loop interrupt).

The volume goes down automatically
and cannot be increased.

• The internal temperature is too high. Wait
approximately one minute for the amplifier to
reach normal working temperature.

Radio stations cannot be tuned in.

• Check that the antenna is connected correctly.
Adjust the antenna and connect an external
antenna if necessary.

• The signal strength of the stations is too weak
for automatic tuning. Use manual tuning.

• No stations have been preset.

• The tuner mode is not selected, select the
Radio mode.

The remote does not function.

• Remove any obstacles between the remote
control and the system.

• Move the remote control closer to the system.

• Point the remote control at the remote sensor
on the front panel.

• Replace all the batteries in the remote control
with new ones if they are weak.

• Check that the batteries are loaded correctly.

The disc does not play.

• There is no disc inside. (“NO DISC” appears on
the front panel display and the TV screen.)
Insert a disc.

• Insert the disc correctly with the playback side
facing down.

• Clean the disc.

• The system cannot play CD-ROM's, etc.
(see page 3).

• DVD with wrong region code
(see page 18).

Playback stops automatically.

• Some discs include an auto pause signal. When
playing such a disc, the system stops playback
at the signal.

ENGLISH

Troubleshooting

harman/kardon

Digital Lounge HS 250/230 Service Manual

Page 4 of 56

Track Skip or direct select with numeric
buttons, Search, Slow-motion play, repeat
play or Program play, etc., cannot be
done.

• Depending on the DVD or VCD, some of the
above operations may not be available
(Playback control).

Messages do not appear on the TV screen
in the language you want.

• Select the language for Display and Preferred
Subtitle in the SETUP menu (see page 22).
For all messages from the DVD (DVD menu,
subtitles) in the proper language, the disc
must have the language you selected, if not,
another language will be selected.

The audio language cannot be changed
when you play a DVD.

• Multilingual sound is not recorded on the
DVD.

• Changing the language for the sound by the
Audio button on the remote or the Audio line
in the Player Menu is prohibited on the DVD.
In that case the audio language must be
selected by the main menu on the DVD.

The subtitle language cannot be changed
when you play a DVD.

• Multilingual subtitles are not recorded on the
DVD.

• Changing the language for the subtitles by the
Subtitle button on the remote or the Subtitle
line in the Player Menu is prohibited on the
DVD. In that case the subtitle language must
be selected by the main menu on the DVD.

The subtitles cannot be turned off when
you play a DVD.

• Depending on the DVD, you may not be able
to turn the subtitles off.

The angles cannot be changed when you
play a DVD.

• Multi-angles are not recorded on most DVDs.

• Change the angles when the angle mark
appears on the TV screen.

• Changing the angles is prohibited on some
DVDs.

The system does not operate properly.

• Static electricity, etc., may affect the system’s
operation.
Disconnect the AC power cord, then connect it
again.

Please also refer to the Trouble shooting
guide contained in your loudspeaker
Owners Manual

For the TV

Defect Possible cause Possible remedy

No picture although the mains plug is
inserted and the unit is switched on.

• Mains switch in position ”0” (OFF).

• Mains plug of unit is not inserted into
the plug receptacle.

• The HDMI cable is not properly inserted.

• Defective mains cable.

• Shift mains switch to position ”I”.

• Insert the mains cable plug into the
plug receptacle.

• Insert the HDMI cable firmly.

• Call the service hotline.

Screen dark.

Weak or excessive colours.

The picture is too large or too small.

The displayed picture is too dark.

The picture is displayed,
but there is no sound.

• Contrast setting too low.

• No input signal, wrong input selected.

• Colour not correctly set.

• Connection cable not correctly connected.

• Picture format set wrongly.

• The picture quality is not set correctly.

• The sound is switched to mute.

• The Coaxial Digital Audio cable is not properly
inserted.

• Volume is set to minimum.

• Set the brightness and/or contrast correctly
(see Picture Calibration).

• Check the connection cable; assign correct
input to source.

• Set the colour correctly
(see Picture Calibration).

• Connect the cable correctly.

• Repeatedly press the Screen Format Button



until the picture is displayed as full

screen.

• Correct the picture brightness and contrast
(see Picture Calibration)

A

• Press the Mute Button
control.

• Insert the Coaxial Digital Audio cable firmly.

• Increase the volume.

on the remote

Horizontal stripes with TV
or video signals.

• Signal source is placed in front of the display.

• Always place the signal sources on the side of
or behind the display.

Digital Louge

Front Panel Controls

harman/kardon

Digital Lounge HS 250/230 Service Manual

Page 5 of 56



Main Information Display

1

Power On/Off (Standby)

2

Open/Close

3

USB On-The-Go Input

4

Headphone Jack

5

Volume Control

6

Slot Loader



Main Information Display: This display
delivers messages and status indications to help
you operate the Digital Lounge Controller.

1

Power On/Off (Standby): Press the button
once to turn the Digital Lounge Controller on,
press it again to put the unit in the Standby
mode.
Note that when the Digital Lounge Controller is
switched on, the Power Indicator around the
button turns white

2

Eject: Press this button to release a disc
from the loader.

3

USB On-The-Go Input: This input may be
used to temporarily connect a USB thumb device
or portable hard disk for direct playback of
audio, image of video files or a USB hub. The
USB inputs are designed to power a single USB
device at a time. If additional hard disks are
connected through a hub it is necessary that
additional external power supplies are used to
power the hub and hard disks.

4

Headphone Jack: This jack may be used to
listen to the system's output through a pair of
headphones. Be certain that the headphones
have a standard 3.5 mm stereo phone plug.
Note that the main room speakers will
automatically be turned off when the
headphone jack is in use.

5

Volume Control:Turn this knob clockwise
to increase the volume, counterclockwise to
decrease the volume. If the system is muted,
adjusting volume control will automatically
release the unit from the silenced condition.

6

Slot loader: Gently insert a CD or DVD into
this slot, with the printed side of the disc facing
up. Note there is no drawer. Press the Eject

Button

2

to release the disc

Front Panel Display

harman/kardon

Digital Lounge HS 250/230 Service Manual

Page 6 of 56

ENGLISH

A Disc Type Indicators
B Playback-Mode Indicators
C Progressive Scan Indicator
D Parental Lock Indicator
E Time Indicators
F Video Format Indicators

A Disc Type Indicators: The CD or DVD

indicator will illuminate to show the type of disc
currently being played.

B Playback-Mode Indicators: These
indicators light to show the current playback
mode:

N

Lights when a disc is playing in the normal

mode

H

Lights when the disc is in the Fast Search
Forward mode. The on-screen banner display
indicates the selected speed (2x, 8x, 16x, 100x).

1

Lights when the disc is paused.

G

Lights when the disc is in the Fast Search
Reverse mode. The on-screen banner display
indicates the selected speed (2x, 8x, 16x, 100x).

C Progressive Scan Indicator: This indicator
lights when the unit sends out a progressive
scan signal.

D Parental Lock Indicator: This indicator
lights when the parental-lock system is engaged
in order to prevent anyone from changing the
rating level without a code.

G Source Indicators
H Repeat Indicators
I VCD Playback Control Indicator
J Random Indicator
K A-B Repeat Indicator
L Program Indicator

E Time Indicators: These positions in the

indicator will show the running time of a DVD in
play. When a CD is playing, these indicators will
show the current track time, time remaining in
the current track, or the total remaining time on
the disc. When an iPod is playing, the display
will show the elapsed and remaining time on the
top line. The bottom line will scroll information
about the song, title, album and artist.

NOTE: The Indicators NOE will also display
text messages about the DVD’s status, including

Reading when a disc is loading,
STANDBY when the unit is turned off, and
Disc Error when a disc not compatible

with the DVD is put into the play position.

F Video Format Indicators: These indicators
will represent the video format currently playing.

G Source Indicators: These indicators will
light to show which source is currently selected.

H Repeat Indicators: These indicators light
when any of the Repeat functions are in use.

M Angle Indicator
N Title Indicators
O Chapter/Track Number Indicators
P Video Output Indicators

I VCD Playback Control Indicator: This

indicator lights when the playback control
function is turned on with VCDs.

J Random Indicator: This indicator lights
when the unit is in the Random Play mode.

K A-B Repeat Indicator: This indicator lights
when a specific passage for repeat playback has
been selected.

L Program Indicator: This indicator lights
when the programming functions are in use.

M Angle Indicator: This indicator blinks when
alternative viewing angles are available on the
DVD currently playing.

N Title Indicators: These two positions in the
display will show the current title number when
a DVD disc is playing.

O Chapter/Track Number Indicators: When
a DVD disc is playing, these two positions in the
display will show the current chapter. When a
CD disc is playing they will show the current
track number.

P Video Output Indicators: These indicators
will represent the active video output. .

Rear Panel Connections

CF7

E

D9

8A6 5

0

123B

4

harman/kardon

Digital Lounge HS 250/230 Service Manual

Page 7 of 56



HDMI Output



Remote IR Output



Remote IR Input



USB On-The-Go Input



AC Power Cord



FM Antenna



Audio In



Subwoofer Output



Coaxial Digital Input



Optical Digital Input



Analog Audio Outputs



Speaker Outputs



Coaxial Digital Output



Subwoofer Trigger Output



DMP The Bridge Input



Analog Audio Inputs



HDMI Output: Connect this output to the

J

HDMI input

of the screen, using the supplied

HDMI - SP-DIF - Remote In/Out cable.



Remote IR Output: This connection per­mits the IR sensor in the receiver to serve other
remote controlled devices. Connect this jack to
the “IR IN” jack on Harman Kardon or other
compatible equipment. Note this connection is
only necessary for optional, additional products
connected to the player. It is not necessary for
proper control of the Digital Lounge system.



Remote IR Input: Connect this input to the

U

Remote IR Output

of the TV, using the special
HDMI - SP-DIF - Remote In/Out cable. This will
allow you to control all components in your sys­tem by pointing the remote control to the TV
only.



USB On-The-Go Input: This input may be
used to temporarily connect a USB thumb device
or portable hard disk for direct playback of
audio, image of video files, a digital photo cam­era or a USB hub.



AC Power Cord: Connect this plug to an
AC outlet. If the outlet is controlled by a switch,
make certain that it is in the ON position.



FM Antenna: Connect to the supplied FM

antenna.



Audio In: Connect to a line-level analog

audio source: TV, tape player, Minidisc, PC, etc.



Subwoofer Output: Connect to the

SUB/LFE input on the subwoofer.



Coaxial Digital Input: Connect the coaxial
digital output from a DVD player, HDTV receiver,
LD player, MD player, satellite receiver or CD
player to this jack. The signal may be either a
Dolby Digital signal, DTS signal or a standard
PCM digital source.



Optical Digital Input: Connect the optical
digital output from a DVD player, HDTV receiver,
LD player, MD player, satellite receiver or CD
player to this jack. The signal may be either a
Dolby Digital signal, DTS signal or a standard
PCM digital source.



Analog Audio Outputs: Connect these
jacks to the RECORD/INPUT jacks of an optional
audio recorder for recording.



Speaker Outputs: Connect these outputs
to the matching + or – terminals on your left
and right speakers. In conformance with the new
CEA color code specification, the White terminal
is the positive, or "+" terminal that should be
connected to the red (+) terminal on Left
speaker with the older color coding, while the
Red terminal is the positive, or "+" terminal that
should be connected to the red (+) terminal on
Right speaker. Connect the black (–) terminals
on the Digital Lounge system to the black (–)
terminals on the speakers. See page 19 for more
information on speaker polarity.

Note: You’ll find more details about all
Audio/Video connections under Setup and
Connections on the following pages.



Coaxial Digital Output: Connect this jack
to the matching digital input connector on a
digital recorder such as a CD-R or MiniDisc
recorder.

Rear Panel Connections

harman/kardon

Digital Lounge HS 250/230 Service Manual

Page 8 of 56



Subwoofer Trigger Output: Connect this
trigger output to the trigger input of the
Harman Kardon subwoofer, so that the sub­woofer will switch on and off at the same time
as the rest of the system.



Connector: With the Digital Lounge turned off,
connect one end of the optional Harman Kardon

other to your compatible Apple iPod. When the
Digital Media Player source is selected, you may
view your iPod’s control and navigation
messages on your video display and in the
Upper and Lower Display Lines E. You may
navigate the iPod and select tracks for playback
using the

Enter Button



Analog Audio Inputs: Connect these jacks to
the analog audio output on a TV set or external
audio system for analog audio playback.

Digital Media Player (DMP)

to this proprietary connector, and the

⁄/¤/‹/›

Buttons9and the

6

.

ENGLISH

13

harman/kardon

Digital Lounge HS 250/230 Service Manual

Page 9 of 56

Digital Lounge HS 250/230 package list and parts

14

11

12

10

8

7

6

5

9

4
3

2

1

2

harman/kardon

Digital Lounge HS 250/230 Service Manual

Page 10 of 56

Digital Lounge HS 250/230 exploded view

Location.No. Description Specification P/N

y

harman/kardon

Digital Lounge HS 250/230 Service Manual

Page 11 of 56

HS250 Digital Lounge Component List

HS200-PT01 metals part HS200-chassis 01.00.WJ.TJ.HS200.
HS200-PT02 metals part HS200-top cover 01.00.WJ.TJ.HS200.
HS250-PT02 metals part HS250 DL-rear panel 01.00.WJ.TJ.HS250.
HS200-PT04 metals part HS200-PCB plastic frame(Left) 01.00.WJ.TJ.HS200.
HS200-PT05 metals part HS200-PCB plastic frame(Right) 01.00.WJ.TJ.HS200.

HS200-PT06 metals part

HS650DL-PT02 metals part HS650DL-U-shaped holder 01.00.WJ.TJ.HS650.
HS200-PT07 Heatsink 50*62*65MM 01.00.WJ.TJ.E889
HS200-PT08 Heatsink 39*54.5*61mm 01.00.WJ.TJ.E890
HS200-PT09 Heatsink 122*45*51mm 01.00.WJ.TJ.E891
HS200-PT10 Heatsink 35*30*49mm 01.00.WJ.TJ.E892

For S503/S504/S505/S506 on SMPS Board Heatsink

For U4 of Main Board Heatsink 28*28*10mm 01.00.WJ.TJ.E268

For U512 on SMPS Board (HS250-PT01) Heatsink

For Amplifier Output Cord Magnetism annulus F5BRFS11.7*6*19.75-3-P.W 01.13.L.H.E034
HS200-RE01 plastic part HS200-front pannel 01.00.SJ.HS200.E00
HS200-RE02 plastic part HS200-2 in 1 Button 01.00.SJ.HS200.E00
HS200-RE03 plastic part HS200-Open button collar 01.00.SJ.HS200.E00
HS100-RE06 plastic part HS100Volume Button Collar 01.00.SJ.HS100.E00
HS200-RE04 plastic part HS200-Button Cover Board 01.00.SJ.HS200.E00
HS200-RE05 plastic part HS200-Power Indicator lampshade 01.00.SJ.HS200.E00
HS200-RE06 plastic part HS200-pedestal underlay 01.00.SJ.HS200.E00
HS200-RE07 plastic part HS200-Power Jack Jacket 01.00.SJ.HS200.E00
HS200-RE08 plastic part HS200-plastic scaleboard 01.00.SJ.HS200.E00

HS100-RE10 plastic part HS100Volume Button 01.00.SJ.HS100.E01
HS100-RE08 plastic part HS100volume button lampshade 01.00.SJ.HS100.E00

For pedestal underlay HS100-H01 Silica gel gasket

For VFD (2) sponge

Between volume button and Front Panel Board Astigmatism PVC Φ45.5*Φ9.5mm 01.00.FZ.QT.153

Inside the volume button Mask PVC φ38.5 (Underside Glued) 01.00.FZ.QT.E253
For IR receiver sponge 10*10*7MM (with double sides glued) 01.00.DP.HM.E364
Between AV Board and Heatsink sponge 20*10*4.5mm (with Single side glued) 01.00.DP.HM.E160
paste in front of Disc tray door in the front
panel
pasted beside U403 of AV Board electric sponge 12*10*18mm 01.00.DD.PM.E183
Between front panel PCB and plastic part electric sponge 20*20*10MM 01.00.DD.PM.E271

For Q509 on SMPS Board Sil-pad sil-pad 400-3022 01.00.DP.QT.E113

For AV Board

For SMPS Board Insulated PVC HS200-H01 01.00.DP.JY.E247
Be buckled above volume button board Insulated PVC HS200-H02 01.00.DP.JY.E249
For hamulus of front panel Insulated PVC 22.5*10*0.3mm (with Single side glued) 01.00.DP.JY.E541
For frequency modulation module and AV
Board
For frequency modulation module and Main
Board

Between AV Board and chassis under U403

For AV Board and Heatsink (2) Screw 3*8PWBTTC 01.00.WJ.JG.E265

For front Panel and Left/Right sides of chassis
(4), Between two Heatsinks on SMPS Board(1)

For pedestal underlay and chissis (9) Screw 3*6PWBTTNI 01.00.WJ.JG.E543
For front panel and pedestal underlay and
chissis(3)
For Button cover Board and button Board Screw 1.7*4CAHNI D=3.2 Free-Lead 01.00.WJ.JG.E655
For front panel and front panel board(9) For
plastic scaleboard and Speaker Connected
Board (1)
For front panel and volume button board Screw 3*6KBTTNI 01.00.WJ.JG.E085
For Loader and chassis(4), For PCB Brackets
and chassis (4)
For SMPS Board and chassis (5), For AV
Board and chassis (3), For Main Board and
PCB brackets (3)

plastic part HS250 DL-Large Lens 01.00.SJ.HS250.E00

plastic part 1000A-IR receiver support 5.5mm 01.00.SJ.1000A.E01
VFD filter 124.5*33.5*0.5mm 01.00.SJ.QT.E019
AC power Jack WS-044-0 01.40.CON.DCZ.E178
Metal logo 100mm "Harman/Kardon" Thin Logo 01.00.SB.E036
Dustproof for Disc tra
door of Loder

High Soft sponge 124*10*2MM (with Single side glued) 01.00.DP.HM.E378

Plastic fastener 12CM 01.00.FZ.QT.E122

Diathermanous
Selenium Rubber

sponge 15*15*24mm (with Single side glued) 01.00.DP.HM.E369

sponge 15*15*7mm(with Single side glued) 01.00.DP.HM.E370

Diathermanous Silica
gel gasket

Screw 3*6KBTTO 01.00.WJ.JG.E328

Screw 3*8PWBTTNI 01.00.WJ.JG.E235

Screw 3*8PAHC 01.00.WJ.JG.E166

Screw 3*6PWBTTC W=7 01.00.WJ.JG.E091

Screw 3*6PWMHC W=7 01.00.WJ.JG.E451

HS200-Connected Piece for Speaker
Jack

16*12*51MM (The Hole's depth is
18MM

12*7.5*51MM (The Hole's depth is
18MM

LTD-1510 01.00.DP.JY.E135

50.6*4.2*1.5mm (with #500 glue be
single sides glued )
20*10*5MM (with #9448 glue be double
sides glued )

16*11*1mm 01.00.DP.JY.E112

20*15*4MM 01.00.DP.XJ.E560

01.00.WJ.TJ.HS200.

01.00.WJ.TJ.E893

01.00.WJ.TJ.E982

01.00.DP.XJ.E192

01.00.DP.HM.E117

Location.No. Description Specification P/N

(

(J)

harman/kardon

Digital Lounge HS 250/230 Service Manual

Page 12 of 56

HS250 Digital Lounge Component List

For rear panel and the bottom side of chassis
(2), For top cover and bottom side of chassis
(4)
For ICs and Heatsinks on SMPS Board (5) For
Two sorts of Heatsinks on AV Board (2), and
U512 on SMPS Board
For output jacks (4), For frequency modulation
module (2), U-shaped holder(2)
For plastic scaleboard and rear panel (3) Screw 3*10PAHO 01.00.WJ.JG.E675
For top cover and chassis, top cover and rear
panel (5)
For AC power socket (2) Screw 3*12PMHO 01.00.WJ.JG.E865
For U503/D502 on SMPS Board *2, For
IC(BD501,Q501) on SMPS Board *2
For power jack(2) Nut M3 01.00.WJ.JG.E119
For uncovered Screw drilled through the
chassis
For Heatsink and AV Board (2), For Two sorts
of Heatsinks on AV Board (2)

For Insulated gasket and volume button Board plastic rivet MBL3-2.5 01.00.SJ.QT.E104

For Heatsink and AV Board (2), For Two sorts
of Heatsinks on AV Board (2)

IEC Head for FM Connector (NON-Screw
Thread)
CN501 on SMPS Board to Power Jack with
solder one end
CN506 on SMPS Board to CN403(L) on AV(L)
Board

CN405 on AV Board to JP1.JP2 JP3.JP4 on
Speaker Connected Board with solder one end

CN3(A) on Main Board to CN601(A) on Front
Panel Board
CN4(B) on Main Board to CN603(B) on Front
Panel Board
CN5(C) on Main Board to CN504(C) on SMPS
Board
CN9(D) on Main Board to CN301(D) on AV
Board
CN8(E) on Main Board to CN302(E) on AV
Board
CN6(G) on Main Board to CN304(G) on AV
Board
CN503(H) on SMPS Board to CN602(H) on
Front Panel Board
CN604
Volume Button Board
CN505(K) on SMPS Board to CN402(K) on AV
Board
For Loader and CN1 on Main Board Flat cable 1.0*12P*220mmA 01.48.BPX.1.E156
For Loader and CN2 on Main Board Flat cable 0.5*24P*200mmA 01.48.BPX.1.E028
For frequency modulation module and CN10
on Main Board

4-layers

2-layers

2-layers

2-layers

2-layers

2-layers

on Front Panel Board to CN605(J) on

Screw 3*4RBTTNI 01.00.WJ.JG.E252

Screw 3*8PBTTC 01.00.WJ.JG.E417

Screw 3*8PAHO 01.00.WJ.JG.E321

Screw 3*6PWBTTO 01.00.WJ.JG.E403

Screw 3*6PBTTC 01.00.WJ.JG.E087

Screw Jacket Ф3*4mm 01.00.FZ.TG.E025

Flat Pad M3*0.5 W=8 01.00.WJ.JG.E426

Spring Pad M3 01.00.WJ.JG.E424

Speaker Connective
Stick
Speaker Connective
Stick
Speaker Connective
Stick
HDMI Cord 1770261-1(2M) 01.47.CNT.LJX.5.E2

Power Cord

Antenna

Loader DL-05MH-H40P 01.15.JX.EDL05MH
FM frequency
modulation module

Connect cable

Connect cable

Connect cable

Flat cable 1.0*14P*100mmA 01.48.BPX.1.E147

Flat cable 1.0*8P*100mmA 01.48.BPX.1.E148

Flat cable 1.25*12P*80mmA(T=0.1mm) 01.48.BPX.1.E149

Flat cable 1.0*16P*80mmA 01.48.BPX.1.E150

Flat cable 1.0*24P*80mmA 01.48.BPX.1.E151

Flat cable 1.0*5P*80mmA 01.48.BPX.1.E152

Flat cable 1.25*14P*70mmA(T=0.1mm) 01.48.BPX.1.E153

Flat cable 1.0*6P*40mmA 01.48.BPX.1.E154

Flat cable 1.25*9P*60mmA(T=0.1mm) 01.48.BPX.1.E155

Flat cable 1.25*11P*50mmA 01.48.BPX.1.E157

Main Board (semi­manufactured goods)
AV Board (semi­manufactured goods)
AV Board (semi­manufactured goods)
AV Board (semi­manufactured goods)
AV Board (semi­manufactured goods)
Speaker Connected
Board

HS200 Connective Stick-Red 01.00.WJ.QT.E049

HS200 Connective Stick-Black 01.00.WJ.QT.E048

HS200 Connective Stick-White 01.00.WJ.QT.E050

WS-002E+WS-019 HO5VV-F 0.75×2C
BK 2M
FM-TV-22 (Lead content less than
300PPM)

TFCF1E806A 01.49.E11

VH-3Y Connector-2Y-120mm(Be same
side)
VH-3Y Connector-2Y-2Y-60mm
side)
VH-4Y Connector-4Y-60mm(Be same
side with color is White, Black, Red and
Black)

HAV07M-5228C02 (EU Vision+Hitachi
Loader)

HAV07I-5229C02(EU Vision) 02.14.HAV07I5229C0

HAV06P-3521C02 02.19.HAV06P3521C0

HAV07K-3519C02 02.15.HAV07K3519C0

HAV06K-3518C01 02.15.HAV06K3518C0

3523C 01.37.PCB.2.E3523C

Be same

01.47.CNT.ACX.E052

01.47.CNT.CTX.E016

01.47.CNT.LJX.7.E6

01.47.CNT.LJX.7.E7

01.47.CNT.LJX.7.E6

02.11.HAV07M5228C0

Location.No. Description Specification P/N

harman/kardon

Digital Lounge HS 250/230 Service Manual

Page 13 of 56

HS250 DL Component List for Main Board (5228C02)

R4 R9 R45 R49 R50 FB53 Resistor, chip 0603-0Ω ±5% 01.57.R.2.E000J
R132 R156 R158 Resistor, chip 0603-10Ω±5% 01.57.R.2.E100J
R42 R43 R61 R62 Resistor, chip 0603-20Ω±5% 01.57.R.2.E200J
R29 R30 (R31) R32 (R33) R34 (R35) R36
(R37) R38
R2 R47 R124 R125 R126 R127 R142 R145
R146 R147 R149 R151 R153 R155
R6 (R41) (R71) (R120) (R121) R130 (R133)
R139
R150 Resistor, chip 0603-150Ω±5% 01.57.R.2.E151J
R8 Resistor, chip 0603-200Ω±5% 01.57.R.2.E201J
R19 R136 R137 R138 R140 Resistor, chip 0603-220Ω±5% 01.57.R.2.E221J
R173 Resistor, chip 0603-270Ω±5% 01.57.R.2.E271J
R167 Resistor, chip 0603-390Ω±5% 01.57.R.2.E391J
R141 Resistor, chip 0603-475Ω±1% 01.57.R.2.E4750F
R26 R77 R58 Resistor, chip 0603-1KΩ±5% 01.57.R.2.E102J
R80 R83 Resistor, chip 0603-1.2KΩ±5% 01.57.R.2.E122J
R79 R86 Resistor, chip 0603-1.5KΩ±5% 01.57.R.2.E152J
R160 R161 Resistor, chip 0603-1.8KΩ±5% 01.57.R.2.E182J
R13 R14 R15 R16 R18 R87 R92 Resistor, chip 0603-2KΩ±5% 01.57.R.2.E202J
R65 (R188) (R189) Resistor, chip 0603-3KΩ±5% 01.57.R.2.E302J
R44 R46 R52 Resistor, chip 0603-3.9KΩ±5% 01.57.R.2.E392J
R5 R27 R55 R57 R63 R96 R131 R135 R162
R163 R168 R170 R178 R185 R186 R190
R191 R192
R89 Resistor, chip 0603-5.1KΩ±5% 01.57.R.2.E512J
R91 Resistor, chip 0603-6.8KΩ±5% 01.57.R.2.E682J
R24 R28 R56 R75 R76 R78 R82 R122 R123
R128 R129 R143 R144 R171 R172
R48 (R72) Resistor, chip 0603-12KΩ±1% 01.57.R.2.E123F
R17 Resistor, chip 0603-15KΩ±5% 01.57.R.2.E153J
R84 R85 Resistor, chip 0603-22KΩ±5% 01.57.R.2.E223J
R90 Resistor, chip 0603-27KΩ±5% 01.57.R.2.E273J
R53 Resistor, chip 0603-33KΩ±5% 01.57.R.2.E333J
R51 Resistor, chip 0603-39KΩ±5% 01.57.R.2.E393J
R22 R54 R93 R95 R165 Resistor, chip 0603-47KΩ±5% 01.57.R.2.E473J
R73 Resistor, chip 0603-1MΩ±5% 01.57.R.2.E105J
R59 R60 Resistor, chip 0805-2Ω±1% 01.57.R.3.E2R0F
R3 Resistor, chip 1206-2Ω±5% 01.57.R.4.E020J

RN4

RN6 RN7 RN8 RN9 RN10 RN11

RN3

RN1

PTC1

C192

(C64) (C65) (C146) (C147)

(C161) (C164)

C97 C112

C103 C116

C84 C87 C115

C162

C129

C82 C86 C90

C163

C105 C106 C108 C111

C91 C94 C96 C99 C118 C119

(C19)

(C20)

C113 C114 C120

Resistor, chip 0603-22Ω±5% 01.57.R.2.E220J

Resistor, chip 0603-33Ω±5% 01.57.R.2.E330J

Resistor, chip 0603-100Ω±5% 01.57.R.2.E101J

Resistor, chip 0603-4.7KΩ±5% 01.57.R.2.E472J

Resistor, chip 0603-10KΩ±5% 01.57.R.2.E103J

Resistor, thick film
chip network
Resistor, thick film
chip network
Resistor, thick film
chip network
Resistor, thick film
chip network
Thermmal Dependent
Resistor, JinKe
Capacitor, multilayer
ceramic, chip
Capacitor, multilayer
ceramic, chip
Capacitor, multilayer
ceramic, chip
Capacitor, multilayer
ceramic, chip
Capacitor, multilayer
ceramic, chip
Capacitor, multilayer
ceramic, chip
Capacitor, multilayer
ceramic, chip
Capacitor, multilayer
ceramic, chip
Capacitor, multilayer
ceramic, chip
Capacitor, multilayer
ceramic, chip
Capacitor, multilayer
ceramic, chip
Capacitor, multilayer
ceramic, chip
Capacitor, multilayer
ceramic, chip
Capacitor, multilayer
ceramic, chip
Capacitor, multilayer
ceramic, chip

0603-10Ω*4 ±5% 01.57.R.8.EP1004

0603-33Ω*4 ±5% 01.57.R.8.EP3304

0603-4.7KΩ*4 ±5% 01.57.R.8.EP4724

0603-10KΩ*4 ±5% 01.57.R.8.EP1034

JK-MSMD050 SMD 01.57.R.R.E050

0603-3.3P NPO±0.25%/50V 01.54.CS.2.E3P3N50

0603-6.8P NPO±0.25PF/50V 01.54.CS.2.E6P8N50

0603-33P NPO±5%/50V 01.54.CS.2.E330N50

0603-100P NPO±5%/50V 01.54.CS.2.E101N50

0603-180P NPO±5%/50V 01.54.CS.2.E181N50

0603-220P NPO±5%/50V 01.54.CS.2.E221N50

0603-270P NPO±5%/50V 01.54.CS.2.E271N50

0603-390P NPO±5%/50V 01.54.CS.2.E391N50

0603-470P X7R±10%/50V 01.54.CS.2.E471X50

0603-560P NPO±5%/50V 01.54.CS.2.E561N50

0603-680P X7R±10%/50V 01.54.CS.2.E681X50

0603-102 X7R±10%/50V 01.54.CS.2.E102X50

0603-152 X7R±10%/50V 01.54.CS.2.E152X50

0603-272 X7R±10%/50V 01.54.CS.2.E272X50

0603-332 X7R±10%/50V 01.54.CS.2.E332X50

Location.No. Description Specification P/N

harman/kardon

Digital Lounge HS 250/230 Service Manual

Page 14 of 56

C88

C8

C101

C168 (C169)

C16 C117 C127 C136

C121 (C107)

(C1) C3 C4 C6 C7 C9 C10 (C11) C12 C13
(C14) (C15) (C17) C18 (C21) (C22) C23 (C24)
C25 (C26) (C27) (C28) (C29) (C30) C31 C32
(C33) (C34) (C35) (C36) (C37) (C38) (C39)
C40 C41 C42 (C43) (C44) (C45) (C46) (C47)
(C48) (C49) (C50) (C51) (C52) (C53) (C54)
(C55) (C56) (C57) (C58) (C59) (C60) (C61)
C62 (C63) C66 (C67) (C68) (C69) (C70) (C71)
(C72) (C73) (C74) (C75) (C76) (C77) C78
(C79) (C80) C81 C83 C85 C89 C92 (C93)
(C95) C102 C104 C109 (C110) C122 C123
C124 (C125) C126 (C128) C130 C131 C132
(C133) (C134) (C135) C148 (C150) C151
(C152) (C153) (C154) (C155) (C156) (C157)
(C158) (C159) (C160) C165 C166 C167
(C170) (C171) (C172) (C173) (C174) (C175)
(C176) (C177) C178 C179 (C180) (C181)
C182 C183 C184 C185 C186 (C187) C188
C189
(C0) C100 (C194) (C195) (C196) (C197)
(C198) (C199)

EC37

EC41 EC42 EC46 EC47

EC4 EC51

EC43 EC44 EC45

EC3 EC5 EC6 EC7 EC8 EC9 EC10 EC11
EC16 EC17 EC50

EC18 EC19 EC22 EC23 EC52 EC54

EC39

EC2 EC13 EC14 EC15 EC35 EC36 EC49
EC56
EC1 EC12 EC20 EC21 EC24 EC40 EC48
EC53

EC38

EC55

EC34

FB16 FB18 FB20 FB22 FB23 FB24 FB25
FB26 FB27 FB28 FB29 FB30 FB31 FB32
FB33 FB47 (FB48) FB49 FB52
FB1 FB5 FB7 FB9 FB11 (FB13) FB42 FB43
FB44 FB45 FB46
R174 Bead, chip, QiLiXin PBY160808T-102Y-N 01.13.L.Z.E102YN
FB3 FB4 FB6 FB8 FB12 FB14 FB17 FB34 Bead, leaded fixed 50Ω3.5*6.0*0.8 01.13.L.Z.ED50A

L1 L2

B1 B2

L3 L4 L5 L6

D1 D2 D3 Diode IN5393 DIP 01.41.D.PD.E5393
D4 D5 D6 D11 Diode LL4148 SMD 01.41.D.PS.ELL4148
Q1 Q6 Transistor 2SB1132 SMD 01.42.Q.S.E1132
Q9 Mosfet 2SK3018T106 SMD 01.42.Q.S.E3018
Q3 Q10 Transistor KTC8550 SMD 01.42.Q.S.EC8550
Q4 Transistor KTC8050 SMD 01.42.Q.S.E8050
Y1 Crystal Oscillator, 27.00MHZ () 01.00.JZ.E2700C
Y2 Crystal Oscillator, 6.000MHZ-49S-6.8P () 01.00.JZ.E06000A
Y3 Crystal Oscillator, 4.332MHz-49S-33P 01.00.JZ.E4332A

Capacitor, multilayer
ceramic, chip
Capacitor, multilayer
ceramic, chip
Capacitor, multilayer
ceramic, chip
Capacitor, multilayer
ceramic, chip
Capacitor, multilayer
ceramic, chip
Capacitor, multilayer
ceramic, chip

Capacitor, multilayer
ceramic, chip

Capacitor, multilayer
ceramic, chip
Capacitor,
AL.electrolytic
Capacitor,
AL.electrolytic
Capacitor,
AL.electrolytic
Capacitor,
AL.electrolytic
Capacitor,
AL.electrolytic
Capacitor,
AL.electrolytic
Capacitor,
AL.electrolytic
Capacitor,
AL.electrolytic
Capacitor,
AL.electrolytic
Capacitor,
AL.electrolytic
Capacitor,
AL.electrolytic
Capacitor,
AL.electrolytic

Bead, chip 0603-50Ω 01.13.L.Z.ESA50

Bead, chip 0805-50Ω 01.13.L.Z.ESB50

Inductor, multilayer
ceramic, chip
Pulse transformer,
TOKO
Inductor, multilayer
ceramic, chip, TDK

0603-472 X7R±10%/50V 01.54.CS.2.E472X50

0603-103 Y5V-20+80%/50V 01.54.CS.2.E103Y50

0603-153 Y5V-20+80%/50V 01.54.CS.2.E153Y50

0603-183 X7R±10%/50V 01.54.CS.2.E183X50

0603-223 X7R±10%/50V 01.54.CS.2.E223X50

0603-683 X7R±10%/50V 01.54.CS.2.E683X50

0603-104 Y5V-20+80%/50V 01.54.CS.2.E104Y50

0603-105 Y5V-20+80%/16V 01.54.CS.2.E105Y16

CD110-2.2UF/16V 5*11 01.34.CL.D.E2U216V

CD110-10UF/10V 5*11 01.34.CL.D.E10U10V

CD110-10UF/16V 5*11 01.34.CL.D.E10U16V

CD110-22UF/16V 5*11 01.34.CL.D.E22U16V

CD110-47UF/10V 5*11 01.34.CL.D.E47U10V

CD110-47UF/16V 5*11 01.34.CL.D.E47U16V

CD110-47UF/25V 5*11 01.34.CL.D.E47U25V

CD110-100UF/10V 5*12 01.34.CL.D.E100U10

CD110-100UF/16V 5*11 01.34.CL.D.E100U16

CD110-100UF/25V 6.3*12 01.34.CL.D.E100U25

CD110-220UF/10V 5*12 01.34.CL.D.E220U10

CD110-220UF/16V 6.3*12 01.34.CL.D.E220U16

1206-10UH 01.13.L.L.S.E018

EJ219 01.13.L.R.E068

ACM2012-900-2P 01.13.L.L.S.E242

HS250 DL Component List for Main Board (5228C02)

Location.No. Description Specification P/N

harman/kardon

Digital Lounge HS 250/230 Service Manual

Page 15 of 56

U19

U20

U22

U29 IC, AAC, LDO AZ1117H-5.0, SOT-223 01.44.IC.S.E1117H
U23 IC, AAC, LDO AZ1117H-1.8, SOT-223 01.44.IC.S.EA11171
U30 IC, AAC, LDO AZ1117H-3.3, SOT-223 01.44.IC.S.EA11173
U1 IC, Rohm, LDO BA00HC5FP , T0252-5 01.44.IC.S.EC5FP

U4

U9 IC, KH , FLASH

U7 U8 IC, ISSI , SDRAM

U5 IC, Xilinx, CPLD XC9572XL-10VQG44C SMD 01.44.IC.S.E9572XL
U3 IC, Atmel, EEPROM AT24C64-2.7, SO8 01.44.IC.S.E24C64

U12

U11

U6 IC, Rohm,Motor Driver BA6287, SOP8 01.44.IC.S.E6287

U21

U13

U27

U17

U18

U2 IC, TI, Schmitt Trigger 74HCT14D , SO14 01.46.IC.E7414

U31

U28

U16 U24 U25 U26

J4 HDMI Jack 1747981-1 SMD 01.40.CON.DCZ.E316
J7 USB Jack USB-A-05 (ROHS, Mother Set) 01.40.CON.DCZ.E217
J5 J6 IR in/out jack CKX-3.5-22 01.40.CON.DCZ.E203
CN12 Connector PH-6A 01.40.CON.DPH.E028

CN1 FPC Connector, SMD

CN5 FPC Connector 1.25-12P Vertical Type and Dual Conact 01.40.CON.S13.FPC2

CN6 FPC Connector 1.0-5P Vertical Type and Dual Conact 01.40.CON.S10.FPC2
CN4 FPC Connector 1.0-8P Vertical Type and Dual Conact 01.40.CON.S10.FPC2
CN3 FPC Connector 1.0-14P Vertical Type and Dual Conact 01.40.CON.S10.FPC2
CN9 FPC Connector 1.0-16P Vertical Type and Dual Conact 01.40.CON.S10.FPC2
CN8 FPC Connector 1.0-24P Vertical Type and Dual Conact 01.40.CON.S10.FPC2

CN10 FPC Connector 1.25-11P Vertical Type and Dual Conact 01.40.CON.DCZ.E062

CN2 FPC connector, SMD

IC, ST, Voltage
Regulator
IC, FairChild, Voltage
Regulator
IC, ROHM, Dropout
Voltage Regulator

IC, Amlogic, A/V
Processor

IC, Amlogic, DVD/CD
RF Processor
IC, Rohm, Actuator
driver

IC, Silicon
Image,HDMI
PanelLink Transmitter
IC, ST, Dual
Operational Amplifier
IC, Sharp,
Photoelectric Coupler
IC, TDI, USB
Controller
IC, Rohm, RDS/RBDS
Decoder

IC, NEC, MOS FIELD
EFFECT
TRANSISTOR
IC, FairChild,
Multiplexer/Demultiple
xer Bus Switch
IC, Semtech, Low
Capalitance TVS
Diode Array

L7809, TO-220 01.44.IC.D.EL7809

78L05, TO-92 01.44.IC.D.E78L05

BA33BC0T,TO-220 01.44.IC.D.EBA33B

AML3390DTS-G, PQFP256LD 01.44.IC.S.EAML339

KH29LV160CBTC-70G (Can replaced by
S29AL016M90TFI02) , TSOP48
IS42S16400B-6TL (Can repalced by
K4S641632K-UC60), TSOP54

AML3501, TSSOP48 01.44.IC.S.E3501

BA5888FP, HSOP-28 01.44.IC.S.E5888

SiI9030CTU , TQFP80 01.44.IC.S.E9030

LM358M, SO8 01.44.IC.S.ELM358M

PC817, DIP4 01.44.IC.D.EPC817

TDOTG242LPF, LQFP-64 01.44.IC.S.E242L

BU1924F, SOP16 01.44.IC.S.E1924

UPA672T, SC-70 01.44.IC.S.E672T

FSTU3257MTC, TSSOP16 01.44.IC.S.EFSTU32

RClamp0514M, MSOP-10L 01.44.IC.S.E0514

FPC-1.0-12P Vertical Type and Dual
Conact

FPC-0.5-24P Vertical Type and Dual
Conact

01.44.IC.S.E29LV16

01.44.IC.S.E16400B

01.40.CON.S10.FPC1

01.40.CON.S05.E007

HS250 DL Component List for Main Board (5228C02)

Location.No. Description Specification P/N

R353 Resistor, chip 0603-10Ω±5% 01.57.R.2.E100J
R379 Resistor, chip 0603-560Ω±5% 01.57.R.2.E561J
R378 Resistor, chip 0603-75Ω±5% 01.57.R.2.E750J
R343 Resistor, chip 0603-110Ω±5% 01.57.R.2.E111J
R342 R385 R416 Resistor, chip 0603-150Ω±5% 01.57.R.2.E151J
R341 Resistor, chip 0603-220Ω±5% 01.57.R.2.E221J
R402 Resistor, chip 0603-270Ω±5% 01.57.R.2.E271J
R405 Resistor, chip 0603-300Ω±5% 01.57.R.2.E301J
R321 R328 R344 Resistor, chip 0603-330Ω±5% 01.57.R.2.E331J
R320 R327 Resistor, chip 0603-680Ω±5% 01.57.R.2.E681J
R410 Resistor, chip 0603-1KΩ±5% 01.57.R.2.E102J
R408 R409 R413 Resistor, chip 0603-1.5KΩ±5% 01.57.R.2.E152J
R319 R329 Resistor, chip 0603-1.78KΩ±1% 01.57.R.2.E1781F
R304 R312 R364 R370 R372 R374 R376
R380 R348 R391 R397 R396

HS250 DL Component List for AV Board (5229C02)

Resistor, chip 0603-2.2KΩ±5% 01.57.R.2.E222J

Location.No. Description Specification P/N

harman/kardon

Digital Lounge HS 250/230 Service Manual

Page 16 of 56

HS250 DL Component List for AV Board (5229C02)

R399 R400 Resistor, chip 0603-3KΩ±5% 01.57.R.2.E302J
R403 Resistor, chip 0603-3.3KΩ±5% 01.57.R.2.E332J
R300 R305 R352 R389 R398 Resistor, chip 0603-4.7KΩ±5% 01.57.R.2.E472J
R323 R324 R336 R337 Resistor, chip 0603-4.75KΩ±1% 01.57.R.2.E4751F
R354 R355 Resistor, chip 0603-5.1KΩ±5% 01.57.R.2.E512J
R326 R332 Resistor, chip 0603-7.5KΩ±1% 01.57.R.2.E752F
R301 R302 R303 R307 R309 R311 R322
R325 R330 R331 R333 R339 R340 R345
R346 R347 R350 R351 R359 R360 R363
R365 R371 R373 R375 R377 R382 R387
R390 R392 R318 R406 R407 R411 R412
R433
R334 R335 R381 R415 R388 R395 Resistor, chip 0603-47KΩ±5% 01.57.R.2.E473J
R349 R356 R393 Resistor, chip 0603-100KΩ±5% 01.57.R.2.E104J
R338 Resistor, chip 0603-549KΩ±1% 01.57.R.2.E5493F
R418 R414 Resistor, chip 0805-1KΩ±5% 01.57.R.3.E102J
R357 R358 R417 R419 R420 Resistor, chip 0805-10KΩ±5% 01.57.R.3.E103J
(R427) (R428) (R429) (R430) Resistor, chip 1206-6.2Ω±5% 01.57.R.4.E6R2J
R421 R422 R423 R424 Resistor, chip 1206-10Ω±5% 01.57.R.4.E100J

ESD307 ESD308 ESD309 ESD310 ESD311

C329 C330

C406

C325 C326

C306 C314

C317 C318 C405

C421

C332 C331

C307 C311

C404

C422

C305 C310 (C461) (C462) (C463) (C464)

C400

C308 C309 C312 C313 C315 C316 C319
C320 C322 C323 C324 C327 C328 C333
C412 C418 C419

C423 C424 C425 C426 C427

C336

(C434) (C436) (C447) (C448) (C449) (C450)
(C451) (C452) (C453) (C465)
C401 (C402) (C403) (C407) C408 (C410)
(C411) (C413) (C414) (C415) (C416) (C417)

C441 C442 C443 C444

EC304 EC305 EC306 EC308 EC315 EC316
EC318 EC320 EC327 EC328

EC402

EC302 EC303 EC307 EC310

EC313 EC314 EC324 EC400 EC401

EC312 EC322 EC323 EC403 EC404

EC321

EC309 EC311 EC325

EC317 EC319 EC326

EC405

Resistor, chip 0603-10KΩ±5% 01.57.R.2.E103J

Voltage Dependent
Resistor, TDK
Capacitor, multilayer
ceramic, chip
Capacitor, multilayer
ceramic, chip
Capacitor, multilayer
ceramic, chip
Capacitor, multilayer
ceramic, chip
Capacitor, multilayer
ceramic, chip
Capacitor, multilayer
ceramic, chip
Capacitor, multilayer
ceramic, chip
Capacitor, multilayer
ceramic, chip
Capacitor, multilayer
ceramic, chip
Capacitor, multilayer
ceramic, chip
Capacitor, multilayer
ceramic, chip
Capacitor, multilayer
ceramic, chip

Capacitor, multilayer
ceramic, chip

Capacitor, multilayer
ceramic, chip
Capacitor, multilayer
ceramic, chip
Capacitor, multilayer
ceramic, chip
Capacitor, multilayer
ceramic, chip
Capacitor, multilayer
ceramic, chip
Capacitor,
AL.electrolytic
Capacitor,
AL.electrolytic
Capacitor,
AL.electrolytic
Capacitor,
AL.electrolytic
Capacitor,
AL.electrolytic
Capacitor,
AL.electrolytic
Capacitor,
AL.electrolytic
Capacitor,
AL.electrolytic
Capacitor,
AL.electrolytic

AVR-M1608C270MTABB SMD 01.57.R.Y.E270

0603-22P NPO±5%/50V 01.54.CS.2.E220N50

0603-27P NPO±5%/50V 01.54.CS.2.E270N50

0603-47P NPO±5%/50V 01.54.CS.2.E470N50

0805-100P NPO±5%/50V 01.54.CS.3.E101N50

0603-100P NPO±5%/50V 01.54.CS.2.E101N50

0603-220P NPO±5%/50V 01.54.CS.2.E221N50

0603-470P NPO±5%/50V 01.54.CS.2.E471N50

0805-680P NPO±5%/50V 01.54.CS.3.E681N50

0603-102 X7R±10%/50V 01.54.CS.2.E102X50

0603-122 X7R±10%/50V 01.54.CS.2.E122X50

0805-102 NPO±5%/50V 01.54.CS.3.E102N50

0603-153 Y5V-20+80%/50V 01.54.CS.2.E153Y50

0603-104 Y5V-20+80%/50V 01.54.CS.2.E104Y50

0603-104 X7R±10%/50V 01.54.CS.2.E104X50

0603-223 X7R±10%/50V 01.54.CS.2.E223X50

0805-104 X7R±10%/50V 01.54.CS.3.E104X50

0805-104 Y5V+80-20%/50V 01.54.CS.3.E104Y50

1206-680P NPO±5%/50V 01.54.CS.4.E681N50

CD110-10UF/16V 5*11 01.34.CL.D.E10U16V

CD288H-10UF/25V 5*11 01.34.CL.D.E10U25V

CD110-47UF/16V 5*11 01.34.CL.D.E47U16V

CD110-47UF/25V 5*11 01.34.CL.D.E47U25V

CD110-100UF/16V 5*11 01.34.CL.D.E100U16

CD110-100UF/25V 6.3*12 01.34.CL.D.E100U25

CD110-220UF/16V 6.3*12 01.34.CL.D.E220U16

CD110-1UF/50V 5*11 01.34.CL.D.E1U50VC

GF102M050I250A 01.34.CL.D.E1000U5

C409 C420

Solid Electrolyte
Tantalum Chip
Capacitor

B-22UF-10V 01.33.CT.EB22U10V

Location.No. Description Specification P/N

harman/kardon

Digital Lounge HS 250/230 Service Manual

Page 17 of 56

(C433) (C435)

C459 C458

FB306 FB307 Bead, chip 0603-50Ω 01.13.L.Z.ESA50
FB403 FB404 FB406 FB408 FB409 FB410
FB413
FB411 FB412 Bead, chip 0805-300Ω 01.13.L.Z.ESB300
FB401 FB402 FB405 FB407 Bead, leaded fixed 50Ω3.5*6.0*0.8 01.13.L.Z.ED50A

L400 L401 L402 L403

D300 D301 D302 D303 D304 D305 D306
D307 D400 D401 D402
Q300 Q302 Q402 Transistor KTC8050, SOT23 01.42.Q.S.E8050
Q301 Q303 Q311 Q401 Transistor KTC8550, SOT23 01.42.Q.S.EC8550
Q307 Q308 Q309 Q310 Q400 Transistor DTC343TK, SMT3 01.42.Q.S.E343
Q312 Transistor DTC114EUA, UMT3 01.42.Q.S.E114
U406 IC, AAC, LDO AZ1117H-3.3, SOT-223 01.44.IC.S.EA11173

U301

U302

U402

U306 U305 U405 IC, JRC, Pre-amp NJM2068M, SO8 01.44.IC.S.E2068

U403

U303

U401

U304 IC, TI, Hex Inverter 74HCU04, TSSOP14 01.46.IC.E74H04
CN402 FPC Connector 1.25-9P Vertical Type and Dual Conact 01.40.CON.S13.FPC2
CN304 FPC Connector 1.0-5P Vertical Type and Dual Conact 01.40.CON.S10.FPC2
CN301 FPC Connector 1.0-16P Vertical Type and Dual Conact 01.40.CON.S10.FPC2
CN302 FPC Connector 1.0-24P Vertical Type and Dual Conact 01.40.CON.S10.FPC2

CN405 Connector

CN403 Connector

J304

J401

J402

J302

J303

PTC400

R519 R578 R589 R591 Resistor, chip 0805-10Ω±5% 01.57.R.3.E100J
R568 R509 Resistor, chip 0805-22Ω±5% 01.57.R.3.E220J
R569 Resistor, chip 0805-47Ω±5% 01.57.R.3.E470J
R517 Resistor, chip 0805-100Ω±5% 01.57.R.3.E101J
R525 R536 R553 R580 Resistor, chip 0805-470Ω±5% 01.57.R.3.E471J
R535 R538 R542 R544 R546 R551 R554
R555 R598
R541 R537 Resistor, chip 0805-2KΩ±5% 01.57.R.3.E202J
R531 R543 Resistor, chip 0805-3KΩ±1% 01.57.R.3.E302F
R533 R534 Resistor, chip 0805-3.6KΩ±1% 01.57.R.3.E362F
R540 R547 R552 R556 R560 R576 Resistor, chip 0805-4.7KΩ±5% 01.57.R.3.E472J
R508 R524 R549 R571 R577 R579 R587
R532 R590
R511 Resistor, chip 0805-13KΩ±1% 01.57.R.3.E133F
R503 Resistor, chip 0805-15KΩ±5% 01.57.R.3.E153J
R504 R592 R593 R594 Resistor, chip 0805-20KΩ±5% 01.57.R.3.E203J
R567 Resistor, chip 0805-27KΩ±5% 01.57.R.3.E273J
R545 Resistor, chip 0805-39KΩ±1% 01.57.R.3.E393F
R566 Resistor, chip 0805-150KΩ±5% 01.57.R.3.E154J
R505 Resistor, chip 0805-360KΩ±5% 01.57.R.3.E364J
R506 R507 R510 R512 Resistor, chip 1206-0.47Ω±5% 01.57.R.4.ER47J
R522 Resistor, chip 1206-100Ω±5% 01.57.R.4.E101J
R526 Resistor, chip 1206-200Ω±5% 01.57.R.4.E201J
R581 R582 R583 R584 R585 R586 Resistor, chip 1206-330Ω±1% 01.57.R.4.E331F

Capacitor, multilayer
ceramic, chip
Box-type metallized
polyester film
capacitor

Bead, chip 0805-50Ω 01.13.L.Z.ESB50

Magnetic shielding
Inductor

Diode LL4148, DO213AA 01.41.D.PS.ELL4148

IC, NS, Operational
Amplifier
IC, Wolfson, Stereo
audio CODEC
IC, ST, Digital Audio
Processor

IC, ST, Power Half
Bridge
IC, TI or TOSHIBA,
Quad 2-input
Multiplexer
IC, Analogic Tech,
Reset monitor

Jack, Sharp, Fiber
optic iuput jack with
shutter
Jack, YuanChang,
SUB Tirgger Jack
Jack, YuanChang,
SUB Woofer Jack
Jack, YuanChang,
Audio Input/Output
Jack
Connector, JAE, iPod
Connector
Resettable Fuse,
JinKe

Resistor, chip 0805-1KΩ±5% 01.57.R.3.E102J

Resistor, chip 0805-10KΩ±5% 01.57.R.3.E103J

1206-105 X7R±10%/50V 01.54.CS.4.E105X50

474J/100V DIP 01.00.CD.DL.E47410

983BN-1003-15UH 01.13.L.L.D.E127

LM833M, SOP8 01.44.IC.S.E833

WM8776SEFT, TQFP48 01.44.IC.S.E8776

STA308A, TQFP64 01.44.IC.S.ESTA308

STA508, PowerSO36 01.44.IC.S.ESTA508

74HC158, SOP16 01.44.IC.S.E74HC15

AAT3522, SOT-23 01.44.IC.S.E3522

Vertical VH Connector with four holes
and four pins
Vertical VH Connector with three holes
and two pins

GP1FA513RZ, In-line Package 01.43.E004

CKX-3.5-22 01.40.CON.DCZ.E203

AV1-8.4-6G 01.40.CON.DCZ.E172

AV8-8.4-13/PB 01.40.CON.DCZ.E468

DA1R018H91E SMD 01.40.CON.DCZ.E243

JK-MSMD010 SMD 01.57.R.R.E010

01.40.CON.DCZ.E244

01.40.CON.DCZ.E129

HS250 DL Component List for AV Board (5229C02)

Location.No. Description Specification P/N

harman/kardon

Digital Lounge HS 250/230 Service Manual

Page 18 of 56

HS250 DL Component List for SMPS Board (3521C02)

R513 R596 R597 Resistor, chip 1206-10KΩ±5% 01.57.R.4.E103J
R529 R520 R514 Resistor, chip 1206-150KΩ±5% 01.57.R.4.E154J
R501 R502 Resistor, chip 1206-560KΩ±5% 01.57.R.4.E564J
R518 Resistor, chip 1206-620KΩ±1% 01.57.R.4.E624F
R515 R516 Resistor, chip 1206-680KΩ±1% 01.57.R.4.E684F
R562 R563 R564 R565 Resistor, chip 1206-3MΩ±5% 01.57.R.4.E305J
R573 R574 Resistor, chip 1206-3.3MΩ±5% 01.57.R.4.E335J

R570 FIXED CARBON FILM RT1/4W-1KΩ 01.57.R.C.ED102

R548 FIXED CARBON FILM RT1W-100Ω 01.57.R.C.EF101

R530 FIXED CARBON FILM RT1W-68KΩ±5% 01.57.R.C.EF683

R521 FIXED CARBON FILM RT1W-100KΩ 01.57.R.C.EF104

R572 FIXED CARBON FILM RT3W-0.3Ω 01.57.R.C.EHR3

R595 FIXED CARBON FILM RT3W-470Ω 01.57.R.C.EH471

RZ503

RZ501

2 in 1 at R558

RZ502

C510

C533

C519 C536

C534

C503 C532

C517 C518 C521 C522 C523 C524 C525
C526 C527 C528 C529 C530 C537 C538
C539 C541 C542 C543 C544 C545 C547
C548

C504 C516

C535

C511

C546

C507

C531

C509 Metallized capacitor 472/630V (lead pitch: 10mm) 01.00.CD.JZ.E47263
C505 C515 Metallized capacitor 103/630V (lead pitch: 10mm) 01.00.CD.JZ.E10363
C502 Metallized capacitor 105/400V(lead pitch: 15mm) 01.00.CD.JZ.E10540

C520

CX502 CX503

CX501

CY503 CY504 CY501 CY502

CY505

EC501 EC503 EC504 EC505

EC513 EC514

EC511 EC512 EC515 EC516 EC526 EC521
EC524 EC525 EC509 EC510 EC523

EC517 EC519 EC527

Voltage Dependent
Resistor
Thermmal Dependent
Resistor
High-Resistance
Cermet Resistor ,KOA
Resettable Fuse,
JinKe
Capacitor, multilayer
ceramic, chip
Capacitor, multilayer
ceramic, chip
Capacitor, multilayer
ceramic, chip
Capacitor, multilayer
ceramic, chip
Capacitor, multilayer
ceramic, chip

Capacitor, multilayer
ceramic, chip

Capacitor, multilayer
ceramic, chip
Capacitor, multilayer
ceramic, chip
Capacitor, multilayer
ceramic, chip
Capacitor, multilayer
ceramic, chip
Radial Monolithic
Capacitor
Radial Monolithic
Capacitor

High-voltage
metallized polyester
film
High-voltage
metallized polyester
film
High-voltage
metallized polyester
film
High-voltage
metallized polyester
film
High-voltage
metallized polyester
film
CAPACITOR,AL.ELE
CTROLYTIC
CAPACITOR,AL.ELE
CTROLYTIC
CAPACITOR,AL.ELE
CTROLYTIC
CAPACITOR,AL.ELE
CTROLYTIC

10K.471 01.57.R.Y.E10K

NTC-5D-11 01.57.R.R.E5D11

RCR60-1W-11MΩ 01.57.R.C.E60F116

JK16 300 01.57.R.R.EJK16300

0805-47P NPO±5%/50V 01.54.CS.3.E470N50

0805-330P NPO±5%/50V 01.54.CS.3.E331N50

0805-102 X7R ±10%/50V 01.54.CS.3.E102X50

0805-103 X7R±10%/50V 01.54.CS.3.E103X50

0805-473 X7R±10%/50V 01.54.CS.3.E473X50

0805-104 Y5V+80-20%/50V 01.54.CS.3.E104Y50

0805-224 Y5V-20+80%/50V 01.54.CS.3.E224Y50

0805-474 Y5V+80-20%/50V 01.54.CS.3.E474Y50

C3216Y5V1H105ZT 01.35.CC.E12061U50

1808-150P NPO±5%/1KV 01.54.CS.6.E151N1K

473/50V X7R±10% (lead pitch: 5.08mm) 01.00.CD.DS.E473/5

104/50V X7R±10% (lead pitch: 5.08mm) 01.00.CD.DS.E10450

471/1KV 01.00.CD.GY.E4711K

224/275V X2 (lead pitch: 15mm) 01.00.CD.GY.E22427

334/275V X2 (lead pitch: 15mm) 01.00.CD.GY.E33427

102/400V(X1) 250V(Y1) (lead pitch:
10mm)

471/400V (X1) 250V (Y1) (lead pitch:
10mm)

GF470M050E110A 01.34.CL.D.EH47U50

GF471M016F115A 01.34.CL.D.EH470U1

470UF/25V 8*20 ±20% 105 Low ESR 01.34.CL.D.E470U25

GF102M050I250A 01.34.CL.D.E1000U5

01.00.CD.GY.E10240

01.00.CD.GY.E47140

Location.No. Description Specification P/N

harman/kardon

Digital Lounge HS 250/230 Service Manual

Page 19 of 56

EC518

EC507 EC508

EC522 EC506 EC520

EC502

EC528

FB501 Color Code Inductor 4.7UH 01.13.L.L.D.E071

LF502 LF501

L507 L502 Pulse transformer L0620-050, DIP 01.13.L.L.D.E077
L508

LF503 Common Mode Choke LCL-471 01.13.L.L.D.E018

T502 Transformer BCK-ER2869 01.13.L.R.E122

T503

T501 step-up inductor L-PQ3230-01, DIP 01.13.L.L.D.E194
L503 L504 L505 L506 Inductor , leaded fixed LH0608-22UH 01.13.L.L.D.E051
L509 L510 Inductor , leaded fixed 100Ω,F10 RHW3.5*9*0.8-T 01.13.L.Z.ED100
D501 D519 D520 Diode LL4148, DO213AA 01.41.D.PS.ELL4148
D517 Diode SK53C, SMD 01.41.D.PS.ESK53C
D506 D505 D503 D511 D512 Diode FR104, In Line Package 01.41.D.PD.EFR104
D508 D504 Diode HER208G, In Line Package 01.41.D.PD.EHER208G
D513 Diode 21DQ06, In Line Package 01.41.D.PD.EDQ06
D514 D509 Diode 21DQ10, In Line Package 01.41.D.PD.E21DQ10
D516 D515 Diode MBRF20200CT , In Line Package 01.41.D.PD.EMBRF20
D502 Diode ISL9R860PF2 , In Line Package 01.41.D.PD.E9R860
D510 Diode FYPF2010DN , In Line Package 01.41.D.PD.E2010DN
BD501 Diode bridge GBU806, In Line Package 01.41.D.PD.EGBU806
Z501 Z502 Z505 Z506 Zener Diode 18V, DO213AA 01.41.D.WS.E18V
Z503 Z504 Zener Diode DDZ9707-F(20V), SMD 01.41.D.WS.EDDZ970
Q510 Transistor KTC8050, SOT23 01.42.Q.S.E8050
Q511 Transistor KTC8550, SOT23 01.42.Q.S.EC8550
Q504 Q507 Transistor 2N3904, SOT23 01.42.Q.S.E2N3904
Q505 Transistor 2N3906, SOT23 01.42.Q.S.E2N3906
Q513 Transistor 2SA1037AKR, SMT3 01.42.Q.S.E1037
Q514 Transistor 2SC5866, TSMT3 01.42.Q.S.E5866
Q503 Q508 Mosfet AF4835, SOP8 01.44.IC.S.E4835
Q506 Mosfet AF2302, SOT23 01.44.IC.S.E2302
Q509 Mosfet FQA11N90, TO-3P 01.44.IC.D.E11N90
Q501 Mosfet FQPF13N50C, TO-220F 01.44.MOS.D.EFQPF1
U510 IC, AAC, LDO AZ1117H-3.3, SOT-223 01.44.IC.S.EA11173

U503

U511

U508

U514

U512

U513

U505 U504 U502 U515

U507 U509

U501

U506

CN501 CN506 Connector

F501 Fuse 32S 3.15A 250V, In Line Package 01.38.FUSE.D.E32S3

CN503 FPC Connector 1.25-14P Vertical Type and Dual Conact 01.40.CON.S13.FPC2

CAPACITOR,AL.ELE
CTROLYTIC
CAPACITOR,AL.ELE
CTROLYTIC
CAPACITOR,AL.ELE
CTROLYTIC
CAPACITOR,AL.ELE
CTROLYTIC
CAPACITOR,AL.ELE
CTROLYTIC

Common Mode
Inductor

Filter inductor

Switching Power
Transformer

IC, Fairchild, Power
Switch
IC, Fairchild or
ShiBao, Voltage
Regulator
IC, Fairchild, Voltage
Regulator
IC, Fairchild, Voltage
Regulator
IC, Fairchild, Voltage
Regulator
IC, Fairchild, Voltage
Regulator
IC, Sharp,
Photoelectric Coupler
IC, AAC, Shunt
Regulator
IC, Fairchild/ShiBao,
PFC Controller
IC, Fairchild/ShiBao,
PWM Controller

GF152M050J410A 01.34.CL.D.E1500U5

CD288H-2200UF/16V 13*25 01.34.CL.D.E288220

GF222M010G200A 01.34.CL.D.E288220

HP181M450N510A 01.34.CL.D.E180U45

KM680M050E110A 01.34.CL.D.E28868U

LCL-303A, DIP 01.13.L.L.D.E192

L-200A, DIP 01.13.L.L.D.E141

BCK-ER4203 01.13.L.R.E123

KA5L0380RYDTU, TO-220F-4L 01.44.IC.D.E5L0380

KA278R05CTU, TO-220F-4L 01.44.IC.D.E278R05

KA78R05CTU, TO-220F-4L 01.44.IC.D.E78R05C

KA78R12, TO-220F-4L 01.44.IC.D.E78R12

KA7812, TO-220 01.44.IC.D.EKA7812

KA7912, TO-220 01.44.IC.D.EKA7912

PC817, DIP4 01.44.IC.D.EPC817

KA431LZTA 0.5%, TO-92 01.44.IC.D.EKA431

FAN7528MX , SOP8 01.44.IC.S.EFAN752

FAN7602MX , SOP8 01.44.IC.S.EFAN760

Vertical VH Connector with three holes
and two pins

01.40.CON.DCZ.E129

HS250 DL Component List for SMPS Board (3521C02)

CN504 FPC Connector 1.25-12P Vertical Type and Dual Conact 01.40.CON.S13.FPC2

CN505 FPC Connector 1.25-9PVertical Type and Dual Conact 01.40.CON.S13.FPC2
G501 G503 G502 3pins grounding piece M4 01.00.WJ.QT.E041
Match for Q509 on SMPS Board Sil-pad sil-pad 400-3022 01.00.DP.QT.E113

Location.No. Description Specification P/N

harman/kardon

Digital Lounge HS 250/230 Service Manual

Page 20 of 56

HS250 DL Component List for Front panel board (3519C02)

(R645) (R646) (R668) Resistor, chip 0805-0Ω ±5% 01.57.R.3.E000J
(R606) (R607) (R638) (R641) (R656) (R657)
(R659)
(R614) (R647) Resistor, chip 0805-200Ω±5% 01.57.R.3.E201J
(R605) Resistor, chip 0805-470Ω±5% 01.57.R.3.E471J
(R615) (R648) Resistor, chip 0805-510Ω±5% 01.57.R.3.E511J
(R608) (R652) Resistor, chip 0805-2KΩ±1% 01.57.R.3.E202F
(R644) Resistor, chip 0805-2.2KΩ±5% 01.57.R.3.E222J
(R601) (R603) (R604) (R609) (R610) (R611)
(R612) (R613) (R655)
(R637) Resistor, chip 0805-6.2KΩ±1% 01.57.R.3.E622F
(R640) (R642) (R643) Resistor, chip 0805-10KΩ±5% 01.57.R.3.E103J
(R602) Resistor, chip 0805-15KΩ±5% 01.57.R.3.E153J
(R636) Resistor, chip 0805-20KΩ±5% 01.57.R.3.E203J
(R666) Resistor, chip 0805-62KΩ±5% 01.57.R.3.E623J
R654 R661 Resistor, chip 1206-3.3Ω±5% 01.57.R.4.E3R3J
R653 Resistor, chip 1206-200Ω±5% 01.57.R.4.E201J
(R639) (R660) Resistor, chip 1206-10KΩ±5% 01.57.R.4.E103J

(ESD601) (ESD602) (ESD603)

(C604) (C605)

(C620)

(C610)

(C611) (C612)

(C625)

(C618) (C626)

(C606) (C607) (C608) (C627) (C628) (C629)
(C630) (C633) (C634) (C635)

(C636)

(C624)

(C603) (C619)

(C637)

EC616 EC617

EC603

EC601 EC620

EC607 EC608

EC602

EC605

EC621

EC606

L601

(FB601) (FB602) (FB603) Bead, chip 0805-50Ω 01.13.L.Z.ESB50
Y601 Quartyz Crystal Unit 4.000MHZ-49S-22P 01.00.JZ.E04000
(D601) (D602) (D603) (D605) Diode LL4148, DO213AA 01.41.D.PS.ELL4148
(D606) Schottky Rectifier 5819 1A, SS14 01.41.D.PS.E5819

LED601 LED602

(Q603) Transistor KTC8550, SOT23 01.42.Q.S.EC8550
(Q602) Transistor KTC8050, SOT23 01.42.Q.S.E8050
(DZ601) Zener Diode 6.2V, DO213AA 01.41.D.WS.E6V2

(U605)

(U604)

U601 IC, ELAN, MCU EM78P156ELM-G, SOIC18 01.46.IC.E78P156G
IR601 IC, IR receiver HL38B17, In Line Package 01.44.IC.D.E38B17

(U602)

Resistor, chip 0805-100Ω±5% 01.57.R.3.E101J

Resistor, chip 0805-4.7KΩ±5% 01.57.R.3.E472J

Voltage Dependent
Resistor, TDK
Capacitor, multilayer
ceramic, chip
Capacitor, multilayer
ceramic, chip
Capacitor, multilayer
ceramic, chip
Capacitor, multilayer
ceramic, chip
Capacitor, multilayer
ceramic, chip
Capacitor, multilayer
ceramic, chip
Capacitor, multilayer
ceramic, chip
Capacitor, multilayer
ceramic, chip
Capacitor, multilayer
ceramic, chip
Capacitor, multilayer
ceramic, chip
Solid Electrolyte
Tantalum Chip
Capacitor
Capacitor,
AL.electrolytic
Capacitor,
AL.electrolytic
Capacitor,
AL.electrolytic
Capacitor,
AL.electrolytic
Capacitor,
AL.electrolytic
Capacitor,
AL.electrolytic
Capacitor,
AL.electrolytic
Capacitor,
AL.electrolytic
Magnetic shielding
Inductor

LED, color is blue &
amber

IC, NS, Vacuum
Fluorescent Display
Filament Driver
IC, ONSEMI, DC/DC
Converter

IC, Semtech, Low
Capalitance TVS
Diode Array

AVR-M1608C270MTABB SMD 01.57.R.Y.E270

0805-22P NPO±5%/50V 01.54.CS.3.E220N50

0805-39P NPO±5%/50V 01.54.CS.3.E390N50

0805-47P NPO±5%/50V 01.54.CS.3.E470N50

0805-56P NPO±5%/50V 01.54.CS.3.E560N50

0805-123 X7R±10%/50V 01.54.CS.3.E123X50

0805-473 X7R±10%/50V 01.54.CS.3.E473X50

0805-104 Y5V+80-20%/50V 01.54.CS.3.E104Y50

0805-104 X7R±10%/100V 01.54.CS.3.E104X10

0805-105 Y5V-20+80%/16V 01.54.CS.3.E105Y16

0805-225 Y5V-20+80%/16V 01.54.CS.3.E225Y16

T491B476K010AT 01.33.CT.EB47U10V

CD11X-10UF/16V 4*7 01.34.CL.D.E10U16V

CD110-33UF/10V 5*11 01.34.CL.D.E33U10V

CD11X-47UF/16V 5*7 01.34.CL.D.E47U16V

CD110-47UF/50V 6.3*12 01.34.CL.D.E47U50V

CD11X-100UF/16V 6.3*7 01.34.CL.D.EX100U1

CD110-100UF/25V 6.3*12 01.34.CL.D.E100U25

CD11X-220UF/6.3V 6*7 01.34.CL.D.E220U6V

GF101M063G125A 01.34.CL.D.E100U63

THI1009-331(330UH) DIP 01.13.L.L.D.E208

HFT503CPB0, DIP 01.41.D.FD.E503

LM9022M , SO8 01.44.IC.S.E9022

MC34063ADG, SO8 01.44.IC.S.EMC3406

RClamp0514M, MSOP-10L 01.44.IC.S.E0514

Location.No. Description Specification P/N

harman/kardon

Digital Lounge HS 250/230 Service Manual

Page 21 of 56

HS250 DL Component List for Front panel board (3519C02)

CN601 FPC Connector 1.0-14P, Vertical Type and Dual Contact 01.40.CON.S10.FPC2

CN602 FPC Connector 1.25-14, Vertical Type and Dual Contact 01.40.CON.S13.FPC2
CN603 FPC Connector 1.0-8P, Vertical Type and Dual Contact 01.40.CON.S10.FPC2
CN604 FPC Connector 1.0-6P, Vertical Type and Dual Contact 01.40.CON.S10.FPC2
K602 K601 Touch switch KFC-A06-05, Vertical Type 01.39.SW.QC.EDKFC
J602 Earphone Jack CKX-3.5-12 01.40.CON.DCZ.E219
J601 USB Jack USB-A-05 (ROHS, Mother Set) 01.40.CON.DCZ.E217
VFD601 VFD VFD33-1701I 01.16.E1701I

Location.No. Description Specification P/N

HS250 DL Component List for Front panel board (3518C01)

(R617) (R618) (R616) Resistor, chip 0805-4.7KΩ±5% 01.57.R.3.E472J
(R622) (R623) (R624) (R625) Resistor, chip 0805-180Ω±5% 01.57.R.3.E181J

(C601) (C602)

(C614)

(Q601) Transistor 2N3904, SOT23 01.42.Q.S.E2N3904
(Q604) (Q605) Transistor KTC8550, SOT23 01.42.Q.S.EC8550
LED603 LED604 LED605 LED606 LED HZFBA65018CP Ф5, DIP 01.41.D.FD.EHZFBA6

CN605 FPC Connector 1.0-6P Horizontal Type and Dual Conact 01.40.CON.S10.FPC2

W601

Capacitor, multilayer
ceramic, chip
Capacitor, multilayer
ceramic, chip

Volume encoder
,pulse

0805-820P NPO±5%/50V 01.54.CS.3.E821N50V

0805-104 Y5V+80-20%/50V 01.54.CS.3.E104Y50V

ED1612-24-24-HC-F20(2) 01.36.VR.E20K

AML3390DTS-G; A/V Processor (PQFP256LD)

harman/kardon

Digital Lounge HS 250/230 Service Manual

Page 22 of 56

199
200

106
112
111
110
109
108
107
105

100

102
101

116
117
118
119

126
129
132

127
130
133

125
128
131
134

77
83
82
76
78
81
79
84

88
87
86
85

98
96
95
97
99

66
70
80
71
93
69
68
67
94

190

193

174

M1_BA1

M1_CLKO

ECS_N
EOE_N

M2_D_0
M2_D_1
M2_D_2
M2_D_3
M2_D_4
M2_D_5
M2_D_6
M2_D_7
M2_D_8
M2_D_9
M2_D_10
M2_D_11
M2_D_12
M2_D_13
M2_D_14
M2_D_15_A

M2_A_0
M2_A_1
M2_A_2
M2_A_3
M2_A_4
M2_A_5
M2_A_6
M2_A_7
M2_A_8
M2_A_9
M2_A_10
M2_A_11

M2_DQ M1
M2_DQ M0
M2_WE_N
M2_CAS_N
M2_RAS_N
M2_SCS_N
M2_BA0
M2_BA1
M2_CLKO

AICLK_GP0
AICLK_GP1
SCLK_XOUT
SCLK_XIN

DVDD_PLL0
DVDD_PLL1
DVDD_PLL2

AVDD_PLL0
AVDD_PLL1
AVDD_PLL2

DVSS_PLL0
AVSS_PLL0
VSS_PLL1
VSS_PLL2

73

32

15

14

72

175

194

173

150

186

189

187

188

M1_BA0

M1_SCS_N

M1_CAS_N

M1_RAS_N

182

183

180

181

M1_A_7

M1_A_9

M1_A_8

M1_A_11

M1_A_10

M1_DQM1

M1_DQM0

M1_WE_N

Mem ory #1

Memory #2

TEST

CLOCKS & PLL

TDI

TDO

TMS

RESET_N

TCK

TRST_N

135

123

121

124

136

137

122

151

170

167

169

168

166

185

197

195

184

196

198

M1_A_6

M1_A_4

M1_A_2

M1_A_0

M1_A_5

M1_A_1

M1_A_3

M1_D_15

M1_D_14

145

149

172

143

148

144

142

171

M1_D_5

M1_D_7

M1_D_8

M1_D_3

M1_D_6

M1_D_4

M1_D_9

M1_D_10

M1_D_13

M1_D_11

M1_D_12

AML3390DTS-G

FE ANALOG

FE

CEC

SLC

SVIREF

D

CE

RFS

TEST_N

COMPAD

7

6

3

2

8

4

1

10

11

SLO

FOO

GPAO2

GPAIP2

PI

TEIN

12

REF2X

PLCC

TE

20

19

22

18

16

13

21

17

91

165

113

140

141

M1_D_1

M1_D_2

SVOREF

TRO

23

24

139

M1_D_0

VDD_1.2V_1

VDD_1.2V_5

VDD_1.2V_3

VDD_1.2V_233VDD_1.2V_6

VDD_1.2V_4

REFCSV

GPAIN2

GPAO1

DMO

26

REFCRF

COMP3SV

COMP1SV

COMP2SV

COMP0SV

31

29

30

28

247

255

256

251

92

219

179

VDD_1.2V_7

RFREF

114

138

246

VSS_1.2V_3

VSS_1.2V_2

VSS_1.2V_5

VSS_1.2V_1

VSS_1.2V_4

VDD_1.2V_9

VDD_1.2V_8

VDD_1.2V_10

AVSS33SV

AVSS12VCO

AVDD12VCO

AVDD12RF

AVSS12RF

AVSS33AD

9

27

252

250

249

248

253

74

44

89

57

245

220

VSS_1.2V_9

VSS_1.2V_8

VSS_1.2V_10

POWER

103

115

VSS_3.3V_3

VSS_3.3V_1

VSS_3.3V_4

VSS_3.3V_5

VSS_3.3V_2

152

178

VSS_1.2V_7

VSS_1.2V_6

FED

AVDD33SV

AVDD33VCO

AVSS33VCO

AVDD33AD

SCK

SDA

TZC

5

25

TCLOSE

34

37

36

38

35

254

45

90

56

75

214

192

202

146

160

177

VSS_3.3V_7

VSS_3.3V_8

VSS_3.3V_6

VSS_3.3V_9

VSS_3.3V_12

VSS_3.3V_10

VSS_3.3V_11

HOLD

STBY

LDON

TOPEN

MIRROR

LIMI T

40

43

41

42

39

176

147

104

159

120

213

191

201

VDD_3.3V_1

VDD_3.3V_4

VDD_3.3V_9

VDD_3.3V_2

VDD_3.3V_7

VDD_3.3V_5

VDD_3.3V_8

VDD_3.3V_3

VDD_3.3V_6

VDD_3.3V_12

VDD_3.3V_10

VDD_3.3V_11

DVDD_DAC(1.2V)

DVSS_DAC (1.2V)

AVDD_DAC(3.3V)
AVDD_DAC_R(3.3V)
AVDD_DAC_G(3.3V)

AVDD_DAC_B(3.3V)
AVDD_DAC_X(3.3V)

AVSS_DAC(3.3V)
AVSS_DAC_R(3.3V)
AVSS_DAC_G(3.3V)

AVSS_DAC_B(3.3V)
AVSS_DAC_X(3.3V)

Video DAC

GPIO

VD3

VD6

VD1

VD4

VD2

VD5

VD7

VD0

62

59

64

61

63

60

58

65

Audio

VREF_OUT

DVI

IEC958
AMCLK

AOCLK

ALRCLK

ADATA_0
ADATA_1
ADATA_2
ADATA_3

COMP

RSET

VREF_IN

HD_D_0
HD_D_1
HD_D_2
HD_D_3
HD_D_4
HD_D_5
HD_D_6
HD_D_7
HD_D_8

HD_D_9
HD_D_10
HD_D_11
HD_D_12
HD_D_13
HD_D_14
HD_D_15
HD_D_16
HD_D_17
HD_D_18
HD_D_19
HD_D_20
HD_D_21
HD_D_22
HD_D_23

HD_CK
HD_D_DE
HD_D_HS

HD_D_VS

HD_GP0
HD_GP1

203
204

205
206

221
222
223
224

244
243

225
232
235
238
241

226
231
234
237
240

230
229
227
228

233

IOR

236

IOG

239

IOB

242

IOX

211
210
209
208
207
164
163
162
161
158
157
156
155
154
153
55
54
53
52
51
50
49
48
47

46
216
212
215
217
218

KH29LV160CBTC-70G;FLASH (TSOP48)

IS42S16400B-6TL;SDRAM AML3501;DVD/CD RF

harman/kardon

Digital Lounge HS 250/230 Service Manual

Page 23 of 56

(TSSOP-54) Processor (TSSOP48)

BA5888FP; Actuator driver BU1924F; RDS/RBDS

(HSOP-28) Decoder (SOP16)

XC9572XL-10VQG44C; CPLD (VQFP44)

harman/kardon

Digital Lounge HS 250/230 Service Manual

Page 24 of 56

34

I/O/GTS2

35
36
37
38
39
40
41
42
43
44

VCC
I/O/GTS1
I/O
I/O
I/O
I/O
I/O
I/O
I/O/GCK1
I/O/GCK2

33

30

32

31

I/O

I/O/GSR

28

29

27

I/O

I/O

I/O

I/O

24

25

26

I/O

23

I/O

TDO

GND

VCCIO

XC9572XL-10VQG44C

VQFP44

I/O

I/O/GCK3

I/O

3

1

2

I/O

I/O

GND

6

5

4

TDI

I/O

I/O

7

8

TCK

TMS

9

11

10

TDOTG242LPF; USB Controller (LQFP-64)

I/O
I/O
I/O
I/O
I/O

GND

I/O

VCC

I/O
I/O
I/O

22
21
20
19
18
17
16
15
14
13
12

SiI9030CTU; HDMI PanelLink Transmitter (TQFP80)

harman/kardon

Digital Lounge HS 250/230 Service Manual

Page 25 of 56

ADA4410-6ACPZ; Integrated Vidio Filter (CP-32-3)

LM358M; Dual Operational AT24C64-2.7; EEPROM (SO8)

harman/kardon

Digital Lounge HS 250/230 Service Manual

Page 26 of 56

Amplifier (SOP8)

74HCT14D; Schmitt T rigger BA6287; Motor Driver

(SO14) (SOP8)

AZ1117-1.8V /3.3V/5V; LDO NJM2561F1; Vidio Amplifier

(SOT-223) (MTP6)

BA00HC5FP;LDO (T0252-5) PC817; Photoelectric Coupler

harman/kardon

Digital Lounge HS 250/230 Service Manual

Page 27 of 56

(DIP4)

RClamp0514M; Low Capalitance UPA672T; MOS FIELD EFFECT

TVS Diode Array(MSOP-10L) TRANSISTOR

(SC-70)

7805/L7809; Voltage Regulator BA33BCO; Dropout Voltage

L

O-220) Regulator (TO-220)

(T

78L05; Voltage Regulator LM833M; Operational Amplifier

harman/kardon

Digital Lounge HS 250/230 Service Manual

Page 28 of 56

(TO-92) (SOP8)

WM8776SEFT; Stereo audi (TQFP48)

o CODEC

STA308A ; Digital Audio Processor (TQFP64)

harman/kardon

Digital Lounge HS 250/230 Service Manual

Page 29 of 56

TA508; Power Half Bridge (PowerSO36) S

74HC158Quad;2-input 74HCU04; Hex Inverter

harman/kardon

Digital Lounge HS 250/230 Service Manual

Page 30 of 56

M

ultiplexer

(SOP16) (TSSOP14)

JM2068M; AAT3522IGY-3.08-200-T1;

N

re-amp (SO8) Reset monitor (SOT-23)

P

KA5L0380RYDTU; KA278R05CTU;

ower Switch (TO-220F-4L)

P Voltage Regulator (TO-220F-4L)

KA78R05TSTU; Voltage KA78R12; Voltage Regulator

harman/kardon

Digital Lounge HS 250/230 Service Manual

Page 31 of 56

egulator (TO-220F-4L) (TO-220F-4L)

R

KA7912; Voltage Regulator KA431LZTA 0.5% ; Shunt

(TO-220)

Regulator (TO -92)

FAN7528MX;PFC Controller FAN7602MX; PWM Controller

(SOP8)

(

SOP8)

KA7812; Voltage Regulator DTC114EUA; Built-in Resistor

harman/kardon

Digital Lounge HS 250/230 Service Manual

Page 32 of 56

(TO-220) Transistor (UMT3)

LM9022; Vacuum Fluorescent EM78P156ELM-G; MCU

Display Filament Driver (SOP8) (SOIC18)

2SB1132; Medium Power 2SK3018T106；Small Switching

Transistor (SOT89) (UMT3)

harman/kardon

Digital Lounge HS 250/230 Service Manual

Page 33 of 56

KTC8550; PNP Transistor KTC8050; NPN Transistor

(SOT23) (SOT23)

DTC343TK; NPN Transistor MMBT3904; NPN Switching

(SMT3) istor (SOT23)

Trans

2N3906;

OT23)

(S

PNP Transistor 2SA1037AKR; General Purpose

Transistor (SMT3)

2SC5866; Medium Power AF2302; N-Channel Mosfet

harman/kardon

Digital Lounge HS 250/230 Service Manual

Page 34 of 56

Transistor (TSMT3) (SOT23)

FQA11N90; N-Channel FQPF13N50C; N-Ch

Mosfet (TO-3P) Mo

sfet (TO-220F)

AF4835; P-Channel Mosfet (SOP8)

annel

FSTU3257MTC; Bus MC34063ADG; DC/DC

harman/kardon

Digital Lounge HS 250/230 Service Manual

Page 35 of 56

Switch (TSSOP16) Regulator (SO8)

harman/kardon

Digital Lounge HS 250/230 Service Manual

Page 36 of 56

harman/kardon

Digital Lounge HS 250/230 Service Manual

Page 37 of 56

harman/kardon

Digital Lounge HS 250/230 Service Manual

Page 38 of 56

harman/kardon

Digital Lounge HS 250/230 Service Manual

Page 39 of 56

harman/kardon

Digital Lounge HS 250/230 Service Manual

Page 40 of 56

5

harman/kardon

Digital Lounge HS 250/230 Service Manual

Page 41 of 56

4

3

2

1

HS250 BLOCK DIAGRAM

D D

Front

USB plug

OTG242

M2

Flash
16Mb

SDRAM
4*16Mb

M1

SDRAM
4*16Mb

EEPROM

24C64

Rear

USB plug

Not for HS250DL version

HDMI Block HDMI output

C C

Motor Driver
BA5888FP

RF

AML3501

MPEG

AML3390DTS-G

Tuner
ALPS
EU/US

RDS
BU1924F

NJM2561

Video
Output
Block
ADA4410-6

SiI9030

Audio
Input
ADC

iPod input

CVBS output

YPbPr output

S-Video output

Scart out/in

(EU version only)

Tuner audio
input

Scart audio input

iPod audio input

TV input

Audio

B B

MCU

Standby control

Block

EM78P156ELM-G

CIG VFD
include
VFD driver

Slot in
Loader

Hitachi
HOP-1200W

A A

Functional
buttons

Front Panel Board

IR
receiver

Power
indicator

SMPS Board

Supply power
for all boards

AC Power cord

74HC158

STA308A

Coaxial In
Optical In

IR In/Out Block

5

4

3

WM8776

Aux input

Audio
output
DAC

Downmix line output

Headphone

Subwoofer line outpu t

Amplifier
output

STA508

2 channels output

Sub trigger control Sub Trigger output

Digital
input

IR in

IR out

2

Title

HS250 DIAGRAM 080228

Size Document Number Rev

A3

Date: Sheet

Coaxial
output

BLOCK DIAGRAM 1.2

Digital
output

1

121Thursday, February 28, 2008

of

5

harman/kardon

Digital Lounge HS 250/230 Service Manual

Page 42 of 56

4

3

2

1

HS250 WIRING DIAGRAM

D D

<6>:BANDING POST BOARD (3523C)

WHITE BLACK BLACK RED

<3520C>

RED

BLACK2

WHITE

1

4BLACK

3

4 pins

CN405

3522C AMP: from 400

3519C/3518C: from 600

3521C: from 500

<2>:AV BOARD (5229C)

R-L-

AMP OUTPUT

R+L+

~100-240V

AC Power cord

3522C

C C

ASCLK

iPod_Tx

ADATA_IN

ADATA3

CN302

AMCLK

ALRCK

GND

21478

3

GND

5

B

R

G

HS250 CNT REF NO. ASSIGNMENT

GND2

3

1

CN301

GND

CVBS8TUNER_IN_L

RGB_SWITCH

GND

412769

5

TVFORMAT0

TVFORMAT1

111014

GND

5VON

-12V

TUNER_IN_R

GND

13

15

16

6

ADATA0

iPod_Rx

ADATA2

iPod_check
111012

HW_MUTE

DE

3522C AV: from 300

3627C: from 1

CN9

16 pins

CN8

24 pins

ALPSTUNER MODULE

11

CN10

10
9
8
7
6
5
4
3
2
1

GND
RDS-MPX
NC
TUNER_IN_R
TUNER +9V
TUNER_IN_L
GND
DO
CLOCK/SCL
DATA/SDA
RDS_CS

<1>: MAIN BOARD - HITACHI (5228C)

3627C

B B

11 pins

DATA/SDA

GND

CLOCK/SCL

GND

15913141617181920

SPDIF_SW

COAXIAL

GND

AMP_PD

SPDIF_IN

21

22 GND

23

AMP_TWAR

24

CN304

CN6

GND

5 pins

A+5V
GND
USB5V
GND
USB5V
GND
+3.3V
GND
+12V
GND
S+5V
GND

MCU_MUTE5

HP_L

GND

231

4HP_R

CN402

G

CN505

CN5

10
11
12

1
2
3
4
5
6
7
8
9

CN504

<5>: SMPS

C

12 pins

3521C

-12V

A+5V

GND

+12V

GND

+3.3V

5VON

12VON

34152

678

9GND

GND

+34V

2

1

CN403

KL

9 pins 2 pins

CN506

CN501

1

AC

2AC

SW4

SW1

SW2

SW3

LOAD-

LOAD+

SW510

GND

9

8

71211

SLED+

SLED-

CN2

NC

GND-LD

LD-DVD

HFM

2

1

24 pins

LOADER

Hitachi HOP-1200W

MD
54637

MCU_OFF9VFD_STB

VC_OPU

F

NC

CD_VR

DVD_VR

CD-LD

8

B

E

GND-PD

12

DVDRFP

1591610141113

17181920212223

S5V

C

DATRACK-

CD_DVD

FOCUS+

FOCUS-

TRACK+

24

CN3

CN601

DATA/SDA

CLOCK/SCL

2

3

1

12 pins

IR

GND

GND

6

4

7

5

A

FRONT_LED

IR_IN

8

HP_DETECT

GND

11

12 NC

10

GND

13

NC

14

CN4

DM2

1

DP2

2

GND

3

MCU_MUTE

GND
546

GND

HP_R

HP_L

8

7

B

8 pins

CN603

<4>: FRONT PANEL BOARD

3519C/3518C

4

3

STANDBY

NC

GND

GND

+12V

GND
456

312

CN503

-12V

7

GND
8

USB5V

9

A+5V

USB5V

+3.3V

GND

1011121314

5VON

H

CN602

CN604

14 pins

J

CN605

2

Title

Size Document Number Rev

A3

Date: Sheet

HS250 DIAGRAM 070913

WIRING DIAGRAM 1.1

221Thursday, February 28, 2008

1

of

SPIN+

SPIN-

51342

CN1

6

12 pins

A A

5

5

harman/kardon

Digital Lounge HS 250/230 Service Manual

Page 43 of 56

4

3

2

1

DGND

CN9

16
15
14
13
12
11
10

9
8
7
6
5
4
3
2
1

16pin 1.0mm

CN8

24
23
22
21
20
19
18
17
16
15
14
13
12
11
10

9
8
7
6
5
4
3
2
1

24pin 1.0mm

CN6

5
4
3
2
1

5pin 1.0mm

E

D

G

FB12 50R
FB14 50R

D3

1N5393

EC2

100uF/10V

A5V
D5V

DGND

C7
104

CN5

1

C

2
3
4

12pin 1.25mm

D5V

C6
104

5
6
7
8
9
10
11
12

DGND

DGND

EC1
100uF/16V

D D

C C

A+5V

+12V
S+5V

FB6 50R
FB8 50R

+3.3V

FB17 50R
FB4 50R

D2

1N5393

3.3V
D+12V

5
2

R3 2R
FB1 50R

FB3 50R

FB7 50R
FB9 50R
FB11 50R
FB13 50R

U1
BA00HC5FP

VCC
PVCC

VCC1.2V

4

VO

FIN

ADJ

6

1

Power Supply on Main board
Come from SMPS board

G1 install hole

GND

GND

GND

GND

GND

GND

GND

GND

1234567891011

B B

DGND

GND

GND

GND

G2 install hole

GND

GND

GND

GND

GND

GND

GND

GND

1234567891011

DGND

GND

GND

GND

DGND

R6
100R

EC3

47uF/10V

R8
200R

OPU5V
RF5V
D5V
HDMI5V
USB5V

3.3V
USB3.3V
FE3.3V
RF3.3V
AVDD_DAC
Core3.3V
D+12V

S5V

VCC1.2V

D5V+3.3V

HP_DETECT

IR_IN

R5 4.7K

IR

VFD_STB
DATA/SDA
CLOCK/SCL
MCU_OFF

R190 4.7K

R191 4.7K

R192 4.7K

FRONT_LED

FB16 50R
FB18 50R

FB20 50R
FB22 50R
FB23 50R

go to Front Panel board

C8
103

DM2
DP2

MCU_MUTE

HP_L
HP_R

go to Front Panel board

DGND

CN3

14
13
12
11
10

9
8
7
6
5
4
3
2
1

14pin 1.0mm

CN4

1
2
3
4
5
6
7
8

8pin 1.0mm

A

go to AV board

B

go to AV board

go to AV board

G4 install hole

GND

GND

GND

GND

GND

GND

GND

GND

1234567891011

GND

GND

GND

LOCATION-PAD

iPod_Check
HW_MUTE
ADATA_IN

RGB_SWITCH

D5V

R178 4.7K

SPDIF_SW

AMP_TWAR

CVBS

TVFORMAT0
TVFORMAT1
TUNER_IN_L

TUNER_IN_R

5VON

-12V

ALRCK
ASCLK
AMCLK

ADATA3
ADATA0
iPod_Tx
iPod_Rx
ADATA2

COAXIAL

SPDIF_IN

AMP_PD

R
G
B

HP_L
HP_R

DGND

MCU_MUTE

DATA/SDA
CLOCK/SCL

DGND

DGND

D1

1N5393

220uF/10V

A A

5

EC55

A+4.3V

C3
104

4

U22

TO220FP

BA33BC0

1

3

OUT

IN

GND

2

DGND

100uF/10V

EC56

+3.3VA+5V

C4
104

DGNDDGND

Title

Size Document Number Rev

A3

3

2

Date: Sheet

Power and connector 070913

5228C

1

621Thursday, February 28, 2008

1.2

of

5

harman/kardon

Digital Lounge HS 250/230 Service Manual

Page 44 of 56

4

3

2

1

M1_A[0..11]

D D

M1_D[0..15]

M1_BA1

M1_BA0
M1_DQM0
M1_DQM1

M1_CLK

C C

M1_WE_N
M1_CAS_N
M1_RAS_N
M1_SCS_N

M1_A0
M1_A1
M1_A2
M1_A3
M1_A4
M1_A5
M1_A6
M1_A7
M1_A8
M1_A9
M1_A10
M1_A11

M1_D0
M1_D1
M1_D2
M1_D3
M1_D4
M1_D5
M1_D6
M1_D7
M1_D8
M1_D9
M1_D10
M1_D11
M1_D12
M1_D13
M1_D14
M1_D15

R29 22R
R31 22R
R33 22R
R35 22R
R37 22R

M1_CLKB
M1_WE_NB
M1_CAS_NB
M1_RAS_NB
M1_SCS_NB

RESET_N

Core3.3V

M2_A19
M2_A18

M2_BA1
M2_BA0
M2_CAS_N
M2_RAS_N
M2_DQM1

B B

M2_DQM0
M2_A11
M2_A10
M2_A9
M2_A8
M2_A7
M2_A6
M2_A5
M2_A4
M2_A3
M2_A2
M2_A1
M2_A0

U9

BYTE
RY/BY

A19
A18
A17
A16
A15
A14
A13
A12
A11
A10
A9
A8
A7
A6
A5
A4
A3
A2
A1
A0

NC1
NC2
NC3

A-1/DQ15

47
15

9
16
17
48

1

2

3

4

5

6

7

8
18
19
20
21
22
23
24
25

10
13
14

DQ14
DQ13
DQ12
DQ11
DQ10

DQ9
DQ8
DQ7
DQ6
DQ5
DQ4
DQ3
DQ2
DQ1
DQ0

RESET

VCC

GND1
GND2

M2_A[0..11]

M2_D[0..15]

M2_BA1

M2_BA0
M2_DQM0
M2_DQM1

M2_CLK
M2_WE_N
M2_CAS_N
M2_RAS_N
M2_SCS_N

ECS_N

EOE_N

M2_D15

45

M2_D14

43

M2_D13

41

M2_D12

39

M2_D11

36

M2_D10

34

M2_D9

32

M2_D8

30

M2_D7

44

M2_D6

42

M2_D5

40

M2_D4

38

M2_D3

35

M2_D2

33

M2_D1

31

M2_D0

29

RESET_N

12

ECS_N

26

CE

OE

WE

EOE_N

28

M2_WE_NB

11

37
27

46

C80
104

R30 22R
R32 22R
R34 22R
R36 22R
R38 22R

Core3.3V

M2_A0
M2_A1
M2_A2
M2_A3
M2_A4
M2_A5
M2_A6
M2_A7
M2_A8
M2_A9
M2_A10
M2_A11

M2_D0
M2_D1
M2_D2
M2_D3
M2_D4
M2_D5
M2_D6
M2_D7
M2_D8
M2_D9
M2_D10
M2_D11
M2_D12
M2_D13
M2_D14
M2_D15

M2_CLKB
M2_WE_NB
M2_CAS_NB
M2_RAS_NB
M2_SCS_NB

M1_A0
M1_A1
M1_A2
M1_A3
M1_A4
M1_A5
M1_A6
M1_A7
M1_A8
M1_A9
M1_A10
M1_A11

M1_BA0
M1_BA1

M1_CLKB

Core3.3V Core3.3V

C64

6.8pF

M1_SCS_NB

M1_RAS_NB
M1_CAS_NB
M1_WE_NB

M1_DQM0
M1_DQM1

Core3.3V

EC16

47uF/10V

23
24
25
26
29
30
31
32
33
34
22
35

20
21

38

37
19

18
17
16

15
39

Place close to SDRAM1 Place close to SDRAM2

C67

C66

C68

104

104

104

SDRAM1 SDRAM2

U7

A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11

BA0
BA1

CLK

CKE
CS#

RAS#
CAS#
WE#

DQML
DQMH

DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8

DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15

VDD

VDD

VDD
VDDQ

VDDQ
VDDQ
VDDQ

VSS

VSS

VSS
VSSQ

VSSQ
VSSQ
VSSQ

M1_D0

2

M1_D1

4

M1_D2

5

M1_D3

7

M1_D4

8

M1_D5

10

M1_D6

11

M1_D7

13

M1_D8

42

M1_D9

44

M1_D10

45

M1_D11

47

M1_D12

48

M1_D13

50

M1_D14

51

M1_D15

53
36

NC

Core3.3V

40

NC

1
14
27

3
9
43
49

28
41
54

6
12
46
52

C65

6.8pF

M2_CLKB

M2_SCS_NB

M2_RAS_NB
M2_CAS_NB
M2_WE_NB

M2_DQM0
M2_DQM1

M2_A1
M2_A2
M2_A3
M2_A4
M2_A5
M2_A6
M2_A7
M2_A8
M2_A9
M2_A10
M2_A11

M2_BA0
M2_BA1

23
24
25
26
29
30
31
32
33
34
22
35

20
21

38

37
19

18
17
16

15
39

IS42S16400B-6TL

Core3.3V Core3.3V

EC17

C69
104

C70
104

C71
104

C72
104

47uF/10V

C73
104

C74
104

U8

A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11

BA0
BA1

CLK

CKE
CS#

RAS#
CAS#
WE#

DQML
DQMH

IS42S16400B-6TL

C76

C75

104

104

C77
104

C78
104

DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8

DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15

VDD

VDD

VDD

VDDQ
VDDQ
VDDQ
VDDQ

VSS

VSS

VSS

VSSQ
VSSQ
VSSQ
VSSQ

C79
104

M2_D0

2

M2_D1

4

M2_D2M2_A0

5

M2_D3

7

M2_D4

8

M2_D5

10

M2_D6

11

M2_D7

13

M2_D8

42

M2_D9

44

M2_D10

45

M2_D11

47

M2_D12

48

M2_D13

50

M2_D14

51

M2_D15

53
36

NC

Core3.3V

40

NC

1
14
27

3
9
43
49

28
41
54

6
12
46
52

MBM29LV160BE-70P or AM29LV160DB-90EC

DGND

A A

5

Title

Size Document Number Rev

A3

4

3

2

Date: Sheet

SDRAM and FLASH 070104

5228C

821Thursday, February 28, 2008

1

1.2

of

5

harman/kardon

Digital Lounge HS 250/230 Service Manual

Page 45 of 56

M1_A[0..11]

AVDD0

C37
104

199

ECS_N

200

EOE_N

106

M2_D_0

112

M2_D_1

111

M2_D_2

110

M2_D_3

109

M2_D_4

108

M2_D_5

107

M2_D_6

105

M2_D_7

77

M2_D_8

83

M2_D_9

82

M2_D_10

76

M2_D_11

78

M2_D_12

81

M2_D_13

79

M2_D_14

84

M2_D_15_A

88

M2_A_0

87

M2_A_1

86

M2_A_2

85

M2_A_3

100

M2_A_4

98

M2_A_5

96

M2_A_6

95

M2_A_7

97

M2_A_8

99

M2_A_9

102

M2_A_10

101

M2_A_11

66

M2_DQM1

70

M2_DQM0

80

M2_WE_N

71

M2_CAS_N

93

M2_RAS_N

69

M2_SCS_N

68

M2_BA0

67

M2_BA1

94

M2_CLKO

116

AICLK_GP0

117

AICLK_GP1

118

SCLK_XOUT

119

SCLK_XIN

126

DVDD_PLL0

129

DVDD_PLL1

132

DVDD_PLL2

127

AVDD_PLL0

130

AVDD_PLL1

133

AVDD_PLL2

125

DVSS_PLL0

128

AVSS_PLL0

131

VSS_PLL1

134

VSS_PLL2

TUNER_DO

VFD_STB
HP_DETECT
AMP_TWAR

C38
104

M1_A[0..11]

M1_CLK

M1_BA1

174

193

M1_BA1

M1_CLKO

TMS
TCK
TDO
TDI

VCC1.2V

C39
104

M1_CAS_N

M1_SCS_N

M1_BA0

M1_RAS_N

187

188

189

190

M1_BA0

M1_CAS_N

M1_RAS_N

M1_SCS_N

Memory #2CLOCKS & PLL

RESET_N

R23

10K N/A

R28
10K

C41

C40

104

104

M1_DQM0

M1_DQM1

M1_WE_N

M1_A10

M1_A11

M1_A9

180

194

175

150

173

186

M1_A_10

M1_A_11

M1_DQM0

M1_DQM1

M1_WE_N

AML3390DTS-G

TEST

TMS

TCK

TDO

TDI

124

122

121

123

Core3.3V

R24
10K

FB27
50R

EC5

47uF/10V

Core3.3V

C42
104

D5V

D5V

EC4

10uF/16V

R17
15K

D D

M2_D[0..15]

M2_A[0..11]

C C

Core3.3V

FB48
50R

C14
104

B B

CN11

JTAG N/A

On debug mode, disconnect RN6 and connect
RN5 for debugging VFD, disconnect RN5 and
connect RN6 for debugging HDMI.

A A

EC12

100uF/16V

DGND

D4
1N4148

M2_A[0..11]

Y1

OUTVCC

1 2

OE GND

OSCIL

Core3.3V

1
2
3
4
5
6

HD_D_0
HD_D_1
HD_D_2
HD_D_3

R28 10k

Debug

N/A

C30

C31

104

104

1 2

U2A
74HC14/SO

M2_D[0..15]

M2_DQM1
M2_DQM0
M2_WE_N
M2_CAS_N
M2_RAS_N
M2_SCS_N
M2_BA0
M2_BA1
M2_CLK

DATA/SDA
CLOCK/SCL

R174 PBY160808T-102Y-N

EMI important

34

RN3

123456

78

4.7k

RN4 10R

12
34
56
78

12
34
56
78

RN5
10R N/A

R23 10K

Yes

N/ANormal Yes

C32

C33

104

104

5

ECS_N
EOE_N

RN4 10R

N/A

Yes

C34
104

AVDD2

C35
104

M2_D0
M2_D1
M2_D2
M2_D3
M2_D4
M2_D5
M2_D6
M2_D7
M2_D8
M2_D9
M2_D10
M2_D11
M2_D12
M2_D13
M2_D14
M2_D15

M2_A0
M2_A1
M2_A2
M2_A3
M2_A4
M2_A5
M2_A6
M2_A7
M2_A8
M2_A9
M2_A10
M2_A11

DVDD

RESET_N

AVDD1

C36
104

4

M1_A8

181

M1_A_9

M1_A7

182

M1_A_8

M1_A3

M1_A5

M1_A4

M1_A6

198

185

184

183

M1_A_4

M1_A_5

M1_A_6

M1_A_7

Memory #1

M1_A2

197

M1_A_3

M1_A1

196

M1_A_2

M1_A0

195

M1_A_1

M1_A_0

M1_D[0..15]

M1_D5

M1_D7

M1_D4

M1_D8

M1_D9

M1_D3

M1_D6

M1_D11

M1_D10

M1_D15

M1_D12

M1_D13

M1_D14

143

144

145

148

149

172

171

170

169

168

167

166

151

M1_D_3

M1_D_4

M1_D_5

M1_D_6

M1_D_7

M1_D_8

M1_D_9

M1_D_10

M1_D_11

M1_D_12

M1_D_13

M1_D_14

M1_D_15

M1_D[0..15]

M1_D1

M1_D2

M1_D0

140

141

142

14337291113

139

165

179

219

246

M1_D_0

M1_D_1

M1_D_2

VDD_1.2V_1

VDD_1.2V_2

VDD_1.2V_3

VDD_1.2V_4

VDD_1.2V_5

VDD_1.2V_6

VDD_1.2V_7

VDD_1.2V_8

VDD_1.2V_9

VDD_1.2V_10

U4

FE ANALOG

COMPAD

RFS

SLCCED

CECFETEINTEPI

GPAIP2

RESET_N

TRST_N

TEST_N

SVIREF

234678101112

137

135

136

1

SLC

CE

RFS

TP7

COMPAD

TEST_N

TRST_N

C19 1500p

C23
104

47uF/10V

VCC1.2V Core1.2V

FB34
50R

EC13

100uF/10V

4

13

CE_D

CE_C

FE

TE

TEIN

C16 223

R22 47K

R27

4.7K

FE1.2VVCC1.2VVCC1.2V FE1.2VCO

FB28
50R

EC6

C43

C44

104

104

PLCC

16171819202122232428293031

PLCC

PI

C20 2700p

C45
104

REFCSV

GPAO2

FOO

SLO

REF2X

SVOREF

TRO

DMO

COMP0SV

26

SVOREF

iPod/I2C_SW

SLO

FOO

TRO

DMO

SDEN

C21 104

C22 104

VCC1.2V DAC1.2V

FB29
50R

C24
104

47uF/10V

C47

C46

C48

104

104

104

EC23

EC7

COMP1SV

COMP2SV

HW_MUTE_1

47uF/16V

C49
104

COMP3SV

TUNER_CE

GPAO1

247

GPAIN2

REFCRF

251

255

REFCRF

RFREF

C18 104

C17 104

COMPAD

C50
104

AVDD12RF

RFREF

AVDD12VCO

252

256

248

FE1.2V

FE1.2VCO

EC54

47uF/16V

C25
104

C51

C52

104

104

73

15

32

VSS_1.2V_3

VSS_1.2V_1

VSS_1.2V_2

AVSS12VCO

AVSS12RF

249

250

R26 1K

RFSB/b

Core1.2V

C53
104

92

114

138

VSS_1.2V_4

VSS_1.2V_5

VSS_1.2V_6

AVSS33AD

AVSS33SV

AVSS33VCO

927253

FB24 50R

FB26 50R

FB25 50R

FB30
50R

EC8

47uF/10V

3

152

178

220

44577489103

245

VSS_1.2V_7

VSS_1.2V_8

VSS_1.2V_9

VSS_1.2V_10

P O W E R

AVDD33AD

AVDD33SV

AVDD33VCO

525254

FE3.3V

3

115

146

VSS_3.3V_1

VSS_3.3V_2

VSS_3.3V_3

VSS_3.3V_4

VSS_3.3V_5

VSS_3.3V_6

FED

TZC

SDA

SCK

TCLOSE

TOPEN

343536373839404142

TZC

SDA1

SCK1

LIMIT

IN/OUT

EMF_RAW

Core1.2V

C26

47uF/10V

104

EC14

100uF/10V

160

177

192

VSS_3.3V_7

VSS_3.3V_8

VSS_3.3V_9

VSS_3.3V_10

LIMIT

MIRROR

STBY

LDON

SW4

SW1

MIRROR

FB31
50R

EC9

C54
104

202

214

45567590104

VSS_3.3V_11

VSS_3.3V_12

HOLD

43

DFCT

AVDD0DVDD

C55
104

Core3.3VCore1.2V

120

147

159

176

191

201

213

VDD_3.3V_1

VDD_3.3V_2

VDD_3.3V_3

VDD_3.3V_4

VDD_3.3V_5

VDD_3.3V_6

VDD_3.3V_7

VDD_3.3V_8

VDD_3.3V_9

VDD_3.3V_10

VDD_3.3V_11

VDD_3.3V_12

AVDD_DAC_R(3.3V)
AVDD_DAC_G(3.3V)
AVDD_DAC_B(3.3V)
AVDD_DAC_X(3.3V)

AVSS_DAC_R(3.3V)
AVSS_DAC_G(3.3V)
AVSS_DAC_B(3.3V)
AVSS_DAC_X(3.3V)

Video DAC

GPIO

VD0

VD1

VD2

VD3

VD4

VD5

VD6

VD7

65646362616059

58

VD7

VD1

IR

TP9

M2_A19

M2_A18

SPDIF_IN

ADATA_IN

Core1.2V Core1.2V

FB32
50R

C27
104

C56
104

EC10

47uF/10V

AVDD_DAC

C57

C58

104

104

IEC958
AMCLK

AOCLK

ALRCLK

ADATA_0
ADATA_1

Audio

ADATA_2
ADATA_3

DVDD_DAC(1.2V)
DVSS_DAC(1.2V)

AVDD_DAC(3.3V)

AVSS_DAC(3.3V)

COMP

VREF_IN

VREF_OUT

HD_D_0
HD_D_1
HD_D_2
HD_D_3
HD_D_4
HD_D_5
HD_D_6
HD_D_7
HD_D_8

HD_D_9
HD_D_10
HD_D_11
HD_D_12
HD_D_13
HD_D_14
HD_D_15
HD_D_16
HD_D_17
HD_D_18

DVI

HD_D_19
HD_D_20
HD_D_21
HD_D_22
HD_D_23

HD_CK
HD_D_DE
HD_D_HS

HD_D_VS

HD_GP0
HD_GP1

AVDD1

EC15

C59

100uF/10V

104

2

203

AMCLK_0

204
205
206

ADATA0

221

ADATA1

222

ADATA2

223

ADATA3

224

244
243

225
232
235
238
241

226
231
234
237
240

230

R19 220R

229

RSET

227
228

233

IOR

236

IOG

239

IOB

242

IOX

211
210
209
208
207
164
163
162
161
158
157
156
155
154
153
55
54
53
52
51
50
49
48
47

46
216
212
215
217
218

iPod/Servo select

LOW=0 Servo work
HIGH=1

iPod/I2C_SW
iPod_Tx

TZC
SDA

SDA

iPod_Rx
SDA1

C28
104

47uF/10V

FE3.3VAVDD_DACCore3.3V

C60
104

2

Core3.3V

To be decided.

C12 104

HD_D_0
HD_D_1
HD_D_2
HD_D_3
HD_D_4
HD_D_5
HD_D_6
HD_D_7
HD_D_8
HD_D_9
HD_D_10
HD_D_11
HD_D_12
HD_D_13
HD_D_14
HD_D_15
HD_D_16
HD_D_17
HD_D_18
HD_D_19
HD_D_20
HD_D_21
HD_D_22
HD_D_23

FB33
50R

EC11

C61
104

R13 2K
R14 2K
R15 2K
R16 2K
R18 2K

FB53
0R

ADATA[0..3]

AVDD_DAC

AVDD_DAC

R/Cr/Pr
G/Y/Y
B/Cb/Pb
V_COMP

MODEiPod/I2C_SW

iPod input

U28
FSTU3257MTC

1

S

2

1B1

3

1B2

4

1A

5

2B1

6

2B2

7

2A

8

GND

AVDD2

FE3.3V

C62
104

Power_on
Configuration

ADATA3
ADATA0
ADATA1
ADATA2
ALRCK

DAC1.2V

C11
104

HD_D_[0..23]

HD_CK
HD_D_DE
HD_D_HS
HD_D_VS
HD_RESET

VCC

OE
4B1
4B2

4A
3B1
3B2

3A

C29
104

C63
104

SPDIF_OUT

16
15
14
13
12
11
10
9

AMCLK
ASCLK
ALRCK
ADATA[0..3]

EXP_STB

D5V

C1
104

SCK1

1

3.3V

FB49
50R

C9
104

5 6

U2C
74HC14/SO

R7

0R N/A

HW_MUTE_C

HD_D_[0..23]

3.3V

TP8

HW_MUTE_C
VD1
VD7

RDS_SCK
RDS_DAT

SW3

USB_CS

iPod_Check

MUTE_IN
MUTE_OUT

STBY

SPDIF_OUT

SPDIF

GATE_SEL1

3.3V

50R

FB47

C187
104

3.3V

SCK

iPod_Rx
iPod_Tx

VD1/VD7 CONNECT CONTROL

0
0
10
11

Title

Size Document Number Rev

C

Date: Sheet

U3

8

VCC

DATA/SDA

5

SDA

CLOCK/SCL

6

SCL

4

GND

AT24C64

9 8

11 10

13 12

3 4

2
3
5
6
7

8
12
13

14
16
18
19
20
21
22
23

9
11
10
26

C10 104

U2D
74HC14/SO

U2E
74HC14/SO

U2F
74HC14/SO

MUTE_INHW_MUTE_1

R4 0R

MUTE_OUT

R9 0R

HW_MUTE

TP5

U2B
74HC14/SO

3.3V

U5
XC9572XL-10VQG44C

35

15

I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O

I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O

TDI
TCK
TMS
VCCIO

27

I/O

28

VCC

VCC

I/O

29

I/O

30

I/O

31

I/O

32

I/O

37

I/O

38

I/O

39

I/O

40

I/O

41

I/O

42

I/O

43

I/O/GCK1

44

I/O/GCK2

1

I/O/GCK3

33

I/O/GSR

36

I/O/GTS1

34

I/O/GTS2

24

TDO

GND

GND

GND

41725

CPLD_TDO
CPLD_TCK
CPLD_TMS
CPLD_TDI

GATE_SEL1GATE_SEL0

0
1

DECODE 070515

5228C 1.2

1

A0
A1
A2

WP

C13
104

VD1 -> SW3
VD7 -> USB_CS
VD1 -> iPod_Check
VD7 -> don't care

VD1 -> RDS_SCK
RDS_DAT -> VD7

1
2
3

7

3.3V

RESET_N

GATE_SEL0

COAXIAL

C15
104

AMP_PD
TVFORMAT0
TVFORMAT1
RGB_SWITCH
FRONT_LED
MCU_OFF

TCLOSE
TOPEN
LDON
CD/DVD

CLOCK/SCL
DATA/SDA
EXP_STB

Filter_Sel_A
SPDIF_SW
Filter_Sel_B

1
2
3
4
5
6

6pin 2.0mm

MODE

of

721Thursday, February 28, 2008

3.3V

CN12

R39

harman/kardon

Digital Lounge HS 250/230 Service Manual

Page 46 of 56

10K N/A

CN1

14
13
12
11
10
9
8
7
6
5
4
3
2
1

12pin 1.0mm SMD

24pin 0.5mm SMD

CN2

28
27
26
25
24
23
22
21
20
19

R71 100R

18
17
16
15

R41 100R

14
13
12
11
10
9
8
7
6
5
4
3
2
1

LOAD-

C83
104

LOAD+

RF5V

R54
47K

SLED+
SLED-

LIMIT

LOAD+
LOAD­SPIN+
SPIN-

SW3
IN/OUT
SW1
SW4

TRACK+
TRACK­FOCUS­FOCUS+
DVD_PD
DVD_HF

LD-DVD
LD-CD

CD_PD
DVDRFP

C/c
B/b
A/a
D/d
E/e_out
F/f_out

C96 102

EC21

100uF/16V

U6

S5V S5V

BA6287F

Io(max)=1A

1

OUT1

2

VM

3

VCC

4 5

Fin Rin

C110 104

DGND

DVD_HF

GND

OUT2

Vref

Core3.3V

C94
102

OPU5V

OPU5V
VC_OPU

8
7
6

Core3.3V

TOPENTCLOSE

123456

78

RF5V

1

R58
1K

F/f_out
E/e_out

RN1
10k

C

3

SW1
IN/OUT
SW3
SW4

R56
10K

2

BE

Q3
8550

R63

4.7K

1

R80 1.2K
R83 1.2K

C

3

2

BE

VC_OPU

Q4
8050

R57

4.7K

Important for playability

RFS

DVDRFP

R75 10K

R76 10K

C113 3300p

C114 3300p

BA5888FP

10
11
12
13
14

1
2
3
4
5
6
7

8
9

U11

VINFC
CFCERR1
CFCERR2
VINSL+
VINSL­VOSL
VNFFC

VCC
PVCC1
PGND
VOSL­VOSL+
VOFC­VOFC+

BYP

DIN
DIP

FNP
FNN
VNA

RX

SDEN

SDATA

SCLK

V33

MNTR

FE
TE

PI

PIO

MIN

MLPF

DB
MB
MP

DFTCDPD

MIRR

GND

29

48
47
46
45
44
43
42
41
40
39
38
37
36
35
34

32
31
30
29
28
27
2623
25

STBY

BIAS

VINTK
CTKERR1
CTKERR2

VINLD

PREGND

PVCC2
VNFTK

PGND

VOLD-

VOLD+

VOTK-

VOTK+

GND

30

C101 153
C102 104
C104 104

R72 12K 1%

FE_raw
TE_raw

C117 223
C118 102
C119 102
C120 332
C121 683
R87 2K

TE

RF5V

28
27
26
25
24
23
22

21
20
19
18
17
16
15

R77 1K
R92 2K

C134
104

R49 0R
C87 220p

S5VS5V

R60 2R 1%

DGND

RF5V

DFCT

MIRROR

COMPAD

C93
104

RF3.3V

COMPAD

COMPADTEIN

C92

104

104

FOO

R44

FOO

COMPAD

SLO

R55

4.7K

CD/DVD TRACK+

>= 130p

C97

C107

100p

683

D/d
C/c
B/b
A/a

F/f

E/e

VC_OPU

DVDLD
CDLD

DVD_PD

CD_PD
LDON

3.9k
C82
470p

R47 33R C85
R51 39k

C88

C89

472

SLED­SLED+

FOCUS-

FOCUS+

C105 680p
C106 680p
C108 680p
C111 680p
C112 100p

104

SIGO
AIP

AIN

SLO

C100 105
C103 180p

R45 0R
C84 220p

VC2

R48 12k

C90 470p
R53 33k

C95
104

R59 2R 1%

RF5V

U12

AML3501

1

RFAC

2

VPA

3

AIP

4

AIN

5

A2

6

B2

7

C2

8

D2

9

CP

10

CN

11

D

12

C

13

B

14

A

15

CD-F

16 33

CD-E V165

17

VPB

18

VC

19

VNB

20

DVDLD

21

CDLD

22

DVDPD

24

LDON

FNP
FNN

SDEN
SDA
SCK

R46

3.9K
C86

470p
R52

3.9K

SPIN­SPIN+

DMO

TRACK-

FE
TE
PI

C129 390p

C115 220p

TRO

C116 180p

STBY

TRO

DMO

SPIN­SPIN+

R82 10K

COMPAD

LD-CD

LD-DVD

R78
10K

C81 104

Q1

2SB1132(SOT89EBC)

L1
10uH

C109 104

Q6

2SB1132(SOT89EBC)

L2
10uH

R79

1.5K

R85

R84

22K

22K

R86

1.5K

R89 5.1K
R90 27K

R42 20R

R61 20R

RF5V

E

C

RF5V

E

C

3
2

5
6

R43 20R

32

R62 20R

32

RF5V

+

-

RF5V

+

-

B

1

C91
102

D5
1N4148

B

1

C99
102

D6
1N4148

R73 1M

84

U13B
LM358

84

R91 6.8K

EC18
47uF/16V

R50 0R

EC19
47uF/16V

R65 3k

U13A

1

LM358

VC_OPU

7

CDLD

DVDLD

R74

4.7K N/A

EMF_RAW

DGND

S5V

C122
104

C123
104

C124
104

C125
104

C126
104

S5V

EC20
100uF/16V

RF5V

C131
104

C128
104

C132
104

DGND

RF5V

EC53
100uF/16V

C133
104

VC_OPU

EC22
47uF/16V

RF3.3V

C135
104

RF3.3V

EC24
100uF/16V

C127 223

C/c

R93 47K

R95
47K

R96 4.7K

C136
223

C130
104

Title

CE

Size Document Number Rev

A3

Date: Sheet

Driver and preamp 071203

5228C

921Thursday, February 28, 2008

1.2

of

1

harman/kardon

Digital Lounge HS 250/230 Service Manual

Page 47 of 56

EC25
10uF/16V

DGND

VIDEO5V

C137
104

C138
104

RGB_SWITCH

C190
104

U15
ADA4410-6

1

Pb1/B1_HD

2

GND

3

Pr1/R1_HD

4

F_SEL_A

5

F_SEL_B

6

Y2/G2_HD

7

GND

8

Pb2/B2_HD

U14

NJM2561

6

PowerSave

V+

4 3

Vin Vsag

NJM2561

DGND

VIDEO5V

R182
10k

R183
820R

31

32

GND

MUX_HD

Y1/G1_HD

ADA4410-6

GND

MUX_SD

Pr2/R2_HD

9

111213

10

VoutGND

DGNDDGND

VIDEO5V

28

25

263029

27

VCC

LEVEL2

LEVEL1

DISABLE

Y/G_HD_OUT

Pb/B_HD_OUT

Pr/R_HD_OUT

Y_SD_OUT
C_SD_OUT

Y1_SD

Y2_SD

C1_SD

C2_SD

14

15

16

DGNDDGND

R118 4.7K

C145
104

1
25

R181
0R

VEE

G_SEL

CV_OUT

VCC

C143
104

VEE

EC26
100uF/10V

EC27
33uF/10V

24
23
22
21
20
19
18
17

R112

2K

BE

2

VIDEO5V

3

C

R97 75R 1%

R100 75R 1%

EC29 220uF/10V
R184 0R N/A

EC31 220uF/10V

R194 0R N/A

DGND

-12V

R115 2K

Q8

8050

1

DGND

EC28 220uF/10V
R148 0R N/A

EC30 1500uF/6.3V

R193 0R N/A
R195 0R N/A

EC32
220uF/10V

-12V

3

C

R113

BE

15K

2

DGND

Macrovision
control circuit, only
for EU version.

Q7
8050

1

R101 75R 1%

R102 75R 1%

R109 75R 1%

R105 75R 1%

R106 75R 1%

R114 75R 1%
R116 75R 1%
R117 75R 1%

FB35 50R

FB40 50R

FB38 50R

FB39 50R

FB36 50R

AVR-M1608C270M*ABB

FB37 50R

AVR-M1608C270M*ABB

C139
20p

DGND

C142
20p

DGND

C140
20p

DGND

C141
20p

DGND

J1

ESD1

DGND

ESD2

DGND

CVBS_OUT

PR_OUT

PB_OUT

PY_OUT

DGND

Y_OUT
C_OUT

DGND

J2

7

5

3

1
8

6
4
2

AV4-8.4-14/EP

GND
GND
GND
GND

TOP

CVBS

Pr

Pb

PY

4

Y

3

C

1

GND

2

GND

5

GND

6

GND

7

GND

CVBS
R

go to CN301

B
G

DSW-30

ENTRY SIDE

5

4

2

3

Y

RBG

BOTTOM

TOP VIEW

NOT FOR HS250DL VERSION

VIDEO5V

V_COMP

D D

Filter_Sel_A
Filter_Sel_B

B/Cb/Pb

C C

B B

G/Y/Y

R/Cr/Pr

R98
75R 1%

DGND

R103
75R 1%

DGND

R107
75R 1%

DGND

R110
75R 1%

DGND

EC33
100uF/16V

DGND

VIDEO5V

R99
68R 1%

R104
75R 1%

R108
75R 1%

R111
75R 1%

C144
104

TUNER_VCC

TUNER_VCC

A A

U32
L7805

1

OUT

IN

GND

2

DGND

VIDEO5V

3

C149
104

DGND

H2
HS650-PT02

1

2

FOR HS250DL VERSION.
PLACE BESIDE J2,
TO FIX PCB.

1

H1
HS650-PT02

1

2

DGND

FOR HS250DL VERSION.
PLACE UNDER J1,
TO FIX PCB.

Title

Size Document Number Rev

A3

Date: Sheet

VIDEO OUTPUT 071007

5228C

10 21Thursday, February 28, 2008

of

1.2

5

harman/kardon

Digital Lounge HS 250/230 Service Manual

Page 48 of 56

U17

11

INT

RESET_N

D D

C C

USB_CS

M2_WE_N

EOE_N

M2_DQM0

M2_A[0..11]

M2_D[0..15]

M2_A11
M2_A10
M2_A9
M2_A8
M2_A7
M2_A6
M2_A5
M2_A4
M2_A3
M2_A2
M2_A1

M2_D15
M2_D14
M2_D13
M2_D12
M2_D11
M2_D10
M2_D9
M2_D8
M2_D7
M2_D6
M2_D5
M2_D4
M2_D3
M2_D2
M2_D1
M2_D0

47

/Reset

30

/CS

12

/WR

13

/RD

27

A12

26

A11

25

A10

24

A9

23

A8

22

A7

20

A6

19

A5

18

A4

17

A3

16

A2

14

A1

9

D15

8

D14

7

D13

6

D12

4

D11

3

D10

2

D9

1

D8

59

D7

58

D6

57

D5

56

D4

52

D3

51

D2

50

D1

49

D0

48 44

R130
100R

TEST AVss

TDOTG242LP

OSC2
OSC1
CLKw

VBUS

ENVREG

VBP

/EXVBO

DM1
DP1
DM2
DP2

/PO
/OC

VREGOUT

VDD2.5
VDD2.5
VDD2.5
VDD2.5

VDD3.3
VDD3.3
VDD3.3

VDDw
VDDw
VDDw

AVss

ID

Vss
Vss
Vss

64
63
60

46
41
38
37

40
34
33
32
31
39
36

42
62
53
29
10

45
43
35
55
21
5

54
28
15

61

4

C146

6.8p

R120 100R

R121 100R

R122 10k

VBP

R123 10k

PO_n
OC_n

C147

6.8p

6.00MHz

Y2

R128
10K

R129
10K

USB3.3V

USB3.3V

R124 33R
R125 33R
R126 33R
R127 33R

USB2.5V
USB3.3V

USB3.3V

C150
104

USB2.5V

C155
104

C151
104

C156
104

C148
104

C152
104

C157
104

DM2
DP2

C153
104

C158
104

EC34
220uF/16V

DM1
DP1

C154
104

C159
104

DM2
DP2

4
3
1
2

3

USB5V

+5V
D­D+
GND

EC35
100uF/10V

EC36
100uF/10V

2

U16
RCLamp0514M

DP1

1

DM1

7

8

GND

GND

J7
USB-A-05

GND

GND

5

6

ESD protection for USB port

1

2

2

3

VCC

4

4

5 6

56

GND

10

10

9

9

8
7

7

DP1
DM1

1

RDS5V

B B

TUNER_VCC

C160
104

CN10

11
10
9
8
7
6
5
4
3
2
1

11pin 1.25mm

go to Tuner Module

A A

TUNER_CE
DATA/SDA
CLOCK/SCL
TUNER_DO

RDS_MPX

3.3V

R134

4.7K N/A

5

3.3V

R132
10R

FB52
50R

R135

4.7K

C162
270p

R136 220R
R137 220R
R138 220R
R140 220R

EC37

2.2uF/10V

C168
183

C169
183

1

IN

2

CAP

3

GNCOUT

1

IN

2

CAP

3

GNCOUT

1
2
3
4
5
6
7

8 9

C163
560p

47

B1

GG

47

B2

GG

4

U18

OUAL

RCLK
RDATA
VERL
MUX
VDD1

VDD2
VSS1

VSS2
VSS3
CAP T2

BU1924F

Pilot tone filter

6
5

R188
3K

Pilot tone filter

6
5

R189
3K

16
15

NC

14

X0

13

X1

12
11
10

T1

R133
100R

R139
100R

EC41
10uF/10V

EC42
10uF/10V

R131

4.7K

Y3

4.332M

C161
33p

C164
33p

RDS_DAT

RDS_SCK

TUNER_IN_R

TUNER_IN_L

3

D+12V

EC38
100uF/25V

D+12V

C165
104

TUNER_VCC

TUNER_VCC

EC39
47uF/25V

U20
78L05

3

IN

1

OUT

GND

2

USB and Tuner 071007

5228C

U19
L7809

1

IN

2

3

OUT

GND

C166

2

104

Title

Size Document Number Rev

A3

Date: Sheet

C167
104

RDS5V

EC40
100uF/16V

11 21Thursday, February 28, 2008

1

1.2

of

5

harman/kardon

Digital Lounge HS 250/230 Service Manual

Page 49 of 56

HD_D_DE

HD_D_[0..23]

HD_D_[0..23]

NOTE:
AML3278:

D D

R[0..7]=HD_D_[16..23];
G[0..7]=HD_D_[8..15];
B[0..7]=HD_D_[0..7];
SIL9030:
R[0..7]=D[16..23];
G[0..7]=D[8..15];
B[0..7]=D[0..7].

HDMI3.3V

HDMI3.3V

R143
10K

C C

B B

HD_RESET

HDMI5V

100uF/10V

EC49

2

HDMI5V

31

R144
10K

Q9
2SK3018

C186
104

U23
SOT223 H13A
AZ1117H-1.8

3 2

IN OUT

HD_CK

HD_D_VS

HD_D_HS

ASCLK
ALRCK

ADATA0
ADATA3

AMCLK
SPDIF

CLOCK/SCL
DATA/SDA

IDCK

VCC1.8

4

OUT
ADJ

1

HD_D_0
HD_D_1
HD_D_2
HD_D_3
HD_D_4
HD_D_5
HD_D_6
HD_D_7

HD_D_8
HD_D_9
HD_D_10
HD_D_11
HD_D_12
HD_D_13
HD_D_14
HD_D_15

HD_D_16
HD_D_17
HD_D_18
HD_D_19
HD_D_20
HD_D_21
HD_D_22
HD_D_23

C192

3.3p

4

HD3.3V2
HD3.3V1

RN6 33R

78
56
34
12

RN8 33R

78
56
34
12

RN10 33R

78
56
34
12

R142 33R
R145 33R
R146 33R
R147 33R
R149 33R

R1 33R N/A
R2 33R

R150 150R
R151 33R

R153 33R
R155 33R

R157 4.7K N/A
R159 4.7K N/A

TX0+

TXC+
TXC-

RN7 33R

78
56
34
12

RN9 33R

78
56
34
12

RN11 33R

78
56
34
12

U24

1
2
3
4
5 6

RCLamp0514M

IDCK

RST

R162

4.7K

GND

10

10

9

9

8
7

7

1
2
VCC
4
56

R163

4.7K

3

R141 475R 1%

C170

C171

104

104

C176

C175

104

104

C180

C181

104

104

C182

C199

104

105

HD3.3V1

C184

C0

104

105

R156 10R
R158 10R

HPD

TX2+TX2+
TX2-

TX1+TX1+
TX1-

HD3.3V3

C172
104

HD3.3V2

C177
104

HD3.3V3

C194
105

FB45 50R

FB46 50R

TX_DDC_SCL
TX_DDC_SDA

DDC_SCL
DDC_SDA

HPD

<112MHz R141=475R 1%
>112MHz R141=422R 1%

C173
104

C195
105

FB44 50R

EC45
22uF/10V

EC46
10uF/10V

EC47
10uF/10V

R165
47K

U21

CVCC18
CVCC18
CVCC18
CVCC18
CVCC18D4

CGND
CGND
CGND
CGND
CGND

IOVCC
IOVCC
IOVCC

IOGND
IOGND
IOGND

AVCCD18
AVCC

AGND
AGND

AGND
PVCC1
PGND1
PVCC2
PGND2

TX2+

TX2-

TX1+

TX1-

TX0+

TX0-

TXC+

TXC-

DSCL

DSDA

HPD

10

GND

24
4

16
45
59
7475

73
60
46
15
3

13
48
71

14
47
72

2854
34

37
31
25

23
22
38
39
36

35
33

32
30

29
27

26
20

19
18

10
9

9

8
7

7

80

DE

79

D0

78

D1

77

D2

76

D3

70

D5

69

D6

68

D7

67

D8

65

D9

64

D10

63

D11

62

D12

61

D13

58

D14

57

D15

56

D16

55

D17

53

D19

52

D20

51

D21

50

D22

49

D23

66

IDCK

2

VSYNC

1

HSYNC

12

SCK

11

WS

10

SD0

9

SD1

8

SD2

7

SD3

6

MCLK

5

SPDIF

42

RESET#

41

CI2CA

43

CSCL

44

CSDA

17

INT

40

NC

21

RSVDL

TX0+
TX0-

TXC+
TXC-

SiI9030

<112MHz RC = N/A
>112MHz RC = install, ESD/EMI
components N/A for they may cause
signal integrity problems on the high
speed TMDS lines, TMDS lines should
be connected directly from SiI9030 to
connecter.

TX2-TX0-

TX1-

EXT_SWING

U25

1

1

2

2

3

VCC

4

4

5 6

56

RCLamp0514M

2

FB42 50R

C197

C174

C198

105

104

105

FB43 50R

C196

EC44

105

22uF/10V

HDMI3.3V

C179
104

HDMI3.3V

C183
104

L3

ACM2012-900-2P-T

L4

ACM2012-900-2P-T

L5

ACM2012-900-2P-T

L6

ACM2012-900-2P-T

DDC_SCL
DDC_SDA

U26

1

1

2

2

3

VCC

4

4

5 6

56

RCLamp0514M

GND

10

9
7

EC43
22uF/10V

HDMI3.3V

1
2

1
2

1
2

1
2

HD5V

PTC1

0.5A

DDC_SCL

10

DDC_SDA

9
8
7

C178
104

VCC1.8

t

C185
104

HPD

4
3

4
3

4
3

4
3

R161

1.8K

DGND

C188
104

TX2+
TX2-

TX1+
TX1-

TX0+
TX0-

TXC+
TXC-

H5V

H5V

R160

1.8K

EC48
100uF/16V

U29
SOT223 H17A
AZ1117H-5.0

INOUT

4

OUT

ADJ

1

U30
SOT223 H16A
AZ1117H-3.3

3 2

IN OUT

OUT

ADJ

1

J4
HDMI CON

1

D2+

2

D2 Shield

3

D2-

4

D1+

5

D1 Shield

6

D1-

7

D0+

8

D0 Shield

9

D0-

10

CK+

11

CK Shield

12

CK-

13

CE Remote

14

NC

15

DDC CLK

16

DDC DATA

17

GND

18

+5V

19 22

HP DET 22

DDC_SCL

DDC_SDA

32

4

C189
104

SHELL2

SHELL1

FB5 50R

23

U31A
UPA672T

U31B
UPA672T

1

EC51

10uF/16V

HDMI3.3V

21
23

20

HDMI3.3V

TUNER_VCC

EC52
47uF/16V

R185

4.7K

TX_DDC_SCL

R186

4.7K

TUNER_VCC

ESD protection for HDMI port

Q10

1

8550

C

R167 390R

3

BE
2

R168

5VON

A A

5

5VON

IR_IN

4

R171
10K

D11
1N4148

R172
10K

EC50
47uF/10V

R170

4.7K

4.7K

R169 4.7M N/A
U27

3

PC817

2

R173 270R

14

3

J5 CKX-3.5-22

3
2

1

IR OUTPUT

J6 CKX-3.5-22

3
2

1

IR INPUT

Title

Size Document Number Rev

A3

2

Date: Sheet

HDMI and IR In/Out 070104

5228C 1.2

1

TX_DDC_SDA

12 21Thursday, February 28, 2008

of

A+5V

harman/kardon

Digital Lounge HS 250/230 Service Manual

Page 50 of 56

A+5V

R300

4.7K

DAC_MUTE_R

R302 10K

MCU_MUTE
HW_MUTE

Mute logic circuit
for main L&R

D301 1N4148
D302 1N4148

R305

4.7K

analog output

DAC_MUTE_L

R309 10K

MCU_MUTE
HW_MUTE

CN302

24
23
22
21
20
19
18
17
16
15
14
13

E

12
11
10
9
8
7
6
5
4
3
2
1

24pin 1.0mm

CN304

1
2
3

G

4
5

5pin 1.0mm

Q309

DTC343TK

MUTE_HP_SUB

VOUTL
VOUTR

R344 330R

A+5V

A+5V

IPOD_IN_R
IPOD_IN_L

TUNER_IN_R
TUNER_IN_L
SCART_IN_R
SCART_IN_L
SPDIF_IN
SPDIF_SW

AMP_TWARN
AMP_PD

SPDIF_IN
SPDIF_SW

COAXIAL
CLOCK/SCL

DATA/SDA
ADATA_IN

HW_MUTE
iPod_check
ADATA2
iPod_Rx

iPod_Tx
ADATA0
ADATA3

AMCLK
ASCLK
ALRCK

DGND

MCU_MUTE

HP_L
HP_R

3

C

4.7K

BE

2

EC315

10UF/16V

EC316

10UF/16V

EC318

10UF/16V

EC320

10UF/16V

R357 10K
R358 10K
R359 10K
R360 10K
R361 10K
R362 10K

D304 1N4148
D305 1N4148

3

C

4.7K

BE

1

2

U302

3

C

BE

2

DGND

A+5V

3

C

BE

2

DGND

D

Q310

1

DTC343TK

WM8776

C315
104

C316
104

C320
104

C322
104

EC322
100UF/16V

only for EU version
only for EU version

D300
1N4148

Q300
8050

1

D303
1N4148

Q302
8050

1

CN301

16pin 1.0mm

R334 47K

25
26
27

29
30

32
33
34
35
36

R303
10K

R311
10K

R

1

DGND

2

G

3

DGND

4

B

5

DGND

6

CVBS

7

RGB_SWITCH

8

TVFORMAT0

9

TVFORMAT1

10

TUNER_IN_L

11

DGND

12

TUNER_IN_R

13

DGND

14
15
16

EC309
220UF/16V

EC311

220UF/16V

R335 47K

24

NC
VOUTL
VOUTR

DACREFN
DACREFP

AUXL
VMIDADC
ADCREFGND
ADCREFP
AVDD

3738394041424344454647

C324
104

2

2

A+5V

23

NC

HPOUTR

AGND

AINVGR

R354

MUTE_R

3

C

BE

R304

2.2K

MUTE_L

3

C

BE

R312

2.2K

5VON

-12V

C309 104

20

21

HPVDD

HPGND

AINOPR

AINVGL

5.1K

5.1K

R355

R301
10K

Q301
8550

1

R307
10K

Q303
8550

1

+5VON

18

191622

DI

CL

HPOUTL

AINOPL

AIN5R

AIN5L

17

CE

MODE

WM8776

AIN4R

AIN4L

D-12V

+5VON

Mute logic circuit

D-12V

for headphone
and subwoofer

MCU_MUTE
HW_MUTE

3.3VA

C308

EC312

104

100UF/16V

13

14

15

DVDD

DGND

12

ADCLRC

DOUT

11

ADCMCLK

10

ADCBCLK

928

ZFLAGLVMIDDAC

8

ZFLAGR

7

DACLRC

631

DINAUXR

5

DACMCLK

4

DACBCLK

3

AIN1L

2

AIN1R

1

AIN2L

AIN3R

AIN3L

AIN2R

48

RGB
SWITCH

X
X
X
0
1

D306
1N4148
D307
1N4148

CLOCK/SCL
DATA/SDA

R331
10K

ADATA_IN

R339
10K

R385 150R

R345 10K
R346 10K
R347 10K
R350 10K

TV
FORMAT0

0
00

X
X

3

BE

2

R365
10K

VOUTL

VOUTR

R382
10K

C312
104

3.3VA

3.3VA

R340
10K

DAC_MUTE_L
DAC_MUTE_R
ALRCK
ADATA3
AMCLK
ASCLK

Digital audio
input/output

TV
FORMAT1

C

R364

2.2K

56

U304C

98

U304D

1110

U304E

1312

U304F

TV FUNCTION

SCART Inactive (Standby)

1

SCART Active Auto Switch to 4:3 Aspect Ratio
SCART Active Auto Switch to 16:9 Aspect Ratio

01

RGB

X
X

MUTE_HP_SUB

R363
10K

D-12V

Q311
8550

1

+5VON

only for EU version
R361 R362 and

EC302
47UF/16V

EC307
47UF/16V

DGND

D-12V D+12V

D-12V D+12V

C313

EC313

104

47UF/25V

R310

TVFORMAT1

3.3K

TVFORMAT0

R315

3.3K

Scart video output and
audio input, only for EU
version, don't install in
US version.

RGB_SWITCH

R319 1.78k 1%

R322
10K

R329 1.78k 1%

R330
10K

EC314
47UF/25V

COAXIAL

R351 10K

C326
47p

U303

4
7

10
11

9

1

15

C310
0805 102 NPO

R341
220R

1Y
2Y

3B
3A

3Y

A/B
G

74HC158

R332

7.50k 1%

C305 0805 102 NPO

R326

7.50k 1%

1A
1B
2A
2B

4Y
4A
4B

VCC
GND

R313

3.3K

R323

4.75K 1%

C317
100p

COAX_IN

2
3
5
6

12
14
13
16

8

PIN8(V) PIN16(V)

R383

2K

3

C

4.7K

BE

2

R317 3.3K

C307
0805 680p NPO

C311
0805 680p NPO
R336

4.75K 1%

R342 150R

34

U304B

C321
47p N/A

OPTICAL_IN

A+5V

FB307
50R

5VA

C327
104

0V

X

12V

X

6V

X

1-3V

X

0-0.4VCVBS

X

D+12V

R306
2K

Q304

DTC343TK

1

3

C301
104

C

4.7K

BE

2

R316

3.3K

A+5V

R314

R384

300R

300R

3

C

4.7K

BE

2

C304
104

C306 0805 100p NPO
R324 4.75k 1%

2

1

3

6

7

5

V- V+

4

8

D+12VD-12V

R337 4.75k 1%
C314 0805 100p NPO

R343
110R

12

U304A

74HCU04

R380 2.2K
R381 47K

R353 10R
C325
47p

NOT FOR HS250DL VERSION

10UF/16V

SCART_IN_R

EC300

ESD300

ESD301

EC301
10UF/16V
FB300 50R

SWITCH

FB302 50R

FB303 50R

BLNK

FB305 50R

R321
330R

3

C

Q307

4.7K

DTC343TK

BE

2

R328
330R

3

C

Q308

4.7K

DTC343TK

BE

2

Fiber Optic RX
Module

ESD302

ESD303

ESD304

ESD305

Analog audio output & input

1

1

DRIVER

IC

AVR-M1608C270MTABB

AVR-M1608C270MTABB

AVR-M1608C270MTABB

AVR-M1608C270MTABB

COAXIAL_OUTPUT

COAXIAL_INPUT

ESD306

AVR-M1608C270MTABB N/A

J304 SHARP GP1FA513RZ

VIN

GND

VCC

TOP VIEW

FB301 50R

R308

1K

Q305
DTC343TK

1

C302
104

FB304

Q306
DTC343TK

1

47UF/16V

U301

LM833M

EC310
47UF/16V

R379
560R

A+5V

R352

4.7K

A+5V

C328
104

C300
20PF

50R
C303

20PF

EC303

R349 100K

MUTE_L
MUTE_R

FB306
50R

C319
104

AVR-M1608C270MTABB

AVR-M1608C270MTABB

SCART_IN_L
B

G

R

CVBS

R320 680R

R325
10K

R327
680R

R333
10K

C318
100p

R378 75R

3
2
1

EC323
100UF/16V

R366 2.2k

R367
10k

R369
10k

R368

2.2k

B_OUT

G_OUT

R_OUT

CVBS_OUT

J301

2223

SCART CONNECTOR CS101 WITH SHIELD

24

10
11
12
13
14
15
16
17
18
19
20
21
25

EC304 10UF/16V
EC305 10UF/16V
EC306 10UF/16V
EC308 10UF/16V

Title

Size Document Number Rev

A3

Date: Sheet of

NCNC

GND

1

AOR

2

AIR

3

AOL

4

AGND

5

BGND

6

AIL

7

B

8

SWTCH

9

GGND
CLKOUT
G
DATA
RGND
DATAGND
R//C
BLNK
VGND
BLNKGND
VOUT//Y
VIN
SHIELD
GND

R_IN R_IN_1
TVL_IN
TVR_IN

R373 10k

R377 10k

R371 10k

R375 10k

J302

TV_IN_R
TV_IN_L
R_IN_1
L_IN_1
DOWNMIX_R

DOWNMIX_L
COAXIAL_INPUT
COAXIAL_OUTPUT

HS250 AV BOARD 070913

AV8-8.4-13/PB

11
12

8
9
5
6
2
3

5229C 1.2

DOWNMIX_L

DOWNMIX_R

R374 2.2k
R376 2.2k
R370 2.2k
R372 2.2k

Red White
Red White
Red White
Orange Orange

DOWN

GND

4110

7

13 20Saturday, March 01, 2008

SCART CONNECTOR

BACK PANEL VIEW

L_IN_1L_IN

TV_IN_L
TV_IN_R

UP

G400 install hole

harman/kardon

Digital Lounge HS 250/230 Service Manual

Page 51 of 56

GND

GND

GND

GND

GND

GND

GND

1234567891011

DGND

R419
10K

+3.3V

R420
10K

GND

GND

GND

BE

2

GND

3

G401 install hole

GND

1234567891011

R418
1K

C

Q402
8050

1

GND

GND

1

BE
2

GND

DGND

Q401
8550

GND

GND

C

G402 install hole

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

1234567891011

DGND

PTC400
JK-MSMD010

R417
10K

t

3

C401

D402

104

1N4148

DGND

LOCATION-PAD

J401
CKX-3.5-22

1
2

3

Subwoofer
Trigger

CN402

1
2
3
4
5
6
7
8
9

9pin 1.25mm

R406
10K

R411
10K

FB408 50R

FB409 50R
FB410 50R

+3.3V
5VON
12VON

DGND
DGND
DGND

C404
102

A+5V

K

CH6_SUB+

CH6_SUB-

D400
1N4148

FB401 50R
FB403 50R
FB402 50R

FB404 50R
FB405 50R
FB413 50R

FB406 50R
FB407 50R

R407
10K

R412
10K

R408

1.5K

DGND

U406
AZ1117H-3.3

3 2

IN OUT

OUT

ADJ

1

D401
1N4148

5VON
+3.3V

3.3VA

+5VON
+12VON
+12V
SUB+12V
D+12V
IPOD_12V

-12V
SUB-12V
D-12V
A+5V

R413 1.5K

SUB-12V

U405B
NJM2068M

-

6

+

5

8 4

SUB+12V

7

R402
270R

C414
104

GND

SDO12

SDO34

VDD3.3

STA308A

PLLFNCGND_PL

VDD_PL

3.4K

220p

C421

R415
47K

AMP3.3V

NC

BICKO

LRCKO

CKOUTNCGND

C406
27P

GND

VDD3.3

VDD3.3

OUT8B

C417
104

EAPD

OUT8A

495051525354555657585960616263

OUT1B

OUT1A

OUT7B

OUT7A

32

AMP3.3V

OUT2A
OUT2B

GND

VDD3.3

OUT3A
OUT3B
OUT4A
OUT4B
OUT5A
OUT5B

GND

VDD3.3

OUT6A
OUT6B

EAPD
CH1_L+

CH1_L-

48
47
46

NC

45
44
43
42
41
40
39
38
37

NC

36
35
34
33

2
1

CH2_R+
CH2_R-

AMP3.3V

C415
104

Subwoofer
output

TOP VIEW

AMP3.3V

C416
104

AMP3.3V

C418
104

HS250 AV board 070913

5229C 1.2

CH6_SUB+
CH6_SUB-

FB411 300R

C420
Tan 22uF/10V

C419 104

FB412 300R

J402
AV1-8.4-6G

SIG

GND

Title

Size Document Number Rev

A3

Date: Sheet of

14 20Saturday, March 01, 2008

AMP3.3V

AMP_PD

C412
104

U402

C409
Tan 22uF/10V

U405A
NJM2068M

-

+

8 4

SUB+12V

C403
104

C411
104

1

AMP3.3V

AMP3.3V

C410
104

ADATA2
ADATA0

ALRCK
ASCLK

DATA/SDA

CLOCK/SCL

AMCLK

EC402
10uF/25V

MUTE_HP_SUB

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16

R405 300R

R414
1K

Q400
DTC343TK

C402
104

R410
1K

100uF/16V

EC403

1

AMP3.3V

EC401

47uF/25V

C400
153

SUB+12VSUB-12V

SUB-12V

2
3

4

100uF/16V

EC404

C407 104

C408 104

U401
AAT3522IGY-3.08-200-T1

R416
150R

3

EC400
47uF/25V

RET

VI

GND

2

R409

1.5K

C405
100P

C413
104

64

NC

PWDN

SDO56

SDO78

MVO/DSD_CLK
TEST_MODE
VDD3.3
GND
NC
SDI78/DSD_6
SDI56/DSD_5
SDI34/DSD_4
SDI12/DSD_3
LRCKI/DSD_2
BICKI/DSD_1
VDD3.3
GND
NC
RESET
PLLB

SA

SDA

SCL

XTI

171819202122232425262728293031

MCLK

3

C

4.7K

BE

2

R403

122

C422

1

AMP3.3V

harman/kardon

Digital Lounge HS 250/230 Service Manual

Page 52 of 56

C425
104 X7R

AMP_TWARN

C423
104 X7R

CH1_L+
CH1_L­CH2_R+
CH2_R-

C426
104 X7R

C427
104 X7R

R433
10K

EAPD

C424

104 X7R

20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36

GNDR1
VREG11
VREG12
VL
CONFIG
PWRDN
TRI-STATE
FAULT
TWARN
INLA
INLB
INRA
INRB
VREG21
VREG22
VSIG1
VSIG2

U403

STA508

OUTPL2
OUTPL1

VCC1P
PGND1P
PGND1N

VCC1N

OUTNL2

OUTNL1
OUTPR2
OUTPR1

VCC2P
PGND2P
PGND2N

VCC2N
OUTNR2
OUTNR1

GNDS

L400

C435

15UH
R421

10R
C441

680pF NPO

C442
680pF NPO

R422
10R

L401
15UH

L402
15UH

R423
10R

C443
680pF NPO

C444
680pF NPO

R424
10R

L403
15UH

C447
104 X7R

R427

6.2R

R428

6.2R

C450
104 X7R

C451
104 X7R

R429

6.2R

R430

6.2R

C453
104 X7R

C448
104 X7R

C449
104 X7R

C465
104 X7R

C452
104 X7R

C458
Poly 0.47uF/NPO

C459
Poly 0.47uF/NPO

C461
102

C462
102

C463
102

C464
102

+34V

+34V

L+
L­R+
R-

1
2

1
2
3
4

CN403

L

2pin 8mm

CN405

4pin 4mm

1819

NCGNDREF

17

+34V

16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1

+34V

EC405
1000uF/50V

C433
105/50V

C434

104 X7R

105/50V

C436
104 X7R

L

1

iPod_Tx

iPod_Rx
IPOD_IN_R
IPOD_IN_L
iPod_Check

EC327 10UF/16V
EC328 10UF/16V

R356 100k

R393 100k

HS400

R

HEATSINK-E

2

C331 470p
R389 4.7k

U305A
NJM2068M

-

1

+

8 4

C332 470p
R398 4.7k

IPOD_12V

U305B
NJM2068M

-

7

+

8 4

IPOD_12V

2
3

6
5

R391 2.2k
R396 2.2k

EC325 220UF/16V
C336 223

R348 2.2k
R397 2.2k

C329 22p
R390 10k

1

IPOD_12V

C330 22p
R387 10k

7

U306A
NJM2068M

-

2

+

3

8 4

IPOD_12V

U306B
NJM2068M

-

6

+

5

8 4

IPOD_12V

R388
47k

R392 10k

R395 47k

R318 10k

EC324
47UF/25V

R400
3k

EC317
1uF/50V

EC326
1uF/50V

EC319
1uF/50V

Q312
DTC114EUA

C

E

3 2

IPOD_12V

+3.3V

C333
104

IPOD_IN_R1

A_TRN

IPOD_IN_L1

B

1

IPOD_12V

+3.3V

R399
3k

ESD309

EC321
100UF/25V

R338
549K

ESD307

ESD311

+12VON

+12VON

C323
104

iPod input

Accessory_Identify
+12VON
iPod_Tx
iPod_Rx
Accessory_Detect

ESD308

ESD310

iPod_check_in

J303
IPOD_DA1R018H91E

23

23

21

21

19

19

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

9

9

10

10

11

11

12

12

13

13

14

14

15

15

16

16

17

17

18

18

20

20

22

22

24

24

TOP VIEW

Title

Size Document Number Rev

A3

Date: Sheet of

HS250 AV board 070828

5229C 1.2

15 20Saturday, March 01, 2008

5

harman/kardon

Digital Lounge HS 250/230 Service Manual

Page 53 of 56

CN601

14
13
12
11
10
9

A

8
7
6
5
4

14pin 1.0mm

CN604

J

6pin 1.0mm

CN602

H

14pin 1.25mm

CN603

B

8pin 1.0mm

3
2
1

1
2
3
4
5
6

1
2
3
4
5
6
7
8
9
10
11
12
13
14

1
2
3
4
5
6
7
8

D D

C C

B B

A A

MCU_OFF
CLOCK/SCL
DATA/SDA
VFD_CS

IR

FRONT_LED

IR_IN
HP_DETECT

MIC_DETECT
MIC_IN

A+5V
VOL+

VOL­LED_CONTROL

HP_R
HP_L

MCU_MUTE

DP2
DM2

STANDBY
+12V

DC_GND

-12V

USB5V
+3.3V
A+5V

5VON

R608 2K

220uF/6.3V

USB5V
DM2

DP2

EC621

5VON

R650 300R N/A

R649 300R N/A

R651 300R N/A

M601

1

1

2

2

3

VCC

4

4

5 6

56

U602
RCIamp0514M

HP_DETECT
HP_L

HP_R

TP606
TP607
TP605

1

R655

4.7K

LED_CONTROL

-12V
MIC_DETECT
MIC_IN

TP603

DGND DGND

M602

10

10

9

9

8

GND

7

7

R645
0R
R646
0R

C611 56p

1

FB601 50R
FB602 50R
FB603

C612 56p

DM2
DP2

TP604

M603

1

50R

ESD601

DGND

4
3
1
2

4

TP608TP601

+5V
D­D+
GND

J601
USB-A-05

ESD602

7

GND

GND

5

ESD603

8

GND

GND

6

C633
104

J602

6
5
4
2

3
7
8
9
1

CKX-3.5-12-9P

3

VFD601
VFD33-1701I

1G 2G 3G

4G 5G 6G 7G 8G 9G 10G 11G 12G 13G 14G 15G
AAAAAAAAAAAAAA
5×7 5×7 5×7 5×7 5×7 5×7 5×7

BBBBBBBBBBBBB

F1F1LGND

DGND

VDISP

VDD

OSC

RESETCSCPDADO

TEST

1256789101112131415

AC_2 DATA/SDA AC_1

R668 0R

C623 N/A

R659 100R
R656 100R

C603 2.2uF

D605 1N4148
R636 20K

R657 100R
R606 100R

R607 100R

USB5V

EC620
47uF/16V

R637 6.2K

R669 N/A

C618 473

Layout note:

1. R668, R669 place colsed to Pin5, Pin6.

2. R667 place closed to DC/DC.

C620 39P

R667 N/A

C619 2.2uF

C621 N/A

C622 N/A

VOL+
MCU_OFF
IR

IR_IN
VOL­MCU_MUTE

STANDBY

CIG-VFD 14COLUMNS × 2LINES 5×7 DOT MATRI X

CLOCK/SCL
VFD_CS
+3.3V
+40V

C628
104

5VON

D601 1N4148

R602 15K

R604 4.7K

IR601
IR

R603 4.7K

R605
470R

VCC

GND

IR

321

RA2
RA3

RB0
MUTE

5VON

R601 4.7K

U601 EM78P156ELM-G

1
2
3
4
5
6
7
8
9

RA2
RA3
T0CKI
MCLK/VPP
VSS
RB0
RB1
RB2
RB3

C627 104

EC616 10uF/16V

2

5×75×7 5×7 5×7 5×7 5×7 5×7 5×7

C637 47uF/10V

RA1
RA0

OSC1/CLKIN

OSC2/CLKOUT

VDD

RB7
RB6
RB5
RB4

5VON

C607 104

C608 104

C635 104

5×7 5×7

+40v+3.3V

C636
104 100V

18
17
16
15
14
13
12
11
10

EC602
100uF/16V

16G 17G

5×7

5×7

5×7

5×7

5×7

5×7

5×7

5VON

R613 4.7K

R612 4.7K

R611 4.7K

C604

4.000MHZ

22P

5VON

C606
104

Y601

EC601
47uF/16V

C605
22P

RA0
RB6
RB5
RB4

1

ROW
A

5×75×7

ROW

B

B

5×75×7

F2

F2

48

49

C626
473

5

Title

HS250 FRONT PANEL: 2line VFD BOARD 070821

Size Document Number Rev

A3

Date: Sheet

4

3

2

3519C 1.3

17 21Monday, December 03, 2007

of

1

5

harman/kardon

Digital Lounge HS 250/230 Service Manual

Page 54 of 56

4

3

2

1

GND

GND

GND

GND

C630
104

V602 install hole

GND

V608 install hole

GND

V610

G

GND

GND

GND

GND

GND

GND

GND

GND

1234567891011

GND

GND

GND

GND

GND

GND

GND

GND

1234567891011

V614

G

A+5V5VON +12V

V601 install hole

GND

GND

GND

GND

GND

GND

GND

GND

1234567891011

D D

C C

K602 Open/close

1

2

34

K601 Standby

1

2

34

5VON

R609

4.7K

3

C

Q602
8050

BE

2

R614

R647

200R

200R

BLUE

123

AMBER

LED601

D602 1N4148

D603 1N4148

R610

4.7K

2

1

BE

Q603
8550

C

3

1

R615
510R

BLUE

123

AMBER

LED602

R648
510R

RB6
RA0
RB4
RB5
STANDBY

V607 install hole

GND

GND

GND

GND

GND

GND

GND

1234567891011

V604

V605

G

C634
104

GND

G

EC605 100uF/25V

L601
330UH

1 2

R653
200R

B B

+12V

R654

3.3R

R652
2K 1%

R661

3.3R

U604 MC34063ADG/MC34063EBD

R666
62K 1%

SWC

SWE

TCAP

GNDCOMP

1

2

3

C610
47P

45

8

DC

7

PK

6

VCC

EC606
100uF/63V

12

D606

1N5819 SS14

+40V

DC_GND

A+5V

U605 LM9022

1

SHUTDOWN

C624 105

2

BYPASS

3

+IN

R640 10k

R643 10k

R642 10k

4 5

C625
123

R644 2.2k

-IN VO1

VO2

GND

VDD

8

7

6

V603 install hole

GND

GND

GND

GND

GND

GND

1234567891011

V609 install hole

GND

GND

GND

GND

GND

GND

1234567891011

V615

G

A+5V5VON +12V A+5V

C629
104

EC603 33uF/10V

A+5V

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

EC617 10uF/16V

EC608 47uF/50V

DZ601

ZENER 6.2V 0.4W

EC607 47uF/50V

GND

GND

GND

GND

GND

GND

V606 install hole

GND

GND

GND

GND

GND

GND

GND

1234567891011

R639

R638

10K

100R

R641

R660

100R

10K

GND

GND

GND

AC_1

+40V

AC_2

GND

A A

Title

HS250 FRONT PANEL: 2line VFD BOARD 070809

5

Size Document Number Rev

A3

4

3

2

Date: Sheet

3519C 1.3

18 21Monday, December 03, 2007

1

of

5

harman/kardon

Digital Lounge HS 250/230 Service Manual

Page 55 of 56

4

3

2

1

A+5V A+5V

D D

VOLUME KNOB

W601

GND

VOL-

VOL+

1

2

1

234

C601 820P

5

C602 820P

VOL-

VOL+

J

A+5V

C C

CN605

6
5
4
3
2
1

6pin 1.0mm

DGND

A+5V
VOL+

VOL­LED_CONTROL

V611GV612

V613

G

G

Q601
8050

LED_CONTROL

R616

4.7k

3

C

BE

2

R617 4.7K
R618 4.7K

1

C614
104

BE

2

1

Q604
8550

C

3

R622
180R

LED603

LED

A+5V

R623
180R

LED604

LED

BE

2

1

Q605
8550

C

3

R624

R625

180R

180R

LED606

LED605

LED

LED

TP602

DGND

B B

A A

Title

HS250 FRONT PANEL: Volume board 070324

5

Size Document Number Rev

A3

4

3

2

Date: Sheet

3518C 1.1

19 21Monday, December 03, 2007

1

of

5

harman/kardon

Digital Lounge HS 250/230 Service Manual

Page 56 of 56

230/380VDC

R505
360K

1

R509

20

2

R503

15K

R508
10K

1

2

1

LF501
LCL303A

R518

620k1%

R516

680k1%

R515

680k1%

2

2

1

t

2

2

1

2

1

1

2

2

RZ501
5D-11

12

D502
ISL9R860PF2

D D

Q501

23

FQPF13N50C

1

R506

0.47

1

2

10

9

BD501
GBU806

1

1

2

R512

0.47

1

2

1

AC

AC

2

CY502
102/250VAC

2

CY501
102/250VAC

1

1

1

2

2

R507

R510

0.47

0.47

C502

105/400V

21

34

12

C546

151/1000V

12

D519
1N4148

7

3

2

6

T501

PQ3230/400UH

2

C C

B B

A A

2

L509
100

1

2

L510
100

1

VSS

VX

EC502
180U/450V

Z505
18V

PFC

1

2

2

F501
T3.15AL250V

2 1

CX503
224/275VAC

3

1

4

2

2

CX502
224/275VAC

R501
560K

CX501
334/275V

5

1

C505

2

103/603V

D501
1N4148

12

2

2

R513
10K

C504

1

224/25V

1

1

C503
473/25V

1

1

High Voltage! Risk of electric shook!

LF502
LCL303A

1

2

1

R502
560K

1

3

2

4

1

2

1

2

RZ503
10K471

1

2

CN501
AC100-240V

1

2

U501
FAN7528MX

1

Inv

2

Ea_0

3

Mult

4

CS

1

R504
20K

R562
3M

R566
150K

2

2

R564
3M

1

2

R563
3M

2

C532 473

2

R567 27K
C533 331

C536
102/25V

1

R511

13K 1%

Vcc

Out

Gnd

I_det

2

C510
47P/25V

2

R565
3M

1

1

2

2

2

1

R574

R573

3.3M

3.3M

1

1

1

2

1

2

EC504
47U/50V

2

1

12

R520
150K

R529
150K

R514
150k

EC501
47U/50V

2

1

C511
105/50V

1

2

2

1

2

1

12

1
2
3
4

EC505

47U/50V

R587

10K
C547

104

Q503
AF4835P

CY505
471/250VAC

3

S502
35*30*49mm

1

1

8
7
6
5

U506
FAN7602

2

1

12

3

1
2
3
4

12

1

R578
10

5678

1

R521
100K/1W

2

1

8
7
6
5

12

4

3

8
7
6
5

2

2

R568
22

1

12

3

S501
122*45*51mm

4

R530

C515

68K/1W

103/630VDC

2

R569
47

1

R591
10

1

2

2

1

R571
10K

2

2

R577

1

10K

1

2

2

R522
100

D505
FR104

12

D503
FR104

2

2 1

1

2

S505
16*12*51MM

1 2

VSS_1

2 1

Z506
18V

EC503
47U/50V

12

3

2

2

1

1

2

2

Z501
18V

R517
100

3

1

2

1

12

23

Q509
FQA11N90C

12
2

R572

1

0.3/3W

1

2

12

S506
16*12*51MM

1 2

12

3

3

Q510
KTC8050

2

C

3

BE

1

2

R580
470

BE

1

1

C

3

Q511
KTC8550

1

R570
1K/0.25W

1

1

R576

4.7K

2

321

Z502

2

18V

2 1

1

1

R524

R526

10K

200

230/380VDC

C509

1

472/630V

2

12

D504

HER208G

R519
10

1

2

2365

2365

U503
KA5L0380

1

4

4

FB501

4.7UH

1

1

C507
473/50V

2

1

2

12

4

R558
11M/1W

1

2

1

2

CY504

102/250VAC
T503
BCK-ER4203

D508
HER208G

3

12
13

618
1

17
16
15

8

D506

CY503

FR104

102/250VAC

1

2

U505
R589

10

R525
470

PC817C

14
2

3

U515

PC817C

14
2

3

1

C534
103/25V

2

U504
PC817C

T502
BCK-ER2869

9

5

7

3

118

2

1 2

3

1

2

U502
PC817C

3

S503
16*12*51MM

12

3

3

14
2

Q507
MMBT3904

12

11

10

13

14

17

16
15

14
2

S504

16*12*51MM

1 2

12

3

3

D516
MBRF20200CT

D515
MBRF20200CT

2

R548
100/1W

2

D512
FR104

12

D511
FR104

3

D510
FYPF2010DN

1 2

2

2

D514
21DQ10

D513
21DQ06

2

1

3

2

S507

C

R536
470

R535
1K

12

3

3

3

3

1

2

C520
471/1KV

R547

4.7K

1

R546
1K

1

Z504
20V

21

1

3

R541
2K

1

BE

1

C517
104

12

12

EC513

470U/16V

EC512

470U/25V

12

EC509

470U/25V

21

2

1

C516

224

1

2

1

U507
AZ431AZ 0.5%

21

21

1

3

2

2

EC515

470U/25V

12

EC507

2200U/16V

R533

3.6K

2

3
4
5
6 7

3

2

2

D34

3
4
5678

3

EC518

1500U/50V

C519
102

1

R544
1K

1

1

U509
AZ431AZ 0.5%

1

12

12

12

12

12

EC508

2200U/16V

1

2

1

112

112

10

10

9

9

8

12

2

C518
104

1

2

R542
1K

2

R540

4.7K

1

L506
LH0608-22UH

1

L505
LH0608-22UH

1

L504
LH0608-22UH

1

1

L503
LH0608-22UH

1

L502
L0620-050

R534

3.6K/1%

1

R531
3K/1%

D1

112

3

3

10

4

4

5

5678

6 7

9

EC517
1000U/50V

2

EC514

470U/16V

112
10
9
8

12

VSS_1

R543
3K/1%

1

2

2

2

2

2

2

2

R581
330

R582
330

R583
330

G503

1 2

1

EC516
470U/25V

12

EC511
470U/25V

EC510

470U/25V

12

EC506

2200U/10V

2

2

2

3

3

12

L507

L0620-050

R590

10K

C535

474/50V

G502

1 2

2

1

1

2

2

12

12

12

12

1

1

1

3

3

12

EC519
1000U/50V

12

D509
21DQ10

G501

1 2

2

EC527
1000U/50V

2

R545
39K/1%

1

321

R537
2K

2

Q504
MMBT3904

3

3

12

12

1

2

2

Q508
AF4835P

1

R553
470

VX

2 1

Q506
AF2302N

R538
1K

Q505
MMBT3906

4

3

2

R596
10K

1

1

2

2

R579
10K

Z503
20V

2

1

5678

2

1

1

1

R597
10K

1 2

R549
10K

LF503
L-471

132

U514
KA78R12

1 2

Vin Vout

GND

4

3

4

1

2

3

4

4

GND

1 2

Vin Vout

U508
KA78R05

2 3

3

Vin Vout

1

R554
1K

2

1

2 3

1

R555
1K

2

D517
SK53C

12

U511
KA278R05CTU

Vin Vout

GND

4

3

4

2

1

2

R532
10K

2

C531
104/50V

1

4

2

R595

470/3W

Q514
2SC5866

R557

C528

RES2

104

2

R556

4.7K

1

GND

1

U513
KA7912

1

U512
KA7812

1 3

Vin Vout

L508
L-200A(20UH)

1

EC522

2200U/10V

EC520

2200U/10V

1

R552

4.7K

1

2

R560

4.7K

2

34VDC/5A

CN506

2
1

D520
1N4148

12

1

2

1

R592
20K

2
3

1

1

2

R593
20K

R598
1K

1

2

12

EC528

BE

1

2

Q513
2SA1037AKR

C

3

2

2

R594
20K

68U/50V

1

放电电路

A+12V

1

1

1

12

2

2

2

EC526
470U/25V

1

2

1 2

EC525
470U/25V

C530

C545

C529

104

104

104

1

2

C527
104

GND

GND

1

2

C544
104

S+5V

A-12V

1

1

1

2

2

2

C542

C526

EC524

1 2

470U/25V

C543

104

104

104

GND

VON+12V

2

2

12

GND

2

EC523
470U/25V

2

2

1

12

C524

2

104

1

C523

2

104

1 2

1

C525
104

1

1

RZ502
JL16 300

2

2

1

U510
AZ1117H-3.3

3 2

Vin Vout

Vout

GND

1

1

C541
104

GND

USB5V/2A

1

1

1

2

R585

R584

2

330

2

R551

1

1K

4

EC521

470U/25V

C539

R586

2

330

104

330

2

C538

C522

1

104

104

A+5V

3.3V

1

1

12

2

2

C521

C548

C537

104

104

104

VON+5V

Title

HS200 POWER SUPPLY 3521C

Size Document Number Rev

xyz V2.3

A2

Date: Sheet

1

Main Transformer EER42
Lp:650uh
N_P: 46T 10*0.21mm*23T*2
N_15v: 4T 0.4mm*4T
N_34V_1: 10T 10*0.21mm*10T
N_34V_2: 10T 10*0.21mm*10T

T501:
L-PQ3230-01
LP:400uH
N1: 52T 20*0.21mm*52T
N2: 6T 0.4mm*4T

STANDBY
+12V

-12V
USB5V
USB5V

+3.3V
A+5V
5VON

A+5V

USB5V

+12V
S+5V

A+5V

-12V
+12V

12VON
5VON
+3.3V

1

2

1

14
13
12
11
10

9
8
7
6
5
4
3
2
1

12
11
10

11Wednesday, August 22, 2007

CN503
14PIN

CN504
12pin 1.25mm

9
8
7
6
5
4
3
2
1

CN505

9pin 1.25mm

1
2
3
4
5
6
7
8
9

of
