2-TIER ZONE 3
RELIABLE
99.997%
EASY CLEAN
PATENTED DESIGN
PATENT

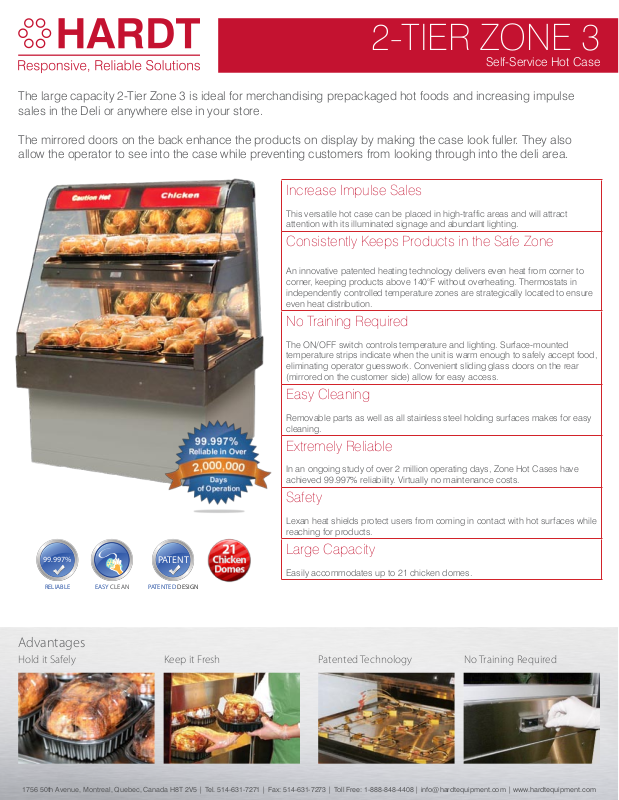

Self-Service Hot Case
The large capacity 2-Tier Zone 3 is ideal for merchandising prepackaged hot foods and increasing impulse
sales in the Deli or anywhere else in your store.
The mirrored doors on the back enhance the products on display by making the case look fuller. They also
allow the operator to see into the case while preventing customers from looking through into the deli area.
Increase Impulse Sales
This versatile hot case can be placed in high-traffic areas and will attract
attention with its illuminated signage and abundant lighting.
Consistently Keeps Products in the Safe Zone
An innovative patented heating technology delivers even heat from corner to
corner, keeping products above 140°F without overheating. Thermostats in
independently controlled temperature zones are strategically located to ensure
even heat distribution.
No Training Required
The ON/OFF switch controls temperature and lighting. Surface-mounted
temperature strips indicate when the unit is warm enough to safely accept food,
eliminating operator guesswork. Convenient sliding glass doors on the rear
(mirrored on the customer side) allow for easy access.
Easy Cleaning
Removable parts as well as all stainless steel holding surfaces makes for easy
cleaning.
Extremely Reliable
In an ongoing study of over 2 million operating days, Zone Hot Cases have
achieved 99.997% reliability. Virtually no maintenance costs.
Safety
Lexan heat shields protect users from coming in contact with hot surfaces while
reaching for products.
Large Capacity
Easily accommodates up to 21 chicken domes.
Advantages
Hold it Safely Keep it Fresh Patented Technology No Training Required
1756 50th Avenue, Montreal, Quebec, Canada H8T 2V5 | Tel. 514-631-7271 | Fax: 514-631-7273 | Toll Free: 1-888-848-4408 | info@hardtequipment.com | www.hardtequipment.com
2-TIER ZONE 3 Specifications
39
991[ ]
X
36
914[ ]
TYP.
10
254[ ]
20-1/2
520[ ]
22-1/2
571,8[ ]
37
939,8[ ]
52
1321,1[ ]
Y
Z
Z
Supply
Voltage
Configuration
Peak Power
Consumption
208/120 VAC
All 100 Watt
Lamps
2253 Watts
240/120 VAC
All 100 Watt
Lamps
2636 Watts
ref 99-9597-2
NotesElectrical Configuration
Warranty
2 Years Parts & Labor
Other Available Sizes
Capacity: 21 chicken domes or equivalent•
Shipping weight: Approx. 406 lbs•
Electrical supply may be either 208/120VAC or •
240/120VAC having a single phase, 50/60 Hz,4-wire
supply (2-hot, 1-neutral, 1-ground) equipped with a
2-pole circuit breaker.
Options
Bumper, base and backlit signage customizable•
120VAC 15A GFCI accessory receptacle in base*•
* Requires a designated permanent electrical supply.
Many Styles & Sizes of Hot Cases Available
3 Tier In-Line
Island
Combo
2-Tier Zone 4
For the complete list of Zone products, please visit our web site: hardtequipment.com
Hardt improves its products continuously and reserves the right to change specifications without notice. ©HARDT 2010
W51˝xD36˝
