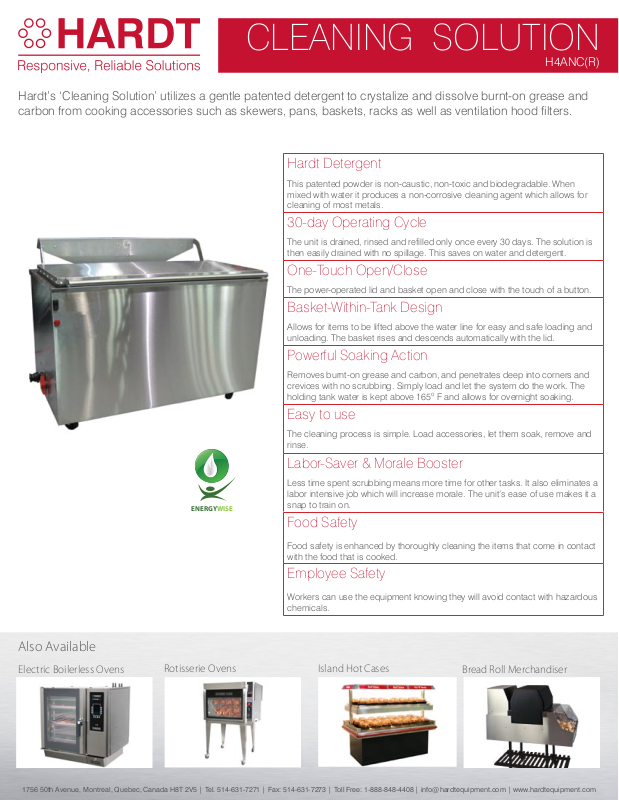

Page 1
CLEANING SOLUTION
ENERGYWISE
H4ANC(R)
Hardt’s ‘Cleaning Solution’ utilizes a gentle patented detergent to crystalize and dissolve burnt-on grease and
carbon from cooking accessories such as skewers, pans, baskets, racks as well as ventilation hood filters.
Hardt Detergent
This patented powder is non-caustic, non-toxic and biodegradable. When
mixed with water it produces a non-corrosive cleaning agent which allows for
cleaning of most metals.
30-day Operating Cycle
The unit is drained, rinsed and refilled only once every 30 days. The solution is
then easily drained with no spillage. This saves on water and detergent.
One-Touch Open/Close
The power-operated lid and basket open and close with the touch of a button.
Basket-Within-Tank Design
Allows for items to be lifted above the water line for easy and safe loading and
unloading. The basket rises and descends automatically with the lid.
Also Available
Powerful Soaking Action
Removes burnt-on grease and carbon, and penetrates deep into corners and
crevices with no scrubbing. Simply load and let the system do the work. The
holding tank water is kept above 165
o
F and allows for overnight soaking.
Easy to use
The cleaning process is simple. Load accessories, let them soak, remove and
rinse.
Labor-Saver & Morale Booster
Less time spent scrubbing means more time for other tasks. It also eliminates a
labor intensive job which will increase morale. The unit’s ease of use makes it a
snap to train on.
Food Safety
Food safety is enhanced by thoroughly cleaning the items that come in contact
with the food that is cooked.
Employee Safety
Workers can use the equipment knowing they will avoid contact with hazardous
chemicals.
Electric Boilerless Ovens
1756 50th Avenue, Montreal, Quebec, Canada H8T 2V5 | Tel. 514-631-7271 | Fax: 514-631-7273 | Toll Free: 1-888-848-4408 | [email protected] | www.hardtequipment.com
Rotisserie Ovens Island Hot Cases
Bread Roll Merchandiser
Page 2
CLEANING SOLUTION Specifications
D
X
Z
50-1/2
W
D
E
36-1/2
W
D
E
Y
40-3/4
34-3/4
34
MAX
59
Connections
X
Position
Y
Position
Z
Position
Electrical (E)
13
5
6
Water Inlet (W) Optional
2 ⁄
4 4 ⁄2 24
3
1
Drain (D)
2
1
⁄2
⁄
4
3
-2 ⁄4
3
31
Description
120 VAC, 20A, 60Hz, SINGLE PHASE
8 FT POWER CORD
WITH NEMA 5-20 PLUG INCLUDED
STANDARD 1” WASHING MACHINE
HOSE CONNECTION
ø1
1
⁄2
ID x 8 FT LONG REMOVABLE
HOSE INCLUDED
allow minimum 12-18
inches clearance on this
side for access to rear
tank
ref 99-10062-3
Installation
Notes
Water capacity is 67 gallons (255 L)•
Shipping weight is 610 lbs (277 Kg)•
Basket Internal Dimensions are: 44 •
Basket capacity is not to exceed 125 lbs (57Kg)•
A floor drain should be located within 8 ft from the left side of the tank (position D) •
Easily accommodate a wide range of cooking utensils (such as rotisserie skewers and baskets) in its long, low basket.•
If optional water inlet is purchased (P/N -20506): •
-A plumber should install a standard washing machine spigot on the wall close to the rear-left corner of the
tank. This allows for a standard 1”x 6 ft long hose to be connected between the spigot and the tank
-A 4 ft quick disconnect water hose (P/N 5124) may also be purchased that uses 1/2 -NPT threaded
connections
-The water supply may be cold or hot, the colder the water, the longer will be the initial heat up. Hot water is
preferred
For the complete list of Hardt products, please visit our web site: hardtequipment.com
Hardt improves its products continuously and reserves the right to change specifications without notice. ©HARDT 2010
1
/4 ” L x 17 1/2 ” W x
3
/4” H
