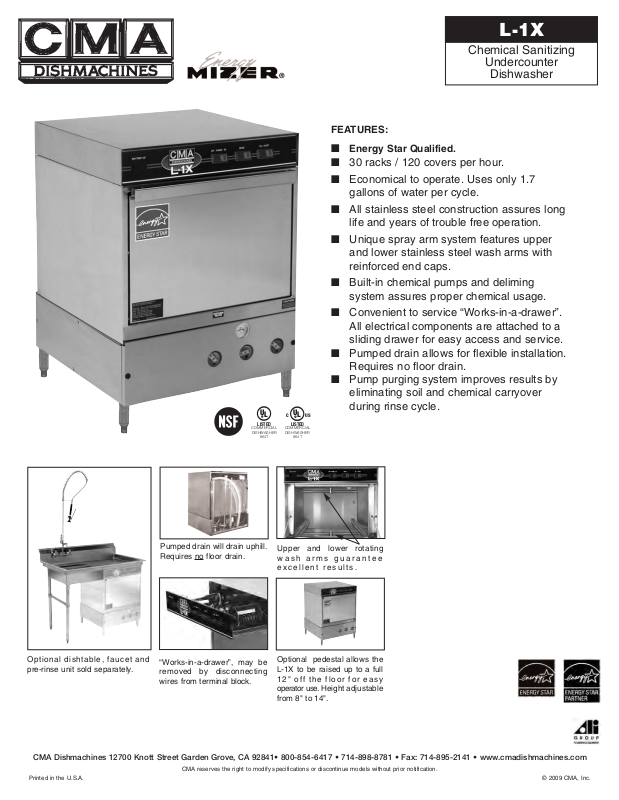

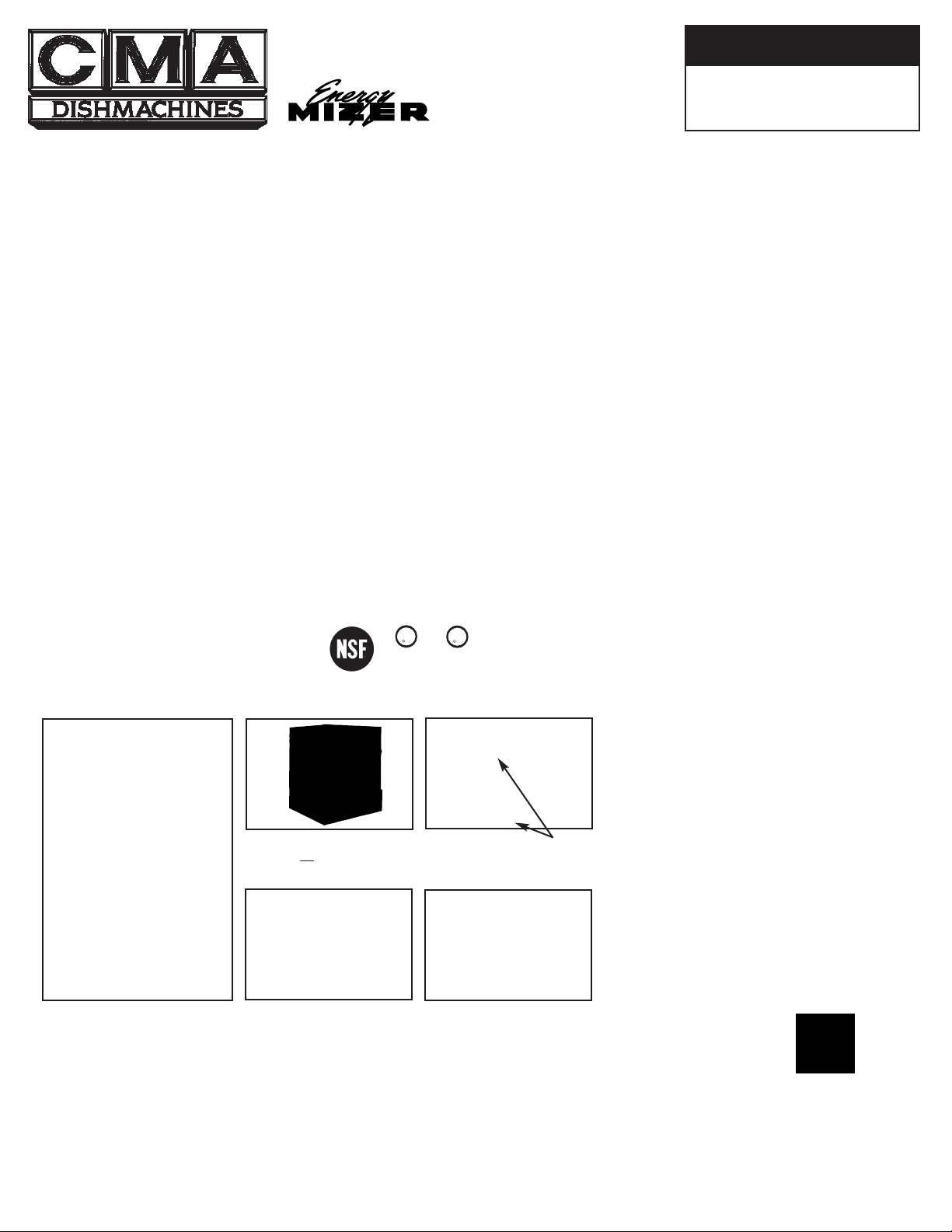

Page 1
U
L
R
LISTED
COMMERCIAL
DISHWASHER
864T
U
L
R
LISTED
COMMERCIAL
DISHWASHER
864T
US
C
L-1X
Chemical Sanitizing
Undercounter
®
FEATURES:
■ Energy Star Qualified.
■ 30 racks / 120 covers per hour.
■ Economical to operate. Uses only 1.7
gallons of water per cycle.
■ All stainless steel construction assures long
life and years of trouble free operation.
■ Unique spray arm system features upper
and lower stainless steel wash arms with
reinforced end caps.
■ Built-in chemical pumps and deliming
system assures proper chemical usage.
■ Convenient to service “Works-in-a-drawer”.
All electrical components are attached to a
sliding drawer for easy access and service.
■ Pumped drain allows for flexible installation.
Requires no floor drain.
■ Pump purging system improves results by
eliminating soil and chemical carryover
during rinse cycle.
Dishwasher
Pumped drain will drain uphill.
Requires
Optional dishtable, faucet and
pre-rinse unit sold separately.
CMA Dishmachines 12700 Knott Street Garden Grove, CA 92841• 800-854-6417 • 714-898-8781 • Fax: 714-895-2141 • www.cmadishmachines.com
Printed in the U.S.A. © 2009 CMA, Inc.
orks-in-a-drawer”, may be
“W
removed by disconnecting
wires from terminal block.
floor drain.
no
reserves the right to modify specifications or discontinue models without prior notification.
CMA
Upper and lower rotating
wash arms guarantee
excellent results.
Optional pedestal allows the
L-1X to be raised up to a full
f the floor for easy
12" of
operator use.Height adjustable
from 8" to 14".
Page 2
L-1X
Chemical Sanitizing
Undercounter
®
ARNING: Plumbing connections must be made by a qualified service company who will comply with all available Federal, State, and Local Health,
W
Plumbing and Safety codes.
lectrical and plumbing connections
WARNING:
need to be made by a qualified service person who
w
Local Health, Electrical, Plumbing and Safety
codes.
E
ill comply with all available Federal, State, and

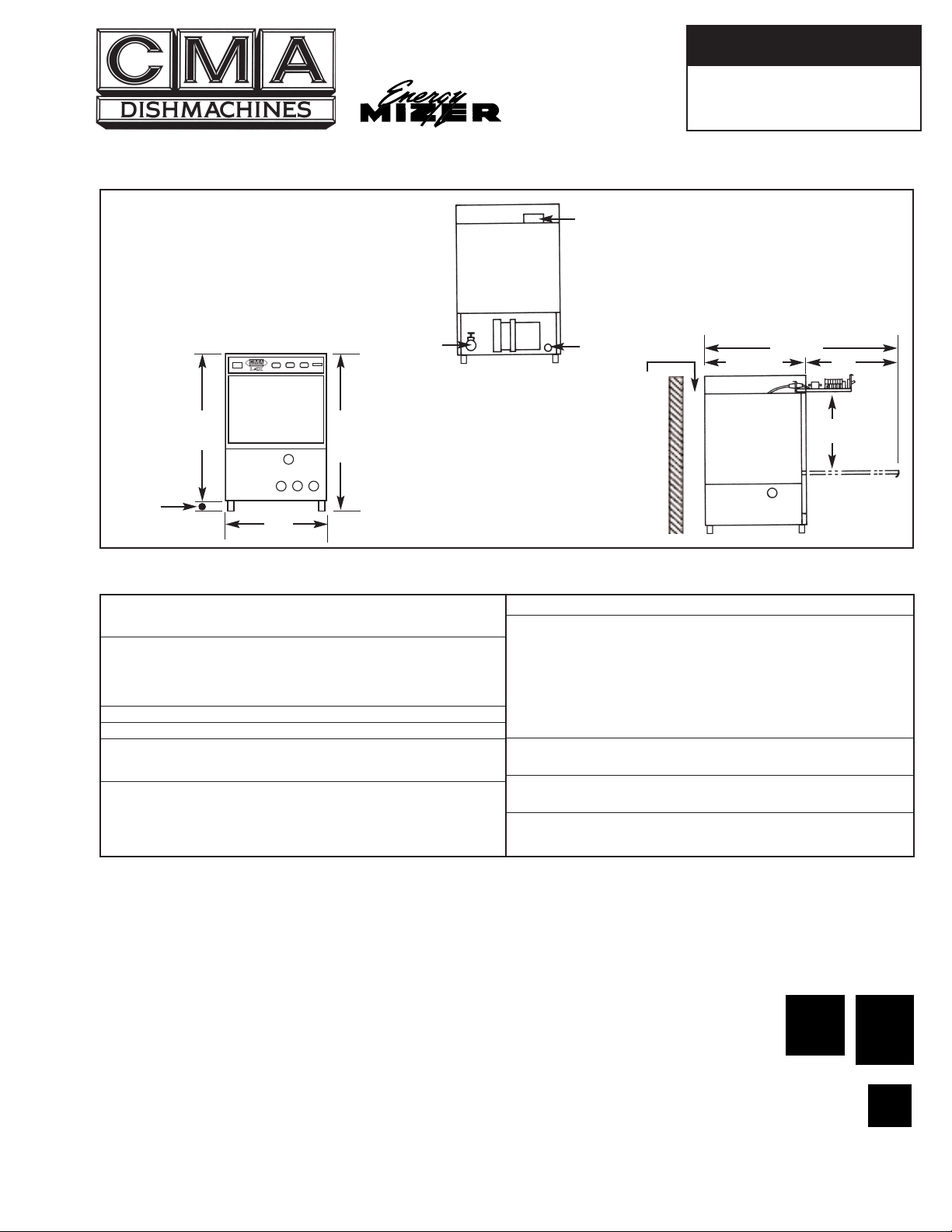

Electrical Hook-Up
REAR
VIEW
Dishwasher
FRONT
VIEW
1/2" Water
Inlet
30"
34"
35" with 4" Legs
4" LEGS
INCLUDED
24"
Specifications:
MODEL L-1X USA METRIC
OPERATING CAPACITY
RACKS PER HOUR
(NSF RATED) 30 30
OPERATING CYCLE
WASH TIME-SEC 57 57
RINSE TIME-SEC 48 48
DWELL/PURGE-SEC 15 15
TOTAL CYCLE TIME 120 120
WASH TANK CAPACITY 1.7 GAL. (6.43 L)
WASH PUMP CAPACITY 35 GPM (132 LPM)
OPERATING TEMPERATURE
REQUIRED 120°F (49°C)
RECOMMENDED 140°F (60°C)
WATER CONSUMPTION
PER RACK 1.7 GAL. (6.43 L)
PER HOUR 40.8 GPH (154 LPH)
WATER INLET 1/2" DRAIN 1" -
LEFT
VIEW
1" Drain
23-1/2"
38-1/2"
15"
1-1/2" Minimum
Clearance
12-1/8"
USA METRIC
WASH PUMP MOTORS HP 11
DIMENSIONS
DEPTH 23-1/2" (59cm)
WIDTH 24" (61cm)
HEIGHT 30" (76.2cm)
HEIGHT (WITH 4" LEGS) 34-35 " (86.3-88.9cm)
MAXIMUM CLEARANCE
HEIGHT FOR DISHES 12-1/8" (31cm)
STANDARD DISHRACK 11
DIMENSIONS 19-3/4"X19-3/4" (50X50cm)
ELECTRICAL RATING VOLTS AMPS
115 16
SHIPPING WEIGHT
APPROXIMATE 190# (86kg)
Summary Specifications: Model L-1X
CMA Energy Mizer model L-1X low temperature undercounter chemical sanitizing commercial dishwasher meets NSF, UL and CUL
sanitation and construction standards WITHOUT the use of BOOSTER or TANK HEATERS. The model L-1X is constructed
entire ly of stainles s steel . Each unit automatic ally wa shes, r inses a nd sa ni tizes f ood s er vice ut ensils in st an dard
19-3/4" x 19-3/4" racks. Unit comes standard with upper and lower stainless steel wash arms. The L-1X incorporates a pump
purging system that improves results by eliminating soil and chemical carryover during rinse cycle.
Available Options
n Sustainer Heater
n Sanitizer Alarm
n CMA Temp-Sure
TM
(Self contained 12kW heater)
n Stainless Steel Legs 6" (set of 4)
n Stainless Steel Pedestal (Raises machine 8"-14" off the floor)
n 48" Undercounter dishtable with Pre-Rinse
n Alternative electrical available for export
CMA Dishmachines 12700 Knott Street Garden Grove, CA 92841• 800-854-6417 • 714-898-8781 • Fax: 714-895-2141 • www.cmadishmachines.com
Printed in the U.S.A. © 2009 CMA, Inc.
CMA reserves the right to modify specifications or discontinue models without prior notification.
