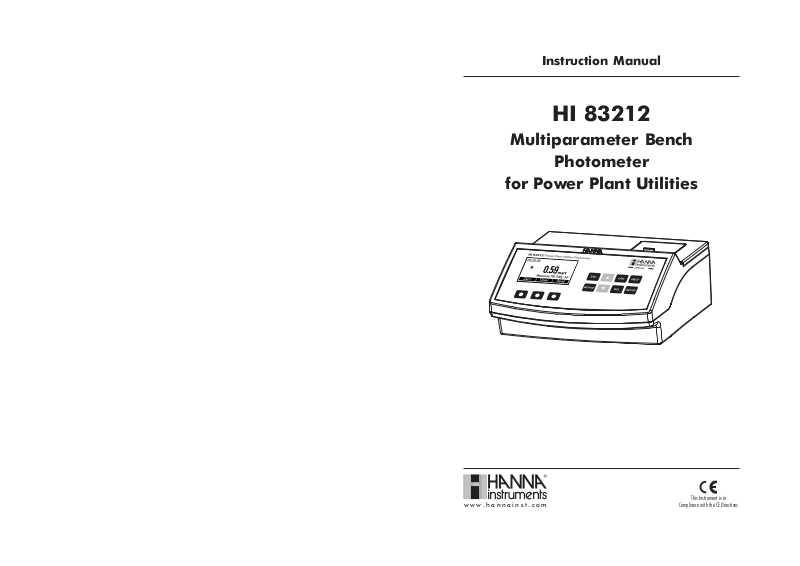

Hanna Instruments HI 83212 User Manual
Instruction Manual
HI 83212
Multiparameter Bench
Photometer
for Power Plant Utilities
www.hannainst.com
This Instrument is in
Compliance with the CE Directives
1
Dear Customer,
Thank you for choosing a Hanna product. Please read this instruction manual carefully before using the
instrument. This manual will provide you with the necessary information for the correct use of the
instrument. If you need additional technical information, do not hesitate to e-mail us at tech@hannainst.com.
This instrument is in compliance with directives.
TABLE OF CONTENTS
PRELIMINARY EXAMINATION ............................................. 3
ABBREVIATIONS ............................................................... 3
GENERAL DESCRIPTION ..................................................... 3
SPECIFICATIONS .............................................................. 4
PRECISION AND ACCURACY ............................................... 4
PRINCIPLE OF OPERATION ................................................ 4
FUNCTIONAL DESCRIPTION ............................................... 6
NEED TO KNOW ............................................................... 7
TIPS FOR AN ACCURATE MEASUREMENT ........................... 8
HEALTH & SAFETY ..........................................................11
METHOD REFERENCE TABLE ............................................. 11
OPERATIONAL GUIDE ....................................................... 12
SETUP ........................................................................... 14
HELP MODE ................................................................... 16
AMMONIA MR ................................................................ 17
AMMONIA LR .................................................................19
FREE CHLORINE ............................................................. 21
TOTAL CHLORINE ............................................................ 24
COPPER HR.................................................................... 27
COPPER LR ....................................................................29
HYDRAZINE .................................................................... 31
MOLYBDENUM ............................................................... 33
PHOSPHATE HR ..............................................................36
PHOSPHATE LR ...............................................................38
PHOSPHORUS ............................................................... 40
SILICA ...........................................................................42
SILVER .......................................................................... 45
ERRORS AND WARNINGS ................................................. 48
DATA MANAGEMENT ........................................................ 49
STANDARD METHODS ...................................................... 49
ACCESSORIES ................................................................50
WARRANTY ....................................................................51
HANNA LITERATURE ........................................................ 51
PRELIMINARY EXAMINATION
Please examine this product carefully. Make sure that the instrument is not damaged. If any damage
occurred during shipment, please notify your Dealer.
Each Meter is supplied complete with:
• Two Sample Cuvettes and Caps
• Cloth for wiping cuvettes (4 pcs)
• Scissors
• AC/DC Power Adapter
• Instruction Manual
Note: Save all packing material until you are sure that the instrument works correctly. Any defective item
must be returned in its original packing with the supplied accessories.
ABBREVIATIONS
°C: degree Celsius
EPA: US Environmental Protection Agency
°F: degree Fahrenheit
g/L: grams per liter (ppt)
HR: high range
LR: low range
mg/L: milligrams per liter (ppm)
mL: milliliter
MR: medium range
µg/L: micrograms per liter (ppb)
PAN: 1-(2-pyridylazo)-2-naphtol
TPTZ: 2,4,6-tri-(2-pyridyl)-1,3,5-triazine
All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of the copyright owner, Hanna
Instruments Inc., Woonsocket, Rhode Island, 02895 , USA.
2 3
GENERAL DESCRIPTION
HI 83212 is a multiparameter bench photometer dedicated for Power Plant Utilities. It can measure 13
different methods using specific liquid or powder reagents. The amount of reagent is precisely dosed to
ensure maximum reproducibility.
HI 83212 bench photometer can be connected to a PC via an USB cable. The optional HI 92000
Windows® Compatible Software helps users manage all their results.
SPECIFICATIONS
Light Life Life of the instrument
Light Detector Silicon Photocell
Environment 0 to 50°C (32 to 122°F);
max 90% RH non-condensing
Power Supply external 12 Vdc power adapter
built-in rechargeable battery
Dimensions 235 x 200 x 110 mm (9.2 x 7.87 x 4.33")
Weight 0.9 Kg
For specifications related to each method (e.g. range, precision, etc.) refer to the related measurement
section.
PRECISION AND ACCURACY
Precision is how closely repeated measurements agree
with each other. Precision is usually expressed as
standard deviation (SD).
Accuracy is defined as the nearness of a test result to
the true value.
Although good precision suggests good accuracy, precise
results can be inaccurate. The figure explains these
definitions.
For each method, the precision is expressed in the
related measurement section as standard deviation
at a specific concentration value of the analite. The
standard deviation is obtained with a single instrument
using a representative lot of reagents.
PRINCIPLE OF OPERATION
Absorption of Light is a typical phenomenon of interaction between electromagnetic radiation and matter.
When a light beam crosses a substance, some of the radiation may be absorbed by atoms, molecules or
crystal lattices.
If pure absorption occurs, the fraction of light absorbed depends both on the optical path length through the
matter and on the physical-chemical characteristics of substance according to the Lambert-Beer Law:
-log I/Io = ελ c d
or
A = ελ c d
Where:
-log I/I
Therefore, the concentration "c" can be calculated from the absorbance of the substance as the other factors
are known.
Photometric chemical analysis is based on the possibility to develop an absorbing compound from a specific
chemical reaction between sample and reagents.
Given that the absorption of a compound strictly depends on the wavelength of the incident light beam, a
narrow spectral bandwidth should be selected as well as a proper central wavelength to optimize measurements.
The optical system of HI 83212 is based on special subminiature tungsten lamps and narrow-band
interference filters to guarantee both high performance and reliable results.
Four measuring channels allow a wide range of tests.
A microprocessor controlled special tungsten lamp emits radiation which is first optically conditioned and beamed
to the sample contained in the cuvette. The optical path is fixed by the diameter of the cuvette. Then the light
is spectrally filtered to a narrow spectral bandwidth, to obtain a light beam of intensity -Io- or -I-.
The photoelectric cell collects the radiation -I- that is not absorbed by the sample and converts it into
an electric current, producing a potential in the mV range.
The microprocessor uses this potential to convert the incoming value into the desired measuring unit and to
display it on the LCD.
The measurement process is carried out in two phases: first the meter is zeroed and then the actual
measurement is performed.
The cuvette has a very important role because it is an optical element and thus requires particular attention. It
is important that both the measurement and the calibration (zeroing) cuvette are optically identical to provide the
same measurement conditions. Most of methods use the same cuvette for both, so it is important that
measurements are taken at the same optical point. The instrument and the cuvette cap have special marks
that must be aligned in order to obtain better reproducibility.
The surface of the cuvette must be clean and not scratched. This is to avoid measurement interference due to
unwanted reflection and absorption of light. It is recommended not to touch the cuvette walls with hands.
Furthermore, in order to maintain the same conditions during the zeroing and the measurement phases,
it is necessary to close the cuvette to prevent any contamination.
=Absorbance (A)
o
Io=intensity of incident light beam
I =intensity of light beam after absorption
ελ=molar extinction coefficient at wavelength λ
c =molar concentration of the substance
d =optical path through the substance
Instrument block diagram (optical layout)
4 5
FUNCTIONAL DESCRIPTION
KEYPAD DESCRIPTION
INSTRUMENT DESCRIPTION
The keypad contains 8 direct keys and 3 functional keys with the following functions:
Press to perform the function displayed above it. The functions are screen related.
Press to exit the current screen.
Press to access the select method menu.
Press to move up in a menu or a help screen, to increment a set value, to access second level
functions.
Press to move down in a menu or a help screen, to decrement a set value, to access second
level functions.
Press to log the current reading.
Press to recall the log.
Press to display the help screen.
Press to access the setup screen.
NEED TO KNOW
1) Cuvette Lid
2) Liquid Crystal Display (LCD).
3) Splash proof keypad.
4) ON/OFF power switch
5) Power input connector
6) USB connector
HI 83212 has a powerful interactive user support that assists the user during the analysis process.
Each step in the measurement process is help supported. A tutorial mode is available in the Setup Menu.
6 7
TIPS FOR AN ACCURATE MEASUREMENT
The instructions listed below should be carefully followed during testing to ensure most accurate results.
• Color or suspended matter in large amounts may cause interference, they should be removed by
treatment with active carbon and filtration.
• Ensure the cuvette is filled correctly: the liquid in the cuvette forms a convexity on the top; the bottom
of this convexity must be at the same level of the 10 mL mark.
COLLECTING AND MEASURING SAMPLES
• In order to measure exactly 0.5 mL of reagent with the 1 mL syringe:
(a) push the plunger completely into the syringe and insert the tip into the solution.
(b) pull the plunger up until the lower edge of the seal is exactly on the 0.0 mL mark.
(c) take out the syringe and clean the outside of the syringe tip. Be sure that no drops are hanging
on the tip of the syringe, if so eliminate them. Then, keeping the syringe in vertical position above
the cuvette, push the plunger down into the syringe until the lower edge of the seal is exactly on
the 0.5 mL mark. Now the exact amount of 0.5 mL has been added to the cuvette, even if the
tip still contains some solution.
USING LIQUID AND POWDER REAGENTS
• Proper use of the dropper:
(a) for reproducible results, tap the dropper on the table for several times and wipe the outside of the
dropper tip with a cloth.
(b) always keep the dropper bottle in a vertical position while dosing the reagent.
(a) (b)
• Proper use of the powder reagent packet:
(a) use scissors to open the powder packet;
(b) push the edges of the packet to form a spout;
(c) pour out the content of the packet.
(c)(a) (b)
USING CUVETTES
• Proper mixing of the cuvette is done by shaking the cuvette, moving the cuvette up and down. The
(c)(a) (b)
movement may be gentle or vigorous. This mixing method is indicated with “shake gently” or “shake
vigorously”, and one of the following icons:
shake gently shake vigorously
8 9
Pay attention to push the cuvette completely down in the holder.
HEALTH & SAFETY
The chemicals contained in the reagent kits may be hazardous if improperly handled. Read the
Material Safety Data Sheet (MSDS) before performing tests.
Safety equipment: Wear suitable eye protection and clothing when required, and follow instructions carefully.
Reagent spills: If a reagent spill occurs, wipe up immediately and rinse with plenty of water.
If reagent contacts skin, rinse the affected area thoroughly with water. Avoid breathing released vapors.
METHOD REFERENCE TABLE
• In order to avoid reagent leaking and to obtain more accurate measurements, close the cuvette first with the supplied HDPE plastic stopper
and then the black cap.
• Whenever the cuvette is placed into the measurement cell, it must be dry
outside, and free of fingerprints, oil or dirt. Wipe it thoroughly with
HI 731318 or a lint-free cloth prior to insertion.
• Shaking the cuvette can generate bubbles in the sample, causing higher
readings. To obtain accurate measurements, remove such bubbles by
swirling or by gently tapping the cuvette.
• Do not let the reacted sample stand too long after reagent is added, or
accuracy will be lost.
• It is possible to take multiple readings in a row, but it is recommended to
take a new zero reading for each sample and to use the same cuvette for
zeroing and measurement when possible (for most precise results follow the
measurement procedures carefully).
• Discard the sample immediately after the reading is taken, or the glass might become permanently
stained.
• All the reaction times reported in this manual are at 20°C (68°F). As a general rule of thumb, they
should be doubled at 10°C (50°F) and halved at 30°C (86°F).
REAGENT BLANK CORRECTION
• Some methods require a “reagent blank correction”. The blank and the sample are prepared exactly
in the same way, only the blank is deionized water instead of sample.
A blank cuvette may be used more than once: stability and storing conditions are described for each
method in the related chapter.
HI83212 - POWER PLANT UTILITIES
Method Method Page
description
1 Ammonia MR 17
2 Ammonia LR 19
3 Free Chlorine 21
4 Total Chlorine 24
5 Copper HR 27
6 Copper LR 29
7 Hydrazine 31
Method Method Page
description
8 Molybdenum 33
9 Phosphate HR 36
10 Phosphate LR 38
11 Phosphorus 40
12 Silica 42
13 Silver 45
INTERFERENCES
• In the method measurement section the most common interferences that may be present in an average
wastewater matrix have been reported. It may be that for a particular treatment process other
compounds do interfere with the method of analysis.
10 11
OPERATIONAL GUIDE
POWER CONNECTION AND BATTERY MANAGEMENT
The meter can be powered from an AC/DC adapter (included) or from the built-in rechargeable battery.
Note: Always turn the meter off before unplugging it to ensure no data is lost.
When the meter switches ON, it verifies if the power supply adapter is connected. The battery icon on the
LCD will indicate the battery status:
- battery is charging from external adapter - battery fully charged (meter connected to AC/DC adapter)
• After the desired method was selected, follow the measurement described in the related section.
• Before performing a test you should read all the instructions carefully.
DATA MANAGEMENT
The instrument features a data log function to help you keep track of all your analysis. The data log can
hold 200 individual measurements. Storing, viewing and deleting the data is possible using LOG and
..
RCL keys
.
..
Storing data
stored in a stack as a record with date and time stamps.
: You can store only a valid measurement. Press LOG
and the last valid measurement will be
- battery capacity (no external adapter) - battery Low (no external adapter)
- battery Dead (no external adapter)
METHOD SELECTION
• Turn ON the instrument via the ON/OFF power switch.
• The meter will perform an autodiagnostic test. During this test, the Hanna Instrument logo will appear on
the LCD. After 5 seconds, if the test was successful, the last selected method will appear on the display.
• In order to select the desired method press METHOD and a screen with the available methods will appear.
• Press s t keys to highlight the desired method. Press Select.
Viewing and deleting
on the LIFO (last in, first out) scheme. Additionally, you can delete the data records all at once.
: You can view and delete the data log by pressing the RCL key. Deleting is based
CHEMICAL FORM
Chemical form conversion factors are pre-programmed into the instrument and are method specific. In order
to view the displayed result in the desired chemical form press the s or t to access to the second level
of functions and then press the Chem Frm functional key to toggle between the existing chemical forms for
the selected method.
12 13
SETUPSETUP
SETUP
SETUPSETUP
In the Setup mode the instrument’s parameters can be changed. Some parameters affect the measuring sequence and
others are general parameters that change the behavior or appearance of the instrument.
Press SETUP to enter the setup mode.
Press ESC or SETUP to return to the main screen.
A list of setup parameters will be displayed with currently
configured settings. Press HELP for additional information.
Press the s t keys to select the parameter and select a
new value as follows:
Backlight
Values: 0 to 8.
Press Modify functional key to access the backlight value.
Use the ⊳u functional keys or the s t keys to increase/
decrease the value.
Press Accept functional key to confirm or ESC to return to the setup
menu without saving the new value.
Contrast
Values: 0 to 20.
This option is used to set the display’s contrast.
Press Modify functional key to change the display’s contrast.
Use the ⊳u functional keys or the s t keys to increase/
decrease the value.
Press Accept functional key to confirm the value or ESC to return to the
setup menu without saving the new value.
Date / Time
This option is used to set the instrument’s date and time.
Press Modify functional key to change the date/time.
Press the ⊳u functional keys to highlight the value to be modified
(year, month, day, hour, minute or second). Use the s tkeys to
change the value.
Press Accept functional key to confirm or ESC to return to the setup
without saving the new date or time.
Time format
Option: AM/PM or 24 hour.
Press the functional key to select the desired time format.
Date format
Press Modify functional key to change the Date Format.
Use the s t keys to select the desired format.
Press Accept functional key to confirm or ESC to return to the setup
menu without saving the new format.
Language
Press the corresponding functional key to change the option.
If the new selected language cannot be loaded, the previously
selected language will be reloaded.
Tutorial
Option: Enable or Disable.
If enabled this option will provide the user short guides, related to
the current screen.
Press the functional key to enable/disable the tutorial mode.
Beeper
Option: Enable or Disable.
When enabled, a short beep is heard every time a key is pressed.
A long beep alert sounds when the pressed key is not active or an
error is detected.
Press the functional key to enable/disable the beeper.
14 15
Instrument ID
Option: 0 to 9999.
This option is used to set the instrument’s ID (identification number).
The instrument ID is used while exchanging data with a PC.
Press Modify functional key to access the instrument ID screen. Press the
s t keys in order to set the desired value.
Press Accept functional key to confirm the value or ESC to return to the
setup menu without saving the new value.
Meter information
Press “Select” functional key to view the Instrument model, firmware
version, language version and instrument serial number.
Press ESC to return to the Setup mode.
HELP MODEHELP MODE
HELP MODE
HELP MODEHELP MODE
HELP MODE
HI 83212 offers an interactive contextual help mode that assists the user at any time.
AMMONIA MEDIUM RANGE
SPECIFICATIONS
Range 0.00 to 10.00 mg/L
Resolution 0.01 mg/L
Accuracy ±0.05 mg/L ±5% of reading
Typical EMC ±0.01 mg/L
Deviation
Light Source Tungsten lamp with narrow band interference filter @ 420 nm
Method Adaptation of the
Nessler method. The reaction between ammonia and reagents causes a yellow tint in
the sample.
REQUIRED REAGENTS
Code Description Quantity
HI 93715A-0 First Reagent 4 drops (6 drops for seawater)
HI 93715B-0 Second Reagent 4 drops (10 drops for seawater)
REAGENT SETS
HI 93715-01 Reagents for 100 tests
HI 93715-03 Reagents for 300 tests
For other accessories see page 50.
MEASUREMENT PROCEDURE
• Select the
• Fill the cuvette with 10 mL of unreacted sample (up to the mark)
Ammonia MR
the
Method Selection
and replace the cap.
section (see page 12).
ASTM Manual of Water and Environmental Technology, D1426-92
method using the procedure described in
,
To access help screens press HELP.
The instrument will display additional information related to the
current screen. To read all available data, scroll the text using the
s t keys.
Press Support functional key to access a screen with Hanna service
centers and their contact details.
Press Accessories functional key to access a page with instrument accessories.
To exit support or accessories screens press ESC and the instrument will
return to the previous help screen.
To exit help mode just press HELP or ESC key again and the
meter will display the last screen the user was in before entering
help mode.
16 17
• Place the cuvette into the holder and close the lid.
• Press ZERO key. The display will show “-0.0-” when the meter is
zeroed and ready for measurement.
Ammonia MR
Loading...
