Instruction Manual

HI 83211

Multiparameter Bench

Photometer

for Chemical Manufacturers

www.hannainst.com

Dear Customer, Thank you for choosing a Hanna product. Please read this instruction manual carefully before using the

instrument. This manual will provide you with the necessary information for the correct use of the instrument. If you need additional technical information, do not hesitate to e-mail us at tech@hannainst.com.

TABLE OF CONTENTS

PRELIMINARY EXAMINATION ............................................. 3

ABBREVIATIONS ............................................................... 3

GENERAL DESCRIPTION ..................................................... 3

SPECIFICATIONS .............................................................. 4

PRECISION AND ACCURACY ............................................... 4

PRINCIPLE OF OPERATION ................................................ 4

FUNCTIONAL DESCRIPTION ............................................... 6

TIPS FOR AN ACCURATE MEASUREMENT ........................... 8

HEALTH & SAFETY ..........................................................11

METHOD REFERENCE TABLE ............................................. 11

OPERATIONAL GUIDE ....................................................... 12

SETUP ........................................................................... 14

HELP MODE ................................................................... 16

ALUMINUM ....................................................................17

AMMONIA MR ................................................................ 19

AMMONIA LR .................................................................21

CHROMIUM VI HR ..........................................................23

CHROMIUM VI LR ...........................................................25

COPPER HR ....................................................................27

COPPER LR .................................................................... 29

CYANURIC ACID .............................................................. 31

IODINE .......................................................................... 33

IRON HR ........................................................................ 35

IRON LR .........................................................................37

MOLYBDENUM ............................................................... 40

NICKEL HR ..................................................................... 43

NICKEL LR ...................................................................... 45

pH ................................................................................48

PHOSPHATE HR ..............................................................50

PHOSPHATE LR ...............................................................52

PHOSPHORUS ...............................................................54

SILICA ...........................................................................56

SILVER ..........................................................................58

ZINC ..............................................................................61

ERRORS AND WARNINGS ................................................. 63

DATA MANAGEMENT ........................................................ 64

STANDARD METHODS ......................................................65

ACCESSORIES ................................................................66

WARRANTY .................................................................... 67

HANNA LITERATURE ........................................................ 67

All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of the copyright owner, Hanna Instruments Inc., Woonsocket, Rhode Island, 02895 , USA.

PRELIMINARY EXAMINATION

Please examine this product carefully. Make sure that the instrument is not damaged. If any damage occurred during shipment, please notify your local Hanna Office.

Each meter is supplied complete with:

• Four Sample Cuvettes and Caps

• Cloth for wiping cuvettes (1 pcs)

• Scissors

• AC/DC Power Adapter

• Instruction Manual

Note: Save all packing material until you are sure that the instrument works correctly. Any defective item

must be returned in its original packing with the supplied accessories.

ABBREVIATIONS

EPA: US Environmental Protection Agency

°C: degree Celsius °F: degree Fahrenheit

μg/L: micrograms per liter (ppb)

mg/L: milligrams per liter (ppm)

g/L: grams per liter (ppt)

mL: milliliter

HR: high range

MR: medium range

LR: low range

PAN: 1-(2-pyridylazo)-2-naphtol

TPTZ: 2,4,6-tri-(2-pyridyl)-1,3,5-triazine

GENERAL DESCRIPTION

HI 83211 is a multiparameter bench photometer dedicated for chemical manufacturers analysis. It measures 21 different methods using specific liquid or powder reagents. The amount of reagent is precisely dosed to ensure maximum reproducibility.

HI 83211 bench photometer can be connected to a PC via an USB cable. The optional HI 92000 Windows® Compatible Software helps users manage all their results.

HI 83211 has a powerful interactive user support that assists the user during the analysis process. Each step in the measurement process is help supported. A tutorial mode is available in the Setup Menu.

SPECIFICATIONS

Light Life Life of the instrument Light Detector Silicon Photocell Environment 0 to 50°C (32 to 122°F);

max 90% RH non-condensing

Power Supply external 12 Vdc power adapter

built-in rechargeable battery

Dimensions 235 x 200 x 110 mm (9.2 x 7.87 x 4.33") Weight 0.9 Kg

For specifications related to each method (e.g. range, resolution, etc.) refer to the related measurement section.

PRECISION AND ACCURACY

Precision is how closely repeated measurements agree with each other. Precision is usually expressed as standard deviation (SD).

Accuracy is defined as the nearness of a test result to the true value.

Although good precision suggests good accuracy, precise results can be inaccurate. The figure explains these definitions.

For each method, the accuracy is expressed in the related measurement section.

PRINCIPLE OF OPERATION

Absorption of light is a typical phenomenon of interaction between electromagnetic radiation and matter. When a light beam crosses a substance, some of the radiation may be absorbed by atoms, molecules or crystal lattices.

If pure absorption occurs, the fraction of light absorbed depends both on the optical path length through the matter and on the physical-chemical characteristics of substance according to the Lambert-Beer Law:

-log I/Io = ε A = ε

c d

Where:

-log I/I

= Absorbance (A)

Io= intensity of incident light beam I = intensity of light beam after absorption

= molar extinction coefficient at wavelength λ

c = molar concentration of the substance d = optical path through the substance

Therefore, the concentration "c" can be calculated from the absorbance of the substance as the other factors are known.

Photometric chemical analysis is based on the possibility to develop an absorbing compound from a specific chemical reaction between sample and reagents.

Given that the absorption of a compound strictly depends on the wavelength of the incident light beam, a narrow spectral bandwidth should be selected as well as a proper central wavelength to optimize measurements.

The optical system of HI 83211 is based on special subminiature tungsten lamps and narrow-band interference filters to guarantee both high performance and reliable results.

Five measuring channels allow a wide range of tests.

Instrument block diagram (optical layout)

A microprocessor controlled special tungsten lamp emits radiation which is first optically conditioned and beamed through the sample contained in the cuvette. The optical path is fixed by the diameter of the cuvette. Then the light is spectrally filtered to a narrow spectral bandwidth, to obtain a light beam of intensity Io or I.

The photoelectric cell collects the radiation I that is not absorbed by the sample and converts it into an electric current, producing a potential in the mV range.

The microprocessor uses this potential to convert the incoming value into the desired measuring unit and to display it on the LCD.

The measurement process is carried out in two phases: first the meter is zeroed and then the actual measurement is performed.

The cuvette has a very important role because it is an optical element and thus requires particular attention. It is important that both the measurement and the calibration (zeroing) cuvette are optically identical to provide the same measurement conditions. Most methods use the same cuvette for both, so it is important that measurements are taken at the same optical point. The instrument and the cuvette cap have special marks that must be aligned in order to obtain better reproducibility.

The surface of the cuvette must be clean and not scratched. This is to avoid measurement interference due to unwanted reflection and absorption of light. It is recommended not to touch the cuvette walls with hands.

Furthermore, in order to maintain the same conditions during the zeroing and the measurement phases, it is necessary to cap the cuvette to prevent any contamination.

FUNCTIONAL DESCRIPTION

INSTRUMENT DESCRIPTION

1) Open Cuvette Lid

2) Indexing mark

3) Cuvette point

4) Liquid Crystal Display (LCD)

5) Splash proof keypad

6) ON/OFF power switch

7) Power input connector

8) USB connector

KEYPAD DESCRIPTION

The keypad contains 8 direct keys and 3 functional keys with the following functions:

Press to perform the function displayed above it on the LCD.

ESC

Press to exit the current screen.

Press to access the select method menu.

Press to move up in a menu or a help screen, to increment a set value, to access second level

functions.

Press to move down in a menu or a help screen, to decrement a set value, to access second

level functions.

Press to log the current reading.

RCL

Press to recall the log.

HELP

SETUP

Press to display the help screen.

Press to access the setup screen.

TIPS FOR AN ACCURATE MEASUREMENT

The instructions listed below should be carefully followed during testing to ensure most accurate results.

• Color or suspended matter in large amounts may cause interference, and should be removed by treatment with active carbon and filtration.

• Ensure the cuvette is filled correctly: the liquid in the cuvette forms a convexity on the top; the bottom of this convexity must be at the same level as the 10 mL mark.

COLLECTING AND MEASURING SAMPLES

• In order to measure exactly 0.5 mL of reagent with the 1 mL syringe: (a) push the plunger completely into the syringe and insert the tip into the solution. (b) pull the plunger up until the lower edge of the seal is exactly on the 0.0 mL mark. (c) take out the syringe and clean the outside of the syringe tip. Be sure that no drops are hanging

on the tip of the syringe, if so eliminate them. Then, keeping the syringe in vertical position above the cuvette, push the plunger down into the syringe until the lower edge of the seal is exactly on the 0.5 mL mark. Now the exact amount of 0.5 mL has been added to the cuvette, even if the tip still contains some solution.

USING LIQUID AND POWDER REAGENTS

• Proper use of the dropper: (a) for reproducible results, tap the dropper on the table for several times and wipe the outside of the

dropper tip with a cloth.

(b) always keep the dropper bottle in a vertical position while dosing the reagent.

(a) (b)

• Proper use of the powder reagent packet: (a) use scissors to open the powder packet; (b) push the edges of the packet to form a spout; (c) pour out the content of the packet.

USING CUVETTES

• Proper mixing is very important for reproducibility of the measurements. The right way of mixing a cuvette is specified for each method in the related chapter.

(a) invert the cuvette a couple of times or for a specified time: hold the cuvette in the vertical position. Turn

the cuvette upside-down and wait for all of the solution to flow to the cap end, then return the cuvette to the upright vertical position and wait for all of the solution to flow to the cuvette bottom. This is one inversion. The correct speed for this mixing technique is 10-15 complete inversions in 30 seconds.

This mixing technique is indicated with “invert to mix” and the following icon:

(b) shaking the cuvette, moving the cuvette up and down. The movement may be gentle or vigorous.

This mixing method is indicated with “shake gently” or “shake vigorously”, and one of the following icons:

shake gently shake vigorously

• Pay attention to push the cuvette completely down in the holder and to align the white point on the cap to the indexing mark on the meter.

• In order to avoid reagent leaking and to obtain more accurate measurements, close the cuvette first with the supplied HDPE plastic

stopper and then the black cap.

• Each time the cuvette is used, the cap must be tightened to the same degree.

• Whenever the cuvette is placed into the measurement cell, it must be dry outside, and free of fingerprints, oil or dirt. Wipe it thoroughly with HI 731318 or a lint-free cloth prior to insertion.

• Shaking the cuvette can generate bubbles in the sample, causing higher readings. To obtain accurate measurements, remove such bubbles by swirling or by gently tapping the cuvette.

• Do not let the reacted sample stand too long after reagent is added. For best accuracy, respect the timings described in each specific method.

• It is possible to take multiple readings in a row, but it is recommended to take a new zero reading for each sample and to use the same cuvette for zeroing and measurement when possible (for most precise results follow the measurement procedures carefully).

• Discard the sample immediately after the reading is taken, or the glass might become permanently stained.

• All the reaction times reported in this manual are at 25 °C (77 °F). In general, the reaction time should be increased for temperatures lower than 20 °C (68 °F), and decreased for temperatures higher than 25 °C (77 °F).

INTERFERENCES

• In the method measurement section the most common interferences that may be present in an average sample matrix have been reported. It may be that for a particular treatment process other compounds do interfere with the method of analysis.

HEALTH & SAFETY

• The chemicals contained in the reagent kits may be hazardous if improperly handled.

• Read the Material Safety Data Sheet (MSDS) before performing tests.

• Safety equipment: Wear suitable eye protection and clothing when required, and follow instructions carefully.

• Reagent spills: If a reagent spill occurs, wipe up immediately and rinse with plenty of water. If reagent contacts skin, rinse the affected area thoroughly with water. Avoid breathing released vapors.

• Waste disposal: for proper disposal of reagent kits and reacted samples, refer to the Material Safety Data Sheet (MSDS).

METHOD REFERENCE TABLE

Method Method Page

description

1 Aluminum 17 2 Ammonia MR 19 3 Ammonia LR 21 4 Chromium VI HR 23 5 Chromium VI LR 25 6 Copper HR 27 7 Copper LR 29 8 Cyanuric Acid 31

9 Iodine 33 10 Iron HR 35 11 Iron LR 37

Method Method Page

description

12 Molybdenum 40 13 Nickel HR 43 14 Nickel LR 45 15 pH 48 16 Phosphate HR 50 17 Phosphate LR 52 18 Phosphorus 54 19 Silica 56 20 Silver 58 21 Zinc 61

OPERATIONAL GUIDE

POWER CONNECTION AND BATTERY MANAGEMENT

The meter can be powered from an AC/DC adapter (included) or from the built-in rechargeable battery. Note: Always turn the meter off before unplugging it to ensure no data is lost. When the meter switches ON, it verifies if the power supply adapter is connected. The battery icon on the

LCD will indicate the battery status:

- battery is charging from external adapter - battery fully charged (meter connected to AC/DC adapter)

- battery capacity (no external adapter) - battery Low (no external adapter)

- battery Dead (no external adapter)

METHOD SELECTION

• Turn the instrument ON via the ON/OFF power switch.

• The meter will perform an autodiagnostic test. During this test, the Hanna Instrument logo will appear

on the LCD. After 5 seconds, if the test was successful, the last method used will appear on the display.

• In order to select the desired method press the METHOD key and a screen with the available methods

will appear.

• Press the   keys to highlight the desired method. Press Select.

• After the desired method is selected, follow the measurement described in the related section.

• Before performing a test you should read all the instructions carefully.

DATA MANAGEMENT

The instrument features a data log function to help you keep track of all your analysis. The data log can hold 200 individual measurements. Storing, viewing and deleting the data is possible using the LOG and

RCL keys

Storing data

stored with date and time stamps.

: You can store only a valid measurement. Press LOG

and the last valid measurement will be

Viewing and deleting

the last saved measurement. Additionally, you can delete the data records all at once.

: You can view and delete the data log by pressing the RCL key. You can only delete

CHEMICAL FORM

Chemical form conversion factors are pre-programmed into the instrument and are method specific. In order to view the displayed result in the desired chemical form press  or  to access the second level function and then press the Chem Frm key to toggle between the available chemical forms for the selected method.

SETUPSETUP

SETUP

SETUPSETUP

In the Setup mode the instrument’s parameters can be changed. Some parameters affect the measuring sequence and others are general parameters that change the behavior or appearance of the instrument.

Press SETUP to enter the setup mode. Press ESC or SETUP to return to the main screen. A list of setup parameters will be displayed with currently configured settings. Press HELP for additional information. Press the   keys to select a parameter and change the

value as follows:

Backlight

Values: 0 to 8.

Press the Modify key to access the backlight value. Use the W X functional keys or the   keys to increase or decrease the value. Press the Accept key to confirm or ESC to return to the setup

menu without saving the new value.

Contrast

Values: 0 to 20.

This option is used to set the display’s contrast. Press the Modify key to change the display’s contrast. Use the W X functional keys or the   keys to increase or decrease the value. Press the Accept key to confirm the value or ESC to return to the setup menu without saving the new value.

Date / Time

This option is used to set the instrument’s date and time. Press the Modify key to change the date/time. Press the W X functional keys to highlight the value to be modified (year, month, day, hour, minute or second). Use the   keys to change the value. Press the Accept key to confirm or ESC to return to the setup

without saving the new date or time.

Time format

Option: AM/PM or 24 hour.

Press the functional key to select the desired time format.

Date format

Press the Modify key to change the Date Format. Use the   keys to select the desired format. Press Accept key to confirm or ESC to return to the setup menu

without saving the new format.

Language

Press the corresponding key to change the language. If the new language cannot be loaded, the previously selected language will be reloaded.

Tutorial

Option: Enable or Disable.

If enabled this option will provide the user short guide related to the current screen. Press the functional key to enable/disable the tutorial mode.

Beeper

Option: Enable or Disable.

When enabled, a short beep is heard every time a key is pressed. A long beep alert sounds when the pressed key is not active or an error is detected. Press the functional key to enable/disable the beeper.

Instrument ID

Option: 0 to 9999.

This option is used to set the instrument’s ID (identification number). The instrument ID is used while exchanging data with a PC. Press the Modify key to access the instrument ID screen. Press the   keys in order to set the desired value. Press the Accept key to confirm the value or ESC to return to the setup menu without saving the new value.

Meter information

Press the Select key to view the instrument model, firmware version, language version and instrument serial number.

Press ESC to return to the Setup mode.

HELP MODEHELP MODE

HELP MODE

HELP MODEHELP MODE

HELP MODE

HI 83211 offers an interactive contextual help mode that assists the user at any time.

To access the help screens press HELP. The instrument will display additional information related to the current screen. To read all the available information, scroll the text using the   keys. Press the Support key to access a screen with Hanna service centers and their contact details. Press the Accessories key to access a list of instrument reagents and accessories. To exit support or accessories screens press ESC and the instrument will return to the previous help screen. To exit help mode press the HELP or ESC key again and the meter will return to the previously selected screen.

ALUMINUM

SPECIFICATIONS

Range 0.00 to 1.00 mg/L Resolution 0.01 mg/L Accuracy ±0.02 mg/L ±4% of reading at 25 °C Typical EMC ±0.01 mg/L

Deviation Light Source Tungsten lamp with narrow band interference filter @ 525 nm Method Adaptation of the aluminon method. The reaction between aluminum and reagents

causes a reddish tint in the sample.

REQUIRED REAGENTS

Code Description Quantity

HI 93712A-0 Ascorbic acid 1 packet HI 93712B-0 Aluminon reagent 1 packet HI 93712C-0 Bleaching powder 1 packet

REAGENT SETS

HI 93712-01 Reagents for 100 tests HI 93712-03 Reagents for 300 tests

For other accessories see page 66.

MEASUREMENT PROCEDURE

• Select the the

Aluminum

Method Selection

method using the procedure described in section (see page 12).

• Fill a graduated beaker with 50 mL of sample.

• Add the content of one packet of HI 93712A-0 Ascorbic acid and mix until completely dissolved.

• Add the content of one packet of HI 93712B-0 Aluminon reagent and mix until completely dissolved. This is the sample.

• Fill two cuvettes with 10 mL of sample each (up to the mark).

10 mL

# 1

10 mL

# 2

Aluminum

• Add the content of one packet of HI 93712C-0 Bleaching powder to one of the two cuvettes. Replace the cap and shake vigorously until completely dissolved. This is the blank.

• Place the blank into the holder and close the lid.

# 1

• Press Timer and the display will show the countdown prior to

# 1

zeroing the blank. Alternatively wait for 15 minutes and then press Zero. The display will show “-0.0-“ when the meter is zeroed and ready for measurement.

# 2

• Remove the blank and insert the other cuvette into the instrument.

• Press the Read key and the meter will perform the reading. The instrument displays the results in mg/L of aluminum.

• Press  or  to access the second level functions.

• Press the Chem Frm key to convert the result in mg/L of Al2O3.

• Press  or  to return to the measurement screen.

INTERFERENCES

Interference may be caused by: Iron above 20 mg/L, Alkalinity above 1000 mg/L, Phosphate above 50 mg/L; Fluoride must be absent.

Aluminum

AMMONIA MEDIUM RANGE

SPECIFICATIONS

Range 0.00 to 10.00 mg/L Resolution 0.01 mg/L Accuracy ±0.05 mg/L ±5% of reading at 25 °C Typical EMC ±0.01 mg/L

Deviation Light Source Tungsten lamp with narrow band interference filter @ 420 nm Method Adaptation of the

Nessler method. The reaction between ammonia and reagents causes a yellow tint in the sample.

REQUIRED REAGENTS

Code Description Quantity

HI 93715A-0 First Reagent 4 drops (6 drops for seawater) HI 93715B-0 Second Reagent 4 drops (10 drops for seawater)

REAGENT SETS

HI 93715-01 Reagents for 100 tests HI 93715-03 Reagents for 300 tests

For other accessories see page 66.

MEASUREMENT PROCEDURE

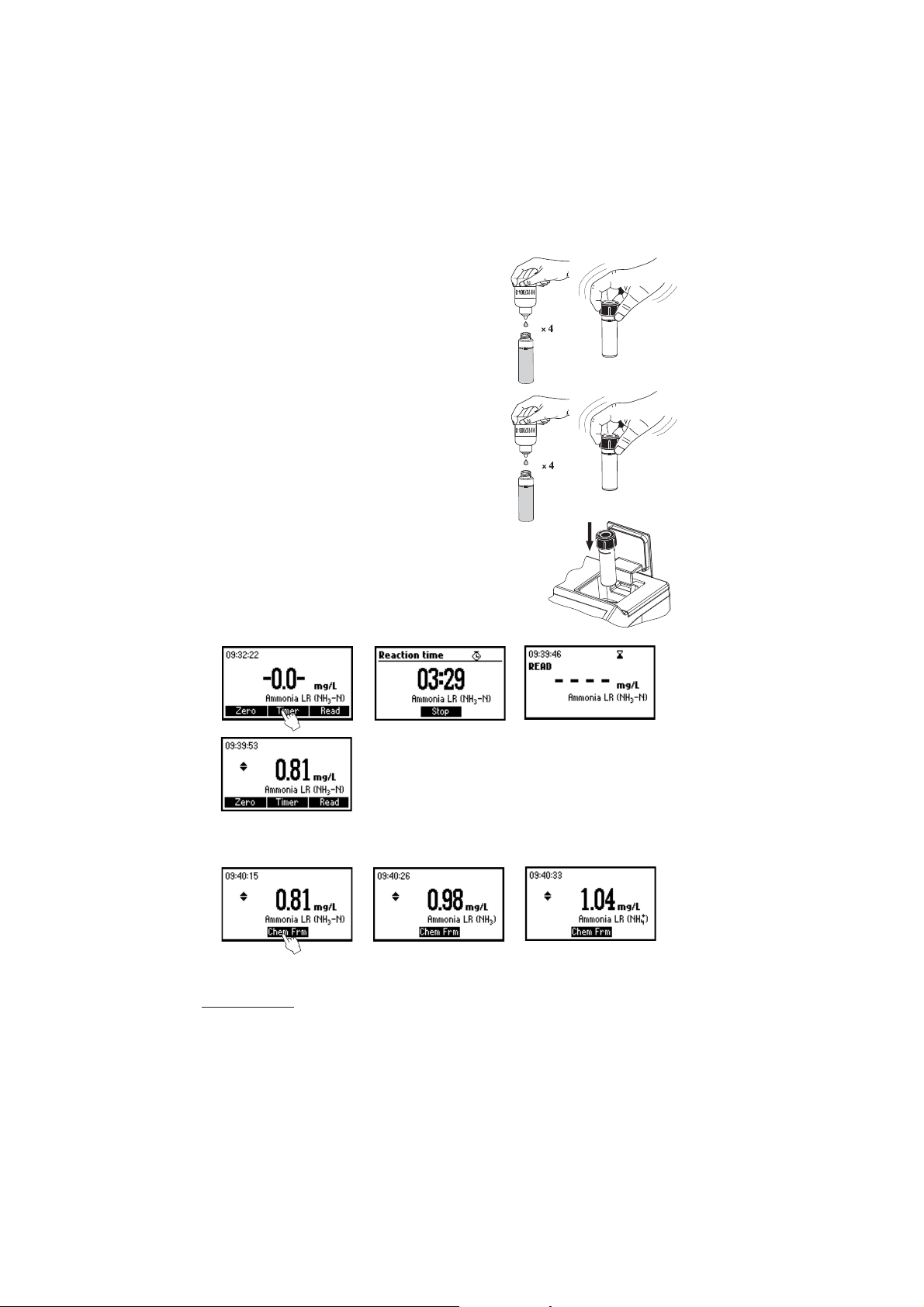

• Select the the

• Fill the cuvette with 10 mL of unreacted sample (up to the mark) and replace the cap.

Ammonia MR

Method Selection

section (see page 12).

ASTM Manual of Water and Environmental Technology, D1426-92

method using the procedure described in

10 mL

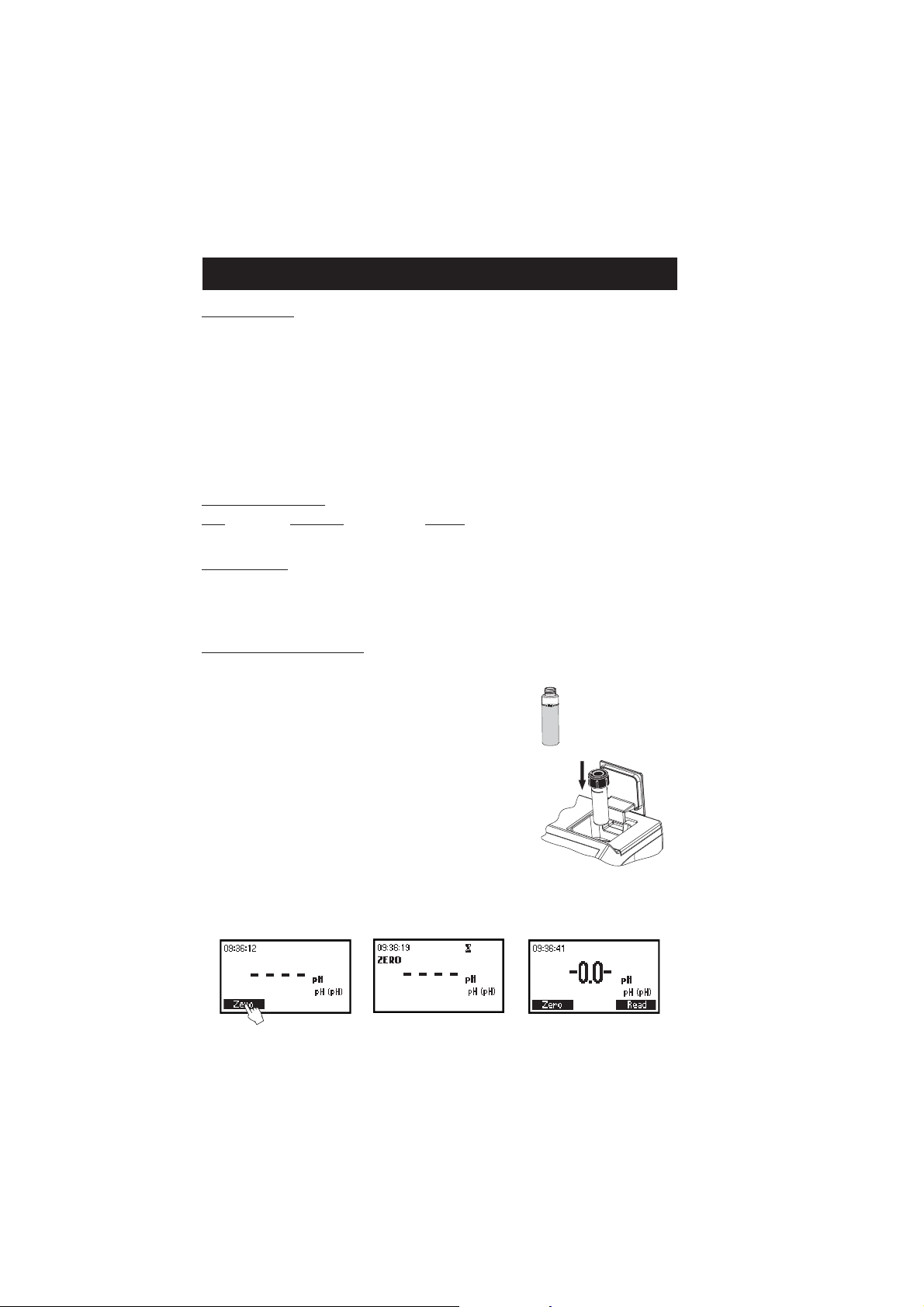

• Place the cuvette into the holder and close the lid.

• Press the Zero key. The display will show “-0.0-” when the meter is zeroed and ready for measurement.

Ammonia MR

• Remove the cuvette.

• Add 4 drops of HI 93715A-0 First Reagent (6 drops for seawater analysis). Replace the cap and mix the solution.

• Add 4 drops of HI 93715B-0 Second Reagent (10 drops for seawater analysis). Replace the cap and mix the solution.

• Reinsert the cuvette into the instrument.

• Press Timer and the display will show the countdown prior to the measurement or, alternatively, wait for 3 minutes and 30 seconds and press Read. When the timer ends the meter will perform the reading. The instrument displays the results in mg/L of ammonia nitrogen (NH3-N).

• Press  or  to access the second level functions.

• Press the Chem Frm key to convert the result in mg/L of ammonia (NH3) and ammonium (NH

• Press  or  to return to the measurement screen.

INTERFERENCES

Interference may be caused by: acetone, alcohols, aldehydes, glycine, hardness above 1 g/L, iron, organic chloramines, sulfide, various aliphatic and aromatic amines.

Ammonia MR

AMMONIA LOW RANGE

SPECIFICATIONS

Range 0.00 to 3.00 mg/L Resolution 0.01 mg/L Accuracy ±0.04 mg/L ±4% of reading at 25 °C Typical EMC ±0.01 mg/L

Deviation Light Source Tungsten lamp with narrow band interference filter @ 420 nm Method Adaptation of the

Nessler method. The reaction between ammonia and reagents causes a yellow tint in the sample.

REQUIRED REAGENTS

Code Description Quantity

HI 93700A-0 First Reagent 4 drops (6 drops for seawater) HI 93700B-0 Second Reagent 4 drops (10 drops for seawater)

REAGENT SETS

HI 93700-01 Reagents for 100 tests HI 93700-03 Reagents for 300 tests

For other accessories see page 66.

MEASUREMENT PROCEDURE

• Select the

Method Selection

• Fill the cuvette with 10 mL of unreacted sample (up to the mark) and replace the cap.

Ammonia LR

method using the procedure described in the

section (see page 12).

ASTM Manual of Water and Environmental Technology, D1426-92

10 mL

• Place the cuvette into the holder and close the lid.

• Press the Zero key. The display will show “-0.0-” when the meter is zeroed and ready for measurement.

Ammonia LR

• Remove the cuvette.

• Add 4 drops of HI 93700A-0 First Reagent (6 drops for seawater analysis). Replace the cap and mix the solution.

• Add 4 drops of HI 93700B-0 Second Reagent (10 drops for seawater analysis). Replace the cap and mix the solution.

• Reinsert the cuvette into the instrument.

• Press  or  to access the second level functions.

• Press the Chem Frm key to convert the result in mg/L of ammonia (NH3) and ammonium (NH

• Press  or  to return to the measurement screen.

INTERFERENCES

Interference may be caused by: acetone, alcohols, aldehydes, glycine, hardness above 1 g/L, iron, organic chloramines, sulfide, various aliphatic and aromatic amines.

Ammonia LR

CHROMIUM VI HIGH RANGE

SPECIFICATIONS

Range 0 to 1000 μg/L Resolution 1 μg/L Accuracy ±5 μg/L ±4% of reading at 25 °C Typical EMC ±1 μg/L

Deviation Light Source Tungsten lamp with narrow band interference filter @ 525 nm Method Adaptation of the

Diphenylcarbohydrazide method. The reaction between chromium VI and the reagent causes a purple tint in the sample.

REQUIRED REAGENTS

Code Description Quantity

HI 93723-0 Powder reagent 1 packet

REAGENT SETS

HI 93723-01 Reagents for 100 tests HI 93723-03 Reagents for 300 tests

For other accessories see page 66.

MEASUREMENT PROCEDURE

• Select the the

• Fill the cuvette with 10 mL of unreacted sample (up to the mark) and replace the cap.

Chromium VI HR

Method Selection

section (see page 12).

ASTM Manual of Water and Environmental Technology, D1687-92

method using the procedure described in

10 mL

• Place the cuvette into the holder and close the lid.

• Press the Zero key. The meter will show “-0.0-” when the meter is zeroed and ready for measurement.

• Remove the cuvette and add the content of one packet of HI 93723-0 reagent. Replace the cap and shake vigorously for about 10 seconds.

Chromium VI HR

• Reinsert the cuvette into the instrument.

• Press Timer and the display will show the countdown prior to the measurement or, alternatively, wait for 6 minutes and press Read. When the timer ends the meter will perform the reading. The instrument displays concentration in

μμ

μg/L of chromium VI.

μμ

• Press  or  to access the second level functions.

• Press the Chem Frm key to convert the result in μg/L of Chromate (CrO

¯) and Dichromate (Cr2O

¯).

• Press  or  to return to the measurement screen.

INTERFERENCES

Interference may be caused by: Vanadium above 1 ppm. However, waiting 10 minutes before reading, the interference is removed Iron above 1 ppm Mercurous and mercuric ions cause slight inhibition of the reaction.

Chromium VI HR

CHROMIUM VI LOW RANGE

SPECIFICATIONS

Range 0 to 300 μg/L Resolution 1 μg/L Accuracy ±1 μg/L ±4% of reading at 25 °C Typical EMC ±1 μg/L

Deviation Light Source Tungsten lamp with narrow band interference filter @ 525 nm Method Adaptation of the

Diphenylcarbohydrazide method. The reaction between chromium VI and the reagent causes a purple tint in the sample.

REQUIRED REAGENTS

Code Description Quantity

HI 93749-0 Powder reagent 1 packet

REAGENT SETS

HI 93749-01 Reagents for 100 tests HI 93749-03 Reagents for 300 tests

For other accessories see page 66.

ASTM Manual of Water and Environmental Technology, D1687-92

MEASUREMENT PROCEDURE

• Select the

• Fill the cuvette with 10 mL of unreacted sample (up to the mark)

• Place the cuvette into the holder and close the lid.

• Press the Zero key. The meter will show “-0.0-” when the meter is zeroed and ready for

• Remove the cuvette and add the content of one packet of

Chromium VI LR

the

Method Selection

and replace the cap.

measurement.

HI 93749-0 reagent. Replace the cap and shake vigorously for about 10 seconds.

method using the procedure described in

section (see page 12).

10 mL

Chromium VI LR

• Reinsert the cuvette into the instrument.

μμ

μg/L of chromium VI.

μμ

• Press  or  to access the second level functions.

• Press the Chem Frm key to convert the result in μg/L of Chromate (CrO

¯) and Dichromate (Cr2O

¯).

• Press  or  to return to the measurement screen.

INTERFERENCES

Interference may be caused by: Vanadium above 1 ppm. However, waiting 10 minutes before reading, the interference is removed. Iron above 1 ppm Mercurous and mercuric ions cause slight inhibition of the reaction.

Chromium VI LR

COPPER HIGH RANGE

SPECIFICATIONS

Range 0.00 to 5.00 mg/L Resolution 0.01 mg/L Accuracy ±0.02 mg/L ±4% of reading at 25 °C Typical EMC ±0.01 mg/L

Deviation Light Source Tungsten lamp with narrow band interference filter @ 575 nm Method Adaptation of the

reagent causes a purple tint in the sample.

REQUIRED REAGENTS

Code Description Quantity

HI 93702-0 Bicinchoninate 1 packet

REAGENT SETS

HI 93702-01 Reagents for 100 tests HI 93702-03 Reagents for 300 tests

For other accessories see page 66.

MEASUREMENT PROCEDURE

• Select the

Method Selection

• Fill the cuvette with 10 mL of unreacted sample (up to the mark) and replace the cap.

Copper HR

method using the procedure described in the

section (see page 12).

EPA method.

The reaction between copper and the bicinchoninate

10 mL

• Place the cuvette into the holder and close the lid.

• Press the Zero key. The meter will show “-0.0-” when the meter is zeroed and ready for measurement.

Copper HR

• Remove the cuvette.

• Add the content of one packet of HI 93702-0 Bicinchoninate. Replace the cap and shake gently for about 15 seconds.

• Reinsert the cuvette into the instrument.

• Press Timer and the display will show the countdown prior to the measurement or, alternatively, wait for 45 seconds and press Read. When the timer ends the meter will perform the reading.

• The instrument displays the results in mg/L of copper.

INTERFERENCES

Interference may be caused by: Silver Cyanide For samples overcoming buffering capacity of reagent (around pH 6.8), pH should be adjusted between 6 and 8.

Copper HR

COPPER LOW RANGE

SPECIFICATIONS

Range 0 to 1000 μg/L Resolution 1 μg/L Accuracy ±10 μg/L ±5% of reading at 25 °C Typical EMC ±1 μg/L

Deviation Light Source Tungsten lamp with narrow band interference filter @ 575 nm Method Adaptation of the

reagent causes a purple tint in the sample.

REQUIRED REAGENTS

Code Description Quantity

HI 95747-0 Bicinchoninate 1 packet

REAGENT SETS

HI 95747-01 Reagents for 100 tests HI 95747-03 Reagents for 300 tests

For other accessories see page 66.

MEASUREMENT PROCEDURE

• Select the the

• Fill the cuvette with 10 mL of unreacted sample (up to the mark) and replace the cap.

Copper LR

Method Selection

method using the procedure described in

section (see page 12).

EPA method.

The reaction between copper and the bicinchoninate

10 mL

• Place the cuvette into the holder and close the lid.

• Press the Zero key. The meter will show “-0.0-” when the meter is zeroed and ready for measurement.

Copper LR

• Remove the cuvette.

• Add the content of one packet of HI 95747-0 Bicinchoninate. Replace the cap and shake gently for about 15 seconds.

• Reinsert the cuvette into the instrument.

• Press Timer and the display will show the countdown prior to the measurement or, alternatively, wait for 45 seconds and press Read. When the timer ends the meter will perform the reading.

• The instrument displays the results in

μμ

μg/L of copper.

μμ

INTERFERENCES

Interference may be caused by: Silver Cyanide For samples overcoming buffering capacity of reagent (around pH 6.8), pH should be adjusted between 6 and 8.

Copper LR

CYANURIC ACID

SPECIFICATIONS

Range 0 to 80 mg/L Resolution 1 mg/L Accuracy ±1 mg/L ±15% of reading at 25 °C Typical EMC ±1 mg/L

Deviation Light Source Tungsten lamp with narrow band interference filter @ 525 nm Method Adaptation of the turbidimetric method. The reaction between cyanuric acid and the

reagent causes a white suspension in the sample.

REQUIRED REAGENTS

Code Description Quantity

HI 93722-0 Powder reagent 1 packet

REAGENT SETS

HI 93722-01 Reagents for 100 tests HI 93722-03 Reagents for 300 tests

For other accessories see page 66.

MEASUREMENT PROCEDURE

• Select the described in the

• Fill the cuvette with 10 mL of unreacted sample (up to the mark) and replace the cap.

Cyanuric Acid

Method Selection

method using the procedure

section (see page 12).

10 mL

• Place the cuvette into the holder and close the lid.

• Press the Zero key. The meter will show “-0.0-” when the meter is zeroed and ready for measurement.

Cyanuric Acid

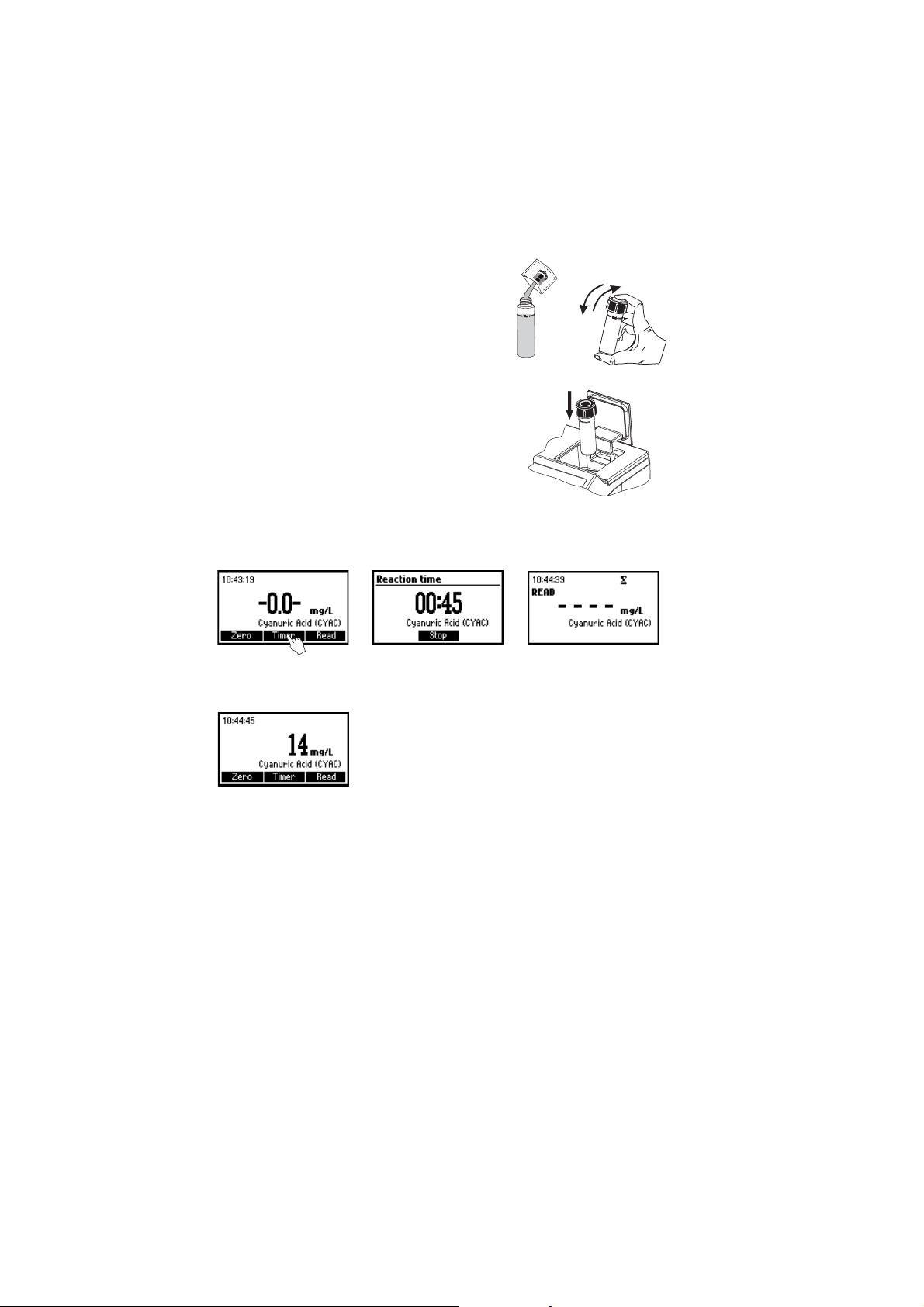

• Add the content of one packet of HI 93722-0 Cyanuric Acid Reagent. Replace the cap and shake gently for about 10 seconds (dissolution is not complete).

• Reinsert the cuvette into the instrument.

• Press Timer and the display will show the countdown prior to the measurement or, alternatively, wait for 45 seconds and press Read. When the timer ends the meter will perform the reading.

• The instrument displays concentration in mg/L of cyanuric acid.

Cyanuric Acid

IODINE

SPECIFICATIONS

Range 0.0 to 12.5 mg/L Resolution 0.1 mg/L Accuracy ±0.1 mg/L ±5% of reading at 25 °C Typical EMC ±0.1 mg/L

Deviation Light Source Tungsten lamp with narrow band interference filter @ 525 nm Method Adaptation of the

18th edition

tint in the sample.

REQUIRED REAGENTS

Code Description Quantity

HI 93718-0 DPD Reagent 1 packet

REAGENT SETS

HI 93718-01 Reagents for 100 tests HI 93718-03 Reagents for 300 tests

For other accessories see page 66.

MEASUREMENT PROCEDURE

• Select the

Iodine

the

Method Selection

method using the procedure described in

section (see page 12).

Standard Methods for the Examination of Water and Wastewater,

, DPD method. The reaction between iodine and the reagent causes a pink

10 mL

• Fill the cuvette with 10 mL of unreacted sample (up to the mark) and replace the cap.

• Place the cuvette into the holder and close the lid.

• Press the Zero key. The display will show “-0.0-” when the meter is zeroed and ready for measurement.

• Remove the cap and add the content of one packet of HI 93718-0 DPD reagent. Replace the cap and shake gently for about 30 seconds to dissolve most of the reagent.

Iodine

• Reinsert the cuvette into the instrument.

• Press Timer and the display will show the countdown prior to the measurement or, alternatively, wait for 2 minutes and 30 seconds and press Read. When the timer ends the meter will perform the reading.

• The instrument displays concentration in mg/L of iodine.

INTERFERENCES

Interference may be caused by: Bromine, Chlorine, Ozone, Oxidized forms of Chromium and Manganese. In case of water with hardness greater than 500 mg/L CaCO3, shake the sample for approximately

2 minutes after adding the reagent. In case of water with alkalinity greater than 250 mg/L CaCO3 or acidity greater than 150 mg/L CaCO3,

the color of the sample may develop only partially, or may rapidly fade. To resolve this, neutralize the sample with diluted HCl or NaOH.

Iodine

IRON HIGH RANGE

SPECIFICATIONS

Range 0.00 to 5.00 mg/L Resolution 0.01 mg/L Accuracy ±0.04 mg/L ±2% of reading at 25 °C Typical EMC ±0.01 mg/L

Deviation Light Source Tungsten lamp with narrow band interference filter @ 525 nm Method Adaptation of the

The reaction between iron and reagents causes an orange tint in the sample.

REQUIRED REAGENTS

Code Description Quantity

HI 93721-0 Powder Reagent 1 packet

REAGENT SETS

HI 93721-01 Reagents for 100 tests HI 93721-03 Reagents for 300 tests

For other accessories see page 66.

MEASUREMENT PROCEDURE

• Select the in the

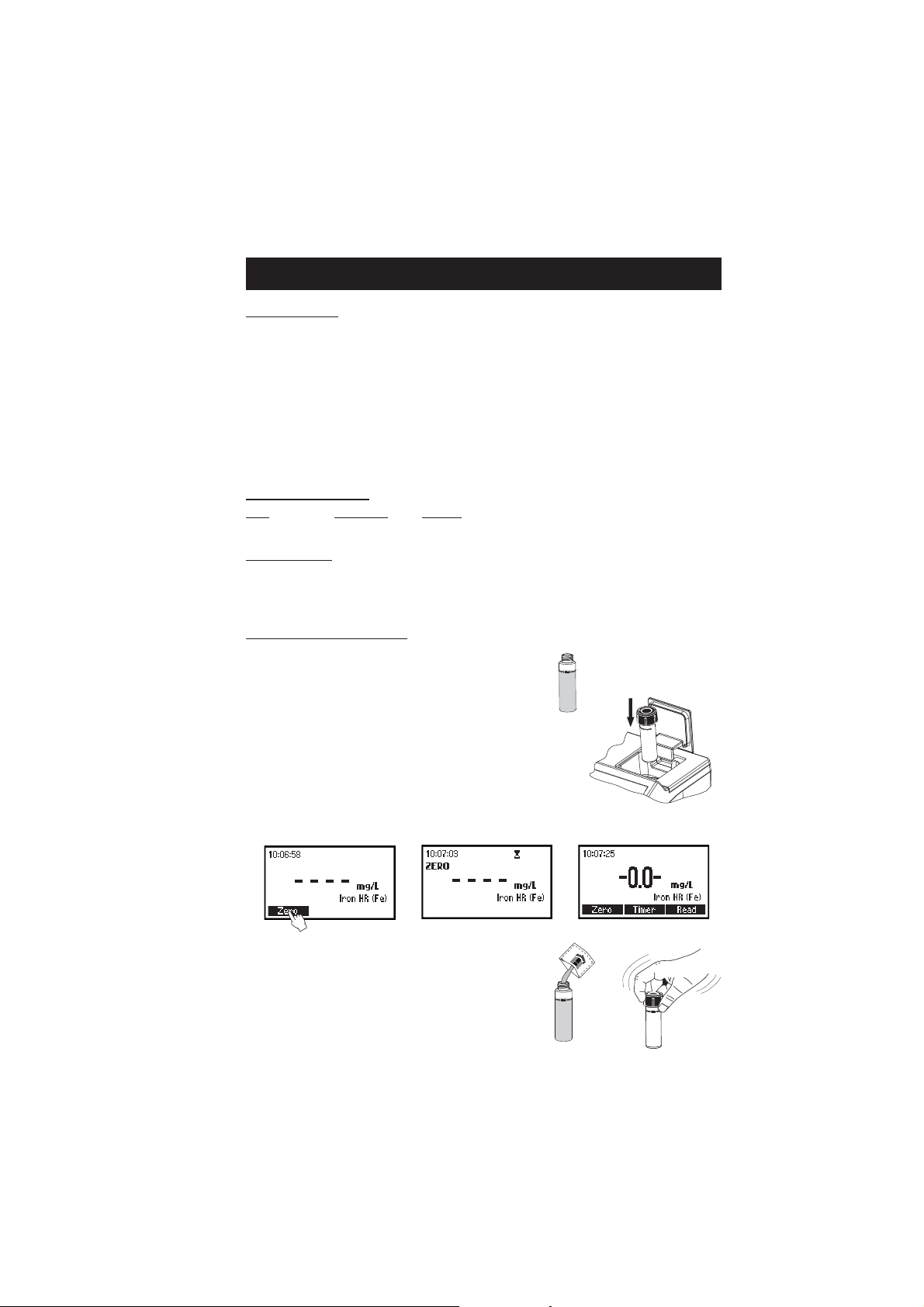

• Fill the cuvette with 10 mL of unreacted sample (up to the mark) and replace the cap.

Iron HR

method using the procedure described

Method Selection

section (see page 12).

EPA Phenantroline method 315B,

for natural and treated waters.

10 mL

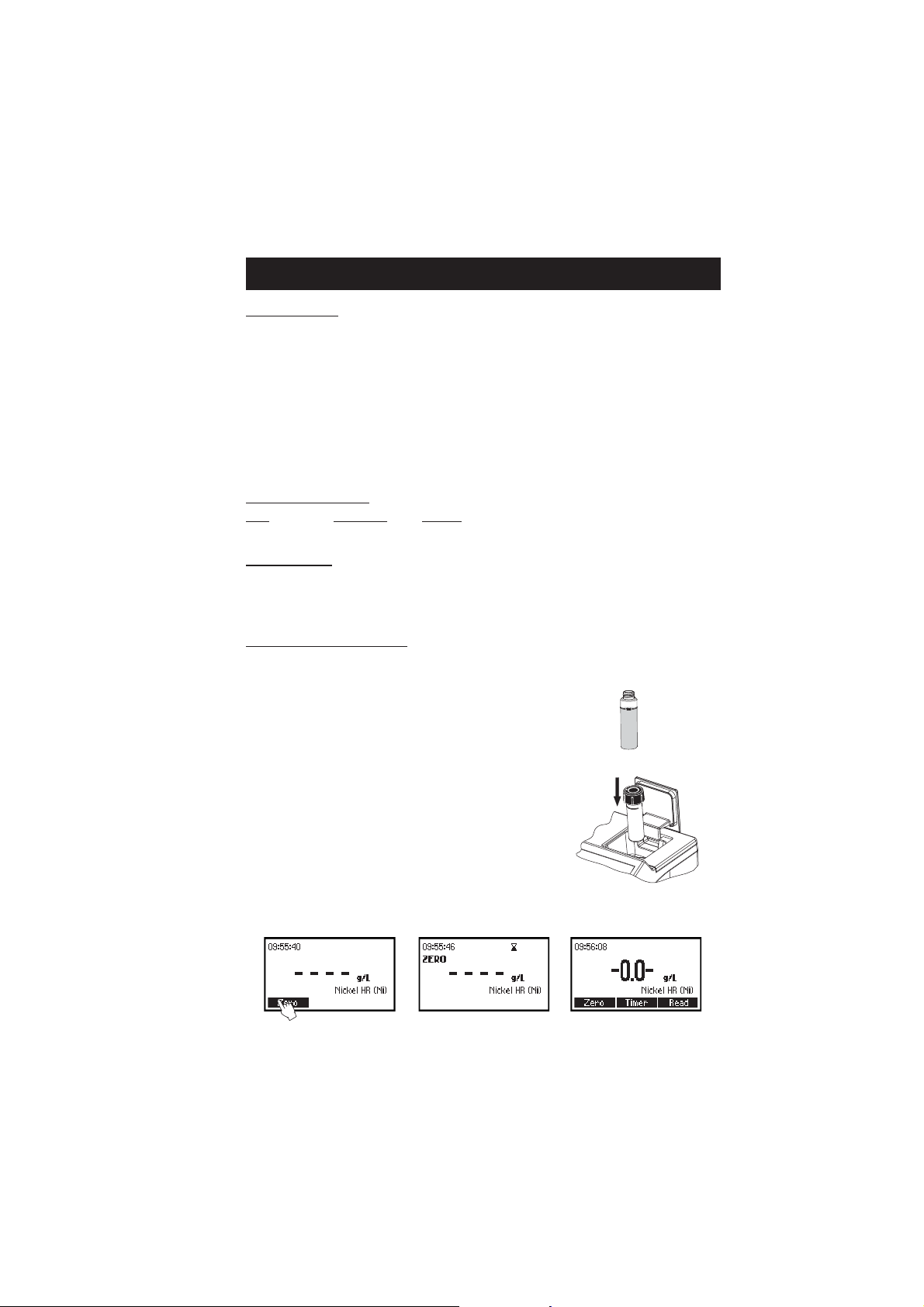

• Place the cuvette into the holder and close the lid.

• Press the Zero key. The display will show “-0.0-” the meter is zeroed and ready for measurement.

• Remove the cuvette and add the content of one packet of HI 93721-0 reagent. Replace the cap and shake until dissolution is complete.

Iron HR

• Reinsert the cuvette into the instrument.

• Press Timer and the display will show the countdown prior to the measurement or, alternatively, wait for 3 minutes and press Read. When the timer ends the meter will perform the reading.

• The instrument displays concentration in mg/L of iron.

INTERFERENCES

Interference may be caused by: Molybdate Molybdenum above 50 ppm Calcium above 10000 ppm (as CaCO3) Magnesium above 100000 ppm (as CaCO3) Chloride above 185000 ppm.

Iron HR

IRON LOW RANGE

SPECIFICATIONS

Range 0 to 400 μg/L Resolution 1 μg/L Accuracy ±10 μg/L ±8% of reading at 25 °C Typical EMC ±1 μg/L

Deviation Light Source Tungsten lamp with narrow band interference filter @ 575 nm Method Adaptation of the TPTZ Method. The reaction between iron and the reagent causes a

violet tint in the sample.

REQUIRED REAGENTS

Code Description Quantity

HI 93746-0 TPTZ Reagent 2 packets

REAGENT SETS

HI 93746-01 Reagents for 50 tests HI 93746-03 Reagents for 150 tests

For other accessories see page 66.

MEASUREMENT PROCEDURE

• Select the the

• Fill one graduated mixing cylinder up to the 25 mL mark with deionized water.

Iron LR

method using the procedure described in

Method Selection

section (see page 12).

25 mL

• Add the content of one packet of HI 93746-0 TPTZ reagent, close the cylinder and shake vigorously for 30 seconds. This is the blank.

• Fill a cuvette with 10 mL of the blank up to the mark and replace the cap.

• Place the cuvette into the holder and close the lid.

10 mL

Iron LR

• Press the Zero key. The display will show “-0.0-” when the meter is zeroed and ready for

measurement.

• Remove the cuvette.

25 mL

• Fill another graduated mixing cylinder up to the 25 mL mark with the sample.

• Add the content of one packet of HI 93746-0 TPTZ reagent, close the cylinder and shake vigorously for 30 seconds. This is the reacted sample.

• Fill a cuvette with 10 mL of the reacted sample up to the mark and replace the cap.

10 mL

• Insert the sample into the instrument.

• Press Timer and the display will show the countdown prior to the measurement or, alternatively, wait for 30 seconds and press Read. When the timer ends the meter will perform the reading. The instrument displays concentration in

μμ

μg/L of iron.

μμ

Iron LR

INTERFERENCES

Interference may be caused by: Cadmium above 4.0 mg/L

Chromium Chromium Cobalt above 0.05 mg/L Copper above 0.6 mg/L Cyanide above 2.8 mg/L Manganese above 50.0 mg/L Mercury above 0.4 mg/L Molybdenum above 4.0 mg/L Nickel above 1.0 mg/L Nitrite ion above 0.8 mg/L Sample pH should be between 3 and 4 to avoid developed color to fade or turbidity formation.

above 0.25 mg/L

above 1.2 mg/L

Iron LR

MOLYBDENUM

SPECIFICATIONS

Range 0.0 to 40.0 mg/L Resolution 0.1 mg/L Accuracy ±0.3 mg/L ±5% of reading at 25 °C Typical EMC ±0.1 mg/L

Deviation Light Source Tungsten lamp with narrow band interference filter @ 420 nm Method Adaptation of the mercaptoacetic acid method. The reaction between molybdenum and

the reagents causes a yellow tint in the sample.

REQUIRED REAGENT

Code Description Quantity

HI 93730A-0 Reagent A 1 packet HI 93730B-0 Reagent B 1 packet HI 93730C-0 Reagent C 1 packet

REAGENT SETS

HI 93730-01 Reagents for 100 tests HI 93730-03 Reagents for 300 tests

For other accessories see page 66.

MEASUREMENT PROCEDURE

• Select the described in the

• Fill the cuvette with 10 mL of unreacted sample (up to the mark) and replace the cap.

Molybdenum

Method Selection

method using the procedure

section (see page 12).

10 mL

• Place cuvette into the holder and close the lid.

• Press the Zero key. The display will show “-0.0-” when the meter is zeroed and ready for measurement.

40Molybdenum

• Fill one graduated mixing cylinder up to the 25 mL mark with the sample.

• Add the content of one packet of HI 93730A-0 molybdenum reagent, close the cylinder and invert it several times until completely dissolved.

• Add the content of one packet of HI 93730B-0 molybdenum reagent to the cylinder, close and invert it several times until completely dissolved.

• Add the content of one packet of HI 93730C-0 molybdenum reagent to the cylinder, close and shake it vigorously.

25 mL

• Fill an empty cuvette with 10 mL of sample up to the mark and replace the cap.

• Insert the cuvette into the instrument.

10 mL

Molybdenum

• Press Timer and the display will show the countdown prior to the measurement or, alternatively, wait for five minutes and press Read. When the timer ends the meter will perform the reading. The instrument displays concentration in mg/L of molybdenum.

• Press  or  to access the second level functions.

• Press the Chem Frm key to convert the result in mg/L of molybdate (MoO

¯) and sodium molybdate

(Na2MoO4).

• Press  or  to return to the measurement screen.

INTERFERENCES

Interference may be caused by: Aluminum above 50 mg/L Chromium above 1000 mg/L Copper above 10 mg/L Iron above 50 mg/L Nickel above 50 mg/L Nitrite, as NO2¯ Sulfate above 200 mg/L Highly buffered samples or with extreme pH may exceed the buffering capacity of the reagents.

Molybdenum

NICKEL HIGH RANGE

SPECIFICATIONS

Range 0.00 to 7.00 g/L Resolution 0.01 g/L Accuracy ±0.07 ±4% of reading at 25 °C Typical EMC ±0.02 g/L

Deviation Light Source Tungsten lamp with narrow band interference filter @ 575 nm Method Adaptation of the photometric method. The reaction between nickel and the reagent

causes a blue tint in the sample.

REQUIRED REAGENTS

Code Description Quantity

HI 93726-0 Powder reagent 1 packet

REAGENT SETS

HI 93726-01 Reagents for 100 tests HI 93726-03 Reagents for 300 tests

For other accessories see page 66.

MEASUREMENT PROCEDURE

• Select the

Nickel HR

method using the procedure described in the

Method Selection

section (see page 12).

• Fill the cuvette up to the mark with 10 mL of unreacted sample and replace the cap.

• Place the cuvette into the holder and close the lid.

• Press the Zero key. The display will show “-0.0-” when the meter is zeroed and ready for measurement.

10 mL

Nickel HR

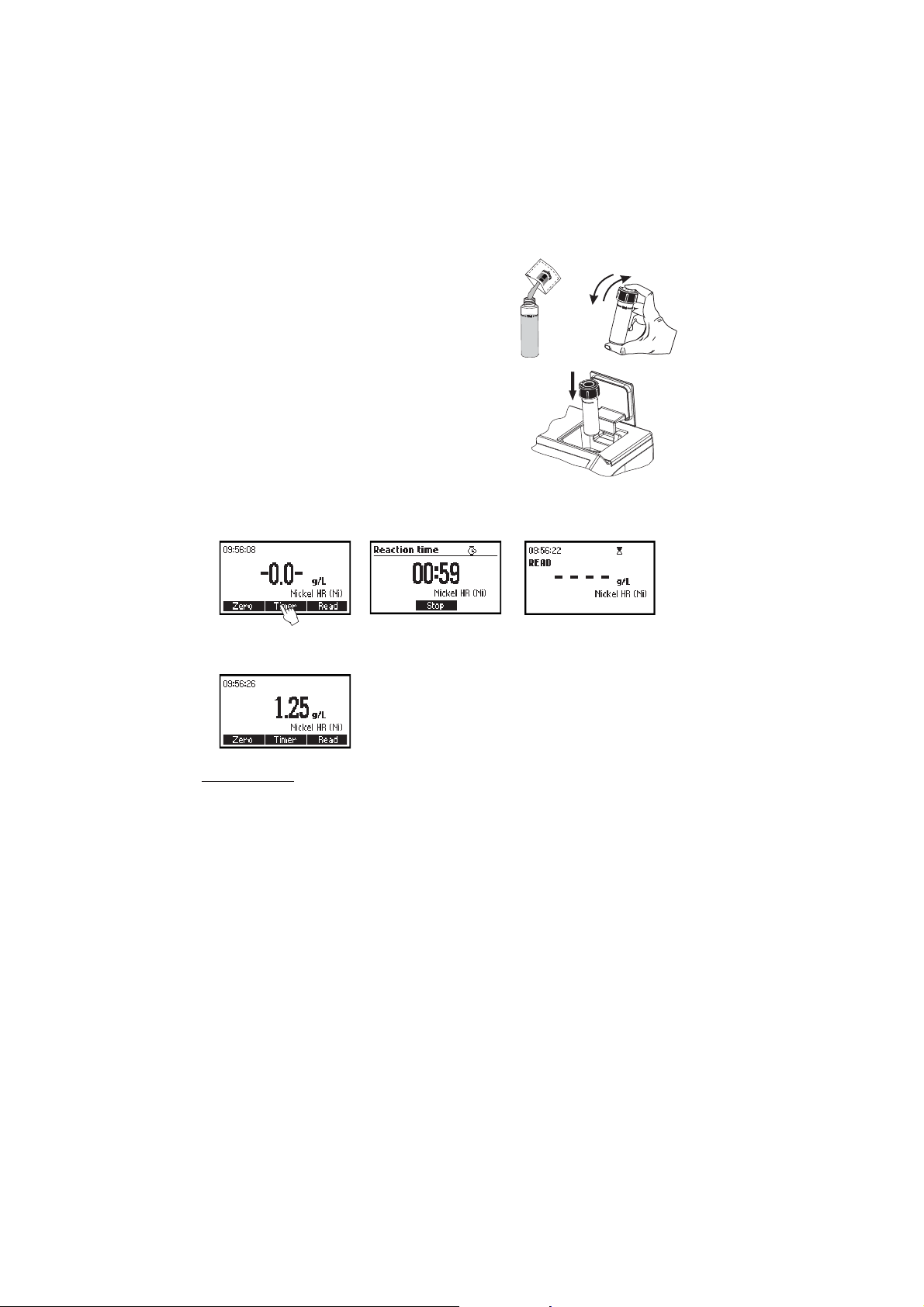

• Remove the cuvette and add the content of one packet of HI 93726-0 reagent. Replace the cap and shake gently until completely dissolved.

• Reinsert the cuvette into the instrument.

• Press Timer and the display will show the countdown prior to the measurement or, alternatively, wait for 1 minute and press Read. When the timer ends the meter will perform the reading.

• The instrument displays concentration in g/L of nickel.

INTERFERENCES

Interference may be caused by copper.

Nickel HR

NICKEL LOW RANGE

SPECIFICATIONS

Range 0.000 to 1.000 mg/L Resolution 0.001 mg/L Accuracy ±0.010 mg/L ±7% of reading at 25 °C Typical EMC ±0.001 mg/L

Deviation Light Source Tungsten lamp with narrow band interference filter @ 575 nm Method Adaptation of the PAN method. The reaction between nickel and the reagents causes

an orange tint in the sample.

REQUIRED REAGENTS

Code Description Quantity

HI 93740A-0 Phthalate-phosphate 2 packets HI 93740B-0 0.3% PAN indicator 2 mL HI 93740C-0 EDTA 2 packets HI 93703-51 Dispersing Agent 4-6 drops (only when necessary, see note)

REAGENT SETS

HI 93740-01 Reagents for 50 tests HI 93740-03 Reagents for 150 tests

For other accessories see page 66.

MEASUREMENT PROCEDURE

• Select the described in the

Note: for best results perform your tests between 20-24°C.

Nickel LR

method using the procedure

Method Selection

section (see page 12).

• Fill one graduated beaker with 25 mL of deionized water (blank) and another one with 25 mL of sample.

• Add the content of one packet of HI 93740A-0 Phthalate-phosphate reagent to each beaker. Cap and swirl gently until the reagent is dissolved.

Note: If sample contains iron (Fe3+), it is important that all powder be dissolved completely before continuing with following step.

• Add 1 mL of HI 93740B-0 0.3% PAN solution to each

beaker, cap and swirl to mix.

45 Nickel LR

• Press Timer and the display will show a countdown prior to adding reagent C or, alternatively, wait

for 15 minutes. Add one packet of HI 93740C-0 EDTA reagent to each beaker, cap and swirl to mix until completely dissolved.

• Fill one cuvette up to the mark with 10 mL of the blank.

10 mL

• Place the cuvette into the holder and close the lid.

• Press the Zero key. The display will show “-0.0-” when the meter is zeroed and ready for

measurement.

• Fill a second cuvette up to the mark with 10 mL of the reacted sample.

10 mL

• Insert the second cuvette into the instrument.

• Press Read to start the reading. The instrument displays the results in mg/L of nickel.

Note: a temperature above 30°C may cause turbidity. In this case, before zeroing and taking readings, add 2-3 drops of Dispersing Agent (HI 93703-51) to each cuvette and swirl until turbidity is removed.

Nickel LR

INTERFERENCES

Interference may be caused by: Co2+ must not be present Fe2+ must not be present Al3+ above 32 mg/L Ca2+ above 1000 mg/L (as CaCO3) Cd2+ above 20 mg/L Cl¯ above 8000 mg/L Cr3+ above 20 mg/L Cr6+ above 40 mg/L Cu2+ above 15 mg/L F¯ above 20 mg/L Fe3+ above 10 mg/L K+ above 500 mg/L Mg2+ above 400 mg/L Mn2+ above 25 mg/L Mo6+ above 60 mg/L Na+ above 5000 mg/L Pb2+ above 20 mg/L Zn2+ above 30 mg/L

Nickel LR

SPECIFICATIONS

Range 6.5 to 8.5 pH Resolution 0.1 pH Accuracy ±0.1 pH at 25 °C Typical EMC ±0.1 pH

Deviation Light Source Tungsten lamp with narrow band interference filter @ 525 nm Method Adaptation of the Phenol Red method. The reaction with the reagent causes a yellow

to red tint in the sample.

REQUIRED REAGENTS

Code Description Quantity

HI 93710-0 Phenol Red Indicator 5 drops

REAGENT SETS

HI 93710-01 Reagents for 100 pH tests HI 93710-03 Reagents for 300 pH tests

For other accessories see page 66.

MEASUREMENT PROCEDURE

• Select the pH method using the procedure described in the

Method Selection

section (see page 12).

• Fill the cuvette with 10 mL of unreacted sample (up to the mark) and replace the cap.

• Place the cuvette into the holder and close the lid.

• Press the Zero key. The display will show “-0.0-” when the meter is zeroed and ready for measurement.

10 mL

• Remove the cuvette and add 5 drops of HI 93710-0 Phenol Red Indicator. Replace the cap and mix the solution.

• Reinsert the cuvette into the instrument.

• Press the Read key to start the reading. The instrument displays the pH value.

PHOSPHATE HIGH RANGE

SPECIFICATIONS

Range 0.0 to 30.0 mg/L Resolution 0.1 mg/L Accuracy ±1 mg/L ±4% of reading at 25 °C Typical EMC Dev. ±0.1 mg/L Light Source Tungsten lamp with narrow band interference filter @ 525 nm Method Adaptation of the

18th edition,

causes a blue tint in the sample.

REQUIRED REAGENTS

Code Description Quantity

HI 93717A-0 Molybdate 10 drops HI 93717B-0 Reagent B 1 packet

REAGENT SETS

HI 93717-01 Reagents for 100 tests HI 93717-03 Reagents for 300 tests

For other accessories see page 66.

Standard Methods for the Examination of Water and Wastewater,

Amino Acid method. The reaction between phosphate and reagents

MEASUREMENT PROCEDURE

• Select the in the

• Fill the cuvette with 10 mL of unreacted sample (up to the mark) and replace the cap.

• Place the cuvette into the holder and close the lid.

• Press the Zero key. The display will show “-0.0-” when the meter is zeroed and ready for measurement.

• Remove the cuvette.

• Add 10 drops of HI 93717A-0 Molybdate reagent.

Phosphate HR

Method Selection

method using the procedure described

section (see page 12).

10 mL

• Add the content of one packet of HI 93717B-0 Phosphate HR Reagent B to the cuvette. Replace the cap and shake gently until completely dissolved.

• Reinsert the cuvette into the instrument.

• Press Timer and the display will show the countdown prior to the measurement or, alternatively, wait for 5 minutes and press Read. When the timer ends the meter will perform the reading. The instrument displays the results in mg/L of phosphate (PO

¯).

• Press  or  to access the second level functions.

• Press the Chem Frm key to convert the result in mg/L of phosphorus (P) and phosphorus pentoxide (P2O5).

• Press  or  to return to the measurement screen.

INTERFERENCES

Sulfide Chloride above 150000 mg/L Calcium above 10000 mg/L as CaCO Magnesium above 40000 mg/L as CaCO Ferrous iron above 100 mg/L

Phosphate HR

PHOSPHATE LOW RANGE

SPECIFICATIONS

Range 0.00 to 2.50 mg/L Resolution 0.01 mg/L Accuracy ±0.04 mg/L ±4% of reading at 25 °C Typical EMC Dev. ±0.01 mg/L Light Source Tungsten lamp with narrow band interference filter @ 610 nm Method Adaptation of the Ascorbic Acid method. The reaction between phosphate and the

reagent causes a blue tint in the sample.

REQUIRED REAGENTS

Code Description Quantity

HI 93713-0 Powder reagent 1 packet

REAGENT SETS

HI 93713-01 Reagents for 100 tests HI 93713-03 Reagents for 300 tests

For other accessories see page 66.

MEASUREMENT PROCEDURE

• Select the described in the

• Rinse, cap and shake the cuvette several times with unreacted sample. Fill the cuvette with 10 mL of sample up to the mark and replace the cap.

Phosphate LR

Method Selection

method using the procedure

section (see page 12).

10 mL

• Place the cuvette into the holder and close the lid.

• Press the Zero key. The display will show “-0.0-” when the meter is zeroed and ready for measurement.

• Remove the cuvette and add the content of one packet of HI 93713-0 reagent. Replace the cap and shake gently (for about 2 minutes) until the powder is completely dissolved.

Phosphate LR

• Reinsert the cuvette into the instrument.

• Press Timer and the display will show the countdown prior to the measurement or, alternatively, wait for 3 minutes and press Read. When the timer ends the meter will perform the reading. The instrument displays concentration in mg/L of phosphate (PO

¯).

• Press  or  to access the second level functions.

• Press the Chem Frm key to convert the result in mg/L of phosphorus (P) and phosphorus pentoxide (P2O5).

• Press  or  to return to the measurement screen.

INTERFERENCES

Interference may be caused by: Iron above 50 mg/L Silica above 50 mg/L Silicate above 10 mg/L Copper above 10 mg/L Hydrogen sulfide, arsenate, turbid sample and highly buffered samples also interfere.

Phosphate LR

PHOSPHORUS

SPECIFICATIONS

Range 0.0 to 15.0 mg/L Resolution 0.1 mg/L Accuracy ±0.3 mg/L ±4% of reading at 25 °C Typical EMC Dev. ±0.2 mg/L Light Source Tungsten lamp with narrow band interference filter @ 525 nm Method Adaptation of the

18th edition,

causes a blue tint in the sample.

REQUIRED REAGENTS

Code Description Quantity

HI 93706A-0 Molybdate 10 drops HI 93706B-0 Amino Acid Powder 1 packet

REAGENT SETS

HI 93706-01 Reagents for 100 tests HI 93706-03 Reagents for 300 tests

For other accessories see page 66.

MEASUREMENT PROCEDURE

• Select the described in the

• Fill the cuvette with 10 mL of unreacted sample (up to the mark) and replace the cap.

Phosphorus

Method Selection

method using the procedure

Standard Methods for the Examination of Water and Wastewater,

Amino Acid method. The reaction between phosphate and reagents

section (see page 12).

10 mL

• Place the cuvette into the holder and close the lid.

• Press the Zero key. The display will show “-0.0-” when the meter is zeroed and ready for measurement.

• Remove the cuvette.

• Add 10 drops of HI 93706A-0 Molybdate reagent.

Phosphorus

• Add the content of one packet of HI 93706B-0 Phosphorus Reagent B (Amino Acid) to the cuvette. Replace the cap and shake gently until completely dissolved.

• Reinsert the cuvette into the instrument.

• Press  or  to access the second level functions.

• Press the Chem Frm key to convert the result in mg/L of phosphate (PO

¯) and phosphorus pentoxide

(P2O5).

• Press  or  to return to the measurement screen.

INTERFERENCES

Interference may be caused by: Sulfide Chloride above 150000 mg/L Calcium above 10000 mg/L as CaCO Magnesium above 40000 mg/L as CaCO Ferrous iron above 100 mg/L

Phosphorus

SILICA

SPECIFICATIONS

Range 0.00 to 2.00 mg/L Resolution 0.01 mg/L Accuracy ±0.03 mg/L ±3% of reading at 25 °C Typical EMC ±0.01 mg/L

Deviation Light Source Tungsten lamp with narrow band interference filter @ 610 nm Method Adaptation of the

Heteropoly Blue method. The reaction between silica and reagents causes a blue tint in the sample.

REQUIRED REAGENTS

Code Description Quantity

HI 93705A-0 Molybdate 6 drops HI 93705B-0 Citric acid 1 packet HI 93705C-0 Amino acid 1 packet

REAGENT SETS

HI 93705-01 Reagents for 100 tests HI 93705-03 Reagents for 300 tests

For other accessories see page 66.

MEASUREMENT PROCEDURE

• Select the the

• Fill the cuvette with 10 mL of unreacted sample (up to the mark).

Silica

method using the procedure described in

Method Selection

section (see page 12).

ASTM Manual of Water and Environmental Technology, D859,

10 mL

• Add 6 drops of HI 93705A-0 Molybdate reagent. Replace the cap and swirl the solution.

• Wait for 4 minutes, add the content of one packet of HI 93705B-0 Citric acid reagent and shake until it is completely dissolved.

• Wait for 1 minute. This is the blank.

• Place the cuvette into the holder and close the lid.

Silica

• Press the Zero key. The display will show “-0.0-” when the meter is zeroed and ready for measurement.

• Remove the cuvette and add the content of one packet of HI 93705C-0 Amino acid reagent and shake until it is completely dissolved.

• Reinsert the cuvette into the instrument.

• Press Timer and the display will show the countdown prior to the measurement. Alternatively, wait for exactly 3 minutes and press Read. When the timer ends the meter will perform the reading. The instrument displays concentration in mg/L of silica (SiO

• Press  or  to access the second level functions.

• Press the Chem Frm key to convert the result in mg/L of Silicon (Si).

• Press  or  to return to the measurement screen.

INTERFERENCES

Interference may be caused by: Phosphate above 60 mg/L Phosphate above 75 mg/L Sulfide and high concentration of iron Eliminate color and turbidity interferences by zeroing the meter with the original water sample.

Silica

SILVER

SPECIFICATIONS

Range 0.000 to 1.000 mg/L Resolution 0.005 mg/L Accuracy ±0.020 mg/L ±5% of reading at 25 °C Typical EMC ± 0.001 mg/L

Deviation Light Source Tungsten lamp with narrow band interference filter @ 575 nm. Method Adaptation of the PAN method. The reaction between silver and reagents causes an

orange tint in the sample.

REQUIRED REAGENTS

Code Description Quantity

HI 93737A-0 Buffer Reagent A 1 mL HI 93737B-0 Buffer Reagent B 1 mL HI 93737C-0 Indicator Reagent C 2 mL HI 93737D-0 Fixing Reagent D 2 mL HI 93703-51 Dispersing Agent 4-6 drops

REAGENT SETS

HI 93737-01 Reagents for 50 tests HI 93737-03 Reagents for 150 tests

For other accessories see page 66.

MEASUREMENT PROCEDURE

• Select the

Note: for best results perform your tests between 20-24°C.

Silver

method using the procedure described in the

Method Selection

section (see page 12).

• Fill two graduated beakers with 25 mL of sample.

• Add 1.0 mL of HI 93737A-0 Buffer reagent to one beaker (the blank) and swirl gently to mix.

Silver

# 1

# 2

# 1

• Add exactly 1.0 mL of HI 93737B-0 Buffer reagent to the second

beaker (the sample) and swirl gently to mix. Press Timer and the display will show the countdown prior to adding reagent C or, alternatively, wait for 2 minutes.

• Then add exactly 1.0 mL of HI 93737C-0 Indicator reagent to

each beaker and swirl. Press Timer or, alternatively, wait for 2 minutes.

• Then, in both cases, add 1.0 mL of HI 93737D-0 Fixing reagent

to each beaker and swirl. Press Timer or, alternatively, wait for 2 minutes.

# 1

# 2

• Fill one cuvette up to the mark with 10 mL of the blank.

• Add 3 drops of Dispersing Agent (HI 93703-51), replace the cap and invert gently to mix for about 10 seconds.

• Place the cuvette into the holder and close the lid.

# 1

# 2

10 mL

# 1

Silver

• Press the Zero key. The display will show “-0.0-” when the meter is zeroed and ready for

measurement.

• Fill a second cuvette up to the mark with 10 mL of the reacted sample.

• Add 3 drops of Dispersing Agent (HI 93703-51), replace the cap and invert gently to mix for about 10 seconds.

• Insert the second cuvette into the instrument.

# 2

• Press Read to start the reading. The instrument displays the results in mg/L of silver.

INTERFERENCES

Interference may be caused by: Al3+ above 30 mg/L Fe2+ above 1.5 mg/L

Ca2+ above 1000 mg/L as CaCO3Fe3+ above 10 mg/L Cd2+ above 20 mg/L K+ above 500 mg/L Cl¯ above 8000 mg/L Mn2+ above 25 mg/L Co2+ above 1.5 mg/L Mg2+ above 1000 mg/L as CaCO Cr3+ above 20 mg/L Na+ above 5000 mg/L Cr6+ above 40 mg/L Ni2+ above 1.5 mg/L Cu2+ above 15 mg/L Pb2+ above 20 mg/L F¯ above 20 mg/L Zn2+ above 30 mg/L

10 mL

# 2

Silver

ZINC

SPECIFICATIONS

Range 0.00 to 3.00 mg/L Resolution 0.01 mg/L Accuracy ±0.03 mg/L ±3% of reading at 25 °C Typical EMC ±0.01 mg/L

Deviation Light Source Tungsten lamp with narrow band interference filter @ 575 nm Method Adaptation of the

18th edition,

orange to a dark violet tint in the sample.

REQUIRED REAGENT

Code Description Quantity

HI 93731A-0 Zinc Reagent 1 packet HI 93731B-0 Cyclohexanone 0.5 mL

REAGENT SETS

HI 93731-01 Reagents for 100 tests HI 93731-03 Reagents for 300 tests

For other accessories see page 66.

MEASUREMENT PROCEDURE

• Select the the

Zinc

method using the procedure described in

Method Selection

section (see page 12).

Standard Methods for the Examination of Water and Wastewater,

Zincon method. The reaction between zinc and the reagents causes an

• Fill one graduated mixing cylinder up to the 20 mL mark with the sample.

• Add the content of one packet of HI 93731A-0 Zinc reagent, close the cylinder and invert several times to mix until completely dissolved.

• Fill one cuvette with 10 mL of the reacted sample up to the mark.

20 mL

10 mL

Zinc

• Place the cap and insert the cuvette into the instrument and close the lid.

• Press the Zero key. The display will show “-0.0-” when the meter is zeroed and ready for measurement.

• Remove the cuvette and add 0.5 mL of HI 93731B-0 Cyclohexanone to the cuvette.

Note: To prevent any contamination from the polycarbonate cap, prior to replacing it, close the sample cuvette with the supplied HDPE plastic stopper.

• Replace the cap and mix the sample for 15 seconds.

• Insert the sample into the instrument.

• The instrument displays the results in mg/L of zinc.

INTERFERENCES

Interference may be caused by: Aluminum above 6 mg/L Cadmium above 0.5 mg/L Copper above 5 mg/L Iron above 7 mg/L Manganese above 5 mg/L Nickel above 5 mg/L

Zinc

ERRORS AND WARNINGS

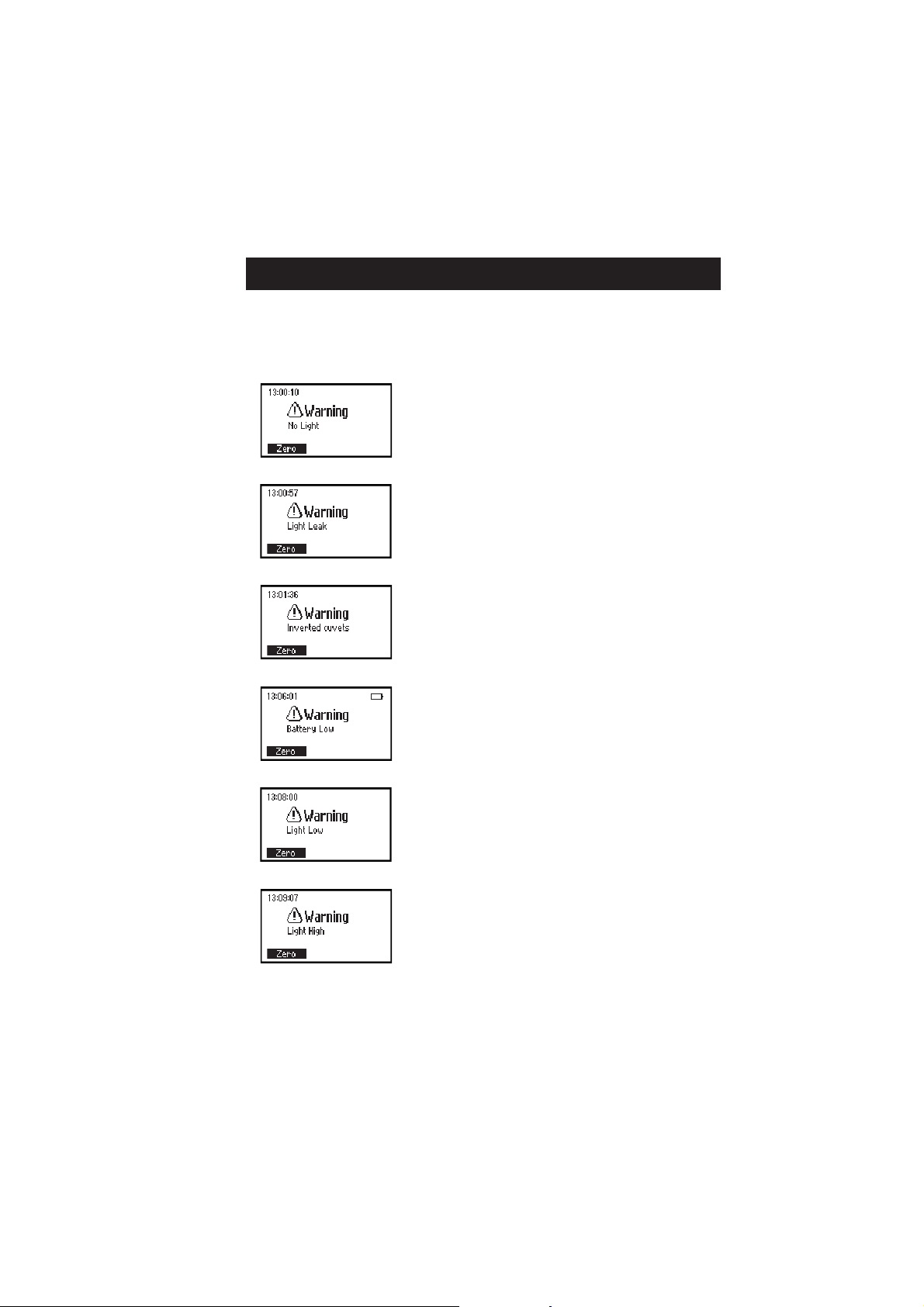

The instrument shows clear warning messages when erroneous conditions appear and when measured values are outside the expected range. These messages are described below.

No Light: The light source is not functioning properly.

Light Leak: There is an excess amount of ambient light reaching the

detector.

Inverted cuvettes: The sample and the zero cuvettes are inverted.

Battery Low: The battery capacity is lower than 10%.

Light Low: The instrument cannot adjust the light level. Please check that

the sample does not contain any debris.

Light High: There is too much light to perform a measurement. Please check the preparation of the zero cuvette.

DATA MANAGEMENT

The analyzed data can be managed using Hanna’s product HI92000, Windows® Compatible Software.

Windows® is registered Trademark of "Microsoft Co."

STANDARD METHODS

Description Range Method

Ammonia MR 0.00 to 10.00 mg/L Nessler Ammonia LR 0.00 to 3.00 mg/L Nessler Chromium VI HR 0 to 1000 μg/L Diphenylcarbohydrazide Chromium VI LR 0 to 300 μg/L Diphenylcarbohydrazide Copper HR 0.00 to 5.00 mg/L Bicinchoninate Copper LR 0 to 1000 μg/L Bicinchoninate Cyanuric Acid 0 to 80 mg/L Turbidimetric Iodine 0.0 to 12.5 mg/L DPD Iron HR 0.00 to 5.00 mg/L Phenantroline Iron LR 0 to 400 μg/L TPTZ Molybdenum 0.0 to 40.0 mg/L Mercaptoacetic Acid Nickel HR 0.00 to 7.00 g/L Photometric Nickel LR 0.000 to 1.000 mg/L PAN pH 6.5 to 8.5 pH Phenol Red Phosphate HR 0.0 to 30.0 mg/L Amino Acid Phosphate LR 0.00 to 2.50 mg/L Ascorbic Acid Phosphorus 0.0 to 15.0 mg/L Amino Acid Silica 0.00 to 2.00 mg/L Heteropoly Blue Silver 0.000 to 1.000 mg/L PAN Zinc 0.00 to 3.00 mg/L Zincon

ACCESSORIES

REAGENT SETS HI 93700-01 100 ammonia LR tests HI 93700-03 300 ammonia LR tests HI 93702-01 100 copper HR tests HI 93702-03 300 copper HR tests HI 93705-01 100 silica tests HI 93705-03 300 silica tests HI 93706-01 100 phosphorus tests HI 93706-03 300 phosphorus tests HI 93710-01 100 pH tests HI 93710-03 300 pH tests HI 93712-01 100 aluminum tests HI 93712-03 300 aluminum tests HI 93713-01 100 phosphate LR tests HI 93713-03 300 phosphate LR tests HI 93715-01 100 ammonia MR tests HI 93715-03 300 ammonia MR tests HI 93717-01 100 phosphate HR tests HI 93717-03 300 phosphate HR tests HI 93718-01 100 iodine tests HI 93718-03 300 iodine tests HI 93721-01 100 iron HR tests HI 93721-03 300 iron HR tests HI 93722-01 100 cyanuric acid tests HI 93722-03 300 cyanuric acid tests HI 93723-01 100 chromium VI HR tests HI 93723-03 300 chromium VI HR tests HI 93726-01 100 nickel HR tests HI 93726-03 300 nickel HR tests HI 93730-01 100 molybdenum tests HI 93730-03 300 molybdenum tests HI 93731-01 100 zinc tests HI 93731-03 300 zinc tests HI 93737-01 50 silver tests HI 93737-03 150 silver tests HI 93740-01 50 nickel LR tests HI 93740-03 150 nickel LR tests HI 93746-01 50 iron LR tests HI 93746-03 150 iron LR tests HI 93749-01 100 chromium VI LR tests HI 93749-03 300 chromium VI LR tests HI 95747-01 100 copper LR tests HI 95747-03 300 copper LR tests

OTHER ACCESSORIES HI 731318 cloth for wiping cuvettes (4 pcs) HI 731321 glass cuvettes (4 pcs) HI 731325W new cap for cuvette (4 pcs) HI 740034 cap for 100 mL beaker (6 pcs) HI 740036 100 mL plastic beaker (6 pcs) HI 740038 60 mL glass bottle and stopper HI 740142 1 mL graduated syringe HI 740143 1 mL graduated syringe (6 pcs) HI 740144 pipette tip (6 pcs) HI 740157 plastic refilling pipette (20 pcs) HI 740220 25 mL glass cylinders with caps (2 pcs) HI 740223 170 mL plastic beaker HI 740224 170 mL plastic beakers (12 pcs) HI 740225 60 mL graduated syringe HI 740226 5 mL graduated syringe HI 740227 filter assembly HI 740228 filter discs (25 pcs) HI 740229 100 mL graduated cylinder HI 740230 230 mL demineralized water HI 92000 Windows compatible software HI 920013 PC connection cable HI 93703-50 cuvette cleaning solution (230 mL) HI 93703-54 dried resin (100 g) HI 93703-55 activated carbon (50 pcs)

WARRANTY

All Hanna Instruments meters are warranted for two years against defects in workmanship and materials when used for its intended purpose and maintained according to the instructions.

This warranty is limited to repair or replacement free of charge. Damages due to accident, misuse, tampering or lack of prescribed maintenance are not covered. If service is required, contact your dealer. If under warranty, report the model number, date of purchase,

serial number and the nature of the failure. If the repair is not covered by the warranty, you will be notified of the charges incurred.

If the instrument is to be returned to Hanna Instruments, first obtain a Returned Goods Authorization Number from the Customer Service Department and then send it with shipment costs prepaid. When shipping any instrument, make sure it is properly packaged for complete protection.

To validate your warranty, fill out and return the enclosed warranty card within 14 days from the date of purchase.

Recommendations for Users

Before using these products, make sure that they are entirely suitable for your specific application and for the environment in which they are used. Operation of these instruments may cause unacceptable interferences to other electronic equipments, this requiring the operator to take all necessary steps to

correct interferences. Any variation introduced by the user to the supplied equipment may degrade the instruments' EMC performance. To avoid damages or burns, do not put the instrument in microwave ovens. For yours and the instrument safety do not use or store the instrument in hazardous

environments.

Hanna Instruments reserves the right to modify the design, construction and appearance of its products without advance notice.

HANNA LITERATURE

Hanna publishes a wide range of catalogs and handbooks for an equally wide range of applications. The reference literature currently covers areas such as:

• Water Treatment

• Process

• Swimming Pools

• Agriculture

• Food

• Laboratory

and many others. New reference material is constantly being added to the library. For these and other catalogs, handbooks and leaflets contact your dealer or the Hanna Customer Service

Center nearest to you. To find the Hanna Office in your vicinity, check our home page at www.hannainst.com.

Hanna Instruments Inc.

Highland Industrial Park 584 Park East Drive Woonsocket, RI 02895 USA

Technical Support for Customers

Tel. (800) 426 6287 Fax (401) 765 7575 E-mail tech@hannainst.com www.hannainst.com

Local Sales and Customer Service Office

Printed in EUROPE

(ROMANIA)

MAN83211 04/10

Hanna Instruments HI 83211 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
