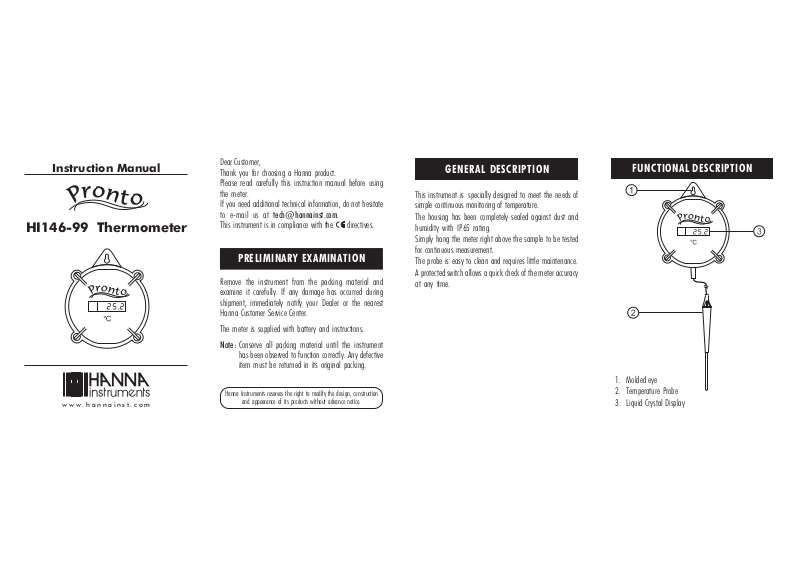

Instruction Manual

HI146-99 Thermometer

www.hannainst.com

Dear Customer,
Thank you for choosing a Hanna product.
Please read carefully this instruction manual before using
the meter.
If you need additional technical information, do not hesitate
to e-mail us at [e-mail].
This instrument is in compliance with the directives.

PRELIMINARY EXAMINATION

Remove the instrument from the packing material and
examine it carefully. If any damage has occurred during
shipment, immediately notify your Dealer or the nearest
Hanna Customer Service Center.

The meter is supplied with battery and instructions.

Note: Conserve all packing material until the instrument

has been observed to function correctly. Any defective
item must be returned in its original packing.

Hanna Instruments reserves the right to modify the design, construction

and appearance of its products without advance notice.

GENERAL DESCRIPTION

This instrument is specially designed to meet the needs of
simple continuous monitoring of temperature.

The housing has been completely sealed against dust and
humidity with IP65 rating.

Simply hang the meter right above the sample to be tested
for continuous measurement.

The probe is easy to clean and requires little maintenance.
A protected switch allows a quick check of the meter accuracy

at any time.

FUNCTIONAL DESCRIPTION

1. Molded eye

2. Temperature Probe

3. Liquid Crystal Display

SPECIFICATIONS

Range -50.0 to 150.0°C
Resolution 0.1°C
Accuracy ±0.3°C (-20 to 90°C)

±0.5°C (outside)

Typical EMC Deviation ±0.3°C
Probe Stainless steel probe with 2 m (6.6’) cable
Battery Type 1 x 1.5V AA, alkaline
Battery Life approx. 5 years of use
Casing IP65
Environment 0 to 50°C (32 to 122°F); RH 100%
Dimensions 86 x 110 x 43 mm (3.4 x 4.3 x 1.7’’)
Weight 150 g (5.3 oz.)

OPERATIONAL GUIDE

OPERATION

• Dip the probe in the sample to be
measured. An immersion level of 4 cm
(1 ½") is recommended.

• Do NOT immerse the probe handle.

• Do NOT wrench the probe or put
heavy objects on the cable. If the
cable is damaged, the meter needs
to be replaced.

• Wait for a few seconds for the display
to stabilize.

• Variations in readings or fading dis­play can indicate a weak battery.

CALIBRATION CHECK SWITCH

• Remove the rear cover (see also “Battery replacement”
section).

• Move the internal switch to the “TEST” position.

• The display should show 0.0±0.3°C (contact the near­est Hanna Service Center for recalibration, if necessary).

• To return to measure mode, move back the switch to
“MEAS” position.

• Reattach the cover while paying attention that the
gasket is in place before tightening the screws.

BATTERY REPLACEMENT

When the display fades, it is recommended to replace the
battery with a new one: unscrew the screws on the meter
back, remove the rear cover and change the battery, while
paying attention to its polarity.

Reattach the back cover while ensuring that the gasket is in
place before tightening the screws.

Battery should only be replaced in a safe area using one

1.5V AA alkaline type.

CE DECLARATION OF CONFORMITY

Recommendations for Users

Before using this product, make sure
that it is entirely suitable for the
environment in which it is used. Op­eration of this instrument in residen­tial areas could cause unacceptable
interferences to radio and TV equip­ment. Any variation introduced by the
user to the supplied equipment may
degrade the instrument’s EMC per­formance. To avoid electrical shock,
do not use this instrument when volt­ages at the measurement surface
exceed 24 Vac or 60 VdcC. To avoid
damages or burns, do not perform
any measurement in microwave ov­ens.

WARRANTY

This meter is warranted for two years against defects in workmanship and materials when
used for its intended purpose and maintained according to instructions.

The probe is warranted for a period of six months.

This warranty is limited to repair or replacement free of charge. Damages due to accident,
misuse, tampering or lack of prescribed maintenance are not covered.

If service is required, contact the dealer from whom you purchased the instrument. If under
warranty, report the model number, date of purchase, serial number and the nature of the
failure. If the repair is not covered by the warranty, you will be notified of the charges
incurred. If the instrument is to be returned to Hanna Instruments, first obtain a Returned
Goods Authorization Number from the Customer Service department and then send it with
shipment costs prepaid. When shipping any instrument, make sure it is properly packaged for
complete protection.

IST146-99R1 05/05
