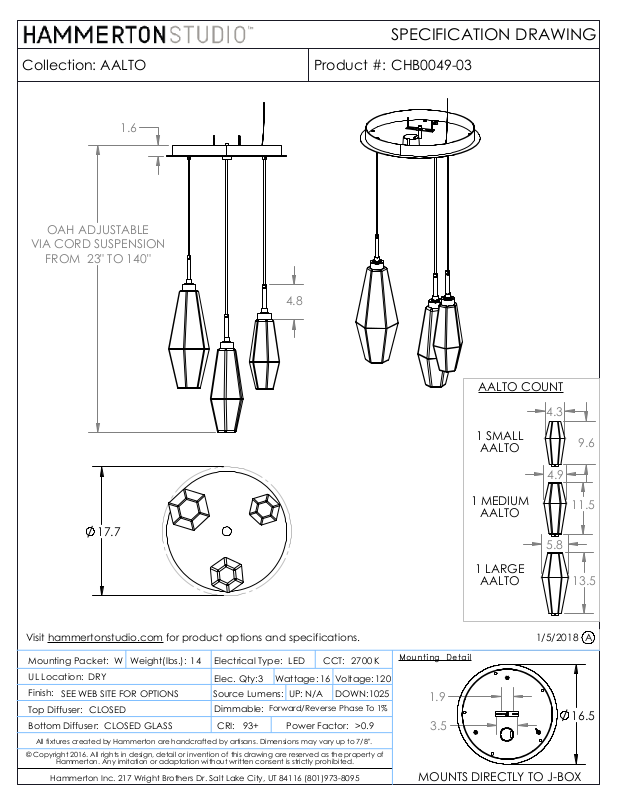

SPECIFICATION DRAWING
Collection:
AALTO
1.6
OAH ADJUSTABLE
VIA CORD SUSPENSION
FROM 23" TO 140"
4.8
Product #:
CHB0049-03
17.7
Visit
hammertonstudio.com
Mounting Packet:
UL Location:
Finish:
Top Diffuser:
Bottom Diffuser:
All fixtures created by Hammerton are handcrafted by artisans. Dimensions may vary up to 7/8".
© Copyright 2016. All rights in design, detail or invention of this drawing are reserved as the property of
Hammerton. Any imitation or adaptation without written consent is strictly prohibited.
Hammerton Inc. 217 Wright Brothers Dr. Salt Lake City, UT 84116 (801)973-8095
DRY
SEE WEB SITE FOR OPTIONS
CLOSED
Weight(lbs.):
W
CLOSED GLASS
for product options and specifications.
14
Electrical Type:
Elec. Qty:
Source Lumens:
Dimmable:
CRI:
LED
Wattage:
3
UP:
Forward/Reverse Phase To 1%
93+
Power Factor:
16
N/A
CCT:
Voltage:
DOWN:1025
2700 K
>0.9
Mounting Detail
120
AALTO COUNT
4.3
1 SMALL
AALTO
4.9
1 MEDIUM
11.5
AALTO
5.8
1 LARGE
AALTO
1/5/2018
13.5
1.9
16.5
3.5
MOUNTS DIRECTLY TO J-BOX
9.6
A
