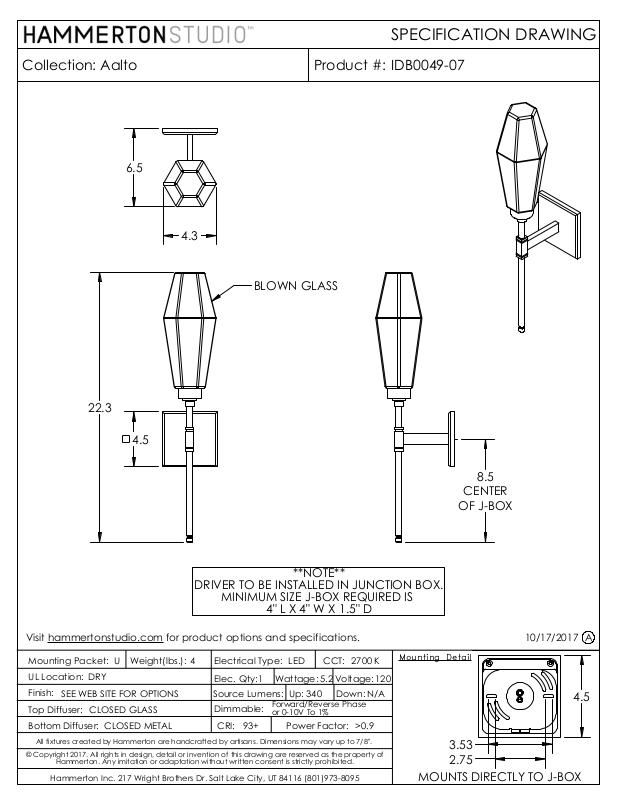

SPECIFICATION DRAWING
Collection:
Aalto
6.5
4.3
Product #:
BLOWN GLASS
IDB0049-07
22.3
4.5
**NOTE**
DRIVER TO BE INSTALLED IN JUNCTION BOX.
MINIMUM SIZE J-BOX REQUIRED IS
4" L X 4" W X 1.5" D
Visit
hammertonstudio.com
Mounting Packet:
UL Location:
Finish:
Top Diffuser:
Bottom Diffuser:
All fixtures created by Hammerton are handcrafted by artisans. Dimensions may vary up to 7/8".
© Copyright 2017. All rights in design, detail or invention of this drawing are reserved as the property of
Hammerton. Any imitation or adaptation without written consent is strictly prohibited.
Hammerton Inc. 217 Wright Brothers Dr. Salt Lake City, UT 84116 (801)973-8095
DRY
SEE WEB SITE FOR OPTIONS
CLOSED GLASS
Weight(lbs.):
U
CLOSED METAL
for product options and specifications.
4
Electrical Type:
Elec. Qty:
Source Lumens:
Dimmable:
CRI:
LED
Wattage:
1
Up:
Forward/Reverse Phase
or 0-10V To 1%
93+
Power Factor:
340
CCT:
5.2
Voltage:
Down:
2700 K
N/A
>0.9
Mounting Detail
120
8.5
CENTER
OF J-BOX
10/17/2017
4.5
3.53
2.75
MOUNTS DIRECTLY TO J-BOX
A
