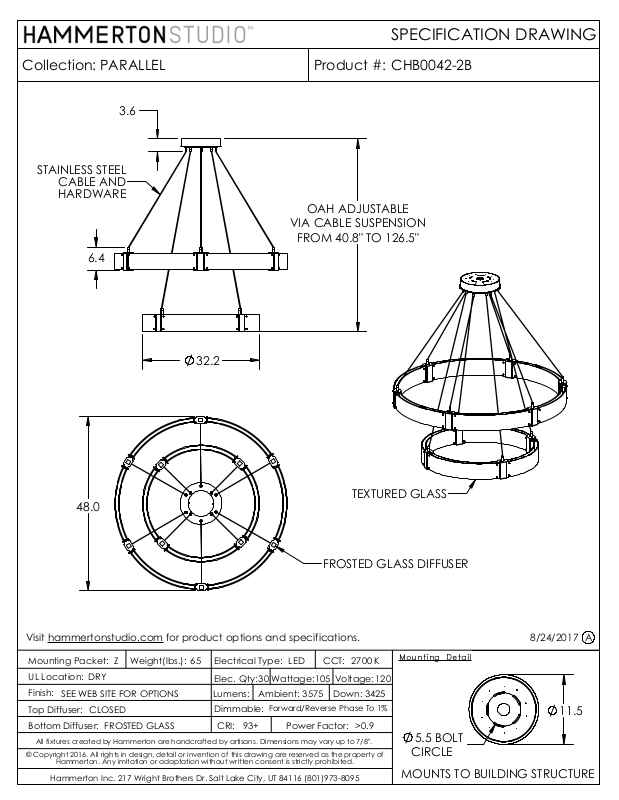

SPECIFICATION DRAWING
Collection:
STAINLESS STEEL
CABLE AND
HARDWARE
6.4
PARALLEL
3.6
Product #:
CHB0042-2B
OAH ADJUSTABLE
VIA CABLE SUSPENSION
FROM 40.8" TO 126.5"
48.0
Visit
hammertonstudio.com
32.2
FROSTED GLASS DIFFUSER
for product options and specifications.
TEXTURED GLASS
8/24/2017
A
Mounting Packet:
UL Location:
Finish:
Top Diffuser:
Bottom Diffuser:
All fixtures created by Hammerton are handcrafted by artisans. Dimensions may vary up to 7/8".
© Copyright 2016. All rights in design, detail or invention of this drawing are reserved as the property of
Hammerton. Any imitation or adaptation without written consent is strictly prohibited.
Hammerton Inc. 217 Wright Brothers Dr. Salt Lake City, UT 84116 (801)973-8095
DRY
SEE WEB SITE FOR OPTIONS
CLOSED
Weight(lbs.):
Z
FROSTED GLASS
65
Electrical Type:
Elec. Qty:
Lumens:
Dimmable:
CRI:
LED
Wattage:
30
Ambient:
Forward/Reverse Phase To 1%
93+
Power Factor:
CCT:
3575 3425
2700 K
Voltage:
Down:
>0.9
Mounting Detail
120105
5.5 BOLT
CIRCLE
MOUNTS TO BUILDING STRUCTURE
11.5
