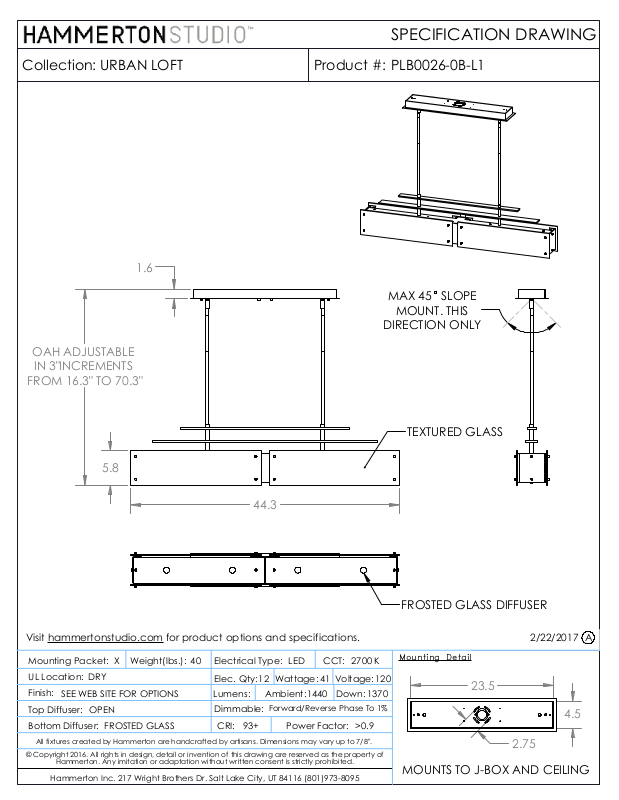

SPECIFICATION DRAWING
Collection:
URBAN LOFT
OAH ADJUSTABLE
IN 3"INCREMENTS
FROM 16.3" TO 70.3"
1.6
Product #:
PLB0026-0B-L1
MAX 45
MOUNT. THIS
DIRECTION ONLY
SLOPE
5.8
44.3
Visit
hammertonstudio.com
Mounting Packet:
UL Location:
Finish:
Top Diffuser:
Bottom Diffuser:
All fixtures created by Hammerton are handcrafted by artisans. Dimensions may vary up to 7/8".
© Copyright 2016. All rights in design, detail or invention of this drawing are reserved as the property of
Hammerton. Any imitation or adaptation without written consent is strictly prohibited.
Hammerton Inc. 217 Wright Brothers Dr. Salt Lake City, UT 84116 (801)973-8095
DRY
SEE WEB SITE FOR OPTIONS
OPEN
Weight(lbs.):
X
FROSTED GLASS
for product options and specifications.
40
Electrical Type:
Elec. Qty:
Lumens:
Dimmable:
CRI:
LED
Wattage:
Ambient:
Forward/Reverse Phase To 1%
93+
Power Factor:
CCT:
4112
Voltage:
Down:
1440 1370
2700 K
>0.9
TEXTURED GLASS
FROSTED GLASS DIFFUSER
Mounting Detail
120
23.5
2.75
MOUNTS TO J-BOX AND CEILING
2/22/2017
4.5
A
