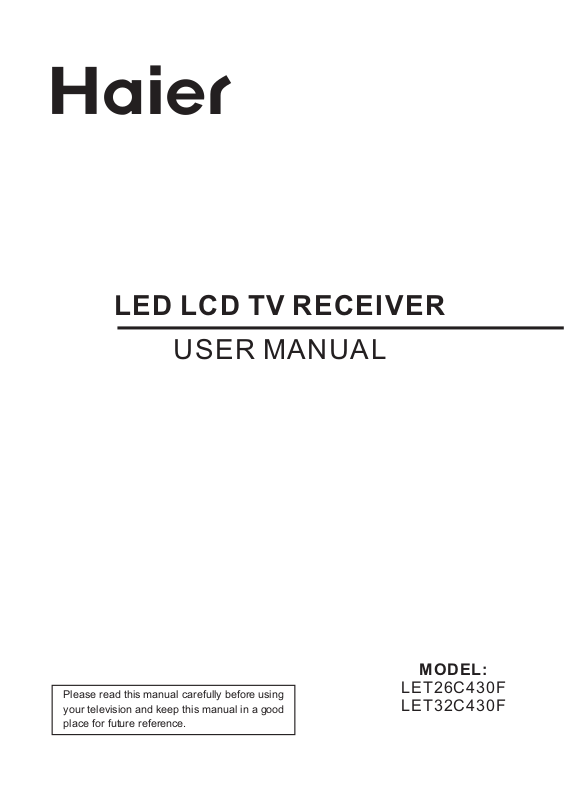

LED LCD TV RECEIVER
USER MANUAL
Please read this manual carefully before using your television and keep this manual in a good place for future reference.
MODEL:
LET26C430F
LET32C430F
P.02
P.02
P.03
P.04
P.05
P.07
P.08
P.09
P.09
P.10
P.11
P.12
P.14
P.22
P.23
Thanks for buying this 26"/32" LED LCD TV. This guide will help you set up and begin using your TV.
26" Full HD 1080P Digital LED LCD TV |
32" HD Ready LED LCD TV |
Remote control |
Remote control |
AAA battery x2 |
AAA battery x2 |
Instruction Manual |
Instruction Manual |
Quick start guide |
Quick start guide |
Scart cable x1 |
Scart cable x1 |
P.02
P.03
WARNINGS AND CAUTIONS
Warning
High voltages are used in the operation of this television receiver. Do not remove the cabinet back from your set. Refer servicing to qualified service personnel.
Warning
To prevent fire or electrical shock
hazard, do not expose the television
receiver to rain or moisture.
Warning
Do not drop or push objects into the
television cabinet slots or openings.
Never spill any kind of liquid on the
television receiver.
Caution
Do not block the ventilation holes in the
back cover. Adequate ventilation is
essential to prevent failure of electrical
components.
Caution
Do not trap the power supply cord under the television receiver.
Caution
Never stand on, lean on, or suddenly push the television or its stand. You should pay special attention to children. Serious injury may result if it should fall.
Caution |
warnings |
|
Do not place your television on an unstable |
and |
|
cart, stand, shelf or table. Serious injury to |
||
Safety |
||
an individual , and damage to the |
||
|
||
television, may result if it should fall. |
|
|
|
01 |
Caution
When the television receiver is not used for an extended period of time, it is advisable to disconnect the AC power cord from the AC outlet.
Caution
If the television is to be built into a compartment or similar enclosure, the minimum distances must be maintained.
Heat build-up can reduce the service life of your television, and can also be dangerous.
P.04
02 Introduction
CAUTION
Never tamper with any components inside the TV, or any other adjustment controls not mentioned in this manual. All LED-TVs are high voltage instruments. When you clean up dust or water drops on the LED PANEL or CABINET, the power cord should be pulled out from the receptacle, then wipe the TV with a dry soft cloth. During thunder and lighting, unplug the power cord and antenna cord to prevent damage to your TV. All repairs to this TV should only be performed by qualified TV service personnel.
INSTALLATION
*Locate the TV in the room where light does not strike the screen directly. *Total darkness or a reflection on the picture screen can cause eyestrain. Soft and indirect lighting is recommended for comfortable viewing.
*Allow enough space between the TV and the wall to permit ventilation.
*Avoid excessively warm locations to prevent possible damage to the cabinet or premature component failure.
*Do not cover the ventilation openings when using theTV.
Main features
1 |
Used as Television, display terminal, |
4 |
HDMI interface and SCART |
|
PC display |
|
Interface |
2 |
High luminance, wide viewing |
5 |
NICAM |
|
Angle |
|
|
3 |
Time-shift |
|
|
Main parameter
|
Panel |
26 |
|
32 |
|
|
TV System |
PAL-B/G I D/K |
' |
|
|
|
|
|
|||
|
|
SECAM- B/G D/K L L |
|
||
|
Video Signal System |
PAL/SECAM |
|
|
|
|
Input Power Voltage |
AC 100V-240V |
50/60Hz |
|
|
|
Power consumption |
55W |
|
90W |
|
|
Audio Output Power THD 7% |
2x5W |
|
2x8W |
|
|
Signal Input |
Analog RGB(PC) x1; PC audio x1 |
|
||
|
|
|
|||
|
|
High-Definition Multimedia Interface (HDMI)x2 |
|
||
|
|
Video INput x2 |
|
|
|
|
|
Audio Input x2 |
|
|
|
|
|
Y Pb Prx1 |
|
|
|
|
|
Mini SCARTx1 |
|
|
|
|
|
CI x 1 |
|
|
|
|
|
USB x 1 |
|
|
|
|
|
Tuner x 1 |
|
|
|
|
|
|
|
|
|
|
Horizontal definition TV line |
Composite Video input >=350 |
|
||
|
|
YPbPr |
>=400 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
P.05
PC
PRESET MODE
|
RESOLUTION |
V.Freq.(Hz) |
H.Freq.(KHz) |
|
|
|
|
|
|
1 |
640x480 |
60 |
31.47 |
|
|
|
|
|
|
2 |
800x600 |
60 |
37.88 |
|
|
|
|
|
|
3 |
1024x768 |
60 |
48.36 |
|
|
||||
|
|
|
|
|
4 |
1360x768 |
60 |
47.7 |
|
|
||||
|
|
|
|
|
5 |
1280x1024 |
60 |
63.98 |
|
|
|
|
|
|
6 |
1920x1080 |
60 |
66.64 |
|
(Only for LET26C430F) |
||||
|
|
|
02 Introduction
P.06
Base Stand Assembly Instruction
1. Insert the stand support pillar into the stand as the arrow indicated direction, and then fastened with three screws.
2. Insert the stand Ass'y into back cover as the arrow indicated direction, and then fastened with one screw.
INSTALLATION NOTES
Locate the TV in a room where light does not strike the screen directly. Total darkness or a reflection on the screen can cause eyestrain. Soft and indirect lighting is recommended for comfortable viewing.
Allow enough space between the TV and the wall to permit ventilation.
Avoid excessively warm locations to prevent possible damage to the cabinet or premature component failure.
P.07
WALL MOUNTING INSTALLATION GUIDELINES
This television can be wall mounted as follows:
1.Place the LED LCD Television onto a solid surface. Please place some soft material over the front of the screen to protect it from any damage.
2.Remove the screws from the lower part of the television, where the base joins to the TV, and take away the stand (put the stand somewhere safe for future use).
3.Use the four screws provided to fix the TV onto a wall mounting bracket (not included) via the four VESA standard holes on the back of the television.
200.00 100.00
02 Introduction
P.08
Remote Control
Front control panel
3
1
2
SOURCE
MENU
CH+
CH-
VOL+
VOL-
STANDBY
1 |
Remote control sensor. |
1 |
SOURCE |
Display the input source menu. |
|
|
|
2 |
MENU |
Display main MENU. |
|
|
|||
2 |
Indicator LED: |
|
|
||||
3 |
CH+/CH- |
In TV mode,press CH+ or CH- |
to change |
|
|||
|
|
|
|
||||
|
BLUE: POWER ON. RED: STAND BY. |
|
|
the channel up and down. |
select items . |
|
|
|
Key board. |
|
|
In MENU, press CH+ or CHto |
|
||
3 |
4 |
VOL+/VOL- |
In standby mode, it can Turn on the TV. |
|
|||
|
|
|
Adjust sound level. |
|
|
||
|
|
|
|
|
In MENU,adjust the item that you Selected. |
|
|
|
|
|
5 |
STANDBY |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Rear/Side Sockets
|
AV |
L |
R |
|
Y |
Pb |
Pr |
HDMI2 |
|
|
AC-INPUT |
|
|
|
|
|
|
|
|
|
100-240V~ 50/60Hz |
|
|
|
|
|
|
|
|
3 |
1 |
|
2 |
|
|
4 |
|
5 |
|
|
|
|
|
COMMON INTERFACE (CI) |
|
|
|
||
HDMI1 |
USB |
|
PC AUDIO |
|
SCART |
|
|
VGA |
ANT |
|
|
|
|
|
|||||
6 |
7 |
|
8 |
9 |
10 |
|
|
11 |
12 |
1 |
AV |
input |
2 |
L/R AUDIO |
input |
3 |
AC Power Source |
input |
4 |
YPbPr |
input |
5 |
HDMI2 |
input |
6 |
HDMI1 |
input |
7 |
USB |
input |
8 |
PC AUDIO |
input |
9 |
COMMON INTERFACE(CI) |
Intput |
10 |
SCART |
Intput |
11 |
VGA INPUT |
Input |
12 |
ANT |
input |
P.09
02 Introduction
P.10
COMMON INTERFACE
The common interface (CI) slot is designed to accept the conditional Access (CA) Module and Smart card in order to view the pay TV programmes and additional services. Contact your Common Interface service provider to get more information about the modules and subscription.
Please noted that CA modules and smart cards are neither supplied nor optional accessories from us.
|
Auto Tunin g |
|
|
DTV Manual Tunin g |
|
|
ATV Manual Tunin g |
|
< CHANNEL |
Pro gra mme Edit |
> |
Sig nal In fo rm atio n |
||
|
CI In fo rm atio n |
|
|
Softw are Update (O AD)O ff |
|
|
Softw are Update (U SB) |
|
P.11
03 Remote control
POWER MUTE
1 |
|
|
|
13 |
|
|
|
|
AUDIO |
|
|
1 |
2 |
3 |
|
14 |
|
2 |
|
|
RECALL |
15 |
|
4 |
5 |
6 |
|
||
7 |
8 |
9 |
0 |
|
|
TV MENU |
|
|
SOURCE |
|
|
3 |
|
|
|
16 |
|
|
|
|
|
17 |
|
4 |
OK |
|
|
|
|
5 |
|
|
|
18 |
|
CH.LIST |
SOUND |
EXIT |
19 |
||
+ |
|
|
+ |
20 |
|
6 |
PIC |
|
CH |
|
|
VOL |
|
|
|||
_ |
|
|
_ |
|
|
7 |
SLEEP |
ASPECT |
|
||
8 |
|
|
|
21 |
|
|
|
|
22 |
||
FREEZE TV/RADIO |
TEXT |
||||
|
|||||
9 |
|
|
|
23 |
|
EPG |
FAV |
|
INFO |
|
|
10 |
|
|
|
24 |
|
11 |
|
|
|
||
|
|
|
|
||
REVEAL |
HOLD |
LIST |
INDEX |
|
|
12 |
|
|
|
|
|
SUBPAGE |
SIZE |
MIX |
SUBTITLE |
|
|
|
|
|
|
25 |
|
30 |
|
|
|
26 |
|
31 |
|
|
REC/REP |
27 |
|
32 |
|
|
|
28 |
|
33 |
|
|
|
29 |
|
|
|
|
|
1:POWER:To set the TV to standby or power on. 2:NUMERIC KEY:For direct access to channels. 3:TV MENU:To display TV menu.
4:CURSOR:To move within the menu. 5:CH.LIST:To display the channels list. 6:VOL+/- :To adjust sound level.
7:PIC:To switch picture mode.
8:SLEEP:Set timer to turn off the TV. 9:FREEZE : To freeze the picture.
10:EPG:To display information about the program being viewed and what's on next in DTV mode.
11:FAV:To access your favourite channels list in TV or DTV mode.
12:TELETEXT KEYS: Please refer to next page. 13:MUTE:To disable or enable the sound output.
14:AUDIO:To select the available audio /language of TV programs .
15:RECALL: To access the previously viewed channel.
16:SOURCE: To select input source.
17:OK:To confirm selection.
18:EXIT:To return to the previous menu or exit menu.
19:SOUND:To switch sound mode.
20:CH+/CH-:To access the next or previous channels.
21:ASPECT: To change picture aspect ratio. 22:TV/RADIO:In DVB mode, it is used to switch
between digital TV channels and radio stations. Display/remove the programme information.
23:TEXT:To enter or exit TELETEXT.
24:INFO:To display information about the channel being viewed or further information about the program when in small EPG screen in DTV mode.
25:SUBTITLE:To switch between different subtitles in DTV mode.
26.To skip to the next file in USB mode.
27.To skip to the previous file in USB mode.
28.REC/REP:Press to record the TV program you are watching in DTV Mode or press to repeat play in USB Mode.
29.Stop the media player in USB mode.
30.To scan in reverse, during USB, USB playback.
31.To scan in forward, during USB, USB playback.
32.Play the media player in USB mode.
33.Pause the media player in USB mode,time shift in DTV mode.
NOTE:
With no operation for 4 hours, the unit will swift into the standby mode automatically. (Only in the home model)
03 Remote Control
P.12
REMOTE CONTROL
TELETEXT
Teletext is an information system broadcast by certain channels which can be consulted like a newspaper. It also offers access to subtitles for viewers with hearing problems or who are not familiar with the transmission language(cable networks, satellite channels, etc.)
Press: |
E |
|
You will obtain: |
||
|
This is used to call or exit teletext modes. The summary appears with |
|
|
a list of items that can be accessed. Each item has a corresponding |
|
TEXT |
3 digit page number. If the channel selected does not broadcast |
|
|
teletext, theindication 100 will be displayed and the screen will |
|
|
remain blank (in this case, exit teletext and select another channel). |
|
|
|
|
|
Enter the number of the page required using the 0 to 9 up/down. |
|
SELECTING A PAGE |
Example: page 120, enter 120. The number is displayed top left, the |
|
|
counter turns and then the page is displayed. Repeat this operation to |
|
|
view another page. If the counter continues to search, this means |
|
|
that the page is not transmitted. Select another number. |
|
|
|
|
DIRECT ACCESS |
Coloured are as are displayed at the bottom of the screen. The 4 |
|
coloured keys are used to access the items or corresponding pages. |
||
TO THE ITEMS |
||
The coloured areas flash when the item or the page is not yet |
||
|
||
|
available. |
|
|
|
|
INDEX |
This returns to the contents page (usually page 100). |
|
|
|
|
SUB PAGE |
Certain pages contain sub-pages which are automatically |
|
displayed successively. This key is used to stop or resume sub- |
||
|
page acquisition. The indication appears top left. |
|
|
|
|
HOLD |
To freeze the page. |
|
|
|
|
REVEAL |
To display or hide the concealed information (games solutions). |
|
|
|
|
|
The user can set four favorite pages to be directly linked to the four |
|
LIST |
color keys. While list mode is activated, it is not possibility to use TOP |
|
or FLOF navigation with the colorkeys. The favorite page numbers |
||
|
should be stored and restored to/from nonvolatile memory for each |
|
|
channel by the system software. |
|
|
|
P.13
04 OPERATION
Installation Guide
Mode Select
Home Mode
Shop Mode
OK
Country
Norway |
Rumania |
Slo venia |
Swit zerla nd |
Morocco |
Pola nd |
Russia n |
Spain |
UK |
Tunis |
Portugal |
Serbia |
Sweden |
NewZeala nd |
Alg eria |
OK
This screen only appear when the TV first time turn on or reset to factory set.You can choose energy-saving mode and country, auto turning programs .And after turning the screen will skip to the first DTV program.
1.CHANNEL MENU
The first item of the MENU is channel menu( for TV or DTV source only).
|
Auto Tunin g |
|
|
DTV Manual Tunin g |
|
|
ATV Manual Tunin g |
|
< CHANNEL |
Pro gra mme Edit |
> |
Sig nal In fo rm atio n |
||
|
CI In fo rm atio n |
|
|
Softw are Update (O AD)O ff |
|
|
Softw are Update (U SB) |
|
Pls press |
to select country at first , then |
||
press OK button to start auto tuning . |
|||
|
Channel Tuning |
||
|
|
|
|
|
TV |
: 0 Programme(s) |
|
|
DTV : 0 Programme(s) |
|
|
|
Radio : 0 Programme(s) |
|
|
|
96% UHF CH 68 DTV |
|
|
|
|
|
|
NOTE:
All the channels including ATV, DTV and Radio can be tuning by one time,if the Tune Type is DTV+ATV .
All the stored channels will be disappear after auto tuning .
After auto tuning , the channel will skip to the first DTV channel.
2).DTV Manual tuning:
You can select a DTV channel then find the program in this channel.
Pls press to select the channel or input, channel Num. by Num. key then press OK to search the programs .
NOTE:
Bad Normal Good means signal intensity.
DTV Manual Tuning
_ |
+ |
VHF CH 5 |
|
Press OK to search |
|
Bad |
Nomal |
Good |
You can search channels and edit programs here.
1).Auto tuning:
Search all the channels automatically(you can select ATV and DTV)
Tune Type |
|
DTV+ATV |
Germany |
Italy |
Norway |
Greece |
Luxembourg |
Pola nd |
Hungary |
Netherla nds |
Portugal |
|
MENU |
OK |
3). ATV Manual tuning :
You can change the sound system to search the analog TV channels and fine tune the channels , then storage the channels you selected.
ATV Manual Tuning
_ |
+ |
Storage To 1 |
|
|
|
System BG |
|
|
|
Current CH 1 |
|
|
|
Search |
|
|
|
Fine-Tune |
|
|
|
Frequency 255.25 MHz |
|
Save |
MENU |
|
|
04 Operation
P.14
NOTE:
Press teletext red button to storage to channels after manual tuning .
4). Program edit:
You can Delete ,Rename ,Move, Skip , FAV any programs.
Delete
Press teletext red button , the program in cursor will delete.
Rename:
Only can rename ATV programs .
Move the cursor to the program, press teletext
green button to rename the program. |
|
|
Press |
to choose the character. Press |
to |
move the cursor .
Press MENU button to exit edit , Press EXIT to exit the menu.
Note: ATV programs name only can be 5 character, DTV programs name can be 25 character.
Use the Arrow Buttons to select the channel you wish to move. Then press the Yellow Button to select Move function. Once active use the Arrow Buttons to move and then press OK to confirm.
Press to choose the program , press teletext blue button to skip this program, The
will show on the right side of the program .
Choose the skipped program, press blue button again , you can cancel the skip ,The will disappear .
Favourite
Press to choose the program , press FAV button , it will show
on the right side of the program.Choose the FAV program , press FAV button again , you can cancel the FAV,
the will disappear .
Once your favorite group is created, you can press the FAV key to quickly access your favorite channel.
5). CI information: (optional)
This menu can display the CI card' s information.
2. PICTURE MENU
The second item of the MENU is PICTURE MENU. You can adjust picture effect here, such as contrast, brightness, etc.
Press OK to move, press OK to adjust.
|
|
|
|
Pic ture Mode Standard |
|||
|
|
|
|
Colo r Temperature |
|||
|
|
|
|
Aspect Ratio |
|
||
< PICTURE |
|
|
Nois e Reductio n |
> |
|||
|
|
Screen |
|||||
|
|
|
|
|
|||
Picture Mode |
Standard |
|
|
Colo r Temperatu re Mediu m |
|||
|
|
|
|
||||
Contr ast 82 |
|
|
Red 40 |
||||
Brig htn ess 50 |
|
|
Green 31 |
||||
Colo r 50 |
|
|
Blu e 50 |
||||
Sharpness 50 |
|
|
|
|
|||
|
|
|
|
|
|
|
|
Tin t 50 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
MENU |
|
|
|
|
|
|
MENU |
|
|
|
|
|
|
|
|
NOTE:
1).Tint is available in NTSC system only.
2).There are four colors temperature modes can be selected medium, warm, cool,user 3).Screen is available in PC mode only which, can adjust Horizontal position, vertical position, size and phase.
3.SOUND MENU
The third item of the MENU is the SOUND MENU.
You can adjust the sound effect here such as treble, bass, balance etc.
Press to move, press OK to adjust.
|
Sound Mode Standard |
|
|
Bala nce |
|
< SOUND |
Auto Volu me |
> |
Surround off |
Note:
Auto volume: only available when the input signal volume is too large or distortion.
4.TIME MENU
The forth item of the menu is the TIME MENU You can adjust the clock, power on/off time, sleep time etc Press to move, press OK to adjust
Clo ck -- -- -- --
Off Tim e
On Tim e
Sle ep Tim er
< TIME |
Auto Sle ep |
> |
|
|
|
|
Tim e Zone |
|
NOTE:
Within 15 minutes there is no signal, the TV will auto sleep , if Auto Sleep is set ON. The clock time can get from the DTV system auto.
P.15
