Haier HPH60ILX1, HPH90ILX1 Installation and Operation Guide

BUILT-IN INTEGRATED

RANGEHOOD

HPH60ILX1 and HPH90ILX1 models

INSTALLATION GUIDE / USER GUIDE

NZ AU

CONTENTS

Safety and warnings 3

Installation instructions 5

Operating instructions 13

Cleaning and maintenance 14

Parts and accessories 16

Service & Warranty 17

SAFETY AND WARNINGS

!

 WARNING!

Weight Hazard
The appliance is heavy. Please ensure adequate care is taken when
installing the appliance to prevent personal injury. The appliance must be
installed onto a solid wall, stud, beam or truss. Weight of the product is

8.5 kg

8.5 kg (HPH60)/ 9.5 kg (HPH90).

(HP60)

9.5 kg

(HP90)

!

 WARNING!

Electric Shock Hazard
Always disconnect the appliance from the mains power supply before
carrying out any maintenance or repairs. Alterations to the domestic wiring
system must only be made by a qualified electrician.
Failure to follow this advice may result in electrical shock or death.

IMPORTANT SAFETY INSTRUCTIONS

WARNING!
When using this appliance always exercise basic safety precautions including
thefollowing:

●

Read the entire set of instructions before installing or using this appliance.

●

Please make this information available to the person installing the appliance –
doingso could reduce your installation costs.

●

Always switch the power off prior to installation, servicing or cleaning of
therangehood.

●

This appliance must be installed and connected to the mains power supply only
by a suitably qualified person according to these installation instructions and in
compliance with any applicable local building and electricity regulations. Failure
toinstall the appliance correctly could invalidate any warranty or liability claims.

●

To comply with electrical safety regulations, the rangehood must be plugged into
a socket near the appliance. The socket must be accessible, or have an accessible
isolating switch, to enable the end user to isolate the rangehood from the power for
the purpose of internal cleaning or maintenance.

●

A power outlet should be within 750 mm of the motor assembly and can either be
onthe wall, behind the chimney or in the ceiling.

●

If the supply cord of this equipment is damaged, it must only be replaced by the
manufacturer, its service agent or similarly qualified person in order to avoid a hazard.

●

Ducting accessories are not supplied. All ducting must comply with local requirements
and building codes.

●

Attention should be given to ensure that any applicable regulations concerning the
discharge of exhaust air are fulfilled.

3

SAFETY AND WARNINGS

●

Before connecting any pipes, consult municipal ordinances to ensure that any
applicable regulations concerning the discharge of exhaust air are adhered to and
request permission from the person in charge of the building.

●

Exhaust air must not be discharged into an existing flue that is used for exhausting
fumes from appliances burning gas or other fuels.

●

There shall be adequate ventilation of the room when the rangehood is used at the
same time as appliances burning gas or other fuels.

●

Range hoods and other cooking fume extractors may adversely affect the safe
operation of appliances burning gas or other fuels (including those in other rooms)
due to back flow of combustion gases. These gases can potentially result in carbon
monoxide poisoning. After installation of a range hood or other cooking fume
extractor, the operation of flued gas appliances should be tested by a competent
person to ensure that back flow of combustion gases does not occur.

●

The minimum distance between the supporting surface for cooking vessels on the
cooktop and the lowest part of the rangehood shall be 600 mm, or 650 mm if
installed over a gas cooktop. If the instructions for installation of the cooktop require
a greater minimum distance, this should be followed.

●

Stainless steel is very easily damaged during installation if abraded or knocked by
tools. It is recommended to protect the top of the rangehood with cardboard or
polystyrene during the installation to minimise the risk of damage occurring.

●

To reduce the risk of damage occurring to the cooktop, it is recommended that
the surface of the cooktop is protected with cardboard or a similar object during
installation of the rangehood.

●

This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning the use of the appliance
by a person responsible for their safety.

●

Children should be supervised to ensure they do not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.

●

You must read the details concerning the method and frequency of cleaning.

●

There is a fire risk if cleaning is not carried out in accordance with the instructions.

●

Never leave frying food unattended since grease can overheat and catch fire.
The risk of fire is even greater in the case of used oil.

●

Do not flambé under the rangehood.

●

Never use the rangehood without the filters in place.

●

During an electrostatic discharge (ESD) it is possible that the device will stop
working. By switching the device off and on the device will again work as intended.

●

CAUTION: accessible parts may become hot when used with cooking appliances.

●

Remove all packaging, including protective wrappings, before use.

4

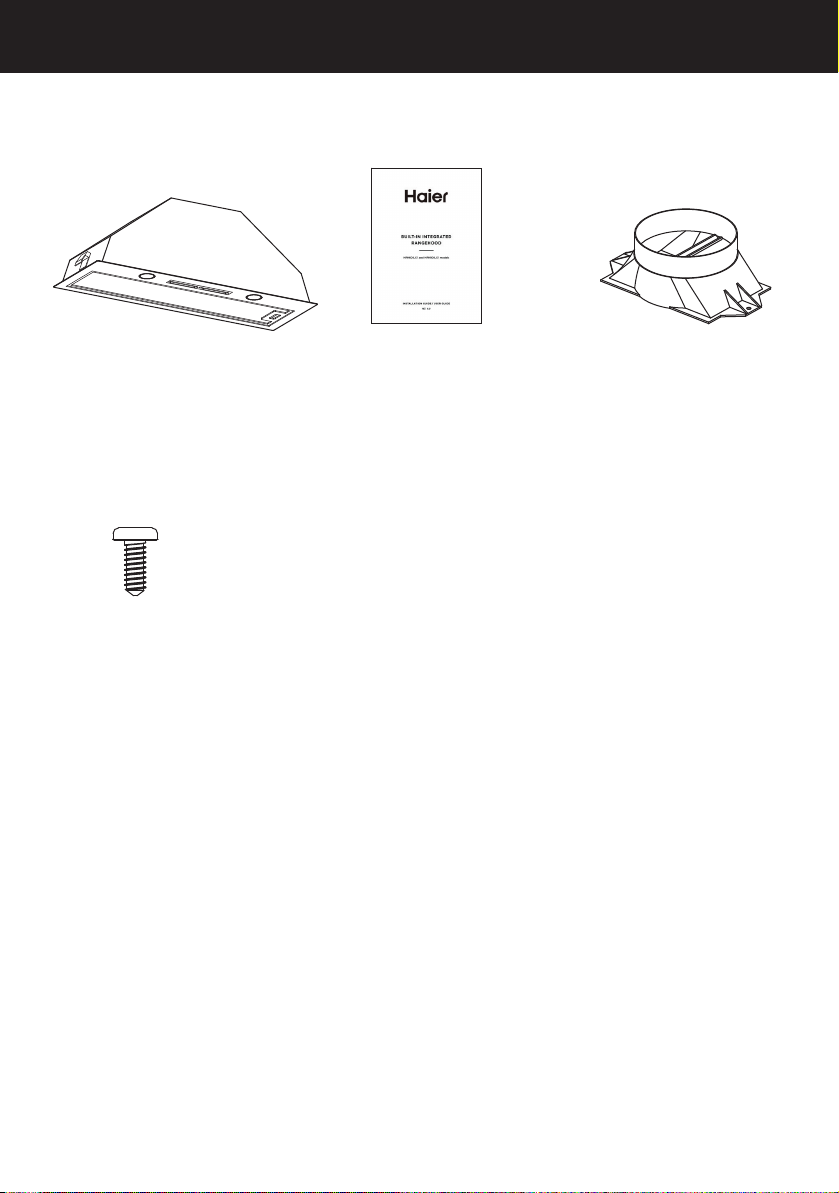

Contents of packaging

INSTALLATION INSTRUCTIONS

Rangehood
(1)

13mm screw
(2)

Installation guide / 
User guide
(1)

125mm ducting adapter
with non return flap
(1)

5

INSTALLATION INSTRUCTIONS

(

Power cord location

Product and cabinetry cutout dimensions

K

L

Ø

J

Power cord location

HP90

HP60

F

H

I

A)

A

D

C

O

G

E

B

M

N

6

INSTALLATION INSTRUCTIONS

HP60ICSX3 HP90ICSX3

PRODUCT DIMENSIONS mm mm

Overall height of product

A

(with ducting adapter)

Overall width of product 492 792

B

Overall depth of product 277 277

C

Thickness of flange 1 1

D

Width of chassis 450 750

E

Depth of chassis 255 255

F

Height of side of chassis n/a 100

G

Width of top surface of chassis 265 250

H

Length of angled surface of chassis 335 273

I

Distance from centre of ducting outlet

J

toback of chassis

Distance from centre of ducting outlet

K

toside of chassis

Diameter of ducting outlet 125 125

L

Distance between centre of lights 340 385

M

Distance from centre of light to front

N

ofproduct

Length of power cord 950 950

CABINETRY CUTOUT DIMENSIONS

Overall width of cutout 460 760

Overall depth of cutout 260 260

Base of brackets/clips to bottom of chassis min. 15 – max. 35 min. 15 – max. 35

O

325

(404)

82 73

225 375

45 45

260

(330)

IMPORTANT!

Actual product dimensions may vary by ± 2mm.

Please read the entire instructions before installing the rangehood.

7

Height of rangehood

INSTALLATION INSTRUCTIONS

P

MINIMUM CLEARANCES mm

Height top of cooktop to base of product

P

Electric cooktop

Gas cooktop

This rangehood must be installed no lower than the minimum height indicated in the table
above. Minimum installation height may be greater if required by the cooktop manufacturer
or safety and warnings section on this user guide. Installation at the minimum height will
improve efficiency of capturing cooking odours, grease and smoke. Installation at the
maximum height improves ergonomics by offering increased head room.

8

min. 600 – max.

recommended 750

min. 650 – max.

recommended 750

INSTALLATION INSTRUCTIONS

Induction cooking considerations

●

Induction cooktops use energy efficient technology that only heats the contents of a
cooking pot.

●

Unlike gas or traditional electric cooktops, the surrounding air does not get heated
when using an induction cooktop. As a result, rangehood filters, splashbacks and
surrounding cabinetry do not get warmed up, increasing the likelihood of condensation
on these cooler surfaces.

●

Other factors like ambient temperature, humidity, natural ventilation of the room, size of
the cookware and how the induction cooktop is being used also influence condensation.
For example, aggressive boiling on high cooktop heat settings like PowerBoost increases
the rate at which water is evaporated, increasing the likelihood of condensation.

●

It is important to understand that neither the rangehood nor the induction cooktop are
faulty as a result of this phenomenon.

Condensation can be minimised by:

●

Installing the rangehood at the maximum height above the cooktop as specified in
this user guide.

●

Using the rangehood on a lower speed setting when boiling.

●

Using the induction cooktop on a lower heat setting when boiling.

●

Switching the rangehood on 5minutes before cooking and letting it run for at least
5minutes after cooking.

Venting options

Attention should be given to ensure that any applicable regulations concerning the
discharge of exhaust air are fulfilled.

The rangehood can be installed to operate with the exhaust air ducted externally from
the kitchen, or installed to operate with the exhaust air recirculating within the kitchen.

Ducted

For ducted installation it is recommended that 125mm diameter, rigid or semi-rigid
ducting is used. This will require a 135mm (min) round hole in the ceiling or wall. Care
should be taken to position the hole correctly.

For optimal efficiency use the shortest and straightest duct route possible and use rigid
or semi-rigid ducting for reduced noise and increased airflow. Flexible metal ducting
should only be used as a last resort (ie in difficult installations) and if used ensure that it
is straight and smooth and extended as much as possible.

Recirculating

Where ducting outside is not a practical option, this rangehood can be installed to
operate with the air recirculating. Carbon filters are required to remove odours from the
air before it is channelled back into the room or overhead bulkhead (refer to ‘Cleaning
and Maintenance’ section). Ensure that the ducting outlet is not obstructed, even a
partial obstruction will restrict the efficiency of the rangehood.

9

INSTALLATION INSTRUCTIONS

2.3

2.2

2.1

WARNING!

●

This appliance is heavy and requires two persons for unpacking and installation

●

Installation work and electrical wiring must be done by qualified person(s) in
accordance with all applicable codes and standards.

●

Failure to install the screws or fixing device in accordance with these instructions
mayresult in electrical hazards

IMPORTANT!

Wear gloves to protect against sharp edges.

The manufacturer is not liable for any damage caused by not following these instructions.

Installation

Prepare for installation.

1

Before installing your rangehood:

●

Please read the instructions carefully.

●

Unpack the rangehood and check that all functions are working.

●

Ensure that the voltage (V) and the frequency (Hz) indicated on the serial plate
match the voltage and frequency at the installation site.

●

The stainless steel and glass surfaces of the rangehood are very easily damaged
during installation if grazed or knocked by tools. Please take care to protect the
surfaces during installation.

●

Protect the cooktop surface below with cardboard, or the like, to prevent damage
occurring whilst the rangehood is being installed above.

Fit the 125mm ducting adapter with non return flap to the rangehood using the

2

screwssupplied.

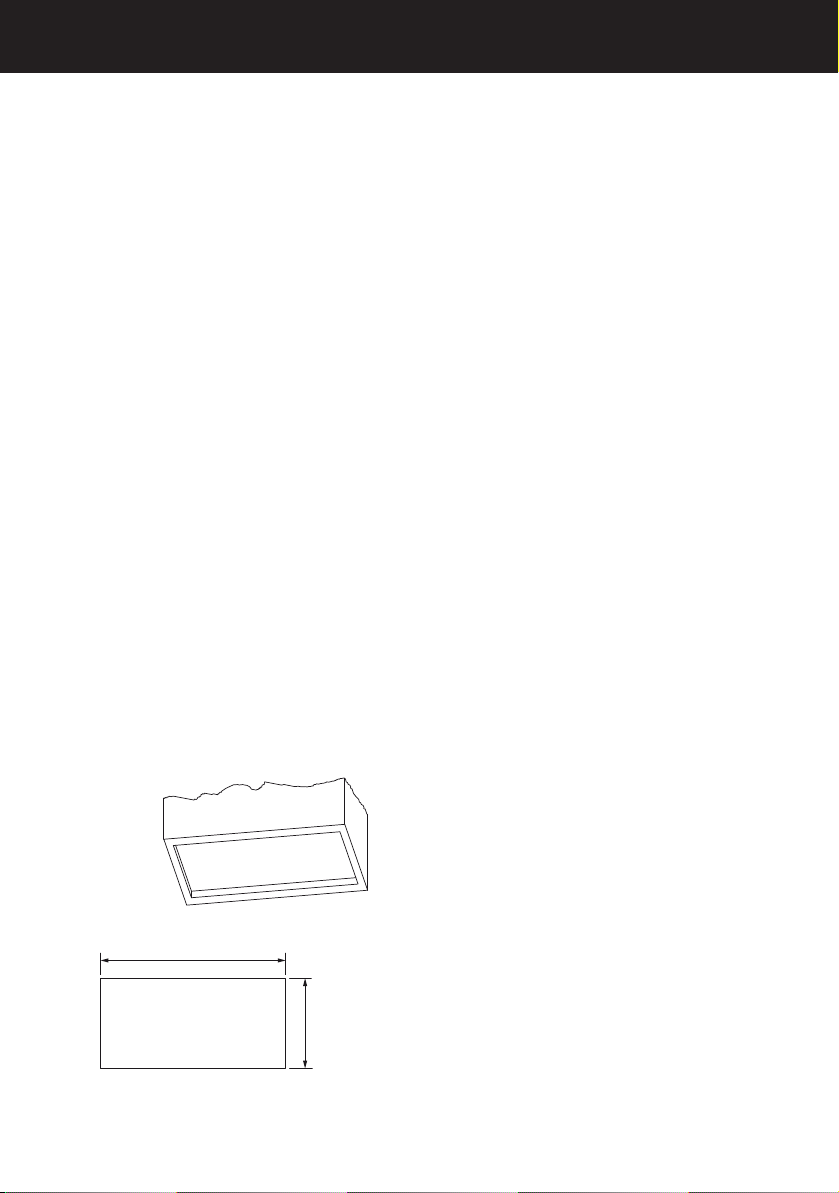

Provide an opening on the underside of the cupboard (see product and cabinetry

3

cutout dimensions).

width

depth

10

INSTALLATION INSTRUCTIONS

width

depth

2.3

2.2

2.1

2.2

2.1

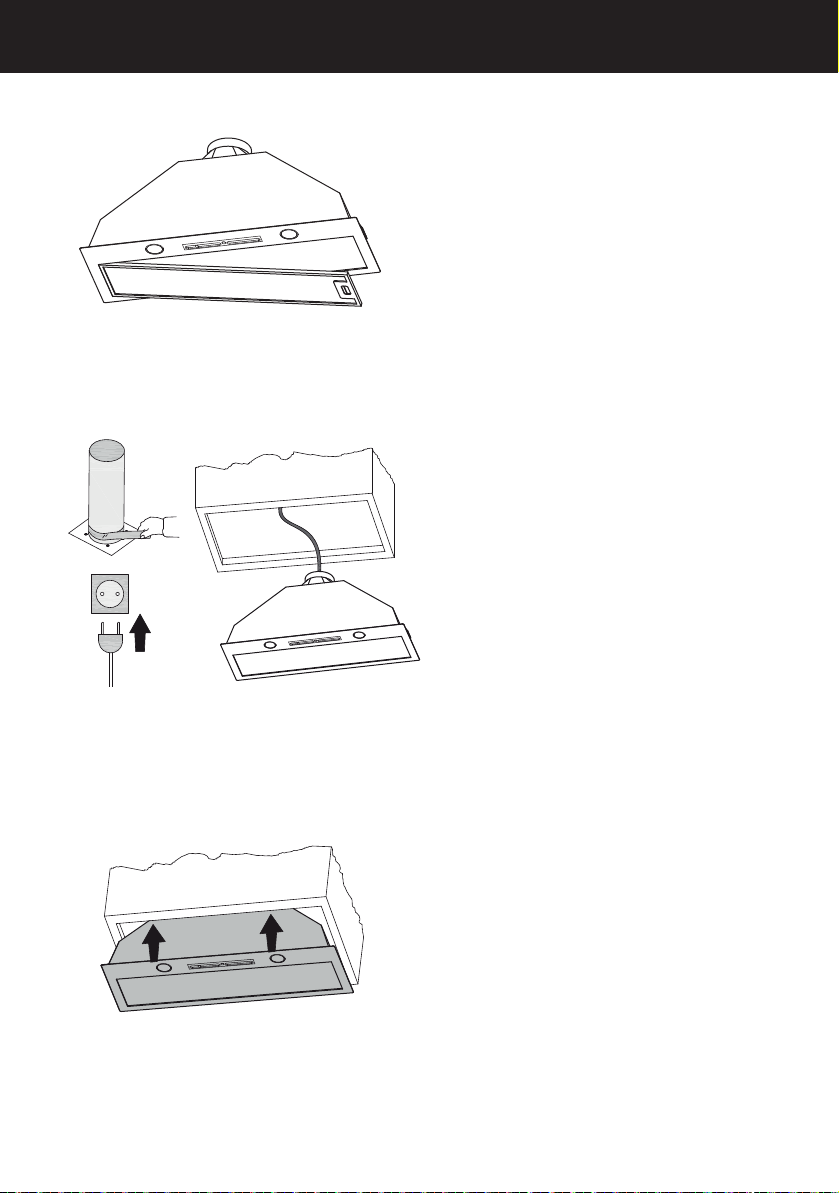

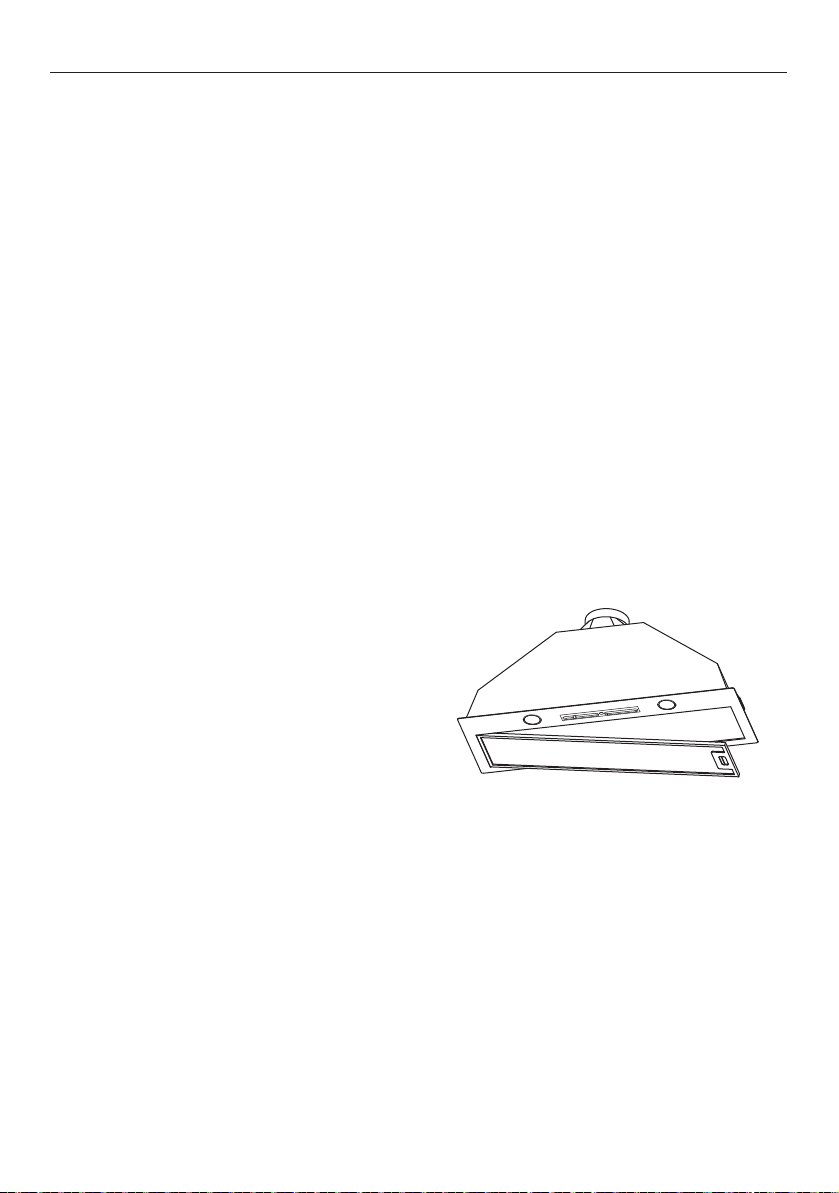

Remove the filter from the rangehood.

4

Connect duct and plug rangehood in.

5

Lift the rangehood and fit through the opening of the cupboard till the spring loaded

6

brackets / clips hold the product in place.

11

INSTALLATION INSTRUCTIONS

Secure rangehood while tightening the 2 brackets / clips.

7

x2

12

OPERATING INSTRUCTIONS

Control panel

CONTROL PANEL FEATURES

Lights Turn the lights on or off.

Fan Turn the rangehood fan on or off.

Fan speed 1 – 3

Adjust the fan speed levels from 1 – 3 with 1 being
the lowest level and 3 being the highest.

13

CLEANING AND MAINTENANCE

WARNING!

●

Unplug or disconnect the appliance from the power supply before servicing
orcleaning.

●

When replacing the bulb, let the bulb cool, and assure that power to the
rangehoodhas been turned off. Use new bulbs according to that indicated
ontherangehood nameplate.

IMPORTANT!

●

Never use abrasive or oil based cleaners.

●

Wear gloves to protect against sharp edges.

Maintenance

The rangehood should be cleaned regularly using a mild, liquid detergent and a clean
soft cloth to avoid a build-up of grease occurring. Avoid the use of corrosive chemicals,
abrasive cleaning products, hard brushes and steel wool pads. Grease deposits are
corrosive which can cause damage to your rangehood.

Note: in areas of high humidity or coastal environments, cleaning should be carried out
more frequently.

Aluminium filters

●

Depending on use, and at least once a
month, the aluminium grease filters should
be removed and cleaned with hot soapy
water or in a dishwasher.

●

If washed in a dishwasher, the filters should
be placed in an upright position to prevent
food from falling on them.

●

After rinsing and drying, replace the filters.

Note: some discolouration of the frames may occur.

Removing the aluminium filters:

Pull the relative filter catch, tilting it downwards until it disengages from the supports.

1

Reverse these instructions when refitting the filters.

2

Carbon filters – for use in recirculation mode

Active carbon filters are disposable items designed to remove grease and odours from
cooking vapours before the air is channelled back into the kitchen. The active carbon
filters must be replaced periodically to work properly, at least once every three months,
depending on the frequency with which the rangehood is used.

14

CLEANING AND MAINTENANCE

IMPORTANT!

●

Carbon filters are disposable items and must be replaced at least every three months.

●

Saturated carbon filters can become a barrier to air movement, therefore limiting
your range hoods performance.

●

In the event of a fire, grease laden filters could be flammable.

Fitting the carbon filters:

Ensure the range hood is switched off.

1

Remove the aluminum grease filters from the range hood.

2

Place a carbon filter on each side of the blower inlet using the keyhole slots for alignment

3

(refer to A), turn the filter until it clips into place (refer to B).
Note: The direction will be clockwise on one side of the blower and counterclockwise on
the other side of the blower.

Refit aluminium grease filters.

4

BA

Light bulb replacement

ILCOS D Code: DRR-3.5-220/240-GU10-50/50

1. To replace a light bulb, first disconnect the rangehood
from its power supply.

2. Apply finger pressure to the face of the light bulb and
twist one quarter turn anti-clockwise—the light bulb
will now be free to drop out.

3. Remove the faulty bulb and fit replacement bulb into
the lamp holder.

4. Refit the light bulb by applying finger pressure and
twist one quarter turn clockwise.

Note: replacement bulbs are not covered by
Manufacturer’s Warranty.

Bulb replacement

15

PARTS AND ACCESSORIES

ITEM REFERENCE NUMBER

LED bulb 792603

Aluminium filter (HP60) 792459

Aluminium filter (HP90) 792427

Recirculation carbon filter x2 791772

150 mm ducting adapter with non return flap 792454

16

SERVICE & WARRANTY

Manufacturer’s Warranty

Please read this warranty card carefully. Attach your purchase receipt to this warranty
card and keep in a safe place. You must produce both warranty card and proof of
purchase in the event of a warranty repair being required.

When you purchase any new Haier Product you automatically receive a two year
Manufacturer’s Warranty covering parts and labour for servicing.

The Manufacturer undertakes to:

Repair or, at its option, replace without cost to the owner either for material or labour
any part of the Product, the serial number of which appears on the Product, which is
found to be defective within TWO YEARS from the date of purchase.

This warranty DOES NOT cover:

A Service calls which are not related to any defect in the Product. The cost of a

service call will be charged if the problem is not found to be a Product related
fault. For example:

1. Correct the installation of the product.

2. Provide Instruction on use of the product or change the setup of the product.

3. Replace house fuses or correct house wiring.

4. Correcting fault(s) caused by the user.

5. Noise or vibration that is considered normal.

6. Water on the floor due to incorrect loading or excessive suds.

7. Blocked pumps, removal of foreign objects/substances from the machine,
including the pump and inlet house filters.

8. Correcting damage caused by pests, eg. rats, cockroaches etc.

9. Correct corrosion or discolouration due to chemical attack.

10. Power outages or surges.

B Defects caused by factors other than:

1. Normal domestic use or

2. Use in accordance with the Product’s User Guide.

C Defects to the Product caused by accident, neglect, misuse or ‘Act of God’ .

D The cost of repairs carried out by non-authorised repairers or the cost of correcting

such unauthorised repairs.

E Normal recommended maintenance as set out in the Product ‘s User Guide.

F Repairs when the appliance has been dismantled, repaired or serviced by other than

an AUTHORISED CUSTOMER SERVICE CENTRE or the selling dealer.

17

SERVICE & WARRANTY

G Pick up and delivery.

H Transportation or travelling costs involved in the repair when the product is installed

outside the AUTHORISED CUSTOMER SERVICE CENTRE’S normal service area.

This product has been designed for use in a normal domestic environment. It is not
intended for commercial use. Doing so may affect product warranty.
Service under this warranty must be provided by an Authorised Service Repairer (refer
to the Customer Care section for contact details). Such service shall be provided during
normal business hours. This warranty certificate should be shown when making any
claim.

Note:

This Warranty is an extra benefit and does not affect your legal rights and applies only
to product purchased in New Zealand and Australia. Please keep this Warranty Card in a
safe place.

For Australian customers:

Our goods come with guarantees that cannot be excluded under the Australian
Consumer Law. You are entitled to a replacement or refund for a major failure and
for compensation for any other reasonably foreseeable loss or damage. You are also
entitled to have the goods repaired or replaced if the goods fail to be of acceptable
quality and the failure does not amount to a major failure.

18

SERVICE & WARRANTY

Customer Care

Check the things you can do yourself. Refer to your User Guide and check:

1. Your appliance is correctly installed.

2. You are familiar with its normal operation.

3. You have read the problem solving section in your User Guide.

If after checking these points you still need assistance, please refer to your nearest Haier
Authorised Repairer.

In New Zealand, if you need assistance...*

Call your retailer who is trained to provide information on your appliance, or if we can
be of any further help, please contact our Customer Care Centre:

Toll Free: 0800 242 437 Fax: [phone]
Email: [e-mail]
Postal address: P.O. Box 58732, Botany, Manukau 2163

If you need service...

We have a network of independent Fisher & Paykel Authorised Repairers whose fully
trained technicians can carry out any service necessary on your appliance. Your dealer
or our Customer Care Centre can recommend a Fisher & Paykel Authorised Repairer in
your area.

In Australia, if you need assistance...*

Call the Customer Care Centre and talk to one of our Customer Care Consultants.

Toll Free: 1300 729 948 Fax: [phone]
Email: [e-mail]
Postal Address: PO Box 798, Cleveland QLD 4163

If you need service...

We have a network of qualified Authorised Repairers whose fully trained technicians
can carry out any service necessary on your appliance. Our Customer Care Centre can
recommend an Authorised Repairer in your area.

*If you call or write, please provide: name, address, model number, serial number, date of
purchase and a description of the problem. This information is needed in order to better
respond to your request for assistance.

Product Detials

Model ______________________ Serial Number: __________________

Date of Purchase Purchaser

Dealer ______________________ Suburb______________________

Town______________________ Country______________________

Thank you for choosing Haier. We are confident that you will enjoy many years of good
service from your appliance.

19

The product specifications in this document apply to the specific
products and models described at the date of issue. Under our policy
of continuous product improvement, these specifications may change
at any time. You should therefore check with your Dealer to ensure this

document correctly describes the product currently available.

NZ AU

106066A

60821290.23.09.2021
