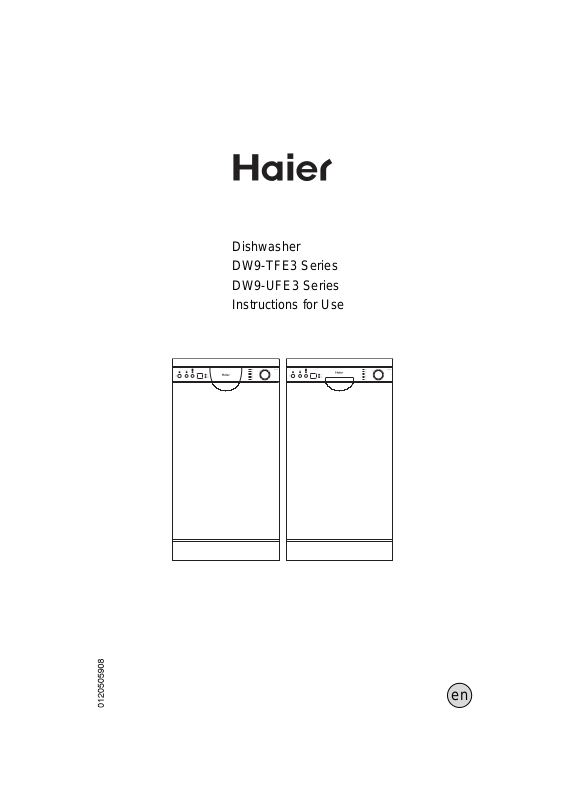

Haier DW9-TFE3, DW9-UFE3 User Manual

Dishwasher
DW9-TFE3 Series
DW9-UFE3 Series
Instructions for Use

1

DW9-TFE3

1

2
2

3

4

3

7

5

6

456
7

1

DW9-UFE3

1

2
2

3

4

3

7

5

6

456
7

en

Index

en

Safety i n fo r ma ti o n
Installation
Getting to know your dishwasher
How to fill the salt
How to fill rinse aid
How to fill the detergent dispenser
Not suitable for the dishwasher
Arranging crockery, glasses, etc. in the dishwasher
Programme overview
Washing dishes
How to keep your dishwasher in shape
Care and maintenance
Fault finding
Technical data
Important information

2

4

7
8
9

9
10
11
13
15
18
19
21
25
25

1

Safety information

At time of delivery

Check packaging and dishwasher immediately for signs of transport damage. If the appliance is
damaged, do not put it into use but contact your supplier or customer service without delay.
Please dispose of packaging materials properly.

During installation

Site the dishwasher and connect it up in accordance with the installation instructions.
The dishwasher must not be connected to the electricity supply while installation is being carried out.
Ensure that the domestic wiring is properly earthed.
The mains electricity supply must conform to the details shown on the dishwasher nameplate.
Do not connect the dishwasher to the electricity supply via an extension cable.
Built-under and built-in appliances sh ould always be installed under a continuous work s ur face whic h
is attached to the adjacent cupboards, in order to ensure that the appliance is entirely stable.
After the appliance has been installed,the mains plug should still be easily accessible.
During installation, the power supply cord must not be excessively or dangerously bent or flattened.

en

During normal use

The dishwasher must only be used by adults for the washing of household dishes and cooking utensils.
This appliance cannot be installed outdoor, not even if the area in which it is installed is covered by a
roof; it is also very dangerous to leave it exposed to the rain and elements.
Do not place any heavy objects or stand on the door when it is open. The appliance co uld tip forward.
The water inside the dishwasher is not suitable for drinking.
Do not use solvents of any kind inside your dishwasher. They could cause an explosion danger.
Open the door very carefully if the dishwasher is operating. There is a risk of water squirting out.

Do not touch the heating element during or after a wash cycle.

Fundamental rules to follow when using the appliance:

- Never touch the dishwasher when barefoot or with wet hands or feet;

- We discourage the use of extension cords and multiple sockets;

- If the a pplianc e is not operating prop er ly or mai nt e nance m us t be performed, dis c onnect t h e
appliance from the power supply.

2

If your family inclu d es children

The appliance is not intended for use by young children or infirm persons without supervision.
Young children should be supervised to ensure that they do not play with the appliance.
Keep detergents out of the reach of children, who m ust also be kept away from the dishwasher when
it is open.

If a fault occurs

If the appliance malfunctions, turn off water supply to the appliance and disconnect the plug from the
wall socket. Then, consult the section entitled, "Fault finding" . If you cannot solve the proble m, con­tact a service center.
Only specialised personnel are authorised to make repairs.
If the supply cord is damaged, it must be replace d by the man ufacture, it s service agent of simil arly
qualified persons in order to avoid a hazard.
To maintain the EFFICIENCY and SAFETY of this appliance,we recommend:

- call only the Service Centers authorized by the manufacturer.

- always use original Spare Parts.

When disposing of old appliances

en

Appliances whic h are no longer bei ng used must be m ade inoperable by cut t ing t he po wer s upply
cord and removing the door lock.
Take the appliance to a designated waste disposal center.

Dangerous voltage

Warning

Children could get locked in the appliance (risk of suffocation)
or get stuck in other positions. Therefore: Remove the mains
plug, cut the mains wire and set aside. Damage the door lock so

that the door can no longer be closed.

3

Installation

en

Positioning the appliance

Positioning the appliance in the desired location. The back sh ould r est against the wall behind it, and the
sides , along the adja cent ca binet s or wall. The d ish wash er is equ ipp ed wi th w ater supp ly an d dr ain
hoses that can be positioned to the right or the left to facilitate proper installation.

Levelling the appliance

Once the applia nce is pos itioned , adj ust t he feet (sc rewing th em in or ou t) to adj ust the dis hwas her,
making it level. In any cas e, the appliance should not be incl ined more than 2˚. If the appliance is le v el, it
will help ensure proper performance.

Cold wat er connectio n

Connect t he w at er s u pply hose to a t hread e d 3 /4 (gas) c on nec t or ,
making sure that it is fastened tightly in place (see fig.A).
Some model s ar e fitted w ith a n "Aqu astop" wate r s upply ho se
(see fig.B) in which the small filter is already housed in the
threaded end.
If the water pipes are new or have not been used for an ext ended
period of t ime, let t he water run to m ake s ure that t he water is
clear and free of impurities. If this precaution is not t aken, there
is a risk that the water inlet can get blocked and damage the
appliance.

fig.A

Warning

The appliance is to be connected to the
water mains using new hose-sets and
that old hose-sets should not be reused.

fig.B

Anti-Flooding protection

The dishwasher is equipped with a system that stops the supply of water in the event of a problem with the water
supply hose, or leaks within the unit, in order to prevent damage to your home. If for any reason the box
containing the e lectri cal c ompon ents ha ppen s to get da m aged, r emove the plu g f or the appl iance from the
socket immediately. In order to guarantee that the anti-flooding feature operates properly, the "A" box with water
supply hose must be attached to the water su pply tap as shown in fig.B. No other type of con nection is a cceptable.
The water supply hose must not, under any circumstances, be cut, as it contains electrical parts which are live.
If the length of the hose is not adequate to make a proper connection, the hose must be replaced with one which
is long enough. This hose is available upon request from specialised retailers and service center.

4

en

Drain hose co nnect ion

Insert the drain hose into a drain pipe with a minimum diameter of 4cm , or let it run into the sink, making
sure to avoid bending or crimping it. If necessary, fit a syphon trap (U-bend) with a connecting piece for
the drain hos e ( f ig .C). T h e free end of the ho s e must be at a height between 40 an d 100 cm and must not
be immersed in water.

fig.C

Attention:

The connecting piece for syphon trap (U-bend) must be solidly fas­tened to the wall to prevent the drain hose from moving and allow­ing water to spill outside the drain.

Electrical Co nn ect ion

After making sure that the voltage and frequency v alues for the current in the home correspond to those

on the rat ing plate ( locate d on the stainl ess steel inne r door of the ap pli ance) and that t he elec tric al
system is correc t f or the max imum v olt age on t he r ati ng pl at e, inse rt t he p lug int o an electrical socket
which is earthed properly (the earthing of the appliance is a safety requirement mandated by law).
If the electrical socket to which the appliance must be connected is not appropriate for the plug, replace
the whole cable, rather than using adaptors or the like as they could cause overheating and burns.

Caution:

The dishwasher plug must be accessible even when the appliance
is installed as a built-in unit so that maintenance can be done safely.

5

en

ELECTRICAL CONNECTION (UK ONLY)

For your safety please read the following information.

Warning: This appliance must be earthed.

The appliance must be connected to a 220-240 volts 50 cy cle AC supply by means of a three pin socket,
suitably earthed and should be protected by a 13 amp fuse in the plug or a 15 amp fuse in the consumer
unit.
The appliance is supplied with a moulded 13 amp 3 pin mains plug fitted with a 13 amp fuse. Should the
fuse require replacement, it must be replaced with a fuse rated at 13 amp and approved to BS1362.
The plug contains a removable fuse co ve r that must be refitted when the fuse is r eplac ed. In the ev ent of
the fuse cov er being los t or dam aged, t he plug m ust not be used unt il a r eplacement cover has been
obtained.
If the moul ded mains plu g i s uns uit abl e f or the sock et out let in your hom e or i s r em ov ed f or any other
reason, then the fuse should be removed and the cut off plug disposed of safely to prevent the hazard of
electric shock.
There is a danger of electric shock if the cut off plug is inserted into any 13 amp socket outlet.

Caution:

The dishwasher plug must be accessible even when t he appliance is inst alled as a bu ilt-in unit so that
maintence can be done safety.

6

Getting to know your dishwasher

Close-up view (control panel)

H

en

BADFCGEI

H

BADFCGEI

State Indicator

A
B

ON-OFF Button

C

"3 in 1" Indicator

D

"3 in 1" Button
Delayed Start Indicator

E

Dishwasher in terio r

a
c

b

J

J

Delayed Start Button

F

Time-remaining Indicator

G

Low Rinse Aid Indicator

H

Low Salt Indicator

I

Knob For Selecting Cycle

J

i

e

d

f

g

h

j
k

a

Upper Rack

b

Lower Rack

c

Top Spray Arm

d

Silverware Basket

e

Bottom Spray Arm

f

Salt Container Cap

7

g

Washing Filter

h

Detergent and Rinse Aid Dispenser

i

Water Inlet Hose

j

Drain Hose

k

Power Supply Cord

How to fill the salt

en

Salt

The hardness of the water varies f rom place to plac e. If hard water is use d in the dishw asher , deposits
will form on the dishes and utensils.
The appliance is equipped with a special softener that uses a salt specifically designed to eliminate lime
and minerals from the water.

Loading the salt into the container

Always use salt intended for use with dishwashers.
The salt container is located beneath the lower rack and should be filled as follows:

When the low salt indicator “1” lights, you must fill t he s alt.
Remove the lo wer r ac k and t hen uns c r ew and r emove the cap
from the salt container;
If you are filling the container for the first time, fill it with water;
Place the end of the funnel (supplied) in to the hole and intr oduce
about 2 kg of salt. It is normal for a small amount of water to
come out of the salt container.

1

Carefully screw the cap back on.

Important

To prevent the formation of rust, load the salt just before beginning a wash cycle.

Adjusting salt consumption

The dishwasher is designed t o allow for adjust ing t he am ou nt of salt consumed based on the hardness of
the water us ed. T h is is int e nded to optim iz e an d c us t om iz e the level of s alt c ons um pt ion s o t hat it re­mains at a mini mum.
To adjust salt consumption, proceed as follows:

Unscrew the cap from the salt container;

There is a ring on the container with an arrow on it (see figure to
the side).
If necessar y , rotate the ring in an ant ic loc kw ise di rection f r om the
"-" setting towards t he "+" s ign, based on the hardnes s of the
water being used.

It is recommended that adjustments be made in accordance with the following table:

Water Hardness

Clarke

Level

degrees

0-14 0-17

1
2

36-71 45-89 4,5-8,9

3
4

ºdH mmol/l

0-1,7

1,8-4,418-4414-36

>89>71 >8,9

Selector
position

/
"-"
Middle

Salt
consumption
(Grams/cycle)

20
40
60"+"

Autonomy
(cycles/2kg)

/0
60
40
25

8
