Grundig AD 182 M, AD 182 M SAM, FIAT AD 182 M, FIAT AD 182 M SAM Service Manual

GB

Table of Contents

Page

General Section....................................... 2 … 3

Operating Hints .............................................................................. 2

Adjustment Procedures........................ 6 … 10

Parameter table ............................................................................. 9

Circuit Diagrams

and Layout of PCBs ............................ 11 … 43

Circuit Diagrams

RF Part AD 182 M .................................................................... 11

RF Part AD 182 M SAM............................................................ 15

Processor Part .......................................................................... 19

Sound Control ........................................................................... 22

Cassette Part ............................................................................ 25

Operating Parts......................................................................... 28

Amplifier Part ............................................................................ 32

Connection Board ..................................................................... 35

Layout of PCBs ............................................................................ 37

Spare Parts Lists and

Exploded Views................................... 44 … 49

Exploded View and Spare Parts List Tape Drive ......................... 44

Spare Parts List AD 182 M .......................................................... 46

Spare Parts List AD 182 M SAM.................................................. 48

D

Inhaltsverzeichnis

Seite

Allgemeiner Teil ...................................... 2 … 3

Bedienhinweise .............................................................................. 2

Abgleichvorschriften ............................ 4 … 10

Parametertabelle............................................................................ 9

Schaltpläne und

Druckplattenabbildungen................... 11 … 43

Schaltpläne

HF-Teil AD 182 M ..................................................................... 11

HF-Teil AD 182 M SAM ............................................................ 15

Prozessor-Teil........................................................................... 19

Klangsteller ............................................................................... 22

Tonband-Teil............................................................................. 25

Bedienteile ................................................................................ 28

Endstufen-Teil........................................................................... 32

Anschlußplatte .......................................................................... 35

Druckplattenabbildungen ............................................................. 37

Ersatzteillisten und

Explosionszeichnungen ..................... 44 … 49

Explosionszeichnung und Ersatzteilliste Laufwerk ...................... 44

Ersatzteilliste AD 182 M ............................................................... 46

Ersatzteilliste AD 182 M SAM ...................................................... 48

Zusätzlich erforderliche Unterlagen für den Komplettservice Additionally required Documents for the Complete Service

Service Manual

AD 182 M AD 182 M SAM

Dieses Service Manual ist nur in Datenform verfügbar This Service Manual is only available as data

Änderungen vorbehalten Subject to alteration

Made by GRUNDIG in Germany VK233 0199 72010 792 8500

Sicherheit

Safety

Mat.-Nr./Part No.

72010 800 0000

Service-Management

AD 182 M / AD 182 M SAM

2 GRUNDIG Service

Allgemeiner Teil / General Section

Bedienhinweise / Operating Hints

TASTENFUNKTIONEN / KEY-FUNCTIONS

AD 182 M / AD 182 M SAM

Radio-Mode ( Device 1 ) Tape-Mode ( Device 2 ) MCD-Mode ( Device 3 ) PHONE-Mode ( Device 4 )

Taste Kurz dŸcken Kurz dŸcken Kurz dŸcken Kurz dŸcken

Key Push short Time out 1

> 2s

Time out 2

> 4s

Push short Time out 1

> 2s

Push short Time out 1

> 2s

Push short Time out 1

> 2s

ON / OFF OFF

turn left: minus step

turn right: plus step

OFF

turn left: minus step

turn right: plus step

OFF

turn left: minus step

turn right: plus step

AUDIO Bass, Treble,

Balance, ( Fader only if switch on )

Conversation Mute

Bass, Treble, Balance, ( Fader only if switch on )

Conversation Mute

Bass, Treble, Balance, ( Fader only if switch on )

Conversation Mute

BAND

(AD 182 M)

FM 2, FM 3, MW, LW, FM1

FM: LEARN

AM: AS

FM: AS

BAND

(AD 182 M SAM)

FM 2, FM 3, MW, FM1

FM: LEARN

AM: AS

FM: AS



AM: auto search FM:

LEARN scan FM search

PTY: next programtype select

AM : MAN

FM:

Switch between Learn scan and FM search

PTY: auto search ( inside programtyp)

FM: MAN ( 50kHz )

l

AM: auto search FM:

LEARN scan FM search

PTY: next programtype select

AM : MAN

FM:

Switch between Learn scan and FM search

PTY: auto search ( inside programtyp)

FM: MAN ( 50kHz )

TP TP - Function

ON / OFF

AF-Function OFF / ON

PTY ON TP - Function

ON / OFF

TP - Function ON / OFF

1

preset 1

PTY: storage programtype

store frequency

PTY: store programtyp

2

preset 2

PTY: storage programtype

store frequency

PTY: store programtyp

3

preset 3

PTY: storage programtype

store frequency

PTY: store programtyp

4

preset 4

PTY: storage programtype

store frequency

PTY: store programtyp

5

preset 5

PTY: storage programtype

store frequency

PTY: store programtyp

EXP Frequency

displayed

Expert-Mode ON

AD 182 M / AD 182 M SAM

GRUNDIG Service 3

Tastenfunktionen im Expert-Modus / Key-Functions in the Expert Mode

Expert- Mode

Display TM SYNC TAVOL LRN REG LOC MONO ONVOL LOUD FADER BDLY IGN PHONE PHONE

Clock

adjust-

ment

Clock-

Syn. RDS

TA-Vol adjust-

ment

Auto-

learn TP

On/Off

Region

RDS

On/Off

LOC

On/Off

MONO On/Off

Switch

ON max

volume

Loud-

ness

On/Off

Fader

On/Off

Booster

switch

on delay

Igniton

On / Off

Phone adjust-

ment

Phone adjust-

ment

available

in all

Modes

Key Push

short

Push short

Push

short

Push

short

Push short

Time out

1

ON/OFF

OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF



next Function

l

last Function

last

Function 2 hour 3 hour + 4 min - OFF Vol - OFF OFF OFF OFF value - OFF OFF OFF OFF IN/ ON /

OFF

03/ 02 /

01 / 00 5 min + ON Vol + ON ON ON ON value + ON ON ON ON OFF/

ON / IN

00/ 01 /

02 / 03

EXP start

clock

Expert OFF

Default

value

blink time

OFF 10 OFF ON ON OFF 19 ON OFF OFF OFF OFF 01

Tastenfunktionen im erweiterten Expert-Modus

Key-Functions in the extended Expert Mode

Expert- Mode

Display STERE QUARZ LEV PROG

Stereo adjust-

ment

ZF-

center

Level-

program

Mode

available

in all

Modes

Key Push

short

Push short

Push short Time out 1

ON/OFF

OFF OFF OFF



next Function

l

last Function

2 3 4 minus minus minus 5 plus plus plus

EXP store value Expert

OFF

Default

value

04 21

AD 182 M / AD 182 M SAM

4 GRUNDIG Service

Abgleichvorschriften / Adjustment Procedures

D

Abgleichvorschriften

1. Hauptplatte

Meßgeräte: DC-Voltmeter, Meßsender, NF-Voltmeter, Stereocoder, Wobbler, Oszilloskop

Abgleichschritte 2, 5 und 7 nur bei AD 182 M!

Aufruf des ´extended Expert Modus´:

Gerät ausschalten. Stationstaste 2 drücken, gedrückt halten und Gerät einschalten. Stationstaste 2 länger als 5 Sekunden gedrückt halten. EXPTaste drücken und ca. 15 Sekunden gedrückt halten bis im Display die Anzeige FI-XX-MC erscheint (XX = aktuelle Version).Taste TP länger als 1 Sekunde drücken. Mit den Tasten o bzw. p den Parametersatz 43 anwählen (Anzeige z.B. 43 192). Taste TP kurz drücken (Stereo-Symbol ) leuchtet auf). Mit den Tasten o bzw. p den Wert auf 201 ändern (Anzeige 43 201). Taste TP kurz drücken (Stereo-Symbol ) erlischt). EXP-Taste ca. 3 Sekunden drücken (Anzeige EXPERT).

Sollte versehentlich ein anderer Parameter geändert werden, können Sie dessen korrekten Wert aus der Parametertabelle auf der Seite 9 entnehmen. Die Maskenversion findet sich als Aufdruck auf dem Prozessor CIC801.

Beenden des ´extended Expert Modus´:

Taste EXP ca. 3 Sekunden drücken bis im Display EXIT erscheint. Taste TP länger als 1 Sekunde drücken. Mit den Tasten o bzw. p den Parametersatz 43 anwählen (Anzeige z.B. 43 201). Taste TP kurz drücken (Stereo-Symbol ) leuchtet auf). Mit den Tasten o bzw. p den Wert auf 192 ändern (Anzeige 43 192). Taste TP kurz drücken (Stereo-Symbol ) erlischt). EXP-Taste ca 3 Sekunden drücken (Anzeige EXPERT).

Abgleich Vorbereitung Abgleichvorgang

MW; DC-Voltmeter an FMP705.

LW; DC-Voltmeter an FMP705.

Meßsender an Antenneneingang; Frequenz 1548kHz; ohne Modulation; E´ = 100µV (40dBµV). DC-Voltmeter an FMP602.

Meßsender an Antenneneingang; ohne Modulation; E´ = 100µV (40dBµV); DC-Voltmeter an FMP602.

Meßsender an Antenneneingang; Frequenz 990kHz; ohne Modulation; Extended Expert Modus aktivieren (s. o.). Mit den Tasten o bzw. p auf LEV PROG schalten. Mit den Stationstasten 4 bzw. 5 auf MW DX schalten.

Mit den Stationstasten 4 bzw. 5 auf MW LC schalten.

Meßsender an Antenneneingang; Frequenz 207kHz; ohne Modulation; Extended Expert Modus aktivieren (s. o.). Mit den Tasten o bzw. p auf LEV PROG schalten. Mit den Stationstasten 4 bzw. 5 auf LW DX schalten.

Mit den Stationstasten 4 bzw. 5 auf LW LC schalten.

FM; DC-Voltmeter an FMP705.

Meßsender an Antenneneingang; Frequenz 95,0MHz; ohne Modulation; E´ = 100µV (40dBµV); DC-Voltmeter zwischen FMP101 (+) und FMP103 (-).

Meßsender an Antenneneingang; Frequenz 98,0MHz; f

mod

= 1kHz; Hub = 22,5kHz;E´ = 1mV (60dBµV);

NF-Voltmeter an FMP101. Extended Expert Modus aktivieren (s. o.).

Mit den Tasten o bzw. p auf QUARZ schalten.

Mit L606A bei 531kHz auf 1,0V ± 50mV abgleichen. Kontrolle auf 7,2V ± 0,5V bei 1602kHz.

Mit L607AL bei 153kHz auf 1,3V ± 50mV abgleichen. Kontrolle auf 5,0V ± 0,5V bei 279kHz.

Mit L604A auf maximale Spannung abgleichen.

Wechselweise mit C608A bei 1548kHz und mit L601A bei 558kHz auf maximale Spannung abgleichen.

Mit L602AL bei 162kHz auf maximale Spannung abgleichen.

AD 182 M: Signal mit E´ = 20µV (26dBµV) anlegen. AD 182 M SAM: Signal mit E´ = 10µV (20dBµV) anlegen. Taste EXP kurz drücken (Anzeige MW DX OK).

AD 182 M: Signal mit E´ = 100µV (40dBµV) anlegen. AD 182 M SAM: Signal mit E´ = 50µV (34dBµV) anlegen. Taste EXP kurz drücken (Anzeige MW LC OK).

Signal mit E´ = 20µV (26dBµV) anlegen. Taste EXP kurz drücken (Anzeige LW DX OK).

Signal mit E´ = 100µV (40dBµV) anlegen. Taste EXP kurz drücken (Anzeige LW LC OK).

Mit L06 bei 87,5MHz auf 1,6V ± 50mV abgleichen. Kontrolle auf 6,3V ± 0,3V bei 108MHz.

Wechselweise mit L03 und L04 auf Maximum abgleichen. Mit L05 auf Maximum abgleichen.

Mit den Stationstasten 4 bzw. 5 minimale Anzeige am NF- Voltmeter einstellen. Taste EXP kurz drücken (Anzeige QUARZ OK).

1. MW-Oszillator

2. LW-Oszillator

3. AM-ZF

4. MW-Vorkreis

5. LW-Vorkreis

6. MW-Suchlaufstop

7. LW-Suchlaufstop

8. FM-Oszillator

9. FM-HF- und ZFKreise

10. ZF-Mitten-

frequenz

AD 182 M / AD 182 M SAM

GRUNDIG Service 5

Abgleich Vorbereitung Abgleichvorgang

2. Cassettenlaufwerk

Meßgeräte: Frequenzzähler, Test-Cassette 448A (Material-Nr. 35079 023 0000)

Bandgeschwindigkeit

Abgleich Vorbereitung Abgleichvorgang

Test-Cassette 448A einlegen und 3150Hz-Teil abspielen. Frequenzzähler an Lautsprecher-Ausgang.

Mit Motorpoti auf 3150Hz ± 100Hz einstellen.

Motorpoti

PCB

Mit L 101 auf symmetrischen Spannungssprung einstellen.

95,0MHz

+5V

0V

∆f≤ ± 45kHz

Mit CR26 auf +400mV ± 10mV einstellen.

Mit den Stationstasten 4 bzw. 5 minimale Anzeige am NF- Voltmeter im rechten Kanal einstellen. Taste EXP kurz drücken (Anzeige STERE OK).

Signal mit E´ = 10µV (20dBµV) anlegen. Taste EXP kurz drücken (Anzeige FM DX OK).

Signal mit E´ = 250µV (48dBµV) anlegen. Taste EXP kurz drücken (Anzeige FM LC OK).

Wobbler an Antenneneingang; Mittenfrequenz 95,0MHz; ∆f = ± 100kHz; ohne Modulation; E´ = 100µV (40dBµV); Oszilloskop an FMP104.

Meßsender an Antenneneingang; Frequenz 95,0MHz; ohne Modulation; E´ = 100µV (40dBµV); DC-Voltmeter zwischen FMP101 (+) und FMP103 (-).

Meßsender mit Stereo-Coder an Antenneneingang; Frequenz 95,0MHz; f

mod

1kHz mit 22,5kHz Hub; Pilotton 19kHz mit 7,5kHz Hub; RDS 57kHz mit 1,2kHz Hub; E´ = 1mV (60dBµV); Nur linken Kanal modulieren.

NF-Voltmeter an Lautsprecher-Ausgänge. Extended Expert Modus aktivieren (s. o.).

Mit den Tasten o bzw. p auf STERE schalten. Meßsender an Antenneneingang; Frequenz 95,1MHz;

ohne Modulation; Extended Expert Modus aktivieren (s. o.). Mit den Tasten o bzw. p auf LEV PROG schalten. Mit den Stationstasten 4 bzw. 5 auf FM DX schalten.

Mit den Stationstasten 4 bzw. 5 auf FM LC schalten.

11. Stop-Generator

12. Feldstärke

13.Stereo-Übersprechen

14.FM-Suchlaufstop

Servicehinweis:

Maskenversion 1 (Aufdruck auf dem Prozessor CIC801 „FIAT H2/01“): Prozessor CIC801 Mat.-Nr. 83058 780 5900 nur mit EEPROM CIC802 Mat.-Nr. 83059 580 1600.

Maskenversion 2 (Aufdruck auf dem Prozessor CIC801 „FIAT H2/02“): Prozessor CIC801 Mat.-Nr. 83058 780 5700 nur mit EEPROM CIC802 Mat.-Nr. 72008 538 1700.

Eine gemischte Bestückung funktioniert nicht!

AD 182 M / AD 182 M SAM

6 GRUNDIG Service

Abgleichvorschriften / Adjustment Procedures

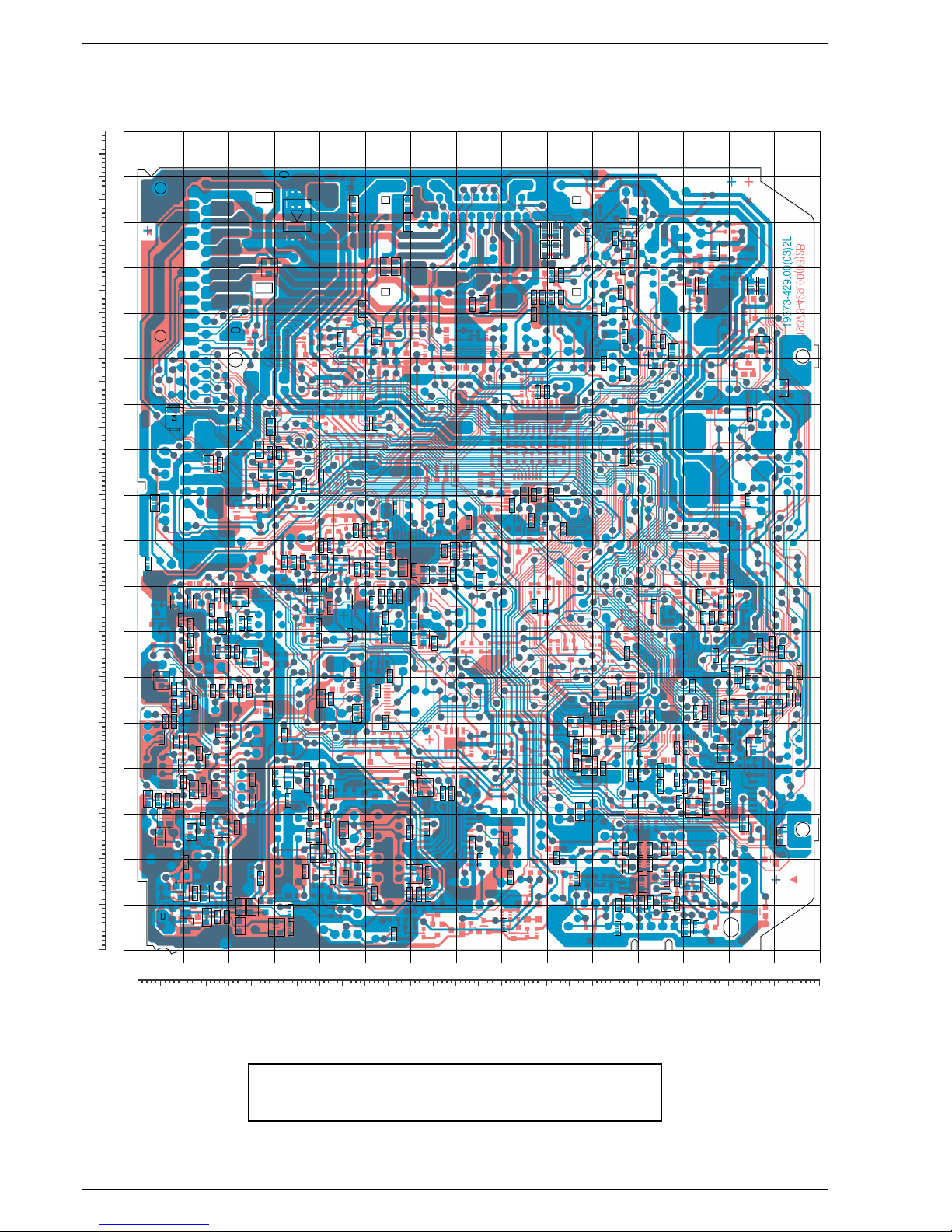

Abgleichlageplan / Alignment Layout

C647A

C608A

Q802

L101

L2401V

4321

F601AH

S01FF

F602AN

L06

L04

Q701

Q801

Q201

19373-429.00(03)4B

CR26

CIC101

L606A

L604A

L601A

L602AL

L05

L03

L607AL

FMP101FMP103

FMP705

FMP104

FMP602

Zum Abgleich die

Antennennachbildungen

für AM bzw. FM verwenden

For adjustment use the

aerial dummies for AM

resp. FM

EMK

Rg

50Ω

Kabel

50Ω

37.5Ω 55Ω 15pF

150Ω

37.5Ω

60pF

E´

E´= EMK - 26dB

AM

EMK

Rg

50Ω

Kabel

50Ω

4.54Ω 122.72Ω 10nF

54.54Ω

150Ω

E´

E´= EMK - 6dB

FM

AD 182 M / AD 182 M SAM

GRUNDIG Service 7

GB

Adjustment Procedures

1. Main Board

Test equipment: DC Voltmeter, Test Generator, AF Voltmeter, Stereo Coder, Sweep Generator, Oscilloscope

Alignments 2, 5 and 7 only for AD 182 M!

Calling up the ´extended Expert Mode´:

Switch off the set. Press and hold depressed station button 2 and switch on the set. Hold the station button 2 depressed for more than 5 seconds. Press and hold depressed the EXP button for about 15 seconds until the display shows FI-XX-MC (XX = actual version). Press button TP for more than a second. With the buttons o resp. p select parameter set 43 (display shows e.g. 43 192). Press button TP briefly (Stereo symbol ) lights up). With the buttons o resp. p change the value to 201 (display shows 43 201). Press button TP briefly (Stereo symbol ) goes out). Press button EXP for about 3 seconds (display shows EXPERT).

If you changed an other parameter by mistake you can find its correct value in the parameter table on page 9. The mask version is imprinted on the processor CIC801.

Leaving the ´extended Expert Mode´:

Press button EXP for abt. 3 seconds. Press button TP for more than a second. With the buttons o resp. p select parameter set 43 (display shows e.g. 43 201). Press button TP briefly (Stereo symbol ) lights up). With the buttons o resp. p change the value to 192 (display shows 43192). Press button TP briefly (Stereo symbol ) goes out). Press button EXP for abt. 3 seconds (display shows EXPERT).

1. MW Oscillator

2. LW Oscillator

3. AM IF

4. MW Bandpass

5. LW Bandpass

6. MW search level stop

7. LW search level stop

8. FM Oscillator

9. FM RF and IF

Adjustment Preparation Adjustment Procedure

MW; Connect a DC Voltmeter to FMP705.

LW; Connect a DC Voltmeter to FMP705.

Connect a Test Generator to aerial input; Frequency 1548kHz; no modulation; E´ = 100µV (40dBµV). Connect a DC Voltmeter to FMP602.

Connect a Test Generator to aerial input; no modulation; E´ = 100µV (40dBµV). Connect a DC Voltmeter to FMP602.

Connect a Test Generator to aerial input; Frequency 990kHz; no modulation; Call up the extended expert mode (see above). With the buttons o resp. p select LEV PROG. With the station buttons 4 resp. 5 select MW DX.

With the station buttons 4 resp. 5 select MW LC.

Connect a Test Generator to aerial input; Frequency 207kHz; no modulation; Call up the extended expert mode (see above). With the buttons o resp. p select LEV PROG. With the station buttons 4 resp. 5 select LW DX.

With the station buttons 4 resp. 5 select LW LC.

FM; Connect a DC Voltmeter to FMP705.

Connect a Test Generator to aerial input; Frequency

95.0MHz; no modulation; E´ = 100µV (40dBµV). Connect a DC Voltmeter between FMP101 (+) and FMP103 (-).

Align with L606A at 531kHz for 1.0V ± 50mV. Check for 7.2V ± 0.5V at 1602kHz.

Align with L607AL at 153kHz for 1.3V ± 50mV. Check for 5.0V ± 0.5V at 279kHz.

Align with L604A for maximum voltage.

Align alternating with C608A at 1548kHz and with L601A at 558kHz for maximum voltage.

Align with L602AL at 162kHz for maximum voltage.

AD 182 M: Apply a signal with E´ = 20µV (26dBµV). AD 182 M SAM: Apply a signal with E´ = 10µV (20dBµV). Press button EXP briefly (display shows MW DX OK).

AD 182 M: Apply a signal with E´ = 100µV (40dBµV). AD 182 M SAM: Apply a signal with E´ = 50µV (34dBµV). Press button EXP briefly (display shows MW LC OK).

Apply a signal with E´ = 20µV (26dBµV). Press button EXP briefly (display shows LW DX OK).

Apply a signal with E´ = 100µV (40dBµV). Press button EXP briefly (display shows LW LC OK).

Align with L06 at 87.5MHz for 1.6V ± 50mV. Check for 6.3V ± 0.3V at 108MHz.

Align alternating with L03 and L04 for maximum. Align with L05 for maximum.

Abgleichvorschriften / Adjustment Procedures

AD 182 M / AD 182 M SAM

8 GRUNDIG Service

Adjustment Preparation Adjustment Procedure

2. Tape Drive

Test equipment: Frequency counter, Test Cassette 448A (Part No. 35079 023 0000)

Tape Speed

Adjustment Preparation Adjustment Procedure

Insert Test Cassette 448A and play 3150Hz part. Connect a frequency counter to loudspeaker outputs.

With the ´Motorpoti´ adjust for 3150Hz ± 100Hz.

Motorpoti

PCB

Abgleichvorschriften / Adjustment Procedures

10. IF Center frequency

11. Stop Generator

12. Field strength

13. Stereo Crosstalk

14. FM search level

stop

Connect a Test Generator to aerial input; Frequency

98.0MHz; f

mod

= 1kHz; Hub = 22.5kHz; E´ = 1mV (60dBµV). Connect an AF Voltmeter to FMP101. Call up the extended expert mode (see above). With the buttons o resp. p select QUARZ.

Connect a sweep generator to aerial input. Center fre- quency 95.0MHz; ∆f = ± 100kHz; no modulation; E´ = 100µV (40dBµV); Connect an Oscilloscope to FMP104.

Connect a Test Generator to aerial input; Frequency

95.0MHz; no modulation; E´ = 100µV (40dBµV). Connect a DC Voltmeter between FMP101 (+) and FMP103 (-).

Connect a Test Generator via a Stereo Coder to aerial input; Frequency 95.0MHz; f

mod

1kHz at 22.5kHz dev.; Pilot 19kHz at 7.5kHz dev.; RDS 57kHz at 1.2kHz dev.; E´ = 1mV (60dBµV); modulate only the left channel. Connect an AF Voltmeter to loudspeaker outputs. Call up the extended expert mode (see above). With the buttons o resp. p select STERE.

Connect a Test Generator to aerial input; Frequency

95.1MHz; no modulation; Call up the extended expert mode (see above). With the buttons o resp. p select LEV PROG. With the station buttons 4 resp. 5 select FM DX.

With the station buttons 4 resp. 5 select FM LC.

With the station buttons 4 resp. 5 set for minimum AF voltage. Press button EXP briefly (display shows QUARZ OK).

Align L 101 for a symmetrical stop impulse.

95.0MHz

+5V

0V

∆f≤ ± 45kHz

Adjust with CR26 for +400mV ± 10mV.

With the station buttons 4 resp. 5 set for minimum AF voltage on the right channel. Press button EXP briefly (display shows STERE OK).

Apply a signal with E´ = 10µV (20dBµV). Press button EXP briefly (display shows FM DX OK).

Apply a signal with E´ = 250µV (48dBµV). Press button EXP briefly (display shows FM LC OK).

Service hint:

Mask Version 1 (Imprint on the processor CIC801 „FIAT H2/01“): Processor CIC801 part no. 83058 780 5900 together with EEPROM CIC802 part no. 83059 580 1600.

Mask Version 2 (Imprint on the processor CIC801 „FIAT H2/02“): Processor CIC801 part no. 83058 780 5700 together with EEPROM CIC802 part no. 72008 538 1700.

Mixed components will not work!

AD 182 M / AD 182 M SAM

GRUNDIG Service 9

Abgleichvorschriften / Adjustment Procedures

Parametertabelle für Maske 1 / Set of parameters for Mask 1

Aufdruck auf dem Prozessor ´FIAT H2/01´ / Imprint on the processor ´FIAT H2/01´

0 MW level DX

AD 182 M: E’ = 26 dBuV AD 182 M SAM: E’ = 20 dBuV

1 MW level LOCAL

AD 182 M: E’ = 40 dBuV

AD 182 M SAM: E’ = 34 dBuV 2 LW level DX E’ = 26 dBuV 3 LW level LOCAL E’ = 40 dBuV 4 FM level DX E’ = 20 dBuV 5 FM level LOCAL E’ = 48 dBuV 6 3700 7 2980 8 2620 9 2620

10 2660

11 2460 12 2260 13 1860 14 2660 15 500 16 600 17 300 18 400 19 3580 20 3380 21 3040 22 2660 23 2260 24 2260 25 2260 26 3 27 10 28 25 29 45 30 55 31 45 32 55 33 40 34 50 35 255 36 5 37 80 38 80 39 15 40 20 41 50 42 100 43 192 44 M: 0

M SAM: 23

45 146 46 0 47 90 48 75 49 15 50 5 51 186 52 255 53 4 54 231 55 239 56 133 57 112 58 33 59 126 60 132 61 162 62 ZF-Mitteneinstellung / IF Center 63 4 64 4 65 3 66 7 67 Übersprechen / Stereo Crosstalk 68 28 69 0 70 170 71 16 72 5 73 10 74 15 75 4 76 250 77 100 78 0 79 0 80 2 81 23 82

Endstufentemperatur / Amplifier Temp. 83 20 84 10 85 11 86 3 87 7 88 5 89 28 90 254

Parameter Wert Beschreibung

Value Description

Parameter Wert Beschreibung

Value Description

AD 182 M / AD 182 M SAM

10 GRUNDIG Service

Abgleichvorschriften / Adjustment Procedures

Parametertabelle für Maske 2 / Set of parameters for Mask 2

Aufdruck auf dem Prozessor ´FIAT H2/02´ / Imprint on the processor ´FIAT H2/02´

0 MW level DX

AD 182 M: E’ = 26 dBuV AD 182 M SAM: E’ = 20 dBuV

1 MW level LOCAL

AD 182 M: E’ = 40 dBuV

AD 182 M SAM: E’ = 34 dBuV 2 LW level DX E’ = 26 dBuV 3 LW level LOCAL E’ = 40 dBuV 4 FM level DX E’ = 20 dBuV 5 FM level LOCAL E’ = 48 dBuV 6 3700 7 2980 8 2620 9 2620

10 2660 11 2460 12 2260 13 1860 14 2660 15 500 16 600 17 300 18 400 19 3580 20 3380 21 3040 22 2660 23 2260 24 2260 25 2260 26 3 27 10 28 25 29 45 30 55 31 45 32 55 33 40 34 50 35 255 36 5 37 80 38 80 39 15 40 20 41 50 42 100 43 192 44 M: 0

M SAM: 23

45 146 46 216 47 90 48 75 49 15 50 5 51 186 52 255 53 4 54 231 55 239 56 133 57 112 58 33 59 126 60 132 61 162 62 ZF-Mitteneinstellung / IF Center 63 4 64 4 65 3 66 7 67 Übersprechen / Stereo Crosstalk 68 28 69 0 70 170 71 16 72 5 73 10 74 10 75 4 76 250 77 100 78 0 79 0 80 2 81 23 82

Endstufentemperatur / Amplifier Temp. 83 20 84 10 85 11 86 3 87 7 88 5 89 28 90 254

Parameter Wert Beschreibung

Value Description

Parameter Wert Beschreibung

Value Description

AD 182 M / AD 182 M SAM

GRUNDIG Service 11

Schaltpläne und Druckplattenabbildungen / Circuit Diagrams and Layout of PCBs

HF-Teil / RF Part AD 182 M

3

2

1

8602-223-080

F02

31

F03

8602-222-190

805

27P

CC01

FMP02

603

CR11

470R

603

CR16

56K

603

CR13

10K

603

CR14

47K

FMP01

603

CR12

47K

603

CR01

22R

603

CR08

10K

603

CR09

47K

603

CR33

330K

603

CR06

330K

805

CC07

1N0 /NP0

805

2P7

CC02

603

CC42

FMP04

603

4P7

CC16

805

NP0

1N0

CC18

603

12P

CC19

805

NP0

1N0

CC24

603

6P8

CC23

805

NP0

1N0

CC22

805

NP0

1N0

CC04

805

NP0

1N0

CC08

805

NP0

1N0

CC12

603

100N

CC43

805

NP0

1N0

CC17

FMP03

134678

8140-533-904

L03

8325-325-805

BB804

CD03

BFR93AR

CT01

AN1

8140-516-057

2U2

CL01

603

CR03FQ

0R

BC858C

CT02

DSP141N

S01FF

8325-795-392

BA779S

CD02

8325-325-805

BB804

CD04

8140-516-057

2U2

CL02

413

2

L04

8140-530-270

805

CR34

220R

U4065B

& IF

WIDE BAND

FERENCE

INTER-

MIXER

DETECT

O

IF &

MIXER

AGC

1716151413

12 11 10 9 8

8305-154-065

CIC01

603

CR07

10R

805

CC13

27P

AM-ANT

FM/AM-ABST

ABGLEICHPUNKTE

MESSPUNKTE

ANT

240104

0302

01

M

H

108 MHz -> ca.6.5V

87.5MHz -> 1.6V

*

**

*

MISCHTEIL

MIXER SECTION

Schaltpläne und Druckplattenabbildungen / Circuit Diagrams and Layout of PCBs

AD 182 M / AD 182 M SAM

12 GRUNDIG Service

321

8602-222-190

F102

3

2

1

8602-222-121

F01

8602-223-080

3

2

1

F03

8602-222-190

CC616A

603

47N

CC606A

5P5-30P

C608A

BC848

C

BC818/40

CT602AL

603

100N

CC607A

CR26

4K7

8775-009-089

805

CR122

10R

+

10U/16V

C117

603

CR112

120R

603

CR109

0R

805

CR27

4R7

603

56K

603

CR21

10K

603

CR18

15R

603

CR22

470R

603

CR23

820R

603

CR28

4K3

603

CR31

330R

+

10U/16V

C604A

603

6N8

CC116

603

22N

CC41

805

22P

CC601V

603

CR32

22R

603

22N

CC118

603

22N

CC103

603

22N

CC104

805

NP0

1N0

CC37

603

100N

CC42

603

22N

CC29

805

NP0

1N0

CC31

805

NP0

1N0

C24

805

NP0

1N0

CC39

603

6P8

CC33

603

100N

CC27

603

CC26

4P7

603

22P

CC34

603

47P

CC36

603

100N

603

CR29FL

0R

603

CR101FN

0R

603

CR111

108R

603

CR24

1K2

603

CR19

470R

CD05

8325-325-805

BB804

UREF

U

ST

DETEKTOR

PEGEL-

VERSTAERKER

ZF-

181920

12

603

180P

CC28

413

2

L06

8140-530-269BAS16

CD06V

603

100N

CC612A

603

CR602A

820K

603

CR616AL

1K8

603

CR604A

560K

603

CR603A

1M0

603

CR614A

22K

603

CR608A

270R

603

CR607A

1M0

603

CR612A

2K7

603

CR606A

100R

805

1N0

CC602A

603

470R

CR613V

781346

8140-533-118

L602AL

781346

8140-533-165

L601A

603

NP0

12P

CC611AL

8309-428-511

C

G1

G2 S

D

BF992A

CT601A

MIXER

IF2

IF1

DETECTOR

IF &

REG.

VOLTAGE

OSCI

LOCAL

242322212019181716

987654321

805

1N0

CC603A

876

432

1

8141-154-350

L05

FMP06

FMP05

FMP601

+

22U/16V

C38

AM-ANT

+FM

FELDST

FM-OSZ

6010605

M

H

M

H

AM SECTION

AM-TEIL

LW

MW

500mV

*

***

*

***

*

**

*

LW 153 KHZ - 279 KHZ

MW 531 KHZ - 1602 KHZ

WELLENBEREICHE WAVE BANDS:

FM-ZF

FM IF

+9.2V

Schaltpläne und Druckplattenabbildungen / Circuit Diagrams and Layout of PCBs

AD 182 M / AD 182 M SAM

GRUNDIG Service 13

603

NP0

120P

CC649V

603

22N

CC637A

603

100N

CC626A

603

22N

CC627AL

603

2N7

CC623A

603

4N7

CC624A

603

100N

CC616A

603

100N

CC621A

805

1N0

CC617A

BC818/40

CT607AL

BC848C

CT604A

BC848C

CT603A

L

1378

8140-535-116

L606A

1378

8140-535-106

L607AL

603

CR117

33K

+

10U/16V

C117

OSCIN

HFRE

AM_IN

IF_FM

IF_AM

SDA

SCL

ADDR

OSCOUT

FM_IN

I

9

10

12 13

14 15

19

20

24

25

B101

603

100N

CC107

603

CR119

8K2

603

CR118

1K8

603

6N8

CC116

603

CR701V

470R

603

100P

CC109

603

CR702V

470R

603

100N

CC112

603

100N

CC113

603

22N

CC114

603

22N

603

22N

CC103

603

CC701

22N

8382-212-102

10MHz25

Q701

603

CC704

10N

603

CR114

47K

BC848C

CT103

1378

L101

8140-535-256

603

CR113

10K

CT104

BC848C

603

10N

CC106

603

100N

CC108

805

CC635V

22N

1593T

1MHZ

50khz

DEMOD.

QUADRATUR

KOMP.

KLIRRFAKT-

DETEKTOR

VERSTIMM-

FM-AUS

SCHALTUNG

STUMM-

STOP-LOGIK

ABSTIMM-

TDA

REF

910

1112131415161718

23456 7 8

CIC101

8305-841-593

603

CR116

1K8

603

CR123FL

18K

603

100N

CC646A

603

22N

CC639A

603

33N

CC632V

805

NP0

180P

CC641V

603

CR636A

47K

603

47N

CC631A

603

100N

CC618A

603

10N

CC613A

603

100N

CC638A

603

100N

CC652A

BC848C

CT609AL

603

CR646A

22R

603

CR649AL

47K

603

CR647A

0R

603

CR631A

47R

603

CR616AL

1K8

603

CR644AL

22K

603

CR639A

47K

603

CR643AL

22K

603

22P

CC648A

603

CR628A

10R

603

CR629A

150R

603

CR622A

2K7

603

CR624A

47K

603

CR632A

10R

603

CR621A

680K

603

CR618A

100K

603

CR619A

180R

603

CR633A

3K3

603

CR641AL

10K

603

CR637A

1K8

603

CR648A

2K2

603

CR634A

22R

603

CR642AL

2K2

+

10U/16V

C644AL

B102

5UH6

CL603A

GSD

BF543

CT606A

7K

n. c.

50R

220R

170R

12K

7K

VR

V1 V2 V3

V1

+

V3

V2 VR(AGC)

3K525R

VR(AGC)

3K

RF STAGE

CONTROLLED

GAIN-

MIXER

BALANCED

DOUBLE

STANDBY

TROLLED IF

GAIN CON-

VOLTAGES

SUPPLY

INTERNAL

BALANCED

FULL-WAVE

DRIVER

SWITCH

AMPLIFIER DETECTOR

OSCILLATOR

CONTROLLED

AMPLIFIER

AF PRE-

INDIKATOR

AMPLIFIER

AGC

AMPLIFIER

IF

TDA1572T

n. c.

10987654321

20 19 18 17 16 15 14 13 12 11

8305-841-572

CIC601A

BC818/40

CT608AL

805

NP0

33P

CC642AL

781346

8140-533-131

L604A

8309-428-511

BB512

CD602A

8309-428-511

BB512

CD603A

3

2

1

8602-810-070

PFB450H3

F602AN

603

CR626A

1M0

603

CR623A

22R

603

CR627A

10R

805

NP0

270P

CC643AL

603

100N

CC614A

805

1N0

CC622A

805

1N0

CC628A

1206

CC629A

2N2 NP0

805

68N

CC111

603

CR638V

12K

FMP101

FMP102

FMP103 FMP104 FMP701

+

47U/10V

C619A

+

1U/50V

C634A

+

10U/16V

C636A

AM-ZF

+AM

MPX(RDS)MUTE

SDA

SCL

FELDST

FM/AM-ABST MPX

UREF

FM-OSZ

K-SIGNAL

AM-OSZ

FM-STOP

AM-NF

V3

GRI

LW 1,3V - ca. 5V

MW 1,0V - ca. 7V

701104103102101

Drahtbruecke

LW

MW

*

**

*

***

*

M-ZF

IF

+9.2V

Schaltpläne und Druckplattenabbildungen / Circuit Diagrams and Layout of PCBs

AD 182 M / AD 182 M SAM

14 GRUNDIG Service

603

4N7

CC654A

OSCIN

LPAM

LPFM

LPHC

INLOCK

NC

HFREF

AM_IN

PUMPCOMP

NC

+

-

GNDDIG

VDD1

VDD2

VDD1

GNDAN

VREF

LPOUT

INLOCK

DOUT6

DOUT5

DOUT4

DOUT3

DOUT2

DOUT1

SSTOP

IF_FM

IF_AM

SDA

SCL

ADDR

OSCOUT

FM_IN

INLOCK

11 - 21 BIT PROG.CNT

RESET

POWER ON

PORT EXTENSIONCONTROLTIMER14 BIT PROG.CNT

LOGIC

TEST

INTERFACE

I2C BUS

16 BIT PROG.CNTREF.OSCILLATOR

CHARGEPHASE

11 BIT PROG.CNT

SWM/DIR SWM/DIR

SWITCH SWITCH

LP1/LP2

SWITCH

DETECTOR

5 BIT PROG.CNT

:32/33

PRECOUNTER

AM/FM

SWITCH

1

2

3

4

5678

16 17 18

21

22

23

26

27

28

11

8305-847-428

TDA7427D

CIC701

805

CC702GF

NP0

1N0

805

CC713

1N0

603

CR703

47R

603

CR704

22R

+

100U/10V

C707

805

CR708

220R

603

CR707A

100K

603

CR705

8K2

47K

DTA143ZK

4K7

CT704AL

603

CC709

47N

603

6N8

CC715A

603

CC712

100N

+

22U/16V

C706

603

CR706

27K

805

68N

CC716A

603

CC714

10N

47K

DTA143ZK

4K7

CT703AL

BC808/40

CT702A

603

100N

CC652A

603

22N

CC653AL

603

CR649AL

47K

603

CR651AL

3K3

603

CR652AL

100K

603

CR648A

2K2

n. c.

10

11

IC601A

+

10U/16V

C711

603

CR709AL

100K

603

CR712A

47K

BC808/40

CT701A

603

CR713A

4K7

603

CR714A

47K

603

CR711A

4K7

805

CC708

NP0

1N0

701

FMP702

FMP703

FMP704

FMP705

FMP706

FMP602

FMP603

FMP604

FMP605

805

NP0

1N0

CC705

AM-STOP

AM-ZF

+AM

+G

+MW

+FM

FELDST

FM/AM-ABST

+S

AM-OSZ

+LW

19373-135.00 FIAT AD 182 M

703

704 706 705

702605604603602

* = BAUTEILE REFLOWSEITE * = COMPONENTS REFLOW SIDE

MAIN BOARD

HAUPTPLATTE

Loop AMLoop FM

*

**

*

AM-FM PLL

+9.2V

+9.2V+9.2V

+9.2V

+9.2V +9.2V

+5V

Schaltpläne und Druckplattenabbildungen / Circuit Diagrams and Layout of PCBs

AD 182 M / AD 182 M SAM

GRUNDIG Service 15

HF-Teil / RF Part AD 182 M SAM

3

2

1

8602-223-080

F02

31

F03

8602-222-190

805

27P

CC01

FMP02

603

CR11

470R

603

CR16

56K

603

CR13

10K

603

CR14

47K

FMP01

603

CR12

47K

603

CR01

22R

603

CR08

10K

603

CR09

47K

603

CR33

330K

603

CR06

330K

805

CC07

1N0 /NP0

805

2P7

CC02

603

CC42

FMP04

603

4P7

CC16

805

NP0

1N0

CC18

603

12P

CC19

805

NP0

1N0

CC24

603

6P8

CC23

805

NP0

1N0

CC22

805

NP0

1N0

CC04

805

NP0

1N0

CC08

805

NP0

1N0

CC12

603

100N

CC43

805

NP0

1N0

CC17

FMP03

134678

8140-533-904

L03

8325-325-805

BB804

CD03

BFR93AR

CT01

AN1

8140-516-057

2U2

CL01

603

CR03FQ

0R

BC858C

CT02

DSP141N

S01FF

8325-795-392

BA779S

CD02

8325-325-805

BB804

CD04

8140-516-057

2U2

CL02

413

2

L04

8140-530-270

805

CR34

220R

U4065B

& IF

WIDE BAND

FERENCE

INTER-

MIXER

DETECT

O

IF &

MIXER

AGC

1716151413

12 11 10 9 8

8305-154-065

CIC01

603

CR07

10R

805

CC13

27P

AM-ANT

FM/AM-ABST

ABGLEICHPUNKTE

MESSPUNKTE

ANT

240104

0302

01

M

H

108 MHz -> ca.6.5V

87.5MHz -> 1.6V

MISCHTEIL

MIXER SECTION

*

**

*

Schaltpläne und Druckplattenabbildungen / Circuit Diagrams and Layout of PCBs

AD 182 M / AD 182 M SAM

16 GRUNDIG Service

321

8602-222-190

F102

3

2

1

8602-222-121

F01

8602-223-080

3

2

1

F03

8602-222-190

CC616A

603

47N

CC606A

5P5-30P

C608A

BC848

C

603

100N

CC607A

CR26

4K7

8775-009-089

805

CR122

10R

+

10U/16V

C117

603

CR112

120R

603

CR109

0R

805

CR27

4R7

603

56K

603

CR21

10K

603

CR18

15R

603

CR22

470R

603

CR23

820R

603

CR28

4K3

603

CR31

330R

+

10U/16V

C604A

603

6N8

CC116

603

22N

CC41

805

22P

CC601V

603

CR32

22R

603

22N

CC118

603

22N

CC103

603

22N

CC104

805

NP0

1N0

CC37

603

100N

CC42

603

22N

CC29

805

NP0

1N0

CC31

805

NP0

1N0

C24

805

NP0

1N0

CC39

603

6P8

CC33

603

100N

CC27

603

CC26

4P7

603

22P

CC34

603

47P

CC36

603

100N

603

CR29FL

0R

603

CR101FN

0R

603

CR111

108R

603

CR24

1K2

603

CR19

470R

CD05

8325-325-805

BB804

UREF

U

ST

DETEKTOR

PEGEL-

VERSTAERKER

ZF-

181920

12

603

180P

CC28

413

2

L06

8140-530-269BAS16

CD06V

603

100N

CC612A

603

CR602A

820K

603

CR604A

560K

603

CR603A

1M0

603

CR614A

22K

603

CR608A

270R

603

CR607A

1M0

603

CR612A

2K7

603

CR606A

100R

805

1N0

CC602A

603

470R

CR613V

781346

8140-533-165

L601A

8309-428-511

C

G1

G2 S

D

BF992A

CT601A

MIXER

IF2

IF1

DETECTOR

IF &

REG.

VOLTAGE

OSCI

LOCAL

242322212019181716

987654321

805

1N0

CC603A

876

432

1

8141-154-350

L05

FMP06

FMP05

FMP601

+

22U/16V

C38

AM-ANT

+FM

FELDST

FM-OSZ

MW 530 KHZ - 1710 KHZ

WELLENBEREICHE WAVE BANDS:

6010605

FM-ZF

FM IF

M

H

M

H

AM SECTION

AM-TEIL

MW

500mV

*

***

*

***

*

**

*

603

CR609AM

0R

603

0R

CR611AM

+9.2V

Schaltpläne und Druckplattenabbildungen / Circuit Diagrams and Layout of PCBs

AD 182 M / AD 182 M SAM

GRUNDIG Service 17

603

22N

CC637A

603

100N

CC626A

603

2N7

CC623A

603

4N7

CC624A

603

100N

CC616A

603

100N

CC621A

805

1N0

CC617A

BC848C

CT604A

BC848C

CT603A

1378

8140-535-116

L606A

603

CR117

33K

+

10U/16V

C117

OSCIN

HFRE

AM_IN

IF_FM

IF_AM

SDA

SCL

ADDR

OSCOUT

FM_IN

I

9

10

12 13

14 15

19

20

24

25

B101

603

100N

CC107

603

CR119

8K2

603

CR118

1K8

603

6N8

CC116

603

CR701V

470R

603

100P

CC109

603

CR702V

470R

603

100N

CC112

603

100N

CC113

603

22N

CC114

603

22N

603

22N

CC103

603

CC701

22N

8382-212-102

10MHz25

Q701

603

CC704

10N

603

CR114

47K

BC848C

CT103

1378

L101

8140-535-256

603

CR113

10K

CT104

BC848C

603

10N

CC106

603

100N

CC108

805

CC635V

22N

1593T

1MHZ

50khz

DEMOD.

QUADRATUR

KOMP.

KLIRRFAKT-

DETEKTOR

VERSTIMM-

FM-AUS

SCHALTUNG

STUMM-

STOP-LOGIK

ABSTIMM-

TDA

REF

910

1112131415161718

23456 7 8

CIC101

8305-841-593

603

CR116

1K8

603

CR123FL

18K

603

100N

CC646A

603

22N

CC639A

603

33N

CC632V

805

NP0

470P

CC641V

603

CR636A

47K

603

47N

CC631A

603

100N

CC618A

603

10N

CC613A

603

100N

CC638A

603

100N

CC652A

BC848C

603

CR646A

22R

603

CR647A

0R

603

CR631A

47R

603

CR639A

47K

603

22P

CC648A

603

CR628A

10R

603

CR629A

150R

603

CR622A

2K7

603

CR624A

47K

603

CR632A

10R

603

CR621A

680K

603

CR618A

100K

603

CR619A

180R

603

CR633A

3K3

603

CR637A

1K8

603

CR648A

2K2

603

CC649V

0R

603

CR634A

22R

B102

5UH6

CL603A

GSD

BF543

CT606A

7K

n. c.

50R

220R

170R

12K

7K

VR

V1 V2 V3

V1

+

V3

V2 VR(AGC)

3K525R

VR(AGC)

3K

RF STAGE

CONTROLLED

GAIN-

MIXER

BALANCED

DOUBLE

STANDBY

TROLLED IF

GAIN CON-

VOLTAGES

SUPPLY

INTERNAL

BALANCED

FULL-WAVE

DRIVER

SWITCH

AMPLIFIER DETECTOR

OSCILLATOR

CONTROLLED

AMPLIFIER

AF PRE-

INDIKATOR

AMPLIFIER

AGC

AMPLIFIER

IF

TDA1572T

n. c.

10987654321

20 19 18 17 16 15 14 13 12 11

8305-841-572

CIC601A

781346

8140-533-131

L604A

8309-428-511

BB512

CD602A

8309-428-511

BB512

CD603A

3

2

1

8602-810-070

PFB450H3

F602AN

603

CR626A

1M0

603

CR623A

22R

603

CR627A

10R

603

100N

CC614A

805

1N0

CC622A

805

1N0

CC628A

1206

CC629A

2N2 NP0

805

68N

CC111

603

CR638V

12K

FMP101

FMP102

FMP103 FMP104 FMP701

+

47U/10V

C619A

+

1U/50V

C634A

+

10U/16V

C636A

AM-ZF

+AM

MPX(RDS)MUTE

SDA

SCL

FELDST

FM/AM-ABST MPX

UREF

FM-OSZ

K-SIGNAL

AM-OSZ

FM-STOP

AM-NF

V3

GRI

MW 1,0V - ca. 7V

701104103102101

Drahtbruecke

M-ZF

IF

MW

*

**

*

***

*

+9.2V

Schaltpläne und Druckplattenabbildungen / Circuit Diagrams and Layout of PCBs

AD 182 M / AD 182 M SAM

18 GRUNDIG Service

603

4N7

CC654A

OSCIN

LPAM

LPFM

LPHC

INLOCK

NC

HFREF

AM_IN

PUMPCOMP

NC

+

-

GNDDIG

VDD1

VDD2

VDD1

GNDAN

VREF

LPOUT

INLOCK

DOUT6

DOUT5

DOUT4

DOUT3

DOUT2

DOUT1

SSTOP

IF_FM

IF_AM

SDA

SCL

ADDR

OSCOUT

FM_IN

INLOCK

11 - 21 BIT PROG.CNT

RESET

POWER ON

PORT EXTENSIONCONTROLTIMER14 BIT PROG.CNT

LOGIC

TEST

INTERFACE

I2C BUS

16 BIT PROG.CNTREF.OSCILLATOR

CHARGEPHASE

11 BIT PROG.CNT

SWM/DIR SWM/DIR

SWITCH SWITCH

LP1/LP2

SWITCH

DETECTOR

5 BIT PROG.CNT

:32/33

PRECOUNTER

AM/FM

SWITCH

1

2

3

4

5678

16 17 18

21

22

23

26

27

28

11

8305-847-428

TDA7427D

CIC701

805

CC702GF

NP0

1N0

805

CC713

1N0

603

CR703

47R

603

CR704

22R

+

100U/10V

C707

805

CR708

220R

603

CR707A

100K

603

CR705

8K2

603

CC709

47N

603

6N8

CC715A

603

CC712

100N

+

22U/16V

C706

603

CR706

27K

805

68N

CC716A

603

CC714

10N

BC808/40

CT702A

603

100N

CC652A

603

CR648A

2K2

n. c.

10

11

IC601A

+

10U/16V

C711

603

CR712A

47K

BC808/40

CT701A

603

CR713A

4K7

603

CR714A

47K

603

CR711A

4K7

805

CC708

NP0

1N0

701

FMP702

FMP703

FMP704

FMP705

FMP706

FMP602

FMP603

805

NP0

1N0

CC705

AM-STOP

AM-ZF

+AM

+G

+FM

FELDST

FM/AM-ABST

+S

AM-OSZ

19373-184.00 FIAT AD 182 M SAM

703

704 706 705

702605604603602

* = BAUTEILE REFLOWSEITE * = COMPONENTS REFLOW SIDE

MAIN BOARD

HAUPTPLATTE

Loop AMLoop FM

AM-FM PLL

*

**

*

+9.2V

+9.2V+9.2V

+5V

Schaltpläne und Druckplattenabbildungen / Circuit Diagrams and Layout of PCBs

AD 182 M / AD 182 M SAM

GRUNDIG Service 19

Prozessor-Teil / Processor Part

603

CR896

1K0

603

CR806JG

10K

603

CR899T

1K0

+

22U/16V

C808

+

100U/10V

C802

603

CR895T

1K0

603

CR875V

100K

603

10K

CR804V

603

10N

CC827

603

CR803

10K

603

CR821

1K0

603

10K

CR876

BAR42

CD806GF

BAR42

CD814GF

603

CR872GF

100K

603

1K0

CR864V

603

1N0

CC816

603

CR822

1K0

FMP801

FMP805

603

CR823

1K0

FMP804

FMP803

603

47K

CR873T

603

22N

CC801

603

CC822JG

4N7

603

CR862JG

10K

603

CR808

10R

603

CR807

10K

603

4N7

CC813

603

CR852

1K0

603

CR810

47K

603

CR853A

603

CR863JG

22K

603

CR849V

330R

603

CR851V

330R

603

CR813

1K0

603

CR811

3K3

603

CR812

1M0

603

1N0

CC812

603

4N7

CC811

603

33P

CC803

603

CR834

1K0

603

CR890

1K0

603

33P

CC804

603

22P

CC807

603

CR827

4K7

603

CR809

3K3

603

CR817

10R

80

79

78

77

76

75

74

73

72

71

70

69

68

67

66

65

64

63

62

61

60 59 58 57 56 55 54 53 52 51 50 49 48 47 46 45 44 43 42 41

2019181716151413121110987654321

P00/INTP0/TO00

P66/*WAIT

P65/*WR

P27/*SCK0

P22/*SCK1

P72/*SCK2/ASCK

UPD78058

P13/ANI3

P12/ANI2

P11/ANI1

P10/ANI0

AVREF0

AVDD

XT1/P07

XT2

IC

X1

X2

VDD

P06/INTP6

P05/INTP5

P04/INTP4

P03/INTP3

P02/INTP2

P01/INTP1/TI01

RESET

P127/RTP7

P126/RTP6

P125/RTP5

P124/RTP4

P123/RTP3

P122/RTP2

P121/RTP1

P120/RTP0

P37

P36/BUZ

P35/PCL

P34/TI2

P33/TI1

P32/TO2

P31/TO1

P30/TO0

P67/ASTB

P41/AD1

P40/AD0

P26/SOQ/SB1

P25/SI0/SB0

P24/BUSY

P23/STB

P21/SO1

P20/SI1

P71/SO2/TxD

P70/SI2/RxD

AVREF1

P131/ANO1

P130/ANO0

AVSS

P17/ANI7

P16/ANI6

P15/ANI5

P14/ANI4

CIC801

603

CR814

330K

603

22N

CC809

603

CR831V

75K

603

22P

CC806

805

1K0

CC819V

805

100N

CC818

603

CR819V

10K

Q802

32kHz

Q801

8382-170-433

4,332MHz

603

CR818V

10K

603

CR897

1K0

603

CR828

10K

603

1N0

CC817

REL-ON

MOTON/CRST

AM-STOP

FM-STOP

BOOSTER-ON

NF-MUTE

ANT-ON

SCL

E-TXD

-RESET

K-SIGNAL

+G

CD-CL-PR

UREFS1ULCD

ON/OFF

E-RXD

INKINIT

S2

SDA

AMP-ON

+S

FELDST

EN-IN

4MHZ332

P131/ANO1-BEL-TAS

TAPE-IN

+5V

CRQ/MUTE

RDS-DATA

RDS-CLK

ABGLEICHPUNKTE

MESSPUNKTE

806803801

802

809 805

804

**

*

**

*

+9.2V

+5V

Schaltpläne und Druckplattenabbildungen / Circuit Diagrams and Layout of PCBs

AD 182 M / AD 182 M SAM

20 GRUNDIG Service

47K

BCR135

10K

CT1201BN

603

33k

CR886TM

603

CR865JM

47K

603

CR870V

100K

603

1K0

CR889JM

FMP808

FMP807

603

47K

CR883V

603

CR884JZ

1K0

603

22N

CC814

4

3

2

18

7 6 5

24C16

8305-958-016

CIC802

603

1K0

CR867

BAR42

CD811JM

BAR42

CD812JM

603

47K

CR845V

603

CR868T

0R

805

1K0

CC826V

603

18K

CR871V

603

CR837V

100K

603

CR830V

100K

603

3K3

CR874FS

603

CR825V

100K

603

CR1213BN

4K7

603

CR852

1K0

805

CR1204BY

603

CR853A

1K0

603

CC815JG

4N7

603

CR1203BY

1K5

603

47K

CR1201GF

BAR42

CD1204V

603

CR851V

330R

47K

BCR135

10K

CT1202BY

603

CR860JG

10K

603

CR866JG

22K

603

CR847GM

1K0

43 42 41

40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21

201918

P66/*WAIT

P65/*WR

P64/*RD

P27/*SCK0

P30/TO0

P67/ASTB

P63 P62 P61

P60 P57/A15 P56/A14

VSS P55/A13 P54/A12 P53/A11 P52/A10

P51/A9

P50/A8 P47/AD7 P46/AD6 P45/AD5 P44/AD4 P43/AD3 P42/AD2

P41/AD1

P40/AD0

P26/SOQ/SB1

603

CR856

3K3

3

R

R12

0

T120

3

603

CR846GF

0R

603

CR854

3K3

1R8

R1222GF

AM-STOP

FM-STOP

LS-SHORT-R/TAG/NACHT

CR/APF-S

SCL

PAUSE

RELEASE

BERGER/+U/BEL

BEL-EXT

DA-OUT

T-MUTE

SCV-P

SWITCH

+G

ZUEND-P

CL-OUT

CD-CLOCK

APF-MAGNET

APF-ON

SDA

INKREM

EN-OUT/BEL-KEY

BEL-P

LS-SHORT-F

T-DIR

LS-OPEN

BLINK

MPX(RDS)MUTE

+5V

DOLBYOFF

BEEP

808

807806

STROMVER

S

POWER S

U

*

***

**

*

***

*

+

10U/16V

C506

CC507

100P

CC508

100N

AND SYNC

REGENERATION

CLOCK

DEVIDER

OSZILLATOR

GENERATOR

BIT

QUALITY-

FIXED DIVIDER

VARIABLE AND

COSTAS LOOP

DECODER

SYMBOL

BIPHASE

FILTER

ALIASING

ANTI

DECODER

DIFFERENTIAL

RDCL T57 OSCO OSCI VDDD

VDDAMUXVREFRDDAQUAL

S

A

16 12131415

12345

830

5

CC504

330P

MPX2

RDS-DATA

RDS-CLK

DECODEUR RDS

RDS-DECODER

*

+5V

Schaltpläne und Druckplattenabbildungen / Circuit Diagrams and Layout of PCBs

AD 182 M / AD 182 M SAM

GRUNDIG Service 21

BAR42

CD2102GF

FMP2116

FMP2112

FMP2113

FMP2109

FMP2111

FMP2108

FMP2107

FMP2106

FMP2104

FMP2103

FMP2102

FMP2110

603

CR2104GF

1K1

FMP2101

805

CR1204BY

620R

8765432

1

BU1202

603

CR2107GF

10R

47K

135

10K

2BY

603

CR1207BT

1K5

805

CR1208BT

1K2

8765432

1

BU1201

BC369

T1206BT

3R3

R1202V

BC369

T1203BY

47K

BCR135

10K

CT1204BT

0R

R2112GF

0R

R1223GF

1R8

R1222GF

SCL

S1-2

+G

BLINK-LED

S1

BEL-SET

ON/OFF

INKINIT

S2

SDA

INKREM

EN-OUT/BEL-KEY

+5V

BEL-NOT

19373-135.00 FIAT AD 182 M 19373-148.00 FIAT AD 182 M SAM

2116

2112

2113

2111 2109211021082106

2104

2103

2102

2101

2107

* = BAUTEILE REFLOWSEITE

* = COMPONENTS REFLOW SIDE

MAIN BOARD

HAUPTPLATTE

GND-DIGI

ROMVERSORGUNG-BELEUCHTUNG

POWER SUPPLY ILLUMINATION

**

*

0R

CR502

CC502

10N

CC508

100N

CC503

100N

CC509

10P

CR501

10R

VP1

SELEKTOR SWITCH

OUTPUT

TESTLOGIC AND

COMARATOR

CLOCKED

ER

G

NTI

(8th ORDER)

BANDPASS

57KHZ

FILTER

RECONSTRUK.

VOLTAGE

REFERENZ

VDDD VSSD TEST TSTLD

SCOUTCINVSSAVDDA

SAA6579T

12 91011

5678

8305-826-579

CIC501

22N

CC501

330P

+G

4MHZ332

4V8

*

+5V

zu ST1001 Bedienplatte links oben to ST 1001 upper left Operating Part

zu ST1002 Bedienplatte unten to ST 1002 lower Operating Part

+5V

Schaltpläne und Druckplattenabbildungen / Circuit Diagrams and Layout of PCBs

AD 182 M / AD 182 M SAM

22 GRUNDIG Service

Klangsteller / Sound Control

47K

BCR1

3

10K

CT20

1

603

10K

CR317FS

603

CR301FS

10K

603

47P

CC301FS

603

150P

CC302FS

C1502

603

CR302FS

10K

603

150P

CC303FS

603

CR304FS

47K

603

CR1504JE

3K3

603

CR303FS

5K6

FMP1502

FMP201

603

CR306FS

22K

603

CR307FS

1K0

603

100N

CC1501JE

FMP1501

603

68P

CC312

603

CR312FS

1K0

603

18P

CC306FS

603

CR313FS

100K

BC848C

CT301FS

603

CR314

4K7

FMP301

603

3K3

CR316FS

603

CR309FS

2K2

603

100N

CC309FS

603

CR311FS

10K

603

CR308FS

10K

BC858C

CT302FS

603

10N

CC308FS

FMP303

603

100N

CC201

603

CR201

0R

603

10N

CC317FS

FMP302

603

CR1515JE

3k3

603

CR1533JE

4K7

603

10N

CC307FS

BC858C

CT303FS

603

100P

CC313FS

BC858C

CT304FS

603

10K

CR318FS

+

10U/16V

C304FS

603

3K3

CR319FS

603

100P

CC316FS

603

4N7

CC318FS

603

10K

CR321FS

BC858C

CT305FS

MPX(RDS)MUTE

TEL-NF

MPX2

UR

MPX

TEL-GND

PAUSE

BERGER/+U/BEL

UHCC

+S+S+S

15021501201

303

302301

ABGLEICHPUNKTE

MESSPUNKTE

**

*

**

*

**

*

+9.2V

Schaltpläne und Druckplattenabbildungen / Circuit Diagrams and Layout of PCBs

AD 182 M / AD 182 M SAM

GRUNDIG Service 23

47K

BCR135

10K

CT201

603

CR202V

12K

603

CR1517V

1K2

603

CR1514V

1K2

603

CR1518V

150R

603

CR1516V

150R

+

100U/10V

C209

+

2U2/50V

C1502

FMP1506

603

CR

1504

JE

3K3

FMP1504

FMP1503

FMP1502

805

47N

CC1516V

805

CC1519V

603

100N

CC1501JE

603

100N

CC1508JE

805

47N

CC1517V

TDA7340G

PAUSE

CREF

GND VS MPX-IN

R

INR

INL

OUTL

OUTR

R+

ICD

CD

L+L-

PHONE GND

PHONE IN

CDR

MUTE

FM-L FM-R

TBR

TBL

BEEP

AM

CD

+LOU

D

VOL

PAUSE

DEMODULATOR

HP

80kHz

LP

80kHzSUPPLY

456KHZ

PLL

MUX

1

22

27

28

2930 31 32

35

36

37

38

43 442

3

5

68 12

13

CIC201

+

10U/16V

C212

603

CC208

100N

603

22N

CC1506A

805

22R

CR204

8602-333-010

CSB456

Q201

805

33OP

CC203V

805

100N

CC1518V

+

2U2/50V

C1513

+ 4U7 16V

C207V

+

4U7 16V

C202V

603

1M0

CR224GF

+

2U2/50V

C1514

+

2U2/50V

C1507

TB-L/CD-LW-L

AM-NF

TB-R2

TB-L2

TB-R/CD-LW-R

19373-13

5

19373-18

4

1511

1510

1509

1508

1507

1505

1506

1516150415031502

STEREO / VSA / KLANGSTELLER SOUND CONTROL

*

Schaltpläne und Druckplattenabbildungen / Circuit Diagrams and Layout of PCBs

AD 182 M / AD 182 M SAM

24 GRUNDIG Service

603

CR1521V

2K2

603

CR1523V

2K2

603

CR1522V

3K9

603

CR1519V

3K9

603

CR206V

68K

603

CR207V

100K

603

CR212V

100K

603

CR209V

39K

603

CR213V

47K

603

CR214V

220K

603

CR211V

4K3

+

4U7

16V

C1529V

603

CR208V

6K2

805

CC214

330P

603

120R

CR1557V

805

100N

CC1519V

603

47N

CC1521

805

CC1528V

100N

TDA7340G

LEVEL VHCC

VSB

VR

-IN PEAK TBLANK

HCR

HCL

TRR

TRL

LLR

R

CSM

L

R

TREBLE

UTE

DIGGND

SDA SCL

BASS

DETECTOR

PEAK

FORMER

PULSE

CONTROL

LEVEL

CONTROL

CUT

HIGH

BLANKER

NOISE

NOTCH 19kHz

LP

25kHz

I C - BUS

OUT RF OUT RR OUT LF OUT LR

MUTE SOFT

+LOUD

VOL

ODULATOR

HP

80kHz

23

24

25

26

33 3439 4041 4245

7

9

10

11

14 1516

17 18

19 20 21

C201

8305-847-340

805

CC1531V

100N

805

CC1524V

100N

805

1N5

CC1527V

805

1N5

CC219V

603

CC213

47N

805

1N5

CC217V

805

100N

CC1518V

+

4U7

16V

C1523V

805

1N5

CC1526V

603

120R

CR1556V

FMP1512

FMP1513

FMP1514

FMP1515

805

CC1522V

100N

SDA

FRONT-R

FRONT-L

UR

SCL

UREF

K-SIGNAL

REAR-L

REAR-R

UHCC

19373-135.00 FIAT AD 182 M 19373-184.00 FIAT AD 182 M SAM

1515

1514

1513

1512

* = BAUTEILE REFLOWSEITE

* = COMPONENTS REFLOW SIDE

MAIN BOARD

HAUPTPLATTE

***

**

*

Schaltpläne und Druckplattenabbildungen / Circuit Diagrams and Layout of PCBs

AD 182 M / AD 182 M SAM

GRUNDIG Service 25

Tonband-Teil / Cassette Part

FMP1308

FMP1309

B1304

10

9

8

7

6

5

BU1301

B1301

B1303

B1302

+MOTOR

+A

1308

1309

LAUFWERK PHILIPS LCA* 3.1/1 TAPE DRIVE

+A

6

1

MUTE PLAY TRACK

GND MOTOR +

CAS.IN

FWD/L

REV/L

REV/R

FWD/R

BIAS

FWD REV

MUTE

R

L

BIAS

FWD/L

FWD/R

REV/R

REV/L

ABGLEICHPUNKTE

MESSPUNKTE

+14V

Schaltpläne und Druckplattenabbildungen / Circuit Diagrams and Layout of PCBs

AD 182 M / AD 182 M SAM

26 GRUNDIG Service

+

47U/10V

C1126T

+

10U/16V

C1106T

+

100U/10V

C1123T

5 4 3 2 1

BU1101T

08

FMP1307

C

6

7

CR1

603

CR1104T

100K

603

CR1102T

100K

603

CR1103T

100K

603

CR1101T

100K

603

CR1306TM

10K

805

3K3

CR1303TM

FMP1306

603

CR1314TM

0R

805

3K3

CR1304TM

805

CC1103T

470P

FMP1304

603

100N

CC1124T

FMP1305

FMP1104

FMP1103

FMP1102

805

CC1101T

470P

FMP1101

B1304

603

CR1131TN

1K2

47K

BCR135

10K

CT1302TM

47K

BCR135

10K

CT1304TM

603

CR1107TN

1K2

BC369

T1303TM

603

CR1133T

47R

805

CC1102T

470P

805

0R

CR1312TM

805

CC1104T

470P

+

4U7/16V

C1107T

+

10U/16V

C1122T

0R

R1141

603

CR1139T

27K

B1301

B1303

B1302

805

NP0

1N0

CC1129GF

805

NP0

1N0

CC1116GF

603

47K

CR1322V

PRE

INB2 HS INB1 GND

INA2 VREF INA1 VCC

SUPPLY

POWER

AMP

1

16151413

12 11 10 9

TEA 06

7

CIC110

+S

+G

+MOTOR

CRQ/MUTE

CR/APF-S

T-DIR

TAPE-IN

+

A

INSERT/PLAY

MOTON/CRST

1110130511041103110211011304

1306

1307

TB-MOTOR-LOGIK

BIAS

FWD/L

FWD/R

REV/R

REV/L

ENTZERRER-VORVER. / DOLB

Y

EQUALIZER AMPLIFIER / DOL

B

*

**

*

+9.2V

+5V

+14V

Schaltpläne und Druckplattenabbildungen / Circuit Diagrams and Layout of PCBs

AD 182 M / AD 182 M SAM

GRUNDIG Service 27

603

CR1126T

330K

FMP1114

FMP1111

FMP1107

603

7K5

CR1109V

603

CR1127T

330K

603

7K5

CR1128V

603

CR1111T

330K

603

10N

CC1119T

5%

603

CR1136V

0R

603

CR1122TK

0R

FMP1113

47R

4U7/16V

603

CR1134V

0R

603

CR1113TK

0R

603

10N

CC1108T

805

NP0

1N0

CC1116GF

EQ

SCA

SCB CONTRB INTB

TD HPA CONTRA INTA

GND EQFB EQB NROFF OUTB

VCC EQFA EQA OUTA

AMP

EQ

LOGIC

PROCESSOR

AMS

TIME

DELAY

DETECTOR

LEVEL

RISE TIME

LATCH AND

DOLBY B

242322212019181716

987654321

TEA 0676 T

CIC1101V

CDR

CDL

CR/APF-S

T-DIR

TB-L/CD-LW-L

TB-R/CD-LW-R

31.03.98

19373-184.00 FIAT AD 182 M SAM

19373-135.00 FIAT AD 182 M

11111106

1108

11071109

1114

1113

* = BAUTEILE REFLOWSEITE

* = COMPONENTS REFLOW SIDE

MAIN BOARD

HAUPTPLATTE

R. / DOLBY / MUSIKSUCHLAUF

IER / DOLBY / APF

Eigentums wird zivil- und

Missbrauch des geistigen

Weiterverwertung,insbesondere

strafrechtlich verfolgt.

Nachahmung oder sonstiger

*

**

*

+9.2V

Schaltpläne und Druckplattenabbildungen / Circuit Diagrams and Layout of PCBs

AD 182 M / AD 182 M SAM

28 GRUNDIG Service

Bedienteil oben / Upper Operating Part

620R

CR1035

180R

CR1015

LPT670-H

CD1004

LPT670-H

CD1006GH

CR1014

47R

CS1002

LPT670-H

CD1007

47R

CR1013GH

CR1012

620R

8

7

6

5

4

3

2

1

ST1001

LPT670-H

CD1003GH

LPT670-H

CD1008

INKREMENTAL

C

BA

G1001

19411-016.00

G1001

CS1003GH

CS1001GH

1K1

CR1031

3K6

CR1033

47R

CR1034

47R

CR1036

2K0

CR1032

LPT670-H

CD1017

LPT670-H

CD1019

LPT670-H

CD1021

LPT670-H

CD1018

CS1016

CS1012 CS1013

CS1014

FMP1019

FMP1027

FMP1011

FMP1014

FMP1012

FMP1013

FMP1016

FMP1018

FMP1021

FMP1022

FMP1023

FMP1024

4

3

2

1

ST1003

FMP1026

FMP1028

FMP1029

FMP1031

FMP1032

INKINIT

INKREM

+G

S1

ON/OFF

GND

BEL-SET

S1-2

S2-1

S2

19373-148.00

31.03.98

**

*

**

*

**

*

**

*

**

***

*

1012 1014

1011 1019

1013 1016

1018 1021

10221032

1031

102310241029102810271026

Bedienplatte rechts oben Operating Board upper right

Bedienplatte links oben Operating Board upper left

* = BAUTEILE REFLOWSEITE

* = COMPONENTS REFLOW SIDE

OPERATING BOARD ABOVE

BEDIENPLATTE OBEN

TP

-

+

MODE

MUTE

AUDIO

OPEN

ABGLEICHPUNKTE

MESSPUNKTE

zu BU1201 Hauptplatte (Prozessorteil)

to BU 1201 Main Board (processor part)

zu ST1004 Bedienplatte unten

to ST 1004 lower Operating Part

Schaltpläne und Druckplattenabbildungen / Circuit Diagrams and Layout of PCBs

AD 182 M / AD 182 M SAM

GRUNDIG Service 29

Bedienteil unten / Lower Operating Part

CS1007

CS1004

CS1008GH

CS1011GH

CS1006CS1009GH

47R

CR1048GH

47R

CR1028

DISPL1

30K

CR1047GH

LPT670-H

CD1012

LPT670-H

CD1014GH

LPT670-H

CD1016GH

LPT670-H

CD1013GH

LPT670-H

CD1011

LPT670-H

CD1009

10K

CR1026GH

16K

CR1027GH

2K0

CR1022

6K2

CR1024GH

47R

CR1029GH

DISPL44 DISPL43 DISPL42 DISPL41 DISPL40 DISPL39 DISPL38 DISPL37 DISPL36 DISPL35 DISPL34 DISPL33 DISPL32 DISPL31 DISPL30 DISPL29 DISPL28 DISPL27 DISPL26 DISPL25 DISPL24 DISPL23 DISPL22 DISPL21 DISPL20 DISPL19 DISPL18 DISPL17 DISPL16 DISPL15 DISPL14 DISPL13 DISPL12 DISPL11 DISPL10

DISPL9 DISPL8 DISPL7 DISPL6 DISPL5 DISPL4 DISPL3 DISPL2

3K6

CR1023

ABGLEICHPUNKTE

MESSPUNKTE

***

**

***

****

** *

***

*

DISPLAY 19720-266.00

DX

DOLBY

LOUD

3

2

1

Schaltpläne und Druckplattenabbildungen / Circuit Diagrams and Layout of PCBs

AD 182 M / AD 182 M SAM

30 GRUNDIG Service

CR1001

470R

CR1002

470R

CR1006

220R

CR1003

180K

CR1004

4R7

5V/75mA

LA1003

5V/75mA

LA1002

5V/75mA

LA1001

CR1009

180R

LPT670-H

CD1001GH

8765432

1

ST1002

4

3

2

1

ST1004

5V/75mA

LA1004

FMP1002

FMP1003

FMP1004

FMP1006

FMP1009

FMP1008

FMP1007

VLCD

S0P3P1P2P0

A0 SDASCLVDDOSCA1A2SAO

712345689101112

13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56

8305-818-576PCF8576CT

CIC1001

FMP1001

CC1001

100N

S2-1

S2

BEL-NOT

+5V

SDA

GND

SCL

BEL-SET

S1-2

*

1001

1002

1003

1004

1006

1007

1008

1009

zu BU1202 Hauptplatte (Prozessorteil) to BU 1202 Main Board (processor part)

zu ST1003 Bedienplatte links oben

to ST 1003 upper left Operating Part

Schaltpläne und Druckplattenabbildungen / Circuit Diagrams and Layout of PCBs

AD 182 M / AD 182 M SAM

GRUNDIG Service 31

CS1023GH

CS1021GH CS1017

CS1022GH

CS1019

CS1018

30K

CR1041GH

16K

CR1039

LPT670-H

CD1023

LPT670-H

CD1022

LPT670-H

CD1028GH

LPT670-H

CD1027GH

LPT670-H

CD1024

LPT670-H

CD1026GH

82K

CR1042GH

6K2

CR1037

4

3

2

1

T1004

10K

CR1038

47R

CR1046GH

47R

CR1044

FMP1011

47R

CR1051GH

31.03.98

19373-146.00

** *

****

** *

*

***

*

**

*

1011

BEDIENPLATTE UNTEN

OPERATING BOARD BELOW

* = BAUTEILE REFLOWSEITE

* = COMPONENTS REFLOW SIDE

EXP

LRN

SCAN

6

5

4

Schaltpläne und Druckplattenabbildungen / Circuit Diagrams and Layout of PCBs

AD 182 M / AD 182 M SAM

32 GRUNDIG Service

Endstufen-Teil / Amplifier Part

603

CR913R

47R

805

22R

CR919V

BAS16

CD901R

FMP2009

FMP2003

603

CR909R

5K6

603

CR911R

2K2

603

CR908R

22K

603

CR907R

75K

603

CR912R

100K

603

CR1814HO

680R

603

CR1813HO

680R

603

CR1812HO

680R

603

CR1811HO

680R

603

CR901R

2K2

603

CR904R

180K

603

CR1609V

5K6

603

CR1612V

5K6

603

CR1608V

4K7

603

CR1611V

4K7

603

CR1607V

5K6

603

CR1604V

5K6

603

CR1606V

4K7

603

CR1603V

4K7

603

CR1601

10K

603

CR1602

10K

603

CR906R

680K

603

CR903R

100K

603

CR902R

47K

603

2N2

CC1607V

+

10U/16V

C2001

603

2N2

CC1606V

603

2N2

CC1603V

603

2N2

CC1604V

805

CC901V

330P

805

CC1602

100N

+

2U2/50V

C1811HO

+

2U2/50V

C1813HO

+

2U2/50V

C1812HO

+

2U2/50V

C1814HO

BC818/40

CT904R

0R

R2005

BC848C

CT902R

805

CR2001

470R

805

68N

CC1611V

805

68N

CC1616V

BC848C

CT901R

805

CC1601

100N

BC858C

CT903R

E-TXD

E-RXD

LINE-FR/HEADPHONE-R

LINE-FL/HEADPHONE-L

LINE-RR/HEADPHONE-GND

+U

FB1/K-LTG

AMP-ON

REAR-R

REAR-L

FRONT-R

FRONT-L

+5V

-RESET

+A

LINE-RL

NF-MUTE

20032009

ABGLEICHPUNKTE

MESSPUNKTE

*

**

*

**

+14V

Schaltpläne und Druckplattenabbildungen / Circuit Diagrams and Layout of PCBs

AD 182 M / AD 182 M SAM

GRUNDIG Service 33

FMP2003

FMP2005

FMP2006

FMP2008

FMP2007

FMP1608

FMP1606

FMP1605

FMP1604

FMP1603

FMP1602

0R

R2008

FMP1601

+

10U/16V

C2001

805

68N

CC1618V

+

10U/16V

C2003

+

47UF

10V

C1623V

805

68N

CC1613V

+

10U/16V

C2004

+

100U/10V

C2006

F

8555-264-773

100N

C1621

0R

R2005

B9

B1

B10

603

CR2011GF

0R

805

12R

CR1621V

IGNITION THRESHOLD

5V

IGN OUTRESET LVW/FAULT

OUT 16V

OUT 10V

OUT 5V

STAND-BY

SIG GND

IGN INP

EN 16V

EN 10V

STCAP

EN 5V

POW GND

VS

PROT

RESET

THERMAL PROT

UNDERVOLTAGE

OVERVOLTAGE

VREF2 RESET THRESHOLD

VREF1 LVW THRESHOLD

VCAP

GEN

REF

BATT PROT

AND REV

LOAD DUMP

SWITCHED

VOLTAGE CLAMP

16V, 3A

SWITCHED

REGULATOR

10V, 500MA

SWITCHED

REGULATOR

5V, 1000MA

STAND-BY

REGULATOR

5V, 100mA

1

2

3

4

5

6

7

8

9

10

11

12

1314

15

L4953

8305-204-953

IC2001

B6

B5

805

68N

CC1611V

805

68N

CC1616V

B2

805

NP0

1N0

CC2011GF

0R

R2006

805

12R

CR1622V

0R

R1605HA

0R

R2007

805

27N

CC1632V

805

12R

CR1623V

805

12R

CR1624V

805

27N

CC1631V

805

27N

CC1633V

805

27N

CC1634V

+

10U/16V

C2002

805

12R

CR1627V

805

27N

CC1627V

N.C.

TABSVRAC-GND S-GND

P-GND1

P-GND2

P-GND3

P-GND4

OUT4-

OUT4+

OUT3-

OUT3+

OUT2-

OUT2+

OUT1-

OUT1+

VCC2VCC1

ST-BY

IN4

IN3

IN2

MUTE

IN1

16

17

18

19

20

21

22

23 24

25

3

13

6

8

9

1

2

15

14

10

4

7

5

12

11

TDA7450

IC1601V

REL-ON

+U

+S

+G

CD-CLOCK

+5V

ZUEND

+A

RR-DIA

RL-DIA

FR-DIA

FL-DIA

ZUEND-P

BOOSTER-ON

14V

9.2V

+5V

14V

4.6V

4.8V

14V

200420082007

2006

20052003 1608

1601 1602 1603 1604 1605

1606

*

+14V

+5V

+9.2V

+14V

Schaltpläne und Druckplattenabbildungen / Circuit Diagrams and Layout of PCBs

AD 182 M / AD 182 M SAM

34 GRUNDIG Service

FMP1625

FMP1623

FMP1621

FMP1619

FMP1617

FMP1615

FMP1613

FMP1626

FMP1624

FMP1622

FMP1620

FMP1618

FMP1616

FMP1614

FMP1611 FMP1612

A22

A7

A4

A9

A19

A1

A37

A11

A3

A15

A24

A23

A30

A27

A21

A12

A10

A16

A14

A8

A6

A20

A18

FMP2016

FMP2017

FMP2018

FMP2012

FMP2013

FMP2004

BAS16

CD2003JM

FS1D

CD2002

MURS320T3

CD2001

805

CC2007

100N

8140-522-801

L2001

+

2200UF

C2008V

603

CR2003

4K7

603

100N

CC2009

FMP1636

12R

27N

T-MUTE

LINE-FR/HEADPHONE-R

LINE-FL/HEADPHONE-L

LINE-RR/HEADPHONE-GND

L-3

+U

L-4

R-2

L-2

TEL-MUTE

R-3 R-3 R-4

R-4

TEL-GND

TEL-NF

ZUEND

+A

R-1

GND

KL.30

+U1

BEL-EXT

SWITCH

L-1

KL.15

LINE-RL

19373-184.00 FIAT AD 182 M SAM

19373-135.00 FIAT AD 182 M

31.03.98

1636

2012 2013 2016

2017 2018

1612 1616

1620 1624

1614 1618

1622 1626

1611 1615

1619 1623

1613 1617

1621 1625

2004

MAIN BOARD

* = BAUTEILE REFLOWSEITE

* = COMPONENTS REFLOW SIDE

HAUPTPLATTE

FR-

FR+

Fl-

FL+

RR-

RR+

RL-

RL+

Eigentums wird zivil- und

Missbrauch des geistigen

Weiterverwertung,insbesondere

strafrechtlich verfolgt.

Nachahmung oder sonstiger

*

+14V

Schaltpläne und Druckplattenabbildungen / Circuit Diagrams and Layout of PCBs

AD 182 M / AD 182 M SAM

GRUNDIG Service 35

Anschlußplatte / Connection Board

A30

T_5_A

SI1701

A12

A22

A21

A23

A24

A10

A16

A14

A8

A6

A1

A3 A4

A28

A37

SCH-MSCH2

+BEL

TEL-MUTE

LINE-FR/HEADPHONE-R

LINE-FL/HEADPHONE-L

LINE-RL

+U

TEL-NF

LINR-RR/HEADPHONE-GND

KL-30

FB1/K-LTG

SWITCH

KL-15

GND

ABGLEICHPUNKTE

MESSPUNKTE

III-2

III-4

III-6

III-8

Schaltpläne und Druckplattenabbildungen / Circuit Diagrams and Layout of PCBs

AD 182 M / AD 182 M SAM

36 GRUNDIG Service

III-2

II-4

I-5

I-4

II-5

II-6

II-3

II-1

II-8

II-7

II-2

III-4

III-7

III-8

I-7

I-2

III-5

III-6

I-6

I-1

I-3

2x15W4x5W

FL-

FR-

ANSCHLUSSGEHAUESE 2x15W CONNECTING TERMINAL

31.03.98

PLUS CONTACT KL.30

ILLUMINATION CONTACT 58

KL.15 IGNITION SWITCHED PLUS

19373-136.00

ANSCHLUSSPLATTE

SI T 5

GROUND CONTACT 31

SWITCHED PLUS

TEL-MUTE

LINE-FR

LINE-GND

LINE-RR

LINE-RL

LINE-GND LINE-FL LINE-FR

SWITCHED PLUS TEL-NF

MUTE

TEL-

PLUS CONTACT 30

ILLUMINATION CONTACT 58

SWITCHED PLUS

KL 15 IGN

LINE-RR

LINE-RL

LINE-FL

3

9

107

814

TEL-MUTE

GND

KAMMER III / SECTION III

KAMMER II / SECTION II

KAMMER I / SECTION I

RL-

RL+

FL-

FL+ FL+

FR-

FR+ FR+

RR-

RR+

TEL-GND

TEL-NF

CONNECTION BOARD

5

30

15

1711

12

13

20

1815

16 19

63

5412

-

++

FL

FR

8

5

2

1

KL

664

4

7

73

8

7

6

5

4

3

2

1

88

77

66

55

44

33

22

11

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

III = VERSORGUNGSANSCHLUESSE III = SUPPLY CONNECTORS

II = LAUTSPRECHERANSCHLUESSE II= LOUDSPEAKER CONNECTORS

I = ZUSATZANSCHLUESSE I = ADDITIONAL CONNECTORS

RR

RL

FR

FL

-

+

-

+

-

+

-

+

Eigentums wird zivil- und

Missbrauch des geistigen

Nachahmung oder sonstiger

Weiterverwertung,insbesondere

strafrechtlich verfolgt.

Schaltpläne und Druckplattenabbildungen / Circuit Diagrams and Layout of PCBs

AD 182 M / AD 182 M SAM

GRUNDIG Service 37

XY

AN01 8 11 BU1101T 113 4 BU1201 144 105 BU1202 144 42 BU1301 115 150 BU1302CD 132 17 C38 30 57 C117 7 79 C202V 27 84 C207V 35 91 C209 58 71 C212 66 72 C304FS 43 70 C506 140 31 C604A 48 9 C608A 33 34 C619A 41 42 C634A 71 15 C636A 74 10

C644AL 56 11 C647A 48 27 C706 44 61 C707 44 52 C711 58 62 C802 123 41 C808 105 40 C1106T 99 10 C1107T 92 10 C1109TD 96 23 C1111TD 103 23 C1113TD 99 23 C1114TD 123 23 C1121TD 126 23 C1122T 126 9 C1123T 95 4 C1126T 100 31 C1128TD 119 23 C1201BS 130 122 C1502 93 30 C1507 89 26

C1509CH 60 96 C1511CH 64 96 C1512CH 69 97 C1513 76 73 C1514 71 73 C1523V 73 82 C1529V 78 84 C1532JT 101 146 C1534JT 110 137 C1535JT 109 128 C1612DA 102 153 C1621 51 167 C1622H 72 152 C1623V 78 154 C1811HO 95 133 C1812HO 81 136 C1813HO 90 133 C1814HO 86 136 C1914Z 98 90 C1916Z 97 96 C1964K 95 124

C2001 20 115 C2002 22 90 C2003 15 101 C2004 15 96 C2006 9 85 C2008V 40 161 C2202DF 108 162 C2203DR 109 167 C2207D 63 124 C2402P 53 4 D1201BS 128 102 D1202BS 116 98 D1206BS 126 115 D1207BS 139 123 D1302TE 121 162 F01V 2 49 F02 23 36 F03V 26 46 F101FH 20 53 F102 16 62 F601AH 81 17

F602AN 81 22 IC1501JT 105 134 IC1601V 76 166 IC2001 7 102 L03 11 18 L04 6 28 L05 4 41 L06 6 59 L101 29 71 L601A 33 27 L602AL 33 17 L604A 81 28 L606A 55 27 L607AL 55 18 L2001 28 156 L2401V 33 4 Q201 50 76 Q701 61 55 Q801 117 37 Q802 109 36 R1141 73 106

R1202V 130 106 R1206V 130 110 R1222GF 125 94 R1223GF 121 122 R1605HA 63 153 R2002CH 37 152 R2005 28 123 R2006 112 89 R2007 103 82 R2008 107 110 R2112GF 129 96 R2113GK 126 128 R2401P 89 76 R2402P 111 110 S01FF 13 4 T1203BY 138 99 T1206BT 140 115 T1303TM 125 158 T2401P 46 3

Hauptplatte / Main Board

Bedrahtete Bauteile, Sicht auf Bestückungsseite / Wired Components, View on Component Side

C1107T

C2202DF

C2203DR

C1523V

C1529V

C634A

D1206BS

D1201BS

D1207BS

D1302TE

C1534JT

C1535JT

C1916Z

C636A

AN1

C647A

C608A

8

7

2

1

BU1201

8

7

2

1

BU1202

Q802

L606A

L101

L607AL

R1223GF

R2005

R2112GF

R1222GF

5

1

BU1101T

C1114TD C1113TD

10

9

2

1

BU1301

51

62

BU1302CD

L2001

C2008V

251

IC1601V

L604A

L601A

L602AL

L2401V

L05

4321

F601AH

C1121TD

C1109TD

C1111TD

C1128TD

C1914Z

C1964K

C209

C802

C1126T

C619A

C707

L03

C304FS

C117

C212

C2002

C1106T

C1122T

C644AL

C2001

C506

C2402P

C1532JT

C2004

C2003

C2207D

C207V

C202V

C711

C604A

C1201BS

15

2

1

IC2001

C1509CHC1511CH

C1512CH

C706

R2002CH

R1202V

R1206V

S01FF

C1621

F102

F602AN

18

IC1501JT

L06

L04

Q701

Q801

Q201

C1502

C1513

C1514

C1814HO

C1812HO

C1813HO

C1811HO

C1622H

C1507

BE

T2401P

BE

T1206BT

BE

T1203BY

BE

T1303TM

R2006

R1605HA

R2113GK

C2006

C1123T

C1612DA

F03V

F01V

C808

C38

C1623V

R2402P

R1141

R2007

R2401P

R2008

13

F02

13

F101FH

D1202BS

19373-429.00(03)4B

M

H

150 140 130 120 110 100 90 80 70 60 50 40 30 20 10 0

X

Y

180

170

160

150

140

130

120

110

100

90

80

70

60

50

40

30

20

10

0

Schaltpläne und Druckplattenabbildungen / Circuit Diagrams and Layout of PCBs

AD 182 M / AD 182 M SAM

38 GRUNDIG Service

Hauptplatte / Main Board

SMD-Bauteile, Sicht auf Bestückungsseite / SMD Components, View on Component Side

Für die tatsächliche Bauteilbestückung ist das Schaltbild maßgebend!

The circuit diagram is relevant for the actual component assembly!

CR1554JT

CR1606V

CR1603V

CR1546JT

CR1549JT

CR1548JT

CR1551JT

CR1552JT

CR807

CR1956K

CR805JK

CR815JK

CR104FH

CR106FH CR107FH

CR108FH

CR02FP

CR29FL

CR03FQ

CR2224DR

CR1133T

CR1952K

CR2227DR

CR909R

CR626A

CR648A

CR1911Z

CR1913Z

CR647A

CR711A

CR1308TE

CR1602

CR1131TN

CR824P

CR1209JB

CR1319TE

CR627A

CR628A

CR619A

CR1127T

CR1413S

CR636A

CR1957K

CR1314TM

CR1301TA

CR1958K

CR1306TM

CR618A

CR643AL

CR644AL

CR646A

CR714A

CR713A

CR907R

CR908R

CR16

CR501

CR2218D

CR2216D

CR119

CR1302TA

CR17

CR2217D

CR712A

CR1107TN

CR2414P

CR114

CR2416P

CR118

CR01

CR2408P

CR28

CR2409P

CR2403P

CR1953K

CR1313TE

CR201

CR829

CR814

CR817

CR827

CR890 CR834

CR2214D

CR884JZ

CR852

CR888S

CR826JF

CR889JM

CR820CU

CR806JG

CR895T

CR899T

CR2209DR

CR821

CR803

CR896

CR2211DR

CR2208DR

CR855CU

CR1518V

CR833HT

CR841CU

CR843CU

CR853A

CR1601

CR1409S

CR621A

CR2238DF

CR632A

CR1316TE

CR1951K

CR2239DF

CR622A

CR629A

CR631A

CR1506CH

CR2236DF

CR857DR

CR2234DF

CR859DR

CR2205DL

CR858DF

CR861DF

CR1507CH

CR2237DF

CR1614HL

CR2309EV

CR868T

CR1201GF

CR1407S

CR911R

CR2246DR

CR913R

CR2244DR

CR709AL

CR1954K

CR1961K

CR1111T

CR2243DR

CR2242DR

CR1959K

CR612A

CR607A

CR608A

CR1909Z

CR1914Z

CR614A

CR2229DF

CR1404S

CR1408SCR1412S

CR1406S

CR1811HO

CR1813HO

CR703

CR314

CR705 CR706

CR12

CR2241DF

CR2201DH

CR850CU

CR848CU

CR839CU

CR802CU

CR862JG

CR863JG

CR818V

CR1812HO

CR1137V

CR1135V

CR1136V

CR2109GA

CR1213BN

CR1611V

CR1612V

CR653V

CR638V

CR1517V

CR1134V

CR2406P

CR2407P

CR2415P

CR2420P

CR2405P

CR830V

CR07V

CR2011GF

CR2413P

CR2009GK

CR1535JT

CR1542JT CR1541JT

CR208V

CR2316EV

CR2312EV

CR2311EV

CR2206DR

CR202V

CR1504JE

CR2304EV

CR1515JE

CR869JF

CR1533JE

CR1607V

CR893D

CR1309TA

CR872GF

CR1604V

CR211V CR214V

CR213V

CR209V

CR212V

CR207V

CR206V

CR832GK

CR851V

CR849V

CR835DF

CR837V

CR1512V

CR1513V

CR702V

CR870V

CR1214BS

CR1216BS

CR1503JR

CR113

CR1219BS

CR1218BS

CR1139T

CR2302EV

CR311FS

CR313FS

CR307FSCR306FSCR304FS

CR302FS

CR2202DF

CR707A

CR1908Z

CR2251DB

CR1557V

CR316FS

CR1556V

CR1221BS

CR873T

CR886TM

CR2212V

CR2213V

CR2232DR

CR613V

CR1109V

CR1128V

CR224GF

CR1502JR

CR317FS

CR318FS

CR319FS

CR842V

CR840V

CR203GK

CR1321TC

CR1142V

CR1132V

CR1106V

CR867

CR1618DA

CR1617DA

CR1322V

CR804V

CR844GS

CR883V

CR876

CR1143V

CR2117GG

CR1610DA

CR1553JT

CR2231DF

CR2228DR

CR2226DR

CR1304TM

CR1303TM

CR2219DR

CR1208BT

CR2221DR

CR1204BY

CR27

CR1621V

CR1217BS

CR1626H

CR122

CR2001

CR2222V

CR2223V

CR1627V

CR2233DR

CR708

CR877

CR878

CC702GF

CC821D

CC1627V

CC1517V

CC1537JT

CC06FP

CC03FP

CC643AL

CC622A

CC1909Z

CC1932Z

CC1907Z

CC1918Z

CC1906Z

CC1901Z

CC1903Z

CC1912Z

CC1902Z

CC1908Z

CC1904Z

CC1931Z

CC628A

CC24

CC12

CC04

CC39

CC01

CC713

CC1527V

CC1526V

CC07V

CC1631V

CC1541V

CC635V

CC1917Z

CC02V

CC214

CC1519V

CC1602

CC1601

CC1626H

CC716A

CC1611V

CC1613V

CC1618V

CC13

CC826V

CC203V

CC819V

CT1501JT

CT805CU

CT804CU

CT1502JT

CT101FH

CT904R

CT604A

CT1401S

CT608AL

CT1402S

CT2217DR

CT2206D

CT1301TA

CT2213DF

CT1207JB

CT603A

CT2211DF

CT2208DR

CT2209DR

CT2406P

CT2411P

CT2412P

CT2301EV

CT2302EV

CT301FS

CT104

CT2212DR

CT1601DA

CC1542JT

CC313FS

CC314FS

CC1501JE

CC1503JR

CC2401P

CC1607V

CC1603V

CC1604V

CC822JG

CC1538JT

CC509

CC1401S

CC101FH

CC1605HT

CC1966K

CC1108T

CC651A

CC614A

CC1911Z

CC1959K

CC652A

CC1923Z

CC1922Z

CC654A

CC1119T

CC16

CC36

CC1956K

CC216

CC812

CC1965K

CC704

CC714

CC116

CC33

CC312

CC14

CC501

CC34

CC1957K

CC1958K

CC508

CC502

CC813

CC814

CC1952K

CC1927Z

CC1928Z

CC1954K

CC1962K

CC646A

CC613A

CC1951K

CC1953K

CC624A

CC1929Z

CC623A

CC637A

CC1405S

CC612A

CC606A

CC11

CC204

CC1506A

CC633V

CC2403P

CC823P

CC2404P

CC1508JE

CC1504JR

CC309FS

CC306FS

CC303FS

CC302FS

CC715A

1

10

11 20

CIC601A

1

10

11 20

CIC101

18

9

16

1724

25

32

CIC1901Z

8

16 1

CIC1951K

CT1211BS

CT1209BS

CT2407P

CT803JK

CT1304TM

CT1302TM

CT801CH

CT1101TD

CT1204BT

CT1202BY

CT1201BN

CT201

CT1103TS

CT1306TC

2413

12

1

CIC01

2413

12

1

CIC1101V

CL603A

CT601A

CD2204DR

CD2206DF

CD2207DR

CD2201DR

CD2202DF

120

21

40

4160

61

80

CIC801

CD06V

CD01FP

CD1601HT

CD2302EV

CT606A

CIC201

CT01

CD806GF

CD2102GF

CD2101GF

CD803GK

CD2003JM

CD1401S

CD801JF

CD1301TA

CD02

CD1204V

CD901R

CIC501

CL02

CT303FS

CT1212BS

CT1208BS

CT2409P

CT2408P

CT2404P

CT806CU

CT702A

CT903R

CT1951K

CT2207D

CT701A

CT2303EV

CT2214DF

CT2216DR

CT302FS

CT304FS

CT704AL

CT703AL

2815

14 1

CIC701

OPM13

OPM9

OPM10

OPM7

OPM16

OPM6

OPM14OPM15

OPM11

OPM8

CR2411P

CR2412P

CR26

CR1108TDCR1129V

CR1138V

1

CIC802

CC629A

CT2201DF

CT2202DR

CT2203DR CT2204DF

150 140 130 120 110 100 90 80 70 60 50 40 30 20 10 0

X

Y

180

170

160

150

140

130

120

110

100

90

80

70

60

50

40

30

20

10

0

Schaltpläne und Druckplattenabbildungen / Circuit Diagrams and Layout of PCBs

AD 182 M / AD 182 M SAM

GRUNDIG Service 39

XY

CC01 5 11 CC02V 6 14 CC03FP 9 7 CC04 14 13 CC06FP 9 9 CC07V 25 28 CC11 19 20 CC12 13 24 CC13 19 22 CC14 12 29 CC16 12 26 CC24 8 34 CC33 11 56 CC34 10 51 CC36 10 54 CC39 27 52 CC101FH 16 58 CC116 19 79 CC203V 33 85 CC204 46 93 CC214 50 82 CC216 52 85 CC302FS 37 71 CC303FS 35 71 CC306FS 37 77 CC309FS 41 86 CC312 28 78 CC313FS 41 90 CC314FS 48 93 CC501 122 28 CC502 134 26 CC508 123 31 CC509 122 34 CC606A 39 10 CC612A 27 15 CC613A 43 16 CC614A 40 14 CC622A 50 34 CC623A 46 34 CC624A 54 36 CC628A 42 29 CC629A 79 34 CC633V 71 39 CC635V 75 35 CC637A 59 36 CC643AL 46 21 CC646A 62 34 CC651A 60 14 CC652A 62 14 CC654A 65 33 CC702GF 51 40 CC704 69 39 CC713 54 61 CC714 51 65 CC715A 51 63 CC716A 48 62 CC812 98 38 CC813 105 50 CC814 73 44 CC819V 100 50 CC821D 110 70 CC822JG 136 40 CC823P 101 41 CC826V 108 70 CC1108T 102 15 CC1119T 120 15 CC1401S 133 71 CC1405S 29 107 CC1501JE 53 93 CC1503JR 76 66 CC1504JR 81 66 CC1506A 72 66 CC1508JE 55 93 CC1517V 63 67 CC1519V 62 72 CC1526V 68 92 CC1527V 71 90 CC1537JT 47 110 CC1538JT 38 116 CC1541V 76 87 CC1542JT 35 119 CC1601 99 140 CC1602 71 128 CC1603V 87 144 CC1604V 95 141 CC1605HT 105 170 CC1607V 73 135 CC1611V 90 148 CC1613V 92 148 CC1618V 68 135 CC1626H 92 154 CC1627V 92 158 CC1631V 46 170 CC1901Z 78 100 CC1902Z 79 92 CC1903Z 69 106 CC1904Z 69 103

CC1906Z 65 106 CC1907Z 65 103 CC1908Z 83 87 CC1909Z 83 90 CC1911Z 73 66 CC1912Z 83 92 CC1917Z 89 91 CC1918Z 86 91 CC1922Z 83 108 CC1923Z 81 108 CC1927Z 78 108 CC1928Z 80 108 CC1929Z 78 97 CC1931Z 76 103 CC1932Z 78 103 CC1951K 94 112 CC1952K 90 112 CC1953K 92 108 CC1954K 87 112 CC1956K 83 112 CC1957K 81 112 CC1958K 85 112 CC1959K 89 112 CC1962K 87 123 CC1965K 84 126 CC1966K 89 123 CC2401P 57 7 CC2403P 80 8 CC2404P 61 9 CD01FP 13 8 CD02 11 13 CD06V 4 73 CD801JF 98 41 CD803GK 96 45 CD806GF 134 47 CD901R 22 96 CD1204V 134 128 CD1301TA 123 151 CD1401S 33 109 CD1601HT 101 167 CD2003JM 23 110 CD2101GF 139 25 CD2102GF 139 20 CD2201DR 51 112 CD2202DF 54 112 CD2204DR 25 135 CD2206DF 40 134 CD2207DR 38 137 CD2302EV 119 73 CIC01 15 42 CIC101 16 71 CIC201 61 84 CIC501 130 33 CIC601A 68 25 CIC701 52 55 CIC801 117 55 CIC802 70 46 CIC1101V 111 17 CIC1901Z 86 100 CIC1951K 88 117 CL02 16 28 CL603A 54 34 CR01 18 8 CR02FP 16 13 CR03FQ 15 8 CR07V 27 32 CR12 16 23 CR16 4 34 CR17 14 34 CR26 5 67 CR27 32 63 CR28 6 70 CR29FL 4 76 CR104FH 16 56 CR106FH 20 60 CR107FH 16 60 CR108FH 23 57 CR113 23 64 CR114 32 65 CR118 16 80 CR119 21 79 CR122 13 81 CR201 53 78 CR202V 33 83 CR203GK 33 87 CR206V 50 85 CR207V 47 86 CR208V 49 70 CR209V 50 87 CR211V 49 67 CR212V 43 87 CR213V 49 90 CR214V 49 93 CR224GF 29 87 CR302FS 37 74 CR304FS 38 67 CR306FS 38 71 CR307FS 38 74 CR311FS 39 84

CR313FS 47 89 CR314 28 80 CR316FS 41 88 CR317FS 44 90 CR318FS 42 84 CR319FS 47 84 CR501 121 31 CR607A 44 8 CR608A 29 12 CR612A 25 17 CR613V 27 12 CR614A 40 12 CR618A 43 14 CR619A 42 20 CR621A 41 26 CR622A 39 18 CR626A 41 32 CR627A 40 29 CR628A 37 37 CR629A 44 34 CR631A 48 34 CR632A 51 36 CR636A 79 36 CR638V 75 39 CR643AL 51 17 CR644AL 48 17 CR646A 61 26 CR647A 60 18 CR648A 62 21 CR653V 73 39 CR702V 65 49 CR703 39 60 CR705 54 65 CR706 54 63 CR707A 51 62 CR708 44 57 CR709AL 50 45 CR711A 53 48 CR712A 57 48 CR713A 47 48 CR714A 33 43 CR802CU 86 79 CR803 133 42 CR804V 129 42 CR805JK 78 44 CR806JG 133 41 CR807 128 39 CR814 112 41 CR815JK 87 43 CR817 103 35 CR818V 105 31 CR820CU 88 79 CR821 94 38 CR824P 94 40 CR826JF 94 42 CR827 103 47 CR829 102 50 CR830V 128 80 CR832GK 88 48 CR833HT 96 50 CR834 96 51 CR835DF 118 82 CR837V 122 70 CR839CU 93 67 CR840V 108 74 CR841CU 105 56 CR842V 110 73 CR843CU 89 74 CR844GS 106 86 CR848CU 95 68 CR849V 98 62 CR850CU 91 67 CR851V 103 60 CR852 103 62 CR853A 103 64 CR855CU 94 59 CR857DR 103 65 CR858DF 101 67 CR859DR 101 69 CR861DF 104 69 CR862JG 138 40 CR863JG 137 42 CR867 113 69 CR868T 116 67 CR869JF 89 44 CR870V 136 93 CR872GF 88 50 CR873T 135 83 CR876 100 83 CR877 117 33 CR878 117 42 CR883V 134 50 CR884JZ 134 64 CR886TM 118 67 CR888S 134 60 CR889JM 139 58 CR890 134 51 CR893D 130 62 CR895T 138 51

CR896 139 56 CR899T 139 54 CR907R 37 96 CR908R 35 96 CR909R 29 96 CR911R 29 100 CR913R 27 100 CR1106V 95 15 CR1107TN 99 15 CR1108TD 99 3 CR1109V 101 15 CR1111T 104 15 CR1127T 119 15 CR1128V 122 15 CR1129V 126 3 CR1131TN 124 15 CR1132V 122 12 CR1133T 86 36 CR1134V 108 27 CR1135V 110 27 CR1136V 114 27 CR1137V 113 27 CR1138V 120 11 CR1139T 93 17 CR1142V 97 15 CR1143V 127 16 CR1201GF 108 73 CR1204BY 133 99 CR1208BT 127 118 CR1209JB 112 78 CR1213BN 135 131 CR1214BS 134 145 CR1216BS 134 136 CR1217BS 134 143 CR1218BS 130 132 CR1219BS 133 134 CR1221BS 113 74 CR1301TA 122 142 CR1302TA 124 141 CR1303TM 126 151 CR1304TM 129 151 CR1306TM 130 158 CR1308TE 126 147 CR1309TA 119 151 CR1313TE 135 152 CR1314TM 115 126 CR1316TE 115 128 CR1319TE 130 160 CR1321TC 116 131 CR1322V 120 133 CR1404S 134 76 CR1406S 127 66 CR1407S 132 78 CR1408S 129 71 CR1409S 131 71 CR1412S 129 66 CR1413S 29 109 CR1502JR 78 66 CR1503JR 80 66 CR1504JE 42 109 CR1506CH 44 101 CR1507CH 38 101 CR1512V 42 101 CR1513V 40 101 CR1515JE 44 109 CR1517V 68 67 CR1518V 63 69 CR1533JE 44 104 CR1535JT 106 149 CR1541JT 101 136 CR1542JT 101 132 CR1546JT 107 123 CR1548JT 43 114 CR1549JT 42 115 CR1551JT 33 119 CR1552JT 36 119 CR1553JT 31 119 CR1554JT 38 119 CR1556V 53 72 CR1557V 53 69 CR1601 130 55 CR1602 67 127 CR1603V 91 144 CR1604V 89 144 CR1606V 93 144 CR1607V 97 141 CR1610DA 125 165 CR1611V 75 135 CR1612V 70 135 CR1614HL 71 144 CR1617DA 107 155 CR1618DA 109 155 CR1621V 47 167 CR1626H 90 154 CR1627V 90 158 CR1811HO 93 141 CR1812HO 77 135 CR1813HO 90 141 CR1908Z 87 88

CR1909Z 80 111 CR1911Z 85 108 CR1913Z 87 108 CR1914Z 78 111 CR1951K 94 108 CR1952K 92 112 CR1953K 89 108 CR1954K 90 108 CR1956K 77 119 CR1957K 81 115 CR1958K 80 118 CR1959K 84 123 CR1961K 88 126 CR2001 27 91 CR2009GK 19 105 CR2011GF 19 107 CR2109GA 134 62 CR2117GG 145 67 CR2201DH 67 160 CR2202DF 110 159 CR2205DL 70 159 CR2206DR 108 159 CR2208DR 101 164 CR2209DR 49 124 CR2211DR 57 124 CR2212V 55 124 CR2213V 52 124 CR2214D 63 116 CR2216D 59 121 CR2217D 59 124 CR2218D 53 108 CR2219DR 45 118 CR2221DR 61 116 CR2222V 47 118 CR2223V 58 116 CR2224DR 63 132 CR2226DR 59 130 CR2227DR 52 134 CR2228DR 46 133 CR2229DF 57 130 CR2231DF 54 130 CR2232DR 52 131 CR2233DR 49 129 CR2234DF 37 134 CR2236DF 33 135 CR2237DF 35 134 CR2238DF 31 132 CR2239DF 30 132 CR2241DF 39 124 CR2242DR 44 129 CR2243DR 44 127 CR2244DR 44 122 CR2246DR 33 132 CR2251DB 44 136 CR2302EV 126 71 CR2304EV 126 83 CR2309EV 122 80 CR2311EV 122 76 CR2312EV 116 79 CR2316EV 116 74 CR2403P 66 12 CR2405P 84 8 CR2406P 63 9 CR2407P 86 13 CR2408P 88 4 CR2409P 73 5 CR2411P 88 8 CR2412P 86 8 CR2413P 86 4 CR2414P 82 8 CR2415P 60 7 CR2416P 57 3 CR2420P 63 4 CT01 19 25 CT101FH 20 57 CT104 27 64 CT201 32 80 CT301FS 37 80 CT302FS 37 86 CT303FS 43 93 CT304FS 46 82 CT601A 34 11 CT603A 43 11 CT604A 41 23 CT606A 41 35 CT608AL 49 21 CT701A 33 47 CT702A 57 45 CT703AL 53 45 CT704AL 47 45 CT801CH 129 45 CT803JK 84 44 CT804CU 91 81 CT805CU 91 71 CT806CU 95 65 CT903R 32 96 CT904R 26 96 CT1101TD 91 21 CT1103TS 137 8

CT1201BN 130 129 CT1202BY 133 94 CT1204BT 120 96 CT1207JB 142 123 CT1208BS 135 139 CT1209BS 130 139 CT1211BS 130 135 CT1212BS 136 134 CT1301TA 123 146 CT1302TM 132 149 CT1304TM 130 155 CT1306TC 117 134 CT1401S 131 75 CT1402S 132 67 CT1501JT 107 146 CT1502JT 41 118 CT1601DA 108 151 CT1951K 78 115 CT2201DF 105 159 CT2202DR 101 160 CT2203DR 52 116 CT2204DF 52 120 CT2206D 64 119 CT2207D 51 107 CT2208DR 60 135 CT2209DR 47 137 CT2211DF 55 135 CT2212DR 49 133 CT2213DF 30 136 CT2214DF 36 130 CT2216DR 43 125 CT2217DR 40 130 CT2301EV 126 79 CT2302EV 127 75 CT2303EV 119 77 CT2404P 60 4 CT2406P 66 4 CT2407P 70 4 CT2408P 66 9 CT2409P 88 18 CT2411P 83 4 CT2412P 76 5 OPM06 6 163 OPM07 46 74 OPM08 76 90 OPM09 91 105 OPM10 64 46 OPM11 112 51 OPM13 123 60 OPM14 141 16 OPM15 141 16 OPM16 134 169

Hauptplatte / Main Board

Koordinaten der SMD-Bauteile auf der Bestückungsseite / Coordinates of the SMD Components on the Component Side

Schaltpläne und Druckplattenabbildungen / Circuit Diagrams and Layout of PCBs

AD 182 M / AD 182 M SAM

40 GRUNDIG Service

Hauptplatte / Main Board

SMD-Bauteile, Sicht auf Lötseite / SMD Components, View on Solder Side

CR1112TD

CR819V

CR892D

CR2003

CR1523V

CR836HT

CR1207BT

CR1522V

CR1519V

CR1203BY

CR1516V

CR1537JT

CR1547JT

CR1534JT

CR1536JT

CR1538JT

CR1539JT

CR1543JT

CR1545JT

CR801JI

CR121FK

CR109V

CR103FH

CR102FH

CR101FN

CR18

CR09

CR24

CR33

CR08

CR22

CR116

CR652AL

CR704

CR651AL

CR649AL

CR21

CR23

CR11

CR19

CR623A

CR31CR32

CR854

CR1113TK

CR1122TK

CR14

CR13

CR117

CR828

CR856

CR816

CR809

CR812

CR811

CR813

CR808

CR823

CR822

CR902R

CR897

CR903R

CR904R

CR901R

CR912R

CR633A

CR634A

CR637A

CR1121TD

CR1124TD

CR642AL

CR641AL

CR639A

CR1119TD

CR1126T

CR123FL

CR715F

CR2204DF

CR2203DF

CR2207DR

CR831V

CR906R

CR1613HL

CR1101T

CR1103T

CR1102T

CR1104T

CR1117TD

CR1114TD

CR216Z

CR217Z

CR606A

CR624A

CR1116TD

CR603A

CR604A

CR1508CH

CR1509CH

CR1511CH

CR1402S

CR111V CR112V

CR1403S

CR1401S

CR1411S

CR1814HO

CR616AL CR617AL

CR602A

CR609AM

CR810

CR1123TS

CR847GM

CR838GH

CR1118TL

CR502V

CR503V

CR2104GF

CR2107GF

CR2108GK

CR1608V

CR1609V

CR1521V

CR1514V

CR2404P

CR846GF

CR2308EV

CR860JG

CR645AH

CR2314EV

CR887D

CR891D

CR866JG

CR875V

CR825V

CR701V

CR06

CR2101GA

CR222Z

CR865JM

CR223Z

CR2417P

CR308FS

CR309FS

CR312FS

CR303FS

CR301FS

CR1968Z

CR1967Z

CR2249DA

CR1501V

CR226GF

CR321FS

CR874FS

CR1616DA

CR864V

CR845V

CR871V

CR611AM

CR1619DA

CT102FK

CT901R

CT902R

CT609AL

CT103

CT607AL

CT602AL

CT501V

CT203Z

CT202Z

CT1602DA

CC632V

CC1606V

CC1533JTCC1536JT

CC102FH

CC648A

CC653AL

CC1924Z

CC1963K

CC118

CC607A

CC19

CC32

CC2009

CC1961K

CC211

CC1521

CC213

CC208

CC1921Z

CC701

CC709

CC712

CC26

CC09

CC23

CC106

CC114

CC109

CC27

CC113

CC41

CC112

CC817

CC28

CC108

CC44CC46

CC43

CC29

CC42

CC104

CC103

CC107

CC201

CC503 CC507

CC806

CC809

CC807

CC804CC803

CC811

CC801

CC816

CC649V

CC1402SCC1403S

CC1919Z

CC611AL

CC1926Z

CC638A

CC1124T

CC631A

CC618A

CC621A

CC639A

CC1112TD

CC317FS

CC609A

CC627AL

CC626A

CC616A

CC815JG

CC1127TD

CC119V

CC223Z

CC222Z

CC307FS

CC308FS

CC301FS

CC2204DR

CC2206DF

CC318FS

CC316FS

CC827

CD1501JT

CD2401P

CD808CH

CD809CH

CD812JM

CD811JM

CD802JF

CD804GK

CD814GF

CD1213BS

CC1629H

CC1632V

CC1516V

CC1104T

CC1102T

CC1101T

CC1103T

CC1913Z

CC603A

CC642AL

CC818

CC17

CC18

CC504

CC22

CC602A

CC31

CC37

CC08

CC617A

CC1518V

CC641V

CC1301TE

CC1633V

CC1634V

CC1539V

CC708

CC21

CC705

CC1524V

CC1522V

CC1531V

CC1528V

CC1628H

CC2007

CC824D

CC1616V

CC217V

CC219V

CC1129GF

CC111

CC1116GF

CC901V

CC2011GF

CC601V

CR1311TE

CR1312TM

CR1623V

CR1624V

CR1622V

CR1544JT

CR34

CR880CH

CR1211JB

CR1212JB

CR204

CR04A

CR1628H CR1629H

CR2247DA

CR2248DB

CR2116GK

CR2114GK

CR919V

CD2002

CD03

CD05

CD04

OPM4

OPM1

OPM5

CT1102TS

CD601FZ

CT802D

CT02

CT305FS

CD2203DF

CL01

CD2001

CD603A

CD602A

CT204GF

CT1603DA

1501401301201101009080706050403020100

180

170

160

150

140

130

120

110

100

90

80

70

60

50

40

30

20

10

0

X

Y

Für die tatsächliche Bauteilbestückung ist das Schaltbild maßgebend!

The circuit diagram is relevant for the actual component assembly!

Schaltpläne und Druckplattenabbildungen / Circuit Diagrams and Layout of PCBs

AD 182 M / AD 182 M SAM

GRUNDIG Service 41

XY

CC08 15 13 CC09 10 19 CC17 12 26 CC18 2 33 CC19 5 33 CC21 5 25 CC22 12 35 CC23 10 37 CC26 8 50 CC27 14 43 CC28 8 41 CC29 9 46 CC31 10 55 CC32 8 58 CC37 28 53 CC41 18 48 CC42 15 35 CC43 20 41 CC44 25 37 CC46 25 33 CC102FH 16 57 CC103 11 71 CC104 10 73 CC106 18 66 CC107 20 66 CC108 22 66 CC109 25 72 CC111 19 71 CC112 16 71 CC113 21 71 CC114 16 75 CC118 8 77 CC119V 2 85 CC201 53 78 CC208 54 73 CC211 52 76 CC213 56 78 CC217V 56 88 CC219V 58 84 CC222Z 53 87 CC223Z 50 84 CC301FS 40 71 CC307FS 36 80 CC308FS 34 85 CC316FS 41 80 CC317FS 47 77 CC318FS 50 92 CC503 130 31 CC504 133 28 CC507 130 34 CC601V 23 9 CC602A 23 5 CC603A 25 9 CC607A 38 30 CC609A 33 33 CC611AL 38 25 CC616A 37 36 CC617A 30 38 CC618A 41 35 CC621A 43 35 CC626A 51 18 CC627AL 60 36 CC631A 73 23 CC632V 75 20 CC638A 48 21 CC639A 63 27 CC641V 51 26 CC642AL 45 26 CC648A 60 26 CC649V 64 17 CC653AL 62 12 CC701 53 57 CC705 40 55 CC708 48 52 CC709 47 61 CC712 56 60 CC801 129 38 CC803 115 36 CC804 115 40 CC806 110 39 CC807 108 39 CC809 102 40 CC811 102 49 CC815JG 127 65 CC816 113 51 CC817 109 51 CC818 98 45 CC824D 132 61 CC827 122 58 CC901V 29 115 CC1101T 108 10 CC1102T 116 11 CC1103T 120 5 CC1104T 110 10 CC1112TD 107 22 CC1116GF 97 31 CC1124T 106 5

CC1127TD 116 22 CC1129GF 111 15 CC1301TE 124 146 CC1402S 130 80 CC1403S 130 77 CC1516V 63 69 CC1518V 61 72 CC1521 58 78 CC1522V 63 83 CC1524V 67 83 CC1528V 70 88 CC1531V 72 88 CC1533JT 102 141 CC1536JT 102 129 CC1539V 76 81 CC1606V 91 143 CC1616V 76 142 CC1628H 92 154 CC1629H 92 158 CC1632V 59 164 CC1633V 48 164 CC1634V 54 150 CC1913Z 85 100 CC1919Z 86 94 CC1921Z 82 98 CC1924Z 90 92 CC1926Z 94 92 CC1961K 88 123 CC1963K 90 123 CC2007 15 107 CC2009 22 116 CC2011GF 4 98 CC2204DR 52 116 CC2206DF 50 116 CD03 10 13 CD04 6 29 CD05 5 59 CD601FZ 28 9 CD602A 33 38 CD603A 48 17 CD802JF 99 41 CD804GK 96 49 CD808CH 129 43 CD809CH 132 53 CD811JM 140 53 CD812JM 136 53 CD814GF 135 45 CD1213BS 137 133 CD1501JT 114 130 CD2001 35 161 CD2002 8 117 CD2203DF 29 150 CD2401P 30 5 CL01 11 6 CR04A 15 7 CR06 18 7 CR08 20 13 CR09 13 13 CR11 14 29 CR13 9 33 CR14 7 33 CR18 10 46 CR19 8 54 CR21 13 55 CR22 5 47 CR23 6 50 CR24 15 41 CR31 20 48 CR32 20 45 CR33 22 27 CR34 17 35 CR101FN 23 57 CR102FH 25 57 CR103FH 19 57 CR109V 20 57 CR111V 11 65 CR112V 11 68 CR116 23 72 CR117 18 78 CR121FK 20 78 CR123FL 11 77 CR204 54 69 CR216Z 42 89 CR217Z 40 89 CR222Z 53 84 CR223Z 48 84 CR226GF 42 75 CR301FS 40 68 CR303FS 47 69 CR308FS 36 85 CR309FS 32 85 CR312FS 38 80 CR321FS 48 92 CR502V 125 31 CR503V 119 33 CR602A 20 7 CR603A 27 16 CR604A 33 5 CR606A 33 8

CR609AM 37 17 CR611AM 40 25 CR616AL 43 16 CR617AL 43 20 CR623A 42 28 CR624A 37 40 CR633A 46 16 CR634A 62 40 CR637A 81 25 CR639A 51 21 CR641AL 67 35 CR642AL 52 13 CR645AH 82 16 CR649AL 60 12 CR651AL 64 12 CR652AL 69 35 CR701V 54 50 CR704 43 55 CR715F 32 47 CR801JI 120 45 CR808 127 38 CR809 124 36 CR810 138 49 CR811 120 36 CR812 118 37 CR813 118 45 CR816 110 44 CR819V 108 65 CR822 111 51 CR823 109 47 CR825V 124 73 CR828 105 49 CR831V 96 45 CR836HT 87 76 CR838GH 102 53 CR845V 143 59 CR846GF 109 109 CR847GM 100 53 CR854 104 56 CR856 106 56 CR860JG 140 67 CR864V 96 41 CR865JM 143 55 CR866JG 142 66 CR871V 108 58 CR874FS 90 76 CR875V 129 53 CR880CH 107 109 CR887D 129 63 CR891D 137 67 CR892D 134 59 CR897 125 52 CR901R 40 104 CR902R 37 102 CR903R 29 99 CR904R 31 109 CR906R 29 109 CR912R 27 99 CR919V 27 110 CR1101T 106 10 CR1102T 118 10 CR1103T 123 5 CR1104T 113 11 CR1112TD 107 18 CR1113TK 105 22 CR1114TD 110 19 CR1116TD 110 22 CR1117TD 92 20 CR1118TL 97 16 CR1119TD 113 22 CR1121TD 113 19 CR1122TK 118 22 CR1123TS 126 16 CR1124TD 116 16 CR1126T 118 16 CR1203BY 134 99 CR1207BT 134 118 CR1211JB 138 146 CR1212JB 135 146 CR1311TE 122 146 CR1312TM 127 153 CR1401S 128 73 CR1402S 128 77 CR1403S 130 73 CR1411S 126 73 CR1501V 123 52 CR1508CH 73 94 CR1509CH 67 97 CR1511CH 57 97 CR1514V 65 67 CR1516V 61 69 CR1519V 61 84 CR1521V 69 83 CR1522V 68 88 CR1523V 74 86 CR1534JT 93 143 CR1536JT 106 144 CR1537JT 100 141 CR1538JT 107 140

CR1539JT 107 127 CR1543JT 107 135 CR1544JT 118 132 CR1545JT 114 134 CR1547JT 116 134 CR1608V 87 143 CR1609V 89 143 CR1613HL 93 148 CR1616DA 105 157 CR1619DA 107 150 CR1622V 59 160 CR1623V 48 160 CR1624V 57 150 CR1628H 90 154 CR1629H 90 158 CR1814HO 87 140 CR1967Z 87 100 CR1968Z 91 100 CR2003 18 107 CR2101GA 145 55 CR2104GF 145 61 CR2107GF 109 33 CR2108GK 107 49 CR2114GK 142 124 CR2116GK 142 25 CR2203DF 73 142 CR2204DF 91 148 CR2207DR 99 157 CR2247DA 53 135 CR2248DB 49 141 CR2249DA 44 134 CR2308EV 124 78 CR2314EV 114 76 CR2404P 81 6 CR2417P 56 3 CT02 19 27 CT102FK 23 77 CT103 25 64 CT202Z 45 85 CT203Z 40 85 CT204GF 39 76 CT305FS 53 92 CT501V 122 31 CT602AL 40 21 CT607AL 63 36 CT609AL 61 17 CT802D 135 63 CT901R 33 103 CT902R 28 105 CT1102TS 122 15 CT1602DA 108 154 CT1603DA 108 159 OPM01 131 169 OPM04 141 16 OPM05 2 158

Hauptplatte / Main Board

Koordinaten der SMD-Bauteile auf der Lötseite / Coordinates of the SMD Components on the Solder Side

Schaltpläne und Druckplattenabbildungen / Circuit Diagrams and Layout of PCBs

AD 182 M / AD 182 M SAM

42 GRUNDIG Service

5629

28 1

CIC1001

CR1001

CR1002CR1006

CR1003

CR1004

LA1002

LA1001

LA1004

LA1003

CC1001

150 140 130 120 110

200 190 180 170 160

220 210 100 90 80 70 60 50 40 30 20 10 0

X

Y

40

30

20

10

0

XY

CD1001GH 145 30 CD1002GM 111 30 CD1009 39 22 CD1011 22 22 CD1012 5 22 CD1013GH 41 7 CD1014GH 21 7 CD1016GH 3 7 CD1022 173 22 CD1023 190 22 CD1024 207 22 CD1026GH 171 7 CD1027GH 191 7 CD1028GH 209 7 CR1009 163 23 CR1022 29 16 CR1023 12 16 CR1024GH 12 14 CR1026GH 12 10 CR1027GH 17 13 CR1028 49 9 CR1029GH 21 13 CR1037 176 17 CR1038 180 17 CR1039 198 19 CR1041GH 198 16 CR1042GH 198 13 CR1044 172 17 CR1046GH 182 13 CR1047GH 29 13 CR1048GH 49 6 CR1049GM 38 17 CR1051GH 200 6 CR1052GM 200 9 CS1004 39 25 CS1006 22 25 CS1007 5 25 CS1008GH 7 7 CS1009GH 17 7 CS1011GH 37 7 CS1017 173 25 CS1018 190 25 CS1019 207 25 CS1021GH 175 7 CS1022GH 195 7 ST1002 159 16 ST1004 162 6

XY

CC1001 20 25 CIC1001 44 20 CR1001 18 8 CR1002 20 8 CR1003 23 25 CR1004 18 25 CR1006 20 20 LA1001 136 9 LA1002 116 9 LA1003 76 9 LA1004 96 9

8

7

2

1

ST1002

3

42

1

ST1004

CR1051GH

CR1052GM

CR1049GM

CR1047GH

CR1048GH

CR1023

CR1044

CR1046GH

CR1038CR1037

CR1029GH

CR1024GH

CR1022

CR1027GH

CR1026GH

CR1042GH

CR1009

CR1028

CR1039

CR1041GH

CD1009CD1011

CD1013GH

CD1016GH

CD1026GH

CD1024

CD1014GH

CD1012

CD1027GH

CD1028GH

CD1022 CD1023

2345678910111213141516171819202122232425262728293031323334353637383940414243441

CS1018

CS1019

CS1022GH

CS1009GH

CS1006

CS1011GH

CS1017

CS1021GH

CS1008GH

CS1004

CS1023GH

CS1007

CD1002GM CD1001GH

1501401301201101009080706050403020100

200190180170160

220210

40

30

20

10

0

X

Y

Displayplatte / Display Board

Sicht auf Bestückungsseite / View on Component Side Sicht auf Lötseite / View on Solder Side

Schaltpläne und Druckplattenabbildungen / Circuit Diagrams and Layout of PCBs

AD 182 M / AD 182 M SAM

GRUNDIG Service 43

3

4

2

1

ST1003

CD1017

CD1019

CD1021 CD1018

CS1016 CS1012 CS1013

CS1014

CR1033

CR1034

CR1036

CR1032

CR1035

CR1031

CS1001GH

403020100

50

40

30

20

10

0

X

Y

8

7

2

1

ST1001

G1001

CD1003GH CD1008 CD1007CD1006GH

CD1004

CS1003GHCS1002

CR1012

3020100

50

40

30

20

10

0

X

Y

CR1013GH

CR1014

CR1015

30 20 10 0

X

Y

50

40

30

20

10

0

XY

CD1017 21 25 CD1018 33 15 CD1019 21 5 CD1021 9 15 CR1031 20 18 CR1032 20 15 CR1033 20 11 CR1034 19 32

XY

CD1003GH 23 6 CD1004 6 6 CD1006GH 23 15 CD1007 23 30 CD1008 23 20 CR1012 14 11 CS1002 10 6 CS1003GH 18 6 G1001 14 25 ST1001 7 37

XY

CR1013GH 13 8 CR1014 17 11 CR1015 10 8

Bedienplatten / Operating Boards

Sicht auf Bestückungsseite Sicht auf Bestückungsseite Sicht auf Lötseite View on Component Side View on Component Side View on Solder Side

Anschlußplatte / Connection Board

Sicht auf Lötseite / View on Solder Side

CR1035 20 20 CR1036 26 10 CS1001GH 8 40 CS1012 12 10 CS1013 12 27 CS1014 33 20 CS1016 12 3 ST1003 27 32

XY

CC1701 39 24 CC1702 34 24 CC1703 46 26 CC1706 26 19 CC1707 45 19 CC1711 16 14 CC1712 18 33 CC1713 21 26 CC1714 17 26 CC1716 41 26 CC1717 27 39 CC1719 26 27 CC1722 29 33 CC1723 40 34 CC1724 38 14 CC1726 46 40 CC1727 50 39 CC1728 38 39 CC1729 29 14 CC1731 24 14 CC1733 28 11 CC1734 39 11 CC1736 48 14 CC1738 11 12 CC1739 38 36

CC1703

CC1739

CC1738

CC1702CC1701

CC1712

CC1713 CC1714

CC1723

CC1711

CC1726

CC1707 CC1706

CC1724

CC1727

CC1719

CC1728

CC1729

CC1722

CC1716

CC1731

CC1717

CC1733

CC1734

CC1736

5060 40 30 20 10 0

X

Y

50

40

30

20

10

0

Schaltpläne und Druckplattenabbildungen / Circuit Diagrams and Layout of PCBs

AD 182 M / AD 182 M SAM

44 GRUNDIG Service

Ersatzteillisten und Explosionszeichnungen / Spare Parts Lists and Exploded Views

Explosionszeichnung Laufwerk / Exploded View Tape Drive

1

Ersatzteillisten und Explosionszeichnungen / Spare Parts Lists and Exploded Views

AD 182 M / AD 182 M SAM

GRUNDIG Service 45

Ersatzteilliste Spare Parts List

D

Btx * 32700

#

POS. NR.

ABB.

SACHNUMMER ANZ.

POS. NO.

FIG.

PART NUMBER QUA.

BEZEICHNUNG

DESCRIPTION

D

GB

0008.000 1 72008-631.50 WICKELTELLER KPL. REEL CPL. INKLUSIVE POS. 4/5/6/7 INCLUDE POS. 4/5/6/7

0009.000 1 72008-631.17 CASSETTENLIFT KPL. CASSETTENLIFT CPL.

0013.000 1 72008-631.74 HEBEL + STEUERSCHEIBE LEVER + CONTROL WASHER INKLUSIVE POS. 34 INCLUDE POS. 34

0017.000 1 72008-398.07 A.R. HEBEL KPL. AR-LEVER CPL.

0019.000 1 72008-397.24 FEDER SPRING

0024.000 1 72008-631.24 AUSWURFHEBEL EJECT LEVER

0029.000 1 72008-631.68 ZAHNRADPLATTE KPL. GEAR WHEEL BOARD CPL. INKLUSIVE POS. 30/31 INCLUDE POS. 30/31

0035.000 1 72008-398.09 HEBEL LEVER

0036.000 1 72008-558.06 FEDER SPRING

0039.000 1 72008-631.67 UMLENKROLLE PIVOTING ROLLER

0044.000 1 72008-397.15 TONWELLENLAGER CAPSTAN BEARING

0049.000 1 72008-397.16 SCHWUNGRADLAGER FLYWHEEL BEARING

0054.000 1 72008-558.12 ANTRIEBS-RIEMEN DRIVING BELT

0057.000 1 72008-558.13 SCHWUNGRAD KPL. FLYWHELL

0058.000 1 72008-631.32 SCHWUNGRAD KPL. FLYWHELL

0069.000 1 72011-077.10 FEDER KONTAKT SPRING

0072.000 1 72011-077.09 WICKELTELLER KPL./SCHWARZ REEL CPL. / BLACK

0125.000 1 72011-077.00 AUSWURFHEBEL EJECT LEVER

0126.000 1 72011-077.01 ABBLOCKHEBEL BLOCKING LEVER

0296.000 1 72011-077.02 HALTER CASSETTE HOLDER CASSETTE

0302.000 1 72008-631.65 HEBEL (REV.) + RAD LEVER + WHEEL INKLUSIVE POS. 33 INCLUDE POS. 33

0304.000 1 72011-077.03 SCHIEBER SLIDER

0319.000 1 72011-077.04 FEDER SPRING

0320.000 1 72008-631.02 MOTOR MOTOR

0321.000 1 72011-077.05 SCHALTER MUTE SWITCH MUTE

0329.000 1 72011-077.11 FEDER EJECT SPRING EJECT

0330.000 1 72011-077.06 SCHALTER TRACK SWITCH TRACK

0342.000 1 72011-077.12 BUEGELFEDER BRACKET SPRING

0349.000 1 72011-077.13 WIEDERGABEKOPF KPL. HEAD ASSY

0352.000 1 72011-077.14 FEDER TASTEN SPRING

SACH-NR. / PART NO.: 19723-021.00

11 / 95 LAUFWERK LCA 3-1

Ersatzteillisten und Explosionszeichnungen / Spare Parts Lists and Exploded Views

AD 182 M / AD 182 M SAM

46 GRUNDIG Service

Ersatzteilliste Spare Parts List

AD 182 M

CAR AUDIO

SACH-NR. / PART NO.: 91837 181 5100 BESTELL-NR. / ORDER NO.: G.HH 7000

1

6 / 98

POS. NR. ABB. SACHNUMMER ANZ. BEZEICHNUNG DESCRIPTION POS. NO. FIG. PART NUMBER QTY.

d©

0001.000 1 18371 080 0100 BLENDE KPL MASK CPL

0002.000 1 18371 032 0100 KLAPPE CASSETTE FLAP CASSETTE

0003.000 18254 040 0000 DREHFEDER TORSION SPRING

0005.000 1 18372 103 0100 DREHKNOPF KPL. ROTARY KNOB CPL

0008.000 18372 068 0100 DIFFUSOR DIFFUSER

0012.000 18372 040 0000 LICHTSCHACHT DISPLAY LIGHT SHAFT DISPLAY

0016.000 18339 074 0000 2 TASTE LW-INNENTEIL KEY TAPE DRIVE INNER PART

0017.000 1 18371 035 0100 TASTE RUECKLAUF KEY REWIND

0018.000 1 18371 036 0100 TASTE VORLAUF KEY FOREWARD

0025.000 19771 617 0200 GEHAEUSE HOUSING

0027.000 18300 099 0000 ANTENNENBUCHSE KPL. ANTENNA SOCKET CPL

0029.000 18147 036 0000 ADAPTER-CLIPS ADAPTER-CLIPS

0032.000 18279 023 0000 EINBAUFEDER (LINKS OBEN) MOUNTING SPRING (LEFT TOP)

0033.000 18279 024 0000 EINBAUFEDER (RECHTS OBEN) MOUNTING SPRING (RIGHT TOP)

0034.000 18278 025 0000 EINBAUFEDER (LINKS UNTEN) MOUNTING SPRING (LEFT BOTTOM)

0035.000 18278 026 0000 EINBAUFEDER (RECHTS UNTEN) MOUNTING SPRING (RIGHT BOTTOM) 19723 039 0000 X LAUFWERK LCA 3.1-1 DRIVE MECHANISM LCA 3.1-1

00000 000 0000 KEIN E-TEIL NO SPARE PART

00000 000 0000 X = SIEHE GESONDERTE E-LISTE X = SEE SEPARATE PARTS LIST 00000 000 0000 S = SICHERHEITSBAUTEIL S = SAFETY COMPONENT

R

BAND

EXP

TP

EON

INTEGRATED STEREO AUTOREVERSE

MUTE

AUDIO

ON/OFF

VOL

1

2

3

h-

h+

4

5

m+

m-

Btx *32700#

ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION

( ! )

!

Es gelten die Vorschriften und Sicherheitshinweise gemäß dem Service Manual "Sicherheit", Sach-Nummer 72010 800 0000, sowie zusätzlich die eventuell abweichenden, landesspezifischen Vorschriften!

The regulations and safety instructions shall be valid as provided by the "Safety" Service Manual, part number 72010 800 0000, as well as the respective national deviations.

5 18372 103 0100 2 18371 032 0100 17 18371 035 0100 18 18371 036 0100 1 18371 080 0100

Ersatzteillisten und Explosionszeichnungen / Spare Parts Lists and Exploded Views

AD 182 M / AD 182 M SAM

GRUNDIG Service 47

Btx *32700#

ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION

POS. NR. SACHNUMMERBEZEICHNUNG POS. NO. PART NUMBERDESCRIPTION

C 608 86999 981 1800TR.54 5,5/30PF C 2008 84532 421 0700 ELKO 2200UF 16V 105C RM5

CD 2 83093 017 7900SMD-DIODE BA 779 CD 3 83253 258 0500SMD KAP-DIODE BB804 II T CD 4 83253 258 0500SMD KAP-DIODE BB804 II T CD 5 83253 258 0500SMD KAP-DIODE BB804 II T CD 6 83092 100 1600SMD DIODE BAS16 CD 602 83094 285 1100 SMD KAP-DIODE BB512 GR1 CD 603 83094 285 1100 SMD KAP-DIODE BB512 GR1 CD 806 83091 950 4200 SMD-DIODE BAR 42 THO CD 811 83091 950 4200 SMD-DIODE BAR 42 THO CD 812 83091 950 4200 SMD-DIODE BAR 42 THO CD 814 83091 950 4200 SMD-DIODE BAR 42 THO CD 1002 83260 116 7000 SMD LE DIODE LPA 670-H CD 1004 83092 986 7000 SMD LE-DIODE LP T670-H CD 1007 83092 986 7000 SMD LE-DIODE LP T670-H CD 1008 83092 986 7000 SMD LE-DIODE LP T670-H CD 1009 83092 986 7000 SMD LE-DIODE LP T670-H CD 1011 83092 986 7000 SMD LE-DIODE LP T670-H CD 1012 83092 986 7000 SMD LE-DIODE LP T670-H CD 1017 83092 986 7000 SMD LE-DIODE LP T670-H CD 1018 83092 986 7000 SMD LE-DIODE LP T670-H CD 1019 83092 986 7000 SMD LE-DIODE LP T670-H CD 1021 83092 986 7000 SMD LE-DIODE LP T670-H CD 1022 83092 986 7000 SMD LE-DIODE LP T670-H CD 1023 83092 986 7000 SMD LE-DIODE LP T670-H CD 1024 83092 986 7000 SMD LE-DIODE LP T670-H CD 1204 83091 950 4200 SMD-DIODE BAR 42 THO CD 2001 83253 300 0300 SMD-DIODE ES 3 D GI CD 2002 83253 280 1000 SMD DIODE BYG10D TEMIC/ CD 2003 83092 100 1600 SMD DIODE BAS16 CD 2101 83091 950 4200 SMD-DIODE BAR 42 THO CD 2102 83091 950 4200 SMD-DIODE BAR 42 THO

CIC 1 83051 540 6500SMD IC U4065B-AFL G3 TEM CIC 101 83058 415 9300 SMD IC TDA1593T/G13 CIC 201 83058 473 4000 SMD IC TDA7340G CIC 501 83058 265 7900 SMD IC SAA6579T PHI CIC 601 83058 415 7200 SMD IC TDA1572T/G13 CIC 701 83058 474 2800 SMD IC TDA7427ADTR (TSSOP CIC 801 83058 780 5900 SMD IC UPD78058GC-F80-3B9 WW. 83058 780 5700 SMD IC UPD78058GC-K23-3B9 CIC 802 83059 580 1600 SMD IC 24LC16BT-I/SN WW. 72008 538 1700 SMD IC 24LC16PD-I/SN CIC 1001 83058 185 7600 SMD IC PCF8576CT/F2 CIC 1101 83058 506 7600 SMD IC TEA0676T/G7

CL 1 81405 160 5700 SMD DR 322519 2,2UH 10% CL 2 81405 160 5700 SMD DR 322519 2,2UH 10% CL 603 81405 264 8700 SMD DR 1206 4,7UH 20%

CS 1002 19401 102 0000TASTSCHALTER KQY-902 ALP CS 1004 19401 102 0000TASTSCHALTER KQY-902 ALP CS 1006 19401 102 0000TASTSCHALTER KQY-902 ALP CS 1007 19401 102 0000TASTSCHALTER KQY-902 ALP CS 1012 19401 102 0000TASTSCHALTER KQY-902 ALP CS 1013 19401 102 0000TASTSCHALTER KQY-902 ALP CS 1014 19401 102 0000TASTSCHALTER KQY-902 ALP CS 1016 19401 102 0000TASTSCHALTER KQY-902 ALP CS 1017 19401 102 0000TASTSCHALTER KQY-902 ALP CS 1018 19401 102 0000TASTSCHALTER KQY-902 ALP CS 1019 19401 102 0000TASTSCHALTER KQY-902 ALP/

TACK SWITCH

CT 1 83011 810 9400SMD TRANS BFR93AR TEMIC CT 2 83010 068 5800SMD-TRANS.BC 858 C CT 103 83010 068 4800 SMD-TRANS.BC 848 C CT 104 83010 068 4800 SMD-TRANS.BC 848 C CT 201 83023 681 1400 SMD TRANS DTC114YK

CT 204 83023 681 1400 SMD TRANS DTC114YK CT 301 83010 068 4800 SMD-TRANS.BC 848 C CT 302 83010 068 5800 SMD-TRANS.BC 858 C CT 303 83010 068 5800 SMD-TRANS.BC 858 C CT 304 83010 068 5800 SMD-TRANS.BC 858 C CT 305 83010 068 5800 SMD-TRANS.BC 858 C CT 601 83011 309 9200 SMD-TRANS.BF 992 A CT 602 83010 068 1800 SMD-TRANS.BC 818-40 CT 603 83010 068 4800 SMD-TRANS.BC 848 C CT 604 83010 068 4800 SMD-TRANS.BC 848 C CT 606 83011 305 4300 SMD TRANS BF543E7810 SIE CT 607 83010 068 1800 SMD-TRANS.BC 818-40 CT 608 83010 068 1800 SMD-TRANS.BC 818-40 CT 609 83010 068 4800 SMD-TRANS.BC 848 C CT 701 83010 068 0800 SMD-TRANS.BC 808-40 CT 702 83010 068 0800 SMD-TRANS.BC 808-40 CT 703 83013 701 4300 SMD TRANS.DTA 143 ZK CT 704 83013 701 4300 SMD TRANS.DTA 143 ZK CT 901 83010 068 4800 SMD-TRANS.BC 848 C CT 902 83010 068 4800 SMD-TRANS.BC 848 C CT 903 83010 068 5800 SMD-TRANS.BC 858 C CT 904 83010 068 1800 SMD-TRANS.BC 818-40 CT 1201 83023 681 1400 SMD TRANS DTC114YK CT 1202 83023 681 1400 SMD TRANS DTC114YK CT 1204 83023 681 1400 SMD TRANS DTC114YK CT 1302 83023 681 1400 SMD TRANS DTC114YK CT 1304 83023 681 1400 SMD TRANS DTC114YK

DP 19720 266 0000 LCD DISPLAY F 1 86022 221 2100KERFIL #121 10,7MHZ

F 2 86022 230 8000KERFIL #80/A 10,7MHZ F 3 86022 221 9000KERFIL #190 10,7MHZ F 102 86022 221 9000KERFIL #190 10,7MHZ F 602 86028 100 7000KERFIL #70 450KHZ

G 19411 016 0000 INKREMENTENGEBER IC 1601 83053 374 5100IC TDA7450 N.SPEC.12/97

IC 2001 83052 049 5300IC L4953G SGS L 3 81405 339 0400 SPULE 7X7 #904 SIGN533904

L 4 81405 302 7000 SPULE 9 #76 UKW 0,15UH L 5 81411 543 5000 SPULE #350 10,7MHZ L 6 81405 302 6900 SPULE 9 #75 UKW 0,1UH L 101 81405 352 5600 SPULE 7X7 #256 SIGN535256 L 601 81405 331 6500 SPULE 7X7 #165 SIGN533165 L 602 81405 331 1800 SPULE 7X7 118 L 604 81405 331 3100 SPULE 7X7 #131 SIGN131 45 L 606 81405 351 1600 SPULE 7X7 #116 SIGN116 45 L 607 81405 351 0600 SPULE 7X7 #106 SIGN106 45 L 2001 81405 228 0100DR 97UH 15% T68-26 3111-1

LA 1001 83161 131 1200 LAMPE 5V 75MA 86026279-TLA 1002 83161 131 1200 LAMPE 5V 75MA 86026279-TLA 1003 83161 131 1200 LAMPE 5V 75MA 86026279-TLA 1004 83161 131 1200 LAMPE 5V 75MA 86026279-T-

Q 201 86023 330 1000KERRES #10/12 456KHZ Q 701 83822 121 0200QUARZ #212 10,25MHZ Q 801 83821 704 3300QUARZ #170 A/C 4,332MHZ Q 802 83822 007 9700SCHWINGQUARZ 32,768 KHZ

S 1 83155 001 4200 BLITZSCHUTZ DSP 141 N MIT SI 1701 S 83156 230 1100 FLACH-SI. 5A T 1203 83032 873 6900TRANS.BC 369

T 1206 83032 873 6900TRANS.BC 369 T 1303 83032 873 6900TRANS.BC 369

Ersatzteillisten und Explosionszeichnungen / Spare Parts Lists and Exploded Views

AD 182 M / AD 182 M SAM

48 GRUNDIG Service

Ersatzteilliste Spare Parts List

AD 182 M SAM

CAR AUDIO

SACH-NR. / PART NO.: 91837 183 5100 BESTELL-NR. / ORDER NO.: G.HK 68-00

1

9/98 FIAT

POS. NR. ABB. SACHNUMMER ANZ. BEZEICHNUNG DESCRIPTION POS. NO. FIG. PART NUMBER QTY.

d©

0001.000 1 18371 080 0100 BLENDE KPL MASK CPL

0002.000 1 18371 032 0100 KLAPPE CASSETTE FLAP CASSETTE

0003.000 18254 040 0000 DREHFEDER TORSION SPRING

0005.000 1 18372 103 0100 DREHKNOPF KPL ROTARY KNOB CPL

0008.000 18372 068 0100 DIFFUSOR DIFFUSER

0012.000 18372 040 0000 LICHTSCHACHT DISPLAY LIGHT SHAFT DISPLAY

0016.000 18339 074 0000 2 TASTE LW-INNENTEIL KEY TAPE DRIVE INNER PART

0017.000 1 18371 035 0100 TASTE RUECKLAUF KEY REWIND

0018.000 1 18371 036 0100 TASTE VORLAUF KEY FOREWARD

0025.000 19771 617 0200 ANSCHLUSSGEHAEUSE HOUSING

0027.000 18300 099 0000 ANTENNENBUCHSE KPL ANTENNA SOCKET CPL

0029.000 18147 036 0000 ADAPTER-CLIPS ADAPTER-CLIPS

0032.000 18279 023 0000 EINBAUFEDER (LINKS OBEN) MOUNTING SPRING LHS TOP

0033.000 18279 024 0000 EINBAUFEDER (RECHTS OBEN) MOUNTING SPRING RHS TOP

0034.000 18278 025 0000 EINBAUFEDER LINKS UNTEN MOUNTING SPRING LHS BOTTO

0035.000 18278 026 0000 EINBAUFEDER RECHTS UNTEN MOUNTING SPRING RHS BOTTO 19723 039 0000 X LAUFWERK LCA 3.1-1 DRIVE MECHANISM LCA 3.1-1

00000 000 0000 KEIN E-TEIL NO SPARE PART 00000 000 0000 S = SICHERHEITSBAUTEIL S = SAFETY COMPONENT

00000 000 0000 X = SIEHE GESONDERTE E-LISTE X = SEE SEPARATE PARTS LIST

Btx *32700#

ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION

( ! )

!

Es gelten die Vorschriften und Sicherheitshinweise gemäß dem Service Manual "Sicherheit", Sach-Nummer 72010 800 0000, sowie zusätzlich die eventuell abweichenden, landesspezifischen Vorschriften!

The regulations and safety instructions shall be valid as provided by the "Safety" Service Manual, part number 72010 800 0000, as well as the respective national deviations.

R

BAND

EXP

TP

EON

INTEGRATED STEREO AUTOREVERSE

MUTE

AUDIO

ON/OFF

VOL

1

2

3

h-

h+

4

5

m+

m-

5 18372 103 0100 2 18371 032 0100 17 18371 035 0100 1 18371 080 0100

18 18371 036 0100

1

Ersatzteillisten und Explosionszeichnungen / Spare Parts Lists and Exploded Views

AD 182 M / AD 182 M SAM

GRUNDIG Service 49

POS. NR. SACHNUMMERBEZEICHNUNG POS. NO. PART NUMBERDESCRIPTION

C 608 86999 981 1800TR.54 5,5/30PF C 2008 84532 421 0700 ELKO 2200UF 16V 105C RM5

CD 2 83093 017 7900SMD-DIODE BA 779 CD 3 83253 258 0500SMD KAP-DIODE BB804 II T CD 4 83253 258 0500SMD KAP-DIODE BB804 II T CD 5 83253 258 0500SMD KAP-DIODE BB804 II T CD 6 83092 100 1600SMD DIODE BAS16 CD 602 83094 285 1100 SMD KAP-DIODE BB512 GR1 CD 603 83094 285 1100 SMD KAP-DIODE BB512 GR1 CD 806 83091 950 4200 SMD-DIODE BAR 42 THO CD 811 83091 950 4200 SMD-DIODE BAR 42 THO CD 812 83091 950 4200 SMD-DIODE BAR 42 THO CD 814 83091 950 4200 SMD-DIODE BAR 42 THO CD 901 83092 100 1600 SMD DIODE BAS16 CD 1002 83260 116 7000 SMD LE DIODE LPA 670-H CD 1004 83092 986 7000 SMD LE-DIODE LP T670-H CD 1007 83092 986 7000 SMD LE-DIODE LP T670-H CD 1008 83092 986 7000 SMD LE-DIODE LP T670-H CD 1009 83092 986 7000 SMD LE-DIODE LP T670-H CD 1011 83092 986 7000 SMD LE-DIODE LP T670-H CD 1012 83092 986 7000 SMD LE-DIODE LP T670-H CD 1017 83092 986 7000 SMD LE-DIODE LP T670-H CD 1018 83092 986 7000 SMD LE-DIODE LP T670-H CD 1019 83092 986 7000 SMD LE-DIODE LP T670-H CD 1021 83092 986 7000 SMD LE-DIODE LP T670-H CD 1022 83092 986 7000 SMD LE-DIODE LP T670-H CD 1023 83092 986 7000 SMD LE-DIODE LP T670-H CD 1024 83092 986 7000 SMD LE-DIODE LP T670-H CD 1204 83091 950 4200 SMD-DIODE BAR 42 THO CD 2001 83253 300 0300 SMD-DIODE ES 3 D GI CD 2002 83253 280 1000 SMD DIODE BYG10D TEMIC/ CD 2003 83092 100 1600 SMD DIODE BAS16 CD 2101 83091 950 4200 SMD-DIODE BAR 42 THO CD 2102 83091 950 4200 SMD-DIODE BAR 42 THO

CIC 1 83051 540 6500SMD IC U4065B-AFL G3 TEM CIC 101 83058 415 9300 SMD IC TDA1593T/G13 CIC 201 83058 473 4000 SMD IC TDA7340G CIC 501 83058 265 7900 SMD IC SAA6579T PHI CIC 601 83058 415 7200 SMD IC TDA1572T/G13 CIC 701 83058 474 2800 SMD IC TDA7427ADTR (TSSOP CIC 801 83058 780 5900 SMD IC UPD78058GC-F80-3B9 CIC 802 83059 580 1600 SMD IC 24LC16BT-I/SN CIC 1001 83058 185 7600 SMD IC PCF8576CT/F2 CIC 1101 83058 506 7600 SMD IC TEA0676T/G7

CL 1 81405 160 5700 SMD DR 322519 2,2UH 10% CL 2 81405 160 5700 SMD DR 322519 2,2UH 10% CL 603 81405 264 8100 SMD DR 1206 5,6UH 20%

CR 26 87750 090 8900 SMD-ESTR.C 4,7 KOHM LIN CS 1002 19401 102 0000TASTSCHALTER KQY-902 ALP

CS 1004 19401 102 0000TASTSCHALTER KQY-902 ALP CS 1006 19401 102 0000TASTSCHALTER KQY-902 ALP CS 1007 19401 102 0000TASTSCHALTER KQY-902 ALP CS 1012 19401 102 0000TASTSCHALTER KQY-902 ALP CS 1013 19401 102 0000TASTSCHALTER KQY-902 ALP CS 1014 19401 102 0000TASTSCHALTER KQY-902 ALP CS 1016 19401 102 0000TASTSCHALTER KQY-902 ALP CS 1017 19401 102 0000TASTSCHALTER KQY-902 ALP CS 1018 19401 102 0000TASTSCHALTER KQY-902 ALP CS 1019 19401 102 0000TASTSCHALTER KQY-902 ALP

PUSH BUTTON

CT 1 83011 810 9400SMD TRANS BFR93AR TEMIC CT 2 83010 068 5800SMD-TRANS.BC 858 C CT 103 83010 068 4800 SMD-TRANS.BC 848 C CT 104 83010 068 4800 SMD-TRANS.BC 848 C

CT 201 83023 681 1400 SMD TRANS DTC114YK CT 204 83023 681 1400 SMD TRANS DTC114YK CT 301 83010 068 4800 SMD-TRANS.BC 848 C CT 302 83010 068 5800 SMD-TRANS.BC 858 C CT 303 83010 068 5800 SMD-TRANS.BC 858 C CT 304 83010 068 5800 SMD-TRANS.BC 858 C CT 305 83010 068 5800 SMD-TRANS.BC 858 C CT 601 83011 309 9200 SMD-TRANS.BF 992 A CT 603 83010 068 4800 SMD-TRANS.BC 848 C CT 604 83010 068 4800 SMD-TRANS.BC 848 C CT 606 83011 305 4300 SMD TRANS BF543E7810 SIE CT 701 83010 068 0800 SMD-TRANS.BC 808-40 CT 702 83010 068 0800 SMD-TRANS.BC 808-40 CT 901 83010 068 4800 SMD-TRANS.BC 848 C CT 902 83010 068 4800 SMD-TRANS.BC 848 C CT 903 83010 068 5800 SMD-TRANS.BC 858 C CT 904 83010 068 1800 SMD-TRANS.BC 818-40 CT 1201 83011 601 3500 SMD TRANS BCR135 SIE CT 1204 83011 601 3500 SMD TRANS BCR135 SIE CT 1302 83011 601 3500 SMD TRANS BCR135 SIE CT 1304 83011 601 3500 SMD TRANS BCR135 SIE CT 1202 83011 601 3500 SMD TRANS BCR135 SIE

DP 19720 266 0000 LCD DISPLAY F 1 86022 221 2100KERFIL #121 10,7MHZ

F 2 86022 230 8000KERFIL #80/A 10,7MHZ F 3 86022 221 9000KERFIL #190 10,7MHZ F 102 86022 221 9000KERFIL #190 10,7MHZ F 602 86028 100 7000KERFIL #70 450KHZ

G 19411 016 0000 INKREMENTENGEBER/

INCREMENT TRANSMITTER

IC 1601 83053 374 5100 IC TDA7450 N.SPEC.12/97 IC 2001 83052 049 5300 IC L4953G SGS

L 3 81405 339 0400 SPULE 7X7 #904 SIGN533904 L 4 81405 302 7000 SPULE 9 #76 UKW 0,15UH L 5 81411 543 5000 SPULE #350 10,7MHZ L 6 81405 302 6900 SPULE 9 #75 UKW 0,1UH L 101 81405 352 5600 SPULE 7X7 #256 SIGN535256 L 601 81405 331 6500 SPULE 7X7 #165 SIGN533165 L 604 81405 331 3100 SPULE 7X7 #131 SIGN131 45 L 606 81405 351 1600 SPULE 7X7 #116 SIGN116 45 L 607 81405 351 0600 SPULE 7X7 #106 SIGN106 45 L 2001 81405 228 0100DR 97UH 15% T68-26 3111-1

LA 1001 18372 060 0000 LAMPE 5V 75MA 86026279-T LA 1002 18372 060 0000 LAMPE 5V 75MA 86026279-T LA 1003 18372 060 0000 LAMPE 5V 75MA 86026279-T LA 1004 18372 060 0000 LAMPE 5V 75MA 86026279-T

Q 201 86023 330 1000KERRES #10/12 456KHZ Q 701 83822 121 0200QUARZ #212 10,25MHZ Q 801 83821 704 3300QUARZ #170 A/C 4,332MHZ Q 802 83822 007 9700SCHWINGQUARZ 32,768 KHZ

S 1 83155 001 4200 BLITZSCHUTZ DSP 141 N MIT

FLASH PROTECTION SI 1701 S 83156 230 1100 FLACH-SI. 5A T 1203 83032 873 6900TRANS.BC 369

T 1206 83032 873 6900TRANS.BC 369 T 1303 83032 873 6900TRANS.BC 369

Btx *32700#

ÄNDERUNGEN VORBEHALTEN / SUBJECT TO ALTERATION

Ersatzteillisten und Explosionszeichnungen / Spare Parts Lists and Exploded Views

Änderungen vorbehalten Made by GRUNDIG in Germany Subject to alteration

VK 233 0199 72010 792 8500

Grundig AD 182 M, AD 182 M SAM, FIAT AD 182 M, FIAT AD 182 M SAM Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
