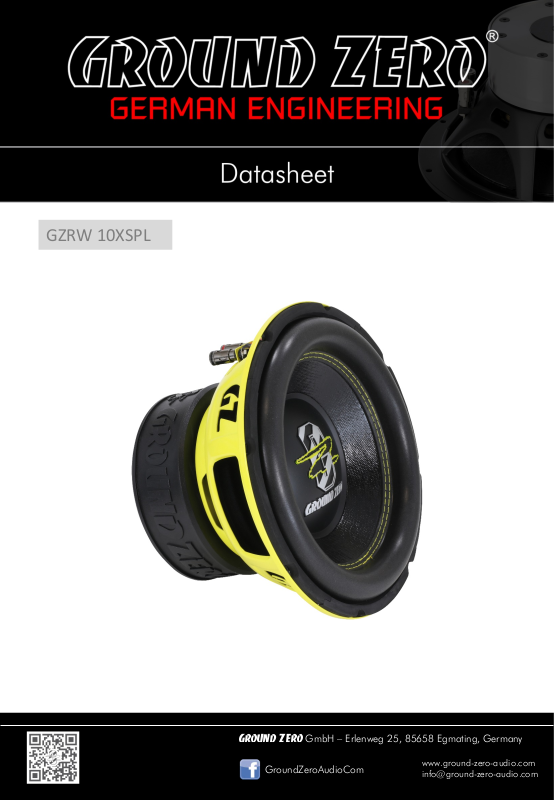

GZRW 10XSPL
GROUND ZERO GmbH – Erlenweg 25, 85658 Egmating, Germany
GroundZeroAudioCom
www.ground-zero-audio.com
info@ground-zero-audio.com
Page 2
TECHNICAL SPECIFICATIONS
Product name GZRW 10XSPL
Product type Subwoofer driver
Outer diameter 257 mm / 10.12“
Mounting diameter 228 mm / 8.98“
Mounting depth 150 mm / 5.9“
Magnet dimension (2x) 140 x 20 mm
Total weight 6.2 kg
Voice coil diameter 63 mm / 2.5“ round wire
Voice coil wire material Copper
Voice coil winding height 30 mm / 1.18“
Voice coil former material Aluminum
Top plate / height 10 mm / 0.39“
Linear excursion (one direction) 13 mm / 0.51“
Effective Xmax 30 mm / 1.18“
Top Plate and T-Yoke color Black
Basket material Steel
Basket color Yellow
Spider (2x) Polycot
Surround type High-roll sandwich foam
Cone material Reinforced paper
Dustcap material Convex IMPP with 3-D logo
Magnet cover PVC
Gasket material Foam
Terminal type Black-chromed push terminal
Power handling 1200WSPL (800 WRMS)*
Impedance 2x 2 ohms
R
e (Serial)
R
es
F
S
Q
ms
Q
es
Q
ts
Rms 8198 g/s
Cms 0.056 mm/N
Mms 229.6 gr
BL 17.58 N/A
SPL (1w/1m) 81.8 dB
V
AS
L
e
S
d
Recommended frequency range 40 – 120 Hz
Recommended amplifier power 600 – 1200 WRMS (
* max. power handling is only for recommended enclosure applicable
4.00 ohms
37.68 ohms
44.3 Hz
7.798
0.828
0.749
9.0 L / 0.32 cu.ft
3.092 mH
336,54 cm²
@ 4 / 1 ohms)
A
E
A 257 mm / 10.12“
C
B
C 150 mm / 5.9“
D 162 mm / 6.38“
E 6 mm / 0.24“
228 mm / 8.98“
D
B
GROUND ZERO GmbH – Erlenweg 25, 85658 Egmating, Germany
GroundZeroAudioCom
www.ground-zero-audio.com
info@ground-zero-audio.com
Page 3
POWER RECOMMENDATION
WIRING OPTIONS
GROUND ZERO GmbH – Erlenweg 25, 85658 Egmating, Germany
GroundZeroAudioCom
www.ground-zero-audio.com
info@ground-zero-audio.com
Page 4
ENCLOSURE RECOMMENDATION
Bassreflex /
(Grün / green)
Port (dimensions)
Portlänge / port length
F3(-3 dB)
Bassreflex /
(Orange / orange)
Port (dimensions)
Portlänge / port length
F3(-3 dB)
Bandpass 4thorder
(Blau / blue)
Port (diameter)
Portlänge / port length
Fb(tuning frequency)
Bandbreite /
bandwidth (-3dB)
Geschlossen /
(Rot / red)
Qtc / F3(-3 dB)
vented
vented
sealed
50 Liter netto / 1.77 cu.ft. net
Recommended enclosure !
100 mm / 4”
260 mm / 10.24”
29 Hz
38 Liter netto / 1.34 cu.ft. net
Minimum volume
80 mm / 3.15”
180 mm / 7.09”
31 Hz
15 Liter netto geschlossen / 0.53 cu.ft. net sealed
30 Liter netto ventiliert / 1.06 cu.ft. net vented
limited frequency range
100 mm / 4”
180 mm / 7.09”
55 Hz
33 – 91 Hz
20 Liter netto / 0.71 cu.ft. net
Minimum enclosure volume
0.9 / 44 Hz
Geschlossen /
(violett / violet)
Qtc / F3(-3 dB)
sealed
35 Liter netto / 1.24 cu.ft. net
Recommended enclosure volume
0.84 / 43 Hz
