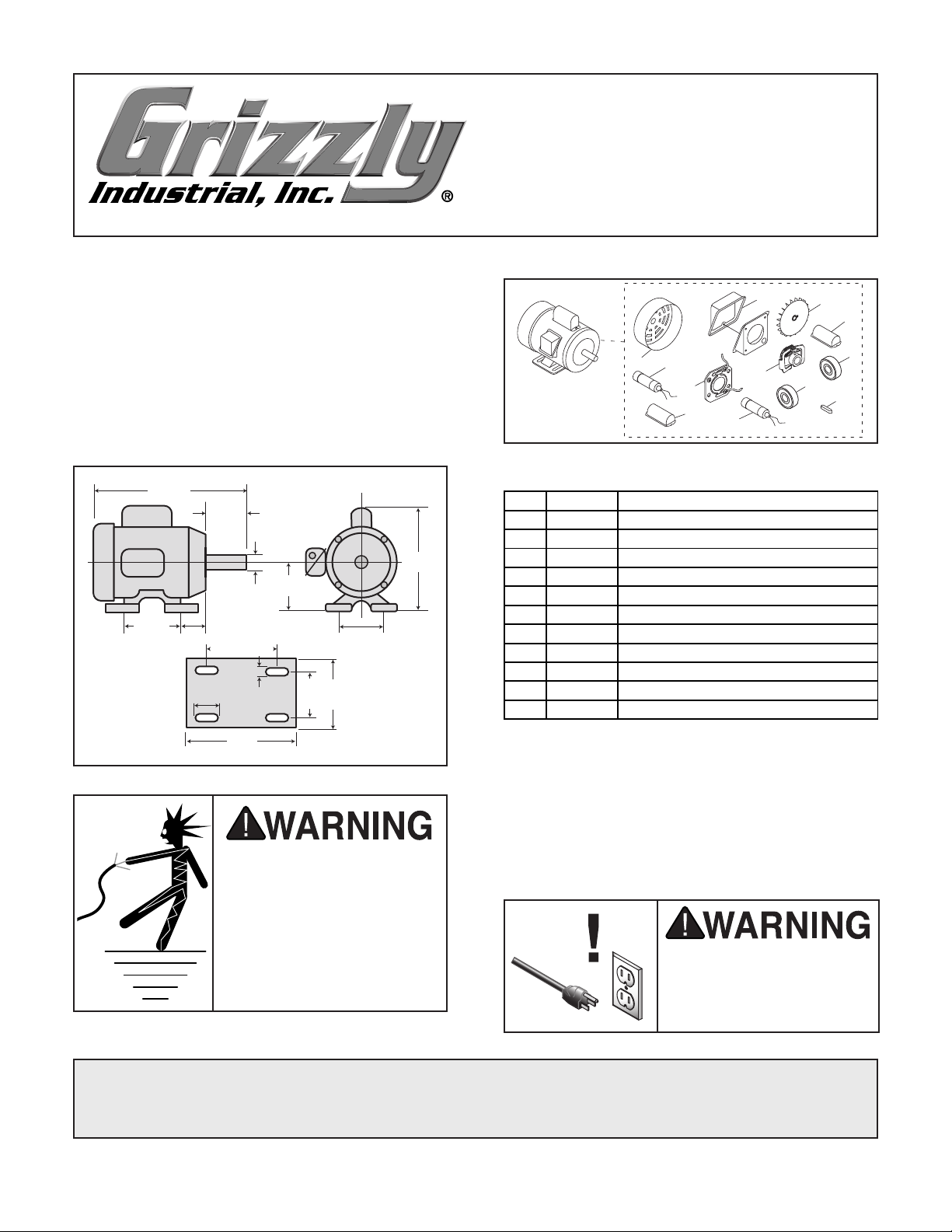

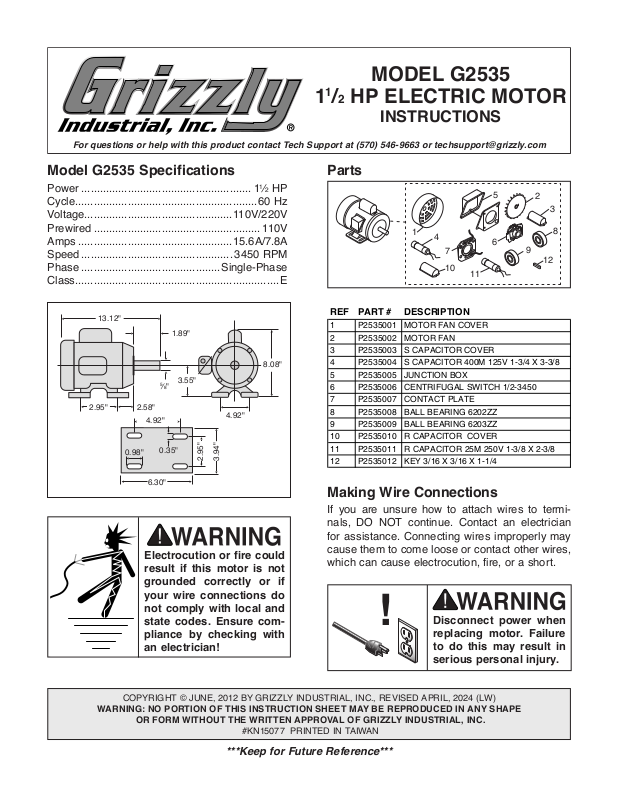

MODEL G2535
11/2 HP ELECTRIC MOTOR
INSTRUCTIONS
For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Model G2535 Specifications
Power ....................................................... 11⁄2 HP
Cycle...........................................................60 Hz
Voltage................................................110V/220V
Prewired
Amps
Speed
Phase
Class..................................................................E
...................................................... 110V
..................................................15.6A/7.8A
................................................. 3450 RPM
.............................................Single-Phase
13.12"
1.89"
8.08"
3.55"
5
⁄8"
2.95" 2.58"
4.92"
0.98"
0.35"
4.92"
2.95"
3.94"
Parts
5
1
4
7
10
REF PART # DES CRIPTI ON
1 P2535001 MOTOR FAN COVER
2 P2535002 MOTOR FAN
3 P2535003 S CAPACITOR COVER
4 P2535004 S CAPACITOR 400M 125V 1-3/4 X 3-3/8
5 P2535005 JUNCTION BOX
6 P2535006 CENTRIFUGAL SWITCH 1/2-3450
7 P2535007 CONTACT PLATE
8 P2535008 BALL BEARING 6202ZZ
9 P2535009 BALL BEARING 6203ZZ
10 P2535010 R CAPACITOR COVER
11 P2535011 R CAPACITOR 25M 250V 1-3/8 X 2-3/8
12 P2535012 KEY 3/16 X 3/16 X 1-1/4
6
11
2
9
12
3
8
6.30"
Making Wire Connections
If you are unsure how to attach wires to terminals, DO NOT continue. Contact an electrician
for assistance. Connecting wires improperly may
Electrocution or fire could
result if this motor is not
grounded correctly or if
your wire connections do
not comply with local and
state codes. Ensure compliance by checking with
an electrician!
COPYRIGHT © JUNE, 2012 BY GRIZZLY INDUSTRIAL, INC., REVISED APRIL, 2024 (LW)
WARNING: NO PORTION OF THIS INSTRUCTION SHEET MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#KN15077 PRINTED IN TAIWA N
***Keep for Future Reference***
cause them to come loose or contact other wires,
which can cause electrocution, fire, or a short.
Disconnect power when
replacing motor. Failure
to do this may result in
serious personal injury.
Capacitor
25 MFD
250 VAC
Capacitor
400 MFD
125 VAC
6
G2535 Wiring Diagram
Run
110V
(PREWIRED)
110V MOTOR DIRECTION
Start
To reverse motor direction,
switch wires #5 & #6.
COLOR KEY
BLACK
WHITE
GREEN
RED
YELLOW
BLUE
Bl
Ground
Ground
5
6
5
Run
Capacitor
25 MFD
250 VAC
Start
Capacitor
400 MFD
125 VAC
6
WARNING!
SHOCK HAZARD!
Disconnect power
before working on
wiring.
220V
CLOCKWISE
220V
COUNTERCLOCKWISE
5
6
5
6
5
6
-2-
Ground
Model G2535 (Mfd. Since (05/24)
