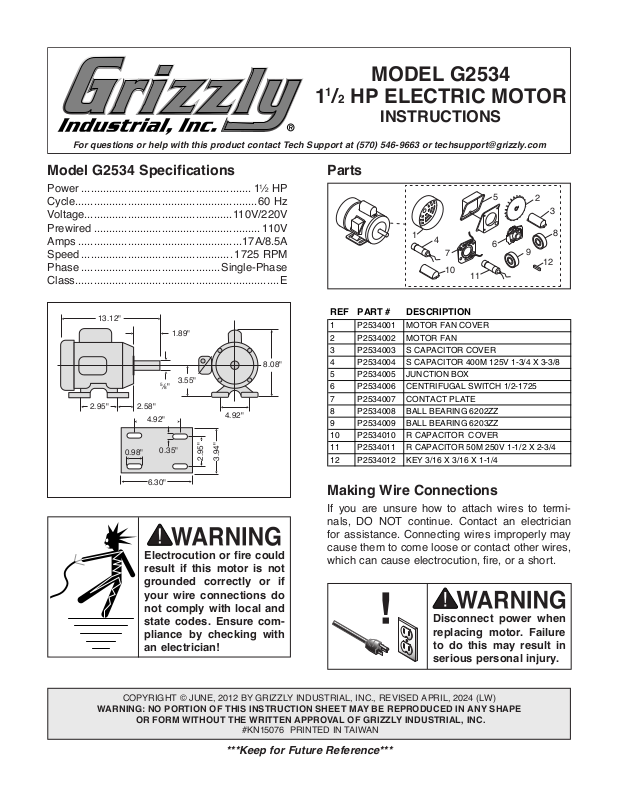

MODEL G2534
11/2 HP ELECTRIC MOTOR
INSTRUCTIONS
For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Model G2534 Specifications
Power ....................................................... 11⁄2 HP
Cycle...........................................................60 Hz
Voltage................................................110V/220V
Prewired
Amps
Speed
Phase
Class..................................................................E
...................................................... 110V
.....................................................17A/8.5A
................................................. 1725 RPM
.............................................Single-Phase
13.12"
1.89"
8.08"
3.55"
5
⁄8"
2.95" 2.58"
4.92"
0.98"
0.35"
4.92"
2.95"
3.94"
Parts
5
1
4
7
10
REF PART # DES CRIPTI ON
1 P2534001 MOTOR FAN COVER
2 P2534002 MOTOR FAN
3 P2534003 S CAPACITOR COVER
4 P2534004 S CAPACITOR 400M 125V 1-3/4 X 3-3/8
5 P2534005 JUNCTION BOX
6 P2534006 CENTRIFUGAL SWITCH 1/2-1725
7 P2534007 CONTACT PLATE
8 P2534008 BALL BEARING 6202ZZ
9 P2534009 BALL BEARING 6203ZZ
10 P2534010 R CAPACITOR COVER
11 P2534011 R CAPACITOR 50M 250V 1-1/2 X 2-3/4
12 P2534012 KEY 3/16 X 3/16 X 1-1/4
6
11
2
9
12
3
8
6.30"
Making Wire Connections
If you are unsure how to attach wires to terminals, DO NOT continue. Contact an electrician
for assistance. Connecting wires improperly may
Electrocution or fire could
result if this motor is not
grounded correctly or if
your wire connections do
not comply with local and
state codes. Ensure compliance by checking with
an electrician!
COPYRIGHT © JUNE, 2012 BY GRIZZLY INDUSTRIAL, INC., REVISED APRIL, 2024 (LW)
WARNING: NO PORTION OF THIS INSTRUCTION SHEET MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#KN15076 PRINTED IN TA I WAN
***Keep for Future Reference***
cause them to come loose or contact other wires,
which can cause electrocution, fire, or a short.
Disconnect power when
replacing motor. Failure
to do this may result in
serious personal injury.
G2534 Wiring Diagram
Run
Capacitor
50 MFD
250 VAC
Start
Capacitor
400 MFD
125 VAC
6
110V
(PREWIRED)
110V MOTOR DIRECTION
To reverse motor direction,
switch wires #5 & #6.
COLOR KEY
BLACK
WHITE
GREEN
RED
YELLOW
BLUE
Bl
Ground
Ground
5
Run
Capacitor
50 MFD
250 VAC
Start
Capacitor
400 MFD
125 VAC
6
5
6
WARNING!
SHOCK HAZARD!
Disconnect power
before working on
wiring.
220V
CLOCKWISE
220V
COUNTERCLOCKWISE
5
6
5
6
5
6
-2-
Ground
Model G2534 (Mfd. Since 05/24)
