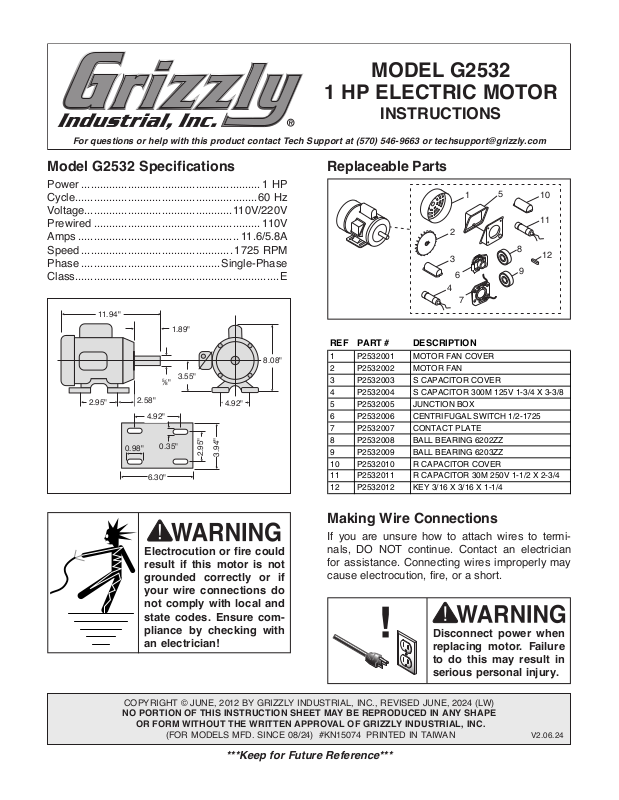

MODEL G2532
1 HP ELECTRIC MOTOR
INSTRUCTIONS
For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Model G2532 Specifications
Power .......................................................... 1 HP
Cycle...........................................................60 Hz
Voltage................................................110V/220V
Prewired
Amps
Speed
Phase
Class..................................................................E
...................................................... 110V
.................................................... 11.6/5.8A
................................................. 1725 RPM
.............................................Single-Phase
11.94"
1.89"
8.08"
3.55"
5
⁄8"
0.98"
2.58"
4.92"
6.30"
0.35"
4.92"
2.95"
3.94"
2.95"
Replaceable Parts
1
2
3
6
4
7
REF PART # DES CRIP TION
1 P2532001 MOTOR FAN COVER
2 P2532002 MOTOR FAN
3 P2532003 S CAPACITOR COVER
4 P2532004 S CAPACITOR 300M 125V 1-3/4 X 3-3/8
5 P2532005 JUNCTION BOX
6 P2532006 CENTRIFUGAL SWITCH 1/2-1725
7 P2532007 CONTACT PLATE
8 P2532008 BALL BEARING 6202ZZ
9 P2532009 BALL BEARING 6203ZZ
10 P2532010 R CAPACITOR COVER
11 P2532011 R CAPACITOR 30M 250V 1-1/2 X 2-3/4
12 P2532012 KEY 3/16 X 3/16 X 1-1/4
5
10
11
8
12
9
Making Wire Connections
If you are unsure how to attach wires to termi-
Electrocution or fire could
result if this motor is not
grounded correctly or if
your wire connections do
not comply with local and
state codes. Ensure compliance by checking with
an electrician!
COPYRIGHT © JUNE, 2012 BY GRIZZLY INDUSTRIAL, INC., REVISED JUNE, 2024 (LW)
NO PORTION OF THIS INSTRUCTION SHEET MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
(FOR MODELS MFD. SINCE 08/24) #KN15074 PRINTED IN TAI WA N
***Keep for Future Reference***
nals, DO NOT continue. Contact an electrician
for assistance. Connecting wires improperly may
cause electrocution, fire, or a short.
Disconnect power when
replacing motor. Failure
to do this may result in
serious personal injury.
V2.06.24
G2532 Wiring Diagram
Run
Capacitor
30 MFD
250 VAC
Start
Capacitor
300 MFD
125 VAC
6
110V
(PREWIRED)
110V MOTOR DIRECTION
To reverse motor direction,
switch wires #5 & #6.
COLOR KEY
BLACK
WHITE
GREEN
RED
YELLOW
BLUE
Bl
Ground
5
5
1 2 3 4
Run
Capacitor
30 MFD
250 VAC
Start
Capacitor
300 MFD
125 VAC
6
5
6
The motor wiring shown here is
current at the time of printing, but it
may not match your motor. Always
use the wiring diagram inside the
motor junction box.
220V
CLOCKWISE
220V
COUNTERCLOCKWISE
-2-
Ground
5
1 2 3 4
6
5
6
6
5
1 2 3 4
Ground
Model G2532 (Mfd. Since 08/24)
