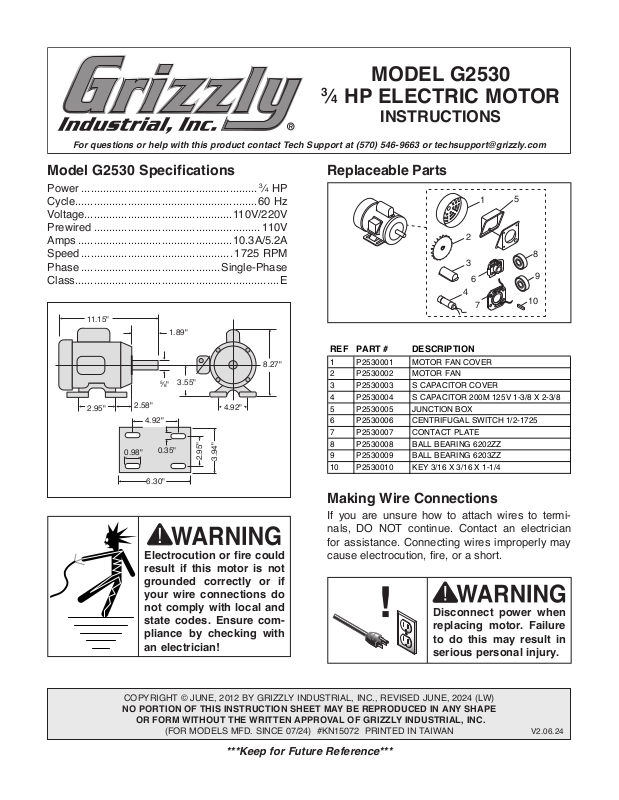

MODEL G2530
3
⁄4 HP ELECTRIC MOTOR
INSTRUCTIONS
For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Model G2530 Specifications
Power .........................................................3⁄4 HP
Cycle...........................................................60 Hz
Voltage................................................110V/220V
Prewired
Amps
Speed
Phase
Class..................................................................E
...................................................... 110V
..................................................10.3A/5.2A
................................................. 1725 RPM
.............................................Single-Phase
11.15"
1.89"
8.27"
5
3.55"
⁄8"
2.95"
2.58"
0.98"
4.92"
0.35"
6.30"
4.92"
2.95"
3.94"
Replaceable Parts
1
2
3
6
4
7
REF PART # DES CRIP TION
1 P2530001 MOTOR FAN COVER
2 P2530002 MOTOR FAN
3 P2530003 S CAPACITOR COVER
4 P2530004 S CAPACITOR 200M 125V 1-3/8 X 2-3/8
5 P2530005 JUNCTION BOX
6 P2530006 CENTRIFUGAL SWITCH 1/2-1725
7 P2530007 CONTACT PLATE
8 P2530008 BALL BEARING 6202ZZ
9 P2530009 BALL BEARING 6203ZZ
10 P2530010 KEY 3/16 X 3/16 X 1-1/4
5
8
9
10
Making Wire Connections
If you are unsure how to attach wires to terminals, DO NOT continue. Contact an electrician
for assistance. Connecting wires improperly may
Electrocution or fire could
result if this motor is not
grounded correctly or if
your wire connections do
not comply with local and
state codes. Ensure compliance by checking with
an electrician!
COPYRIGHT © JUNE, 2012 BY GRIZZLY INDUSTRIAL, INC., REVISED JUNE, 2024 (LW)
NO PORTION OF THIS INSTRUCTION SHEET MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
(FOR MODELS MFD. SINCE 07/24) #KN15072 PRINTED IN TAI WA N
***Keep for Future Reference***
cause electrocution, fire, or a short.
Disconnect power when
replacing motor. Failure
to do this may result in
serious personal injury.
V2.06.24
G2530 Wiring Diagram
Start
Capacitor
200 MFD
125 VAC
110V
(PREWIRED)
110V MOTOR DIRECTION
To reverse motor direction,
switch wires #5 & #6.
COLOR KEY
BLACK
WHITE
GREEN
RED
YELLOW
BLUE
Bl
Ground
6
5
5
1 2 3 4
Start
Capacitor
200 MFD
125 VAC
GRAY
6
The motor wiring shown here is
current at the time of printing, but it
may not match your motor. Always
use the wiring diagram inside the
motor junction box.
220V
CLOCKWISE
-2-
Ground
6
5
5
1 2 3 4
220V
COUNTERCLOCKWISE
6
Ground
5
6
6
5
1 2 3 4
Model G2530 (Mfd. Since 07/24)
