MODEL G0970

14" VERTICAL

METAL-CUTTING BANDSAW

OWNER'S MANUAL

(For models manufactured since 07/23)

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#JP22777 PRINTED IN TA I WAN

***Keep for Future Reference***

V1.0 8 .23

This manual provides critical safety instructions on the proper setup, operation, maintenance, and service of this machine/tool. Save this document, refer to it often, and use it to instruct other operators.

Failure to read, understand and follow the instructions in this manual may result in fire or serious personal injury—including amputation, electrocution, or death.

The owner of this machine/tool is solely responsible for its safe use. This responsibility includes but is not limited to proper installation in a safe environment, personnel training and usage authorization, proper inspection and maintenance, manual availability and comprehension, application of safety devices, cutting/sanding/grinding tool integrity, and the usage of personal protective equipment.

The manufacturer will not be held liable for injury or property damage from negligence, improper training, machine modifications or misuse.

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: Work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

Table of Contents

INTRODUCTION ............................................... 2

Contact Info ................................................... 2

Manual Accuracy ........................................... 2

Identification ................................................... 3

Controls & Components ................................. 4

Machine Data Sheet ...................................... 6

SECTION 1: SAFETY ....................................... 8

Safety Instructions for Machinery .................. 8

Additional Safety for Vertical Metal

Bandsaws .................................................... 10

SECTION 2: POWER SUPPLY ...................... 11

Converting Voltage to 220V ......................... 13

SECTION 3: SETUP ....................................... 14

Needed for Setup ......................................... 14

Unpacking .................................................... 14

Inventory ...................................................... 15

Cleanup ........................................................ 16

Site Considerations ...................................... 17

Assembly ..................................................... 18

Adjustment Overview ................................... 22

Blade Tracking ............................................. 22

Test Run ....................................................... 23

Tensioning Blade ......................................... 24

Adjusting Blade Guides & Support Bearings .. 25

Aligning Table ............................................... 26

Aligning Fence ............................................. 28

Calibrating Fence Scale ............................... 28

Calibrating Miter Gauge ............................... 29

SECTION 5: ACCESSORIES ......................... 41

SECTION 6: MAINTENANCE ......................... 42

Schedule ...................................................... 42

Cleaning & Protecting .................................. 42

Lubrication ................................................... 42

SECTION 7: SERVICE ................................... 43

Troubleshooting ........................................... 43

Tensioning V-Belt ......................................... 46

Replacing V-Belt .......................................... 46

Adjusting Wheel Brush ................................ 47

Wheel Alignment .......................................... 48

Blade Tension Gauge .................................. 49

SECTION 8: WIRING ...................................... 51

Wiring Safety Instructions ............................ 51

Wiring Diagram ............................................ 52

Electrical Components ................................. 53

SECTION 9: PARTS ....................................... 54

Main ............................................................. 54

Wheels & Table ............................................ 56

Stand & Motor .............................................. 58

Fence & Rails .............................................. 59

Labels & Cosmetics ..................................... 60

WARRANTY & RETURNS .............................. 61

SECTION 4: OPERATIONS ............................ 30

Operation Overview ..................................... 30

Operation Tips ............................................. 31

Workpiece Inspection ................................... 31

Blade Selection ............................................ 32

Chip Inspection Chart .................................. 35

Blade Care & Break-In ................................. 36

Blade Breakage ........................................... 36

Changing Blade Speed ................................ 37

Removing/Installing Blade ........................... 38

Table Tilt ....................................................... 39

Calibrating Table Tilt .................................... 39

Guide Post ................................................... 40

We stand behind our machines! If you have questions or need help, contact us with the information below. Before contacting, make sure you get the

serial number

from the

machine ID label. This will help us help you faster.

We want your feedback on this manual. What did you like about it? Where could it be improved? Please take a few minutes to give us feedback.

Email: manuals@grizzly.com

We are proud to provide a high-quality owner’s manual with your new machine!

instructions, specifications, drawings, and photographs in this manual. Sometimes we make mistakes, but our policy of continuous improvement also means that

you receive is

slightly different than shown in the manual

If you find this to be the case, and the difference between the manual and machine leaves you confused or unsure about something

check our

website for an updated version. W

current

manuals and

on our web-

site at

Alternatively, you can call our Technical Support for help. Before calling, make sure you write down the

from the machine ID label (see below). This information is required for us to provide proper tech support, and it helps us determine if updated documentation is available for your machine.

INTRODUCTION

precautions are overlooked or ignored,

Contact Info

and manufacture date

Grizzly Technical Support

1815 W. Battlefield Springfield, MO 65807 Phone: (570) 546-9663

Email: techsupport@grizzly.com

Grizzly Documentation Manager

P.O. Box 2069

Bellingham, WA 98227-2069

Manual Accuracy

made every effort to be exact with the

sometimes the machine

e post

manual updates for free

www.grizzly.com.

manufacture date and serial number

Like all machinery there is potential danger when operating this machine. Accidents are frequently caused by lack of familiarity or failure to pay attention. Use this machine with respect and caution to decrease the risk of operator injury. If normal safety

serious personal injury may occur.

No list of safety guidelines can be complete. Every shop environment is different. Always consider safety first, as it applies to your individual working conditions. Use this and other machinery with caution and respect. Failure to do so could result in serious personal injury, damage to equipment, or poor work results.

Manufacture Date

Serial Number

-2-

Model G0970 (Mfd. Since 07/23)

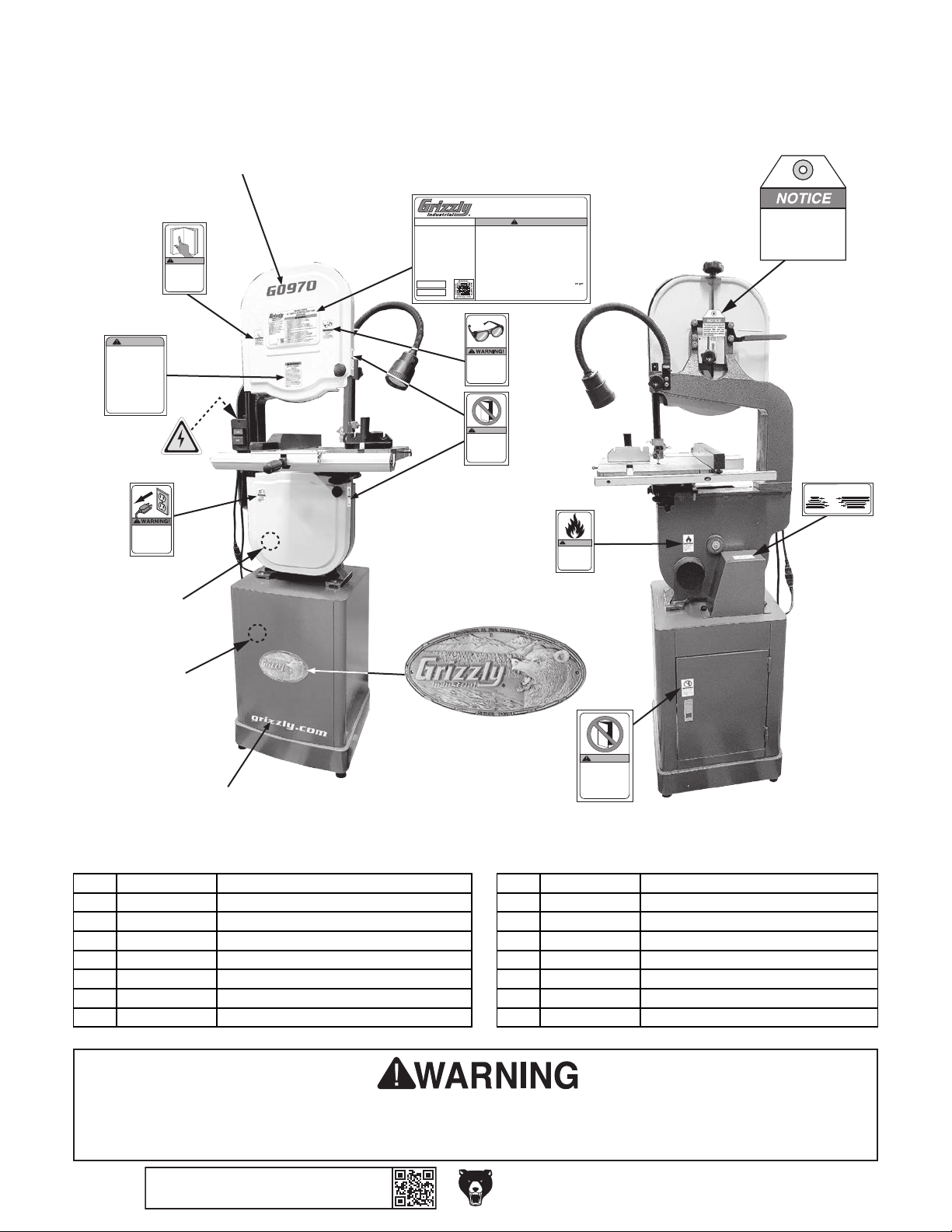

Identification

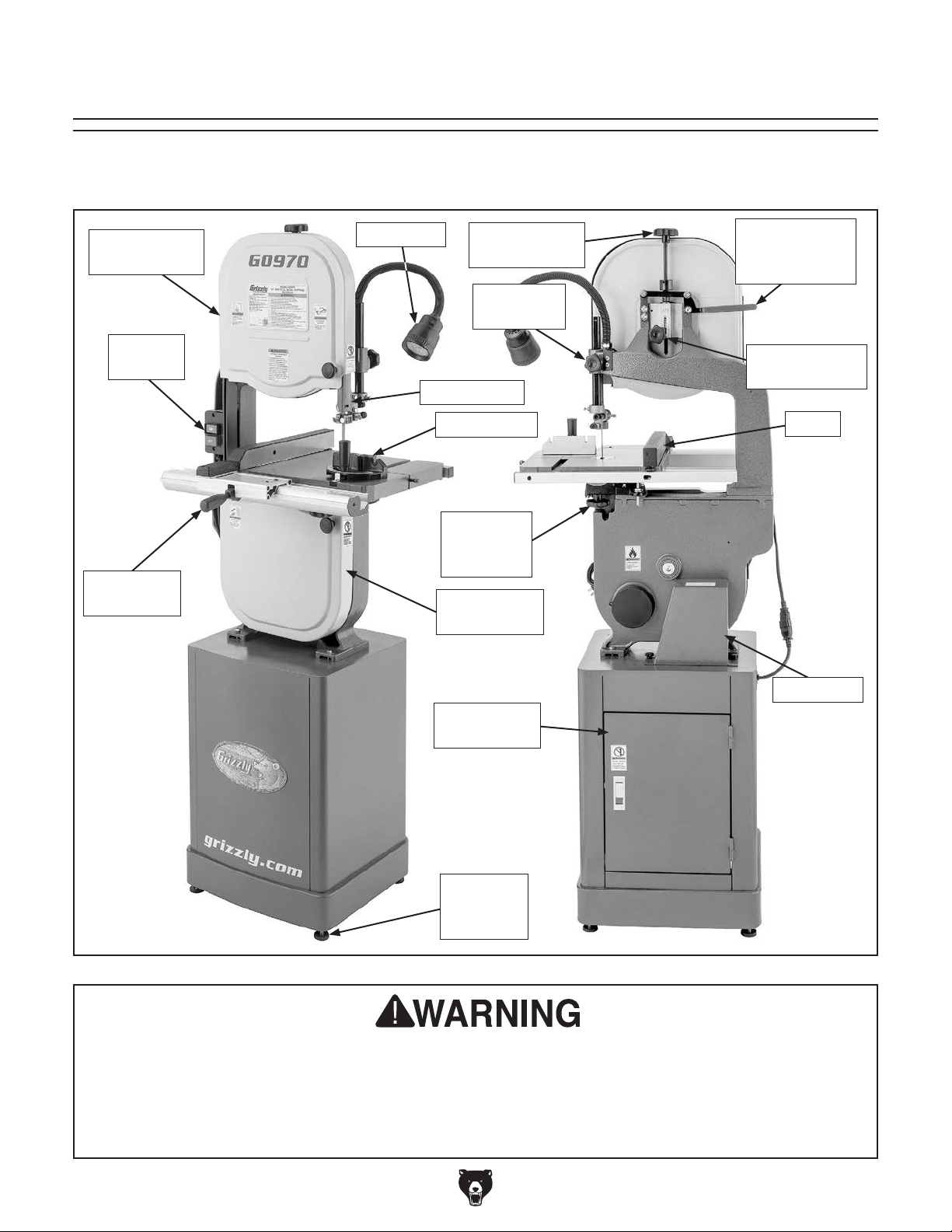

Become familiar with the names and locations of the controls and features shown below to better understand the instructions in this manual.

Upper Wheel

Cover

ON/OFF

Switch

Fence Lock

Handle

Work Light

Blade Guard

Blade Tension

Knob

Guide Post

Lock Knob

Miter Gauge

Table Tilt

Lock Knob

(1 of 2)

Lower Wheel

Cover

Blade Tension

Quick-Release

Lever

Blade Tracking

Knob

Fence

Maintenance

Door

Adjustable

Foot

(1 of 4)

For Your Own Safety, Read Instruction Manual Before Operating Bandsaw

a) Wear eye protection. b) Do not remove jammed cutoff pieces until blade has stopped. c) Maintain proper adjustment of blade tension, blade guides, and support bearings. d) Adjust upper guide to just clear workpiece. e) Hold workpiece firmly against table.

Belt Guard

Model G0970 (Mfd. Since 07/23)

-3-

Controls &

To reduce your risk of serious injury, read this entire manual BEFORE

Components

using machine.

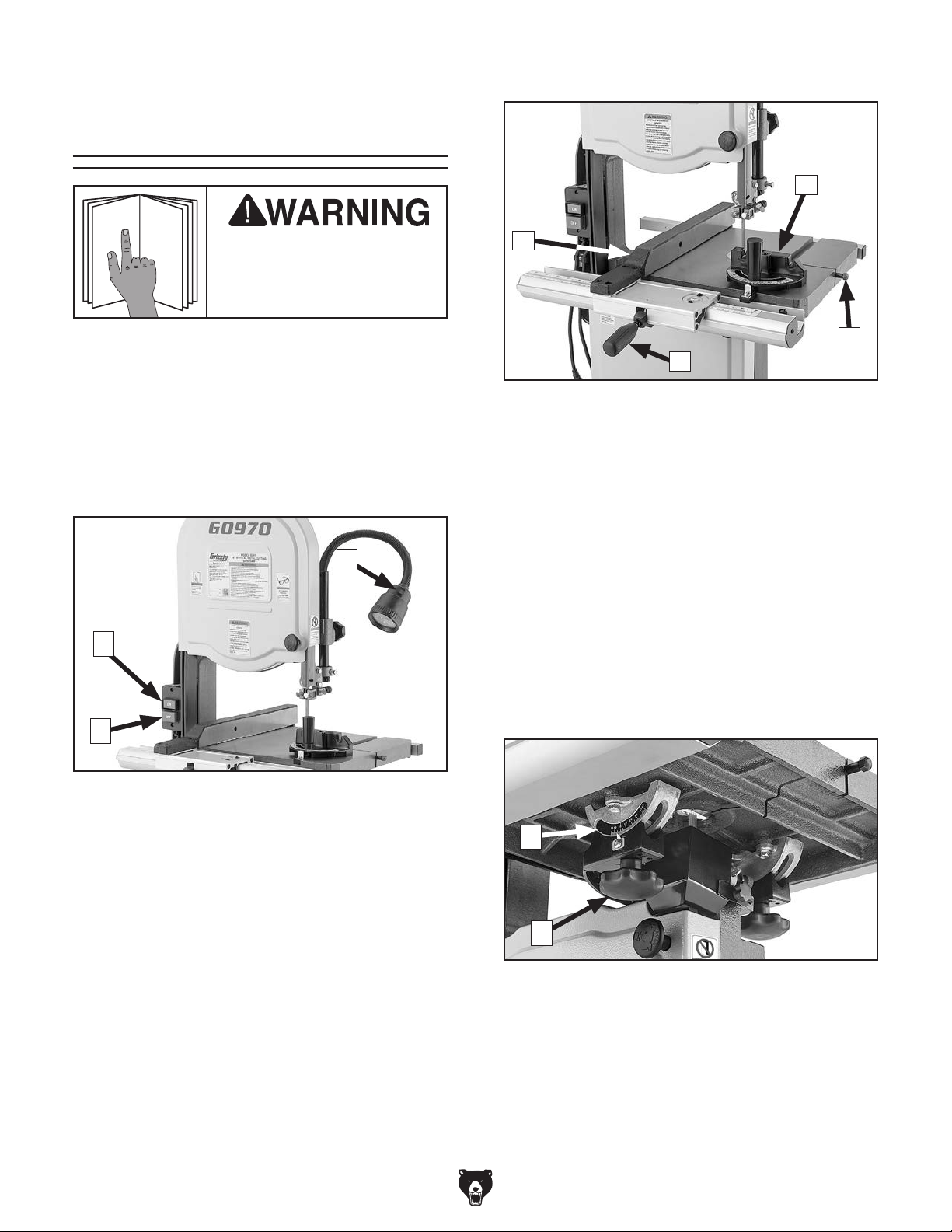

Refer to the following figures and descriptions to become familiar with the basic controls and components of this machine. Understanding these items and how they work will help you understand the rest of the manual and minimize your risk of injury when operating this machine.

Fence & Miter Gauge

Figure 2. Fence & miter gauge components.

D. Fence: Supports workpiece when making

straight cuts.

Power Controls

Figure 1. Power controls.

A. Light Switch: Turns light ON and OFF.

B. ON Button: Turns motor ON. Can be locked

out with padlock.

C. OFF Button: Turns motor OFF.

E. Miter Gauge: Adjusts from 0°–60° left or

right, and has stops at 45°L, 90°, and 45°R.

F. Table Gap Bolt: Ensures table remains level

across blade slot gap and does not become warped or bent when heavy workpieces are loaded on table. Always keep installed and secured except when changing blades.

G. Fence Lock Handle: Secures fence position.

Table Tilt Controls

-4-

Figure 3. Table tilt components.

H. Table Tilt Scale: Indicates current angle of

table in relation to blade.

I. Table Tilt Lock Knob (1 of 2): Rotate coun-

terclockwise to allow table tilt adjustment; rotate clockwise to lock table in position.

Model G0970 (Mfd. Since 07/23)

Blade Adjustment

Blade Guides

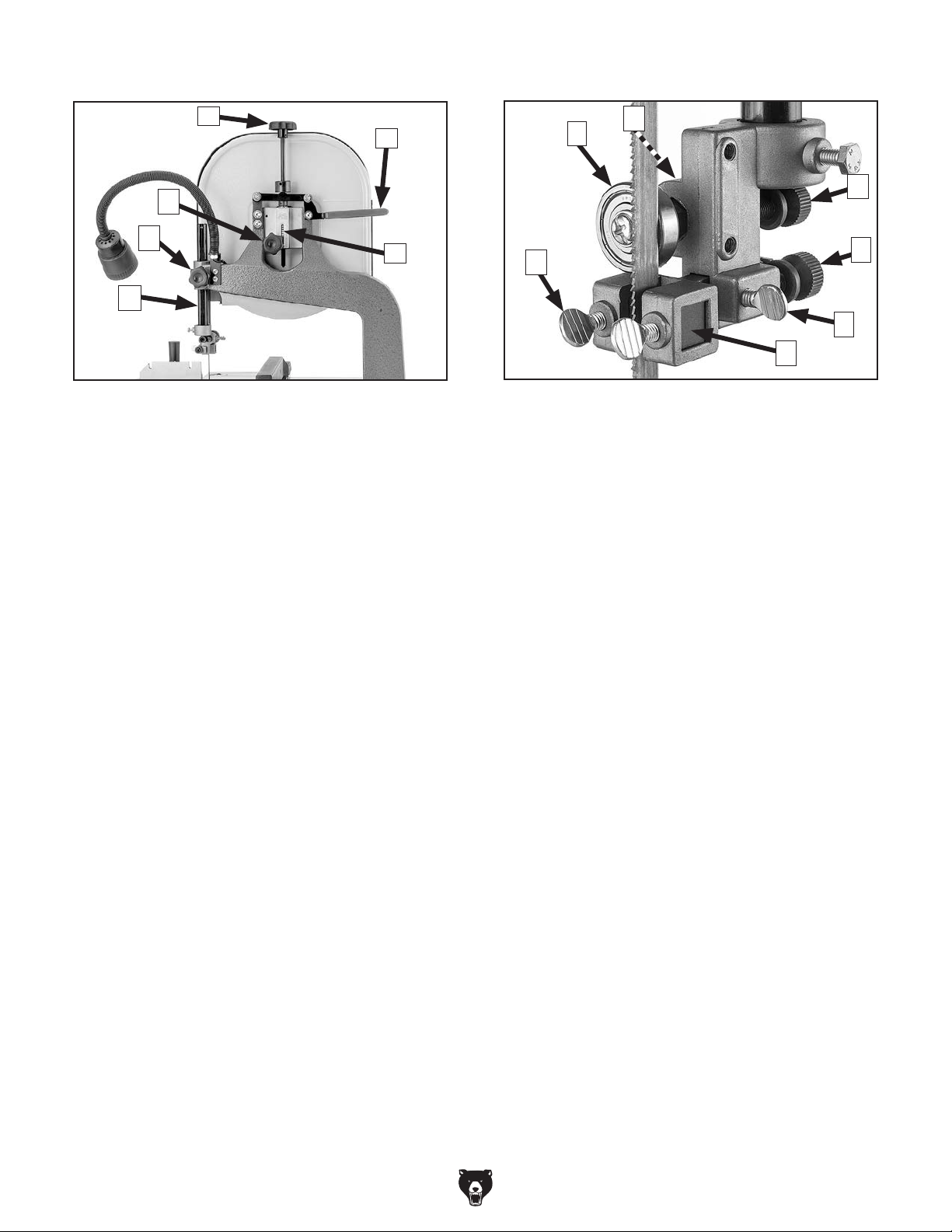

Figure 4. Blade adjustment components.

J. Blade Tension Knob: Rotate clockwise to

increase and counterclockwise to decrease blade tension.

K. Blade Tension Quick Release Lever: Raise

to release blade tension for quick blade removal and installation; lower to add pre-set tension to blade.

L. Blade Tension Gauge: Shows appropri-

ate amount of tension for different sizes of bandsaw blade. Must be calibrated each time length of blade is changed. Refer to Blade Tension Gauge on Page 49 for more information.

M. Guide Post/Blade Guard: Holds upper blade

guides and support bearing, and encloses upper portion of blade. Adjusts up or down as necessary to position upper blade guides/ support bearing as close as possible to workpiece for maximum cutting accuracy and minimum blade exposure to operator.

Figure 5. Blade guide components.

P. Blade Support Bearing: Prevents blade

from deflecting rearward during operation.

Q. Blade Support Bearing Thumbscrew:

Locks blade support bearing in place.

R. Blade Support Bearing Thumbwheel:

Rotate clockwise to move blade support bearing closer to blade; rotate counterclockwise to move away from blade.

S. Blade Guide Thumbwheel: Rotate clock-

wise to move blade guides forward; rotate counterclockwise to guide blocks back.

T. Blade Guide Thumbscrew: Locks blade

guide assembly in place.

U. Blade Guide Block (1 of 2): Prevents blade

from deflecting side-to-side during operation.

V. Blade Guide Block Thumbscrew (1 of 2):

Locks blade guide blocks in place.

N. Guide Post Lock Knob: Rotate clockwise

to secure guide post in position after adjustment; rotate counterclockwise to loosen.

O. Blade Tracking Knob: Rotate clockwise

to track blade toward back of wheels and counterclockwise to track blade forward on wheels.

Model G0970 (Mfd. Since 07/23)

Refer to Adjusting Blade Guides & Support

Bearings on Page 25 for more information

and adjustment procedures.

-5-

Machine Data Sheet

MACHINE DATA

SHEET

Customer Service #: (570) 546-9663 · To Order Call: (800) 523-4777 · Fax #: (800) 438-5901

MODEL G0970 14" VERTICAL METAL‐CUTTING BANDSAW

Product Dimensions:

Weight.............................................................................................................................................................. 238 lbs.

Width (side-to-side) x Depth (front-to-back) x Height........................................................................... 28 x 25 x 68 in.

Footprint (Length x Width)..................................................................................................................... 17-1/2 x 16 in.

Shipping Dimensions:

Carton #1

Type........................................................................................................................................... Cardboard Box

Content................................................................................................................................................. Machine

Weight.................................................................................................................................................... 165 lbs.

Length x Width x Height............................................................................................................. 44 x 21 x 20 in.

Must Ship Upright.......................................................................................................................................... No

Carton #2

Type........................................................................................................................................... Cardboard Box

Content...................................................................................................................................................... Stand

Weight...................................................................................................................................................... 93 lbs.

Length x Width x Height............................................................................................................. 19 x 18 x 28 in.

Must Ship Upright.......................................................................................................................................... No

Electrical:

Power Requirement.............................................................................................. 110V or 220V, Single Phase, 60Hz

Prewired Voltage.................................................................................................................................................. 110V

Full-Load Current Rating....................................................................................................... 10A at 110V, 5A at 220V

Minimum Circuit Size.............................................................................................................................................. 15A

Connection Type....................................................................................................................................... Cord & Plug

Power Cord Included.............................................................................................................................................. Yes

Power Cord Length.............................................................................................................................................. 72 in.

Power Cord Gauge......................................................................................................................................... 16 AWG

Plug Included.......................................................................................................................................................... Yes

Included Plug Type................................................................................................................................. 5-15 for 110V

Recommended Plug Type...................................................................................................................... 6-15 for 220V

Switch Type.................................................................................................................... ON/OFF Push Button Switch

-6-

Motors:

Main

Horsepower............................................................................................................................................. 3/4 HP

Phase............................................................................................................................................ Single-Phase

Amps....................................................................................................................................................... 10A/5A

Speed................................................................................................................................................ 1720 RPM

Type................................................................................................................. TEFC Capacitor-Start Induction

Power Transfer ............................................................................................................................................ Belt

Bearings..................................................................................................... Shielded & Permanently Lubricated

Centrifugal Switch/Contacts Type......................................................................................................... External

Model G0970 (Mfd. Since 07/23)

Main Specifications:

Main Specifications

Bandsaw Size............................................................................................................................................ 14 in.

Max Cutting Width (Left of Blade)........................................................................................................ 13-1/4 in.

Max Cutting Width (Left of Blade) w/Fence............................................................................................... 12 in.

Max Cutting Height...................................................................................................................................... 6 in.

Blade Speeds....................................................................................................................... 161, 270, 378 FPM

Blade Information

Standard Blade Length........................................................................................................................ 93-1/2 in.

Blade Length Range.............................................................................................................. 92-1/2 - 93-1/2 in.

Blade Width Range........................................................................................................................... 1/8 - 3/4 in.

Blade Guides......................................................................................................................... Tungsten Carbide

Table Information

Table Length.............................................................................................................................................. 14 in.

Table Width................................................................................................................................................ 14 in.

Table Thickness.................................................................................................................................... 1-1/2 in.

Table Tilt.......................................................................................................................... Left 15, Right 45 deg.

Table Tilt Adjustment Type..................................................................................................................... Manual

Floor-to-Table Height................................................................................................................................. 45 in.

Includes Fence............................................................................................................................................. Yes

Fence Locking Position.............................................................................................................................. Front

Miter Gauge Included................................................................................................................................... Yes

Construction Materials

Table....................................................................................................................... Precision-Ground Cast Iron

Trunnion............................................................................................................................................. Aluminum

Fence.................................................................................................... Cast Iron w/Extruded Aluminum Fence

Base/Stand............................................................................................................................. Pre-Formed Steel

Body/Frame......................................................................................................................................... Cast Iron

Wheels................................................................................................................ Computer Balanced Cast Iron

Tires........................................................................................................................................................ Rubber

Wheel Covers......................................................................................................................... Pre-Formed Steel

Paint Type/Finish....................................................................................................................... Powder Coated

Other Related Information

Wheel Diameter................................................................................................................................... 13-3/4 in.

Wheel Width........................................................................................................................................ 1-3/16 in.

Compatible Mobile Base........................................................................................................................ T28922

Other Specifications:

Country of Origin .............................................................................................................................................. Taiwan

Warranty ........................................................................................................................................................... 1 Year

Approximate Assembly & Setup Time ...................................................................................................... 1-1/2 Hours

Serial Number Location .................................................................................................................................. ID Label

ISO 9001 Factory .................................................................................................................................................. Yes

Features:

Includes Fence and Miter Gauge Upper and Lower Tungsten Carbide Guide Blocks Deluxe Heavy-Duty Stand Hinged Wheel Covers Quick-Release Blade Tensioner Flexible LED Work Light

Model G0970 (Mfd. Since 07/23)

-7-

SECTION 1: SAFETY

For Your Own Safety, Read Instruction

Manual Before Operating This Machine

The purpose of safety symbols is to attract your attention to possible hazardous conditions. This manual uses a series of symbols and signal words intended to convey the level of importance of the safety messages. The progression of symbols is described below. Remember that safety messages by themselves do not eliminate danger and are not a substitute for proper accident prevention measures. Always use common sense and good judgment.

Indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, MAY result in minor or moderate injury. It may also be used to alert against unsafe practices.

Alerts the user to useful information about proper operation of the

NOTICE

machine to avoid machine damage.

Safety Instructions for Machinery

OWNER’S MANUAL. Read and understand this

owner’s manual BEFORE using machine.

TRAINED OPERATORS ONLY. Untrained operators have a higher risk of being hurt or killed. Only allow trained/supervised people to use this machine. When machine is not being used, disconnect power, remove switch keys, or lock-out machine to prevent unauthorized use—especially around children. Make your workshop kid proof!

DANGEROUS ENVIRONMENTS. Do not use machinery in areas that are wet, cluttered, or have poor lighting. Operating machinery in these areas greatly increases the risk of accidents and injury.

MENTAL ALERTNESS REQUIRED. Full mental alertness is required for safe operation of machinery. Never operate under the influence of drugs or alcohol, when tired, or when distracted.

ELECTRICAL EQUIPMENT INJURY RISKS. You can be shocked, burned, or killed by touching live electrical components or improperly grounded machinery. To reduce this risk, only allow qualified service personnel to do electrical installation or repair work, and always disconnect power before accessing or exposing electrical equipment.

DISCONNECT POWER FIRST. nect machine from power supply BEFORE making adjustments, changing tooling, or servicing machine. This prevents an injury risk from unintended startup or contact with live electrical components.

EYE PROTECTION. Always wear ANSI-approved safety glasses or a face shield when operating or observing machinery to reduce the risk of eye injury or blindness from flying particles. Everyday eyeglasses are NOT approved safety glasses.

Always discon-

-8-

Model G0970 (Mfd. Since 07/23)

may damage the wires inside. Do not handle

WEARING PROPER APPAREL. Do not wear clothing, apparel or jewelry that can become entangled in moving parts. Always tie back or cover long hair. Wear non-slip footwear to reduce risk of slipping and losing control or accidentally contacting cutting tool or moving parts.

HAZARDOUS DUST. Dust created by machinery operations may cause cancer, birth defects, or long-term respiratory damage. Be aware of dust hazards associated with each workpiece material. Always wear a NIOSH-approved respirator to reduce your risk.

HEARING PROTECTION. Always wear hearing protection when operating or observing loud machinery. Extended exposure to this noise without hearing protection can cause permanent hearing loss.

REMOVE ADJUSTING TOOLS. Tools left on machinery can become dangerous projectiles upon startup. Never leave chuck keys, wrenches, or any other tools on machine. Always verify removal before starting!

USE CORRECT TOOL FOR THE JOB. Only use this tool for its intended purpose—do not force it or an attachment to do a job for which it was not designed. Never make unapproved modifications—modifying tool or using it differently than intended may result in malfunction or mechanical failure that can lead to personal injury or death!

AWKWARD POSITIONS. Keep proper footing and balance at all times when operating machine. Do not overreach! Avoid awkward hand positions that make workpiece control difficult or increase the risk of accidental injury.

CHILDREN & BYSTANDERS. Keep children and bystanders at a safe distance from the work area. Stop using machine if they become a distraction.

GUARDS & COVERS. Guards and covers reduce accidental contact with moving parts or flying debris. Make sure they are properly installed, undamaged, and working correctly BEFORE operating machine.

FORCING MACHINERY. Do not force machine. It will do the job safer and better at the rate for which it was designed.

NEVER STAND ON MACHINE. Serious injury may occur if machine is tipped or if the cutting tool is unintentionally contacted.

STABLE MACHINE. Unexpected movement during operation greatly increases risk of injury or loss of control. Before starting, verify machine is stable and mobile base (if used) is locked.

USE RECOMMENDED ACCESSORIES. Consult

this owner’s manual or the manufacturer for rec-

ommended accessories. Using improper accessories will increase the risk of serious injury.

UNATTENDED OPERATION. To reduce the risk of accidental injury, turn machine OFF and ensure all moving parts completely stop before walking away. Never leave machine running while unattended.

MAINTAIN WITH CARE. Follow all maintenance instructions and lubrication schedules to keep machine in good working condition. A machine that is improperly maintained could malfunction, leading to serious personal injury or death.

DAMAGED PARTS. Regularly inspect machine for damaged, loose, or mis-adjusted parts—or any condition that could affect safe operation. Immediately repair/replace BEFORE operating machine. For your own safety, DO NOT operate machine with damaged parts!

MAINTAIN POWER CORDS. When disconnecting cord-connected machines from power, grab and pull the plug—NOT the cord. Pulling the cord

cord/plug with wet hands. Avoid cord damage by keeping it away from heated surfaces, high traffic areas, harsh chemicals, and wet/damp locations.

EXPERIENCING DIFFICULTIES. If at any time you experience difficulties performing the intended operation, stop using the machine! Contact our Technical Support at (570) 546-9663.

Model G0970 (Mfd. Since 07/23)

-9-

All inspections,

Additional Safety for

Vertical Metal Bandsaws

Serious injury or death can occur from getting fingers, hair, or clothing entangled in rotating or moving parts. Workpieces can be ejected by saw, striking operator or bystanders. Long-term respiratory damage can occur from breathing metal dust created while cutting. To minimize risk of injury, anyone operating this machine MUST completely heed hazards and warnings below.

BLADE CONDITION. Do not operate with dull,

cracked or badly worn blade. Inspect blades for cracks and missing teeth before each use.

HAND PLACEMENT. Never position fingers or thumbs in line with the cut. Hands could be crushed in vise or from falling machine components.

ENTANGLEMENT HAZARDS. Do not operate this saw without blade guard in place. Loose clothing, jewelry, long hair and work gloves can be drawn into working parts.

BLADE REPLACEMENT. When replacing blades, disconnect the machine from power, wear gloves to protect hands and safety glasses to protect eyes.

WORKPIECE HANDLING. Always support the workpiece with table, vise, or some type of support fixture. Flag long pieces to avoid a tripping hazard. Never hold the workpiece with your hands during a cut.

LOSS OF STABILITY. Unsupported workpieces may jeopardize machine stability and cause the machine to tip and fall, which could cause serious injury.

POWER INTERRUPTION. Unplug machine after power interruption. Machines without magnetic switches can start up after power is restored.

FIRE HAZARD. Use EXTREME CAUTION if cutting magnesium. Using the wrong cutting fluid will lead to chip fire and possible explosion.

CUTTING FLUID SAFETY. Always follow manu-

facturer’s cutting-fluid safety instructions. Pay

particular attention to contact, contamination, inhalation, storage, and disposal warnings. Spilled cutting fluid invites slipping hazards.

ATTENTION TO WORK AREA. Never leave a machine running and unattended. Pay attention to the actions of others in the area to avoid unintended accidents.

MAINTENANCE/SERVICE.

adjustments, and maintenance are to be done with the power OFF and the plug pulled from the outlet. Wait for all moving parts to come to a complete stop.

HOT SURFACES. Contact with hot surfaces from machine components, ejections of hot chips, swarf, and the workpiece itself can cause burns.

-10-

Model G0970 (Mfd. Since 07/23)

SECTION 2: POWER SUPPLY

Before installing the machine, consider the availability and proximity of the required power supply circuit. If an existing circuit does not meet the requirements for this machine, a new circuit must be installed. To minimize the risk of electrocution, fire, or equipment damage, installation work and electrical wiring must be done by an electrician or qualified service personnel in accordance with all applicable codes and standards.

or equipment damage may occur if machine is not properly grounded and connected to power

The full-load current rating is the amperage a machine draws at 100% of the rated output power. On machines with multiple motors, this is the amperage drawn by the largest motor or sum of all motors and electrical devices that might operate at one time during normal operations.

The full-load current is not the maximum amount of amps that the machine will draw. If the machine is overloaded, it will draw additional amps beyond the full-load rating.

If the machine is overloaded for a sufficient length of time, damage, overheating, or fire may result— especially if connected to an undersized circuit. To reduce the risk of these hazards, avoid overloading the machine during operation and make sure it is connected to a power supply circuit that meets the specified circuit requirements.

For your own safety and protection of

Note: Circuit requirements in this manual apply to

a dedicated circuit—where only one machine will be running on the circuit at a time. If machine will be connected to a shared circuit where multiple machines may be running at the same time, consult an electrician or qualified service personnel to ensure circuit is properly sized for safe operation.

A power supply circuit includes all electrical equipment between the breaker box or fuse panel in the building and the machine. The power supply circuit used for this machine must be sized to safely handle the full-load current drawn from the machine for an extended period of time. (If this machine is connected to a circuit protected by fuses, use a time delay fuse marked D.)

This machine can be converted to operate on a power supply circuit that has a verified ground and meets the requirements listed below. (Refer to Voltage Conversion instructions for details.)

This machine is prewired to operate on a power supply circuit that has a verified ground and meets the following requirements:

Availability

Electrocution, fire, shock,

supply.

Full-Load Current Rating

Circuit Information

property, consult an electrician if you are unsure about wiring practices or electrical codes in your area.

Full-Load Current Rating at 110V ..... 10 Amps

Full-Load Current Rating at 220V ....... 5 Amps

Model G0970 (Mfd. Since 07/23)

Circuit Requirements for 110V

Nominal Voltage .................... 110V, 115V, 120V

Cycle .......................................................... 60 Hz

Phase ........................................... Single-Phase

Power Supply Circuit ......................... 15 Amps

Plug/Receptacle ............................. NEMA 5-15

Circuit Requirements for 220V

Nominal Voltage .........208V, 220V, 230V, 240V

Cycle .......................................................... 60 Hz

Phase ........................................... Single-Phase

Power Supply Circuit ......................... 15 Amps

Plug/Receptacle ............................. NEMA 6-15

-11-

Improper connection of the equipment-grounding wire can result in a risk of electric shock. The wire with green insulation (with or without yellow stripes) is the equipment-grounding wire. If repair or replacement of the power cord or plug is necessary, do not connect the equipment-grounding wire to a live (current carrying) terminal.

Check with a qualified electrician or service personnel if you do not understand these grounding requirements, or if you are in doubt about whether the tool is properly grounded. If you ever notice that a cord or plug is damaged or worn, disconnect it from power, and immediately replace it with a new one.

We do not recommend using an extension cord with this machine. If you must use an extension cord, only use it if absolutely necessary and only on a temporary basis.

Extension cords cause voltage drop, which can damage electrical components and shorten motor life. Voltage drop increases as the extension cord size gets longer and the gauge size gets smaller (higher gauge numbers indicate smaller sizes).

Any extension cord used with this machine must be in good condition and contain a ground wire and matching plug/receptacle. Additionally, it must meet the following size requirements:

Grounding Requirements

This machine MUST be grounded. In the event of certain malfunctions or breakdowns, grounding reduces the risk of electric shock by providing a path of least resistance for electric current.

For 110V operation: This machine is equipped with a power cord that has an equipment-grounding wire and a grounding plug (see following figure). The plug must only be inserted into a matching receptacle (outlet) that is properly installed and grounded in accordance with all local codes and ordinances.

For 220V operation: The plug specified under “

on the previous page has a grounding prong that must be attached to the equipment-grounding wire on the included power cord. The plug must only be inserted into a matching receptacle (see following figure) that is properly installed and grounded in accordance with all local codes and ordinances.

Two-prong outlets do not meet the grounding requirements for this machine.

GROUNDED

5-15 RECEPTACLE

Grounding Pin

GROUNDED

6-15 RECEPTACLE

Current Carrying Prongs

6-15 PLUG

Grounding Pin

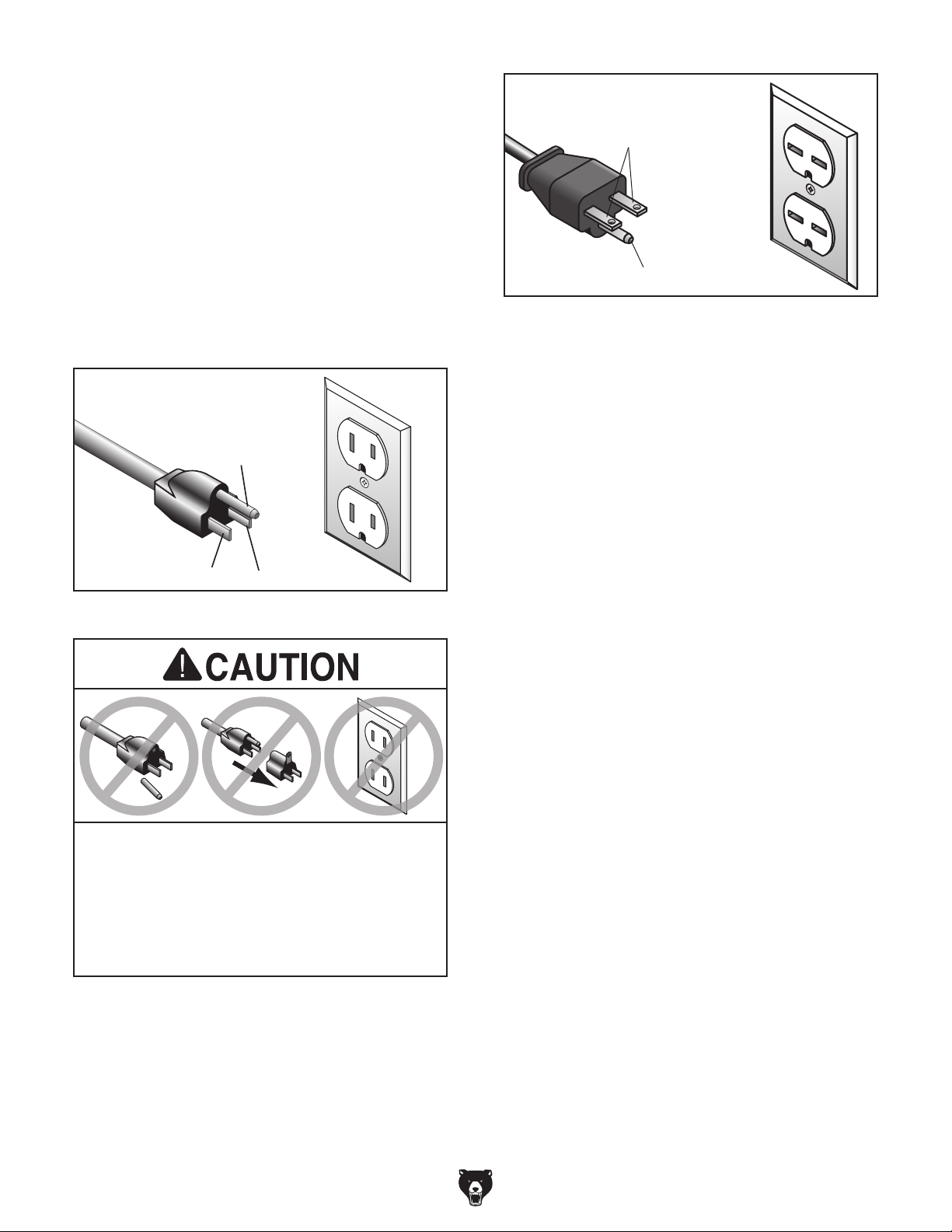

Figure 7. Typical 6-15 plug and receptacle.

5-15 PLUG

Neutral Hot

Figure 6. Typical 5-15 plug and receptacle.

SHOCK HAZARD!

Do not modify or use an adapter on the plug provided—if it will not fit the outlet, have a qualified electrician install the proper outlet with a verified ground.

Circuit Requirements for 220V”

-12-

Extension Cords

Minimum Gauge Size ........................... 16 AWG

Maximum Length (Shorter is Better) .......50 ft.

Model G0970 (Mfd. Since 07/23)

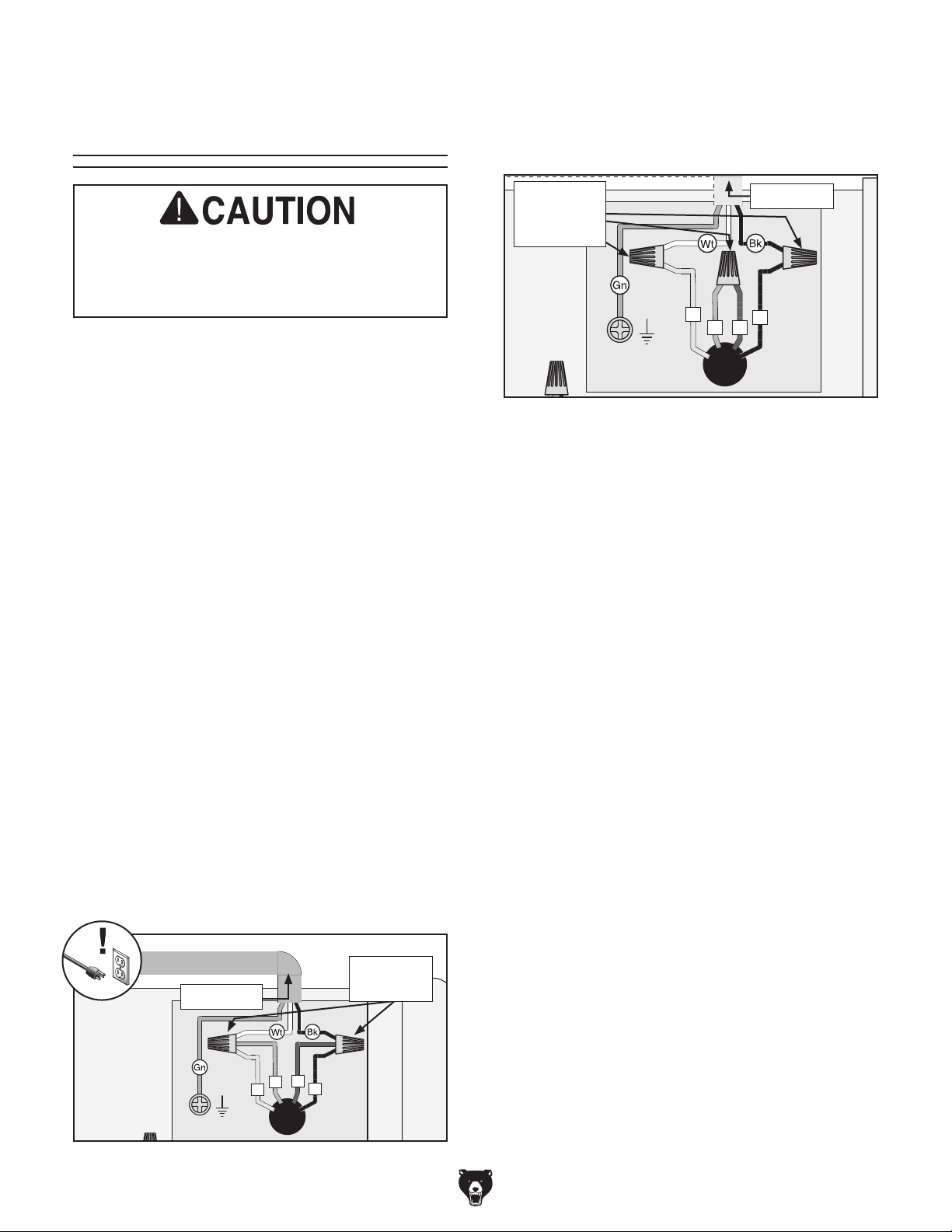

Converting Voltage

Motor (110V)

Run Capacitor

12uF 250VAC

Start Capacitor

200MFD 250VAC

Ground

Motor (110V)

Motor (220V)

For your own safety and protection of

to 220V

5. Use wire nuts to connect wires as indicated

in Figure 9. Twist wire nuts onto their respec- tive wires and wrap them with electrical tape so they will not come loose during operation.

property, consult an electrician if you are unsure about wiring practices or electrical codes in your area.

The voltage conversion MUST be performed by an electrician or qualified service personnel. The voltage conversion procedure consists of rewiring the motor, and installing the correct plug.

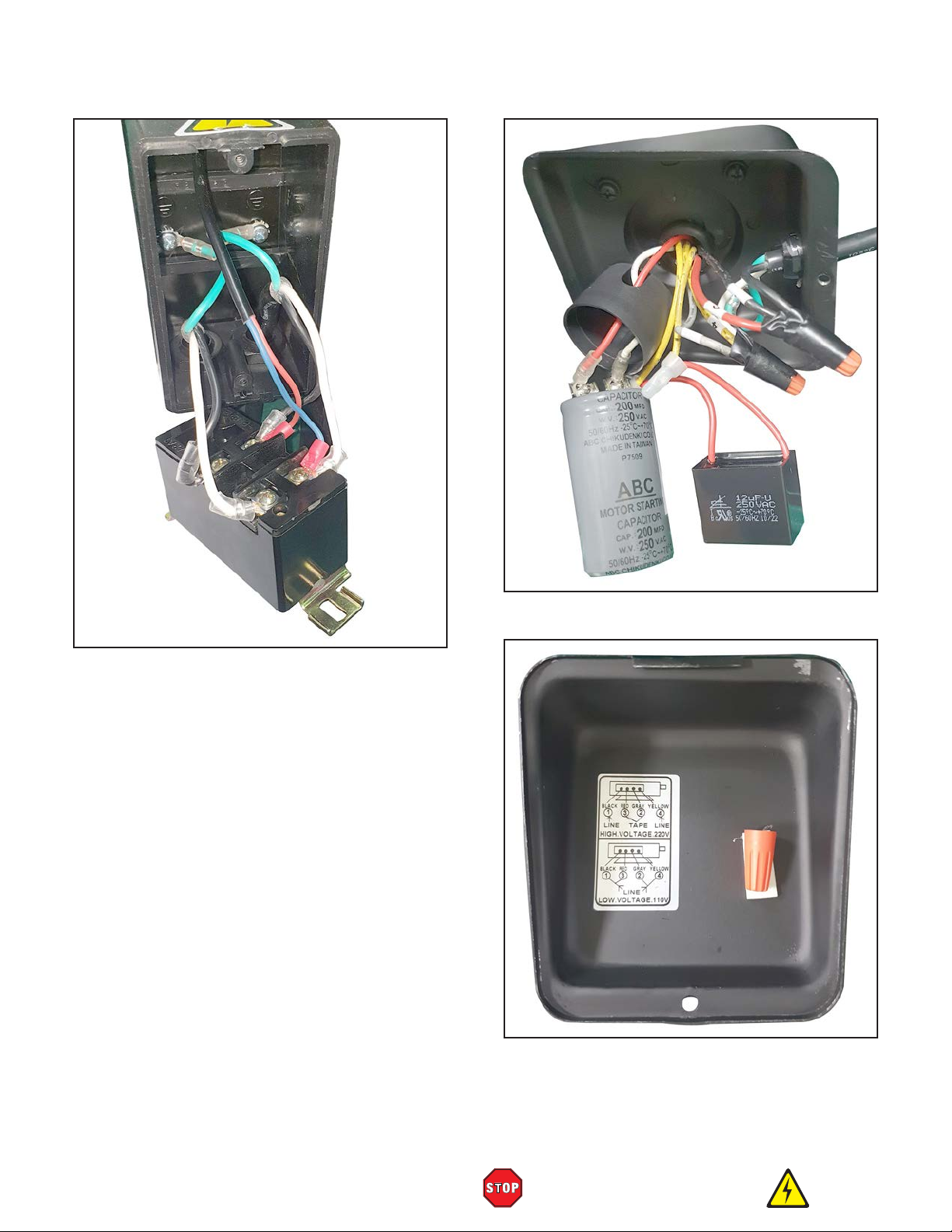

IMPORTANT: If the wiring diagram included inside the motor junction box conflicts with the Wiring Diagram on Page 52, the motor may have changed since this manual was printed. Use the diagram included with the motor instead.

Items Needed Qty

Wire Cutter/Stripper ........................................... 1

Phillips Head Screwdriver #2 (Short Handle) .... 1

Wire Nut (14AWG) ............................................. 1

Electrical Tape ................................... As Needed

NEMA 6-15 Plug ................................................ 1

Connect

To Switch

Wires with

Nuts Here

Ground

2 3

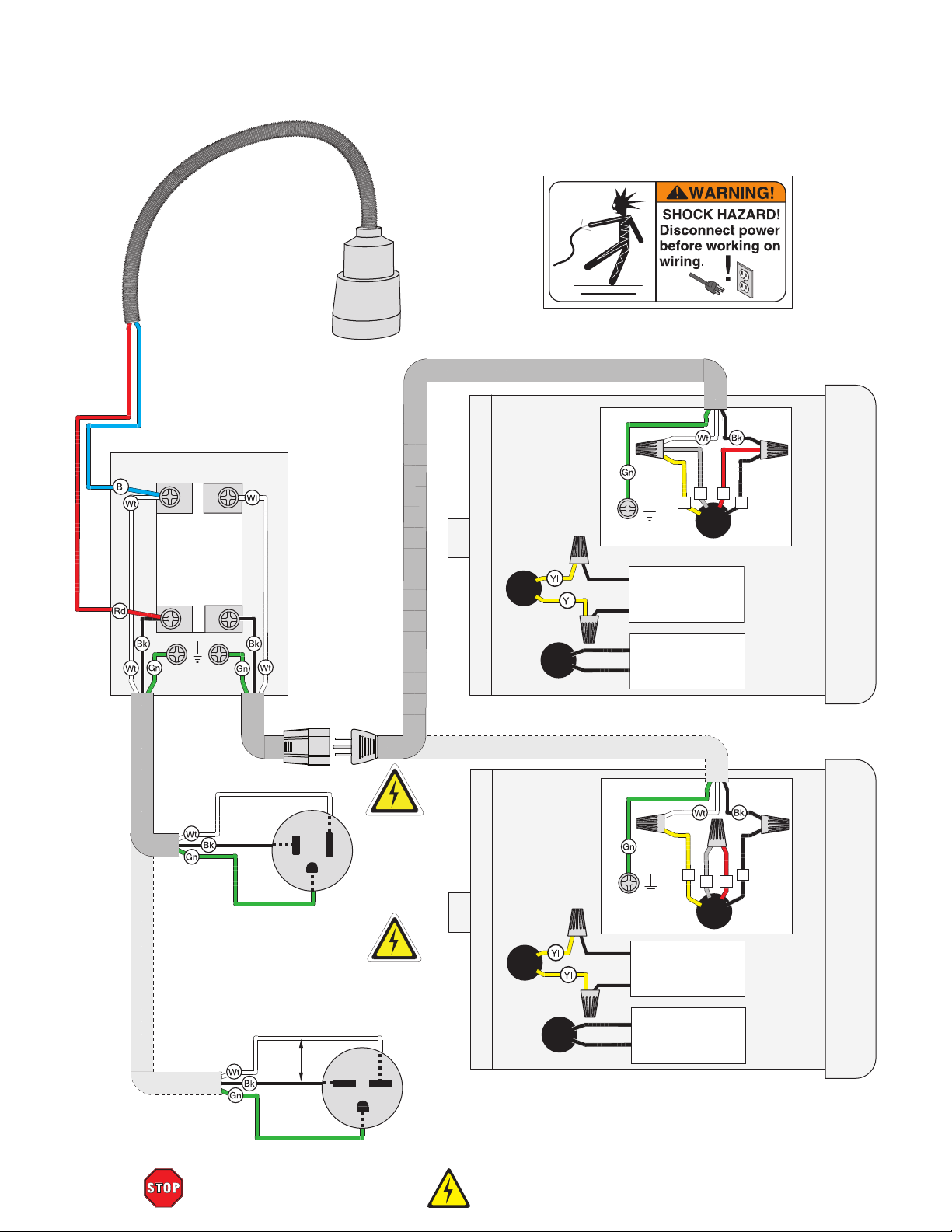

Figure 9. Motor rewired to 220V.

6. Close and secure motor junction box, then

close and latch maintenance door.

7. Install 6-15 plug on end of power cord,

according to plug manufacturer's instructions.

— If plug manufacturer did not include

instructions, wiring of generic NEMA 6-15 plug is illustrated on Page 52.

To convert voltage to 220V:

1. DISCONNECT MACHINE FROM POWER!

2. Cut 5-15 plug off end of power cord.

3. Open rear maintenance door, then open

motor junction box.

4. Remove wire nuts shown in Figure 8.

Remove

To Switch

Ground

Figure 8. Inside motor junction box.

Wire Nuts

Model G0970 (Mfd. Since 07/23)

-13-

SECTION 3: SETUP

The following items are needed, but not included, for the setup/assembly of this machine.

This machine was carefully packaged for safe transport. When unpacking, separate all enclosed items from packaging materials and inspect them for shipping damage.

please

IMPORTANT: Save all packaging materials until you are completely satisfied with the machine and have resolved any issues between Grizzly or the shipping agent. You MUST have the original pack-

aging to file a freight claim. It is also extremely helpful if you need to return your machine later.

Lifting heavy machinery or parts without proper assistance or equipment

injuries, crushing injuries,

Needed for Setup

This machine presents serious injury hazards to untrained users. Read through this entire manual to become familiar with the controls and operations before starting the machine!

Wear safety glasses during the entire setup process!

Description Qty

• Another Person .......................................... 1

• Safety Glasses (for each person) ............... 1

• Solvent/Cleaner .......................... As Needed

• Shop Rags .................................. As Needed

• Level ........................................................... 1

• Small Brass Hammer or Mallet .................. 1

• Wrenches Open-End 10, 14mm ...........1 Ea.

• Wrench Closed-End 12mm ........................ 1

• Wrenches or Sockets 13mm ...................... 2

may result in strains, back

or property damage.

Unpacking

If items are damaged

call us immediately at (570) 546-9663.

-14-

Model G0970 (Mfd. Since 07/23)

Inventory

The following is a list of items shipped with your machine. Before beginning setup, lay these items out and inventory them.

If any non-proprietary parts are missing (e.g. a nut or a washer), we will gladly replace them; or for the sake of expediency, replacements can be obtained at your local hardware store.

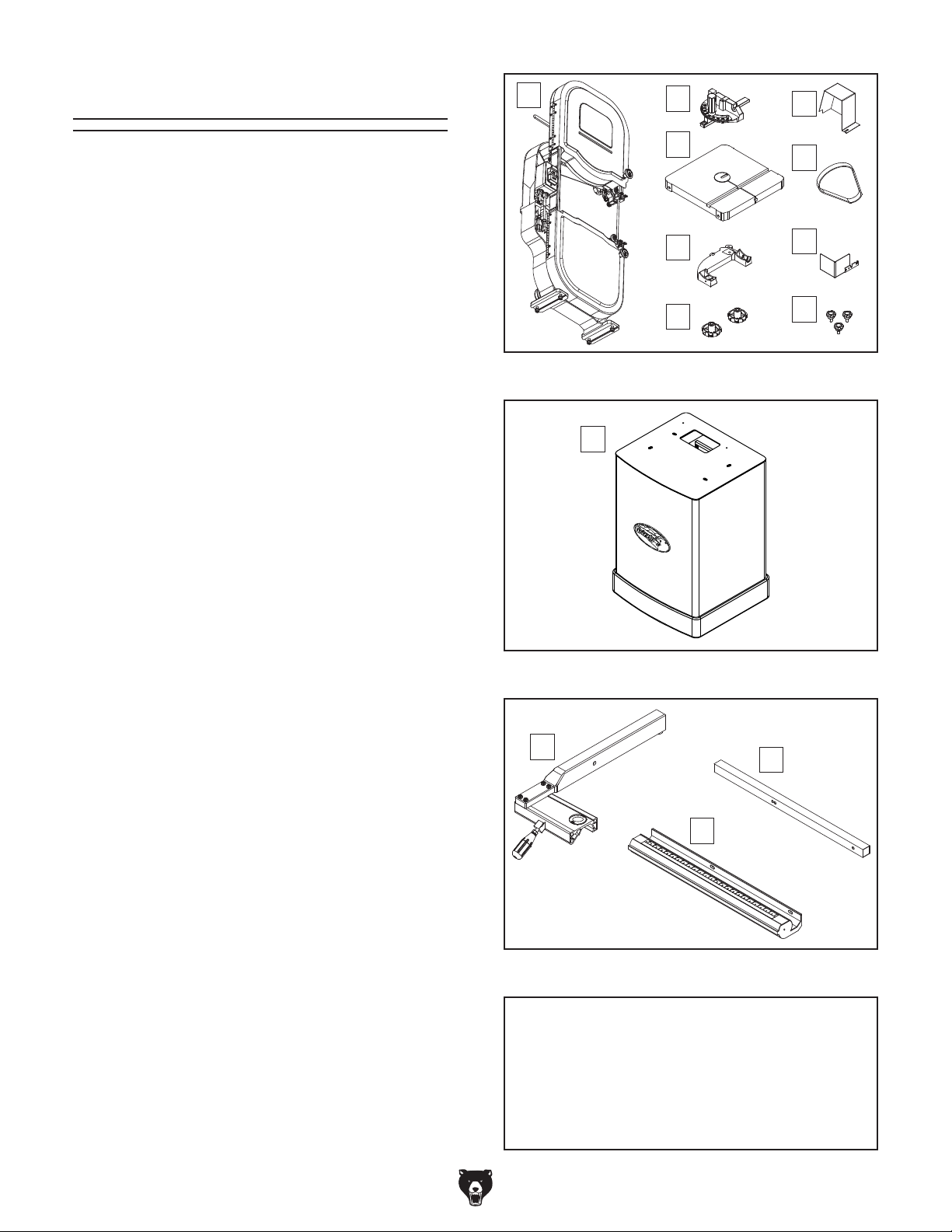

Inventory (Figures 10–12) Qty

A. Bandsaw Assembly .................................... 1

B. Miter Gauge Assembly ............................... 1

C. Table w/Insert & Table Pin ......................... 1

D. Table Trunnion ............................................ 1

E. Table Lock Knobs

F. Belt Cover ................................................... 1

G. V-Belt .......................................................... 1

H. Lower Blade Guard .................................... 1

I. Knob Bolts .................................................. 3

J. Cabinet w/Motor ......................................... 1

K. Fence Assembly ......................................... 1

L. Rear Fence Rail ......................................... 1

M. Front Fence Rail ......................................... 1

N. Hardware (Not Shown):

— Stand Feet — Hex Nuts — Flat Washers

—Hex Bolts M8-1.25 x 35 (Bandsaw) ........ 4

— Flat Washers 8mm (Bandsaw) ............... 4

—Flange Nuts M8-1.25 (Bandsaw) ............ 4

— Hex Bolts M8-1.25 x 30 (Trunnion) ......... 2

— Lock Washers 8mm (Trunnion) ............... 2

— Hex Bolt M8-1.25 x 80 (Positive Stop) .... 1

— Hex Nut M8-1.25 (Positive Stop) ............. 1

— Fence Stand-Off M6-1 x 20 (Fence) ....... 1

— Lock Handle M8-1.25 x 20 (Fence)......... 1

—Cap Screws M6-1 x 16 Black (Fence) .... 2

— Hex Bolts M6-1 x 20 Black (Fence) ........ 2

— Lock Washers 6mm Black (Fence) ......... 2

— Flat Washers 6mm Black (Fence) .......... 2

—Hex Nut M8-1.25 Black (Fence) .............. 1

— Hex Nut M6-1 Black (Fence)................... 1

— Flange Screws M5-.8 x 5 (Power Cord) ... 2

Shims 0.2, 0.5mm (Trunnion Bracket) ...

—

⁄8"-16 ............................ 2

⁄8"-16 x 2" (Stand) ................ 4

⁄8"-16 (Stand Feet) .................. 8

⁄8" (Stand Feet) ................ 8

2 Ea.

Figure 10. Box 1 inventory.

Figure 11. Box 2 inventory.

Figure 12. Fence & rails inventory.

NOTICE

If you cannot find an item on this list, carefully check around/inside the machine and packaging materials. Often, these items get lost in packaging materials while unpacking or they are pre-installed at the factory.

Model G0970 (Mfd. Since 07/23)

-15-

Cleanup

parts of the

The unpainted surfaces of your machine are coated with a heavy-duty rust preventative that prevents corrosion during shipment and storage. This rust preventative works extremely well, but it will take a little time to clean.

Be patient and do a thorough job cleaning your machine. The time you spend doing this now will give you a better appreciation for the proper care of your machine's unpainted surfaces.

There are many ways to remove this rust preventative, but the following steps work well in a wide variety of situations. Always follow the manufac-

turer’s instructions with any cleaning product you

use and make sure you work in a well-ventilated area to minimize exposure to toxic fumes.

Before cleaning, gather the following:

• Disposable rags

• Cleaner/degreaser (WD•40 works well)

• Safety glasses & disposable gloves

• Plastic paint scraper (optional)

Basic steps for removing rust preventative:

Many cleaning solvents

work in a well-ventilated

Cleanup

Gasoline and petroleum products have low flash points and can explode or cause fire if used to clean machinery. Avo id using these products to clean machinery.

Put on safety glasses.

Coat the rust preventative with a liberal

amount of cleaner/degreaser, then let it soak for 5–10 minutes.

Wipe off the surfaces. If your cleaner/degreas-

er is effective, the rust preventative will wipe off easily. If you have a plastic paint scraper, scrape off as much as you can first, then wipe off the rest with the rag.

are toxic if inhaled. Only

area.

NOTICE

Avoid harsh solvents like acetone or brake parts cleaner that may damage painted surfaces. Always test on a small, inconspicuous location first.

T23692—Orange Power Degreaser

A great product for removing the waxy shipping grease from the non-painted machine during clean up.

Order online at

www.grizzly.com

Call 1-800-523-4777

Repeat Steps 2–3 as necessary until clean,

then coat all unpainted surfaces with a quality metal protectant to prevent rust.

-16-

Figure 13. T23692 Orange Power Degreaser.

Model G0970 (Mfd. Since 07/23)

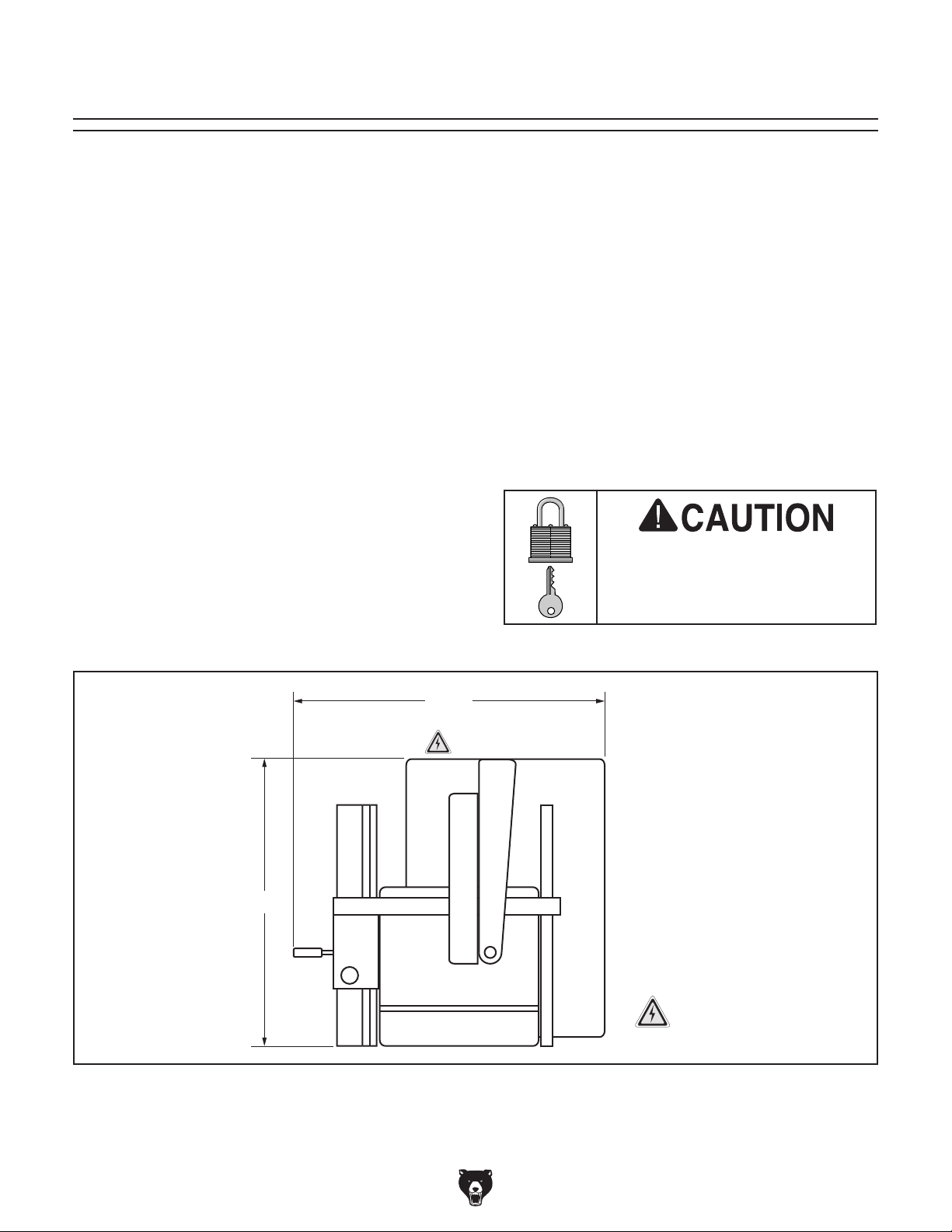

Site Considerations

Weight Load

for the weight of your machine. Make sure that the surface upon which the machine is placed will bear the weight of the machine, additional equipment that may be installed on the machine, and the heaviest workpiece that will be used. Additionally, consider the weight of the operator and any dynamic loading

Physical Environment

The physical environment where the machine is operated is important for safe operation and longevity of components. For best results, operate this machine in a dry environment that is free from excessive moisture, hazardous chemicals, airborne abrasives, or extreme conditions. Extreme conditions for this type of machinery are generally those where the ambient temperature range is outside 41°–104°F; the relative humidity range is outside 20–95% (non-condensing); or the environment is subject to vibration, shocks, or bumps.

Lighting around the machine must be adequate enough that operations can be performed safely. Shadows, glare, or strobe effects that may distract

Space Allocation

Consider the largest size of workpiece that will be processed through this machine and provide enough space around the machine for adequate operator material handling or the installation of auxiliary equipment. With permanent installations, leave enough space around the machine to open or remove doors/covers as required by the maintenance and service described in this manual.

See below for required space allocation.

Refer to the Machine Data Sheet

that may occur when operating the machine.

Lighting

or impede the operator must be eliminated.

28"

Model G0970 (Mfd. Since 07/23)

Figure 14. Working clearances.

Children or untrained people may be seriously injured by this machine. Only install in an access restricted location.

301/

= Electrical Connection

-17-

The machine must be fully assembled before it can be operated. Before beginning the assembly process, refer to

and gather

all

To ensure the assembly process goes smoothly, first clean any ered or coated in heavy-duty rust preventative (if applicable).

Assembly

Needed for Setup

listed items.

To assemble machine:

5. Lift bandsaw assembly onto cabinet and

align mounting holes. Make sure belt opening faces rear of bandsaw assembly.

6. Secure bandsaw assembly to cabinet with (4)

M8-1.25 x 35 hex bolts, (4) 8mm flat washers and (4) M8-1.25 flange nuts, as shown in Figure 17.

parts that are cov-

1. Place cabinet on its side on flat, protected

surface.

2. Install (1)

⁄8"-16 hex nut and 3⁄8" flat washer

on each of (4) feet and thread hex nut all the way down.

3. Place (4) assembled feet into holes in bottom

of cabinet and install (4)

⁄8" flat washers (as shown in Figure 15).

(4)

⁄8"-16 hex nuts and

Leave hand tight for now.

Foot

Hex Nut

Flat Washer

Hex Nut

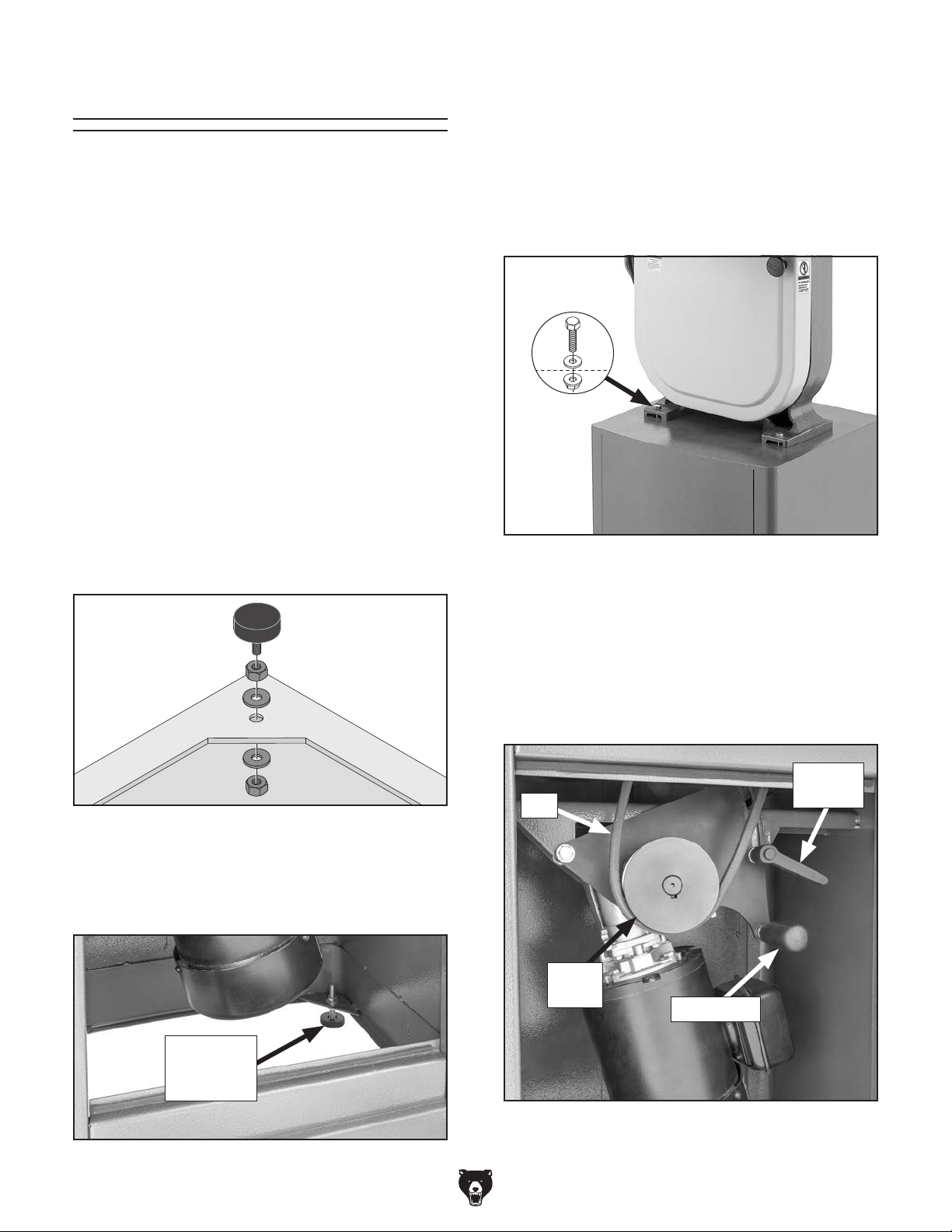

Figure 15. Rubber foot order of installation.

x 4

Figure 17. Bandsaw assembly attached to

cabinet.

7. Open cabinet maintenance door, then loosen motor tilt lock handle (see Figure 18).

8. Lift up on tilt handle to tilt motor as far as it will go; while holding motor up, tighten lock handle to hold motor in place (see Figure 18).

Tilt Lock

Belt

Handle

4. Turn cabinet upright and level by adjusting

feet as needed, then tighten hex nuts to secure feet (see Figure 16).

Adjustable

Foot

(1 of 4)

Figure 16. Foot installed.

-18-

Motor

Pulley

Tilt Handle

Figure 18. Motor tilted and locked in place.

Model G0970 (Mfd. Since 07/23)

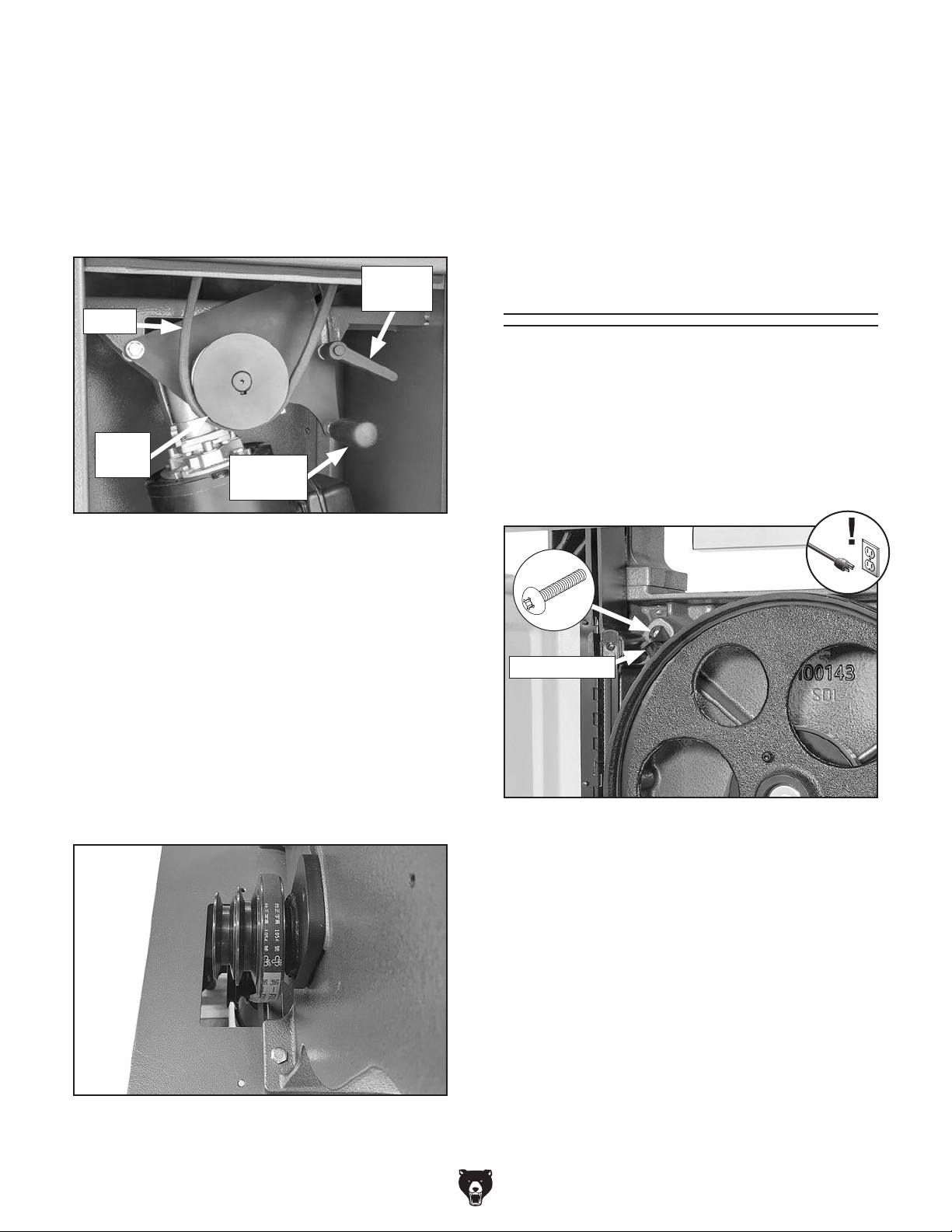

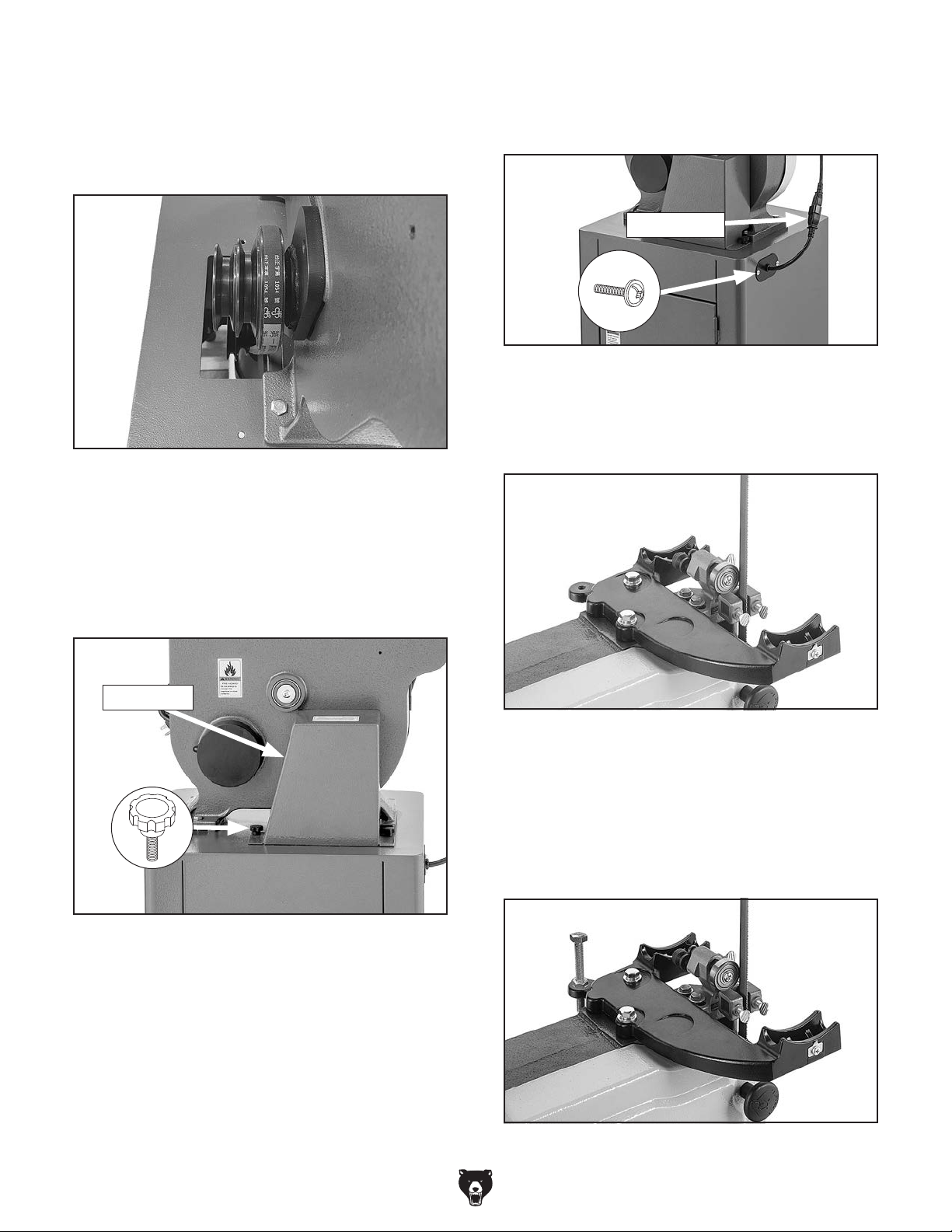

9. Feed belt through belt slot in top of cabi-

net and loop over motor pulley as shown in Figure 18 on Page 18, then place other end around corresponding sheave of bandsaw pulley (see Figure 19).

Figure 19. Belt installed on bandsaw pulley

12. Attach power cord plate to cabinet using (2)

M5-.8 x 5 flange screws (see Figure 21), then connect power cord to motor cord.

Power Cord

x 2

Figure 21. Location of power cord.

13. Position table trunnion on bandsaw, as shown

in Figure 22, then secure with (2) M8-1.25 x 30 hex bolts and (2) 8mm lock washers.

10. Loosen motor tilt lock handle to lower motor,

then tighten lock handle while pressing down on motor handle with moderate force.

11. Place belt guard over pulley and secure with (2) 6mm knob bolts (see Figure 20).

Belt Guard

x 2

Figure 20. Belt guard installed.

Table

x 2

Trunnion

Figure 22. Trunnion installed.

14. Thread (1) M8-1.25 hex nut and 8mm flat

washer onto M8-1.25 x 80 positive stop hex bolt, then thread bolt into trunnion so that approximately 2" protrudes above trunnion (see Figure 23), then tighten hex nut against trunnion.

Model G0970 (Mfd. Since 07/23)

Figure 23. Positive stop installed.

-19-

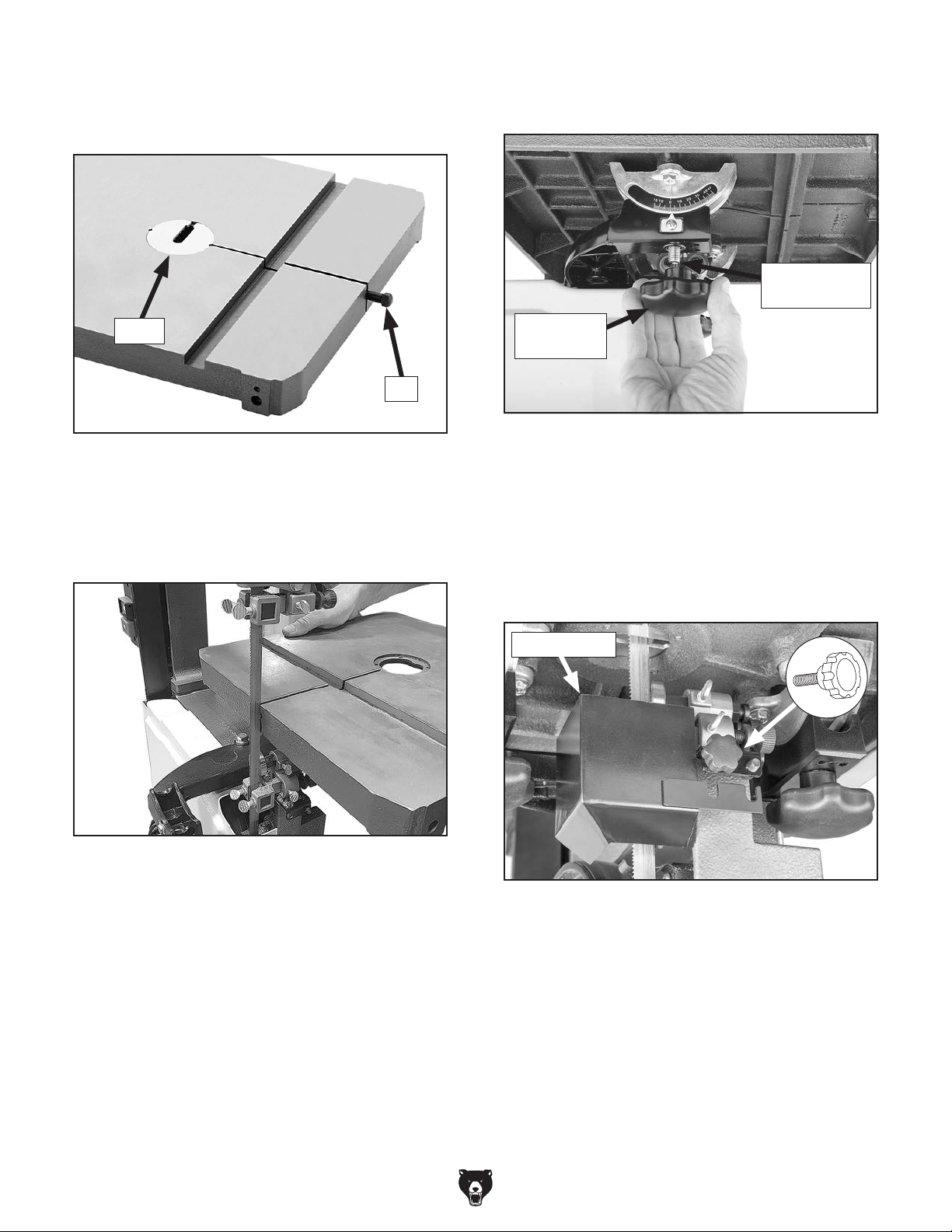

15. Remove table insert from center of table and remove table pin from end of table slot (see

Figure 24).

17. Secure table by threading (2) 3⁄8"-16 table

lock knobs onto bolts, as shown in Figure 26.

Trunnion Bolt

(1 of 2)

Insert

Figure 24. Table insert and pin.

16. Feed table slot over blade (see Figure 25) to

center, then rotate table 90˚ counterclockwise

and rest it on trunnions so bolts protrude from bottom of trunnion (see Figure 26).

Lock Knob

(1 of 2)

Figure 26. Securing table to trunnion.

18.

Install table insert and pin removed in Step 15. Make sure table insert sits flush with table surface.

19. Thread (1) knob bolt into lower blade guard bracket (see Figure 27), then line up lower blade guard and secure with knob bolt.

Blade Guard

-20-

Figure 25. Installing table.

Figure 27. Installing lower blade guard.

Model G0970 (Mfd. Since 07/23)

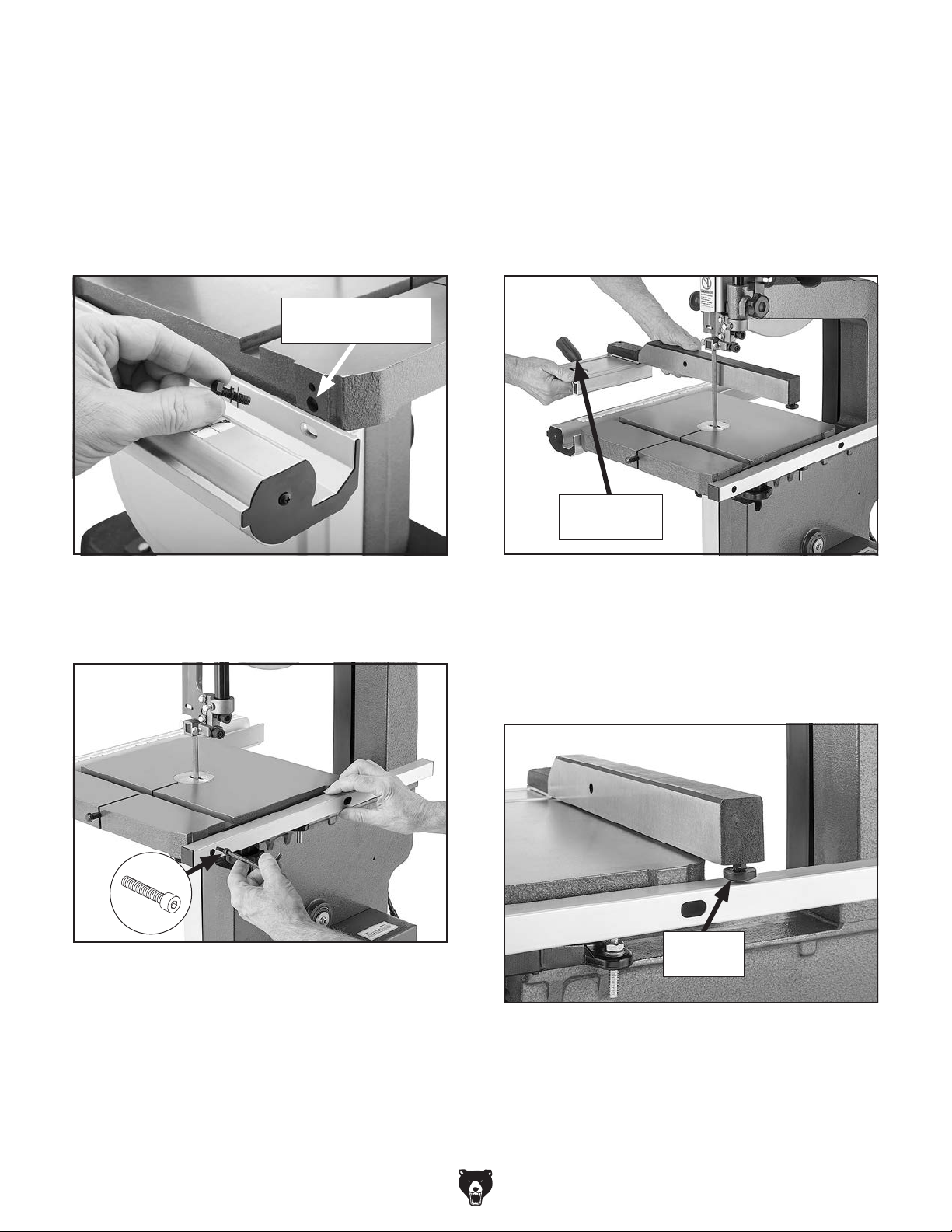

20. Attach front fence rail to table with the (2)

M6-1 x 20 hex bolts, (2) 6mm lock washers, and (2) 6mm flat washers (see Figure 28).

Note: There is a small amount of vertical play

in rail holes. Make sure to position rail evenly along its length before tightening hex bolts. This will allow fence to ride across table with the proper amount of clearance.

Use This Set

of Threaded Holes

22. Thread (1) M8-1.25 hex nut onto fence lock handle, then thread handle into fence and secure it in place by tightening hex nut against fence.

23. Move fence lock handle up, position fence face between column and blade, as shown in Figure 30, place it onto front fence rail, then lower onto rear rail.

Fence

Lock Handle

Figure 28. Attaching front fence rail.

21. Attach rear fence rail to table with (2) M6-1 x

16 cap screws (see Figure 29).

x 2

Figure 29. Example of attaching rear fence rail.

Figure 30. Fence installed.

24. Thread M6-1 hex nut onto fence stand-off,

then thread it into rear underside of fence (see Figure 31) so that fence is parallel to table along its full length. Tighten hex nut against fence to secure.

Fence

Stand-Off

Figure 31. Fence stand-off installed.

Model G0970 (Mfd. Since 07/23)

-21-

Adjustment

Overview

The bandsaw is a very versatile cutting machine. However, it has multiple components that must be properly adjusted for the best results.

Bandsaw wheels are either flat or crowned and both shapes track differently. This bandsaw has crowned wheels. As the wheels spin, a properly tracking blade naturally tracks at the center of the wheel (see Figure 32).

For practical and safety reasons, some adjustments and test operations must be performed before performing other necessary adjustments. Below is an overview of all the adjustments and the order in which they should be performed:

1. Blade Tracking

2. Test Run

3. Tensioning Blade

4. Adjusting Blade Guides & Support Bearings

5. Calibrating Table Tilt

6. Aligning Table

7. Aligning Fence

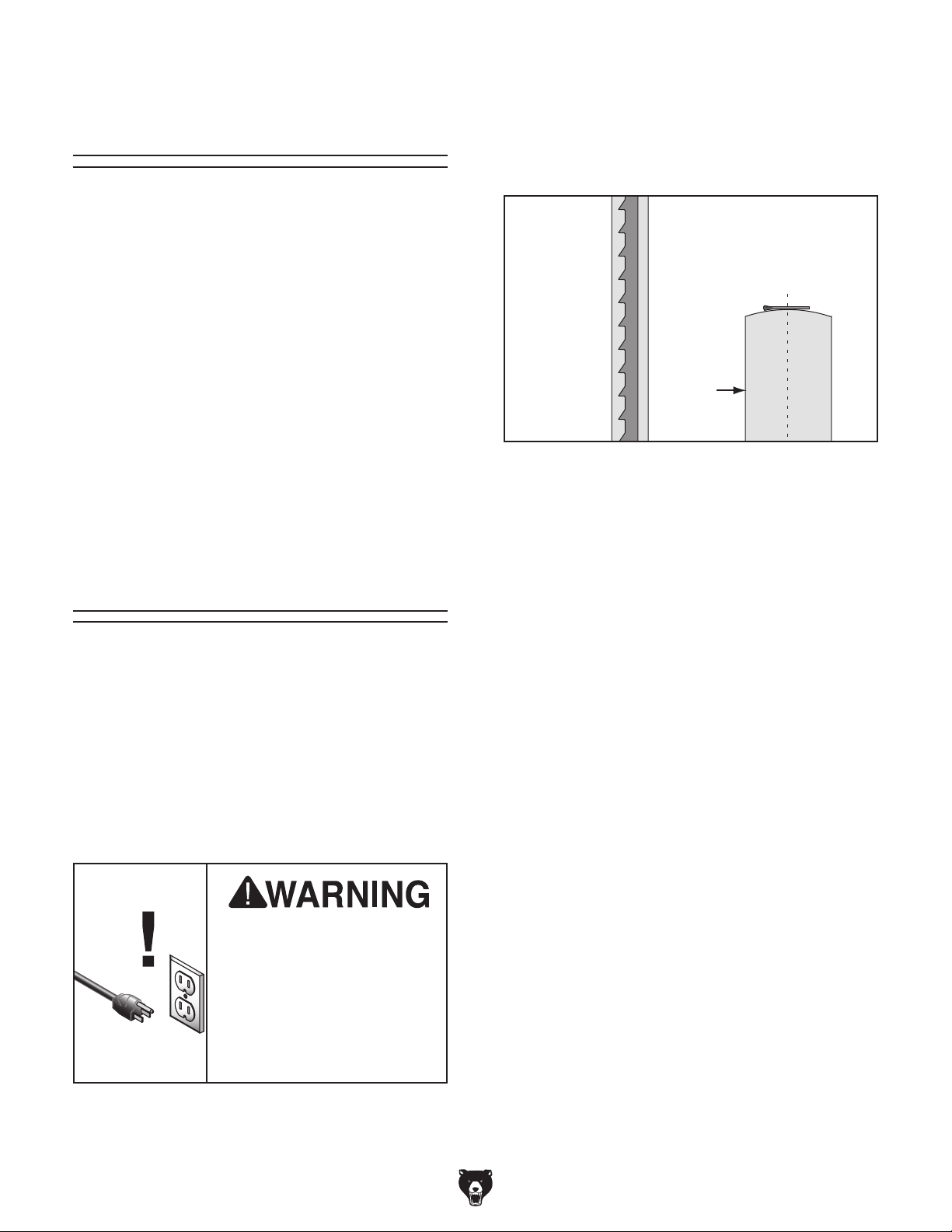

Blade Tracking

"Tracking" refers to how the blade rides on the bandsaw wheels. Proper tracking is important for maintaining bandsaw adjustments, achieving correct blade tension, and cutting accurately. Improper tracking reduces cutting accuracy, causes excess vibrations, and places stress on the blade and other bandsaw components. The shape of the wheels and the orientation of the wheels in relation to each other determine how the blade tracks.

Blade Centered

on Peak of Crown

Blade

Centered

Wheel

Figure 32. Blade centered on crown of wheel.

Blade tracking is primarily affected by the tilt of the upper wheel, known as “center tracking.” However, the alignment of both wheels plays an important part as well (see Wheel Alignment on Page 48 for more details).

The wheels on this bandsaw were aligned at the factory, so center tracking is the only adjustment that needs to be checked/performed when the saw is new.

Note: The Model G0970 is equipped with a gear reducer, which makes turning the wheels by hand very difficult. To make blade tracking adjustments that require turning the wheels by hand, release the V-belt tension by raising the motor and locking it in the raised position. Refer to Tensioning V-Belt on Page 46 for detailed instructions.

-22-

Serious personal injury can occur if the machine starts while your hand is touching the bandsaw wheel during tracking adjustments. Disconnect power from the bandsaw before performing blade tracking adjustments.

To adjust blade tracking:

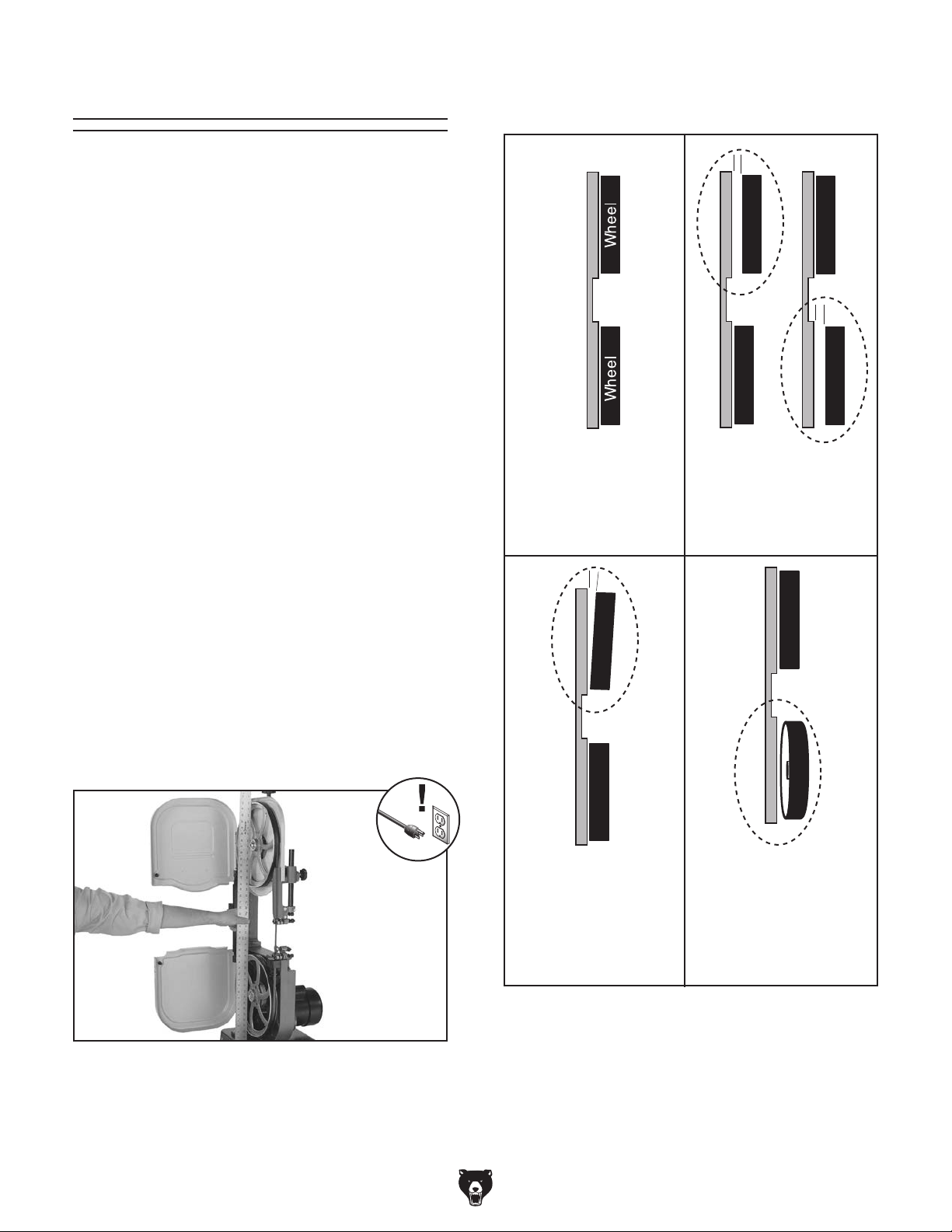

1. DISCONNECT MACHINE FROM POWER!

2. Adjust upper and lower blade guides away from blade (refer to Adjusting Blade Guides & Support Bearings on Page 25 for

detailed instructions).

Model G0970 (Mfd. Since 07/23)

Note: When adjusting blade tracking for test

Once assembly is complete, test run the machine to ensure it is properly connected to power and safety components are functioning correctly.

If you find an unusual problem during the test run, immediately stop the machine, disconnect it from power, and fix the problem BEFORE operating the machine again. The

table in the

SERVICE section of this manual can help.

run in this procedure, blade must have a reasonable amount of tension to simulate operating conditions. After test run is successfully completed, you will perform a thorough version of the following steps to more accurately tension the blade.

3. Pull blade tension quick-release lever down

(as viewed from rear of machine) to apply tension to blade (see Figure 33).

4. Use tension knob on top of bandsaw to bring

upper edge of indicator block to appropriate blade tension scale mark for blade width (see Figure 33).

Note: A

machine when new.

⁄8" wide blade is shipped with the

Quick-Release

Lever

6. Loosen wing nut behind tracking knob shown in Figure 34.

Wing Nut

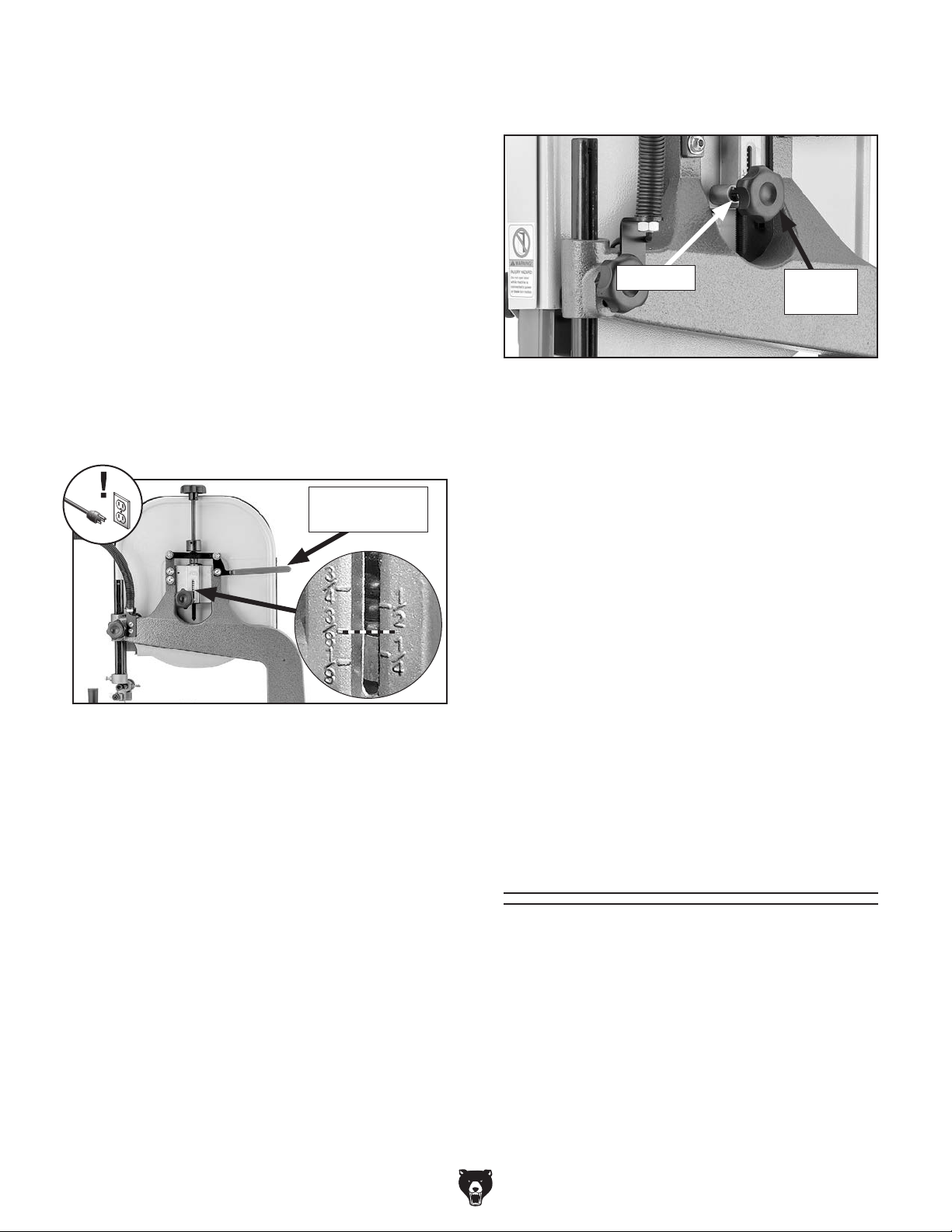

Figure 34. Location of tracking knob and wing

nut for blade tracking controls.

7. Rotate upper wheel with one hand and slowly adjust tracking knob with other hand until blade consistently tracks in center of wheel.

8. Tighten wing nut to lock setting, then spin upper wheel several times to confirm proper tracking. If necessary, repeat adjustment procedure until blade is tracking properly.

Tracking

Knob

Figure 33. Tension applied for a

5. Open upper wheel cover, then rotate upper

wheel by hand several times. Watch where blade rides on wheel crown (see Figure 32 for an illustration of this concept).

— If blade rides in center of upper wheel and

is centered on wheel crown, it is properly tracking and no adjustment is necessary— proceed to Test Run on Page 23.

— If blade is NOT properly tracking, proceed

to Step 6.

⁄8" blade.

9. Adjust blade guides (refer to Adjusting Blade Guides & Support Bearings on Page 25

for detailed instructions).

10. Tension V-belt (see Tensioning V-Belt on Page 46 for detailed instructions).

11. Install lower blade guard.

12. Close maintenance door and wheel covers.

Test Run

Troubleshooting

Model G0970 (Mfd. Since 07/23)

The Test Run consists of verifying the following: 1) The motor powers up and runs correctly.

-23-

setup instructions have been performed. Operating an improperly set up machine may result in malfunction or unexpected results that can lead to serious injury,

Serious injury or death can result from

Tensioning Blade

using this machine BEFORE understanding its controls and related safety information. DO NOT operate, or allow others to operate, machine until the information is understood.

DO NOT start machine until all preceding

death, or machine/property damage.

To test run machine:

1. Clear all setup tools away from machine.

2. Pull down on blade tension quick-release

lever to add tension to blade (see Figure 35).

A properly tensioned blade is essential for making accurate cuts, maximizing blade life, and making other bandsaw adjustments. However, a properly tensioned blade will not compensate for cutting problems caused by excessive feed rate, hardness variations between workpieces, and improper blade selection.

Optimal cutting results for any type of workpiece are achieved through a combination of correct blade selection, proper blade tension, properly adjusted blade guides and other bandsaw components, and using an appropriate feed rate.

Improper blade tension is unsafe, produces inaccurate and inconsistent results, and introduces unnecessary wear on bandsaw components. Over-tensioning the blade increases the chance of the blade breaking or wheel misalignment. Under-tensioned blades wander excessively while cutting and will not track properly during operation.

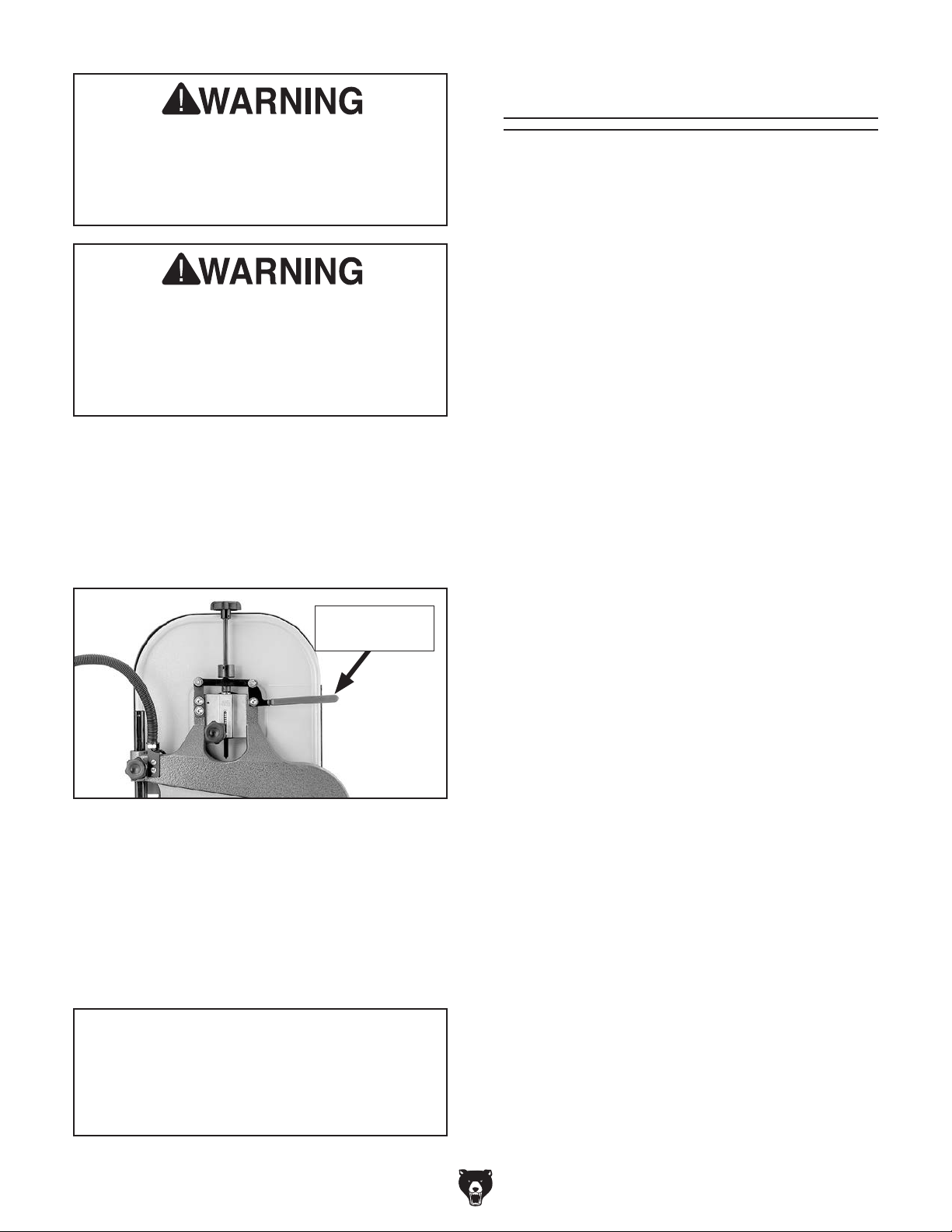

Quick-Release

Lever

Figure 35. Quick-release lever.

3. Connect machine to power supply.

4. Turn machine ON, verify motor operation,

and then turn machine OFF.

The motor should run smoothly and without

unusual problems or noises.

NOTICE

After the first 16 hours of operation, new V-belts will stretch and seat farther into the pulleys. To avoid slippage, re-tension new V-belts after this period.

-24-

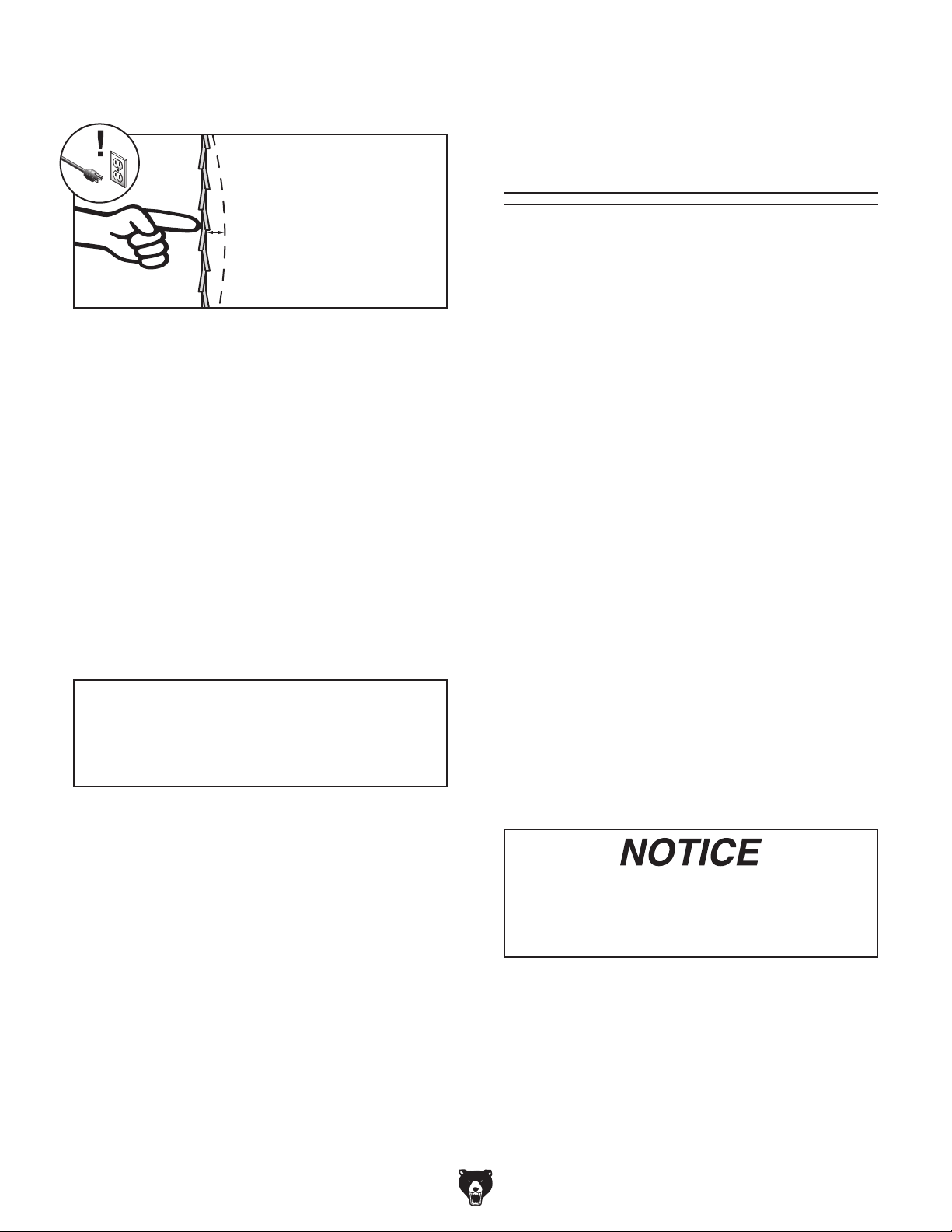

To tension blade:

1. DISCONNECT MACHINE FROM POWER!

2. Make sure blade is properly center tracking

(refer to Blade Tracking on Page 22 for instructions).

3. Raise guide post all the way and move upper and lower blade guides away from blade.

4. Engage blade tension quick-release lever to apply tension to blade.

Model G0970 (Mfd. Since 07/23)

5. Using moderate pressure, push center of blade with moderate force (see Figure 36).

Adjusting Blade

Guides & Support

Bearings

Approximately 1/4"

Blade Deflection

Figure 36. Blade deflection correctly tensioned.

— If blade deflects approximately 1⁄4", it is

properly tensioned. Proceed to Step 6.

— If blade deflects less than

tensioned. Rotate blade tensioning knob counterclockwise two full turns and repeat Step 5.

— If blade deflects

tensioned. Apply tension to blade incrementally and repeat Step 5 until properly tensioned.

6. Adjust blade guides (refer to Adjusting Blade Guides on Page 26 for instructions).

⁄4" or more, it is under-

⁄4", it is over-

The blade guide blocks can be adjusted leftto-right, as well as front-to-back, relative to the blade. Properly adjusting the blade guides provides side-to-side support to help keep the blade straight while cutting.

The support bearings are positioned behind the blade on the blade guides and prevent the blade from deflecting backward during cutting operations. Proper adjustment of the support bearings is an important part of making accurate cuts and keeps the blade teeth from coming in contact with the blade guides while cutting, which will bend the "tooth set" of the blade teeth and ruin the cutting effectiveness of the blade.

There are blade guides and a support bearing on each of the upper and lower blade guide assemblies. Both adjust in the same manner.

IMPORTANT: Verify blade is tracking (Page 22) and tensioned (Page 24) correctly before performing this procedure.

NOTICE

To prolong blade life, release tension on the blade if the machine will be idle for an extended period of time.

Familiarize yourself with the blade guide controls shown in Figure 5 on Page 5.

Items Needed Qty

Feeler Gauge 0.016" .......................................... 1

Whenever changing a blade or adjusting tension and tracking, upper and lower blade guides and support bearings must be readjusted before operation.

Model G0970 (Mfd. Since 07/23)

-25-

Adjusting Blade Support Bearings

1. DISCONNECT MACHINE FROM POWER!

2. Loosen blade support bearing thumbscrew,

then rotate blade support thumbwheel to position support bearing approximately

0.016" away from back of blade, as illustrated in Figure 37.

0.016''

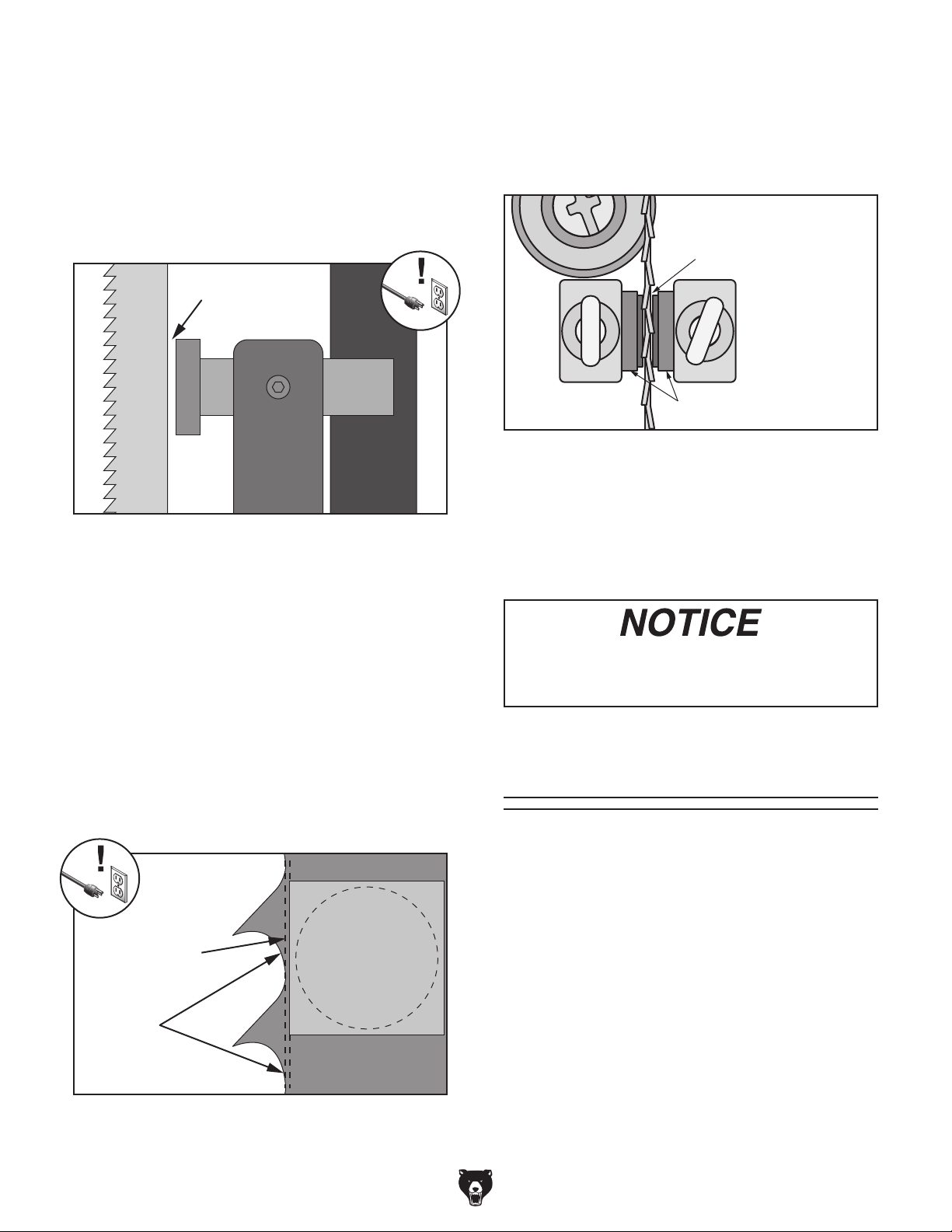

Figure 37. Blade support bearing positioned

0.016" away from blade.

3. Tighten thumbscrew to secure adjustment.

4. Loosen blade guide block thumbscrews, then

adjust guide blocks to 0.016" away from blade (see Figure 39).

0.016'' Gap Between Blade and Guide Block

Guide Blocks

Figure 39. Blade guide blocks adjusted 0.016"

away from each side of blade.

5. Tighten thumbscrews to secure adjustment.

6. Adjust lower blade guides by following proce- dure in Steps 2–5.

4. Adjust lower blade support bearing by follow- ing procedure in Steps 2–3.

Adjusting Blade Guides

1. DISCONNECT MACHINE FROM POWER!

2. Loosen blade guide thumbscrew, then rotate

blade guide thumbwheel to adjust blade guides to just behind blade gullets, as shown in Figure 38.

Approximately

0.016"

Blade

Gullets

Make sure blade teeth will not contact guide blocks when blade is against rear support bearing during operation.

Aligning Table

To ensure cutting accuracy, the table must be aligned squarely with the bandsaw blade and the miter slot must run parallel with the blade.

Items Needed Qty

Straightedge 24" ................................................ 1

90° Square 6" .................................................... 1

Fine Ruler 12" .................................................... 1

Masking Tape .................................... As Needed

Wrench Open-End 10mm .................................. 1

Figure 38. Blade guide (1 of 2) positioned 0.016"

behind blade gullets.

-26-

Model G0970 (Mfd. Since 07/23)

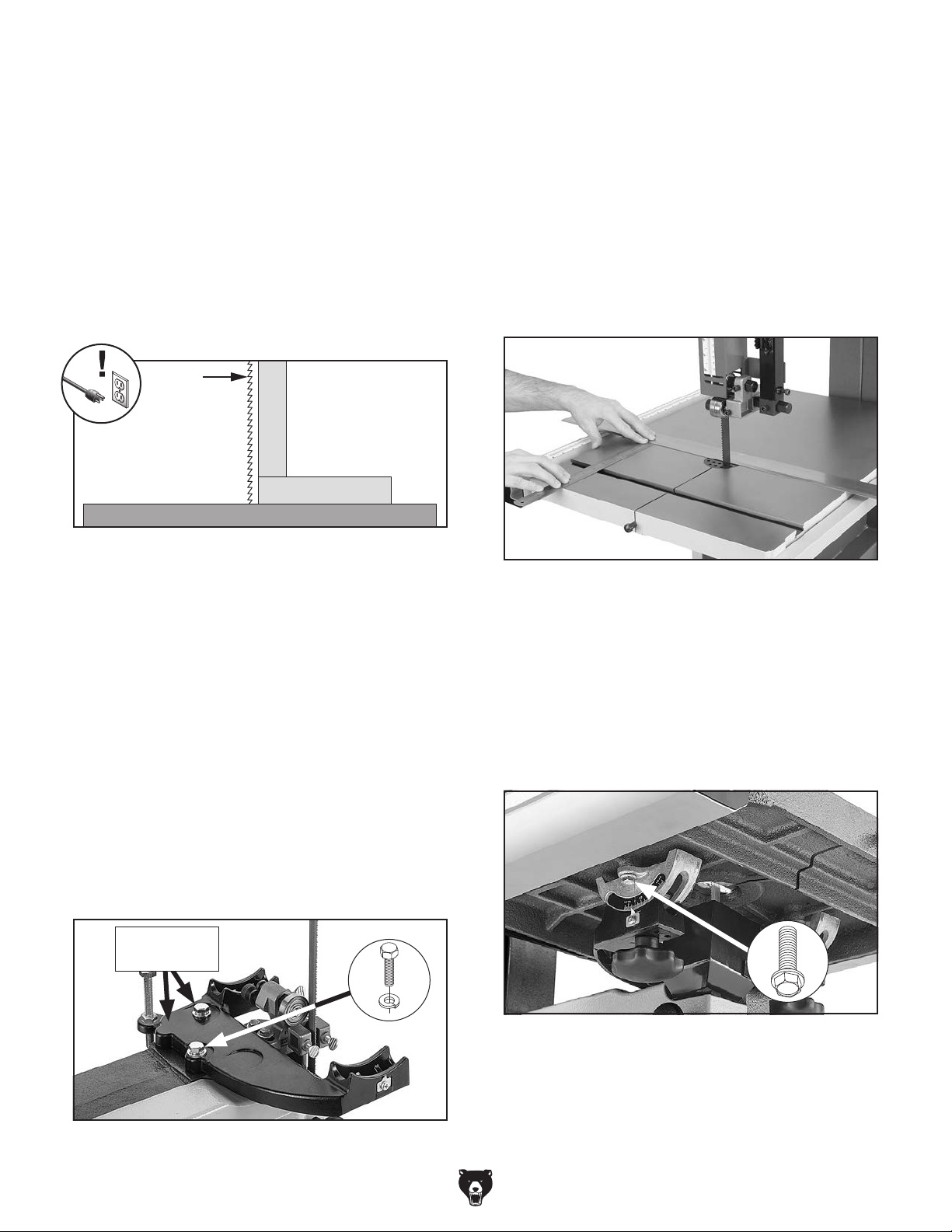

To align table:

Table

8. Tighten hex bolts, then repeat Steps 3–4.

1. DISCONNECT MACHINE FROM POWER!

2. Make sure blade is correctly tensioned (refer to Tensioning Blade on Page 24).

3. Make sure table is adjusted 90° to side of

blade and locked in place.

4. Place square on table and against back side of blade (see Figure 40). Square should be aligned evenly along entire length of square.

Blade

Square

Figure 40. Example of square against back of

blade.

— If blade is square to table, no adjustments

are required, proceed to Step 9.

— If blade is not square to table, determine

direction table needs to be adjusted, then proceed to Step 5.

9. Place straightedge along blade. Straightedge

should lightly touch both front and back of blade (see Figure 42).

Note: Make sure straightedge does not go

across a tooth while performing this step.

10. Use fine ruler to measure distance between

straightedge and miter slot at front and back of table (see Figure 42).

Figure 42. Example of placing straightedge

along blade and measuring to miter slot.

— If distances are equal, no adjustments are

required, proceed to Aligning Fence.

— If distances are not equal, proceed to Step 11.

5. Tilt table to 45° and lock in place.

6. Loosen (2) hex bolts securing trunnion brack- et (see Figure 41).

7. Place appropriate shims under front or rear

of trunnion bracket mounting location (see Figure 41).

Insert Shims

Under Here

x 2

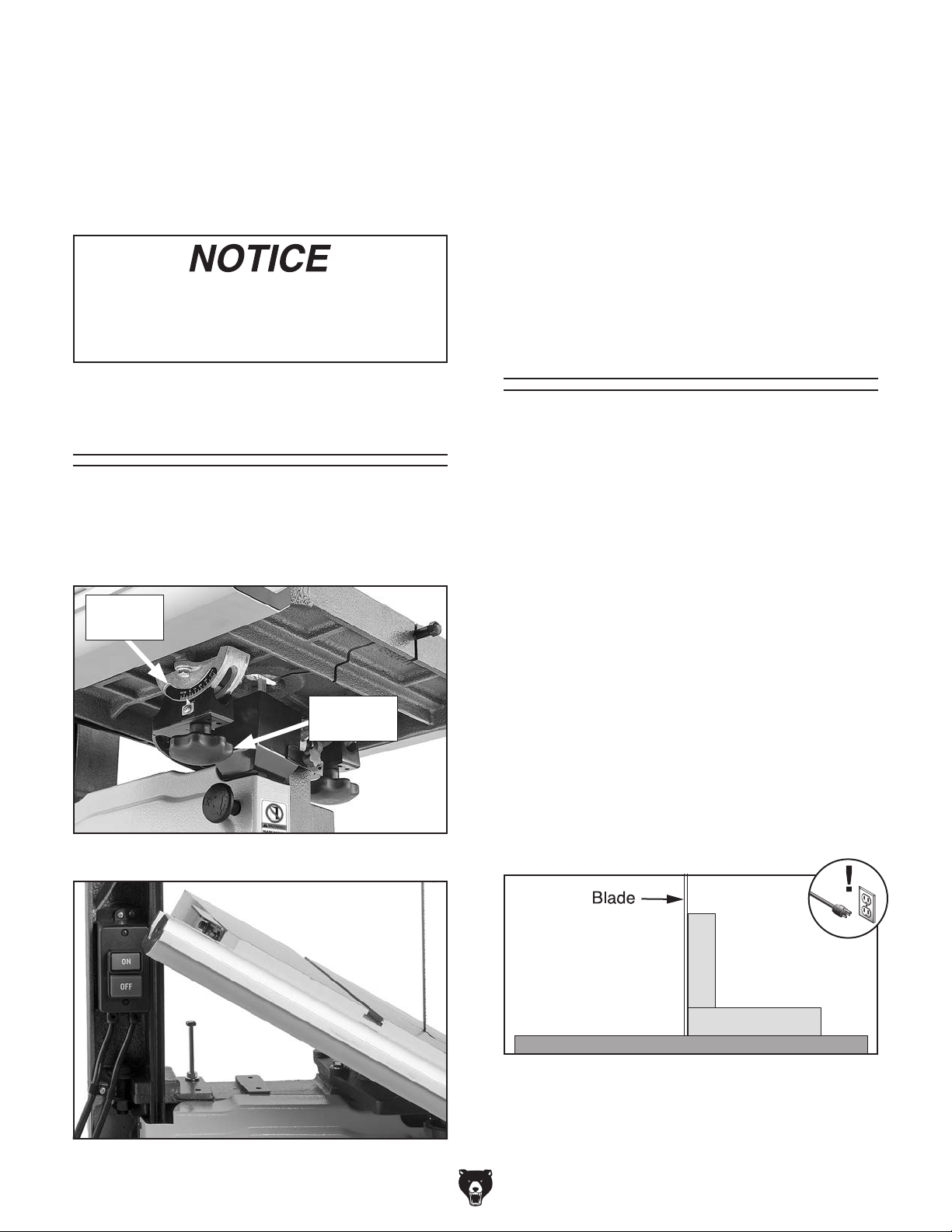

Figure 41. Location of trunnion bolts (table

removed for clarity).

Model G0970 (Mfd. Since 07/23)

11. Loosen (6) flange bolts that secure table to the trunnion brackets (see Figure 43).

x 6

Figure 43. Location of trunnion bracket flange

bolts.

-27-

12. Adjust table so distances are equal between

straightedge and miter slot at front and back of table.

13. Taking care not to move table, tighten flange bolts, then repeat Steps 9—11.

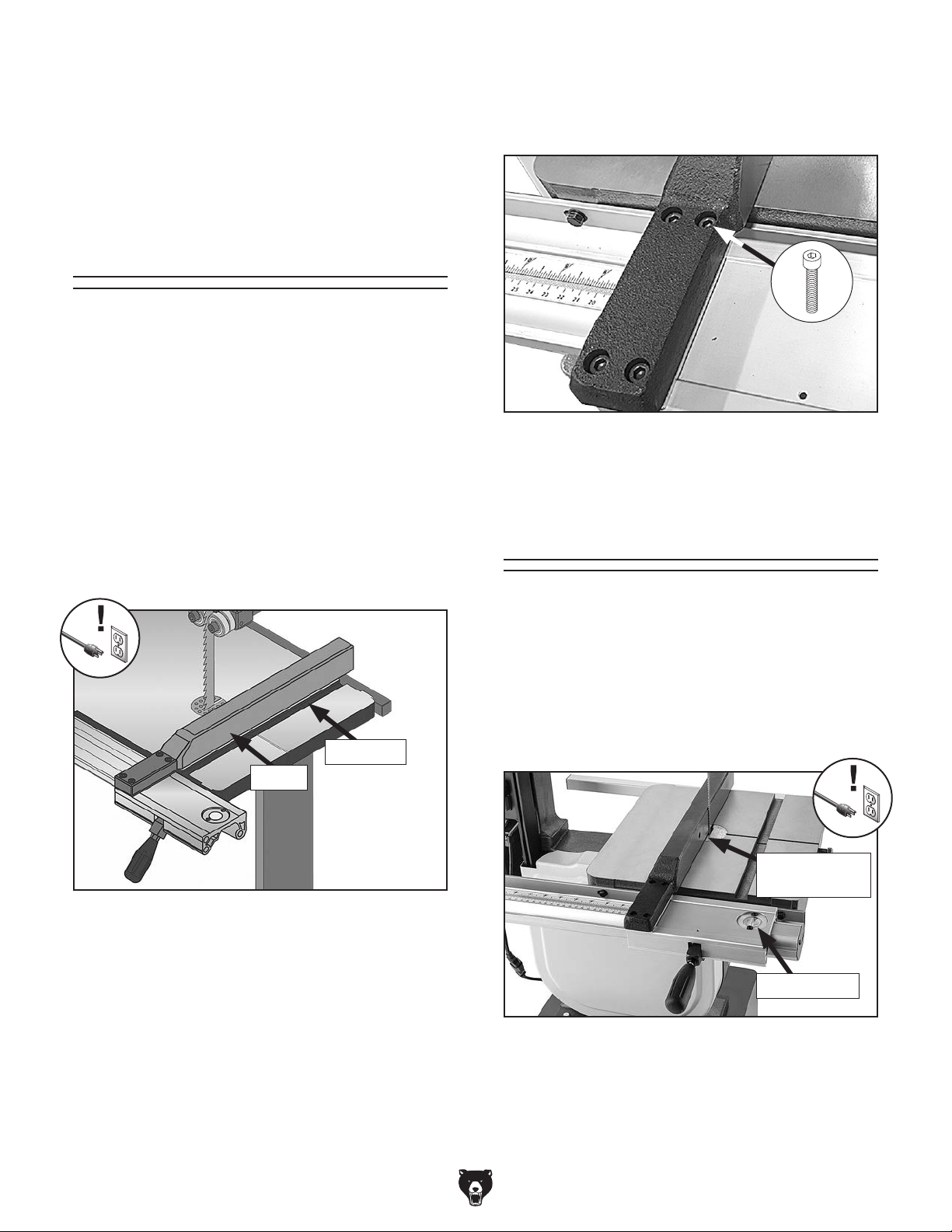

Aligning Fence

To ensure accurate cutting when using the fence, the face of the fence must be parallel to the table miter slot and, thus, to the side of the blade.

Item Needed Qty

Hex Wrench 5mm .............................................. 1

To align fence:

3. Loosen (4) cap screws shown in Figure 45,

adjust fence parallel to miter slot, then tighten cap screws.

x 4

Figure 45. Fence alignment.

1. DISCONNECT MACHINE FROM POWER!

2. Install fence on right side of blade, even with

edge of miter slot as illustrated in Figure 44, then lock it in place.

Miter Slot

Fence

Figure 44. Example of fence aligned with miter

slot.

Calibrating

Fence Scale

Item Needed Qty

Wrench Open-End 12mm .................................. 1

1. DISCONNECT MACHINE FROM POWER!

2. Raise guide post above fence height, then

position fence against left side of blade as shown in Figure 46.

Fence

Against Blade

— If fence is parallel with miter slot, no adjust-

ment is necessary, proceed to Calibrating Fence Scale.

— If fence is not parallel with miter slot, pro-

ceed to Step 3.

-28-

Fence Scale

Figure 46. Fence against blade.

— If fence scale is aligned with "0", no adjust-

ment is necessary.

— If fence scale is not aligned with "0", pro-

ceed to Step 3.

Model G0970 (Mfd. Since 07/23)

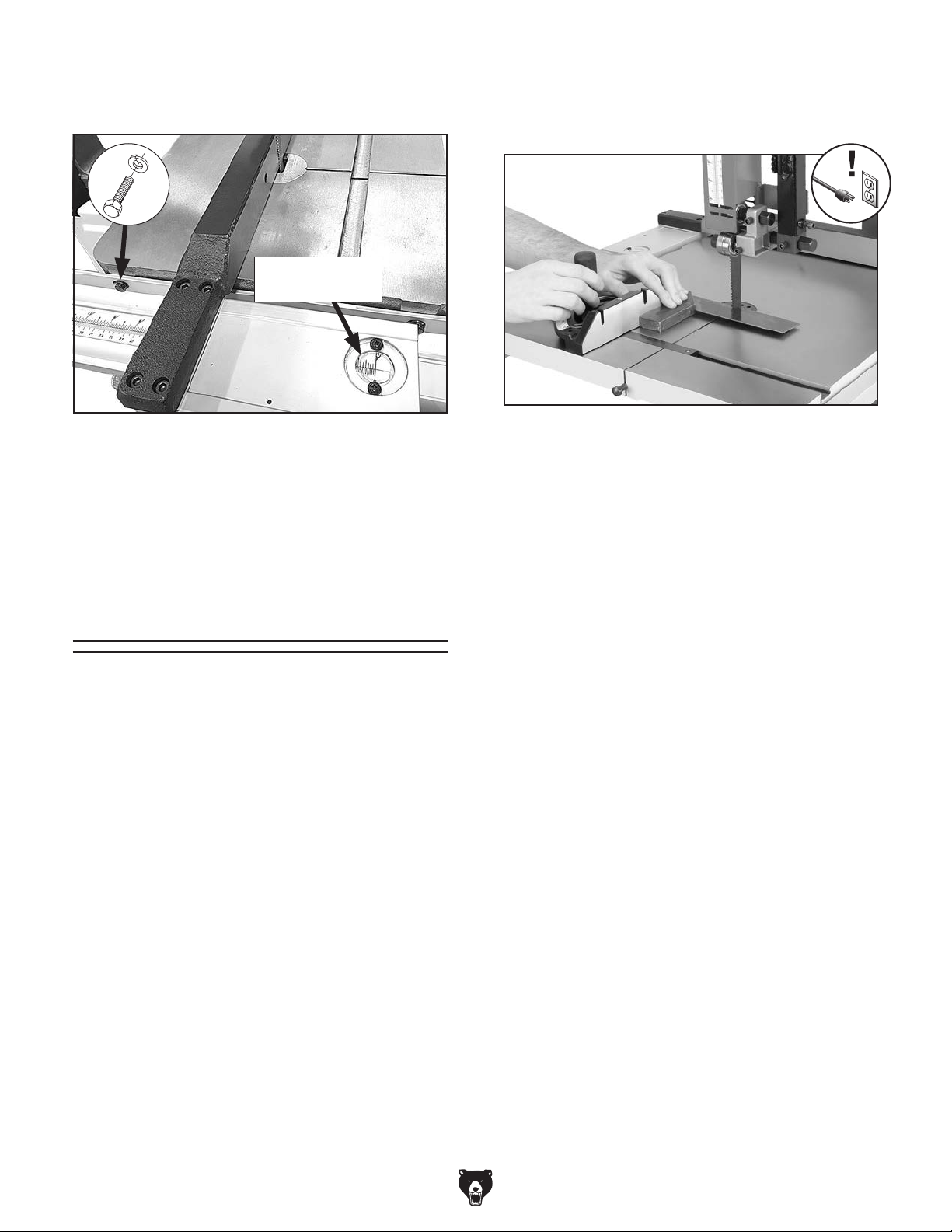

3. Loosen (2) hex bolts securing fence rail (see Figure 47).

x 2

Fence Scale

Aligned with "0"

2. Place one edge of square against face of

miter gauge and other side of square against side of blade as shown in Figure 48.

Figure 47. Location of fence rail hex bolts.

4. While keeping fence positioned against blade,

nudge front fence rail so indicator is aligned with "0" on scale, then tighten hex bolts.

Calibrating

Miter Gauge

To ensure cutting accuracy when using the miter gauge, the face of the miter gauge must be 90° to the side of the blade. Refer to Aligning Table on Page 26 before calibrating the miter gauge.

Item Needed Qty

Phillips Head Screwdriver #2 ............................ 1

To calibrate miter gauge:

1. DISCONNECT MACHINE FROM POWER!

Figure 48. Example of squaring miter gauge to

side of blade.

Note: Make sure square does not go across

a blade tooth when performing this step.

— If square rests flush and evenly against

both miter gauge face and side of blade, no adjustments are necessary.

— If square does not rest flush and evenly

against both miter gauge face and side of blade, miter gauge must be calibrated. Proceed to Step 3.

3. Loosen miter gauge lock knob and adjust

until square is flush against miter gauge face and side of blade, then tighten lock knob.

Note: Ensure miter gauge does not move

while tightening lock knob.

4. Loosen Phillips head screw that secures

pointer, adjust pointer to 0° mark on scale, then tighten screw to secure setting.

Model G0970 (Mfd. Since 07/23)

-29-

SECTION 4: OPERATIONS

The purpose of this overview is to provide the novice machine operator with a basic understanding of how the machine is used during operation, so the

discussed

later in this manual

Due to the generic nature of this overview, it is not intended to be an instructional guide. To learn more about specific operations, read this entire manual,

training from experienced machine operators, and do additional research outside of this manual by reading "how-to" books, trade magazines, or websites.

To reduce your risk of serious injury, read this entire manual BEFORE

To reduce risk of eye injury from flying

Operation Overview

machine controls/components

are easier to understand.

seek additional

using machine.

To complete a typical operation, the operator does the following:

1. Examines the workpiece to make sure it is

suitable for cutting.

2. Checks to make sure blade tension is correct,

and blade guides are positioned correctly.

3. Adjusts blade speed for type of material

being cut.

4. Marks cut line on workpiece.

5. Adjusts upper blade guide height to approxi-

mately mum support.

6. Puts on safety glasses and a respirator, rolls

up sleeves, and secures any clothing, or hair that could get entangled with moving parts.

7. Turns bandsaw ON.

8. Holds workpiece firmly and flatly against

table and either fence (or miter gauge), then pushes workpiece into blade at a steady and controlled rate until cut is complete.

⁄8"—1⁄4" above workpiece for maxi-

chips or lung damage from breathing dust, always wear safety glasses and a respirator when operating this machine.

If you are not experienced with this type of machine, WE STRONGLY RECOMMEND that you seek additional training outside of this manual. Read books/magazines or get formal training before beginning any projects. Regardless of the content in this section, Grizzly Industrial will not be held liable for accidents caused by lack of training.

-30-

Note: Depending on workpiece material, the

operator may squirt a small amount of cutting fluid on the cutting area to keep it from overheating and smoking.

9. Turns bandsaw OFF.

Workpieces that cannot be supported or stabilized without a vise or jig should not be cut on a vertical metal-cutting bandsaw, because they can unexpectedly move while cutting and draw the operator's hands into the blade causing serious personal injury. Examples are chains, cables, round or oblong-shaped workpieces, workpieces with internal or built-in moving or rotations parts, etc.

Model G0970 (Mfd. Since 07/23)

Operation Tips

The following tips will help you safely and effectively operate your bandsaw, and help you get the maximum life out of your saw blades.

Tips for Cutting:

Workpiece Inspection

Some metal workpieces are not safe to cut with a vertical metal cutting bandsaw; instead, a different tool or machine should be used.

• Keep the upper blade guides adjusted to approximately provide proper support for the blade during cutting operations.

• Replace, sharpen, and clean blades as necessary. Make adjustments periodically to keep the saw running in top condition.

• Use light and even pressure while cutting. Light contact with the blade makes it easier to follow lines and prevents extra friction.

• Avoid twisting the blade when cutting around tight corners. Use the proper width of blade for the radius of the corner and make relief cuts.

• Misusing the bandsaw or using incorrect techniques is unsafe and results in poor cuts. Remember—the blade does the cutting with the operator's guidance.

• Never start a cut with the blade in contact with the workpiece, and do not start a cut on a sharp edge of the workpiece.

• Pay attention to the characteristics of the chips when cutting—they are good indicators of proper blade speed and feed rate. See Chip Inspection Chart on Page 35 for more information.

⁄4" above the workpiece to

ELECTROCUTION HAZARD

This bandsaw is not designed to be used with water soluble cutting fluid or coolant. If needed, use a small amount of oil-based lubricant.

Before cutting, inspect the material for any of the following conditions and take the necessary precautions:

• Small or Thin Workpieces: Small or thin

workpieces are dangerous to cut if held by hand—avoid cutting these workpieces if possible. If you must cut a small or thin workpiece, attach it to or clamp it between larger scrap pieces that will both support the workpiece through the cut and keep your fingers away from the blade. Some thin sheet metals will not withstand the forces from this bandsaw during cutting; instead, use a shear, nibblers, or sheet metal nippers to cut these pieces.

• Round/Unstable Workpieces: Workpieces

that cannot be properly supported or stabilized without a vise or jig should not be cut on a vertical metal-cutting bandsaw. Examples are chains, cables, round or oblong-shaped workpieces, workpieces with internal or builtin moving or rotating parts, etc.

• Material Hardness: Always factor in the hard-

ness of the metal before cutting it. Hardened metals will take longer to cut, may require lubrication, and may require a different type of blade in order to efficiently cut them.

• Tanks, Cylinders, Containers, Valves, Etc:

Cutting into containers that are pressurized or contain gasses or liquids can cause explosions, fires, caustic burns, or machine damage. Avoid cutting any of these types of containers unless you have verified that the container is empty and it can be properly supported during a cut.

• Magnesium: Pure magnesium burns eas-

ily. Cutting magnesium with a dull blade can create enough friction to ignite the small magnesium chips. Avoid cutting magnesium, if possible.

Model G0970 (Mfd. Since 07/23)

-31-

Blade Selection

Selecting the right blade for the cut requires a knowledge of various blade characteristics.

Blade Terminology

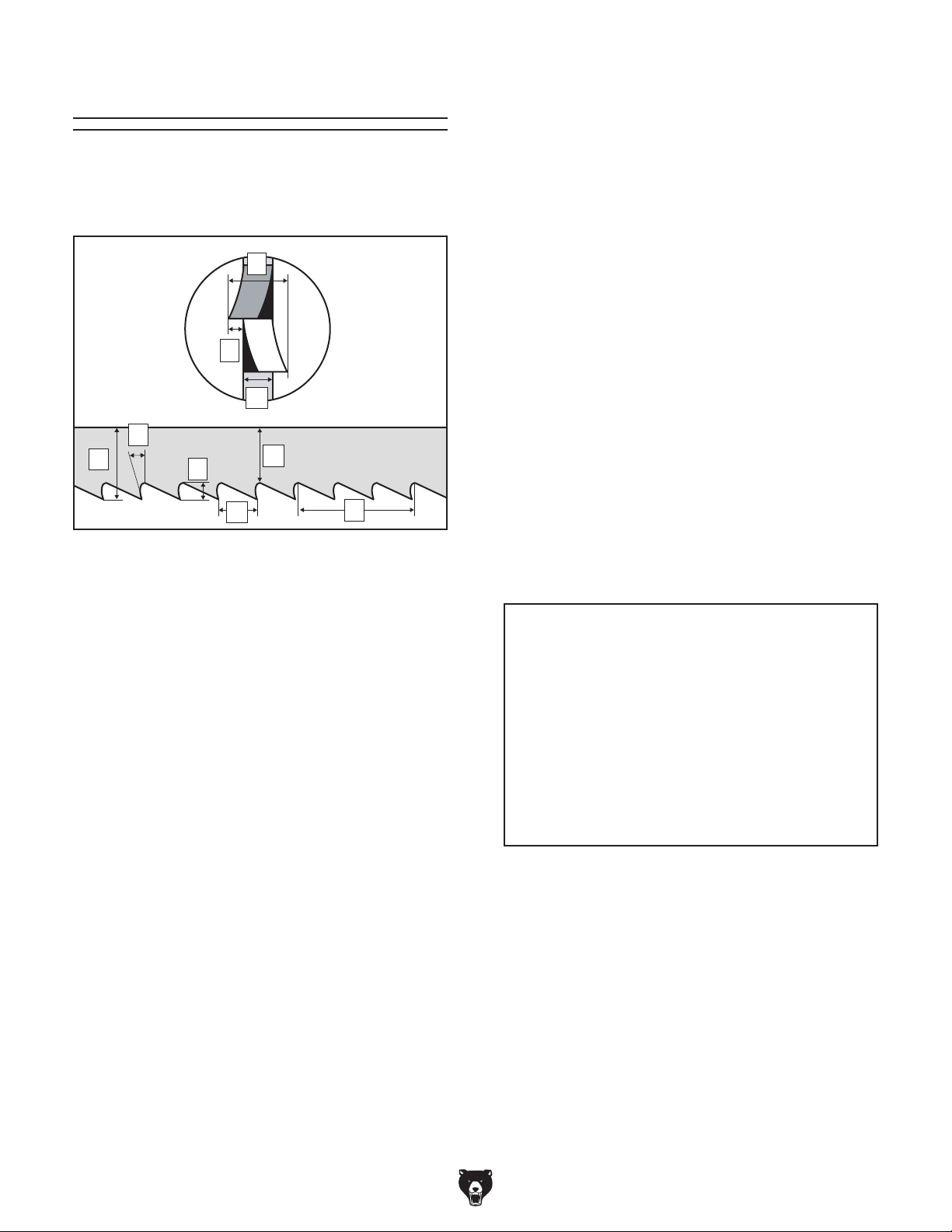

Figure 49. Bandsaw blade terminology.

A. Kerf: The amount of material removed by the

blade during cutting.

B. Tooth Set: The amount each tooth is bent left

or right from the blade.

C. Gauge: The thickness of the blade.

D. Blade Width: The widest point of the blade

measured from the tip of the tooth to the back edge of the blade.

E. Tooth Rake: The angle of the tooth face from

a line perpendicular to the length of the blade.

Blade Length

Measured by the blade circumference, blade lengths are usually unique to the brand of your bandsaw and the distance between the wheels.

G0970 Blade Length Range ............. 92

⁄2 "–931⁄2 "

Blade Width

Measured from the back of the blade to the tip of the blade tooth (the widest point), blade width is often the first consideration given to blade selection. Blade width dictates the largest and smallest curve that can be cut, as well as how accurately it can cut a straight line—generally the wider the blade, the straighter it will cut. Always pick the blade width that best suits your operation.

G0970 Blade Width Range ......................

Curve Cutting: Use the chart in Figure 50 to choose the correct blade for curve cutting. Determine the smallest radius curve that will be cut on your workpiece and use the corresponding blade width.

The list below shows the minimum radius that can be cut by common blade widths.

Width Radius

⁄8" ....................................1⁄8"

⁄16" ...................................3⁄8"

⁄4'' ....................................5⁄8''

⁄8'' .................................... 11⁄4''

⁄2'' .................................... 21⁄2''

⁄8'' .................................... 33⁄4''

⁄4'' .................................... 51⁄2''

Figure 50. Blade width radii chart.

⁄8"–3⁄4"

F. Gullet Depth: The distance from the tooth tip

to the bottom of the curved area (gullet).

G. Tooth Pitch: The distance between tooth

tips.

H. Blade Back: The distance between the bot-

tom of the gullet and the back edge of the blade.

I. Blade Pitch or TPI: The number of teeth per

inch measured from gullet to gullet.

-32-

Model G0970 (Mfd. Since 07/23)

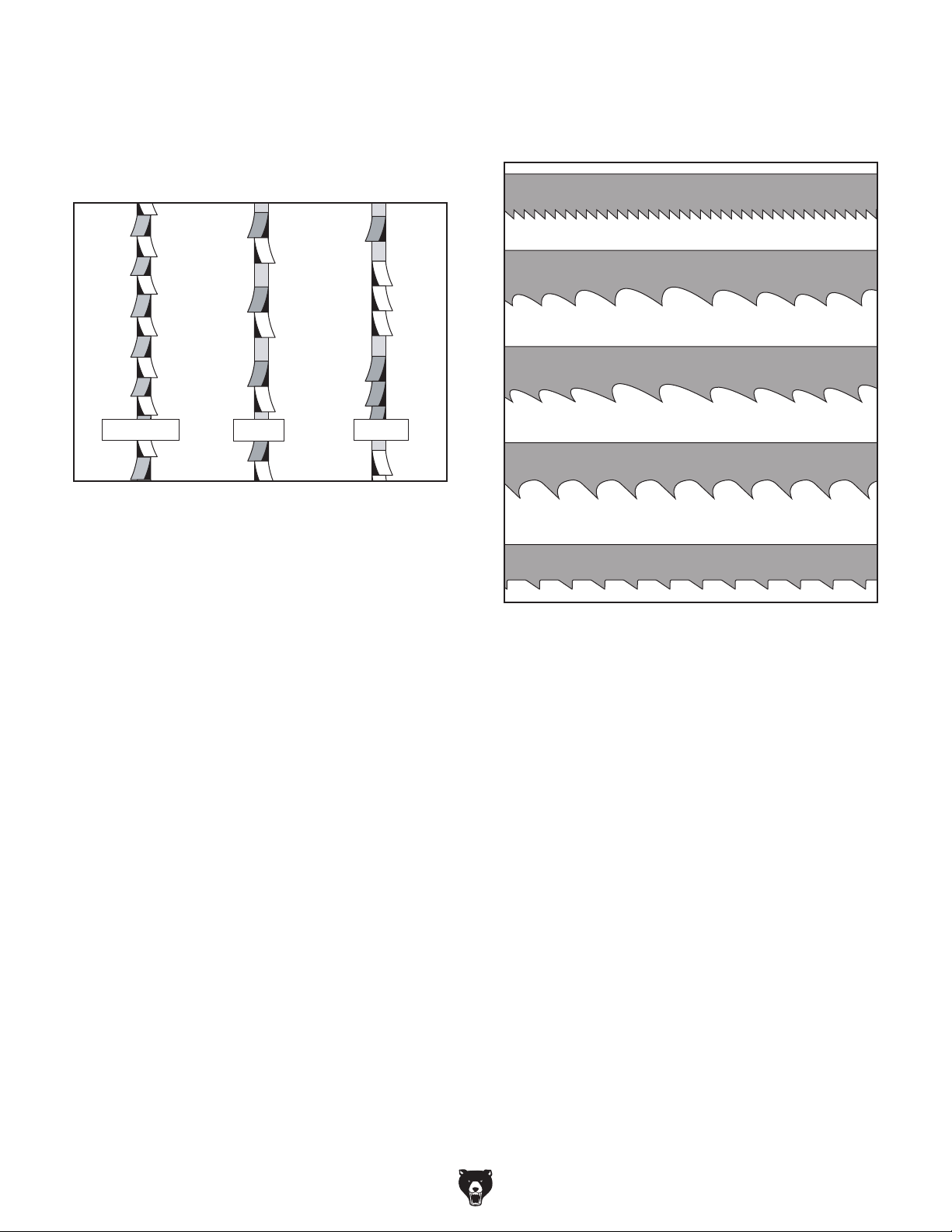

Tooth Set

Three common tooth sets are standard, wavy, and raker (see Figure 51), each removing material in a different manner to make the kerf in the workpiece.

Tooth Type

The most common tooth types are described below and illustrated in Figure 52.

Standard (or Raker)

Variable Pitch (VP)

Variable Pitch Positive Rake

Alternate

Figure 51. Bandsaw tooth sets.

Alternate: An all-purpose arrangement of bend-

ing the teeth evenly left and right of the blade. Generally used for milder metals.

Wavy: Generally three or more teeth in a group that are bent one way, followed by a non-set tooth, then another group bent the other way. Recommended for straight cuts in thin metals or thin-wall tubing.

Raker: Three teeth in a recurring group—one bent left, next one bent right, and then a non-set tooth. The raker is ideal for most contour cuts.

Wavy

Raker

Hook (or Claw)

Skip (or Skip Tooth)

Figure 52. Bandsaw blade tooth types.

Standard or Raker: Equally spaced teeth set

a "0" rake angle. Recommended for all purpose use.

Variable Pitch (VP): Varying gullet depth and tooth spacing, a "0" rake angle, excellent chip removing capacity, and smooth cutting.

Variable Pitch with Positive Rake: Varying gullet depth and tooth spacing, a positive rake angle, better chip formation, and aggressive cutting.

Model G0970 (Mfd. Since 07/23)

Hook or Claw: Wide gullets (round or flat), equally spaced teeth, positive rake angle, and fast cut with good surface finish.

Skip or Skip Tooth: Wide, flat gullets, a "0" rake angle, equally spaced teeth, and recommended for non-ferrous materials.

-33-

Blade Pitch (TPI)

The chart below is a basic starting point for choosing teeth per inch (TPI) for variable tooth pitch blades and standard raker set bi-metal blades/HSS blades. However, for exact specifications of bandsaw blades that are correct for your operation, contact the blade manufacturer.

3. Refer to the "Material Shapes" row and find

the shape of the material to be cut.

4. In the applicable row, read across to the right

and find the box where the row and column intersect. Listed in the box is the minimum TPI recommended for the variable tooth pitch blades.

To select the correct blade pitch:

1. Measure the material thickness. This mea-

surement is the length of cut taken from where the tooth enters the workpiece, sweeps through, and exits the workpiece.

2. Refer to the "Material Width/Diameter" row of the blade selection chart in Figure 53, and read across to find the workpiece thickness you need to cut.

Material Width/Diameter

Teeth Per Inch (TPI) for Variable Pitch Blades

Material Shapes

TOOTH SELECTION

inch

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 192½ 3½

75 100 150 200 250 300 350 400

4/65/8

3/4

2/3 1.4/2.5

5. The "Cutting Speed Rate Recommendation"

section of the chart offers guidelines for various metals, given in feet per minute (FPM). Choose the speed closest to the number shown in the chart.

450

3/4

2/3

1.5/.8

CUTTING SPEED RATE RECOMMENDATION

Speed FPM

Material Material Material Material

Carbon

Steel

Angle

Steel

Thin

Tube

Aluminum

Alloy

Copper

Alloy

Speed FPM

(M/Min)

196~354

(60) (108)

180~220 (54) (67)

220~534

(67) (163)

229~482

(70) (147)

Tool Steel

High-Speed

Tool Steel

Cold-Work

Tool Steel

Hot-Work Tool Steel

Oil-Hardened

Tool Steel

Speed FPM

(M/Min)

203 (62)

75~118

(25) (36)

95~213

(29) (65)

203 (62)

203~213 (62) (65)

Alloy

Steel

Mold Steel

Water Hardened Tool Steel

Stainless

Steel

CR Stainless

Steel

Speed FPM

(M/Min)

111~321 (34) (98)

246 (75)

242 (75)

(26)

85-203

(26) (62)

Free Machining

Stainless Steel

Gray

Cast Iron

Ductile

Austenitic

Cast Iron

Malleable

Cast Iron

Plastics

Figure 53. General guidelines for blade selection and speed chart.

Speed FPM

(M/Min)

150~203

(46) (62)

108~225 (33) (75)

65~85

(20) (26)

321

(98)

220 (67)

-34-

Model G0970 (Mfd. Since 07/23)

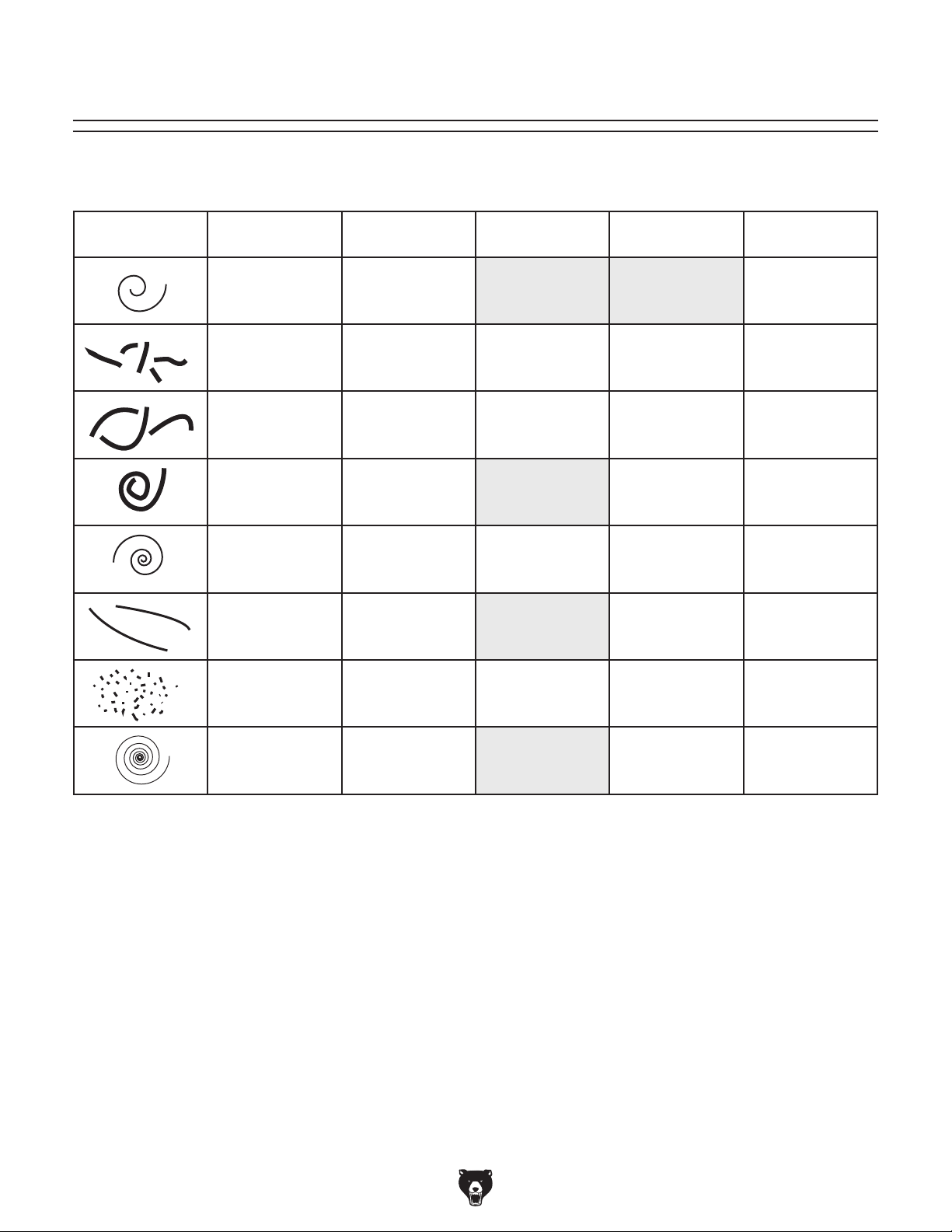

Chip Inspection Chart

thin & curled

short, hard & thick

thin & curled

short, hard & thick

thick, hard & strong

thin & curled

short, hard & thick

thick, hard & strong

thin & curled

short, hard & thick

thick, hard & strong

hard & thin

thin & curled

short, hard & thick

thick, hard & strong

thin & straight

hard & thin

thin & curled

short, hard & thick

thick, hard & strong

thin & straight

powdery

hard & thin

thin & curled

short, hard & thick

thick, hard & strong

thin & straight

powdery

thin & curled tightly

hard & thin

The best method of evaluating the performance of your cutting operation is to inspect the chips that are formed. Refer to the chart below for chip inspection guidelines.

Chip

Appearance

Chip

Description

Chip

Color

Blade

Speed

Feed

Pressure

Thin & Curled Silver Good Good

Hard, Thick &

Short

Hard, Strong &

Thick

Hard, Strong &

Thick

Brown or Blue Decrease Decrease

Silver or Light

Brown

Good

Decrease

Slightly

Hard & Thin Silver Increase Decrease

Straight & Thin Silver Good Increase

Additional

Actions

Lubricate with

Light Oil

Lubricate with

Light Oil

Check Blade

Pitch

Check Blade

Pitch

Curled Tight &

Thin

Powdery Silver Decrease Increase

Silver Good Decrease

Figure 54. Chip inspection chart.

Check Blade

Pitch

Model G0970 (Mfd. Since 07/23)

-35-

Blade Care

& Break-In

Blade Care

A bandsaw blade is a thin piece of steel that is subjected to tremendous strain. You can obtain longer use from a bandsaw blade if you give it fair treatment and always use the appropriate feed rate for your operation.

Be sure to select blades with the proper width, set, type, and pitch for each application. Using the wrong blade will produce unnecessary heat and shorten the life of the blade.

Blade Breakage

Many conditions may cause a bandsaw blade to break. Blade breakage is unavoidable in some cases, since it is the natural result of the peculiar stresses that bandsaw blades are subjected to.

Blade breakage is also due to avoidable circumstances. Avoidable blade breakage is most often the result of poor care or judgement on the part of the operator when mounting or adjusting the blade or support guides.

The most common causes of blade breakage are:

A clean blade will perform much better than a dirty blade. Dirty or gummed up blades pass through the cutting material with much more resistance than clean blades. This extra resistance also causes unnecessary heat.

Use the Chip Inspection Chart on Page 35 to check blade efficiency.

Blade Break-In

The tooth tips and edges of a new blade are extremely sharp, and cutting at too fast of a feed rate fractures the beveled edges of the teeth and causes premature blade wear.

To properly break in a new blade:

1. Choose correct speed for blade and material

of operation.

2. Reduce feed pressure by half for first

50–100 in

3. To avoid twisting blade when cutting, adjust

feed pressure when total width of blade is in cut.

of material cut.

• Faulty alignment or adjustment of the blade guides.

• Forcing or twisting a wide blade around a short radius.

• Feeding the workpiece too fast.

• Dull or damaged teeth.

• Over-tensioned blade.

• Upper blade guide assembly set too high above the workpiece. Adjust the top blade guide assembly so that there is approximate-

⁄8"– 1⁄4" between the bottom of the assem-

ly bly and the workpiece.

• Using a blade with a lumpy or improperly finished braze or weld.

• Leaving the blade tensioned when not in use.

• Using the wrong pitch (TPI) for the workpiece thickness. The general rule of thumb is to have no less than two teeth in contact with the workpiece at all times during cutting.

-36-

NOTICE

To prolong blade life, release tension on the blade if the machine will be idle for an extended period of time.

Model G0970 (Mfd. Since 07/23)

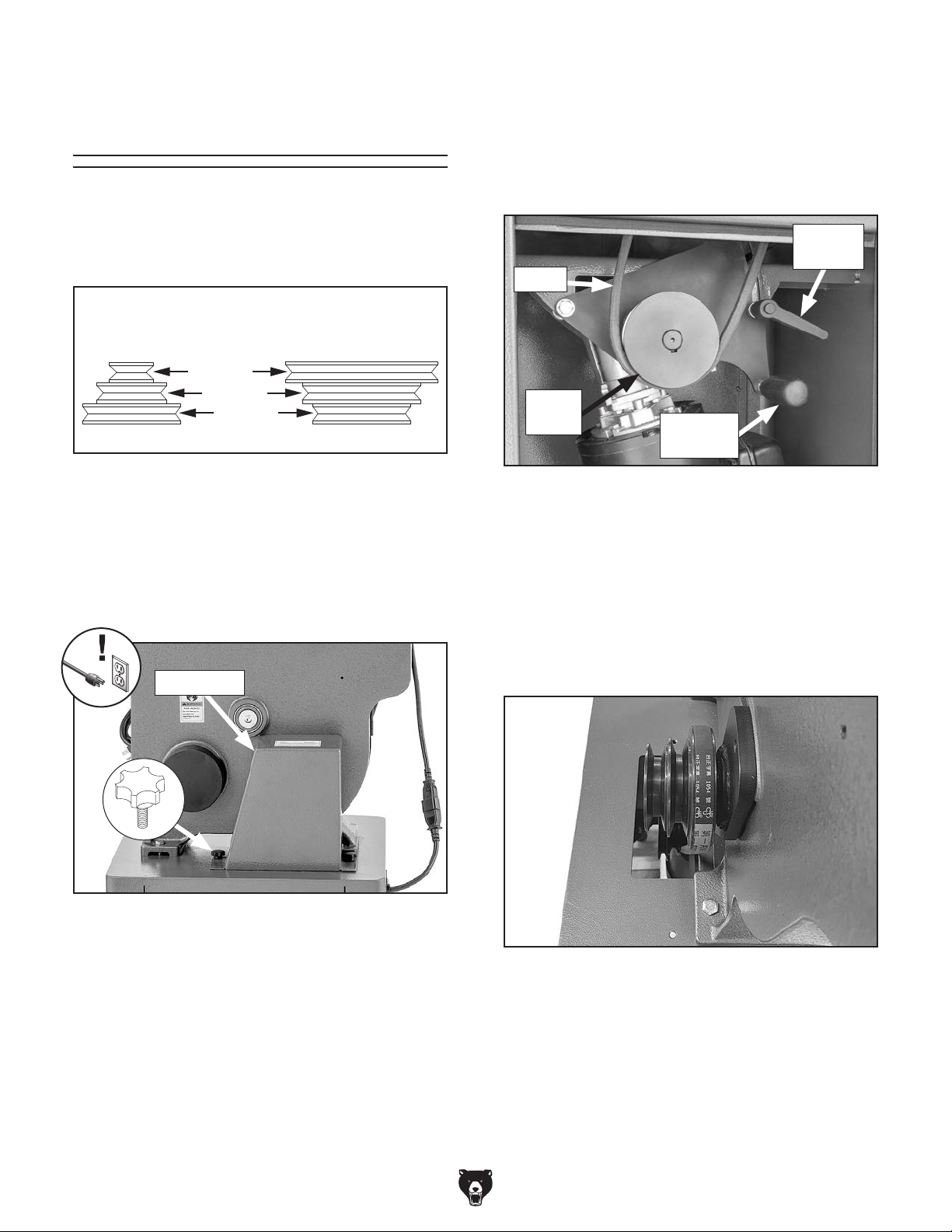

Changing

Blade Speed

The Model G0970 has three blade speeds to accommodate the blade type, material being used, and cut being performed. Simply move the V-belt according to the illustration in Figure 55.

4. Loosen motor tilt lock handle (see Figure 57).

5. Lift up on motor tilt handle to tilt motor as far

as it will go; while holding motor up, tighten lock handle to hold motor in place (see Figure 57).

Tilt Lock

Handle

V-Belt

Motor Pulley

161 FPM

270 FPM

378 FPM

Figure 55. Belt speed positions.

To change blade speed:

1. DISCONNECT MACHINE FROM POWER!

2. Loosen (2) knob bolts (see Figure 56), then

remove belt guard.

Belt Guard

Bandsaw

Pulley

Motor

Pulley

Figure 57. Motor tilted and locked in place.

6. Move V-belt to desired location on motor

pulley as shown in Figure 57, then place other end around corresponding sheave on bandsaw pulley (see Figure 58).

Note: For easier belt movement, move belt

on motor pulley first, then move it over on bandsaw pulley.

Motor Tilt

Handle

x 2

Figure 56. Belt guard installed.

3. Open maintenance door.

Model G0970 (Mfd. Since 07/23)

Figure 58. Belt installed.

7. Loosen motor tilt lock handle to lower motor,

then while pressing down on motor handle, tighten lock handle. Refer to Tensioning

V-Belt on Page 46.

8. Install pulley cover and close maintenance

door.

-37-

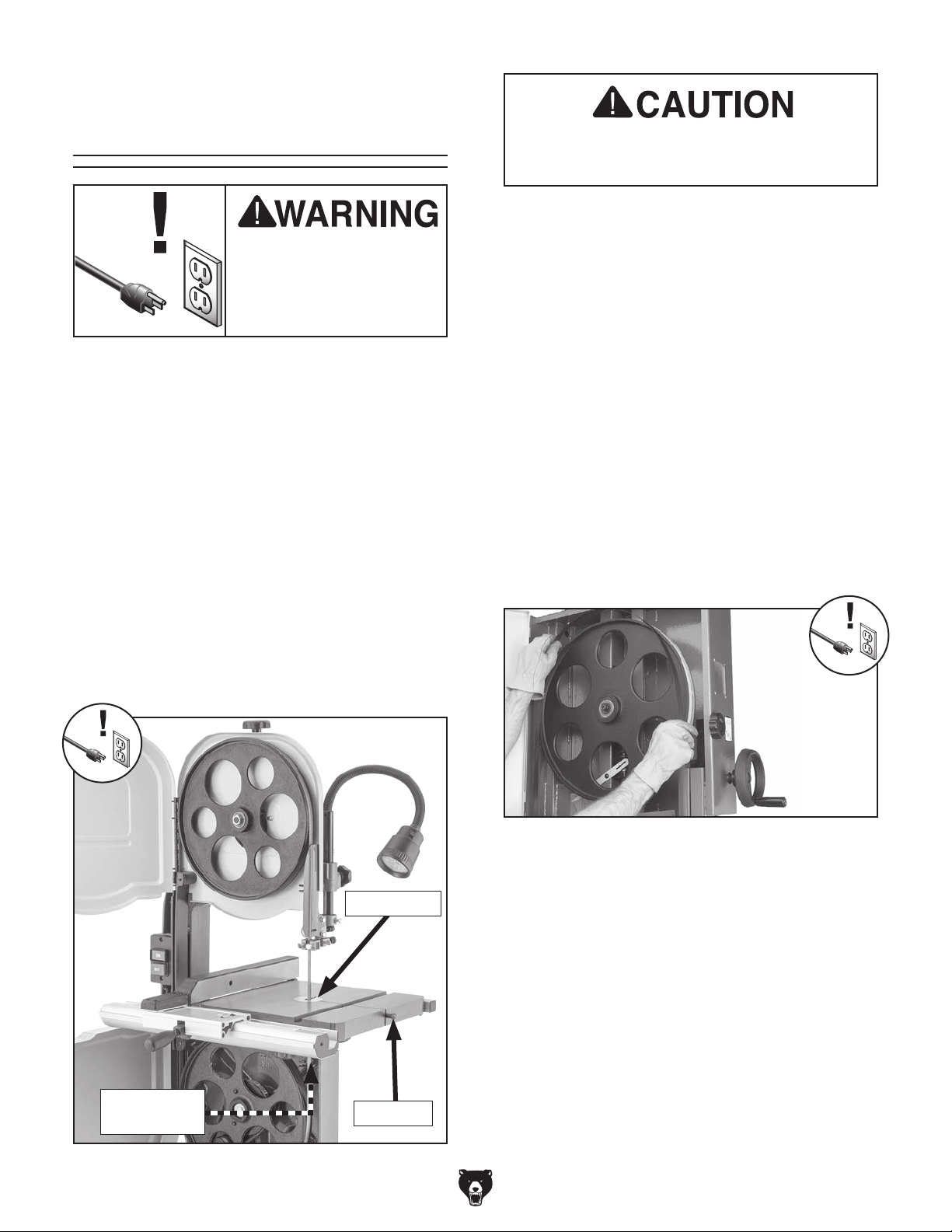

Removing/Installing

Blade

Always disconnect power to the machine when changing blades. Failure to do this may result in serious personal injury.

Items Needed Qty

Leather Gloves ...........................................1 Pair

Open-End Wrench 12mm .................................. 1

Small Brass Hammer or Mallet ......................... 1

Removing Blade

1. DISCONNECT MACHINE FROM POWER!

2. Lift blade tension quick-release lever to

remove tension from blade.

Before proceeding with the next step, wear gloves to protect your hands while handling and installing the blade.

4. Open upper and lower wheel covers, then with

gloved hands, slide blade off both wheels.

5. Rotate blade 90° and slide it through slot in table to remove it.

Installing Blade

1. DISCONNECT MACHINE FROM POWER!

2. Slide blade through table slot, ensuring that

teeth are pointing down toward front of table.

Note: If the teeth will not point downward

in any orientation, the blade is inside-out. Remove the blade, and twist it right-side-out.

3. Slip blade into blade guides, and mount it on upper and lower wheels (see Figure 60).

3. Remove table insert from center of table,

table pin from end of table slot, and lower blade guard (see Figure 59). Adjust upper and lower blade guide assemblies away from blade.

Table Insert

Figure 60. Example of placing blade on wheel.

4. Move blade tension quick-release lever to

down position.

5. Adjust blade tension (see Tensioning Blade on Page 24) and blade tracking (see

Blade Tracking on Page 22).

6. Adjust upper/lower blade guides and support bearings (see Adjusting Blade Guides & Support Bearings on Page 25).

Lower

Blade Guard

Figure 59. Location of table insert and pin.

-38-

Table Pin

Model G0970 (Mfd. Since 07/23)

7. Close and secure wheel covers and guide

Table

post blade cover, and install table insert and gap screw.

Note: When tilting table left, positive stop bolt must be lowered or removed. Be sure to re-adjust it when returning table perpendicular with blade.

8. If necessary, adjust blade tension quickrelease lever (see Tensioning Blade on

Page 24).

When changing to a different blade length, blade tension gauge must be calibrated. See Page 49 for more information and instructions.

Table Tilt

The table can be tilted to make angled or beveled cuts. A simple tilt scale is provided on the trunnion for a quick gauge (see Figure 61). For more accurate results use a protractor.

Tilt Scale & Pointer

To tilt table:

1. Loosen both table lock knobs underneath

table.

2. Tilt table to desired angle, then tighten lock

knobs.

Calibrating Table Tilt

When properly adjusted, the positive stop bolt enables the table to be quickly returned 90° to the blade. To tilt the table to the right, the positive stop bolt must be lowered or removed, then readjusted after table is returned to 0°.

Items Needed Qty

Wrench Open-End 13mm .................................. 1

Phillips Head Screwdriver #2 ............................ 1

Machinist's Square ............................................ 1

To calibrate table tilt:

Lock Knob

(1 of 2)

Figure 61. Table tilt controls.

Figure 62. Table tilted.

1. DISCONNECT MACHINE FROM POWER!

2. Make sure blade is properly tensioned (refer to Tensioning Blade on Page 24).

3. Completely raise upper blade guide assem-

bly, then place machinist's square flat on table and against side of blade, as shown in Figure 63.

Square

Figure 63. Checking table tilt accuracy.

4. Loosen table tilt lock knobs and adjust table

so it is 90° to blade.

Model G0970 (Mfd. Since 07/23)

-39-

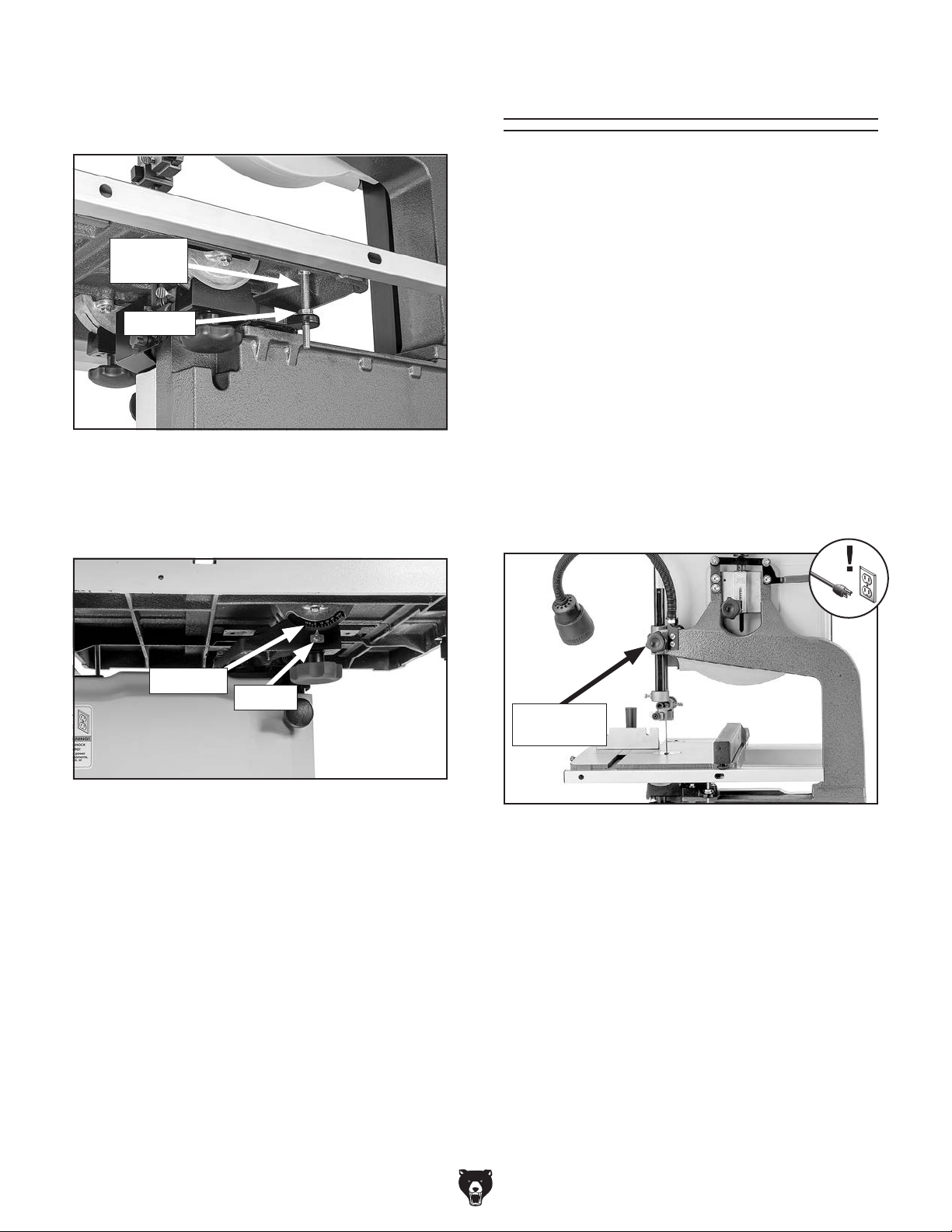

5. Loosen jam nut, then raise or lower positive

stop bolt until it is snug to bottom of table (see Figure 64).

Positive

Stop Bolt

Jam Nut

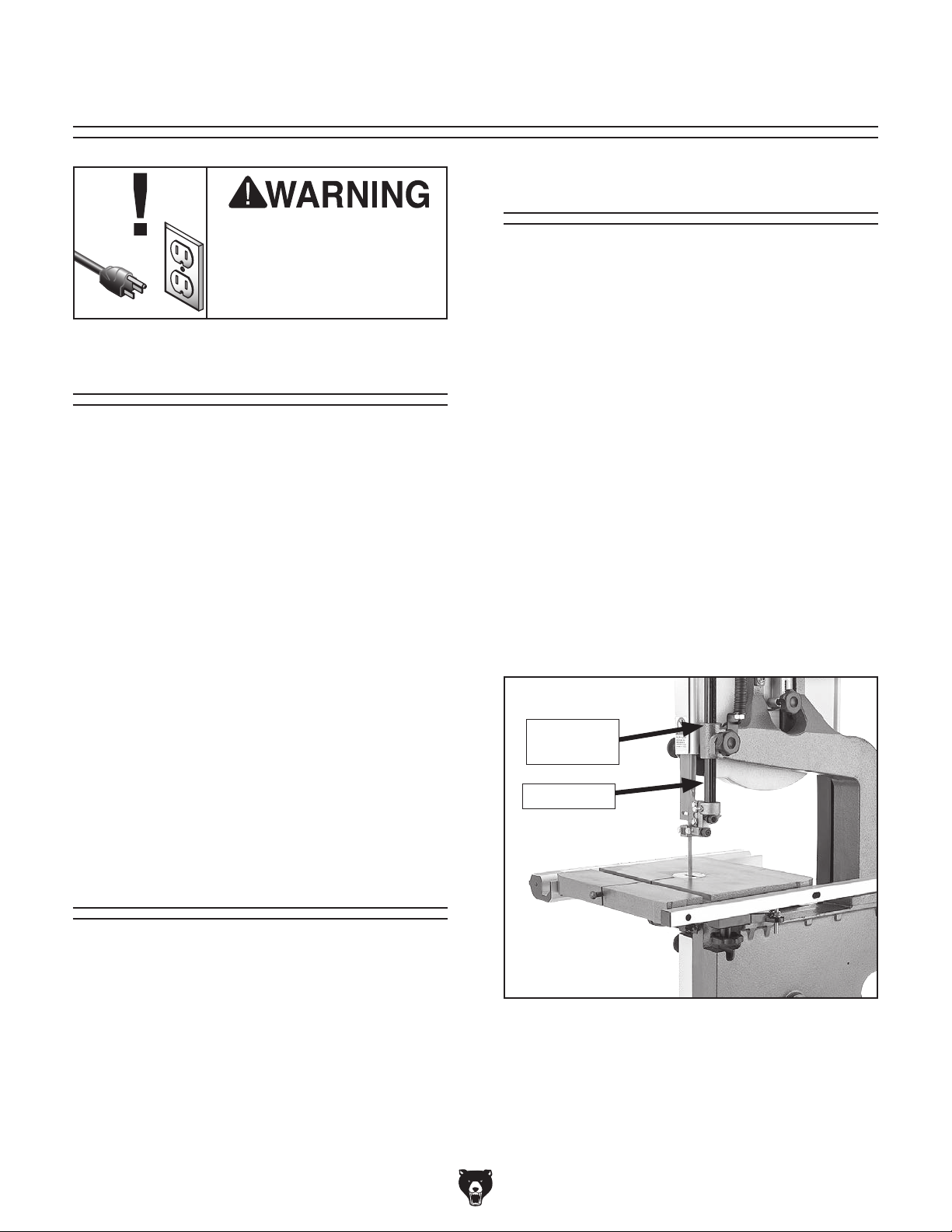

Guide Post

The guide post assembly is used for two purposes: 1) To properly position the blade guard to protect the operator from the exposed blade between the workpiece and the upper wheel housing, and

2) to position the upper blade guides close to the

workpiece for blade support.

In order to cut accurately and safely, position the bottom of the upper blade guides approximately

⁄4" above the workpiece—this positioning pro-

vides the greatest blade support and minimizes the amount of blade exposed to the operator during operation.

Figure 64. Positive stop bolt.

6. Observe position of table tilt pointer on

tilt scale located underneath front of table (see Figure 65).

Tilt Scale

Pointer

Figure 65. Location of table tilt scale.

7. If necessary, loosen Phillips head screw

securing pointer, adjust pointer to 0°, then tighten screw.

To adjust guide post:

1. DISCONNECT MACHINE FROM POWER!

2. Loosen guide post lock knob (see Figure 66).

Guide Post

Lock Knob

Figure 66. Guide post assembly.

3. Position bottom of upper blade guides

approximately tighten lock knob.

⁄4" above workpiece, then

-40-

Model G0970 (Mfd. Since 07/23)

SECTION 5: ACCESSORIES

Installing unapproved accessories may

order online at www.grizzly.com or call 1-800-523-4777

cause machine to malfunction, resulting in serious personal injury or machine damage. To reduce this risk, only install accessories recommended for this machine by Grizzly.

NOTICE

Refer to our website or latest catalog for additional recommended accessories.

93" Bi-Metal Bandsaw Blades

T28922—Bear Crawl "Cub" Mobile Base

The Cub version of the Bear Crawl was designed for small-footprint machines weighing up to 900 lbs. It features wide-inline fixed casters and outrigger swivel casters to keep your equipment moving effortlessly on almost any surface. This is a high-quality mobile base that will make your shop more convenient and efficient and will keep your equipment stable and rolling for years to come. Adjusts from 14" x 14" to 22

⁄2" x 221⁄2"!

MODEL Width TPI Gauge

G5127 G5128 G5129 G5130 G5131

⁄4"

4-6 VP 0.035"

5-8 VP 0.035" 6-10 VP 0.035" 8-12 VP 0.035"

10-14 VP 0.035"

Recommended Metal Protectants

G5562—SLIPIT® 1 Qt. Gel G5563—SLIPIT

11 Oz. Spray

Figure 68. T28922 Bear Crawl "Cub" Mobile

Base.

T10456—Heavy-Duty Anti-Fatigue Mat 3' x 5'

This Heavy-Duty Anti-Fatigue Mat features beveled edges and no-slip tread for safety and comfort. Open-hole design allows liquid to drain through, so it's perfect for wet or oily conditions. Measures 3' wide x 5' long x

⁄8" thick.

Figure 67. Recommended products for

protecting unpainted cast iron/steel parts on

machinery.

Model G0970 (Mfd. Since 07/23)

Figure 69. Model T10456 Anti-Fatigue Mat.

-41-

SECTION 6: MAINTENANCE

To reduce risk of shock or accidental startup, always disconnect machine from

Lubrication

The bearings on your bandsaw are factory lubri-

power before adjustments, maintenance, or service.

Schedule

cated and sealed. Leave them alone unless they need to be replaced.

If the table becomes difficult to tilt, lubricate the surfaces between the trunnions and trunnion bracket with a dry lubricant.

For optimum performance from this machine, this maintenance schedule must be strictly followed.

Ongoing

To minimize your risk of injury and maintain proper machine operation, shut down the machine immediately if you ever observe any of the items below, and fix the problem before continuing operations:

• Loose mounting bolts.

• Damaged saw blade.

• Worn or damaged wires.

• Any other unsafe condition.

Monthly Check

• V-belt tension, damage, or wear.

• Clean/vacuum metal chip buildup from inside cabinet and off motor.

Cleaning &

Guide Post

Lubrication Type ...................... Dry Coating Lube

Amount .................................................Thin Coat

Frequency .......................................... As Needed

To lubricate guide post:

1. Spray small amount of dry lubricant into top

of guide post bracket

2. Adjust guide post up and down entire range

of movement to distribute lubricant.

Guide Post

Bracket

Guide Post

Protecting

Cleaning the Model G0970 is relatively easy. Vacuum excess metal chips and flakes, and wipe off the remaining dust with a dry cloth.

Protect the unpainted cast iron table by wiping it clean after every use—this ensures moisture does not remain on bare metal surfaces. Keep the table rust-free with regular applications of metal protectants like SLIPIT details).

-42-

(see Page 41 for more

Figure 70. Location of guidepost lubrication

point.

Model G0970 (Mfd. Since 07/23)

Review the troubleshooting procedures in this section if a problem develops with your machine. If you need

the

serial number and manufacture date of your machine before calling.

SECTION 7: SERVICE

replacement parts or additional help with a procedure, call our Technical Support. Note: Please gather

Troubleshooting

Motor & Electrical

Symptom Possible Cause Possible Solution

Machine does not start, or power supply breaker immediately trips after startup.

Machine stalls or is underpowered.

1. Incorrect power supply voltage or circuit size.

2. Plug/receptacle at fault/wired incorrectly.

3. Power supply circuit breaker tripped or fuse blown.

4. Motor wires connected incorrectly.

5. Start capacitor at fault.

6. Centrifugal switch adjustment/contact points at fault.

7. Wiring broken, disconnected, or corroded.

8. ON/OFF switch at fault.

9. Motor or motor bearings at fault.

1. Blade dull or wrong blade for task.

2. Feed rate/cutting speed too fast.

3. Wrong workpiece material.

4. Blade slipping on wheels or not properly tensioned.

5. Belt(s) slipping/pulleys misaligned.

6. Motor wires connected incorrectly.

7. Plug/receptacle at fault/wired incorrectly.

8. Pulley slipping on shaft.

9. Machine undersized for task.

10. Motor overheated.

11. Run capacitor at fault.

12. Extension cord too long.

13. Centrifugal switch/contact points at fault.

14. Gear reducer at fault.

15. Motor or motor bearings at fault.

1. Ensure correct power supply voltage and circuit size

(Page 11).

2. Test for good contacts; correct wiring (Page 52).

3. Ensure circuit is free of shorts. Reset circuit breaker or replace fuse.

4. Correct motor wiring connections (Page 52).

5. Test/replace if at fault.

6. Adjust centrifugal switch/clean contact points. Replace either if at fault.

7. Fix broken wires or disconnected/corroded connections (Page 52).

8. Replace switch.

9. Replace motor.

1. Sharpen/replace blade (Page 38). Use correct blade (Page 32).

2. Decrease feed rate/cutting speed.

3. Use correct type/size of metal.

4. Adjust blade tracking (Page 22) and tension (Page

24).

5. Clean/tension/replace belt (Page 46); ensure pulleys are aligned.

6. Correct motor wiring connections (Page 52).

7. Test for good contacts/correct wiring (Page 52).

8. Tighten/replace loose pulley/shaft.

9. Use correct, sharp blade; reduce feed rate/depth of

cut; use cutting uid if possible.

10. Clean motor, let cool, and reduce workload.

11. Test/repair/replace.

12. Move machine closer to power supply; use shorter extension cord.

13. Adjust centrifugal switch/clean contact points. Replace either if at fault.

14. Replace gear reducer.

15. Replace motor.

Model G0970 (Mfd. Since 07/23)

-43-

Motor & Electrical (Cont.)

Symptom Possible Cause Possible Solution

Machine has vibration or noisy operation.

1. Motor or component loose.

2. Machine incorrectly mounted on stand.

3. V-belt worn, loose, pulleys misaligned, or belt slapping cover.

4. Pulley loose.

5. Motor mount loose/broken.

6. Motor fan rubbing on fan cover.

7. Blade damaged or warped.

8. Centrifugal switch needs adjustment/at fault.

9. Motor bearings at fault.

1. Replace damaged or missing bolts/nuts or tighten if loose.

2. Tighten mounting bolts; relocate/shim machine.

3. Inspect/replace V-belt (Page 46); realign pulleys if necessary.

4. Re-align/replace shaft, pulley set screw, and key.

5. Tighten/replace.

6. Fix/replace fan cover; replace loose/damaged fan.

7. Replace blade (Page 38).

8. Replace.

9. Test by rotating shaft; rotational grinding/loose shaft requires bearing replacement.

Operation

Symptom Possible Cause Possible Solution

Blade or teeth break/crack.

Blade slows, smokes, shows overheating or wears on one side.

Finished workpieces are rough or show scoring.

Table is hard to tilt.

1. Blade tension is too tight.

2. Blade is incorrect for application.

3. Excessive feed rate/pressure.

4. Cutting corners too sharply.

5. Blade is dull or worn/weld at fault.

6. Blade is tracking incorrectly.

7. Blade guides/support bearing not adjusted properly, allowing blade teeth to hit guides while cutting.

1. Blade contacting table insert.

2. Blade guides are misadjusted or worn.

3. Blade installed backwards.

4. Too much side pressure when feeding workpiece.

5. Wheels are out of alignment.

6. Fence not parallel with blade.

7. Dull, bell-mouthed, or incorrect blade.

8. V-belt loose, worn, or slipping.

1. Blade is overloaded and twists. TPI is too

ne. Blade is too narrow for cutting task.

2. Blade TPI is too coarse or tooth style incorrect.

3. Blade is loose and uttering.

4. Blade tracking is incorrect.

5. Blade has missing/bent teeth, or faulty weld.

1. Table tilt lock knobs are engaged.

2. Metal chips trapped between trunnion and base.

1. Reduce blade tension (Page 24).

2. Use correct blade for application (Page 32).

3. Reduce feed rate/pressure.

4. Use a wider arc on outside cuts, or use relief cuts to make tight inside cuts.

5. Replace blade (Page 38).

6. Properly adjust blade tracking (Page 22).

7. Adjust blade guides/support bearings so teeth cannot contact guides during operation (Page 25).

1. Adjust blade guides to eliminate any side pressure (Page 25). Properly align table (Page 26).

2. Adjust guides (Page 25). Replace blade guides if worn.

3. Check blade rotation. Reverse blade if necessary (Page 38).

4. Feed workpiece straight into blade.

5. Adjust wheels to be coplanar (Page 48).

6. Adjust fence parallelism with blade (Page 28).

7. Replace blade (Page 38).

8. Tension V-belt; replace if worn or oily (Page 46).

1. Decrease feed rate; ensure proper TPI (Page 32).

2. Use correct blade for material and speed of cut (Page

32).

3. Properly adjust blade tension (Page 24).

4. Adjust blade tracking (Page 22).

5. Replace blade (Page 38).

1. Disengage table tilt lock knobs (Page 39).

2. Remove table and clean trunnion sliding surfaces.

-44-

Model G0970 (Mfd. Since 07/23)

Operation (Cont.)

Symptom Possible Cause Possible Solution

Table does not accurately tilt to 45 or 0 degrees.

Miter bar binds in miter slot.

Blade tracks incorrectly, or comes off wheels.

Cut is crooked or blade wanders.

Blade dulls prematurely or metal sticks to blade.

Gullets loaded with chips.

Backside of blade deformation/ cracking.

1. Table tilt scale pointer not calibrated.

2. Positive stop not set correctly.

1. Miter slot dirty or gummed up.

2. Miter bar is bent.

1. Tracking is not adjusted properly.

2. Wheels are not coplanar.

3. Blade tension too loose.

4. Blade guides/support bearings not adjusted properly.

5. Feeding workpiece too fast.

6. Incorrect blade for operation.

7. Blade is bell-mouthed, worn, or dull.

8. Rubber tire or wheel is damaged or worn.

1. Excessive feed rate/pressure.

2. Blade tension too loose.

3. Blade is too narrow or tooth type/TPI is incorrect for the cut.

4. Inadequate blade support.

5. Blade dull or has damaged tooth set from improper guides/support bearing adjustment.

6. Blade tracking is incorrect.

7. Table is loose.

8. Fence or miter slot out of alignment with blade.

9. Tooth set is uneven or teeth are sharper on one side than the other.

1. Excessive feed rate/pressure.

2. Wrong blade tooth type or TPI for cutting operation/material.

3. Blade is twisted.

4. Blade is slipping on wheel.

5. Blade guides hitting teeth, ruining tooth set.

1. Wrong cutting speed.

2. Blade TPI is too ne.

1. Excessive feed rate/pressure.

2. Blade tension too high.

3. Blade support bearings improperly adjusted.

1. Calibrate table tilt scale pointer (Page 40).

2. Adjust positive stop (Page 39).

1. Carefully clean miter slot.

2. Replace.

1. Adjust tracking (Page 22).

2. Adjust wheels to be coplanar (Page 48).

3. Increase blade tension (Page 24).

4. Adjust blade guides/support bearings (Page 25).

5. Feed workpiece slower.

6. Install correct blade (Page 32).

7. Install new blade and remove tension from blade when not in use.

8. Replace rubber tires or wheel and remove tension from blade when not in use.

1. Reduce feed rate/pressure.

2. Increase blade tension (Page 24).

3. Use wider blade. Ensure tooth type & TPI are correct (Page 32).

4. Position upper blade guides to just clear workpiece. Properly adjust blade guides/support bearings (Page

25).

5. Replace blade (Page 38).

6. Adjust blade tracking (Page 22).

7. Tighten table trunnion mounting bolts or tilt lock lever.

8. Align table miter slot (Page 26) and fence (Page 28) with blade.

9. Properly adjust blade guides/support bearings (Page

25); replace blade (Page 38).

1. Reduce feed rate/pressure.

2. Use blade with correct tooth type and TPI (Page 32).

3. Replace blade (Page 38).

4. Adjust blade tension (Page 24).

5. Properly adjust guides (Page 25).

1. Adjust cutting speed.

2. Install correct blade (Page 32).

1. Reduce feed rate/pressure.

2. Adjust blade tension (Page 24).

3. Adjust blade support bearings (Page 25).

Model G0970 (Mfd. Since 07/23)

-45-

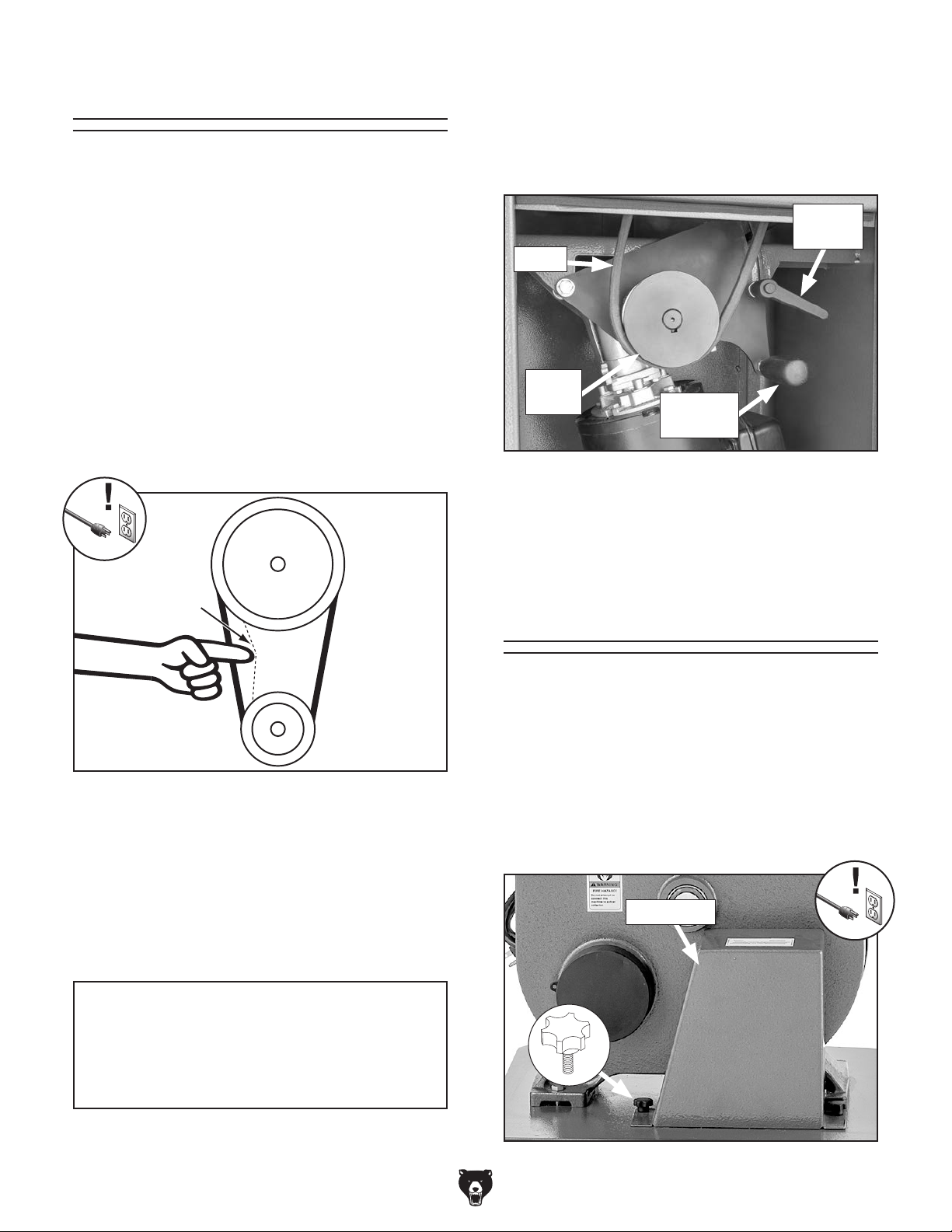

Tensioning V-Belt

To ensure optimum power transfer from the motor to the blade without slipping, the V-belts must be in good condition and operate under proper tension. Check V-belt tension at least monthly—more often if the bandsaw is used daily. V-belts stretch with use and must be periodically re-tensioned.

To tension V-belt:

1. DISCONNECT MACHINE FROM POWER!

4. Loosen motor tilt lock handle (see Figure 72).

5. Push down on motor tilt handle to increase

V-belt tension, then tighten motor tilt lock handle (see Figure 72).

Tilt Lock

Handle

V-Belt

2. Open maintenance door.

3. Push center of V-belt (see Figure 71) using

moderate force. When tensioned correctly, deflection should be about

Approximately

" Deflection

Figure 71. Checking for correct V-belt tension.

— If deflection is correct and V-belt is in good

condition, no further action is required. Close maintenance door.

⁄4".

Pulley

Motor

Pulley

Figure 72. Motor tilt components.

6. Repeat Steps 3–5 until V-belt is tensioned.

7. Close and latch maintenance door.

Motor Tilt

Handle

Replacing V-Belt

Replace the V-belt if it is cracked, frayed, or excessively worn.

To replace V-belt:

1. DISCONNECT MACHINE FROM POWER!

2. Loosen (2) knob bolts, then remove belt

guard (see Figure 73).

— If deflection is more than or less than

V-belt needs to be replaced, then continue with the next steps.

⁄4" or

NOTICE

After the first 16 hours of operation, new V-belts will stretch and seat farther into the pulleys. To avoid slippage, re-tension new V-belts after this period.

-46-

Belt Guard

x 2

Figure 73. Belt guard installed.

Model G0970 (Mfd. Since 07/23)

3. Open maintenance door.

4. Loosen motor tilt lock handle (see Figure 74).

9. Loosen motor tilt lock handle to lower motor;

add tension to V-belt by pressing down on motor tilt handle, then tighten lock handle.

5. Lift up on motor tilt handle to tilt motor as far

as it will go; while holding motor up, tighten lock handle to hold motor in place (see Figure 74).

Tilt Lock

Handle

V-Belt

Motor

Pulley

Figure 74. Motor tilted and locked in place.

6. Move V-belt to outside section of pulleys,

then remove V-belt.

Motor Tilt

Handle

10. Install and secure belt guard, then close and

latch maintenance door.

Adjusting

Wheel Brush

The lower wheel compartment contains the wheel brush shown in Figure 76. This brush is designed to sweep chips off the wheel tire as the bandsaw is operating. In order to work properly, the brush must make firm contact with the wheel.

Tool Needed Qty

Phillips Head Screwdriver #2 ............................ 1

Note: For easier V-belt movement, move belt

on motor pulley first, then move it to corresponding location on bandsaw pulley

7. Feed one end of new V-belt through belt slot in top of cabinet as shown in Figure 75.

8. Loop V-belt around sheave on motor pulley, then loop other end around corresponding sheave of bandsaw pulley (see Figure 75).

Wheel Brush

Figure 76. Location of wheel brush.

To adjust wheel brush:

1. DISCONNECT MACHINE FROM POWER!

2. Open lower wheel cover.

3. Loosen Phillips head screw that secures

wheel brush.

4. Adjust wheel brush so it makes firm contact

with wheel but bristles are not overly bent.

Figure 75. Belt installed on bandsaw pulley.

Model G0970 (Mfd. Since 07/23)

5. Tighten screw to secure wheel brush in place,

then close lower wheel cover.

-47-

Wheel Alignment

Wheel alignment is important for optimal performance from your bandsaw. Wheels are properly aligned when they are parallel with each other and in the same plane or “coplanar” (see the illustration in Figure 78).

When wheels are coplanar, the bandsaw is more likely to cut straight without wandering; and vibration, heat, and blade wear are considerably decreased because the blade is automatically balanced on the wheel.

Bringing the wheel into alignment may require a combination of shimming a wheel and center/ lateral tracking the blade.

Items Needed Qty

Straightedge 4'. .................................................. 1

Fine Ruler or Feeler Gauge ............................... 1

Wrenches or Sockets 13, 19mm .................1 Ea.

4. Referring to Figure 78, check wheel

alignment.

Coplanarity Gauge

Wheels parallel and

aligned: No adjust-

ment needed.

Wheels parallel, but

not coplanar with each other: Shim

upper or lower wheel

out.

Checking Wheel Alignment

1. DISCONNECT MACHINE FROM POWER!

2. Remove table.

3. With blade on and properly tensioned, hold a

straightedge close to center of both wheels. Make sure straightedge fully extends across rims of both wheels, as shown in Figure 77.

Upper wheel not

vertically aligned with

lower wheel: Use

blade tracking knob

to tilt upper wheel.

Figure 78. Wheel alignment illustration.

Lower wheel not

laterally aligned with

upper wheel: Adjust

rear adjustment set

bolts to tilt lower

wheel left/right.

Figure 77. Example of checking if wheels are

coplanar.

-48-

Model G0970 (Mfd. Since 07/23)

Shimming a Wheel

A wheel that is parallel with the other wheel, but is not coplanar, must be shimmed by the distance that it is not in the same plane with the other wheel.

8. Perform previous Checking Wheel Alignment procedure (see Page 48 for

instructions).

9. Close wheel covers.

Tip: Thin washers work well for shimming the

wheel because they can easily be stacked to get the desired height.

To shim a wheel:

1. Adjust upper wheel tracking so that it is paral-

lel with bottom wheel.

2. DISCONNECT MACHINE FROM POWER!

3. With straightedge touching both rims of wheel

that does not need to be adjusted, measure distance away from other wheel with a fine ruler, as shown in Figure 79. Distance measured with ruler is distance this wheel must be shimmed.

Note: The first time you get wheels coplanar,

place a mark on each wheel where you held the straightedge, then use this position again in the future if you need to repeat the procedure. This assures repeated accuracy every time you adjust the wheels.

Blade Tension

Gauge

The Model G0970 uses a tension gauge system that helps users ensure they are applying consistent and appropriate tension to the bandsaw blade based on its size. Different blade sizes require different amounts of tension to perform optimally and produce accurate cuts.

Keep in mind that proper tensioning is crucial for safety and performance. Too little tension can result in poor cutting performance and increased risk of blade breakage, while excessive tension can lead to premature blade wear and strain on the bandsaw machine.

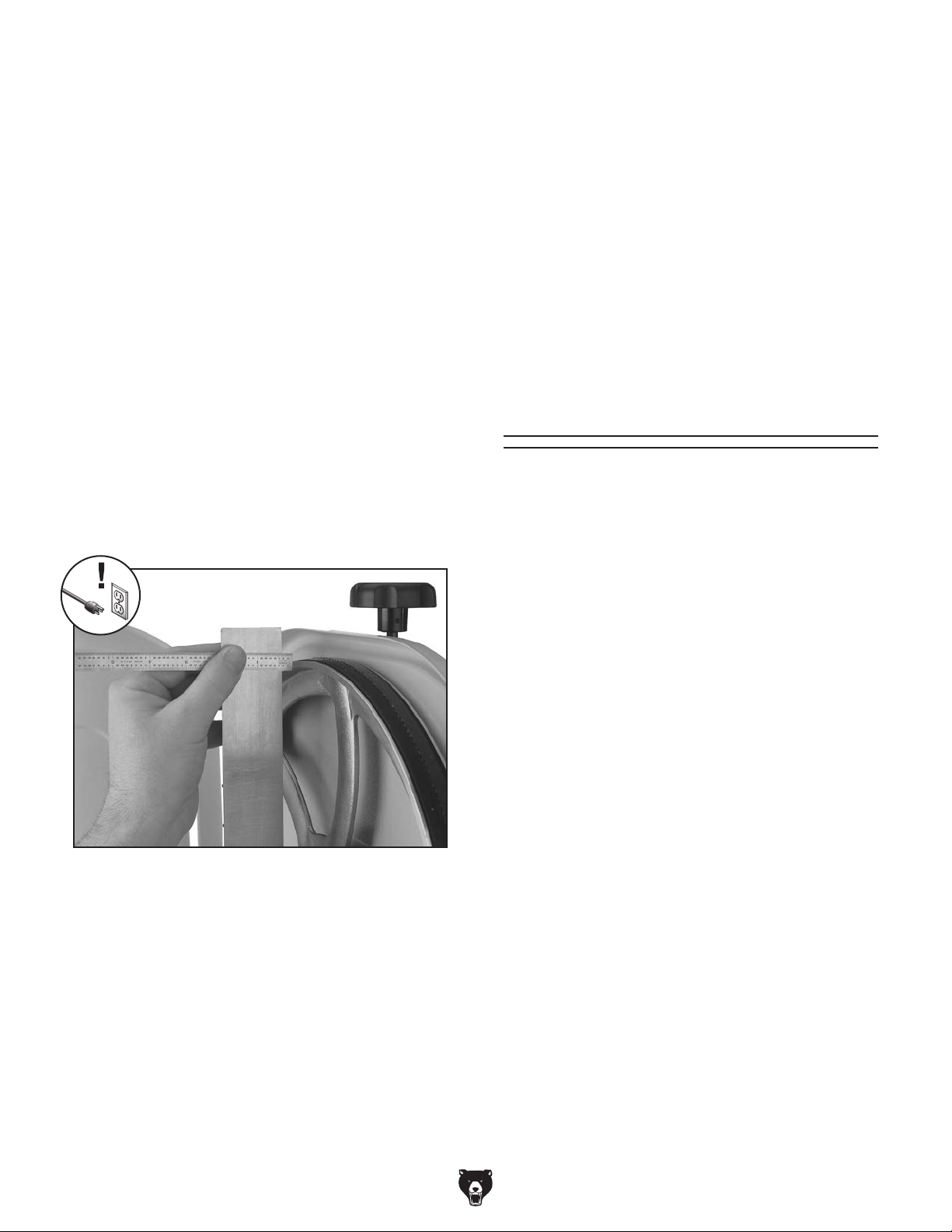

Figure 79. Example of measuring the distance to

shim wheel to be coplanar.

4. Remove blade.

5. Remove wheel to be shimmed. Place as

many shims as necessary to correct the gap measured in Step 3 onto the wheel shaft.

6. Re-install wheel and secure it in place.

7. Re-install blade and properly tension it.

Model G0970 (Mfd. Since 07/23)

Always follow the manufacturer's guidelines and recommendations for tensioning your bandsaw blade, and make sure to properly maintain and inspect the blade and machine for safe and effective operation.

The blade tensioner may need to be adjusted for one of the following reasons:

• The blade tension quick-release lever will not move to the right position when the tension scale is correctly adjusted for the installed blade.

• You have installed a blade of a different length and the tensioner needs to be adjusted.

-49-

The following procedure describes how to decompress the spring in the blade tensioner to allow the quick release lever to perform its intended purpose. If the tensioner needs to be tightened, reverse the procedure to get the desired results.

Tools Needed Qty

Wrench Open-End 14mm .................................. 2

Hex Wrench 3mm .............................................. 1

To adjust blade tension gauge:

4. Loosen set screws in both spacers shown in Figure 81.

Upper

Spacer

Lower

Spacer

1. DISCONNECT MACHINE FROM POWER!

2. Lift tension lever (see Figure 80) to relieve

tension, then remove bandsaw blade.

Quick-Release

Lever Crossbar

Tension QuickRelease Lever

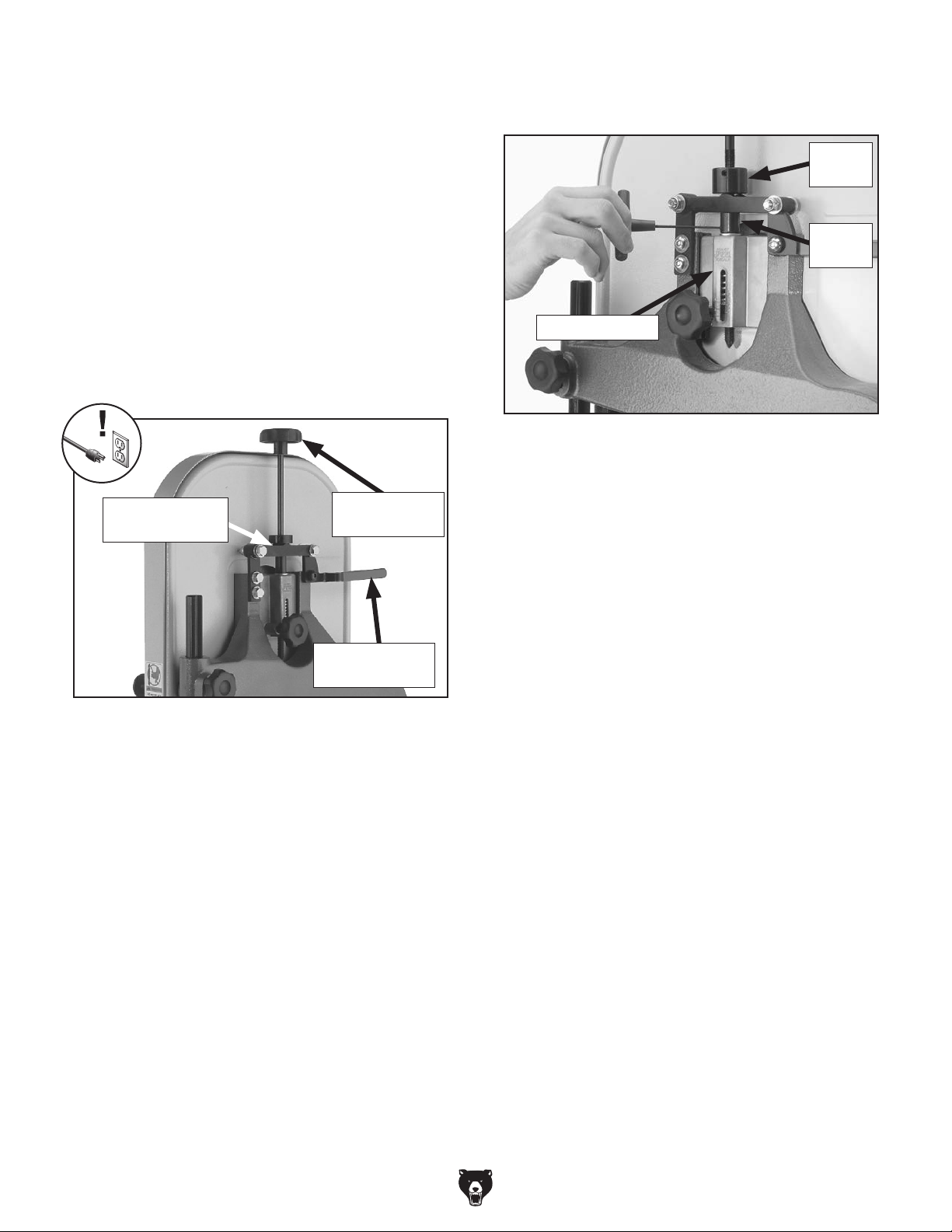

Figure 80. Blade tension components.

3. Place new blade onto wheels and between

blade guides.

Note: For accuracy, use a new blade to cali-

brate tensioner because it is unstretched.

Blade

Tension Knob

Sliding Bracket

Figure 81. Loosening spacer set screws.

5. Back spacers away from tension lever cross- bar shown in Figure 80.

6. Pull tension lever down to horizontal position.

7. Pull tensioning knob upward (see Figure 80)

until blade touches wheel.

8. Thread upper spacer down until it touches the top of tension lever crossbar.

9. Tighten set screw on upper spacer.

10. Tension blade (refer to Page 24).

11. Thread lower spacer down until it touches top of sliding bracket (see Figure 81).

12. Move lower spacer back up shaft about 1–2

turns to leave a small space, and tighten set screws (see Figure 81).

-50-

13. Raise tension lever to release blade tension.

— If all tension is released from blade, blade

tensioner is properly adjusted.

— If all tension is not released, lower spacer

needs to be threaded farther down shaft toward sliding bracket.

Model G0970 (Mfd. Since 07/23)

These pages are current at the time of printing. However, in the spirit of improvement, we may make changes to the electrical systems of future machines. Compare the manufacture date of your machine to the one

If there are differences between your machine and what is shown in this section, call Technical Support at (570) 546-9663 for assistance BEFORE making any changes to the wiring on your machine. An updated

number and manufacture date of your

machine before calling. This information can be found on the main machine label.

SECTION 8: WIRING

stated in this manual, and study this section carefully.

wiring diagram may be available. Note: Please gather the serial

Wiring Safety Instructions

SHOCK HAZARD. Working on wiring that is con-

nected to a power source is extremely dangerous. Touching electrified parts will result in personal injury including but not limited to severe burns, electrocution, or death. Disconnect the power from the machine before servicing electrical components!

MODIFICATIONS. Modifying the wiring beyond what is shown in the diagram may lead to unpredictable results, including serious injury or fire. This includes the installation of unapproved aftermarket parts.

WIRE CONNECTIONS. All connections must be tight to prevent wires from loosening during machine operation. Double-check all wires disconnected or connected during any wiring task to ensure tight connections.

CIRCUIT REQUIREMENTS. You MUST follow the requirements at the beginning of this manual when connecting your machine to a power source.

WIRE/COMPONENT DAMAGE. Damaged wires or components increase the risk of serious personal injury, fire, or machine damage. If you notice that any wires or components are damaged while performing a wiring task, replace those wires or components.

MOTOR WIRING. The motor wiring shown in these diagrams is current at the time of printing but may not match your machine. If you find this to be the case, use the wiring diagram inside the motor junction box.

CAPACITORS/INVERTERS. Some capacitors and power inverters store an electrical charge for up to 10 minutes after being disconnected from the power source. To reduce the risk of being shocked, wait at least this long before working on capacitors.

EXPERIENCING DIFFICULTIES. If you are experiencing difficulties understanding the information included in this section, contact our Technical Support at (570) 546-9663.

The photos and diagrams included in this section are best viewed in color. You can view these pages in color at www.grizzly.com.

Model G0970 (Mfd. Since 07/23)

-51-

Ground

Machine Body

ON/OFF Switch

B1 A1

Contek 994542E

18A 125V 10A 250V

A3B3

Wiring Diagram

Ground

Run Capacitor

12uF 250VAC

110V Motor

Ground

Rewired for 220V

Neutral

Hot

Ground

VAC

Hot

220

Hot

110 VAC

5-15 Plug

220 VAC

6-15 Plug

(As Recommended)

Rewired for 220V

Start Capacitor

200MFD 250VAC

Ground

Run Capacitor

12uF 250VAC

Start Capacitor

200MFD 250VAC

2 3

220V Motor

-52-

READ ELECTRICAL SAFETY

ON PAGE 51!

Model G0970 (Mfd. Since 07/23)

Electrical Components

Figure 82. ON/OFF switch wiring.

Figure 83. Junction box wiring.

Figure 84. Junction box cover.

Model G0970 (Mfd. Since 07/23)

READ ELECTRICAL SAFETY

ON PAGE 51!

-53-

We do our best to stock replacement parts when possible, but we cannot guarantee that all parts shown are available for purchase. Call (800) 523-4777 or visit www.grizzly.com/parts to check for availability.

22-3

22-2

22-11

22-13 22-15

22-1

22-10

22-9

22-4

22-21

22-17

22-12

22-14

22-5 22-6

SECTION 9: PARTS

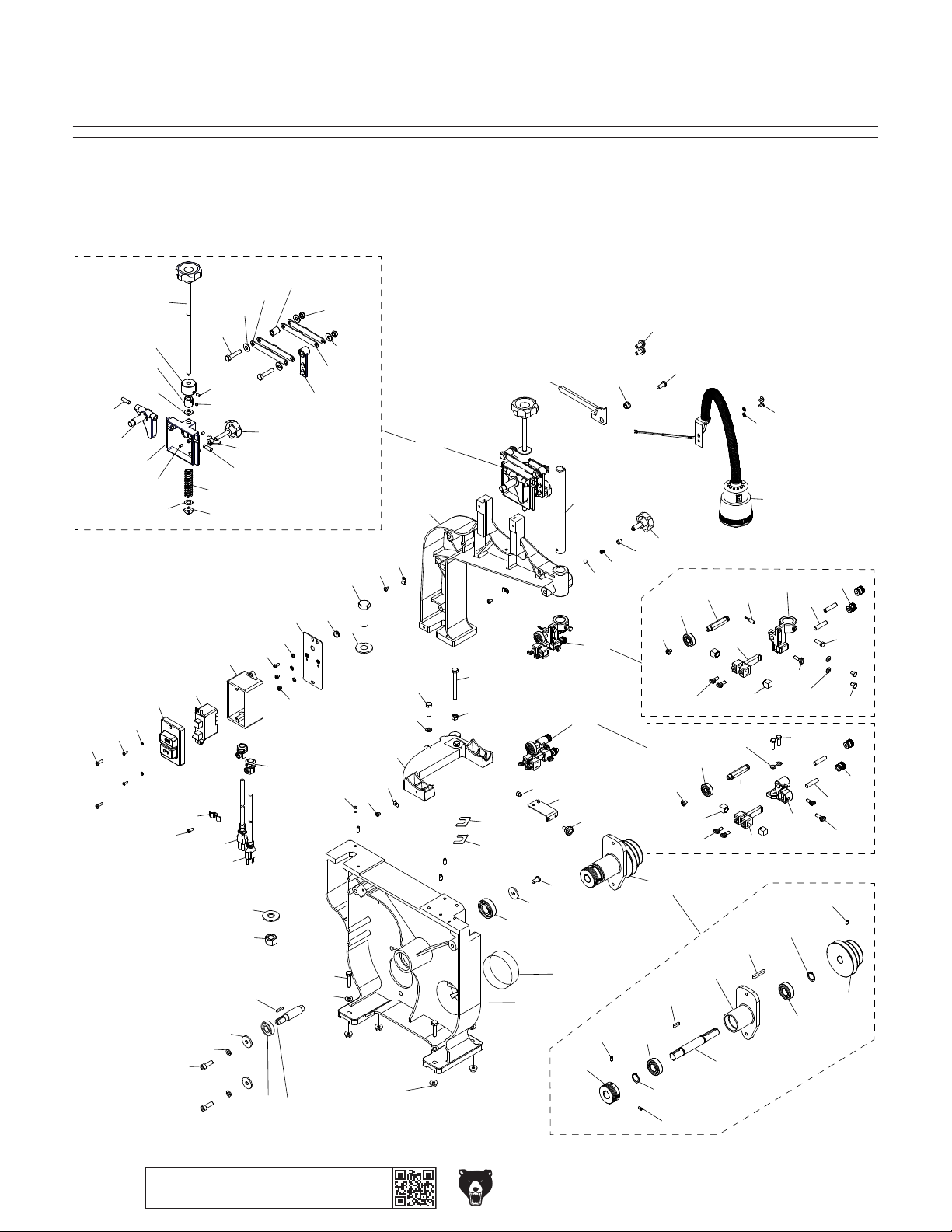

Main

22-16

22-19

22-18

22-21

11-1

11-6

22-8

22-3

22-7

22-19

22-20

54 55

28-6

11-2

28-7

28-4

21-9

21-10

21-5 21-8

11-4

11-5

11-6

28-8

11-7

28-9

28-5

28-11

21-11

21-3

21-4

11-3

11-9

28-10

28-9

21-1

11-5

28-3

28-12

21-12

11-6

11-2

28-2

28-13

28-1

21-6

21-2

21-7

11-8

-54-

BUY PARTS ON LINE AT GRI ZZLY.COM!

Scan QR c ode to vi sit ou r Parts Store.

Model G0970 (Mfd. Since 07/23)

Main Parts List

22-15 P0970022-15 FL AT WASHER 1 0MM

REF P ART # DES CRIP TI ON REF P ART # DES CRIP TI ON

1 P0970001 BASE 22-16 P0970022-16 SPACER 8ID X 15OD X 20L 2 P0970002 ALIGNMENT PIN 22-17 P0970022-17 HEX BOLT M8-1.25 X 40 3 P0970003 UPPER FRAME ARM 22-18 P0970022-18 LOCK NUT M8-1.25 4 P0970004 FLAT WASHE R 16MM 22-19 P0970022-19 SUPPORT PLATE 5 P0970005 HEX BOLT M16-2 X 55 22-20 P0970022-20 PI VOT ARM 6 P0970006 HEX NUT M16- 2 22-21 P0970022-21 FL AT WASHER 8 MM 7 P0970007 LOWER WHEEL SHAFT 23 P0970023 GUIDE POST 8 P0970008 BALL BEARING 6204LLU 24 P0970024 STEEL BALL 8MM 9 P0970009 FENDER WASHE R 8MM 25 P0970025 COMPRESSION SPRING 1 X 7.5 X 9 10 P0970010 PHLP HD SCR M8-1.25 X 16 26 P0970026 SET SCREW M10-1.5 X 10 11 P0970011 PULLEY ASSEMBLY 27 P0970027 KNOB BOLT M10-1.5 X 30 11-1 P0970011-1 PULLEY 28 P0970028 BLADE GUIDE ASSY (UPPER) 11-2 P0970011-2 BALL BEARING 6004LLU 28-1 P0970028-1 HEX BOLT M6-1 X 8 11-3 P0970011-3 KEY 6 X 6 X 40 RE 28-2 P0970028-2 ADJ USTMENT NUT M8 -1 11-4 P0970011-4 KEY 5 X 5 X 20 RE 28-3 P0970028-3 SET SCREW M8-1 X 35 11-5 P0970011-5 EXT RE TAI NI NG RI NG 20MM 28-4 P0970028-4 THUMB SCREW M6-1 X 12 11-6 P0970011-6 SET SCREW M6-1 X 10 28-5 P0970028-5 GUIDE BRACKET 11-7 P0970011-7 BEARING HOUSING 28-6 P0970028-6 PHLP HD SCR M6-1 X 8 11-8 P0970011-8 PULLEY 28-7 P0970028-7 BALL BEARING 6200ZZ 11-9 P0970011-9 DRIV E SHA FT 28-8 P0970028-8 GUIDE BEARING SHAFT M6-1 X 12, 61 12 P0970012 LOCK WASHER 8MM 28-9 P0970028-9 THUMB SCREW M6 -1 X 16 13 P0970013 CAP SCREW M8-1.25 X 25 28-10 P0970028-10 BLADE GUIDE BRACKET (UPPER) 14 P0970014 TRUNNI ON S UPPORT BRA CKET 28-11 P0970028-11 BLADE GUIDE 15 P0970015 HEX BOLT M8-1.25 X 30 28-12 P0970028-12 FL AT WASHER 6 MM 16 P0970016 POI NTER 28-13 P0970028-13 HEX BOLT M6-1 X 20 17 P0970017 PHLP HD SCR M5-.8 X 6 29 P0970029 WORK LIGHT ASSEMBLY 18 P0970018 BRACKET 30 P0970030 E XT TOO TH WAS HER 5MM 19 P0970019 CAP SCREW M6-1 X 6 31 P0970031 PHLP HD SCR M5-.8 X 8 20 P0970020 KNOB BOLT M6-1 X 12, 6-LOBE, D21 32 P0970032 PHLP HD SCR M5-.8 X 16 21 P0970021 BLADE GUIDE ASSY (LOWER) 33 P0970033 PHLP HD SCR M5-.8 X 8 21-1 P0970021-1 BLADE GUIDE BRACKET (LOWER) 34 P0970034 LOOP CLAMP 3/16" PLASTIC 21-2 P0970021-2 SET SCREW M8-1 X 35 35 P0970035 2-LINE ROUTING CLAMP STEEL 21-3 P0970021-3 GUIDE BEARING SHAFT M6-1 X 12, 61 36 P0970036 HE X NUT M8- 1. 25 21-4 P0970021-4 GUIDE BRACKET 37 P0970037 HEX BOLT M8-1.25 X 80 21-5 P0970021-5 BLADE GUIDE 38 P0970038 S WI TCH P LATE 21-6 P0970021-6 ADJ USTI NG NUT M8-1 39 P0970039 O N/ O FF SWITCH COV ER 21-7 P0970021-7 THUMB SCREW M6-1 X 16 40 P0970040 ON/OFF SWITCH CONTEK 994542E 21-8 P0970021-8 THUMB SCREW M6-1 X 12 41 P0970041 S WI TCH B OX 21-9 P0970021-9 BALL BEARING 6200ZZ 42 P0970042 STRAIN RELIEF TYPE-2 10MM 21-10 P0970021-10 FLANGE SCREW M6-1 X 8 43 P0970043 TAP SCREW M5 X 6 21-11 P0970021-11 FL AT WASHER 6 MM 44 P0970044 MOTOR POWER CORD 16G 3W 27" 21-12 P0970021-12 HEX BOLT M6-1 X 20 45 P0970045 POWER CORD 16G 3W 72" 5-15P 22 P0970022 SLI DING BRACKET ASSY 46 P0970046 TAP SCREW M3.5 X 12 22-1 P0970022-1 UPPER WHEEL SLIDE BRACKET 47 P0970047 FL AT WAS HER 4 MM 22-2 P0970022-2 UPPER WHEEL SHAFT HINGE ASSY 48 P0970048 CUS HI ON 22-3 P0970022-3 STEEL PIN 8 X 23 49 P0970049 PHLP HD SCR M5-.8 X 12 22-4 P0970022-4 SET SCREW M5-.8 X 8 50 P0970050 BUTTON HD CAP SCR M8-1.25 X 20 22-5 P0970022-5 COMPRESSION SPRING 3.8 X 13.5 X 81 51 P0970051 FLANGE BUSHING 8ID X 13OD X 10L, 4 X 16 22-6 P0970022-6 SQUARE NUT M10-1.5 52 P0970052 TENSION QUICK RELEASE LEVER 22-7 P0970022-7 KNOB BOLT M8-1.25 X 50, 6-LOBE, D44 53 P0970053 BUTTON HD CAP SCR M8-1.25 X 20 22-8 P0970022-8 WING NUT M8-1 . 25 54 P0970054 HEX BOLT M8-1.25 X 35 22-9 P0970022-9 KNOB BOLT M10-1.5 X 80, 6-LOBE, D60 55 P0970055 FLAT WA SHER 8MM 22-10 P0970022-10 TE NSION I NDI CATOR 56 P0970056 KEY 5 X 5 X 25 22-11 P0970022-11 UPPER LOCK COLLAR 57 P0970057 DUS T PORT CAP 22-12 P0970022-12 SET SCREW M5-.8 X 10 58 P0970058 FLANGE NUT M8-1.25 22-13 P0970022-13 LOWER LOCK COLLAR 59 P0970059 SHIM 20 X 20 X 0.2MM 22-14 P0970022-14 SET SCREW M5-.8 X 5 60 P0970060 SHIM 20 X 20 X 0.5MM

Model G0970 (Mfd. Since 07/23)

BUY PARTS ON LINE AT GRI ZZLY.COM!

Scan QR c ode to vi sit ou r Parts Store.

-55-

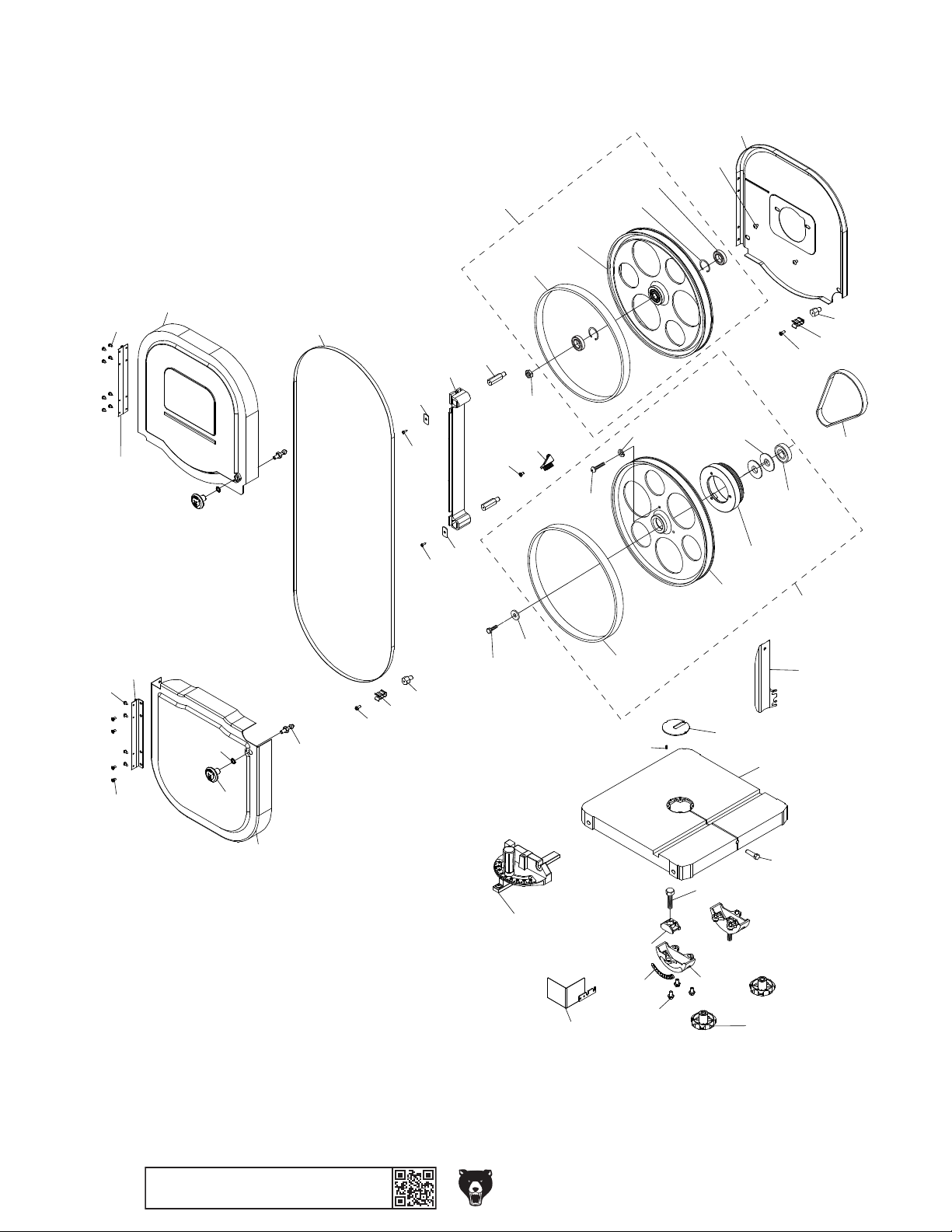

Wheels & Table

111

116

116-2

116-1

116-3

112

116-4

133

129

133

130

131

135

128

134

114

126

127

115

125

127

113

126

124

123

121

117

122

120

119-3

119-4

119-1

106

119-6

119-5

119-2

107

113

115

114

118

119-7

119

101

102

-56-

137

136

132

BUY PARTS ON LINE AT GRI ZZLY.COM!

Scan QR c ode to vi sit ou r Parts Store.

109

138

108

140

105

139

104

Model G0970 (Mfd. Since 07/23)

103

110

Wheels & Table Parts List

119-3 P0970119-3 BUTTON HD CAP SCR 5/16-18 X 3/4

REF P ART # DES CRIP TION REF P ART # DES CRIP TION

101 P0970101 BLADE GUARD (UPPER) 119-4 P0970119-4 LOCK WASHER 6MM 102 P0970102 TABLE 119-5 P0970119-5 WHEEL PULLEY 103 P0970103 TRUNNI ON 119-6 P0970119-6 PULLEY FLAT WASHER 104 P0970104 FLANGE BOLT M6-1 X 12 119-7 P0970119-7 BALL BEARING 6204-2RS 105 P0970105 TRUNNI ON CLA MP SHO E 120 P0970120 FENDE R WASHE R 8MM 106 P0970106 ROLL PIN 3 X 8 121 P0970121 HEX BOLT M8-1.25 X 20, LH 107 P0970107 TABLE INSERT 122 P0970122 WHEEL BRUSH 108 P0970108 TABLE PIN 123 P0970123 PHLP HD SCR M5-.8 X 8 109 P0970109 MITER GAUGE ASSEMBLY 124 P0970124 STANDOFF-HEX MF M10-1.5 X 15 PLASTIC 110 P0970110 KNOB M10-1.5, 6-LOBE, D63 125 P0970125 BLADE GUARD 111 P0970111 UPPER BACK COVER 126 P0970126 PAD 112 P0970112 PHLP HD SCR M5-.8 X 8 127 P0970127 TAP SCREW M3 X 12 113 P0970113 STANDOFF-HEX MF M10-1.5 X 14, 26, M5-.8 128 P0970128 SAW BLADE 93-1/2" X 3/8" 18TPI 114 P0970114 PHLP HD SCR M5-.8 X 12 129 P0970129 WHEEL COVER HINGE (UPPER) 115 P0970115 CATCH 130 P0970130 WHEEL COVER HINGE (LOWER) 116 P0970116 UPPER WHEEL ASSEMBLY 131 P0970131 WHEEL COVER (UPPER) 116-1 P0970116-1 TI RE 132 P0970132 WHEEL COVER (LOWER) 116-2 P0970116-2 UPPER WHEEL 133 P0970133 TAP SCREW M4 X 8 116-3 P0970116-3 EX T RETAI NI NG RI NG 35MM 134 P0970134 LATCH STUD M8-1.25 X 14 116-4 P0970116-4 BALL BEARING 6202-2RS 135 P0970135 I NT TOOTH WA SHER 8MM 117 P0970117 HEX NUT M12-1.25 136 P0970136 KNOB M8-1.25, D39, ROUND GRIZZLY 118 P0970118 V-BELT 210J5 137 P0970137 FLAT HD SCR M5 -. 8 X 1 0 119 P0970119 LOWER WHEEL ASSEMBLY 138 P0970138 LOWER BLADE GUARD 119-1 P0970119-1 TI RE 139 P0970139 TABLE TILT SCALE 119-2 P0970119-2 LOWER WHEEL 140 P0970140 HEX BOLT M10-1.5 X 50

Model G0970 (Mfd. Since 07/23)

BUY PARTS ON LINE AT GRI ZZLY.COM!

Scan QR c ode to vi sit ou r Parts Store.

-57-

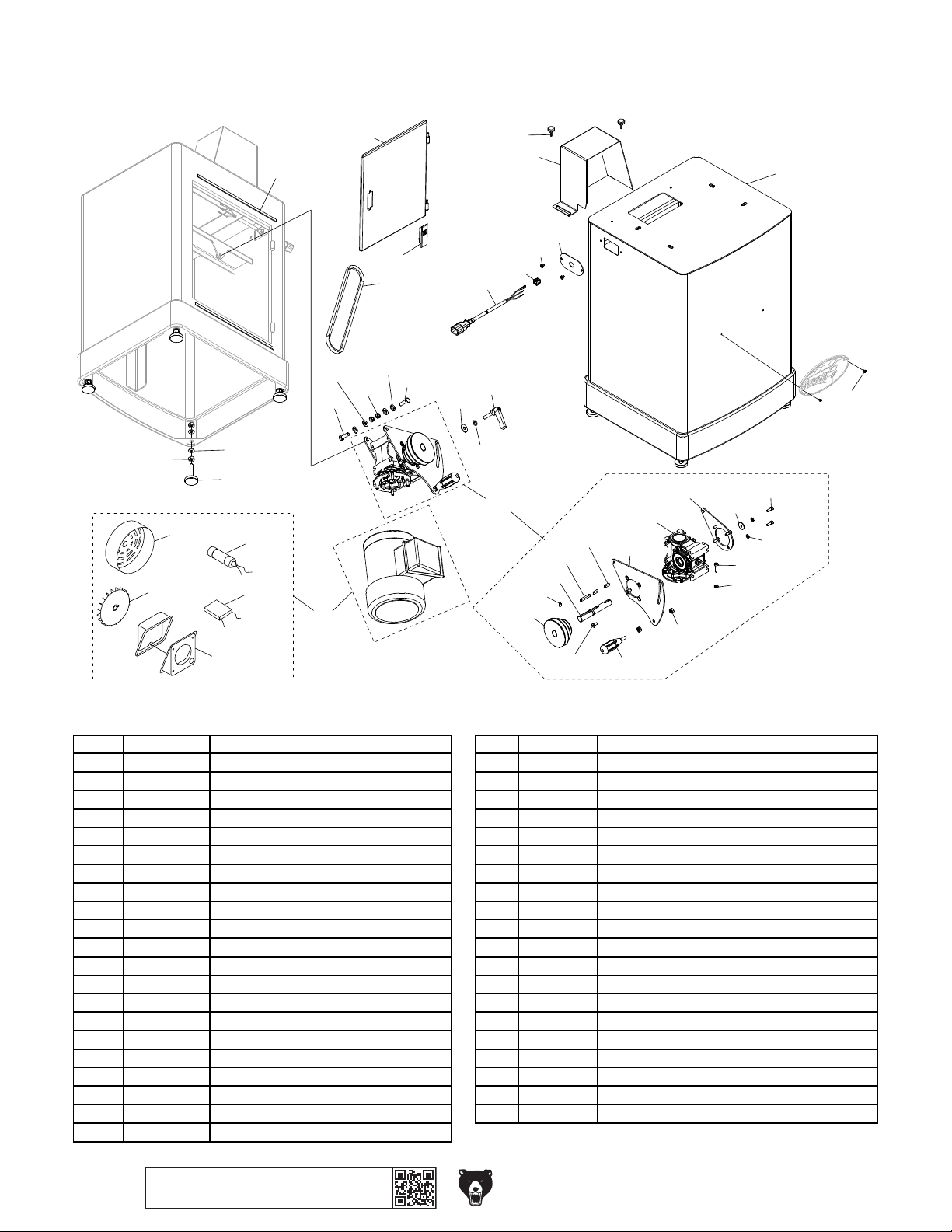

Stand & Motor

208 P0970208 FLAT WA SHER 8 MM

202

224-2

224-1

203

204

224-3

224-4

219

208

210

224

218

209

217

223

208

210

211

215

213

212

207

221

222

216

207-6

207-3

207-5

214

220

207-2

207-1

207-4

207-10

207-9

207-15

201

206

207-14

207-7

207-13

207-12 207-13

224-5

REF P ART # DESCRI PTIO N REF PART # DES CRIPTI ON

201 P0970201 CABINET 209 P0970209 LOCK NUT M8-1.25 202 P0970202 HEX NUT 3/8-16 210 P0970210 HEX BOLT M8-1.25 X 25 203 P0970203 FLAT WA SHER 1 0MM 211 P0970211 FLA T WASHE R 8MM 204 P0970204 ADJUSTABLE FOOT 212 P0970212 LOCK WASHER 8MM 206 P0970206 TAP SCREW M3 X 8 213 P0970213 ADJUSTABLE HANDLE M8-1.25 X 25, 60MM 207 P0970207 GEAR REDUCER ASSEMBLY 214 P0970214 PLATE 207-1 P0970207-1 KEY 6 X 6 X 20 215 P0970215 MOTOR CORD 16G 3W 27" 207-2 P0970207-2 KEY 6 X 6 X 40 216 P0970216 STRAIN RELIEF TYPE-2 10MM 207-3 P0970207-3 SET SCREW M6-1 X 10 217 P0970217 DOOR LATCH ASSEMBLY 207-4 P0970207-4 GEAR REDUCE R 218 P0970218 MAI NTENANCE DOOR 207-5 P0970207-5 PULLEY 219 P0970219 DOOR GASKET 207-6 P0970207-6 PULLEY SHAFT 220 P0970220 FLANGE SCREW M5-.8 X 5 207-7 P0970207-7 FENDER WASHE R 6MM 221 P0970221 KNOB BOLT M6-1 X 12, 6-LOBE, D21 207-9 P0970207-9 MOTOR PLATE INNER 222 P0970222 BELT GUARD 207-10 P0970207-10 MOTOR PLATE OUTER 223 P0970223 V-BELT A36 207-11 P0970207-11 FLAT HD CA P SCR M6 -1 X 16 224 P0970224 MOTOR 3/4HP 110/220V 1-PH 207-12 P0970207-12 HEX BOLT M6-1 X 25 224-1 P0970224-1 MOTO R FAN COV ER 207-13 P0970207-13 LOCK WASHER 6MM 224-2 P0970224-2 MOTO R FAN 207-14 P0970207-14 CAP SCREW M6-1 X 16 224-3 P0970224-3 S CAPACITOR 200M 250V 1-1/2 X 2-3/4 207-15 P0970207-15 HEX NUT M8 -1. 25 224-4 P0970224-4 R CAPACITOR 12M 250V 1-1/2 X 1-1/ 4 X 3/4 207-16 P0970207-16 FIXED HANDLE 20 X 99, M8-1.25 X 22 224-5 P0970224-5 MOTOR J UNCTI ON B OX

207-11

207-16

-58-

BUY PARTS ON LINE AT GRI ZZLY.COM!

Scan QR c ode to vi sit ou r Parts Store.

Model G0970 (Mfd. Since 07/23)

312 P0970312 HEX NUT M8- 1. 25 325 P0970325 FLAT WAS HER 6MM

321

300

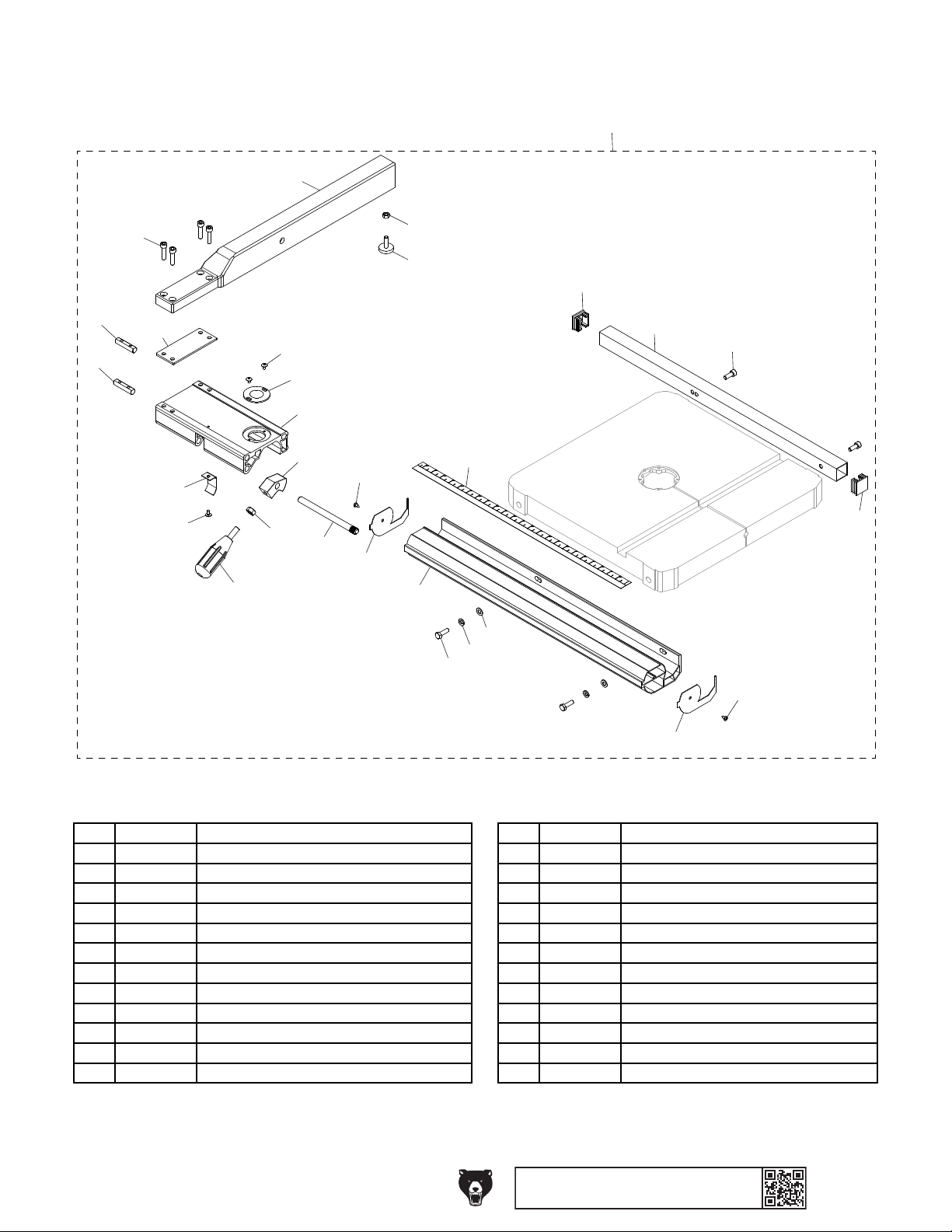

Fence & Rails

303

322

306

305

320

307

313

312

309

302

310

304

316

314

323

308

301

315

311

319

317

315

325

318

324

316

314

REF PART # DE S CRIPTION REF PART # DE S CRIPTION

300 P0970300 FENCE ASSEMBLY W/RAILS 313 P0970313 PHLP HD SCR M4-.7 X 6 301 P0970301 FRONT FENCE RA I L 314 P0970314 FRONT RAI L END CA P 302 P0970302 FENCE BASE 315 P0970315 REAR RAI L E ND CAP 303 P0970303 FENCE MOUNT RO D 316 P0970316 TAP SCREW M3.5 X 12 304 P0970304 LOCK SHAFT 317 P0970317 SCALE 305 P0970305 SPRING PLATE 318 P0970318 LOCK WASHER 6MM 306 P0970306 SPACER PLATE 319 P0970319 CAP SCREW M6-1 X 16 307 P0970307 FIXED HANDLE 29 X 77, M8-1.25 X 22 320 P0970320 PHLP HD SCR M4-.7 X 8 308 P0970308 ADJUSTABLE PAD M6-1 X 20 321 P0970321 FENCE 309 P0970309 MAGNIFYING GLASS 322 P0970322 CAP SCREW M6-1 X 25 310 P0970310 FIXED CAM 323 P0970323 HEX NUT M8- 1. 25 311 P0970311 REAR FENCE RAI L 324 P0970324 HEX BOLT M6-1 X 20

Model G0970 (Mfd. Since 07/23)

BUY PARTS ON LINE AT GRI ZZLY.COM!

Scan QR c ode to vi sit ou r Parts Store.

-59-

408 P0970408 SAFETY GLASSES LABEL 416 P0970416 READ MANUAL LABEL

G0970 Labels A

(08/01/23)

• 1:1 Sizing (Labels are actual size)

• Labels must be made of oil-resistant material

INJURY/SHOCK

HAZARD! Disconnect power before adjustments, maintenance, or service.

INJURY HAZARD!

Do not open door while machine is connected to power or blade is in motion.

WARNING!

G0970 Labels B

(08/01/23)

• 1:1 Sizing (Labels are

actual size)

• Labels must be made of

oil-resistant material

FIRE HAZARD!

Do not attempt to connect this machine to a dust collector.

WARNING!

The blade was purposely left untensioned for shipping purposes. Make sure you properly tension the blade (see manual) before starting this bandsaw!

EYE INJURY

HAZARD!

Always wear safety glasses when using this machine.

Motor Bandsaw

161 FPM

270 FPM

378 FPM

To reduce risk of death or serious injury, read manual BEFORE using machine. To get a new manual, call (800) 523-4777 or go to www.grizzly.com.

WARNING!

INJURY/SHOCK

HAZARD! Disconnect power before adjustments, maintenance, or service.

• 1:1 Sizing (Labels are

actual size)

• Labels must be made of

oil-resistant material

FIRE HAZARD!

Do not attempt to connect this machine to a dust collector.

WARNING!

INJURY/SHOCK

HAZARD! Disconnect power before adjustments, maintenance, or service.

INJURY HAZARD!

Do not open door while machine is connected to power or blade is in motion.

WARNING!

G0970 Labels B

(08/01/23)

• 1:1 Sizing (Labels are

actual size)

• Labels must be made of

oil-resistant material

FIRE HAZARD!

Do not attempt to connect this machine to a dust collector.

WARNING!

EYE INJURY

HAZARD!

Always wear safety glasses when using this machine.

G0970

grizzly.com

INJURY/SHOCK

HAZARD! Disconnect power before adjustments, maintenance, or service.

INJURY/SHOCK

HAZARD! Disconnect power before adjustments, maintenance, or service.

Do not attempt to connect this machine to a dust collector.

401

415

WARNING!

UNSTABLE WORKPIECE

HAZARD!

Workpieces that cannot be supported or stabilized without a fence or miter guage should not be cut on this bandsaw, because they can unexpectedly move while cutting and draw the operator’s hands into the blade, causing serious personal injury. Examples are chains, cables, round or oblong-shaped workpieces, workpieces with internal or built-in moving or rotating parts, etc.

414

413

INJURY/SHOCK

HAZARD! Disconnect power before adjustments, maintenance, or service.

416

WARNING!

To reduce risk of death or serious injury, read manual BEFORE using machine. To get a new manual, call (800) 523-4777 or go to www.grizzly.com.

Labels & Cosmetics

402

MODEL G0970

14" VERTICAL METAL-CUTTING

Specifications

Motor: 3/4 HP, 110V/220V, 1-Phase, 60 Hz Prewired: 110V Full Load Amps: 10A (110V); 5A (220V) Table Size: 14" x 14" Blade Speeds: 161, 270, 378 FPM Blade Length Range: 92-1/2"–93-1/2" Blade Width Range: 1/8"–3/4" Max. Cutting Width (Left of Blade): 13-1/4" Max. Cutting Height: 6" Table Tilt: 15˚ Left, 45˚ Right Weight: 238 lbs.

Date

S/N

Mfd. for Grizzly in Taiwan

INJURY HAZARD!

BANDSAW

WARNING!

To reduce risk of serious injury when using this machine:

1. Read and understand owner’s manual before operating.

2. Never touch moving blade—keep hands out of blade path.

3. Always wear approved eye protection.

4. Only plug power cord into a grounded outlet.

5. Only remove jammed cutoff pieces when blade is stopped.

6. Use push stick or holding jig to cut small or narrow pieces.

7. Disconnect power before changing blades, making adjustments, or servicing.

8. Maintain proper adjustment of blade tension, tracking, guides, and support bearings.

9. Keep upper guides adjusted to just clear workpiece.

10. Hold workpiece firmly against table to maintain control.

11. Only run bandsaw with wheel covers closed and guards in place.

12. Use fixtures, not your hands, to hold small or round workpieces.

13. Never reach under table while blade is in motion.

14. DO NOT wear loose clothing, gloves, jewelry, or other articles that can get entangled. Tie back long hair and roll up sleeves.

15. DO NOT expose to rain or use in wet locations.

16. DO NOT operate under influence of drugs or alcohol, or when tired.

17. Prevent unauthorized use by children or untrained users.

408

EYE INJURY

HAZARD!

Always wear safety glasses when using this machine.

WARNING!

407

Do not open door while machine is connected to power or blade is in motion.

406

WARNING!

FIRE HAZARD!

Do not attempt to connect this machine to a dust collector.

403

The blade was purposely left untensioned for shipping purposes. Make sure you properly tension the blade (see manual) before starting this bandsaw!

404

Motor Bandsaw

161 FPM

270 FPM

378 FPM

412

409

411

405

WARNING!

410

REF PART # DESCRI PTION REF P ART # DE S CRIPTI ON

401 P0970401 MODEL NUMBER LABEL 409 P0970409 GRIZZLY NAMEPLATE-SMALL 402 P0970402 MACHINE ID LABEL 410 P0970410 GRIZZLY.COM LABEL 403 P0970403 BLADE TENSION HANGING NOTICE 411 P0970411 TOUCH-UP PAINT, GRIZZLY GREEN 404 P0970404 BLADE SPEED LABEL 412 P0970412 TOUCH-UP PAINT, GRIZZLY BEIGE 405 P0970405 DOOR INJURY HAZARD LABEL-LARGE 413 P0970413 DISCONNECT LABEL 406 P0970406 FIRE HAZARD LABEL 414 P0970414 ELECTRICITY LABEL 407 P0970407 DOOR INJURY HAZARD LABEL-SMALL 415 P0970415 UNSTABLE WORKPIECE LABEL

BUY PARTS ON LINE AT GRI ZZLY.COM!

Scan QR c ode to vi sit ou r Parts Store.

Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes off or becomes unreadable, the owner of this machine MUST replace it in the original location before resuming operations. For replacements, contact (800) 523-4777 or www.grizzly.com.

-60-

INJURY HAZARD!

Do not open door while machine is connected to power or blade is in motion.

Model G0970 (Mfd. Since 07/23)

WARRANTY & RETURNS

Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse,

negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty

and any and all warranties that may be implied by law, including any merchantability or fitness, for any particular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants.

In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and

any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.

We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special, or consequential damages arising from the use of our products.

The manufacturers reserve the right to change specifications at any time because they constantly strive to achieve better quality equipment. We make every effort to ensure that our products meet high quality and durability standards and we hope you never need to use this warranty.

In the event you need to use this warranty, contact us by mail or phone and give us all the details. We will

then issue you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of

the carton. We will not accept any item back without this number. Proof of purchase must accompany the merchandise.

Please feel free to write or call us if you have any questions about the machine or the manual.

Thank you again for your business and continued support. We hope to serve you again soon.

To you can applicable information for

take advantage of this warranty, you must register it at https://www.grizzly.com/forms/warranty, or

scan the QR code below to be automatically directed to our warranty registration page. Enter all

the product.

WARRANTY

Grizzly G0970 User guide

Specifications and Main Features

Frequently Asked Questions

User Manual

INTRODUCTION

Contact Info

Manual Accuracy

Identification

Machine Data Sheet

SECTION 1: SAFETY

Safety Instructions for Machinery

SECTION 2: POWER SUPPLY

SECTION 3: SETUP

Needed for Setup

Unpacking

Inventory

Cleanup

Site Considerations

Assembly

Blade Tracking

Test Run

Tensioning Blade

Aligning Table

Aligning Fence

SECTION 4: OPERATIONS

Operation Overview

Operation Tips

Workpiece Inspection

Blade Selection

Chip Inspection Chart

Blade Breakage

Table Tilt

Calibrating Table Tilt

Guide Post

SECTION 5: ACCESSORIES

SECTION 6: MAINTENANCE

Lubrication

Schedule

SECTION 7: SERVICE

Troubleshooting

Tensioning V-Belt

Replacing V-Belt

Wheel Alignment

SECTION 8: WIRING

Wiring Safety Instructions

Wiring Diagram

Electrical Components

SECTION 9: PARTS

Main

Wheels & Table

Stand & Motor

Fence & Rails

Labels & Cosmetics

WARRANTY & RETURNS
