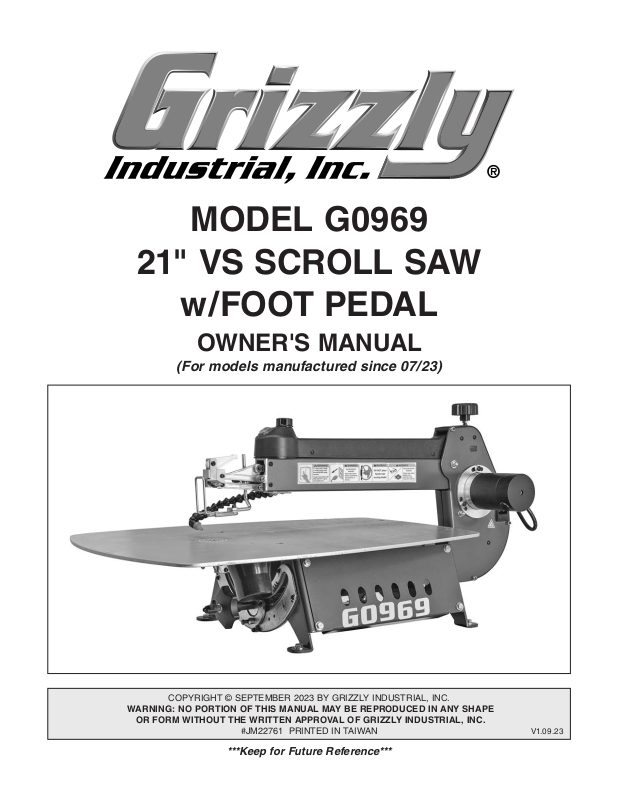

Grizzly G0969 User guide

MODEL G0969

21" VS SCROLL SAW

w/FOOT PEDAL

OWNER'S MANUAL

(For models manufactured since 07/23)

COPYRIGHT © SEPTEMBER 2023 BY GRIZZLY INDUSTRIAL, INC.

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#JM22761 PRINTED IN TAIWAN

***Keep for Future Reference***

V1.0 9.2 3

This manual provides critical safety instructions on the proper setup,
operation, maintenance, and service of this machine/tool. Save this
document, refer to it often, and use it to instruct other operators.

Failure to read, understand and follow the instructions in this manual
may result in fire or serious personal injury—including amputation,
electrocution, or death.

The owner of this machine/tool is solely responsible for its safe use.
This responsibility includes but is not limited to proper installation in
a safe environment, personnel training and usage authorization,
proper inspection and maintenance, manual availability and compre­hension, application of safety devices, cutting/sanding/grinding tool
integrity, and the usage of personal protective equipment.

The manufacturer will not be held liable for injury or property damage
from negligence, improper training, machine modifications or misuse.

Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State
of California to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
Work in a well ventilated area, and work with approved safety equip­ment, such as those dust masks that are specially designed to filter
out microscopic particles.

Table of Contents

INTRODUCTION............................................... 2

Contact Info ................................................... 2

Manual Accuracy ........................................... 2

Identification................................................... 3

Controls & Components................................. 4

Machine Data Sheet ...................................... 5

SECTION 1: SAFETY....................................... 7

Safety Instructions for Machinery .................. 7

Additional Safety for Scroll Saws................... 9

SECTION 2: POWER SUPPLY ...................... 10

SECTION 3: SETUP ....................................... 12

Needed for Setup......................................... 12

Unpacking .................................................... 12

Inventory ...................................................... 13

Hardware Recognition Chart ....................... 14

Site Considerations...................................... 15

Bench Mounting........................................... 16

Assembly ..................................................... 16

Dust Collection............................................. 17

Test Run....................................................... 17

SECTION 4: OPERATIONS ........................... 18

Operation Overview ..................................... 18

Basic Cutting Tips........................................ 19

Workpiece Inspection................................... 19

Adjusting Hold-Down Shoe.......................... 20

Tensioning Blade ......................................... 20

Tilting Frame................................................ 21

Blade Selection............................................ 22

Installing/Removing Blade ........................... 22

Adjusting Blade Speed ................................ 23

Adjusting Blade Motion ................................ 24

Making Standard Scroll Cuts ....................... 25

Making Inside Cuts ...................................... 25

Making Bevel Cuts....................................... 26

Using Foot Pedal ......................................... 26

SECTION 5: ACCESSORIES......................... 27

SECTION 6: MAINTENANCE......................... 28

Schedule ...................................................... 28

Cleaning & Protecting .................................. 28

Lubrication ................................................... 28

SECTION 7: SERVICE ................................... 29

Troubleshooting ........................................... 29

Checking/Replacing Motor Brushes ............ 30

Squaring Blade to Table............................... 30

Adjusting Upper Arm Tension ...................... 31

Fuse Replacement....................................... 32

Adjusting Blade Oscillation .......................... 32

Aligning Blade Mounts ................................. 33

SECTION 8: WIRING...................................... 34

Wiring Safety Instructions ............................ 34

Wiring Diagram ............................................ 35

SECTION 9: PARTS....................................... 37

Controls........................................................ 37

Table & Base................................................ 39

Motor & Drivetrain........................................ 40

Labels & Cosmetics ..................................... 42

WARRANTY & RETURNS ............................. 44

We stand behind our machines! If you have ques­tions or need help, contact us with the information
below. Before contacting, make sure you get the

serial number

machine ID label. This will help us help you faster.

We want your feedback on this manual. What did
you like about it? Where could it be improved?
Please take a few minutes to give us feedback.

We are proud to provide a high-quality owner’s
manual with your new machine!

We

instruc­tions, specifications, drawings, and photographs
in this manual. Sometimes we make mistakes, but
our policy of continuous improvement also means
that

you receive is

slightly different than shown in the manual

If you find this to be the case, and the difference
between the manual and machine leaves you
confused or unsure about something

check our

website for an updated version. W

current

manuals and

on our web-

site at

Alternatively, you can call our Technical Support
for help. Before calling, make sure you write
down the

serial number

from the machine ID label (see below). This
information is required for us to provide proper
tech support, and it helps us determine if updated
documentation is available for your machine.

INTRODUCTION

Contact Info

and manufacture date from the

Grizzly Technical Support

1815 W. Battlefield
Springfield, MO 65807
Phone: [phone]

Email: [e-mail]

Grizzly Documentation Manager

P.O. Box 2069

Bellingham, WA 98227-2069

Email: [e-mail]

Manual Accuracy

made every effort to be exact with the

sometimes the machine

.

,

e post

manual updates for free

www.grizzly.com.

manufacture date and

Like all machinery there is potential danger
when operating this machine. Accidents
are frequently caused by lack of familiarity
or failure to pay attention. Use this machine
with respect and caution to decrease the
risk of operator injury. If normal safety pre­cautions are overlooked or ignored, seri­ous personal injury may occur.

No list of safety guidelines can be com­plete. Every shop environment is different.
Always consider safety first, as it applies
to your individual working conditions. Use
this and other machinery with caution and
respect. Failure to do so could result in
serious personal injury, damage to equip­ment, or poor work results.

Manufacture Date

Serial Number

-2-

Model G0969 (Mfd. Since 07/23)

Identification

To reduce your risk of
serious injury, read this
entire manual BEFORE

Become familiar with the names and locations of the controls and features shown below to better understand
the instructions in this manual.

C

B

A

S

R

Q

A. Air Nozzle
B. Hold-Down Shoe
C. Upper Blade Mount
D. Blade Tension Lever
E. ON/OFF Switch
F. Variable-Speed Knob
G. Upper Arm
H. Arm Adjustment Knob
I. Motor
J. Adjustable Feet

D

P

E F

O

G

H

I

J

K

L

M

N

K. Blade Holders
L. Preset Stops
M. Dust Port
N. Tilt Scale
O. Angle Index Pin
P. Frame Tilt Knob
Q. Frame Lock Lever
R. Lower Blade Mount
S. Lower Blade Guard

Model G0969 (Mfd. Since 07/23)

using machine.

-3-

Controls &

To reduce your risk of
serious injury, read this
entire manual BEFORE

Components

using machine.

Refer to the following figures and descriptions to
become familiar with the basic controls and com­ponents of this machine. Understanding these
items and how they work will help you understand
the rest of the manual and minimize your risk of
injury when operating this machine.

Controls & Components

A

C

B

G. Hold-Down Shoe: Holds down workpiece as

blade moves during operation. Adjust hold­down shoe to thickness of workpiece.

H. Hold-Down Shoe Lock Knob: Locks hold-

down shoe in position.

I

N

J

KL M

Figure 2. Tilt controls.

I. Dust Port: Connects vacuum hose or dust

collection system.

D

H

G

F

Figure 1. Machine controls.

A. Arm Adjustment Knob: Raises and lowers

upper arm.

B. Variable-Speed Knob: Adjusts blade speed

from 400 to 1550 SPM.

C. ON/OFF Switch: Starts and stops motor.

D. Blade Tension Lever: Engages/disengages

blade tension.

E

J. Frame Lock Lever: Locks frame and blade

at desired angle.

K. Frame Tilt Knob: Adjusts frame and blade to

desired angle for bevel cutting.

L. Angle Index Pin: Locks frame at chosen

preset angle for bevel cutting.

M. Tilt Scale: Indicates, left or right, angle from 0°

to 45° when the frame is tilted for bevel cutting.

N. Preset Stops: Set at 0° (90°), 22.5°, 30°, and

45°, left and right.

O

E. Blade Mount Lock Knob: Locks blade in

place, or unlocks blade for removal.

F. Air Nozzle: Adjustable nozzle blows debris

away from line of cut during operations.

-4-

Figure 3. Foot pedal.

O. Foot Pedal Control: When connected

controls movement of blade.

Model G0969 (Mfd. Since 07/23)

Machine Data Sheet

Customer Service #: [phone] · To Order Call: [phone] · Fax #: [phone]

MODEL G0969

21" VS SCROLL SAW WITH FOOT PEDAL

Product Dimensions:

Weight ............................................................................................................................................................................. 79 lbs.

Width (side-to-side) x Depth (front-to-back) x Height .......................................................................... 20-1/2 x 37 x 17-1/2 in.

Footprint (Length x Width) .........................................................................................................................................17 x 15 in.

Shipping Dimensions:

Type ................................................................................................................................................................... Cardboard Box

Content.......................................................................................................................................................................... Machine

Weight............................................................................................................................................................................ 100 lbs.

Length x Width x Height..................................................................................................................................... 41 x 24 x 20 in.

Must Ship Upright .................................................................................................................................................................Yes

Electrical:

Power Requirement ........................................................................................................................ 110V, Single-Phase, 60 Hz

Full-Load Current Rating..................................................................................................................................................... 1.3A

Minimum Circuit Size ........................................................................................................................................................... 15A

Connection Type..................................................................................................................................................... Cord & Plug

Power Cord Included ............................................................................................................................................................Yes

Power Cord Length ............................................................................................................................................................72 in.

Power Cord Gauge .......................................................................................................................................................18 AWG

Plug Included ........................................................................................................................................................................Yes

Included Plug Type ..............................................................................................................................................................5-15

Switch Type .................................................................................................................Rocker ON/OFF w/Variable-Speed Dial

Motor:

Main

Horsepower

Phase .......................................................................................................................................................... Single-Phase

Amps ......................................................................................................................................................................... 1.3A

Speed ...............................................................................................................................................................1550 RPM

Type........................................................................................................................................................... Universal (DC)

Power Transfer ........................................................................................................................................................ Direct

Bearings ......................................................................................................................Sealed & Permanently Lubricated

Main Specifications:

Capacities

Depth of Throat

Maximum Cutting Height ............................................................................................................................................2 in.

Maximum Cutting Height at 22-1/2 Degrees ........................................................................................................1-1/2 in.

Maximum Cutting Height at 30 Degrees ............................................................................................................1-5/16 in.

Maximum Cutting Height at 45 Degrees .................................................................................................................7/8 in.

Maximum Cutting Depth ........................................................................................................................................... 21 in.

............................................................................................................................................................... 50W

........................................................................................................................................................21 in.

Model G0969 (Mfd. Since 07/23)

-5-

Blade & Movement

Blade Type ........................................................................................................................................................Plain-End

Blade Length ..............................................................................................................................................................5 in.

Blade Width Range ...............................................................................................................................................3/32 in.

Blade Stroke............................................................................................................................................................ 3/4 in.

Blade Strokes Per Minute (SPM) ........................................................................................................... 400 - 1550 SPM

Blade & Arm Tilt .................................................................................................0 - 45 deg. L/R (w/Dust Port Removed)

Blade & Arm Tilt Adjustment Type ........................................................................................................................Manual

Table Information

Table Length ....................................................................................................................................................28-7/16 in.

Table Width ........................................................................................................................................................20-1/8 in.

Table Thickness ......................................................................................................................................................1/4 in.

Construction

Table..........................................................................................................................................................................Steel

Other Specifications:

Body ..........................................................................................................................................................................Steel

Blade Guard ..............................................................................................................................................Stainless Steel

Paint Type/Finish...................................................................................................................................................Enamel

Other Information

Number of Dust Ports......................................................................................................................................................1

Dust Port Size ......................................................................................................................................................2-1/2 in.

Country of Origin............................................................................................................................................................. Taiwan

Warranty........................................................................................................................................................................... 1 Year

Approximate Assembly & Setup Time ......................................................................................................................30 Minutes

Serial Number Location ................................................................................................................................................ ID Label

ISO 9001 Factory..................................................................................................................................................................Yes

Features:

Foot Pedal Switch
Tool-Less Blade Holder Accepts Plain-End Blades
Variable Blade Speed
Arm Assembly Raises for Easy Blade Access
Stationary Steel Table 20-1/8" x 28-7/16"
Blade & Arm Tilt 45º Side to Side (w/Dust Port Removed)
Positive Indexing Pin Holes at 0º, 45º, 30º and 22-1/2º in Both Directions
Flexible Sawdust Blower
Hold-Down Shoe
Dust Port 2-1/2"

Accessories:

Plain-End Blade 5"
Hex Wrench 3mm
Optional Stand Available (T33905)

-6-

Model G0969 (Mfd. Since 07/23)

SECTION 1: SAFETY

For Your Own Safety, Read Instruction

Manual Before Operating This Machine

The purpose of safety symbols is to attract your attention to possible hazardous conditions.
This manual uses a series of symbols and signal words intended to convey the level of impor­tance of the safety messages. The progression of symbols is described below. Remember that
safety messages by themselves do not eliminate danger and are not a substitute for proper
accident prevention measures. Always use common sense and good judgment.

Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury. It may also be used to alert
against unsafe practices.

Alerts the user to useful information about proper operation of the

NOTICE

machine to avoid machine damage.

Safety Instructions for Machinery

OWNER’S MANUAL. Read and understand this

owner’s manual BEFORE using machine.

TRAINED OPERATORS ONLY. Untrained oper­ators have a higher risk of being hurt or killed.
Only allow trained/supervised people to use this
machine. When machine is not being used, dis­connect power, remove switch keys, or lock-out
machine to prevent unauthorized use—especially
around children. Make your workshop kid proof!

DANGEROUS ENVIRONMENTS. Do not use
machinery in areas that are wet, cluttered, or have
poor lighting. Operating machinery in these areas
greatly increases the risk of accidents and injury.

MENTAL ALERTNESS REQUIRED. Full mental
alertness is required for safe operation of machin­ery. Never operate under the influence of drugs or
alcohol, when tired, or when distracted.

ELECTRICAL EQUIPMENT INJURY RISKS.

You can be shocked, burned, or killed by touching
live electrical components or improperly grounded
machinery. To reduce this risk, only allow qualified
service personnel to do electrical installation or
repair work, and always disconnect power before
accessing or exposing electrical equipment.

DISCONNECT POWER FIRST.

nect machine from power supply BEFORE mak­ing adjustments, changing tooling, or servicing
machine. This prevents an injury risk from unin­tended startup or contact with live electrical com­ponents.

EYE PROTECTION. Always wear ANSI-approved
safety glasses or a face shield when operating or
observing machinery to reduce the risk of eye
injury or blindness from flying particles. Everyday
eyeglasses are NOT approved safety glasses.

Always discon-

Model G0969 (Mfd. Since 07/23)

-7-

WEARING PROPER APPAREL. Do not wear
loose clothing, gloves, neckties, or jewelry that
can become entangled in moving parts. Always tie
back or cover long hair. Wear non-slip footwear to
reduce risk of slipping and losing control or acci­dentally contacting cutting tool or moving parts.

HAZARDOUS DUST. Dust created by machinery
operations may cause cancer, birth defects, or
long-term respiratory damage. Be aware of dust
hazards associated with each workpiece mate­rial. Always wear a NIOSH-approved respirator to
reduce your risk.

HEARING PROTECTION. Always wear hear­ing protection when operating or observing loud
machinery. Extended exposure to this noise
without hearing protection can cause permanent
hearing loss.

REMOVE ADJUSTING TOOLS. Tools left on
machinery can become dangerous projectiles
upon startup. Never leave chuck keys, wrenches,
or any other tools on machine. Always verify
removal before starting!

USE CORRECT TOOL FOR THE JOB. Only use
this tool for its intended purpose—do not force
it or an attachment to do a job for which it was
not designed. Never make unapproved modifica­tions—modifying tool or using it differently than
intended may result in malfunction or mechanical
failure that can lead to personal injury or death!

AWKWARD POSITIONS. Keep proper footing
and balance at all times when operating machine.
Do not overreach! Avoid awkward hand positions
that make workpiece control difficult or increase
the risk of accidental injury.

CHILDREN & BYSTANDERS. Keep children and
bystanders at a safe distance from the work area.
Stop using machine if they become a distraction.

GUARDS & COVERS. Guards and covers reduce
accidental contact with moving parts or flying
debris. Make sure they are properly installed,
undamaged, and working correctly BEFORE
operating machine.

FORCING MACHINERY. Do not force machine.
It will do the job safer and better at the rate for
which it was designed.

NEVER STAND ON MACHINE. Serious injury
may occur if machine is tipped or if the cutting
tool is unintentionally contacted.

STABLE MACHINE. Unexpected movement dur­ing operation greatly increases risk of injury or
loss of control. Before starting, verify machine is
stable and mobile base (if used) is locked.

USE RECOMMENDED ACCESSORIES. Consult
this owner’s manual or the manufacturer for rec­ommended accessories. Using improper acces­sories will increase the risk of serious injury.

UNATTENDED OPERATION. To reduce the
risk of accidental injury, turn machine OFF and
ensure all moving parts completely stop before
walking away. Never leave machine running
while unattended.

MAINTAIN WITH CARE. Follow all maintenance
instructions and lubrication schedules to keep
machine in good working condition. A machine
that is improperly maintained could malfunction,
leading to serious personal injury or death.

DAMAGED PARTS. Regularly inspect machine
for damaged, loose, or mis-adjusted parts—or
any condition that could affect safe operation.
Immediately repair/replace BEFORE operating
machine. For your own safety, DO NOT operate
machine with damaged parts!

MAINTAIN POWER CORDS. When disconnect­ing cord-connected machines from power, grab
and pull the plug—NOT the cord. Pulling the cord
may damage the wires inside. Do not handle
cord/plug with wet hands. Avoid cord damage by
keeping it away from heated surfaces, high traffic
areas, harsh chemicals, and wet/damp locations.

EXPERIENCING DIFFICULTIES. If at any time
you experience difficulties performing the intend­ed operation, stop using the machine! Contact our
Technical Support at [phone].

-8-

Model G0969 (Mfd. Since 07/23)

Additional Safety for Scroll Saws

Serious cuts or amputation can occur from contact with the moving saw blade during operation
or if blade breakage occurs. To reduce this risk, anyone operating this machine MUST com­pletely heed the hazards and warnings below.

HAND PLACEMENT. Never position fingers or

hands in line with the blade. If the workpiece or
your hands slip, serious personal injury could
occur.

INTENDED USE. This machine is intended for
cutting natural and man-made wood products, and
laminate covered wood products. This machine is
NOT designed to cut metal, glass, stone, tile, etc.

SMALL WORKPIECE HANDLING. If your hands
slip while holding small workpieces with your fin­gers during a cut, amputation or laceration injuries
could occur. Always support/feed the workpiece
with push sticks, jig, vise, or some type of clamp­ing fixture.

BLADE CONDITION. Do not operate with dull,
cracked, or badly worn blade. Dull blades require
more effort to perform the cut and increase the
risk of kickback. Inspect blades for cracks and
missing teeth before each use.

BLADE TENSION. To avoid mishaps that could
result in operator injury, make sure the blade teeth
face down toward the table and the blade is prop­erly tensioned before operating.

BLADE SPEED. Always allow the blade to come
to full speed before starting the cut. Moving the
workpiece against a blade that is not at full speed
could cause the blade to break or grab the work­piece and draw the operator’s hands into the
blade.

BLADE CONTROL. To avoid serious personal
injury, DO NOT attempt to stop or slow the blade
with your hand or the workpiece. Allow the blade
to stop on its own.

FEED RATE. To avoid the risk of the workpiece
slipping and causing operator injury, always feed
stock evenly and smoothly. DO NOT force or twist
the blade while cutting, especially when sawing
small curves.

CUTTING TECHNIQUES. Plan your operation so
the blade always cuts to the outside of the work­piece. DO NOT back the workpiece away from
the blade while the saw is running, which could
cause kickback and personal injuries. If you need
to back the workpiece out, turn the scroll saw
OFF and wait for the blade to come to a complete
stop. DO NOT twist or put excessive stress on the
blade that could damage it. Instead, use relief cuts
for curve cuts that may twist the blade.

LEAVING WORK AREA. Never leave a machine
running unattended. Allow the scroll saw to come
to a complete stop before you leave it unattended.

CUT-OFF PIECES. Never use your hands to
move cut-offs away from the blade while the saw
is running. If a cut-off becomes trapped between
the blade and table insert, turn the saw OFF and
allow the blade to completely stop before remov­ing it.

Model G0969 (Mfd. Since 07/23)

-9-

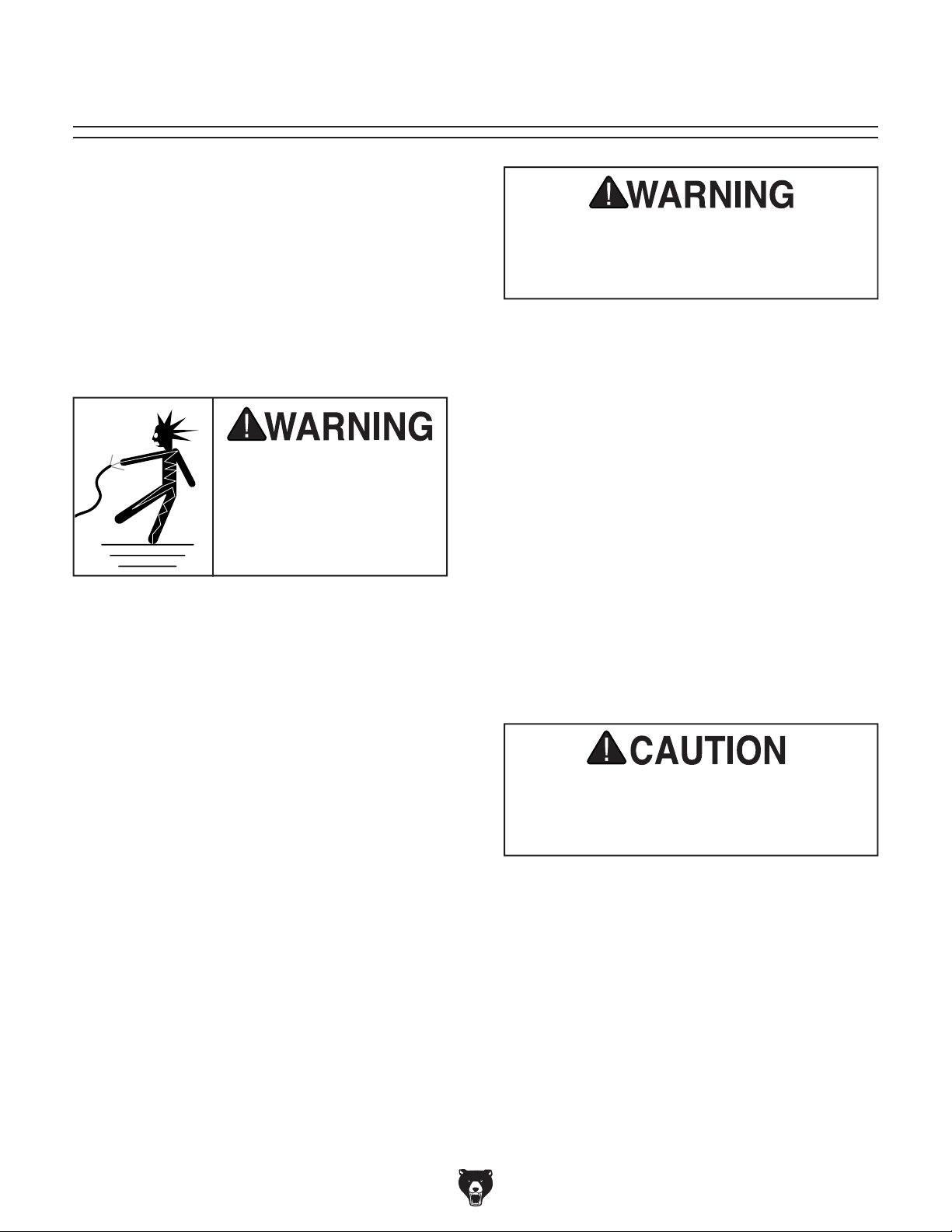

SECTION 2: POWER SUPPLY

Before installing the machine, consider the avail­ability and proximity of the required power supply
circuit. If an existing circuit does not meet the
requirements for this machine, a new circuit must
be installed. To minimize the risk of electrocution,
fire, or equipment damage, installation work and
electrical wiring must be done by an electrician or
qualified service personnel in accordance with all
applicable codes and standards.

or equipment damage
may occur if machine is
not properly grounded
and connected to power

The full-load current rating is the amperage a
machine draws at 100% of the rated output power.
On machines with multiple motors, this is the
amperage drawn by the largest motor or sum of all
motors and electrical devices that might operate
at one time during normal operations.

The full-load current is not the maximum amount
of amps that the machine will draw. If the machine
is overloaded, it will draw additional amps beyond
the full-load rating.

If the machine is overloaded for a sufficient length
of time, damage, overheating, or fire may result—
especially if connected to an undersized circuit.
To reduce the risk of these hazards, avoid over­loading the machine during operation and make
sure it is connected to a power supply circuit that
meets the specified circuit requirements.

For your own safety and protection of

Note: Circuit requirements in this manual apply to

a dedicated circuit—where only one machine will
be running on the circuit at a time. If machine will
be connected to a shared circuit where multiple
machines may be running at the same time, con­sult an electrician or qualified service personnel to
ensure circuit is properly sized for safe operation.

A power supply circuit includes all electrical
equipment between the breaker box or fuse panel
in the building and the machine. The power sup­ply circuit used for this machine must be sized to
safely handle the full-load current drawn from the
machine for an extended period of time. (If this
machine is connected to a circuit protected by
fuses, use a time delay fuse marked D.)

This machine is prewired to operate on a power
supply circuit that has a verified ground and meets
the following requirements:

process. DO NOT connect to power until

Availability

Electrocution, fire, shock,

Serious injury could occur if you connect
machine to power before completing setup

instructed later in this manual.

110V Circuit Requirements

Nominal Voltage .................... 110V, 115V, 120V

Cycle ..........................................................60 Hz

Phase ........................................... Single-Phase

Power Supply Circuit ......................... 15 Amps

Plug/Receptacle ............................. NEMA 5-15

supply.

Full-Load Current Rating

Full-Load Current Rating at 110V..... 1.3 Amps

-10-

property, consult an electrician if you are
unsure about wiring practices or electrical
codes in your area.

Model G0969 (Mfd. Since 07/23)

Improper connection of the equipment-grounding
wire can result in a risk of electric shock. The
wire with green insulation (with or without yellow
stripes) is the equipment-grounding wire. If repair
or replacement of the power cord or plug is nec­essary, do not connect the equipment-grounding
wire to a live (current carrying) terminal.

Check with a qualified electrician or service per­sonnel if you do not understand these grounding
requirements, or if you are in doubt about whether
the tool is properly grounded. If you ever notice
that a cord or plug is damaged or worn, discon­nect it from power, and immediately replace it with
a new one.

We do not recommend using an extension cord
with this machine.
cord, only use it if absolutely necessary and only
on a temporary basis.

Extension cords cause voltage drop, which can
damage electrical components and shorten motor
life. Voltage drop increases as the extension cord
size gets longer and the gauge size gets smaller
(higher gauge numbers indicate smaller sizes).

Any extension cord used with this machine must
be in good condition and contain a ground wire
and matching plug/receptacle. Additionally, it must
meet the following size requirements:

Grounding & Plug Requirements

it will not fit the outlet, have a qualified
electrician install the proper outlet with a

This machine MUST be grounded. In the event
of certain malfunctions or breakdowns, grounding
reduces the risk of electric shock by providing a
path of least resistance for electric current.

This machine is equipped with a power cord that
has an equipment-grounding wire and a grounding
plug. Only insert plug into a matching receptacle
(outlet) that is properly installed and grounded in
accordance with all local codes and ordinances.
DO NOT modify the provided plug!

GROUNDED

5-15 RECEPTACLE

Grounding Pin

5-15 PLUG

Extension Cords

If you must use an extension

Neutral Hot

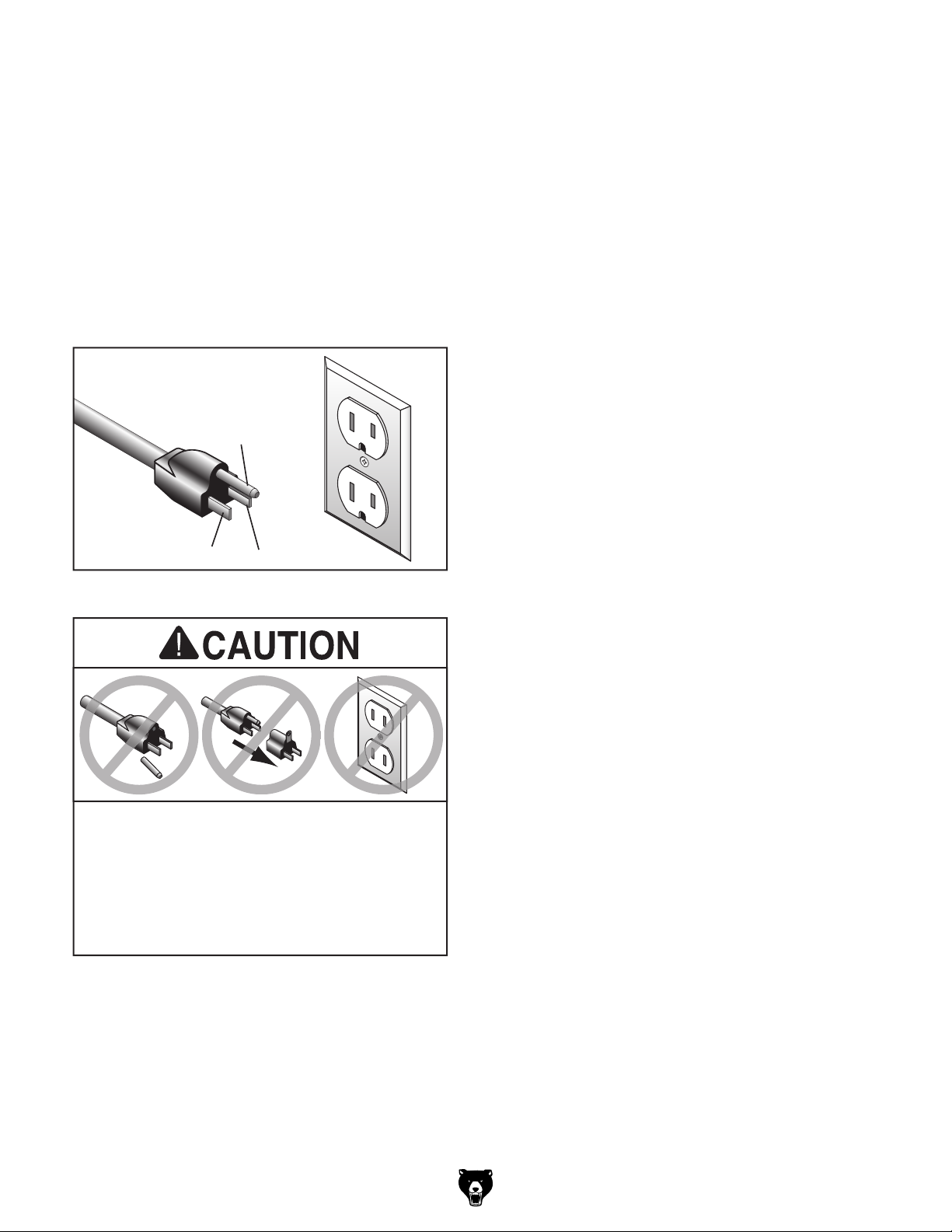

Figure 4. Typical 5-15 plug and receptacle.

SHOCK HAZARD!
Two-prong outlets do not meet the grounding
requirements for this machine. Do not modify
or use an adapter on the plug provided—if

verified ground.

Model G0969 (Mfd. Since 07/23)

Minimum Gauge Size ...........................16 AWG

Maximum Length (Shorter is Better).......50 ft.

-11-

SECTION 3: SETUP

This machine was carefully packaged for safe
transport. When unpacking, separate all enclosed
items from packaging materials and inspect them
for shipping damage.

,

please

IMPORTANT:

you are completely satisfied with the machine and
have resolved any issues between Grizzly or the
shipping agent. You MUST have the original pack-

aging to file a freight claim. It is also extremely
helpful if you need to return your machine later.

This machine presents
serious injury hazards
to untrained users. Read
through this entire manu­al to become familiar with
the controls and opera­tions before starting the
machine!

Wear safety glasses during
the entire setup process!

call us immediately at [phone].

Unpacking

If items are damaged

Save all packaging materials until

This machine and its com­ponents are very heavy.
Get lifting help if needed.

Needed for Setup

The following items are needed, but not included,
for the setup/assembly of this machine.

Description Qty

• Additional Person (for lifting) ...................... 1

• Safety Glasses (for each person)........ 1 Pair

• Level ........................................................... 1

• Dust Collection System .............................. 1

• Dust Hose 2

• Hose Clamps 2

• Disposable Shop Rags............... As Needed

• Phillips Head Screwdriver #2 ..................... 1

• Flat Head Screwdriver

• Open-End Wrenches

• Shop Vacuum (Optional) ............................ 1

1

⁄2 " ........................................... 1

1

⁄2 " ...................................... 2

1

⁄4"........................... 1

1

⁄2 ", 9⁄16"...............1 Ea.

DO NOT lift or move Model G0969 using
upper arm, or internal drivetrain compo­nents could be damaged. Always use lifting
points called out below in Figure 5.

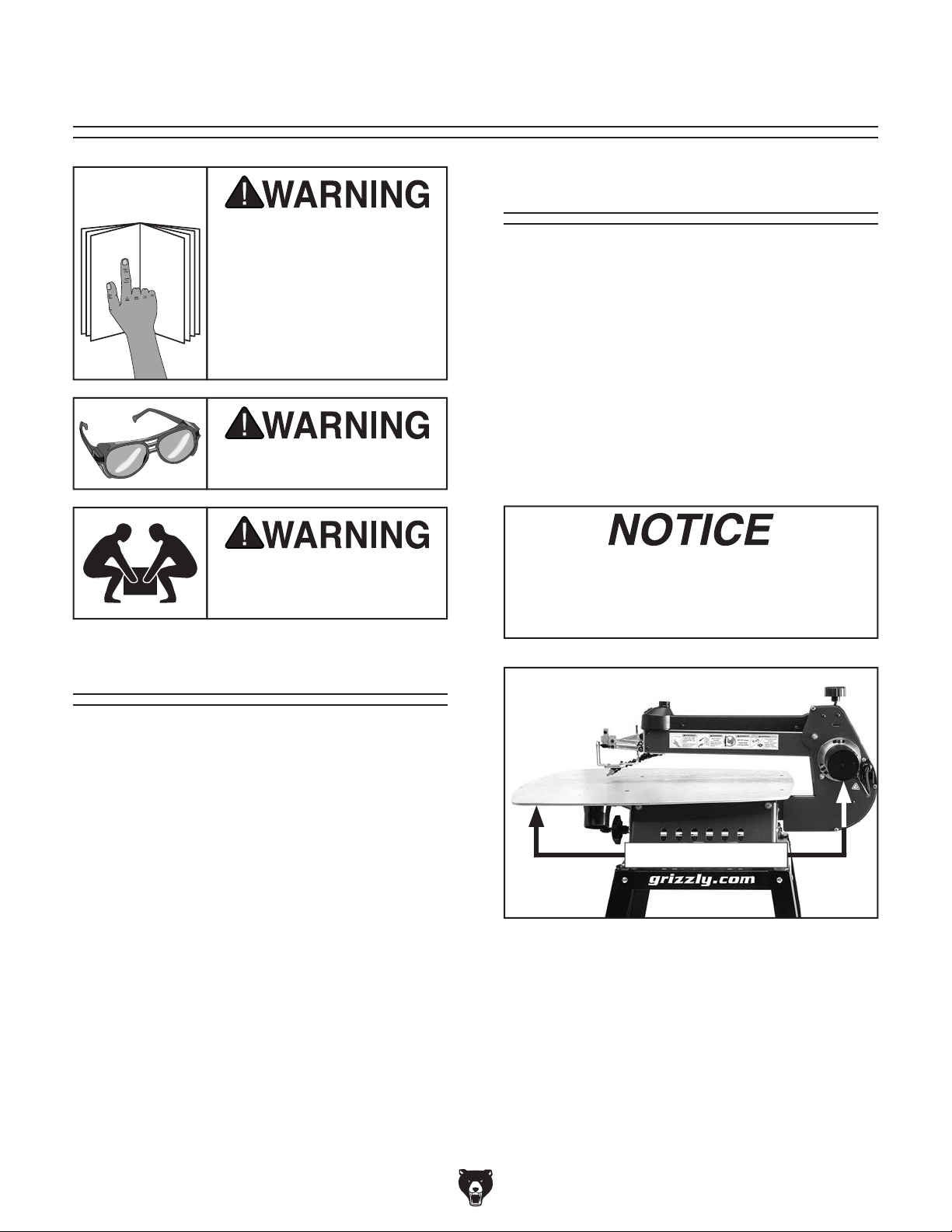

Proper Lifting Points

Figure 5. Lifting points on Model G0969.

-12-

Model G0969 (Mfd. Since 07/23)

Inventory

The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.

If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.

Loose Components (Figure 7) Qty

B. Foot Pedal ...................................................1

C. Plain-End Blade 5" ......................................1

D. Power Cord..................................................1

E. Hex Wrench 4mm........................................1

C

Cardboard Box (Figure 6) Qty

A. G0969 21" VS Scroll Saw............................1

A

Figure 6. G0969 21" VS Scroll Saw.

D

B

Figure 7. Loose components.

E

NOTICE

If you cannot find an item on this list, care­fully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpack­ing or they are pre-installed at the factory.

Model G0969 (Mfd. Since 07/23)

-13-

Hardware Recognition Chart

USE THIS CHART TO MATCH UP

HARDWARE DURING THE INVENTORY
AND ASSEMBLY PROCESS.

Flat
Head
Cap
Screw

-14-

5mm

5mm

Model G0969 (Mfd. Since 07/23)

Site Considerations

Weight Load

Refer to the
of your machine. Make sure that the surface upon
which the machine is placed will bear the weight
of the machine, additional equipment that may be
installed on the machine, and the heaviest work­piece that will be used. Additionally, consider the
weight of the operator and any dynamic loading
that may occur when operating the machine.

Space Allocation

Consider the largest size of workpiece that will
be processed through this machine and provide
enough space around the machine for adequate
operator material handling or the installation of
auxiliary equipment. With permanent installations,
leave enough space around the machine to open
or remove doors/covers as required by the main­tenance and service described in this manual.

See below for required space allocation.

Physical Environment

Extreme conditions for this type of machinery are

Place this machine near an existing power source.

other hazards. Make sure to leave enough space

Shadows, glare, or strobe effects that may distract

Machine Data Sheet for the weight

Children or untrained people
may be seriously injured by
this machine. Only install in an
access restricted location.

The physical environment where the machine is
operated is important for safe operation and lon­gevity of machine components. For best results,
operate this machine in a dry environment that is
free from excessive moisture, hazardous chemi­cals, airborne abrasives, or extreme conditions.

generally those where the ambient temperature
range exceeds 41°–104°F; the relative humidity
range exceeds 20%–95% (non-condensing); or
the environment is subject to vibration, shocks,
or bumps.

Electrical Installation

Make sure all power cords are protected from
traffic, material handling, moisture, chemicals, or

around machine to disconnect power supply or
apply a lockout/tagout device, if required.

Lighting

Wall

Lighting around the machine must be adequate
enough that operations can be performed safely.

or impede the operator must be eliminated.

Leave Room for Maintenance

1/2"

16

161⁄2"

= Electrical Connection

Model G0969 (Mfd. Since 07/23)

37"

Figure 8. Minimum working clearances.

Keep

21"

21

Workpiece

Loading Area

Unobstructed

-15-

The machine must be fully assembled before it
can be operated. Before beginning the assembly
process, refer to

and gather
all
goes smoothly, first clean any

cov­ered or coated in heavy-duty rust preventative (if
applicable).

Bench Mounting

Another option is a "direct mount" (see example
below) where the machine is secured directly to
the workbench with lag screws and washers.

The base of this machine has mounting holes
that allow it to be fastened to a workbench or
other mounting surface to prevent it from moving
during operation and causing accidental injury or
damage.

The strongest mounting option is a "Through
Mount" (see example below) where holes are
drilled all the way through the workbench—and
hex bolts, washers, and hex nuts are used to
secure the machine in place.

Assembly

Number of Mounting Holes ............................ 4

Diameter of Mounting Hardware Needed ..

Hex
Bolt

Flat Washer

Machine Base

1

⁄2"

Needed for Setup

listed items. To ensure the assembly process

parts that are

Assembly of the Model G0969 requires plugging
the power cord in the power outlet on the rear of
the machine (see Figure 11).

Workbench

Flat Washer

Lock Washer

Figure 9. "Through Mount" setup.

Machine Base

Hex Nut

ag Screw

lat asher

Figure 11. Power outlet with cord installed.

-16-

Workbench

Figure 10. "Direct Mount" setup.

Model G0969 (Mfd. Since 07/23)

Once assembly is complete, test run the machine
to ensure it is properly connected to power and
safety components are functioning correctly.

If you find an unusual problem during the test run,
immediately stop the machine, disconnect it from
power, and fix the problem BEFORE operating the
machine again. The

table in the

SERVICE section of this manual can help.

Serious injury or death can result from

DO NOT start machine until all preceding
setup instructions have been performed.
Operating an improperly set up machine

Dust Collection

This machine creates a lot of wood chips/
dust during operation. Breathing airborne
dust on a regular basis can result in perma­nent respiratory illness. Reduce your risk
by wearing a respirator and capturing the
dust with a dust-collection system.

Test Run

Troubleshooting

Minimum CFM at Dust Port: 150 CFM

Do not confuse this CFM recommendation with
the rating of the dust collector. To determine the
CFM at the dust port, you must consider these
variables: (1) CFM rating of the dust collector,
(2) hose type and length between the dust col­lector and the machine, (3) number of branches
or wyes, and (4) amount of other open lines
throughout the system. Explaining how to cal­culate these variables is beyond the scope of
this manual. Consult an expert or purchase a
good dust collection "how-to" book.

To connect dust collection system:

1

1. Fit 2

⁄2" dust hose over dust port and secure

in place with hose clamp (see Figure 12).

The Test Run consists of verifying the following: 1)
The motor powers up and runs correctly.

using this machine BEFORE understanding
its controls and related safety information.
DO NOT operate, or allow others to operate,
machine until the information is understood.

may result in malfunction or unexpect­ed results that can lead to serious injury,
death, or machine/property damage.

To test run machine:

Figure 12. Dust port and dust hose attached to

dust port.

2. Tug hose to make sure it does not come off.

Note: A tight fit is necessary for proper per-

formance.

Model G0969 (Mfd. Since 07/23)

1. Clear all setup tools away from machine.

2. Rotate variable-speed knob all the way coun-

terclockwise.

3. Connect machine to power source.

4. Turn machine ON, verify motor operation,

and then turn machine OFF.

Motor should run smoothly and without
unusual problems or noises.

Congratulations! The Test Run is complete.

-17-

SECTION 4: OPERATIONS

The purpose of this overview is to provide the nov­ice machine operator with a basic understanding
of how the machine is used during operation, so
the

discussed later

in this manual

Due to the generic nature of this overview, it is
not intended to be an instructional guide. To learn
more about specific operations, read this entire
manual,

training from experienced
machine operators
outside of this manual by reading "how-to" books,
trade magazines, or websites.

To reduce your risk of
serious injury, read this
entire manual BEFORE

To reduce risk of eye injury from flying

Operation Overview

To complete a typical operation, the operator
does the following:

1. Examines workpiece to make sure it is suit-

able for cutting.

machine controls/components

are easier to understand.

seek additional

, and do additional research

using machine.

chips or lung damage from breathing dust,
always wear safety glasses and a respirator
when operating this machine.

2. Rotates variable-speed knob all the way

counterclockwise.

3. Adjusts frame tilt, if necessary, to angle of
desired cut.

4. Adjusts hold-down shoe to just clear
workpiece.

5. Checks to make sure workpiece can safely
pass all the way through blade without inter­ference from other objects.

6. Puts on safety glasses and respirator.

7. Starts dust collector and turns machine ON.

8. Rotates variable-speed knob to appropriate

speed needed for workpiece.

9. Holds workpiece firmly and flat against table
and then pushes workpiece into blade at
a steady and controlled rate until cut is
complete.

10. Rotates variable-speed knob all the way
counterclockwise.

If you are not experienced with this type
of machine, WE STRONGLY RECOMMEND
that you seek additional training outside of
this manual. Read books/magazines or get
formal training before beginning any proj­ects. Regardless of the content in this sec­tion, Grizzly Industrial will not be held liable
for accidents caused by lack of training.

-18-

11. Turns machine OFF, then turns dust collector
OFF.

Model G0969 (Mfd. Since 07/23)

Basic Cutting Tips

A properly adjusted scroll saw performs many
types of cuts with ease and accuracy. It is capable
of performing these types of cuts:

Straight Cuts

• Miters, angles and compound angles, rip­ping, and crosscutting.

Irregular Cuts

• Simple and complex curves, duplicate parts,
circles, and beveled curves.

Basic Cutting Tips

Basic tips to follow when operating a scroll saw:

Workpiece
Inspection

Some workpieces are not safe to cut or may
require modification before they are safe to cut.

Before cutting, inspect all workpieces for the
following:

• Material Type: This machine is intended for
cutting natural and man-made wood prod­ucts, laminate covered wood products, and
some plastics. Cutting drywall or cementi­tious backer board creates extremely fine
dust and may reduce life of bearings. This
machine is NOT designed to cut metal, glass,
stone, tile, etc.; cutting these materials with a
table saw may lead to injury.

• Typically, a scroll saw blade stays sharp from

1

⁄2 hour to 2 hours of use, depending on how

blade is used and type of material being cut.

• Best cutting results will be achieved when
cutting workpieces less than 1" thick. When
cutting workpieces thicker than 1", move
workpiece through blade very slowly.

• Blades dull much faster when cutting ply­wood, hardwoods, and laminates.

• Exerting excessive side pressure on blade
greatly increases chance of blade breakage.

• Plan cut before starting curves. Make relief
cuts in waste areas near tight inside curves,
or leave tight inside curves for a second pass
to minimize backing out. Cut sharp outside
curves by cutting past curve and looping
around to cut from different angle.

• When approaching a tight radius, slow down
feed rate, but don’t stop. Give teeth time to
make cut. Forcing workpiece through curve
will cause blade to twist or break.

• If cut produces waste in interior of curve, turn
power OFF and wait until all motion stops
before removing waste.

• Scroll saw blades can drift. This is compen­sated for by adjusting feed direction.

• Foreign Objects: Nails, staples, dirt, rocks
and other foreign objects are often embed­ded in wood. While cutting, these objects can
become dislodged and hit operator, cause
kickback, or break blade, which might then fly
apart. Always visually inspect your workpiece
for these items. If they can't be removed, DO
NOT cut workpiece.

• Large/Loose Knots: Loose knots can
become dislodged during cutting operation.
Large knots can cause kickback and machine
damage. Choose workpieces that do not
have large/loose knots or plan ahead to avoid
cutting through them.

• Wet or "Green" Stock: Cutting wood with a
moisture content over 20% causes increased
risk of pinching blade, affecting blade life.

• Excessive Warping: Workpieces with exces­sive cupping, bowing, or twisting are danger­ous to cut because they are unstable and
often unpredictable when being cut. DO NOT
use workpieces with these characteristics!

• Minor Warping: Workpieces with slight cup­ping can be safely supported if cupped
side is facing table or fence. On contrary, a
workpiece supported on bowed side will rock
during a cut and could cause kickback or
severe injury.

Model G0969 (Mfd. Since 07/23)

-19-

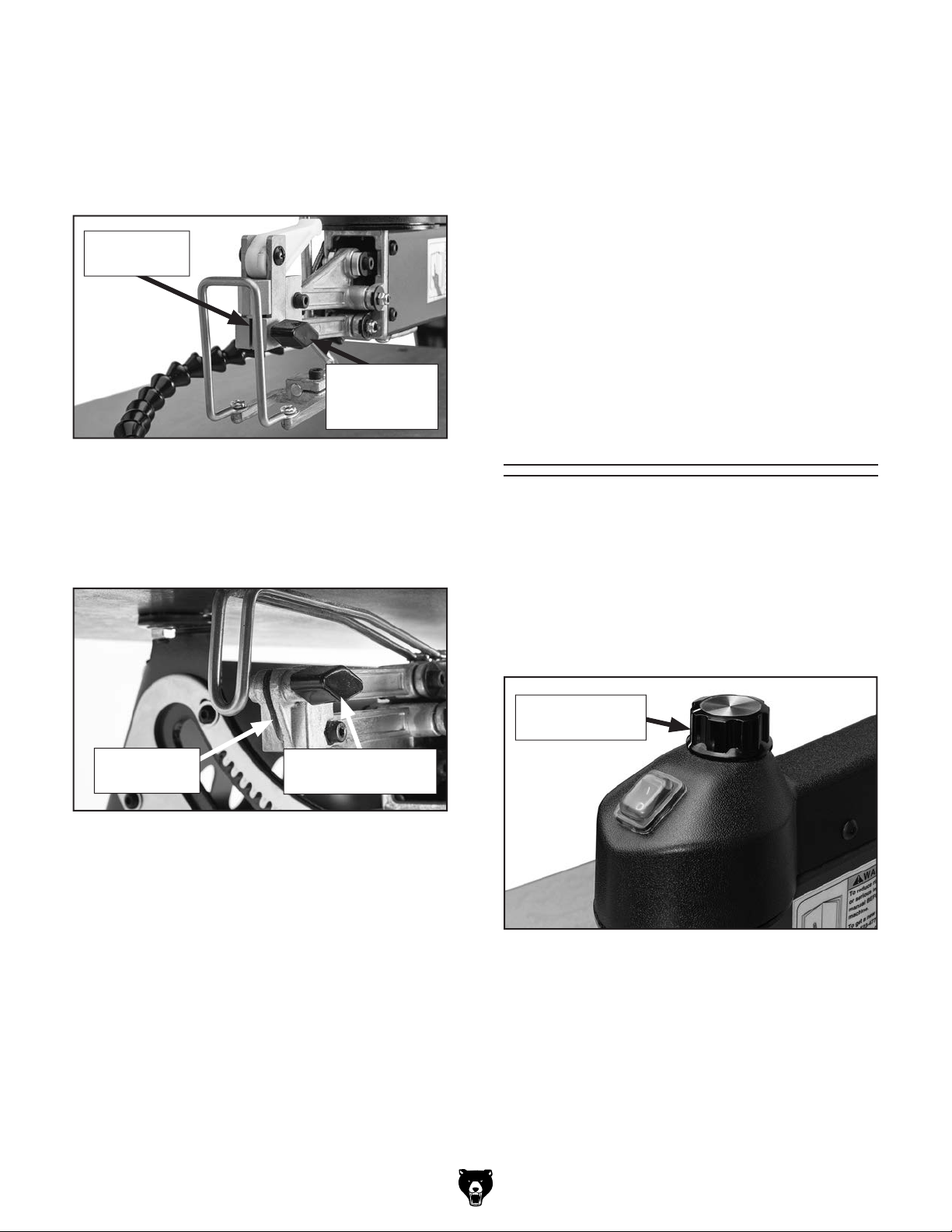

Adjusting

Hold-Down Shoe

The hold-down shoe keeps the workpiece from
raising up from the force of the moving blade.

To adjust hold-down shoe:

1. DISCONNECT MACHINE FROM POWER!

2. Loosen hold-down shoe lock knob (see
Figure 13).

Hold-Down Shoe

Tensioning Blade

When the upper arm is parallel to the table, the
tension created by the blade tension lever is opti­mal on this machine.

To tension blade:

1. DISCONNECT MACHINE FROM POWER!

2. Move blade tension lever forward to release

tension (see Figure 14).

Blade

Tension

Lever

Hold-Down Shoe

Lock Knob

Figure 13. Hold-down shoe adjustment.

3. Adjust shoe so it is parallel with table and

lightly touching workpiece.

4. Tighten hold-down shoe lock knob, then veri­fy workpiece moves smoothly under shoe.

Figure 14. Blade tension lever released.

3. Install blade in both upper and lower blade
mounts (see Installing/Removing Blade
Page 22).

4. Move blade tension lever back to tension.

Note: Upper arm should be parallel to table

for proper tensioning. Check upper arm for
this regularly. When not in use, release
tension on blade lever.

-20-

Model G0969 (Mfd. Since 07/23)

Tilting Frame

Using Preset Stops

The preset positive stops allow the frame to quick­ly be set to any of seven frequently used angles.

The Model G0969 features a tilting frame, which
allows the workpiece to always be in a parallel
position. The tilt controls for the frame are located
at the front of the saw, beneath the table.

For convenience, there are preset stops at 0°, 45°,
30°, and 22.5°, left and right.

Note: Left tilt is limited to 37 degrees with dust
port installed. To achieve full 45° tilt, dust port
must be removed.

Note: Tilt scale serves as reference only. For
more accurate results, use a bevel gauge or pro­tractor to set desired frame tilt relative to blade.

Tilting Frame

1. DISCONNECT MACHINE FROM POWER!

2. Loosen frame lock lever (see Figure 15).

Frame Lock

Lever

To use preset stops:

1. DISCONNECT MACHINE FROM POWER!

2. Loosen frame lock lever (see Figure 16).

Frame

Lock Lever

Preset Stop

(1 of 7)

Figure 16. Location of preset stop controls.

3. Use frame tilt knob to position arm to desired

preset angle.

4. Push spring loaded indexing pin into preset
stop.

Indexing

Pin

Frame Tilt

Knob

Frame

Tilt Scale

Figure 15. Frame tilt controls.

3. Use frame tilt knob to position table to desired

angle.

4. Tighten frame lock lever to secure frame
position.

Tilt

Knob

Note: Press pin gently while turning knob.
You will feel pin drop into stop.

5. Tighten frame lock lever.

Model G0969 (Mfd. Since 07/23)

-21-

Blade Selection

Scroll saw blades are classified as either "pin-end" (mounting pins in the ends of the blade) or "plain-end"
(no pins), as shown in Figure 17. The Model G0969 comes with one plain-end blade, and the scroll saw is
designed to accept only plain-end blades.

The typical format for blade identification is:

Teeth Per Inch Width Thickness SPM Workpiece Material

10 TPI 0.110 " 0.020" 1200–1500 General purpose cutting. Hard and soft woods

between
and bone.

15 TPI 0 .110 " 0.020" 700–1200 Thin wood and plastic between

3

⁄16"–2". Also good for plastics, paper, felt,

3

⁄32"–1⁄2 ".

18 TPI 0.095" 0.010" 500–700 Tight radius cutting in thin hard and soft woods

between
ivory, plastics and veneer.

Note: There may be other numbers or letters that have meaning for a particular type of blade. Always refer
to the manufacturer's technical data for a complete explanation when choosing a scroll saw blade.

3

⁄32"–1⁄8". Also good for thin pieces of bone,

Installing Blade

Plain-End

Blade

Figure 17. Plain-end blade.

1. DISCONNECT MACHINE FROM POWER!

2. Tilt frame to 0° and tighten frame lock lever.

3. Move blade tension lever forward to release
blade tension (see Figure 18).

Blade

Tension

Lever

Installing/Removing

Blade

The Model G0969 only accepts plain-end blades.
Plain-end blades excel at fine, accurate, or intri­cate work on
Thinner kerfs are also possible with finer blades.

-22-

3

⁄4" (19mm) or thinner workpieces,

Figure 18. Blade tension lever released.

4. Insert blade through hole in table.

Model G0969 (Mfd. Since 07/23)

5. Place blade in upper blade mount (see Figure

19).

Removing Blade

1. DISCONNECT MACHINE FROM POWER!

Note: Top of blade should be higher than

mounting screw, but no higher than top of
blade mount.

Upper Blade

Mount

Upper

Blade Holder

Lock Knobs

Figure 19. Upper blade mounts.

6. Tighten blade holder lock knob to secure.

7. Place lower portion of blade in lower blade
mount (see Figure 20).

2. Tilt frame to 0° and tighten frame lock lever.

3. Move blade tension lever forward to release

tension on blade.

4. Loosen blade holder lock knobs on upper and
lower blade mounts.

5. Remove blade by lifting or lowering it through
table.

Adjusting

Blade Speed

Use the variable-speed knob shown in Figure 21
to adjust blade speed between 400–1550 SPM
(strokes per minute).

To reduce the risk of injury from unexpectedly fast
speed at startup, always rotate the variable-speed
knob all the way counterclockwise before starting
and after stopping the scroll saw.

Lower Blade

Mount

Figure 20. Lower blade mounts.

8. Tighten blade holder lock knob to secure.

Note: Do not overtighten blade holder lock

knob. This can cause premature wear and
lead to blade slippage. A portion of blade may
go past lower blade mount. This is not unusu­al and will not effect machine performance.

9. Move blade tension lever backward to ten­sion blade.

Lower Blade

Holder Lock Knobs

Variable-Speed

Knob

Figure 21. Location of variable-speed knob.

Model G0969 (Mfd. Since 07/23)

-23-

Adjusting Blade

Motion

For most cutting operations, the best combination
of speed and precision will be achieved when the
upper arm is parallel with the table, and the back
of the blade is 90 degrees to the table. This will
also result in the smallest amount of vibration.

However, using the arm adjustment knob, the arm
can be lowered to increase the forward motion of
the blade. This will produce a faster, more aggres­sive cut, but some precision will be sacrificed.

Arm

Adjustment

Knob

Blade

Square

Table

Figure 23. Square aligned with back of blade.

— If blade is square to table, then standard

blade motion is set correctly.

— If blade is not square to table, proceed to

Step 6.

6. Loosen (3) screws on motor mount and rotate

motor (see Figure 24) until back of blade is
square to table, then tighten screws.

Figure 22. Arm adjustment knob.

Standard Blade Motion

1. DISCONNECT MACHINE FROM POWER!

2. Ensure blade is tensioned.

3. At front and back of upper arm, measure dis-

tance from table to bottom of arm.

4. Rotate arm adjustment knob until both mea-
surements are equal, ensure that arm is par­allel with table.

5. Place machinist's square flat on table against
back of blade, as shown in Figure 23.

Rotate

Motor

x 3

Figure 24. Motor rotation.

Forward Blade Motion

1. Perform steps in Standard Blade Motion.

2. Rotate arm adjustment knob clockwise to

lower upper arm and increase forward blade
motion.

Tip: Lower arm in small increments, and test
aggressiveness of cut on scrap wood.

-24-

3. Once satisfied with forward blade motion,
perform cut.

4. When finished, return upper arm to position
parallel with table.

Model G0969 (Mfd. Since 07/23)

Making Standard

Scroll Cuts

For standard scroll cutting, follow the pattern
line on the workpiece by pushing and turning the
workpiece at the same time, which allows the kerf
of the cut to make way for the turn.

DO NOT turn the workpiece without pushing it
through the blade at same time; otherwise, the
blade could twist and break.

Making Inside Cuts

Inside cuts can easily be made with the scroll saw
by threading the blade through a hole drilled in the
workpiece.

Making an inside cut:

1. DISCONNECT MACHINE FROM POWER!

1

2. Drill a
of internal cut.

⁄8" hole in workpiece inside waste area

See Figures 25–26 below for examples of scroll
cutting.

Figure 25. Making a straight cut.

3. Release blade tension lever.

4. Loosen lock knob on lower blade mount.

5. Raise upper arm so it lifts blade clear of table.

6. Place workpiece hole over hole in table.

7. Lower upper arm and guide blade through

hole in table.

8. Re-attach lower blade (see Installing/
Removing Blade on Page 22).

9. Tension blade.

Note: Alternatively, you can loosen lock knob

on upper blade mount, release top of blade,
slide workpiece over table hole, raise blade
through workpiece, then tighten upper blade
mount.

Figure 26. Making a curved cut.

Model G0969 (Mfd. Since 07/23)

Figure 27. Installing blade for an inside cut.

-25-

Using Foot PedalMaking Bevel Cuts

Bevel cuts can be used for miters, cope joints,
and making relief or recessed projects.

Making a bevel cut:

1. DISCONNECT MACHINE FROM POWER!

2. Turn frame lock lever counterclockwise to

release.

3. Use frame tilt knob to move frame to desired
angle of cut.

4. Turn frame lock lever clockwise to lock frame
at desired angle.

5. Using principles in Making Standard Scroll
Cuts on Page 25, feed workpiece slowly and

evenly into blade, remembering not to force
workpiece through cut (see Figure 28).

The Model G0969 comes with a foot pedal that
allows you to keep both hands on the workpiece
while maintaining control of stopping and starting
blade movement.

To use foot pedal:

1. DISCONNECT MACHINE FROM POWER!

2. Connect scroll saw power cord to plug on
foot pedal (see Figure 29).

Note: If desired, foot pedal can be secured to

floor using (2) mounting holes.

Foot Pedal

Receptacle

Power

Cord
From

G0969

Figure 28. Making a bevel cut.

6. Turn saw OFF and wait until all motion has

stopped before removing waste near blade.

Mounting

To Power

Source

Figure 29. Foot pedal connections.

3. Connect power cord on foot pedal to power

source.

4. Set scroll saw to desired speed (see
Adjusting Blade Speed on Page 23).

5. Press foot pedal to start operation.

Note: Foot pedal does not control the speed

setting. Speed setting can only be set through
variable-speed knob. Foot pedal only starts
and stops blade.

Hole

(1 of 2)

-26-

Model G0969 (Mfd. Since 07/23)

ACCESSORIES

Installing unapproved accessories may

order online at www.grizzly.com or call 1-800-523-4777

SECTION 5: ACCESSORIES

cause machine to malfunction, resulting in
serious personal injury or machine damage.
To reduce this risk, only install accessories
recommended for this machine by Grizzly.

NOTICE

Refer to our website or latest catalog for
additional recommended accessories.

H9022–5" Plain-End Scroll Saw Blade
Assortment, 12-Pk.

T33905—Scroll Saw Stand

Custom stand that fits the G0969 and holds scroll
saw securely for easy use and access.

Model Size Width Thickness TPI QTY

H9 016 #1 0.032" 0.015" 24 12

H9017 #2 0.032" 0.016" 22 12

H9 018 #3 0.040" 0.018" 20 12

H9 019 #4 0.048" 0.020" 20 12

H9020 #5 0.056" 0.023" 16 12

H9021 #6 0.062" 0.025" 14 12

T32387—Big Book of Scroll Saw Woodworking

More than 60 projects and techniques for fretwork,
intarsia, and other scroll saw crafts. Includes
detailed patterns, expert step-by-step instructions
and crisp photographs, guaranteed to spur your
creativity.

Figure 31. T33905 Scroll Saw Stand.

T32389—Scroll Saw Wooden Bowls

Crafting beautiful bowls with the more accessible
scroll saw.

Figure 32. T32389 Scroll Saw Wooden Bowls

Book

Figure 30. T32387 Big Book of Scroll Saw

Woodworking.

Model G0969 (Mfd. Since 07/23)

-27-

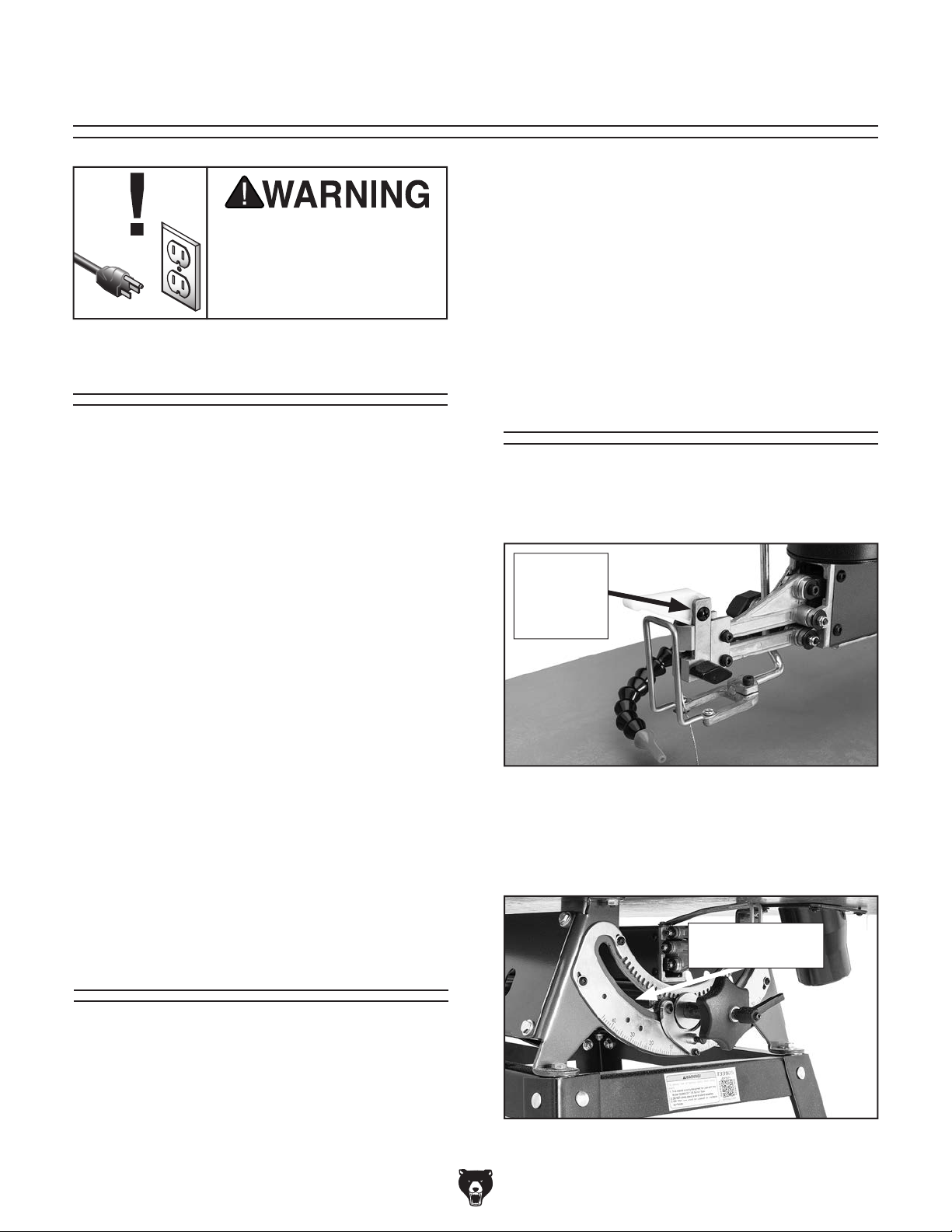

SECTION 6: MAINTENANCE

accidental startup, always
disconnect machine from

To reduce risk of shock or

power before adjustments,
maintenance, or service.

Schedule

For optimum performance from this machine, this
maintenance schedule must be strictly followed.

Ongoing

To minimize your risk of injury and maintain proper
machine operation, shut down the machine imme­diately if you ever observe any of the items below,
and fix the problem before continuing operations:

• Loose mounting bolts.

• Damaged saw blade.

• Worn or damaged wires.

• Any other unsafe condition.

Protect the unpainted steel table by wiping it clean
after every use—this ensures moisture from wood
dust does not remain on bare metal surfaces.

All unpainted and machined surfaces should be
wiped down daily to keep them rust free and in
top condition. This includes any surface that is
vulnerable to rust if left unprotected. Use a quality
metal protectant.

Lubrication

Regular application of lithium based grease to the
pivot point of the blade tension lever is recom­mended every 10–15 hours (see Figure 33).

Blade

Tension

Lever Pivot

Point

Weekly Maintenance

• Clean/vacuum dust buildup from table, motor
and stand.

Monthly Check

• Frame tilt and lock knob for damage or wear.

• Clean/vacuum dust buildup from body and off
motor.

Cleaning &

Protecting

Cleaning the Model G0969 is relatively easy.
Vacuum excess wood chips and sawdust, and
wipe off the remaining dust with a dry cloth. If any
resin has built up, use a resin dissolving cleaner
to remove it.

-28-

Figure 33. Blade tension lever lubrication point.

Additionally, keeping the front and rear trunnions
lubricated with a small amount of lithium-based
grease is recommended (see Figure 34).

Trunnion

Lubrication Point

Figure 34. Trunnion lubrication point.

Model G0969 (Mfd. Since 07/23)

Review the troubleshooting and procedures in this section if a problem develops with your machine. If you
need replacement parts or additional help with a procedure, call our Technical Support at [phone].

Note: Please gather the serial number and manufacture date of your machine before calling.

SECTION 7: SERVICE

Troubleshooting

Symptom Possible Cause Possible Solution

Machine does not
start, or power
supply breaker
immediately trips
after startup.

Machine stalls or is
underpowered.

Machine has
vibration or noisy
operation.

Blade will not stay
on layout line.

Excessive blade
breakage.

Excessive front-to­back blade motion.

1. Blown fuse.

2. Incorrect power supply voltage/circuit size.

3. Motor speed potentiometer at fault.

4. Power supply circuit breaker tripped or fuse
blown.

5. Wiring broken, disconnected, or corroded.

6. Motor brushes worn out.

7. ON/OFF switch at fault.

8. Circuit board at fault.

9. Motor or motor bearings at fault.

1. Dull blade.

2 Workpiece material unsuitable for machine.

3. Machine undersized for task.

4. Blade slipping in mounts; lock knobs not
tightened.

5. Motor circuit board at fault.

6. Motor speed potentiometer at fault.

7. Motor brushes worn out.

8. Motor overheated.

9. Extension cord too long.

10. Motor or motor bearings at fault.

1. Motor or component loose.

2. Blade at fault.

3. Incorrectly mounted to workbench/stand.

4. Motor bearings at fault.

1. Too much pressure applied to workpiece.

2. Blade holders not aligned correctly.

1. Not using relief cuts when cutting tight
curves; twisting blade.

2. Wrong blade for operation.

3. Too much pressure on blade.

1. Arm not parallel with table.

2. Blade oscillation set incorrectly.

1. Replace fuse/ensure no shorts (Page 32).

2. Ensure correct power supply voltage/circuit size.

3. Test/replace if at fault.

4. Ensure circuit is free of shorts. Reset circuit breaker
or replace fuse.

5. Fix broken wires or disconnected/corroded
connections.

6. Remove/replace brushes (Page 30).

7. Replace switch.

8. Inspect/replace if at fault.

9. Replace motor.

1. Replace blade (Page 22).

2. Only cut wood/ensure moisture if below 20%
(Page 20).

3. Use correct blade/reduce feed rate or depth of cut.

4. Make sure blade installed correctly, tighten lock
knobs (Page 22).

5. Inspect and replace if at fault.

6. Test and replace if at fault.

7. Replace motor brushes (Page 30).

8. Clean motor, let cool, reduce workload.

9. Move machine closer to power supply; use shorter
extension cord.

10. Replace motor.

1. Replace damaged or missing bolts/nuts or tighten if
loose.

2. Replace warped/bent blade; resharpen dull blade.

3. Adjust feet, shim or tighten mounting hardware.

4. Test by rotating shaft; rotational grinding/loose shaft
requires bearing replacement.

1. Reduce feed rate and pressure on workpiece.

2. Adjust blade holders so they are perpendicular.

1. Use relief cuts for tight turns; reduce feed rate; do
not twist blade.

2. Refer to Blade Selection Chart, and use correct
blade for operation (Page 23).

3. Reduce pressure on workpiece.

1. Position arm parallel with table (Page 24).

2. Rotate motor until blade perpendicular with table.

Model G0969 (Mfd. Since 07/23)

-29-

Checking/Replacing

Squaring Blade

Motor Brushes

The motor on the Model G0969 is equipped with
two long-life carbon brushes—one on each side
of the motor. The brush life is affected by motor
loads and usage. Worn brushes will result in inter­mittent operation and difficulty starting the motor.
If either brush is worn down to
replace both brushes as a set.

Items Needed Qty

Flat Head Screwdriver

Motor Brushes (P0969370) ............................... 2

To check/replace motor brushes:

1. DISCONNECT MACHINE FROM POWER!

2. Unscrew plastic brush covers, and remove
motor brush assemblies (see Figure 35).

Note: As you remove brush assembly, make

note of carbon tip orientation. If acceptable,
re-install in same way.

1

⁄2".................................. 1

1

⁄4" (6mm) or less,

to Table

It is normal for the blade to become slightly out of
alignment with regular use. Regularly check the
blade to ensure it is aligned correctly.

Note: The tilt scale is only an approximate scale
and should not be used when precise angle mea­surements are required for the operation.

Tools Needed Qty

Hex Wrench 4mm.............................................. 1

Machinist's Square ............................................ 1

To square blade to table:

1. DISCONNECT MACHINE FROM POWER!

2. Tilt frame to 0° and tighten frame lock lever.

3. Remove hold-down shoe.

4. Place a machinist's square flat on table
against side of blade (see Figure 36).

Motor
Brush

(1 of 2)

Figure 35. Motor brush location.

3. Measure length of carbon tip. If carbon tip is

worn down to
brush assemblies with new ones.

4. Insert brush assemblies back into motor, and
re-install plastic caps.

1

⁄4" (6mm) or less, replace both

— If blade is square, no adjustment is

necessary.

— If blade is not square, proceed to Step 5.

Blade

Square

Table

Figure 36. Squaring blade to table.

-30-

Model G0969 (Mfd. Since 07/23)

5. Loosen (8) button head cap screws on front
and rear trunnions (see Figure 37).

To adjust upper arm tension:

1. DISCONNECT MACHINE FROM POWER!

2. Release tension on blade and loosen upper

blade mount lock knob.

3. Tilt frame to 0° and tighten frame lock lever.

4. Use arm adjustment knob to adjust arm so
that it is parallel with table (refer to Adjusting
Blade Motion on Page 24).

x 8

Figure 37. Location of button head cap screws on

front trunnion.

6. Carefully move frame to bring blade square
with table.

7. Tighten front and rear button head cap
screws (see Figure 37).

8. Install hold-down shoe.

Adjusting Upper Arm

Tension

With regular use the arm may develop play which
affects the ability of the arm to maintain the height
it is set to. Regularly check the play in the arm and
adjust if necessary.

Tools Needed Qty

Open-End Wrench
Flat Head Screwdriver

Tape Measure.................................................... 1

1

⁄2 " ....................................... 1

1

⁄8" ................................. 1

Note: Use a tape measure to measure height
of arm to table at front and back of arm. When
measurements are equal, table and arm are
parallel.

5. Loosen jam nut shown in Figure 38.

6. Turn adjustment screw shown in Figure 38

clockwise approximately
for play.

— If arm does have play, repeat Step 6.

— If arm does not have play, adjustment is

complete. Proceed to Step 7.

Adjustment

Screw

Figure 38. Adjusting upper arm tension.

1

⁄4 turn. Check arm

Jam Nut

Model G0969 (Mfd. Since 07/23)

IMPORTANT: DO NOT overtighten adjust-
ment screw. Removing all play can apply
excessive tension and limit movement of arm
during use, which could damage machine.

7. Tighten jam nut.

-31-

Fuse Replacement

The Model G0969 is equipped with a 15A glass
fuse. Age, overload, or a short circuit can cause
the fuse to fail.

Tools Needed Qty

Flat Head Screwdriver

Fuse 15A ........................................................... 1

To replace fuse:

1. DISCONNECT MACHINE FROM POWER!

2. Remove power cord from machine.

3. Use screwdriver to release fuse compartment

(see Figure 39).

1

⁄8" ................................. 1

Adjusting Blade

Oscillation

The G0969 has a motor that can be rotated to
easily change the oscillation of the blade.

Adjusting the blade oscillation can make cutting
specific cuts more efficient. Reducing blade oscil­lation can make tight cuts smoother while a larger
blade oscillation path can make cutting through
thicker material with less fine cuts much faster.

Items Needed Qty

Hex Wrench 4mm.............................................. 1

Small Machinist's Square .................................. 1

Scrap Wood....................................... As Needed

To adjust blade oscillation:

1. DISCONNECT MACHINE FROM POWER!

Figure 39. Removing fuse from fuse

compartment.

4. Remove and replace fuse.

5. Install fuse compartment.

6. Install power cord.

2. Make sure arm is parallel with table (refer to
Adjusting Blade Motion on Page 24).

3. Install and tension blade (see Installing/
Removing Blade on Page 22).

4. Place small machinist's square or piece of

wood behind blade to help gauge blade
movement.

5. Loosen motor mount screws (see Figure 40).

6. Rotate motor forward or backward and tight­en motor adjustment screws (see Figure 40).

Rotate

Motor

-32-

x 3

Figure 40. Motor mount screws.

Model G0969 (Mfd. Since 07/23)

7. Set speed to 400 SPM and start machine.

Note: Alternatively, you can use a screw-

driver to rotate shaft of motor.

— If blade oscillation is acceptable, adjust-

ment is complete.

— If blade oscillation is not acceptable repeat

Steps 5–7.

Aligning Blade

— If blade is square to table, no further adjust-

ments need to be made.

— If blade is not square to table, proceed to

Step 4.

4. Hold blade mount knob steady and use hex
wrench to loosen blade mount set screws
(see Figure 42).

Mounts

The blade mounts may become misaligned with
use, which results in the blade no longer being
aligned with the motion of the machine and being
out of square with the table. A symptom of this
condition is persistent blade run-out.

Tools Needed Qty

Hex Wrench 4mm.............................................. 1

Small Machinist's Square .................................. 1

To align blade mounts:

1. DISCONNECT MACHINE FROM POWER!

2. Tilt frame to 0° and tighten frame lock lever.

3. Place machinist's square flat on table with one

edge against side of blade (see Figure 41).

Blade

x 2

Figure 42. Location of blade mount hardware.

5. Adjust blade mounts until blade is flat against

edge of square along its entire length.

6. Tighten blade mount set screws loosened in
Step 4.

Mount

Knob

Blade

Square

Table

Figure 41. Aligning blade mounts.

Model G0969 (Mfd. Since 07/23)

-33-

These pages are current at the time of printing. However, in the spirit of improvement, we may make chang­es to the electrical systems of future machines. Compare the manufacture date of your machine to the one

number and manufacture date of your

machine before calling. This information can be found on the main machine label.

machine

SECTION 8: WIRING

stated in this manual, and study this section carefully.

If there are differences between your machine and what is shown in this section, call Technical Support at
[phone] for assistance BEFORE making any changes to the wiring on your machine. An updated
wiring diagram may be available. Note: Please gather the serial

Wiring Safety Instructions

SHOCK HAZARD. Working on wiring that is con-

nected to a power source is extremely dangerous.
Touching electrified parts will result in personal
injury including but not limited to severe burns,
electrocution, or death. Disconnect the power
from the machine before servicing electrical com­ponents!

MODIFICATIONS. Modifying the wiring beyond
what is shown in the diagram may lead to unpre­dictable results, including serious injury or fire.
This includes the installation of unapproved after­market parts.

WIRE CONNECTIONS. All connections must
be tight to prevent wires from loosening during
machine operation. Double-check all wires dis­connected or connected during any wiring task to
ensure tight connections.

CIRCUIT REQUIREMENTS. You MUST follow
the requirements at the beginning of this manual
when connecting your machine to a power source.

WIRE/COMPONENT DAMAGE. Damaged wires
or components increase the risk of serious per­sonal injury, fire, or machine damage. If you notice
that any wires or components are damaged while
performing a wiring task, replace those wires or
components.

MOTOR WIRING. The motor wiring shown in
these diagrams is current at the time of printing
but may not match your machine. If you find this
to be the case, use the wiring diagram inside the
motor junction box.

CAPACITORS/INVERTERS. Some capacitors
and power inverters store an electrical charge for
up to 10 minutes after being disconnected from
the power source. To reduce the risk of being
shocked, wait at least this long before working on
capacitors.

EXPERIENCING DIFFICULTIES. If you are expe­riencing difficulties understanding the information
included in this section, contact our Technical
Support at [phone].

The photos and diagrams
included in this section are
best viewed in color. You
can view these pages in
color at www.grizzly.com.

-34-

Model G0969 (Mfd. Since 07/23)

Circuit Board

R8

R15

R14

ED1

-

+

MAX

MIN

R16

D8

R9

ED1

+

-

D2

MOV

471DK14

21 37

VDE

Wiring Diagram

15A

Fuse

Ground

Ground

Power

Inlet

Hot

Ground

R12

+

S

-

D4

+

MOTOR

-

L +

110 VAC

5-15 Plug

Neutral

To Power Inlet

Foot Pedal

Ground

Contact

Switch

Upper Arm

Neutral

Hot

Ground

110V Motor

50W

110 VAC

5-15 Plug

Potentiometer

Kingcraft

CS00-13101

ON/OFF Switch

Kingcraft

CS00-10601

Model G0969 (Mfd. Since 07/23)

READ ELECTRICAL

SAFETY ON PAGE 34!

-35-

To Machine

Power Input

Contact

To Motor

Switch

To Power

Source

Figure 43. Foot pedal wiring connections.

Motor

Connection

Power

Connection

Figure 44. Motor power connection.

To Power

Connection

Figure 45. System ground connections.

To Power

Power

Inlet

To VS Switch

Figure 46. Circuit board.

To Motor

Switch

-36-

READ ELECTRICAL SAFETY ON

PAGE 34 !

Model G0969 (Mfd. Since 07/23)

58

30

We do our best to stock replacement parts when possible, but we cannot guarantee that all parts shown
are available for purchase. Call [phone] or visit www.grizzly.com/parts to check for availability.

31

32

33

35

40

48

92

76

47

61

108

SECTION 9: PARTS

Controls

72

41

45

71

46

56

45

23

45

59
60

70

62
63
64
65

4

75

37

51

1

23

54

51

52

53

52

29

47

70

38

94

70

3

4

29

12

28

66

4

84

5

68

25

69

27

7
103

18

19

70

24

6

4

20

93

48

26

4

67

57

23

21

22

Model G0969 (Mfd. Since 07/23)

BUY PARTS ONLINE AT GRIZZLY.COM!

Scan QR code to visit our Parts Store.

-37-

REF PART # DESCRI PTIO N REF PART # DESCRI PTIO N

Controls Parts List

1 P0969001 BODY 48 P0969048 PHLP HD SCR 8-32 X 1/4
3 P0969003 COVER 51 P0969051 LOCK NUT 10-24
4 P0969004 BUTTON HD CAP SCR 10-32 x 1/4 52 P0969052 LOCK NUT 1/4-20
5 P0969005 SWITCH COVER 53 P0969053 LOCK WASHER 1/4
6 P0969006 ON/OFF SWITCH KINGCRAFT CS00-10601 54 P0969054 FLAT WASHER 1/4
7 P0969007 FLAT WASHER 5MM 56 P0969056 HEX BOLT 1/4-20 X 2-1/2
12 P0969012 AIR NOZZLE 57 P0969057 UPPER ARM
18 P0969018 HEX BOLT 1/4-20 X 1/2 58 P0969058 KNOB M8-1.25, D50, ROUND KD
19 P0969019 TENSION PLATE 59 P0969059 HEX NUT M8-1.25
20 P0969020 HOLD-DOWN MOUNT PLATE 60 P0969060 SHAFT M8-1.25
21 P0969021 BUTTON HD CAP SCR 10-32 X 3/8 61 P0969061 CONTROL BOX
22 P0969022 KNOB 1/4-20, D25, WING 62 P0969062 CROSS BLOCK RETAINER
23 P0969023 FLAT WASHER 1/4 63 P0969063 HOUSING CROSS BLOCK
24 P0969024 HOLD-DOWN CLAMP BOLT 1/4-20 64 P0969064 FLAT WASHER 6 X 16 X 2MM
25 P0969025 HOLD-DOWN BAR 65 P0969065 LOCK NUT M6-1
26 P0969026 CAP SCREW 10-32 X 1/2 66 P0969066 BUTTON HD CAP SCR 10-32 X 1/2
27 P0969027 HOLD-DOWN SHOE 67 P0969067 CORD CLAMP
28 P0969028 AIR NOZZLE MOUNT 68 P0969068 FLAT WASHER #10
29 P0969029 TAP SCREW #8 X 3/8 69 P0969069 LOCK NUT 10-32
30 P0969030 VARIABLE SPEED KNOB 70 P0969070 BUTTON HD CAP SCR 10-32 X 5/16
31 P0969031 POTENTIOMETER KINGCRAFT CS00-13101 71 P0969071 PLUG
32 P0969032 CORD 24G 3W 32" 72 P0969072 SET SCREW M4-.7 X 5
33 P0969033 TAP SCREW M3-.5 X 8 75 P0969075 STRAIN RELIEF TYPE-3 PG11
35 P0969035 BUTTON HD CAP SCR 1/4-20 X 1/2 76 P0969076 CIRCUIT BOARD KNT2 94U-0 LORD ELEC
37 P0969037 SOCKET 5-15 84 P0969084 SWITCH BOX
38 P0969038 FUSE 15A 250V 0.25 FAST-ACTING, GLASS 92 P0969092 CORD 18G 2W 32"
40 P0969040 GEAR COVER 93 P0969093 BLADE GUARD UPPER
41 P0969041 HEX NUT 3/8-16 94 P0969094 BLADE GUARD LOWER
45 P0969045 BUTTON HD CAP SCR 10-32 X 2-1/4 103 P0969103 PROTECTION BRACKET
46 P0969046 SET SCR 3/8-16 X 5/8 SLOTTED 108 P0969108 FOOT PEDAL ASSEMBLY
47 P0969047 EXT TOOTH WASHER #8

-38-

BUY PARTS ONLINE AT GRIZZLY.COM!

Scan QR code to visit our Parts Store.

Model G0969 (Mfd. Since 07/23)

213

249

Table & Base

REF PART # DES CRIP TI ON RE F P ART # DESCRI PTIO N

222

229

207

205

210

211

212

245

211

217

215

215

218

212

219

202

250

214

216

246

219

203

201

219

219

237

235

202

248

238

201

240

212

216

204

218

214

239

222

215

217

221

220

236

223

213

226

227

228

225224

201 P0969201 TRUNNION 223 P0969223 BARREL SLEEVE
202 P0969202 SIDE PANEL 224 P0969224 COMPRESSION SPRING 8 X 1 X 10.5
203 P0969203 TRUNNION PLATE REAR 225 P0969225 PLUNGER PIN
204 P0969204 TRUNNION PLATE FRONT 226 P0969226 TILT KNOB
205 P0969205 TABLE 227 P0969227 FENDER WASHER 1/4
207 P0969207 POWER CORD 18G 3W 72" 5-15P 228 P0969228 ADJUSTABLE HANDLE 1/4-20 X 3/4, 1-1/2L
210 P0969210 HEX BOLT 1/4-20 X 1/2 229 P0969229 FLAT HD CAP SCR 1/4-20 X 3/4
211 P0969211 LOCK WASHER 1/4 235 P0969235 LEVELING FOOT 3/8-16 X 1-1/4
212 P0969212 FLAT WASHER 1/4 236 P0969236 TILT ROD
213 P0969213 FLAT WASHER 12 X 41 X 4.5 237 P0969237 HEX NUT 3/8-16
214 P0969214 GEAR 12T 238 P0969238 INDICATOR
215 P0969215 HEX BOLT 1/4-20 X 3/4 239 P0969239 PHLP HD SCR M4-.7 X 6
216 P0969216 TILT ROD BRACKET 240 P0969240 FLAT WASHER 4MM
217 P0969217 BUTTON HD CAP SCR 10-32 X 5/16 245 P0969245 SHROUD
218 P0969218 FLAT WASHER #10 246 P0969246 DUST PORT 2-1/2"
219 P0969219 FLANGE NUT 1/4-20 248 P0969248 EXT TOOTH WASHER 4MM
220 P0969220 INDEXING BRACKET 249 P0969249 PHLP HD SCR 8-32 X 3/8
221 P0969221 BUTTON HD CAP SCR 1/4-20 X 1 250 P0969250 FLAT WASHER #8

P0969222 E-CLIP 3MM

Model G0969 (Mfd. Since 07/23)

BUY PARTS ONLINE AT GRIZZLY.COM!

Scan QR code to visit our Parts Store.

-39-

Motor & Drivetrain

302

358
366

321

322

317

320

319

314

360

358

368

332

360

317

331

362

315

321

324

330

359

362

320

357

323

326

317

328

312

311

364

335

328

317

323

357

318

327

329

308

310

309

328

312

362

361

317

307

362

317

303

306

364

367

333

323

369

337

305

304

368

369

336

332

338

365

362

323

370

331

318

362

317

339

329

328
323

335

317

312

340

327

326

358

328

369

333

317

341

317

346

371

330

342

337

358

369

323

343

344

345

338

-40-

BUY PARTS ONLINE AT GRIZZLY.COM!

Scan QR code to visit our Parts Store.

Model G0969 (Mfd. Since 07/23)

REF PART # DES CRIP TI ON REF PART # DES CRIP TI ON

332

Motor & Drivetrain Parts List

302 P0969302 BALANCE BLOCK 333 P0969333 CAP SCREW M4-.7 X 24
303 P0969303 SET SCREW M6-1 X 6 335 P0969335 STRUT
304 P0969304 BUTTON HD CAP SCR 1/4-20 X 1/2 336 P0969336 BLADE MOUNT LOWER
305 P0969305 LOCK WASHER 1/4 337 P0969337 SET SCREW M6-1 X 8
306 P0969306 FLAT WASHER 1/4 338 P0969338 KNOB BOLT M1/4-20 X 3/4, D1, WIN
307 P0969307 MOTOR COVER PLATE 339 P0969339 BLADE 5" PLAIN-END
308 P0969308 FLAT HD CAP SCR M6-1 X 16 340 P0969340 HEX WRENCH 3MM
309 P0969309 BALL BEARING 6008ZZ 341 P0969341 CLAMP BRACKET
310 P0969310 MOTOR CAM 342 P0969342 SET SCREW 1/4-20 X 1/2
311 P0969311 HEX NUT M8-1.25 LH 343 P0969343 COMPRESSION SPRING 8 X 1 X 10.5
312 P0969312 BALL BEARING HK0810 344 P0969344 TENSION LEVER
314 P0969314 ROCKER CAM 345 P0969345 PHLP HD SCR M4-.7 X 6
315 P0969315 LOCK NUT M5-.8 346 P0969346 BLADE MOUNT UPPER
317 P0969317 BALL BEARING HK0609 357 P0969357 FLAT WASHER 4MM
318 P0969318 INNER BEARING SLEEVE 6.03 X 21 358 P0969358 INNER BEARING SLEEVE 6 X 16.5
319 P0969319 CAP SCREW M5-.8 X 28 359 P0969359 INNER BEARING SLEEVE 8 X 21.5
320 P0969320 BEARING COVER 360 P0969360 FLAT WASHER 5MM
321 P0969321 BALL BEARING HK1412 361 P0969361 CAP SCREW M4-.7 X 27
322 P0969322 PIVOT SHAFT 362 P0969362 FLAT WASHER 4 X 14 X 1.2MM
323 P0969323 HEX NUT M4-.7 364 P0969364 DRIVE LINK
324 P0969324 CAP SCREW M4-.7 X 25 365 P0969365 MOTOR 50W 110V 1-PH
326 P0969326 BELLOWS 366 P0969366 SPACER
327 P0969327 ROCKER ARM 367 P0969367 INNER BEARING SLEEVE 6 X 16
328 P0969328 FLAT WASHER 8 X 15 X 0.6MM 368 P0969368 CAP SCREW M4-.7 X 30
329 P0969329 INNER BEARING SLEEVE 8 X 18 369 P0969369 FLAT WASHER 4MM
330 P0969330 INNER BEARING SLEEVE 6 X 37 370 P0969370 MOTOR BRUSH (2-PC)
331 P0969331 ROCKER MOUNT 371 P0969371 BINDING BARREL M4-.7 X 6

P0969332 CAP SCREW M4-.7 X 45

Model G0969 (Mfd. Since 07/23)

BUY PARTS ONLINE AT GRIZZLY.COM!

Scan QR code to visit our Parts Store.

-41-

401

REF PART # DES CRIPTIO N REF P ART # DES CRIPTIO N

Labels & Cosmetics

402

403

404

405

401 P0969401 MACHINE ID LABEL 404 P0969404 ELECTRICITY LABEL
402 P0969402 MODEL NUMBER LABEL 405 P0969405 TOUCH-UP PAINT, GRIZZLY GREEN
403 P0969403 COMBO WARNING LABEL

-42-

BUY PARTS ONLINE AT GRIZZLY.COM!

Scan QR code to visit our Parts Store.

Model G0969 (Mfd. Since 07/23)

WARRANTY & RETURNS

Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from
the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse,
negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty
and any and all warranties that may be implied by law, including any merchantability or fitness, for any par­ticular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent
that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants.
In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and
any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.

We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special,
or consequential damages arising from the use of our products.

The manufacturers reserve the right to change specifications at any time because they constantly strive to
achieve better quality equipment. We make every effort to ensure that our products meet high quality and
durability standards and we hope you never need to use this warranty.

In the event you need to use this warranty, contact us by mail or phone and give us all the details. We will
then issue you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of
the carton. We will not accept any item back without this number. Proof of purchase must accompany the
merchandise.

Please feel free to write or call us if you have any questions about the machine or the manual.

Thank you again for your business and continued support. We hope to serve you again soon.

To
you can
applicable information for

take advantage of this warranty, you must register it at https://www.grizzly.com/forms/warranty, or

scan the QR code below to be automatically directed to our warranty registration page. Enter all

the product.

WARRANTY
