MODEL G0967

20" VARIABLE-SPEED

DISC SANDER

OWNER'S MANUAL

(For models manufactured since 06/23)

WARNING : NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#CS22710 PRINTED IN CHINA

***Keep for Future Reference***

V1.0 5.23

This manual provides critical safety instructions on the proper setup, operation, maintenance, and service of this machine/tool. Save this document, refer to it often, and use it to instruct other operators.

Failure to read, understand and follow the instructions in this manual may result in fire or serious personal injury—including amputation, electrocution, or death.

The owner of this machine/tool is solely responsible for its safe use. This responsibility includes but is not limited to proper installation in a safe environment, personnel training and usage authorization, proper inspection and maintenance, manual availability and comprehension, application of safety devices, cutting/sanding/grinding tool integrity, and the usage of personal protective equipment.

The manufacturer will not be held liable for injury or property damage from negligence, improper training, machine modifications or misuse.

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: Work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

Table of Contents

INTRODUCTION ............................................................................................................................... 2

Contact Info Manual Accuracy Identification Controls & Components Machine Data Sheet

................................................................................................................................ 2

........................................................................................................................ 2

............................................................................................................................... 3

............................................................................................................. 4

................................................................................................................... 5

SECTION 1: SAFETY

Safety Instructions for Machinery Additional Safety for Disc Sanders

SECTION 2: POWER SUPPLY

SECTION 3: SETUP

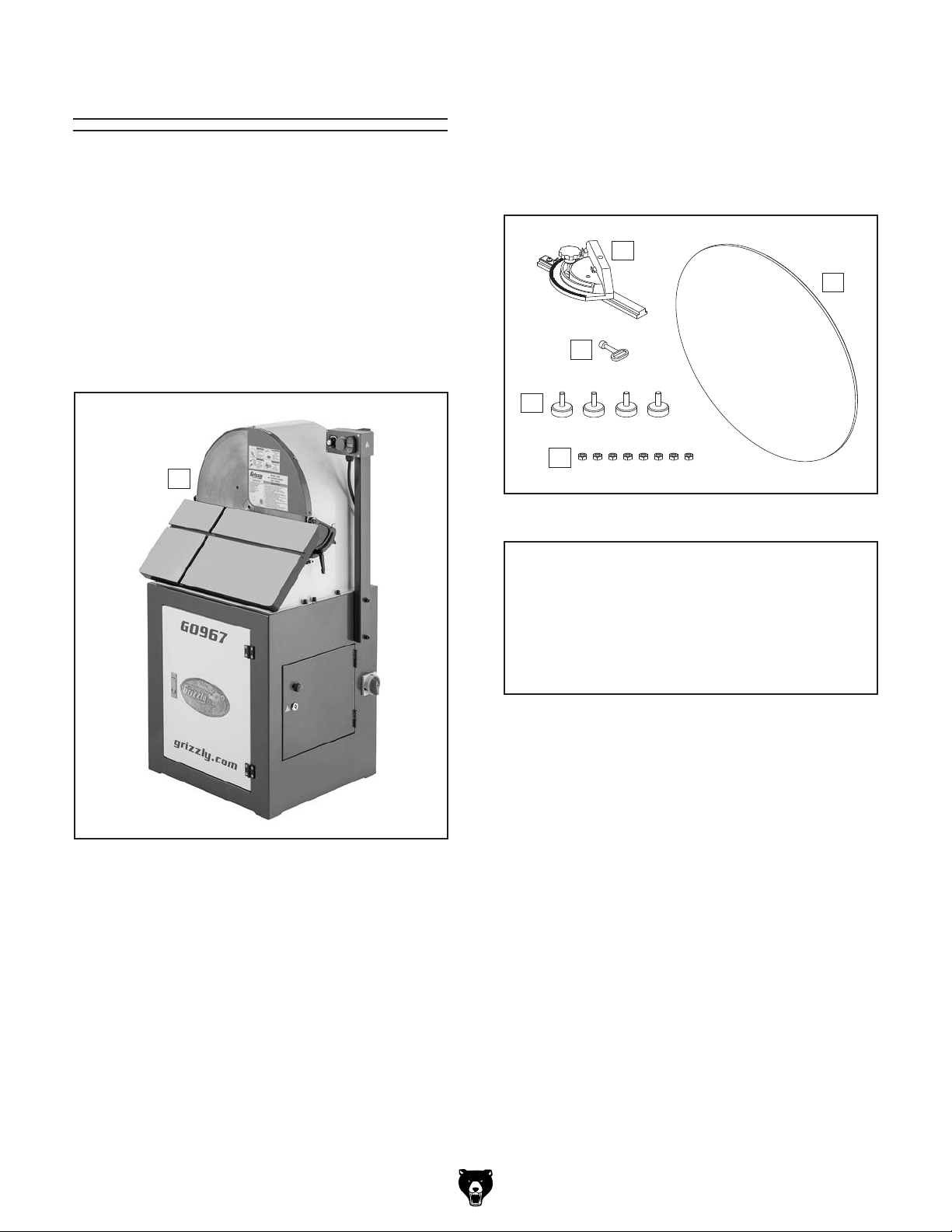

Unpacking Needed for Setup Inventory Cleanup Site Considerations Assembly Dust Collection Test Run

SECTION 4: OPERATIONS

Operation Overview.................................................................................................................. 21

Sanding Tips

Choosing Sandpaper................................................................................................................ 22

Workpiece Inspection Adjusting Table Tilt Adjusting Miter Gauge Changing Sanding Disc

Sanding Operations.................................................................................................................. 26

................................................................................................................................ 12

................................................................................................................................... 13

.................................................................................................................................... 14

.................................................................................................................................. 16

................................................................................................................................... 19

....................................................................................................................... 7

............................................................................................... 7

............................................................................................ 9

...................................................................................................... 10

....................................................................................................................... 12

..................................................................................................................... 12

.................................................................................................................. 15

......................................................................................................................... 18

........................................................................................................... 21

............................................................................................................................ 22

............................................................................................................... 23

................................................................................................................... 23

.............................................................................................................. 24

............................................................................................................ 24

SECTION 5: ACCESSORIES

SECTION 6: MAINTENANCE......................................................................................................... 29

Schedule Cleaning & Protecting Cleaning Sanding Disc

SECTION 7: SERVICE

Troubleshooting Adjusting Table Gap & Parallelism Calibrating Miter Gauge Scale Calibrating Table Tilt Scale & Stops

SECTION 8: WIRING

Wiring Safety Instructions

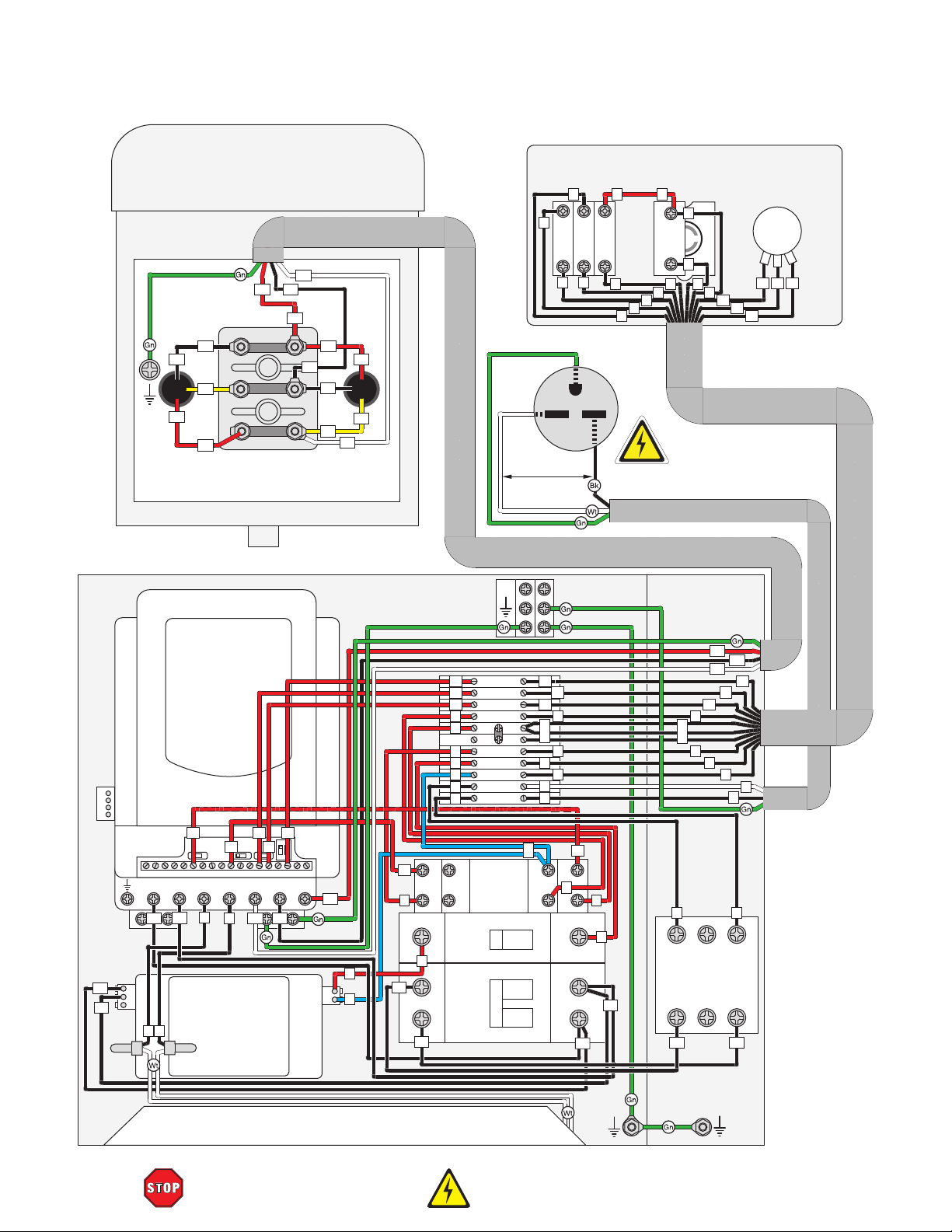

Wiring Diagram......................................................................................................................... 36

Electrical Component Photos

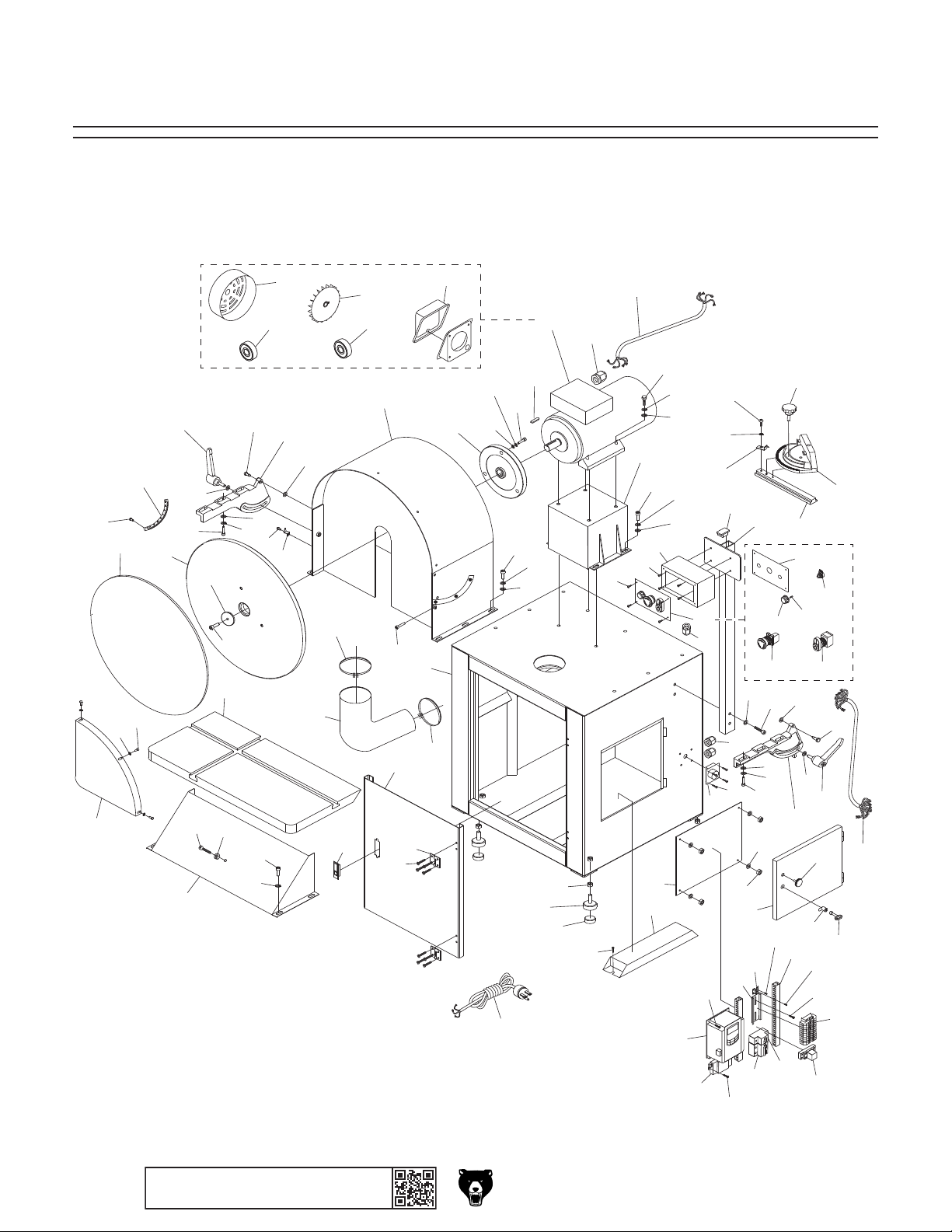

SECTION 9: PARTS

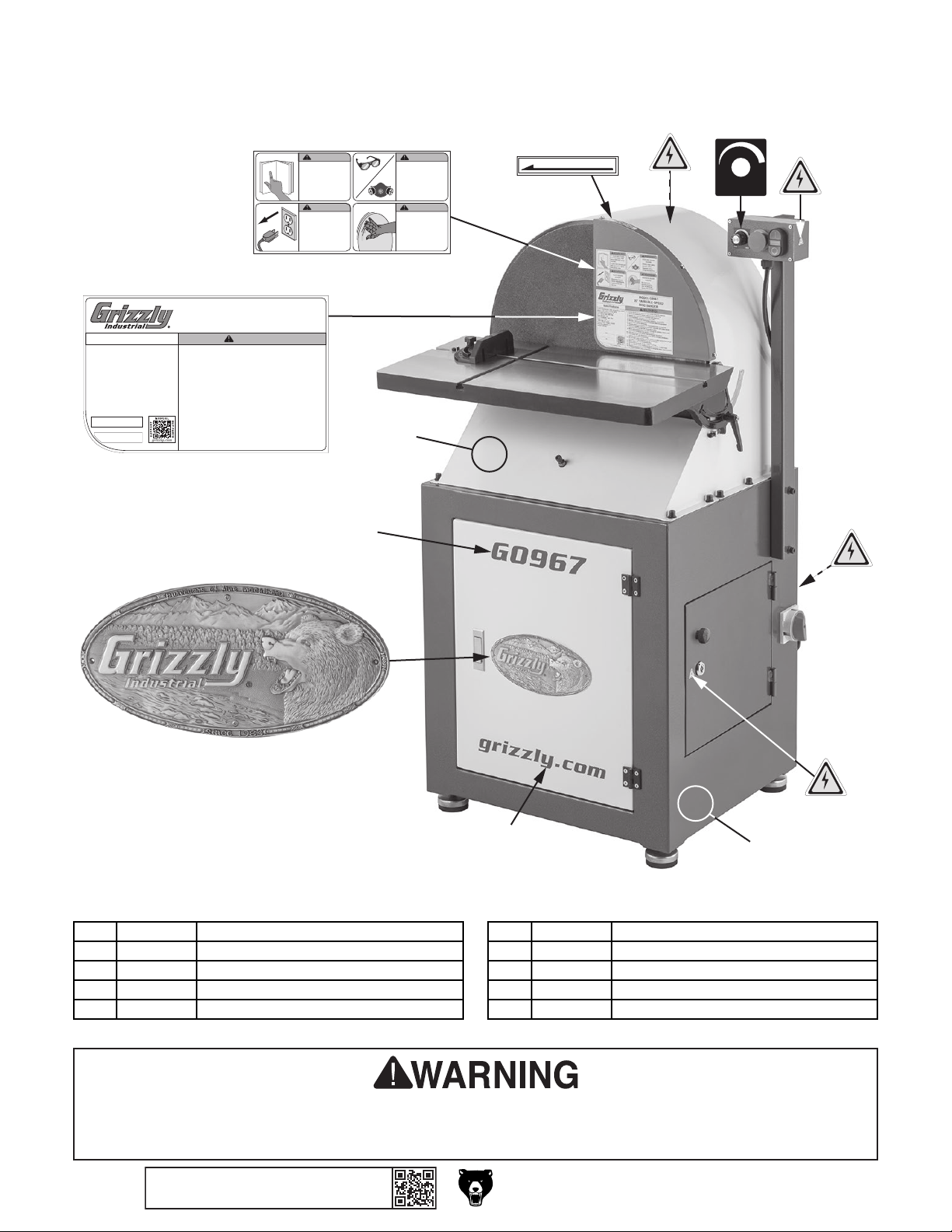

Main Labels & Cosmetics

WARRANTY & RETURNS

.................................................................................................................................. 29

................................................................................................................... 30

........................................................................................................................ 30

...................................................................................................................... 35

....................................................................................................................... 38

.......................................................................................................................................... 38

......................................................................................................... 27

.............................................................................................................. 29

............................................................................................................. 29

.......................................................................................... 32

................................................................................................. 33

........................................................................................ 33

........................................................................................................ 35

................................................................................................... 37

................................................................................................................. 40

............................................................................................................. 41

We stand behind our machines! If you have questions or need help, contact us with the information below. Before contacting, make sure you get the

serial number

from the

machine ID label. This will help us help you faster.

We want your feedback on this manual. What did you like about it? Where could it be improved? Please take a few minutes to give us feedback.

Email: manuals@grizzly.com

We are proud to provide a high-quality owner’s manual with your new machine!

instructions, specifications, drawings, and photographs in this manual. Sometimes we make mistakes, but our policy of continuous improvement also means that

you receive is

slightly different than shown in the manual

If you find this to be the case, and the difference between the manual and machine leaves you confused or unsure about something

check our

website for an updated version. W

current

manuals and

on our web-

site at

Alternatively, you can call our Technical Support for help. Before calling, make sure you write down the

serial number from the machine ID label (see below). This information is required for us to provide proper tech support, and it helps us determine if updated documentation is available for your machine.

INTRODUCTION

Contact Info

and manufacture date

Grizzly Technical Support

1815 W. Battlefield Springfield, MO 65807 Phone: (570) 546-9663

Email: techsupport@grizzly.com

Grizzly Documentation Manager

P.O. Box 2069

Bellingham, WA 98227-2069

Manual Accuracy

made every effort to be exact with the

sometimes the machine

e post

manual updates for free

www.grizzly.com.

manufacture date and

Like all machinery there is potential danger when operating this machine. Accidents are frequently caused by lack of familiarity or failure to pay attention. Use this machine with respect and caution to decrease the risk of operator injury. If normal safety precautions are overlooked or ignored, serious personal injury may occur.

No list of safety guidelines can be complete. Every shop environment is different. Always consider safety first, as it applies to your individual working conditions. Use this and other machinery with caution and respect. Failure to do so could result in serious personal injury, damage to equipment, or poor work results.

Manufacture Date

Serial Number

-2-

Model G0967 (Mfd. Since 06/23)

Identification

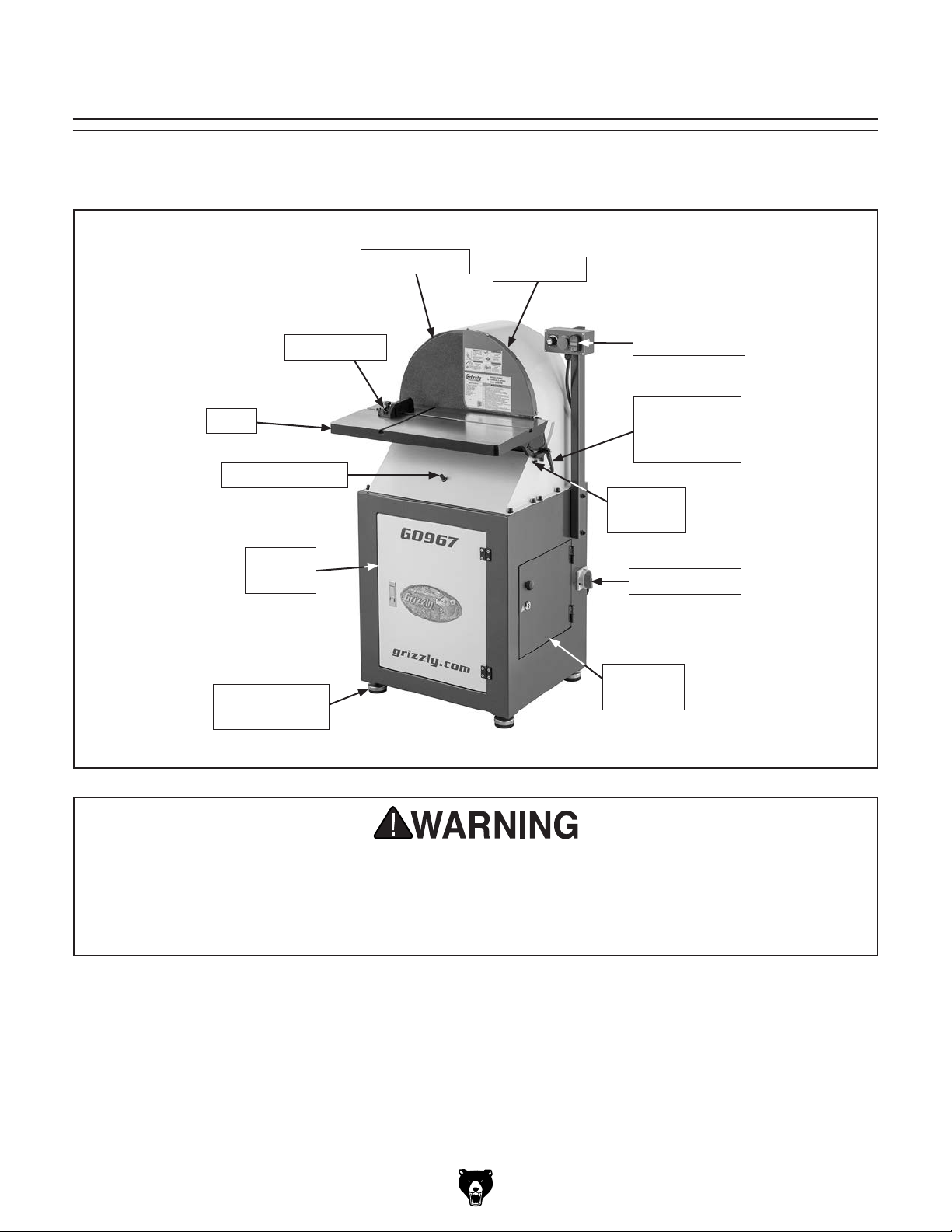

Become familiar with the names and locations of the controls and features shown below to better understand the instructions in this manual.

Miter Gauge

Table

45° Stop Screw

Cabinet

Door

Machine Foot

(1 of 4)

Sanding Disc

Disc Guard

Control Panel

Table Tilt

Lock Handle

(1 of 2)

90° Stop

Screw

Power Switch

Electrical

Cabinet

For Your Own Safety Read Instruction Manual Before Operating the Sander

a) Wear eye protection. b) Support workpiece with miter gauge, backstop, or work table. c) Maintain 1⁄16 in. maximum clearance between table and sanding disc. d) Avoid kickback by sanding in accordance with directional arrows.

Model G0967 (Mfd. Since 06/23)

-3-

Controls &

To reduce your risk of serious injury, read this entire manual BEFORE

Components

using machine.

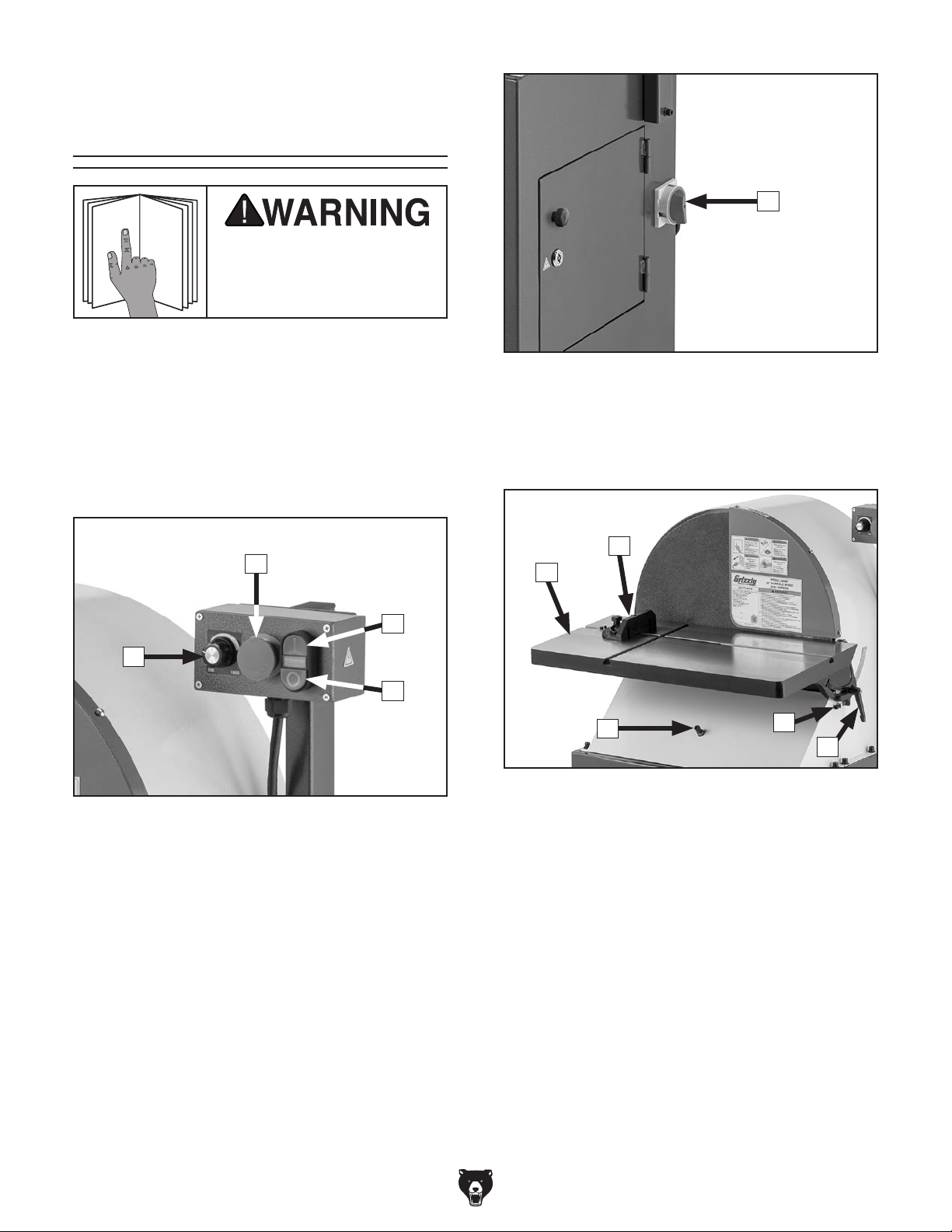

Refer to the following figures and descriptions to become familiar with the basic controls and components of this machine. Understanding these items and how they work will help you understand the rest of the manual and minimize your risk of injury when operating this machine.

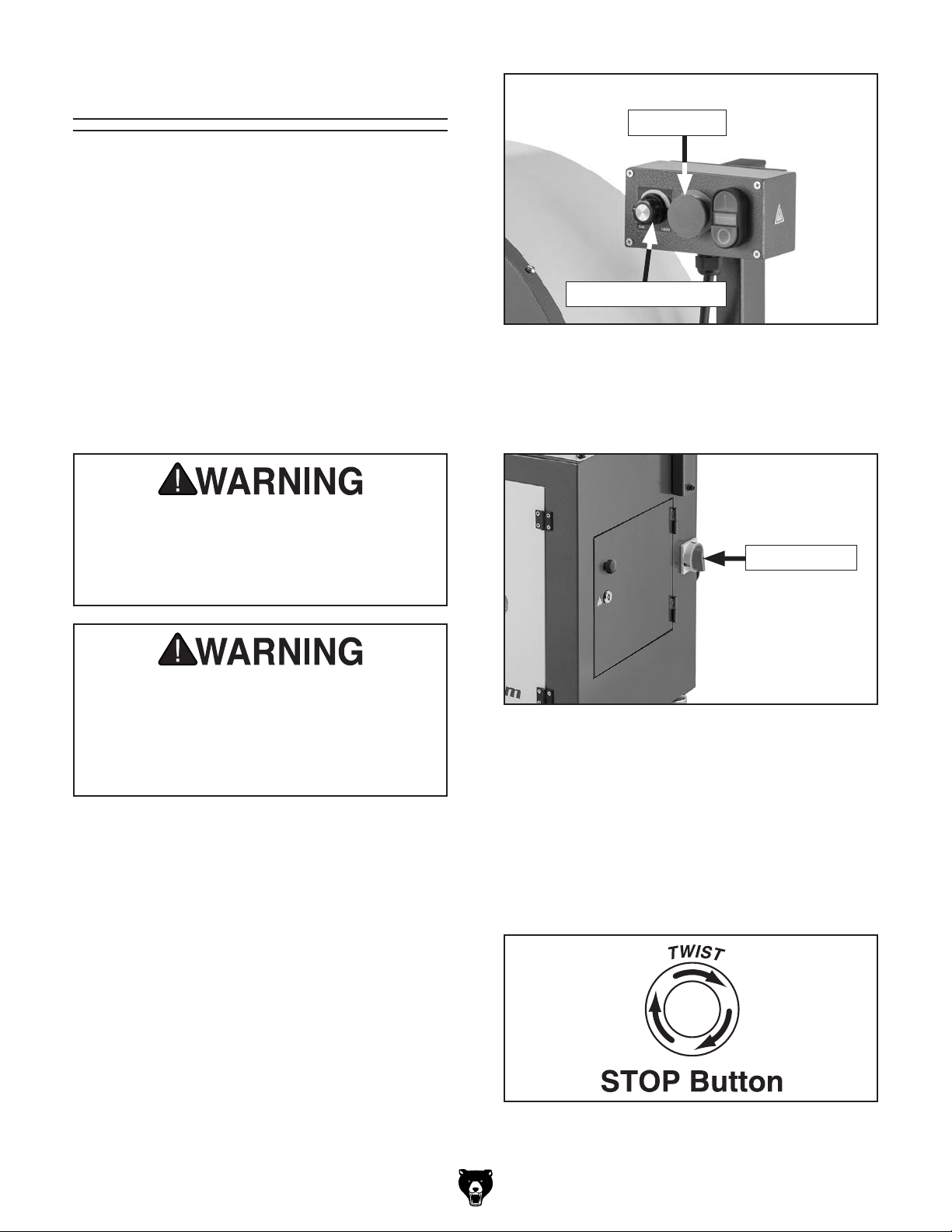

Power Controls

Figure 2. Power switch.

E. Power Switch: Turns incoming power to

machine ON (I) and OFF (O).

Table

Figure 3. Table controls and components.

Figure 1. Control panel controls.

A. Variable-Speed Dial: Rotate dial clockwise

to increase sanding speed; rotate counterclockwise to decrease sanding speed. Sanding speed ranges from 500–1800 RPM.

B. Stop Button: Stops machine and prevents it

from starting. To reset, twist button clockwise until it pops out.

C. ON Button: Turns motor ON.

D. OFF Button: Turns motor OFF.

-4-

F. Table: Supports workpiece as it is pressed

against sanding disc and tilts between 0°–45°. Has X- and Y-axis slots for miter gauge.

G. Miter Gauge: Adjusts between 60° left and

60° right to support workpiece against sanding disc and table.

H. Table Tilt Lock Handle (1 of 2): Loosens to

adjust table tilt; tightens to secure.

I. 90° Stop Screw: Stops table tilt at 90°.

J. 45° Stop Screw: Stops table tilt at 45°.

Model G0967 (Mfd. Since 06/23)

Machine Data Sheet

MACHINE DATA

SHEET

Customer Service #: (570) 546-9663 · To Order Call: (800) 523-4777 · Fax #: (800) 438-5901

MODEL G0967 20" VARIABLE‐SPEED DISC SANDER

Product Dimensions:

Weight.............................................................................................................................................................. 309 lbs.

Width (side-to-side) x Depth (front-to-back) x Height............................................................... 27-1/2 x 27 x 48-1/2 in.

Footprint (Length x Width)..................................................................................................................... 23 x 20-1/2 in.

Shipping Dimensions:

Type.......................................................................................................................................................... Wood Crate

Content........................................................................................................................................................... Machine

Weight.............................................................................................................................................................. 364 lbs.

Length x Width x Height....................................................................................................................... 30 x 29 x 53 in.

Must Ship Upright................................................................................................................................................... Yes

Electrical:

Power Requirement........................................................................................................... 220V, Single-Phase, 60 Hz

Full-Load Current Rating.......................................................................................................................................... 8A

Minimum Circuit Size.............................................................................................................................................. 15A

Connection Type....................................................................................................................................... Cord & Plug

Power Cord Included.............................................................................................................................................. Yes

Power Cord Length.............................................................................................................................................. 98 in.

Power Cord Gauge......................................................................................................................................... 16 AWG

Plug Included.......................................................................................................................................................... Yes

Included Plug Type................................................................................................................................................ 6-15

Switch Type............................................................................................ Control Panel w/Magnetic Switch Protection

Inverter (VFD) Type................................................................................................................... EURA E2000-0015S2

Inverter (VFD) Size............................................................................................................................................... 2 HP

Motors:

Main

Horsepower................................................................................................................................................ 2 HP

Phase.................................................................................................................................................... 3-Phase

Amps........................................................................................................................................................... 6.5A

Speed................................................................................................................................................ 1700 RPM

Type..................................................................................................................................................... Induction

Power Transfer ......................................................................................................................................... Direct

Bearings..................................................................................................... Shielded & Permanently Lubricated

Main Specifications:

Disc Sander Info

Disc Diameter............................................................................................................................................ 20 in.

Disc Speed............................................................................................................................... 500 - 1800 RPM

Disc Sandpaper Backing Type.................................................................................................................... PSA

Included Sanding Disc Grit Size ............................................................................................................. 60-Grit

Table Length.............................................................................................................................................. 12 in.

Table Width................................................................................................................................................ 25 in.

Table Thickness.................................................................................................................................... 1-3/8 in.

Table Tilt............................................................................................................................................ 0 - 45 deg.

Table-to-Floor Height......................................................................................................................... 37-5/16 in.

Model G0967 (Mfd. Since 06/23)

-5-

Construction Materials

Base........................................................................................................................................................... Steel

Stand.......................................................................................................................................................... Steel

Table....................................................................................................................... Precision-Ground Cast Iron

Frame......................................................................................................................................................... Steel

Disc............................................................................................................................................................ Steel

Miter Gauge............................................................................................................................................. Plastic

Paint Type/Finish....................................................................................................................... Powder Coated

Other Related Info

Miter Gauge Slot Width........................................................................................................................... 7/16 in.

Miter Gauge Slot Height........................................................................................................................... 1/2 in.

Number of Dust Ports....................................................................................................................................... 1

Dust Port Size.............................................................................................................................................. 4 in.

Compatible Mobile Base........................................................................................................................ T28000

Other Specifications:

Country of Origin ................................................................................................................................................ China

Warranty ........................................................................................................................................................... 1 Year

Approximate Assembly & Setup Time ........................................................................................................ 30 Minutes

Serial Number Location ................................................................................................................... Machine ID Label

ISO 9001 Factory .................................................................................................................................................. Yes

Features:

0 - 45 Degree Table Tilt Adjustable Miter Gauge 20" 60-Grit Sanding Disc Included Heavy-Duty Cabinet Stand Precision-Ground Cast Iron Table w/X- and Y-Axis Miter Slots

-6-

Model G0967 (Mfd. Since 06/23)

SECTION 1: SAFETY

For Your Own Safety, Read Instruction

Manual Before Operating This Machine

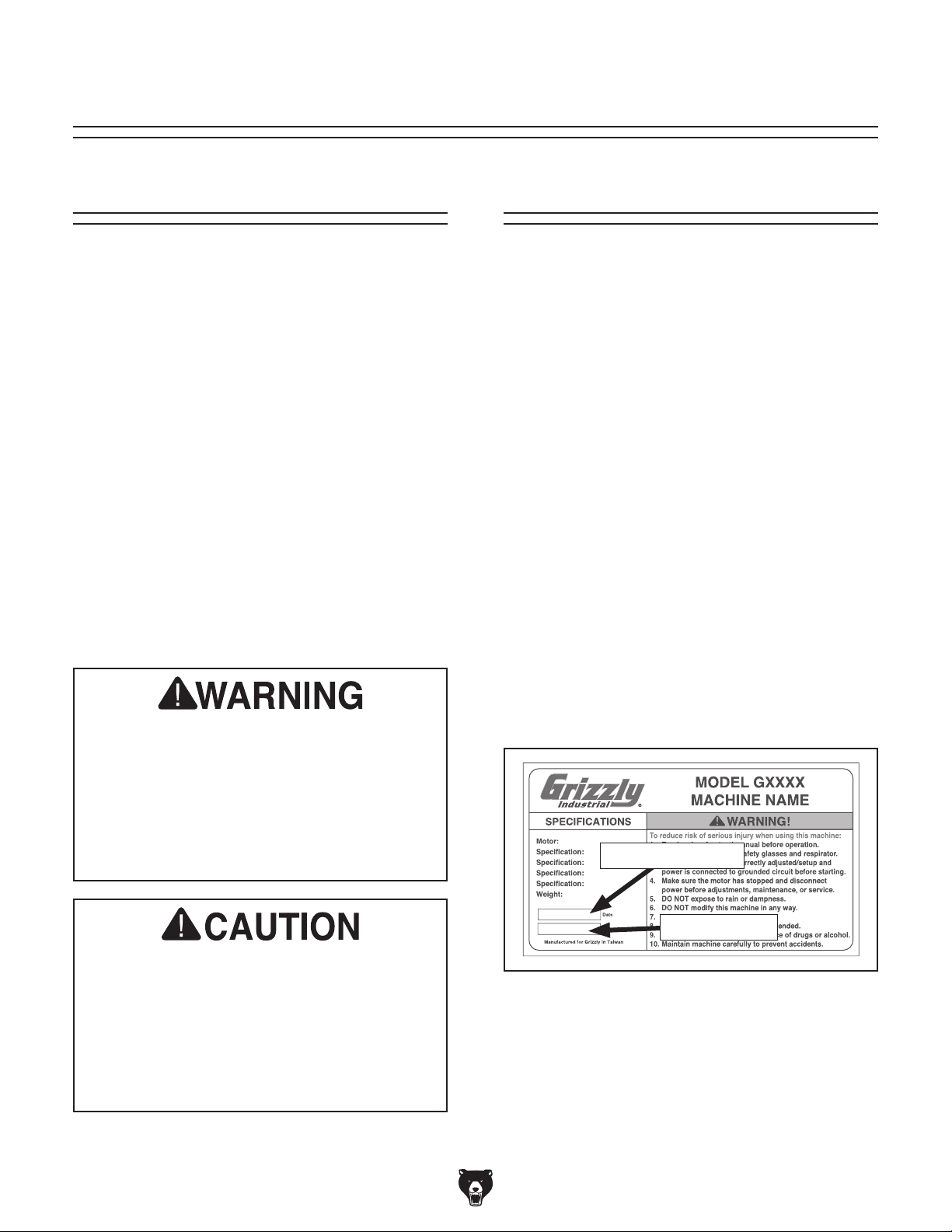

The purpose of safety symbols is to attract your attention to possible hazardous conditions. This manual uses a series of symbols and signal words intended to convey the level of importance of the safety messages. The progression of symbols is described below. Remember that safety messages by themselves do not eliminate danger and are not a substitute for proper accident prevention measures. Always use common sense and good judgment.

Indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, MAY result in minor or moderate injury. It may also be used to alert against unsafe practices.

Alerts the user to useful information about proper operation of the

NOTICE

machine to avoid machine damage.

Safety Instructions for Machinery

OWNER’S MANUAL. Read and understand this

owner’s manual BEFORE using machine.

TRAINED OPERATORS ONLY. Untrained operators have a higher risk of being hurt or killed. Only allow trained/supervised people to use this machine. When machine is not being used, disconnect power, remove switch keys, or lock-out machine to prevent unauthorized use—especially around children. Make your workshop kid proof!

DANGEROUS ENVIRONMENTS. Do not use machinery in areas that are wet, cluttered, or have poor lighting. Operating machinery in these areas greatly increases the risk of accidents and injury.

MENTAL ALERTNESS REQUIRED. Full mental alertness is required for safe operation of machinery. Never operate under the influence of drugs or alcohol, when tired, or when distracted.

ELECTRICAL EQUIPMENT INJURY RISKS. You can be shocked, burned, or killed by touching live electrical components or improperly grounded machinery. To reduce this risk, only allow qualified service personnel to do electrical installation or repair work, and always disconnect power before accessing or exposing electrical equipment.

DISCONNECT POWER FIRST. nect machine from power supply BEFORE making adjustments, changing tooling, or servicing machine. This prevents an injury risk from unintended startup or contact with live electrical components.

EYE PROTECTION. Always wear ANSI-approved safety glasses or a face shield when operating or observing machinery to reduce the risk of eye injury or blindness from flying particles. Everyday eyeglasses are NOT approved safety glasses.

Always discon-

Model G0967 (Mfd. Since 06/23)

-7-

WEARING PROPER APPAREL. Do not wear clothing, apparel or jewelry that can become entangled in moving parts. Always tie back or cover long hair. Wear non-slip footwear to reduce risk of slipping and losing control or accidentally contacting cutting tool or moving parts.

HAZARDOUS DUST. Dust created by machinery operations may cause cancer, birth defects, or long-term respiratory damage. Be aware of dust hazards associated with each workpiece material. Always wear a NIOSH-approved respirator to reduce your risk.

HEARING PROTECTION. Always wear hearing protection when operating or observing loud machinery. Extended exposure to this noise without hearing protection can cause permanent hearing loss.

REMOVE ADJUSTING TOOLS. Tools left on machinery can become dangerous projectiles upon startup. Never leave chuck keys, wrenches, or any other tools on machine. Always verify removal before starting!

USE CORRECT TOOL FOR THE JOB. Only use this tool for its intended purpose—do not force it or an attachment to do a job for which it was not designed. Never make unapproved modifications—modifying tool or using it differently than intended may result in malfunction or mechanical failure that can lead to personal injury or death!

AWKWARD POSITIONS. Keep proper footing and balance at all times when operating machine. Do not overreach! Avoid awkward hand positions that make workpiece control difficult or increase the risk of accidental injury.

CHILDREN & BYSTANDERS. Keep children and bystanders at a safe distance from the work area. Stop using machine if they become a distraction.

GUARDS & COVERS. Guards and covers reduce accidental contact with moving parts or flying debris. Make sure they are properly installed, undamaged, and working correctly BEFORE operating machine.

FORCING MACHINERY. Do not force machine. It will do the job safer and better at the rate for which it was designed.

NEVER STAND ON MACHINE. Serious injury may occur if machine is tipped or if the cutting tool is unintentionally contacted.

STABLE MACHINE. Unexpected movement during operation greatly increases risk of injury or loss of control. Before starting, verify machine is stable and mobile base (if used) is locked.

USE RECOMMENDED ACCESSORIES. Consult this owner’s manual or the manufacturer for recommended accessories. Using improper accessories will increase the risk of serious injury.

UNATTENDED OPERATION. To reduce the risk of accidental injury, turn machine OFF and ensure all moving parts completely stop before walking away. Never leave machine running while unattended.

MAINTAIN WITH CARE. Follow all maintenance instructions and lubrication schedules to keep machine in good working condition. A machine that is improperly maintained could malfunction, leading to serious personal injury or death.

DAMAGED PARTS. Regularly inspect machine for damaged, loose, or mis-adjusted parts—or any condition that could affect safe operation. Immediately repair/replace BEFORE operating machine. For your own safety, DO NOT operate machine with damaged parts!

MAINTAIN POWER CORDS. When disconnecting cord-connected machines from power, grab and pull the plug—NOT the cord. Pulling the cord may damage the wires inside. Do not handle cord/plug with wet hands. Avoid cord damage by keeping it away from heated surfaces, high traffic areas, harsh chemicals, and wet/damp locations.

EXPERIENCING DIFFICULTIES. If at any time you experience difficulties performing the intended operation, stop using the machine! Contact our Technical Support at (570) 546-9663.

-8-

Model G0967 (Mfd. Since 06/23)

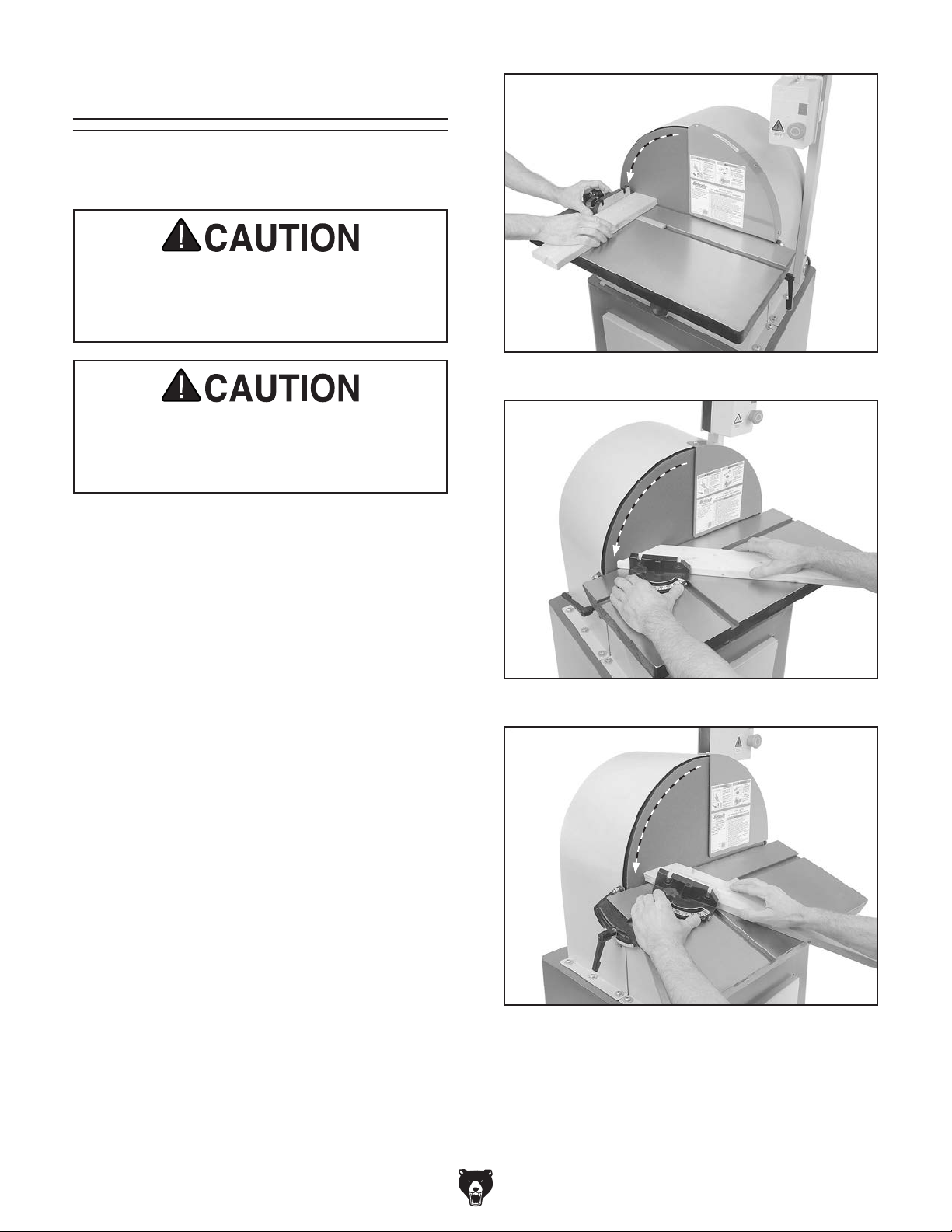

Additional Safety for Disc Sanders

Serious injury or death can occur from fingers or hands contacting sandpaper, or from fingers, clothes, or hair getting entangled in sanding disc. Workpieces thrown by sander can strike nearby operators with great force. Long-term respiratory damage can occur from using sander without a respirator and adequate dust collection system. To minimize risk of getting hurt or killed, anyone operating machine MUST completely heed hazards and warnings below.

DISC DIRECTION. Only sand on downward-mov-

ing left side of sanding disc. Sanding on upwardmoving right side of sanding disc forces operator to rely only on hands (rather than table) for support, which increases risk of workpiece “kick-out” and impact/abrasion injuries.

HAND PLACEMENT. Rotating sandpaper can remove a large amount of flesh in a few seconds. Always keep hands away from sandpaper during operation. Never touch moving sandpaper on purpose. Use a brush to clean table of sawdust and chips.

FEEDING WORKPIECE. Forcefully jamming workpiece into sanding surface could cause workpiece to be aggressively grabbed and pull your hands into sanding surface. Firmly grasp workpiece in both hands and ease it into sandpaper using light pressure.

MINIMUM STOCK DIMENSION. Small workpieces can be aggressively pulled from your hands. Always use a jig or other holding device when sanding small workpieces, and keep hands and fingers at least 2" away from sanding surface.

AVOIDING ENTANGLEMENT. Becoming entangled in moving parts of this machine can cause pinching and crushing injuries. To avoid these hazards, DO NOT wear loose clothing, gloves, or jewelry, and tie back long hair. Keep all guards in place and secure.

IN-RUNNING NIP POINTS. The gap between moving sandpaper and fixed table/support creates a pinch point for fingers or workpieces; the larger this gap is, the greater risk of fingers or workpieces getting caught in it. Minimize this risk by adjusting table no more than

⁄16" away from sandpaper.

WORKPIECE SUPPORT. Workpiece kickback can occur with violent force if workpiece is not properly supported during operation. Always sand with workpiece firmly against table or another support device.

WORKPIECE INSPECTION. Nails, staples, knots, or other imperfections in workpiece can be dislodged and thrown from sander at high rate of speed into operator or bystanders, or cause damage to sandpaper or sander. Never try to sand stock that has embedded foreign objects or questionable imperfections.

SANDPAPER CONDITION. Worn or damaged sandpaper not only produces poor sanding results, but could fly apart, aggressively grab workpiece, and throw debris at the operator. Always inspect sandpaper before operation and replace if worn or damaged.

WORKPIECE INTEGRITY. Only sand solid workpieces that can withstand power sanding forces. Make sure shape of workpiece is properly supported on table; avoid sanding workpieces without flat bottom surfaces unless some type of jig is used to maintain support and control when sanding force is applied.

SANDING DUST. Sanding creates large amounts of dust and flying chips that can lead to eye injury or respiratory illness. Reduce risk of these hazards by wearing approved eye and respiratory protection when using sander.

DUST COLLECTION. Never operate without ade- quate dust collection system in place and running. Proper dust collection reduces dust in work area, which decreases risk of long-term respiratory damage, but it is not a substitute for using a respirator.

Model G0967 (Mfd. Since 06/23)

-9-

SECTION 2: POWER SUPPLY

Before installing the machine, consider the availability and proximity of the required power supply circuit. If an existing circuit does not meet the requirements for this machine, a new circuit must be installed. To minimize the risk of electrocution, fire, or equipment damage, installation work and electrical wiring must be done by an electrician or qualified service personnel in accordance with all applicable codes and standards.

or equipment damage may occur if machine is not properly grounded and connected to power

The full-load current rating is the amperage a machine draws at 100% of the rated output power. On machines with multiple motors, this is the amperage drawn by the largest motor or sum of all motors and electrical devices that might operate at one time during normal operations.

The full-load current is not the maximum amount of amps that the machine will draw. If the machine is overloaded, it will draw additional amps beyond the full-load rating.

If the machine is overloaded for a sufficient length of time, damage, overheating, or fire may result— especially if connected to an undersized circuit. To reduce the risk of these hazards, avoid overloading the machine during operation and make sure it is connected to a power supply circuit that meets the specified circuit requirements.

For your own safety and protection of

Note: Circuit requirements in this manual apply to

a dedicated circuit—where only one machine will be running on the circuit at a time. If machine will be connected to a shared circuit where multiple machines may be running at the same time, consult an electrician or qualified service personnel to ensure circuit is properly sized for safe operation.

A power supply circuit includes all electrical equipment between the breaker box or fuse panel in the building and the machine. The power supply circuit used for this machine must be sized to safely handle the full-load current drawn from the machine for an extended period of time. (If this machine is connected to a circuit protected by fuses, use a time delay fuse marked D.)

This machine is prewired to operate on a power supply circuit that has a verified ground and meets the following requirements:

Availability

Electrocution, fire, shock,

supply.

Full-Load Current Rating

Circuit Information

property, consult an electrician if you are unsure about wiring practices or electrical codes in your area.

Full-Load Current Rating at 220V ....... 8 Amps

-10 -

Circuit Requirements

Nominal Voltage .........20 8V, 2 20V, 230V, 24 0V

..........................................................60 Hz

Cycle Phase Power Supply Circuit Plug/Receptacle

........................................... Single-Phase

......................... 15 Amps

............................. NEMA 6-15

Model G0967 (Mfd. Since 06/23)

Improper connection of the equipment-grounding wire can result in a risk of electric shock. The wire with green insulation (with or without yellow stripes) is the equipment-grounding wire. If repair or replacement of the power cord or plug is necessary, do not connect the equipment-grounding wire to a live (current carrying) terminal.

Check with a qualified electrician or service personnel if you do not understand these grounding requirements, or if you are in doubt about whether the tool is properly grounded. If you ever notice that a cord or plug is damaged or worn, disconnect it from power, and immediately replace it with a new one.

We do not recommend using an extension cord with this machine. cord, only use it if absolutely necessary and only on a temporary basis.

Extension cords cause voltage drop, which can damage electrical components and shorten motor life. Voltage drop increases as the extension cord size gets longer and the gauge size gets smaller (higher gauge numbers indicate smaller sizes).

Any extension cord used with this machine must be in good condition and contain a ground wire and matching plug/receptacle. Additionally, it must meet the following size requirements:

Grounding Requirements

This machine MUST be grounded. In the event of certain malfunctions or breakdowns, grounding reduces the risk of electric shock by providing a path of least resistance for electric current.

This machine is equipped with a power cord that has an equipment-grounding wire and a grounding plug. Only insert plug into a matching receptacle (outlet) that is properly installed and grounded in accordance with all local codes and ordinances. DO NOT modify the provided plug!

No adapter should be used with plug. If

process. DO NOT connect to power until

GROUNDED

6-15 RECEPTACLE

Current Carrying Prongs

6-15 PLUG

Serious injury could occur if you connect machine to power before completing setup

instructed later in this manual.

Grounding Pin

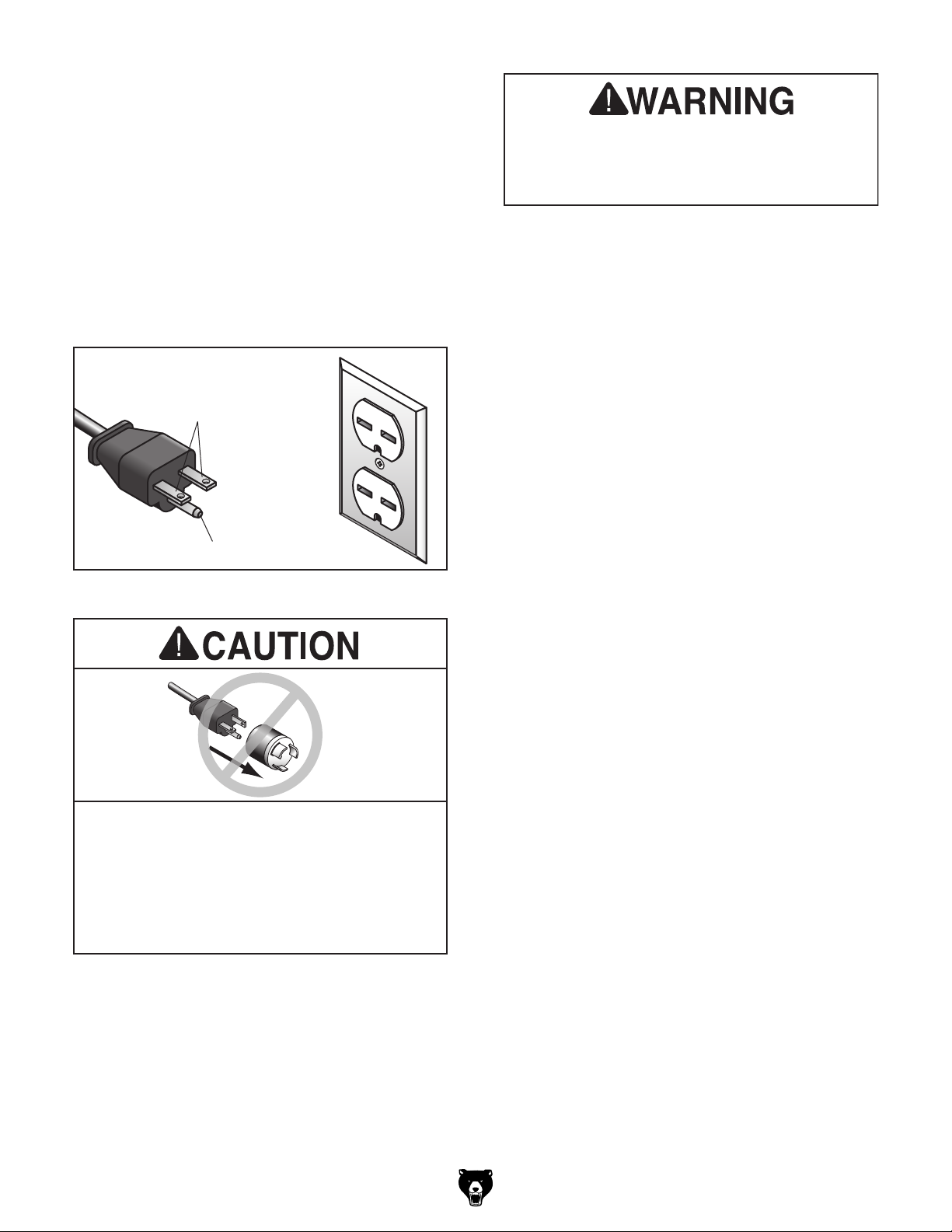

Figure 4. Typical 6-15 plug and receptacle.

plug does not fit available receptacle, or if machine must be reconnected for use on a different type of circuit, reconnection must be performed by an electrician or qualified service personnel, and it must comply with all local codes and ordinances.

Model G0967 (Mfd. Since 06/23)

Extension Cords

If you must use an extension

Minimum Gauge Size ...........................18 AWG

Maximum Length (Shorter is Better).......50 ft.

-11-

SECTION 3: SETUP

The following items are needed, but not included, for the setup/assembly of this machine.

This machine was carefully packaged for safe transport. When unpacking, separate all enclosed items from packaging materials and inspect them for shipping damage.

please

IMPORTANT:

you are completely satisfied with the machine and have resolved any issues between Grizzly or the shipping agent. You MUST have the original pack-

aging to file a freight claim. It is also extremely helpful if you need to return your machine later.

This machine presents serious injury hazards to untrained users. Read through this entire manual to become familiar with the controls and operations before starting the machine!

Wear safety glasses during the entire setup process!

call us immediately at (570) 546-9663.

Unpacking

If items are damaged

Save all packaging materials until

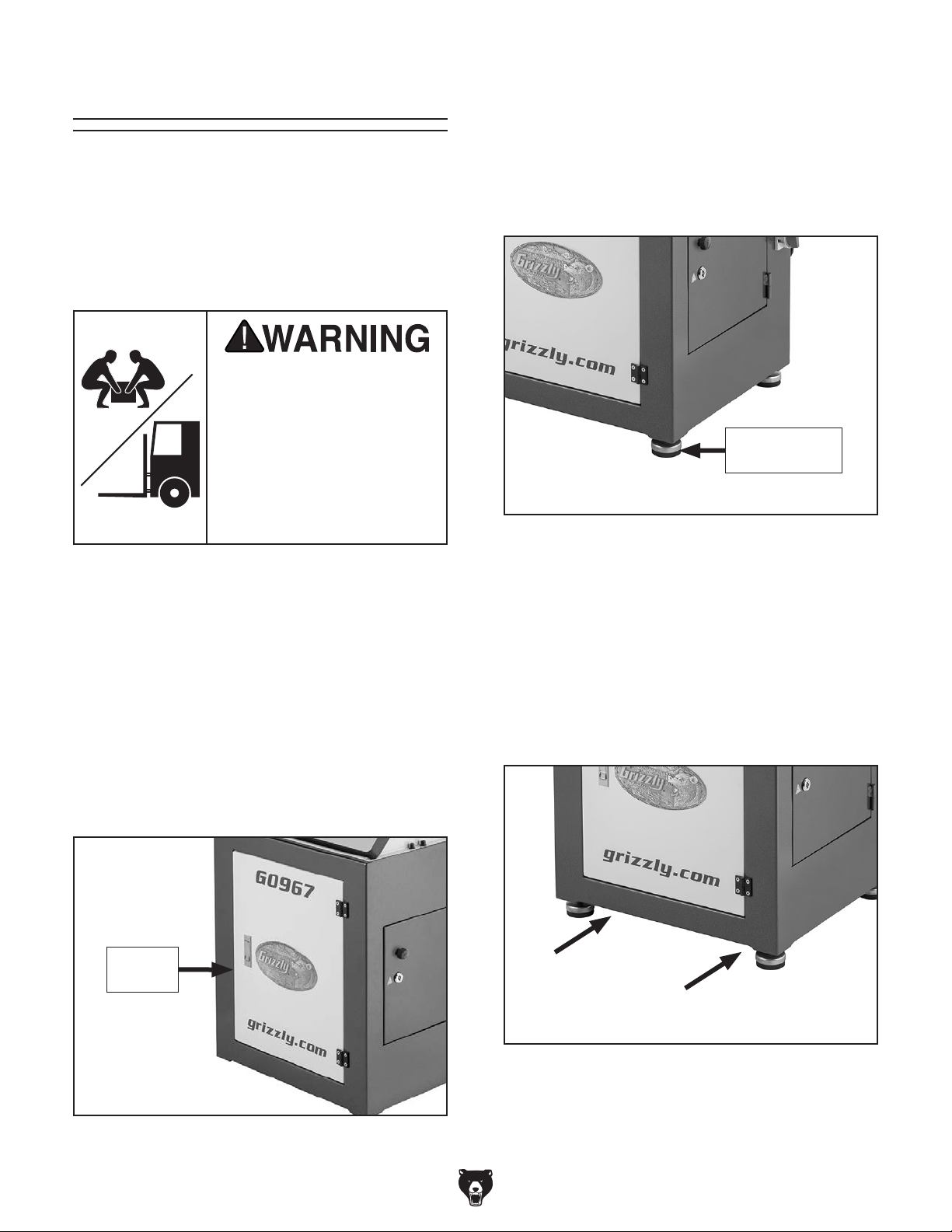

HEAVY LIF T! Straining or crushing injury may occur from improperly lifting machine or some of its parts. To reduce this risk, get help from other people and use a forklift (or other lifting equipment) rated for weight of this machine.

Needed for Setup

Description Qty

• Safety Glasses (for each person) ..........1 Pr.

• Cleaner/Degreaser ..................... As Needed

• Disposable Rags ........................ As Needed

• Disposable Gloves ..................... As Needed

• Lifting Assistants ........................................ 2

• Lifting Equipment

(Rated for at least 450 lbs.) ........................ 1

• Lifting Straps (Rated for at least 450 lbs.) . . 2

• Level 24" ..................................................... 1

• Open-End Wrench 5⁄8" ................................ 1

• Wrench or Socket 17mm ............................ 1

• Hex Wrench 6mm ....................................... 1

• Phillips Head Screwdriver #2 ..................... 1

• Feeler Gauge 1⁄16" ....................................... 1

• Dust Collection System .............................. 1

• Dust Hose 4" .............................................. 1

• Hose Clamps 4" ......................................... 2

-12-

Model G0967 (Mfd. Since 06/23)

Inventory

The following is a list of items shipped with your machine. Before beginning setup, lay these items out and inventory them.

If any non-proprietary parts are missing (e.g. a nut or a washer), we will gladly replace them; or for the sake of expediency, replacements can be obtained at your local hardware store.

Loose Items (Figure 6) Qty

B. Miter Gauge ................................................ 1

C. Sanding Disc 20" 60-Grit ........................... 1

D. Electrical Cabinet Key ................................ 1

E. Machine Feet .............................................. 4

F. Hex Nuts M10-1.5 ....................................... 8

Main Inventory (Figure 5) Qty

A. Sander ........................................................ 1

Figure 6. Loose item inventory.

NOTICE

If you cannot find an item on this list, carefully check around/inside the machine and packaging materials. Often, these items get lost in packaging materials while unpacking or they are pre-installed at the factory.

Figure 5. Main inventory.

Model G0967 (Mfd. Since 06/23)

-13-

Cleanup

The unpainted surfaces of your machine are coated with a heavy-duty rust preventative that prevents corrosion during shipment and storage. This rust preventative works extremely well, but it will take a little time to clean.

Be patient and do a thorough job cleaning your machine. The time you spend doing this now will give you a better appreciation for the proper care of your machine's unpainted surfaces.

There are many ways to remove this rust preventative, but the following steps work well in a wide variety of situations. Always follow the manufacturer’s instructions with any cleaning product you use and make sure you work in a well-ventilated area to minimize exposure to toxic fumes.

Before cleaning, gather the following:

• Disposable rags

• Cleaner/degreaser (WD•40 works well)

• Safety glasses & disposable gloves

• Plastic paint scraper (optional)

Basic steps for removing rust preventative:

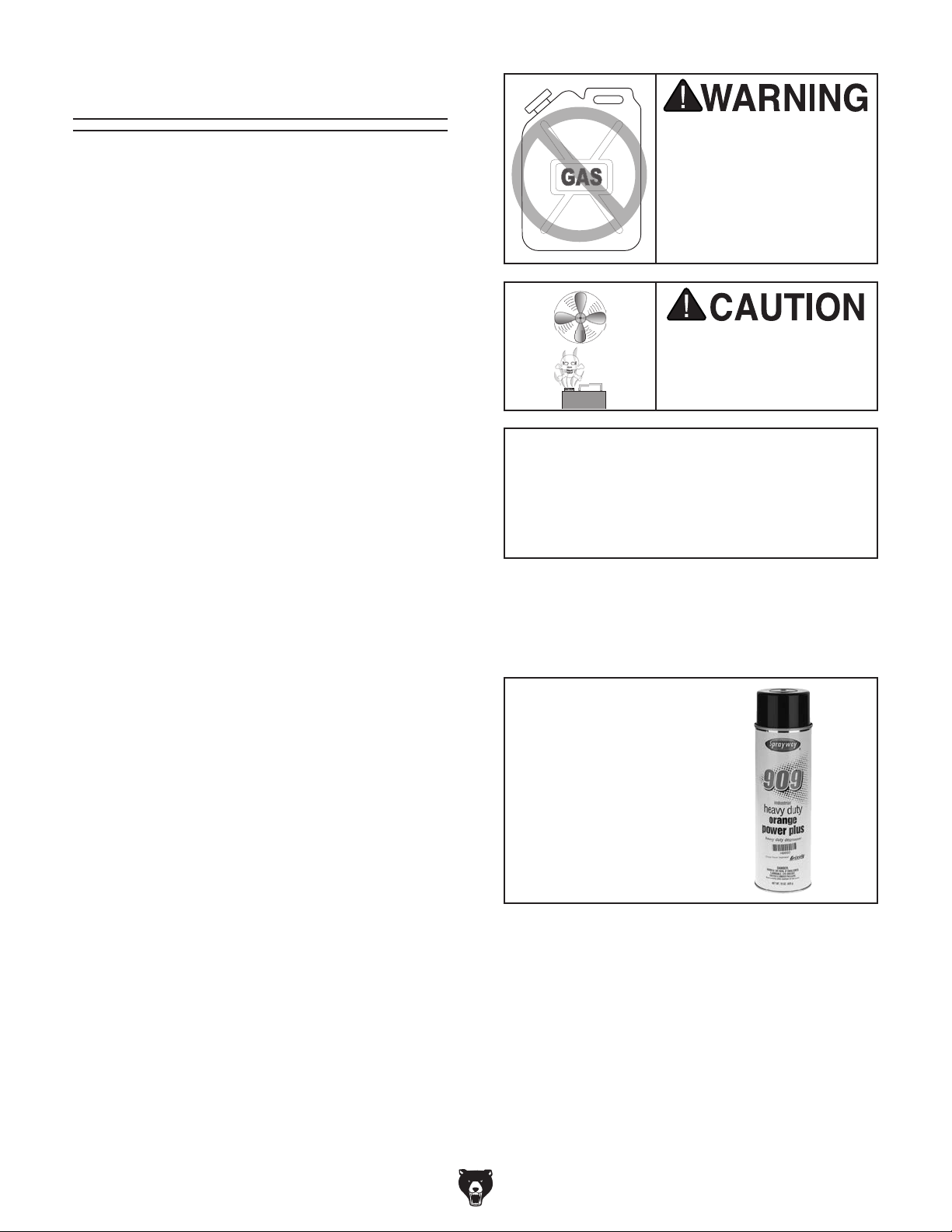

Many cleaning solvents

work in a well-ventilated

Cleanup

Gasoline and petroleum products have low flash points and can explode or cause fire if used to clean machinery. Avoi d using these products to clean machinery.

Put on safety glasses.

Coat the rust preventative with a liberal

amount of cleaner/degreaser, then let it soak for 5–10 minutes.

Wipe off the surfaces. If your cleaner/degreas-

er is effective, the rust preventative will wipe off easily. If you have a plastic paint scraper, scrape off as much as you can first, then wipe off the rest with the rag.

are toxic if inhaled. Only

area.

NOTICE

Avoid harsh solvents like acetone or brake parts cleaner that may damage painted surfaces. Always test on a small, inconspicuous location first.

T23692—Orange Power Degreaser

A great product for removing the waxy shipping grease from the non-painted parts of the machine during clean up.

Order online at

www.grizzly.com

Call 1-800-523-4777

Repeat Steps 2–3 as necessary until clean,

then coat all unpainted surfaces with a quality metal protectant to prevent rust.

-14-

Figure 7. T23692 Orange Power Degreaser.

Model G0967 (Mfd. Since 06/23)

Site Considerations

Weight Load

Refer to the of your machine. Make sure that the surface upon which the machine is placed will bear the weight of the machine, additional equipment that may be installed on the machine, and the heaviest workpiece that will be used. Additionally, consider the weight of the operator and any dynamic loading that may occur when operating the machine.

Space Allocation

Consider the largest size of workpiece that will be processed through this machine and provide enough space around the machine for adequate operator material handling or the installation of auxiliary equipment. With permanent installations, leave enough space around the machine to open or remove doors/covers as required by the maintenance and service described in this manual.

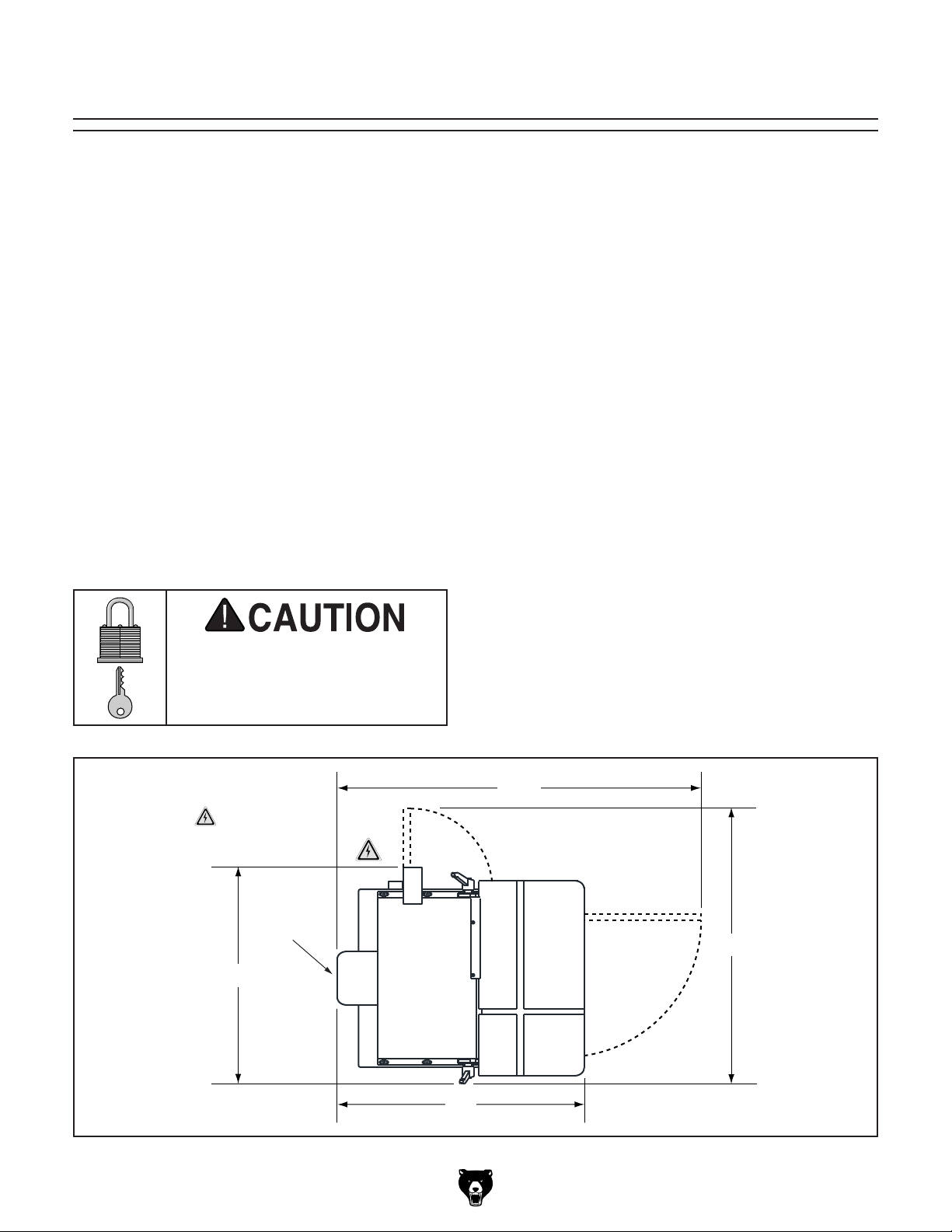

See below for required space allocation.

Physical Environment

Extreme conditions for this type of machinery are

Place this machine near an existing power source.

other hazards. Make sure to leave enough space

Shadows, glare, or strobe effects that may distract

Machine Data Sheet for the weight

Children or untrained people may be seriously injured by this machine. Only install in an access restricted location.

Electrical

Connection

The physical environment where the machine is operated is important for safe operation and longevity of machine components. For best results, operate this machine in a dry environment that is free from excessive moisture, hazardous chemicals, airborne abrasives, or extreme conditions.

generally those where the ambient temperature range exceeds 41°–104°F; the relative humidity range exceeds 20%–95% (non-condensing); or the environment is subject to vibration, shocks, or bumps.

Electrical Installation

Make sure all power cords are protected from traffic, material handling, moisture, chemicals, or

around machine to disconnect power supply or apply a lockout/tagout device, if required.

Lighting

Lighting around the machine must be adequate enough that operations can be performed safely.

or impede the operator must be eliminated.

39½"

Model G0967 (Mfd. Since 06/23)

Dust Port

27½"

Figure 8. Minimum working clearances.

37½"

27"

-15-

Assembly

The machine must be fully assembled before it can be operated. Before beginning the assembly process, refer to all goes smoothly, first clean any ered or coated in heavy-duty rust preventative (if applicable).

Needed for Setup and gather

listed items. To ensure the assembly process

parts that are cov-

Thread (1) M10-1.5 hex nut about halfway

onto each machine foot.

Have two other people help tilt one side

of machine up, insert (2) machine feet into exposed holes in corners of base, then lower machine onto feet (see Figure 10).

Machine Foot

(1 of 2)

Figure 10. Machine feet inserted in corners of

base.

To assemble machine:

1. Remove crate top and sides, then remove

any small components from machine.

Move machine to prepared location while it is

still attached to shipping pallet.

Open cabinet door (see Figure 9), remove

any small components from inside cabinet, then remove fasteners securing machine to pallet.

Cabinet

Door

6. Repeat Step 5 for other side of machine.

Install (1) M10-1.5 hex nut on each foot inside

cabinet to secure. Only hand tighten for now.

Place (2) lifting straps under sander (see

Figure 11), and attach straps securely to

hoist or other power lifting equipment.

-16 -

Figure 9. Location of cabinet door.

Figure 11. Lifting locations.

Tip: Route additional ratchet strap around

machine base to keep lifting straps from moving to keep machine weight evenly distributed.

Model G0967 (Mfd. Since 06/23)

9. With another person to help steady machine, lift machine just enough to clear pallet, then remove pallet and lower machine to ground.

Loosen hex nuts from Step 7, adjust lower

10.

hex nuts on machine feet until machine is level, then tighten upper hex nuts to secure.

Remove (3) Phillips head screws and flat

11.

washers shown in Figure 12 to remove disc guard.

x 3

Loosen (6) cap screws shown in Figure 14,

13.

then move table away from steel disc.

x 6

Figure 14. Location of table cap screws.

Disc Guard

Figure 12. Location of disc guard and fasteners.

12.

Loosen (2) table tilt lock handles, adjust

table tilt to 0°, then tighten lock handles (see Figure 13).

Table Tilt

Lock Handle

(1 of 2)

14.

Clean steel disc surface with cleaner/

degreaser and let dry.

Peel back protective layer on one-half of

15.

sanding disc and fold it against remaining half.

Slip half with protective layer between disc

16.

and table edge (see Figure 15).

Figure 13. Table tilt adjusted to 0°.

Model G0967 (Mfd. Since 06/23)

Table

Figure 15. Example of installing sanding disc.

-17-

17.

Position exposed adhesive on upper half of

steel disc that extends above table. Once it is positioned evenly across disc, press adhesive onto surface.

Rotate disc so lower half is above table. Peel

18.

off other half of protective paper, and press remaining sanding disc against steel disc so adhesion is complete.

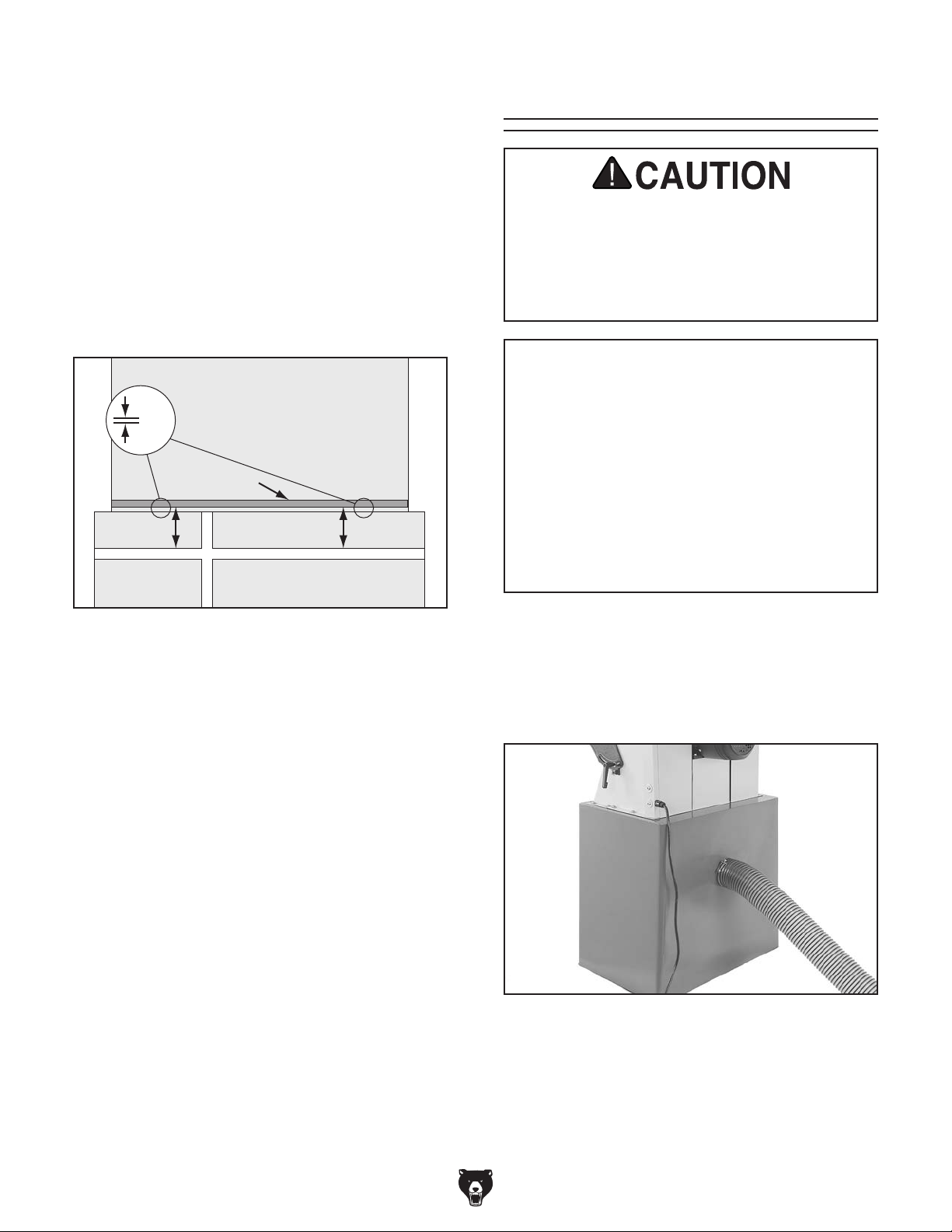

Adjust table so there is a 1⁄16" gap between

19.

disc and edge of table along its full width (see Figure 16).

⁄16"

Sanding Disc

Table

(Top View)

Dust Collection

This machine creates a lot of wood chips/ dust during operation. Breathing airborne dust on a regular basis can result in permanent respiratory illness. Reduce your risk by wearing a respirator and capturing the dust with a dust-collection system.

Minimum CFM at Dust Port: 400 CFM

Do not confuse this CFM recommendation with the rating of the dust collector. To determine the CFM at the dust port, you must consider these variables: (1) CFM rating of the dust collector, (2) hose type and length between the dust collector and the machine, (3) number of branches or wyes, and (4) amount of other open lines throughout the system. Explaining how to calculate these variables is beyond the scope of this manual. Consult an expert or purchase a good dust collection "how-to" book.

Figure 16. Example of correctly adjusted table.

20. Tighten table cap screws.

21. Spin disc by hand to check if sanding disc

touches table.

— If sanding disc touches table at any point,

loosen table cap screws, then repeat Steps 19–21 until it does not.

IMPORTANT: DO NOT proceed to Te st Run

until you have verified that sanding disc does not touch table at any point in its rotation.

Install disc guard, ensuring guard does not

22.

contact sanding disc.

To connect dust collection system to machine:

Fit 4" dust hose over dust port, as shown in

Figure 17, and secure in place with hose

clamp.

Figure 17. Example of dust hose attached to

dust port.

Tug hose to make sure it does not come off.

-18-

Note: A tight fit is necessary for proper

performance.

Model G0967 (Mfd. Since 06/23)

Test Run

Once assembly is complete, test run the machine to ensure it is properly connected to power and safety components are functioning correctly.

If you find an unusual problem during the test run, immediately stop the machine, disconnect it from power, and fix the problem BEFORE operating the machine again. The

table in the

SERVICE section of this manual can help.

DO NOT start machine until all preceding setup instructions have been performed. Operating an improperly set up machine

ed results that can lead to serious injury,

Serious injury or death can result from

Stop Button

Troubleshooting

The Test Run consists of verifying the following:

1) the motor powers up and runs correctly, 2) the

sanding disc rotates in the correct direction, and

3) the Stop button disables the machine correctly.

using this machine BEFORE understanding its controls and related safety information. DO NOT operate, or allow others to operate, machine until the information is understood.

may result in malfunction or unexpect-

death, or machine/property damage.

Variable-Speed Dial

Figure 18. Location of Stop button and variable-

speed dial.

Turn power switch to OFF (0) position (see

Figure 19).

Power Switch

Figure 19. Location of power switch.

Connect machine to power by inserting power

cord plug into a matching receptacle.

To test run machine:

Clear all setup tools away from machine.

2. Press Stop button in (see Figure 18).

Turn variable-speed dial all the way counter-

3. clockwise (see Figure 18).

Model G0967 (Mfd. Since 06/23)

Turn power switch to ON position (I).

7. Twist Stop button clockwise until it springs

out (see Figure 20). This resets switch so machine can start.

Figure 20. Resetting switch.

-19-

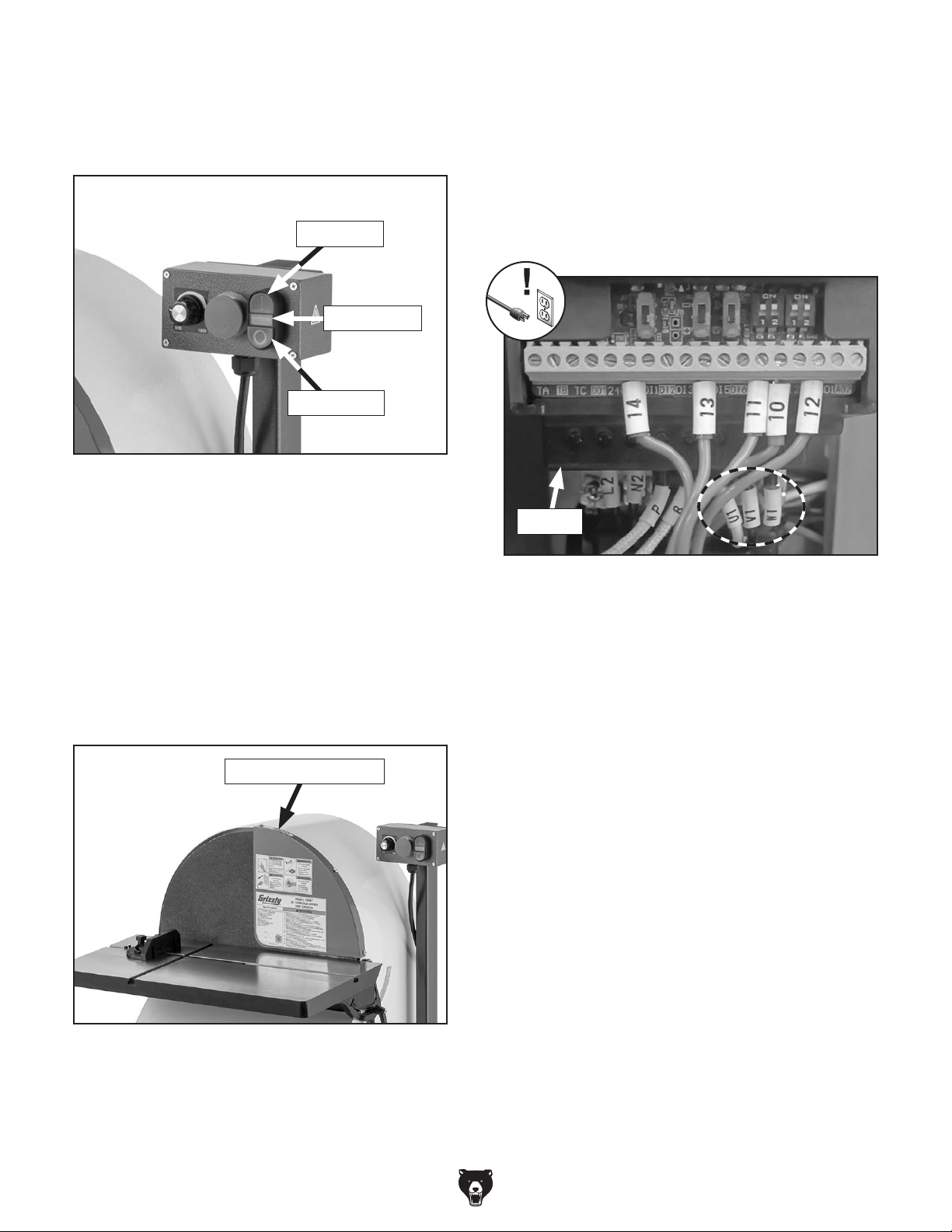

8. Press ON button (I) to turn machine ON (see Figure 21). Power light will illuminate. Verify

motor starts up and runs smoothly without any unusual problems or noises.

ON Button

Power Light

OFF Button

Figure 21. Location of ON/OFF buttons and

power light.

10. Press OFF button (see Figure 21) and DISCONNECT MACHINE FROM POWER!

Use electrical cabinet key to open electrical

11.

cabinet door.

Swap any (2) motor wires connected to bot-

12. tom of inverter labeled U1, V1, and W1 (see Figure 23).

Observe sanding disc rotation direction. Disc

should rotate in same direction as disc rotation arrow (see Figure 22).

— If disc rotates in same direction as disc

rotation arrow, proceed to Step 14.

— If disc does not rotate in same direction as

disc rotation arrow, phase polarity of motor needs to be reversed. Proceed to Step 10.

Disc Rotation Arrow

Inverter

Figure 23. Location of U1, V1, and W1 wires

(inverter cover removed for clarity).

13.

Close electrical cabinet door and reconnect

machine to power. Repeat Steps 8–9.

Verify speed controls by slowly turning vari-

14.

able-speed dial clockwise. Rotate dial back and forth to test variable-speed function.

Press Stop button to turn machine OFF.

15.

WITHOUT resetting Stop button, try to start

16.

machine by pressing ON button. Machine should not start.

— If machine does not start, safety fea-

ture of Stop button is working correctly. Congratulations! Test Run is complete.

Figure 22. Location of disc rotation arrow.

-20-

— If machine does start, immediately turn it

OFF and disconnect power. Safety feature of Stop button is NOT working properly and must be replaced before further using machine.

Model G0967 (Mfd. Since 06/23)

SECTION 4: OPERATIONS

The purpose of this overview is to provide the novice machine operator with a basic understanding of how the machine is used during operation, so the

discussed later

in this manual

Due to the generic nature of this overview, it is not intended to be an instructional guide. To learn more about specific operations, read this entire manual,

training from experienced machine operators outside of this manual by reading "how-to" books, trade magazines, or websites.

To reduce your risk of serious injury, read this entire manual BEFORE

To reduce risk of eye injury from flying

Keep hair, clothing, and

ing parts at all times. Entanglement can result in death, amputation, or

Operation Overview

machine controls/components

are easier to understand.

seek additional

, and do additional research

To complete a typical operation, the operator does the following:

Examines workpiece to make sure it is suit-

able for sanding.

Inspects and installs sanding disc with appro-

priate grit for operation.

Adjusts table tilt.

4. Inserts miter gauge in either X- or Y-axis

miter slot, then adjusts miter gauge to desired angle and position.

Ties back loose hair and clothing, removes

loose jewelry, and puts on safety glasses and a respirator.

using machine.

chips or lung damage from breathing dust, always wear safety glasses and a respirator when operating this machine.

Model G0967 (Mfd. Since 06/23)

jewelry away from mov-

severe crushing injuries!

Starts dust collector, then turns sander ON.

Adjusts disc speed as desired.

8. Holds workpiece firmly and flatly against

both table and miter gauge (if used), pushes workpiece into or along down-spin side of sanding disc.

Stops sander, then turns OFF dust collector.

If you are not experienced with this type of machine, WE STRONGLY RECOMMEND that you seek additional training outside of this manual. Read books/magazines or get formal training before beginning any projects. Regardless of the content in this section, Grizzly Industrial will not be held liable for accidents caused by lack of training.

-21-

Sanding Tips Choosing Sandpaper

• Extend the life of the sandpaper by regularly using PRO-STIK® abrasive surface cleaners (see Accessories on Page 27).

• When sanding workpieces with a bow or crown, place the high point up on the table to prevent the workpiece from rocking, then take very light passes.

• Hold workpiece securely with both hands and do not wear gloves. Use work table and miter gauge whenever possible to support workpiece. Do not force workpiece against disc.

• Sanding discs clog and wear. Change sandpaper whenever you notice a difference in sanding quality/performance.

• To increase the life of the sanding disc and ensure even wear, move the workpiece back and forth across the sanding surface if the operation allows it.

• As a rule-of-thumb, sand with progressively higher grit numbers. A higher grit will achieve a finer finish.

The Model G0967 uses a 20" sanding disc. Below is a chart that groups abrasives into different classes, and shows which grits fall into each class.

Grit Class Usage

36 Extra Coarse Rough sawn boards,

thickness sanding, and glue removal.

60 Coarse Thickness sanding

and glue removal.

80–100 Medium Removing marks and

initial finish sanding.

120 –180 Fine Finish sanding.

We recommend using aluminum-oxide sanding discs for best results. The grit you choose

will depend on the condition and species of wood, and the level of finish you wish to achieve.

The general rule of thumb is to sand a workpiece with progressively higher grit numbers. Avoid skipping grits; the larger the grit increase at one time, the harder it will be to remove the scratches from the previous grit.

• Make sure guards are installed and secured during operation.

• Avoid sanding a workpiece more than is necessary, since doing so will unnecessarily decrease sandpaper life and cost you more money over time.

Moving disc can cause serious personal injury if it comes in contact with fingers, hands, or other body parts. Always support workpiece against table or miter gauge when sanding. Use extreme care to provide a safe distance between sandpaper and any body part.

Ultimately, the type of wood you use and your stage of finish will determine the best grit types to install on your sander.

Note: Sandpaper finer than 180-grit will easily load up or burn workpieces.

-22-

Model G0967 (Mfd. Since 06/23)

Inspection

Some workpieces are not safe to sand or may require modification before they are safe to sand.

Before sanding, inspect all workpieces for the following:

Adjusting Table TiltWorkpiece

The angle of the table on the Model G0967 can be adjusted between 0°–45° to sand angled workpieces.

To adjust table tilt:

DISCONNECT MACHINE FROM POWER!

• Material Type: This machine is intended for sanding natural and man-made wood products. This machine is NOT designed to sand metal, glass, stone, tile, plastics, drywall, cement backer board, laminate products, etc. Sanding improper materials increases risk of respiratory harm to operator and bystanders due to especially fine dust inherently created by all types of sanding operations—even if a dust collector is used. Additionally, life of machine and sanding discs will be greatly reduced (or immediately damaged) from sanding improper materials or from exposure to fine dust created when doing so.

• Foreign Objects: Nails, staples, dirt, rocks and other foreign objects are often embedded in wood. While sanding, these objects can become dislodged and tear sanding disc. Always visually inspect your workpiece for these items. If they cannot be removed, DO NOT sand the workpiece.

• Wet or "Green" Stock: Sanding wood with a moisture content over 20% causes unnecessary clogging and wear on the sanding disc, increases the risk of kickback, and yields poor results.

2. Loosen (2) table tilt lock handles (see Figure

24), adjust table tilt, then tighten handles to

secure.

Table Tilt

Lock Handle

(1 of 2)

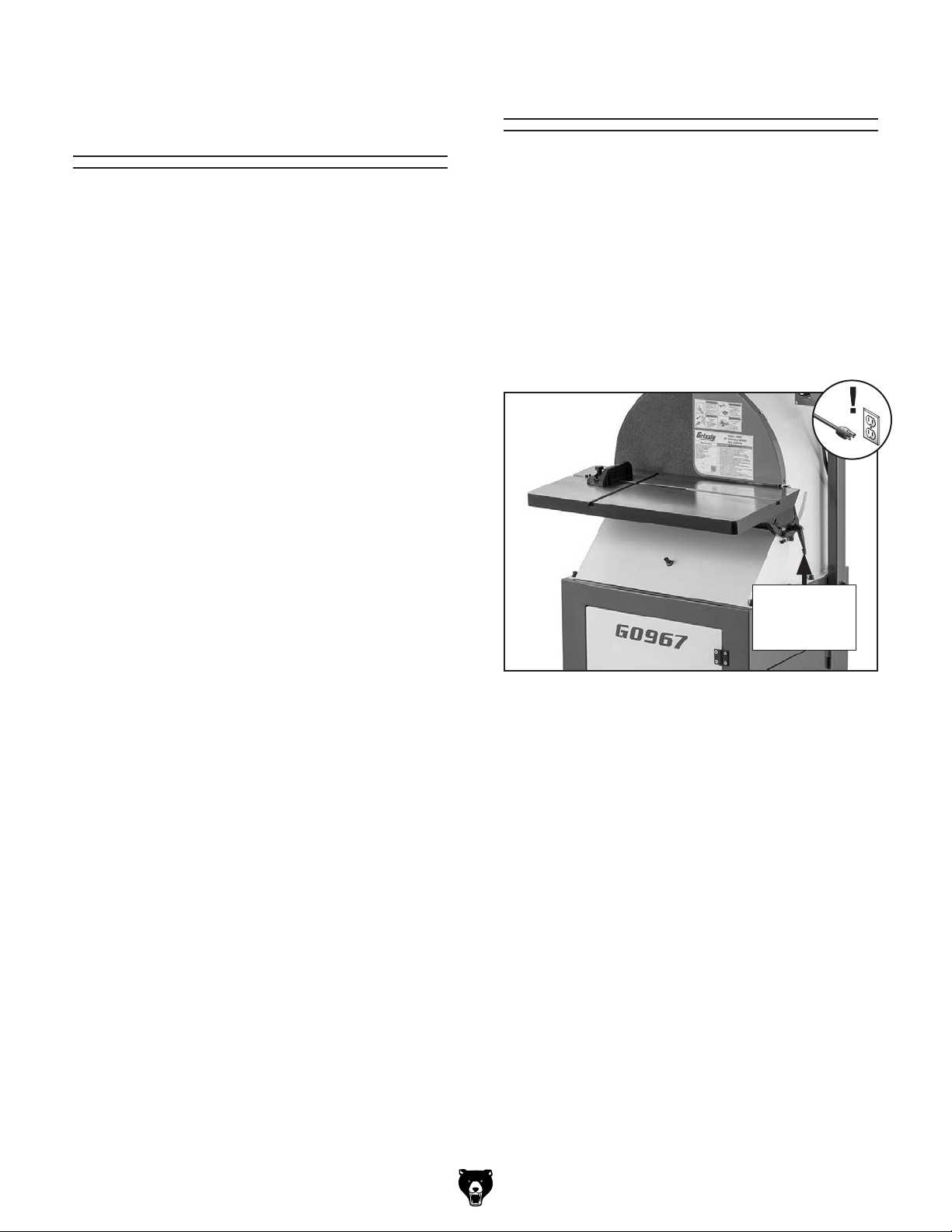

Figure 24. Location of table lock handles.

3. Refer to Adjusting Table Gap and Parallelism on Page 32 to adjust table within

⁄16" of sanding disc.

• Excessive Glue or Finish: Sanding workpieces with excess glue or finish will load up the abrasive, reducing its usefulness and lifespan.

Model G0967 (Mfd. Since 06/23)

-23-

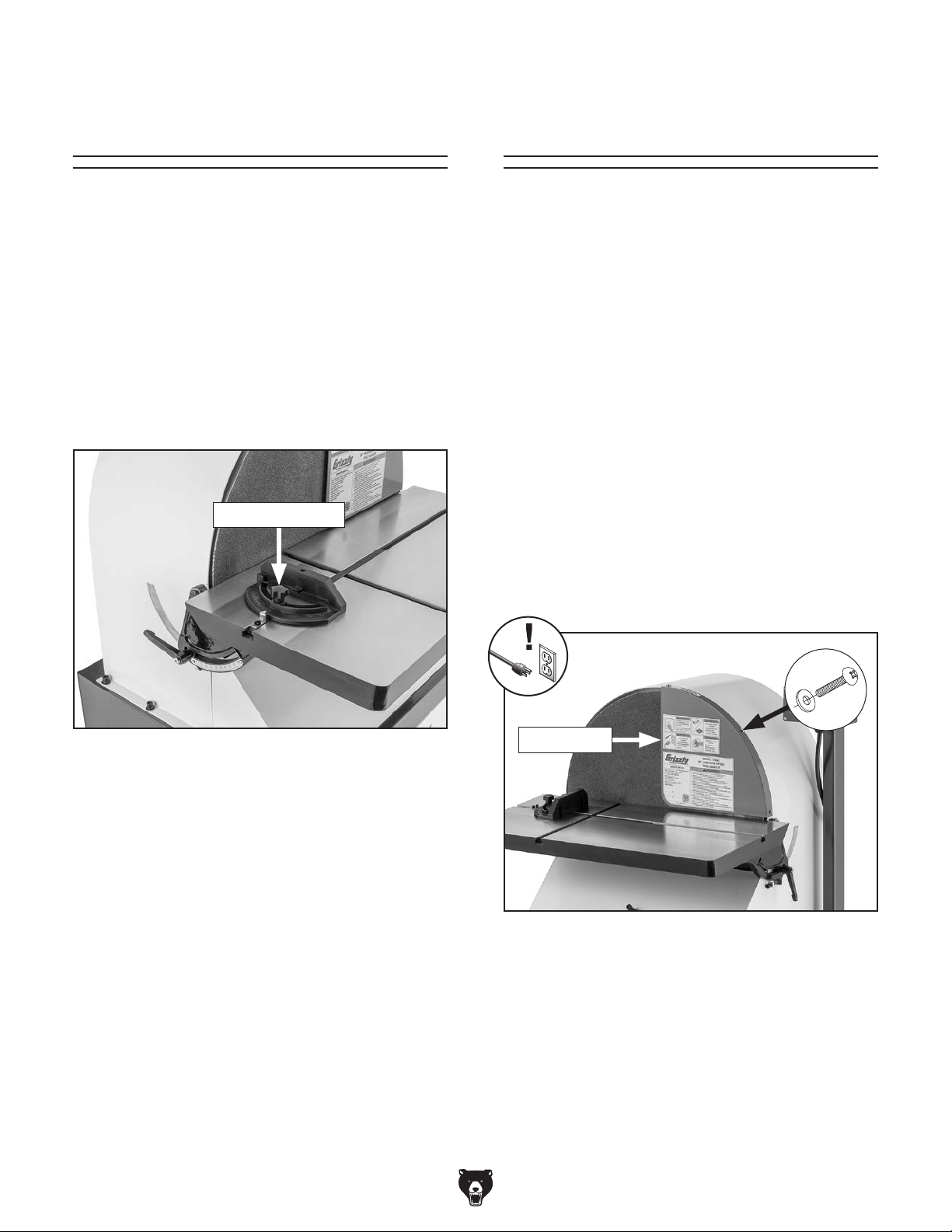

Adjusting

Changing

Miter Gauge

The miter gauge angle can be adjusted 60° to the right or the left, keeping angled workpieces accurate. When the miter lock knob is tight, both the angle of the miter gauge and its position on the table are secure and will act as a stop to brace your workpiece against.

To adjust miter gauge:

Loosen miter lock knob (see Figure 25),

adjust angle and position, then tighten knob to secure.

Miter Lock Knob

Sanding Disc

The G0967 accepts 20" diameter PSA (pressuresensitive adhesive) sanding discs. Use the following steps to change the sanding disc when a sanding disc wears out or your operation requires a different grit size.

Items Needed Qty

Phillips Head Screwdriver #2 ............................ 1

Hex Wrench 6mm Cleaner/Degreaser Disposable Rags Replacement Sanding Disc Feeler Gauge

To change sanding disc:

DISCONNECT MACHINE FROM POWER!

2. Remove (3) Phillips head screws and flat

washers shown in Figure 26 to remove disc guard.

.............................................. 1

............................ As Needed

............................... As Needed

⁄16" .............................................. 1

............................... 1

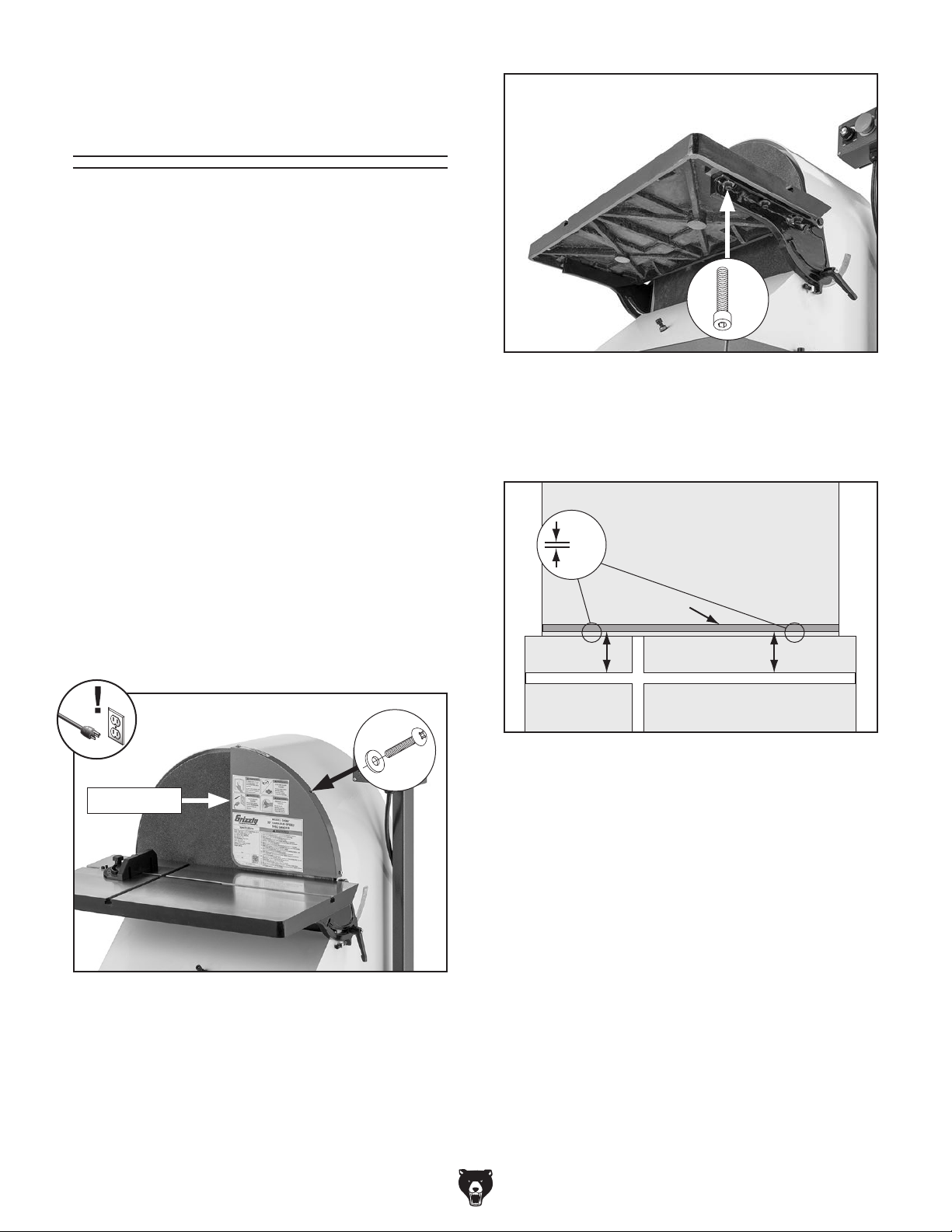

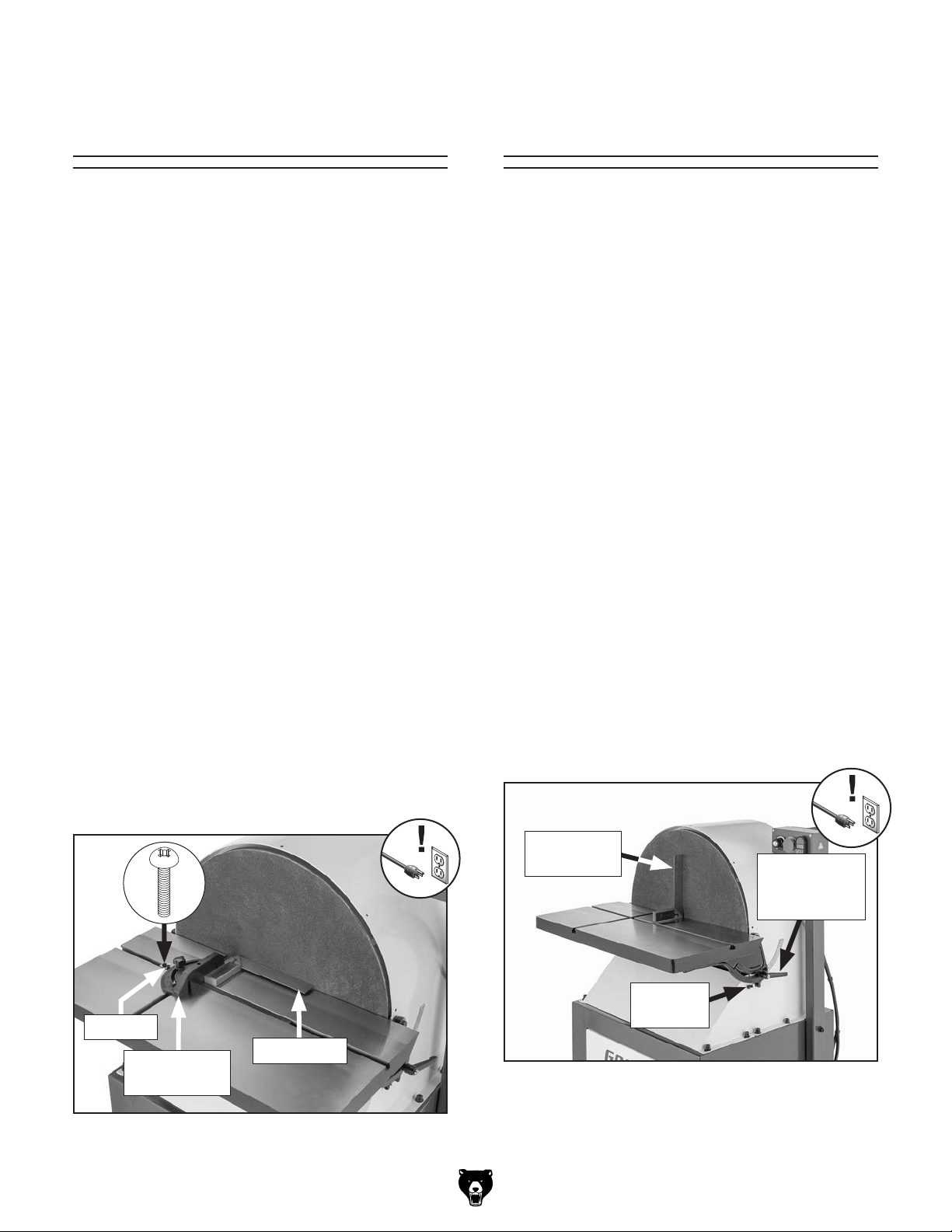

Figure 25. Location of miter lock knob.

x 3

Disc Guard

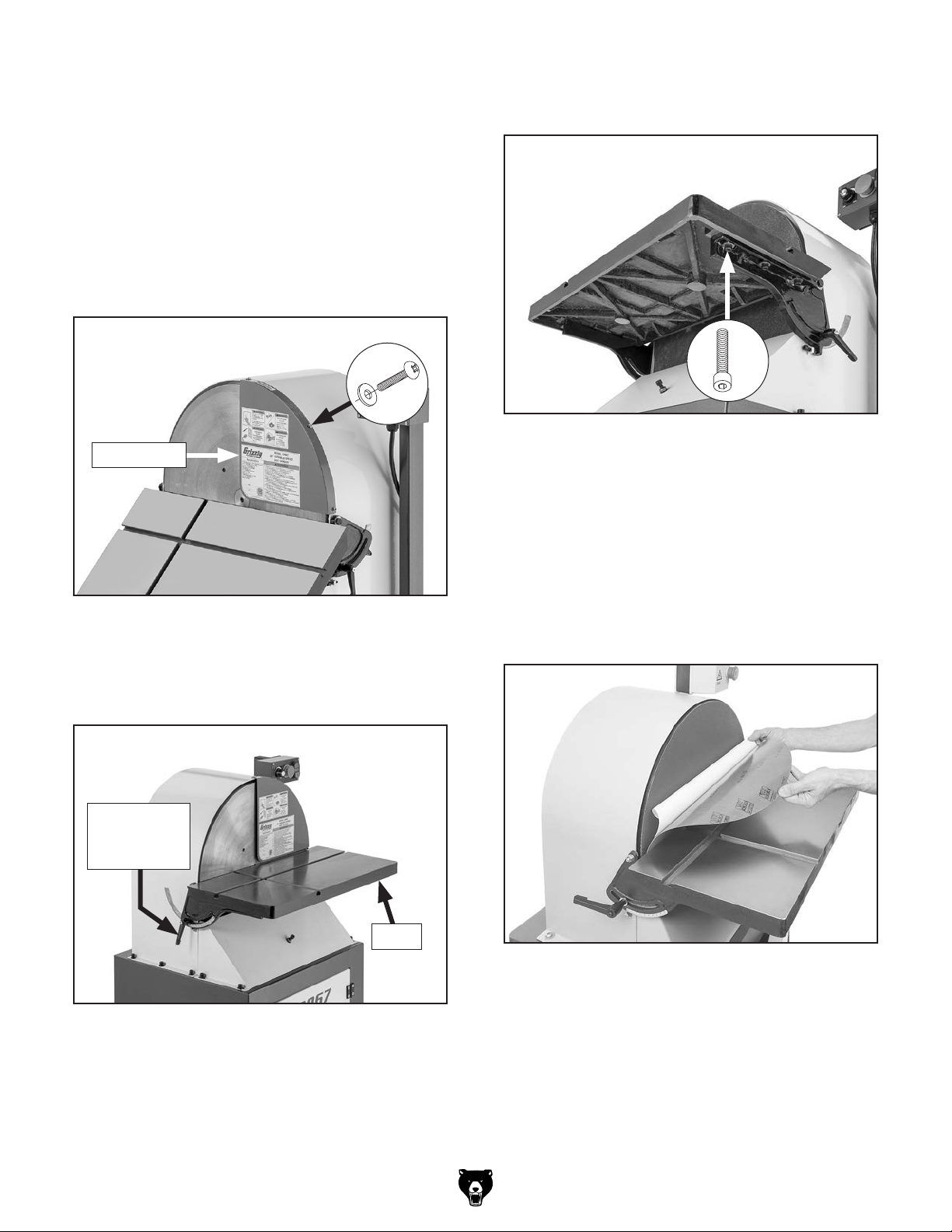

Figure 26. Location of disc guard and fasteners.

-24-

Model G0967 (Mfd. Since 06/23)

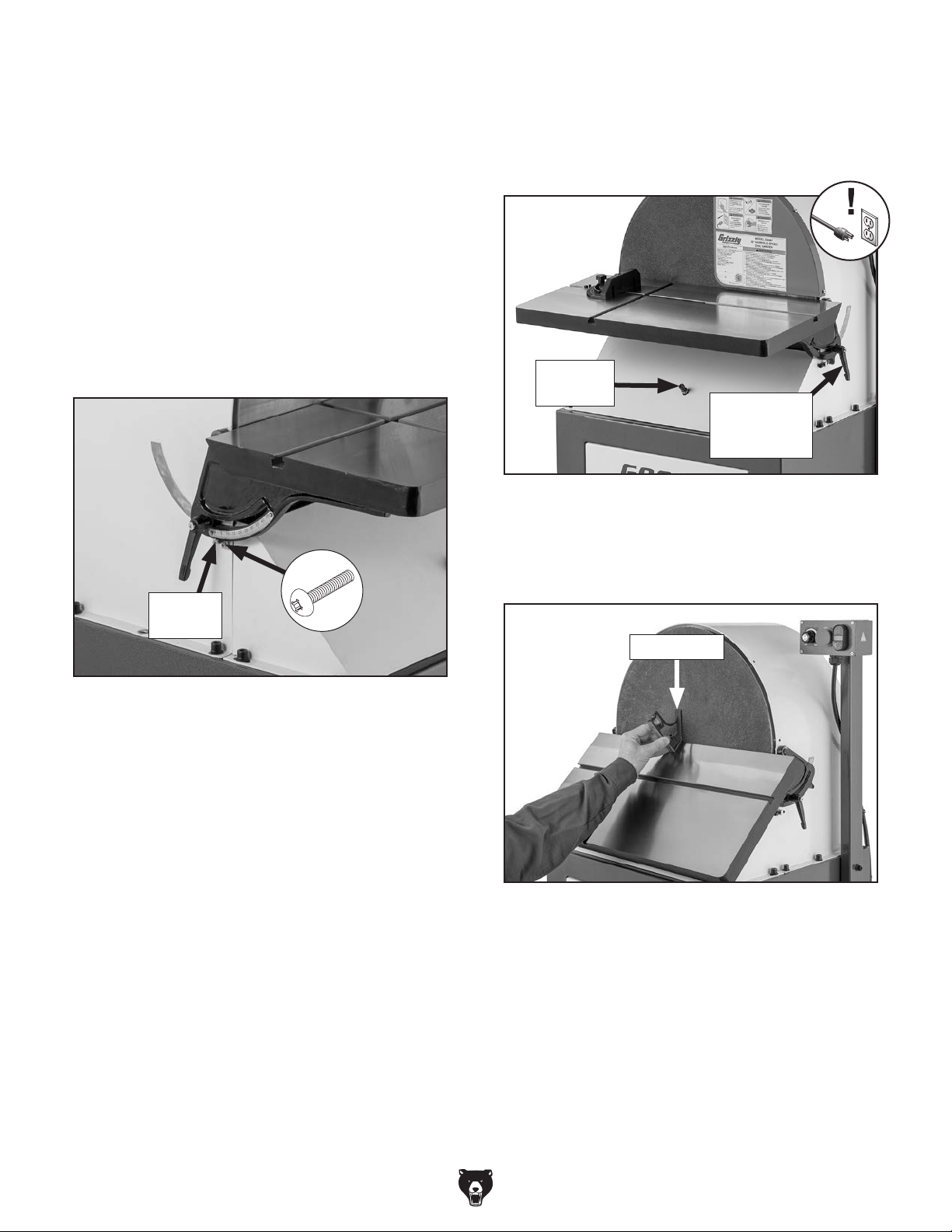

Loosen (6) cap screws shown in Figure 27,

then move table away from sanding disc.

x 6

Position exposed adhesive on upper half of

steel disc that extends above table. Once it is positioned evenly across disc, press adhesive onto surface.

Rotate disc so lower half is above table. Peel

off other half of protective paper, and press remaining sanding disc against steel disc so adhesion is complete.

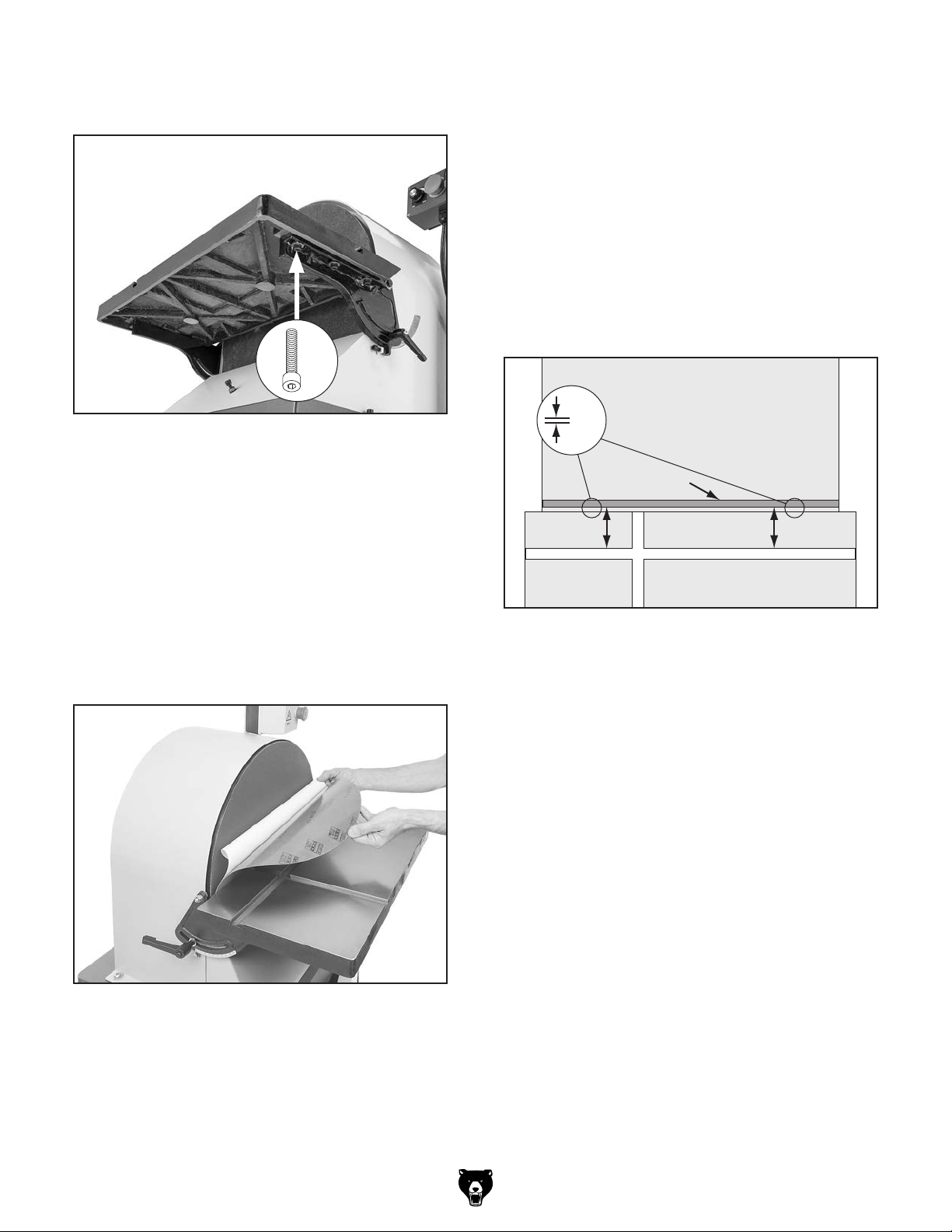

Adjust table so there is a 1⁄16" gap between

10.

disc and edge of table along its full width (see

Figure 29).

Figure 27. Location of table cap screws.

Peel old sanding disc off of steel disc.

5. Clean steel disc surface with cleaner/ degreaser and let dry.

Peel back protective layer on one-half of

sanding disc and fold it against remaining half.

Slip half with protective layer between disc

7. and table edge (see Figure 28).

⁄16"

Sanding Disc

Table

(Top View)

Figure 29. Example of correctly adjusted table.

11.

Tighten table cap screws.

12. Spin disc by hand to check if sanding disc touches table.

— If sanding disc touches table at any point,

loosen table cap screws, then repeat Steps 10–12 until it does not.

IMPORTANT: DO NOT operate machine until

you have verified that sanding disc does not touch table at any point in its rotation.

Figure 28. Example of installing sanding disc.

Model G0967 (Mfd. Since 06/23)

Install disc guard, ensuring guard does not

13.

contact sanding disc.

-25-

Sanding Operations

The Model G0967 uses a dual-axis miter slot design for increased workpiece control.

Always keep disc guard in place and workpiece on side of wheel that is rotating downward. This will reduce likelihood of workpiece ejection.

To reduce risk of fingers or workpiece getting trapped between work table and sanding disc, adjust table within sanding disc.

To perform sanding operation:

⁄16" of

Figure 30. Example of X-axis sanding.

DISCONNECT MACHINE FROM POWER!

2. Adjust table and miter gauge (if using) for

operation.

Refer to Adjusting Table Gap and

Parallelism on Page 32 to adjust table within

⁄16" of sanding disc.

Connect machine to power, turn it ON, and

adjust machine to desired speed.

Place workpiece on table and firmly against

miter gauge (if using).

With moderate pressure, push workpiece into

down-spin side of rotating disc. See Figures 30–32 for examples of disc sanding.

Figure 31. Example of miter sanding.

Figure 32. Example of sanding with table tilted.

-26-

Model G0967 (Mfd. Since 06/23)

SECTION 5: ACCESSORIES

Installing unapproved accessories may

order online at www.grizzly.com or call 1-800-523-4777

cause machine to malfunction, resulting in serious personal injury or machine damage. To reduce this risk, only install accessories recommended for this machine by Grizzly.

NOTICE

Refer to our website or latest catalog for additional recommended accessories.

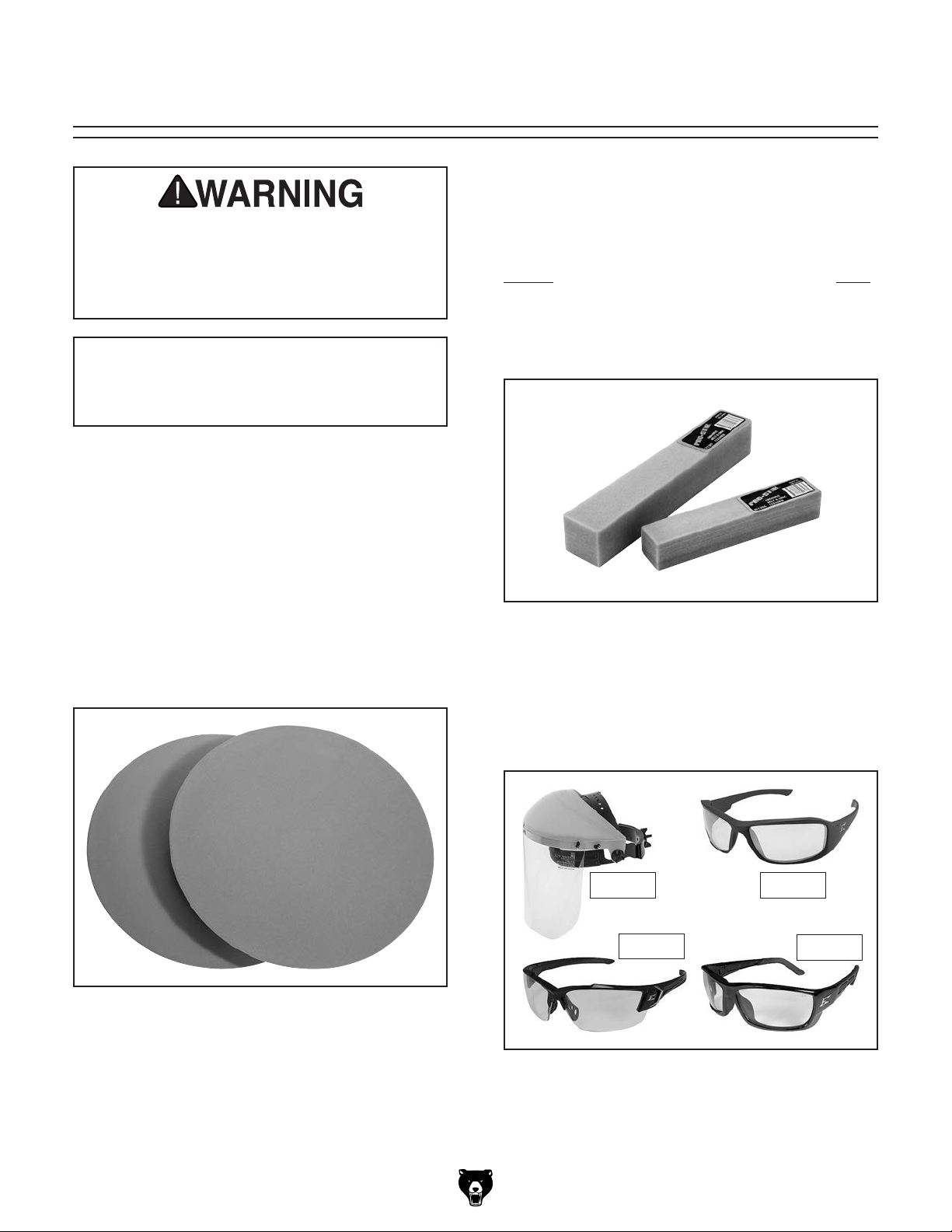

Grizzly 20" Sanding Discs

These tough, aluminum oxide sanding discs come in a variety of grits to fit the Model G0967. These sanding discs are pre-applied with top-quality pressure-sensitive adhesive.

D1342—60-Grit, 2-Pk. D1343—80-Grit, 2-Pk. D1344—100-Grit, 2-Pk. D1345 —120-Grit, 2-Pk. D1346—150-Grit, 2-Pk. D1347—180-Grit, 2-Pk. D1348—220-Grit, 2-Pk.

PRO-STIK® Abrasive Surface Cleaners

Extend the life of your abrasive discs! Choose the Pro-Stik out a handle for more usable area.

Model

W1306 W1307 W1308 W1309

with a handle for greater control or with-

Size

..................................... 11⁄2" x 11⁄2" x 81⁄2"

.............................................2" x 2" x 12"

..................... 11⁄2" x 11⁄2" x 9" with Handle

.........................2" x 2" x 11" with Handle

Figure 34. PRO-STIK® abrasive cleaners.

Basic Eye Protection

T32323—Woodturners Face Shield T32401—EDGE Brazeau Safety Glasses, Clear T32402—EDGE Khor G2 Safety Glasses, Tint T32404—EDGE Mazeno Safety Glasses, Clear

T32323 T32401

T32402

Figure 33. Replacement sanding discs.

Figure 35. Assortment of basic eye protection.

Model G0967 (Mfd. Since 06/23)

T32404

-27-

order online at www.grizzly.com or call 1-800-523-4777

G5562—SLIPIT G5563—SLIPIT

1 Qt. Gel

11 Oz. Spray

Use on cast iron table surfaces and other unpainted metal surfaces to reduce sliding friction and hang-ups. This product also reduces rust and prevents resin build-up.

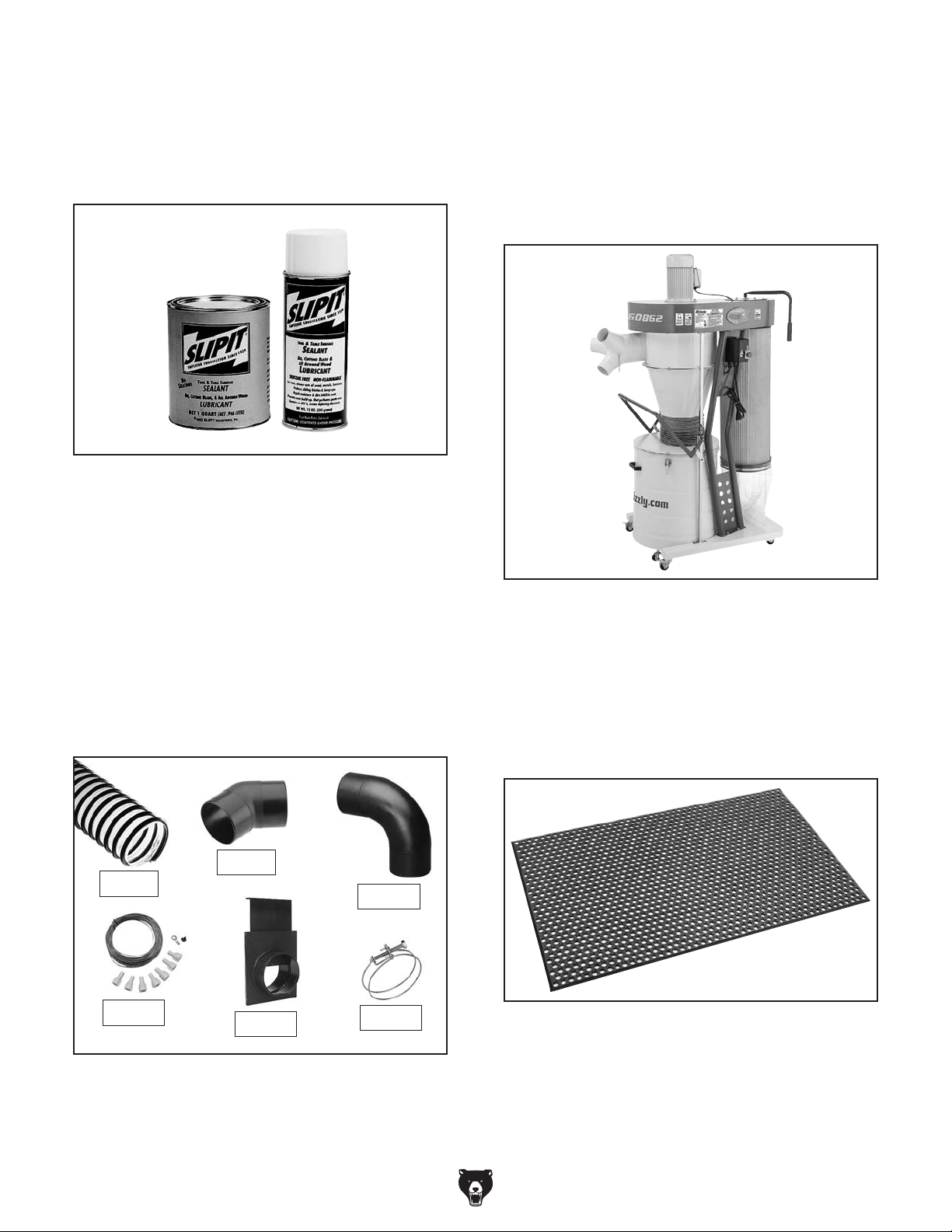

Figure 36. SLIPIT® gel and spray.

D4206—Clear Flexible Hose 4" x 10' D4256—45° Elbow 4" W1034—Heavy-Duty Clear Flex Hose 4" x 10' D2107—Hose Hanger 4 1⁄4" W1015—Y-Fitting 4" x 4" x 4" W1017—90° Elbow 4" W1019—Hose Coupler (Splice) 4" W1317—Wire Hose Clamp 4" W1007—Plastic Blast Gate 4" W1053—Anti-Static Grounding Kit

Hand-picked selection of commonly used dust collection components for 4" dust ports.

G0862—3 HP Portable Cyclone Dust Collector

The G0862 features a 3 HP motor, a whopping 1941 CFM of airflow capacity, and a 45-gallon collection capacity. It's packed with features like a quick-release collection drum, latching system, high-efficiency, two-stage separation driven by a 16" aluminum impeller, durable powder coated finish, and a heavy-duty steel frame and housing.

Figure 38. G0862 3 HP Portable Cyclone Dust

Collector.

T10456—Heavy-Duty Anti-Fatigue Mat 3' x 5'

This Heavy-Duty Anti-Fatigue Mat features beveled edges and no-slip tread for safety and comfort. Open-hole design allows liquid to drain through, so it's perfect for wet or oily conditions.

Measures 3' wide x 5' long x

⁄8" thick.

D4256

D4206

W1017

W1053

W1007

W1317

Figure 39. T10456 Anti-Fatigue Mat 3' x 5'.

Figure 37. Dust collection accessories.

-28-

Model G0967 (Mfd. Since 06/23)

SECTION 6: MAINTENANCE

To reduce risk of shock or accidental startup, always disconnect machine from power before adjustments,

maintenance, or service.

Schedule

For optimum performance from this machine, this maintenance schedule must be strictly followed.

Ongoing

To minimize your risk of injury and maintain proper machine operation, shut down the machine immediately if you ever observe any of the items below, and fix the problem before continuing operations:

Cleaning &

Protecting

Cleaning the Model G0967 is relatively easy. Vacuum excess wood chips and sawdust, and wipe off the remaining dust with a dry cloth. If any resin has built up, use a resin dissolving cleaner to remove it.

Protect the unpainted cast iron table by wiping it clean after every use—this ensures moisture from wood dust does not remain on bare metal surfaces. Keep the table rust-free with regular applications of a metal protectant like those shown in

Figure 36 on Page 28.

Cleaning

• Loose mounting bolts.

• Damaged sanding disc. Worn or damaged wires.

• Any other unsafe condition.

•

After Each Use

• Sweep surrounding dust and shavings.

• Clean/protect table.

Weekly Maintenance

• Clean/vacuum dust buildup off of motor fan

and inside machine cabinet.

Sanding Disc

Using an abrasive surface cleaner can prolong the life of a clogged sanding disc, provided it is in otherwise good condition. See Accessories on

Page 27 for more details.

To clean sanding disc:

1. Turn machine ON.

Using table as support, rub abrasive cleaner

on sanding disc in continuous motion, covering entire surface of disc until disc is no longer clogged.

Turn machine OFF.

Model G0967 (Mfd. Since 06/23)

-29-

Review the troubleshooting procedures in this section if a problem develops with your machine. If you need

the

serial number and manufacture date of your machine before calling.

SECTION 7: SERVICE

replacement parts or additional help with a procedure, call our Technical Support. Note: Please gather

Troubleshooting

Motor & Electrical

Symptom Possible Cause Possible Solution

Machine does not start, or power supply breaker immediately trips after startup.

Machine stalls or is underpowered.

Machine has vibration or noisy operation.

Machine operates in reverse.

1. Power switch in OFF position.

2. Stop button depressed/at fault.

3. Machine circuit breaker(s) tripped.

4. Incorrect power supply voltage or circuit size.

5. Power supply circuit breaker tripped or fuse blown.

6. Motor wires connected incorrectly.

7. Wiring broken, disconnected, or corroded.

8. ON/OFF switch or machine circuit breaker at fault.

9. Inverter (VFD) at fault.

10. Braking resistor at fault.

11. Transformer at fault.

12. Relay at fault.

13. Motor or motor bearings at fault.

1. Workpiece material unsuitable for machine.

2. Motor wires connected incorrectly.

3. Machine undersized for task.

4. Motor overheated.

5. Machine circuit breaker tripped.

6. Extension cord too long.

7. Motor or motor bearings at fault.

1. Motor or component loose.

2. Machine feet not adjusted properly or loose.

3. Sanding disc out of balance or loose.

4. Motor fan rubbing on fan cover.

5. Motor bearings at fault.

1. Motor power connections wired out of phase. 1. Correct phase polarity (Page 20).

1. Turn power switch to ON position.

2. Rotate Stop button head to reset. Replace if at fault.

3. Reset circuit breaker(s).

4. Ensure correct power supply voltage and circuit size (Page 10).

5. Ensure circuit is free of shorts. Reset circuit breaker or replace fuse.

6. Correct motor wiring connections (Page 35).

7. Fix broken wires or disconnected/corroded connections (Page 35).

8. Replace switch/machine circuit breaker.

9. Inspect inverter (VFD); replace if at fault.

10. Inspect braking resistor; replace if at fault.

11. Inspect transformer; replace if at fault.

12. Inspect relay; replace if at fault.

13. Replace motor.

1. Only sand wood/ensure moisture is below 20% (Page 23).

2. Correct motor wiring connections (Page 35).

3. Clean (Page 29)/replace (Page 24) sandpaper; reduce feed rate/sanding depth.

4. Clean motor, let cool, and reduce workload.

5. Reset breaker.

6. Move machine closer to power supply; use shorter extension cord (Page 11).

7. Replace motor.

1. Replace damaged or missing bolts/nuts or tighten if loose.

2. Tighten/adjust machine feet to stabilize machine.

3. Tighten disc hub or replace disc.

4. Fix/replace fan cover; replace loose/damaged fan.

5. Test by rotating shaft; rotational grinding/loose shaft requires bearing replacement.

-30-

Model G0967 (Mfd. Since 06/23)

Operation

Symptom Possible Cause Possible Solution

Sanding discs clog quickly or excessive sanding disc replacement.

Deep sanding grooves or scores in workpiece.

Burn marks on workpiece.

Glazed sanding surfaces.

Workpiece not sanded square when table tilt is set to 0˚.

Sanded workpiece angle does not match miter gauge setting.

Abrasive grit rubs off sanding disc easily.

Workpiece frequently gets pulled out of your hands.

1. Excessive sanding speed.

2. Excessive workpiece pressure.

3. Using too ﬁne of sanding grit.

4. Sanding softwood.

5. Sanding wet stock; workpiece has high sap content.

6. Not using full width of sanding surface.

7. Worn sanding disc.

1. Excessive sanding speed.

2. Workpiece sanded across grain.

3. Excessive workpiece pressure.

4. Sandpaper too coarse for desired ﬁnish.

5. Workpiece held still against disc.

1. Excessive sanding speed.

2. Excessive workpiece pressure.

3. Using too ﬁne of sanding grit.

4. Workpiece held still against disc.

5. Sanding disc loaded with sawdust, resin, and/ or pitch.

1. Sanding wet stock; workpiece has high sap content.

2. Sanding disc loaded with sawdust, resin, and/ or pitch.

1. Table is not perpendicular to sanding disc.

2. Table is not parallel to sanding disc.

1. Miter gauge needs to be calibrated. 1. Calibrate miter gauge scale (Page 33).

1. Sanding disc has been stored in an incorrect environment.

2. Sanding disc has been folded or crushed.

1. Not supporting workpiece properly. 1. Use miter gauge to support workpiece.

1. Decrease sanding speed.

2. Reduce workpiece pressure.

3. Use a coarser grit sandpaper (Page 22).

4. Use different stock or accept characteristics of workpiece and plan on cleaning (Page 29)/replacing (Page 24) disc frequently.

5. Dry workpiece properly before sanding (Page 23); use different stock or accept characteristics of workpiece and plan on cleaning (Page 29)/replacing (Page 24) disc frequently.

6. Position workpieces to use different locations to use full width of sanding surface; move workpiece back and forth across sanding surface if operation allows it.

7. Replace sanding disc (Page 24).

1. Decrease sanding speed.

2. Sand workpiece with grain.

3. Reduce workpiece pressure.

4. Use a ﬁner grit sandpaper (Page 22).

5. Move workpiece back and forth across sanding surface if operation allows it.

1. Decrease sanding speed.

2. Reduce workpiece pressure.

3. Use a coarser grit sandpaper (Page 22).

4. Move workpiece back and forth across sanding surface if operation allows it.

5. Clean (Page 29)/replace (Page 24) sanding disc.

1. Dry workpiece properly before sanding (Page 23); use different stock or accept characteristics of workpiece and plan on cleaning (Page 29)/replacing (Page 24) disc frequently.

2. Clean (Page 29)/replace (Page 24) sanding disc.

1. Calibrate table tilt (Page 33).

2. Adjust table parallelism (Page 32).

1. Replace sanding disc (Page 24). Store sanding disc in a cool, dry area.

2. Replace sanding disc (Page 24). Store sanding disc ﬂat, not folded or bent.

Model G0967 (Mfd. Since 06/23)

-31-

Adjusting Table Gap

& Parallelism

The X-axis miter slot must be parallel with the face of the sanding disc to ensure accurate results. There should also be no more than the edge of the table and the sanding disc in order to minimize the risk of the workpiece and the operator's fingers being caught in the gap. On the other hand, if this gap is too small, the sandpaper will rub against the table, damaging both.

⁄16" between

x 6

Perform this adjustment any time the sanding disc is changed or the table tilt is adjusted.

Tools Needed Qty

Phillips Head Screwdriver #2 ............................ 1

Hex Wrench 6mm Feeler Gauge

To adjust table gap and parallelism:

1. DISCONNECT MACHINE FROM POWER!

2. Remove (3) Phillips head screws and flat

washers shown in Figure 40 to remove disc guard.

Disc Guard

.............................................. 1

⁄16" .............................................. 1

x 3

Figure 41. Location of table cap screws.

With sanding disc installed, adjust table so

there is a 1⁄16" gap between disc and edge of table along its full width (see Figure 42).

⁄16"

Sanding Disc

Table

Figure 42. Example of correctly adjusted table.

Tighten table cap screws.

(Top View)

Figure 40. Location of disc guard and fasteners.

Loosen (6) cap screws shown in Figure 41.

-32-

6. Spin disc by hand to check if sanding disc touches table.

— If sanding disc touches table at any point,

repeat Steps 3–5 until it does not.

IMPORTANT: DO NOT operate machine until

you have verified that sanding disc does not touch table at any point in its rotation.

Install disc guard, ensuring guard does not

contact sanding disc.

Model G0967 (Mfd. Since 06/23)

Calibrating

Calibrating Table Tilt

Miter Gauge Scale

Calibrate the miter gauge scale if the angle of a workpiece sanded with the miter gauge does not match the angle shown on the miter gauge scale.

Tools Needed Qty

90° Square ........................................................ 1

Phillips Head Screwdriver #2

To calibrate miter gauge scale:

DISCONNECT MACHINE FROM POWER!

2. Refer to Adjusting Table Gap and Parallelism on Page 32 to adjust x-axis miter

slot parallel to sanding disc.

Place miter gauge in x-axis slot of table

and loosen miter gauge lock knob (see Figure 43).

............................ 1

Scale & Stops

Use the following steps to check the accuracy of the table tilt components.

Note: Although these steps can be done with the sandpaper installed, these adjustment will be more precise without it.

Calibrating Table Tilt

Use the following steps to check the accuracy of the 90° stop screw and the table tilt scale if workpieces are not square when being sanded at 90°.

Tools Needed Qty

90° Square ........................................................ 1

Hex Wrench 5mm Phillips Head Screwdriver #2

To calibrate table tilt:

.............................................. 1

............................ 1

Use 90° square to adjust miter gauge square

to sanding disc (see Figure 43).

— If angle indicator points to 90°, no adjust-

ment is required.

— If angle indicator does not point to 90°,

proceed to Step 5.

Loosen screw shown in Figure 43, adjust

indicator to point to 90°, then tighten screw.

Indicator

Miter Gauge

Body

90° Square

DISCONNECT MACHINE FROM POWER!

2. Set 90° square on table surface and other

edge against face of disc (see Figure 44).

While supporting table, loosen (2) table tilt

lock handles, then adjust 90° stop screw until table is perpendicular to disc (see Figure 44).

Machinist's

Square

90° Stop

Screw

Figure 44. Squaring table to sanding disc.

Table Tilt

Lock Handle

(1 of 2)

Figure 43. Example of miter gauge square to

sanding disc.

Model G0967 (Mfd. Since 06/23)

-33-

4. Tighten table lock handles.

5. Check to see if angle indicator points to zero

(see Figure 45).

— If angle indicator does not point to zero,

proceed to Step 6.

— If angle indicator does point to zero, table

tilt is calibrated correctly and no further adjustment is necessary.

Loosen angle indicator Phillips head screw

(see Figure 45), adjust indicator to zero, then tighten screw.

2. Loosen jam nut on 45° stop screw (see Figure 46).

Loosen (2) table tilt lock handles and allow

table to rest on 45° stop screw (see Figure 46).

45° Stop

Screw

Figure 46. Location of table tilt lock handles and

45° stop screw.

Table Tilt

Lock Handle

(1 of 2)

Angle

Indicator

Figure 45. Location of angle indicator and

Phillips head screw.

Calibrating 45° Stop Screw

When the 45° stop screw is calibrated correctly, it allows you to quickly adjust the table tilt to 45° without referring to the angle scale.

Tools Needed Qty

45° Square ........................................................ 1

Open-End Wrench 13mm Hex Wrench 6mm

To calibrate 45° stop screw:

DISCONNECT MACHINE FROM POWER!

.............................................. 1

.................................. 1

Set 45° square on table surface and other

edge against face of disc (see Figure 47).

45° Square

Figure 47. Checking 45° stop screw with square.

Adjust 45° stop screw until table is exactly

45° to disc, then tighten jam nut on 45° stop screw without turning stop screw to secure setting.

-34-

Model G0967 (Mfd. Since 06/23)

These pages are current at the time of printing. However, in the spirit of improvement, we may make changes to the electrical systems of future machines. Compare the manufacture date of your machine to the one

number and manufacture date of your

machine before calling. This information can be found on the main machine label.

machine

SECTION 8: WIRING

stated in this manual, and study this section carefully.

If there are differences between your machine and what is shown in this section, call Technical Support at (570) 546-9663 for assistance BEFORE making any changes to the wiring on your machine. An updated wiring diagram may be available. Note: Please gather the serial

Wiring Safety Instructions

SHOCK HAZARD. Working on wiring that is con-

nected to a power source is extremely dangerous. Touching electrified parts will result in personal injury including but not limited to severe burns, electrocution, or death. Disconnect the power from the machine before servicing electrical components!

MODIFICATIONS. Modifying the wiring beyond what is shown in the diagram may lead to unpredictable results, including serious injury or fire. This includes the installation of unapproved aftermarket parts.

WIRE CONNECTIONS. All connections must be tight to prevent wires from loosening during machine operation. Double-check all wires disconnected or connected during any wiring task to ensure tight connections.

CIRCUIT REQUIREMENTS. You MUST follow the requirements at the beginning of this manual when connecting your machine to a power source.

WIRE/COMPONENT DAMAGE. Damaged wires or components increase the risk of serious personal injury, fire, or machine damage. If you notice that any wires or components are damaged while performing a wiring task, replace those wires or components.

MOTOR WIRING. The motor wiring shown in these diagrams is current at the time of printing but may not match your machine. If you find this to be the case, use the wiring diagram inside the motor junction box.

CAPACITORS/INVERTERS. Some capacitors and power inverters store an electrical charge for up to 10 minutes after being disconnected from the power source. To reduce the risk of being shocked, wait at least this long before working on capacitors.

EXPERIENCING DIFFICULTIES. If you are experiencing difficulties understanding the information included in this section, contact our Technical Support at (570) 546-9663.

The photos and diagrams included in this section are best viewed in color. You can view these pages in color at www.grizzly.com.

Model G0967 (Mfd. Since 06/23)

-35-

CONTROL PANEL

Wiring Diagram

MOTOR 220V

Inverter (VFD)

EURA E2000-0015S2

STOP ButtonON/OFF Switch

XINDALI

SDL16-EBW8465

Ground

Hot

GOCHENG XB2-BS542

Potentiometer

KX 2W

4.7K

1011 12

Hot

220 VAC

6-15 Plug

ELECTRICAL

CABINET

U1 12 11

5 4

4 3 2 0

12 11 10

3 2

0 N L

-36-

TA TB TC DO1 24V CM DI1 DI2 DI3 DI4 DI5 DI6 10V AI1 AI2 GNDAO1AO2

L1 L2 P U V WB

Transformer

TTMC COD.045/90

READ ELECTRICAL SAFETY

1 2

Braking Resistor

500W 80Ω

ON PAGE 35!

Relay

GOCHENG

GB2N-GS

Circuit Breaker

JUCHE DZ47-63 C2

Circuit Breaker

JUCHE DZ47-63 C16

14 12

913

L1 L2 L3

Power Switch

JUCHE JFD11-25

T1 T2 T3

Model G0967 (Mfd. Since 06/23)

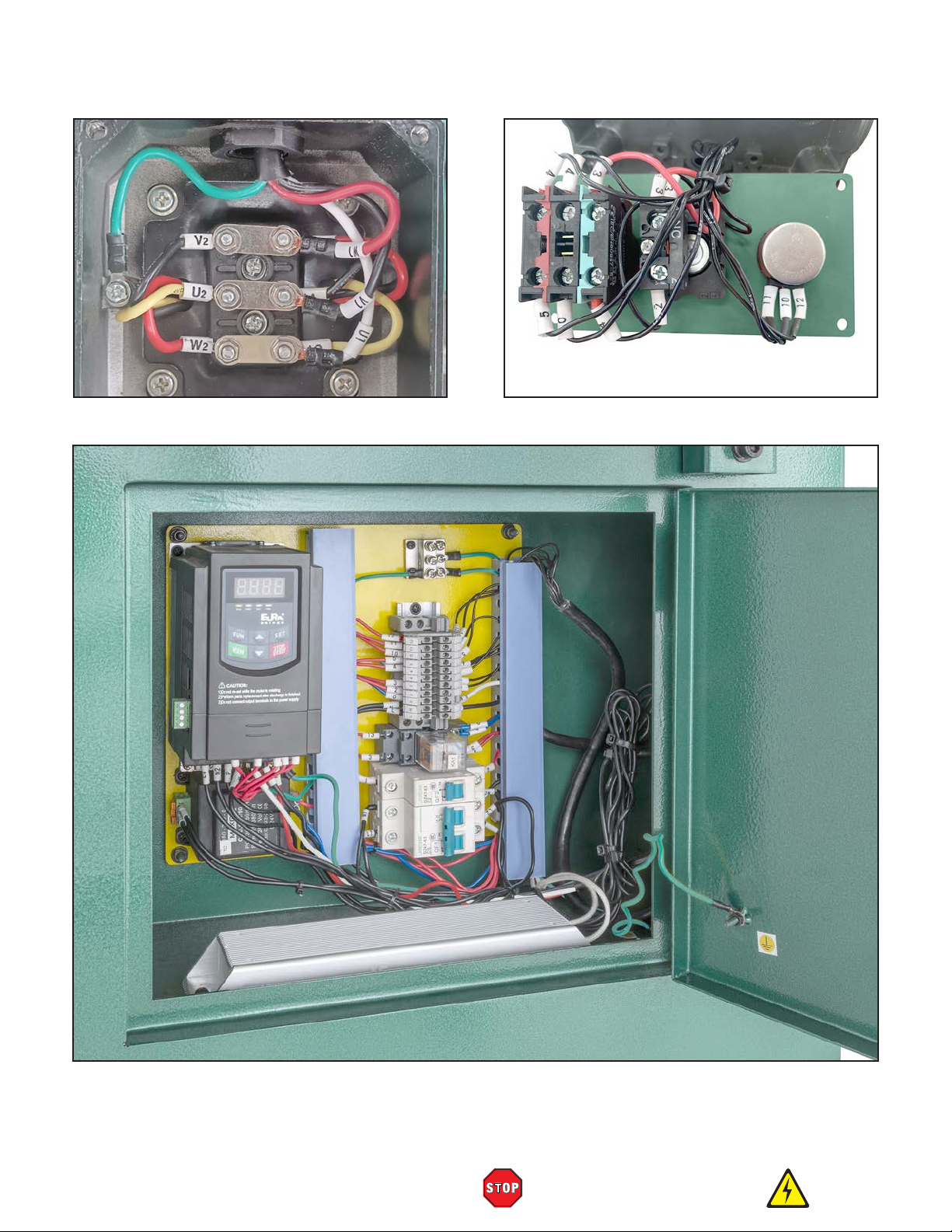

Electrical Component Photos

Figure 48. Motor wiring.

Figure 49. Control panel wiring.

Model G0967 (Mfd. Since 06/23)

Figure 50. Electrical cabinet.

READ ELECTRICAL SAFETY

-37-

ON PAGE 35!

SECTION 9: PARTS

We do our best to stock replacement parts when possible, but we cannot guarantee that all parts shown are available for purchase. Call (800) 523-4777 or visit www.grizzly.com/parts to check for availability.

Main

23-1

23-4

23-3

23-2

23-5

70-2

70-5

8 9

70-1

70-4

70-6

70-3

-38-

BUY PARTS ONLINE AT GRIZZLY.C OM !

Scan QR code to visit our Parts Store.

Model G0967 (Mfd. Since 06/23)

REF P ART # DESCRI P TION REF P ART # DESCRI P TION

Main Parts List

1 P0967001 MOTOR GUARD 49 P0967049 CABINET DOOR 2 P0967002 SHOULDER BOLT M8-1.25 X 6, 9 X 16.5 50 P0967050 CA M LATCH 3 P0967003 TABLE MOUNT LEFT 51 P0967051 E LECTRI CAL MOUNTI NG BO ARD 4 P0967004 PHLP HD SCR M5-.8 X 6 52 P0967052 I NVERTER EURA E2000-0015S2 5 P0967005 TABLE TILT POINTER 53 P0967053 ELECTRICAL BOX DOOR 6 P0967006 ADJUSTABLE HANDLE M8-1.25 X 32, 63L 54 P0967054 CAM LOCK CIRCULAR-KEYWAY 7 P0967007 FLAT WASHER 8 MM 55 P0967055 DI SC GUARD LOWER 8 P0967008 FLAT WASHER 8 MM 57 P0967057 KNOB BOLT M8-1.25 X 15, D32, ROUND KD 9 P0967009 LOCK WASHER 8MM 58 P0967058 CAP SCREW M8-1.25 X 16 10 P0967010 CAP SCREW M8-1.25 X 30 59 P0967059 FL AT WAS HER 8MM 11 P0967011 TILT SCALE 60 P0967060 CAP SCREW M6-1 X 30 12 P0967012 RIVET 2 X 6MM NAMEPLATE, STEEL 61 P0967061 DUST HOSE 4" X 20" 13 P0967013 SANDING DISC STEEL 62 P0967062 HOSE CLAMP 4" 14 P0967014 BUSHING 10 X 48 X 8MM 64 P0967064 MI TE R BAR 15 P0967015 CAP SCREW M6-1 X 25 65 P0967065 MI TER GAUGE 16 P0967016 SANDING DISC 20" PSA 60-GRIT (2 PK) 66 P0967066 MITER GAUGE POINTER 17 P0967017 PHLP HD SCR M5-.8 X 6 67 P0967067 FLA T WASHE R 5MM 18 P0967018 FL AT WAS HER 5MM 68 P0967068 PHLP HD SCR M5-.8 X 10 19 P0967019 DI SC GUARD UPPER 69 P0967069 KNOB BOLT M6-1 X 25, 5-LOBE, D32 20 P0967020 TABLE 70 P0967070 CONTROL PANEL ASSEMBLY 21 P0967021 MO TOR FLA NGE 70-1 P0967070-1 CONTROL PANEL 22 P0967022 KEY 8 X 7 X 32 70-2 P0967070-2 SPEED DI AL 23 P0967023 MOTOR 2HP 220V 3-PH 70-3 P0967070-3 POTENTIOMETER KX 2W 4.7K 23-1 P0967023-1 MOTOR FAN COVER 70-4 P0967070-4 SET SCREW M4-.7 X 6 SLOTTED 23-2 P0967023-2 MOTOR FAN 70-5 P0967070-5 STOP BUTTON GOCHENG XB2-BS542 23-3 P0967023-3 MOTOR JUNCTI O N BOX 70-6 P0967070-6 ON/OFF SWITCH XI NDALI SDL16-EBW8465 23-4 P0967023-4 BALL BEARING 6203-2RS (FRONT) 71 P0967071 PHLP HD SCR M4-.7 X 8 23-5 P0967023-5 BALL BEARING 6205-2RS (REAR) 73 P0967073 FLAT WASHER 6 MM 24 P0967024 FLAT WASHER 10MM 74 P0967074 HE X NUT M6- 1 25 P0967025 LOCK WASHER 10MM 75 P0967075 PHLP HD SCR M4-. 7 X 16 26 P0967026 CAP SCREW M10-1.5 X 35 76 P0967076 DIN RAIL 25 X 30 X 240MM 27 P0967027 HEX BOLT M8-1.25 X 30 77 P0967077 TRANSFORMER TTMC COD. 045/90 30VA 240V 28 P0967028 LOCK WASHER 8MM 78 P0967078 RELAY GOCHENG GB2N-GS 24VAC 29 P0967029 FL AT WAS HER 8MM 79 P0967079 CI RCUI T BREAK ER J UCHE DZ47 -63 C2 30 P0967030 CAP SCREW M8-1.25 X 16 80 P0967080 CI RCUIT BREAKER J UCHE DZ47-63 C16 31 P0967031 LOCK WASHER 8MM 81 P0967081 WIRE LOOM 25 X 30 X 240MM 32 P0967032 FL AT WAS HER 8MM 82 P0967082 TERMINAL BAR 3P M4 X 20 TM4 33 P0967033 MOTOR BASE 83 P0967083 PHLP HD SCR M4-.7 X 12 34 P0967034 CAP SCREW M8-1.25 X 16 84 P0967084 BRAKING RESISTOR 500W 80OHM 35 P0967035 LOCK WASHER 8MM 85 P0967085 PHLP HD SCR M5-.8 X 12 36 P0967036 FL AT WAS HER 8MM 86 P0967086 DOOR KEY 37 P0967037 CONTROL PANEL BOX 87 P0967087 PHLP HD SCR M4-.7 X 20 38 P0967038 PLASTIC CAP 88 P0967088 POWER CORD 16G 3W 98" 6-15P 39 P0967039 PEDESTAL 89 P0967089 MOTOR CORD 16G 4W 69" 40 P0967040 FL AT WAS HER 8MM 90 P0967090 STRAIN RELIEF TYPE-3 M20-1.5 41 P0967041 CAP SCREW M8-1.25 X 40 91 P0967091 CONTROL PANEL CORD 22G 10W 59" 42 P0967042 FLAT WASHER 10 X 22 X 2MM 92 P0967092 STRAIN RELIEF TYPE-3 M18-1.5 43 P0967043 TA BLE MOUNT RI GHT 93 P0967093 TERMINAL BAR 11P DIN30 12-14G 44 P0967044 P OWER S WI TCH J UCHE J FD11-25 94 P0967094 CAP SCREW M8-1.25 X 35 45 P0967045 HE X NUT M10 -1. 5 95 P0967095 LOCK NUT M8-1.25 46 P0967046 FOOT M10-1.5 X 50 96 P0967096 HI NGE 47 P0967047 FOOT PAD 97 P0967097 FLAT HD CAP SCR M5-.8 X 10 48 P0967048 CABINET

Model G0967 (Mfd. Since 06/23)

BUY PARTS ONLINE AT GRIZZLY.C OM !

Scan QR code to visit our Parts Store.

-39-

REF PART # DE S CRIPTION REF PART # DES CRIPTION

103

104

106

Labels & Cosmetics

101

WARNING!

To reduce risk of death or serious injury, read manual BEFORE using machine.

To get a new manual, call (800) 523-4777 or go to www.grizzly.com.

WARNING!

INJURY/SHOCK

HAZARD! Disconnect power before adjustments, maintenance, or service.

110

MODEL G0967

20" VARIABLE-SPEED

Specifications

Power Requirement: 220V, Single-Phase, 60 Hz Motor: 2 HP, 220V, 3-Phase, 60 Hz Full-Load Current Rating: 8A Disc Speed: 500–1800 RPM Disc Diameter: 20" Disc Sandpaper Type: PSA Table Tilt: 0°–45° Table Size: 25" x 12" Table-to-Floor Height: 37-5/16" Dust Port Diameter: 4" Weight: 309 lbs.

Date

S/N

Mfd. for Grizzly in China

DISC SANDER

To reduce risk of serious personal injury while using this machine:

1. Read and understand owner’s manual before operating.

2. Always wear approved eye protection and respirator.

3. Only plug power cord into a grounded outlet.

4. Support workpiece with miter gauge, backstop, or worktable.

5. Maintain 1/16" maximum clearance between table and sandpaper.

6. Never touch moving sandpaper.

7. Always sand in accordance with directional arrows on machine.

8. Make sure sander is properly assembled, adjusted, and stable before

9. Never sand pointed stock with point facing into sanding rotation, and

10. Only remove jammed pieces when sandpaper is stopped.

11. Turn motor OFF and disconnect power before changing sandpaper,

12. Do not wear loose clothing, gloves, jewelry, or other articles that can get

13. Never reach over moving sanding disc.

14. Do not expose to rain or use in damp locations.

15. Do not operate under influence of drugs or alcohol, or when tired.

16. Prevent unauthorized use by children or untrained users; restrict access

WARNING!

operating. Only operate with all guards in place.

never force workpiece into sanding surface.

making adjustments, or servicing.

entangled. Tie back long hair and roll up sleeves.

or disable machine when unattended.

108

G0967

109

WARNING!

EYE/LUNG INJURY

HAZARD!

Always wear safety glasses and a respirator when using this machine.

WARNING!

ABRASION INJURY

HAZARD!

Do not touch moving sanding disc or personal injury may occur!

102

DISC ROTATION

103

500 1800

103

107

grizzly.com

101 P0967101 COMBO WARNING LABEL 106 P0967106 GRIZZLY.COM LABEL 102 P0967102 DISC ROTATION LABEL 107 P0967107 GRIZZLY NAMEPLATE SMALL 103 P0967103 ELECTRICITY LABEL 108 P0967108 MODEL NUMBER LABEL 104 P0967104 VARIABLE-SPEED LABEL 109 P0967109 TO UCH-UP PAI NT, GRI ZZLY BE I GE 105 P0967105 TOUCH-UP PAI NT, GRI ZZLY GREEN 110 P0967110 MACHINE ID LABEL

Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes off or becomes unreadable, the owner of this machine MUST replace it in the original location before resuming operations. For replacements, contact (800) 523-4777 or www.grizzly.com.

-40-

BUY PARTS ONLINE AT GRIZZLY.C OM !

Scan QR code to visit our Parts Store.

Model G0967 (Mfd. Since 06/23)

103

105

WARRANTY & RETURNS

Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty and any and all warranties that may be implied by law, including any merchantability or fitness, for any particular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants. In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.

We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special, or consequential damages arising from the use of our products.

The manufacturers reserve the right to change specifications at any time because they constantly strive to achieve better quality equipment. We make every effort to ensure that our products meet high quality and durability standards and we hope you never need to use this warranty.

In the event you need to use this warranty, contact us by mail or phone and give us all the details. We will then issue you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of the carton. We will not accept any item back without this number. Proof of purchase must accompany the merchandise.

Please feel free to write or call us if you have any questions about the machine or the manual.

Thank you again for your business and continued support. We hope to serve you again soon.

To you can applicable information for

take advantage of this warranty, you must register it at https://www.grizzly.com/forms/warranty, or

scan the QR code below to be automatically directed to our warranty registration page. Enter all

the product.

WARRANTY

Grizzly G0967 User guide

Specifications and Main Features

Frequently Asked Questions

User Manual

INTRODUCTION

Contact Info

Manual Accuracy

Identification

Machine Data Sheet

SECTION 1: SAFETY

Safety Instructions for Machinery

Additional Safety for Disc Sanders

SECTION 2: POWER SUPPLY

SECTION 3: SETUP

Unpacking

Needed for Setup

Inventory

Cleanup

Site Considerations

Assembly

Dust Collection

Test Run

SECTION 4: OPERATIONS

Operation Overview

Sanding Tips Choosing Sandpaper

Adjusting Table TiltWorkpiece

Sanding Operations

SECTION 5: ACCESSORIES

SECTION 6: MAINTENANCE

Schedule

SECTION 7: SERVICE

Troubleshooting

SECTION 8: WIRING

Wiring Safety Instructions

Wiring Diagram

Electrical Component Photos

SECTION 9: PARTS

Main

Labels & Cosmetics

WARRANTY & RETURNS
