MODEL G0954, G0955,

G0956, & G0957

STATIONARY AIR

COMPRESSORS

OWNER'S MANUAL

(For models manufactured since 11/21)

WARNING : NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#CS22333 PRINTED IN USA

***Keep for Future Reference***

V1.11.22

This manual provides critical safety instructions on the proper setup, operation, maintenance, and service of this machine/tool. Save this document, refer to it often, and use it to instruct other operators.

Failure to read, understand and follow the instructions in this manual may result in fire or serious personal injury—including amputation, electrocution, or death.

The owner of this machine/tool is solely responsible for its safe use. This responsibility includes but is not limited to proper installation in a safe environment, personnel training and usage authorization, proper inspection and maintenance, manual availability and comprehension, application of safety devices, cutting/sanding/grinding tool integrity, and the usage of personal protective equipment.

The manufacturer will not be held liable for injury or property damage from negligence, improper training, machine modifications or misuse.

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: Work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

Table of Contents

INTRODUCTION ............................................... 2

Contact Info.................................................... 2

Manual Accuracy Identification Controls & Components Machine Data Sheet

SECTION 1: SAFETY

Safety Instructions for Machinery Additional Safety for Air Compressors

SECTION 2: POWER SUPPLY

SECTION 3: SETUP

Unpacking Needed for Setup Inventory Site Considerations Lifting & Placing Anchoring to Floor

Power Connection........................................ 16

Test Run

SECTION 4: OPERATIONS

Operation Overview Distribution System Design Distribution System Components Choosing Air Hoses Connecting Air Tools

SECTION 5: ACCESSORIES

.................................................... 13

...................................................... 13

...................................................... 18

........................................... 2

................................................... 3

................................. 4

...................................... 6

....................................... 8

.................. 8

......... 10

...................... 11

....................................... 13

......................................... 13

...................................... 14

........................................... 15

....................................... 16

........................... 21

..................................... 21

.......................... 22

................ 23

..................................... 24

................................... 24

......................... 26

SECTION 6: MAINTENANCE

Schedule

Draining Tank............................................... 29

Lubrication Checking Air Filters Checking/Adjusting Belt Tension Checking for Leaks Machine Storage

SECTION 7: SERVICE

Troubleshooting Adjusting Cut-In/Cut-Out Settings Aligning Motor Pulley to Pump Flywheel

SECTION 8: WIRING

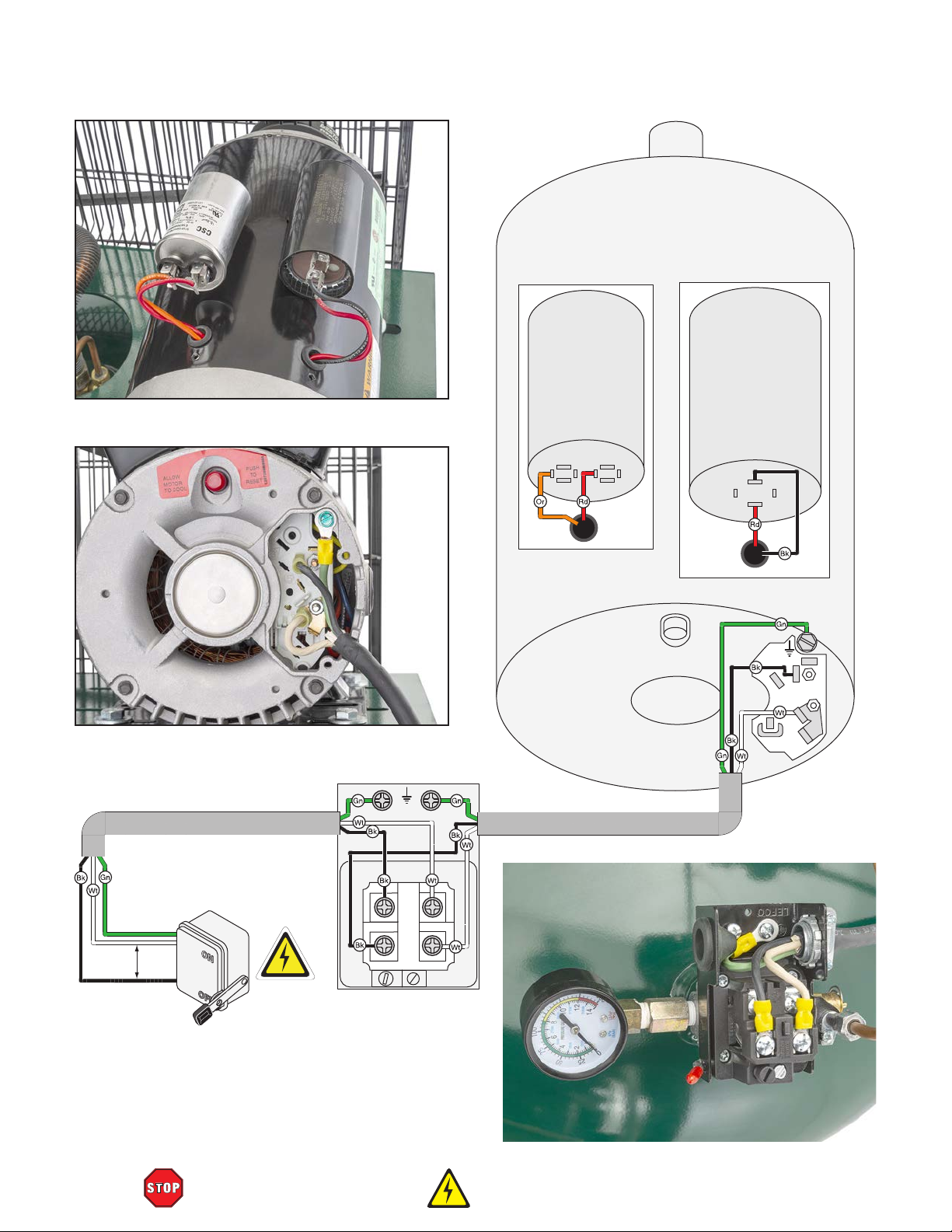

Wiring Safety Instructions G0954 Wiring Diagram G0955/G0956 Wiring Diagram G0957 Wiring Diagram

SECTION 9: PARTS

G0954 Pump G0954 Tank & Motor G0955/G0956 Pump G0955 Tank & Motor G0956 Tank & Motor G0957 Pump G0957 Tank & Motor Labels & Cosmetics

...................................................... 28

................................................... 29

...................................... 30

...................................... 32

.......................................... 34

................................... 35

........................................... 35

...................................... 43

....................................... 47

................................................ 47

................................... 49

.................................... 51

................................... 53

................................... 55

................................................ 57

................................... 59

..................................... 61

......................... 28

................. 31

................ 39

..... 41

............................ 43

................................ 44

.................... 45

................................ 46

We are proud to provide a high-quality owner’s manual with your new machine!

instructions, specifications, drawings, and photographs in this manual. Sometimes we make mistakes, but our policy of continuous improvement also means that

you receive is

slightly different than shown in the manual

If you find this to be the case, and the difference between the manual and machine leaves you confused or unsure about something

check our

website for an updated version. W

current

manuals and

on our web-

site at

Alternatively, you can call our Technical Support for help. Before calling, make sure you write down the

serial number from the machine ID label (see below). This information is required for us to provide proper tech support, and it helps us determine if updated documentation is available for your machine.

INTRODUCTION

Contact Info

If you have questions, need help, need warranty information, or need to order parts, contact MEGA with the information below. Before contacting, make sure you get the serial number and manu- facture date from the machine ID label.

MEGA Compressor Technical Support

Phone: (832) 415-6995

Email: cs@megacompressor.com

We want your feedback on this manual. What did you like about it? Where could it be improved? Please take a few minutes to give us feedback.

Grizzly Documentation Manager

P.O. Box 2069

Bellingham, WA 98227-2069

Email: manuals@grizzly.com

Manual Accuracy

made every effort to be exact with the

sometimes the machine

e post

manual updates for free

www.grizzly.com.

manufacture date and

Manufacture Date

Serial Number

-2-

Model G0954/55/56/57 (Mfd. Since 11/21)

To reduce your risk of serious injury, read this entire manual BEFORE

Identification

Become familiar with the names and locations of the controls and features shown below to better understand the instructions in this manual.

Belt Guard

Motor

Exhaust

Tube

Output

Port

Oil Sight

Glass

Tank

Compressor

Pump

Pressure

Gauge

Tank

Air Filter

Pressure

Switch

Motor Reset

Button

Safety

Relief Valve

G0956 Shown

Discharge

Line

Machine Foot

(1 of 3)

Model G0954/55/56/57 (Mfd. Since 11/21)

Drain Valve

using machine.

-3-

Controls &

To reduce your risk of serious injury, read this entire manual BEFORE

Air Input

Components

using machine.

Refer to the following figures and descriptions to become familiar with the basic controls and components of this machine. Understanding these items and how they work will help you understand the rest of the manual and minimize your risk of injury when operating this machine.

Motor Reset Button

Figure 2. Front air input components (G0957

shown).

B. Compressor Pump: Uses pistons to draw in

and compress air before transferring air into tank.

C. Air Filters: Clean air entering compressor

pump.

D. Exhaust Tube: Transfers compressed air

from pump to tank.

Figure 1. Location of motor reset button.

A. Motor Reset Button: Restores power to

motor when pressed after overload. To reset, turn machine OFF, wait a few minutes for motor to cool, then press motor reset button. If motor does not reset, allow motor to cool longer, then try again.

E. Tank: Holds pressurized air.

F. Tank Pressure Gauge: Indicates pressure

of air in tank.

Figure 3. Location of drain valve.

G. Drain Valve: Drains built-up moisture from

tank when ball valve is opened.

-4-

Model G0954/55/56/57 (Mfd. Since 11/21)

Air Output/Delivery

Figure 4. Air output components.

K. Safety Relief Valve: Pops open to release

tank pressure in the event that pressure switch fails to stop motor at cut-out pressure.

L. Pressure Switch: Turns motor ON when

tank pressure drops below 95 PSI (cut-in pressure) and switch is in AUTO position. Switch contains pressure relief valve that will activate discharge line when tank pressure exceeds 125 PSI (cut-out pressure) or pres-

sure switch is turned OFF.

Automatic Pressurization (G0957)

H. Outlet Port: Delivers air from tank to air

delivery system. Shut-off valve stops air from entering system.

Automatic Pressurization (G0954/ G0955/G0956)

Figure 5. Pressurization components (G0956

shown).

I. Pressure Switch Lever (G0954/G0955/

G0956 Only): Toggles pressure switch

between OFF and AUTO modes. Machine is OFF in OFF mode, and will continue to pressurize when in AUTO mode.

Figure 6. Pressurization components.

M. Discharge Line: Releases air from compres-

sor pump and outlet line when tank pressure exceeds 175 PSI (cut-out pressure).

N. Pressure Switch Knob: Toggles pressure

switch between OFF and AUTO modes. Machine is OFF in OFF mode, and will continue to pressurize when in AUTO mode.

O. Pressure Switch: Turns motor ON when

tank pressure drops below 145 PSI (cut-in pressure) and switch is in AUTO position. Switch contains pressure relief valve that will activate discharge line when tank pressure exceeds 175 PSI (cut-out pressure) or pressure switch is turned OFF.

J. Discharge Line: Releases air from compres-

sor pump and outlet line when tank pressure exceeds 125 PSI (cut-out pressure).

Model G0954/55/56/57 (Mfd. Since 11/21)

P. Safety Relief Valve: Pops open to release

tank pressure in the event that pressure switch fails to stop motor at cut-out pressure.

-5-

Machine Data Sheet

Customer Service #: (570) 546-9663 · To Order Call: (800) 523-4777 · Fax #: (800) 438-5901

MODEL G0954, G0955, G0956, & G0957

STATIONARY AIR COMPRESSORS

Model Number G0954 G0955 G0956 G0957

Product Dimensions

Weight 305 lbs. 325 lbs. 380 lbs.

Width (side-to-side) x Depth (frontto-back) x Height

Foot Print (Length x Width) 22-1/2" x 19-1/2" 24" x 21-1/2" 24-1/2" x 21"

Shipping Dimensions

Type Wood Crate

Content Machine

Weight 325 lbs. 345 lbs. 400 lbs.

Length x Width x Height 31" x 24" x 74" 32" x 31" x 76"

Must Ship Upright Yes

Electrical

Power Requirement

Full-Load Current Rating 15A 22.5A

Minimum Circuit Size 20A 30A

Connection Type Permanent (Hardwire to Shutoff Switch)

Switch Type Pressure Switch w/Motor Reset Button

Motor

Horsepower 3 HP 5 HP

Phase Single-Phase

Amps 15A 22.5A

Speed 3450 RPM

Type ODP Capacitor-Start Induction

Power Transfer Belt

Bearings Shielded & Permanently Lubricated

Centrifugal Switch/Contacts Type External

30" x 22" x 66-1/2" 30" x 22" x 68" 31-1/2" x 26" x 67" 32" x 26" x 68"

240V,

Single-Phase, 60

230V, Single-Phase, 60 Hz

-6-

Model G0954/55/56/57 (Mfd. Since 11/21)

Model Number G0954 G0955 G0956 G0957

Operation Information

Compressor Style Vertical

Pump Type One-Stage Two-Stage

Max. Airflow/Delivery (40 PSI) 12 CFM 20 CFM 24 CFM

Max. Airflow/Delivery (90 PSI) 10.2 CFM 18 CFM 18.5 CFM

Cut-Out Pressure 125 PSI 175 PSI

Cut-In Pressure 95 PSI 145 PSI

Duty Cycle 65/35 85/15

Tank Size 60 Gallons 80 Gallons

Number of Cylinders 2 3

Pump Lubrication 100% Full Synthetic Non-Detergent Air Compressor Oil

Drain Valve Type Ball Valve

Regulator No

Output Port Information

Connection Type Female Threaded Ball Valve

Connection Size 1/2" NPT

Number of Connections 1

Hose Included No

Construction

Tank Steel

Valves Brass

Paint Type/Finish Enamel

Other Specifications

Country of Origin USA

Warranty 1 Year

Approximate Assembly & Setup Time

Serial Number Location ID Label

Sound Rating 75–78 dB 79–81 dB 77–79 dB 75–77 dB

30 Minutes

Like all machinery there is potential danger when operating this machine. Accidents are frequently caused by lack of familiarity or failure to pay attention. Use this machine with respect and caution to decrease the risk of operator injury. If normal safety precautions are overlooked or ignored, serious personal injury may occur.

Model G0954/55/56/57 (Mfd. Since 11/21)

No list of safety guidelines can be complete. Every shop environment is different. Always consider safety first, as it applies to your individual working conditions. Use this and other machinery with caution and respect. Failure to do so could result in serious personal injury, damage to equipment, or poor work results.

-7-

SECTION 1: SAFETY

For Your Own Safety, Read Instruction

Manual Before Operating This Machine

The purpose of safety symbols is to attract your attention to possible hazardous conditions. This manual uses a series of symbols and signal words intended to convey the level of importance of the safety messages. The progression of symbols is described below. Remember that safety messages by themselves do not eliminate danger and are not a substitute for proper accident prevention measures. Always use common sense and good judgment.

Indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, MAY result in minor or moderate injury. It may also be used to alert against unsafe practices.

Alerts the user to useful information about proper operation of the

NOTICE

machine to avoid machine damage.

Safety Instructions for Machinery

OWNER’S MANUAL. Read and understand this

owner’s manual BEFORE using machine.

TRAINED OPERATORS ONLY. Untrained operators have a higher risk of being hurt or killed. Only allow trained/supervised people to use this machine. When machine is not being used, disconnect power, remove switch keys, or lock-out machine to prevent unauthorized use—especially around children. Make your workshop kid proof!

DANGEROUS ENVIRONMENTS. Do not use machinery in areas that are wet, cluttered, or have poor lighting. Operating machinery in these areas greatly increases the risk of accidents and injury.

MENTAL ALERTNESS REQUIRED. Full mental alertness is required for safe operation of machinery. Never operate under the influence of drugs or alcohol, when tired, or when distracted.

ELECTRICAL EQUIPMENT INJURY RISKS. You can be shocked, burned, or killed by touching live electrical components or improperly grounded machinery. To reduce this risk, only allow qualified service personnel to do electrical installation or repair work, and always disconnect power before accessing or exposing electrical equipment.

DISCONNECT POWER FIRST. nect machine from power supply BEFORE making adjustments, changing tooling, or servicing machine. This prevents an injury risk from unintended startup or contact with live electrical components.

EYE PROTECTION. Always wear ANSI-approved safety glasses or a face shield when operating or observing machinery to reduce the risk of eye injury or blindness from flying particles. Everyday eyeglasses are NOT approved safety glasses.

Always discon-

-8-

Model G0954/55/56/57 (Mfd. Since 11/21)

WEARING PROPER APPAREL. Do not wear clothing, apparel or jewelry that can become entangled in moving parts. Always tie back or cover long hair. Wear non-slip footwear to reduce risk of slipping and losing control or accidentally contacting cutting tool or moving parts.

HAZARDOUS DUST. Dust created by machinery operations may cause cancer, birth defects, or long-term respiratory damage. Be aware of dust hazards associated with each workpiece material. Always wear a NIOSH-approved respirator to reduce your risk.

HEARING PROTECTION. Always wear hearing protection when operating or observing loud machinery. Extended exposure to this noise without hearing protection can cause permanent hearing loss.

REMOVE ADJUSTING TOOLS. Tools left on machinery can become dangerous projectiles upon startup. Never leave chuck keys, wrenches, or any other tools on machine. Always verify removal before starting!

USE CORRECT TOOL FOR THE JOB. Only use this tool for its intended purpose—do not force it or an attachment to do a job for which it was not designed. Never make unapproved modifications—modifying tool or using it differently than intended may result in malfunction or mechanical failure that can lead to personal injury or death!

AWKWARD POSITIONS. Keep proper footing and balance at all times when operating machine. Do not overreach! Avoid awkward hand positions that make workpiece control difficult or increase the risk of accidental injury.

CHILDREN & BYSTANDERS. Keep children and bystanders at a safe distance from the work area. Stop using machine if they become a distraction.

GUARDS & COVERS. Guards and covers reduce accidental contact with moving parts or flying debris. Make sure they are properly installed, undamaged, and working correctly BEFORE operating machine.

FORCING MACHINERY. Do not force machine. It will do the job safer and better at the rate for which it was designed.

NEVER STAND ON MACHINE. Serious injury may occur if machine is tipped or if the cutting tool is unintentionally contacted.

STABLE MACHINE. Unexpected movement during operation greatly increases risk of injury or loss of control. Before starting, verify machine is stable and mobile base (if used) is locked.

USE RECOMMENDED ACCESSORIES. Consult this owner’s manual or the manufacturer for recommended accessories. Using improper accessories will increase the risk of serious injury.

UNATTENDED OPERATION. To reduce the risk of accidental injury, turn machine OFF and ensure all moving parts completely stop before walking away. Never leave machine running while unattended.

MAINTAIN WITH CARE. Follow all maintenance instructions and lubrication schedules to keep machine in good working condition. A machine that is improperly maintained could malfunction, leading to serious personal injury or death.

DAMAGED PARTS. Regularly inspect machine for damaged, loose, or mis-adjusted parts—or any condition that could affect safe operation. Immediately repair/replace BEFORE operating machine. For your own safety, DO NOT operate machine with damaged parts!

MAINTAIN POWER CORDS. When disconnecting cord-connected machines from power, grab and pull the plug—NOT the cord. Pulling the cord may damage the wires inside. Do not handle cord/plug with wet hands. Avoid cord damage by keeping it away from heated surfaces, high traffic areas, harsh chemicals, and wet/damp locations.

EXPERIENCING DIFFICULTIES. If at any time you experience difficulties performing the intended operation, stop using the machine! Contact our Technical Support at (570) 546-9663.

Model G0954/55/56/57 (Mfd. Since 11/21)

-9-

Additional Safety for Air Compressors

Serious impact injury or death can occur from bursting tank, attachment tool, distribution line, or hose. Contact with hot compressor parts can result in burns. Operating this tool in an environment without proper ventilation or near combustible materials can lead to explosions or fires. Eyes and other soft tissues can be easily injured by air streams and debris projected by compressed air or attachment tools. To reduce the risk of these hazards, operator and bystanders MUST completely heed hazards and warnings below.

TANK INTEGRITY. Inspect tank, attachment

tools, pump, air lines, and valves for rust, damage, weakness, leaks, looseness, or excessive wear and repair/replace damaged components before operating. Replace a damaged tank immediately. DO NOT attempt to weld on, modify, or repair tank. Modifying tank can affect tank integrity and cause tank to burst.

ATTACHM ENT TO OLS. Always wear ANSIapproved eye protection and any additional personal protective equipment required by attachment tools. Pneumatic tools can propel objects and debris at high speeds or even explode. Never use damaged tools—they are even more likely to rupture. DO NOT exceed pressure ratings of tools or attachments as lines and seals may burst. Use proper air hose for tool and confirm air hose is long enough to reach work area without stretching. Do not carry attachment tool with hand on trigger to reduce risk of accidental firing. Always relieve outlet air line and hose before attaching/removing tools. Disconnect hose or tool from compressor when not in use.

MODIFICATIONS. DO NOT adjust or remove safety relief valve, pressure switch, or otherwise modify machine. Do not install shut-off valve between compressor pump and tank. Check, safety, and pressure valves are adjusted at factory for correct tolerances and abilities of compressor and are designed to keep tank and other components from bursting.

INTENDED USE. DO NOT use compressed air as breathable air supply and DO NOT aim compressed air or air tools at body parts or people. Compressed air can injure or propel debris into eyes or other soft tissues. Do not use compressor to inflate low-pressure objects that are likely to burst (like children’s toys).

DAILY MAINTENANCE. Test safety relief valve daily to dislodge any blockages and confirm it is working correctly. Drain moisture from tank daily to prevent internal corrosion that could weaken tank.

DISTRIBUTION LINES. Use only stainless steel, copper, or aluminum for air delivery/distribution lines. NEVER use PVC because it cannot withstand the pressure, heat, condensation, and oils of compressed air and may shatter, creating dangerous shrapnel.

VENTILATION. Only operate in well-ventilated environment that is less than 100°F and keep compressor at least 18 inches from nearest wall. DO NOT obstruct airflow to air filters and ventilation openings. Regularly check and change air filters to avoid buildup of impurities and reduce risk of fire.

COMBUSTION. Compressor motor, pressure switch, and some pneumatic attachment tools often produce sparks. Only operate compressor in area free of combustible materials to prevent fires and explosions. When spraying, locate air compressor at least 20 feet from spray area, do not smoke, and do not spray flammable material in confined area near flame/compressor. Turn compressor OFF when unattended. Motor could overheat and create fire hazard.

HOT PARTS. Discharge line and other compressor pump parts heat up during operation. Do not touch these parts during or immediately following operation to prevent burns.

MOVING AND SERVICING. Disconnect power, allow compressor to cool, bleed air from system, and disconnect attachment tools and hoses before moving or servicing to prevent impact injuries, soft tissue injuries, and burns.

-10 -

Model G0954/55/56/57 (Mfd. Since 11/21)

SECTION 2: POWER SUPPLY

Before installing the machine, consider the availability and proximity of the required power supply circuit. If an existing circuit does not meet the requirements for this machine, a new circuit must be installed. To minimize the risk of electrocution, fire, or equipment damage, installation work and electrical wiring must be done by an electrician or qualified service personnel in accordance with all applicable codes and standards.

or equipment damage

not properly grounded

The full-load current rating is the amperage a machine draws at 100% of the rated output power. On machines with multiple motors, this is the amperage drawn by the largest motor or sum of all motors and electrical devices that might operate at one time during normal operations.

The full-load current is not the maximum amount of amps that the machine will draw. If the machine is overloaded, it will draw additional amps beyond the full-load rating.

If the machine is overloaded for a sufficient length of time, damage, overheating, or fire may result— especially if connected to an undersized circuit. To reduce the risk of these hazards, avoid overloading the machine during operation and make sure it is connected to a power supply circuit that meets the specified circuit requirements.

Note: Circuit requirements in this manual apply to a dedicated circuit—where only one machine will be running on the circuit at a time. If machine will be connected to a shared circuit where multiple machines may be running at the same time, consult an electrician or qualified service personnel to ensure circuit is properly sized for safe operation.

For your own safety and protection of

A power supply circuit includes all electrical equipment between the breaker box or fuse panel in the building and the machine. The power supply circuit used for this machine must be sized to safely handle the full-load current drawn from the machine for an extended period of time. (If this machine is connected to a circuit protected by fuses, use a time delay fuse marked D.)

This machine is prewired to operate on a power supply circuit that has a verified ground and meets the following requirements:

Availability

Electrocution, fire, shock,

may occur if machine is

and connected to power supply.

Full-Load Current Rating

Circuit Information

property, consult an electrician if you are unsure about wiring practices or electrical codes in your area.

G0954................................................... 15 Amps

G0955/G0956/G0957

Model G0954/55/56/57 (Mfd. Since 11/21)

....................... 22.5 Amps

Circuit Requirements

Nominal Voltage .........20 8V, 220V, 23 0V, 2 40V

..........................................................60 Hz

Cycle Phase Power Supply Circuit G0954 G0955/G0956/G0957

........................................... Single-Phase

.............................................. 20 Amps

..................... 30 Amps

-11-

Since this machine must be permanently connected to the power supply, an extension cord cannot be used.

Connection Type

A permanently connected (hardwired) power supply is typically installed with wires running through mounted and secured conduit. A disconnecting means, such as a locking switch (see following figure), must be provided to allow the machine to be disconnected (isolated) from the power supply when required. This installation must be performed by an electrician in accordance with all applicable electrical codes and ordinances.

process. DO NOT connect to power until

In the event of a malfunction or breakdown, grounding provides a path of least resistance for electrical current to reduce the risk of electric shock. A permanently connected machine must be connected to a grounded metal permanent wiring system; or to a system having an equipmentgrounding conductor. All grounds must be verified and rated for the electrical requirements of the machine. Improper grounding can increase the risk of electric shock!

Locking

Disconnect Switch

Power

Source

Ground

Grounding Instructions

Machine

ConduitConduit

Ground

Serious injury could occur if you connect machine to power before completing setup

instructed later in this manual.

Extension Cords

Figure 7. Typical setup of a permanently

connected machine.

-12-

Model G0954/55/56/57 (Mfd. Since 11/21)

SECTION 3: SETUP

The following is a list of items shipped with your machine. Before beginning setup, lay these items out and inventory them.

If any non-proprietary parts are missing (e.g. a nut or a washer), we will gladly replace them; or for the sake of expediency, replacements can be obtained at your local hardware store.

This machine was carefully packaged for safe transport. When unpacking, separate all enclosed items from packaging materials and inspect them for shipping damage.

please

at (570) 546-9663.

IMPORTANT:

you are completely satisfied with the machine and have resolved any issues between Grizzly or the shipping agent. You MUST have the original pack-

aging to file a freight claim. It is also extremely helpful if you need to return your machine later.

Unpacking

If items are damaged

call us immediately

Save all packaging materials until

Needed for Setup

The following items are needed, but not included, for the setup/assembly of this machine.

Inventory

Inventory (Figure 8) Qty

A. Air Compressor .......................................... 1

Description Qty

• Additional People ....................................... 1

• Safety Glasses (For Each Person) ............. 1

• Open-End Wrench 14mm ........................... 1

• Lifting Equipment (Rated for 500 lbs.) ........ 1

• Mounting Hardware .................... As Needed

• Phillips Head Screwdriver #2 ..................... 1

• Scissors .................................................1 Pr.

• Air Compressor Oil SAE 30........ As Needed

• Hearing Protection ...................................... 1

Machine presents serious injury hazards to untrained users. Read entire manu-

Model G0954/55/56/57 (Mfd. Since 11/21)

al to become familiar with controls and operations before starting machine!

Wear safety glasses during the entire setup process!

Figure 8. Inventory (G0954 shown).

NOTICE

If you cannot find an item on this list, carefully check around/inside the machine and packaging materials. Often, these items get lost in packaging materials while unpacking or they are pre-installed at the factory.

-13-

Site Considerations

Weight Load

Refer to the of your machine. Make sure that the surface upon which the machine is placed will bear the weight of the machine, additional equipment that may be installed on the machine, and the heaviest workpiece that will be used. Additionally, consider the weight of the operator and any dynamic loading that may occur when operating the machine.

Space Allocation

Consider the largest size of workpiece that will be processed through this machine and provide enough space around the machine for adequate operator material handling or the installation of auxiliary equipment. With permanent installations, leave enough space around the machine to open or remove doors/covers as required by the maintenance and service described in this manual.

See below for required space allocation.

Physical Environment

Extreme conditions for this type of machinery are

Place this machine near an existing power source.

other hazards. Make sure to leave enough space

Shadows, glare, or strobe effects that may distract

Machine Data Sheet for the weight

Children or untrained people may be seriously injured by this machine. Only install in an access restricted location.

Min. 18" from

Obstructions

30"

G0954

22"

30"

G0955

The physical environment where the machine is operated is important for safe operation and longevity of machine components. For best results, operate this machine in a dry environment that is free from excessive moisture, hazardous chemicals, airborne abrasives, or extreme conditions.

generally those where the ambient temperature range exceeds 41°–104°F; the relative humidity range exceeds 20%–95% (non-condensing); or the environment is subject to vibration, shocks, or bumps.

Electrical Installation

Make sure all power cords are protected from traffic, material handling, moisture, chemicals, or

around machine to disconnect power supply or apply a lockout/tagout device, if required.

Lighting

Wall

Lighting around the machine must be adequate enough that operations can be performed safely.

or impede the operator must be eliminated.

Min. 18" from

Obstructions

26"

31½"

G0956

32"

G0957

-14-

Electrical Connection

Figure 9. Minimum working clearances.

Model G0954/55/56/57 (Mfd. Since 11/21)

Lifting & Placing

HEAVY LIF T! Straining or crushing injury may occur from improperly lifting machine or some of its parts. To reduce this risk, get help from other people and use a forklift (or other lifting equipment) rated for weight of this machine.

Use lifting equipment rated for at least 500 lbs. to lift machine off the pallet and onto a suitable location, then secure the machine to the shop ﬂoor.

Remove cardboard packing or top and sides

of crate from shipping pallet.

Unbolt machine from pallet and remove any

shipping straps.

Place lifting sling under welded platform (see

4. Figure 10), then attach sling securely to fork-

lift (or other power lifting equipment).

Note: Be sure sling does not put pressure on

exhaust tube, discharge line, motor, pump, or belt guard or they can become damaged from force while lifting.

Lifting

Sling

The air compressor must be located at least 18 inches from the nearest wall as described in Additional Safety for Air Compressors on Page 10.

Before anchoring the machine to the ﬂoor, you should also consider how you plan to design the air delivery system (see Distribu-

tion System Design on Page 22).

To lift and place machine:

1. Place pallet near final machine mounting

location.

Welded Platform

Figure 10. Lifting sling placed under welded

platform.

With another person to help steady machine,

lift machine just enough to clear pallet and any floor obstacles, then place machine in its final position on shop floor.

Model G0954/55/56/57 (Mfd. Since 11/21)

-15-

Anchoring to Floor

Lag shield anchors with lag screws (see below) are a popular way to anchor machinery to a concrete floor, because the anchors sit flush with the floor surface, making it easy to unbolt and move the machine later, if needed. However, anytime local codes apply, you MUST follow the anchoring methodology specified by the code.

Before the machine can be connected to the power source, an electrical circuit and connection device must be prepared per the POWER

SUPPLY

setup instructions in this manual must be complete to ensure that the machine has been assembled and installed properly. The disconnect switch installed by the electrician (as recommended) is the primary means for disconnecting or connecting the machine to the power source.

Number of Mounting Holes ............................ 3

Diameter of Mounting Hardware

................5⁄16"

Power Connection

Anchoring machinery to the floor prevents tipping or shifting and reduces vibration that may occur during operation, resulting in a machine that runs slightly quieter and feels more solid. Since this machine is extremely top heavy, anchoring it to the floor will also prevent injury and property damage.

If the machine will be installed in a commercial or workplace setting, or if it is permanently connected (hardwired) to the power supply, local codes may also require that it be anchored to the floor.

Anchoring to Concrete Floors

section in this manual; and all previous

Connecting power supply wires to machine without first disconnecting power supply may result in serious injury or death.

Connecting Incoming Power Wires

Items Needed Qty

Phillips Head Screwdriver #2 ............................ 1

Scissors

To connect incoming power wires:

........................................................ 1 Pr.

Lag Screw

Flat Washer

Machine Base

Concrete

Figure 11. Popular method for anchoring

machinery to a concrete floor.

IMPORTANT: DO NOT tighten lag screws so much that they may cause stress to the tank.

Tip: Install vibration pads between the lag screws and floor to further cut down on vibration and noise.

-16 -

Lag Shield Anchor

Drilled Hole

1. DISCONNECT POWER SUPPLY WIRES OR LOCK DISCONNECT SWITCH BOX IN OFF POSITION!

G0954/G0955/G0956 Only: Remove Phillips

head screw shown in Figure 12 to remove pressure switch cover.

Pressure

Switch

Cover

Figure 12. Location of pressure switch cover

Phillips head screw (G0956 shown).

Model G0954/55/56/57 (Mfd. Since 11/21)

G0957 Only: Remove flat head screw shown

in Figure 13 to remove pressure switch cover.

During next step, make sure incoming ground wire is connected to correct terminal to ensure machine will be properly grounded (see "GND" in Figure 15). An ungrounded or improperly grounded machine can cause electrocution if live electrical wires make contact with parts touched by operator.

Pressure

Switch

Cover

Figure 13. Location of pressure switch cover flat

head screw (G0957 shown).

3. Cut a hole in pressure switch strain relief, then insert incoming power conduit through strain relief (see Figure 14).

Strain Relief

Connect incoming power wires to LINE and

ground terminals shown in Figure 15.

G0954/G0955/G0956

INCOMING

POWER WIRES

GND

LINE

MOTOR

OUTGOING

MOTOR WIRES

G0957

Figure 14. Location of pressure switch strain

relief (G0956 shown).

Model G0954/55/56/57 (Mfd. Since 11/21)

LINE

INCOMING

POWER WIRES

GND

MOTOR

GND

OUTGOING

MOTOR WIRES

Figure 15. Incoming power wires connected to

LINE and ground terminals.

Install pressure switch cover.

-17-

Once assembly is complete, test run the machine to ensure it is properly connected to power and safety components are functioning correctly.

If you find an unusual problem during the test run, immediately stop the machine, disconnect it from power, and fix the problem BEFORE operating the machine again. The

table in the

SERVICE section of this manual can help.

DO NOT start machine until all preceding setup instructions have been performed. Operating an improperly set up machine

Serious injury or death can result from

Move the disconnect switch handle to the ON position, as illustrated below. The machine is now connected to the power source.

Connecting to Power Source

Move the disconnect switch handle to the OFF position, as illustrated below. The machine is now disconnected from the power source.

Note:

Lock the switch in the OFF position to

restrict others from starting the machine.

Figure 16. Connecting power to machine.

Disconnecting from Power Source

Test Run

Troubleshooting

The Test Run consists of verifying the following:

1) The compressor oil level is sufficient, 2) the motor powers up and runs correctly, 3) the motor and pump turn OFF when the cut-out pressure is reached, and 4) the safety relief valve works correctly.

Figure 17. Disconnecting power from machine.

using this machine BEFORE understanding its controls and related safety information. DO NOT operate, or allow others to operate, machine until the information is understood.

may result in malfunction or unexpected results that can lead to serious injury, death, or machine/property damage.

Eye injury hazard! Always wear safety glasses when handling pressurized air system.

-18-

Model G0954/55/56/57 (Mfd. Since 11/21)

To test run machine:

Check oil level (refer to Lubrication on Page

1. 29 for instructions).

Clear all setup tools away from machine.

3. Move pressure switch lever or knob to OFF

position (see Figures 18 –19).

Pressure

Switch

Lever

4. Loosen drain valve thumb screw to open (see Figure 20).

Drain Valve

Thumb Screw

Figure 20. Location of drain valve thumb screw.

Turn output port shut-off valve handle all

the way counterclockwise to open (see

Figure 21).

Figure 18. Location of pressure switch controls

(G0956 shown).

Pressure

Switch

Knob

Figure 19. Location of pressure switch controls

(G0957 shown).

Shut-Off

Valve Handle

Figure 21. Shut-off valve handle in

open position.

Connect machine to power supply.

Model G0954/55/56/57 (Mfd. Since 11/21)

-19 -

7. Move pressure switch lever or knob to AUTO position to turn machine ON and verify motor operation.

Motor should run smoothly and without

unusual problems or noises.

Do not touch compressor head or discharge line during use or immediately after compressor is active. These hot parts may cause burns.

After running compressor for 20 minutes,

move pressure switch lever or knob to OFF position to turn machine OFF.

Tighten drain valve thumb screw and turn

shut-off valve handle to closed position.

— If machine turns OFF when tank pres-

sure reaches cut-out pressure (125 PSI for G0954/G0955/G0956 and 175 PSI for G0957), then safety feature of check valve is working correctly. Proceed to Step 11.

— If machine does not turn OFF when tank

pressure reaches cut-out pressure, then immediately turn OFF machine and disconnect it from power. Safety feature of check valve is NOT working properly and must be replaced before using machine.

Releasing air through safety relief valve can be loud. Protect hearing with ANSIapproved ear protection in following step.

Turn machine OFF and slowly pull safety

11.

relief valve ring to bleed pressure from tank (see Figure 22).

Turn machine ON and observe tank pressure

10.

gauge (see Figure 22) while tank fills.

Safety Relief

Tank

Pressure Gauge

Figure 22. Location of tank pressure gauge and

safety relief valve (G0956 shown).

Valve

— If safety relief valve bleeds pressure, and

air stops leaking when ring is released, then safety relief valve is working correctly. Proceed to Step 12.

— If safety relief valve is stuck or leaks

after releasing ring, immediately turn OFF machine and disconnect it from power. Safety relief valve must be replaced before using machine.

Open drain valve to drain moisture from tank.

12.

13. Repeat Step 1 to check oil level.

-20-

Model G0954/55/56/57 (Mfd. Since 11/21)

SECTION 4: OPERATIONS

The purpose of this overview is to provide the novice machine operator with a basic understanding of how the machine is used during operation, so the

discussed later

in this manual

Due to the generic nature of this overview, it is not intended to be an instructional guide. To learn more about specific operations, manual,

training from experienced machine operators outside of this manual by reading "how-to" books, trade magazines, or websites.

To reduce your risk of serious injury, read this entire manual BEFORE

Operation Overview

machine controls/components

are easier to understand.

3. Puts on any additional personal protective equipment required by operation and attachment tool.

Connects machine to power and turns it ON.

Allows machine to run until cut-out pressure

has been reached and tank is full.

Adjusts in-line regulator in air supply line to 0

PSI.

read this entire

seek additional

, and do additional research

using machine.

Eye injury hazard! Always wear safety glasses when using this machine.

Do not touch compressor head or discharge line during use or immediately after compressor is active. These hot parts may cause

To complete a typical operation, the operator does the following:

Puts on safety glasses.

2. Pulls safety valve ring to test valve and clear

any obstructions.

Model G0954/55/56/57 (Mfd. Since 11/21)

burns.

Connects air hose to quick-connect coupler

in air delivery system.

Connects attachment air tool to air hose.

9. Opens output port shut-off valve to release

air into distribution system.

Adjusts in-line regulator so line pressure at

10.

hose is lower than or equal to air tool rating.

While being careful not to create a tripping

11.

hazard with hose, performs operation.

Closes output port shut-off valve and bleeds

12.

air from delivery system.

Turns compressor power OFF and discon-

13.

nects it from power.

Uses safety relief valve to reduce tank pres-

14.

sure to less than 10 PSI.

Opens drain valves to drain any condensa-

15.

tion from tank and delivery system, then closes drain valves.

If you are not experienced with this type of machine, WE STRONGLY RECOMMEND that you seek additional training outside of this manual. Read books/magazines or get formal training before beginning any projects. Regardless of the content in this section, Grizzly Industrial will not be held liable for accidents caused by lack of training.

-21-

Distribution System

Design

Once you know how large your system will be, and what components you will install, choose a material for the distribution lines. Stainless steel, copper, and aluminum can withstand the force and heat of compressed air.

When designing your air distribution system, consider how many and what types of tools you intend to use, and what requirements those tools will have (see Connecting Air Tools on Page 24). The length of hose you use to connect tools to the system may affect how far the system needs to reach (see Choosing Air Hoses on Page 24).

Determine what methods you will use to remove moisture, oil, and dirt from the compressor air (see Distribution System Components on Page 23).

Plan to add a regulator for each supply line, and determine if you will need to add a lubricator. Installing quick-connect couplers will allow you to easily connect and disconnect air tools.

The compressor must be anchored at least 18 inches away from the nearest wall and 20 inches away from any combustible spraying operations.

Air Supply Line

Air Flow

Shut-Off

Valve

Decide how you will route the distribution lines. Forcing air flow up, against gravity, after it leaves the compressor, will naturally prevent moisture from proceeding through the line and reaching your tool.

Build your system using your desired pipes, fittings, filters, drains, and regulators, then use a flexible conduit or coupling to connect your air compressor. This will decrease any structural pressure on the tank and distribution pipes that could stress and damage the components. The Model G0954/G0955/G0956/G0957 has a shutoff valve to stop the airflow when attaching tools or servicing individual components.

Further information about air distribution systems is out of the scope of this manual. Consult outside resources and books for more suggestions.

Air Tool

Lubricator

(For Lubricated

Air Tool

In-Line

Air/Moisture

Filter

Lines Only)

-22-

Air Compressor

Flexible

Coupling

Drain Leg

Figure 23. Typical air distribution system.

Regulator

Model G0954/55/56/57 (Mfd. Since 11/21)

Hose

w/Plug

Quick-Connect

Coupler

Distribution System

Components

Regulator (Optional)

The distribution system is what delivers the air from your compressor to the tool you wish to use. Air delivery components can be damaged if dirt, oil, or water enter the air supply line. An air distribution system allows you to clean the air, remove moisture and heat, and regulate the pressure, all after the air leaves the compressor tank and before it enters the air tool.

Air Dryer

Before the air reaches an air tool, it must be dried by some method or another. One option is to install a moisture trap, which provides a place for moisture to collect where it can be easily drained (see "Drain Leg" in Figure 23 on Page 22 for an example).

Another option is to install a filter (see Figure

24). The filter can be cleaned and replaced, while any accumulated moisture is drained from a drain valve. Many of these can filter dirt, oil, and moisture at the same time.

Air In Air Out

Filter

Element

Drain Valve

Figure 25. Example of an air filter.

Regulator

A regulator (see Figure 26) is what adjusts the air supply line to your desired operating pressure. The operating pressure should always be equal to or less than the pressure that your air tool is rated for. An air tool recommended for 70 PSI should never be connected to a hose or system set to higher than that operating pressure, as the tool or valves could burst. A regulator allows tools with a lower rating than the system to still be attached, because the line can be adjusted to a safe level.

Air In

Air In Air Out

Filter

Element

Drain Valve

Figure 24. Example of a moisture filter.

The last option is to install an actual air dryer. These are better suited for large industrial applications.

Air Filter

Ensuring clean air reaches your air tools will also extend tool life. If your method of moisture removal does not also filter out oil, dirt, and debris, we recommend also adding an in-line air filter (see Figure 25).

Outgoing Air

PSI Gauge

Figure 26. Example of a regulator.

Regulator

Knob

Air Out

Lubricator

After water, debris, and oil from the compressor and environment have been removed, some air tools require lubrication be added back into the system to perform their job properly. Air line oil can be added directly to the tool before and during use, or an in-line lubricator can be added to the air supply line so oil is added automatically. Only use a lubricator for tools that require it. Adding lubrication, for instance, to a paint sprayer can contaminate the tool and paint and prevent a proper application.

Model G0954/55/56/57 (Mfd. Since 11/21)

-23-

Choosing Air Hoses

There are many options when it comes to hoses. The most important aspects for an air compressor are going to be length, diameter, and fittings. The material of the hose is also an important consideration, but this will depend more on your application and preference.

Length

Consider your applications before deciding on a hose length. Longer hoses, or hose connections to extend hose length, can increase your mobility, but will probably result in some pressure loss.

If your work area will be small, you may be able to use a shorter hose without stretching the hose. Never put any unnecessary stress on the hose, valves, fittings, or air delivery system.

An air compressor becomes very hot during operation, and the pressure switch and motor often produce sparks. Some applications, like spraying or sanding, involve flammable material that create a fire or combustion hazard when they are performed too close to a compressor. The hose length must allow for the air compressor to remain at least 20 feet away from the operation.

Fittings

Many hoses come with fittings installed. The simplest option is to find a hose with two fittings: one that matches the air line output port, and one that matches your intended attachment tool. If the hose does not match the port, a coupler may be needed.

You will need to determine the size of the fittings and whether they are male or female (see Figure 28). A male fitting can only attach to a female fitting, and vice versa. There are also a number of coupler/plug styles on the market, so be sure the two match or you will likely not have an airtight connection.

Male

Coupler

Figure 28. Example of male and female fittings.

Male

Plug

Female

Coupler

Female

Plug

Diameter

A larger inner diameter will allow for higher airflow delivery. Refer to Airflow Delivery (CFM) for more information. The higher CFM a tool requires, the larger the inner diameter of the hose will need to be (see Figure 27).

Airflow Delivery Required ID

0–3 CFM

3.1–5.9 CFM

6+ CFM

Figure 27. Recommended hose inner diameters.

⁄4" (3mm)

⁄4"–3⁄8" (3mm–10mm)

⁄8"+ (10mm+)

Connecting Air Tools

There are various air tools that can be connected to your air compressor by means of the air distribution system, and the setup will vary little across tools, but there are a couple things to keep in mind before connecting a tool or hose.

Airflow Delivery (CFM)

The first consideration when choosing an air tool is whether or not the air delivery is compatible with your compressor. Smaller compressors, capable of less than 5 CFM, only supply enough pressure for smaller air tools like nailers, staplers, chippers, chisels, grinders, sanders, tire inflators, and paint sprayers. Air hammers, impact wrenches, impact hammers, and blow guns will probably require a larger compressor capable of 10-110 CFM.

-24-

Model G0954/55/56/57 (Mfd. Since 11/21)

Duty Cycle

The duty cycle of your compressor will also have an effect on how efficient the airflow delivery is. Refer to Figure 29 for some common duty cycles and what they mean.

Compressor can be used for up to half

50/50

60/40

75/25

85/15

100

Compressing air produces a lot of heat, so the pump and motor require some resting time in order to cool down. The "cycle" of an air compressor refers to how long it takes for the compressor to be used and subsequently cooled. The duty cycle dictates what percentage of the cycle you can spend using air before it must rest.

of its cycle (spends same amount of time resting as it does working).

Compressor can be used for up to 60% of its cycle; spends 40% of time resting.

Compressor can be used for up to 75% of its cycle; spends 25% of time resting.

Compressor can be used for up to 85% of its cycle; spends 15% of time resting.

Compressor does not need to rest. Engine/motor has a cooling component allowing for constant air delivery.

Figure 29. Common duty cycles.

Connecting Air Tool

Use the following steps as a guide for attaching an air tool. As there are a wide variety of tool and hose options, your connections may differ slightly from this simple outline.

Always wear personal protective equipment required by air tool you are using. Pneumatic grinders, sanders, paint sprayers, etc., require respirator to protect against longterm respiratory damage. Prolonged exposure to loud tools can result in hearing loss without the use of hearing protection.

To connect air tool:

Adjust in-line regulator in air supply line to 0

PSI.

Insert air hose male plug into quick-connect

coupler.

Connect other end of hose to air tool.

Note: Refer to air tool instructions for speci-

fications, method of connection, and proper use of tool.

Disconnecting Air Tool

Eye injury hazard! Always wear safety glasses when handling pressurized air system.

Items Needed Qty

Air To ol .............................................................. 1

Air Hose Additional Connection Fittings

Model G0954/55/56/57 (Mfd. Since 11/21)

............................................................. 1

........... As Needed

Eye injury hazard! Always wear safety glasses when handling pressurized air system.

Pressurized air escaping through valves/ fittings can be extremely loud. Protect hearing with ANSI-approved hearing protection in following steps.

To disconnect air tool:

Adjust in-line regulator in air supply line to 0

PSI.

Disconnect air tool from hose.

3. Push coupler sleeve away from plug to

release hose plug.

Note: Air will escape when connection is bro-

ken if air supply line is still pressurized.

-25-

ACCESSORIES

Installing unapproved accessories may

order online at www.grizzly.com or call 1-800-523-4777

SECTION 5: ACCESSORIES

cause machine to malfunction, resulting in serious personal injury or machine damage. To reduce this risk, only install accessories recommended for this machine by Grizzly.

NOTICE

Refer to our website or latest catalog for additional recommended accessories.

Basic Eye Protection

T32323—Woodturners Face Shield T32401—EDGE Brazeau Safety Glasses, Clear T32402—EDGE Khor G2 Safety Glasses, Tint T32404—EDGE Mazeno Safety Glasses, Clear

T32323 T32401

T32079—Paint & Body Respirator Kit - Medium T32080—Paint & Body Respirator Kit - Large

This kit includes (1) silicone rubber half mask respirator, (2) T32088 organic vapor cartridges, (2) P100 pancake filters with organic vapor/AG nuisance odor relief, and (4) P95 particulate filter pads and filter retainers.

T32402

Figure 31. Assortment of basic eye protection.

T28041—Primrose Air Compressor Oil

This oil is a blend of the highest quality solvent refined, paraffinic, and naphthenic petroleum mineral oils and additives which prevent rust and oxidation. It's formulated for clean, trouble-free air compressor lubrication and effective control of carbon deposits for longer life. 1 quart size.

T32404

Figure 30. Paint & Body Respirator Kit.

Figure 32. T28041 236 Primrose Plus Air

Compressor Oil.

-26-

Model G0954/55/56/57 (Mfd. Since 11/21)

order online at www.grizzly.com or call 1-800-523-4777

T23085—Pneumatic Nibbler

This tool features a lightweight aluminum housing and cuts up to 16-gauge steel without leaving burrs or deformed edges. Adjustable die can be turned to suit various cutting positions. 3,800

strokes per minute.

⁄4" NPT air inlet. Requires 3/8" ID hose. 9.8 CFM average air consumption. 90 PSI maximum pressure.

Figure 33. T23085 Pneumatic Nibbler.

D3271—Air/Moisture Filter/Regulator w/Gauge

This unit is great for controlling air pressure, trapping moisture, and cleaning air in pneumatic systems. 150 PSI maximum pressure. Locking control knob and an easy-to-read pressure gauge

make pressure adjustments a snap. Accepts

⁄4"

NPT fittings.

T23086—7" Angle Sander

This sander is ideal for removing rust, sanding metal and rough body filter. Features planetary gearing for greater power and an auxiliary handle that mounts left or right. Simply attach to your existing compressed air line. Control the variablespeed by changing your squeeze tension on the

trigger. 0–4500 RPM arbor speed.

size.

⁄4" NPT air inlet. 12 CPM average air con-

⁄8"-11 arbor

sumption. 90 PSI maximum pressure.

Figure 34. T23086 7" Angle Sander.

Figure 35. D3271 Air/Moisture Filter/Regulator

with Gauge.

D3279—Air Regulator with Gauge

This air regulator comes with an easy-to-read regulator dial and heavy duty locking pressure

control knob.

⁄4" NPT connections. 180 PSI maxi-

mum pressure.

Figure 36. D3279 Air Regulator with Gauge.

Model G0954/55/56/57 (Mfd. Since 11/21)

-27-

SECTION 6: MAINTENANCE

Schedule

Compressor will turn ON automatically when pressure switch is set to AUTO. To reduce risk of shock/ accidental startup, always disconnect machine from power before adjustments, maintenance, or service.

Eye injury hazard! Always wear safety glasses when maintaining pressurized air system.

For optimum performance from this machine, this maintenance schedule must be strictly followed.

Ongoing

To minimize your risk of injury and maintain proper machine operation, shut down the machine immediately if you ever observe any of the items below, and fix the problem before continuing operations:

• Low oil level.

• Damaged safety relief valve, pressure switch, or drain valve.

Worn or damaged wires, cords, and plugs.

•

Tank rust/corrosion.

•

Any other unsafe condition.

•

Do not touch compressor head or discharge line during use or immediately after compressor is active. These hot parts may cause burns. Allow compressor to cool before handling.

Do not use flammable cleanser to clean machine. Compressor components often produce sparks that could ignite once machine is connected to power and turned ON.

Daily Maintenance

• Open drain valve to drain any condensation.

• Check oil level.

• Test function of safety relief valve and clear any obstructions.

Releasing air through safety relief valve or drain valve can be extremely loud. Protect hearing with ANSI-approved hearing protection when testing/draining valves.

Weekly Maintenance

• Check air filters.

• Clean/vacuum dust buildup off compressor.

Monthly Maintenance

• Check V-belt tension, damage, or wear.

Quarterly (3 Month/300 Hour) Maintenance

• Change compressor oil.

-28-

Semi-Annual (6 Month) Maintenance

• Check hoses/connections for leaks. If soapy water at suspected leak creates bubbles, air is escaping. Repair or replace affected parts.

Model G0954/55/56/57 (Mfd. Since 11/21)

Draining Tank

Lubrication

Some water may accumulate in the tank and air delivery system depending on usage and humidity. Drain water from the tank, and any attached delivery system, daily to increase the lifespan of the compressor and air tools and to prevent tank and pipe corrosion.

To drain tank:

DISCONNECT MACHINE FROM POWER!

Releasing air through safety relief valve can be extremely loud. Protect hearing with ANSI-approved hearing protection in following step.

2. Use safety relief valve to reduce tank pres-

sure to less than 10 PSI.

Loosen drain valve thumb screw (see Figure

37) to drain condensation from tank.

The oil level in the Model G0954/G0955/G0956/ G0957 should be checked daily to prevent overheating and damage to the compressor. Change the oil every 300 hours of use. See Accessories on Page 26 for an air compressor oil offered by Gr iz zly.

Checking Oil Level

Item Needed Qty

Model T28041 or SAE 30 Equiv. ....... As Needed

To check oil level:

1. Check oil sight glass (see Figure 38). Oil

level should be kept between bottom and top of red circle.

Oil Fill

Plug

Drain Valve

Thumb Screw

Figure 37. Location of drain valve thumb screw.

Oil Sight

Glass

Figure 38. Location of oil sight glass and oil fill

plug (G0956 shown).

— If oil level is between top and bottom of red

circle, no additional oil is needed.

— If oil level is below bottom of red circle,

proceed to Step 2.

DISCONNECT MACHINE FROM POWER!

3. Remove oil fill plug (see Figure 38).

Add compressor oil until oil level is between

bottom and top of red circle, then install fill plug.

Model G0954/55/56/57 (Mfd. Since 11/21)

-29-

Changing Oil

Items Needed Qty

Drain Pan ........................................................... 1

Wrench or Socket 14mm Wire Brush Thread Sealing Tape Model T28041 or SAE 30 Equivalent

G0954 ................................................... 1 Qt.

G0955/G0956 .....................................1.5 Q t.

G0957 ................................................... 2 Qt.

To change oil:

......................................................... 1

................................... 1

......................... As Needed

Checking Air Filters

The air filters help prevent impurities and dust from entering the compressor and reduces noise. A dirty filter will result in a less efficient system and could become a fire hazard.

Items Needed Qty

Hex Wrench 6mm (G0955/G0956 Only) ........... 1

Replacement Filters........................... As Needed

DISCONNECT MACHINE FROM POWER!

2. Remove oil fill plug (see Figure 39).

Place drain pan under oil drain plug, then

remove oil drain plug (see Figure 39).

Oil Fill

Plug

Oil Drain

Plug

Figure 39. Location of oil fill and oil drain plugs

(G0956 shown).

To check air filters:

DISCONNECT MACHINE FROM POWER!

Releasing air through safety relief valve can be extremely loud. Protect hearing with ANSI-approved hearing protection in following step.

2. Use safety relief valve to reduce tank pres-

sure to less than 10 PSI.

G0954/G0957 Only: Remove wing nut shown

in Figure 40 to remove filter cap and access filter.

Cap

Clean drain plug threads.

5. When oil is fully drained, wrap drain plug threads with thread sealing tape, then install drain plug.

Add compressor oil until oil level is between

bottom and top of red circle on oil sight glass (see Figure 38 on Page 29), then install fill plug.

-30-

Figure 40. Air filter assembly components

(G0957 shown).

— If filter is fairly clean and there has not

been a drop in efficiency of compressor, replace cap. No replacement is required.

Model G0954/55/56/57 (Mfd. Since 11/21)

— If filter is dirty or clogged, or there has

been a drop in efficiency of compressor, replace cap. Proceed to Step 4.

G0955/G0956 Only: Remove (2) cap screws

and flat washers shown in Figure 41 to remove filter assembly and access filter.

Filter Assembly

x 2

Figure 41. Air filter assembly components

(G0956 shown).

Checking/Adjusting

Belt Tension

The V-belt transfers power from the motor to the compressor pump. To ensure efficient transfer of power, make sure the V-belt is always properly tensioned and in good condition. If the V-belt is worn, cracked, or damaged, replace it.

Belt, pulley, and flywheel will be hot after operation. Allow them to cool before handling.

Items Needed Qty

Pliers .............................................................1 Pr.

Wrenches or Sockets 13mm Replacement Belt Another Person

.............................. As Needed

.................................................. 1

............................. 2

— If filter is fairly clean and there has not

been a drop in efficiency of compressor, replace cap. No replacement is required.

— If filter is dirty or clogged, or there has

been a drop in efficiency of compressor, replace cap. Proceed to Step 4.

G0954 Only: Turn filter assembly base coun-

terclockwise to remove, then replace with new air filter assembly (refer to Part #16 on Page 47).

G0955/G0956 Only: Replace with new air

filter assembly (refer to Part #43 on Page 51).

G0957 Only: Replace old filter with new filter

element (refer to Part #63 on Page 57).

Repeat Step 3 for remaining filter(s).

To check/adjust belt tension:

1. DISCONNECT MACHINE FROM POWER!

2. Turn (5) rubber guard clips (see Figure 42),

then remove clips and rear belt guard.

Rubber

Rear Belt Guard

Figure 42. Location of rear belt guard and clips.

Guard Clip

(1 of 5)

Model G0954/55/56/57 (Mfd. Since 11/21)

-31-

Press belt in center to check belt tension. Belt

is correctly tensioned when there is approximately moderate pressure, as shown in Figure 43.

⁄4" deflection when it is pushed with

Pulley

⁄4"

Deflection

Flywheel

Figure 43. Checking V-belt tension.

5. Have another person push motor away from

pump so there is approximately 1⁄4" deflection, then tighten hex nuts from Step 4.

Perform Steps 3–4 of Aligning Motor Pulley

6. to Pump Flywheel on Page 41 to check pul-

ley alignment.

Install belt guard, then use rubber guard clips

to secure.

Checking for Leaks

Air leaks will cause low air output and increase the time the compressor must run. Use the following method to check the valves and fittings on your compressor and air delivery system.

— If V-belt is in good condition and there is

⁄4" of deflection, belt does not need to be

adjusted or replaced. Proceed to Step 7.

— If V-belt is cracked, torn, excessively worn,

damaged, or there is not 1⁄4" of deflection, proceed to Step 4.

Loosen (4) hex nuts on hex bolts shown in

4. Figure 44, then push motor towards pump to

release belt tension.

— If V-belt is damaged, replace belt.

Checking for Leaks

1. Close output port shut-off valve (see Figure 45).

Shut-Off

Valve

Figure 45. Location of shut-off valve.

2. Turn ON compressor and allow tank to fill

until cut-out pressure is reached.

x 4

V-Belt

Figure 44. Location of belt tension components.

-32-

DISCONNECT MACHINE FROM POWER!

4. Listen for sound of air to find possible leak at

compressor.

— If you do not hear air escaping, and pres-

sure in tank does not change, there is no leak at compressor.

Model G0954/55/56/57 (Mfd. Since 11/21)

— If you do hear air escaping, or pressure

in tank drops even with safety relief valve and drain valve closed, proceed to Step 5.

Spray suspected air leak with soap and water

solution and look for air bubbles.

Fixing Leaks

Item Needed Qty

Wire Brush ......................................................... 1

Thread Sealing Tape or Pipe Dope

To fix leaks:

... As Needed

— If bubbles do not form, repeat at different

location.

— If bubbles do form, refer to Fixing

Leaks to stop compressor leak before proceeding to check delivery system.

Disconnect any tools and hoses from quick-

connect couplers of delivery system.

Open compressor output port shut-off valve.

Connect compressor to power, turn it ON,

and allow tank and air delivery system to fill until cut-out pressure of compressor is reached.

DISCONNECT MACHINE FROM POWER!

10. Listen for sound of air to find possible leak.

— If you do not hear air escaping, and pres-

sure in tank does not change, there is no leak at delivery system.

— If you do hear air escaping, or pressure

in tank drops even with safety relief valve and all drain valves closed, proceed to Step 11.

DISCONNECT MACHINE FROM POWER!

Releasing air through safety relief valve can be extremely loud. Protect hearing with ANSI-approved hearing protection while performing following step.

2. Use safety relief valve to reduce tank pres-

sure to less than 10 PSI.

Open drain valve(s) to relieve any remaining

air.

Remove fitting, valve, conduit, or filter that is

leaking.

Clean threads, apply thread sealing tape or

pipe dope to threads, then re-install part.

Note: If a fitting, valve, conduit, or filter con-

tinues to leak after preceding steps, replace part.

Spray suspected air leak with soap and water

11.

solution and look for air bubbles.

— If bubbles do not form, repeat at different

location.

— If bubbles do form, refer to Fixing Leaks.

Model G0954/55/56/57 (Mfd. Since 11/21)

-33-

Machine Storage

All machinery will develop serious rust problems and corrosion damage if it is not properly prepared for storage. Use the steps in this section to ensure that your machine remains in good condition.

To bring machine out of storage, perform the Tes t

Run beginning on Page 18.

Eye injury hazard! Always wear safety glasses when handling pressurized air system.

To prepare machine for storage:

1. DISCONNECT MACHINE FROM POWER!

Releasing air through safety relief valve can be extremely loud. Protect hearing with ANSI-approved hearing protection while performing following step.

2. Use safety relief valve to reduce tank pres-

sure to less than 10 PSI.

Open drain valve to drain any condensation

from tank.

Close output port shut-off valve.

Items Needed Qty

Cleaner/Degreaser ............................ As Needed

.................................................. As Needed

Rags Tarp or Plastic Sheet

T23951—Blue Tarp 8' x 10'

Made of woven polyethylene, these tarps are weather and tear resistant. They have UV lamination, heat-sealed seams, grommets, and reinforced edging with strong poly rope inside the hem on all four sides.

......................................... 1

5. Disconnect conduits from output port.

6. Clean machine.

Do not use a flammable cleanser to clean machine. Compressor components often produce sparks that could ignite once machine is connected to power and turned ON.

Close drain valve.

8. Cover machine with tarp or plastic sheet that

will keep out dust and resist liquid or moisture. If machine will be stored in/near direct sunlight, use cover that will block UV rays.

Figure 46. T23951 Blue Tarp 8' x 10'.

-34-

Model G0954/55/56/57 (Mfd. Since 11/21)

Review the troubleshooting procedures in this section if a problem develops with your machine. If you need

the

serial number and manufacture date of your machine before calling.

SECTION 7: SERVICE

replacement parts or additional help with a procedure, call our Technical Support. Note: Please gather

Troubleshooting

Motor & Electrical

Symptom Possible Cause Possible Solution

Machine does not start, or power supply breaker immediately trips after startup.

Machine stalls or is underpowered.

1. Tank already pressurized.

2. Incorrect power supply voltage or circuit size.

3. Incoming power wires wired incorrectly.

4. Pressure switch cut-in/cut-out settings have been adjusted incorrectly.

5. Power supply circuit breaker tripped or fuse blown.

6. Motor wires connected incorrectly.

7. Start capacitor at fault.

8. Centrifugal switch adjustment/contact points at fault.

9. Wiring broken, disconnected, or corroded.

10. Tripped motor thermal overload; compressor is exceeding its duty cycle.

11. Check valve components are dirty/damaged.

12. Pressure switch at fault.

13. Motor or motor bearings at fault.

1. Air ﬁlter(s) dirty/clogged.

2. Pump/motor have restricted airﬂow.

3. Belt slipping/pulley misaligned.

4. Motor wires connected incorrectly.

5. Pressure switch cut-in/cut-out settings have been adjusted incorrectly.

6. Incoming power wires wired incorrectly.

7. Pulley/ﬂywheel slipping on shaft.

8. Tripped motor thermal overload; compressor is exceeding its duty cycle.

9. Crankcase oil is not correct type.

10. Run capacitor at fault.

11. Check valve components are dirty/damaged.

12. Centrifugal switch/contact points at fault.

1. Motor will not start if tank is fully pressurized.

2. Ensure correct power supply voltage and circuit size (Page 11).

3. Test for good contacts/correct wiring (Page 43).

4. Adjust settings (Page 39). Do not exceed cut-in/cutout pressures listed on data sheet (Page 6) or inside pressure switch.

5. Ensure circuit is free of shorts. Reset circuit breaker or replace fuse.

6. Correct motor wiring connections (Page 43).

7. Test/replace if at fault.

8. Adjust centrifugal switch/clean contact points. Replace either if at fault.

9. Fix broken wires or disconnected/corroded connections (Page 43).

10. Reduce load on compressor and allow longer cool down periods.

11. Clean/replace check valve components.

12. Turn compressor OFF, disconnect from power, and empty tank. DO NOT USE until switch is replaced.

13. Replace motor.

1. Replace air ﬁlter(s) (Page 30).

2. Clean cylinder ﬁns, motor fan, and vent area.

3. Clean/tension/replace belt (Page 31); ensure pulley is aligned to pump ﬂywheel (Page 41).

4. Correct motor wiring connections (Page 43).

5. Adjust settings (Page 39). Do not exceed cut-in/cutout pressures listed on data sheet (Page 6) or inside pressure switch.

6. Test for good contacts/correct wiring (Page 43).

7. Tighten/replace loose pulley/ﬂywheel/shaft.

8. Reduce load on compressor and allow longer cool down periods.

9. Drain and replace with correct oil (Page 30).

10. Test/repair/replace.

11. Clean/replace check valve components.

12. Adjust centrifugal switch/clean contact points. Replace either if at fault.

Model G0954/55/56/57 (Mfd. Since 11/21)

-35-

Motor & Electrical (Cont.)

Symptom Possible Cause Possible Solution

Machine stalls or is underpowered.

Machine has vibration or noisy operation.

Motor runs continuously.

Pressure relief valve stays open and motor will not stop running.

13. Motor or motor bearings at fault.

14. Worn valves or rings/compressor pump at fault.

1. Motor or component loose.

2. Loose mounting hardware/feet need shims or vibration pads.

3. V-belt worn, loose, pulley misaligned, or belt slapping guard.

4. Pulley/ﬂywheel loose.

5. Motor fan rubbing on fan cover.

6. Centrifugal switch needs adjustment/at fault.

7. Motor bearings at fault.

8. Compressor pump at fault.

1. Machine is undersized.

2. In-line regulator(s) needs to be adjusted for lower airﬂow delivery.

3. Air leak in tank or delivery pipes.

4. Pressure switch at fault.

1. Pressure switch cut-in/cut-out settings have been adjusted incorrectly.

2. Pressure switch at fault, unit is trying to overpressurize tank.

3. Pressure relief valve at fault/relieving pressure too early.

13. Replace motor.

14. Rebuild/replace.

1. Replace damaged or missing bolts/nuts or tighten if loose.

2. Tighten fasteners/add shims or vibration pads.

3. Inspect/replace belt (Page 31). Realign pulley to pump ﬂywheel if necessary (Page 41).

4. Secure pulley/ﬂywheel on shaft.

5. Fix/replace fan cover; replace loose/damaged fan.

6. Adjust/replace if at fault.

7. Test by rotating shaft; rotational grinding/loose shaft requires bearing replacement.

8. Compressor piston rod/bearing/crankshaft is worn. Rebuild or replace pump.

1. Use smaller attachment tool(s) or larger air compressor.

2. Adjust regulator(s) to decrease line PSI.

3. Check air tank, pipes, and all connections for leaks (Page 32). Do not attempt to repair leaking/damaged tank, only replace.

4. Turn compressor OFF, disconnect from power, and empty tank. DO NOT USE until switch is replaced.

1. Adjust settings (Page 39). Do not exceed cut-in/cutout pressures listed on data sheet (Page 6) or inside pressure switch.

2. Turn compressor OFF, disconnect from power, and empty tank. DO NOT USE until switch is replaced.

3. Replace.

Operation

Symptom Possible Cause Possible Solution

Air leaks from pressure switch.

Low pressure in tank, or tank pressure drops after compressor is turned OFF.

-36-

1. Check valve components are dirty/damaged.

2. Pressure switch at fault.

1. Drain valve or output shut-off valve is open.

2. Air ﬁlter(s) dirty/clogged.

3. In-line regulator(s) needs to be adjusted for lower airﬂow delivery.

4. Pressure switch cut-in/cut-out settings have been adjusted incorrectly.

5. Air leak in tank or delivery pipes.

6. Check valve components are dirty/damaged.

1. Clean/replace check valve components.

2. Turn compressor OFF, disconnect from power, and empty tank. DO NOT USE until switch is replaced.

1. Close valve.

2. Replace air ﬁlter(s) (Page 30).

3. Adjust regulator(s) to decrease line PSI.

4. Adjust settings (Page 39). Do not exceed cut-in/cutout pressures listed on data sheet (Page 6) or inside pressure switch.

5. Check air tank, pipes, and all connections for leaks (Page 32). Do not attempt to repair leaking/damaged tank, only replace.

6. Clean/replace check valve components.

Model G0954/55/56/57 (Mfd. Since 11/21)

Operation (Cont.)

Symptom Possible Cause Possible Solution

Low pressure in tank, or tank pressure drops after compressor is turned OFF.

Air leaks from air ﬁlter(s).

Compressor does not build pressure, or does not reach full pressure.

Air tools have oily discharge.

Air tools have watery discharge or get cold and freeze up with ice during use.

Air tool has low supply pressure but compressor has sufﬁcient air pressure.

7. Pressure relief valve releasing below cut-out pressure.

8. Gasket(s) leaking.

9. Worn pump piston rings.

1. Check valve components are dirty/damaged.

2. Reed valve(s) not sealing.

1. Drain valve or output shut-off valve is open.

2. Tank needs to be drained.

3. Air ﬁlter(s) dirty/clogged.

4. Air leak in tank or delivery pipes.

5. Check valve components are dirty/damaged.

6. Reed valve(s) not sealing.

7. Head gasket or valve body gasket leaking.

8. Worn pump piston rings.

9. Broken crankshaft or connecting rod.

1. Tank needs to be drained.

2. Air ﬁlter(s) dirty/clogged.

3. Too much oil in crankcase.

4. In-line oiler is out of adjustment (if used).

5. In-line ﬁlter(s) is damaged or missing (if used).

6. Crankcase oil is not correct type.

7. Compressor pump at fault.

1. Tank needs to be drained.

2. In-line water separator(s) is full (if used).

3. Ambient environment has too much humidity.

1. Air hose is too long.

2. In-line regulator(s) needs to be adjusted for higher airﬂow delivery.

3. Machine is undersized.

4. In-line ﬁlter(s) is damaged or clogged (if used).

5. In-line water separator(s) is full (if used).

6. Pressure switch cut-in/cut-out settings have been adjusted incorrectly.

7. Air leaks in hose or delivery system.

8. In-line regulator(s) at fault.

9. Pressure gauge(s) at fault.

7. Replace pressure relief valve.

8. Check gaskets on cylinder head assemblies, repair or replace as needed.

9. Inspect and replace pump piston rings.

1. Clean/replace check valve components.

2. Remove cylinder head and replace reed valve(s).

1. Close valve.

2. Open drain valve to drain condensation, then close.

3. Replace air ﬁlter(s) (Page 30).

4. Check air tank, pipes, and all connections for leaks (Page 32). Do not attempt to repair leaking/damaged tank, only replace.

5. Clean/replace check valve components.

6. Remove cylinder head and replace reed valve(s).

7. Remove cylinder head and replace gasket(s).

8. Inspect and replace pump piston rings.

9. Replace or rebuild compressor pump.

1. Open drain valve to drain condensation, then close.

2. Replace air ﬁlter(s) (Page 30).

3. Drain oil to proper level (Page 30).

4. Adjust in-line oiler drip ratio or use correct viscosity oil.

5. Replace ﬁlter(s) or in-line ﬁlter assembly.

6. Drain and replace with correct oil (Page 30).

7. Worn compressor piston, rings, or valves. Rebuild or replace pump.

1. Open drain valve to drain condensation, then close.

2. Drain water separator(s).

3. Install in-line air dryer(s) and water separator(s).

1. Use shorter hose.

2. Adjust regulator(s) to increase line PSI. DO NOT exceed pressure rating of attached tool.

3. Use smaller attachment tool(s) or larger air compressor.

4. Replace ﬁlter(s) or in-line ﬁlter assembly.

5. Drain water separator(s).

6. Adjust settings (Page 39). Do not exceed cut-in/cutout pressures listed on data sheet (Page 6) or inside pressure switch.

7. Check air hoses and all connections for leaks (Page 32).

8. Inspect in-line regulator(s) for leaks. Replace if at fault.

9. Replace pressure gauge(s).

Model G0954/55/56/57 (Mfd. Since 11/21)

-37-

Operation (Cont.)

Symptom Possible Cause Possible Solution

Safety relief valve leaks.

Delivered air is dirty or has excessive moisture.

Compressor knocking.

Excessive noise while running.

Oil leaks onto compressor or ﬂoor.

1. Pressure switch cut-in/cut-out settings have been adjusted incorrectly.

2. Safety relief valve at fault.

3. Pressure switch at fault.

1. Tank needs to be drained.

2. In-line ﬁlter(s) or water separator(s) needed in air supply line.

3. Delivery pipes are dirty (if used).

1. Air ﬁlter(s) dirty/clogged.

2. Crankcase oil is low.

3. Pulley/ﬂywheel loose.

4. Excess carbon build-up on piston or valves.

5. Piston assembly loose.

1. Crankcase oil is not correct type. 1. Drain and replace with correct oil (Page 30).

1. Oil spilled when ﬁlling.

2. Air ﬁlter(s) dirty/clogged.

3. Too much oil in crankcase.

4. Crankcase oil is not correct type.

5. Oil ﬁll plug/gasket is worn or damaged.

6. Pump gasket(s) worn or damaged.

7. Cylinder head cap screws loose.

8. Valve, plate, or ring is loose/damaged.

9. Damaged crankcase seal.

10. Damaged crankshaft.

1. Adjust settings (Page 39). Do not exceed cut-in/cutout pressures listed on data sheet (Page 6) or inside pressure switch.

2. Test/replace.

3. Turn compressor OFF, disconnect from power, and empty tank. DO NOT USE until switch is replaced.

1. Open drain valve to drain condensation, then close.

2. Install in-line air ﬁlter(s) and water separator(s).

3. Remove delivery pipes, clean out, and replace.

1. Replace air ﬁlter(s) (Page 30).

2. Add crankcase oil (Page 29).

3. Secure pulley/ﬂywheel on shaft.

4. Take compressor to authorized service center.

5. Inspect and repair piston and connecting rod.

1. Wipe unit clean with non-ﬂammable cleanser.

2. Replace air ﬁlter(s) (Page 30).

3. Drain oil to proper level (Page 30).

4. Drain and replace with correct oil (Page 30).

5. Replace gasket or ﬁll plug.

6. Replace gasket(s).

7. Install cap screws with thread sealing tape.

8. Tighten or replace valve/plate/ring.

9. Replace crankcase or seal.

10. Repair/replace crankshaft.

-38-

Model G0954/55/56/57 (Mfd. Since 11/21)

Adjusting Cut-In/

Cut-Out Settings

The pressure switch ensures the compressor will turn ON when the tank pressure drops to the cutin pressure, and will turn OFF when the pressure cut-out is reached. Should the pressure switch fail to turn OFF the machine, the safety relief valve will open shortly after the pressure exceeds the cut-out pressure and prevent over-pressurization.

Cut-in and cut-out settings have been factory set at proper PSI range. Only adjust pressure switch settings if compressor is cutting-in or cutting-out at incorrect pressures. Tank could burst if filled with more pressure than it is designed for.

Eye injury hazard! Always wear safety glasses when handling pressurized air system.

Adjusting Cut-In/Cut-Out Settings

If the minimum and maximum tank pressure settings both have to be raised or lowered at the same time, then follow these steps.

Releasing air through safety relief valve can be extremely loud. Protect hearing with ANSI-approved hearing protection while performing following step.

3. Use safety relief valve to reduce tank pres-

sure to less than 10 PSI.

G0954/G0955/G0956 Only: Remove

4. Phillips head screw shown in Figure 47 to remove pressure switch cover.

Pressure

Switch

Cover

Figure 47. Location of pressure switch cover

Phillips head screw (G0956 shown).

G0957 Only: Remove flat head screw shown

in Figure 48 to remove pressure switch cover.

Tools Needed Qty

Phillips Head Screwdriver #2 ............................ 1

Flat Head Screwdriver (G0954/G0955/G0956 Only)

To adjust cut-in/cut-out settings:

Operate compressor and record cut-in and

cut-out pressures.

DISCONNECT MACHINE FROM POWER!

Model G0954/55/56/57 (Mfd. Since 11/21)

⁄4"

............................. 1

Pressure

Switch

Cover

Figure 48. Location of pressure switch cover flat

head screw (G0957 shown).

-39-

G0954/G0955/G0956 Only: Adjust screw

shown in Figure 49 to change minimum and maximum tank pressure settings.

Cut-In/

Cut-Out

Adjustment

Screw

7. G0954/G0955/G0956 Only: Connect machine to power, start compressor, and cycle compressor through cut-in/cut-out pressures. If compressor does not automatically turn OFF at 125 PSI, turn machine OFF before pressure reaches 130 PSI. Adjust pressure switch settings until cut-out pressure is 125 PSI or lower.

G0957 Only: Connect machine to power, start

compressor, and cycle compressor through cut-in/cut-out pressures. If compressor does not automatically turn OFF at 175 PSI, turn machine OFF before pressure reaches 180 PSI. Adjust pressure switch settings until cutout pressure is 175 PSI or lower.

Figure 49. Location of cut-in/cut-out adjustment

screw (G0956 shown).

G0957 Only: Adjust screw shown in Figure

50 to change minimum and maximum tank pressure settings.

Cut-In/Cut-Out

Adjustment Screw

Figure 50. Location of cut-in/cut-out adjustment

screw (G0957 shown).

Adjusting Only Cut-Out Setting

If only the maximum tank pressure setting needs to be adjusted, then follow these steps. Keep in mind that the allowable pressure differential between cut-in pressure and cut-out pressure must be kept between 30–40 PSI. Exceeding this range can cause the compressor to overheat.

Tools Needed Qty

Phillips Head Screwdriver #2 ............................ 1

Flat Head Screwdriver (G0954/G0955/G0956 Only)

To adjust cut-out settings:

Perform Steps 1–4 of Adjusting Cut-In/Cut-

1. Out Settings on Page 39.

G0954/G0955/G0956 Only: Adjust screw

shown in Figure 51 to change maximum tank pressure setting.

⁄4"

............................. 1

— Turn screw half turn clockwise to increase

both settings.

— Turn screw half turn counterclockwise to

decrease both settings.

Install pressure switch cover.

-40-

Cut-Out

Adjustment

Screw

Figure 51. Location of cut-out only adjustment

screw (G0956 shown).

Model G0954/55/56/57 (Mfd. Since 11/21)

G0957 Only: Adjust screw shown in Figure

52 to change maximum tank pressure setting.

Cut-Out

Adjustment

Screw

Figure 52. Location of cut-in/cut-out adjustment

screw (G0957 shown).

— Turn screw half turn clockwise to increase

tank pressure.

— Turn screw half turn counterclockwise to

decrease tank pressure.

Aligning

Motor Pulley to

Pump Flywheel

Pulley alignment is an important factor in power transmission and belt life. The motor pulley should be parallel to the pump flywheel and they should be in the same plane (coplanar) for optimum performance.

The motor pulley alignment can be adjusted by loosening the set screws that secure it to the motor shaft.

Tools Needed Qty

Wrench or Socket 13mm ................................... 1

Straightedge 36" Measuring Tape Hex Wrench

To align motor pulley to pump flywheel:

................................................ 1

................................................. 1

⁄32" ................................................ 1

Install pressure switch cover.

4. G0954/G0955/G0956 Only: Connect

machine to power, start compressor, and cycle compressor through cut-in/cut-out pressures. If compressor does not automatically turn OFF at 125 PSI, turn machine OFF before pressure reaches 130 PSI. Adjust pressure switch settings until cut-out pressure is 125 PSI or lower.

G0957 Only: Connect machine to power, start

DISCONNECT MACHINE FROM POWER!

Turn (5) rubber guard clips (see Figure 53),

then remove clips and rear belt guard.

Rubber

Guard Clip

Rear Belt Guard

Figure 53. Location of rear belt guard and clips.

(1 of 5)

Model G0954/55/56/57 (Mfd. Since 11/21)

Belt, pulley, and flywheel will be hot after operation. Allow them to cool before handling.

-41-

3. Place straightedge so it is flush against pump flywheel and it extends over motor pulley (see Figure 54).

Pump Flywheel

5. Loosen (2) motor pulley set screws (see Figure 56).

Motor

Straightedge

Pulley

Figure 54. Example of using straightedge to

check pulley alignment.

Measure distance between straightedge and

V-belt at "A", "B", and "C" locations shown in Figure 55.

— If measurements are all within 1⁄16" of each

other, pulley and flywheel are coplanar and do not need to be adjusted. Proceed to Step 7.

— If measurements are not all within 1⁄16" of

each other, pulley and flywheel are not coplanar. Proceed to Step 5.

Figure 56. Location of motor pulley set screws.

Adjust position of motor pulley on shaft until

distances from Step 4 (see Figure 55) are

within

⁄16" of each other, then tighten set

screws.

Install belt guard.

-42-

Pump

Motor Pulley

B C

Flywheel

Figure 55. Distances to measure.

Model G0954/55/56/57 (Mfd. Since 11/21)

These pages are current at the time of printing. However, in the spirit of improvement, we may make changes to the electrical systems of future machines. Compare the manufacture date of your machine to the one

number and manufacture date of your

machine before calling. This information can be found on the main machine label.

machine

SECTION 8: WIRING

stated in this manual, and study this section carefully.

If there are differences between your machine and what is shown in this section, call Technical Support at (570) 546-9663 for assistance BEFORE making any changes to the wiring on your machine. An updated wiring diagram may be available. Note: Please gather the serial

Wiring Safety Instructions

SHOCK HAZARD. Working on wiring that is con-

nected to a power source is extremely dangerous. Touching electrified parts will result in personal injury including but not limited to severe burns, electrocution, or death. Disconnect the power from the machine before servicing electrical components!

MODIFICATIONS. Modifying the wiring beyond what is shown in the diagram may lead to unpredictable results, including serious injury or fire. This includes the installation of unapproved aftermarket parts.

WIRE CONNECTIONS. All connections must be tight to prevent wires from loosening during machine operation. Double-check all wires disconnected or connected during any wiring task to ensure tight connections.

CIRCUIT REQUIREMENTS. You MUST follow the requirements at the beginning of this manual when connecting your machine to a power source.

WIRE/COMPONENT DAMAGE. Damaged wires or components increase the risk of serious personal injury, fire, or machine damage. If you notice that any wires or components are damaged while performing a wiring task, replace those wires or components.

MOTOR WIRING. The motor wiring shown in these diagrams is current at the time of printing but may not match your machine. If you find this to be the case, use the wiring diagram inside the motor junction box.

CAPACITORS/INVERTERS. Some capacitors and power inverters store an electrical charge for up to 10 minutes after being disconnected from the power source. To reduce the risk of being shocked, wait at least this long before working on capacitors.

EXPERIENCING DIFFICULTIES. If you are experiencing difficulties understanding the information included in this section, contact our Technical Support at (570) 546-9663.

The photos and diagrams included in this section are best viewed in color. You can view these pages in color at www.grizzly.com.

Model G0954/55/56/57 (Mfd. Since 11/21)

-43-

G0954 Wiring Diagram

MOTOR 240V

Figure 57. Capacitor wiring.

Figure 58. Motor wiring.

Run

Capacitor

15uF 370V

Start

Capacitor

189−227uF 220V

Ground

240

VAC

Hot

DISCONNECT

SWITCH

(as recommended

-44-

READ ELECTRICAL SAFETY

)

ON PAGE 43!

GND

LINE

MOTOR

PRESSURE

SWITCH

LEFOO LF10-4H

Figure 59. Pressure switch wiring.

Model G0954/55/56/57 (Mfd. Since 11/21)

G0955/G0956 Wiring Diagram

MOTOR 230V

Figure 60. Capacitor wiring.

Figure 61. Motor wiring.

Start

Capacitor

CD60

300uF 250V

Run

Capacitor

CBB60

45uF 450V

Ground

230

VAC

Hot

PRESSURE

DISCONNECT

SWITCH

(as recommended

Model G0954/55/56/57 (Mfd. Since 11/21)

)

GND

LINE

MOTOR

SWITCH

LEFOO LF10-4H

Figure 62. Pressure switch wiring.

READ ELECTRICAL SAFETY

ON PAGE 43!

-45-

G0957 Wiring Diagram

MOTOR 230V

Figure 63. Capacitor wiring.

Figure 64. Motor wiring.

PRESSURE

SWITCH

CONDOR MDR11-11EA

Start

Capacitor

CD60

300uF 250V

Run

Capacitor

CBB60

45uF 450V

-46-

LINE

MOTOR

GND

DISCONNECT

SWITCH

(as recommended

Ground

230

VAC

READ ELECTRICAL SAFETY

ON PAGE 43!

Hot

)

Figure 65. Pressure switch wiring.

Model G0954/55/56/57 (Mfd. Since 11/21)

SECTION 9: PARTS

To order parts, contact MEGA by phone at (832) 415-6995 or email at CS@megacompressor.com.

G0954 Pump

Model G0954/55/56/57 (Mfd. Since 11/21)

-47-

REF DES CRIPTIO N Q TY REF DES CRIPTIO N Q TY

G0954 Pump Parts List

1 CRANKCASE 1 25 ELBOW FITTING 7/8" X 3/4" 1 2 OIL DRAIN PLUG 1 26 PISTON RING 65 X 2.5 X 4MM 2 3 O-RING 20 X 0.3 1 27 PISTON RING 65 X 2.5 X 2. 5MM 4 4 OIL SIGHT GLASS 1 28 PISTON 2 5 OIL FILL PLUG 1 29 PISTON PIN 2 6 CYLINDER GASKET (LOWER) 2 30 EX T RETAI NI NG RI NG 14MM 4 7 CYLINDER 2 31 PISTON ROD 2 8 FLAT WASHER 8MM 8 32 BALL BEARING 6204-OPEN 1 9 HEX BOLT M8-1.25 X 20 8 33 HEX BOLT M8-1.25 X 35 4 10 CYLINDER GASKET (UPPER) 2 34 FLA T WASHE R 8MM 4 11 VALVE DISC 65MM 2 35 CRANK SHAFT 1 12 VALVE PLATE 10 X 47 X 0.3MM 4 36 BALL BEARING 6205-OPEN 1 13 VALVE PLATE GASKET (LOWER) 2 37 OIL SEAL 1 14 VALVE PLATE GASKET (UPPER) 2 38 CRANKCASE COVER GASKET 1 15 HEAD GASKET 2 39 CRANKCASE COVER 1 16 AIR FILTER ASSEMBLY 2 40 LOCK WASHER 8MM 4 19 HEX BOLT M6-1 X 40 8 41 HEX BOLT M8-1.25 X 20 4 20 FLAT WASHER 6 MM 8 42 B REATHE R CAP 1 21 TEE FITTING 7/8" 2 X 3/4" 1 43 COMPRESSOR PULLEY 1 22 HEX NUT 3/4-16 2 44 FLAT WASHE R 8MM 1 23 FI N TUBE 1 45 HEX BOLT M8-1.25 X 35 1

-48-

Model G0954/55/56/57 (Mfd. Since 11/21)

G0954 Tank & Motor

123

125

124

112

111

113

126

116

117

115

114

119

124

127

109

106

108

107

105

104

127

123

124

103

101

110

118

123

125

128

122

120

Model G0954/55/56/57 (Mfd. Since 11/21)

121

-49-

REF DES CRIPTION QTY REF DES CRIPTION QTY

G0954 Tank & Motor Parts List

101 TANK 1 116 PUMP DISCHARGE LINE 12MM 1 103 MOTOR 3HP 240V 1-PH 1 117 DISCHARGE PIPE 6MM 1 104 KEY 3/16 X 3/16 X 1-3/8 1 118 PRESSURE GAUGE 1/4" NPT 1 105 MOTOR PULLEY 1 119 FLANGE JOINT 1/2" NPT X 2" 1 106 V-BELT A47 1 120 FLANGE JOINT 1/4" NPT X 2" 1 107 SET SCREW 5/16-18 X 6 1 121 BALL DRAIN VALVE 1/4" NPT 1 108 BELT GUARD (FRONT) 1 122 BALL VALVE 1/2" NPT 1 109 BELT GUARD (REAR) 1 123 LOCK WASHER 8MM 14 110 PIPE NIPPLE 1/4" NPT X 1-1/2"L 1 124 FENDER WASHER 8MM 18 111 PRESSURE SWITCH LEFOO L4 1 125 HEX NUT M8 -1.25 14 112 SAFETY RELIEF VALVE 1/4" NPT 1 126 HEX BOLT M8-1.25 X 35 4 113 PIPE NIPPLE 1/4" X 1/8" NPT 1 127 HEX BOLT M8-1.25 X 25 10 114 THREADED CHECK VALVE M18-2.5 X 1/ 2" NPT 1 128 MOTOR CORD 12G 3W 12" 1 115 ELBOW FITTING 90-DEG 1/4" X 1/8" NPT 1

-50-

Model G0954/55/56/57 (Mfd. Since 11/21)

G0955/G0956 Pump

Model G0954/55/56/57 (Mfd. Since 11/21)

-51-

REF DES CRIP TION QTY REF DES CRIP TION QTY

G0955/G0956 Pump Parts List

1 CRANKCASE LB40-3 LB40C 1 25 CYLINDER 65MM M8-1.25 3 2 OIL DRAIN PLUG ZG 1/4" 1 26 HEX NUT M8- 1. 25 12 3 STUD-SE M8-1.25 X 17, 10 12 27 CYLINDER HEAD 65MM M8-1.25 3 4 CRANKSHAFT BEARING SEAT 1 28 CYLINDER HEAD GASKET 3 5 CAP EXTENSION 1/4" M16-2 X 1.5 1 29 VALVE PLATE ASSEMBLY 65MM 3 6 OIL SEAL AS 24 X 47 X 8 1 30 CAP SCREW M8-1.25 X 45 12 7 BALL BEARING 6205Z 1 31 CYLINDER GASKET (UPPER) 3 8 BEARING SEAT GASKET 1 32 TEE FITTING 160-DEG ZG 1/2" 2 X 3/4" 1 9 HEX BOLT M8-1.25 X 25 4 33 TEE FITTING 180-DEG ZG 1/2" 2 X 3/4" 1 10 LOCK WASHER 8MM 28 34 ELBOW FITTING 90-DEG R 1/2" 3/4" 1 11 CRACKSHAFT LB40-3 1 35 FIN PIPE ASSEMBLY 2 12 PISTON ROD 30 X 14.5 X 108 3 36 COMPRESSOR PULLEY 320MM 1 13 PHLP HD SCR M5-.8 X 10 3 37 WO ODRUFF KEY 5 X 19MM FB 1 14 OIL SPLASHER LB30 3 38 FLAT WASHER 8 X 38 X 5MM 1 15 PISTON 65MM 3 39 HEX BOLT M8-1.25 X 40 LH 1 16 PISTON PIN 14.5 X 57.5 3 40 LOCK WASHER 8MM 1 17 I NT RETA I NI NG RING 15 MM 6 41 OIL SIGHT GLASS G 3/4" ALUMININUM 1 18 PISTON RING SET 65MM (3 SET) 3 42 BREATHER CAP M16-2 X 1.5 1 19 BALL BEARING 6205ZZ 1 43 AIR FILTER ASSEMBLY 3 20 BEARING COVER GASKET 1 44 CAP SCREW M8-1.25 X 30 6 21 TRIANGLE BEARING COVER 4MM 1 45 FLAT WAS HER 8MM 6 22 HEX BOLT M6-1 X 20 3 46 OIL FILL PLUG M16-2 X 3 1 23 LOCK WASHER 6MM 3 47 EXHAUST NUT 3/4"-27 1 24 CYLINDER GASKET (LOWER) 3

-52-

Model G0954/55/56/57 (Mfd. Since 11/21)

116

G0955 Tank & Motor

106

109

123

124

112

111

126

110

113

117

118

114

119

115

124

127

123

125

108

107

105

104

127

123

124

103

101

128

122

120

121

Model G0954/55/56/57 (Mfd. Since 11/21)

-53-

REF DESCRI PTION QTY RE F DES CRIPTION QTY

G0955 Tank & Motor Parts List

101 TANK 1 116 PUMP DISCHARGE LINE 12MM 1 103 MOTOR 5HP 230V 1-PH 1 117 DISCHARGE PIPE 6MM 1 104 KEY 3/16 X 3/16 X 1-3/8 1 118 PRESSURE GAUGE 1/4" NPT 1 105 MOTOR PULLEY 1 119 FLANGE JOINT 1/2" NPT X 2" 1 106 V-BELT A51 1 120 FLANGE JOINT 1/4" NPT X 2" 1 107 SET SCREW 5/16-18 X 6 1 121 BALL DRAIN VALVE 1/4" NPT 1 108 BELT GUA RD (FRONT) 1 122 BALL VALVE 1/2" NPT 1 109 BELT GUARD (REAR) 1 123 LOCK WASHER 8MM 14 110 PIPE NIPPLE 1/4" NPT X 1-1/2"L 1 124 FENDER WASHER 8 MM 18 111 PRESSURE SWITCH LEFOO 1 125 HE X NUT M8-1. 25 14 112 SAFETY RELIEF VALVE 1/4" NPT 1 126 HEX BOLT M8-1.25 X 35 4 113 PIPE NIPPLE 1/4" X 1/8" NPT 1 127 HEX BOLT M8-1.25 X 25 10 114 THREADED CHECK VALVE M18-2.5 X 1/2" NPT 1 128 MOTOR CORD 10G 3W 12" 1 115 ELBOW FITTING 90-DEG 1/4" X 1/8" NPT 1

-54-

Model G0954/55/56/57 (Mfd. Since 11/21)

116

G0956 Tank & Motor

123

125

112

126

111

124

119

117

114

115

127

123

125

108

124

106

109

107

104

105

127

123

124

101

113

110

118

103

128

122

120

Model G0954/55/56/57 (Mfd. Since 11/21)

121

-55-

REF DES CRIP TION QTY RE F DESCRI PTIO N QTY

G0956 Tank & Motor Parts List

101 TANK 1 116 PUMP DISCHARGE LINE 12MM 1 103 MOTOR 5HP 230V 1-PH 1 117 DISCHARGE PIPE 6MM 1 104 KEY 3/16 X 3/16 X 1-3/8 1 118 PRESSURE GAUGE 1/4" NPT 1 105 MOTOR PULLEY 1 119 FLANGE JOI NT 1/2" NPT X 2" 1 106 V-BELT A51 1 120 FLANGE JOINT 1/4" NPT X 2" 1 107 SET SCREW 5/16-18 X 6 1 121 BALL DRAIN VALVE 1/4" NPT 1 108 BELT G UARD (FRONT) 1 122 BALL VALVE 1/2" NPT 1 109 BELT GUARD (REAR) 1 123 LOCK WASHER 8MM 14 110 PIPE NIPPLE 1/4" NPT X 1-1/2"L 1 124 FENDER WA SHER 8MM 18 111 PRESSURE SWITCH LEFOO 1 125 HEX NUT M8 -1.25 14 112 SAFETY RELIEF VALVE 1/4" NPT 1 126 HEX BOLT M8-1. 25 X 35 4 113 PIPE NIPPLE 1/8" NPT X 1/8"L 1 127 HEX BOLT M8-1.25 X 25 10 114 THREADED CHECK VALVE M18-2.5 X 1/ 2" NPT 1 128 MOTOR CORD 10G 3W 12" 1 115 ELBOW FITTING 90-DEG 1/8" NPT X 6MM 1

-56-

Model G0954/55/56/57 (Mfd. Since 11/21)

G0957 Pump

Model G0954/55/56/57 (Mfd. Since 11/21)

-57-

REF DES CRIPTIO N Q TY REF DESCRIP TION QTY

G0957 Pump Parts List

1 CRANKCASE 1 33 CYLINDER GASKET (UPPER) 3 2 OIL DRAIN PLUG 1 34 CYLINDER HEAD GASKET 3 3 OIL SIGHT GLASS 1 35 CYLI NDER HEAD 3 4 OIL FILL PLUG 1 36 HEX BOLT M6-1 X 40 3 5 CRANKSHAFT 1 38 HEX BOLT M8-1.25 X 50 12 6 BALL BEARING 6205-OPEN 1 40 CYLINDER (STAGE 2) 1 7 BEARING SEAT GASKET 1 41 CONNECTI NG ROD (S TAGE 2) 1 8 BALL BEARING 6206-OPEN 1 44 PISTON (STAGE 2) 1 9 CRANKSHAFT BEARING SEAT 1 46 PISTON PIN (STAGE 2) 1 10 OIL SEAL 1 47 COMPRESSOR OIL RING (STAGE 2) 1 11 FLAT WASHER 32 X 50 X 1.5MM 1 48 PISTON RING SET (STAGE 2) 3 12 EXT RETAI NI NG RI NG 32MM 1 51 VALVE SEAT 3 13 WOODRUFF KEY 5 X 19MM 1 52 INLET VALVE PLATE 3 14 HEX BOLT M8-1.25 X 20 4 53 OUTLET VALVE PLATE (LOWER) 6 15 COMPRESSOR PULLEY 1 54 OUTLET VALVE PLATE (UPPER) 6 16 FLAT WASHER 8.2 X 48 X 6MM 1 55 HEX BOLT M3-.5 X 13 18 17 LOCK WASHER 8MM 1 60 AI R FILTER ASSEMBLY 2 18 HEX BOLT M8-1.25 X 35 1 61 FI LTER MOUNT 2 19 BREATHER CAP 1 62 FILTER BASE 2 21 CONNECTI NG ROD (STA GE 1 ) 2 63 FILTER 2 22 OIL SPLASH PLATE 2 64 FILTER COVER 2 23 HEX BOLT M5-.8 X 10 2 65 WING NUT M6 -1 2 24 PISTON (STAGE 1) 2 66 FILTER GASKET 2 25 I NT RETAI NI NG RI NG 14. 5MM 6 71 ELBOW FITTING 90-DEG 7/8" X 3/4" 3 26 PISTON PIN (STAGE 1) 2 72 BUSHI NG 1 27 COMPRESSOR OIL RING (STAGE 1) 2 73 TEE-FITTING 7/8" 2 X 3/4" 1 28 PISTON RING SET (STAGE 1) 4 75 FIN PIPE ASSEMBLY (STAGE 1) 1 29 CYLINDER GASKET (LOWER) 3 76 STRAIGHT PIPE CONNECTOR 3/4-16 4 30 CYLINDER (STAGE 1) 2 77 FIN PIPE ASSEMBLY (STAGE 2) 1 31 HEX BOLT M8-1.25 X 25 12 78 FLA T WASHE R 6MM 3

-58-

Model G0954/55/56/57 (Mfd. Since 11/21)

108

G0957 Tank & Motor

127

129

111

112

113

126

114

128

110

109

107

106

134

132

116

130

131

115

121

118

101

103

104

105

120

119

133

117

125

124

123

122

Model G0954/55/56/57 (Mfd. Since 11/21)

-59-

REF DES CRIPTIO N Q TY RE F DES CRIPTION QTY

G0957 Tank & Motor Parts List

101 TANK 1 119 MOTOR PULLEY 1 103 FLANGE JOINT 1/4" 1 120 MOTOR CORD 12G 3W 16" 1 104 BALL DRAIN VALVE 1/4" 1 121 V-BELT B53 5L560 1 105 BALL VALVE 1/2" 1 122 HEX BOLT M8-1.25 X 25 4 106 FLANGE JOINT 1/2" 1 123 FLAT WASHE R 8MM 8 107 THREADED CHECK VALVE 1/2" X 3/4-16 1 124 LOCK WASHER 8MM 4 108 PUMP DISCHARGE LINE 3/4-16 MM 1 125 HEX NUT M8- 1. 25 4 109 ELBOW FITTING 90-DEG 1/4" X 1/8" 1 126 HEX BOLT M8-1.25 X 25 4 110 DISCHARGE PIPE 6MM 1 127 FLAT WASHER 8MM 4 111 PRESSURE GAUGE 1 128 LOCK WASHER 8MM 4 112 PRESS URE SWITCH CONDOR MDR1 1/ 11E A 1 129 HEX NUT M8-1 . 25 4 113 SAFETY RELIEF VALVE 1/4" NPT 1 130 HEX BOLT M6-1 X 20 6 114 PIPE NIPPLE 1/4" NPT X 1-1/2"L 1 131 FENDE R WASHER 6MM 6 115 BELT G UARD FRONT 1 132 BELT GUARD CLIP RUBBER 5 116 BELT GUARD REAR 1 133 SET SCREW 5/16-18 X 6 3 117 MOTOR 5HP 230V 1-PH 1 134 HEX NUT M6-1 6 118 KEY 3/32 X 3/32 X 3/16 1

-60-

Model G0954/55/56/57 (Mfd. Since 11/21)

G0954 Shown

G0955 Shown

201

Labels & Cosmetics

201

209

202

SSEMBLED IN

WITH US & GLOBAL PARTS

203

WARNING!

DRAIN TANK

AFTER

EVERY USE!

204

205

MODEL G0954

60-GALLON 3 HP STATIONARY AIR COMPRESSOR

Specifications

Motor: 3 HP, 240V, 1-Ph, 60 Hz Full-Load Current Rating: 15A Pump Type: One-Stage Max. Airflow @ 90 PSI: 10.2 CFM Cut-Out Pressure: 125 PSI Cut-In Pressure: 95 PSI Duty Cycle: 65/35 Tank Size: 60 Gallons Connection Size: 1/2" NPT Weight: 305 lbs.

Mfd. for Grizzly in USA

To reduce the risk of serious injury when using this machine:

1. Read and understand owner’s manual before operating.

2. Always wear ANSI-approved eye protection and any additional personal protective equipment required by attachment tools.

3. Properly ground machine—connect to permanently grounded metal wiring system or an equipment grounding conductor.

4. DO NOT use this air compressor for breathable air supply.

5. DO NOT touch compressor parts during or immediately following operation. These parts will be hot.

6. Disconnect power and drain tank before moving or servicing. DO NOT pull compressor by power conduit or air hose.

7. DO NOT adjust or remove safety valve or modify machine.

Date

8. Only operate in well-ventilated area free of combustible materials. DO NOT smoke while spraying, and do not spray flammable material in confined area near flame/compressor.

S/N

Locate compressor at least 20 feet from spray area.

9. Only operate with all guards, covers, and parts in place.

10. Never leave machine running unattended.

WARNING!

11. Avoid entanglement with moving parts—tie back long hair, roll up sleeves, and do not wear loose clothing, gloves, or jewelry.

12. DO NOT use if power supply wires, conduit, or any other

electrical equipment becomes damaged—promptly repair!

13. DO NOT stand on compressor or obstruct airflow to ventilation.

14. DO NOT exceed pressure rating of tools or attachments.

15. DO NOT aim compressed air at body parts or people.

16. Inspect compressor, air lines, valves, and tank for damage,

leaks, weakness, looseness, or excessive wear. Repair/replace

defective items before operating.

17. Drain moisture from tank after each use and promptly replace a damaged tank. DO NOT attempt to weld on, modify, or repair tank.

18. DO NOT expose to rain or use in wet locations.

19. DO NOT operate under influence of drugs or alcohol or when tired.

20. Prevent unauthorized use by children or untrained users.

206

G0954

207

grizzly.com

208

REF PART # DESCRI PTION REF PART # DE SCRIP TI ON

201 P0954201 ELECTRICITY LABEL 206 P0955206 EXTREME SERIES LABEL (G0955/G0957) 202 P0954202 ASSEMBLED IN USA LABEL 207 P0954207 MODEL NUMBER LABEL 203 P0954203 DRAIN TANK LABEL 208 P0954208 GRIZZLY.COM LABEL 204 P0954204 GRIZZLY PRO LABEL (G0954/G0956) 209 P0954209 TOUCH- UP PA I NT, GRIZZLY GREEN 205 P0954205 MACHINE ID LABEL

Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes off or becomes unreadable, the owner of this machine MUST replace it in the original location before resuming operations. For replacements, contact (800) 523-4777 or www.grizzly.com.

Model G0954/55/56/57 (Mfd. Since 11/21)

-61-

Grizzly G0954, G0955, G0956, G0957 User guide

Specifications and Main Features

Frequently Asked Questions

User Manual

INTRODUCTION

Contact Info

Manual Accuracy

Identification

Machine Data Sheet

SECTION 1: SAFETY

Safety Instructions for Machinery

Additional Safety for Air Compressors

SECTION 2: POWER SUPPLY

SECTION 3: SETUP

Unpacking

Needed for Setup

Inventory

Site Considerations

Lifting & Placing

Anchoring to Floor

Power Connection

Test Run

SECTION 4: OPERATIONS

Operation Overview

Choosing Air Hoses

Connecting Air Tools

SECTION 5: ACCESSORIES

SECTION 6: MAINTENANCE

Schedule

Draining Tank

Lubrication

Checking Air Filters

Checking for Leaks

Machine Storage

SECTION 7: SERVICE

Troubleshooting

Adjusting Cut-In/Cut-Out Settings

SECTION 8: WIRING

Wiring Safety Instructions

G0954 Wiring Diagram

G0955/G0956 Wiring Diagram

G0957 Wiring Diagram

SECTION 9: PARTS

G0954 Pump

G0954 Tank & Motor

G0955/G0956 Pump

G0955 Tank & Motor

G0956 Tank & Motor

G0957 Pump

G0957 Tank & Motor

Labels & Cosmetics
