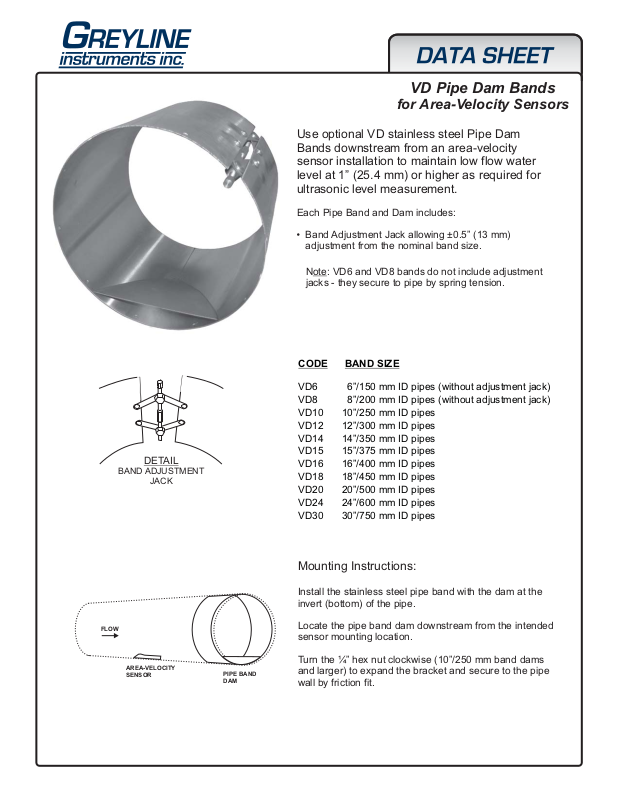

Greyline Instruments VD Specifications

VD Pipe Dam Bands

for Area-Velocity Sensors

Use optional VD stainless steel Pipe Dam
Bands downstream from an area-velocity
sensor installation to maintain low flow water
level at 1” (25.4 mm) or higher as required for
ultrasonic level measurement.

Each Pipe Band and Dam includes:

!

Band Adjustment Jack allowing ±0.5” (13 mm)
adjustment from the nominal band size.

ote

N : VD6 and VD8 bands do not include adjustment
jacks - they secure to pipe by spring tension.

CODE BAND SIZE

DETAIL

BAND ADJUSTMENT

FLOW

JACK

AREA-VELOCITY
SENSOR

PIPE BAND
DAM

VD6 6”/150 mm ID pipes (without adjustment jack)
VD8 8”/200 mm ID pipes

(without adjustment jack)
VD10 10”/250 mm ID pipes
VD12 12”/300 mm ID pipes
VD14 14”/350 mm ID pipes
VD15 15”/375 mm ID pipes
VD16 16”/400 mm ID pipes
VD18 18”/450 mm ID pipes
VD20 20”/500 mm ID pipes
VD24 24”/600 mm ID pipes
VD30 30”/750 mm ID pipes

Mounting Instructions:

Install the stainless steel pipe band with the dam at the
invert (bottom) of the pipe.

Locate the pipe band dam downstream from the intended
sensor mounting location.

Turn the ¼” hex nut clockwise (10”/250 mm band dams
and larger) to expand the bracket and secure to the pipe
wall by friction fit.
