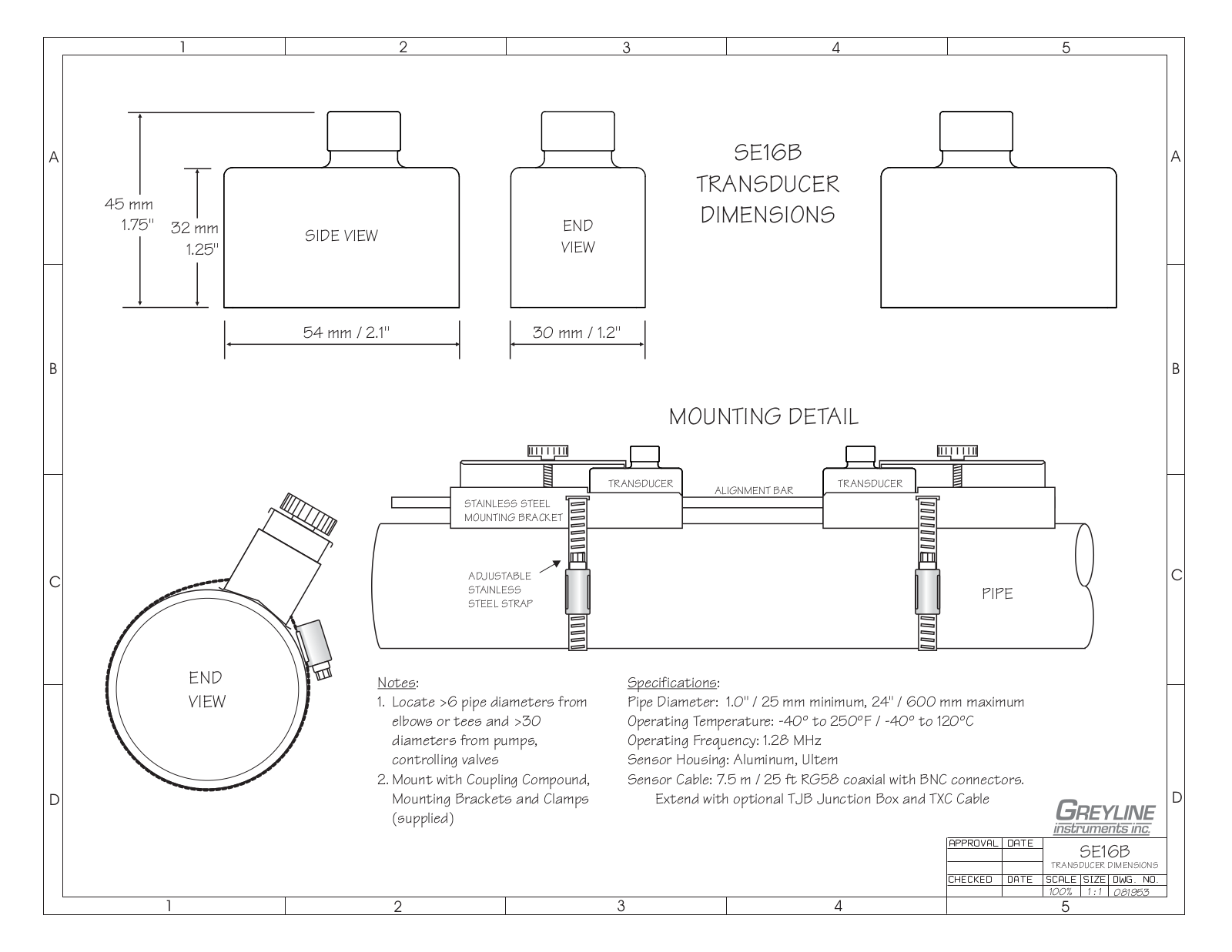

Greyline Instruments SE16B Specifications

1

2

34 5

A

SE16B

A

TRANSDUCER

45 mm

1.75"

32 mm

1.25"

SIDE VIEW

END

VIEW

54 mm / 2.1" 30 mm / 1.2"

B

DIMENSIONS

B

MOUNTING DETAIL

TRANSDUCER

STAINLESS STEEL
MOUNTING BRACKET

C

ADJUSTABLE
STAINLESS
STEEL STRAP

ALIGNMENT BAR

TRANSDUCER

C

PIPE

END
VIEW

D

1

Notes:

1. Locate >6 pipe diameters from
elbows or tees and >30
diameters from pumps,
controlling valves

2. Mount with Coupling Compound,
Mounting Brackets and Clamps
(supplied)

2

Specifications:
Pipe Diameter: 1.0" / 25 mm minimum, 24" / 600 mm maximum
Operating Temperature: -40º to 250ºF / -40º to 120ºC
Operating Frequency: 1.28 MHz
Sensor Housing: Aluminum, Ultem
Sensor Cable: 7.5 m / 25 ft RG58 coaxial with BNC connectors.

Extend with optional TJB Junction Box and TXC Cable

3

4

SE16B

TRANSDUCER DIMENSIONS

100%

1 : 1

081953

5

D
