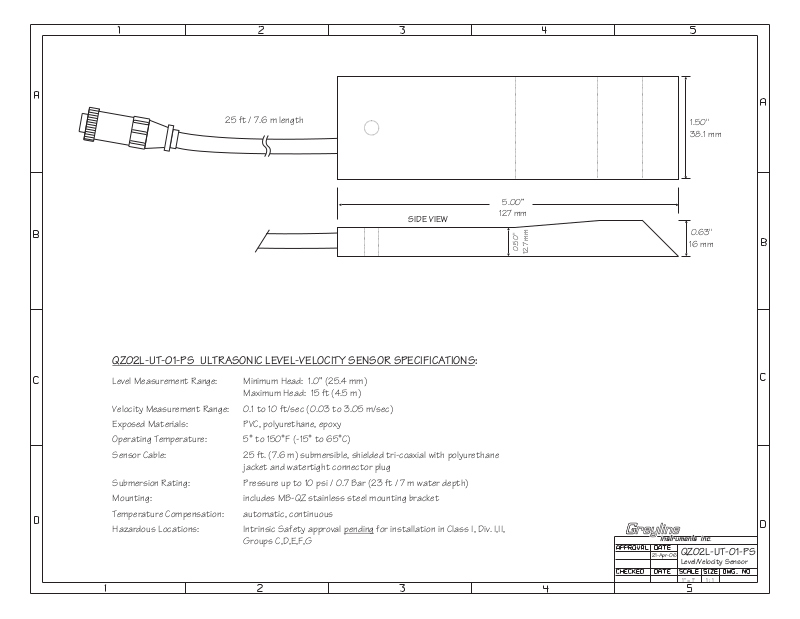

Greyline Instruments QZ02L-SS-01-PS Specifications

25 ft / 7.6 m length

SIDE VIEW

QZ02L-UT-01-PS ULTRASONIC LEVEL-VELOCITY SENSOR SPECIFICATIONS:

Level Measurement Range: Minimum Head: 1.0” (25.4 mm)

Maximum Head: 15 ft (4.5 m)

Velocity Measurement Range: 0.1 to 10 ft/sec (0.03 to 3.05 m/sec)

Exposed Materials: PVC, polyurethane, epoxy

Operating Temperature: 5° to 150°F (-15° to 65°C)

Sensor Cable: 25 ft. (7.6 m) submersible, shielded tri-coaxial with polyurethane

jacket and

Submersion Rating: Pressure up to 10 psi / 0.7 Bar (23 ft/7mwater depth)

Mounting: includes MB-QZ stainless steel mounting bracket

Temperature Compensation: automatic, continuous

Hazardous Locations: Intrinsic Safety approval for installation in Class I, Div. I,II,

Groups C,D,E,F,G

watertight connector plug

pending

5.00”

127 mm

0.50"

12.7 mm

16 mm

QZ02L-UT-01-PS

21-Apr-06

Level/Velocity Sensor

1.50

"

38.1 mm

0.63"

1"=1" 1:1
