Greyline Instruments AVMS Operating Manual

www.greyline.com
USER'S GUIDE
Installation & Operation
Instructions
Multi-Sensor
Area Velocity Flow Meter
Model AVMS 5.1
Manual Series A.1.2
Note: This page has been left blank intentionally.
Multi-Sensor Area Velocity Flow Meter
INDEX
CONNECTIONS ................................................................................................ 4
FUNCTION TEST .............................................................................................. 4
KEYPAD SYSTEM ............................................................................................ 7
CALIBRATION MENU ..................................................................................... 8
ICONS ................................................................................................................. 8
MESSAGE ICON ............................................................................................. 10
STATUS ........................................................................................................... 10
PASSWORD ..................................................................................................... 11
UNITS/MODE .................................................................................................. 12
CALIBRATION................................................................................................ 13
RELAY PARAMETERS .................................................................................. 17
SPECIAL FUNCTIONS ................................................................................... 18
INSTALLATION - SENSOR LOCATION ...................................................... 20

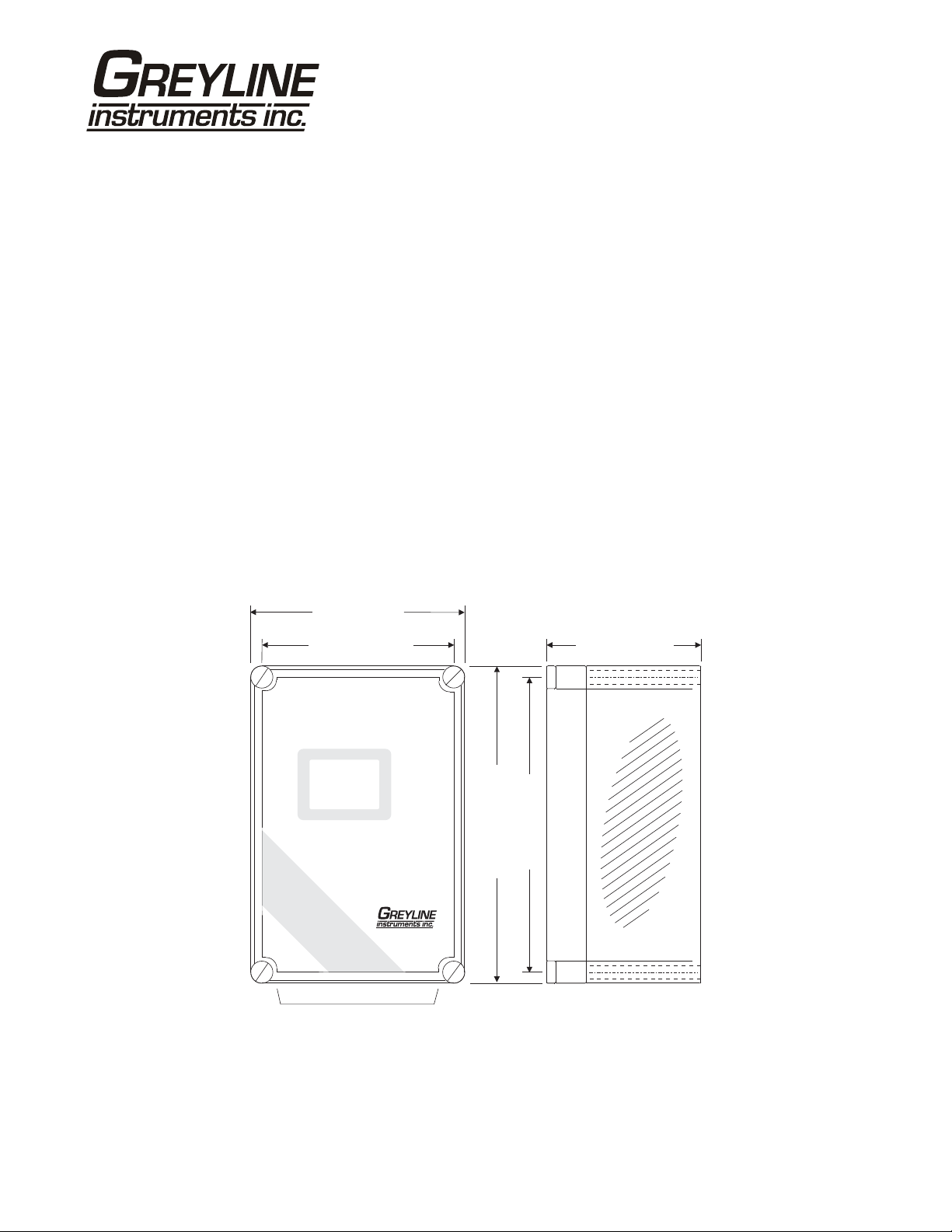

ENCLOSURE INSTALLATION ..................................................................... 23
FIELD TROUBLESHOOTING ........................................................................ 25
APPLICATIONS HOTLINE ............................................................................ 27
PRODUCT RETURN PROCEDURE ............................................................... 28
AREA-VELOCITY FLOW DATA SHEET ..................................................... 29
APPENDIX A OPTIONS ............................................................................... 31
DATA LOGGING (OPTIONAL) ......................................................................... 36
SPECIFICATIONS ........................................................................................... 38
IMPORTANT NOTE: This instrument is manufactured and calibrated to meet product specifications. Please read this manual carefully before installation and operation. Any unauthorized repairs or modifications may result in a suspension of the warranty.
Available in Adobe Acrobat pdf format
Page 3
!
Multi-Sensor Area Velocity Flow Meter
CONNECTIONS
POWER INPUT: 100 to 240 VAC 50/60Hz. No adjustments are necessary for voltages within this range. Connect L (Live) N (Neutral) and AC Ground.
Optional DC: 9-32 VDC. Connect to + and - terminals. Optional Thermostat and Heater modules are available rated for 115 VAC or 230 VAC. IMPORTANT NOTE: To comply with CSA/UL electrical safety standards, AC power input and relay
connection wires must have conduit entry to the instrument enclosure. Installation requires a switch, overcurrent fuse or circuit breaker in the building (in close proximity to the equipment) that is marked as the disconnect switch.
Risk of electric shock. Loosen cover screw to access connections. Only qualified personnel
should access connections. Note: Use of instrumentation over 40°C ambient requires special field wiring. Note: User replaceable fuse is 2 Amp 250V (T2AL250V).
FUNCTION TEST Connect AVMS 5.1 to AVQZ3 using interface cable. Connect sensor to the sensor A and D terminals as shown on page 6,
then apply power. Allow 30 seconds for the AVMS 5.1 to initialize. A. Place the QZ02L sensor (flat to the bottom) in a bucket of
water about 6” deep and select
UNITS/MODE
B. Select
menu) to see a level reading.
Velocity
Level
mode and stir the water to see velocity
mode (from
reading(s).
Page 4

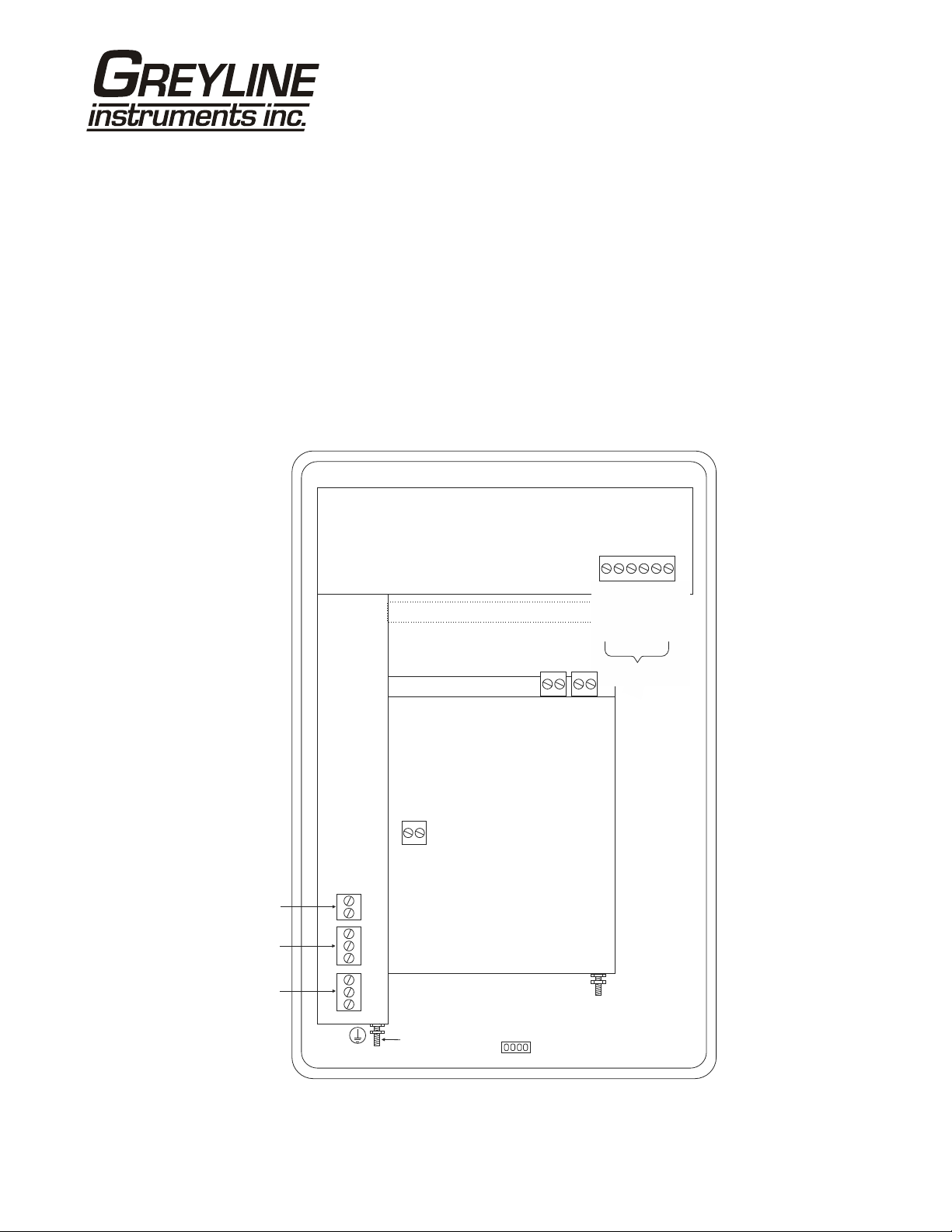

CONNECTIONS
Multi-Sensor Area Velocity Flow Meter
4-20mA
FLOW
RLY2
RLY1
– +
NO C NC
NO C NC
DATA LOGGER OPTION
4-20 OUTPUT MODULE
AC
LN
HEATER OPTION
AC GND
USB HARNESS CONNECTOR
4-20mA
4-20mA
VELOCITY
LEVEL
––
++
GND
Blue
Orange
White/Blue
White/Orange
Connect to
AVQZ3
White/Green Green
Brown
White/Brown
Page 5
AVQZ3 CONNECTIONS
Multi-Sensor Area Velocity Flow Meter
Sensor D
Blue
Orange
White/Blue
White/Orange
Sensor A Sensor B Sensor C
GND
GND
RCVR
Brown
White/Brown
GRN
White/Green
Green
WHT
TMTR
RCVR
GRN
GND
GND
GND
WHT
TMTR
GND
RCVR
GRN
GND
WHT
TMTR
CORE
BLK
GND
Page 6
Multi-Sensor Area Velocity Flow Meter
KEYPAD SYSTEM
The AVMS 5.1 uses a menu system. Arrows show the four directions to leave a menu box. Pressing a corresponding keypad arrow will move to the next item in the direction shown. Move the cursor (underline) under numerals and increase or decrease numerals with the and keys.
To store calibration values permanently (even through power interruptions), press .
Page 7
CALIBRATION MENU
Multi-Sensor Area Velocity Flow Meter
Mode Flow}
Linear in
Volume USG
Time min
Temperature C
--Units/Mode--------
--Calibration-------
20mA Flo 10.000ft /s³
} Vel Sensors 3
³
4mA Flo 0.000ft /s
4mA Vel 0.000 ft/s
20mA Vel 10.000 ft/s
20mA Level 12.000ft
4mA Level 0.000ft
Min Level 0.000in
Lvl Offset 0.000in
Min Vel 0.00ft/s
Damping 10%
Max Height 0.75ft
-- -----Channel Setup-
}Type Round
/minOn 1000 USG
/minOff 0.000 USG
VelocityFunction
Sensor Average
Relay 1}
--Relay Parameters--
Calibration
Channel Setup
Relay Parameters
Data Logging
Special Functions
Simulation
Units / Mode}
--Menu Selections----
Password 0000
--Password----------
USG/m
Configuration
Mode Flow
Set Date Oct 01/2013
Set Time 11:27:40
Interval 10sec
Log Logging
Log Site ID 0}
--Data Logging-------
--Special Functions-
Language English}
Analog Out 4-20mA
Backlight High
2Relays
25Logger 1. T
Level 0.00in
Velocity 10ft/s
Reset Totalizer NO
Negative Totals NO
Flo Direction Off
Cal Constant 1.000
Restore Defaults NO
New Password 0000
Flow 1982.88USG/m
4-20mA Level 20.00
4-20mA Velocity20.00
4-20mA Flow 20.00
--Simulation--------
}Test Actual
Relays 1 2
Sonar 1.15
Analog Out 3
Doppler 1.00M
Utility 1.25.05
--Configuration-----
}
dLog Use 0%
Data Log Logging
Sensor Good
Temperature 24C
--Message-----------
0.000ft/sAverage
Date . /20} Oct 01 13
--24 hr log--Velocity
50138 USGTotal
Date . /20} Oct 01 13
--24 hr log------Flow
0.000ftAverage
Date . /20} Oct 01 13
--24 hr log-----Level
0.000
Tot 20130.8 USG
Relays 1 2
9:15:00Min Time
11:08:00Max Time
0.000ft/sMaximum
0.000ft/sMinimum
9:15:00Min Time
11:08:00Max Time
52.20 USG/mMaximum
0.000 USG/mMinimum
34.82 USG/mAverage
0.000ftMaximum
0.000ftMinimum
9:15:00Min Time
11:08:00Max Time
Velocity 0.00ft/s
Flow 0.000 ft/s
Tot 0.000USG
Signal Cutoff 5%
Signal Strength 0%
EC 100%
--Status------------
} Range 0.00 ft
Relays 1 2
OPTIONAL FEATURES
Page 8
ICONS
Multi-Sensor Area Velocity Flow Meter
1. 2.
1.
1.
1.
2.
2. 3.
2.
3.
4.
Message waiting. Press .Ç
Data logging .off
Data logging .on
USB file download.
File download completed.
Download Error.
Echo OK.
1.
2.
3.
No Echo.
Echo OK (PZxx series level sensor option).
No Echo (PZxx series level sensor option).
Page 9
Multi-Sensor Area Velocity Flow Meter
USG/m
0.000
Tot 20130.8 USG Relays 1 2
--Message----------­Data Log Logging
dLog Use 0% Sensor Good Temperature 24C
--Status-----------­} Range 0.00 ft
Velocity 0.00ft/s Flow 0.000 ft/s Tot 0.000USG Signal Cutoff 5% Signal Strength 0% EC 100% Relays 1 2
MAIN DISP LAY
The main display shows the units selected from the
Units/Mode menu,
Flow or Velocity rate being measured, TOTALIZER and RELAY states. The AVMS 5.1 will start-up with this display.
MESSAGE ICON
Press from the main display to view temperature measurement, status of the data logger and error/warning messages provided by the instrument. The Message Icon will appear on the main display if error messages are being generated by the instrument. Press to return to the main display.
STATUS
Press from the MAIN display to view instrument status.
Level Is displayed in the selected units.
Displays the current totalizer reading.
Tot
Signal Cutoff Adjust the setting in percent to suppress flow readings
at zero flow when fluid swirling or pipe vibration may cause the instrument to continue reading. Example:
Signal Cutoff at 5% will force the display
and outputs to zero when signal strength drops below 5%.
Signal Strength Displays percentage of signal being received by the
ultrasonic sensor.
EC Displays level measurement Echo Confidence
Relays 1 2 3 4 5 6 Energized relays will display with reversed font eg:
Velocity A 0.00ft/s Velocity of sensor A in units of ft/s or m/s. (appears
when Sensors = 2 or 3)
Velocity B 0.00ft/s Velocity of sensor B in units of ft/s or m/s. (appears
when Sensors = 2 or 3)
Velocity C 0.00ft/s Velocity of sensor C in units of ft/s or m/s. (appears
when Sensors = 3)
Page 10
Multi-Sensor Area Velocity Flow Meter
--24 hr log------Flow Date Feb. 12/2010
}
Total 50138 USG Average 34.82 USG/m Maximum 52.20 USG/m Max Time 11:08:00 Minimum 0.000 USG/m Min Time 9:15:00
--Password----------
Password 0000
24 HR LOG (Data Logging option only)
Press from the MAIN display to view a formatted flow report from instruments with a built-in data logger. Press to pan through
Flow summaries. Press to scroll down one day or repeatedly to scroll to a
Level, Velocity and
specific date. Up to 365 days can be stored. Newest date will overwrite the oldest. Press to return to the main display.
PASSWORD
Password (a number from 0000 to 9999) prevents unauthorized access
The to the
Calibration menu.
From the Main display press to get to password is 0000 and if it has not been changed press to proceed to the
Selections
screen.
Password. Factory default
If a password is required, press to place the cursor under the first digit and or to set the number, then to the second digit, etc. Press or to proceed to
the
Menu Selections screen.
A new password can be stored by going to
Password.
Special Functions/New
Menu
Page 11
Multi-Sensor Area Velocity Flow Meter
--Units/Mode-------­Mode Flow
}
Linear in Volume USG Time min Temperature C
--Units/Mode--------
Mode Flow
Linear} in
--Units/Mode--------
Mode Linear
}Volume USG
ft3
bbl
USMG
--Units/Mode--------
Mode Flow Linear in Volume USG
Time} sec
day
min
--Units/Mode--------
Mode Flow Linear in Volume USG Time min
Temperature} C
ft
mm
m3
IG
hr
UNITS/MODE
From
Velocity or Level. Flow mode displays the flow rate in engineering
Mode press the  and then the or to select Flow,
units (e.g. gpm, litres/sec, etc.) Press the to store your selection then the to the next menu item.
From
Linear press the  key and then the or to select your units of
measurement. Press the to store your selection.
m
Press the key to move the save your selections.
symbol to each subsequent menu item and the to
Note: the volume selection "bbl" denotes U.S. barrels.
Temperature press  then to select C or F.
Press or to return to the Menu Selections screen.
L
F
Page 12
Multi-Sensor Area Velocity Flow Meter
--Calibration-------
} Vel Sensors 3
20mA Flo 10.000ft /s³
4mA Flo 0.000ft /s 20mA Vel 10.000 ft/s 4mA Vel 0.000 ft/s 20mA Level 12.000ft 4mA Level 0.000ft Min Level 0.000in Lvl Offset 0.000in Min Vel 0.00ft/s Damping 10%
³
CALIBRATION
Press to
Calibration and  to enter. Use or to position before
each menu item and to enter. When settings are completed press to store and return to the Calibration menu.
Vel Sensors 3
Press and enter to select 1, 2 or 3 velocity sensors.
20mA Flo
[5V Flo]
Note
: Analogue output can be selected as 4-20mA or 0-5V in Special Functions.
Press and enter the flow rate value for 20mA.
4mA Flo
[0V Flo]
20mA Vel
[5V Vel]
4mA Vel
[0V Vel]
20mA Level
[5V Level]
Press and enter the flow rate value for 4mA.
Press and enter the velocity value for 20mA.
Press and enter the velocity value for 4mA.
Optional for QZ02L-A type sensor. Press and enter the level value for 20mA.
4mA Level
[0V Level]
Optional for QZ02L-A type sensor. Press and enter the level value for 4mA.
Min Level
Press and enter a minimum level cutoff. Level reading less than
Min Level will be forced to zero.
Lvl Offset
Optional for QZ02L-A type sensor. Press and enter an offset to level measurement. Set to 0.00 when sensor mounted on floor of channel. When sensor is mounted above the floor of the channel enter the distance between channel floor and bottom of sensor. Maximum offset is ± 36” (914 mm).
Note: 4mA is not affected by
4mA is the bottom of the channel or pipe.
Lvl Offset settings.
Page 13
Multi-Sensor Area Velocity Flow Meter
LEVEL
SENSOR

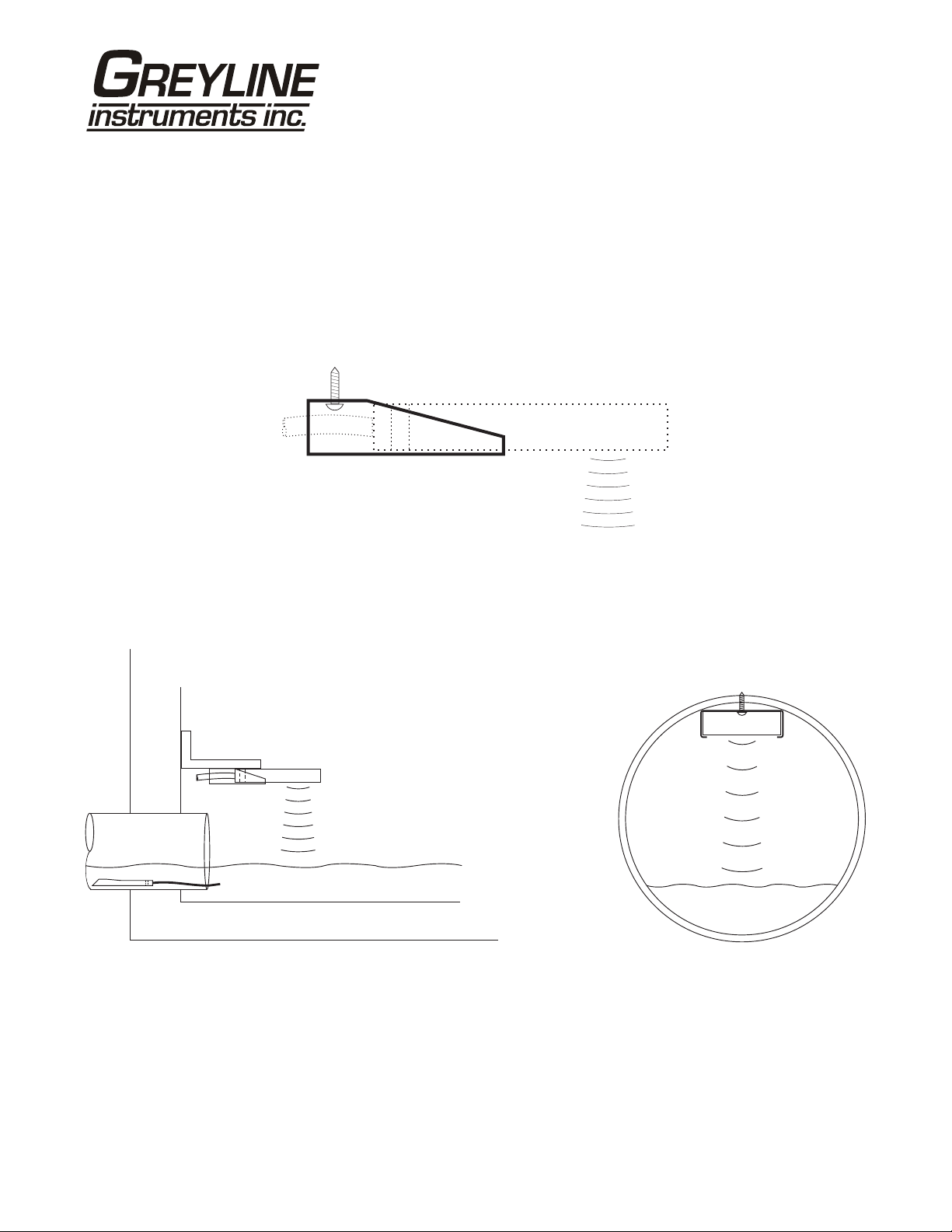

SENSOR ELEVATED ABOVE FLOOR OF
TOP VIEW
USE THE MB-QZ STAINLESS STEEL MOUNTING BRACKET (SUPPLIED)
PIPE OR CHANNEL
SENSOR
SIDE VIEW
Min Vel
Press and enter a minimum velocity cutoff. Forward and reverse velocities less than zero.
Min Vel A Press and enter a minimum velocity
Min Vel B Press and enter a minimum velocity
Min Vel C Press and enter a minimum velocity
Damping
Increase damping to stabilize readings under turbulent flow readings or to reject spurious level readings. Decrease for faster response to changes in flow.
Press  from the
Calibration display to return to Menu Selections.
Min Vel will be forced to
cutoff for sensor A.
cutoff for sensor B.
cutoff for sensor C.
SENSOR
END VIEW
U-SHAPE STAINLESS STEEL 18 GA. RECOMMENDED HEIGHT AS REQUIRED
Page 14
Multi-Sensor Area Velocity Flow Meter
--Channel Setup-----­Type Round
}
Max Height 0.75ft
CHANNEL SETUP
Round Select Round for open pipes. Set Max Height to the
inner diameter of the pipe.
Rectangle Select Rectangle for rectangular channels. Enter the
channel width.
Trapezoid Select Trapezoid for trapezoidal shaped channels.

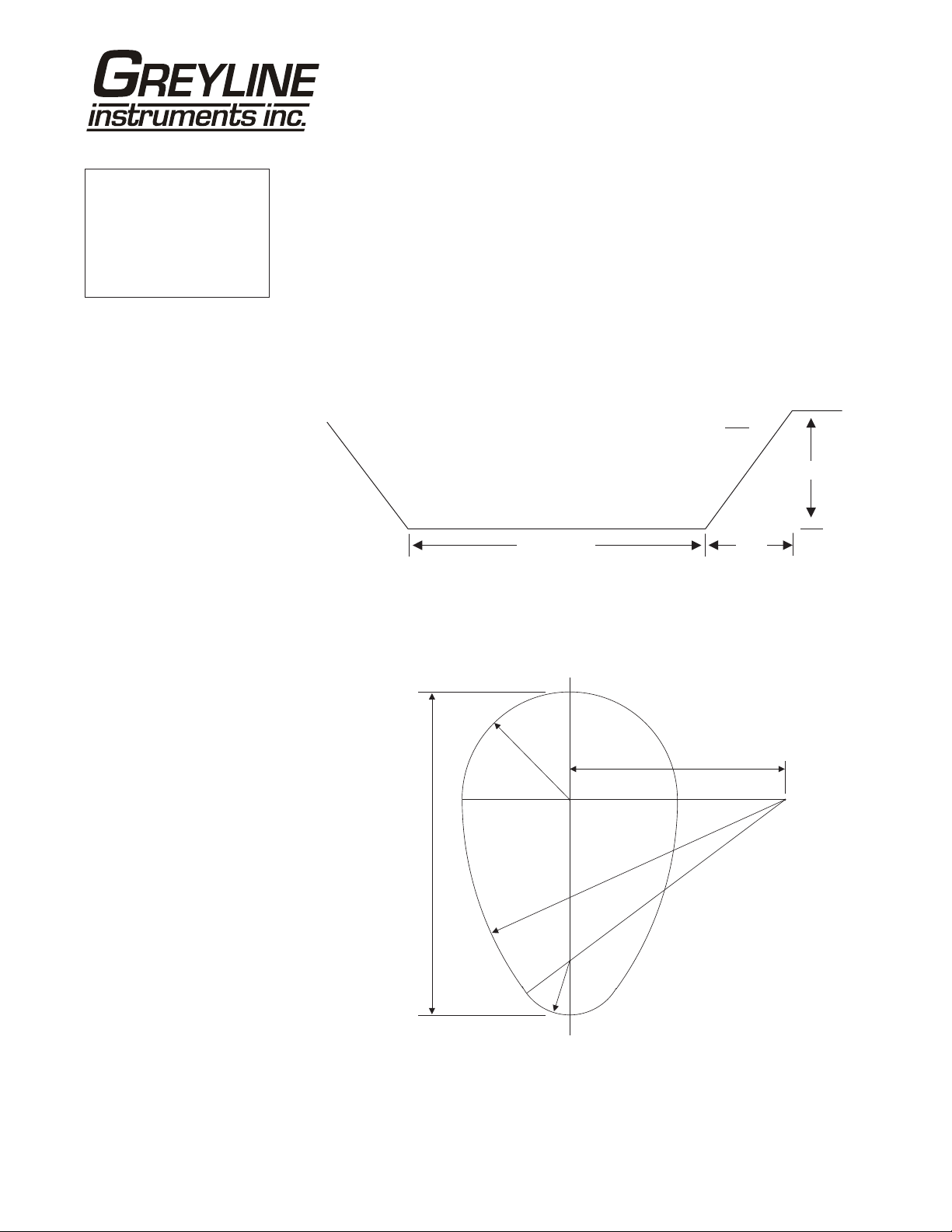

Specify the in the following illustration.
TRAPEZOIDAL
Egg Select Egg for Egg shaped channels. Enter the Max
Height
of the channel.
Width and Slope of the channel as shown
SLOPE = x
y
CHANNEL
WIDTH
y
x
HEIGHT
= 3R
Page 15
R
2R
3R
R/2
Multi-Sensor Area Velocity Flow Meter
--Custom Channel----­Type Custom
}
Reset Data No Max Height 0.75 ft Division 0.05 ft Increment # 0 Width 0.000 ft Level 0.000 ft
CUSTOM CHANNELS
Reset Data Old data MUST be removed before entering data for a new
channel. Press then press to old data.
Max Height Enter the maximum height of the channel.
Division Divide the maximum height into equal increments (maximum
of 40) and enter this division value (example 1”, 1 cm etc.)
Increment # Enter the increment number if you want to edit a previous
entry or to skip entering widths for some levels (Note: The custom channel will interpolate widths between entry points).
Width Enter the measured width of the channel at the level shown
(Note: To enter 0 width you must press and then to store a 0 width data point).
Level Displays the level of the channel for each increment and width
entry.
MAX
HEIGHT
Note
:

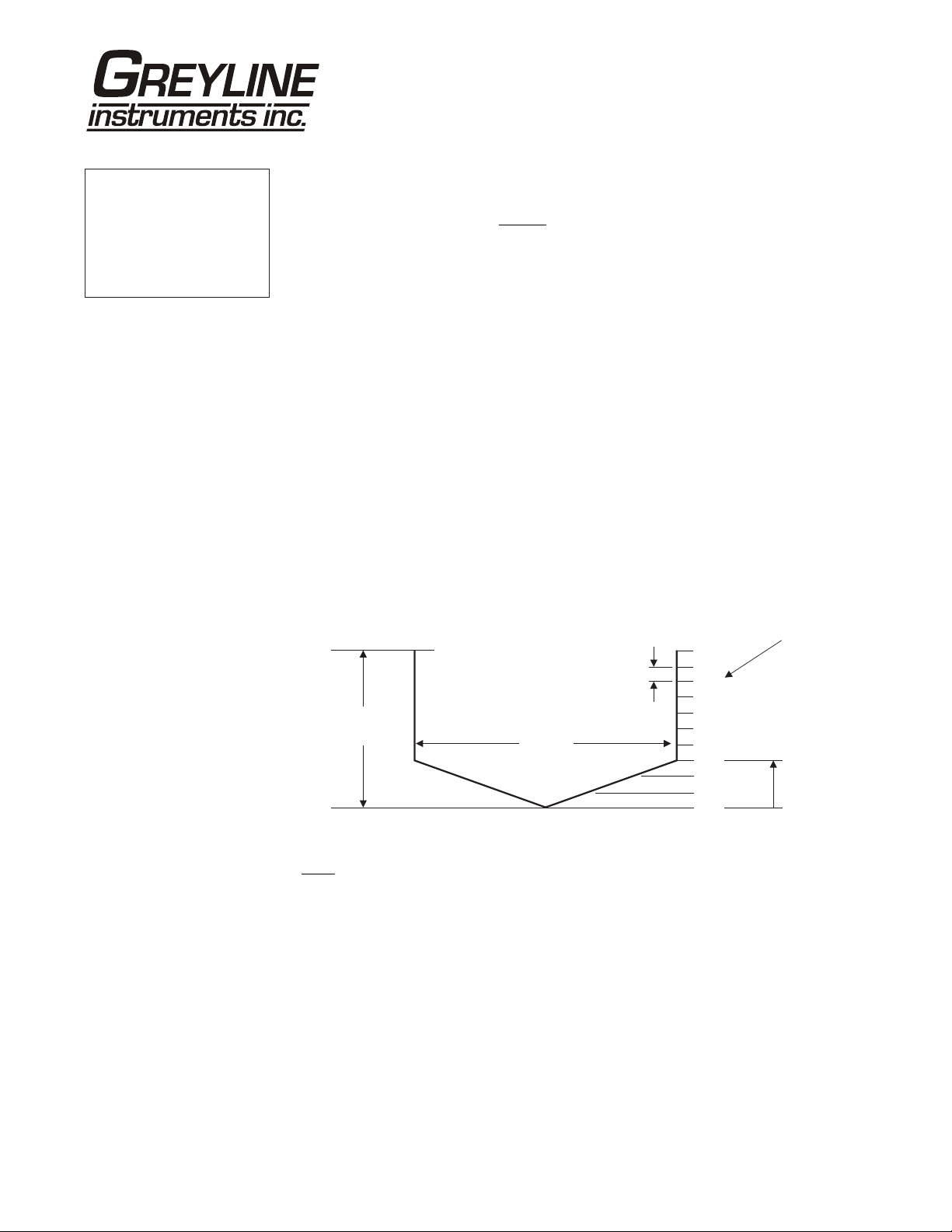

Custom channel data in equal width increments with variable height measurements must be converted to the format shown above using the “Channel Data Translator” PC software.
WIDTH
Yes and press to clear
INCREMENT #DIVISION
10
9 8 7 6 5 4 3 2 1 0
LEVEL
Page 16
Multi-Sensor Area Velocity Flow Meter
--Relay Parameters-­Relay 1}
VelocityFunction
Sensor Average
/minOn 1000 USG /minOff 0.000 USG
RELAY PARAMETERS
Relay Press and or to select a relay.
Function Press or to select Off, Pulse, Flow,
Velocity or Level. For Velocity function
choose from
Sensor B or Sensor C.
Flow On Position the cursor under the numerals and press or
to set digits to the relay
Off set digits to the Off set point.
Pulse Press and set digits to the flow volume per relay pulse. Use
this feature for remote samplers, chlorinators or totalizers. Minimum time between pulses is 2.25 seconds and pulse duration is 350 milliseconds.
Return to
Velocity Sensor: Select Average, Sensor A, Sensor B or Sensor C.
On: Position the cursor under the numerals and press or
to set digits to the relay
Off: Set digits to the relay Off set point.
Level Position the cursor under the numerals and press or to set
digits to the relay
Off: Set digits to the relay Off set point. LOE Mode: Specify the state of the relay for loss of echo
Press  to return to
Sensor Average, Sensor A,
On set point.
Relay and enter settings for each relay.
On set point.
On set point.
condition:
Off, On or Hold.
Menu Selections
Page 17
Multi-Sensor Area Velocity Flow Meter
--Special Functions­Language English
}
Analog Out 4-20mA Backlight High Reset Totalizer NO Negative Totals NO Flo Direction Off Cal Constant 1.000 Restore Defaults NO New Password 0000
--Special Functions-
Language English
}Backlight High
Medium
Key Hi/Lo
Low
Key High
Key Med Key Low
Off
DATA LOGGING (OPTIONAL)
Refer to Options section of this manual.
SPECIAL FUNCTIONS
Language Select English, French or Spanish
Analog Out Select 4-20mA or 0-5V mode for the analog output.
Backlight Select High, Medium or Low for continuous
backlight.
Select minute) after a keypress and then key is pressed again.
Select after a keypress and then backlight off until a key is pressed again.
Reset Totalizer Press  and select Yes to erase and restart the
totalizer at zero.
Negative Totals Select Yes to have reverse flow readings deducted
from the totalizer. Select only and ignore reverse flow.
Flo Direction Select On to enable flow direction measurement.
Select Select measurement.
Cal Constant Scales the velocity reading. Set to 1.000 for QZ02L
sensor.
Restore Defaults Select Yes and press to erase all user settings and
return the instrument to factory default settings.
New Password Select any number from 0000 to 9999 and press
. Default setting of 0000 will allow direct access to the calibration menus. Setting of any password greater than 0000 will require the password to be entered to access the calibration menus.
Press to return to
Menu Selections.
Key Hi/Lo for high backlight (for 1
Lo backlight until a
Key High, Med or Low for backlight
No to totalize forward flow
Off to disable flow direction measurement. Invert to invert the sense of the flow
Page 18
Multi-Sensor Area Velocity Flow Meter
--Simulation-------­Test Actual
}
Level 0.00in Velocity 10ft/s Flow 1982.88USG/m 4-20mA Level 20.00 4-20mA Velocity20.00 4-20mA Flow 20.00 Relays 1 2
SIMULATION
Exercises the 4-20mA (0-5V) outputs, digital display and control relays.
Test Select Maximum and press to simulate maximum Flow, Level and
Velocity and to output 20mA (5V) to the analog channels.
Select
Minimum and press to simulate minimum Flow, Level and
Velocity and to output 4mA (0V) to the analog channels.
To simulate an intermediate Flow, Level and Velocity set
Actual and then enter a value for the Level and Velocity.
The Flow calculation, analog outputs and control relays will respond to the simulated values.
Test to
Page 19
Multi-Sensor Area Velocity Flow Meter
INSTALLATION - SENSOR LOCATION
1. Choose sensor mounting locations where silt or deposits are least likely to accumulate.
2. For best results the three AVMS submerged velocity sensors should be positioned to obtain average velocity across the channel width.
3. Avoid vertical drops, obstructions or elbows immediately up and downstream from the sensor. Locate the QZ02L sensor at least 10 times maximum Head (level) and 10 times the channel width from these flow disturbances.
4. The QZ02L submerged level-velocity sensor requires a minimum water level of 1 in. (25.4 mm).
QZ02L VELOCITY-LEVEL SENSOR MOUNTING

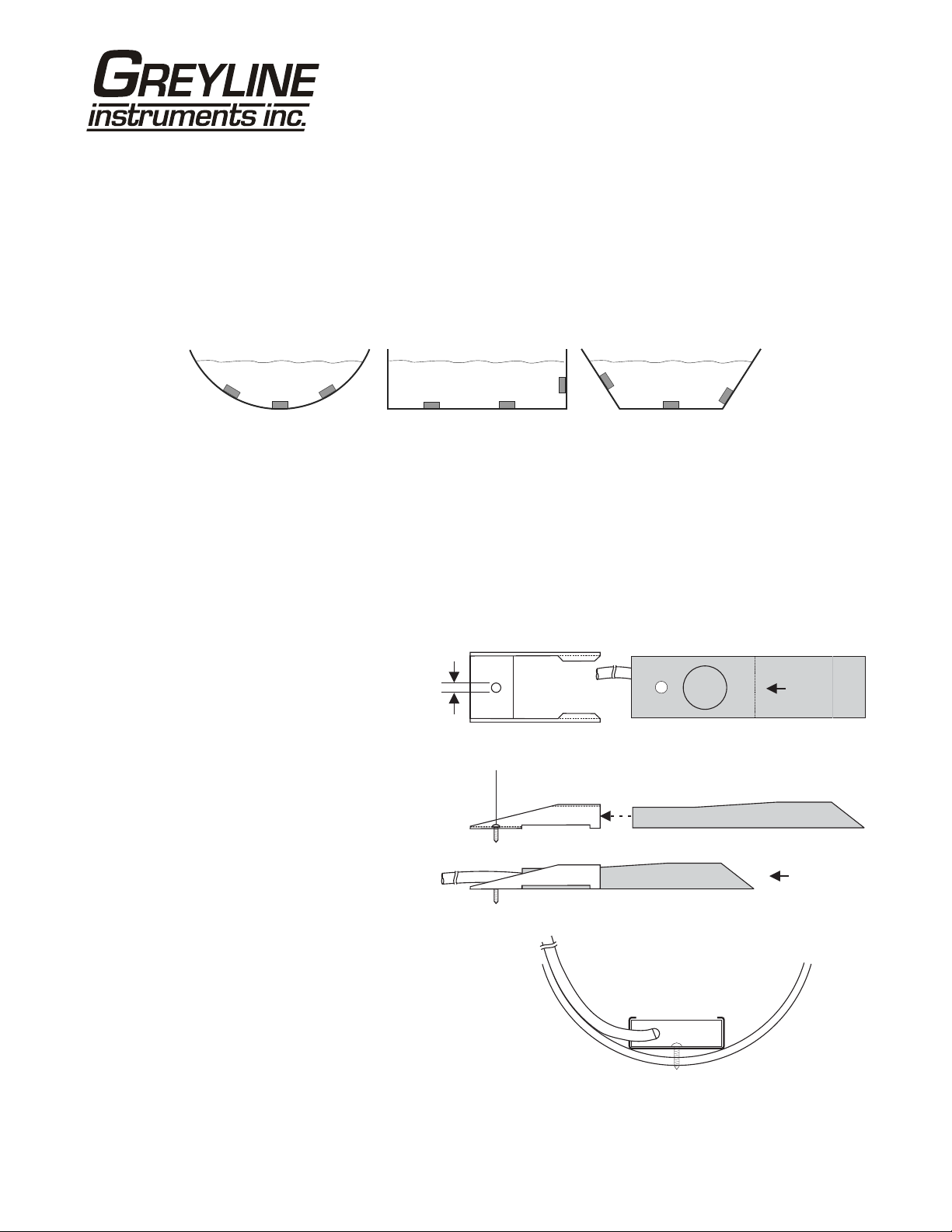

Mount the three QZ02L sensors with stainless steel brackets and hardware
0.2"
(5 mm)
MB-QZ MOUNTING BRACKET
TOP VIEW
LEVEL
SENSOR
QZ02L
VELOCITY/LEVEL SENSOR
FLOW
supplied. Ensure that the one QZ02L sensor that is monitoring level is parallel to the water surface (check with a level). Mount with the tapered end of the sensors pointing upstream and the sensor
FASTEN MOUNTING BRACKET WITH A SET SCREW
SIDE VIEW
INSERT SENSOR INTO MOUNTING BRACKET
cable pointing downstream. Mount QZ02L velocity sensors at or
near the bottom of the channel or pipe in
FLOW
positions where they will be continuously submerged. Position where silt or solids will not build up on the sensors.
Clip or tie wrap the sensor cables securely to the pipe or channel wall.
FASTEN SENSOR CABLE TO PIPE OR CHANNEL WITH METAL CLIPS OR TIE WRAPS
END VIEW
SENSOR
Page 20
Multi-Sensor Area Velocity Flow Meter
One QZ02L sensor is providing level measurement and it must be mounted parallel to the water surface.
GOOD
END VIEW
SENSOR
SENSOR
BAD
END VIEW
SENSOR
SENSOR
SENSOR
SENSOR
END VIEW
FLOW
Page 21
SENSOR
SENSOR
END VIEW
FLOW
Multi-Sensor Area Velocity Flow Meter
OPTIONAL PZ12-LP LEVEL SENSOR MOUNTING
Mount the PZ12-LP non-contacting ultrasonic level sensor in an unobstructed position at least 8” (203.2 mm) above the high water level. Install the stainless steel mounting bracket in a horizontal position (check with a level) and then insert the PZ12-LP sensor.
PZ12-LP SENSOR
MB12 - MOUNTING BRACKET
PZ12-LP MANHOLE MOUNTING
QZ02L-DP VELOCITY SENSOR
WATER
PZ12-LP PIPE MOUNTING
PZ12-LP
PZ12-LP
WATER
Page 22
Multi-Sensor Area Velocity Flow Meter

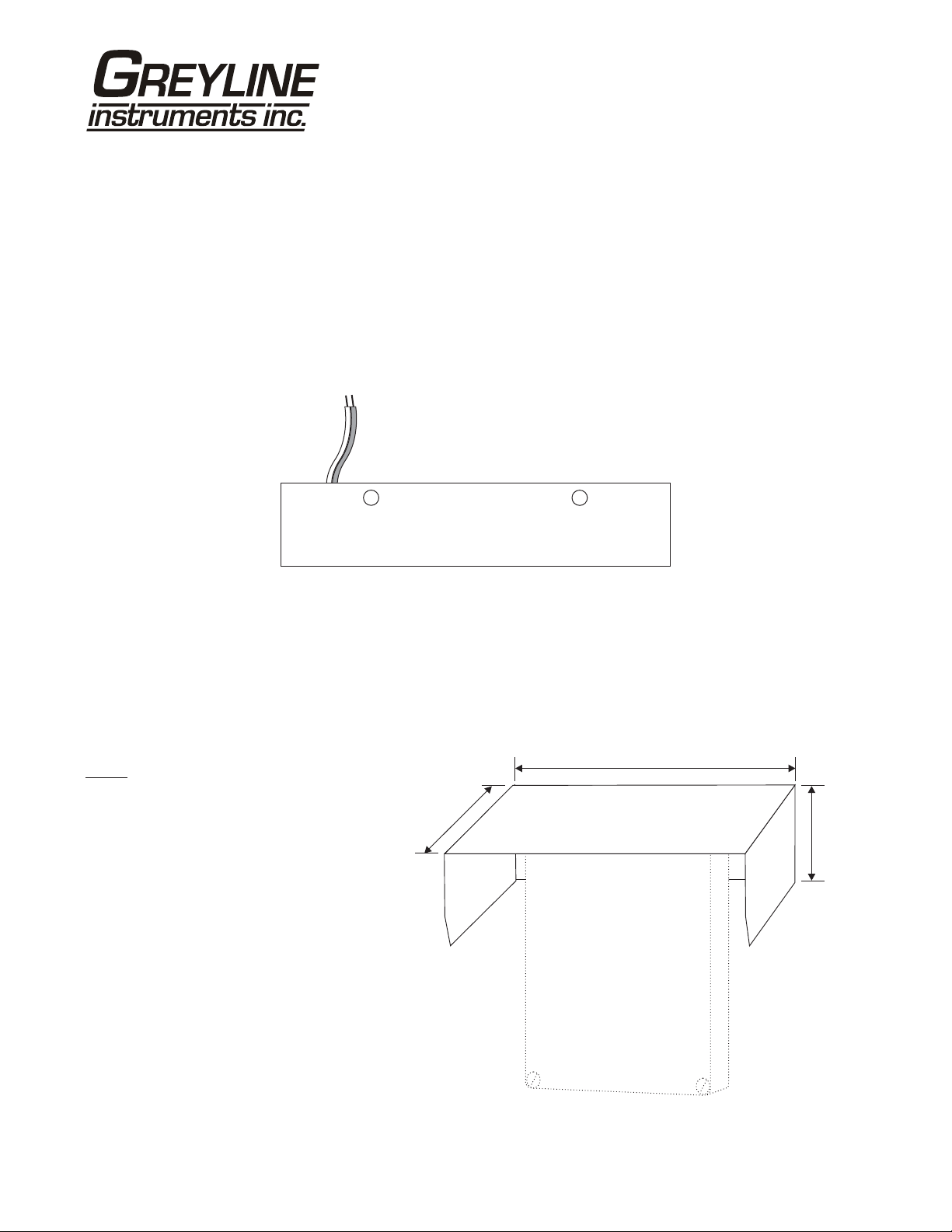

ENCLOSURE INSTALLATION
Locate the enclosure within 20 ft (6 m) of the sensor (up to 500 ft -150 m optional). The enclosure can be wall mounted with the four mounting screws (included) or panel mounted with Option PM Panel Mount kit from Greyline Instruments.
Avoid mounting the enclosure in direct sunlight to protect the electronics from damage due to overheating and condensate. In high humidity atmospheres, or where temperatures fall below freezing, Option TH Enclosure Heater and Thermostat is recommended. Seal conduit entries to prevent moisture from entering enclosure.
NEMA4X (IP66) WITH CLEAR COVER
1. Open hinged enclosure cover.
2. Insert #8 screws (supplied) through the four enclosure mounting holes
to secure the enclosure to the wall or mounting stand. Additional conduit holes can be cut in the bottom of the enclosure with a
hole saw or Greenlee-type hole cutter. DO NOT make conduit/wiring entries into the top of the enclosure. Note: This non-metallic enclosure does not automatically provide
grounding between conduit connections. Grounding must be provided as part of the installation. Ground in accordance with the requirements of the National Electrical Code. System grounding is provided by connecting grounding wires from all conduit entries to the steel mounting plate or another point which provides continuity.
CLEANING
Cleaning is not required as a part of normal maintenance.
COVER
ENCLOSURE
MOUNTING
HOLES
ENCLOSURE
END VIEW
Page 23

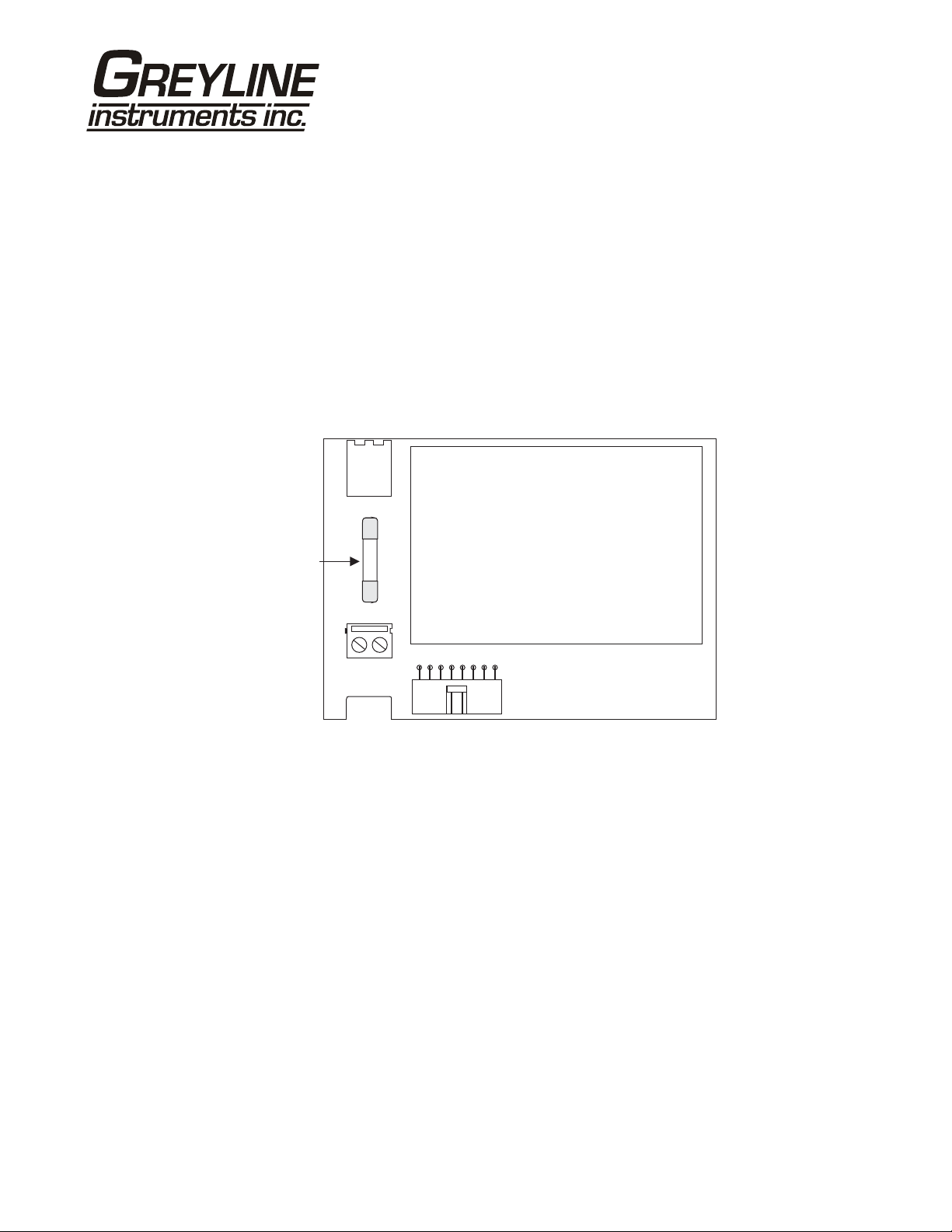

FUSE REPLACEMENT
1. Turn OFF power.
2. Loosen cover screw and open.
3. Remove power module.
4. Locate fuse on Power Board.
5. Replace fuse with 2 AMP/ 250V, 5 x 20mm fuse.
6. Reinstall power module into chassis.
Multi-Sensor Area Velocity Flow Meter
Fuse
POWER MODULE
Page 24
Multi-Sensor Area Velocity Flow Meter
FIELD TROUBLESHOOTING
The AVMS 5.1 uses an ultrasonic level sensor to determine channel AREA and an ultrasonic Doppler sensor to measure flow VELOCITY.
The QZ02L sensor combines both sensors in one housing. An optional configuration uses the PZ12-LP “down-looking” level sensor and a QZ02L-DP velocity
sensor. To troubleshoot the AVMS 5.1, verify correct operation of LEVEL and VELOCITY measurements
separately. Note: Selecting “Defaults” in the SPECIAL FUNCTION menu will return the instrument to
“as-shipped” factory settings.
LEVEL (QZ02L SENSOR)
SYMPTOMS FAULTS SOLUTIONS
EC bar graph at zero - very turbulent flow - Increase LOE time (SPECIAL
FUNCTION
- very aerated flow - relocate sensor or use PZ12-LP
- sensor not level - level sensor with “Bullseye” level
- sediment/dirt/grease build-up on
sensor
- Level display reads 1.0 inches
VELOCITY (QZ02L SENSOR)
SYMPTOMS
- No velocity reading - Grease/sediment on sensor
FAULTS SOLUTIONS
- Level at or less than 1.0 inches
- Improper hook-up
- clean sensor with liquid soap
- Clean sensor with detergent
- Check sensor connections
)
Page 25
Multi-Sensor Area Velocity Flow Meter
SENSOR CABLE RESISTANCE TEST

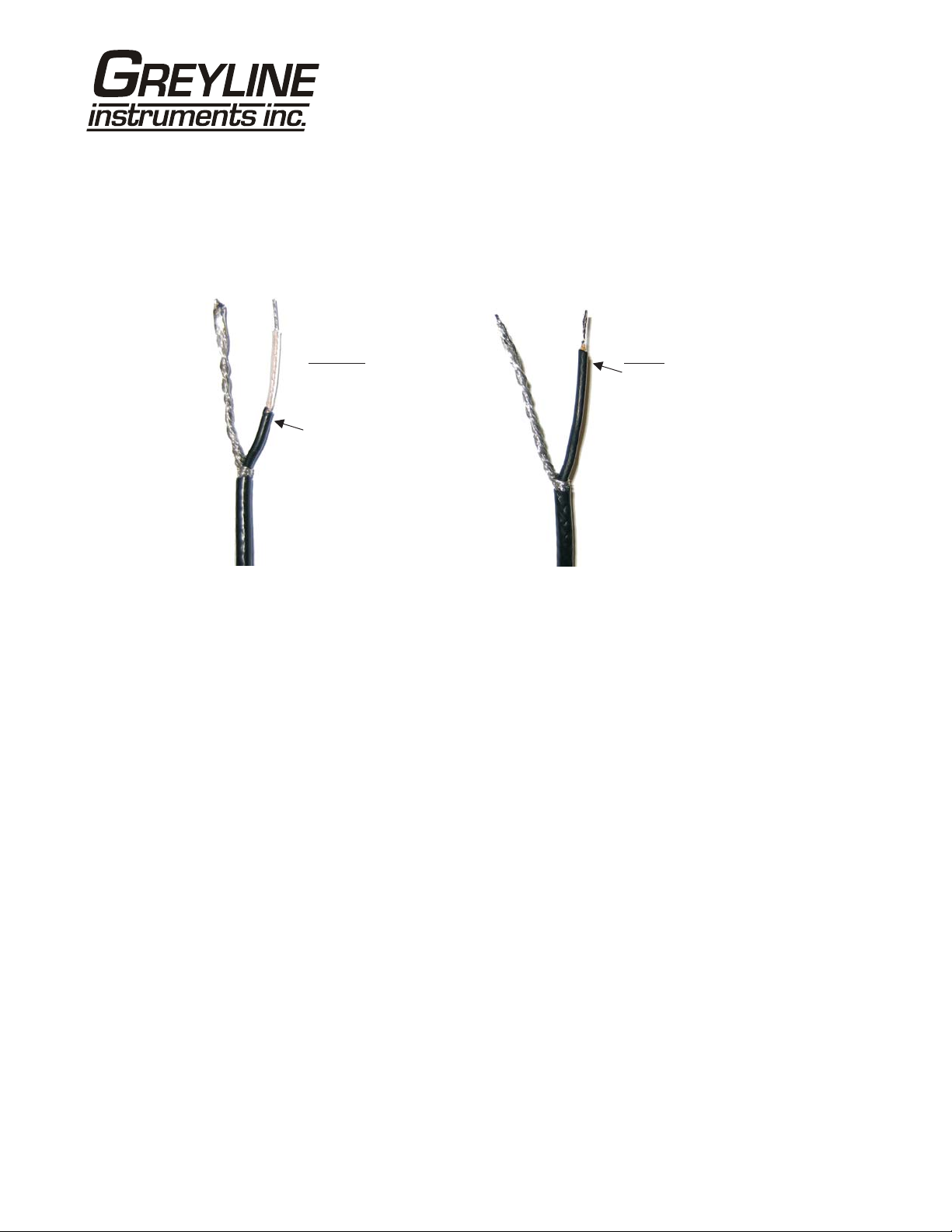

Unplug the green sensor terminal from the Doppler board and connect the sensor wires as shown. With a multimeter, perform resistance checks for each set of wires. One single loose terminal may cause false readings.
Test across shield and core of each wire: TMTR (black/white) and RCVR (black). Resistance should be approximately 82.5K ohms for any cable length. High readings indicate an open circuit and low readings indicate a short or partial short in the sensor cable.
Page 26
Multi-Sensor Area Velocity Flow Meter
APPLICATIONS HOTLINE
For applications assistance, advice or information on any Greyline Instrument contact your Sales Representative, write to Greyline or phone the Applications Hotline below:
United States: Tel: 315-788-9500 Fax: 315-764-0419 Canada: Tel: 613-938-8956 Fax: 613-938-4857 Toll Free: 888-473-9546 Email: info@greyline.com Web Site: www.greyline.com
Greyline Instruments Inc.
Canada USA: 16456 Sixsmith Drive 105 Water Street Long Sault, Ont. K0C 1P0 Massena, NY 13662
Page 27
Multi-Sensor Area Velocity Flow Meter
PRODUCT RETURN PROCEDURE
Instruments may be returned to Greyline for service or warranty repair.
1 Obtain an RMA Number from Greyline -
Before shipping a product to the factory please contact Greyline by telephone, fax or email to obtain an RMA number (Returned Merchandise Authorization). This ensures fast service and correct billing or credit.
When you contact Greyline please have the following information available:
1. Model number / Software Version
2. Serial number
3. Date of Purchase
4. Reason for return (description of fault or modification required)
5. Your name, company name, address and phone number
2 Clean the Sensor/Product -
Important: unclean products will not be serviced and will be returned to the sender at their expense.
1. Rinse sensor and cable to remove debris.
2. If the sensor has been exposed to sewage, immerse both sensor and cable in a solution of 1 part household bleach (Javex, Clorox etc.) to 20 parts water for 5 minutes. Important: do not immerse open end of sensor cable.
3. Dry with paper towels and pack sensor and cable in a sealed plastic bag.
4. Wipe the outside of the enclosure to remove dirt or deposits.
5. Return to Greyline for service.
3 Ship to Greyline -
After obtaining an RMA number please ship the product to the appropriate address below:
Canadian and International USA Customers: Customers:
Greyline Instruments Inc. Greyline Instruments Inc. 16456 Sixsmith Drive 204 150th Avenue Long Sault, Ont. K0C 1P0 Madeira Beach, FL 33708
RMA# RMA#
Page 28
Multi-Sensor Area Velocity Flow Meter
AREA-VELOCITY FLOW DATA SHEET
Greyline Instruments Inc.
16456 Sixsmith Dr., Long Sault, Ont. K0C 1P0
Tel: 613-938-8956 / Fax: 613-938-4857
105 Water Street, Massena NY 13662
Tel: 315-788-9500 / Fax: 315-764-0419
Contact: ________________________________ Title/Dept.: _________________________
Company: ___________________________________ Project: _________________________
Address: ____________________________________________________________________
Tel: _____________________________________ Fax: _________________________
Please complete and return this form to Greyline. It is important. We use this information to check our database for performance of Greyline flow meters in similar applications, and to provide advice and recommendations to you. Thanks for your cooperation.
SENSOR
Model/Type: _____________________________ Cable Length: _________________________
Elec. Class: _____________________________ Type of Pump: _________________________
Distance from nearest Pump, Controlling Valve, Orifice or open Discharge: ___________________
INSTRUMENT
Calibrated Range
Operating Temp.: ___________________________ Alarm: _________________________
Enclosure Class: __________________________ Pulse/Unit: _________________________
SERVICE CONDITIONS
Pipe Mat'l: _______________________________ % Solids: _________________________
Oper. Flow: _________________________________ Vibration: _________________________
Max. Flow: ____________________________ Max. Pressure: _________________________
Min. Flow: _____________________________ Max. Temp: _________________________
:
:
Model/Type: _________________________ Power Input: _________________________
: ___________________________ Indication: _________________________
Elec. Class: _____________________________ Output: _________________________
:
Pipe ID: _______________________________
Fluid: __________________________ Material Build-up: _________________________
q Vertical q Horizontal
/ Sketch Pipe Run:
Notes
By: _______________________________________________ Date: ___________________
Page 29
LIMITED WARRANTY
_____________________________________
Greyline Instruments warrants, to the original purchaser, its products to be free from defects in material and workmanship for a period of one year from date of invoice. Greyline will replace or repair, free of charge, any Greyline product if it has been proven to be defective within the warranty period. This warranty does not cover any expenses incurred in the removal and re-installation of the product.
Multi-Sensor Area Velocity Flow Meter
If a product manufactured by Greyline should prove defective within the first year, return it freight prepaid to Greyline Instruments along with a copy of your invoice.
This warranty does not cover damages due to improper installation or handling, acts of nature, or unauthorized service. Modifications to or tampering with any part shall void this warranty. This warranty does not cover any equipment used in connection with the product or consequential damages due to a defect in the product.
All implied warranties are limited to the duration of this warranty. This is the complete warranty by Greyline and no other warranty is valid against Greyline. Some states do not allow limitations on how long an implied warranty lasts or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Greyline Instruments Inc.
Page 30
Multi-Sensor Area Velocity Flow Meter
APPENDIX A – OPTIONS
EXTRA SENSOR CABLE (OPTION VXC)
Each Greyline AVMS 5.1 flow meter includes 25 ft. (7.6 m), 50 ft. (15 m) or 100 ft. (30 m) tri-coaxial sensor cable. This cable is shielded from electrical interference and is watertight with a polyurethane jacket. Additional cable and Cable Junction Box (Option JB2X or JB4X) may be ordered with the Flow Meter, or the cable may be spliced and extended up to 500 ft (152 m) total length as required during installation. No adjustment is required when the sensor cable is extended or shortened. Use only Greyline tri-coaxial VXC shielded cable, or run three RG174U coaxial cables in a metal conduit.
Extended sensor cable can be installed in conduit for mechanical protection. Recommended installation with a junction box is illustrated below:
JB2X
TO GREYLINE SENSOR
SHIELDED COAXIAL PAIR
TO ULTRASONIC LEVEL SENSOR
RG62AU COAXIAL
TO VELOCITY SENSOR
SHIELDED COAXIAL PAIR
GND
CORE
SHIELD
GND
BLK
BLK/GRN
BLK/WHT
BLK/GRN
BLK/WHT
JB4X
BLK
BLK/GRN
BLK/WHT
GND
GND
CORE
SHIELD
BLK/GRN
BLK/WHT
GND
EXTENDED SENSOR CABLE TO ELECTRONICS ENCLOSURE
- MAX. TOTAL CABLE LENGTH 500 ft (152m) SHIELDED COAXIAL PAIR
- CONDUIT RECOMMENDED FOR
MECHANICAL PROTECTION
EXTENDED SENSOR CABLE TO ELECTRONICS ENCLOSURE
- MAX.TOTALCABLE LENGTH 500 ft (152m) RG62AU coaxial
- CONDUIT RECOMMENDED FOR
MECHANICAL PROTECTION
EXTENDED SENSOR CABLE TO ELECTRONICS ENCLOSURE
- MAX. TOTALCABLE LENGTH 500 ft (152m) SHIELDED COAXIAL PAIR
- CONDUIT RECOMMENDED FOR MECHANICAL PROTECTION
Page 31
Multi-Sensor Area Velocity Flow Meter
COAXIAL CABLE PREPARATION
VXC Doppler sensor cable can be cut and spliced up to a maximum length of 500 ft (152 m). Cable ends must be prepared as illustrated below.
GOOD
BLACK (CONDUCTIVE)
SLEEVE HASBEEN REMOVED
BAD
BLACK (CONDUCTIVE)
SLEEVE HAS NOT BEEN REMOVED
Page 32
Multi-Sensor Area Velocity Flow Meter
JUNCTION BOX - OPTION JB2X & JB4X
NEMA4X (IP66) polycarbonate Junction Box with terminal strips is available from Greyline Instruments. Includes compression fittings for watertight coaxial cable entries.
Page 33
Multi-Sensor Area Velocity Flow Meter
ENCLOSURE HEATER AND THERMOSTAT - Option TH
Instruments can be factory-equipped with an Enclosure Heater and Thermostat or the module can be customer-installed. The Thermostat is factory set to turn ON at 40°F (4.5°C) and OFF at 60°F (15.5°C). Power consumption is 15 Watts.
Please note: Only the AVMS 5.1 enclosure can be fitted with the Enclosure Heater and Thermostat module. The remote AVQZ3 enclosure does not support a heater option.
TO AC POWER SUPPLY
ENCLOSURE SUNSCREEN - Option SCR
Do not mount instrument electronics in direct sunlight. Overheating will reduce the life of electronic components and condensate may form during the heat/cool cycles and cause electrical shorts.
11" / 280 mm
Note:
Exposure to direct sunlight can cause
overheating and moisture condensation which will reduce the operating lifeof electronics.
Protect Instruments from direct sunlight with this iridite finished aluminumsun screen (Greyline Option SCR).
eal conduit entries with caulking
S
compound to further reduce moisture condensation.
11"
280 mm
5" 127 mm
Page 34
Multi-Sensor Area Velocity Flow Meter
POWER INPUT OPTION 9-32VDC
AVMS 5.1 Flow Meters may be ordered factory-configured for 9-32VDC power input.
CONNECTIONS:
POWER INPUT: Connect 9-32VDC to the + and - terminals. The Power Input GND terminal must be connected to the nearest Ground pole. A 1-amp fuse in line is recommended.
4-20mA
FLOW
RLY2
RLY1
4-20 OUTPUT MODULE
DC
+–
– +
NO C NC
NO C NC
DC GND
DATA LOGGER OPTION
4-20mA
VELOCITY
++
USB HARNESS CONNECTOR
4-20mA
LEVEL
––
GND
Blue
Orange
White/Blue
White/Orange
Connect to
AVQ Z3
White/Green Green
Brown
White/Brown
Page 35
Multi-Sensor Area Velocity Flow Meter
--Data Logging------­Log Site ID 00
}
Mode Flow
Set Date Feb 18/2008
Set Time 11:27:40
Interval 10sec
Log Stop
Velocity
Mar 19/2009
12:28:41
99
60min
30min
15min 10min
5min 2min 1min
30sec
Start
Delete
DATA LOGGING (Optional) Setup
Select
Data Logging from Menu Selections.
Log Site ID Enter a number from 00 to 99. The site ID will become
part of the downloaded file name to help distinguish downloads from different instruments. Press to store the setting.
Mode Select Flow, Level, LVT or Velocity. Press
to store the setting.
Set Date Press or to scroll and select Month, Day and Year. Press
to store the setting.
Set Time Press or to select the current time in Hours, Minutes and
Seconds. Press to store the setting.
Interval Press or to select the logging interval.
Press  to store the setting.
Log Stop, Start or Delete the log file.
Press  or  to Press  or  to
Note:
You MUST delete old log and start a new log AFTER having set
changes to
Log Site ID, Mode and/or Interval for those
changes to be applied to the log file.
View 24-hr formatted Reports on the AVMS 5.1 display. Press from the MAIN display to view a formatted flow report from instruments with a built-in data logger. Press to pan through summaries. Press to scroll down one day or repeatedly to scroll to a specific date. Up to 365 days can be stored. Newest date will overwrite the oldest. Press to return to the main display.
Page 36
Delete and to delete the log file. Start and to start the logger.
Level, Velocity and Flow
Multi-Sensor Area Velocity Flow Meter
RETRIEVE LOG FILE
Plug a USB Flash Memory Drive (not supplied by Greyline) into the USB output cable from the instrument. The instrument display will show the USB file download icon until the log file is transferred to the memory card and then display file download completed icon. The USB flash drive may be removed.
Download file names will appear in this format:
AVFM__00A.LOG
MODEL TAG DOWNLOAD
Tag is set according to the Logging menu.
Download letter will be A for the first download from an instrument. B for the second, then C etc. At the letter Z a - character will appear indicating that the maximum number of downloads for that instrument are on the USB flash drive. Older files can be erased or moved from the flash memory drive or a new memory drive can be used.
OPENING LOG FILES
Install Greyline Logger on your PC or laptop. Refer to the Help menu in the program for detailed instructions.
Select File/Open/Instrument Log (.log) to open the log file from your USB flash drive.
Log Site ID entered in the instrument Data
Page 37
Multi-Sensor Area Velocity Flow Meter
SPECIFICATIONS
Electronics Enclosure: NEMA4X (IP 66), watertight and dust tight, polycarbonate with clear,
shatterproof hinged Lexan cover
Accuracy: Level: ± 0.25% of Range Velocity: ± 2% of Reading Repeatability: 0.1%
F.S., Linearity: 0.1%F.S.
Display: White, backlit matrix – displays flow rate, totalizer, relay states,
operating mode and calibration menu
Programming: Built-in 5-key calibrator with English, French or Spanish language
selection Power Input: 100-240VAC, 50/60 Hz, (30 W max.) Optional: 9-32VDC (9 W max.) Outputs: 3 Isolated 4-20mA, 1000 ohm load maximum or 3 Isolated 0-5V Control Relays: Qty 2, rated 5 ampere SPDT Temperature Compensation: Automatic, temperature probe built in to level Sensor Electrical Surge Protection: Sensor, 4-20mA, AC power input Environmental Conditions: Relative humidity up to 80% -23 to 60°C ambient temperature,
maximum 5000 m altitude, pollution degree 4, Installation Category II.
Optional Enclosure Heater recommended for condensation protection
below 32°F (-1°C)
7.4 / 188 mm"
6.46 / 164 mm"
AVMS 15.
Multi-Sensor Area Velocity Flow Meter
CONDUIT ENTRY
10.94" / 278 mm
5.12/ 130 mm"
10 / 254 mm"
SIDE VIEW
LOCATION
Page 38
Multi-Sensor Area Velocity Flow Meter
Velocity/Level Sensor QZ02L
Minimum Velocity: 0.1 ft/sec (0.03 m/sec) Maximum Velocity: 20 ft/sec (6.2 m/sec) [reverse flow to -5 ft/sec (-1.5 m/sec)] Minimum Head: 1 in. (25.4 mm) Maximum Head: 16 ft. (4.88 m) Operating Temperature: 5 to 150°F (-15 TO 65°C) Exposed Materials: PVC, epoxy resin, polyurethane, ultem Sensor Cable: 25 ft. (7.6 m) submersible polyurethane jacket, shielded, 3 coaxial Hazardous Rating: CSA rated Intrinsically Safe Class I, Groups C,D, Class II, Groups E,F,G
with optional Intrinsic Safety Barrier
MB-QZ - MOUNTING BRACKET QZ02L VELOCITY/LEVEL SENSOR
1.50
1.62"
LEVEL
41.2mm
SENSOR
"
38.1 mm
25 ft (7.6 m) Sensor Cable
3.00"
0.56"
76.2mm
14.2mm
SIDE VIEW
5.00
127 mm
0.50"
0.63"
12.7 mm
16 mm
Page 39
Multi-Sensor Area Velocity Flow Meter
Optional Sensor PZ15
Maximum Range: 15 ft (4.57 m) Minimum Range (Deadband): 8" (203.2 mm) Operating Frequency: 92 KHz Beam Angle: Operating Temperature: -40° to 150° (-40° to 65°C) Temperature Compensation: Automatic, continuous Max. Oper ating Pressure: 20 psi (1.35 bar) Sensor Face: PVC Sensor Body: PVC Mounting: ¾" NPT Cable Length: 25 ft. (7.6 m) continuous
RG62AU coaxial. Optional
50 ft. (15 m) continuous Max. Cable Length: 500 ft. (152 m) RG62AU
coaxial (splice) Hazardous Rating: CSA rated Intrinsically Safe
Class I, Groups C,D, Class
II, Groups E,F,G with
Optional Intrinsic Safety Barrier.
~4.25"
(108 mm)
OVERALL
3.125"
79.4 mm
25 ft (7.6 m) RG62AU COAXIAL CABLE (50 ft 15 mOR 100 ft 30 m )OPTIONAL
3/4“ NPT
3/4" NPT
2.1" (53 mm)
ISOLATION COUPLING
(SUPPLIED)
(28.6 mm)

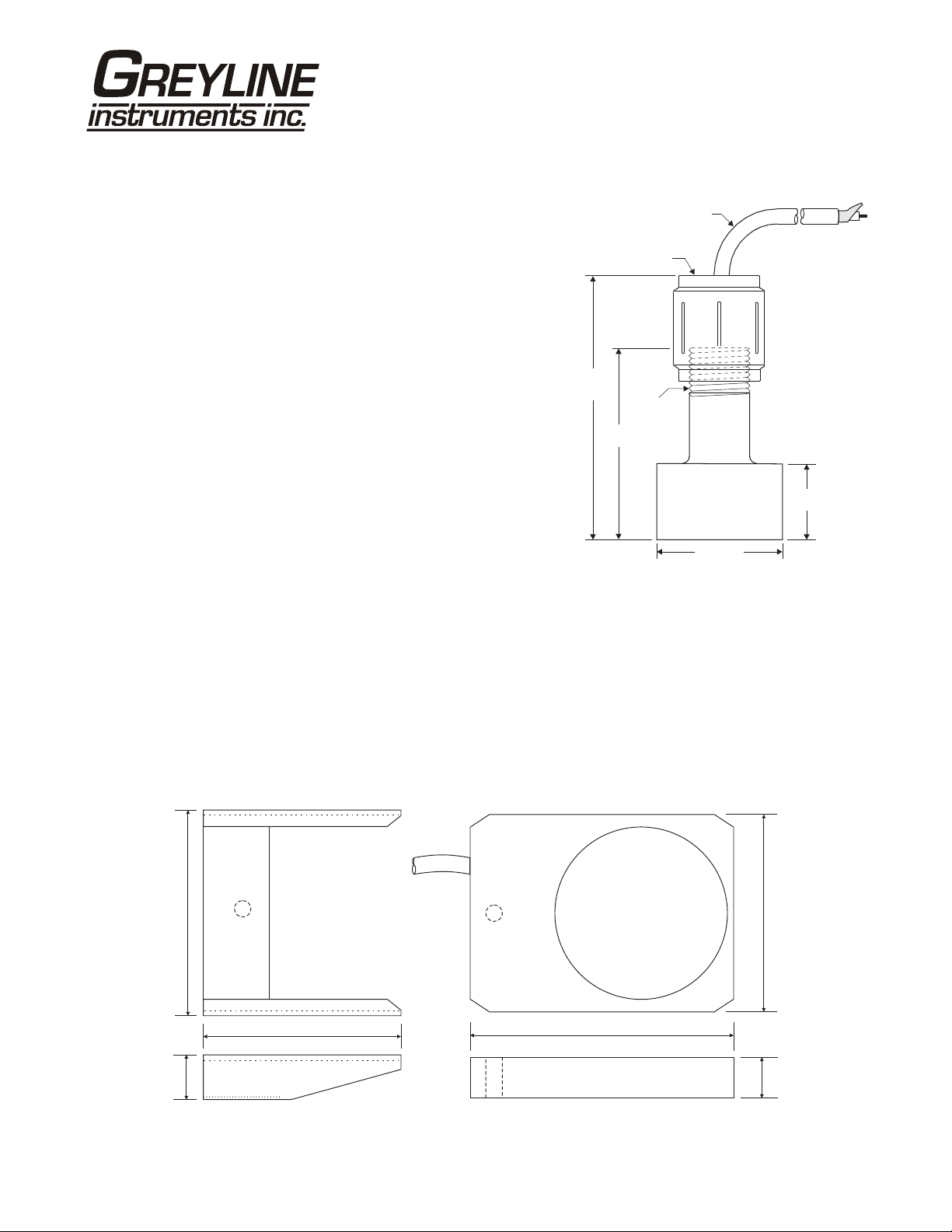

Optional Sensor PZ12-LP
Maximum Range: 12 ft (3.66 m) Minimum Range: 8" (203.2 mm) Beam Angle: Operating Temperature: -40 to 150°F (-40 to 65°C) Exposed Materials: Sensor - PVC, Mounting Bracket - 316 Stainless Hazardous Rating: CSA rated Intrinsically Safe Class I, Groups
C,D,Class II, Groups E,F,G with optional Intrinsic Safety Barrier
MB12 - MOUNTING BRACKET PZ12-LP ULTRASONIC SENSOR
1.125"
25 ft (7.6 m) Coaxial Cable
3.12"
79.2 mm
0.218 DIA (5.5 mm)
3.00"
76.2 mm
FACE VIEW
0.25 DIA (6.35 mm)
4.00"
101.6 mm
3.00"
76.2 mm
SIDE
0.68"
17.3 mm
VIEW
0.62"
15.75 mm
Page 40
www.greyline.com
Loading...
