Great Planes GPMA0410 User Manual

ULTRA-SPORT 40

INSTRUCTION BOOK

PLEASE READ THROUGH THIS INSTRUCTION BOOKLET IN ITS ENTIRETY BEFORE BEGINNING ASSEMBLY. IT CONTAINS IMPORTANT INSTRUCTIONS AND WARNINGS CONCERNING THE ASSEMBLY AND USE OF THIS MODEL.

WARNING! THIS IS NOT A TOY!

This R/C kit and the model you will build is not a toy! It is capable of serious bodily harm and

property damage. IT IS YOUR RESPONSIBILITY AND YOURS ALONE - to build this kit correctly, properly install all R/C components and flying gear (engine, tank, pushrods, etc.) and to test the model and fly it only with experienced, competent help in accordance with all safety standards and common sense as set down in the Academy of Model Aeronautics Safety Code. It is suggested that you join the AMA to become properly insured before you attempt to fly this model. IF YOU ARE JUST

STARTING R/C MODELING, CONSULT YOUR LOCAL HOBBY SHOP OR WRITE TO THE ACADEMY OF MODEL AERONAUTICS TO FIND AN EXPERIENCED INSTRUCTOR IN YOUR AREA.

Academy of Model Aeronautics

1810 Samuel Morse Dr.

Reston.VA 22090 (703)435-0750

POBOXW

URBANA

ILLINOlS 61601 36720t9

TABLE OF CONTENTS

INTRODUCTION .............. 3

Precautions Abbreviations Decisions Other Items Required Die Patterns Supplies and Tools Needed Types

GET READY TO BUILD

Tail

Feathers Fin and Rudder Stabilizer and Elevator

.....................

...................

You

Must Make

.............

....................

Wood

..................

....................

..................

............

.........

........

3 3 4 4

6 6

WING ........................ 9

Wing Panels Join the Wing Panels Install Aileron Torque Rods Sand

"Flats" Fiberglass the Center Section Install the Wing Tips Install the Ailerons Install Install

Wing Dowels

Wing Bolt Plate Fill Landing Gear Slots Installing

FUSELAGE ASSEMBLY

Preparing Fuse Sides Assemble Lower Fuselage Drill Engine Mount Install Servos and Pushrods Install Bottom Sheeting Mount the Wing to the Fuse

....................

.............

........

on LE and TE

........

.......

..............

...............

..............

............

...........

Retracts

................

........

.............

.........

..............

........

...........

........

14 15 15

17 18

18 19

19 21 22 22 24

Fitting Fuel Tank, Fuelproofing ..... 26

Install Turtle Deck

Assemble the Nose Section

FINAL ASSEMBLY

...............

........

.............

Sand the Fuselage ................ 30

Install Wing Fairings .............. 31

Install Wing Fillets Shape the Fin Fillets Mount Stabilizer and Fin

...............

..............

..........

32 33

Install Servos, Horns & Pushrods .... 35

Control Surface Throws

...........

FINISHING ....................36

Additional Fuelproofing Seal

Off

Cockpit

.................

Prepare the Canopy Balance the Airplane Laterally Final Sanding Covering Glue the Hinges Install the Pilot

...................

.......................

.................

..................

...........

...............

......

36 37 37 37 37

37 38 39

Glue Canopy in Place ............. 39

Wing Seating ................... 39

Re-install Engine & Radio ......... 39

Balance Your Model Final Hookups and Checks

..............

.........

39 40

PRE-FLIGHT ..................40

Charge the Batteries Find a Safe Place to Fly Ground Check the Model Range Check Your Model

..............

...........40

..........

41 41

AMA SAFETY CODE ...........42

General Radio Control

........................

...................

42 42

FLYING.......................42

Takeoff

........................42

Flying ......................... 42

Landing ....................... 42

Caution

TRIM INSTRUCTIONS

........................

.........

PARTS LIST ...................46

2-VIEW .......................48

Please inspect all parts carefully before starting to build! If any parts are missing, broken or de-

fective, or if you have any questions about building or flying this airplane, please call us at (217) 367 - 2069

and we'll be glad to help. If you are calling for replacement parts, please look up the part numbers and

the kit identification number (stamped on the end of the carton) and have them ready when calling.

INTRODUCTION

Congratulations! Thank you for purchasing the Great Planes Ultra Sport 40! Jim Feldmann's original design Ultra Sport 60 was featured as a construction article in the August, 1989 issue of RC Modeler magazine, and has been hailed by many as "the best sport flying airplane ever''! The design starts with the legendary "Kaos" wing planform, and features modem styling and state-of-the-art construction techniques. The result is an ultra-stable, ultra-smooth flying airplane that does what you want it to, no more and no less.

The Ultra Sport 40 is easy to build, totally predictable, smooth-flying and has very docile stall characteristics, making it the ultimate sport airplane for the modeler who wants to fly with a higher degree of precision. Because it naturally tracks through maneuvers better than other sport airplanes, you' 11 fly better when you' re flying an Ultra Sport 40.

This is not a beginner's airplane! While the Ultra Sport 40 is easy to build and flies great, we must discourage you from selecting this kit as your first R/C airplane. It is fast, highly maneuverable, and lacks the self-recovery characteristics of a good basic trainer such as the Great Planes PT Series airplanes. On the other hand, if you have already learned the basics of R/ C flying and you are able to safely handle an "aileron trainer" airplane such as the Great Planes Trainer Series or Big Stick Series airplanes, the Ultra Sport 40 is an excellent choice.

4. You must properly install all R/C and other components so that the model operates properly on the ground and in the air.

5. You must test the operation of the model before the first and each successive flight to insure that all equipment is operating, and you must make certain that the model has remained structurally sound. Be sure to check the nylon clevises and horns often, and replace if they show signs of wear.

6. You must fly the model only with the competent help of a well experienced R/C pilot if you arc not already an experienced and knowledgeable R/C pilot at this time.

Note: We, as the kit manufacturer, can provide you with a top quality kit and great instructions, but ultimately the quality and fly ability of your finished model depends on how you build it; therefore, we cannot in any way guarantee the performance of your completed model, and no representations are expressed or implied as to the performance or safety of your completed model.

Remember: Take your time and follow directions to end up with a well-built model that is straight and true.

PRECAUTIONS

1. You must build the plane according to the plans

and instructions. Do not alter or modify the model as

represented by the plans, as doing so may result in an unsafe or unflyable model. In a few cases the plans and instructions may differ slightly from the photos. In those instances you should assume the plans and written in-

structions are correct.

2. You must take time to build straight, true and strong.

3. You must use a proper R/C radio that is in first

class condition, the correct sized engine and correct components (fuel tank, wheels, etc.) throughout your

building process.

INSTRUCTIONS IN BOXES LIKE THIS

ARE VERY IMPORTANT AND SHOULD BE FOLLOWED CAREFULLY.

COMMON ABBREVIATIONS USED IN THIS BOOK AND ON THE PLANS:

Elev = Elevator

Fuse = Fuselage LE = Leading Edge (front) LG = Landing Gear Lt = Left Ply = Plywood Rt = Right Stab = Stabilizer

TE = Trailing Edge (rear)

Tri = Triangle

" = Inches

DECISIONS YOU MUST MAKE NOW

ENGINE AND MOUNT SELECTION

The recommended engine size range is as

follows:

.40 - .46 cubic inch displacement 2-cycle .60* - .70 cubic inch displacement 4-cycle *NOTE: Although not included in the

above engine size range, the OS MAX 48 SUR- PASS also provides sufficient power to fly this airplane.

The engine you select will determine how

you build the fuselage, so it is important that you have the engine close at hand while building.

This kit includes a Great Planes MM40

engine mount that fits most .40 - .45 (2-cycle) engines (only slight modification of this mount is required to mount the OS40SF and OS46SF). If you are installing an OS48 SURPASS

(4-cycle), you may purchase a Great Planes MM60 mount. If you are planning to install the

OS70 SURPASS (4-cycle), you may purchase the Great Planes MM60L mount. If you prefer, you may purchase a custom engine mount for your engine, or you may choose to install shock-

absorbing rubber-cushioned mounts.

NOTE: If you choose to power your Ultra

Sport 40 with a 4-cycle engine, keep in mind that the RPM of your engine will be considerably less than that of a 2-cycle engine; therefore, you should select a higher pitch propeller to keep the speed and overall performance roughly equivalent to that of a 2-cycle engine. For example, a 10x6 or 10x7 prop would be used with a .40 (2-cycle) engine; but an 11x9 or 10x10 prop may be the best choices for a 4-cycle

engine.

LANDING GEAR CONFIGURATION

The Ultra Sport 40 may be built with either

a "taildragger" or "tricycle" landing gear configuration, and a retractable main gear may be installed if you want to really "clean up" this airplane for ultra-smooth and precise aerobatics.

There is not. however, room for a nose gear retract; therefore, if you want retracts, you'll have to use the "taildragger" configuration.

OTHER ITEMS REQUIRED

• Four-channel radio with 4 servos (additional channel and retract servo required if retracts are being used).

• Propellers (see engine instructions for recommended size) Spinner (2-1/4" diameter) Fuel Tank (10 or 12 ounce) Main Wheels - 2 (2-1/2" dia. for fixed gear. 2-1/4" for retract) Nose Wheel -1 (2-1/4" diameter, required fortrike only) Tail Wheel - 1 (1" diameter, required for taildragger only)

• 5/32" Wheel Collars - 4 or 6

• 3/32" Wheel Collars - 2 (required for taildragger only)

• Iron-on Covering Material

• Silicone Fuel Tubing

• Wing Seating Tape (or silicone sealer... see instruc-

tions)

• Latex Foam Rubber Padding (1/4" thick)

• Dubro "E-Z Connectors" (or equivalent) - 2

• Main Gear Retracts (Dave Brown 2-Gear Main, or

equivalent)

• Plastic Pilot (Williams Bros. 2" scale) (larger 2-5/8" scale pilot may be used, but requires modification)

DIE PATTERNS

Use this drawing to help you identify the die cut parts.

SUPPLIES AND TOOLS NEEDED GET READY TO BUILD 2 oz. Thin CA Adhesive

2 oz. Medium or Thick CA Adhesive

2.5 oz. 30-Minute Epoxy Hand or Electric Drill Drill Bits: 1/16". 5/64", 3/32", 7/64", 1/8", 9/64", 5/32",

1. Unroll the plan sheet. Re-roll it inside out to make it lie flat. NOTE: You may cut the plan into two sections ("wing" and "fuselage"), by cutting along the "cut line'' shown on the plan.

13/64". 7/32", and 1/4" Sealing Iron Heat Gun Hobby Saw (Xacto Razor Saw) Xacto Knife, #11 Blades Pliers Screw Driver T-Pins Straightedge Masking Tape Sandpaper (coarse, medium, fine grit)* T-Bar Sanding Block, or similar

2. Remove all parts from the box. As you do, figure out the name of each part by comparing it with the plans and the parts list. Using a felt tip pen, write the part name or size on each piece to avoid confusion later. Use the die-cut patterns shown on page 5 to identify the die-cut parts and mark them before punching out. Save all scraps. If any of the die-cut parts arc difficult to punch out, do not force them! Instead, first cut around the parts with an Xacto knife. Afterpunching out the die-cut parts, use your T-Bar or sanding block to lightly sand the edges

to remove any die-cutting irregularities. Waxed Paper Lightweight Balsa Filler

1/4-20 Tap, Tap Wrench

Vaseline Petroleum Jelly

3. As you identify and mark the parts, separate them

into groups, such as fuse (fuselage), wing, fin and stab

(stabilizer), and hardware.

Isopropyi Rubbing Alcohol (70%) Dremel Moto Tool or similar (optional)

*NOTE: On our workbench, we have four 11" T-

Bar sanders, equipped with #50, #80, #100 and #150-grit sandpaper. This setup is all that is required for almost any sanding task. We also keep

some #320-grit wet-or-dry sandpaper handy for

finish sanding before covering.

TYPES OF WOOD

BALSA BASSWOOD PLYWOOD

"TAIL FEATHERS"

BUILD THE FIN AND RUDDER

1. Find the following parts: 1/4" balsa fin front, fin rear, rudder front, rudder rear and rudder bottom. Compare the parts to the plans to make sure you

have the correct parts. Also find the 1/4 "x 9/16" x 15" balsa stick, and the 1/8" x 1/4" x 12" balsa stick.

2. Cut the 1/4" x 9/16" x 15" balsa stick into three pieces having lengths of: 5-1/4", 4-3/4" and 4-3/4". The 5-1/4" lengthis the fin tip. Mark the 4-3/4" pieces "stab

tip".

3. Cut the 1/8" x 1/4" x 12" balsa stick into 5 pieces having lengths of: 2-3/4", 2-5/8", 2-5/8", 1-5/8" and

1-5/8". The 2-3/4" length is the rudder end. The

remaining pieces are the elevator ends.

4. Working on a flat surface covered with waxed

paper, glue the fin front to the fin rear, then glue on the fin tip. Sand the front of the fin tip to blend with the fin. as shown on the plan.

5. Using a T-bar or sanding block, sand both sides

of the fin smooth. Then sand the leading edge and top edge to a rounded shape, as shown on the plan. Draw a centerline along the trailing edge of the fin to mark the hinge line.

6. Glue the rudder front to the rudder rear, then

glue on the rudder bottom and rudder end.

10. If you are building a "taildragger", check the plans and mark the location of the tailgear on the rudder. Drill a 7/64" hole in the rudder, and groove the rudder leading edge to accept the tailgear wire and the nylon

tailgear bearing.

BUILD THE STABILIZER AND ELEVATORS

7. Draw a centerline all around the edges of the rudder (This will help to maintain symmetry when sanding).

8. Using a sanding block and coarse (50 or 80-grit)

sandpaper, sand both sides of the rudder to a taper as shown on the plans. The trailing edge should end up approximately 3/32" wide and have a rounded shape. (Do not sand to a sharp edge). Sand the bottom edge to a rounded shape. Sand the leading edge to a' 'V-shape'' as shown on the plan.

1. Find the following parts: 1/4" balsa stab front,

stab rear and elevators. You'll also need the 1/4" stab tips and 1/8" elevator ends that you previously cut, and

the 1/8" wire elevator joiner.

2. Glue the stab front to the stab rear. Then glue

on the stab tips. Sand the front of the stab tips to blend with the stab.

3. Glue the elevator ends to the elevators and sand

to blend.

9. Hold the fin and rudder together and mark the fin tip at the rudder trailing edge. Cut off the fin tip and sand it to match the rudder as shown on the plan.

4. Sand both sides of the stab smooth, then sand the

leading edge and tips to a rounded shape. (Leave the

center portion of the LE square). Draw a centerline

along the trailing edge of the stab to mark the hinge line.

5. Draw a centerline all around the edges of the

elevators.

9. Accurately drill holes in the elevators for the

1/8" wire joiner. Begin by drilling a 1/16" or 5/64" pilot

hole, then drill the final hole to a depth of 7/8" with a 9/64" drill bit. (The hole is drilled slightly oversize to

allow for positioning, and to create a hard epoxy "sleeve" around the wire).

6. Sand both sides of the elevators to a taper as

shown on the plans. The trailing edge should end up approximately 3/32" wide and have a rounded shape (do not sand to a sharp edge). Sand the leading edge to a "V- shape" as shown on the plan.

7. Temporarily tape the elevators to the stab, providing 1/16" clearance between the elevator end and the stab tip.

10. Using an Xacto knife, sharpen the inside of one end of a 1/8" diameter brass tube and use it to cut grooves in the leading edge of the elevators to accept the joiner wire.

11. Roughen the joiner wire with coarse sandpaper, then clean the wire thoroughly with alcohol to remove any oily residue.

8. Lay the 1/8" wire elevator joiner in place on the

elevators and mark its outline using a fine point felt-tip

pen.

12. Trial fit the joiner wire into the elevators, then

glue it in using 5-minute or 30-minute epoxy. When gluing, lay the elevator leading edges along a straightedge to insure perfect alignment.

INSTALL THE HINGES (Do not glue) NOTE: One-piece molded polypropylene hinges

are supplied in this kit. If you choose to use these hinges or the "pinned"-type hinges, you may cut the hinge slots at this time. However, if you choose to use the one-piece hinges that are paper covered for CA glue installation, you may wait until after covering before cutting the hinge slots.

1. Lay the rudder and elevators on the plan and

mark the hinge locations. Place the rudder against the fin TE and transfer the marks over to the fin. Place the elevators against the stab TE and transfer the marks over

to the stab.

CAUTION!!!: You must use extreme care when cutting hinge slots with an Xacto knife, to avoid cutting yourself! If the balsa part breaks while you are pushing on the knife, the blade could go into your hand before you know it! A good precaution is to wear leather gloves while performing the following steps.

from your local hobby dealer). Many expert modelers prefer to use a wing jig for high performance airplanes, as it helps to insure a straight, warp-free wing, especially if you do not have a workbench or building board that is perfectly flat. If you choose to use the Wing Jig, please read the instructions that are included with the jig before beginning.

BUILD THE WING PANELS NOTE: It will be helpful to build the wing on a

piece of "Celotex" or other semi-soft (and flat) surface, into which you may easily stick pins to

firmly hold down the wing parts while building, to

avoid warps.

1. Tape the plan to your flat work surface, and

cover the wing drawing with waxed paper (so you won't glue the wing to the plan!). NOTE: If your work space is limited, you may cut the left and right wing half drawings apart.

2. The shaped and notched wing leading edges (LE) and trailing edges (TE) are fastened together by thin strips of balsa. Separate them by folding until the balsa breaks. Sand away the excess balsa that remains along the edges after breaking them apart, using a T-bar with 100-grit sandpaper.

2. Cut the hinge slots on the accurate centerlines

which you previously drew, using an Xacto knife or a hinge slotting fork and hook. (See Step 7 on Page 17)

3. IMPORTANT! Condition or "break-in" the

hinges by folding them back and forth several times.

4. Insert the hinges into the slots and trial fit the

rudder and elevators in place on the fin and stab. Do not

glue the hinges until after you have covered the model.

WING

NOTE: The following instructions explain how to

build the wing directly on the plans. An alternative method is to use a Great Planes Wing Jig (available

3. Before using the 1/4" x 3/8" x 27-1/4" hard balsa

spars, examine them carefully for possible imperfections. Look for knots, soft spots, diagonal grain and any other imperfections. If possible, position each spar so the

imperfections (if any) are on the outer half of the wing panel (toward the tip), where they will be least affected by high stress. If the spars are warped slightly, try to

"balance them out" by installing the warped spars in

opposite directions (see sketch).

TWO WARPED SPARS INSTALLED

THIS WAY WILL RESULT IN A

STRAIGHT WING

TWO WARPED SPARS INSTALLED

THIS WAY WILL RESULT IN A

WARPED WING

4. Find the 1/8" x 3/8" x 13-3/8" basswood spar

doublers. Sand one end of each spar doubler to a taper

as shown in the " Wing Spar Detail" on the plan. Glue the spar doublers to the spars, and sand off any excess glue.

5. Carefully punch out all the die-cut 3/32" balsa

wing ribs. Sand the edges slightly to remove any diecutting irregularities.

NOTE: If you will be installing a retractable landing gear, disregard Steps 6 and 7.

6. Note that the wing plan shows two alternate

locations for the main landing gear blocks. Note also that Ribs W-2, W-3 and W-4 have partial cutouts foreach of the two locations. If you are building your plane as a taildragger, cut out the front notches in these ribs. If you are building your plane with a tricycle gear, cut out the rear notches. (If you will be installing retracts, do not cut out any of the notches).

7. Glue the die-cut 1/16" ply landing gear dou-

blers to ribs W-2, W-3 and W-4. Be sure to glue them to the correct side of the ribs, as shown on the plan (make a right and a left set). Sand the doublers even with the edge of the ribs.

8. Prepare the leading edge sheeting as follows:

Edge glue the 3/32" x 1/2" x 7-1/2" balsa sheets to the 3/ 32" x 3" x 27-1/4" balsa sheets as shown here...

NOTE: Follow steps 9 through 34 to build the RIGHT wing panel, then repeat these steps to build the LEFT wing panel.

9. Pin one of the spars to the plan with the spar

doubler up and toward the root. NOTE: The spars are cut slightly too long. Center the spar on the plan so an equal amount protrudes on both ends.

10. Place the ribs on the spar in their approxi-

mate position, but do not glue. NOTE: Make sure ribs W-2, W-3 and W-4 are installed with the LG notches down, and W-l is installed with the servo opening pointing up.

Now measure and mark the balsa sheeting (see sketch below), then cut the angle in the sheeting, cutting along a metal straightedge for accuracy.

CUT FIRST SLOT TO ANGLE OF DIHEDRAL GAUGE

NOTCHED LEADING

EDGE

11. Notice that all notches in the LE and TE are vertical. However, rib W-l will be installed at a slight angle using the Dihedral Gauge. Therefore, you should now modify the notch for W-1 by cutting it to the angle of the rib. You may determine the approximate angle of the cut by holding the Dihedral Gauge (DG) against the LE as shown above.

12. Insert the rear ends of the ribs into the

notches in the TE. then block up the TE with the 1/4" balsa TE Jig supplied. NOTE: The narrow end of the TEjig is at rib W-11. Pin the jig to the building surface.

13. PintheTEtotheTEJig.makingsuretheribs

line up with the plan.

14. Glue ribs W-2 through W-11 to the TE.

(Apply glue sparingly, to avoid gluing the TE to the TE Jig).

15. Insert the front ends of the ribs into the

notches in the LE. NOTE: Position the LE as shown in

the sketch.

CENTER L.E. VERTICALLY

ON FRONT OF RIBS

the TE, LE and bottom spar. Glue all other ribs to the LE and bottom spar.

17. Glue the top sparin place, making sure you

do not change the angle of W-1.

18. Glue the pre-cut 3/32" balsa vertical grain shear webs to the rear edge of the spars in all rib bays except between ribs W-1 and W-2. NOTE: You may wish to trial fit, mark, and trim each web before gluing

in. NOTE: The webs must be securely glued to the

spars, but it is not necessary to glue the webs to the ribs.

L.E.

16. Make sure the ribs are fully down on the plan

and all ribs are inserted into the LE notches. Angle rib W-

1 slightly using the dihedral gauge (DG). Glue W-1 to

19. You will now make a "pocket" for the

1/16" ply dihedral brace by installing a 3/32" balsa

web 1/16" behind the spars. Sand one of the 3/32" x 2" x 2-5/8" balsa horizontal grain webs for a good fit between W-l and W-2. Using the 1/16" ply dihedral brace as a temporary spacer, glue the 3/32" web to W-l and W-2.

the following step and go through a "dry run* before actually gluing.

20. Glue the die-cut 1/8" ply front web to the

front edge of the spars between ribs W-l and W-2.

NOTE: In the next steps, maintain straightness by keeping the wing down on the flat surface and on

the

Jig.

21. Lightly sand the tops of the ribs to blend with the notched trailing edge; then glue one of the 3/32" x 1-3/8" x 27-1/4" balsa trailing edge sheets in place. NOTE: The edge of the TE sheet may not be exactly straight, but just position the sheet so it slightly overlaps the TE, and any overlap can be sanded off later.

22. Before applying the leading edge sheeting in the next step, use your T-bar to lightly sand off the edges of the shear webs and smoothly blend the ribs to the spar.

24. Position the leading edge sheeting at the rear edge of the notched LE so there is an equal amount protruding on both ends of the wing. Using thin CA, glue the front (beveled) edge of the leading edge sheeting to the back edge of the leading edge. Now wet the top surface of the sheeting so it will bend easier. Apply thick CA glue to the top edge of the ribs and to the front half of the spar, then immediately bend the sheeting down onto the ribs and spar. Hold the sheeting down with masking tape, pins and your hands until the glue has set.

25. Using the 3/32" x 3" x 8-1/4" balsa sheets, glue the top center section sheeting in place as shown on the plan.

23. Prepare the 3/32" balsa leading edge sheet -

ing by sanding the front edge to a slight bevel so it will fit snugly against the back of the leading edge.

NOTE: It will be helpful to have the following items handy for the next step... thin CA, thick CA, a wet cloth, masking tape and T-pins. Read through

NOTE: If you are installing retracts, disregard

steps 26 through 29.

26. Remove the wing from the building board and trial fit the long grooved hardwood LG block into the notches in dbs W-2, W-3 and W-4 (see the landing

gear detail drawing on the wing plan for proper positioning). File the notches if necessary for a good fit. Now use epoxy to securely glue the block in place.

27. Epoxy the 7/16" x 5/8" x 7/8" hardwood

block to the LG block and to the 1/16" ply doubler on rib

W-2. as shown on the plan and in the photo, then epoxy

the small hardwood block to the other end of the LG

block and to the 1/16" ply doubler on rib W-4.

Photo of finished wing with retract mechanism removed.

the bottom of the wing, in the location shown on the plan. Lock and strengthen the joints between the

1/4" ply rails and the 1/16" ply rib doublers by gluing 1/4" balsa triangle stock to these joints. You should also now do some planning and trial fitting of the retract and pushrod, customizing the installation as necessary to accommodate your retracts.

Installing retracts requires careful planning and a lot of trial fitting; therefore, you should take the

time now to plan out your installation.

31. With the wing upside down, again use the

TE jig to support the TE. Then install the bottom TE sheeting, LE sheeting and Center Section sheeting, cutting and fitting the sheeting around the LG block as

necessary. IMPORTANT NOTE: To insure a

straight wing, you must pin or weight the TE securely down on the TEjig while the bottom sheeting is glued

in place!

28. Drill a 5/32" hole down through the grooved LG block and the 7/8" block. Line up the drill so you are drilling straight down through the middle of the 7/8"

block.

29. Trial fit the 5/32" diameter main landing gear wire into the landing gear block at this time. Cut or

file the groove and hole in the landing gear block as necessary for a good fit.

30. Using a razor saw, carefully cut off and sand all excess sheeting, spars, LE and TE even with W-1 and

W-ll. NOTE: If you will be installing retracts, now is

the time to glue in the 1/16" ply die-cut rib doublers to the front portion of ribs W-3 and W-4. (Make

sure the front rib doublers are on the outboard side

of W-3 and the inboard side of W-4). This is also the

time to install the 1/4" ply retract mounting rails on

32. From the 3/32" x 1/4" x 30" balsa sticks, cut

and glue cap strips to all exposed ribs, top and bottom. HINT: Foreasierpositioning of the cap strips, firstmark

the location of each rib on the LE and TE sheeting.

33. Trim the sheeting flush with ribs W-l and W-11 and sand the entire wing panel smooth. Sand the leading edge to smoothly blend with the LE sheeting (see

the rib cross-sections on the plan for the desired LE

shape).

34. Mark and cut out a 1/16" slot in W-l just

behind the spars, for the dihedral brace.

35. Now go back and repeat Steps 9 through 34 to

build the left wing panel.

JOIN THE WING PANELS

3. Mix up a batch of 30-minute epoxy and push some into the dihedral brace slots. Smear epoxy on the spar ends, and on both sides of the 1/16" ply dihedral brace. Slide the dihedral brace in place, push the wing panels together and immediately proceed to the next

step.

4. With the wing tips blocked up 1 -inch, carefully

align the LE and TE of both wing panels at the center and,

while holding them in correct alignment, apply thin CA glue to "lock" the panels together. Do not apply CA

glue to any area that is already coated with epoxy.

Allow the epoxy to fully harden before disturbing the

wing.

NOTE: Read steps 1 through 4, then make a "dry

run" through these steps before actually proceeding.

1. Lay a piece of waxed paper down at the center of

the wing, place the two wing panels together at the center,

and block up both wing tips 1-inch. Sand the wing

panels at the center so they will fit together without a gap.

2. Trial fit the 1/16" ply dihedral brace to make

sure it will readily slide into place.

5. Sand the wing joint smooth all around.

INSTALL AILERON TORQUE RODS

1. Roughen the short end of the aileron torque

rods with 100-grit sandpaper, and file the same end to a

wedge shape.

FILE END TO

WEDGE SHAPE

NOTE: 30-minute epoxy is strongly recommended for the wing joining process.

2. Roughen the surface of the plastic bearing tubes

with 100-grit sandpaper.

3. Clean the torque rods and bearing tubes with

alcohol.

SAND "FLATS" ON LE AND TE

4. Find the two grooved, tapered balsa center

trailing edge pieces. Lay them on the plan, mark and cut

them off to match the plan for length and angle at the centerline.

5. Trial fit the torque rods into the center TE pieces.

Determine from the plan where to cut the clearance notches, which will permit the torque rod horns to travel freely. Also cut small clearance notches in the wing TE.

Note: The torque rod horns must exit the TOP of the wing!

6. Slide the plastic bearings toward the threaded end of the torque rods, then use a toothpick to apply a small amount of petroleum jelly to the ends of the plastic tubes (to help prevent glue from getting inside and locking up the torque rods).

7. Use 5-minute epoxy or CA to glue the plastic bearing tubes into the grooves in the center TE pieces. Wipe off any excess glue and allow it to harden.

1. Study the wing plan near the wing centerline. Note that the center portion of the LE and TE must be sanded flat.

2. Sand approximately 5/32" into the LE at the centerline, and approximately 3/32" into the TE at the centerline. (The flats will end up approximately 4-1/2" wide at the LE, and 2" wide at the TE).

FIBERGLASS THE CENTER SECTION

NOTE: Because of the high stresses in the center of this wing, fiberglass reinforcement is REQUIRED. Please do not omit this important

section!

NOTE: If you have previous experience with

applying fiberglass, feel free to use your favorite method, providing that it results in a strong bond between the glass cloth and the wood. If this is your first time, we offer the following suggested method, which is the fastest and easiest we have seen.

8. Trial fit the trailing edge/torque rod assemblies

onto the wing trailing edge. Sand the center trailing edge

pieces slightly where they join, for a good fit. Glue these pieces in place with epoxy. HINT: Use masking tape to hold these pieces to the wing TE. to aid in correct posi-

tioning.

1. Make location marks for the fiberglass rein-

forcement cloth, 1-1/2" each way from the wing center-

line.

2. Trial fit the 3" wide fiberglass cloth in place. You can use a scissors or a paper punch to cut holes in the glass cloth for the aileron torque rod horns.

3. Wrap small pieces of masking tape around the threaded portion of the aileron torque rods to protect them from the spray adhesive in the next step.

4. Spray a very light mist of 3M "77" Spray

Adhesive on the center section in the area to be glassed.

Hold the spray can at least 12" away from the surface

when doing this to avoid a heavy buildup. The purpose of this is only to give the wood a little "tackiness". If you apply too much spray it could result in a poor glue bond. Allow the spray to dry for 5 minutes before proceeding to step 5.

5. Beginning at the trailing edge, lay the glass tape

in place on the wing. Gently press the cloth in place, working out all the wrinkles. The "77" spray adhesive should hold the cloth down to the surface, but will permit you to lift and reposition the cloth if you make a mistake. Keep working forward along the top of the wing, around the leading edge, and along the bottom of the wing, ending at the trailing edge. Do not attempt to wrap the glass cloth around the trailing edge.

a T-bar sander with 80 or 100-grit sandpaper. Also,

lightly sand the surface of the glass cloth with a piece of

sandpaper held in your fingers to remove any rough spots. WARNING: When sanding fiberglass, wear a

dust mask to avoid breathing airborne glass fibers.

INSTALL WING TIPS NOTE: The wing tips will be cut and carved from

the 7/8" x 1-7/16" x 8-3/4" balsa blocks.

1. Draw a centerline on the ends of the wing and on

the wing tip blocks.

6. Working outdoors or in a very well-ventilated

area apply thin CA glue to the glass cloth. Begin by running a bead of glue down the center of the glass cloth strip, then continue applying the glue in lines until all the cloth has been secured. Run the thin CA out 1/4" beyond the edges of the glass cloth to help protect the balsa sheeting when sanding later. WARNING: This opera-

tion produces a larger than normal quantity of CA fumes, so adequate ventilation is a must!

7. Inspect the surface of the glass cloth. If any areas

are not glued down, apply a couple more drops of CA glue and press down with a piece of waxed paper until the glue sets.

8. To make sure the glass cloth is fully "wetted out" and bonded to the balsa, you may apply more thin CA, a few drops at a time, and spread it out with a piece of waxed paper.

9. After the glue has set, trim the excess cloth at the trailing edge with a sharp Xacto knife followed by a sanding block.

10. Carefully sand the edges of the glass cloth with

2. Securely glue a wing tip block to the left end of the wing, and tack glue the other wing tip block to the right end of the wing, lining up the centerlines you previously drew. You will later break only the right tip loose and hollow it out.

3. Cut, carve and sand the wing tips to the appropriate shape as shown on the plan. HINT: Use 50-grit sandpaper to speed up this operation. NOTE: Leave the tips oversize in the area of the ailerons, for now.

4. Cut the right wing tip loose from the wing and

use a Dremel Moto Tool to hollow out the wing tip. (This will help to compensate for the weight of the engine head and muffler).

5. Now securely glue the right wing tip in place.

cut a groove in the leading edge of the ailerons to

accept the torque rods. Cut these grooves a little larger

at the beginning, to make room for the torque rod bearings. Trial fit the ailerons onto the torque rods and cut or file as necessary until they fit.

6. Lay the ailerons on the plan and mark the hinge

locations on the ailerons. Place the ailerons against the wing TE and transfer the marks over to the wing.

INSTALL AILERONS NOTE: Do not glue the aileron hinges until after

your model has been covered.

1. Draw an accurate centerline along the LE of the

tapered balsa ailerons and the wing TE.

2. Check the length of your ailerons against the

actual aileron openings and trim the ailerons as necessary. You should provide approximately 1/16" gap at

each end of the ailerons.

7. Cut the hinge slots in the ailerons and wing TE using an Xacto knife. (The suggested procedure is listed below):

A. Begin by carefully cutting a very shallow slit in the trailing edge at the hinge location. This first cut is to establish your cut in the right place, so concentrate on staying on the centerline and don't cut too

deep!

B. Make three or four more cuts in the same line, going slightly deeper each time. As you make these additional cuts, work on going straight into the wood. Continue this process while "wiggling" the knife handle back and forth until the blade has reached the proper depth for the hinge.

C. Trial fit the hinge into the slot. If the hinge is difficult to push in, re-insert the knife and move it back and forth in the slot a few times to enlarge the

slot.

3. Lay the ailerons in place in the openings, with

the torque rods resting on top of the ailerons. Mark the

torque rod locations on the top of the ailerons.

4. Drill a 7/64" hole in the ailerons at the torque rod

locations, starting at the leading edge centerline and drilling straight in to the proper depth.

5. Use the sharpened 1/8" diameter brass tube to

8. IMPORTANT! Condition or "break-in" the hinges by folding them back and forth several times.

9. Sand the leading edge of the ailerons to the same "V"-shape as shown on the wing rib detail drawing.

10. Insert the hinges into the slots and trial fit me ailerons in place on the wing. Do not glue the hinges un-

til after you have covered the wing.

There should be no hinge gap!

NOTE: Now is a good time to finish the wing tips.

Tape the ailerons on in the neutral position, and sand the wing tips to blend with the ailerons.

INSTALL WING DOWELS

1. Mark a horizontal centerline on the flat which you sanded on the wing LE. Also mark a vertical centerline on the die-cut 1/8" ply former F-2A (the Wing Dowel Plate).

file, or you may sand the dowels down slightly. Do not glue the dowels in place at this time.

INSTALL WING BOLT PLATE

1. Mark a centerline on the 1/16" x 3-3/32" x

1-1/2" ply wing bolt plate.

2. Holding the die-cut 1/8" balsa F-2A on the

leading edge, in the exact center of the wing, mark the dowel locations through the dowel plate holes.

3. Remove F-2A and double check to make sure the dowel locations are both the same distance from the wing center joint.

4. It is important that you now drill the dowel holes

accurately! To insure accurately positioned holes, begin by drilling small (1/8") holes in the center of the marked locations. Then gradually increase drill bit sizes until

you have finally drilled the holes to 1/4" diameter. The

final holes you drill must extend 3-1/2" into the wing to

penetrate the front webs. NOTE: Try to drill straight in.

2. Position the wing bolt plate on the bottom of the

wing, and line it up with the wing TE and centerline. Glue it in place.

3. Sand the wing bolt plate flush with the wing TE.

FILL LANDING GEAR SLOTS

1. Temporarily install the main LG wires.

NYLON LANDING

GEAR STRAP

#2X3/8" SHEET

METAL SCREW

5. Sand one end of each wing dowel to a slightly

rounded shape. This is the end that will be inserted. Do

not sand the other end at this time.

6. Trial fit the dowels into the dowel holes, and trial fit the dowel plate over the dowels. If the dowels fit too tightly, you may enlarge the holes slightly using a round

2. Using scraps of balsa, fill the ends of the slots in the notched LG blocks and sand flush with the surface Of the wing. This will aid in covering later.

INSTALL RETRACTS (OPTIONAL) NOTE: Hardware for retract installation is not

included in the kit.

1. Study the retract drawings on the plan, and the installation instructions provided with your retracts, and plan your retract installation before proceeding.

Photo shows finished wing with retract installed.

2. Cut an opening in the bottom LE sheeting for the retract mechanism. Cut a clearance slot in rib W-3 for the LG wire. Cut an opening in the bottom LE sheet and in rib W-2 for the wheel well.

3. Enclose the wheel well by running vertical grain

1/16" balsa between the bottom and top sheeting; or you may make the wheel well from an appropriately-sized styrofoam cup.

5. Temporarily mount your retract servo and trial

fit all retract components. Test the operation of your retracts making sure they operate freely and reliably. Also make sure they "lock" in both the up and down positions.

Photo shows finished wing with retract installed.

6. Blend the bottom sheeting as neatly as possible

around the retracts.

7. Use polyester resin or 30 - minute epoxy thinned

with alcohol to fuel proof the entire retract wheel well

cutout

FUSELAGE ASSEMBLY

PREPARE FUSE SIDES

4. Cut out an opening in the center of the wing (in front of the spars) for your retract servo, and bend and fit a pushrod to run between the servo and the retract

mechanism. Run the pushrod just under the top LE

sheeting until it passes over the wheel well, then make

two 90-degree bends and connect it to the retract mechanism.

Photo shows finished wing with retract servo installed.

1. Lay one of the shaped 1/8" balsa fuselage sides

in place on the fuselage plan side view. Carefully position the fuse side so the front edge lines up with the

front ofF-1 on the plan. Tape or pin the fuse side so it can't move. NOTE: The fuse side may be a little longer at the rear than indicated by the plan. This is as it should

be.

2. Carefully position the die-cut 1/8" balsa lower

front fuse side so the rear edge lines up with the front of

the wing saddle opening on the plan (the rear edge of F2A). Edge glue the lower front fuse side to the fuse side. NOTE: Use waxed paper under the balsa to avoid gluing to the plan.

3. Carefully position the lower rear fuse side so

the vertical front edge lines up with the rear of the wing saddle opening on the plan (the front edge ofF-4). Edge glue the lower rear fuse side to the fuse side.

4. Trim off the rear portion of the lower rear fuse

side. making the bottom edge a straight line.

7. Edge glue the appropriate firewall spacers to the front edge of the fuselage doublers. Note that the spacers are not the same size. They will automatically set the engine at the required 2-degrees right thrust.

5. Sand the fuse side smooth on both sides using a

T-bar and 100-grit sandpaper, then repeat the above steps to make the other fuse side.

6. Find the two die-cut 1/8" ply fuselage doublers and the four die-cut 1/8" ply firewall spacers. Note that the spacers are marked "2L", "2R", "4L", and

"4R".

Use the #2 firewall spacers if you will be

installing a 2-cycle engine such as the OS Max 40

SF.

Use the #4 firewall spacers if you will be installing a small 4-cycle engine, such as the OS FS 48 Surpass.

If you will be installing a larger (longer) 4-cycle engine, such as the OS FS 70 Surpass, do not use any firewall spacer on the right side, and use the

1/8" x 1/8" x 3-1/8" hardwood stick as a firewall

spacer on the left side.

8. Carefully position the fuselage doublers on the

fuse sides, making a RIGHT and a LEFT side. The doubler with the smaller firewall spacer goes on the right fuselage side... PLAN IT OUT! It is important that the

fuse doubler and fuse side line up along the top edge and the front of the wing opening. While holding in position, apply thin CA glue around all the notches and lightening holes, then around the edges. Make sure you apply sufficient glue so it flows under the doubler to produce a strong bond. NOTE: The narrow and wide firewall spacers will automatically position the firewall to result in 2-degrees of right engine thrust.

9. Glue the tapered balsa tail filler to the aft end of

one of the fuse sides and sand it even with the top and bottom edges.

10. From the 1/4" balsa triangle, cut pieces to fit

between the tail filler and the rear of F-4, along the bottom inside of both fuse sides. Glue in place.

11. Sand the aft ends of the balsa triangle to a taper,

which will permit the fuse sides to be pulled together at the aft end. NOTE: The taper shown in the photo is approximate and may have to be modified during assembly.

ASSEMBLE LOWER FUSELAGE

1. Tape the fuselage plan to your workbench and

cover the Fuse Bottom View with waxed paper.

together: Fuse top assembly, fuse sides, die-cut 1/8" ply F-2, F-3, F-4 and the die-cut 1/8" ply Chin Block Base. Check the fit of all parts and trim, file or sand as necessary for a good fit. Pull the aft ends of the fuse sides together and re-sand the 1/4" triangles if necessary.

5. Once you have everything fitting properly, reassemble the above parts, using clamps, pins, tape and weights to hold everything together and flat on the workbench. Make sure F-2 is pushed as far forward

as possible, and F-4 is pushed as far aft as possible.

There should be waxed paper underneath to prevent gluing the fuse to the plan. Apply med. or thin CA glue to the joints, then follow with thick CA glue in any joints that are not tight fitting.

2. Accurately position the die-cut 1/8" ply fuse

top front and the die-cut 1/8" balsa fuse top rear on the

plan. Glue these two parts together by applying thin CA glue, then follow with thick CA.

3. Glue F-5 and F-6 to the fuse top, positioning

them in the rear of the slots and using a draftsman's triangle or carpenter's square to set the formers perpendicular to the fuse top.

NOTE: The fuselage is assembled upside down.

4. Trial fit (do not glue) the following parts

6. Find the 1/4" ply wing hold-down block and

trial fit it into the notches in the fuse side doublers,

sanding as necessary for a good fit. Glue the hold-down

block in place securely, using 30-minute epoxy, then cut pieces of 1/4" balsa triangle and glue them in place above

and below the hold-down block. Sand the triangles flush with the wing saddle.

7. Before installing the firewall (F-l), drill F-1 for

your engine mount and install the 6-32 blind nuts. If you will be using the engine mount supplied in the kit, you may cut out the F-l drawing from the plans, tape it to

BLIND NUT

F-1 and use it as a guide for drilling the four 5/32" holes. If you will be using a different mount, note that the mount should not be positioned on the vertical and horizontal centerlines of F-1, but, due to the engine thrust angle, should be offset approximately 3/32" above the centerline and 1/8" toward the left side. Drill the holes and install the blind nuts on the back of F-1, pressing them in with a pliers or a vise.

aft edges of F-1, and glue them in place.

DRILL ENGINE MOUNT

(Great Planes MM40 or MM60 mounts)

1. Place the engine pointing straight ahead on the mount and mark the mounting hole locations on the mount. At the marked locations, accurately drill 7/64" (or#36) holes. NOTE: If you have access to a drill press, use it for drilling these holes to insure that they are drilled vertically.

2. Now you may use one of the following methods

to attach your engine to the mount:

Method 1: Screw the #6 x 3/4" sheet metal

screws (provided in the kit) through the engine mounting flange and into the mount. When first installing these screws, put a drop of oil into each screw hole.

8. Use 30-minute or 5-minute epoxy to securely

glue F-1 to the fuse sides, holding with clamps or tape until the glue has firmly set. NOTE: Before the glue sets, double check to make sure F-1 is properly aligned with the top and bottom edges of the fuselage, and fully back against the firewall spacers. After the glue has fully hardened, sand off the front of the fuse sides flush with the front of F-1.

Method 2: Cut threads into the holes you just

drilled using a 6-32 tap and tap wrench. If you use this method you'll have to supply your own bolts (6-32 x 1" socket head cap screws) for attaching the engine to the mount

INSTALL SERVOS AND PUSHROD GUIDE TUBES

NOTE: Although you may choose to wait until

later, this is the best time to install the pushrod guides, because the fuselage is wide open and it is very easy to work inside.

IMPORTANT: Before proceeding, plan your

servo and pushrod installation. Especially note which

side of the fuselage the throttle pushrod and nose gear pushrod (if any) will be located. Remember that the throttle arms of2-cycle and some 4-cycle engines arc on opposite sides. It will be helpful to actually sketch your pushrod locations on the plans with a pencil. It is desireable for the throttle pushrod (and the nosegear steering pushrod) to run along the sides of the fuselage.

9. Cut pieces of 1/4" balsa triangle to fit around the

1. Set the fuselage upside down on blocks at least 1-inch high.

2. Trim the 3/16" ply servo rails and temporarily

mount your servos. (NOTE: Depending on the width of your servos, and the spacing between servos, you may have to enlarge the opening in the fuse top). Now securely glue the servo rails to the fuse sides and fuse top. Lock the rails in place by gluing scraps of 1/8" ply on top of the rails.

6A. Glue the tubes to the fuse sides at the rear

exit points using thin CA glue. Use scraps of 1/8" balsa to anchor the tubes to F-5. Do not anchor the tubes to F-4 at this time, to allow for slight adjustment of their positions later.

7. Cut off the tubes at the exit points and sand them

flush with the fuse sides using a sanding block.

3. Cut one of the 36" lengths of plastic pushrod

guide tube exactly in half, then sand the outer surface of the pushrod guide tubes with 100-grit sandpaper to

provide a surface to which the glue will adhere.

4. Use an Xacto knife to sharpen one end of a piece

of 3/16" (outside diameter) brass tubing, then use this tubing to cut the pushrod exit holes (you may use a 3/16" drill bit, but the brass tube method gives a much neater cut). Determine the location of these holes from the plans. You may chuck this brass tube in an electric drill to aid in getting through F-6.

8. Temporarily install the engine mount,

nosegear (and nosegear steering arm if you are building a tricycle configuration).

5/32" Collar

Steering Arm

Cut

off

end

6-32 x 1/4" Screw

9. Cut 1/4" off the end of the steering arm. then

drill a 3/16" hole in F-l, just above the outer hole of the

arm. NOTE: The drill should be aimed toward the rudder servo to avoid tight bends in the pushrod.

5. Insert the plastic pushrod tubes through the

holes you just cut and through formers F-6, F-5 and F-4.

your radio installation plan. Temporarily insert the 34" pushrod wires into the tubes and hold them in the correct position with tape at the servo end.

Keep the tubes as straight as possible.

10. With the engine resting on the mount, plan the

throttle pushrod routing. The pushrod should be located as close as possible to the fuse sides (to allow room

for the fuel tank), and the guide tube should not have any tight bends. Drill a 3/16" hole in F-l for the throttle pushrod guide tube.

2. Sand the entire wing saddle area lightly until the

fuse side doublers and fuse sides are flush.

3. Insert the die-cut 1/8" ply F-2A in place against

the back of F-2 (do not glue).

11. Drill or carve holes in F-2 and F-3 for the guide

tubes, and trial fit

12. Sand the plastic pushrod guide tubes with 100grit sandpaper, then glue them in place. Trim and sand the tubes flush with the front of F-l.

13. Cut the pushrod wires (supplied) to the required lengths and temporarily install the throttle and nose gear pushrods. NOTE: A 34" wire, threaded one end, is supplied for the throttle pushrod, and an 18" wire

(no threads) is supplied for the nosegear pushrod.

14. Now remove the pushrod wires, engine, engine

mount and servos.

INSTALL BOTTOM SHEETING

1. Sand the bottom of the fuse to remove any excess

glue, and to provide a flat surface for the sheeting.

4. Insert the 1/4" wing dowels into the wing so

they stick out only 1/8".

5. With the fuselage upside down on a flat surface, trial fit the wing into the wing saddle. If the wing is slightly too large (front to rear) to fit into the saddle, sand the rear edge of the saddle and the wing trailing edge slightly until it fits.

2. From the 3/32" x 3" x 16" balsa sheet, cut and glue pieces of cross-grain sheeting to the bottom of the fuse, beginning at the front of F-4 and running to the aft

end of the fuse.

3. Sand the edges of the bottom sheeting flush with

the fuse sides.

MOUNT THE WING TO THE FUSE

1. Sand the top surface of the fuse to remove any

excess glue so the fuse will lie flat on the workbench.

MEASUREMENTS MUST BE EQUAL

6. Carefully align the wing in the saddle as follows:

If you have drilled the dowel holes accurately, the wing should now be centered, side to side. Measure down from the bottom of both tip ribs to the flat surface. If the measurements are not equal (within 1/16"), sand

the saddle slightly until the wing sits level in the saddle. Also measure from the rear comer of each wing tip to the tail end of the fuselage. These measurements must also

agree within 1/16". If not, shift the wing slightly until they do. With the wing in this position you may now check the wing by measuring down to the flat surface from the center of the leading and trailing edges. The measurements should be the same (zero degrees incidence). CAUTION: your flat surface is not level, you will get erroneous incidence readings, in which case you should set the wing incidence the same as your flat surface.

7. After making the necessary corrections to align the wing, tack glue F-2A to F-2 with a couple drops of CA. Also make alignment marks on the wing TE and the front ofF-4 so you may easily re-align the wing later.

8. Remove the wing and securely glue F-2A in place by flowing thin CA into the wing dowel holes and around the edges. Follow up with thick CA in any gaps around

the

edges.

incidence

using an "incidence meter'' or

1/16" WING BOLT PLATE

DRILLING LOCATIONS

9. Drill 1/4" holes through F-2 using the holes in

F-2A as a guide.

10. Use a pliers to grasp the ends of the wing dowels and pull them out. Now you may slightly round (or chamfer) the ends of the dowels for easier insertion into

F-2A. Mix up a batch of 30-minute epoxy, use a long

stick to work some epoxy into the dowel holes, smear epoxy on the dowels, then re-insert the dowels into the wing, leaving them protrude 3/8". Wipe away all excess epoxy, then allow the epoxy to fully harden.

11. Study the wing plan to determine where the wing

bolt holes are to be drilled. By measuring, transfer the locations to the wing bolt plate on the bottom of the wing. After marking the bolt locations, replace the wing in the saddle, and re-align it accurately as in step 6.

12. Holding the wing firmly in place, drill 13/64"

holes at down through the 1/16" ply wing bolt plate and through the 1/4" ply hold-down block in the fuselage. Try to drill

straight in, perpendicular to the 1/16" ply bolt plate.

IMPORTANT!: Do not allow the wing to move while

drilling!

wing only to 1/4".

in the ply hold-down block in the fuselage.

the locations you marked in step 11, drilling

13. Remove the wing and re-drill the holes in the

14. Use a 1/4-20 tap and a tap wrench to cut threads

15. Harden the threads in the hold-down block with

thin CA glue, then re-tap the threads after the glue is

completely dry.

1/4 - 20 NYLON BOLT

16.

Trial fit

the wing to the fuse using the two 1/420 nylon bolts provided. You may cut the bolts off to their properlength, so they protrude about 1/4" below the hold-down block in the fuselage.

17.

Later you will apply foam wing seating tape or

silicone sealer to the wing saddle. To allow space for this wing cushion material, you may sand the saddle slightly in the areas where the wing touches the saddle, to provide a small gap.

18. Sand off the bottom edge ofF-2 and F-2A flush with the bottom of the chin block base. And, while you're atit, sand the entire fuse bottom, forward of F-2A,

in preparation for installation of the chin block.

FIT FUEL TANK, and FUELPROOF TANK COMPARTMENT

4. Drill two holes (7/32" or size to fit your fuel tubing) near the top ofF-1 for your fuel tubing vent and fill lines. The location of these holes will depend somewhat upon the type of engine you are using, etc. It is OK to drill the holes in the upper left and upper right comers, but we prefer drilling both holes in the upper right comer (as viewed from the rear) for easier access.

5. Now remove the engine mount and fuelproof

the inside of the fuel tank compartment and the front of F-1 by brushing on a coat of polyester resin or 30-minute epoxy thinned with alcohol. NOTE: Later when installing the nose pieces, you will fuelproof the chin block before installing it.

1. Assemble your 10 or 12 oz. fuel tank. We

recommend bending the brass tubes as shown in the photo to prevent them from cutting through the silicone fuel lines if pressed against the firewall. (Try not

"kink" the tubes when bending, however).

2. Try sliding the tank in through F-2. If the opening is not large enough, sand or file the opening until the tank slides in easily.

3. Temporarily install the engine mount and note how far the mounting screws protrude into the fuel tank compartment. Remove the screws and cut them off so they do not protrude more than 1/8" (to prevent puncturing the fuel tank).

6. You may permanently install the fuel tank at

this time, or you may wait until the plane is nearly completed. If you do it now it will be easier to feed the fuel lines through F-1, and to make sure there arc no kinks in the lines; however, you'll have to work around them while completing the nose. When you install the tank, be sure to cushion it from vibration and prevent it from moving by surrounding the tank on all sides (and front) with latex foam rubber. Leave a few inches of extra fuel tubing in front of F-l (you can cut off the excess later). The photo shows how to route the fuel tubing to prevent kinking.

INSTALL TURTLE DECK

You'll need the following parts: Die-cut 1/8" ply

F-3A, F-4A, and Backrest Gauge (BG); two 1/4" x 1/4" x 24" balsa turtle deck stringers; two 3/32" x 3" x 25" balsa turtle deck sides; and the 3/8" x 2" x 24" balsa

turtle deck top block.

straighten it during this step by twisting it straight while gluing the stringers. Trim and sand the ends flush with the front of F-3A and the rear of F-6A.

4. Use a sanding block to sand the sides of the stringers to blend with the formers (see the cross-section drawings on the plan). Also, use a long sanding block to sand the stringers and the tops of the formers in a straight line from F-3A to F-6A.

5. Prepare the turtle deck sides by cutting the two 3/32" x 3" x 25" balsa sheets to the angle shown in the

following sketch.

1. Glue the die-cut 1/8" ply "backrest" (F-3A) to

the fuse top, using the' 'backrest gauge'' (BG) to set it at the correct angle. NOTE: The gauge is used only for setting the angle (do not glue the gauge in).

2. Glue F-4A, F-5A and F-6A to the fuse top, using

a square to position these formers vertically, at 90 degrees to the fuse top.

6. Trial fit one edge of the sheeting down onto the top of the fuse side. Sand the edge of the sheeting if

necessary, for a good fit.

7. Glue the bottom edge of the sheeting to the top

the fuse sides.

3. Glue the 1/4" x 1/4" x 24" balsa stringers to the

formers. HINT: If F-3A is slightly warped, you may

8. Wet the outside surface of the sheeting with a

damp rag to permit easier bending (don t saturate the

wood!). Apply thick CA glue to the edges of the formers and the stringers, then immediately bend the sheeting around the formers and onto the stringers. HINT: This requires about 5 sets of "hands," so use several long pieces of masking tape to pull the sheeting together, then, working a small section at a time, add sheeting to the stringers.

9. Trim and sand the sheeting flush with the front

of F-3A and the rear of F-6A.

and press

the

ASSEMBLE THE NOSE SECTION

1. Find the 1/4" x 1/4" x 7-3/4" balsa cockpit sides.

Cut off one end of each stick at an angle to fit the front edge of the backrest (F-3A).

2. Glue the cockpit sides to the top edge of the fuse sides and to F-3A. The outside edge of the cockpit sides should be flush with the outside edge of the fuse sides.

10. Using a long T-bar or sanding block with 80-grit

sandpaper, sand the sheeting and stringers flush with the top edges of the formers.

11. Glue the 3/8" x 2" x 24" balsa turtle deck top

block to the tops of the formers, stringers and sheeting, then trim the ends of the top block flush with F-3A and

F-6A.

HINT: In the next step it will be helpful in keeping the top block symmetrical if you first mark a

centerline on the top of the top block from front to

back.

12. Carve and sand the top block to blend smoothly

with the sheeting (see the cross-section on the plan). HINT: Use a razor plane and a sanding block with 50grit sandpaper for rough shaping the top block.

3. Sand off the front of the cockpit sides on the same angle as the front 1-1/2 inches of the fuselage.

4. Attach the engine mount to F-l, and attach the

engine to the mount. Remove the nose gear.

5. From a scrap of 1/32" ply, cut four small pieces

and tack glue them to the 1/16" ply spinner ring as shown, using a very small amount of thick CA (these will be removed later). IMPORTANT NOTE: If you have chosen to use shock absorbing rubber "Lord" mounts, then you must provide more space between the spinner ring and the spinner backplate to allow for engine movement. A space of approximately 1/8" is probably sufficient.

6. Now center your 2-1/4" diameter spinner

backplate over the spinner ring, and tack glue it to the

1/32" ply spacers.

7. Slide the spinner ring / spinner backplate assembiy onto the driveshaft and temporarily hold in place with the prop and prop nut.

8. Glue together the two halves of the 1/2" balsa chin block and the 1/2" balsa top front block. Sand the glue joints smooth with your T-bar. Fuelproof one side

of the chin block.

tube) to drill a hole in the chin block for the nosegear wire. Insert the drill through the holes in the engine mount and drill down through the chin block.

13. Temporarily install the nose gear, steering arm

and nosegear pushrod wire. Notice that the pushrod wire will bind against the chin block in a right turn. Carve out a clearance slot for the nosegear pushrod in the chin

block. Now remove the nosegear parts.

9. With the fuselage upside down, lay the chin

block in place on the fuse bottom (fuelproofed side toward inside of fuse). Note how the front of the chin block meets the spinner ring. By trial and error, sand a little at a time off the front of the chin block until it mates at the proper angle with the back of the spinner ring.

10. Glue the chin block to the bottom of the fuse and the spinner ring. You may want to use 5-minute epoxy for this step to allow some time for careful positioning.

11. Cut off and sand the aft end of the chin block

flush with the aft edge of F-2A.

NOTE: If you are building a taildragger, disregard

steps 12 and 13.

12. Turn the fuselage right side up and use a long 5/32" drill bit (or a sharpened piece of 5/32" O.D. brass

14. Lay the top front block in place on top of the

fuselage. Using the same procedure as you used for the chin block, sand off the front of the top front block to mate with the spinner ring. Depending on your engine, you may also have to carve a groove for the needle valve.

In addition, check if your engine mount touches the top front block, and provide clearance as necessary. Glue the top front block to the fuse and the spinner ring.

16. Cut the 3/32" balsa dash from scrap balsa, using

the pattern found on the plan, and sand it to fit between

the cockpit sides. Sand the bottom edge at an angle to mate with the cockpit floor (fuse top front). Glue the dash to

the top front block, cockpit sides and cockpit floor.

17. Mark the outline of the engine mount on F-l with a pencil. Remove the prop nut and propeller. Pop the spinner backplate loose with a screwdriver and remove the spacers. You may remove the engine and mount in preparation for the next step. HINT: After removing the engine, enlarge the hole in the spinner ring as necessary until you can easily access the engine mount screws with a long screwdriver.

21. Temporarily re-install the engine and mount;

then, from the remaining 1/4" balsa sheet and 1/2" balsa

triangle, cut pieces to partially fill in the right side

around the engine. Also, trim the balsa as necessary to clear your muffler. SUGGESTION: The temptation is to close up this area too much! We recommend that you leave large enough openings that you may easily remove the engine and mount, and so you will have convenient access to the throttle linkage.

18. A 1/4" x 3" x 8" balsa sheet is provided for the nose sides. From this sheet, cut a piece to fit on the left side of the fuselage between the chin block, top front block, F-l and the spinner ring. To do this more easily you may remove the engine and mount, then lay the fuse on its left side on top of the 1/4" balsa sheet and mark the outline of the opening on the sheet. When installing this block, make sure you stay clear of the engine mount.

19. If necessary, carve out an area of the nose side needed for nosegear steering arm and pushrod clearance, then glue the left nose side in place.

FINAL ASSEMBLY

SAND THE FUSELAGE

NOTE: Some heavy sanding is required to properly

shape the nose area. This task can be made much easier if you use a razor plane and a sanding block with #50-grit sandpaper for the rough shaping. The very coarse sandpaper is used to achieve the basic shapes, then use progressively finer grades of sandpaper for a smooth finish.

20. From the 1/2" balsa triangle stock provided, cut lengths to fit in the upper left and lower left comers of the nose, between F-1 and the spinner ring. Sand these balsa triangles to a taper, with the wide part at the front, and glue in place.

1. Turn the fuse upside down and draw a line on the aft end of the chin block 9/32" below the bottom edge of F-2A. Now study the fuse plan side view and note the final shape and curvature of the chin block. Use your

razor plane and sanding block with coarse sandpaper to sand the fuse bottom to the approximate shape as shown.

2. In

the same manner, sand the top front block to

the approximate shape shown on the fuse plan side view.

3. Now sand the chin block, the top front block corners and the nose side pieces to blend smoothly with the spinner ring. Refer to the cross-section drawing of F-1 and F-2 on the plan to get an idea of the desired amount of rounding in the comers.

CENTERLINE

4. After the rough sanding has been completed, temporarily re-mount your engine and slide on the spinner backplate. You'll probably have to sand the edges of

the spinner ring down for a good match with the spinner

backplate.

5. Sand the bottom rear comers of the fuselage to a

slight radius as shown on the cross-sections of F-4, F-5 and

F-6.

INSTALL WING FAIRINGS

You'll need the following parts: 5/8" x 2-1/2" x 3-7/16" balsa block, 3/8" x 2-5/8" x 3-5/8" balsa block, 3/16" x 2-5/8" x 3-3/4" balsa block, and the 7/8" x 3" tapered balsa wedge.

1. Mount the wing to the fuselage with the nylon

bolts.

3. Sand the aft edge of the 5/8" x 2-1/2" x 3-7/16"

balsa rear fairing block to an angle to match F-4, then

position it on top of the nylon bolls, centered between the

fuse sides. Push down on this block to make imprints of the nylon bolt heads in the fairing block.

4. Make holes in the fairing block large enough to

clear the heads of the nylon bolts.

2. Draw centerlines on all the blocks, then arrange

them as shown in the sketch. Draw straight lines along the edges of the blocks as shown, and trim the blocks.

5. Again hold the fairing block in position, pushing down to imprint the location of the 1/16" ply wing holddown plate on the fairing block. Carve the fairing block to clear the wing hold-down plate

6. Make a 1/2" deep razor saw cut down the center of the rear fairing block (cut from the side facing the wing), which will permit the block to bend to the shape of the wing.

7. Hold the rear fairing block in place, leaving a slight (1/32") gap between the back of the block and the front ofF-4, and apply a couple drops of thin CA to tack it in place. Remove the wing bolts and remove the wing from the fuse, then glue the block securely in place.

11. Remove the wing and securely glue the front fairing block to the wing. Fill all gaps with balsa filler. After the filler has dried, replace the wing on the fuse and sand all the fairing blocks to smoothly blend the wing to

the fuselage.

INSTALL WING FILLETS (OPTIONAL)

8. Glue the two remaining rear fairing blocks to the bottom of the wing in a similar manner. You'll have to make a saw cut in the center of the 3/8" block (and possibly the 3/16" block) to permit bending at the centerline.

9. Carve and sand the 7/8" x 3" tapered balsa front

fairing wedge to fit the top of the wing. Round the

comers of the block to match the fuselage. NOTE: It is difficult (and not necessary) to try to carve this block to mate exactly with the wing; therefore, you should just

'' rough it out", then later you can fill any gaps with balsa

filler.

10. With the wing in place on the fuse, hold the front fairing in place (allow 1/32" gap between the fairing front and the rear of F-2A) and tack glue it to the wing.

CAUTION: Use extreme care to avoid gluing the wing to the fuselage!

NOTE: The wing fillets are a nice addition to the

US40. They make it more pleasing to the eye and they do help to reduce drag. The US40 flies just fine without them, however, so the choice is yours whether or not to install them.

1. Tape an 8" x 13" piece of waxed paper onto the top surface of the wing at the center, then attach the wing to

the fuse with the wing bolts.

2. Lay the die-cut 1/32" ply wing fillet bases on the

wing and glue them to the fuselage sides. NOTE: For this procedure, we recommend that you use thick CA glue sparingly, and "kick" the glue with accelerator spray immediately after applying, to avoid accidentally gluing the wing to the fuse with "stray'' glue. NOTE: Bend the aft 1-1/2" of the fillet base to horizontal (see sketch on top of next page).

SHAPE THE FIN FILLETS

3. You may build the fillet on top of the fillet base

one of the following ways:

Method 1: Glue pieces of soft balsa onto the fillet

bases, then sand to the fillet shape.

FUSE SIDE

SOFT BALSA FILLET

1/32" FILLET BASE

TOP OF WING

1. Using only one or two small drops of glue

each piece, tack glue the following balsa parts together

(see sketch):

l/4"x7/8"x5-l/2".

DUMMY FIN

l/4"xl-l/4"x5-l/2"

l/2"xl3/16"x5-l/2

FIN FILLET

BLOCKS

DUMMY STAB

2. Tack glue the above assembly to the stab saddle

with the "dummy fin" centered on the fuselage center-

line.

Method 2: Apply a good quality, lightweight

model filler, shape it with a wet teaspoon, and allow it to dry thoroughly before sanding.

Method 3: A combination of the above, where you

first glue pieces of balsa to partially fill the fillet area, then add filler to form the fillet shape.

BALSA FILLER PIECES

FILLER MATERIAL

1/32" FILLET BASE

TOP OF WING

3. Carve and sand the above assembly to blend

smoothly with the fuse sides and the turtle deck.

4. Break the assembly off the stab saddle and cut

the parts apart. Save the shaped fin fillets for later.

MOUNT STABILIZER AND FIN

1. Lightly sand the stab saddle area smooth with

a T-bar or sanding block.

2. Find the 1/4" x 9/16" x 1-1/4" balsa stab filler

block and glue it to the stab saddle and the back of F-6A.

Sand off the ends flush with the fuse sides.

8. Trial fit the fin on the stab. The fin trailing edge

must line up with the aft end of the fuselage. If the fin

protrudes too far aft, sand a small amount off the front of

the fin.

9. Carefully align the fin on the stab. The fin must be positioned perpendicular to the stab and must line up with the fuselage centerline EXACTLY! Securely

glue the fin in place.

3. Accurately measure the trailing edge of the

stabilizer and mark the center point.

4. Temporarily mount the wing in the saddle (for

reference), and block up the tips until the wing is level.

5. Lay the

stab

in position on the stab saddle with the center point lined up with the tail end of the fuselage. If the stab protrudes beyond the end of the fuselage, sand a little off the

front

of the stab until it fits. Carefully check the stab alignment by measuring down from the tips to a flat surface, and from the stab tips to the wing tips (or to a point on the center of the fuse near the nose). Sand the stab saddle (a

little at a time!

) until the stab rests in

proper alignment. With the stab in alignment, make a mark on the front of the stab and a corresponding mark on the back of F-6A, which will be used for rapid alignment when gluing.

6. Mix up a batch of 5-minute or 30-minute epoxy and apply it to the stab saddle. Press the stab into position and hold or pin in proper alignment until the glue has firmly set. Wipe off any excess epoxy before it sets up.

10. Now securely glue the fin fillets (you previously

shaped these) in place on both sides of the fin.

11. Temporarily attach the elevators and rudder to

check their fit and operation. Note that you must cut a notch in the rudder leading edge to clear the 1/8" wire elevator joiner.

7. From the 3/8" balsa triangle supplied, cut and securely glue fillets under the stab, at the stab/fuse joint. (The photo for this step is at the top of the next column.)

12. Finally, glue the 1/4" balsa dorsal fin in place on

the turtle deck. The dorsal fin, like the fin, must also line

up with the fuselage centerline. Sand the dorsal fin to a rounded shape, and blend it to the fin with balsa filler.

INSTALL SERVOS, HORNS AND PUSHRODS

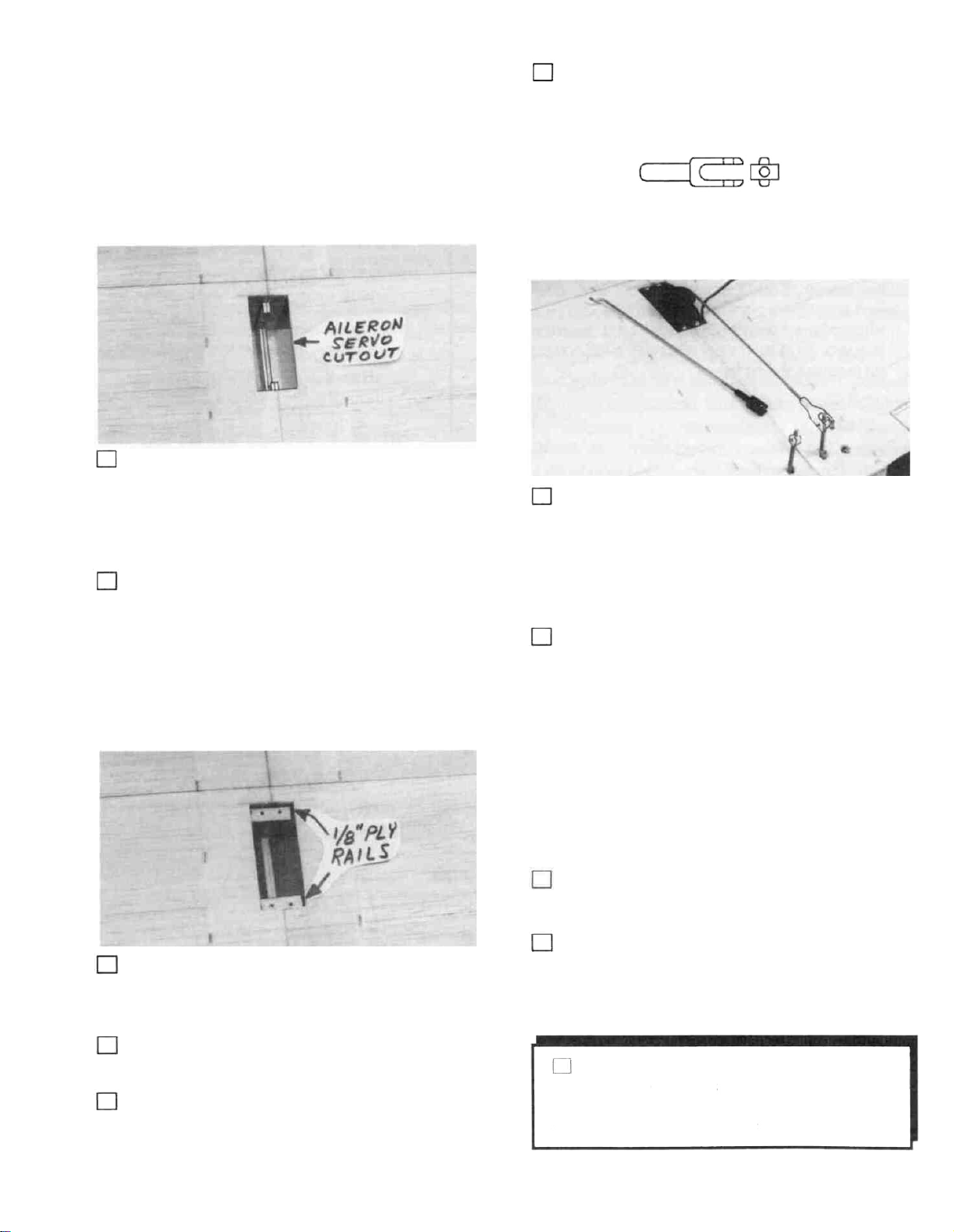

1. Study the plans to determine the location of the

aileron servo cutout. Mark the location on the top of the

wing and cut an opening in the fiberglass and sheeting slightly larger than your servo. CAUTION: Do not cut

into the wing spars or shear webs!

2. Remove a sufficient portion of the W-1 ribs to fit

your servo, leaving "shelves'' on which to glue the 1/8" ply rails. (See the plan to determine the depth). NOTE: A Dremel Moto Tool with a 1/8" router bit is excellent for this, but it may also be done with an Xacto knife and a long-nose pliers.

6. Screw the nylon aileron clevis connectors onto

the aileron torque rods.

NYLON AILERON CLEVIS AND CONNECTOR

7. Attach the clevises to the clevis connectors, then, with the ailerons in the neutral position, mark the pushrod wires where they cross the holes in the servo

arm. Remove the pushrods and make a "Z-bend'' in the rods at that point, using a "Z-bend pliers'' or a standard

pliers.

8. Remove the servo wheel from the servo and

workthe Z-bends into the wheel (NOTE: You may have

to enlarge the servo wheel holes with a 5/64" diameter drill bit). Replace the servo wheel and check the operation of the ailerons. (See page 36 for the recommended

amount of aileron movement).

3. Make two servo rails from the 1/8" ply die-

cutting scrap, and glue them in place. (See the side view of

the aileron servo installation on the plan).

4. Mount the aileron servo using the screws pro-

vided with your radio.

5. Screw the nylon aileron clevises approximately

2/3 of the way onto the threaded end of the two 12" steel

wire pushrods.

REMEMBER: Plan your servo installation care-

fully, as your setup may differ from the plans and photos, depending on which engine you use, and whether you are building a trike or taildragger.

9. Re-mount the elevator, rudder and throttle ser- vos in the fuselage.

10. Hold the nylon control horns on the elevator

and rudder in the positions shown on the plan and mark the mounting hole locations. Drill 3/32" holes at these locations.

11. Harden the balsa in the area of the

control horns (on both sides of the control surfaces) by poking several holes with a pin, then applying thin CA glue. Sand smooth.

12. Mount the horns with 2-56 screws and the nylon

nutplates

which were attached to the horns.

2-56x5/8"

SCREW

13. Screw a nylon clevis onto the threaded end of

each long steel wire pushrod. NOTE: Screw them on

all the way until the threads are protruding inside the clevis.

NYLON CLEVIS

We recommend the following CONTROL

SURFACE THROWS:

NOTE: Throws are measured at the widest

part of the elevator and rudder.

ELEVATOR:

(High Rate) (Low Rate)

5/8" up. 1/2" down 3/8" up, 5/16" down

14. Cut the short length of 1/8" diameter plastic tube into several pieces, approximately 1/4" long. Slide at least six of these pieces onto each of the long pushrod wires and space them approximately 2-1/2" apart (do not glue yet). NOTE: If these tubes do not slide on easily, cut them to a shorter length.

SPACER

NOTE: While installing the pushrods, position the above plastic tube spacers so they always stay inside the pushrod guide tubes. If the tubes are not a tight friction fit on the pushrod wires, apply a drop of thin

CA to secure them.

15. Insert the

tubes (previously installed) and attach the clevises to the elevator and rudder horns.

pushrod wires i

nto the pushrod guide

RUDDER:

(High Rate) (Low Rate)

1-3/8" right, 1-3/8"left

7/8" right. 7/8" left

AILERONS:

(High Rate)

(Low Rate)

1/4"+ up, 1/4" down 1/8"+ up, 1/8" down

NOTE: If your radio does not have "dual

rates", then set up the control surfaces to move at the high rate throws.

19. Securely anchor the pushrod guide tubes

F-4

using cross-braces cut from scrap 1/8" balsa.

20. Attach the throttle pushrod (and nose gear steer-

ing pushrod) to the throttle and rudder servo arms. NOTE: We recommend using DuBro "E-Z connectors" (or similar) for these hookups, for ease of installation and adjustment

21. If you are using retracts, install your retract servo

at this time.

16. While holding the rudder and elevators in the

neutral

position, mark where the pushrod wires cross the holes in the servo wheels where each pushrod will be attached.

17. Remove the elevator and rudder pushrods and make "Z-bends" at the marks you justmade. Cutoffthe excess pushrod wire.

18. Unscrew the nylon clevises, re-insert the pushrods, and replace the clevises. Remove the servo wheels and work the Z-bends into the holes (drill out the holes in the servo wheels to 5/64" if necessary). Finally, place the servo wheels back onto the servos and check the operation of the elevator and rudder.

21. Hook up your radio system and test the operation

of all controls.

FINISHING

ADDITIONAL FUELPROOFING

If you have not already done so, make sure the entire engine compartment is completely fuelproof. Also fuelproof any wood that will not be covered and which may be exposed to glow fuel residue, such as the landing gear block slots and the wing saddle. Use epoxy

thinned with alcohol, polyester finishing resin or fuelproof paint.

NOTE; Do not glue the canopy in place until after you have covered your model.

SEAL OFF COCKPIT

you leave any openings through the fuse top into the cockpit area, there is the possibility of getting dust on the inside of the canopy, which is almost impossible to remove. Therefore, you should seal all openings to the inside of the cockpit, and paint all exposed balsa to prevent loose wood particles.

PREPARE THE CANOPY NOTE: Some modelers prefer to tint their canopies

for a more subtle and realistic effect. You may tint your canopy by immersing it in a concentrated mixture of Rit Liquid Dye and hot tap water. The colors blue, black, brown and dark green work well. Remove the canopy after 5 minutes and rinse it off to

check the amount of tint. The longer you leave it

in the dye solution the darker it will tint. CAUTION: Do not heat the dye water above tap water temperature, as this could deform the canopy.

BALANCE THE AIRPLANE LATERALLY SPECIAL NOTE: Do not confuse this procedure

with "checking the C.G." or "balancing the airplane fore and aft". That very important step will be covered later in the manual.

Now that you have the basic airframe nearly

completed, this is a good time to balance the airplane laterally (side-to-side). Here is how to do it:

1. Attach the wing, landing gear, wheels and en-

gine (with muffler) to the fuselage.

2. With the wing level, lift the model by the engine

propeller shaft and the bottom of the rudder (this may

require two people). Do this several times.

3. If one wing always drops when you lift, it means

that side is heavy. Balance the airplane by gluing weight to the other wing tip. NOTE: An airplane that has

been laterally balanced will track better in loops and

other maneuvers.

1. Using a scissors, carefully cut the canopy along

the trim line.

2. Trial fit

the canopy onto the fuse, pressing into

place. Trim as necessary for a good fit. NOTE: The trim line on the canopy is approximate. Yourcanopy trim will vary, depending on how you sanded the fuselage.

3. Sand the edges of the canopy with 320 grit sandpaper. It is important that the canopy does not have any cracks along the edges, as the engine vibration could cause them to spread.

FINAL SANDING

Check over the entire structure carefully, inspecting for any poorly glued joints, gaps and "dings". Apply additional glue and/or balsa filler as necessary, then sand the entire fuselage smooth using progressively finer grades of sandpaper.

COVERING

Because it is assumed that you have had some previous model building experience, we won't go into detail in regard to the covering procedure. Follow the

instructions included with your covering material. NOTE: When covering the fin and stab, begin by

applying 1/2" wide strips of covering in the comers between the fin and the fairing block, between the

stab and the fairing block, and (on the bottom of the stab) between the stab and the fuse sides. Next cover the fairing blocks with pre-cut pieces of covering.

Finally, cover the stab and fin with pre-cut pieces that have a straight edge to overlap (1/8"+ overlap) the strips you previously applied. DO NOT, under

any circumstances, attempt to cut the covering material after it has been applied to the fin and stab, except around the leading and trailing edges and the tip. Modelers who do this often cut

through the covering and part-way into the balsa stab. This can weaken the stab to the point where it may fail in flight!

Recommended Covering Sequence:

1. Strips as described in above note

2. Rudder left side

3. Rudder right side

4. Bottom of elevators

5. Top of elevators

6. Stab bottom

7. Stab top

8. Fuse bottom

9. Wing fillets*

10. Fuse sides

11. Fuse top

12. Fin left side

13. Fin right side

14. Ends of ailerons

15. Bottom of ailerons

16. Top of ailerons

17. Aileron openings in wing

18. Wing fairings (on bottom of wing)

19. Bottom of left wing panel

20. Bottom of right wing panel

21. Top of left wing panel (overlap covering 1/4" at wingLE)

22. Top of right wing panel (overlap covering 1/2"

at the center and 1/4" at the LE)

*When covering concave surfaces, follow the iron

with a damp cloth, pressing the covering down.

the hinges to make sure you have "found" the slots

which you previously cut. In the same manner, slit the covering at the hinge locations in the wing, stab and fin TE. Also cut the covering away from the torque rod and tailgear slots.

IMPORTANT - Use coarse sandpaper to roughen

both sides of the hinges for a good glue bond.

NOTE: When gluing in the nylon tailgear bearing and the hinges, do not just smear glue on the hinge and push it into the slot, as most of the glue will be wiped off as it is being pushed in. You must also work some glue into the slot. A good way of doing this is to scoop up some epoxy with a plastic soda straw, then pinch the end of the straw, insert it into the hinge slot, and squeeze the straw to force glue into the slot. Apply epoxy to the hinge, then insert the hinge into the slot. We recommend 30 minute epoxy for this process. After pushing in the hinge,

wipe away all excess glue with a tissue dampened

with rubbing alcohol.

2. Glue the hinges (and tailgear bearing) into the

slots in the wing, stab and fin TE using the above process and allow the glue to harden before proceeding.

3. Put epoxy into the slots in the elevators and on

the corresponding hinges, then push the elevators onto the hinges and wipe away all excess epoxy with a tissue

(for best results dampen the tissue with rubbing alcohol).

4. Using coarse sandpaper, roughen the part of the

aileron torque rods that will be glued into the ailerons,

then clean off the sanded portion of the rods with alcohol. Roughen and clean the tailgear wire in the same manner. Using a toothpick, apply a small amount of Vaseline where the torque rods and tailgear wire enter the nylon bearing tubes (to prevent glue from getting inside and locking them up).

GLUE THE HINGES 5. Put epoxy into the rudder hinge slots (and the

tailgear hole), push the rudder into place and wipe off all excess epoxy.

1. Lay the rudder, elevators and ailerons on the plans and mark on the leading edge of each part the locations of the hinges, torque rods (and tailgear if you have built a taildragger). Now use a sharp Xacto knife to

6. Put epoxy into the aileron hinge slots and the

torque rod holes, push the ailerons into place and wipe

off all

excess

epoxy.

cut slits in the covering at the hinge locations. Trial fit

INSTALL PILOT

2. Also apply a couple pieces of the foam tape to the

1/4" ply wing hold-down plate, which helps to distribute

the load when the nylon bolts are tightened.

Assemble and paint your pilot figure, and glue it

to the cockpit floor. NOTE: To avoid the possibility of

the pilot coming loose inside the canopy, we recommend that you drill up through the cockpit floor and pilot base, and use two #6 or #8 sheet metal screws (not included)

to lock the pilot in place.

GLUE CANOPY IN PLACE

*NOTE: An alternate method of sealing the wing/

fuse joint is to use "silicone bathtub sealer". This

is an excellent method, used by many experts because it results in a permanent and nearly perfect

wing saddle joint. Briefly, the technique is as

follows: 1. Cover the top of the wing center section

with waxed paper or plastic kitchen wrap. Pull out

all wrinkles and tape it to the wing. 2. Squeeze out a bead of silicone sealer onto the wing saddle area of the fuselage. 3. Lay the wing in the saddle and push down gently. The excess silicone sealer will

squeeze out. 4. Allow to dry without disturbing for

at least 24 hours. 5. Remove the tape, then remove

the wing from the saddle (leaving the waxed paper

or plastic wrap in place). 6. Gently pull the waxed paper or plastic wrap away from the sealer. 7. Using

a new single-edge razor blade, trim the sealer flush

with the wing fillets, and along the inside of the fuselage.

1. Lightly sand the inside of the canopy around the

edge (sand a strip approximately 1/8" wide). NOTE: To avoid sanding more than you want, it is helpful to first apply strips of masking tape on the inside of the canopy, 1/8" in from the edges.

2. Poke pinholes

(1/8" apart) through the covering material in the area where the canopy will be glued to the fuselage.

3. Hold the canopy in place on the fuselage and very carefully apply medium viscosity CA glue around the edges. To control the amount of CA, it is very helpful to use the small diameter tenon applicator tubing which is supplied with most CA glues or use a new "Z-end" applicator tip.

4. To hide the canopy glue joint, you can use 1/4"

wide striping tape as a border around the canopy.

WING SEATING

1. Apply 1/4" or 3/8" wide foam

wing

seating

tape

to the wing saddle area to seal the wing/fuse joints.*

RE-INSTALL ENGINE & RADIO

Re-install the engine, propeller, battery, re-

ceiver, servos, control horns, pushrods, main LG. nose gear and

wheels.

Attach the wing to the fuselage.

BALANCE YOUR MODEL NOTE: This section is VERY important and

must not be omitted! A model that is not properly

balanced will be unstable and possibly unflyable.

1. Accurately mark the balance point on the bottom of the wing on both sides of the fairing. The balance point is shown on the plan (CG), and is located approximately 4 inches back from the leading edge. This is the balance point at which your model should balance for your first flights. Later, you may wish to experiment by shifting the balance up to 3/8" forward or back to change the flying characteristics. Moving the balance forward may improve the smoothness and arrow-like tracking, but it may then require more speed for takeoff and make it more difficult to slow down for landing. Moving the balance aft makes the model more agile with a lighter and

snappier'' feel" and often improves knife-edge capabili-

ties. In any case, do not balance your model outside the recommended range.

2. With the wing attached to the fuselage, all parts

of the model installed (ready to fly), and an empty fuel tank, block up the tail as necessary to level the fuselage. (If you have built a tricycle gear, the fuse should already be sitting level).

3. Lift the model at the CG marks. If the tail drops when you lift, the model is "tail heavy" and you must add weight to the nose to balance. If the nose drops, it is "nose heavy" and you must add weight to the tail to balance. NOTE: Nose weight may be easily installed by using a Prather "Spinner Weight" (available in assorted weights, up to 2 ounces), or by gluing strips of lead into the engine compartment under the engine. Tail weight may be added by using Prather "stick-on" lead weights, and, later, if the balance proves to be OK you can open the fuse bottom and glue these in permanently.

FINAL HOOKUPS AND CHECKS

1. Make sure the control surfaces move in the

proper direction as illustrated in the following sketches:

FOUR-CHANNEL SETUP

TRANSMITTER

STICK MOVEMENTS

CONTROL SURFACE

MOVEMENTS

ELEVATOR MOVES UP

2. Adjust your pushrod hookups as necessary to

provide the proper control surface movements as listed on Page 36.

*NOTE: These control surface "throws" are approximate and provide a good starting point for the first flights with your Ultra Sport 40. You may wish to change the throws slightly to provide the smoothness or quickness that you prefer.

3. Check for wing twist as follows:

NOTE: Even if you have built your wing on a perfectly flat surface and used utmost care, it is possible that your wing may have a twist due to uneven shrinking of the covering material. You

must check for this condition and correct it

before the first night.

If you do not own a wing incidence meter, we recommend that you purchase one from yourlocal hobby dealer or borrow one from another modeler. With the wing mounted to the fuselage, use the incidence meter to

check the angle of your wing at the root and at the tips. If the incidence meter reveals a wing twist of more than

1/4 degree, you must grasp the wing at the root (center) and at the tip and twist it slightly, while reheating the

covering material. Keep checking, twisting and reheating until the wing twist is removed. NOTE: If you have corrected a wing twist by this method, you should periodically re-check to make sure the correction has held.

RIGHT AILERON MOVES UP LEFT AILERON MOVES DOWN

RUDDER MOVES RIGHT

NOSE WHEEL TURNS RIGHT

CARBURETOR WIDE OPEH

PRE.FLIGHT

CHARGE THE BATTERIES

Follow the battery charging procedures in your radio

instruction manual. You should always charge your transmitter and receiver batteries the night before you go flying, and at other times as recommended by the radio manufacturer.

FIND A SAFE PLACE TO FLY

The best place to fly your R/C model is an AMA

(Academy of Model Aeronautics) chartered club field. Ask your hobby shop dealer if there is such a club in your area and join. Club fields are set up for R/C flying which makes your outing safer and more enjoyable. The AMA can also tell you the name of a club in your area. We recommend that you join AMA and a local club so you can have a safe place to fly and also have insurance to cover you in case of a flying accident. (The AMA address is listed on the front cover of this instruction book).

If a club and its flying site are not available, you need to find a large, grassy area at least 6 miles away from any other R/C radio operation like R/C boats and R/C cars and away from houses, buildings and streets. A schoolyard may look inviting but it is too close to people, power

lines and possible radio interference.

ENGINE SAFETY PRECAUTIONS

NOTE: Failure to follow these safety precautions may result in severe injury to yourself and others.

Keep all engine fuel in a safe place, away from high heat, sparks or flames, as fuel is very flammable. Do not smoke near the engine or fuel; remember that the engine exhaust gives off a great deal of deadly carbon monoxide. Therefore do not run the engine in a closed room or

garage.

Get help from an experienced pilot when learn-

ing to operate engines.

GROUND CHECK THE MODEL

If you are not thoroughly familiar with the operation of R/C models, ask an experienced modeler to check to see that you have the radio installed correctly and that all the control surfaces do what they are supposed to. The engine operation must also be checked and the engine

"broken in" on the ground by running the engine for at least two tanks of fuel. Follow the engine manufacturer's recommendations for break-in. Check to make sure all screws remain tight, that the hinges are secure and that the prop is on tight.

RANGE CHECK YOUR RADIO

Wherever you do fly, you need to check the operation of the radio before every time you fly. This means with the transmitter antenna collapsed and the receiver and transmitter on, you should be able to walk at least 100 feet away from the model and still have control. Have someone help you. Have them stand by your model and, while you work the controls, tell you what the various control surfaces are doing.

Repeat this test with the engine running at various speeds with an assistant holding the model. If the control surfaces are not acting correctly at all times, do not fly! Find and correct the problem first.

Use safety glasses when starting or running

engines.

not run the engine in an area of loose gravel or sand; as the propeller may throw such material in your face or eyes.

Keep your face and body as well as all spectators away from the plane of rotation of the propeller as you start and run the engine.

Keep items such as these away from the prop: loose clothing, shirt sleeves, ties, scarfs, long hair or loose objects (pencils, screw drivers) that may fall out of shirt or jacket pockets into the prop.

Use a " chicken stick'' device or electric starter, follow instructions supplied with the starter or stick. Make certain the glow plug clip or connector is secure that it will not pop off or otherwise get into the running

propeller.

Make all engine adjustments from behind the rotating propeller.

The engine gets hot! Do not touch it during or after operation. Make sure fuel lines are in good condi-

tion so fuel is not leaked onto a hot engine causing a fire.

To stop the engine, cut off the fuel supply by closing off the fuel line or follow the engine manufacturer's recommendations. Do not use hands, fingers or any body part to try to stop the engine. Do not throw anything into the prop of a running engine.

AMA SAFETY CODE

Read and abide by the following Academy of Model

Aeronautics Official Safety Code:

GENERAL

1. I will not fly my model aircraft in competition or in the presence of spectators until it has been proven to be airworthy by having been previously successfully flight tested.

TAKEOFF

If you have dual rates on your transmitter, set the switches to "high rate" for takeoff, especially when taking off in a crosswind. Although the ULTRA SPORT 40 has great low speed characteristics, you should always build up as much speed as your runway will permit before lifting off, as this will give you a safety margin in case of a "flame-out''. If you have built a tricycle gear configuration and the ground handling seems too quick and

"squirrely", this can be easily fixed by reducing the

amount of nose gear steering throw.

2. I will not fly my model aircraft higher than approximately 400 feet within 3 miles of an airport without notifying the airport operator. I will give right of way to, and avoid flying in the proximity of full scale aircraft. Where necessary an observer shall be utilized to supervise flying to avoid having models fly in the proximity of full scale aircraft.

3. Where established, I will abide by the safety rules for the flying site I use. and I will not willfully and deliberately fly my models in a careless, reckless and/or dangerous manner.

RADIO CONTROL

1. I will have completed a successful radio equip-

ment ground check before the first flight of a new repaired model.

2. I will not fly my model aircraft in the presence of spectators until I become a qualified flyer, unless assisted by an experienced helper.

3. I will perform my initial turn after takeoff away from the pit, spectator and parking areas, and I will not thereafter perform maneuvers, flights of any sort or

landing approaches over a pit, spectator or parking area.

FLYING

The ULTRA SPORT 40 is a great flying sport

airplane that flies smoothly and predictably, yet is highly maneuverable. It does not have the self-recovery characteristics of a primary trainer, therefore you must either have mastered the basics of R/C flying or seek the assistance of a competent R/C pilot to help you with your first flights.

FLYING

recommend that you take it easy with your ULTRA SPORT 40 for the first several flights and gradually "get acquainted" with this fantastic ship as your engine gets fully broken-in. Add and practice one maneuver at a time, learning how she behaves in each

one. For ultra-smooth flying and normal maneuvers, we

recommend using the "low rate" settings as listed on

page 36. "High rate" elevator and rudder may be

required for crisp snap rolls and spins. If you notice any "sluggishness" in the way your ULTRA SPORT 40

handles, it is probably a result of not enough speed, in which case you should install a propeller with increased pitch. Do not exceed the recommended "high rate" throws for the rudder, as this will only result in adverse roll and pitch-down when full rudder is applied. is the key to good knife-edge performance.

LANDING

When it's time to land, make your approach low and shallow, as this ship wants to just keep on flying (especially if built light). If you find that it lands a little fast, you might try dialing in a few clicks of up elevator when you cut the throttle on the downwind leg of the landing approach. This will automatically help to bleed off some of the speed. If your ULTRA SPORT 40 is built straight and true, you'll find that you can really flare it out for slow, nose-high, full-stall landings without fear of tip stalling.

Speed

Have a ball! But always stay in control

and fly in a safe manner.

GOOD LUCK AND GREAT FLYING!

CAUTION (THIS APPLIES TOALLR/C AIRPLANES): If, while flying, you notice any unusual sounds, such

as a low-pitched' 'buzz", this may be an indication of control surface" flutter''. Because flutter can quickly destroy components of your airplane, any time you detect flutter you must immediately cut the throttle and land the airplane! Check all servo grommets for deterioration (this will indicate which surface fluttered), and make sure all pushrod linkages are slop-free. If it fluttered once, it will probably flutter again under similar circumstances unless you can eliminate the slop or flexing in the linkages. Here are some things which can result in flutter: Excessive hinge gap; Not mounting control horns solidly; Sloppy fit of clevis pin in horn; Elasticity present in flexible plastic pushrods; Side-play of pushrod in guide tube caused by tight bends; Sloppy fit of Z-bend in servo arm; Insufficient glue used when gluing in the elevator joiner wire or aileron torque rod; Excessive flexing of aileron, caused by using too soft balsa aileron; Excessive "play" or "backlash'' in servo gears; and Insecure servo mounting.

ULTRA SPORT 40 PARTS LIST

PART # QTY. DESCRIPTION_____

ITEMS PACKED INDIVIDUALLY

US40P01 1 Rolled Plan US40P02 1 Instruction Book CANPY041 1 Clear Plastic Canopy MM40D90 1 40-Size Engine Mount (Drilled) PLTB002 2 Plastic Outer Pushrod Tube US40F01 2 Balsa 1/8 Shaped Fuselage Side US40F22 2 Balsa 1/2 Shaped Chin Block US40F23 2 Balsa 1/2 Shaped Top Front Block US40W03 4 Bass 1/8 x 3/8 x 13-3/8 Spar

Doubler

US40W14 1 Balsa 3/32 Shear Webs (Pak of 18

Webs)

US40W21 2 Balsa 7/8 x 1-7/16 x 8-3/4 Wing

Tip

US40W22 8 Balsa 3/32 x 3 x 8-1/4 Center

Sheeting BAL009 5 Balsa 3/32 x 1/4 x 36 Cap Strip BAL019 3 Balsa 1/4 x 36 Triangle WIRES16 2 Threaded Pushrod Wire (12") WIRES 17 3 Threaded Pushrod Wire (34") WIRES62 1 1/16 Pushrod Wire (18")

SUB-PACK LONG FLAT PIECES (US40A01)

US40F25 2 Balsa 3/32 x 3 x 25 Turtle Deck

Side

US40F26 1 Balsa 3/8 x 2 x 24 Turtle Deck Top US40W09 4 Balsa 3/32 x 1-3/8 x 27-1/4 T.E.

Sheet

US40W10 4 Balsa 3/32 x 3 x 27-1/4 L.E. Sheet US40F13 1 Ply 1/8 DC Fuse Top Front US40F35 1 Balsa 3/32 x 3 x 16 Bottom

Sheeting

PART# QTY. DESCRIPTION

SUB-PACK DIE-CUT SHEETS (US40A02)

US40F11 1 Ply 1/8 DC F2A, F3, F4A, Gauge,

Web

US40F12 1 Ply 1/8 DC F2, F4, F5

US40F14 2 Ply 1/8 DC Fuse Side Doubler US40F15 1 Ply 1/8 DC Chin Base, F3A,

Spacers US40F20 1 Ply 1/32 DC Wing Fillet Bases US40W16 1 Ply 1/16 DC Dihedral Brace, Bolt

Plate

SUB-PACK LONG STICKS (US40A03)

US40F32 2 Balsa 1/4 x 1/4 x 24 Turtle

Stringer US40W02 4 Balsa 1/4 x 3/8 x 27-1/4 Spars

(Hard)

US40W11 1 Balsa Shaped Wing LE&TE Set

US40W12 2 Balsa Tapered Aileron US40W36 1 Balsa 1/4 Tapered Wing T.E. Jig

SUB-PACK DIE-CUT SHEETS (US40A04)

US40F17 1 Balsa 1/8 DC Fuse Top Rear US40F18 1 Balsa 1/8 DC Lower Rear Fuse

Side

US40F19 1 Balsa 1/8 DC Lower Front Fuse,

F5A, F6A US40W05 2 Balsa 3/32 DC Ribs 1,2 US40W06 2 Balsa 3/32 DC Ribs 4, 8.10 US40W07 2 Balsa 3/32 DC Ribs 3,6,11 US40W08 2 Balsa 3/32 DC Ribs 5,7,9

PART# QTY. DESCRIPTION PART# QTY. DESCRIPTION

SUB-PACK MEDIUM PIECES (US40A05)

US40W31 1 Balsa 5/8 x 2-1/2 x 3-7/16 Rear

Fairing

US40W37 1 Balsa 3/8x2-5/8x3-5/8 Mid Rear

Fairing

US40W38 1 Balsa 3/16 x 2-5/8 x 3-3/4 Front

Rear Fairing

US40F24 1 Balsa 1/4x3x8 Nose Sides

SUB.PACK SMALL PARTS (US40A06)

US40F29 1 Balsa 1/4 x 9/16 x 1-1/4 Stab Filler

Block US40F30 2 Balsa 1/2 x 13/16 x 5-1/2 Fin Fillet US40R01 1 Balsa 1/4 Shaped Dorsal Fin US40R06 1 Balsa 1/4 Shaped Rudder Bottom US40R07 1 Balsa 1/4x7/8x5-1/2 Dummy Fin US40S06 1 Balsa 1/4 x 1-1/4 x 5-1/2 Dummy

Stab US40W15 2 Balsa 3/32 x 2 x 2-5/8 Root Shear

Web US40F31 1 Balsa 5/32 Tapered Tail Filler US40W30 2 Balsa Tapered, Grooved Center TE US40W32 1 Balsa Tapered Front Wing Fairing

Wedge

SUB-PACK STAB PARTS (US40A07) US40S01 1 Balsa 1/4 Shaped Stab Front US40S02 1 Balsa 1/4x2x20-1/16 Stab Rear US40S03 2 Balsa 1/4 Shaped Elevator

SUB-PACK SMALL PIECES (US40A08)

DOWEL031 2 Hardwood Dowel 1/4 Dia. x 3-3/4 HRDWD005 2 Small Hardwood L.G. Gusset US40F05 1 Ply 1/4 Shaped F-l (Firewall) US40F27 2 Ply 3/16 x 1/2 x 3-5/16 Servo Rail US40F28 1 Ply 1/4 Shaped Wing Mounting

Plate US40F33 1 Basswood 1/8 x 1/8 x 3-1/8 Spacer

US40W27 2 Bass 7/16 x 5/8 x 5-5/8 Grooved

LG Block

US40W28 2 Maple 7/16 x 5/8 x 7/8 Short LG

Block US40W35 6 Ply 1/16 DC Rib Doublers for LG US40W40 4 Ply 1/4 x 3/4 x 2-1/2 Retract Rail US40F02 1 Ply 1/16 DC Spinner Ring

SIJB-PACK SHORT STICKS (US40A09)

US40F34 1 Balsa Triangle 1/2 x 10 (Nose PCS.)

US40S04 1 Balsa 1/8 x 1/4 x 11-7/8 Elev &

Rudd Ends

US40W39 4 Balsa 3/32

x 1/2 x 7-1/2 LE Sheet

Front

US40S05 1 Balsa 1/4 x 9/16 x 15 Stab & Fin

Tips

US40S07 1 Balsa 3/8 x 10 Triangle

US40F21 2 Balsa 1/4x1/4x7-3/4 Cockpit Side

SUB-PACK FIN/RUDDER PARTS (US40A10)

US40R02 1 Balsa 1/4 Shaped Fin Front US40R03 1 Balsa 1/4 Shaped Fin Rear US40R04 1 Balsa 1/4 Shaped Rudder Front US40R05 1 Balsa 1/4 Shaped Rudder Rear

SUB.PACK HARDWARE (US40M01)

GLTP004 1 Fiberglass Tape 3 x 26 NUTS003 4 6-32 Blind Nut NYLON02 2 Nylon Control Horn NYLON09 2 Nylon Hinges (12 per tree) NYLON13 2 1/4-20 Nylon Bolt NYLON 16 1 Nylon Steering Arm NYLON 17 4 Nylon Clevis NYLON20 2 Nylon Aileron Clevis Connector NYLON21 2 Nylon Aileron Clevis NYLON36 1 Nylon LG Strap (4 per tree) PLTB004 1 Plastic Inner Pushrod Tube 6-3/8 SCRW002 4 2-56 x 5/8 Machine Screw SCRW005 1 6-32 x 1/8 Socket Set Screw SCRW018 4 #6 x 3/4 Sheet Metal Screw SCRW020 1 6-32 x 1/4 Machine Screw SCRW024 8 #2 x 3/8 Sheet Metal Screw SCRW033 4 6-32 x 3/4 Machine Screw WHCL005 2 5/32 Wheel Collar (For steering

arm) WBNT002 1 Aileron Torque Rod Set (Lt & Rt) WBNT128 1 3/32 Tail Gear Wire & Bearing WBNT141 1 5/32 Wire Nose Gear

WBNT144 2 5/32 Wire Main Gear WBNT145 1 1/8 Wire Elevator Joiner

FLIGHT TRIMMING

... A model is not a static object. Unlike a car, which can only hunt left or right on the road (technically, acardoes yaw in comers, and pitches when the brakes are applied), a plane moves through that fluid we call air in all directions simultaneously. The plane may look like it's going forward, but it could also be yawing slightly, slipping a little and simultaneously climbing or diving a bit! The controls interact. Yaw can be a rudder problem, a lateral balance problem or an aileron rigging problem. We must make many flights, with minor changes be-

tween each, to isolate and finally correct the problem.

The chart accompanying this article is intended

serve as a handy field reference when trimming your model. Laminate it in plastic and keep it in your flight box. You just might have need to consult it at the next contest! The chart is somewhat self-explanatory, but we

will briefly run through the salient points.

First, we arc assuming that the model has been

C.G.

balanced according to the manufacturer's directions. There's nothing sacred about that spot - frankly, it only reflects the balance point where a prototype model handled the way the guy who designed it thought it

should. If your model's wing has a degree more or less of incidence, then the whole balance formula is incorrect for

you. But, it's a good ballpark place to start.

The second assumption is that the model has been balanced laterally. Wrap a strong string or monofilament around the prop shaft behind the spinner, then tie the other end to the tail wheel or to a screw driven into the bottom of the aft fuse. Make the string into a bridle harness and suspend the entire model inverted (yes, with the wing on!). If the right wing always drops, sink some screws or lead into the left wing tip, etc. You may be surprised to find out how much lead is needed.

At this point the model is statically trimmed. It's only a starting point, so don't be surprised if you wind up changing it all. One other critical feature is that the ailerons must have their hinge gap sealed. If shoving some Scotch tape or Monokote into the hinge gap to prevent the air from slipping from the top of the wing to the bottom, and vice-versa, bothers you, then don't do it.

To achieve the maximum lateral trim on the model, the hinge gap on the ailerons should be sealed. The easiest way to do this is to disconnect the aileron linkages, and fold the ailerons as far over the top of the wing as possible (assuming they are top or center

hinged). Apply a strip of clear tape along the joint line. When the aileron is returned to neutral, the tape will be invisible, and the gap will be effectively sealed. Depend-

ing on how big the ailerons are, and how large a gaping

gap you normally leave when you install hinges, you could experience a 20 percent increase in aileron control response just by this simple measure.

. . . Your first flights should be to ascertain control centering and control feel. Does the elevator always come back to neutral after a 180-degree turn or Split-S? Do the ailerons tend to hunt a little after a rolling

maneuver? Put the plane through its paces. Control centering is either a mechanical thing (binding servos, stiff linkages, etc.), an electronic thing (bad servo resolution or dead-band in the radio system), or C.G. (aft Center of Gravity will make the plane wander a bit). The last possibility will be obvious, but don't continue the testing until you have isolated the problem and corrected it.

... let's get down to the task of trimming the

model. Use the tachometer every time you start the engine, to insure consistent results. These trim flights must be done in calm weather. Any wind will only make the model weathervane. Each "maneuver" on the list assumes that you will enter it dead straight-and-level. The wings must be perfectly flat, or else the maneuver will not be correct and you'll get a wrong interpretation. That's where your observer comes in. Instruct him to be especially watchful of the wings as you enter the maneuvers.

Do all maneuvers at full throttle. The only deviation from this is if the plane will be routinely flown through maneuvers at a different power setting...

Let's commence with the' 'engine thrust angle'' on the chart. Note that the observations you make can also be caused by the C.G., so be prepared to change both to see which gives the desired result. Set up a straightand-level pass. The model should be almost hands-off. Without touching any other control on the transmitter, suddenly chop the throttle. Did the nose drop? When you add power again, did the nose pitch up a bit? If so, you need some downthrust, or nose weight. When the

thrust is correct, the model should continue along the

same flight path for at least a dozen plane lengths before gravity starts to naturally bring it down.

Do each maneuver several times, to make sure

that you arc getting a proper diagnosis. Often, a gust, an

accidental nudge on the controls, or just a poor maneuver entry can mislead you. The thrust adjustments are a real pain to make. On most models, it means taking the

engine out, adding shims, then reassembling the whole

thing. Don't take shortcuts. Don't try to proceed with the other trim adjustments until you have the thrustline and/ or C.G. correct. They are the basis upon which all other trim setting are made.

Also, while you have landed, take the time to crank the clevises until the transmitter trims are at neutral. Don't leave the airplane so that the transmitter has some odd-ball combination of trim settings. One bump of the transmitter and you have lost everything. The trim must be repeatable, and the only sure way to do this is to always start with the transmitter control trims at the middle.

The next maneuver is somewhat more tricky than it looks. To verify the C.G., we roll the model up to

a 45-degree bank, then take our hands off the controls.

The model should go a reasonable distance with the fuse

at an even keel. If the nose pitches down, remove some nose weight, and the opposite if the nose pitches up. The trick is to use only the ailerons to get the model up at a 45-degree bank. We almost automatically start feeding in elevator, but that's a no-no. Do the bank in both directions, just to make sure that you are getting an accurate reading of the longitudinal balance.

We now want to test the correct alignment of both sides of the elevator (even if they aren't split, like a Pattern ship's, they can still be warped or twisted). Yaw and lateral balance will also come into play here, so be patient and eliminate the variables, one-by-one. The maneuveris a simple loop, but it must be entered with the

wings perfectly level. Position the maneuver so that your

assistant can observe it end-on. Always loop into the wind. Do several loops, and see if the same symptom persists. Note if the model loses heading on the front or back side of the loop. If you lose it on the way up, it's probably an aileron problem, while a loss of heading on the way back down is most likely a rudder situation.

After you get the inside loops going correctly, do

the

same maneuver to the outside, entering from an inverted position... Before you make too many dramatic changes, glance at the remainderofthe chart and note the myriad combination of things we can do just with the

ailerons.

Each change you make will affect all other

variables!

Note that the Yaw test is the same looping sequences. Here, however, we are altering rudder and ailerons, instead of the elevator halves. We must repeat that many airplanes just will not achieve adequate lateral trim without sealing the hinge gaps shut. The larger you

make the loops (to a point), the more discernable the errors will be.

The Lateral Balance test has us pulling those loops very tightly. Actually, we prefer the Hammerhead as a better test for a heavy wing. Pull straight up into a

vertical and watch which wing drops. A true vertical is hard to do, so make sure that your assistant is observing

from another vantage point. Note that the engine torque will affect the vertical fall off, as will ruddererrors. Even

though we balance the wing statically before leaving for the field, we are now trimming it dynamically.

The Aileron Coupling (or rigging) is also tested

by doing Hammerheads. This time, however, we want to observe the side view of the model. Does the plane want to tuck under a bit? If so, then try trimming the ailerons down a small bit, so that they will act as flaps. If the model tends to want to go over into a loop, then rig both

ailerons up a few turns on the clevises. Note that

drooping the ailerons will tend to cancel any washout you have in the wing. On some models, the lack of washout can lead to some nasty characteristics at low speeds.

The effects noted with the Aileron Coupling

tests can also be caused by an improperly set wing incidence. The better test for this is knife-edge flight..

If the model tends to pull upward, i.e., it swings toward

a nose up direction, then reduce the wing incidence. If the

model tries to go off heading toward the bottom side of the plane, then increase incidence.

Again, we reiterate that all of these controls are

interactive. When you change the wing incidence, it will influence the way the elevator trim is at a given C.G. Retrimming the wing will also change the rigging on the ailerons, in effect, and they may have to be readjusted

accordingly.

The whole process isn't hard. As a matter of fact

it's rather fun " but very time consuming. It's amazing what you will leam about why a plane flies the way it does, and you'll be a better pilot for it. One thing we almost guarantee, is that your planes will be more reliable and predictable when they are properly trimmed out. They will fly more efficiently, and be less prone to doing radical and surprising things. Your contest scores should improve, too.

We wish to acknowledge the Orlando. Florida.

club newsletter, from which the basics of the chart presented here were gleaned.

Reprinted in part by Great Planes Model Manufacturing Company, courtesy of Scale R/C Modeler magazine. Pat Potega, Editor, August, 1983 issue.

TRIM FEATURE MANEUVERS OBSERVATIONS CORRECTIONS

CONTROL

CENTERING

CONTROL THROWS

ENGINE THRUST ANGLE'

CENTER OF GRAVITY LONGITUDINAL BALANCE

SPLIT ELEVATORS

(Also Yaw and

C.G.)

Fly general circles and

random maneuvers.

Random maneuvers.

From straight flight, chop throttle quickly.

From level flight roll to 45-degree bank and neutralize controls.

Into wind, pull open loops, using only elevator. Repeat tests doing outside loops to inverted entry.

Try for hands off straight and level flight.

A. Too sensitive, jerky

controls.

B. Not sufficient control.

A. Aircraft continues level

path for short distance.

B. Plane pitches nose up.

C. Plane pitches nose down.

A. Continues in bank for

moderate distance.

B. Nose pitches up.

C. Nose drops.

A. Wings are level throughout. B. Plane tends toward outside

when right side up, and to inside when inverted.

C. Plane goes in on regular

loops, and out on inverted.

D. Plane goes out on both

types of loops.

E. Plane goes in on both

types of loops.

Readjust linkages so that

Tx trims are centered.

change linkages to

ce throws.

redu

increase throws.

IfB,

trim is okay.

IfB,

decrease downthrust. increase downthrust.

"C,

trim is good.

If A, IfB.

add nose weight. remove nose weight.

IfC,

If A, trim is fine. If B, add weight to right

wing, or add right rudder.

If C, add weight to left

wing, or add left rudder.

If D, raise right half of

elevator (or lower left).

If E, raise left half of

elevator (or lower right).

YAW2

LATERAL BALANCE

AILERON RIGGING

Into wind, do open loops, using only elevator. Repeat tests doing outside loops from inverted entry.

Into wind, do tight inside loops, or make straight up

climbs into Hammerheads.

Do same from inverted

entry.

With wings level, pull to vertical climb and neutralize controls.

A. Wings are level throughout. B. Yaws to right in both

inside and outside loops.

C. Yaws to left in both

inside and outside loops.

D. Yaws right on insides, and

left on outside loops.

E. Yaws left on insides, and

right on outside loops.

A. Wings are level and plane

falls to either side randomly in Hammerhead.

B. Falls off to left in both

inside and outside loops. Worsens as loops lighten.

C. Falls off to right in both

loops. Worsens as loops tighten.

D. Falls off in opposite

directions on inside and outside loops.

A. Climb continues along

same path.

B. Nose tends to go to

inside loop.

C. Nose tends to go to

outside loop.

If A, trim is correct.

If B, add left rudder trim. If C, add right rudder trim. If D, add left aileron trim. If E, add right aileron trim.

If A, trim is correct.

If B, add weight to right

wing tip.

If C, add weight to left

wing tip.

If D, change aileron trim.3

If A, trim is correct. If B, raise both ailerons

very slightly.

If C, lower both ailerons

very slightly.

WING INCIDENCE

1. Engine thrust angle and C.G. interact. Check both.

2. Yaw and laterai balance produce similar symptoms. Note that fin may be crooked. Right and left references are from the plane's vantage point.

3. Ailerons cannot always be trimmed without sealing the hinge gap.

Knife edge flight.

A. Models tends to veer

in nose up direction.

B. Model veers in nose

down direction.

If A, reduce wing incidence.

If B, increase wing incidence.

2-VIEW DRAWING

USE THIS FOR PLANNING YOUR TRIM SCHEME.

Great Planes GPMA0410 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
