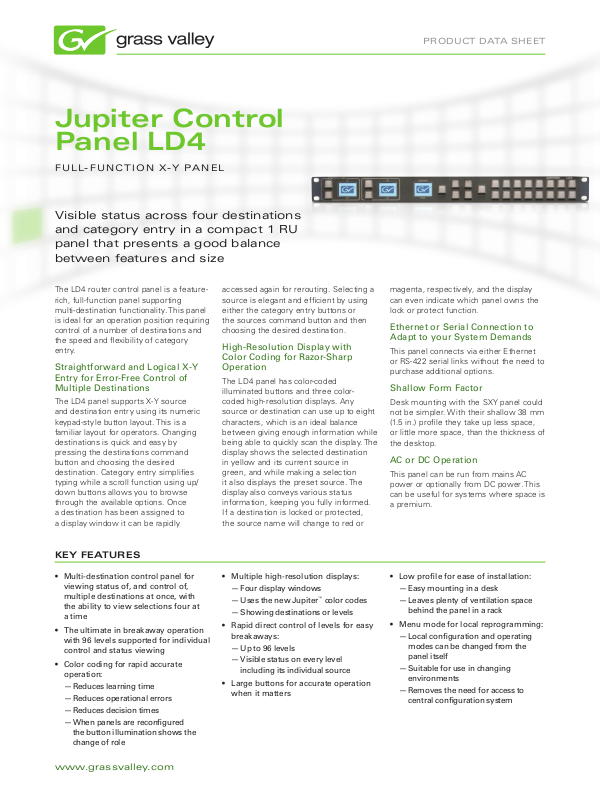

GRASS VALLEY JUPITER CONTROL PANEL LD4 Datasheet

Jupiter Control
Panel LD4

FULL-FUNCTION X-Y PANEL

Visible status across four destinations
and category entry in a compact 1 RU
panel that presents a good balance
between features and size

PRODUCT DATA SHEET

The LD4 router control panel is a feature­rich, full-function panel supporting
multi-destination functionality. This panel
is ideal for an operation position requiring
control of a number of destinations and
the speed and flexibility of category
entr y.

Straightforward and Logical X-Y
Entry for Error-Free Control of
Multiple Destinations

The LD4 panel supports X-Y source
and destination entry using its numeric
keypad-style button layout. This is a
familiar layout for operators. Changing
destinations is quick and easy by
pressing the destinations command
button and choosing the desired
destination. Category entry simplifies
typing while a scroll function using up/
down buttons allows you to browse
through the available options. Once
a destination has been assigned to
a display window it can be rapidly

KEY FEATURES

Multi-destination control panel for •
viewing status of, and control of,
multiple destinations at once, with
the ability to view selections four at
a time

The ultimate in breakaway operation •
with 96 levels supported for individual
control and status viewing

Color coding for rapid accurate •
operation:

Reduces learning time —
Reduces operational errors —
Reduces decision times —
When panels are reconfigured —

the button illumination shows the
change of role

accessed again for rerouting. Selecting a
source is elegant and efficient by using
either the category entry buttons or
the sources command button and then
choosing the desired destination.

High-Resolution Display with
Color Coding for Razor-Sharp
Operation

The LD4 panel has color-coded
illuminated buttons and three color­coded high-resolution displays. Any
source or destination can use up to eight
characters, which is an ideal balance
between giving enough information while
being able to quickly scan the display. The
display shows the selected destination
in yellow and its current source in
green, and while making a selection
it also displays the preset source. The
display also conveys various status
information, keeping you fully informed.
If a destination is locked or protected,
the source name will change to red or

Multiple high-resolution displays: •

Four display windows —
Uses the new Jupiter —
Showing destinations or levels —

Rapid direct control of levels for easy •
breakaways:

Up to 96 levels —
Visible status on every level —

including its individual source

Large buttons for accurate operation •
when it matters

™

color codes

magenta, respectively, and the display
can even indicate which panel owns the
lock or protect function.

Ethernet or Serial Connection to
Adapt to your System Demands

This panel connects via either Ethernet
or RS-422 serial links without the need to
purchase additional options.

Shallow Form Factor

Desk mounting with the SXY panel could
not be simpler. With their shallow 38 mm
(1.5 in.) profile they take up less space,
or little more space, than the thickness of
the desktop.

AC or DC Operation

This panel can be run from mains AC
power or optionally from DC power. This
can be useful for systems where space is
a premium.

Low profile for ease of installation:•

Easy mounting in a desk —
Leaves plenty of ventilation space —

behind the panel in a rack

Menu mode for local reprogramming:•

Local configuration and operating —
modes can be changed from the
panel itself

Suitable for use in changing —
environments

Removes the need for access to —
central configuration system

www.grassvalley.com

SPECIFICATIONS

PRODUCT DATA SHEET

Operating Modes

BPS – Single Destination No

BPS – Multiple Destination No

Category Entry Yes

X-Y – Select & Take Yes

X-Y – Scroll & Take No

Breakaways Yes

Sequences Yes

Overrides Yes

Audio Modes No

Lock & Protect Yes

Chop No

ORDERING INFORMATION

LD4 – Full Function X-Y Panel

JUP-CP-LD4-AC

With AC power supply

JUP-CP-LD4-DC

With DC power supply

JUP-CP-LD4-AC-GP

With GPIO and AC power supply

JUP-CP-LD4-DC-GP

With GPIO and DC power supply

Menu Yes

Sticky Levels Yes

GPIO Option Yes

Mounting Size 19" rack mount 1 RU

Overall Width 483 mm

Overall Height 38 mm

Depth (AC version) 108 mm

Depth (DC version) 32 mm

Power Consumption 12 W

Voltage Range 100V to 240V

Button Legend Label 9.6 mm x 9.6 mm
