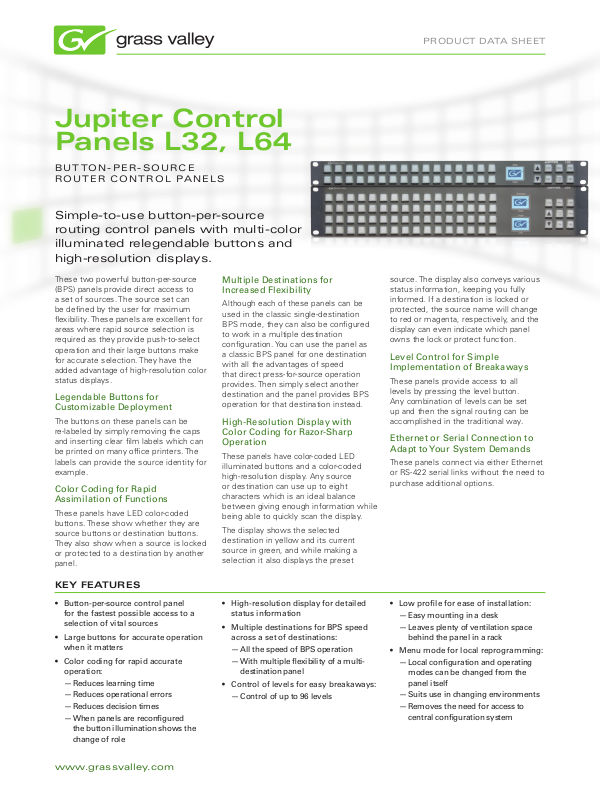

GRASS VALLEY JUPITER CONTROL PANEL L32, Jupiter Control Panel L64 Datasheet

Jupiter Control
Panels L32, L64

BUTTON-PER-SOURCE
ROUTER CONTROL PANELS

Simple-to-use button-per-source
routing control panels with multi-color
illuminated relegendable buttons and
high-resolution displays.

PRODUCT DATA SHEET

These two powerful button-per-source
(BPS) panels provide direct access to
a set of sources. The source set can
be defined by the user for maximum
flexibility. These panels are excellent for
areas where rapid source selection is
required as they provide push-to-select
operation and their large buttons make
for accurate selection. They have the
added advantage of high-resolution color
status displays.

Legendable Buttons for
Customizable Deployment

The buttons on these panels can be
re-labeled by simply removing the caps
and inserting clear film labels which can
be printed on many office printers. The
labels can provide the source identity for
example.

Color Coding for Rapid
Assimilation of Functions

These panels have LED color-coded
buttons. These show whether they are
source buttons or destination buttons.
They also show when a source is locked
or protected to a destination by another
panel.

Multiple Destinations for
Increased Flexibility

Although each of these panels can be
used in the classic single-destination
BPS mode, they can also be configured
to work in a multiple destination
configuration. You can use the panel as
a classic BPS panel for one destination
with all the advantages of speed
that direct press-for-source operation
provides. Then simply select another
destination and the panel provides BPS
operation for that destination instead.

High-Resolution Display with
Color Coding for Razor-Sharp
Operation

These panels have color-coded LED
illuminated buttons and a color-coded
high-resolution display. Any source
or destination can use up to eight
characters which is an ideal balance
between giving enough information while
being able to quickly scan the display.

The display shows the selected
destination in yellow and its current
source in green, and while making a
selection it also displays the preset

source. The display also conveys various
status information, keeping you fully
informed. If a destination is locked or
protected, the source name will change
to red or magenta, respectively, and the
display can even indicate which panel
owns the lock or protect function.

Level Control for Simple
Implementation of Breakaways

These panels provide access to all
levels by pressing the level button.
Any combination of levels can be set
up and then the signal routing can be
accomplished in the traditional way.

Ethernet or Serial Connection to
Adapt to Your System Demands

These panels connect via either Ethernet
or RS-422 serial links without the need to
purchase additional options.

KEY FEATURES

Button-per-source control panel •
for the fastest possible access to a
selection of vital sources

Large buttons for accurate operation •
when it matters

Color coding for rapid accurate •
operation:

Reduces learning time —
Reduces operational errors —
Reduces decision times —
When panels are reconfigured —

the button illumination shows the
change of role

www.grassvalley.com

High-resolution display for detailed •
status information

Multiple destinations for BPS speed •
across a set of destinations:

All the speed of BPS operation —
With multiple flexibility of a multi- —

destination panel

Control of levels for easy breakaways: •

Control of up to 96 levels —

Low profile for ease of installation:•

Easy mounting in a desk —
Leaves plenty of ventilation space —

behind the panel in a rack

Menu mode for local reprogramming:•

Local configuration and operating —
modes can be changed from the
panel itself

Suits use in changing environments —
Removes the need for access to —

central configuration system

PRODUCT DATA SHEET

Shallow Form Factor

Desk mounting with these panels could not be simpler. With
their shallow profiles they take up less space, or little more
space, than the thickness of the desktop.

L32 SPECIFICATIONS

Operating Modes

BPS – Single Destination Yes

BPS – Multiple Destination No

Category Entry No

X-Y – Select & Take Yes

X-Y – Scroll & Take No

Maximum Number of Sources 32

Maximum Number of Destinations 1

Total Sources + Destinations 33

Breakaways Yes

Sequences Yes

Overrides Yes

Lock & Protect Yes

Undo No

Menu Yes

Sticky Levels Yes

GPIO Option Yes

Mounting size 19" rack mount 1 RU

Overall width 483 mm

Overall height 38 mm

Depth (AC version) 108 mm

Depth (DC version) 38 mm

Power consumption 12W

Voltage range 100V to 240V

Button legend label 9.6 mm x 9.6 mm

AC or DC Operation

These panels can be run from mains AC power or optionally
from DC power. This can be useful for systems where space is
a premium or where power dissipation must be minimized.

L64 SPECIFICATIONS

Operating Modes

BPS – Single Destination Yes

BPS – Multiple Destination No

Category Entry No

X-Y – Select & Take Yes

X-Y – Scroll & Take No

Maximum Number of Sources 64

Maximum Number of Destinations 1

Total Sources + Destinations 65

Breakaways Yes

Sequences Yes

Overrides Yes

Lock & Protect Yes

Undo Yes

Menu Yes

Sticky Levels Yes

GPIO Option Yes

Mounting size 19" rack mount 2 RU

Overall width 483 mm

Overall height 76 mm

Depth (AC version) 108 mm

Depth (DC version) 38 mm

Power consumption 12W

Voltage range 100V to 240V

Button legend label 9.6 mm x 9.6 mm

ORDERING INFORMATION

L32 – 32-Button BPS panel

JUP-CP-L32-AC

With AC power supply

JUP-CP-L32-DC

With DC power supply

JUP-CP-L32-AC-GP

With GPIO and AC power supply

JUP-CP-L32-DC-GP

With GPIO and DC power supply

L64 – 64-Button BPS panel

JUP-CP-L64-AC

With AC power supply

JUP-CP-L64-DC

With DC power supply

JUP-CP-L64-AC-GP

With GPIO and AC power supply

JUP-CP-L64-DC-GP

With GPIO and DC power supply

CUSTOMER SUPPORT & PROFESSIONAL SERVICES

Our customer support and professional services offerings ensure optimal system performance and maximize uptime. These services include call centers staffed around the clock,
commissioning, professional training courses, and technical maintenance programs and service agreements.

www.grassvalley.com/support

© Copyright 2011 Grass Valley USA, LLC. All rights reserved. Grass Valley and Jupiter are trademarks of GVBB Holdings S.a.r.l. All other tradenames referenced
are service marks, trademarks, or registered trademarks of their respective companies. Specifications subject to change without notice. RMC-40 07D-2
