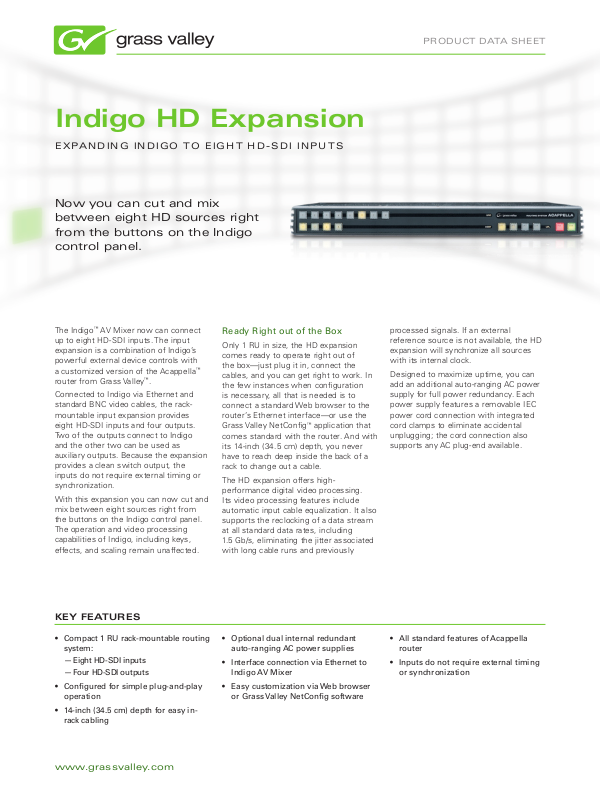

GRASS VALLEY INDIGO HD EXPANSION Datasheet
Indigo HD Expansion
EXPANDING INDIGO TO EIGHT HD -SDI INPUTS
Now you can cut and mix
between eight HD sources right
from the buttons on the Indigo
control panel.
PRODUCT DATA SHEET
The Indigo™ AV Mixer now can connect
up to eight HD-SDI inputs. The input
expansion is a combination of Indigo’s
powerful external device controls with
a customized version of the Acappella™
router from Grass Valley™.
Connected to Indigo via Ethernet and
standard BNC video cables, the rackmount able input expansion provides
eight HD-SDI inputs and four outputs.
Two of the outputs connect to Indigo
and the other two can be used as
auxiliary outputs. Because the expansion
provides a clean switch output, the
inputs do not require external timing or
synchronization.
With this expansion you can now cut and
mix between eight sources right from
the buttons on the Indigo control panel.
The operation and video processing
capabilities of Indigo, including keys,
effects, and scaling remain unaffected.
KEY FEATURES
Ready Right out of the Box
Only 1 RU in size, the HD expansion
comes ready to operate right out of
the box—just plug it in, connect the
cables, and you can get right to work. In
the few instances when configuration
is necessary, all that is needed is to
connect a standard Web browser to the
router’s Ethernet interface—or use the
Grass Valley NetConfig™ application that
comes standard with the router. And with
its 14-inch (34.5 cm) depth, you never
have to reach deep inside the back of a
rack to change out a cable.
The HD expansion offers highperformance digit al video processing.
Its video processing features include
automatic input cable equalization. It also
supports the reclocking of a data stream
at all standard data rates, including
1.5 Gb/s, eliminating the jitter associated
with long cable runs and previously
processed signals. If an external
reference source is not available, the HD
expansion will synchronize all sources
with its internal clock.
Designed to maximize uptime, you can
add an additional auto-ranging AC power
supply for full power redundancy. Each
power supply features a removable IEC
power cord connection with integrated
cord clamps to eliminate accidental
unplugging; the cord connection also
supports any AC plug-end available.
Compact 1 RU rack-mountable routing •
system:
Eight HD-SDI inputs —
Four HD-SDI outputs —
Configured for simple plug-and-play •
operation
14-inch (34.5 cm) depth for easy in-•
rack cabling
www.grassvalley.com
Optional dual internal redundant •
auto-ranging AC power supplies
Interface connection via Ethernet to •
Indigo AV Mixer
Easy customization via Web browser •
or Grass Valley NetConfig software
All standard features of Acappella •
router
Inputs do not require external timing •
or synchronization
DVI - I
PREVIEW
DVI - I
SDI - 2SDI - 1
DVI - IDVI - I
21 MAIN
COMPUTER VIDEO IN HD IN COMPUTER VIDEO OUT
For continued protection against risk of fire, replace only
with same type and rating of fuse.
2*4A T / H 250V
CAUTION:
This device complies with part 15 of the FCC Rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION: Two pole neutral wire fuse.
100 - 240 V
max. 3A - 50/60Hz
SDI / COMP
SDI / COMP SDI / COMP SDI SDI SDI
SDI SDI SDI SDI
1 2 3
COMP
AES / EBU
COMP COMP IN OUT
LOOP
SDI COMP COMPS-VIDEOS-VIDEO S-VIDEO
1 3 5 6
7 9 11
8 10 12
2 4
R
R
R L
R L R
L R
R
R
R
L
L L
RLR
L
R
L
L
OFF
OFF
48V 48V
7 8
L
L
2
462 4
1
351 3
VIDEO IN ( ANALOG / DIGITAL ) VIDEO IN ( DIGITAL ) PGM OUT PREVIEW OUT AUX ANALOG REF
AC POWER IN
DIGITAL AUDIO I/O GPI / TALLY / GPO
ANALOG AUDIO LINE IN LINE / MIC IN ANALOG AUDIO MAIN OUT SUB - OUT PHONE OUT
1
1 2 USB - B
2
RS422 IEEE 1394
REMOTE
LAN
TYPE Indigo 1-HD
PART NO. 000 219 410 110
SER. NO. 0100
USE ONLY WITH
250V FUSES
DISCONNECT POWER
BEFORE REPLACING FUSES
Audio Section Not Populated
2 Aux Output(s)
8 HD-SDI Inputs
Indigo HD-SDI Inputs 1 and 2 Sync
Control via Either
Ethernet or Serial
HR Output and Audio Sections
Remain Unchanged
SIMPLE CONNECTIONS
PRODUCT DATA SHEET
ORDERING INFORMATIONSPECIFICATIONS
Adjustable Timing Range with Full
Delay Control
Min delay = 150 pixels (all inputs •
pre-synchronized)
Std delay = 1 frame (inputs •
synchronized, clean-switch
guaranteed)
Max delay = 2 frames (will cause •
up to 3 frames of freeze if all inputs
asynchronous)
Use internal clock for synchronizing •
sources when reference source not
present
All Acappella routers include:
One RJ-45 100Base-T Ethernet •
connector
One RS-232 control connector•
Two 75Ω BNC looping video reference •
(NTSC 525, PAL 625, or Tri-Level)
Acappella Router
Dimensions
Height: 1 RU 4.4 cm, 1.8 in.
Width: 48.3 cm, 19.0 in
Depth: (incl. cables) 39.2 cm, 15.4 in
Weight: 4.9 kg, 10.8 lbs.
Power Consumption: ≤40W
Power
90 to 260 VAC, 47 to 63 Hz
Environmental
Operating Temperature: 0 to 40°C
Operating Humidity: 10% to 90%,
non-condensing
High-Definition Digital Video
Inputs
Available with eight gold-plated 75Ω •
BNC inputs conforming to SMPTE
259M and 292M
Return loss: >15 dB (10 MHz to •
1.5 GHz)
Automatic cable equalization ≤100 •
meters of Belden 1694A or equivalent
for ≤1.485 Gb/s data rates or ≤300
meters for ≤270 Mb/s data rates
Outputs
Available with four gold-plated 75Ω •
BNC outputs conforming to SMPTE
259M and 292M
Return loss: >15 dB (10 MHz to •
1.5 GHz)
Level: 80 mVp-p (±10%) 75Ω •
terminating
Operational Modes
Reclocking: automatic or manual •
selection of 143, 270, 360, 540 Mb/s
or 1.485 Gb/s
Non-reclocking or bypass: non-•
standard bit rates from 10 to
540 Mb/s for signals with one-to-zero •
ratio ≤20:1
Options and Licensing
Any Indigo AV Mixer may be upgraded
to add the expansion. While the Indigo
HD expansion is based on the Acappella
router, the expansion is not a retrofit
for existing Acappella units. No special
software or licenses are required in
addition to the purchase of the expansion
hardware.
To purchase the Indigo HD expansion,
use the part numbers below. Connecting
standard Acappella units will not provide
a synchronized switch with Indigo.
INDGO1-HR-8
New clean-switch A84HR router
INDGO1-HR-8-UPG
Upgrade from INDGO1-HR to INDGO1HR-8
INDGO1-SDHR-8-UPG
Upgrade from INDGO1-SD to INDGO1HR-8
CUSTOMER SUPPORT & PROFESSIONAL SERVICES
Our customer support and professional services offerings ensure optimal system performance and maximize uptime. These services include call centers staffed around the clock,
commissioning, professional training courses, and technical maintenance programs and service agreements.
www.grassvalley.com/support
© Copyright 2011 Grass Valley USA, LLC. All rights reserved. Grass Valley, Acappella, Indigo, and NetConfig are trademarks of GVBB Holdings S.a.r.l. All other
tradenames referenced are service marks, trademarks, or registered trademarks of their respective companies. Specifications subject to change without
notice. LPS-4017D
