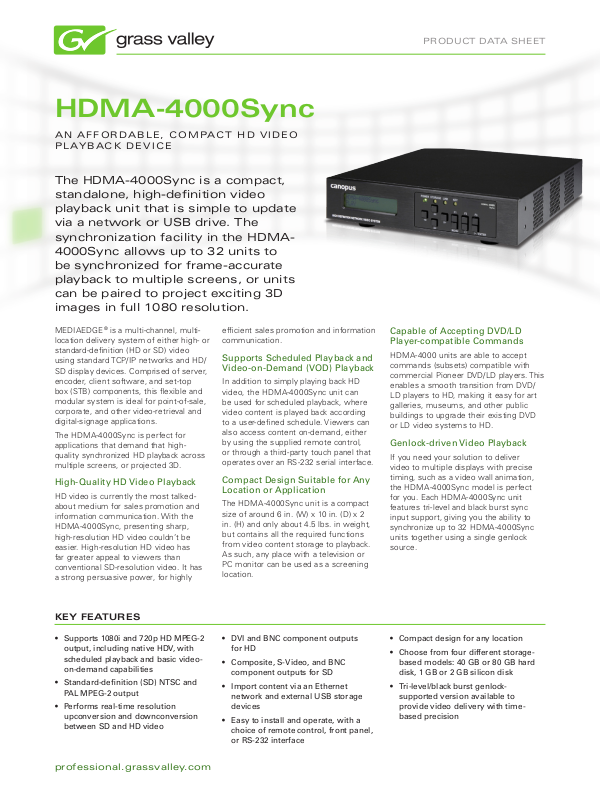

GRASS VALLEY HDMA-4000SYNC Datasheet

HDMA-4000Sync

A N A F F O R DABLE , CO M PA C T HD V I DEO
PLAYBACK DEVICE

The HDMA-4000Sync is a compact,
standalone, high-definition video
playback unit that is simple to update
via a network or USB drive. The
synchronization facility in the HDMA­4000Sync allows up to 32 units to
be synchronized for frame-accurate
playback to multiple screens, or units
can be paired to project exciting 3D
images in full 1080 resolution.

PRODUCT DATA SHEET

MEDIAEDGE® is a multi-channel, multi­location delivery system of either high- or
standard-definition (HD or SD) video
using standard TCP/IP networks and HD/
SD display devices. Comprised of server,
encoder, client software, and set-top
box (STB) components, this flexible and
modular system is ideal for point-of-sale,
corporate, and other video-retrieval and
digital-signage applications.

The HDMA-4000Sync is perfect for
applications that demand that high­quality synchronized HD playback across
multiple screens, or projected 3D.

High-Quality HD Video Playback

HD video is currently the most talked­about medium for sales promotion and
information communication. With the
HDMA-4000Sync, presenting sharp,
high-resolution HD video couldn’t be
easier. High-resolution HD video has
far greater appeal to viewers than
conventional SD-resolution video. It has
a strong persuasive power, for highly

KEY FEATURES

efficient sales promotion and information
communication.

Supports Scheduled Playback and
Video-on-Demand (VOD) Playback

In addition to simply playing back HD
video, the HDMA-400 0Sync unit can
be used for scheduled playback, where
video content is played back according
to a user-defined schedule. Viewers can
also access content on-demand, either
by using the supplied remote control,
or through a third-party touch panel that
operates over an RS-232 serial interface.

Compact Design Suitable for Any
Location or Application

The HDMA-4000Sync unit is a compact
size of around 6 in. (W) x 10 in. (D) x 2
in. (H) and only about 4.5 lbs. in weight,
but contains all the required functions
from video content storage to playback.
As such, any place with a television or
PC monitor can be used as a screening
location.

Capable of Accepting DVD/LD
Player-compatible Commands

HDMA-4000 units are able to accept
commands (subsets) compatible with
commercial Pioneer DVD/LD players. This
enables a smooth transition from DVD/
LD players to HD, making it easy for art
galleries, museums, and other public
buildings to upgrade their existing DVD
or LD video systems to HD.

Genlock-driven Video Playback

If you need your solution to deliver
video to multiple displays with precise
timing, such as a video wall animation,
the HDMA-4000Sync model is perfect
for you. Each HDMA-4000Sync unit
features tri-level and black burst sync
input support, giving you the ability to
synchronize up to 32 HDMA-4000Sync
units together using a single genlock
source.

Supports 1080i and 720p HD MPEG-2 •
output, including native HDV, with
scheduled playback and basic video­on-demand capabilities

Standard-definition (SD) NTSC and •
PAL MPEG-2 output

Performs real-time resolution •
upconversion and downconversion
between SD and HD video

professional.grassvalley.com

DVI and BNC component outputs •
for HD

Composite, S-Video, and BNC •
component outputs for SD

Import content via an Ethernet •
network and external USB storage
devices

Easy to install and operate, with a •
choice of remote control, front panel,
or RS-232 interface

Compact design for any location •

Choose from four different storage-•
based models: 40 GB or 80 GB hard
disk, 1 GB or 2 GB silicon disk

Tri-level/black burst genlock-•
supported version available to
provide video delivery with time­based precision

HDMA-4000Sync – Synchronized Playback

LAN

Speakers

(5.1ch)

HDMA-4000Sync

HUB

Video

Reference

Powered AMP

(Dolby Digital Decoder)

Projector

Switch

System Controller

RS-232C

HDSC1

Controlling signal put into master unit is

sent to slave unit through LAN

Master

Slave

Slave

Audio

Multi-Screens

SPECIFICATIONS

PRODUCT DATA SHEET

PACKAGE

CONTENTS

HDMA-4000Sync unit •
AC adapter and cable •
HDMA-4000Sync software •

CD-ROM
User manual •
Remote control •
2 x AAA battery •
3 x BNC-to-RCA conversion •

connectors
2 x Ferrite core•

Note: HDMA-4000Sync storage type
and capacity varies according to model
selected.

Video Format Output

HD: 720p50/59.94 and 1080i50/59.94 •
NTSC: 480i59.94 •
PAL: 576i50•

Video Decoder

MPEG-2 MP@HL: 2 Mb/s to 40 Mb/s •
MPEG-2 MP@H14: 2 Mb/s to 40 Mb/s •
MPEG-2 MP@ML: 2 Mb/s to 40 Mb/s, •

Full-D1, Half-S1, SIF

Audio Decoder

MPEG layer II •
AAC (output as LPCM) •
Dolby Digital AC-3 (2.0 ch. to 5.1 ch.) •

Digital Video Output

1 x DVI-D (HD output only)

Analog Video Output

3 x component (Y, Pr, Pb BNC) •
1 x S-Video (4-pin miniDIN) •
1 x composite (RCA) •

Digital Audio Output

1 x SPDIF (coaxial)

Analog Audio Output

1 x unbalanced stereo (RCA)

Sync Input

1 x Tri-level/black burst (BNC)

Network Connection

100Base-TX, 1000Base-T full duplex
(RJ-45)

Serial Port

RS-232 (D-Sub 9-pin)

USB Port

USB 2.0 (Type A)
