Grandstream GWN7605LR quick start Guide

Grandstream Networks, Inc.

126 Brookline Ave, 3rd Floor

Boston, MA 02215. USA
Tel : [phone] - 9250
Fax: [phone] - 1987

www.grandstream.com

In all EU member states, operation of 5150

- 5350 MHz is restricted to indoor use only.

GWN7605LR

Outdoor 802.11ac Wave-2 2×2:2 Wi-Fi

Access Point

For Certication, Warranty and RMA information, please visit

www.grandstream.com

Quick Installation Guide

Content

English.................................................................................1

简体中文.............................................................................7

Español..............................................................................13

Français..............................................................................19

Deutsch..............................................................................25

Italiano...............................................................................31

Polski................................................................................   37

Português..........................................................................  43

Русскй...............................................................................49

OVERVIEW

EN

This long range Wi-Fi access point is designed to provide extended cov­erage support and is ideal for outdoor Wi-Fi solutions thanks to its wa­terproof casing and heat resistant technology. The GWN7605LR comes
equipped with dual-band 2x2:2 MU-MIMO technology and a sophisti­cated antenna design for maximum network throughput and extended
Wi-Fi coverage range of up to 250 meters. To ensure easy installation
and management, the GWN7605LR uses a controller-less distributed
network management design in which the controller is embedded within
the product’s web user interface. The GWN7605LR is also supported by
GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise
Wi-Fi management platforms.. It is the ideal Wi-Fi AP for voice-over-Wi­Fi deployments and o󰀨ers a seamless connection with Grandstream’s
Wi-Fi-capable IP phones. With support for advanced QoS, low-latency
real-time applications, mesh networks, captive portals, 100+ concurrent
clients per AP and dual Gigabit network ports with PoE/PoE+, GWN­7605LR is ideal for deployment of medium/low wireless network environ­ments with medium to advanced user density.

PRECAUTIONS

• Do not attempt to open, disassemble, or modify the device.

• Do not expose this device to temperatures outside range of -30° to

70° for operating and -30° to 80° for storage.

• Do not expose the GWN7605LR to environments outside of the fol­lowing humidity range: 5-95% RH (non-condensing).

• Do not power cycle your GWN7605LR access point during system
boot up or rmware upgrade. You may corrupt rmware images and
cause the unit to malfunction.

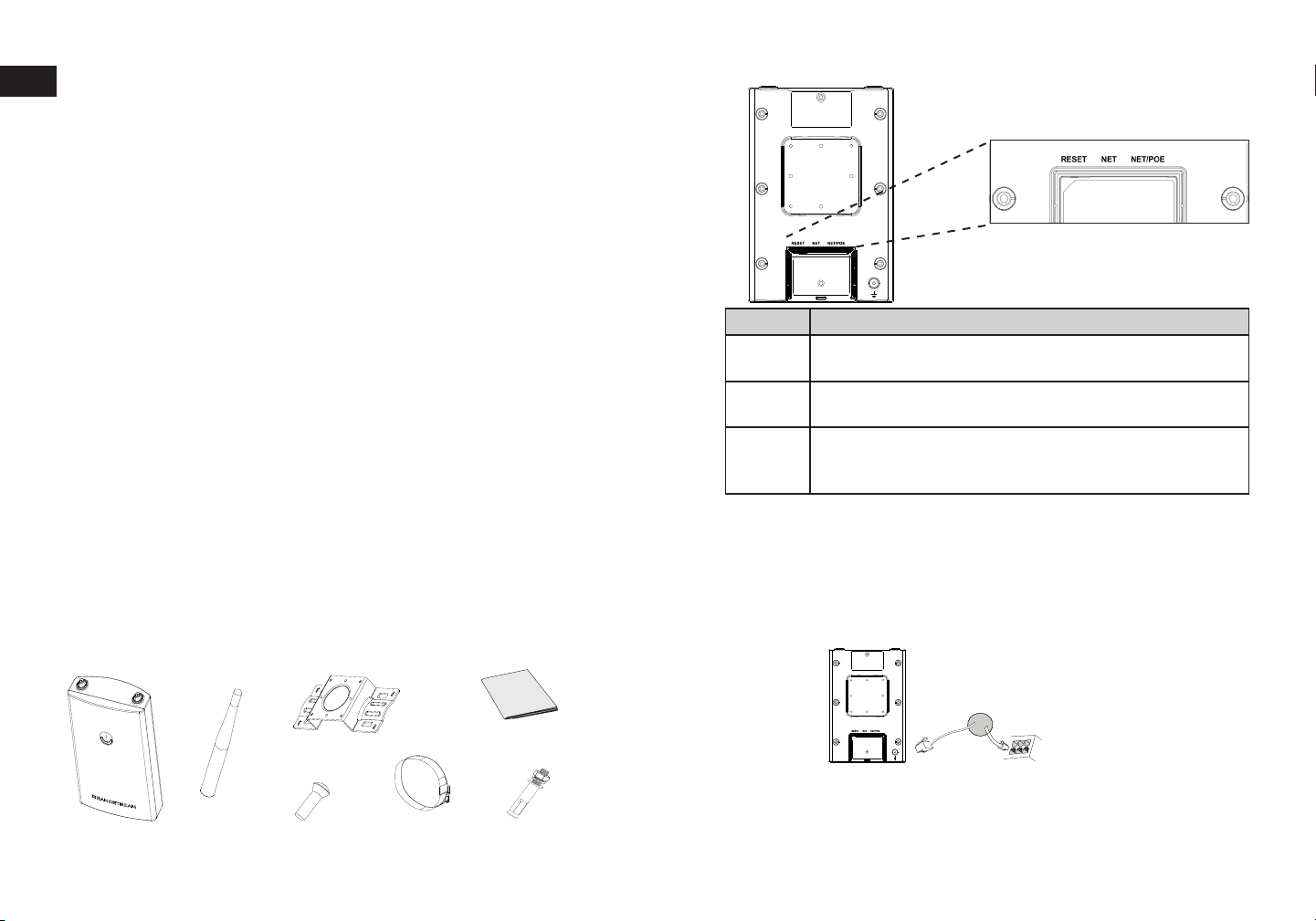

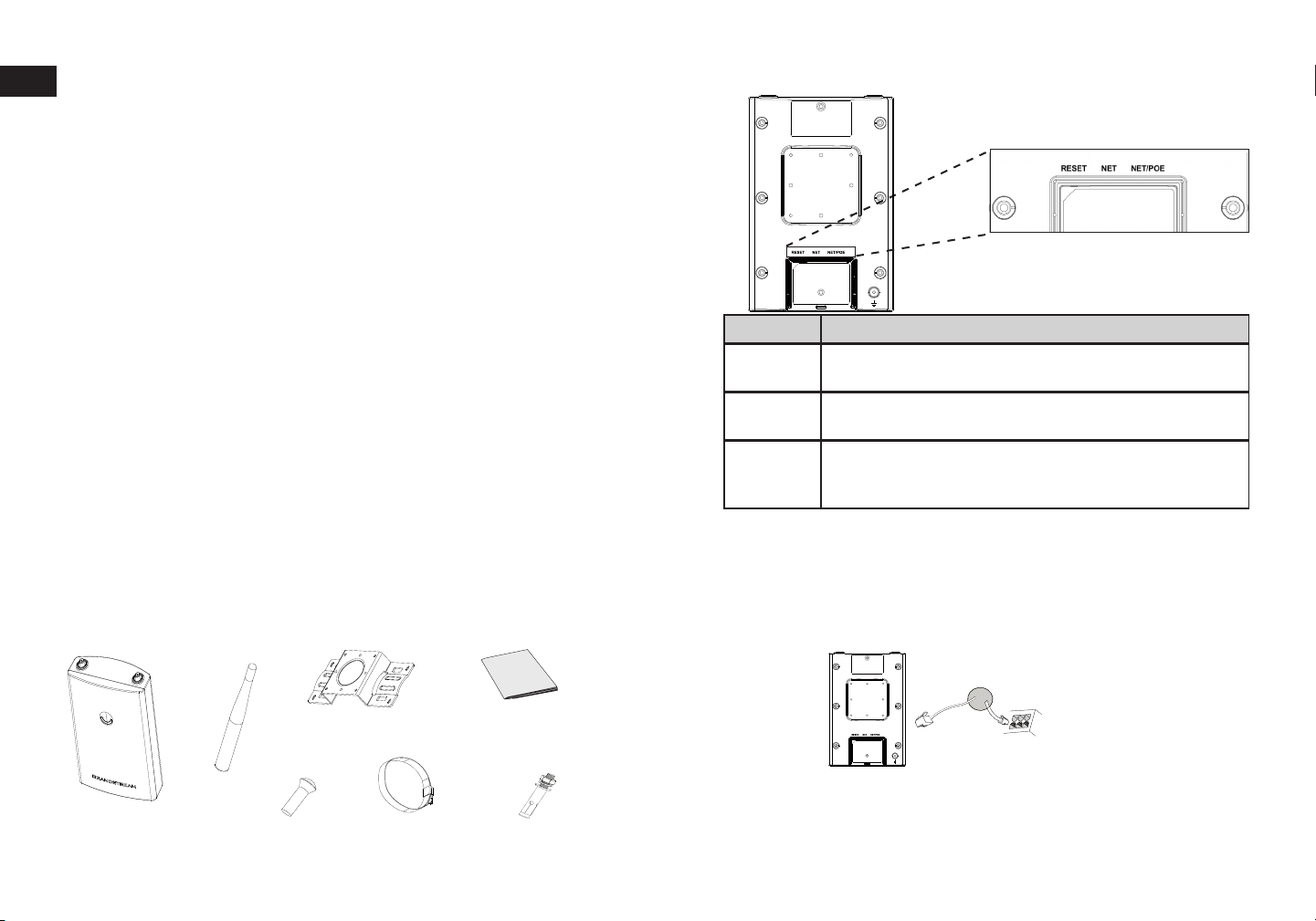

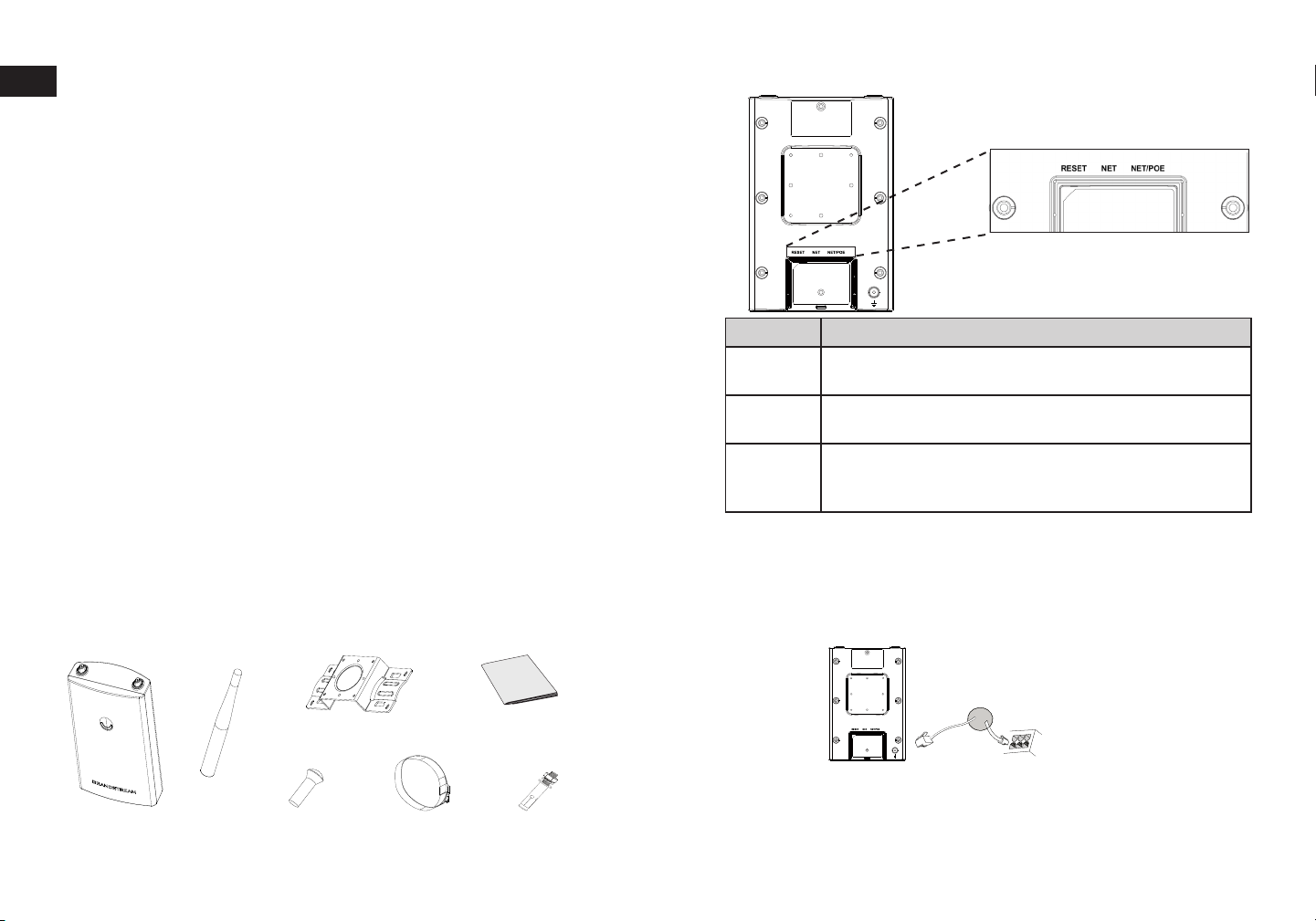

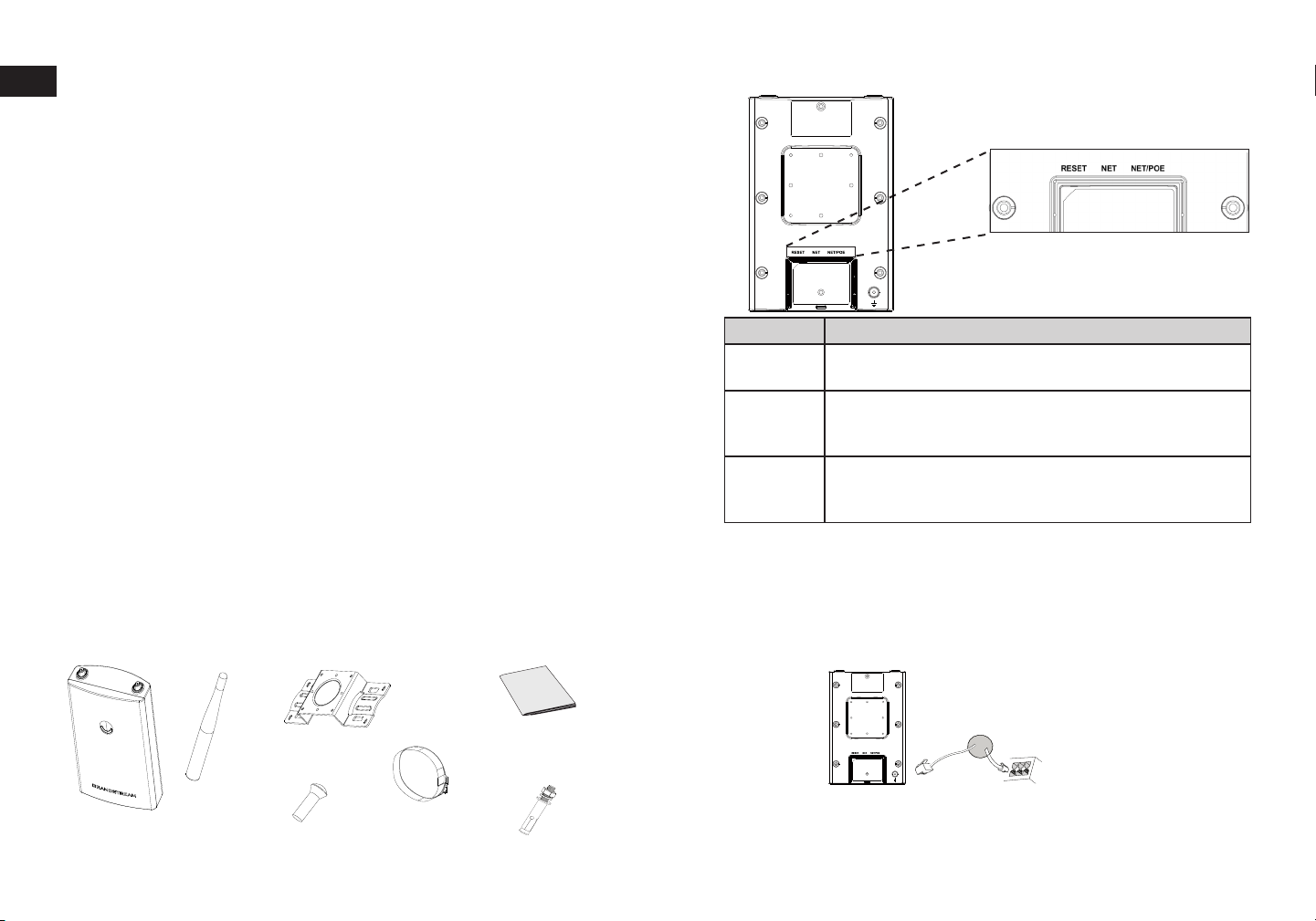

PACKAGE CONTENTS

GWN7605LR PORTS

Port Description

NET/POE Ethernet RJ45 port (10/100/1000Mbps) supporting

PoE/PoE+.

NET Ethernet RJ45 port (10/100/1000Mbps) to your rout-

er or another GWN76xx.

RESET Factory reset button.

Press for 7 seconds to reset factory default settings.

POWERING AND CONNECTING THE GWN7605LR

GWN7605LR can be powered on using PoE/PoE+ switch using follow­ing steps:

Step 1: Plug a RJ45 Ethernet cable into the network port of GWN­7605LR.

Step 2: Plug the other end into the uplink port of the power over Ethernet
(PoE/PoE+) switch.

GWN7605LR

Access point

2x Antennas

1x Base

Bracket

4x Screws

(PM 3.0 x 7)

~1~

1x Quick Installation

Guide

2x Metal

Straps

4x Expansion

Screws

Network Port

RJ45 Ethernet Cable
to power over Ethernet
(PoE/PoE+) Switch

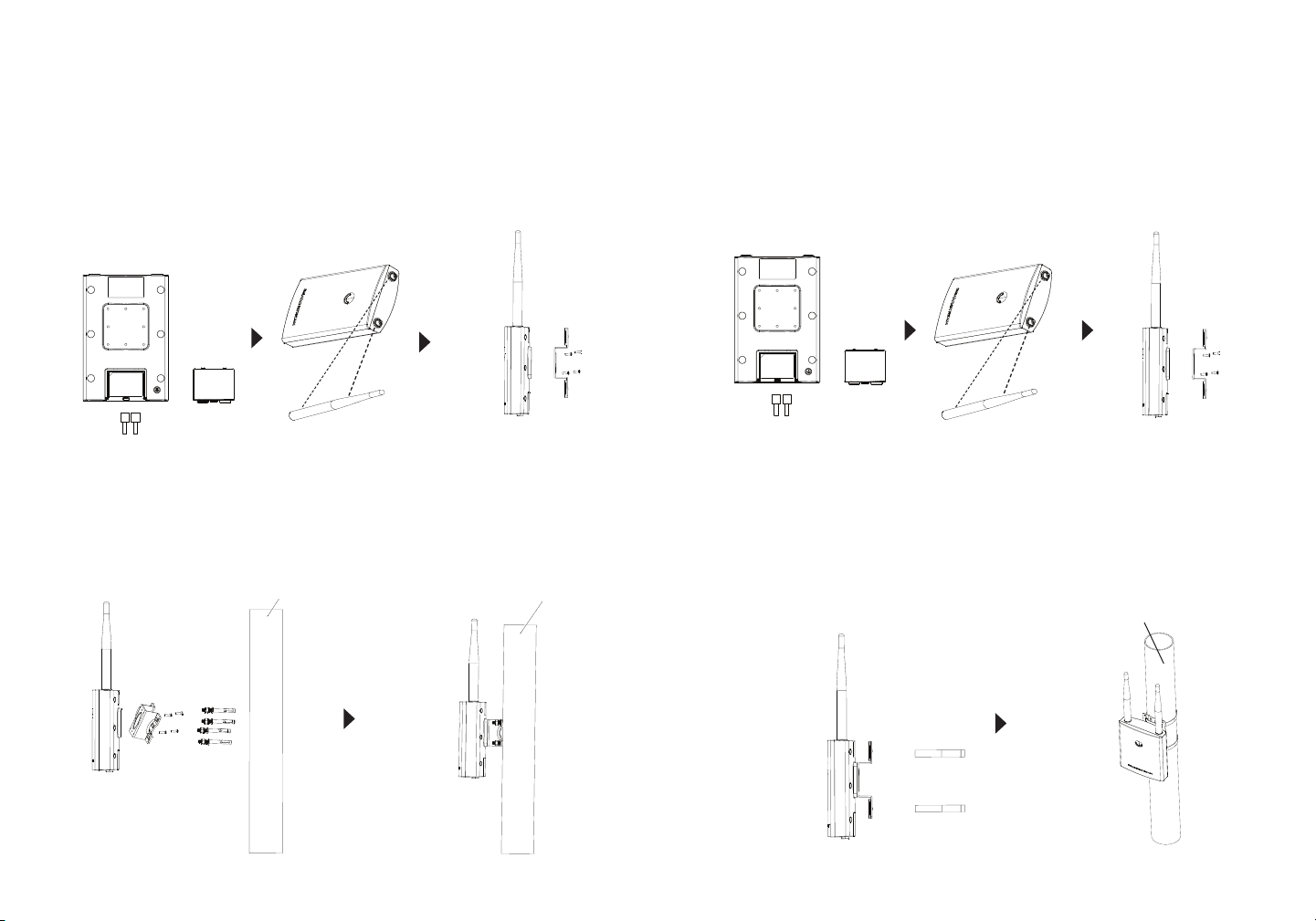

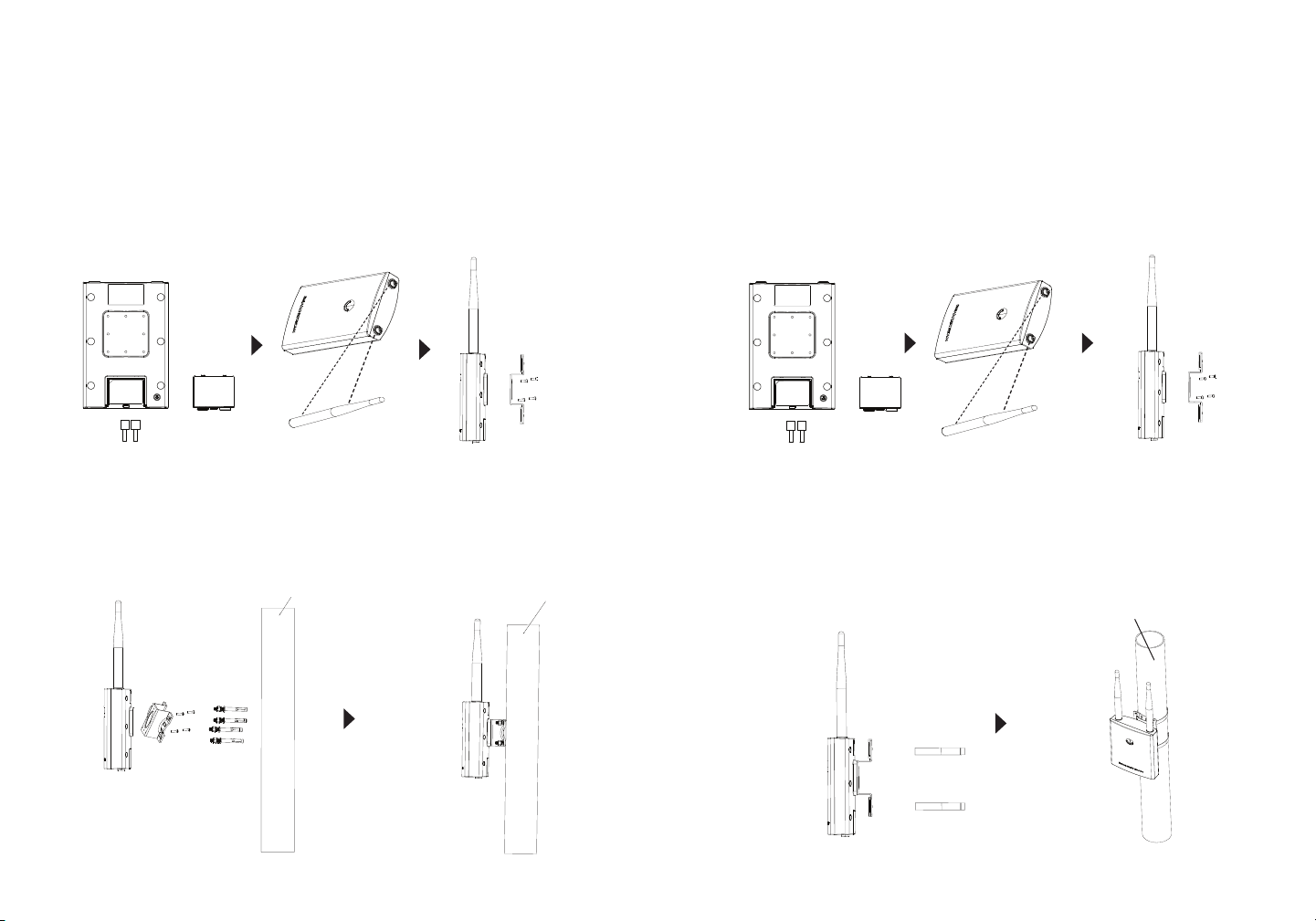

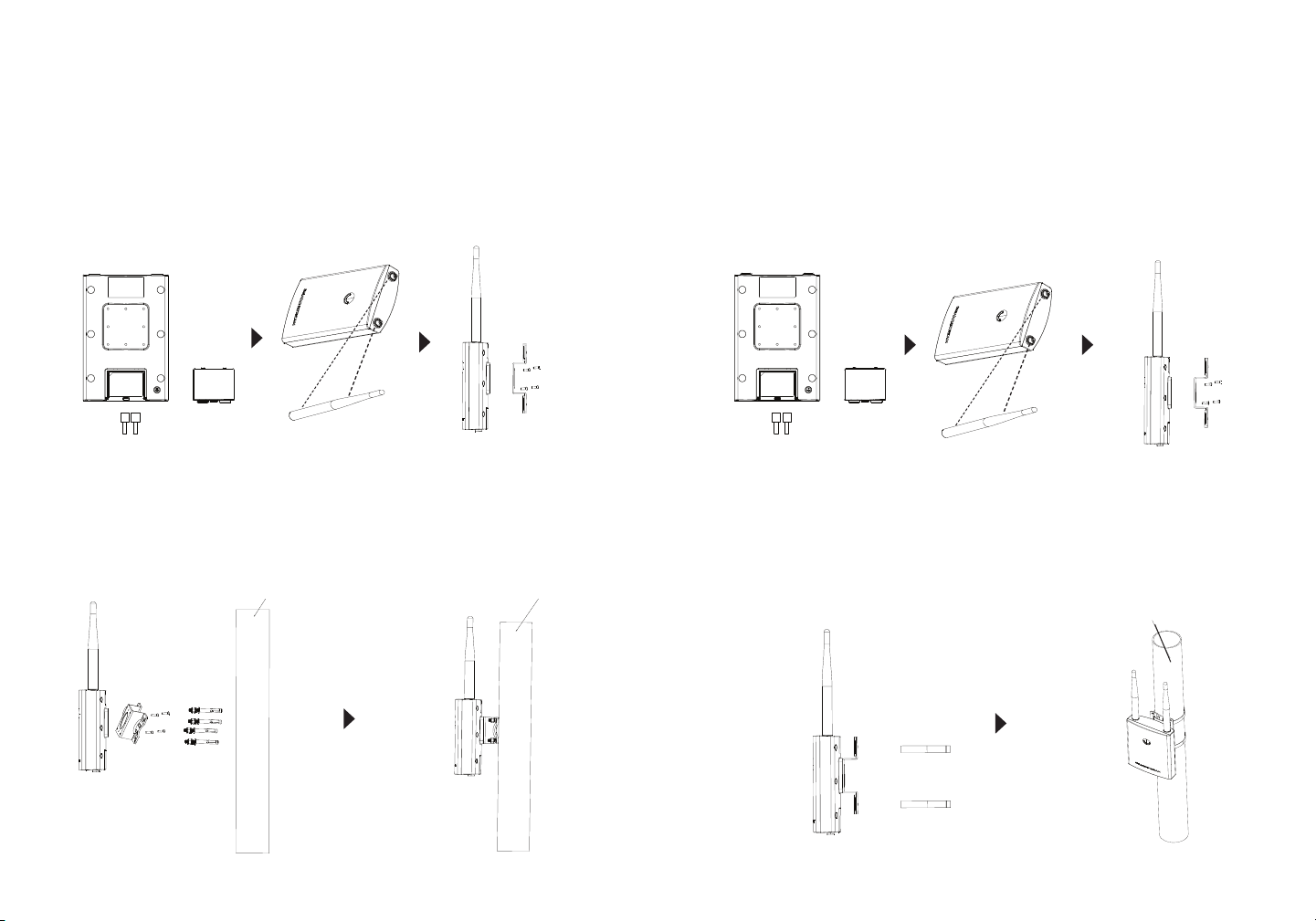

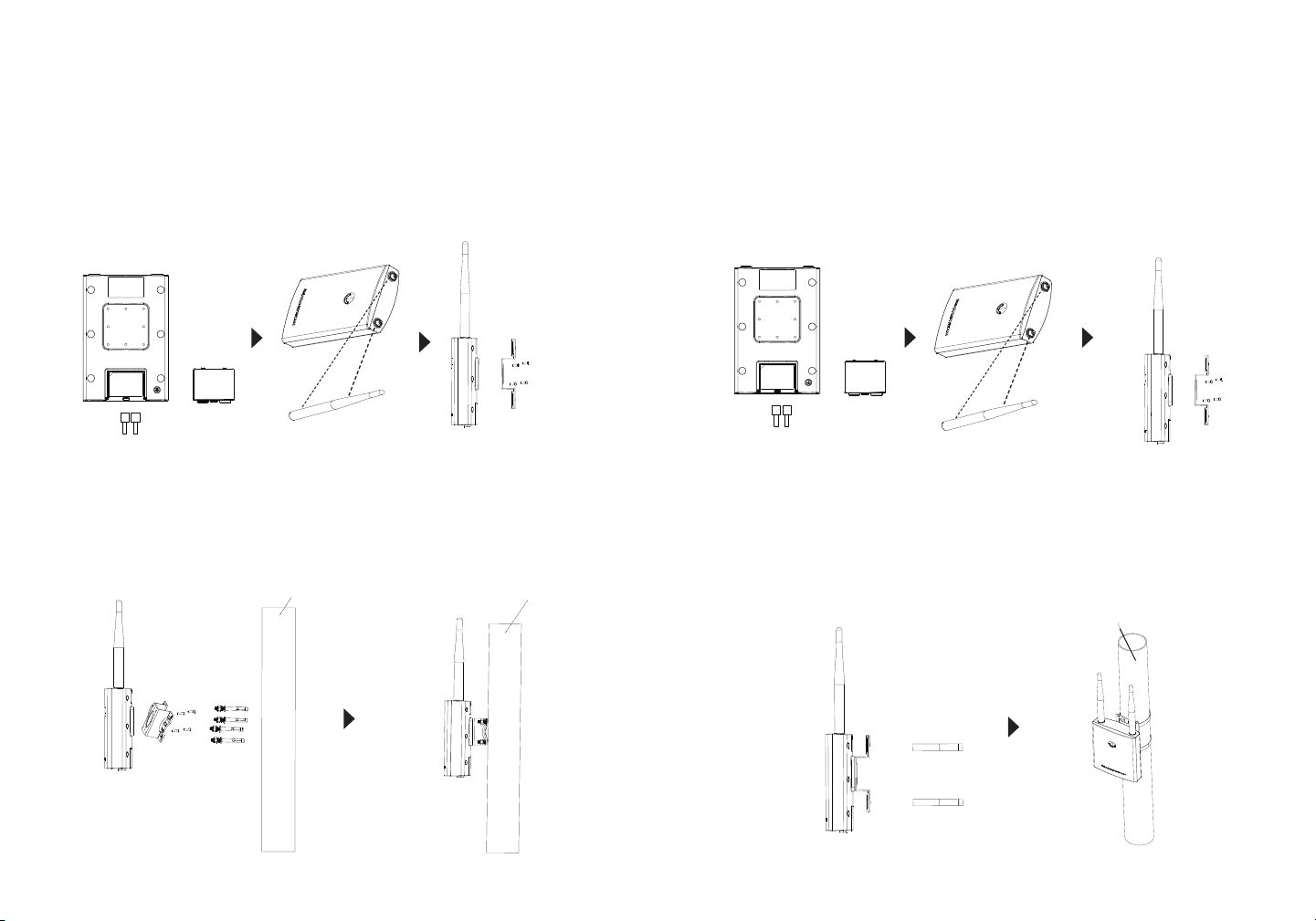

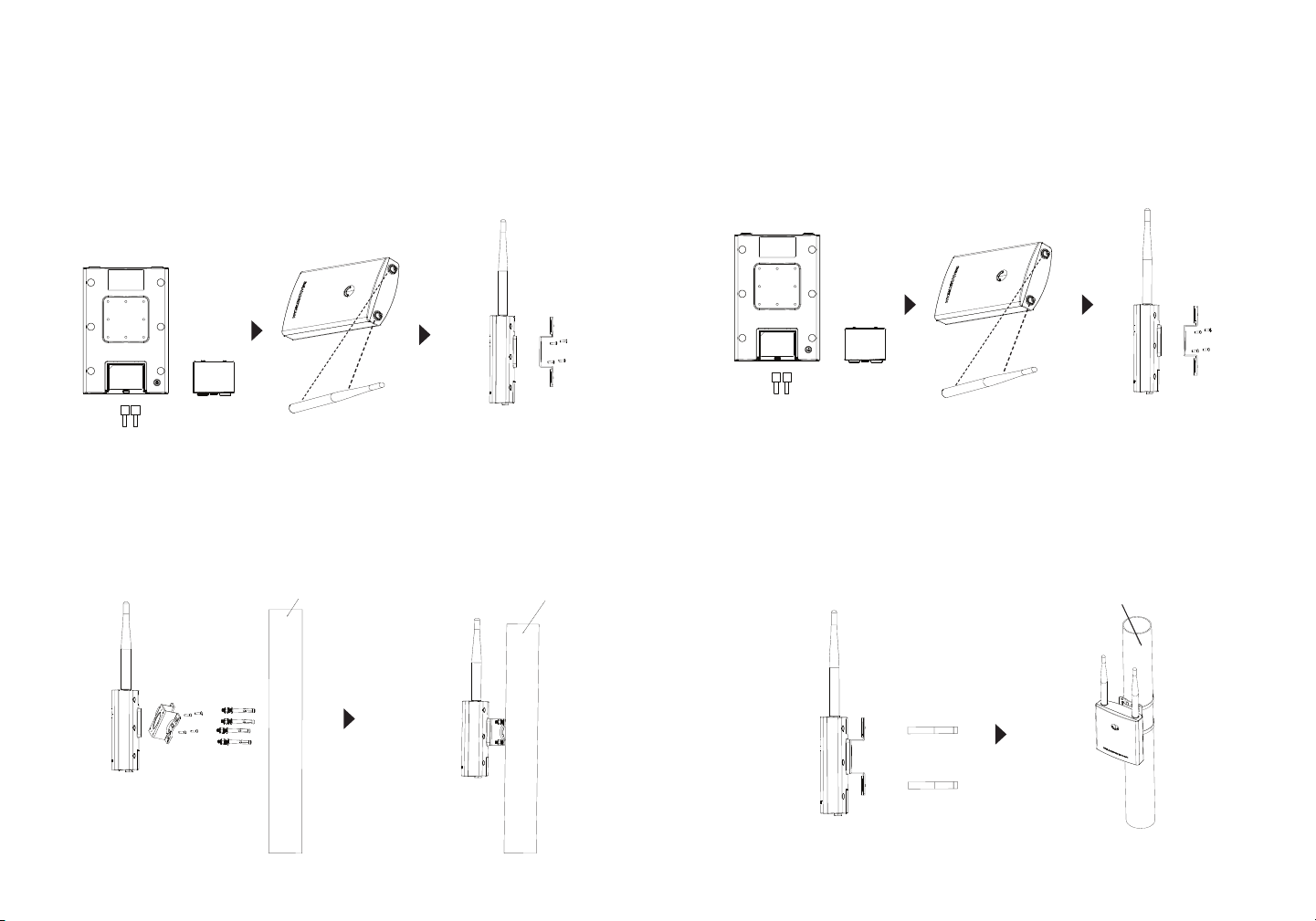

HARDWARE INSTALLATION

GWN7605LR can be mounted on the wall or on a metal bar, Please
refer to the following steps for the appropriate installation.

~2~

Wall Mount

1. Connect the Ethernet cable (RJ45) to the correct ports of your GWN-

7605LR and insert the cover bracket.

2. Connect each antenna to an antenna connector by rotating it clock-

wise.

3. Attach the Base Bracket with screws (PM 3.0 x 7) on the back of

GWN7605LR access point.

Pole Mount

1. Connect the Ethernet cable (RJ45) to the correct ports of your GWN­7605LR and insert the cover bracket.

2. Connect each antenna to an antenna connector by rotating it clock­wise.

3. Attach the Base Bracket with screws (PM 3.0 x 7) on the back of
GWN7605LR access point.

1

4. Drill four holes on the wall referring to the positions of the ones on the
Base Bracket. Then, x an expansion screw in each hole.

5. Attach the GWN7605LR access point by securing the Base Bracket
with the expansion screws on the wall.

2

Wall

3

Wall

5

4

~3~

1

2

4. Open the metal straps by turning the locking mechanism count­er-clockwise. You can loosen it by hand or use a athead screwdriver.

5. Straighten out the end of the metal straps and slide it through the back
of the base bracket.

6. Wrap the metal strap around the pole and use a athead screwdriver
to tighten the locking mechanism by turning it clockwise.

Pole

5

6

3

~4~

CONNECT TO GWN7605LR DEFAULT Wi-Fi NETWORK

GWN7605LR can be used as standalone access point out of box, or after
factory reset with Wi-Fi enabled by default.

After powering the GWN7605LR and connecting it to the network, GWN­7605LR will broadcast a default SSID based on its MAC address

GWN[MAC’s last 6 digits] and a random password.

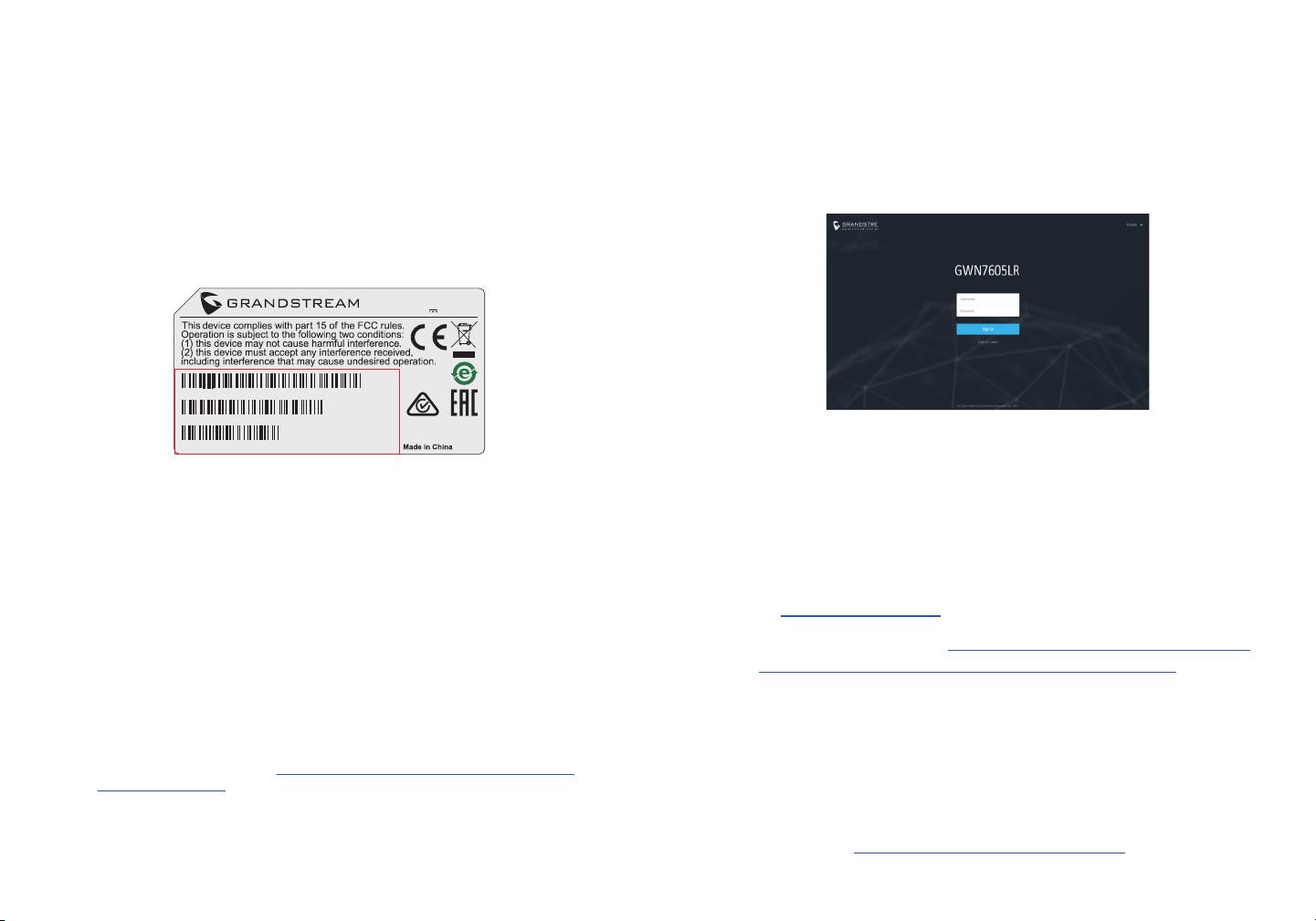

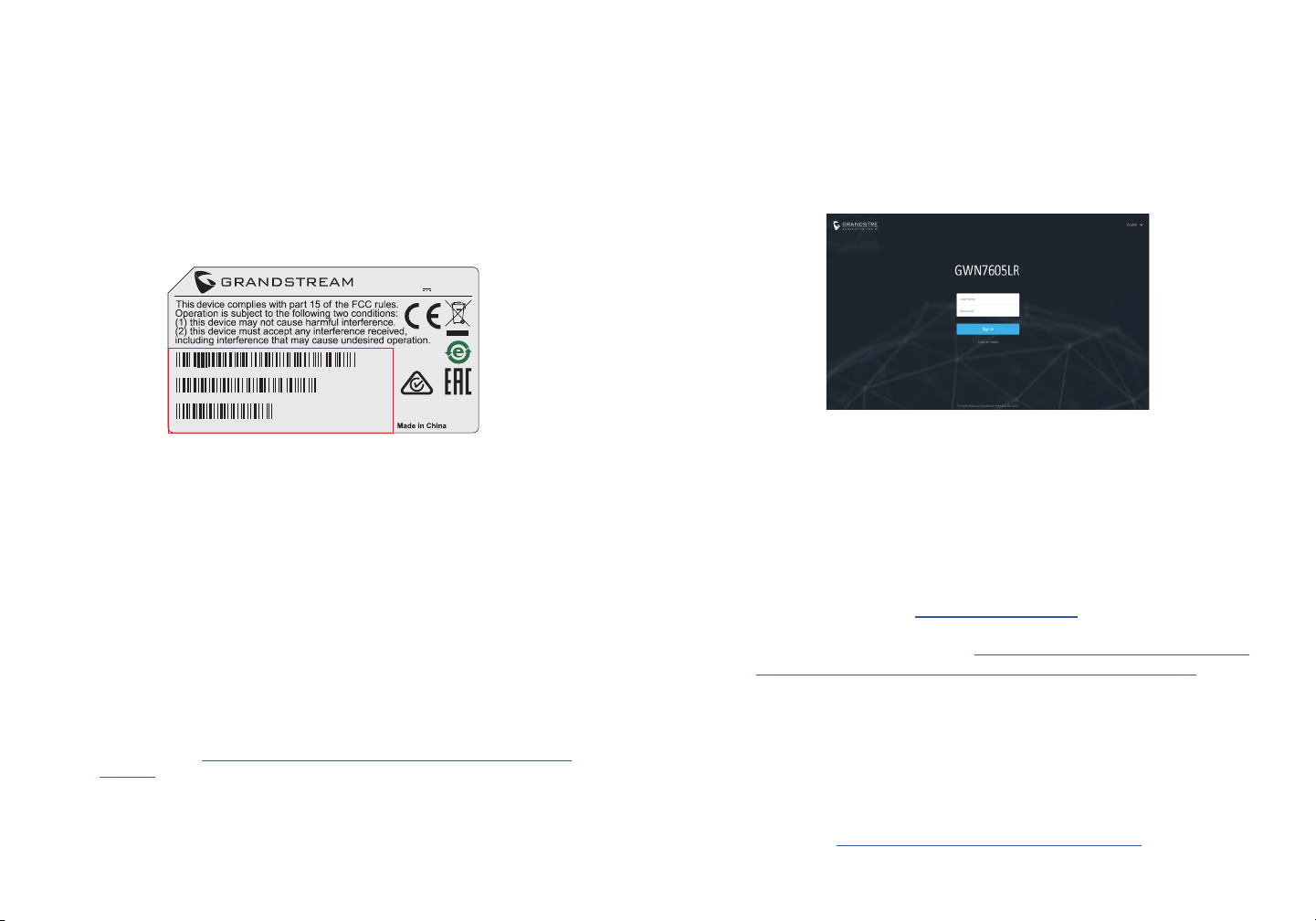

Note: GWN7605LR’s default SSID and password information are print-

ed on the sticker at the back of the unit.

Model: GWN7605LR
Input: 48V 0.5A POE

S/N XXXXXXXXXXXXXXXX

MAC XXXXXXXXXXXX

WiFi Password: XXXXXXXX

SSID:GWNXXXXXX

( ) P/N NN XXX-XXXXX-XXXXX

CAN ICES-3(B)/NMB-3(B)
IC: 11964A-GWN7605LR
FCC ID: YZZGWN7605LR

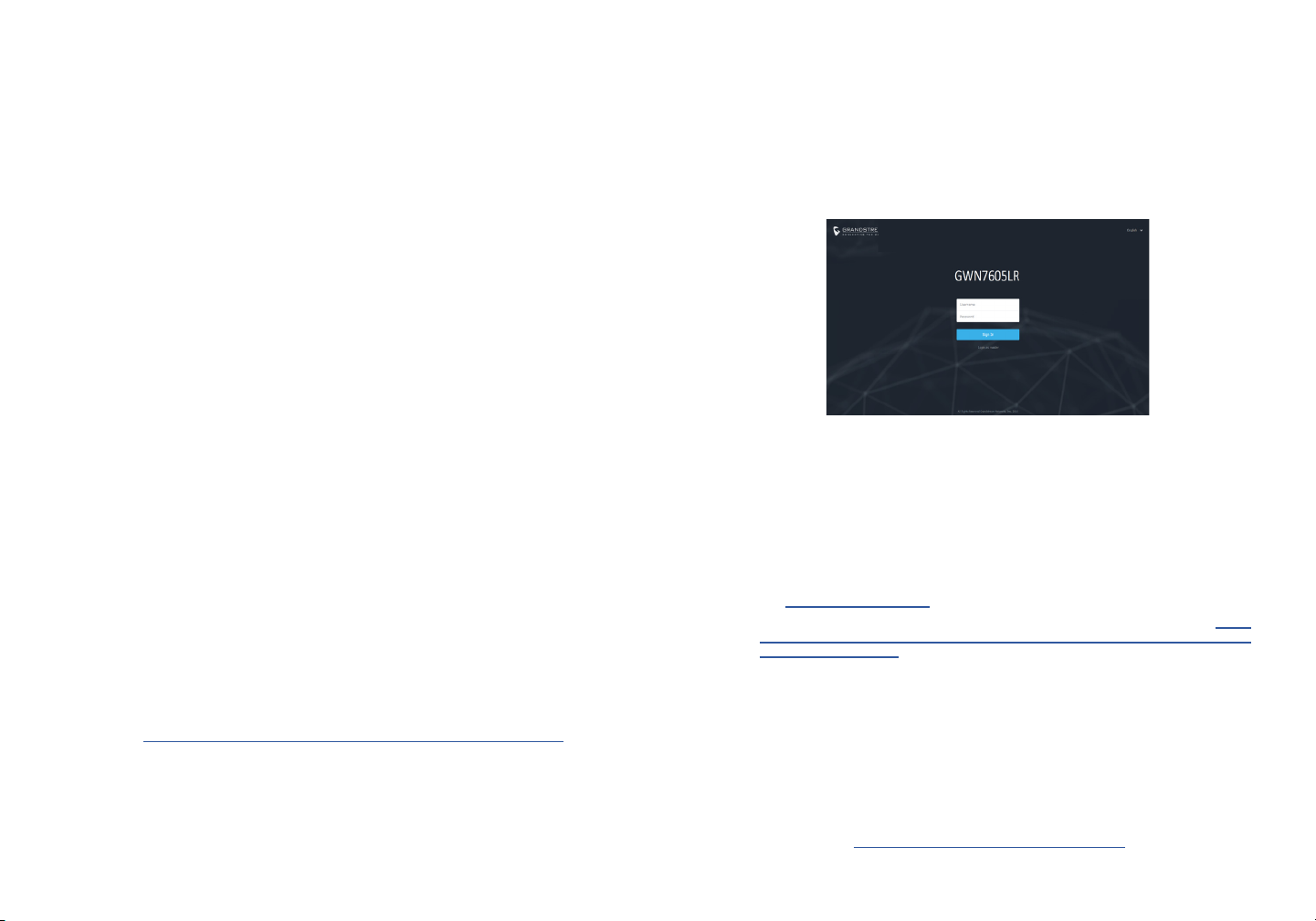

ACCESSING THE CONFIGURATION INTERFACE

A computer connected to the GWN7605LR’s SSID, or to the same net­work as the GWN7605LR can discover and access its conguration inter­face using one of the below methods:

Method 1: Discover GWN7605LR using its MAC Address

1. Locate the MAC address on the MAC tag of the unit, which is on the
underside of the device, or on the package.

2. From a computer connected to same network as the GWN7605LR,
type in following address using GWN7605LR’s MAC address on your
browser https://gwn_<mac>.local

Example: If a GWN7605LR has the MAC address 00:0B:82:8C:4D:F8,
this unit can be accessed by typing https://gwn_000b828c4df8.local on
the browser.

Method 2: Discover GWN7605LR using GWN Discovery Tool

1. Download and install GWN Discovery Tool from the following link:

http://www.grandstream.com/tools/GWNDiscoveryTool.zip

2. Open the GWN DiscoveryTool, and click on Scan.

3. The tool will discover all GWN76xx Access Points connected on the
network showing their MAC and IP addresses.

4. Click on Manage Device to be redirected directly to the GWN­7605LR’s conguration interface, or type in manually the displayed IP
address on your browser.

5. Enter username and password to login. (The default administrator
username is “admin” and the default random password can be found
at the back sticker on the GWN7605LR).

Notes:

● Make sure that the GWN7605LR is not already paired with another
GWN76xx Access Point as slave, GWN7000 Router Series or GWN.
Cloud, otherwise the conguration interface cannot be accessed

● If the GWN7605LR is already paired, make sure to unpair it rst, or
do a factory reset.

● It is customer’s responsibility to ensure compliance with local regula-
tions for frequency bands, transmit power and others.

● To manage GWN7605LR over cloud, please refer to https://www.

gwn.cloud.

● To manager GWN7605LR over on-premise controller, please re-
fer to http://www.grandstream.com/products/networking-solutions/

wi--management/product/gwn-manager

The GNU GPL license terms are incorporated into the device rmware and can
be accessed via the Web user interface of the device at my_device_ip/gpl_li-

cense. It can also be accessed here:

http://www.grandstream.com/legal/open-source-software

To obtain a CD with GPL source code information please submit a written re-

quest to [e-mail]

Refer to online documents and FAQ for more detailed information:

http://www.grandstream.com/our-products

~5~

~6~

概述

ZH

GWN7605LR是一款具有防水和耐高温特性的无线接入点，可为户外
场景提供大范围Wi-Fi信号覆盖的解决方案。GWN7605LR采用2×2:2
MU-MIMO束波成形技术和精密的天线设计，以扩大网络吞吐量、实现高
达250米的Wi-Fi覆盖范围。为了安装和管理更便捷，GWN7605LR既支
持使用无控制器的分布式网络管理设计，内嵌AC控制器（嵌入Web用户
界面中），同时也支持免费云管理平台GWN.Cloud，以及本地Wi-Fi管理
平台GWN Manager。凭借快速漫游、高级QoS、低延迟实时应用、100+
客户端接入、集成PoE/PoE+双千兆网络端口、以及Mesh、强制网络门户
功能、与潮流网络Wi-Fi话机的无缝对接的特点，GWN7605LR是部署中/
高级用户密度的中/低端无线网络环境的理想选择。

GWN7605LR 端口

注意事项

- 不要尝试打开，拆解或修改设备。

- 不要将本设备暴露在温度-30℃至70℃的工作环境或 -30℃至
80℃的 存环境以外。

- 不要将本设备暴露在环境湿度超过如下范围外的环境中：5­ 95％RH （无冷凝）。

- 系统启动或固件升级期间不要中断电源。这可能会损坏设备
件，并导致设备故障。

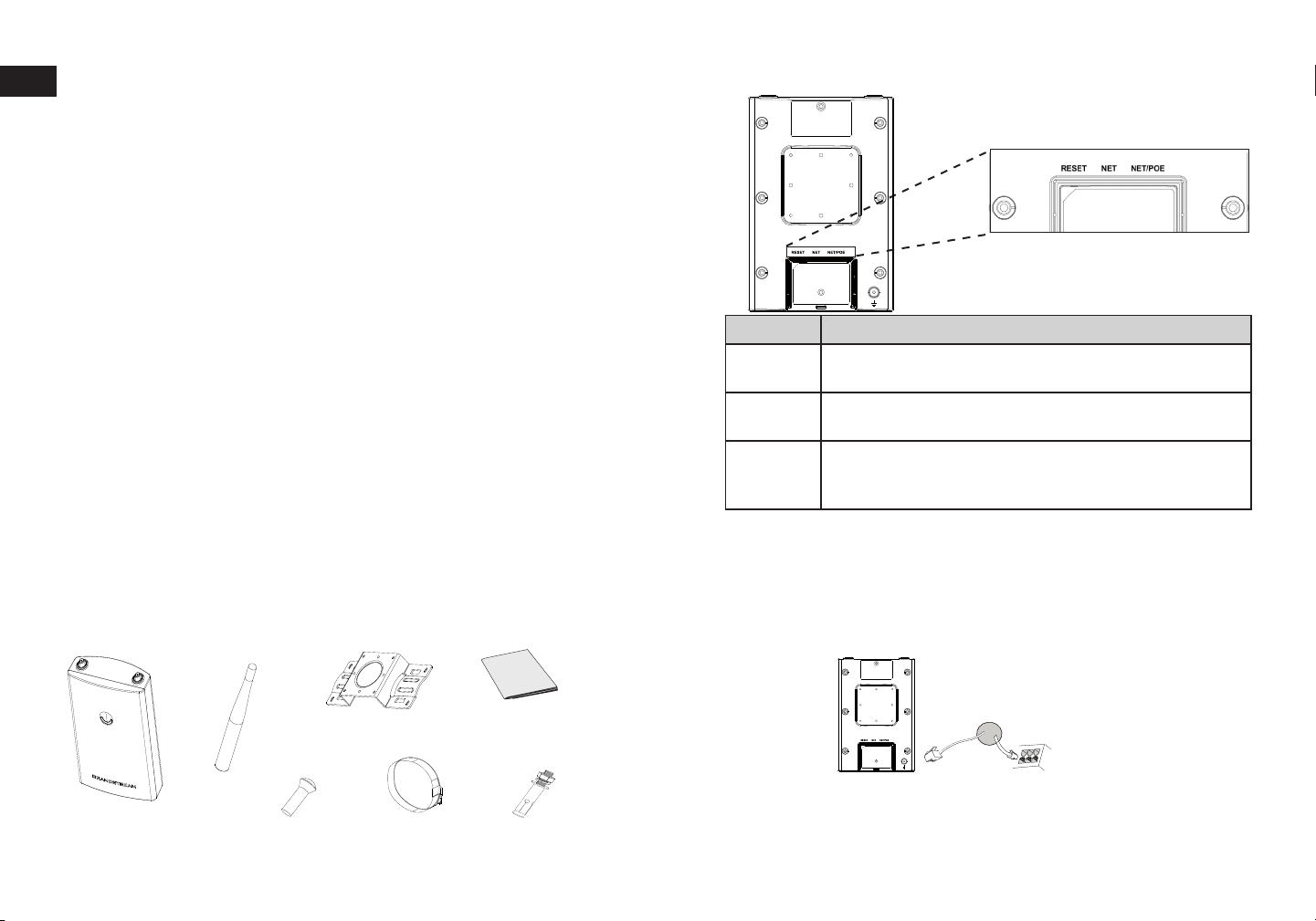

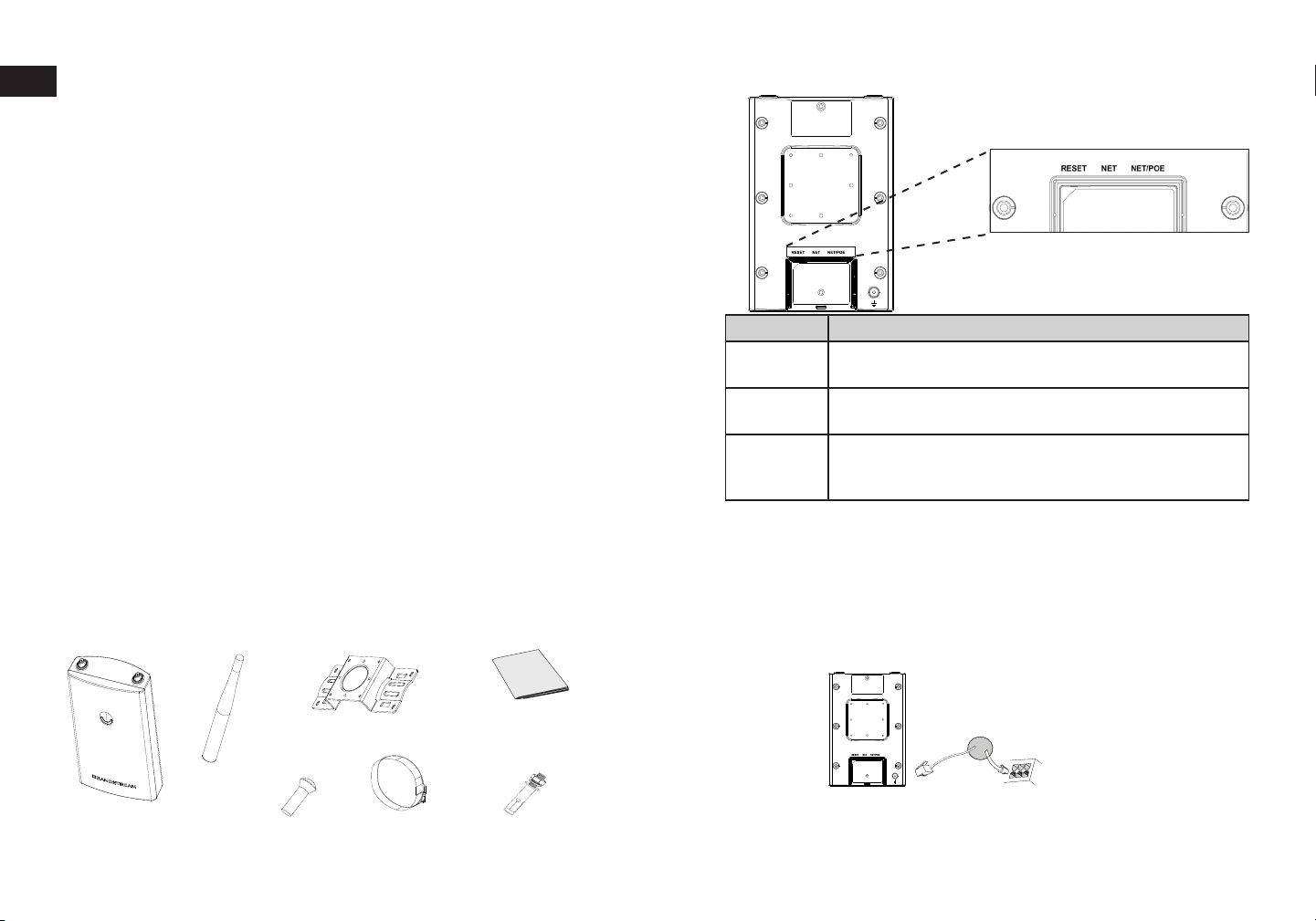

包装内容

1x 快速安装手册

4x 膨胀螺丝

GWN7605LR

无线接入点

2x 天线

1x 安装支架

4x 机牙螺丝
(PM 3.0 x 7)

2x 捆带

端口 描述

NET/POE 以太网 RJ45 port (10/100/1000Mbps) 支持PoE/

PoE+.

NET

以太网RJ45端口（10/100 /1000Mbps），连接至路由器
或另一 个GWN76xx。

RESET 恢复出厂设置按钮。

按7秒恢复出厂默认设置。

上电和连接GWN7605LR

GWN7605LR可以通过以下步骤使用PoE或PoE+来供电：
第1步: 将RJ45以太网电缆插入GWN7605LR的网络端口。

第2步: 将RJ45以太网电缆的另一端插入有PoE/PoE+供电的交换机口

网络端口

RJ45电缆连接到以太网
供电的（PoE/PoE+）
交换机或者PoE/PoE+
供电转换头。

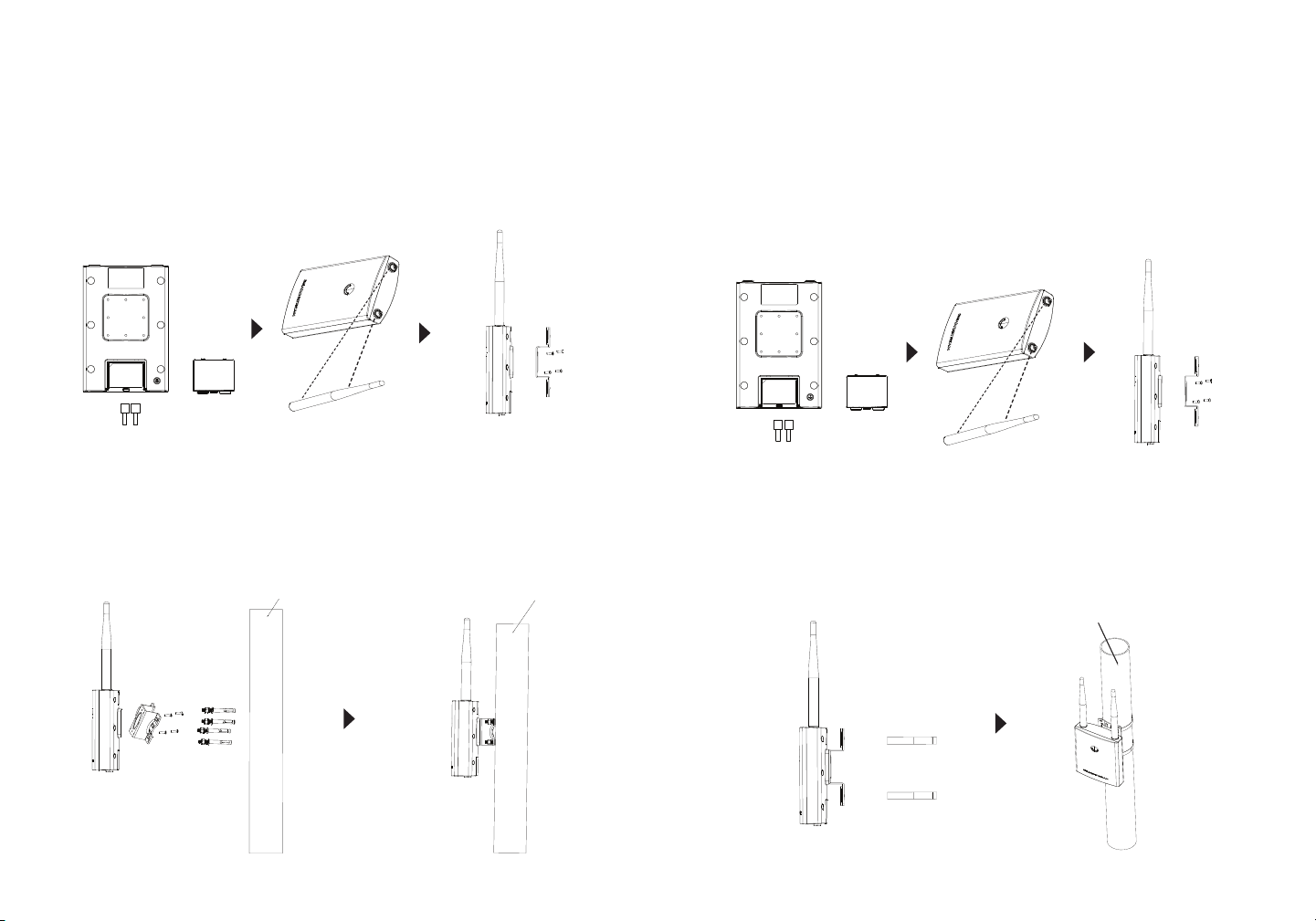

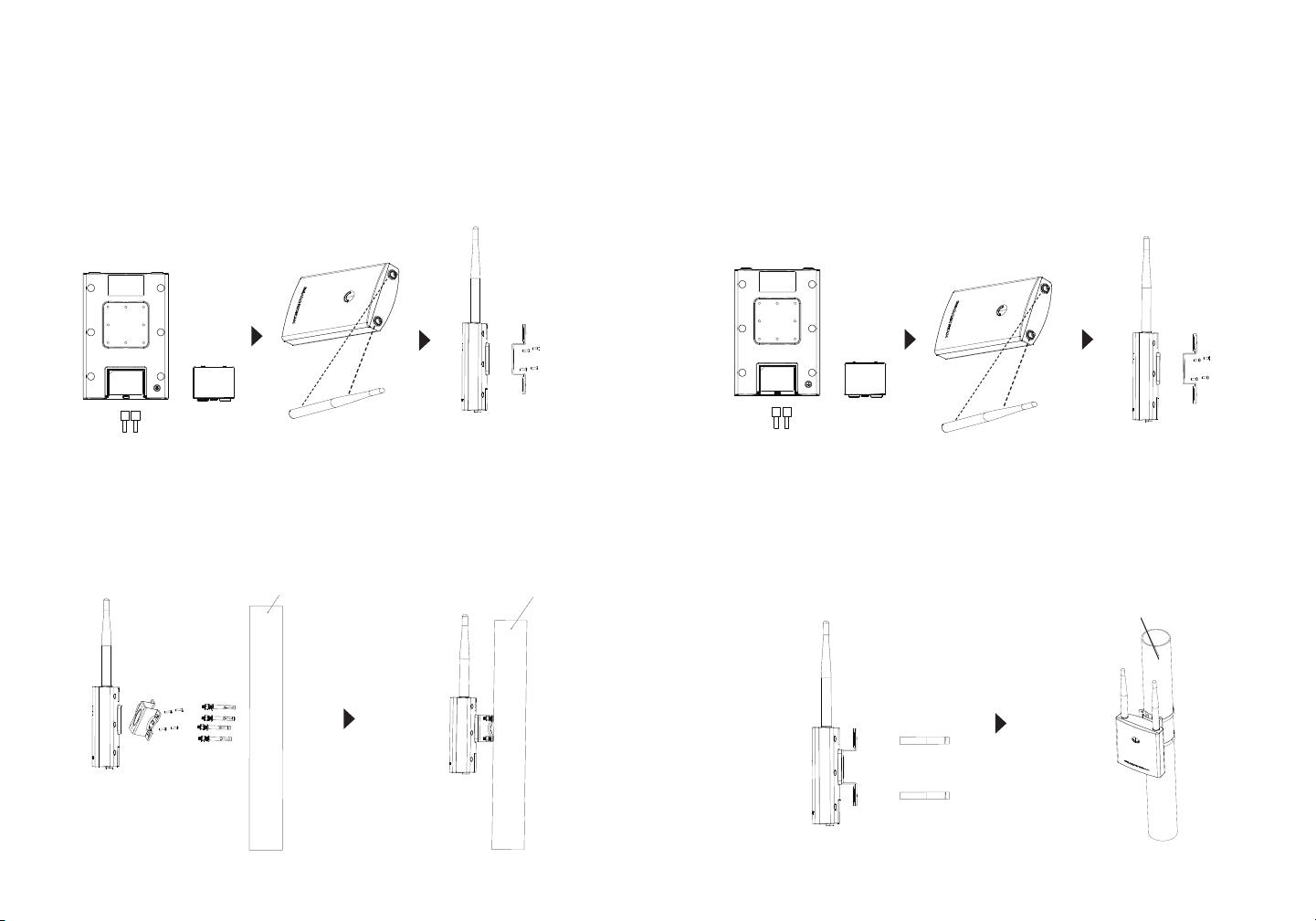

硬件安装

GWN7605LR可安装在墙壁或金属杆上，具体请参照如下步骤进行安装。

~7~

~8~

壁挂式安装

1. 将以太网电缆（RJ45）连接到正确的GWN7605LR端口并合上后盖。

2. 将天线对准天线连接口并顺时针拧紧。

3. 使用机牙螺丝（PM3.0 x 7）将安装支架固定在GWN7605LR后壳上。

纵杆安装

1. 将以太网电缆（RJ45）连接到正确的GWN7605LR端口并合上后盖。

2. 将天线对准天线连接口并顺时针拧紧。

3. 使用机牙螺丝（PM3.0 x 7）将安装支架固定在GWN7605LR后壳上。

1

4. 在墙上依照安装支架上的定位孔位置钻4个孔,并在每个孔中打入膨胀
螺丝。

5. 将安装支架用膨胀螺丝拧紧在墙上以完成安装。

2

墙

3

墙

5

4

~9~

1

2

4. 逆时针旋转闭锁机制打开金属捆带。您可徒手打开或者借助一字螺丝

刀。

5. 拉直捆带的一端并将其穿过安装支架的背部。.

6. 用捆带围住安装杆并借助一字螺丝刀顺时针拧紧闭锁机制。

竿

5

6

3

~10~

连接到GWN7605LR默认的无线网络

新的GWN7605LR会有默认的WiFi广播。恢复出厂设置也能使默认Wi-Fi
启动。
将GWN7605LR上电起机并连接至网络，GWN7605LR会广播默认的
SSID。
GWN【MAC地址后6位】以及随机密码

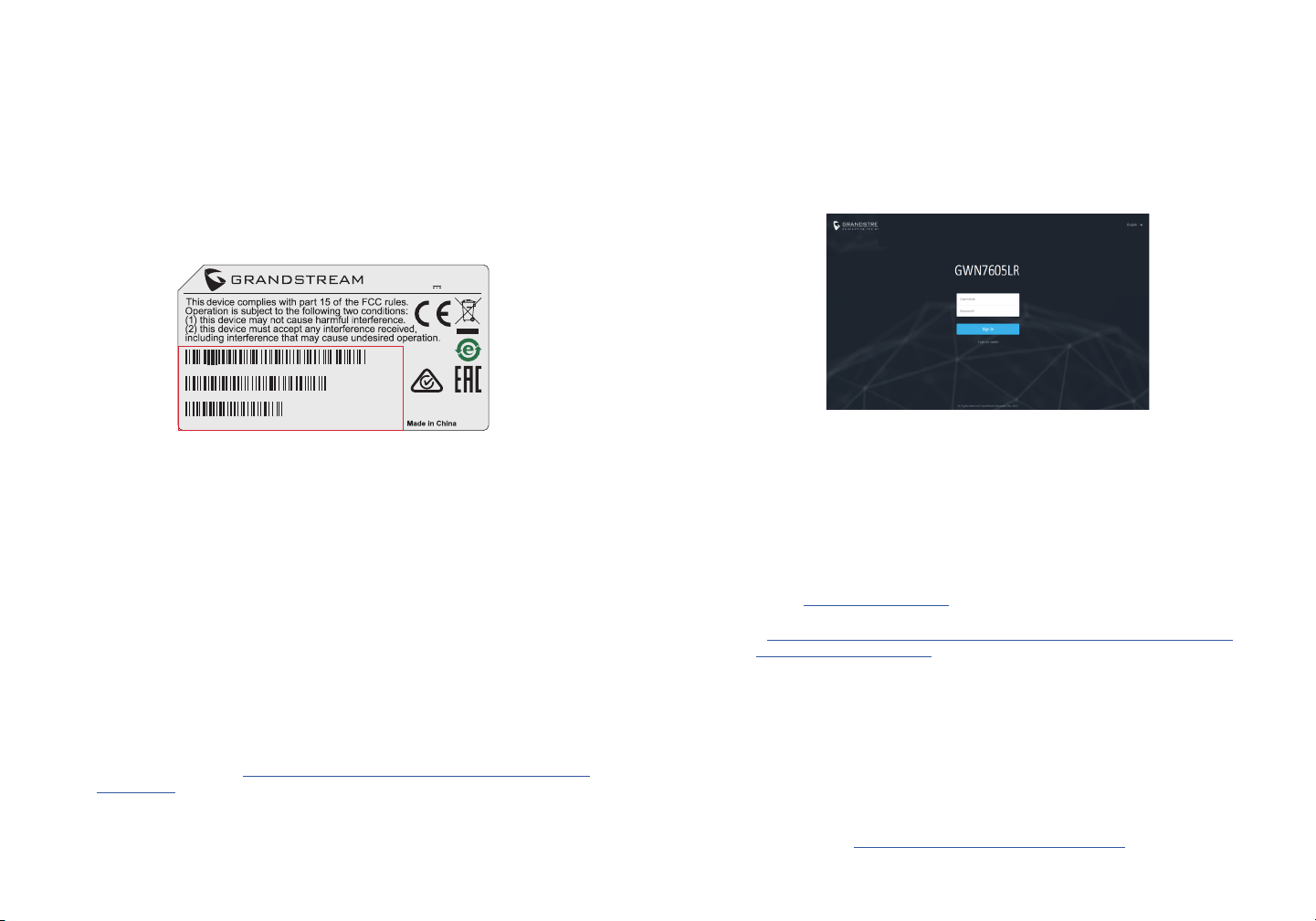

注意： GWN7605LR的默认SSID和随机密码打印在设备的MAC地址贴纸
上。

S/N XXXXXXXXXXXXXXXX

MAC XXXXXXXXXXXX

WiFi Password: XXXXXXXX

( ) P/N NN XXX-XXXXX-XXXXX

SSID:GWNXXXXXX

Model: GWN7605LR
Input: 48V 0.5A POE

CAN ICES-3(B)/NMB-3(B)
IC: 11964A-GWN7605LR
FCC ID: YZZGWN7605LR

访问配置页面

将电脑连接到GWN7605LR广播的无线网，或GWN7605LR所在的局域
网。就可以用以下的几种方式来发现并访问GWN7605LR的配置页面：

方法1：用MAC地址来发现GWN7605LR。

1. 在设备的背面的贴纸上，或者设备的外包装盒上可以找到设备的MAC

地址。

2. 在连接到GWN7605LR广播的无线网，或GWN7605LR所在的局域网的

电脑上，用浏览器输入网址：https://gwn_<mac>.local

3. 比如：如果GWN7605LR的MAC地址为00:B8:8B:7E:7E:7E，那么则输

入比如：如果GWN7605LR的MAC地址为00:0B:82:8C:4D:FB，那么在浏
览器上输入：https://gwn_000b828c4df8.local。

置界面。或者也可以通过在浏览器中输入所查找到GWN7605LR的IP
地址。

5. 输入管理员用户名和密码登入管理界面（管理员用户名的缺省值为:
admin；缺省密码为随机值，写于GWN7605LR机体的贴纸上）

备注：

● 确认GWN7605LR并没有被配对到另一个GWN76XX无线

AP，GWN7000路由器或者GWN Cloud，否则配置界面将会显示设
备 已配对，导致无法登陆配置页面。

● 如果GWN7605LR已经被配对，请从它的配主那里解除配对，或者

恢复该设备的出厂设置。

● 遵守当地关于频带、发射功率及其他相关法规是每个用户应尽的责任。

● 请在https://www.gwn.cloud.进行GWN7605LR的云端管理 。

● 若想使用本地控制器管理GWN7605LR，请参照http://www.grandstream.

com/products/networking-solutions/wi--management/product/gwn-manager

方法2： 用GWNDiscoveryTool发现GWN7605LR

1. 从下面的连接下载GWNDiscoveryTool:

http://www.grandstream.com/tools/GWNDiscoveryTool.zip

2. 打开GWNDiscoveryTool，并点击Scan（扫描）。

3. 这个软件将帮助你发现局域网下所有的GWN7605LR并显示他们MAC

地址和IP地址。

4. 点击Manage Device（管理设备）后，你将被引导到GWN7605LR的配

~11~

GNU GPL许可条款已包含在设备固件中，可以通过设 备的Web用户界面
my_device_ip/gpl_license 进行访问。 也可以通过以下链接访问：http://www.
grandstream.com/legal/open-source-software 如果需要包含GPL源代码信息的

CD，请发邮件到 [e-mail] 提交请求 。

预获取详细AP使用信息，请在以下链接中下载GWN7605LR用户手册

http://www.grandstream.com/our-products

~12~

RESUMEN

ES

Este punto de acceso Wi-Fi para largas distancias es diseñado para
proveer soporte de cobertura extendida e ideal para soluciones Wi-Fi
de exteriores gracias a su carcasa a prueba de agua y su tecnología
para resistir al calor. El GWN7605LR viene equipado con la tecnología
MU-MIMO 2x2:2 de banda doble y un diseño sosticado de antena para
un máximo rendimiento de red y un rango de cobertura Wi-Fi de has­ta 250 metros. Para asegurar la instalación y gestionamiento sencillo
del equipo, el GWN7605LR utiliza un diseño de gestionador de red dis­tribuido sin controladores el cual es integrado dentro de la interfaz Web
de usuario del producto. El GWN7605LR también es compatible con
GWN.Cloud y GWN Manager, las plataformas de gestión de Wi-Fi en
la nube y locales de Grandstream.. Es el punto de acceso Wi-Fi ideal
para despliegues de Voz-sobre-Wi-Fi y ofrece una conexión eciente
con teléfonos IP de Grandstream con capacidades de conexión Wi-Fi.
Con soporte para QoS avanzado, aplicaciones de tiempo real de baja
latencia, redes de topología en malla, portales cautivos, más de 100 cli­entes concurrentes por punto de acceso y puertos de red Gigabit duales
con PoE/PoE+, GWN7605LR es ideal para la implementación de entor­nos de redes inalámbricas de nivel medio/bajo con densidad de usuario
media a avanzada.

PRECAUCIONES

• No intente abrir, desarmar o modicar el dispositivo.

• No exponga este dispositivo a temperaturas fuera del rango de -30

°C a 70 °C en funcionamiento y desde -30 °C a 80 °C cuando se
encuentre almacenado

• No exponga el GWN7605LR a entornos fuera del siguiente rango de
humedad: 5-95% RH (sin condensación).

• No apague su GWN7605LR durante el reinicio del sistema o actu­alización de Firmware. Puede corromper la imagen del rmware y
causar un mal funcionamiento de la unidad.

CONTENIDO DEL PAQUETE

PUERTOS GWN7605LR

Puerto Descripción

NET/
POE

NET Puerto Ethernet RJ45 (10/100/1000Mbps) para su router u

RESET Botón de reinicio de fábrica.

Puerto Ethernet RJ45 (10/100/1000Mbps) con soporte de
PoE/PoE+.

otro GWN76xx.

Presione por 7 segundos para llevar a los ajustes de fábri­ca.

ENCENDIENDO Y CONECTANDO EL GWN7605LR

El GWN puede ser alimentado usando un switch PoE/PoE+ por medio
de los siguientes pasos:

Paso 1: Conecte un cable Ethernet RJ45 en el puerto de red del GWN­7605LR.

Paso 2: Conecte el otro extremo del cable en el puerto del switch
(PoE/PoE+).

2x Antenas

1x Punto de

Acceso GWN7605LR

1x Soporte de

4x Tornillos

(PM 3.0 x 7)

~13~

Base

2x Metal

Straps

1x Guía de insta-

lación Rápida

4x Tornillos de

expansión

Puerto de Red

Cable de Red RJ45
para Switch (PoE/
PoE+)

INSTALACIÓN DE HARDWARE

El GWN7605LR puede ser montado en la pared o en una barra de metal.
Por favor, reérase a los pasos siguientes para la instalación apropiada.

~14~
