Grandstream GWN7000 operation manual
Grandstream Networks, Inc.
GWN7000
Enterprise Multi-WAN Gigabit VPN Router
User Manual
P a g e | 2
GWN7000 User Manual
COPYRIGHT
©2017 Grandstream Networks, Inc. http://www.grandstream.com
All rights reserved. Information in this document is subject to change without notice. Reproduction or
transmittal of the entire or any part, in any form or by any means, electronic or print, for any purpose
without the express written permission of Grandstream Networks, Inc. is not permitted.
The latest electronic version of this guide is available for download here:
http://www.grandstream.com/support
Grandstream is a registered trademark and Grandstream logo is trademark of Grandstream Networks, Inc.
in the United States, Europe and other countries.
OPEN SOURCE LICENSES
GWN7000 firmware contains third-party open source software. Grandstream Open source licenses can be
downloaded from Grandstream web site from here
CAUTION
Changes or modifications to this product not expressly approved by Grandstream, or operation of this
product in any way other than as detailed by this guide, could void your manufacturer warranty.
WARNING
Please do not use a different power adaptor with devices as it may cause damage to the products and void
the manufacturer warranty.
P a g e | 3
GWN7000 User Manual
Table of Contents
DOCUMENT PURPOSE ............................................................................................... 10
CHANGE LOG .............................................................................................................. 11
Firmware Version 1.0.2.75 ................................................................................................................... 11
Firmware Version 1.0.2.71 ................................................................................................................... 11
WELCOME ................................................................................................................... 12
PRODUCT OVERVIEW ................................................................................................ 13
Technical Specifications ....................................................................................................................... 13
INSTALLATION ............................................................................................................ 15
Equipment Packaging .......................................................................................................................... 15
Connect your GWN7000 ...................................................................................................................... 15
Safety Compliances ............................................................................................................................. 16
Warranty ............................................................................................................................................... 16
GETTING STARTED ..................................................................................................... 17
LED Indicators ..................................................................................................................................... 17
Use the WEB GUI ................................................................................................................................ 17
Access WEB GUI .......................................................................................................................... 17
WEB GUI Languages ................................................................................................................... 19
WEB GUI Configuration ................................................................................................................ 20
Overview Page ............................................................................................................................. 21
Save and Apply Changes ............................................................................................................. 22
ROUTER CONFIGURATION ........................................................................................ 23
Status ................................................................................................................................................... 23
Ports Configuration .............................................................................................................................. 24
WAN Ports Settings ...................................................................................................................... 24
Tunnel ........................................................................................................................................... 25
Global Settings ............................................................................................................................. 26
Port Mirroring ................................................................................................................................ 27
Static Routes ........................................................................................................................................ 27
QoS ...................................................................................................................................................... 29
DDNS ................................................................................................................................................... 31
P a g e | 4
GWN7000 User Manual
SETTING UP A WIRELESS NETWORK ...................................................................... 33
Discover and Pair GWN76xx Access Points ....................................................................................... 33
Network Groups ................................................................................................................................... 36
Create an SSID under a Network Group ...................................................................................... 43
Additional SSID under Same Network Group .............................................................................. 44
CLIENTS CONFIGURATION ........................................................................................ 46
Clients .................................................................................................................................................. 46
Status ............................................................................................................................................ 46
Edit IP and Name .......................................................................................................................... 47
Bandwidth Rules ........................................................................................................................... 48
Block a client ................................................................................................................................. 48
VPN (VIRTUAL PRIVATE NETWORK) ......................................................................... 49
Overview .............................................................................................................................................. 49
OpenVPN® Server Configuration ........................................................................................................ 49
Generate Self-Issued Certificate Authority (CA) ........................................................................... 49
Generate Server/Client Certificates .............................................................................................. 52
Create OpenVPN® Server ........................................................................................................... 59
OpenVPN® Client configuration .......................................................................................................... 63
L2TP/IPSEC Configuration .................................................................................................................. 67
GWN7000 L2TP/IPSec Client Configuration ................................................................................ 67
PPTP CONFIGURATION ..................................................................................................................... 70
GWN7000 Client Configuration .................................................................................................... 70
FIREWALL .................................................................................................................... 73
Basic Settings ...................................................................................................................................... 73
General Settings ........................................................................................................................... 73
Port Forwarding ............................................................................................................................ 73
DMZ .............................................................................................................................................. 74
Inter-Group Traffic Forwarding ...................................................................................................... 75
UPnP ............................................................................................................................................ 76
Traffic Rules Settings ........................................................................................................................... 77
Firewall Advanced Settings .................................................................................................................. 78
General Settings ........................................................................................................................... 78
SNAT ............................................................................................................................................. 79
DNAT ............................................................................................................................................ 80
CAPTIVE PORTAL ....................................................................................................... 82
P a g e | 5
GWN7000 User Manual
Policy Configuration Page ................................................................................................................... 82
Files Configuration Page ..................................................................................................................... 83
Clients Page ......................................................................................................................................... 85
BANDWIDTH RULES ................................................................................................... 86
MAINTENANCE AND TROUBLESHOOTING .............................................................. 88
Maintenance ........................................................................................................................................ 88
Debug .................................................................................................................................................. 89
Capture ......................................................................................................................................... 89
Ping/Traceroute ............................................................................................................................ 90
Syslog ........................................................................................................................................... 92
NAT Table ..................................................................................................................................... 92
LED Schedule ...................................................................................................................................... 93
File Sharing .......................................................................................................................................... 94
SNMP ................................................................................................................................................... 96
UPGRADING AND PROVISIONING ............................................................................ 98
Upgrading Firmware ............................................................................................................................ 98
Upgrading via WEB GUI ............................................................................................................... 98
Provisioning and backup ...................................................................................................................... 99
Download Configuration ............................................................................................................... 99
Configuration Server ..................................................................................................................... 99
Reset and reboot ............................................................................................................................... 100
EXPERIENCING THE GWN7000 ENTERPRISE ROUTER ....................................... 101
P a g e | 6
GWN7000 User Manual
Table of Tables
Table 1: GWN7000 Technical Specifications .............................................................................................. 13
Table 2: GWN7000 Equipment Packaging .................................................................................................. 15
Table 3: LED Indicators ............................................................................................................................... 17
Table 4: Overview ........................................................................................................................................ 21
Table 5: GWN7000 WEB GUIRouterPortWAN Port (1,2)................................................................. 24
Table 6: 6in4 Tunnels .................................................................................................................................. 25
Table 7: 6rd Tunnels .................................................................................................................................... 26
Table 8: aiccu Tunnels ................................................................................................................................. 26
Table 9: GWN7000 WEB GUIRouterPortGlobal Settings ................................................................ 27
Table 10: Port Mirroring ............................................................................................................................... 27
Table 11: IPv4 Static Routes ....................................................................................................................... 28
Table 12: IPv6 Static Routes ....................................................................................................................... 28
Table 13: QoS Basic .................................................................................................................................... 29
Table 14: Upstream QoS ............................................................................................................................. 30
Table 15: QoS Policer ................................................................................................................................. 31
Table 16: Device Configuration ................................................................................................................... 34
Table 17: Basic ............................................................................................................................................ 38
Table 18: Wi-Fi ............................................................................................................................................ 39
Table 19: CA Certificate ............................................................................................................................... 50
Table 20: Server Certificate ......................................................................................................................... 53
Table 21: Client Certificate .......................................................................................................................... 57
Table 22: OpenVPN® Server ...................................................................................................................... 60
Table 23: OpenVPN® Client ....................................................................................................................... 65
Table 24: L2TP Configuration ...................................................................................................................... 68
Table 25: PPTP Configuration ..................................................................................................................... 71
Table 26: Port Forward ................................................................................................................................ 74
Table 27: DMZ ............................................................................................................................................. 75
Table 28: UPnP Settings ............................................................................................................................. 76
Table 29: Firewall Traffic Rules ................................................................................................................... 77
Table 30: Firewall-General Settings ............................................................................................................ 78
Table 31: SNAT ........................................................................................................................................... 79
Table 32: DNAT ........................................................................................................................................... 80
Table 33: Basic Configuration Page ............................................................................................................ 82
Table 34: Bandwidth Rules.......................................................................................................................... 86
Table 35: Maintenance ................................................................................................................................ 88
Table 36: Debug-Capture ............................................................................................................................ 90
Table 37: LED Schedule settings ................................................................................................................ 93

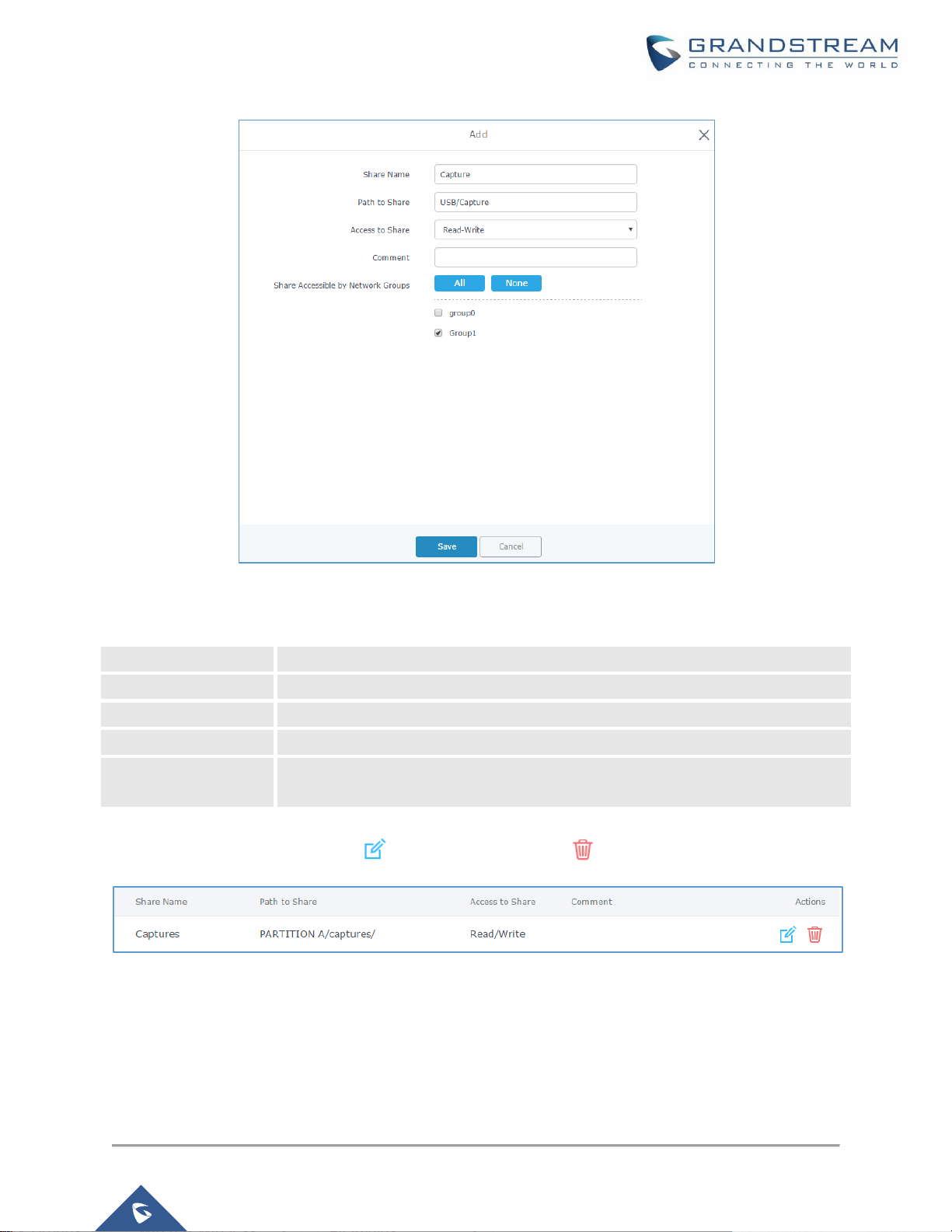

Table 38: Add a New File to Share .............................................................................................................. 95
P a g e | 7
GWN7000 User Manual
Table 39: SNMP Basic Page ....................................................................................................................... 96
Table 40: SNMP Advanced Page ................................................................................................................ 97
Table 41: Network Upgrade Configuration .................................................................................................. 98
P a g e | 8
GWN7000 User Manual
Table of Figures
Figure 1: GWN7000 Front View .................................................................................................................. 15
Figure 2: GWN7000 Back View .................................................................................................................. 16
Figure 3: GWN7000 Web GUI Login Page ................................................................................................. 18
Figure 4: Change Password on first boot .................................................................................................... 19
Figure 5: Setup Wizard ............................................................................................................................... 19
Figure 6: GWN7000 Web GUI Language ................................................................................................... 20
Figure 7: GWN7000 Web GUI Language ................................................................................................... 20
Figure 8: Overview Page ............................................................................................................................. 21
Figure 9: Apply Changes ............................................................................................................................. 22
Figure 10: Router's Status .......................................................................................................................... 23
Figure 11: QoS ............................................................................................................................................ 29
Figure 12: Discover AP ............................................................................................................................... 33
Figure 13: Discovered Devices ................................................................................................................... 34
Figure 14: GWN7610 online........................................................................................................................ 34
Figure 15: locating Access Points ............................................................................................................... 36
Figure 16: Network Group ........................................................................................................................... 37
Figure 17: Add a New Network Group ........................................................................................................ 37
Figure 18: Device Membership ................................................................................................................... 41
Figure 19: Wi-Fi Schedule ........................................................................................................................... 42
Figure 20: Add AP to Network Group from Access Points Page ................................................................. 43
Figure 21: Create an SSID .......................................................................................................................... 44
Figure 22: Additional SSID .......................................................................................................................... 45
Figure 23: Additional SSID Created ............................................................................................................ 45
Figure 24: Clients ........................................................................................................................................ 46
Figure 25: Client's Status ............................................................................................................................ 47
Figure 26: Client's Configuration ................................................................................................................. 47
Figure 27: Client Bandwidth Rules .............................................................................................................. 48
Figure 28: Block a Client ............................................................................................................................. 48
Figure 29: Unban Client .............................................................................................................................. 48
Figure 30: Create CA Certificate ................................................................................................................. 50
Figure 31: CA Certificate ............................................................................................................................. 52
Figure 32: Generate Server Certificates ..................................................................................................... 53
Figure 33: User Management ..................................................................................................................... 55
Figure 34: Client Certificate......................................................................................................................... 57
Figure 35: Create OpenVPN® Server ......................................................................................................... 60
Figure 36: OpenVPN® ................................................................................................................................ 62
Figure 37: OpenVPN® Client ...................................................................................................................... 64
Figure 38: OpenVPN® Client ...................................................................................................................... 67
P a g e | 9
GWN7000 User Manual
Figure 39: L2TP Client Configuration .......................................................................................................... 68
Figure 40: L2TP Client ................................................................................................................................ 70
Figure 41: PPTP Client Configuration ......................................................................................................... 71
Figure 42: PPTP Client ............................................................................................................................... 72
Figure 43: BasicGeneral Settings ............................................................................................................ 73
Figure 44: Port Forward .............................................................................................................................. 74
Figure 45: DMZ ........................................................................................................................................... 75
Figure 46: Inter-group Traffic Forwarding ................................................................................................... 75
Figure 47: Enabling inter-group traffic ......................................................................................................... 76
Figure 48: Traffic Rules Settings ................................................................................................................. 77
Figure 49: portal_default.html page ............................................................................................................ 84
Figure 50: portal_pass.html page ............................................................................................................... 84
Figure 51: Files Settings Page .................................................................................................................... 85
Figure 52: Client Web Page ........................................................................................................................ 85
Figure 53: MAC Address Bandwidth rule .................................................................................................... 87
Figure 54: Bandwidth Rules ........................................................................................................................ 87
Figure 55: Capture Files .............................................................................................................................. 90
Figure 56: IP Ping ....................................................................................................................................... 91
Figure 57: Traceroute .................................................................................................................................. 91
Figure 58: Syslog ........................................................................................................................................ 92
Figure 59: NAT table ................................................................................................................................... 93
Figure 60: LED Schedule ............................................................................................................................ 94
Figure 61: Add a New File to Share ............................................................................................................ 95
Figure 62: File Share Actions ...................................................................................................................... 95
Figure 63: Access File Share ...................................................................................................................... 96
P a g e | 10
GWN7000 User Manual
DOCUMENT PURPOSE
This document describes how to configure the GWN7000 to manage wired and wireless networks via an
intuitive WebGUI. The intended audiences of this document are network administrators. Please visit
http://www.grandstream.com/support to download the latest “GWN7000 User Manual”.
This guide covers following topics:
• Product Overview
• Installation
• Getting Started
• Router Configuration
• Setting up a Wireless Network
• Clients Configuration
• VPN
• Firewall
• Captive Portal
• Bandwidth Rules
• Maintenance and Troubleshooting
• Upgrading and Provisioning
• Experiencing the GWN7000 Enterprise Router
P a g e | 11
GWN7000 User Manual
CHANGE LOG
This section documents significant changes from previous versions of the GWN7000 user manuals. Only
major new features or major document updates are listed here. Minor updates for corrections or editing are
not documented here.
Firmware Version 1.0.2.75
• Added support for Captive Portal [CAPTIVE PORTAL]
• Added support for Bandwidth Rules [BANDWIDTH RULES]
• Added support for Select Band per SSID [SSID Band]
• Added support for selectively enable 802.11b/g/n [Mode]
• Added option to enable/disable support for 802.11b devices [Allow Legacy Device(802.11b)]
• Added support for custom wireless power [Custom Wireless Power(dBm)]
• Added support for AP location using blinking LED [Access Point location]
• Added support for limit client count per SSID [Wireless Client Limit]
• Added support for better roaming decision [Enable Voice Enterprise]
• Added support for LEDs schedule [LED Schedule]
• Added support for Wi-Fi schedule [Wi-Fi Schedule]
• Added option to enable/disable DHCP option 66 & 43 override [Allow DHCP options 66 and 43
override]
Firmware Version 1.0.2.71
• This is the initial version.
P a g e | 12
GWN7000 User Manual
WELCOME
Thank you for purchasing Grandstream GWN7000 Enterprise Multi-WAN Gigabit VPN Router.
The GWN7000 is a powerful enterprise-grade multi-WAN Gigabit VPN router. Ideal for the enterprise,
small-to-medium business, retail, education, hospitality and medical markets, the GWN7000 supports
comprehensive Wi-Fi and VPN solutions that can be shared across one or many different physical
locations. It features high-performance routing and switching power and a hardware-accelerated VPN
client/server for secure inter-office connectivity. To maximize network reliability, the GWN7000 supports
traffic load balancing and failover. The GWN7000 features an integrated controller and automated
provisioning master that can setup and manage up to 300+ in-network GWN series Wi-Fi Access Points.
This can be easily operated through the product’s intuitive web browser user interface, which also offers a
central panel to monitor and control the entire network.
--------------------------------------------------------------------------------------------------------------------------------------------
Caution:
Changes or modifications to this product not expressly approved by Grandstream, or operation of this
product in any way other than as detailed by this User Manual, could void your manufacturer warranty.
Warning:
Please do not use a different power adaptor with the GWN7000 as it may cause damage to the products
and void the manufacturer warranty.
--------------------------------------------------------------------------------------------------------------------------------------------
P a g e | 13
GWN7000 User Manual
PRODUCT OVERVIEW
Technical Specifications
Table 1: GWN7000 Technical Specifications
Network Interfaces
• 2 x autosensing 10/100/1000 WAN Ports
• 1 x autosensing 10/100/1000 configurable as LAN, WAN or VoIP port
• 4 x autosensing 10/100/1000 LAN Ports
WAN
• DHCP
• Static IP
• PPPoE
• Load balance & failover
• Rule based routing
LAN
• DHCP server
• DNS Cache
• Multiple zones
• VLAN
Auxiliary Ports
• 2 x USB 3.0 ports
• 1 x Reset Pinhole
Routing Performance
Up to 1 million packets/second with 64-byte packet size
USB
• Printer sharing
• File sharing
Network Protocols
• IPv4, IPv6, 802.1Q, 802.1p
VPN
• Protocols: PPTP, L2TP/IPSec, OpenVPN®
• Client, Server or pass through
LED
8 green-color LEDs for device tracking and status indication
Mounting
Indoor wall mount, Desktop
QoS
VLAN, TOS, supports multiple traffic classes, filter by port, IP address, DSCP,
and policing
Firewall
NAT, DMZ, Port Forwarding, SPI, UPnP
Auto Provisioning
Capability
Embedded provisioning controller to manage up to 300+ GWN series Wi-Fi APs
Management
Web, CLI
Power
• 802.3at PoE
• Included Power Supply: 12V/2A
• Max power consumption: 16W
P a g e | 14
GWN7000 User Manual
Environmental
• Operation: 0°C to 50°C
• Storage: -10°C to 60°C
• Humidity: 10% to 90% Non-condensing
Physical
Unit Dimensions: 200 x 136 x 37mm; Unit Weight: 570g
Entire Package Dimensions: 324 x 163.5 x 54mm; Entire Package Weight: 930g
Package Content
• GWN7000 Enterprise Router
• 12V/2A Power Adapter
• Quick Installation Guide
• GPL License
Compliance
FCC, CE, RCM, IC
P a g e | 15
GWN7000 User Manual
INSTALLATION
Before deploying and configuring the GWN7000, the device needs to be properly powered up and
connected to the network. This section describes detailed information on installation, connection and
warranty policy of the GWN7000.
Equipment Packaging
Table 2: GWN7000 Equipment Packaging
Main Case
Yes (1)
Power adaptor
Yes (1)
Quick Installation Guide
Yes (1)
GPL License
Yes (1)
Connect your GWN7000
Figure 1: GWN7000 Front View
P a g e | 16
GWN7000 User Manual
Figure 2: GWN7000 Back View
To set up the GWN7000, follow the steps below:
1. Connect one end of an RJ-45 Ethernet cable into the WAN1 or/and WAN2 port(s) of the
GWN7000.
2. Connect the other end of the Ethernet cable(s) into a DSL modem or router(s).
3. Connect the 12V DC power adapter into the power jack on the back of the GWN7000. Insert the
main plug of the power adapter into a surge-protected power outlet.
4. Wait for the GWN7000 to boot up and connect to internet/network. In the front of the GWN7000
the Power LED will be in solid green, and the WAN LED will flash in green.
5. Connect one of the LAN ports to your computer, the associated LED ports will flash in green.
6. (Optional) Connect LAN ports to your GWN76xx access points or/and other devices, the
associated LED ports will flash in green.
Safety Compliances
The GWN7000 Enterprise Router complies with FCC/CE and various safety standards. The GWN7000
power adapter is compliant with the UL standard. Use the universal power adapter provided with the
GWN7000 package only. The manufacturer’s warranty does not cover damages to the device caused by
unsupported power adapters.
Warranty
If the GWN7000 Enterprise Router was purchased from a reseller, please contact the company where the
device was purchased for replacement, repair or refund. If the device was purchased directly from
Grandstream, contact our Technical Support Team for a RMA (Return Materials Authorization) number
before the product is returned. Grandstream reserves the right to remedy warranty policy without prior
notification.
P a g e | 17
GWN7000 User Manual
GETTING STARTED
The GWN7000 Enterprise Router provides an intuitive web GUI configuration interface for easy
management to give users access to all the configurations and options for the GWN7000’s setup.
This section provides step-by-step instructions on how to read LED indicators and use Web GUI interface
of the GWN7000.
LED Indicators
The front panel of the GWN7000 has LED indicators for power and interfaces activities, the table below
describes the LED indicators status.
Table 3: LED Indicators
LED
Status
Indication
POWER
OFF
GWN7000 is powered off or abnormal power supply.
Solid green
GWN7000 is powered on correctly.
WAN (1,2)
Flashing green
GWN7000 is connected as a client to another network and
data is transferring.
Solid green
GWN7000 is connected as a client to another network and
there is no activity.
LAN (1,2,3,4,5)
Flashing green
A device is connected to the corresponding LAN port and
data is transferring.
Solid green
A device is connected to the corresponding LAN port and
there is no activity.
Use the WEB GUI
Access WEB GUI
The GWN7000 embedded Web server responds to HTTPS GET/POST requests. Embedded HTML pages
allow users to configure the device through a Web browser such as Microsoft IE, Mozilla Firefox, Google
Chrome.
P a g e | 18
GWN7000 User Manual
Figure 3: GWN7000 Web GUI Login Page
To access the Web GUI:
1. Connect a computer to a LAN Port of the GWN7000.
2. Ensure the device is properly powered up, and the Power, LAN port LEDs light up in green.
3. Open a Web browser on the computer and enter the web GUI URL in the following format:
https://192.168.1.1 (Default IP address).
4. Enter the administrator’s login and password to access the Web Configuration Menu. The default
administrator's username and password are "admin" and "admin".
Note: At first boot or after factory reset, users will be asked to change the default administrator and
user passwords before accessing GWN7000 web interface.
The password field is case sensitive with a maximum length of 32 characters. Using strong password
including letters, digits and special characters is recommended for security purposes.
P a g e | 19
GWN7000 User Manual
Figure 4: Change Password on first boot
At first login, a Setup Wizard tool will pop up to help going through the configuration setup, or exit to
configure manually. Setup Wizard can be accessed anytime by clicking on while on the web interface.
Figure 5: Setup Wizard
WEB GUI Languages
Currently the GWN7000 series web GUI supports English and Simplified Chinese.
To change default language, select the displayed language at the upper right of the web GUI either before
or after logging in.
P a g e | 20
GWN7000 User Manual
Figure 6: GWN7000 Web GUI Language
Figure 7: GWN7000 Web GUI Language
WEB GUI Configuration
GWN7000 web GUI includes 8 main sections to configure and manage the router and check connection
status.
• Overview: Provides an overall view of the GWN7000’s information presented in a Dashboard style for
easy monitoring.
• Router: Displays device’s status and used to configure ports settings such as IP configuration for
WAN ports, load balancing, failover, static routes, port mirroring, QoS and DDNS.
• Access Points: To add, pair and manage discovered access points.
• Clients: Shows and manages the list of the clients connected to LAN ports of the GWN7000 and
wireless clients connected via GWN76xx access points.
• VPN: Configures OpenVPN® Client/Server, PPTP and L2TP/IPSec client tunnels.
• Firewall: Basic and advanced Firewall configuration to securely manage router’s incoming/outgoing
traffic.
• Network Group: To add and manage wireless network groups using paired access points via VLANs.
• System Settings: For Maintenance and debugging features, as well as generating certificates and
file sharing.
P a g e | 21
GWN7000 User Manual
Overview Page
Overview is the first page shown after successful login to the GWN7000’s Web Interface. It provides an
overall view of the GWN7000’s information presented in a Dashboard style for easy monitoring.
Figure 8: Overview Page
It is used to show the status of the GWN7000 for different items, please refer to the following table for each
item:
Table 4: Overview
AP
Shows the number of Access Points that are Discovered, Paired
(Online) and Offline. Click on to go to Access Points’ page for
basic and advanced configuration options for the APs
Clients
Shows the total number of connected clients, and a count for clients
connected to each Channel. Click on to go to Clients page for
more options.
AP Channel Distribution
Shows the Channel used for all APs that are paired with this Access
Point.
P a g e | 22
GWN7000 User Manual
Top AP
Shows the Top APs list, assort the list by number of clients connected to
each AP or data usage combining upload and download. Click on
to go to Access Points page for basic and advanced configuration
options for the APs.
Top SSID
Shows the Top SSIDs list, assort the list by number of clients connected
to each SSID or data usage combining upload and download. Click on
to go to Network Group page for more options.
Top Clients
Shows the Top Clients list, assort the list of clients by their upload or
download. Click on to go to Clients page for more options.
Traffic
Shows the sent/received traffic data speeds on both WAN ports.
Note that Overview page in addition to other tabs can be updated each 15s, 1min, 2min, 5min or Never by
clicking in the upper bar menu (Default is 15s).
Save and Apply Changes
When clicking on "Save" button after configuring or changing any option on the web GUI pages. A
message mentioning the number of changes will appear on the upper menu.
Figure 9: Apply Changes
Click on button to apply changes, or to undo the changes.
P a g e | 23
GWN7000 User Manual
ROUTER CONFIGURATION
This section includes configuration pages for network WAN ports, static routes, QoS and DDNS and shows
also the router status.
Status
Status page displays Device Status to check MAC address, Part Number, Firmware related information
and Uptime for the GWN7000; and WAN Status showing general information about WAN Ports such as
uptime, current throughput, aggregate usage, and IP address.
Router’s Status page can be accessed from Web GUIRouterStatus.
Figure 10: Router's Status
P a g e | 24
GWN7000 User Manual
Ports Configuration
Connect to GWN7000’s Web GUI from a computer connected to a LAN port and go to RouterPort page
for Port configuration.
WAN Ports Settings
The GWN7000 has 2 WAN ports configured as DHCP clients by default. Each port can be connected with
DSL modem or routers.
WAN ports support also setting static IPv4/IPv6 addresses, and configure PPPoE for each WAN port.
Please refer to the following table for basic network configuration parameters on WAN ports for GWN7000.
Table 5: GWN7000 WEB GUIRouterPortWAN Port (1,2)
Enabled
Choose whether to enable or disable the WAN port.
WAN Address Type
Select "DHCP", "Static" or "PPPoE" mode on the WAN interfaces of GWN7000.
The default setting is "DHCP".
• DHCP
When selected, it will act as a DHCP client and acquire an IPv4 address
automatically from the DHCP server.
• Static
When selected, the user should set a static IPv4 address, Subnet Mask, IPv4
Gateway and adding Additional IPv4 Addresses as well.
• PPPoE
When selected, the user should set the PPPoE account and password,
PPPoE Keep alive interval and Inter-Key Timeout (in seconds).
Preferred IPv4 DNS
Enter the preferred DNS server address (IPv4 address). If Preferred DNS is set,
GWN7000 will use it in priority.
Alternate IPv4 DNS
Enter the Alternate DNS server address (IPv4 address). If Preferred DNS is set,
GWN7000 will use it in when the Preferred DNS fails.
Native IPv6
Used to enable assigning IPv6 address to GWN7000.
Once checked users will be able to configure following fields: “IPv6 Address
Assignment”, “Preferred IPv6 DNS”, “Alternate IPv6 DNS” and “IPv6 Relay to
LAN”.
IPv6 Address
Assignment
This option is appearing when enabling “Native IPv6” option.
Select "Auto" to get an IPv6 address from DHCP server or "Static" to configure
manually an IPv6 address. If set to Static, the following fields should be
configured:
• IPv6 Address/Prefix Length
Used to set an IPv6 address/Prefix length when using Static IPv6 option
Example: fec0:470:28:5b2::1/64
P a g e | 25
GWN7000 User Manual
• IPv6 Gateway
Used to define the Gateway’s IPv6 address.
• IPv6 Prefix/IPv6 Prefix Length
Enter the IPv6 prefix and IPv6 prefix length.
Example: ::1/64
Preferred IPv6 DNS
This option appears only when “Native IPv6” option is enabled.
It is used to set a preferred DNS server address (IPv6 address). If Preferred DNS
is set, GWN7000 will use it in priority.
Alternate IPv6 DNS
This option appears only when “Native IPv6” option is enabled.
It is used to set an Alternate DNS server address (IPv6 address). If Preferred DNS
is set, GWN7000 will use it in when the Preferred DNS fails.
IPv6 Relay to LAN
This option appears only when “Native IPv6” option is enabled.
When enabled the GWN7000 will relay IPv6 address to LAN clients
Multi-WAN
These options are used when both WAN ports are enabled and using Failover
feature:
• Tracking IP
Configures the tracking IP(s). ICMP packets are being used to track the IP(s)
address(es). When the tracking fails, the GWN7000 will use the secondary
WAN port as failover. Default IP used is 8.8.8.8.
• Tracking Timeout (sec)
Configures tracking timeout in seconds. Default value is 2.
• Tracking Interval (sec)
Configures the track interval in seconds. Default value is 5.
• Bandwidth
Specifies the bandwidth for the port, e.g: “100k”, “1M” or “100M”.
VLAN Tagging
Used to enable VLAN tagging. If set to “0” the VLAN tagging will be disabled,
otherwise set a VLAN value between 5 and 4093. Default is 0.
Tunnel
Tunnel page is used to set IPv6 tunnels on WAN ports via IPv6 tunnel brokers service providers, this
serves the purpose of transferring IPv6 packets over IPv4 Network. It supports creating 6in4, 6rd and
AICCU tunnels. Please refer to below tables for each tunnel type.
Table 6: 6In4 Tunnels
WAN Interface
Choose the WAN port on which to setup the 6in4 tunnel.
MTU
Set the Maximum Transmission Unit value.
The valid range is 64-9000.
Default value is 1500.
P a g e | 26
GWN7000 User Manual
6in4 IPv4 Peer
Address
Enter the IPv4 tunnel endpoint at the tunnel’s provider.
6in4 Tunnel Endpoint
IPv6 Address
Enter the local IPv6 address delegated to the tunnel endpoint.
Example: 2001:db8:2222::2/64
6in4 Routed Prefix
Set the routable prefix given by the tunnel provider to allow LAN clients to get
addresses from that prefix.
Tunnel ID
Specifies the tunnel’s ID.
Username
Set the username used to login into the tunnel broker.
Password
Set the password (used for endpoint update).
Update Key
Set the update key, it overrides the password used for endpoint update.
Table 7: 6rd Tunnels
WAN Interface
Choose the WAN port on which to setup the 6rd tunnel.
MTU
Set the Maximum Transmission Unit value.
The valid range is 64-9000.
Default value is 1500.
6rd IPv4 Peer
Address
Enter the IPv4 Peer address.
6rd IPv6 Address
Prefix
Specifies the IPv6 prefix given by the provider.
Example: 2001:B000::/32
IPv6 Prefix Length
Specifies the IPv6 prefix length (Value between 1 and 128).
Example: 32
IPv4 Prefix Length
Specifies the prefix length of the IPv4 transport address.
(Value between 1 and 32).
Table 8: AICCU Tunnels
WAN Interface
Choose the WAN port on which to setup the aiccu tunnel.
Username
Enter the Username (Provided by signing up with SixXS Tunnel Broker)
Password
Enter the Username’s password
Global Settings
This section specifies operating mode for multi-WAN that will be used for enabling/disabling Failover and
Load Balancing on WAN ports, and banning MAC addresses.
The following table shows the configuration parameters for Multi-WAN settings
P a g e | 27
GWN7000 User Manual
Table 9: GWN7000 WEB GUIRouterPortGlobal Settings
Multi-WAN
Three options are available:
• Disabled
• Failover
• Load Balance + Failover
Disabled
This will disable Multi-WAN feature
Failover
If chosen failover will be enabled on WAN ports, admins need to choose the
Primary WAN port to be used.
When selected, user can set Multi-WAN parameters on WAN ports.
Load Balance +
Failover
In addition to failover, load balance will be used on both ports to optimize the
resource utilization. Please note that for this feature to work, WAN ports should be
connected to different networks.
When selected, user can set Multi-WAN parameters on WAN ports.
Banned Client MAC
Shows the list of banned clients MAC addresses, other MAC addresses could be
also added by clicking on or removed by clicking on .
MAC Override
MAC Override feature is used to give a virtual MAC address to the GWN7000, in
order that any client connected to the Router will be using the entered MAC
address.
Note: Please make sure to enter the Override MAC address in lower cases.
Port Mirroring
With port mirroring enabled, the GWN7000 will send a copy of all network packets seen on one LAN port
to another port, where the packet can be analyzed. Refer to the below table for the available fields to
configure.
Table 10: Port Mirroring
Enable Outgoing
Mirroring
Check to enable outgoing mirroring for a LAN port. Default is “Disabled”
Enable Incoming
Mirroring
Check to enable incoming mirroring for a LAN port. Default is “Disabled”
Mirroring Port
Select which LAN port that will be mirroring traffic. Default is “Disabled”
Mirrored Port
Select which LAN port that will act as mirrored port. Default is “Disabled”
Static Routes
GWN7000 supports setting manually static IPv4 and IPv6 routes as well as displaying routing table entries.
Static routes configuration page can be accessed from GWN7000 WebGUIRouterStatic Routes:
P a g e | 28
GWN7000 User Manual
Three tabs are available:
- Routes to view routing table entries.
- IPv4 to create, edit or delete static IPv4 static routes.
- IPv6 to create, edit or delete static IPv6 static routes.
Following actions are available in both IPv4 and IPv6 tabs:
• To add a new static route, click on
• To edit a static route, click on
• To delete a static route, click on
Refer to the following tables when editing or creating IPv4/IPv6 static routes:
Table 11: IPv4 Static Routes
Name
Enter the Name of the static route to be configured.
Enabled
Select whether to enable or disable this static route.
Source Group
Choose the LAN’s Network Group, which will be using this static route.
Target Network/Host
Enter the Network/Host IP address on which to route the traffic to.
Example: 192.168.5.0
Netmask
Enter the Network/Host Netmask.
Example: 255.255.255.0
Gateway
Enter the Gateway’s IP address.
Example: 192.168.5.1.
Metric
Set the metric value. The valid range is 0-255. Default value is 1.
Table 12: IPv6 Static Routes
Name
Enter the Name of the static route to be configured.
Enable
Select whether to enable or disable this static route.
Group
Choose the LAN’s Network Group
Target Network/Host
Enter the Network/Host IP address on which to route the traffic to.
2001:db8:3c4d:4::/64
Gateway
Enter the Gateway’s IP address.
fec0:470:28:5b2::1/64
Metric
Set the metric value. The valid range is 0-255. Default value is 1.
P a g e | 29
GWN7000 User Manual
QoS
The GWN7000 offers the possibility to enable and configure QoS on both WAN and LAN interfaces, this
will help to manage in more depth the network traffic to define priority and classify different services and
protocols in a scheduled manner.
Figure 11: QoS
To activate QoS, check “Enable QoS”. Three tabs are available for configuration:
• Basic: Download and upload bandwidth speeds settings on each WAN interface.
• Upstream QoS: Upstream QoS allows creating Traffic Classes to prioritize traffic for specific
resources on the network by controlling transmission/upload rate. Note that different classes can be
created and assigned as Traffic filters by respecting following conditions:
✓ The total of Upstream bandwidth values of each created class should not exceed the
upstream bandwidth value configured in Basic.
✓ The remaining bandwidth will be lent to the next priority level of class.
✓ All filter options are summed together.
• Policer: While Upstream QoS is dealing with traffic transmission, Policer is controlling the incoming
traffic. Thus, allowing to create rules to specific targets to set priority and received traffic rate, giving
the GWN7000 the ability to drop the exceeding traffic when reaching the configured maximum rate.
Refer to the following tables for each tab option:
Table 13: QoS Basic
Enabled
Check to enable upstream and downstream bandwidth speeds for the selected
WAN interface.
Upstream
Set the Upstream value to specify the upload bandwidth for selected interface, the
P a g e | 30
GWN7000 User Manual
value should end with Mbit, Kbit or with no unit if the set value is referring to “bit”
unit.
Note that the set value will affect and limit the bandwidth values on created
classes on QoS Upstream.
Examples: 500Mbit
100Kbit
500
Downstream
Set the Downstream value to specify the download bandwidth speed for selected
interface, the value should end with “Mbit”, “Kbit” or with no unit if the set value is
referring to “bit” unit.
Examples: 1000Mbit
100Kbit
500
Table 14: Upstream QoS
Traffic Class
Name
Define a name for the traffic class.
Priority
Set the priority of the traffic class, the lower the value, the highest the priority.
Valid range is between 1 and 64.
Interface
Select the WAN interface from which the traffic will be classified, make sure to
enable the desired interface it from QoS Basic in order to appear.
Upstream
Set Upstream bandwidth value. The value should end with “Mbit”, “Kbit” or with no
unit if the set value is referring to “bit” unit.
Note that the sum of created classes should have upstream bandwidth speeds
lower than the Upstream bandwidth value configured on QoS Basic.
Examples: 100Mbit
100Kbit
500
Traffic Filter
Class
Select a class from created traffic classes using drop-down menu.
Name
Define a Name for the traffic filter rule.
DSCP
Choose the Differentiated Services Code Point (DSCP) value from drop-down list.
Default is 0.
IP Source Address
Specify the Source IP address from which the traffic filter rule will be applied.
IP Destination
Address
Specify the Destination IP address to which the traffic filter rule will be applied.
TCP Source Port
Specify the TCP Source port from which the traffic filter rule will be applied.
TCP Destination Port
Specify the TCP Source port to which the traffic filter rule will be applied.
